This document provides specifications for an AC 1 Ph 6540 TENV motor with a PS 1900 20:1 ratio gearbox. Key details include a voltage of 115V, speed of 3060 rpm, output of 152.9 rpm and 13.2lb-in of torque. Performance charts show speed, torque and efficiency at varying loads from start up to maximum output. The motor has a continuous duty cycle and efficiency of 49.4% for the motor alone and 33.5% for the overall system. It is rated for 152.9 rpm output with a 0.62 amp current and 24 watts of power.

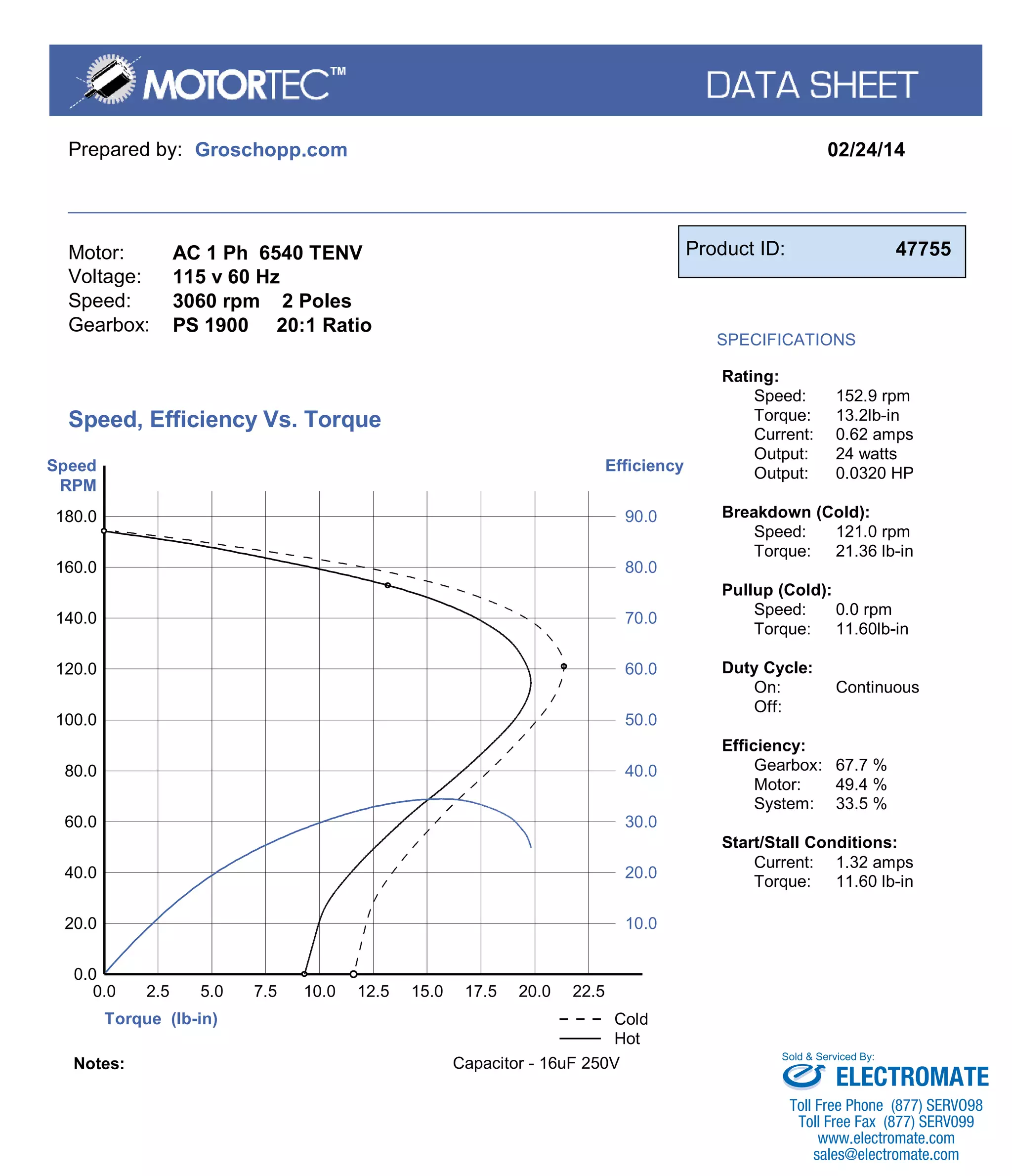

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
AC 1 Ph 6540 TENV
115 v 60 Hz
3060 rpm 2 Poles
PS 1900 20:1 Ratio
Product ID: 47755
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
152.9 rpm
13.2lb-in
0.62 amps
24 watts
0.0320 HP
Breakdown (Cold):
Speed:
Torque:
121.0 rpm
21.36 lb-in
Pullup (Cold):
Speed:
Torque:
0.0 rpm
11.60lb-in
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
67.7 %
49.4 %
33.5 %
Start/Stall Conditions:
Current:
Torque:
1.32 amps
11.60 lb-in
Torque (lb-in)
Speed
RPM
Efficiency
20.0
0.0
0.0
2.5
40.0
5.0
60.0
7.5
80.0
10.0
100.0
12.5
120.0
15.0
140.0
17.5
160.0
20.0
180.0
22.5
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes: Capacitor - 16uF 250V
