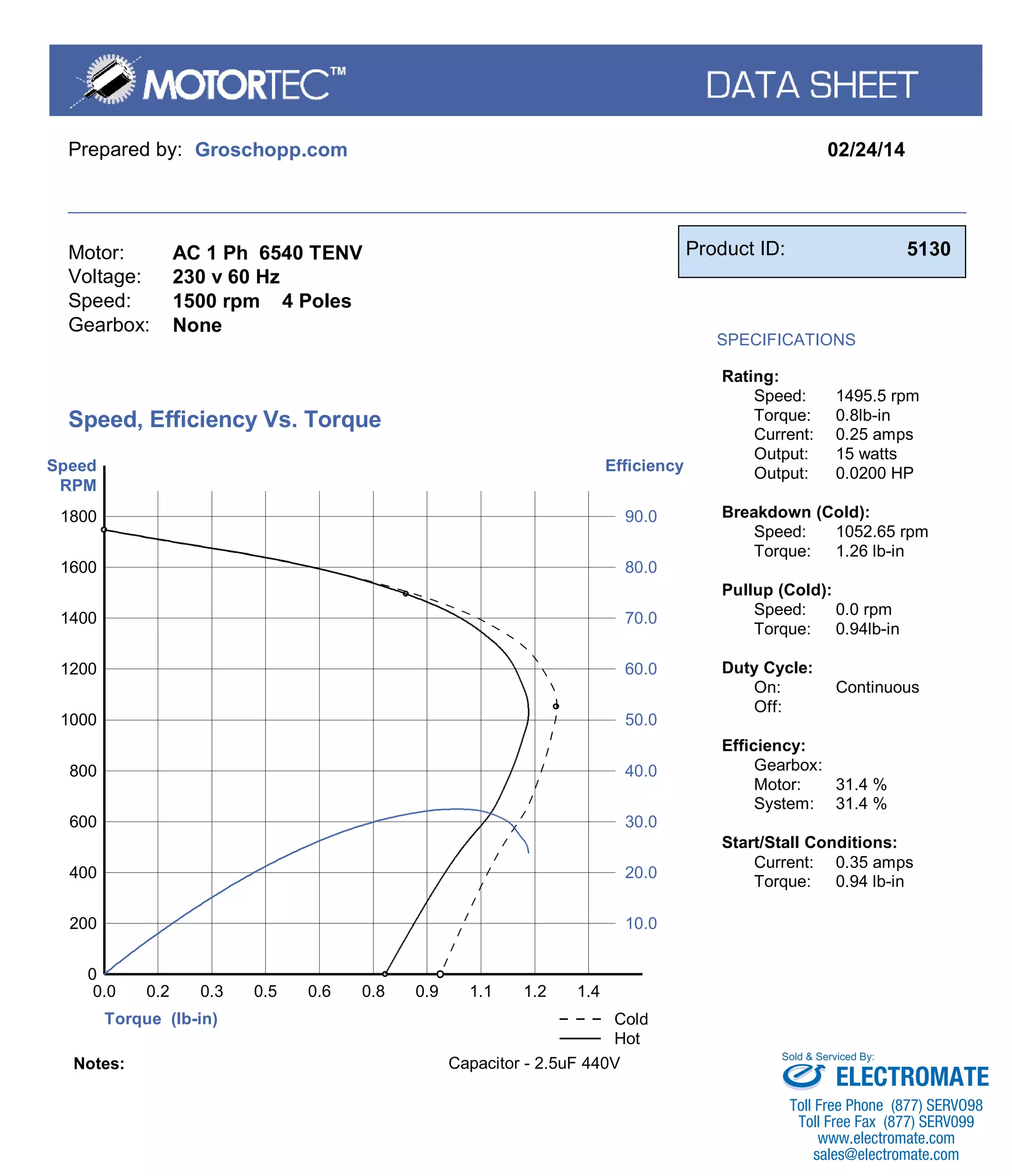

This document provides specifications for an AC 1 Ph 6540 TENV motor with a voltage of 230V, speed of 1500 rpm, output of 15 watts, and efficiency of 31.4%. The motor draws 0.25 amps of current at full speed of 1495.5 rpm and generates 0.8 lb-in of torque. Charts show the motor's speed and torque characteristics when cold and hot, with torque ranging from 0 to 1.4 lb-in over 0 to 1800 rpm.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
AC 1 Ph 6540 TENV
230 v 60 Hz
1500 rpm 4 Poles
None
Product ID: 5130
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
1495.5 rpm
0.8lb-in
0.25 amps
15 watts
0.0200 HP
Breakdown (Cold):
Speed:
Torque:
1052.65 rpm
1.26 lb-in
Pullup (Cold):
Speed:
Torque:
0.0 rpm
0.94lb-in
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
31.4 %
31.4 %
Start/Stall Conditions:
Current:
Torque:
0.35 amps
0.94 lb-in
Torque (lb-in)
Speed
RPM
Efficiency
200
0
0.0
0.2
400
0.3
600
0.5
800
0.6
1000
0.8
1200
0.9
1400
1.1
1600
1.2
1800
1.4
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes: Capacitor - 2.5uF 440V
