1. Green hydrogen from renewable energy
sources – Let’s do businesses together!
1
GreenHydrogen provides innovative, modular and scalable electrolysers
for energy storage and industry applications with focus on lowest
possible Total Cost of Ownership.
2018
H2 Business
HENRIK STEEN PEDERSEN, EXECUTIVE VICE PRESIDENT, SALES
M. +33 626 50 21 34
hsp@greenhydrogen.dk

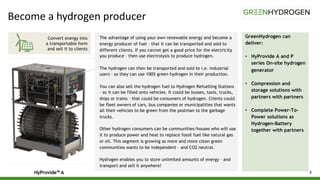

2. Convert energy into
a transportable form
and sell it to clients
2
Become a hydrogen producer
GreenHydrogen can
deliver:
• HyProvide A and P
series On-site hydrogen
generator
• Compression and
storage solutions with
partners with partners
• Complete Power-To-
Power solutions as
Hydrogen-Battery
together with partners
The advantage of using your own renewable energy and become a
energy producer of fuel – that it can be transported and sold to
different clients. If you cannot get a good price for the electricity
you produce – then use electrolysis to produce hydrogen.
The hydrogen can then be transported and sold to i.e. industrial
users – so they can use 100% green hydrogen in their production.
You can also sell the hydrogen fuel to Hydrogen Refuelling Stations
– so it can be filled onto vehicles. It could be busses, taxis, trucks,
ships or trains – that could be consumers of hydrogen. Clients could
be fleet owners of cars, bus companies or municipalities that wants
all their vehicles to be green from the postman to the garbage
trucks.
Other hydrogen consumers can be communities/houses who will use
it to produce power and heat to replace fossil fuel like natural gas
or oil. This segment is growing as more and more clean green
communities wants to be independent – and CO2 neutral.
Hydrogen enables you to store unlimited amounts of energy – and
transport and sell it anywhere!
HyProvide™ A

3. 3
Energy
generation
Produce and sell hydrogen locally!
Electrolysis
Hydrogen Refuelling
Station
Energy stored in H2
Compression
H2 Storage –
to be
transported
Hydrogen
consumption
Compressed H2
Industrial consumption
Heat and electricity

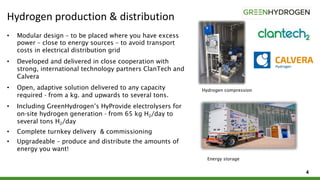

4. Hydrogen production & distribution
4
• Modular design – to be placed where you have excess
power – close to energy sources – to avoid transport
costs in electrical distribution grid
• Developed and delivered in close cooperation with
strong, international technology partners ClanTech and
Calvera
• Open, adaptive solution delivered to any capacity
required - from a kg. and upwards to several tons.
• Including GreenHydrogen’s HyProvide electrolysers for
on-site hydrogen generation - from 65 kg H2/day to
several tons H2/day
• Complete turnkey delivery & commissioning
• Upgradeable – produce and distribute the amounts of
energy you want!
Hydrogen compression
Energy storage

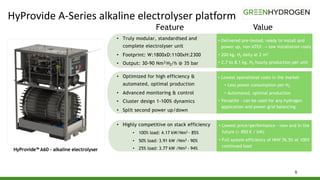

5. 5
HyProvide A-Series alkaline electrolyser platform
• Truly modular, standardised and
complete electrolyser unit
• Footprint: W:1800xD:1100xH:2300
• Output: 30-90 Nm3 H2/h @ 35 bar
• Delivered pre-tested, ready to install and
power up, non ATEX → low installation costs
• 200 kg. H2 daily at 2 m2
• 2.7 to 8.1 kg. H2 hourly production per unit
HyProvide™ A60 – alkaline electrolyser
Feature Value
• Optimized for high efficiency &
automated, optimal production
• Advanced monitoring & control
• Cluster design 1-100% dynamics
• Split second power up/down
• Lowest operational costs in the market
• Less power consumption per H2
• Automated, optimal production
• Versatile – can be used for any hydrogen
application and power grid balancing
• Highly competitive on stack efficiency
• 100% load: 4.17 kW/Nm3 - 85%
• 50% load: 3.91 kW /Nm3 - 90%
• 25% load: 3.77 kW /Nm3 - 94%
• Lowest price/performance - now and in the
future (< 850 € / kW)
• Full system efficiency of HHV 76.5% at 100%
continued load

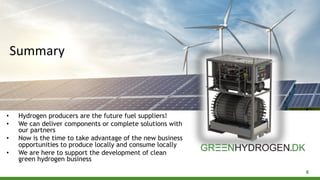

6. • Hydrogen producers are the future fuel suppliers!
• We can deliver components or complete solutions with
our partners
• Now is the time to take advantage of the new business
opportunities to produce locally and consume locally
• We are here to support the development of clean
green hydrogen business
Summary
6
