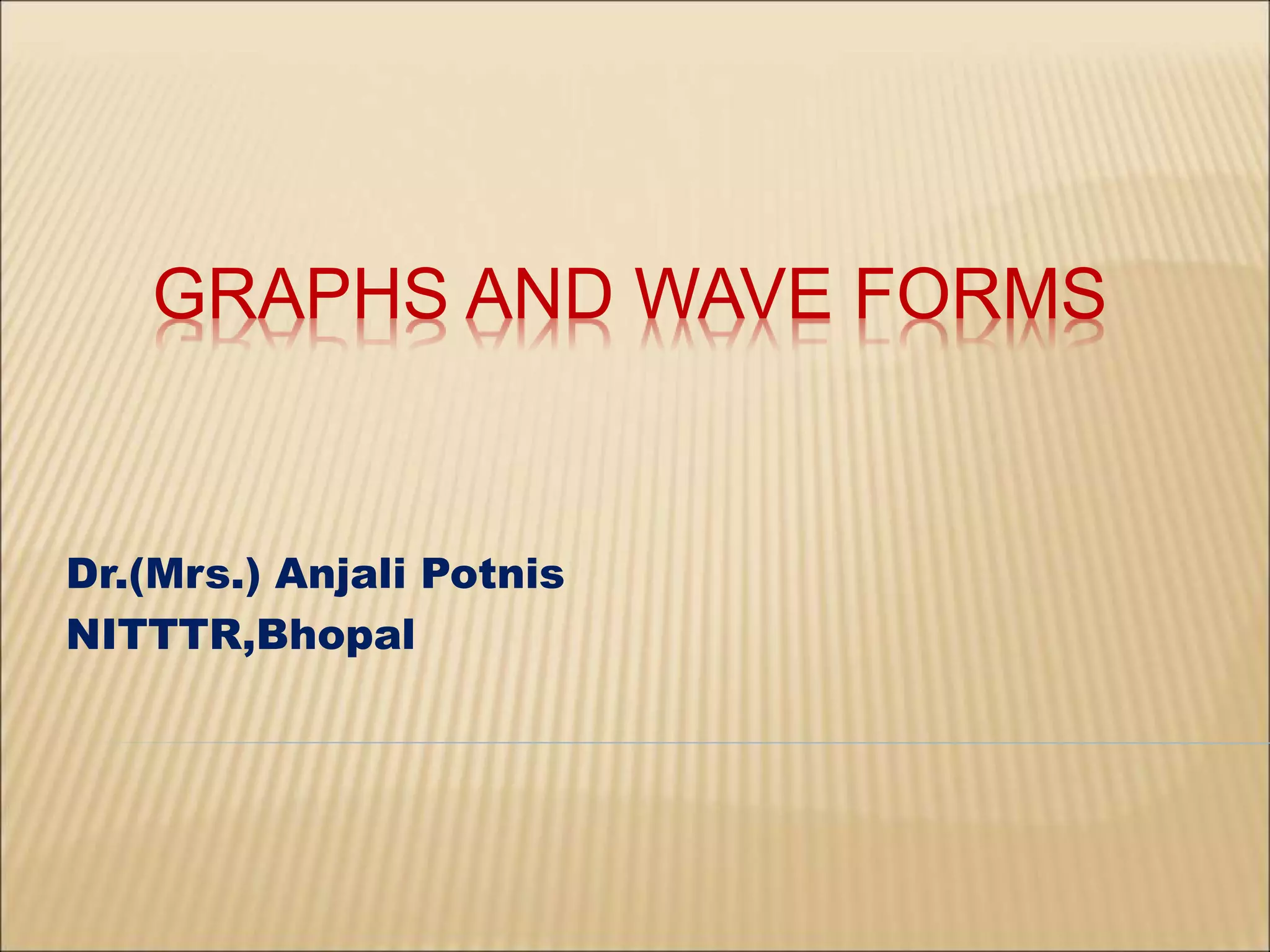

1. GRAPHS AND WAVE FORMS
Dr.(Mrs.) Anjali Potnis
NITTTR,Bhopal

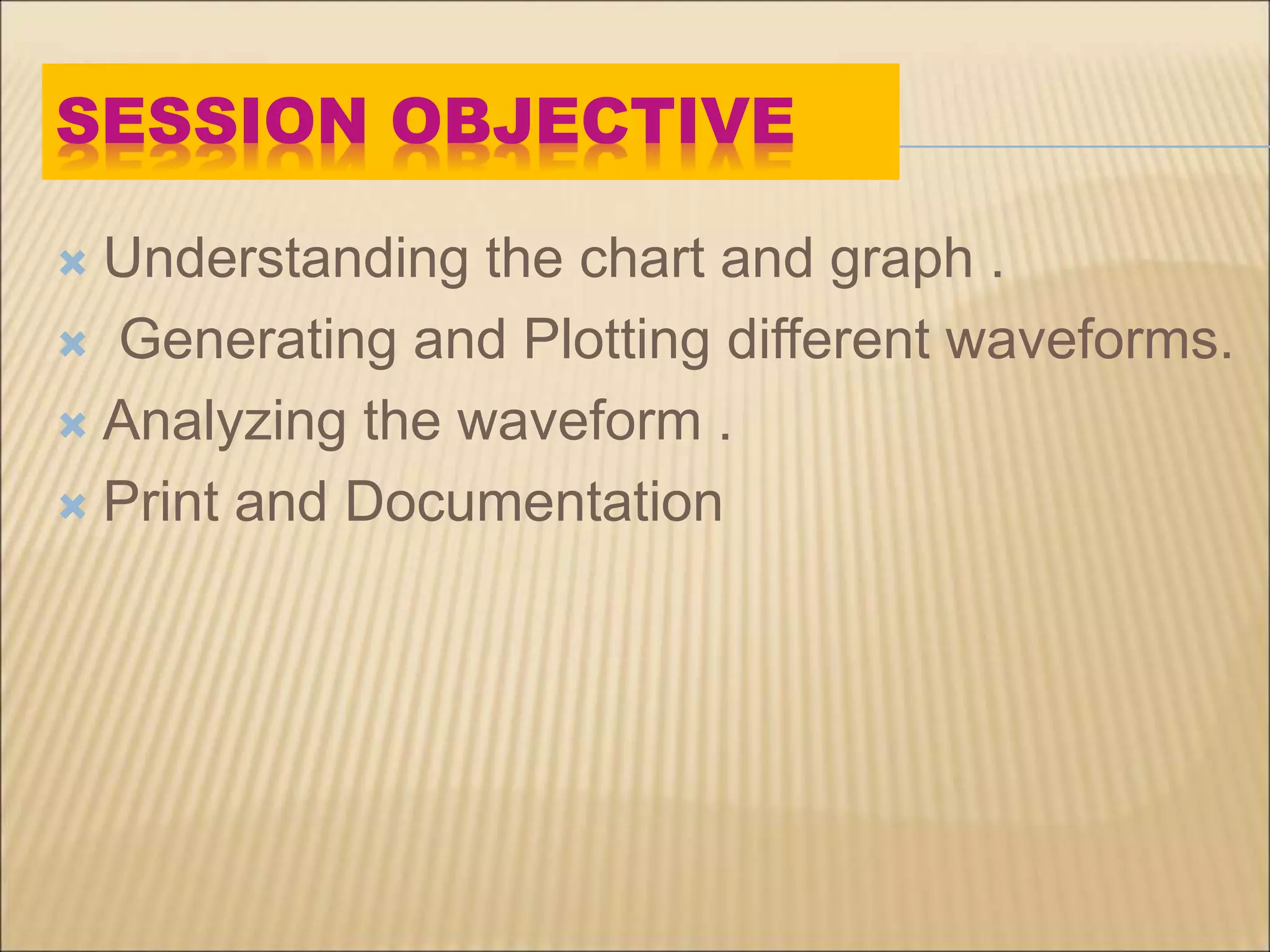

2. SESSION OBJECTIVE
 Understanding the chart and graph .
 Generating and Plotting different waveforms.
 Analyzing the waveform .
 Print and Documentation

3. TYPES OF WAVEFORMS
 Waveform graphs and charts
 XY graphs
 Intensity graphs and charts
 Digital waveform graphs
 Windows 3D Graphs

4.  Single and multiple trace
 Basic structures used for the plotting of
data are arrys, Clusters and bundles .

5. DIFFERENCE BETWEEN GRAPHS AND CHARTS
 Charts:- Charts interactively plot data,
appending new data to old so the current
value can be append to the old in the context
of previous data.
 Graphs:- Graphs plots pre- generated arrays
of values without retaining previously
generated data.
 In both the case data is acquired at a
constant rate.

6. WAVEFORM CHARTS
Waveform chart – special
numeric indicator that can
display a history of values
Controls >> Graph Indicators
>> Waveform Chart

7. GRAPHS
 Selected from the Graph palette of Controls
menu
Controls>>All Controls>>Graphs
Waveform Graph – Plot an array of
numbers against their indices
Express XY Graph – Plot one array against
another
Digital Waveform Graph – Plot bits from
binary data

8. EXAMPLE

9. WIRING DATA INTO CHARTS
Single Plot Charts Multiplot Charts
Functions >> Signal
Manipulation >>Merge Signal

10. EXERCISE – USING WAVEFORM GRAPHS

11. WIRING DATA INTO CHARTS
Single Plot Charts Multiplot Charts

12. WAVEFORM CHART
 It is a special numeric indicator that display
one or more plots.
 Waveform chart types are as follows
Strip chart
Scope chart
Sweep chart

13. WAVEFORM CHART USING WHILE LOOP

14. WAVEFORM GRAPHS
 Waveform Graphs and XY graphs are
displayed data from an array .
 Build array function is used for the multiple
data display.

15.  Display of Single and Multiple plots on a
Waveform Graphs
 Display of Single and Multiple plots on a
Waveform Charts

16. CREATE A GRAPH USING FORMULA EDITOR

17. ARRAYS & FILE I/O
 Build arrays manually
 Have LabVIEW build arrays automatically
 Write to a spreadsheet file
 Read from a spreadsheet file

18. CREATING 2D ARRAYS

20. FILE I/O
File I/O – passing data to and from files
- Files can be binary, text, or spreadsheet
- Write/Read LabVIEW Measurements file (*.lvm)
Writing to LVM file Reading from LVM file

21. WRITE LABVIEW MEASUREMENT FILE
 Includes the open, write, close and error handling
functions
 Handles formatting the string with either a tab or
comma delimiter
 Merge Signals function is used to combine data into
the dynamic data type

22. USING WAVEFORM GRAPHS

23. PRINTING & DOCUMENTATION
 Print From File Menu to Printer, HTML, Rich
Text File
 Programmatically Print Graphs or Front
Panel Images
 Document VIs in VI Properties »
Documentation Dialog
 Add Comments Using Free Labels on Front
Panel & Block Diagram

24. PRINTING
 File » Print… Gives Many Printing Options
 Choose to Print Icon, Front Panel, Block Diagram, VI
Hierarchy, Included SubVIs, VI History
 Print Panel.vi (Programmatically Prints a Front
Panel)
 Functions » All Functions » Application Control
 Generate & Print Reports (Functions » Output »
Report)

25. DOCUMENTING VIS
 VI Properties » Documentation
 Provide a Description and Help Information for a
VI
 VI Properties » Revision History
 Track Changes Between Versions of a VI
 Individual Controls » Description and Tip…
 Right Click to Provide Description and Tip Strip
 Use Labeling Tool to Document Front
Panels & Block Diagrams

26. PRACTICE SESSION

28. EXAMPLE FUNCTION GENERATOR

31. DECIMAL TO BINARY CONVERSION
