- 1. Automatic Non-functional Testingof Code Generators Families Mohamed BOUSSAA Olivier BARAIS Gerson SUNYE Benoit BAUDRY 2016 IEEE International Conference on Software Quality, Reliability & Security (QRS 2016) August 1-3, 2016 - Vienna, Austria INRIA Rennes, France 15th International Conference on Generative Programming: Concepts & Experiences (GPCE 2016) Amsterdam, Netherlands, October 31 – November 1, 2016 1
- 2. a1. Context a2. Motivation a3.Automatic Non-functional Testing of Code Generators Families a4. Performance Evaluation a5. Conclusion Outline 2

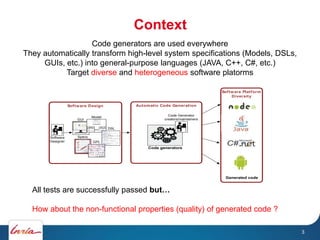

- 3. Context 3 Software Platform Diversity Software DesignAutomatic Code Generation Software Designer DSL Model GPL Specs GUI Code Generator creators/maintainers Code generators Generated code All tests are successfully passed but… How about the non-functional properties (quality) of generated code ? Code generators are used everywhere They automatically transform high-level system specifications (Models, DSLs, GUIs, etc.) into general-purpose languages (JAVA, C++, C#, etc.) Target diverse and heterogeneous software platorms

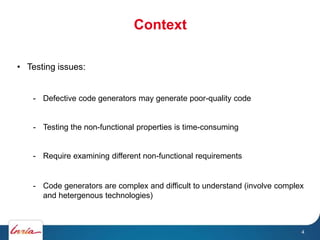

- 4. Context 4 • Testing issues: -Defective code generators may generate poor-quality code - Testing the non-functional properties is time-consuming - Require examining different non-functional requirements - Code generators are complex and difficult to understand (involve complex and hetergenous technologies)

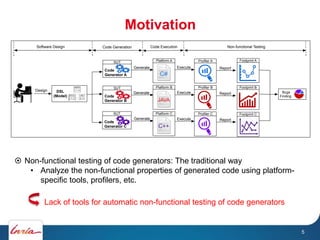

- 5. Motivation 5 Non-functional testingof code generators: The traditional way • Analyze the non-functional properties of generated code using platform- specific tools, profilers, etc. Lack of tools for automatic non-functional testing of code generators Footprint C Footprint A DSL (Model) SUT SUT SUT Design Generate Generate Generate Code Generator A Code Generator B Code Generator C Execute Execute Execute C++ Platform C Platform B Platform A JAVA C# Profiler A Profiler B Profiler C Bugs Finding Report Report Report Footprint B Code Generation Non-functional TestingCode ExecutionSoftware Design
- 6. Automatic Non-functional Testingof Code Generators Families https://testingcodegenerators.wordpress.com 6

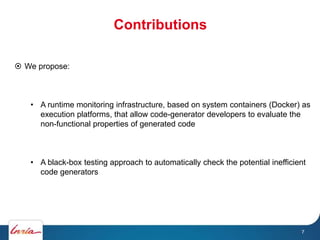

- 7. Contributions 7 We propose: •A runtime monitoring infrastructure, based on system containers (Docker) as execution platforms, that allow code-generator developers to evaluate the non-functional properties of generated code • A black-box testing approach to automatically check the potential inefficient code generators

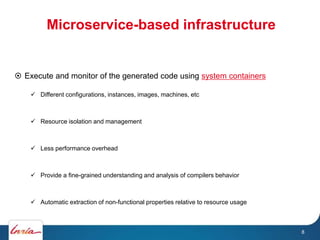

- 8. Microservice-based infrastructure 8 Executeand monitor of the generated code using system containers Different configurations, instances, images, machines, etc Resource isolation and management Less performance overhead Provide a fine-grained understanding and analysis of compilers behavior Automatic extraction of non-functional properties relative to resource usage

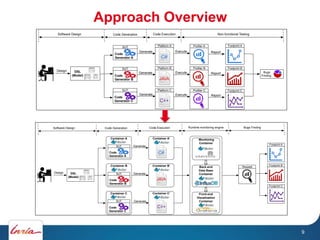

- 9. Approach Overview 9 Footprint C FootprintA DSL (Model) SUT SUT SUT Design Generate Generate Generate Code Generator A Code Generator B Code Generator C Execute Execute Execute C++ Platform C Platform B Platform A JAVA C# Profiler A Profiler B Profiler C Bugs Finding Report Report Report Footprint B Code Generation Non-functional TestingCode ExecutionSoftware Design Container C Container B Container A DSL (Model) SUT SUT SUT Design Generate Generate Generate Code Generator A Code Generator B Code Generator C Code Generation Runtime monitoring engineCode ExecutionSoftware Design Container A’ C# Container B’ Container C’ Monitoring Container Back-end Data Base Container Front-end Visualization Container JAVA C++ Footprint C’ Footprint A’ REST Calls Footprint B’Request Bugs Finding

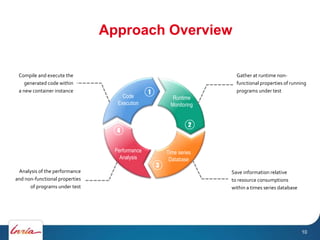

- 10. Approach Overview 000 000 Compile andexecute the generated code within a new container instance Gather at runtime non- functional properties of running programs under test Save information relative to resource consumptions within a times series database Analysis of the performance and non-functional properties of programs under test 1 2 3 4 Code Execution Runtime Monitoring Time series Database Performance Analysis 10

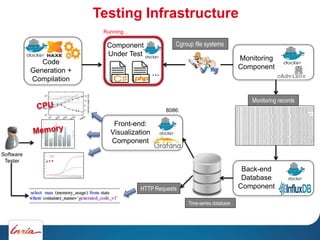

- 11. Testing Infrastructure Component Under Test Back-end Database Component Cgroupfile systems Running… Monitoring records Front-end: Visualization Component Time-series database HTTP Requests 11 8086: Monitoring Component … Code Generation + Compilation Software Tester

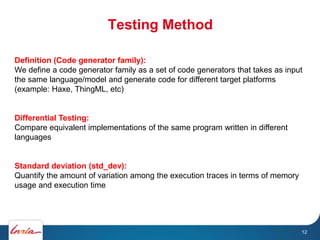

- 12. Testing Method 12 Definition (Codegenerator family): We define a code generator family as a set of code generators that takes as input the same language/model and generate code for different target platforms (example: Haxe, ThingML, etc) Differential Testing: Compare equivalent implementations of the same program written in different languages Standard deviation (std_dev): Quantify the amount of variation among the execution traces in terms of memory usage and execution time

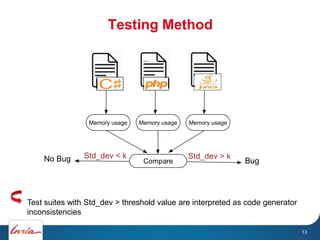

- 13. Testing Method 13 Test suiteswith Std_dev > threshold value are interpreted as code generator inconsistencies … Memory usage Memory usage Memory usage Compare Std_dev > kStd_dev < k BugNo Bug
- 14.

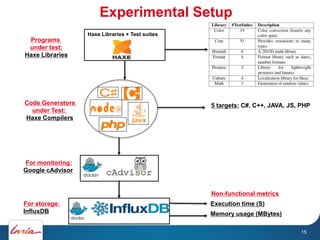

- 15. Experimental Setup Haxe Libraries+ Test suites For monitoring: Google cAdvisor For storage: InfluxDB Execution time (S) Programs under test: Haxe Libraries Code Generators under Test: Haxe Compilers Non-functional metrics Memory usage (MBytes) 15 5 targets: C#, C++, JAVA, JS, PHP

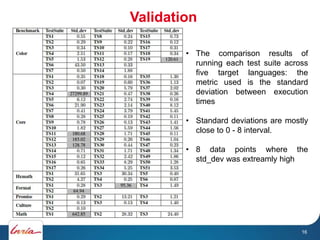

- 16. Validation 16 • The comparisonresults of running each test suite across five target languages: the metric used is the standard deviation between execution times • Standard deviations are mostly close to 0 - 8 interval. • 8 data points where the std_dev was extreamly high

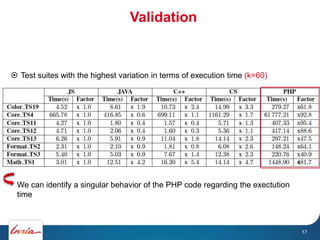

- 17. Validation 17 Test suiteswith the highest variation in terms of execution time (k=60) We can identify a singular behavior of the PHP code regarding the exectution time

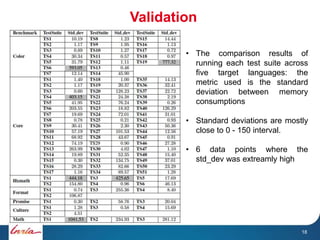

- 18. Validation 18 • The comparisonresults of running each test suite across five target languages: the metric used is the standard deviation between memory consumptions • Standard deviations are mostly close to 0 - 150 interval. • 6 data points where the std_dev was extreamly high

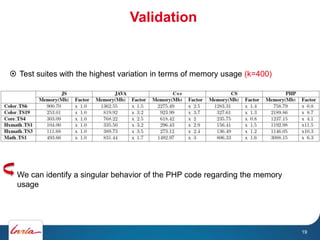

- 19. Validation 19 Test suiteswith the highest variation in terms of memory usage (k=400) We can identify a singular behavior of the PHP code regarding the memory usage

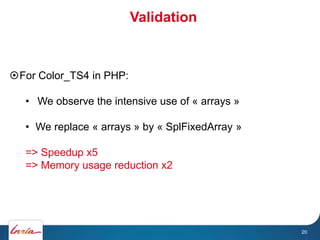

- 20. Validation 20 For Color_TS4 inPHP: • We observe the intensive use of « arrays » • We replace « arrays » by « SplFixedArray » => Speedup x5 => Memory usage reduction x2
- 21.

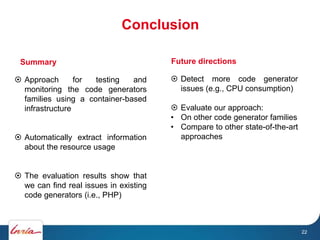

- 22. Conclusion 22 Approach fortesting and monitoring the code generators families using a container-based infrastructure Automatically extract information about the resource usage The evaluation results show that we can find real issues in existing code generators (i.e., PHP) Summary Detect more code generator issues (e.g., CPU consumption) Evaluate our approach: • On other code generator families • Compare to other state-of-the-art approaches Future directions 22
- 23.

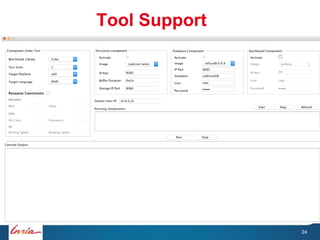

- 24.

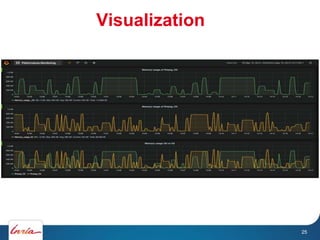

- 25.

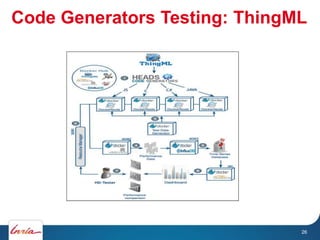

- 26. 26 Code Generators Testing:ThingML
