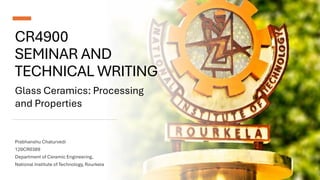

1. CR4900
SEMINAR AND
TECHNICAL WRITING
Glass Ceramics: Processing
and Properties

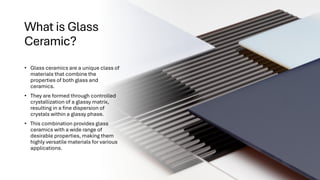

2. What is Glass
Ceramic?
• Glass ceramics are a unique class of
materials that combine the
properties of both glass and
ceramics.
• They are formed through controlled
crystallization of a glassy matrix,
resulting in a fine dispersion of
crystals within a glassy phase.
• This combination provides glass
ceramics with a wide range of
desirable properties, making them
highly versatile materials for various
applications.

3. Composition of
Glass Ceramics
• Glass ceramics are primarily
composed of silica (SiO2) as the main
glass-forming component, along with
other oxides such as alumina (Al2O3),
titania (TiO2), and zirconia (ZrO2).
• Nucleating agents such as titanium
dioxide (TiO2) and zirconium dioxide
(ZrO2) are added to promote
crystallization during heat treatment.
• The composition is carefully tailored to
achieve desired properties such as
mechanical strength, thermal stability,
and chemical resistance.

4. Processing Steps
• Batching: The raw materials are mixed in precise
proportions to achieve the desired composition.
• Melting: The batch is melted at high temperatures in a
furnace to form a homogeneous melt.
• Forming: The molten glass is shaped into desired forms
through methods like casting, pressing, or molding.
• Crystallization: The shaped glass undergoes controlled
cooling to induce crystallization, promoting the growth
of crystals within the glassy matrix.
• Annealing: Internal stresses are relieved through
controlled cooling, ensuring the final product has the
desired properties.

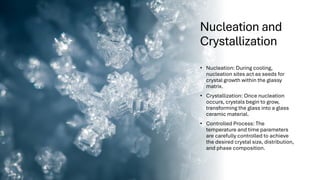

5. Nucleation and
Crystallization
• Nucleation: During cooling,
nucleation sites act as seeds for
crystal growth within the glassy
matrix.
• Crystallization: Once nucleation
occurs, crystals begin to grow,
transforming the glass into a glass
ceramic material.
• Controlled Process: The
temperature and time parameters
are carefully controlled to achieve
the desired crystal size, distribution,
and phase composition.

6. Nucleating
Agents
• Nucleating agents play a
crucial role in initiating
crystallization and controlling
crystal growth.
• Common nucleating agents
include titanium dioxide (TiO2)
and zirconium dioxide (ZrO2),
which provide nucleation sites
for crystal formation.
• The type and concentration of
nucleating agents significantly
impact the properties of the
final glass ceramic product.

7. Applications of Glass Ceramics
Cookware: Glass ceramics
are widely used in
cookware such as
stovetops, bakeware, and
microwave-safe dishes
due to their thermal shock
resistance and durability.
Dental Restorations: They
are used in dental
applications for crowns,
bridges, and dental
implants due to their
biocompatibility and
aesthetics.
Electronics: Glass
ceramics find applications
in electronics as
substrates for integrated
circuits, insulators, and as
dielectric materials due to
their electrical properties.
Optics: In optics, they are
used for telescope mirrors,
laser housings, and high-
performance lenses due to
their optical clarity and
thermal stability.
Medical: Glass ceramics
are used for biomedical
applications such as bone
implants and prosthetic
devices due to their
biocompatibility and
bioactivity.

8. Properties of Glass Ceramics
Mechanical Strength: Glass ceramics
exhibit high compressive strength and
toughness, making them resistant to
mechanical loads and impact.
Thermal Stability: They have excellent
thermal shock resistance and low
thermal expansion coefficients, enabling
them to withstand rapid temperature
changes without fracturing.
Electrical Insulation: Glass ceramics are
excellent electrical insulators, making
them suitable for high-voltage
applications.
Chemical Resistance: They are highly
resistant to chemical attack from acids,
bases, and solvents, making them
suitable for harsh environments.

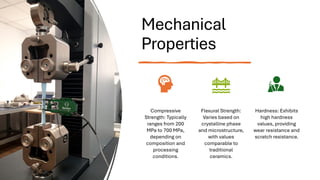

9. Mechanical
Properties
Compressive
Strength: Typically
ranges from 200
MPa to 700 MPa,
depending on
composition and
processing
conditions.
Flexural Strength:
Varies based on
crystalline phase
and microstructure,
with values
comparable to
traditional
ceramics.
Hardness: Exhibits
high hardness
values, providing
wear resistance and
scratch resistance.

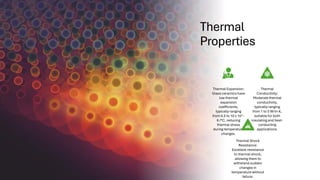

10. Thermal
Properties
Thermal Expansion:
Glass ceramics have
low thermal
expansion
coefficients,
typically ranging
from 0.5 to 10 x 10^-
6 /°C, reducing
thermal stress
during temperature
changes.
Thermal
Conductivity:
Moderate thermal
conductivity,
typically ranging
from 1 to 5 W/m·K,
suitable for both
insulating and heat-
conducting
applications.
Thermal Shock
Resistance:
Excellent resistance
to thermal shock,
allowing them to
withstand sudden
changes in
temperature without
failure.

11. Chemical Properties
Chemical Durability:
Glass ceramics are
highly resistant to
chemical attack
from acids, bases,
and solvents,
ensuring long-term
stability in harsh
environments.
Biocompatibility:
They are
biocompatible
materials, suitable
for use in medical
implants and
prosthetic devices.
Hydrolytic Stability:
Glass ceramics
exhibit excellent
resistance to water
absorption and
degradation,
maintaining their
properties over time.

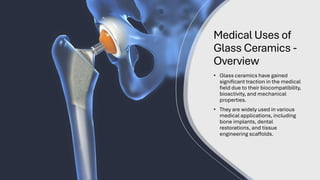

12. Medical Uses of
Glass Ceramics -
Overview
• Glass ceramics have gained
significant traction in the medical
field due to their biocompatibility,
bioactivity, and mechanical
properties.
• They are widely used in various
medical applications, including
bone implants, dental
restorations, and tissue
engineering scaffolds.

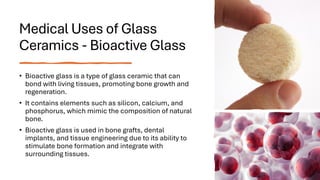

13. Medical Uses of Glass
Ceramics - Bioactive Glass
• Bioactive glass is a type of glass ceramic that can
bond with living tissues, promoting bone growth and
regeneration.
• It contains elements such as silicon, calcium, and
phosphorus, which mimic the composition of natural
bone.
• Bioactive glass is used in bone grafts, dental
implants, and tissue engineering due to its ability to
stimulate bone formation and integrate with
surrounding tissues.

14. Bioactive Glass -
How it Works
• Bioactive glass promotes bone
regeneration through a process
called "bioactivity."
• When in contact with bodily
fluids, bioactive glass forms a
layer of hydroxycarbonate
apatite (HCA) on its surface,
similar to the mineral phase of
natural bone.
• This HCA layer acts as a scaffold
for bone growth, facilitating the
integration of the implant with
surrounding tissue.

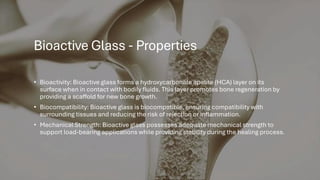

15. Bioactive Glass - Properties
• Bioactivity: Bioactive glass forms a hydroxycarbonate apatite (HCA) layer on its
surface when in contact with bodily fluids. This layer promotes bone regeneration by
providing a scaffold for new bone growth.
• Biocompatibility: Bioactive glass is biocompatible, ensuring compatibility with
surrounding tissues and reducing the risk of rejection or inflammation.
• Mechanical Strength: Bioactive glass possesses adequate mechanical strength to
support load-bearing applications while providing stability during the healing process.

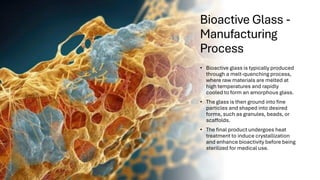

16. Bioactive Glass -
Manufacturing
Process
• Bioactive glass is typically produced
through a melt-quenching process,
where raw materials are melted at
high temperatures and rapidly
cooled to form an amorphous glass.
• The glass is then ground into fine
particles and shaped into desired
forms, such as granules, beads, or
scaffolds.
• The final product undergoes heat
treatment to induce crystallization
and enhance bioactivity before being
sterilized for medical use.

17. Bioactive Glass - Uses
• Bone Grafts: Bioactive glass is used in bone grafts to accelerate the healing process and restore bone structure.
• Dental Implants: It facilitates osseointegration in dental implants, providing stability and longevity.
• Wound Healing: Bioactive glass accelerates wound healing by promoting tissue regeneration and angiogenesis.
• Tissue Engineering: Bioactive glass scaffolds support cell growth and differentiation in tissue engineering
applications.
• Antibacterial Applications: Modified bioactive glass prevents infections in medical devices and implants by
inhibiting bacterial growth.

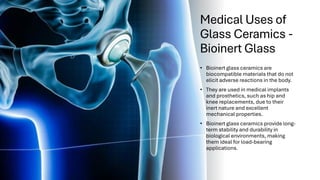

18. Medical Uses of
Glass Ceramics -
Bioinert Glass
• Bioinert glass ceramics are
biocompatible materials that do not
elicit adverse reactions in the body.
• They are used in medical implants
and prosthetics, such as hip and
knee replacements, due to their
inert nature and excellent
mechanical properties.
• Bioinert glass ceramics provide long-
term stability and durability in
biological environments, making
them ideal for load-bearing
applications.

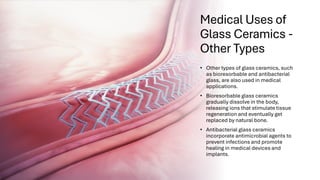

19. Medical Uses of
Glass Ceramics -
Other Types
• Other types of glass ceramics, such
as bioresorbable and antibacterial
glass, are also used in medical
applications.
• Bioresorbable glass ceramics
gradually dissolve in the body,
releasing ions that stimulate tissue
regeneration and eventually get
replaced by natural bone.
• Antibacterial glass ceramics
incorporate antimicrobial agents to
prevent infections and promote
healing in medical devices and
implants.

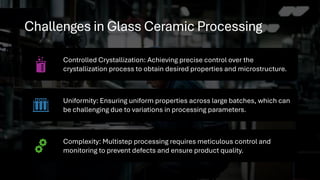

20. Challenges in Glass Ceramic Processing
Controlled Crystallization: Achieving precise control over the
crystallization process to obtain desired properties and microstructure.
Uniformity: Ensuring uniform properties across large batches, which can
be challenging due to variations in processing parameters.
Complexity: Multistep processing requires meticulous control and
monitoring to prevent defects and ensure product quality.

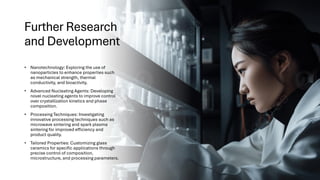

21. Further Research
and Development
• Nanotechnology: Exploring the use of
nanoparticles to enhance properties such
as mechanical strength, thermal
conductivity, and bioactivity.
• Advanced Nucleating Agents: Developing
novel nucleating agents to improve control
over crystallization kinetics and phase
composition.
• Processing Techniques: Investigating
innovative processing techniques such as
microwave sintering and spark plasma
sintering for improved efficiency and
product quality.
• Tailored Properties: Customizing glass
ceramics for specific applications through
precise control of composition,
microstructure, and processing parameters.

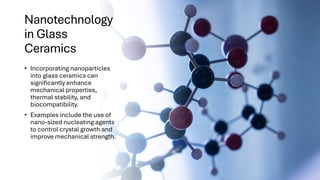

22. Nanotechnology
in Glass
Ceramics
• Incorporating nanoparticles
into glass ceramics can
significantly enhance
mechanical properties,
thermal stability, and
biocompatibility.
• Examples include the use of
nano-sized nucleating agents
to control crystal growth and
improve mechanical strength.

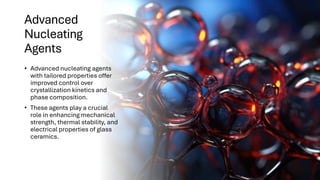

23. Advanced
Nucleating
Agents
• Advanced nucleating agents
with tailored properties offer
improved control over
crystallization kinetics and
phase composition.
• These agents play a crucial
role in enhancing mechanical
strength, thermal stability, and
electrical properties of glass
ceramics.

24. Innovative
Processing
Techniques
• Microwave Sintering: Rapid
and energy-efficient sintering
technique that promotes
uniform heating and reduces
processing time.
• Spark Plasma Sintering: High-
density consolidation method
that allows sintering at lower
temperatures, minimizing grain
growth and preserving
microstructure.

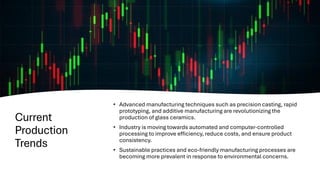

25. Current
Production
Trends
• Advanced manufacturing techniques such as precision casting, rapid
prototyping, and additive manufacturing are revolutionizing the
production of glass ceramics.
• Industry is moving towards automated and computer-controlled
processing to improve efficiency, reduce costs, and ensure product
consistency.
• Sustainable practices and eco-friendly manufacturing processes are
becoming more prevalent in response to environmental concerns.

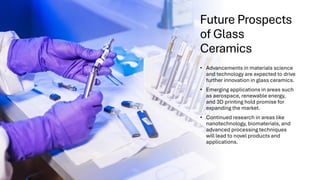

26. Future Prospects
of Glass
Ceramics
• Advancements in materials science
and technology are expected to drive
further innovation in glass ceramics.
• Emerging applications in areas such
as aerospace, renewable energy,
and 3D printing hold promise for
expanding the market.
• Continued research in areas like
nanotechnology, biomaterials, and
advanced processing techniques
will lead to novel products and
applications.

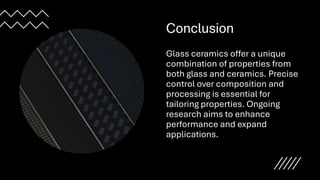

27. Conclusion
Glass ceramics offer a unique
combination of properties from
both glass and ceramics. Precise
control over composition and
processing is essential for
tailoring properties. Ongoing
research aims to enhance
performance and expand
applications.

28. Thank You
