The document discusses GitFS, an open-source file system built on top of Git, with a focus on its implementation using the pygit2 library for repository interaction. It covers key functionalities such as handling file operations, synchronization, and managing conflicts in a Git context. Additionally, installation instructions and community engagement metrics are provided.

1. gitfs
@vtemian

2. gitfs - Pytim #7
$whoami

3. gitfs - Pytim #7

4. gitfs - Pytim #7
the problem

5. CHAOS!
gitfs - Pytim #7

6. gitfs - Pytim #7

7. gitfs - Pytim #7
introducing gitfs

8. gitfs - Pytim #7
gitfs
what is it?

9. gitfs - Pytim #7
demo

10. gitfs - Pytim #7
easy!
as 1,2,3

11. gitfs - Pytim #7

12. gitfs - Pytim #7
open-source

13. gitfs - Pytim #7
how was it made?

14. gitfs - Pytim #7
research

15. gitfs - Pytim #7
for git

16. gitfs - Pytim #7
git=pygit2

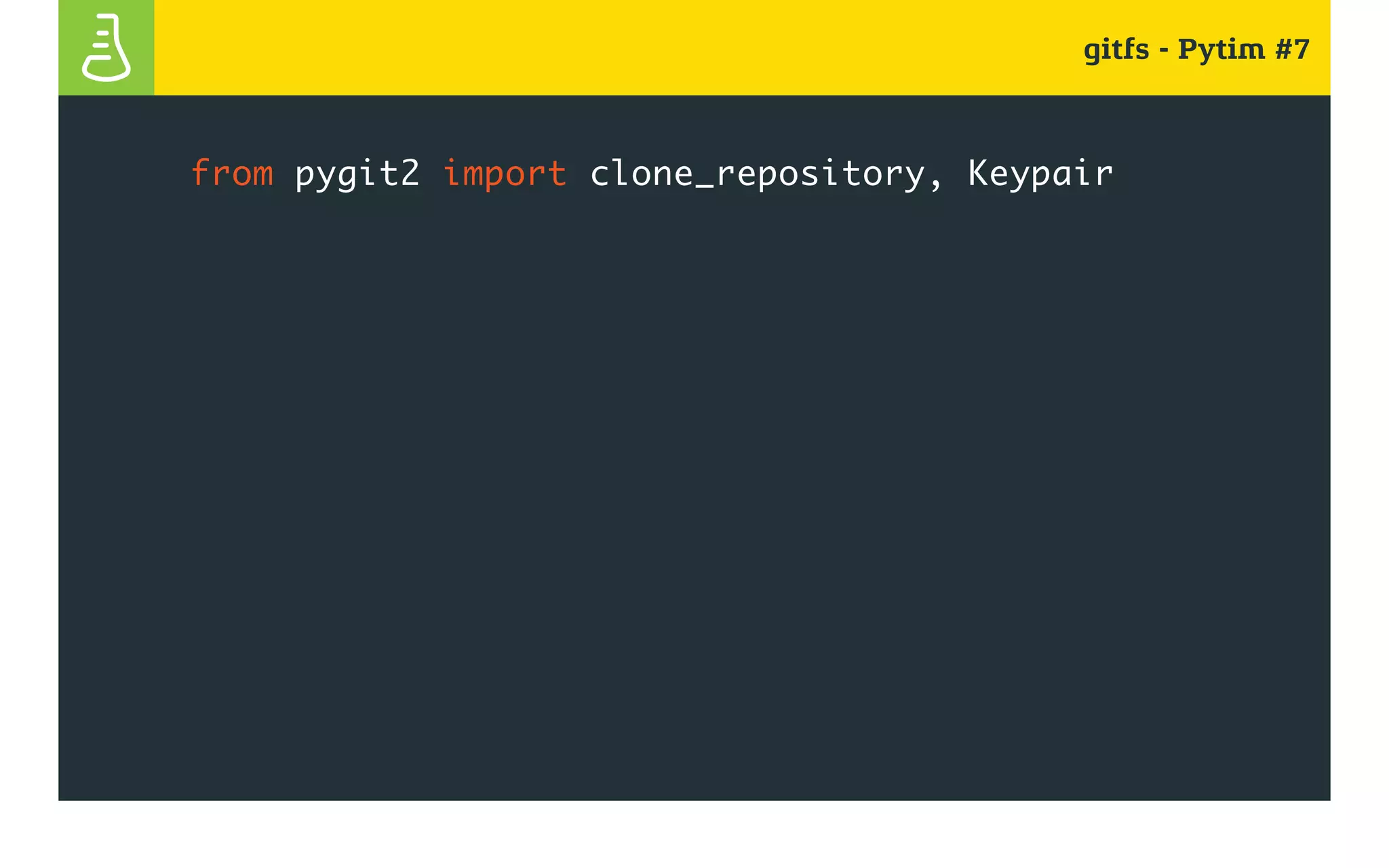

17. gitfs - Pytim #7

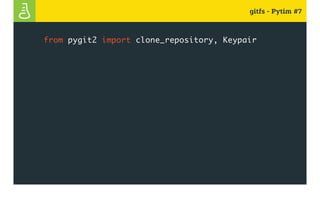

from pygit2 import clone_repository, Keypair

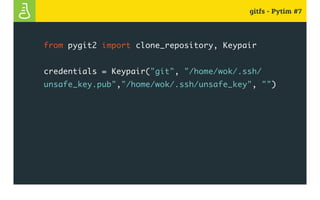

18. gitfs - Pytim #7

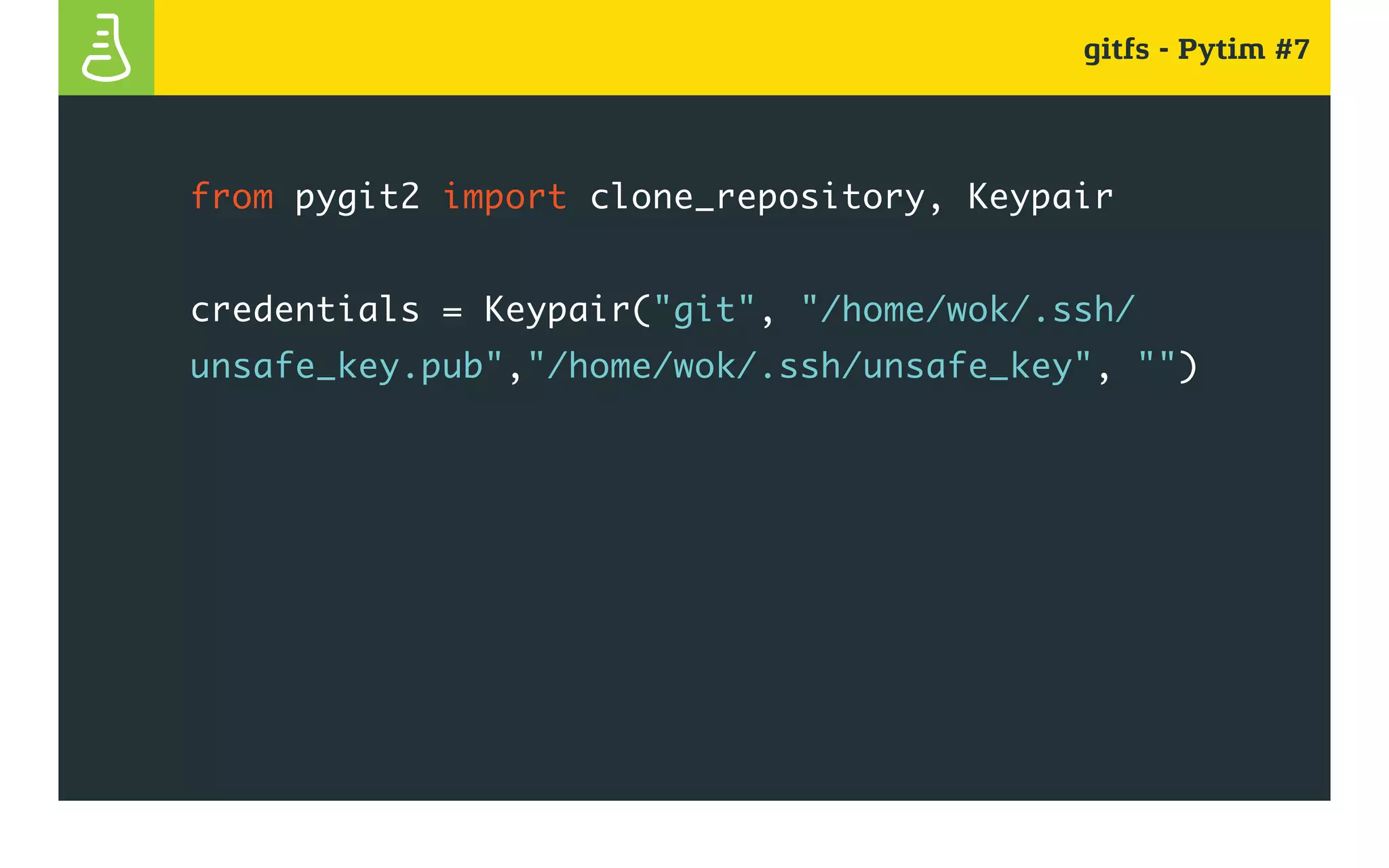

from pygit2 import clone_repository, Keypair
credentials = Keypair("git", "/home/wok/.ssh/
unsafe_key.pub","/home/wok/.ssh/unsafe_key", "")

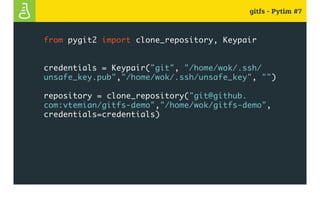

19. gitfs - Pytim #7
from pygit2 import clone_repository, Keypair
credentials = Keypair("git", "/home/wok/.ssh/
unsafe_key.pub","/home/wok/.ssh/unsafe_key", "")
repository = clone_repository("git@github.
com:vtemian/gitfs-demo","/home/wok/gitfs-demo",
credentials=credentials)

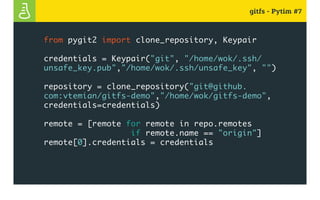

20. gitfs - Pytim #7
from pygit2 import clone_repository, Keypair
credentials = Keypair("git", "/home/wok/.ssh/
unsafe_key.pub","/home/wok/.ssh/unsafe_key", "")
repository = clone_repository("git@github.
com:vtemian/gitfs-demo","/home/wok/gitfs-demo",
credentials=credentials)
remote = [remote for remote in repo.remotes
if remote.name == "origin"]
remote[0].credentials = credentials

21. gitfs - Pytim #7

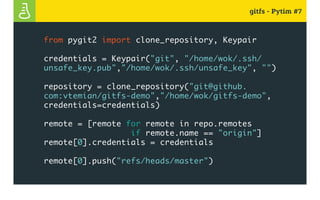

from pygit2 import clone_repository, Keypair
credentials = Keypair("git", "/home/wok/.ssh/
unsafe_key.pub","/home/wok/.ssh/unsafe_key", "")
repository = clone_repository("git@github.
com:vtemian/gitfs-demo","/home/wok/gitfs-demo",
credentials=credentials)
remote = [remote for remote in repo.remotes
if remote.name == "origin"]
remote[0].credentials = credentials
remote[0].push("refs/heads/master")

22. gitfs - Pytim #7
for the file system

23. gitfs - Pytim #7
file system=fusepy

24. gitfs - Pytim #7

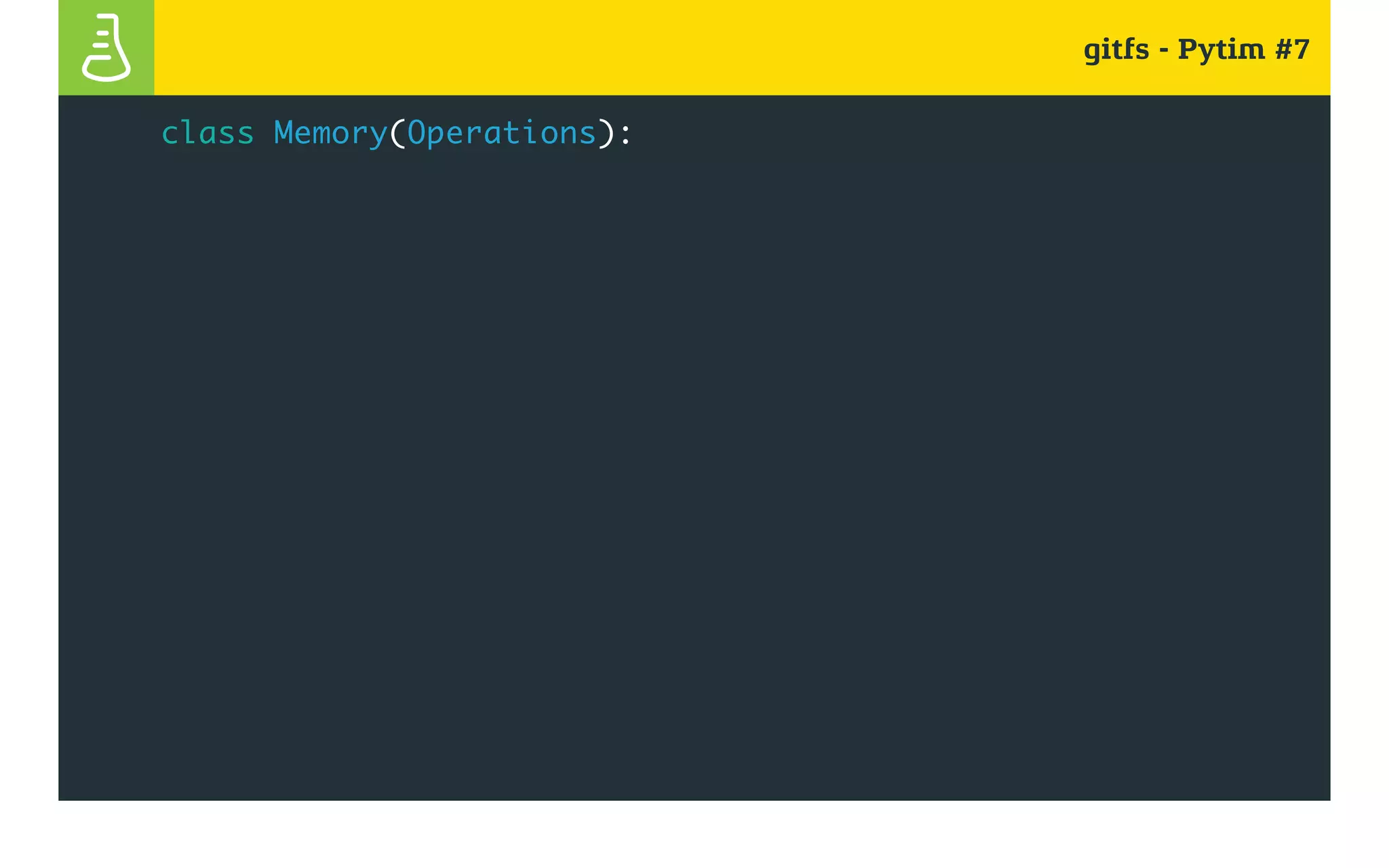

class Memory(Operations):

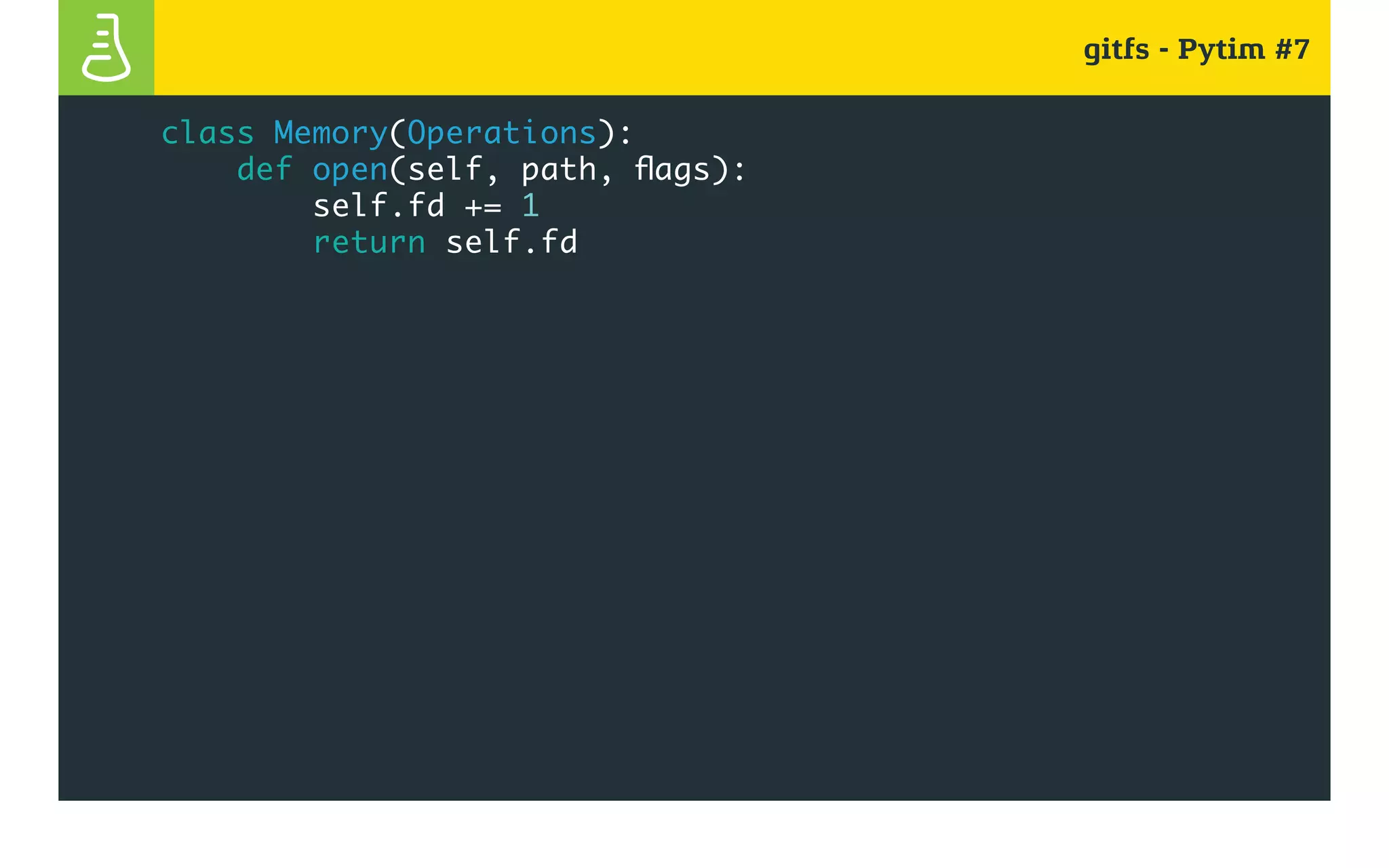

25. gitfs - Pytim #7
class Memory(Operations):
def open(self, path, flags):
self.fd += 1
return self.fd

26. gitfs - Pytim #7

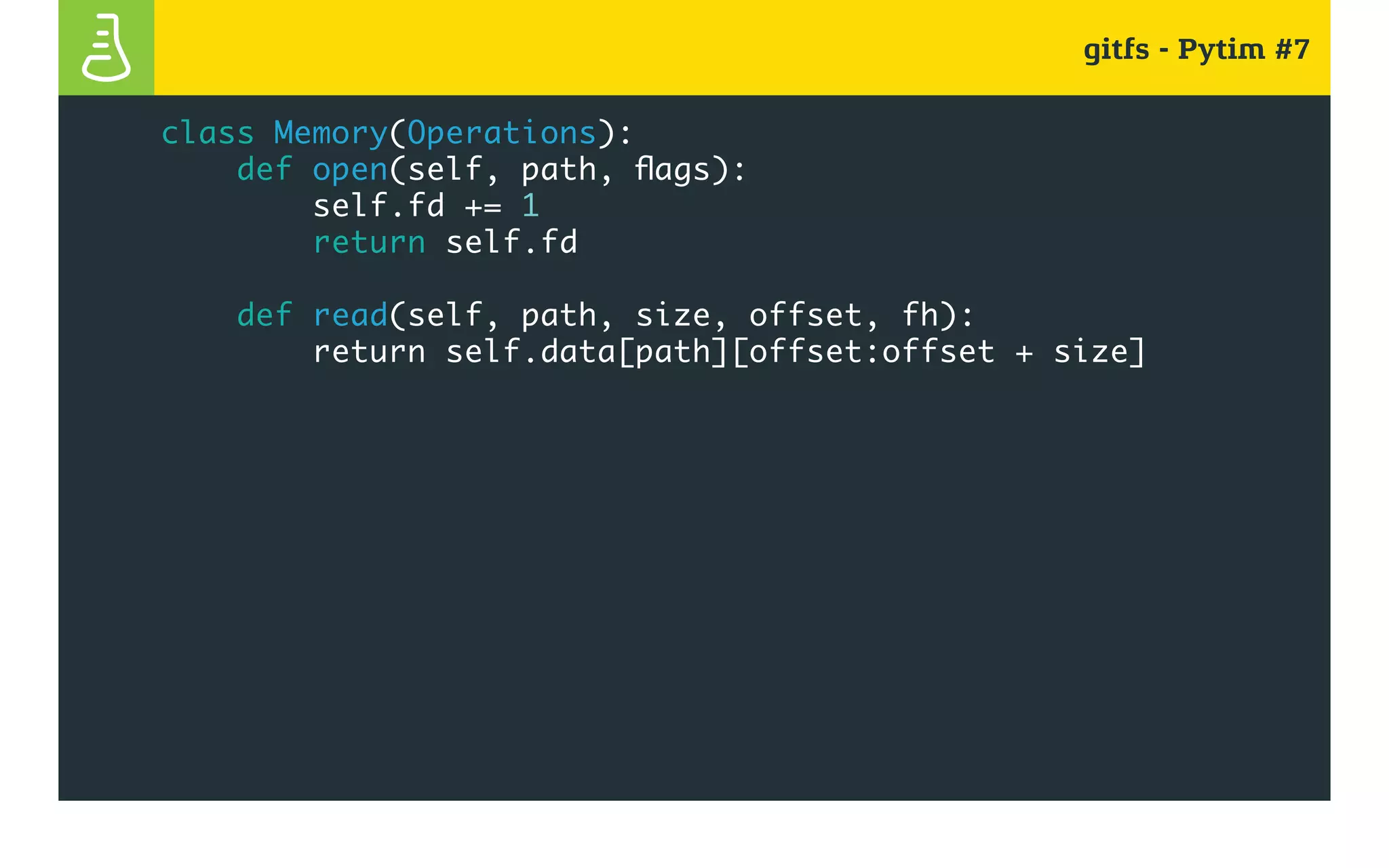

class Memory(Operations):
def open(self, path, flags):
self.fd += 1
return self.fd
def read(self, path, size, offset, fh):
return self.data[path][offset:offset + size]

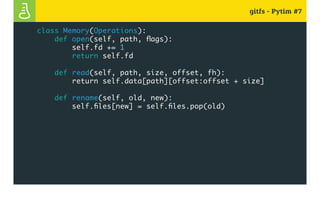

27. gitfs - Pytim #7
class Memory(Operations):
def open(self, path, flags):
self.fd += 1
return self.fd
def read(self, path, size, offset, fh):
return self.data[path][offset:offset + size]
def rename(self, old, new):
self.files[new] = self.files.pop(old)

28. gitfs - Pytim #7

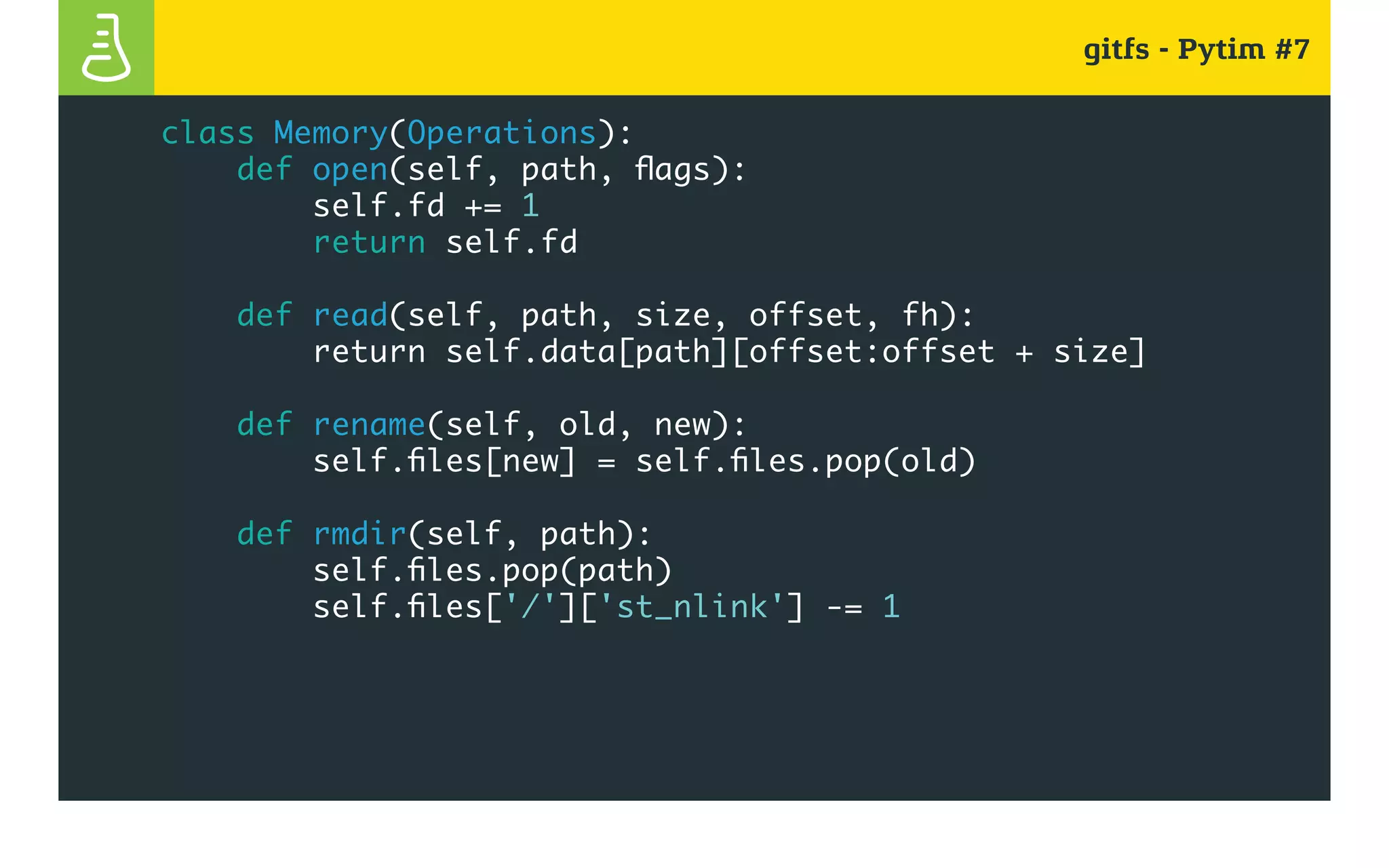

class Memory(Operations):
def open(self, path, flags):
self.fd += 1
return self.fd
def read(self, path, size, offset, fh):
return self.data[path][offset:offset + size]
def rename(self, old, new):
self.files[new] = self.files.pop(old)
def rmdir(self, path):
self.files.pop(path)
self.files['/']['st_nlink'] -= 1

29. gitfs - Pytim #7

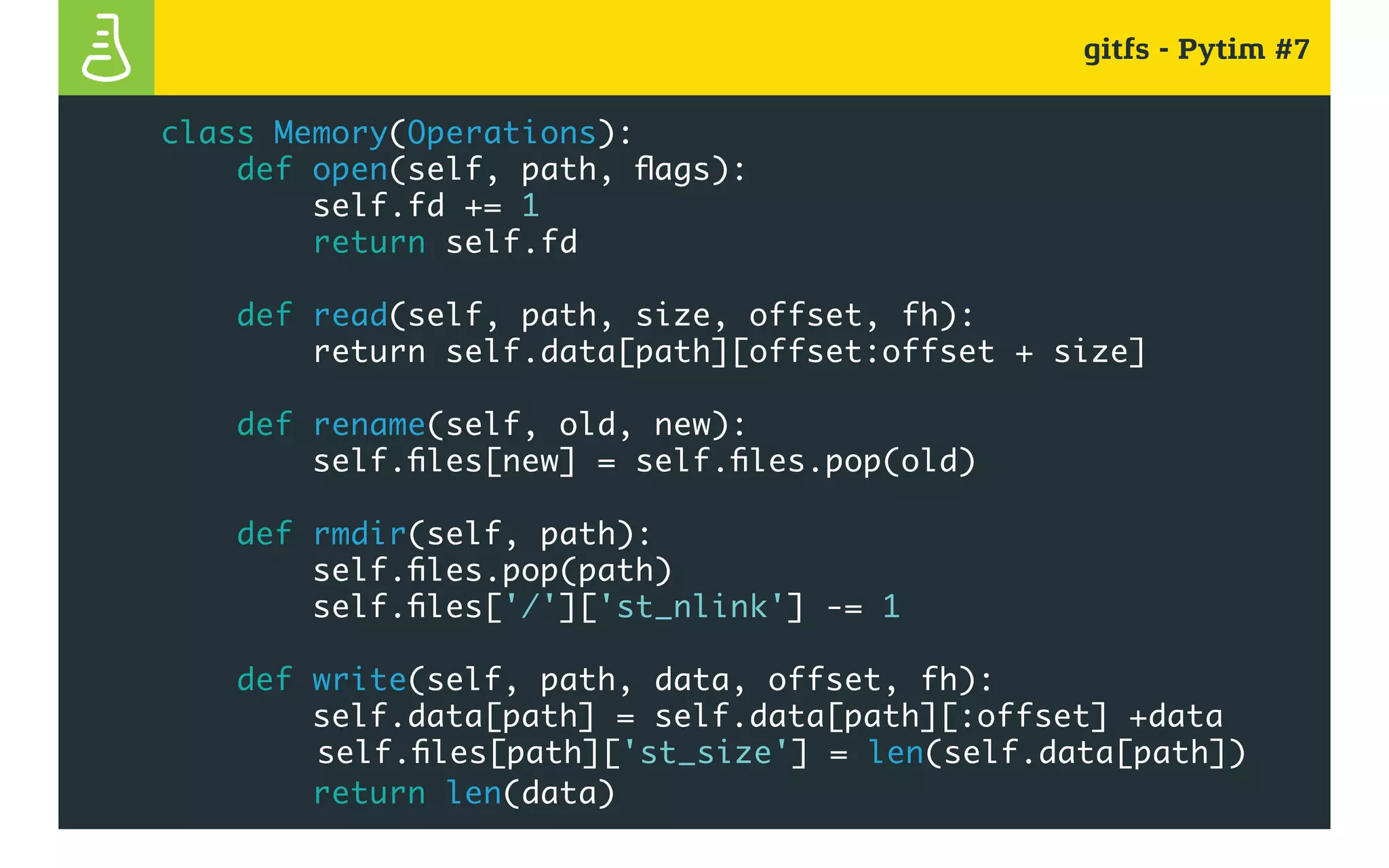

class Memory(Operations):
def open(self, path, flags):
self.fd += 1
return self.fd
def read(self, path, size, offset, fh):
return self.data[path][offset:offset + size]
def rename(self, old, new):
self.files[new] = self.files.pop(old)
def rmdir(self, path):
self.files.pop(path)
self.files['/']['st_nlink'] -= 1
def write(self, path, data, offset, fh):
self.data[path] = self.data[path][:offset] +data
self.files[path]['st_size'] = len(self.data[path])
return len(data)

30. gitfs - Pytim #7
first iteration

31. gitfs - Pytim #7

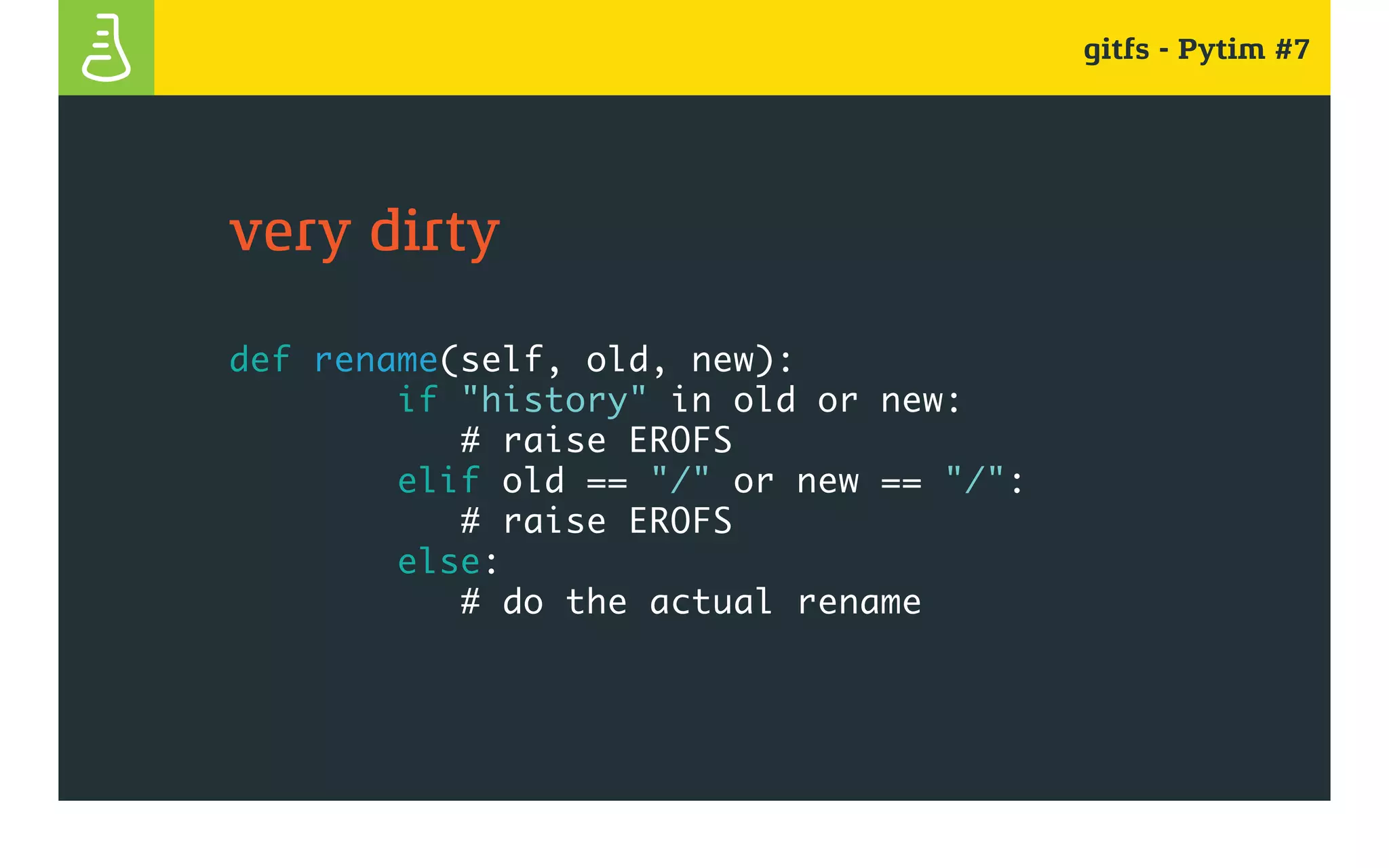

very dirty
def rename(self, old, new):
if "history" in old or new:
# raise EROFS
elif old == "/" or new == "/":
# raise EROFS
else:
# do the actual rename

32. gitfs - Pytim #7
second iteration

33. gitfs - Pytim #7

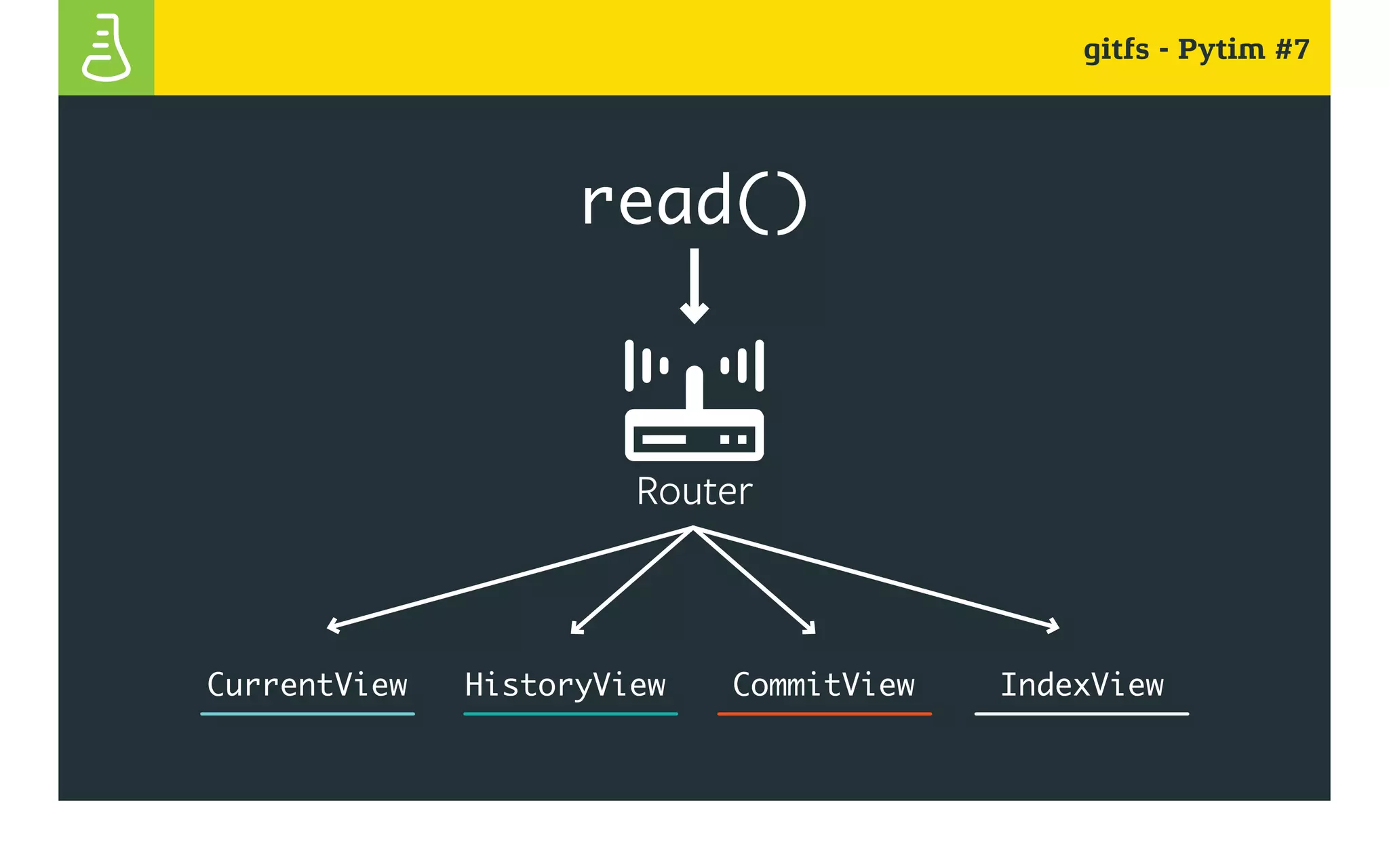

read()
Router
CurrentView HistoryView CommitView IndexView

34. gitfs - Pytim #7

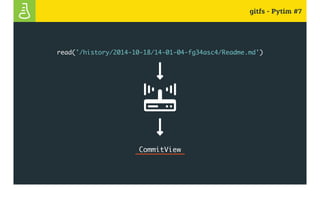

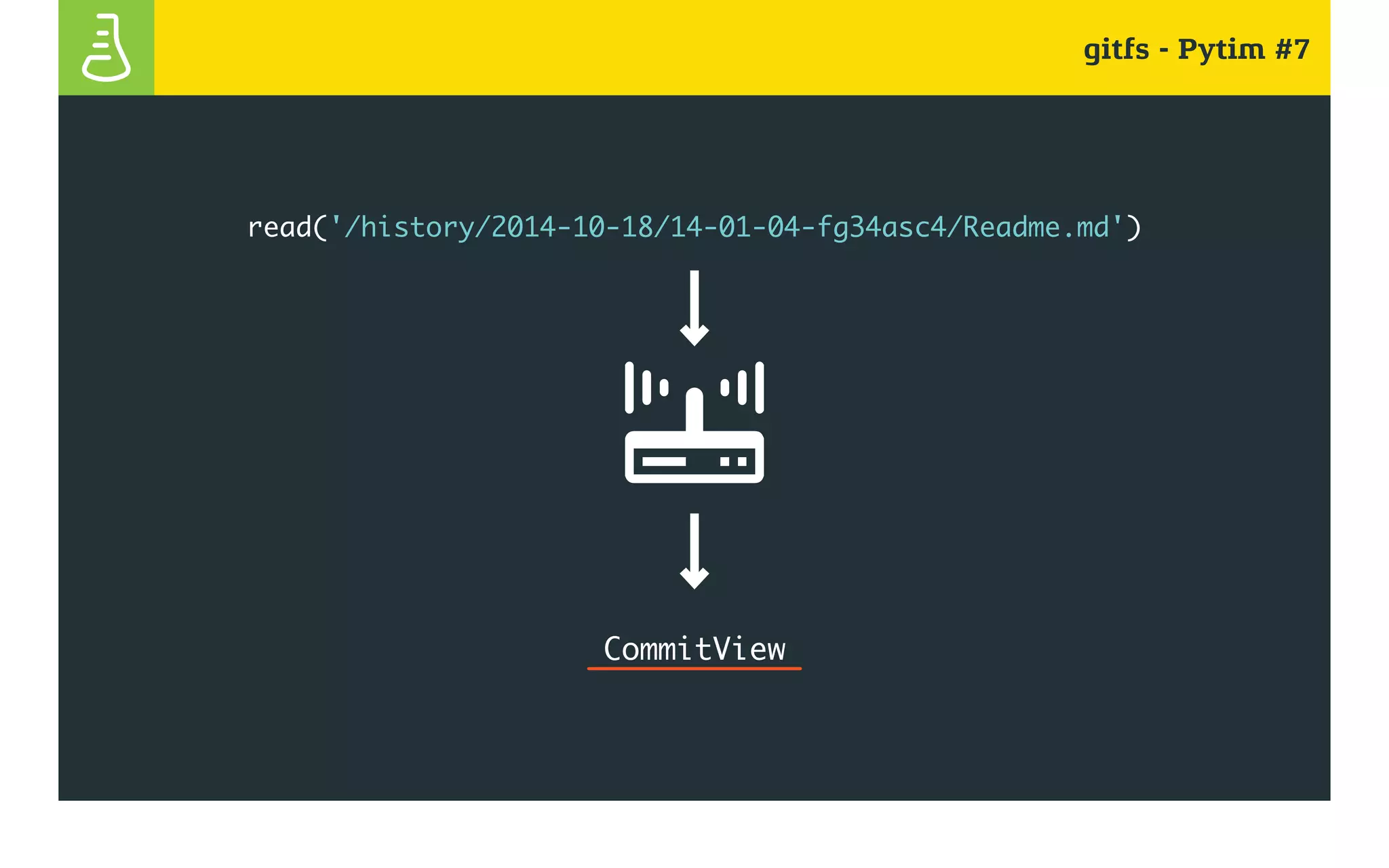

read('/history/2014-10-18/14-01-04-fg34asc4/Readme.md')
CommitView

35. gitfs - Pytim #7
upstream
synchronization

36. gitfs - Pytim #7
solve conflicts

37. gitfs - Pytim #7

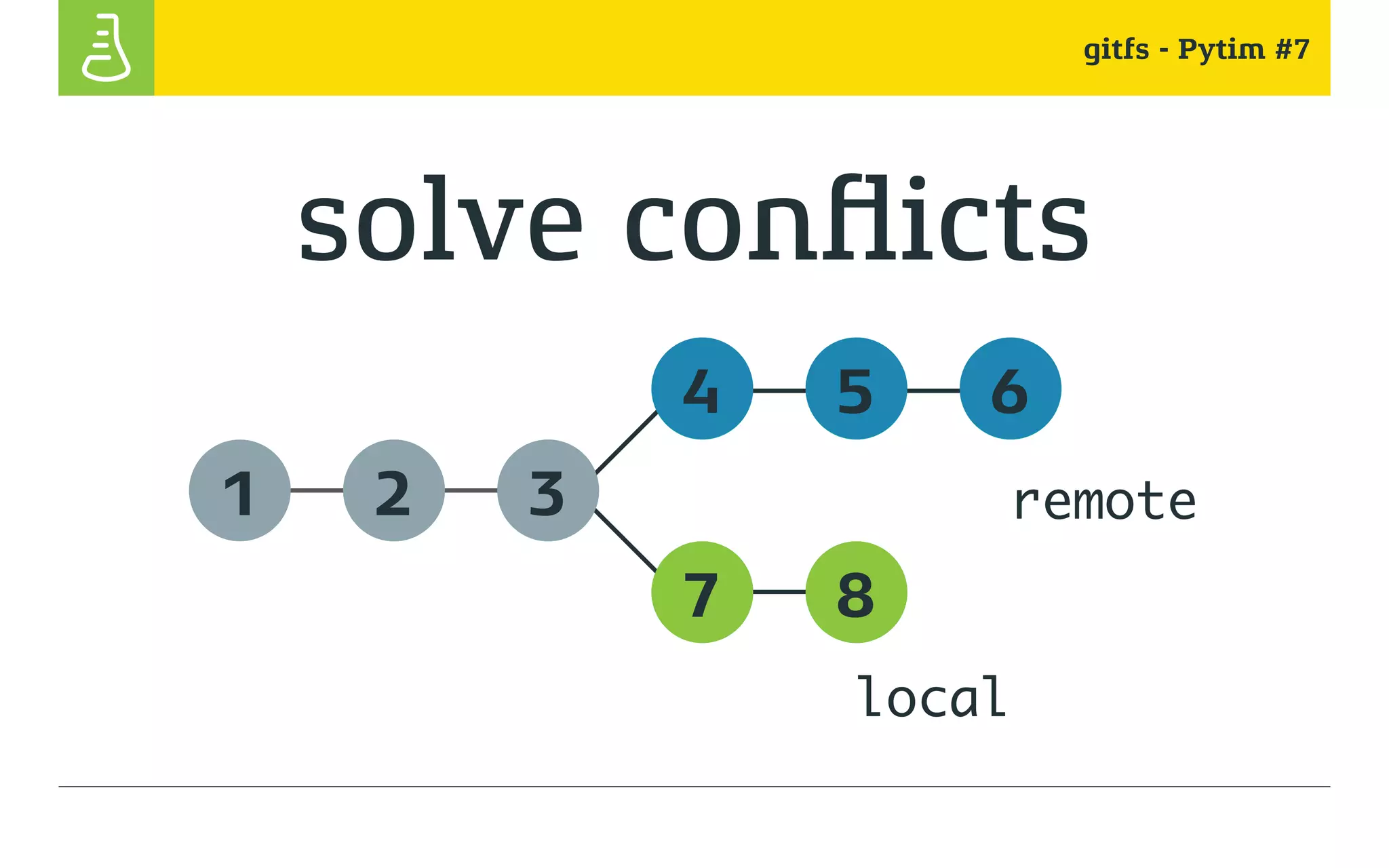

solve conflicts
1 2 3
7 8
4 5 6
remote
local

38. gitfs - Pytim #7

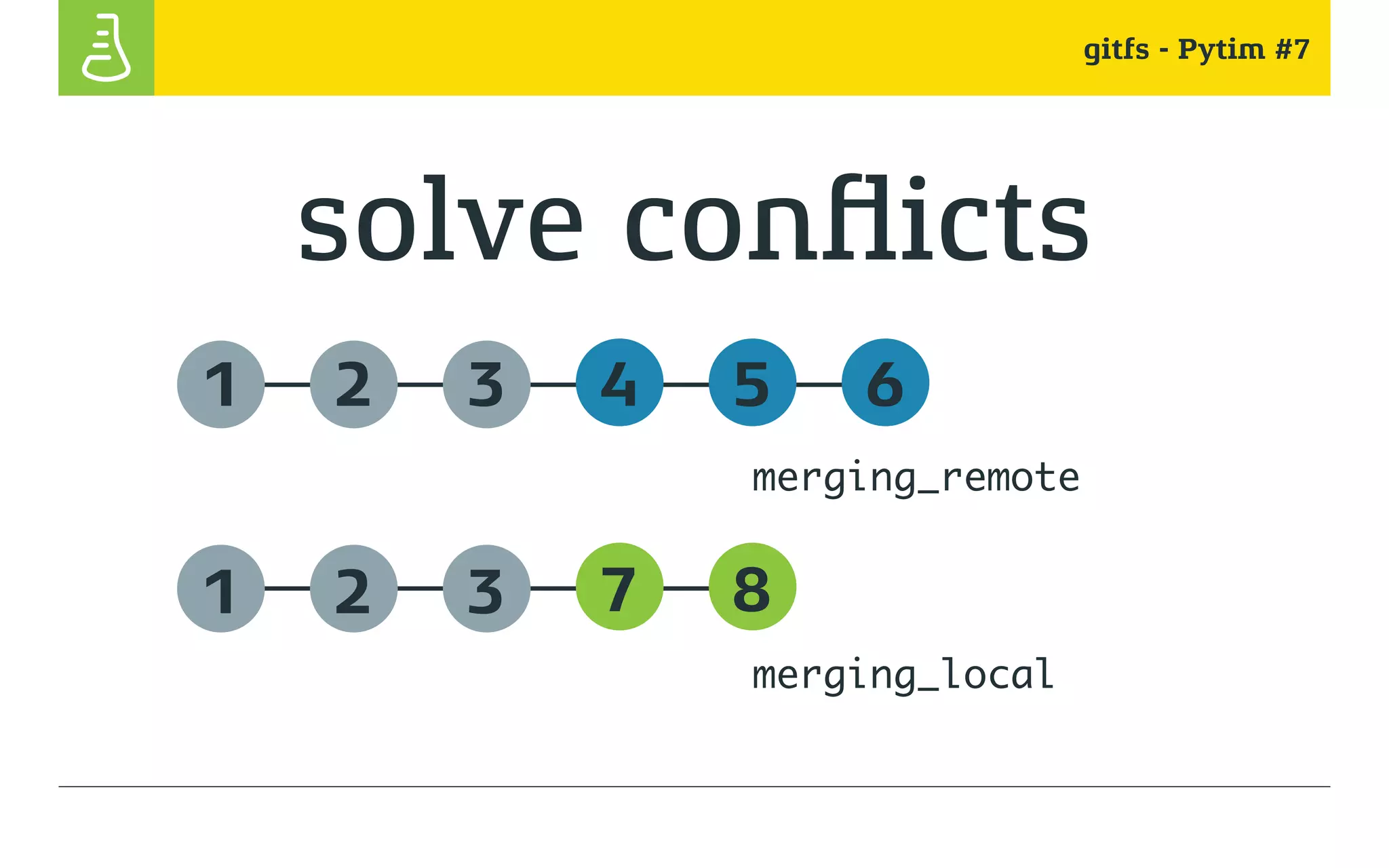

solve conflicts
1 2 3 4 5 6
merging_remote
1 2 3 7 8
merging_local

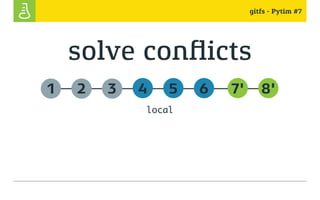

39. gitfs - Pytim #7
1 2 3 4 5 7'6 8'
local
solve conflicts

40. gitfs - Pytim #7
third iteration

41. gitfs - Pytim #7
cache

42. gitfs - Pytim #7
upstream
synchronization

43. gitfs - Pytim #7

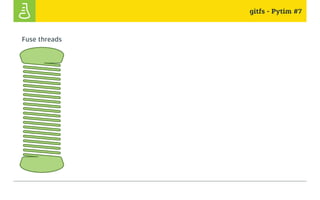

Fuse threads

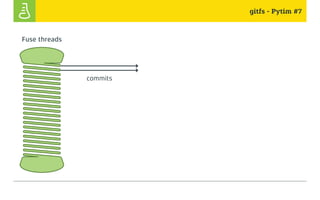

44. gitfs - Pytim #7

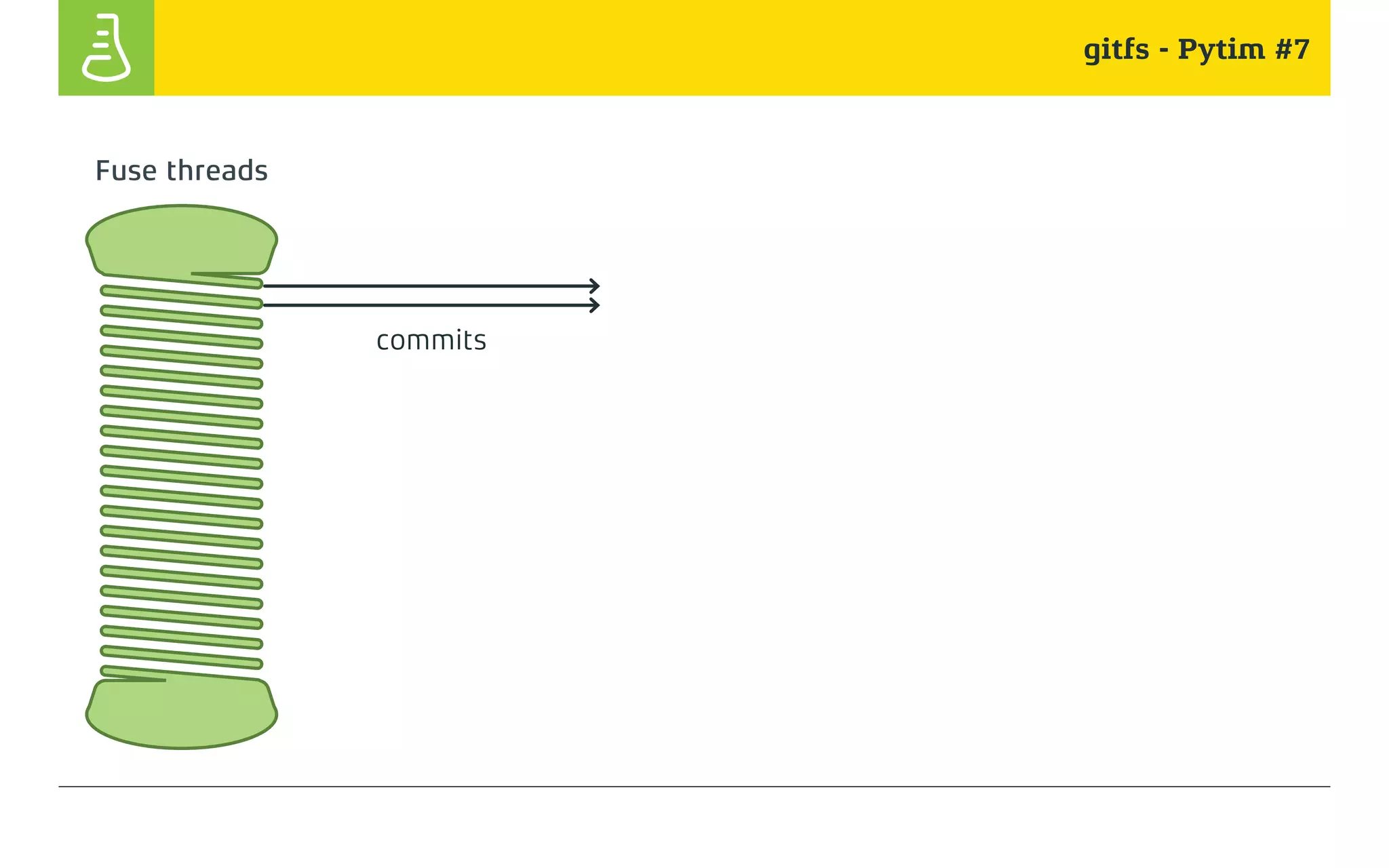

commits
Fuse threads

45. gitfs - Pytim #7

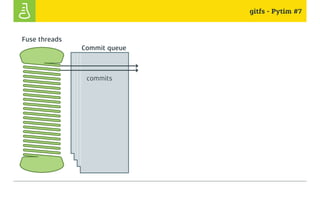

Commit queue
commits
Fuse threads

46. gitfs - Pytim #7

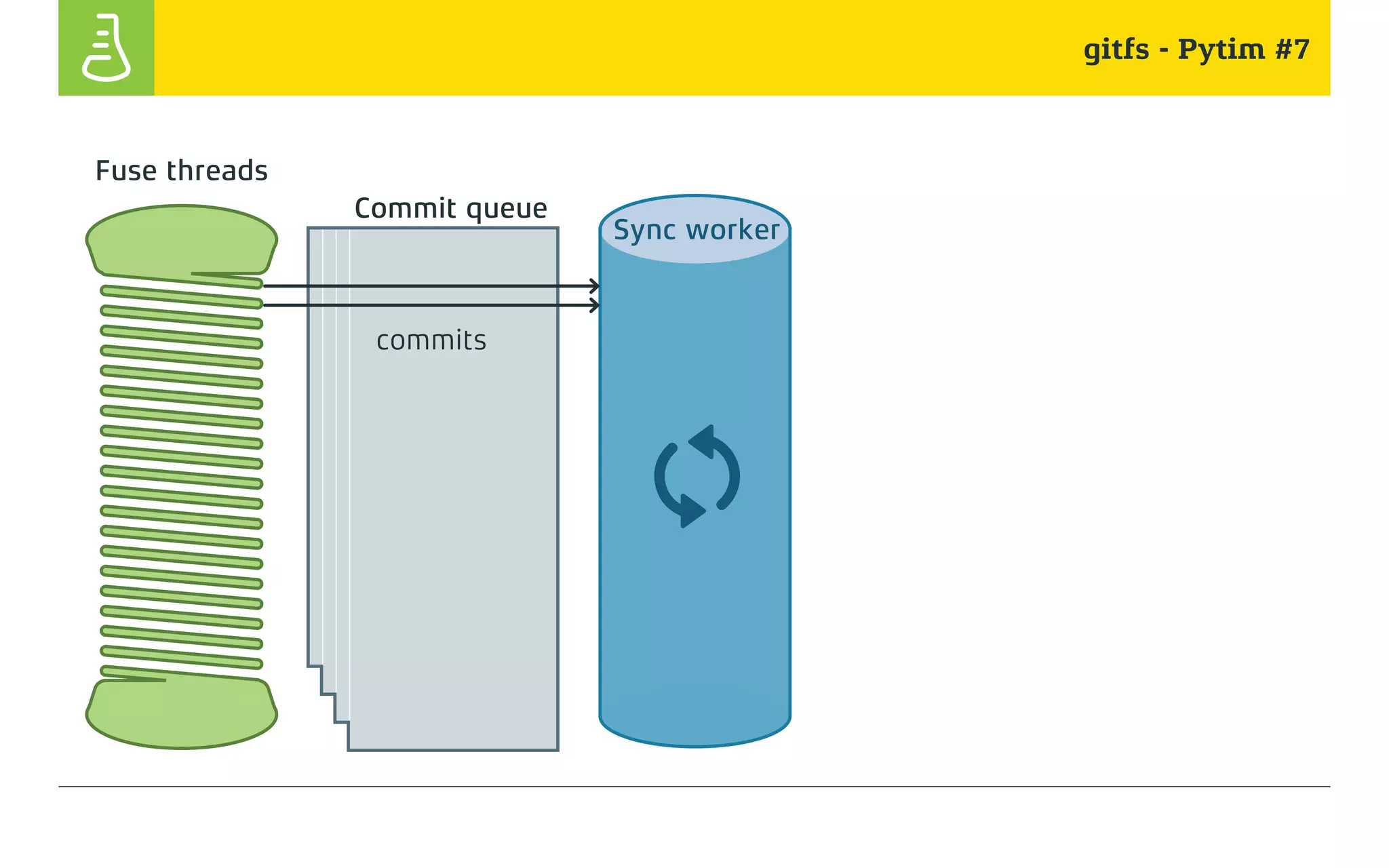

Sync worker
Commit queue
commits
Fuse threads

47. gitfs - Pytim #7

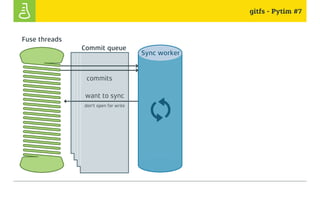

want to sync
don't open for write
Commit queue
Sync worker
commits
Fuse threads

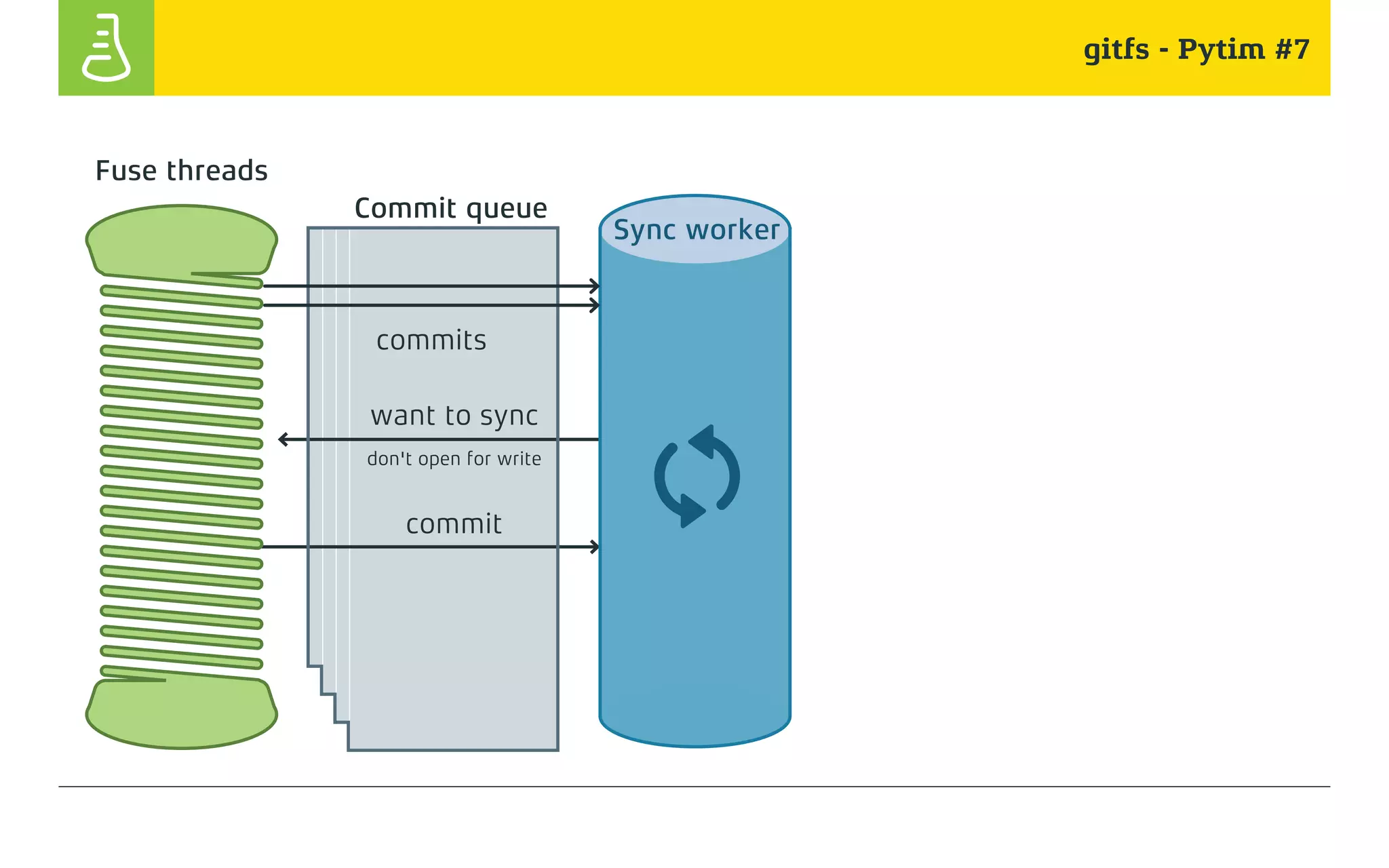

48. gitfs - Pytim #7
commit
want to sync
don't open for write
Commit queue
Sync worker
commits
Fuse threads

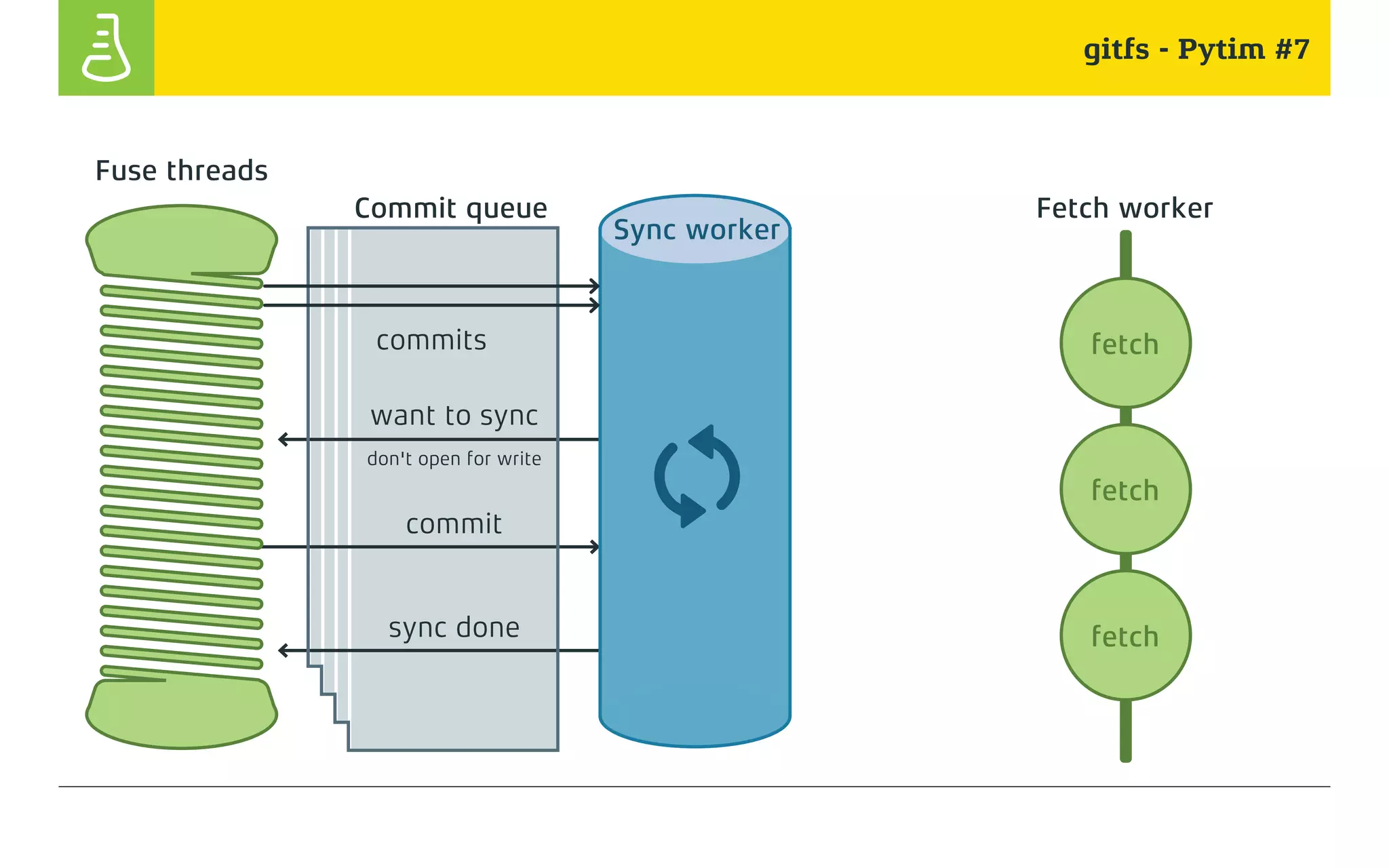

49. gitfs - Pytim #7
commit
sync done
want to sync
don't open for write
Commit queue Fetch worker
Sync worker
fetch
fetch
fetch
commits
Fuse threads

50. gitfs - Pytim #7
pytest

51. gitfs - Pytim #7

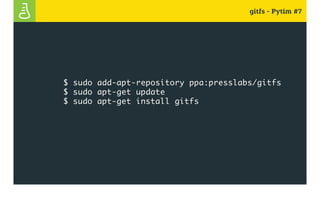

$ sudo add-apt-repository ppa:presslabs/gitfs
$ sudo apt-get update
$ sudo apt-get install gitfs

52. gitfs - Pytim #7

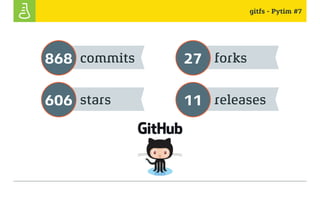

commits forks
stars releases
868 27
606 11

53. gitfs - Pytim #7
github.com/PressLabs/gitfs

54. gitfs - Pytim #7
Q/A?

55. gitfs - Pytim #7
thank you
