Git essential training & sharing self

Continuous Integration with Git
2015.10.6
Blackie

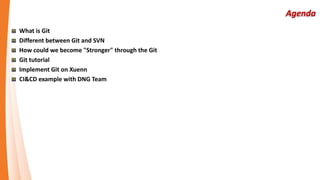

What is Git
Different between Git and SVN
How could we become "Stronger" through the Git
Git tutorial

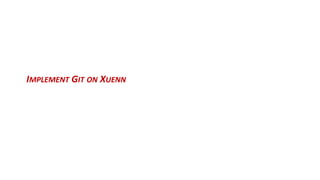

Implement Git on Xuenn

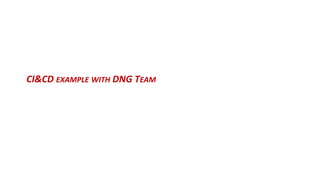

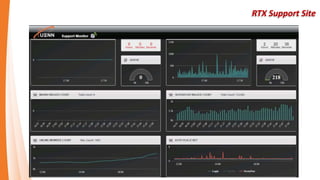

CI&CD example with DNG Team

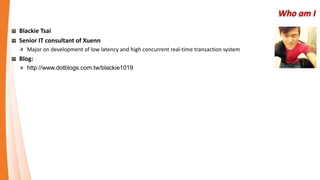

Who am I
Blackie Tsai
Senior IT consultant of Xuenn
Full stack developer
Major on development of real-time transaction system with low latency and high concurrent
Learning CI&CD and run with Agile&LEAN
Blog
http://www.dotblogs.com.tw/blackie1019

Facing problems of Development
• Some CR require a long-period of development like 1 month
or more. And we have a lot of tickets need to patch to
UAT/PROD.
• Hard to merge with branch, and always miss some commit
logs when merge from each branch to trunk every time.
• Each branch will need create on the central repository and it
will bothering other people who collaborate with you.
• Some modules not own by the same team but need to
modify with another team change request.
• Every action will need connect to server and it’s slow and not
prevent for single point of failure.

Facing problems of Deployment
• No choice for release packages even we know this version
have defects.
• Hard to revert to any previous version, even we using SVN.
• If we need Jenkins help doing some automation with branch
out new repository . Always will need to modify/add some
steps of setting of Jenkins.

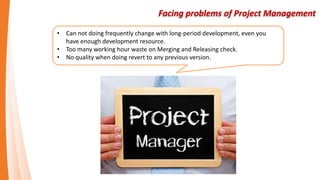

Facing problems of Project Management
• Can not doing frequently change with long-period development, even you
have enough development resource.
• Too many working hour waste on Merging and Releasing check.
• No quality when doing revert to any previous version.

Today Deployment Flow
Hotfix
Normal

Use Case - Revert
Now we have CR-1 and CR-2 deploy to UAT, but…
I found critical issue on CR-1, it cannot be
deployed to PROD.
Ok… revert CR-1 on UAT, I hope CR-2 can go live on
schedule.
I don’t have any build version can revert,
I need …..

A B C
Use Case - Revert : SVN
CR-1 CR-2
CR-1
CR-2
CR-1
CR-2

Use Case – Revert : Git
A B C
CR-1 CR-1 CR-2CR-2
CR-1 CR-2
CR-1 CR-2

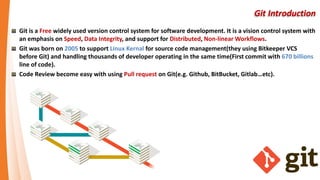

Git Introduction
Git is a Free widely used version control system for software development. It is a version control system
with an emphasis on Speed, Data Integrity, and support for Distributed, Non-linear Workflows.
Git was born on 2005 to support Linux Kernal for source code management(they using Bitkeeper VCS
before Git) and handling thousands of developer operating in the same time(First commit with 670 billions
line of code).
Code Review become easy with using Pull request on Git(e.g. Github, BitBucket, Gitlab…etc).

Distribution
Distributed
Difference between SVN and Git
Or

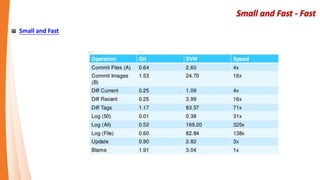

Small and Fast - Fast
Small and Fast

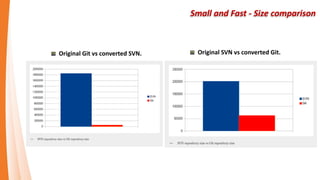

Small and Fast - Size comparison
Original Git vs converted SVN. Original SVN vs converted Git.

Data Assurance
Data Assurance
Git is content-addressable file system
Git using KeyValue with SHA-1 to stored data with a UUID.
If the file contents are damaged, you will find different with SHA1.
If the tree to change the file name will be found.
This is important in distributed systems when data from one developer to another developer, ensure that the
information has not been modified

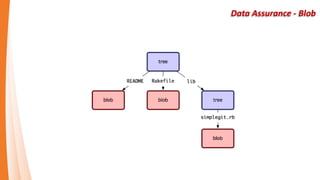

Git Object Types
Blob
Just a bunch of bytes that could be anything, like a text file, source code, or a picture, etc.
Tree

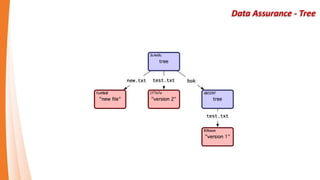

like a file system directory. A Git tree can point to, or include:
Git “blob” objects (similar to a file system directory includes file system files).
Other git trees (similar to a file system directory can have subdirectories).

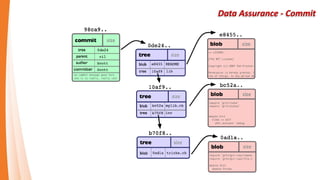

Commit
Information about who committed (made) the change/check-in/commit. For example, it stores the name and email
address.
A pointer to the git tree object that represents the Git repository when the commit was done
The parent commit to this commit (so we can easily find out the situation at the previous commit).
Tag
Points to any Git commit object.
A Git tag can be used to refer to a specific tree, rather than having to
remember or use the hash of the tree.
ihower.tw - Git 內部原理、Git-內部原理-Git-物件、All Git Object Types: Blob, Tree, Commit And Tag

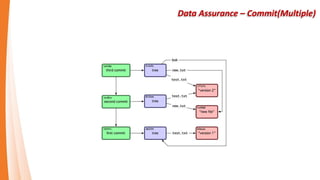

Data Assurance – Commit(Multiple)

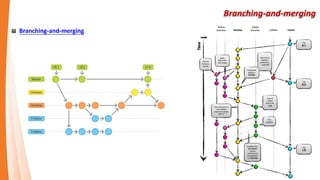

Branching-and-merging
Branching-and-merging

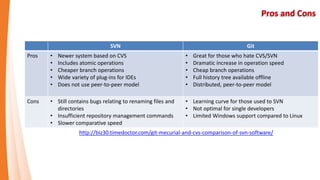

Pros and Cons
SVN Git
Pros • Newer system based on CVS
• Includes atomic operations
• Cheaper branch operations
• Wide variety of plug-ins for IDEs
• Does not use peer-to-peer model
• Great for those who hate CVS/SVN
• Dramatic increase in operation speed
• Cheap branch operations
• Full history tree available offline
• Distributed, peer-to-peer model
Cons • Still contains bugs relating to renaming files and
directories
• Insufficient repository management commands
• Slower comparative speed
• Learning curve for those used to SVN
• Not optimal for single developers
• Limited Windows support compared to Linux
http://biz30.timedoctor.com/git-mecurial-and-cvs-comparison-of-svn-software/

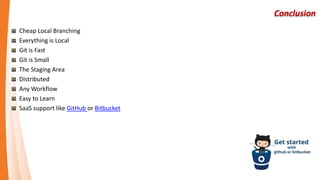

Conclusion
Cheap Local Branching
Everything is Local
Git is Fast
Git is Small

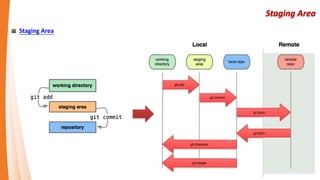

The Staging Area
Distributed
Any Workflow
Easy to Learn
SaaS support like GitHub or Bitbucket

HOW COULD WE BECOME "STRONGER" THROUGH THE GIT

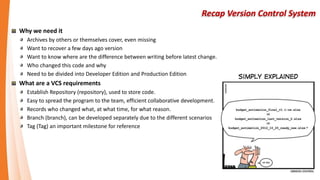

Recap Version Control System
Why we need it
Archives by others or themselves cover, even missing
Want to recover a few days ago version
Want to know where are the difference between writing before latest change.
Who changed this code and why
Need to be divided into Developer Edition and Production Edition
What are a VCS requirements
Establish Repository (repository), used to store code.
Easy to spread the program to the team, efficient collaborative development.
Records who changed what, at what time, for what reason.
Branch (branch), can be developed separately due to the different scenarios
Tag (Tag) an important milestone for reference

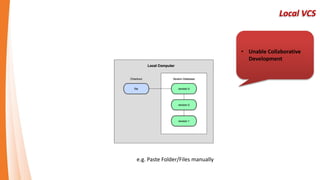

Local VCS
• Unable Collaborative
Development
e.g. Paste Folder/Files manually

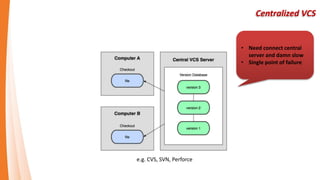

Centralized VCS
• Need connect central
server and damn slow
• Single point of failure
e.g. CVS, SVN, Perforce

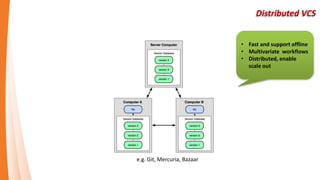

Distributed VCS
e.g. Git, Mercuria, Bazaar
• Fast and support offline
• Multivariate workflows
• Distributed, enable
scale out

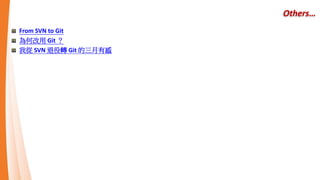

Others…
From SVN to Git
為何改用 Git ？
我從 SVN 退役轉 Git 的三月有感

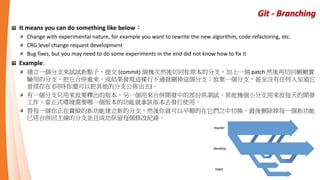

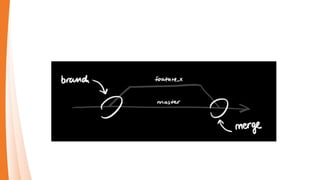

Git - Branching
It means you can do something like below：
Change with experimental nature, for example you want to rewrite the new algorithm, code refactoring, etc.
CRG level change request development
Bug fixes, but you may need to do some experiments in the end did not know how to fix it
Example:
建立一個分支來試試新點子，提交 (commit) 個幾次然後切回你原本的分支，加上一個 patch 然後再切回剛剛實
驗用的分支，把它合併進來。或結果發現這樣行不通就刪掉這個分支；放棄一個分支，甚至沒有任何人知道它
曾經存在 (同時你還可以把其他的分支公佈出去)。
有一個分支只用來放要釋出的版本，另一個用來合併開發中的部份供測試，其他幾個小分支用來放每天的開發
工作，當正式環境需要哪一個版本的功能就拿該版本去發行使用。
替每一個你正在實做的新功能建立新的分支，然後你就可以平順的在它們之中切換，最後刪除掉每一個新功能
已經合併回主線的分支並且成功保留每個修改紀錄。

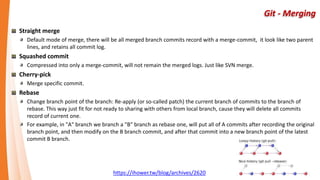

Git - Merging
Straight merge
Default mode of merge, there will be all merged branch commits record with a merge-commit, it look like two parent
lines, and retains all commit log.
Squashed commit
Compressed into only a merge-commit, will not remain the merged logs. Just like SVN merge.
Cherry-pick
Merge specific commit.
Rebase
Change branch point of the branch: Re-apply (or so-called patch) the current branch of commits to the branch of
rebase. This way just fit for not ready to sharing with others from local branch, cause they will delete all commits
record of current one.
For example, in "A" branch we branch a "B" branch as rebase one, will put all of A commits after recording the original
branch point, and then modify on the B branch commit, and after that commit into a new branch point of the latest
commit B branch.
https://ihower.tw/blog/archives/2620

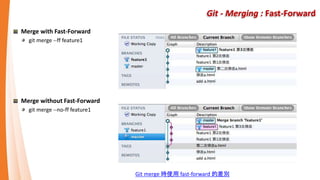

Git - Merging : Fast-Forward
Merge with Fast-Forward
git merge --ff feature1
Merge without Fast-Forward
git merge --no-ff feature1
Git merge 時使用 fast-forward 的差別

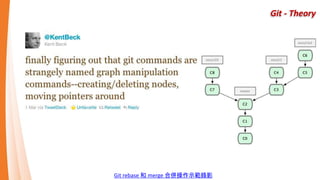

Git - Theory
Git rebase 和 merge 合併操作示範錄影

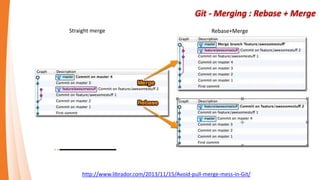

Git - Merging : Rebase + Merge
http://www.librador.com/2013/11/15/Avoid-pull-merge-mess-in-Git/
Straight merge Rebase+Merge

Pull Request on other team repository
Fork
• Fork this project to your account.
Create
• Create a branch for the change you intend to make.
Commit
• Make your changes to your fork.
Request
• Send a pull request from your fork’s branch to our master branch.
Merge
• Owner review Contributor pull request and merge it to master branch.
Git-SCM : Git Request-Pull、Example with g0v

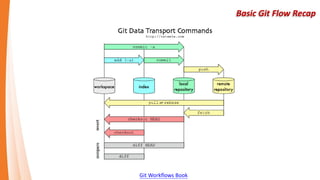

Basic Git Flow Recap
Git Workflows Book

Git and SVN Command
Command Course
http://git.or.cz/course/svn.html

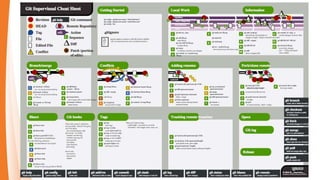

Git Flow and Command
https://github.com/mattharrison/Git-Supervisual-Cheatsheet

Code School – Try Git
https://try.github.io/

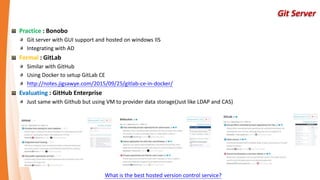

Git Server
Practice : Bonobo
Git server with GUI support and hosted on windows IIS
Integrating with AD
Formal : GitLab
Similar with GitHub
Using Docker to setup GitLab CE
http://notes.jigsawye.com/2015/09/25/gitlab-ce-in-docker/
Evaluating : GitHub Enterprise
Just same with Github but using VM to provider data storage(Just like LDAP and CAS)
What is the best hosted version control service?

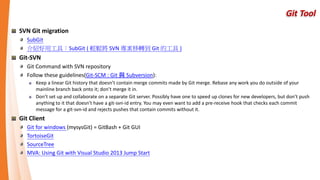

Git Tool
SVN Git migration
SubGit
介紹好用工具：SubGit ( 輕鬆將 SVN 專案移轉到 Git 的工具 )
Git-SVN
Git Command with SVN repository
Follow these guidelines(Git-SCM : Git 與 Subversion):
Keep a linear Git history that doesn’t contain merge commits made by Git merge. Rebase any work you do outside of your
mainline branch back onto it; don’t merge it in.
Don’t set up and collaborate on a separate Git server. Possibly have one to speed up clones for new developers, but don’t push
anything to it that doesn’t have a git-svn-id entry. You may even want to add a pre-receive hook that checks each commit
message for a git-svn-id and rejects pushes that contain commits without it.
Git Client
Git for windows (mysysGit) = GitBash + Git GUI
TortoiseGit
SourceTree
MVA: Using Git with Visual Studio 2013 Jump Start

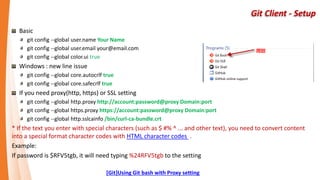

Git Client - Setup
Basic
git config --global user.name Your Name
git config --global user.email your@email.com
git config --global color.ui true
Windows : new line issue
git config --global core.autocrlf true
git config --global core.safecrlf true
If you need proxy(http, https) or SSL setting
git config --global http.proxy http://account:password@proxy Domain:port
git config --global https.proxy https://account:password@proxy Domain:port
git config --global http.sslcainfo /bin/curl-ca-bundle.crt
* If the text you enter with special characters (such as $ #% ^ ... and other text), you need to convert content
into a special format character codes with HTML character codes .
Example:
If password is $RFV5tgb, it will need typing %24RFV5tgb to the setting
[Git]Using Git bash with Proxy setting

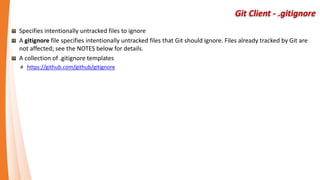

Git Client - .gitignore
Specifies intentionally untracked files to ignore
A gitignore file specifies intentionally untracked files that Git should ignore. Files already tracked by Git are
not affected; see the NOTES below for details.
A collection of .gitignore templates
https://github.com/github/gitignore

Recap Git tutorial
Create new repository or Clone someone
git init or git clone
Add new file from working directory to staging area
git add
Commit change (staging area to Git repository)
git commit -m “Do some change”
Check out now repository
git checkout
Revert to taget version with specific SHA1
git revert e37c75787
Do another modify and add to staging area
git add
Commit change
git commit -m “Revert to e37c75787 and do some change”
Push to Server
git push
Pull/Fetch from Server
git pull/ git fetch

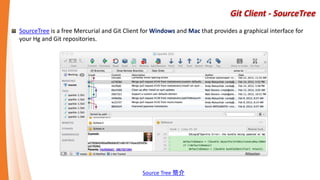

Git Client - SourceTree
SourceTree is a free Mercurial and Git Client for Windows and Mac that provides a graphical interface for
your Hg and Git repositories.
Source Tree 簡介

Git Client – SourceTree : UI

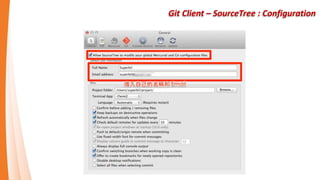

Git Client – SourceTree : Configuration

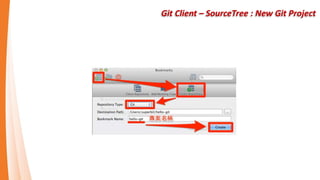

Git Client – SourceTree : New Git Project

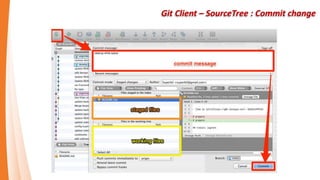

Git Client – SourceTree : Commit change

Git Client – SourceTree : Pull

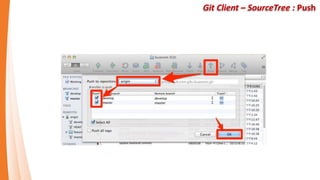

Git Client – SourceTree : Push

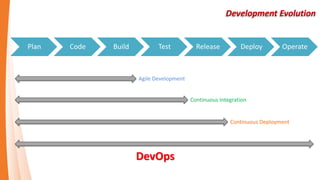

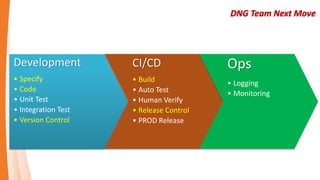

Development Evolution
Plan Code Build Test Release Deploy Operate
Agile Development

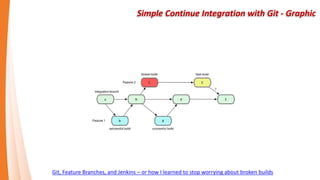

Continuous Integration
Continuous Deployment
DevOps

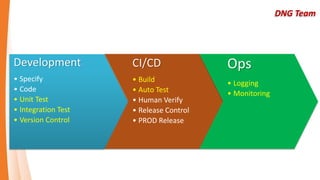

DNG Team
Development
• Specify
• Code
• Unit Test
• Integration Test
• Version Control
CI/CD
• Build
• Auto Test
• Human Verify
• Release Control
• PROD Release
Ops
• Logging
• Monitoring

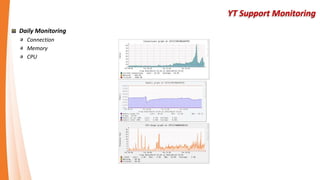

YT Support Monitoring
Daily Monitoring
Connection
Memory
CPU

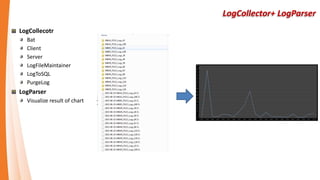

LogCollector+ LogParser
LogCollecotr
Bat
Client
Server
LogFileMaintainer
LogToSQL
PurgeLog
LogParser
Visualize result of chart

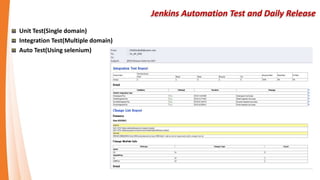

Jenkins Automation Test and Daily Release
Unit Test(Single domain)
Integration Test(Multiple domain)
Auto Test(Using selenium)

Simple Continue Integration with Git - Graphic
Git, Feature Branches, and Jenkins – or how I learned to stop worrying about broken builds

Simple Continue Integration with Git - Flow

SVN Regular Release Flow
ITC
Local
DEV QAT UAT PROD
Get new CR
or ticket
Checkout
for fix bug
Build
Deploy
Unit Test
Auto test
Sanity test
Push to UAT
Deployment
Merge to PROD
Deployment
Merge to QAT
Commit
Build
Deploy
Unit Test
Auto test

Git Regular Release Flow
Master
(PRD)
Test
Env.
QAT UAT
Test
Env.
DEV
ITC
Local
Get new CR
or ticket
Checkout
for fix bug
Build
Deploy
Unit Test
Auto test
All success
Push and merge
to DEV
Follow this rule to
make each ticket as a
node
Build
Deploy
Unit Test
Auto test
All success
Merge to QAT
Now we get other
QAT note
After QA human test,
There only two days
QAT can merge to UAT
Rebase to Master,
do PROD deployment

Git UAT Patch Flow
Master
(PRD)
Test
Env.
QAT UAT
Test
Env.
DEV
ITC
Local
Merge to UAT to do RUU
then rebase to Master
UAT has issue
Checkout
for patch
Build
Deploy
Unit Test
Auto test
All success
Push and merge to
DEV
Now we can merge
this to any
environment.
Rebase to Master,
do hotfix

Git PROD Hotfix Flow
Master
(PRD)
Test
Env.
QAT UAT
Test
Env.
DEV
ITC
Local
Merge to UAT to do RUU
then rebase to Master
PROD has issue
needs hotfix
Checkout
for hotfix
Build
Deploy
Unit Test
Auto test
All success
Push and merge to
DEV
Now we can merge
this to any
environment.
Rebase to Master,
do hotfix

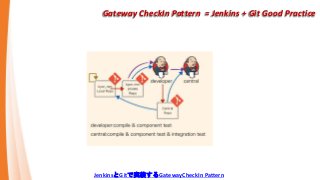

Gateway CheckIn Pattern = Jenkins + Git Good Practice
JenkinsとGitで実装するGatewayCheckIn Pattern

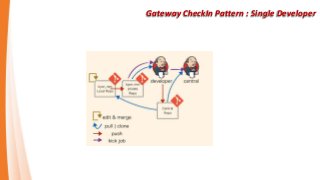

Gateway CheckIn Pattern : Single Developer

Gateway CheckIn Pattern : Multiple Developer

DNG Team Next Move
Development
• Specify
• Code
• Unit Test
• Integration Test
• Version Control
CI/CD
• Build
• Auto Test
• Human Verify
• Release Control
• PROD Release
Ops
• Logging
• Monitoring

Continuous Improvement on Xuenn

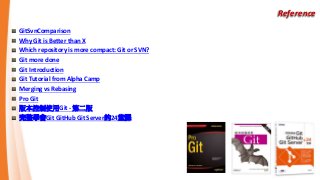

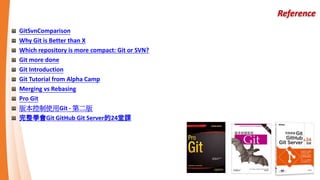

Reference
GitSvnComparison
Why Git is Better than X
Which repository is more compact: Git or SVN?
Git more done
Git Introduction
Git Tutorial from Alpha Camp
Merging vs Rebasing
Pro Git
版本控制使用Git - 第二版
完整學會Git GitHub Git Server的24堂課

Git essential training & sharing self

Git essential training & sharing self

More Related Content

What's hot

Similar to Git essential training & sharing self

More from Chen-Tien Tsai

Recently uploaded

Git essential training & sharing self

Editor's Notes
