Subversion is an open source version control system that allows users to keep track of changes to files over time. It allows multiple users to work on projects together and easily merge changes. Subversion repositories can be set up with a trunk for main development and branches for experimental or release versions. Users check files out from the repository, make changes locally, and commit changes back with log messages. Conflicts that arise from simultaneous edits can be resolved by choosing one version over the other or merging changes. Branches and tags are used to experiment with code and create snapshots independently of the trunk.

1. Getting started with Subversion Jordan Hatch

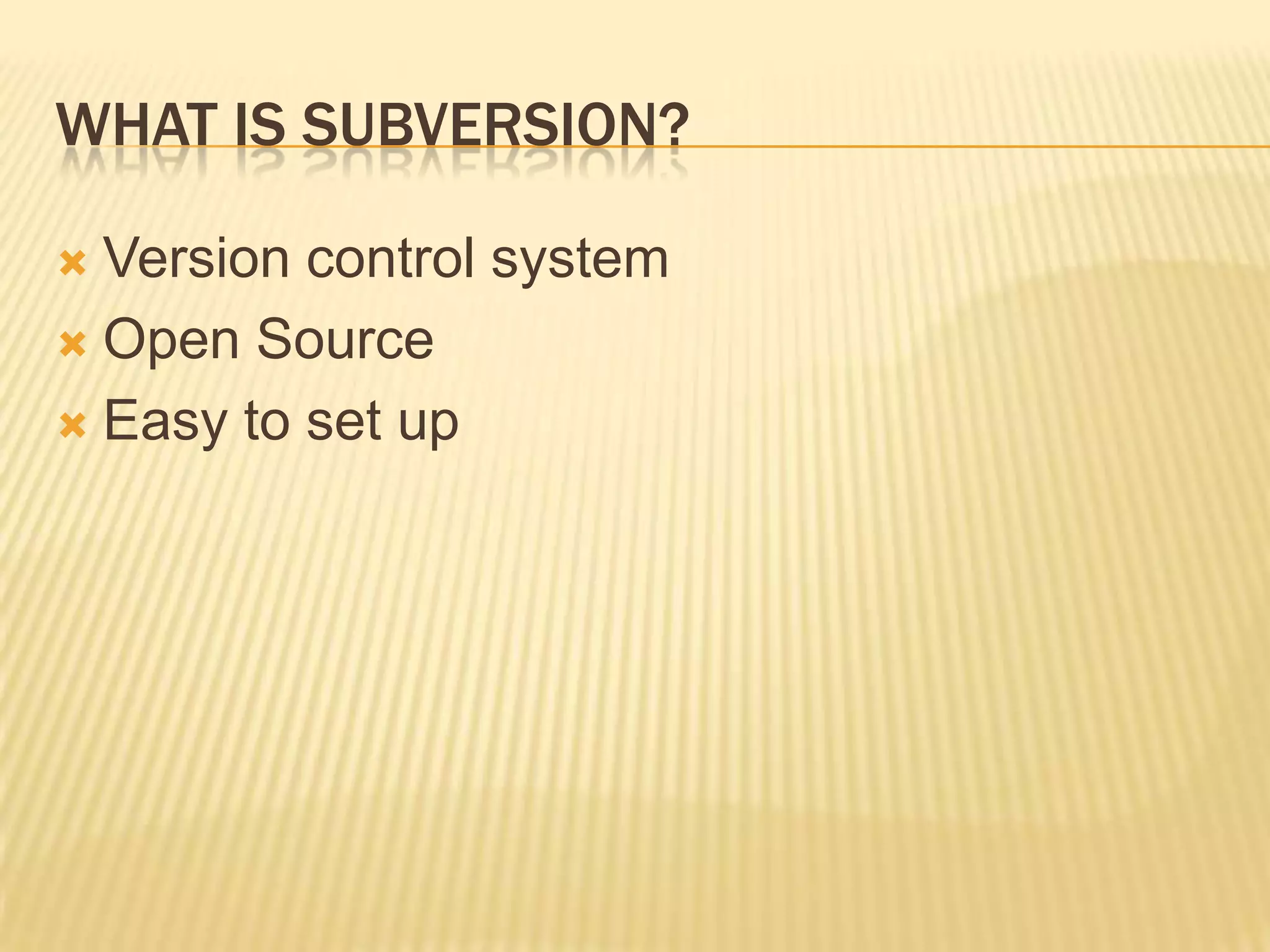

2. What is subversion? Version control system Open Source Easy to set up

3. Why Version Control?

4. Keep Project organised File and project history Works with any text-based files More than one person editing Easy to branch/merge projects Small footprint on server

5. A Backup System Rollback changes on files Find out who changed what!

6. Setting Up Subversion

7. Choose the server… svnserve Easy to set up Can be used with SSH Apache HTTP Server Harder to set up HTML repository browsing Multiple authentication methods

8. svnserve Available for multiple platforms Windows: http://tortoisesvn.net/docs/release/TortoiseSVN_en/tsvn-serversetup-svnserve.html Mac: http://developer.apple.com/mac/library/documentation/Darwin/ Reference/ManPages/man8/svnserve.8.html Linux Package Manager

9. Creating a repository Linux & Mac OS X: $ svnadmin create /home/jordan/repo Windows: svnadmin create C:epo

10. Choose A Client… Command Line! “Out of the box” SVN support on Mac OS X Easy to install on Linux Binaries for Windows – http://subversion.tigris.org/ GUIs Tortoise SVN – Windows only IDE Plugins Versions App for Mac

11. SVN Basics

12. Repository layout No forced structure Most commonly-used way…

14. REPOSITORY LAYOUT trunk – Main project development branches – Experimental and release branches tags – “Snapshot” of a project

15. Importing Your Project $ svn import myproject /path/to/repo br /> -m “Importing my project” Adding myproject/page.php Adding myproject/style.css Adding myproject/includes Adding myproject/includes/db.php Committed revision 1.

16. Checking out Project $ svn checkout /path/to/repo/project A myproject/page.php A myproject/style.css A myproject/includes A myproject/includes/db.php Checked out revision 1.

17. Committing changes $ svn status A myproject/login.php A myproject/logout.php M myproject/page.php M myproject/style.css M myproject/includes/db.php

18. Committing Changes $ svn commit -m “Added login page.” Sending myproject/login.php Sending myproject/logout.php Sending myproject/page.php Sending myproject/style.css Sending myproject/includes/db.php Transmitting file data . Committed revision 3.

19. Resolving Conflicts $ svn status C myproject/login.php

20. Resolving Conflicts Four ways of resolving conflicts: Overwrite with your version of the file Overwrite with the existing version Merge the changes manually Merge using a merge tool

21. RESOLVING CONFLICTS $ svn resolve --accept working myproject/login.php Resolved conflicted state of ‘myproject/login.php' $ svn commit -m “Added login session check.” Sending myproject/login.php Transmitting file data . Committed revision 6.

22. Creating Branches & Tags It’s just a copy of a folder… Merge changes back into trunk later $ svn copy /project/trunk /project/branches/1.0 $ svn copy /project/trunk /project/tags/1.0 $ svn copy /project/branches/1.0 /project/tags/1.1

23. SVN Examples

24. Release branches Used often in open source projects Very flexible Allows for maintenance releases while core is worked on for next major release.

25. Release Branches tags 1.0 1.0.1 1.5 1.5.1 1.7 branches 1.7 1.5 1.0 trunk

26. Seen in the wild… WordPress’ SVN Zend Framework SVN

27. Branching Concepts Feature Branches Allows for experimentation Vendor Branches Keeping track of code libraries Allows for modifications to suit your needs

28. Conclusion You need version control! SVN is open-source and (fairly) easy to set up… Use branches and tags to experiment with your code. Organise it however you like.

29. And IF You Get Stuck… http://svnbook.red-bean.com Everything you need to know about SVN.

30. Thanks (: Jordan Hatch - @1jh http://www.jordanh.net/
