The document discusses choosing Subversion as a version control system for a project based on its central repository model, path-based authorization for access control, selective checkout capabilities, support on Linux, Mac and Windows platforms, and ability to do word file comparisons using TortoiseSVN. It highlights some of Subversion's key concepts like commit, update, push and pull and clients available on different platforms. It also talks about using path-based authorization and sparse checkout for large repositories, and features of TortoiseSVN Windows client like integration with Windows Explorer.

1. Subversion

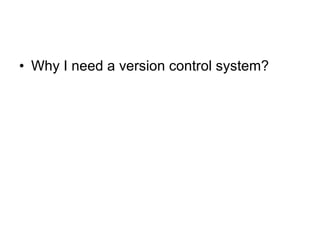

2. Why I need a version control system?

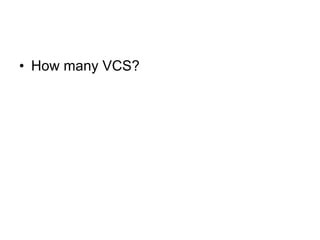

3. How many VCS?

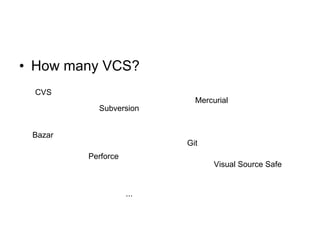

4. How many VCS? CVS Subversion Mercurial Git Bazar Perforce Visual Source Safe ...

5. How to choose VCS?

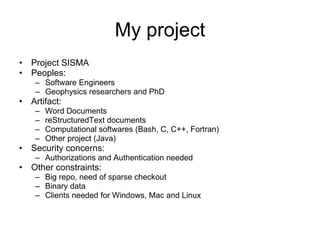

6. My project Project SISMA Peoples: Software Engineers Geophysics researchers and PhD Artifact: Word Documents reStructuredText documents Computational softwares (Bash, C, C++, Fortran) Other project (Java) Security concerns: Authorizations and Authentication needed Other constraints: Big repo, need of sparse checkout Binary data Clients needed for Windows, Mac and Linux

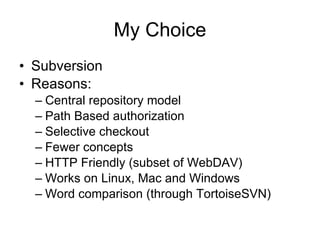

7. My Choice Subversion Reasons: Central repository model Path Based authorization Selective checkout Fewer concepts HTTP Friendly (subset of WebDAV) Works on Linux, Mac and Windows Word comparison (through TortoiseSVN)

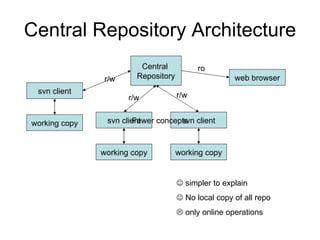

8. Central Repository Architecture Central Repository working copy svn client working copy svn client working copy svn client web browser r/w r/w r/w ro  simpler to explain  No local copy of all repo  only online operations Fewer concepts

9. Fewer concepts Commit Update Push Pull Staging Index Porcelain Plumber Commit Update Push Pull Commit Update GIT HG Subverion

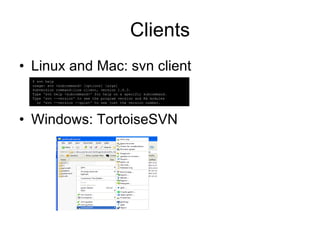

10. Clients Linux and Mac: svn client Windows: TortoiseSVN $ svn help usage: svn <subcommand> [options] [args] Subversion command-line client, version 1.6.3. Type 'svn help <subcommand>' for help on a specific subcommand. Type 'svn --version' to see the program version and RA modules or 'svn --version --quiet' to see just the version number.

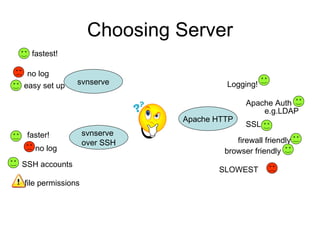

11. Choosing Server Apache HTTP svnserve svnserve over SSH fastest! faster! Logging! no log no log easy set up SSH accounts file permissions Apache Auth SSL firewall friendly browser friendly e.g.LDAP SLOWEST

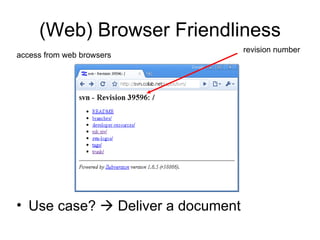

12. (Web) Browser Friendliness revision number access from web browsers Use case?  Deliver a document

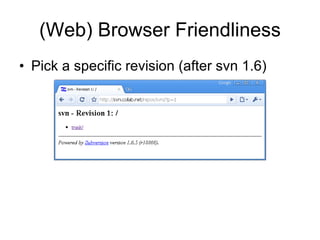

13. (Web) Browser Friendliness Pick a specific revision (after svn 1.6)

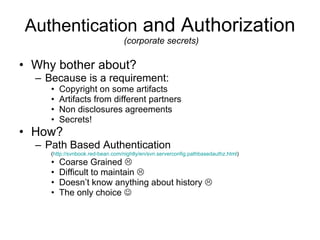

14. Authentication and Authorization (corporate secrets) Why bother about? Because is a requirement: Copyright on some artifacts Artifacts from different partners Non disclosures agreements Secrets! How? Path Based Authentication ( http://svnbook.red-bean.com/nightly/en/svn.serverconfig.pathbasedauthz.html ) Coarse Grained  Difficult to maintain  Doesn’t know anything about history  The only choice 

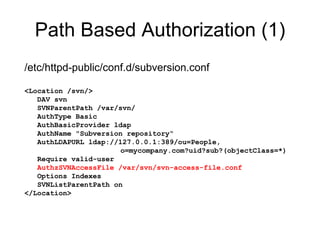

15. Path Based Authorization (1) /etc/httpd-public/conf.d/subversion.conf <Location /svn/> DAV svn SVNParentPath /var/svn/ AuthType Basic AuthBasicProvider ldap AuthName &quot;Subversion repository“ AuthLDAPURL ldap://127.0.0.1:389/ou=People, o=mycompany.com?uid?sub?(objectClass=*) Require valid-user AuthzSVNAccessFile /var/svn/svn-access-file.conf Options Indexes SVNListParentPath on </Location>

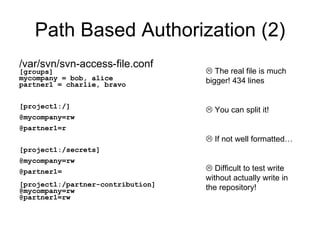

16. Path Based Authorization (2) /var/svn/svn-access-file.conf [groups] mycompany = bob, alice partner1 = charlie, bravo [project1:/] @mycompany=rw @partner1=r [project1:/secrets] @mycompany=rw @partner1= [project1:/partner-contribution] @mycompany=rw @partner1=rw  The real file is much bigger! 434 lines  You can split it!  If not well formatted…  Difficult to test write without actually write in the repository!

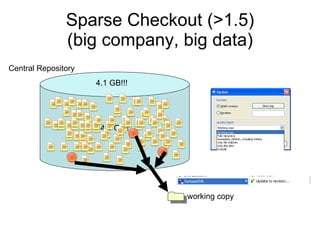

17. Sparse Checkout (>1.5) (big company, big data) working copy 4.1 Gb!! Central Repository 4.1 GB!!!

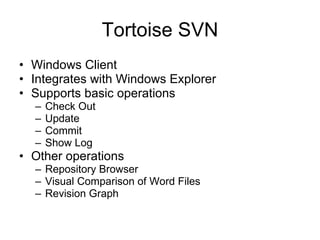

18. Tortoise SVN Windows Client Integrates with Windows Explorer Supports basic operations Check Out Update Commit Show Log Other operations Repository Browser Visual Comparison of Word Files Revision Graph

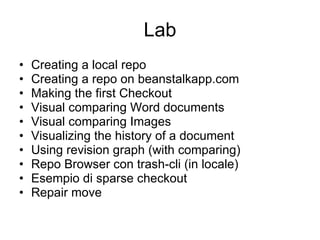

19. Lab Creating a local repo Creating a repo on beanstalkapp.com Making the first Checkout Visual comparing Word documents Visual comparing Images Visualizing the history of a document Using revision graph (with comparing) Repo Browser con trash-cli (in locale) Esempio di sparse checkout Repair move

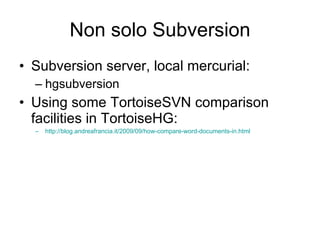

20. Non solo Subversion Subversion server, local mercurial: hgsubversion Using some TortoiseSVN comparison facilities in TortoiseHG: http://blog.andreafrancia.it/2009/09/how-compare-word-documents-in.html

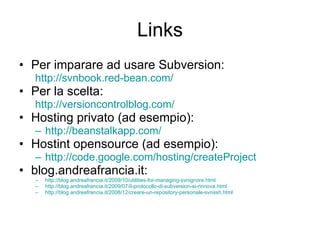

21. Links Per imparare ad usare Subversion: http://svnbook.red-bean.com / Per la scelta: http :// versioncontrolblog.com/ Hosting privato (ad esempio): http://beanstalkapp.com/ Hostint opensource (ad esempio): http:// code.google.com/hosting/createProject blog.andreafrancia.it: http://blog.andreafrancia.it/2009/10/utilities-for-managing-svnignore.html http://blog.andreafrancia.it/2009/07/il-protocollo-di-subversion-si-rinnova.html http://blog.andreafrancia.it/2008/12/creare-un-repository-personale-svnssh.html

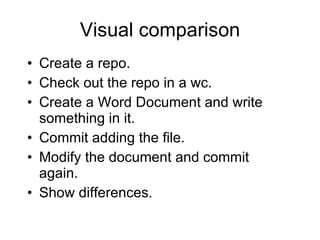

22. Visual comparison Create a repo. Check out the repo in a wc. Create a Word Document and write something in it. Commit adding the file. Modify the document and commit again. Show differences.

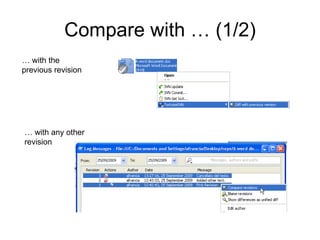

23. Compare with … (1/2) … with any other revision … with the previous revision

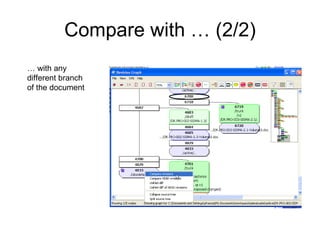

24. Compare with … (2/2) … with any different branch of the document

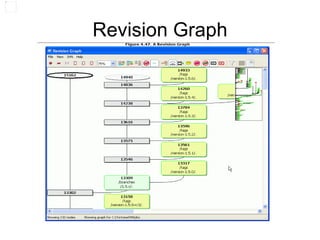

25. Revision Graph
