Australia SharePoint Conference 2012 - SharePoint Performance - Tales from the Field
- 1. SharePoint Performance –Best Practices from the Field Chris McNulty @cmcnulty2000
- 2.

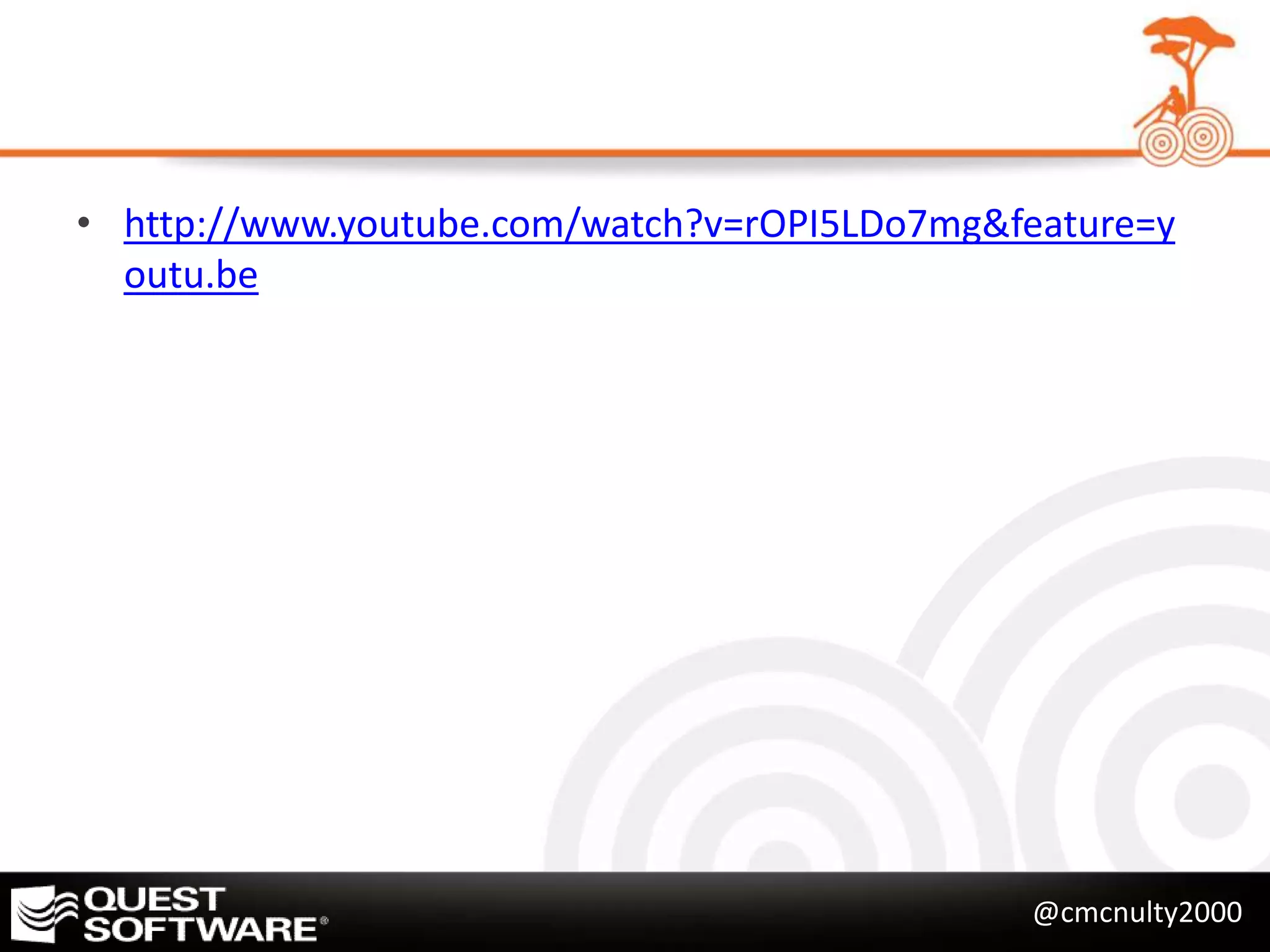

- 3. • http://www.youtube.com/watch?v=rOPI5LDo7mg&feature=y outu.be @cmcnulty2000
- 4. Quest Market Presence Americas 60 Offices, 3 HQs EMEA APJa Sales/Mrkg 3600+ Employees R&D Support 178 Countries 100,000+ Customers All Verticals Global 200 SMB Multiple Business Lines Database, Monitoring, Data Protection, User Workspace/Virtualization, Windows (SharePoint, AD, Messaging), Identity Mgmt @cmcnulty2000
- 5.
- 6. Chris McNulty • SharePoint Strategic Product Manager at Quest Software • 10+ years with SharePoint • 20 years consulting (led KMA SharePoint practice) and financial services technology (Santander, John Hancock/Manulife, GMO, State Street) • MBA in Inv Mgmt from Boston College • Write and speak often on Microsoft IW technologies (blogs & books) • MCSE MCTS MSA MVTSP MCC • Hiking, cooking, playing guitar, colonial history, photography • My family: Hayley, three kids (17, 8, 5) and my dog Stan @cmcnulty2000
- 7.
- 8. Agenda • Architecture, Design& Planning • Support – Monitoring and Operations – Optimization – Patching – SQL Maintenance – Metrics • Best Practices @cmcnulty2000

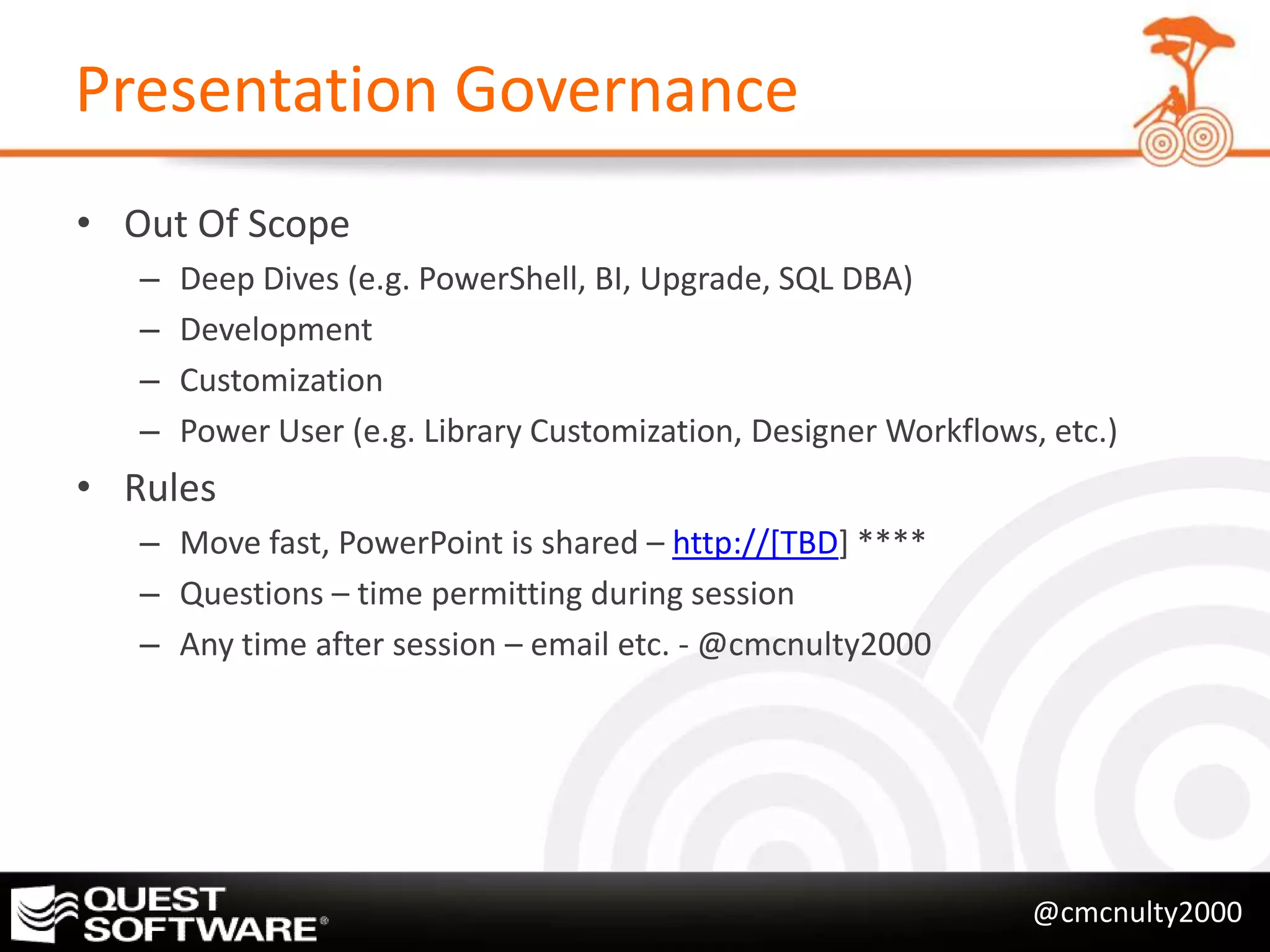

- 9. Presentation Governance • OutOf Scope – Deep Dives (e.g. PowerShell, BI, Upgrade, SQL DBA) – Development – Customization – Power User (e.g. Library Customization, Designer Workflows, etc.) • Rules – Move fast, PowerPoint is shared – http://[TBD] **** – Questions – time permitting during session – Any time after session – email etc. - @cmcnulty2000 @cmcnulty2000
- 10. Architecture and Design @cmcnulty2000
- 11. Server Farm –Web Front End • Typical Roles: • http services • Search query • Scaling • Add servers to load balanced cluster • Performance Optimization • RAM • Easily virtualized @cmcnulty2000

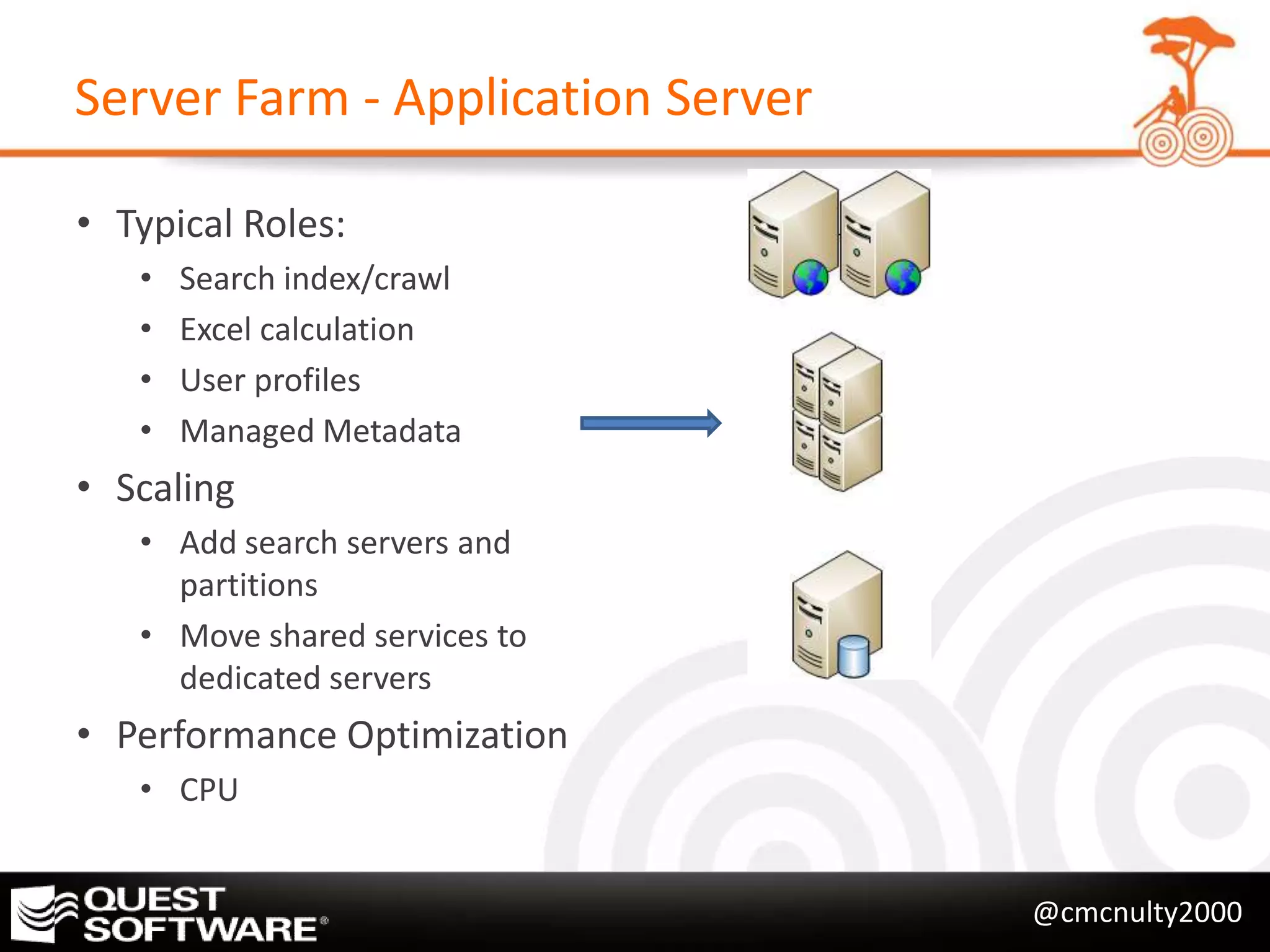

- 12. Server Farm -Application Server • Typical Roles: • Search index/crawl • Excel calculation • User profiles • Managed Metadata • Scaling • Add search servers and partitions • Move shared services to dedicated servers • Performance Optimization • CPU @cmcnulty2000
- 13. Server Farm -Database • Typical Roles: • Data storage • SQL Reporting • Scaling • Add storage capacity • Performance Optimization • Disk I/O @cmcnulty2000

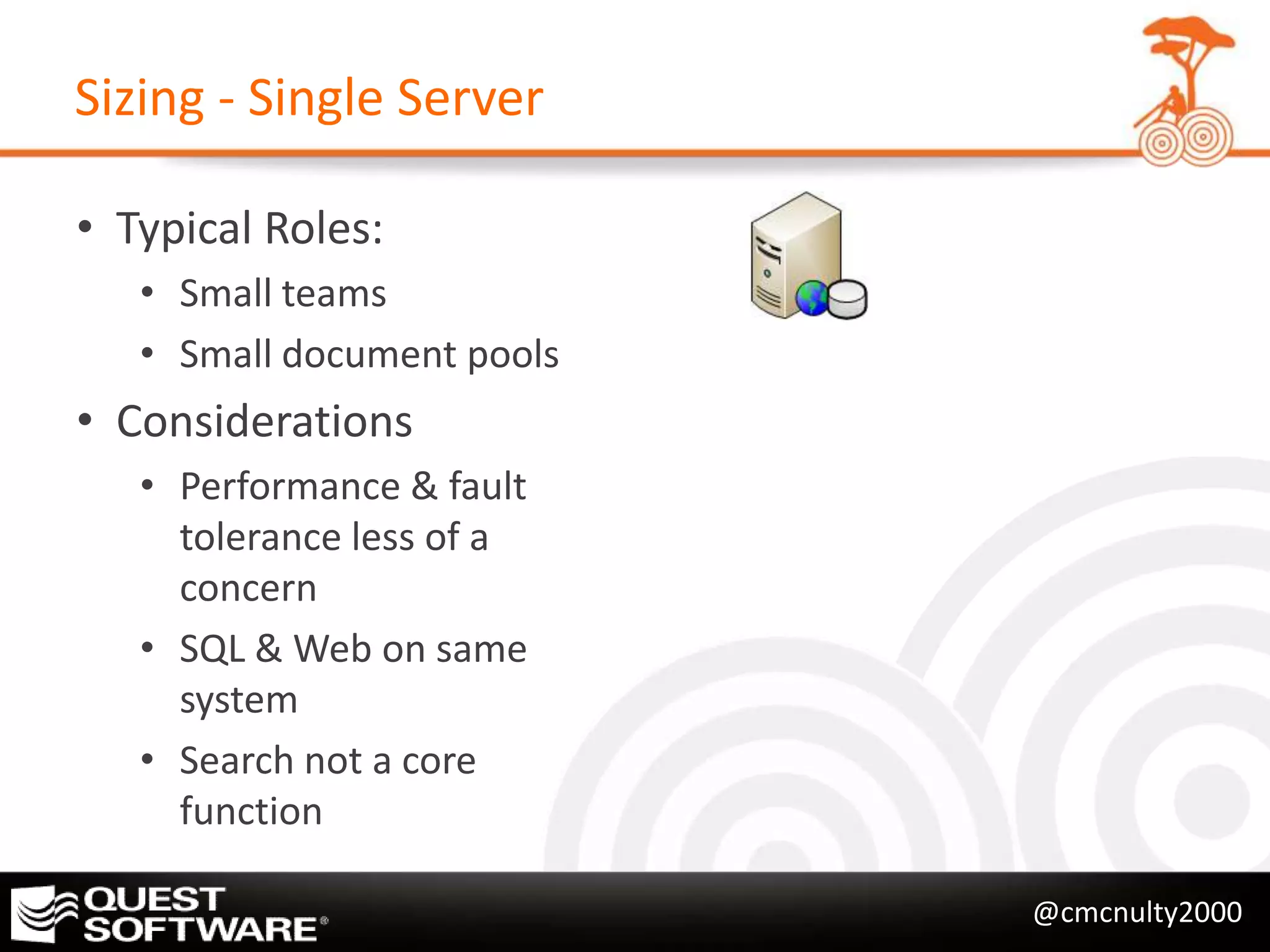

- 14. Sizing - SingleServer • Typical Roles: • Small teams • Small document pools • Considerations • Performance & fault tolerance less of a concern • SQL & Web on same system • Search not a core function @cmcnulty2000

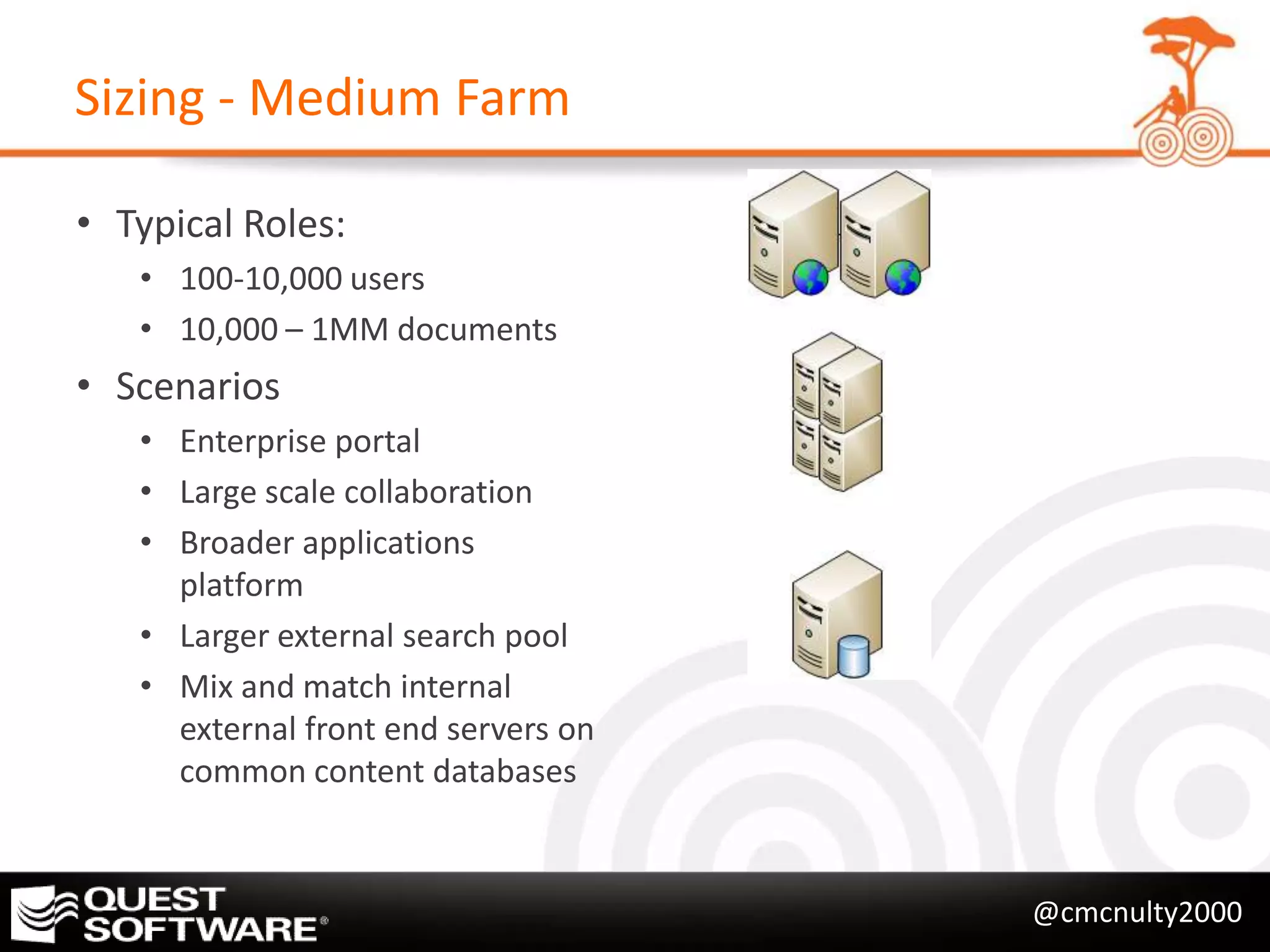

- 15. Sizing - MediumFarm • Typical Roles: • 100-10,000 users • 10,000 – 1MM documents • Scenarios • Enterprise portal • Large scale collaboration • Broader applications platform • Larger external search pool • Mix and match internal external front end servers on common content databases @cmcnulty2000

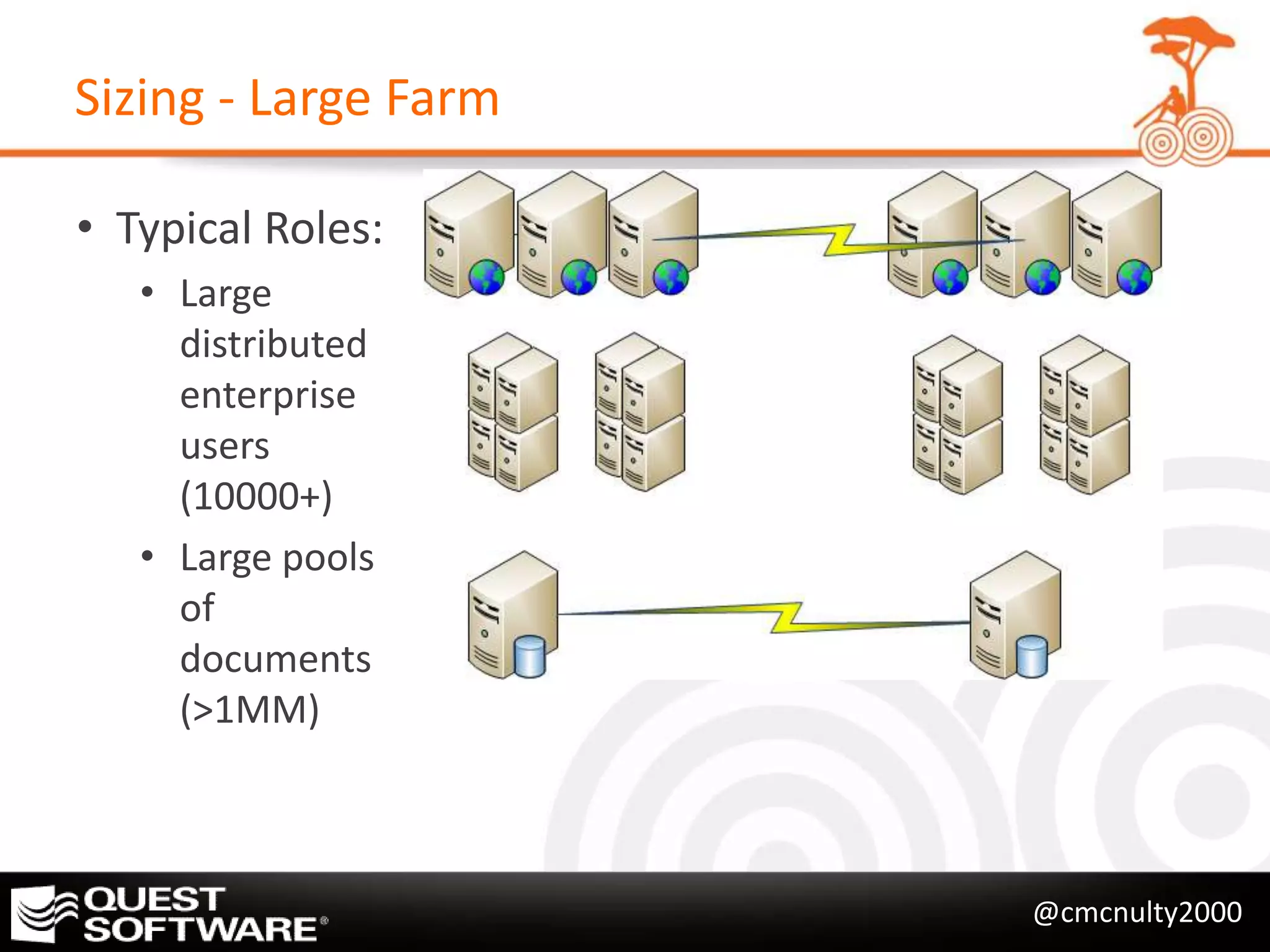

- 16. Sizing - LargeFarm • Typical Roles: • Large distributed enterprise users (10000+) • Large pools of documents (>1MM) @cmcnulty2000
- 17. Sizing – NoServers – Office 365 Office 365 E1 E2 E3 E4 • Constraints/Unavailable Enterprise Plans – Custom, non sandbox SharePoint Online √ √ √ √ solutions – Power Pivot Office Web Apps √ √ √ – SQL Server Reporting Service Integration Local Copy of Office √ √ Professional 2010 – Business Connectivity Plus Services (OK for web services- based remote data in O365 BCS.) Forms Services, √ √ – FAST Search Server Vision Services, Integration Access Services – Web Analytics Monthly cost per $10 $16 $24 $27 – Site collections greater than user (USD) 100GB @cmcnulty2000

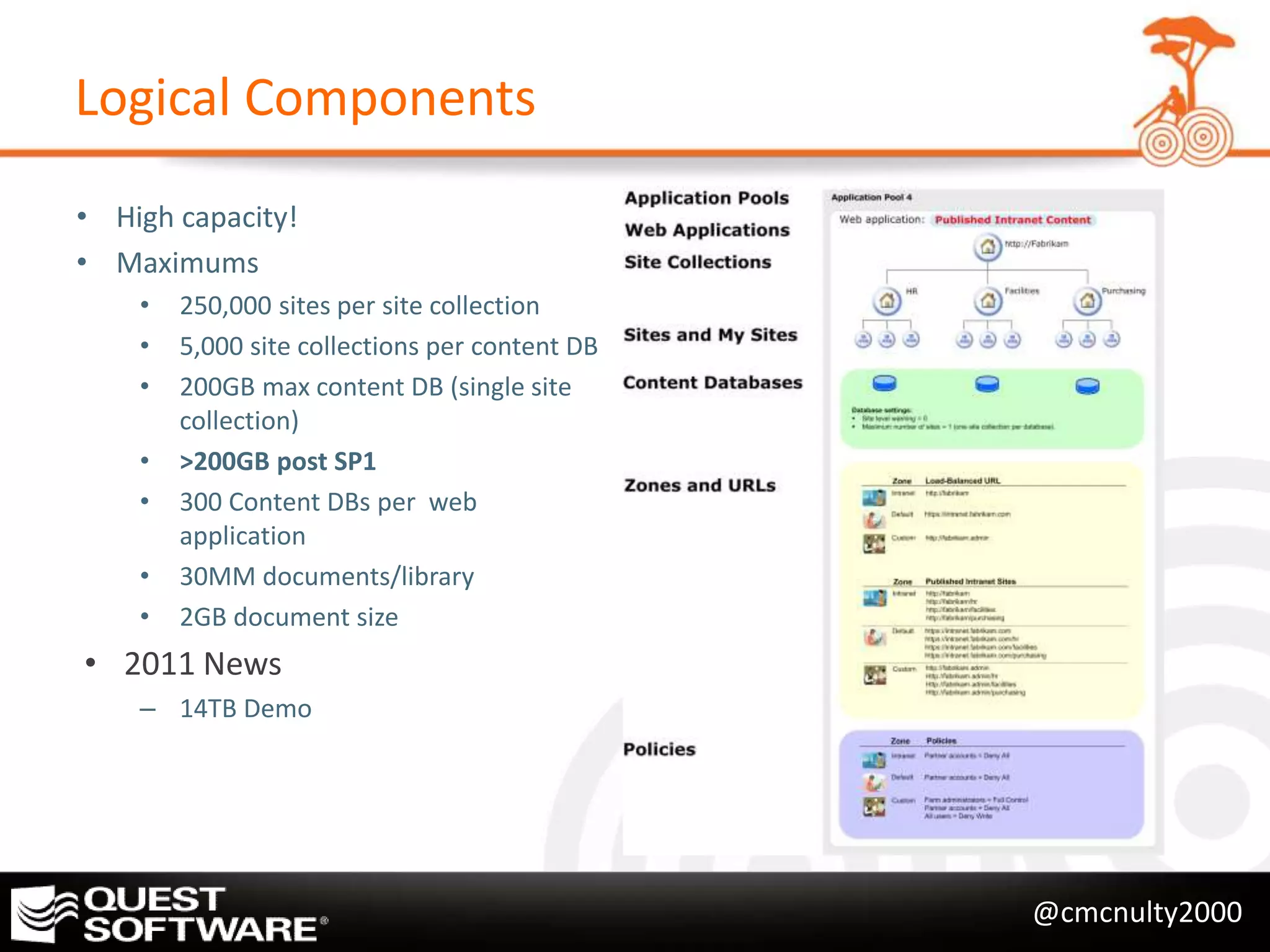

- 18. Logical Components • Highcapacity! • Maximums • 250,000 sites per site collection • 5,000 site collections per content DB • 200GB max content DB (single site collection) • >200GB post SP1 • 300 Content DBs per web application • 30MM documents/library • 2GB document size • 2011 News – 14TB Demo @cmcnulty2000

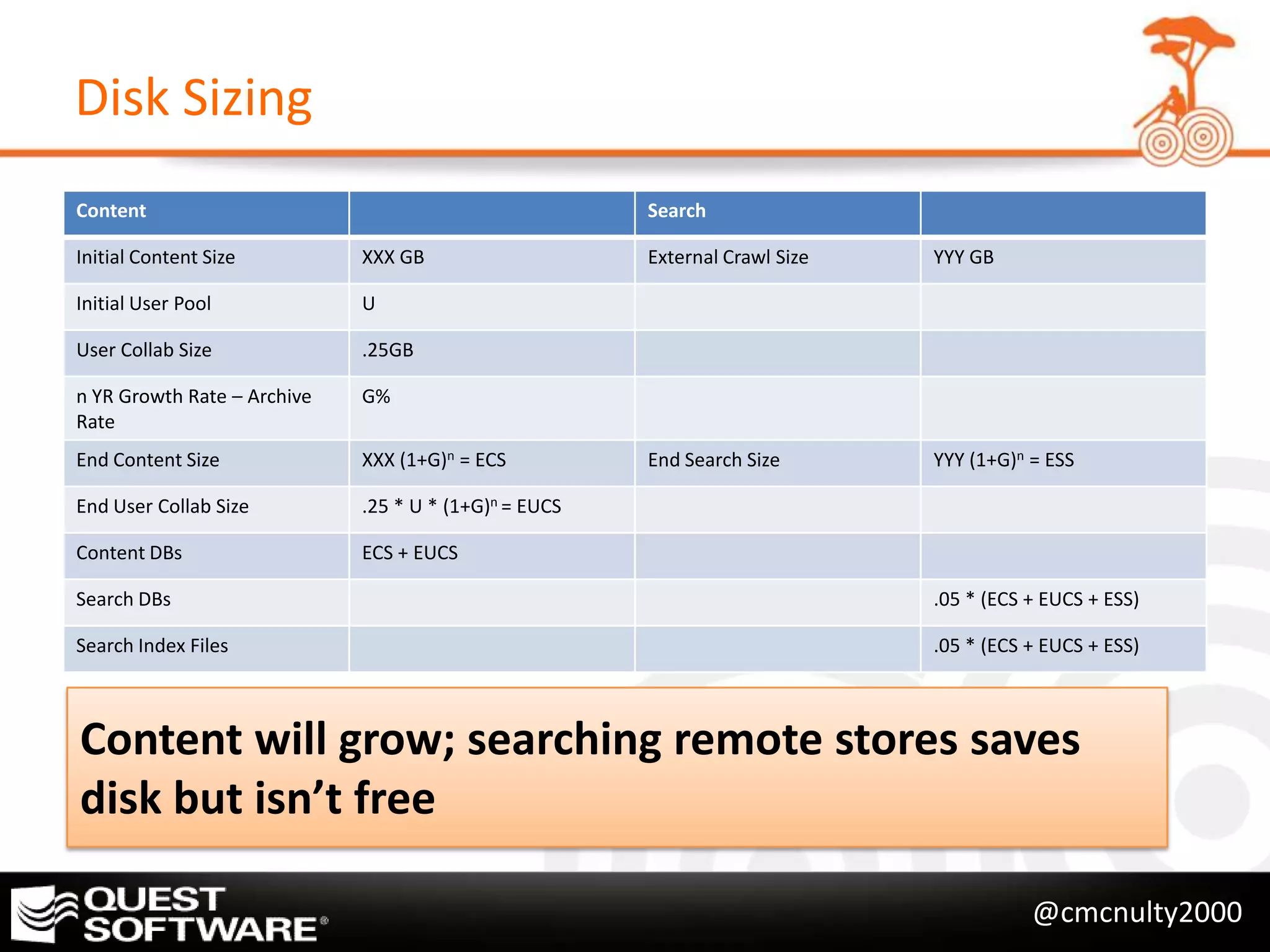

- 19. Disk Sizing Content Search Initial Content Size XXX GB External Crawl Size YYY GB Initial User Pool U User Collab Size .25GB n YR Growth Rate – Archive G% Rate End Content Size XXX (1+G)n = ECS End Search Size YYY (1+G)n = ESS End User Collab Size .25 * U * (1+G)n = EUCS Content DBs ECS + EUCS Search DBs .05 * (ECS + EUCS + ESS) Search Index Files .05 * (ECS + EUCS + ESS) • Inputs: Size of SharePoint content and non-SharePoint content included in search Content will grow; searching remote stores saves • For DBs, don’t forget transaction logs, disk dumps (if used for backup) which can add 1-3X. disk but isn’t free • In SAN or virtual environments, not all disk need be provisioned early @cmcnulty2000

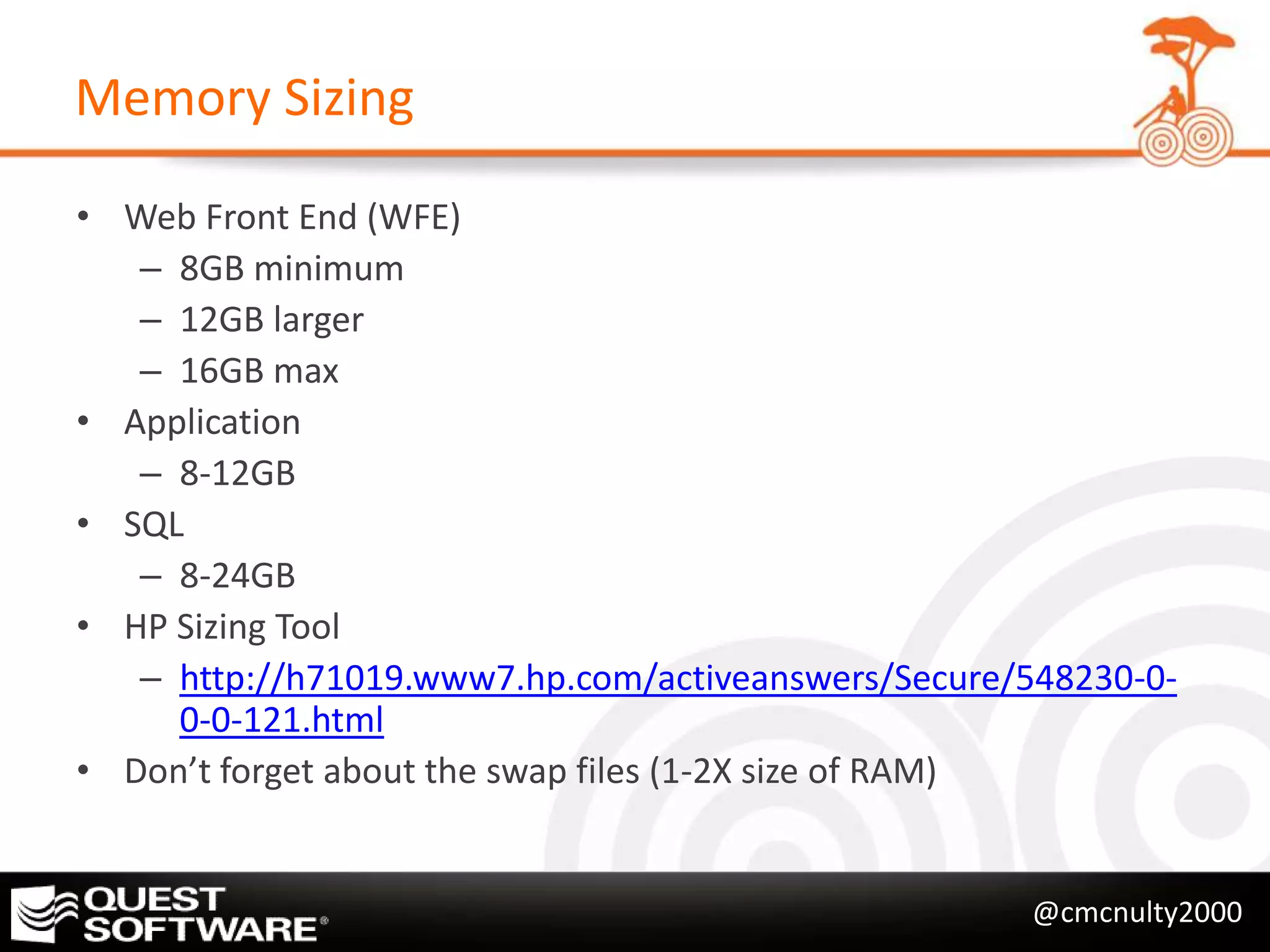

- 20. Memory Sizing • WebFront End (WFE) – 8GB minimum – 12GB larger – 16GB max • Application – 8-12GB • SQL – 8-24GB • HP Sizing Tool – http://h71019.www7.hp.com/activeanswers/Secure/548230-0- 0-0-121.html • Don’t forget about the swap files (1-2X size of RAM) @cmcnulty2000

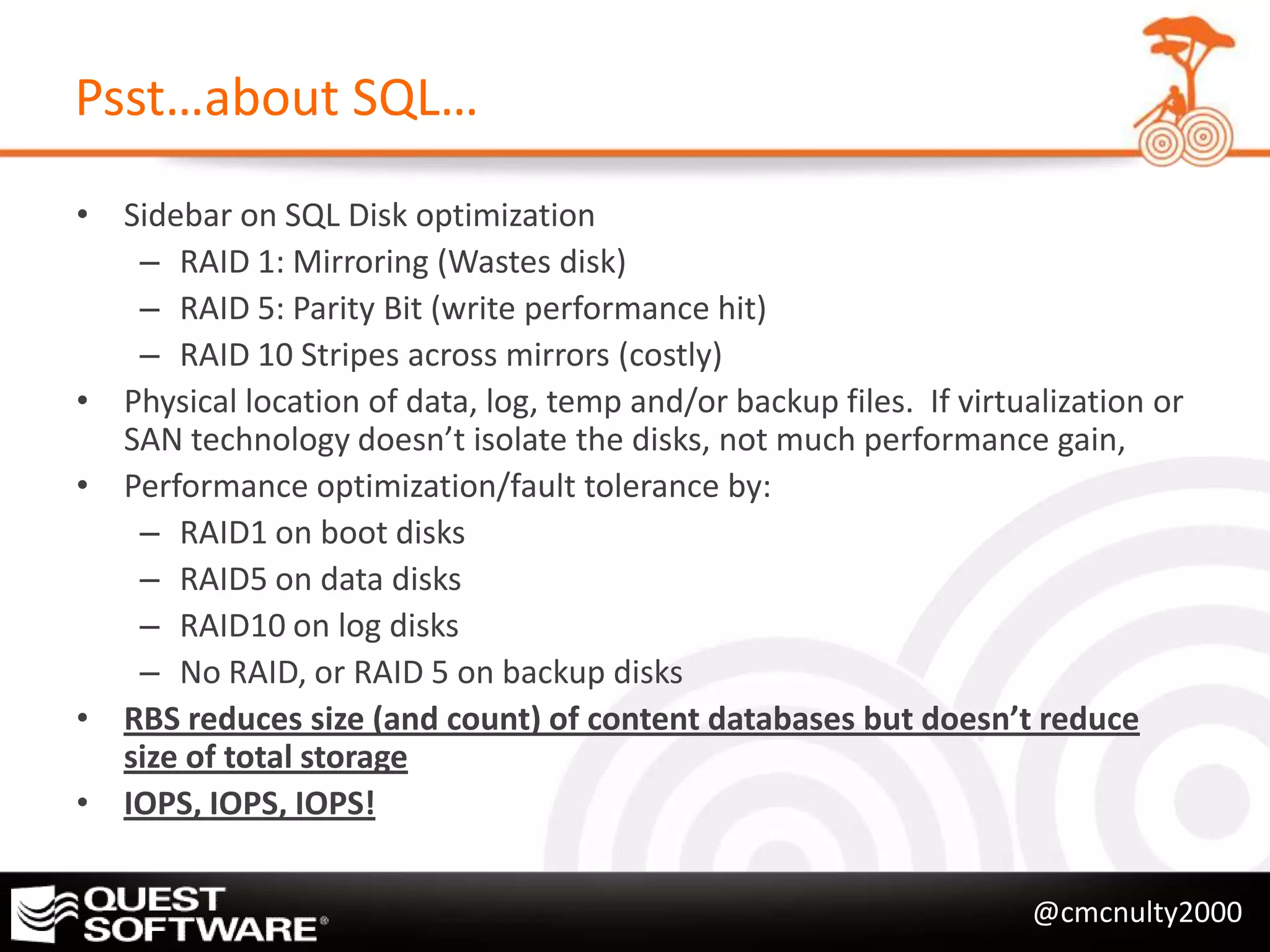

- 21. Psst…about SQL… • Sidebaron SQL Disk optimization – RAID 1: Mirroring (Wastes disk) – RAID 5: Parity Bit (write performance hit) – RAID 10 Stripes across mirrors (costly) • Physical location of data, log, temp and/or backup files. If virtualization or SAN technology doesn’t isolate the disks, not much performance gain, • Performance optimization/fault tolerance by: – RAID1 on boot disks – RAID5 on data disks – RAID10 on log disks – No RAID, or RAID 5 on backup disks • RBS reduces size (and count) of content databases but doesn’t reduce size of total storage • IOPS, IOPS, IOPS! @cmcnulty2000

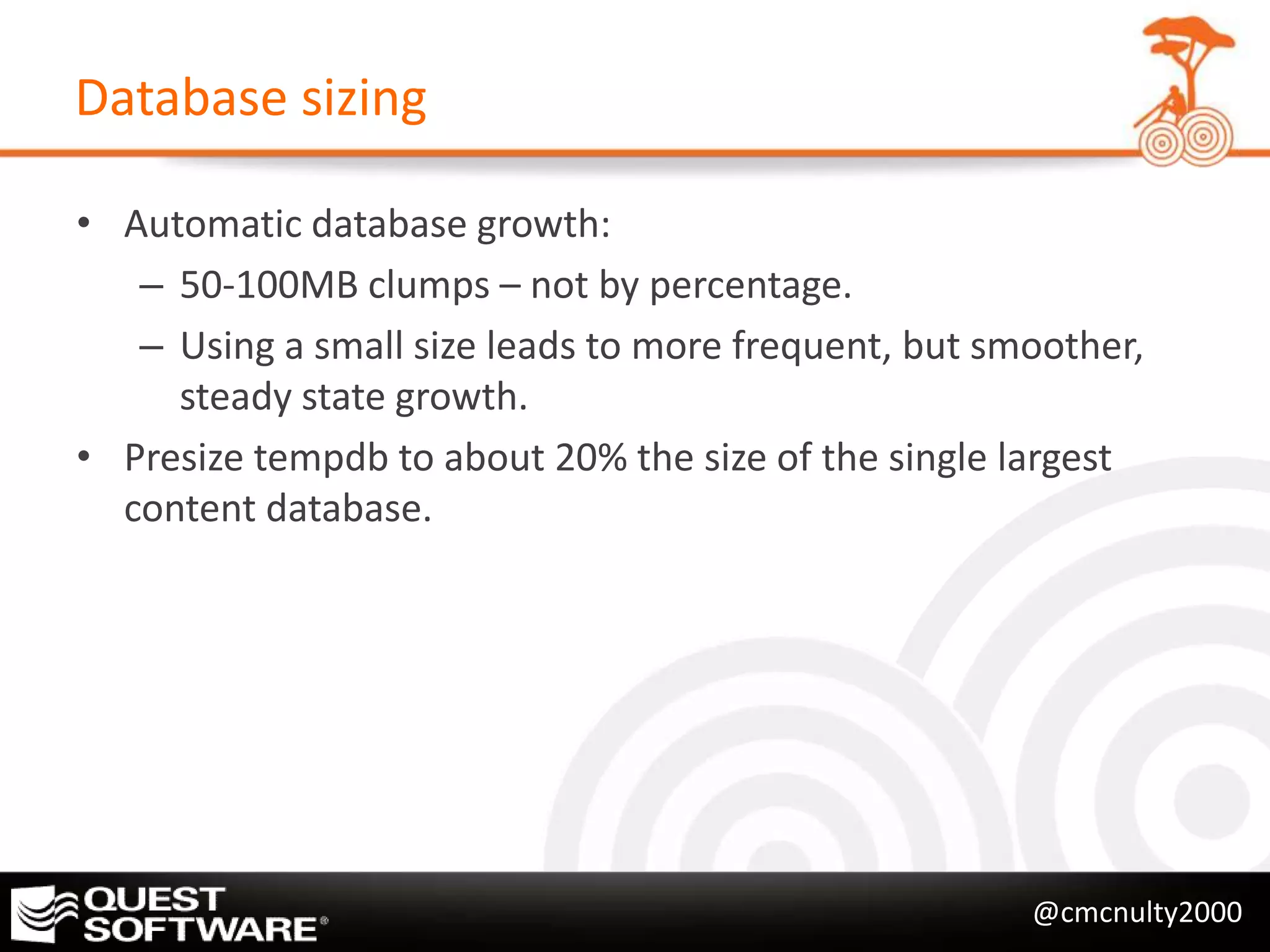

- 22. Database sizing • Automaticdatabase growth: – 50-100MB clumps – not by percentage. – Using a small size leads to more frequent, but smoother, steady state growth. • Presize tempdb to about 20% the size of the single largest content database. @cmcnulty2000
- 23. Monitoring and Operations Monitoring @cmcnulty2000

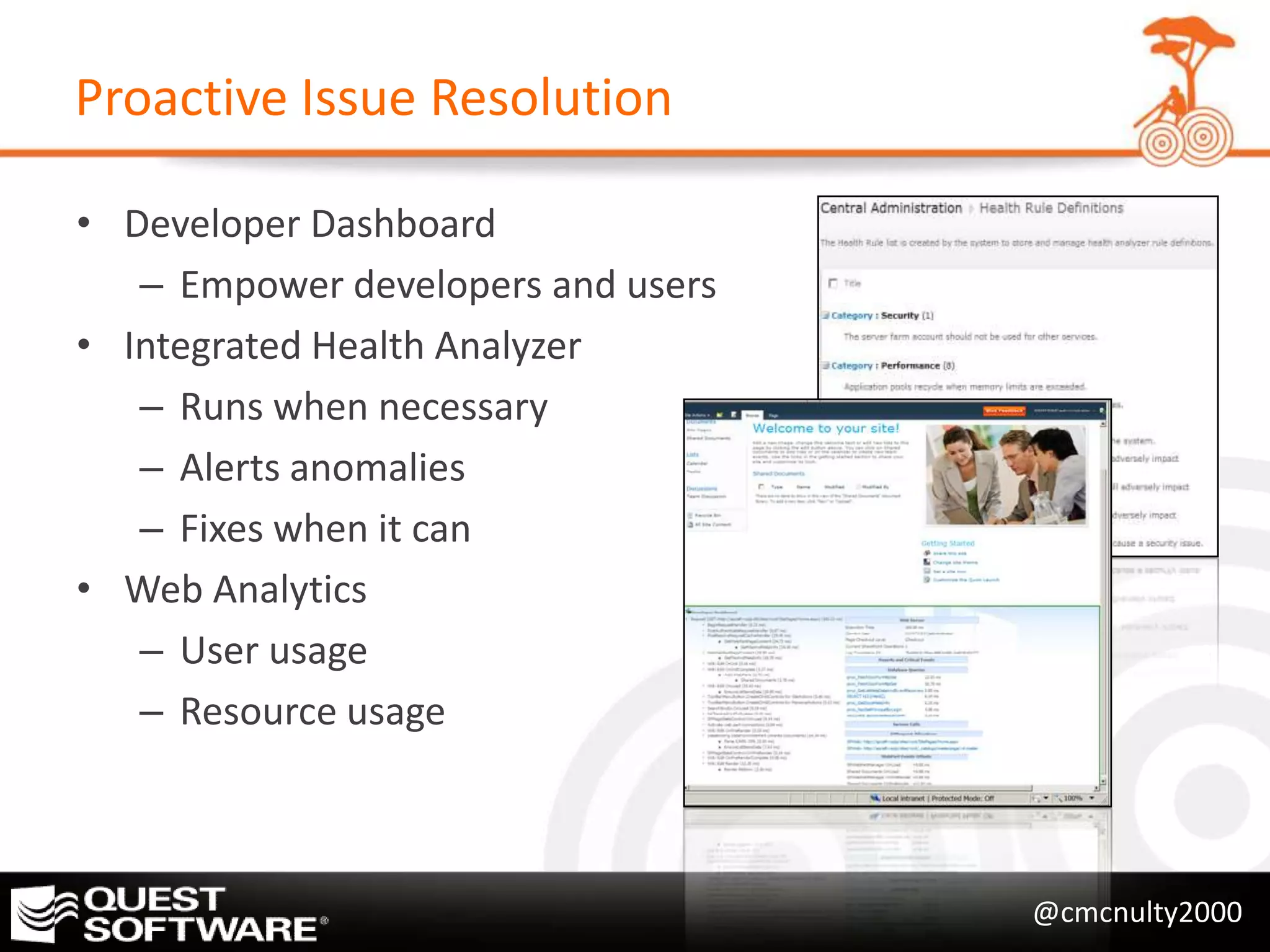

- 24. Proactive Issue Resolution •Developer Dashboard – Empower developers and users • Integrated Health Analyzer – Runs when necessary – Alerts anomalies – Fixes when it can • Web Analytics – User usage – Resource usage @cmcnulty2000

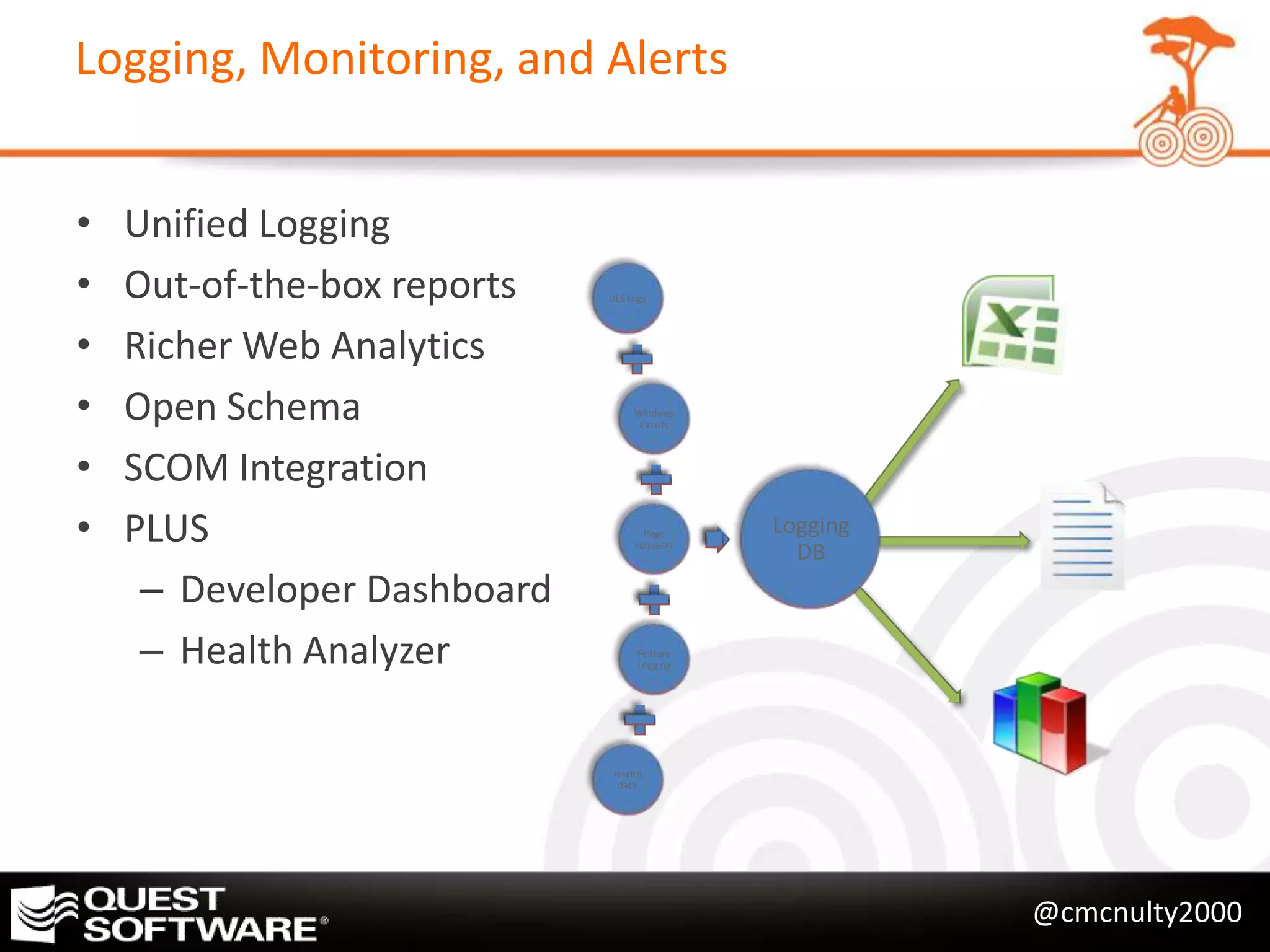

- 25. Logging, Monitoring, andAlerts • Unified Logging • Out-of-the-box reports ULS Logs • Richer Web Analytics • Open Schema Windows Events • SCOM Integration • PLUS Page requests Logging DB – Developer Dashboard – Health Analyzer Feature Logging Health data @cmcnulty2000
- 26. Developer Dashboard Improve customizedsolutions with the Developer Dashboard @cmcnulty2000

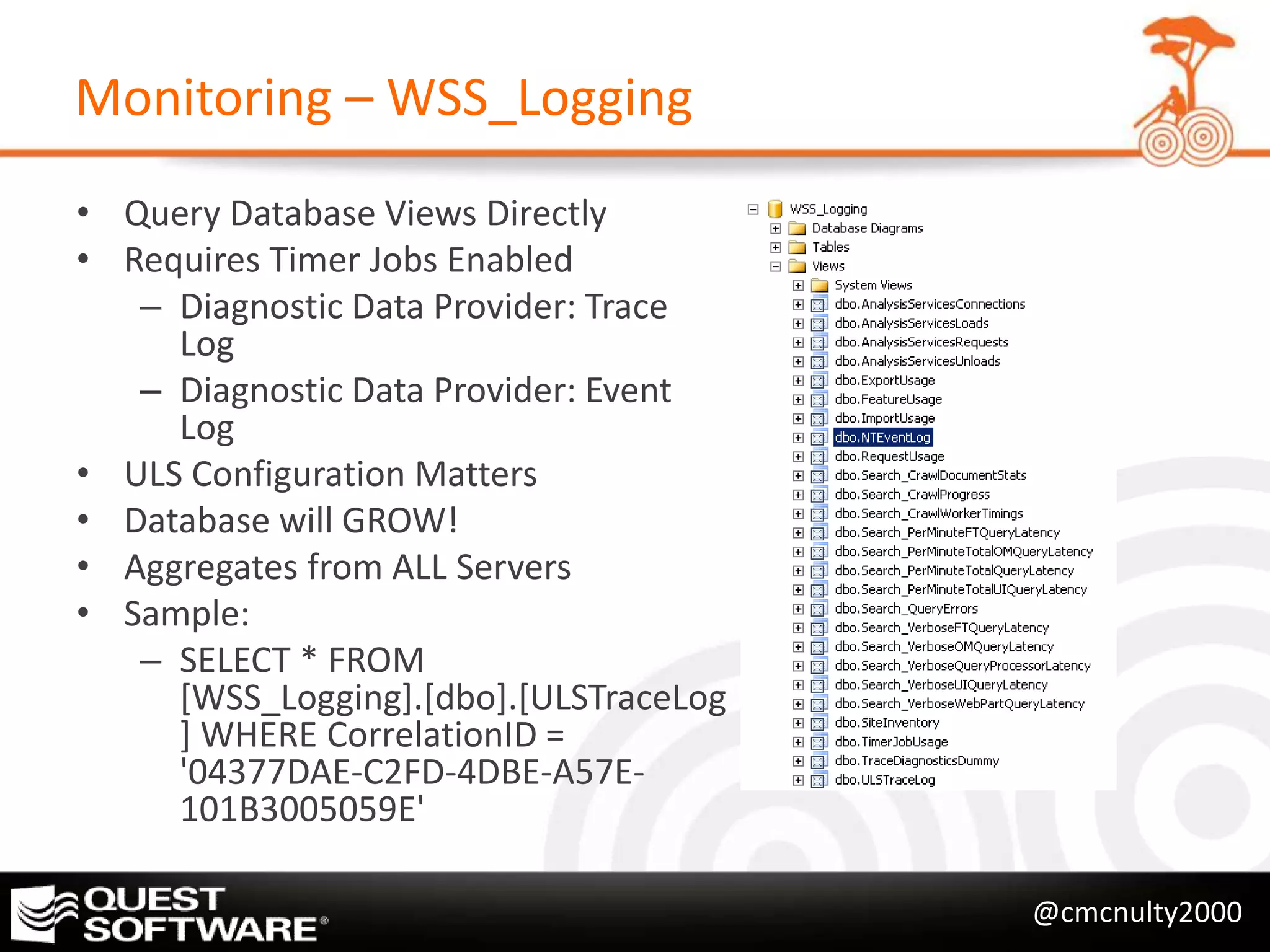

- 27. Monitoring – WSS_Logging •Query Database Views Directly • Requires Timer Jobs Enabled – Diagnostic Data Provider: Trace Log – Diagnostic Data Provider: Event Log • ULS Configuration Matters • Database will GROW! • Aggregates from ALL Servers • Sample: – SELECT * FROM [WSS_Logging].[dbo].[ULSTraceLog ] WHERE CorrelationID = '04377DAE-C2FD-4DBE-A57E- 101B3005059E' @cmcnulty2000

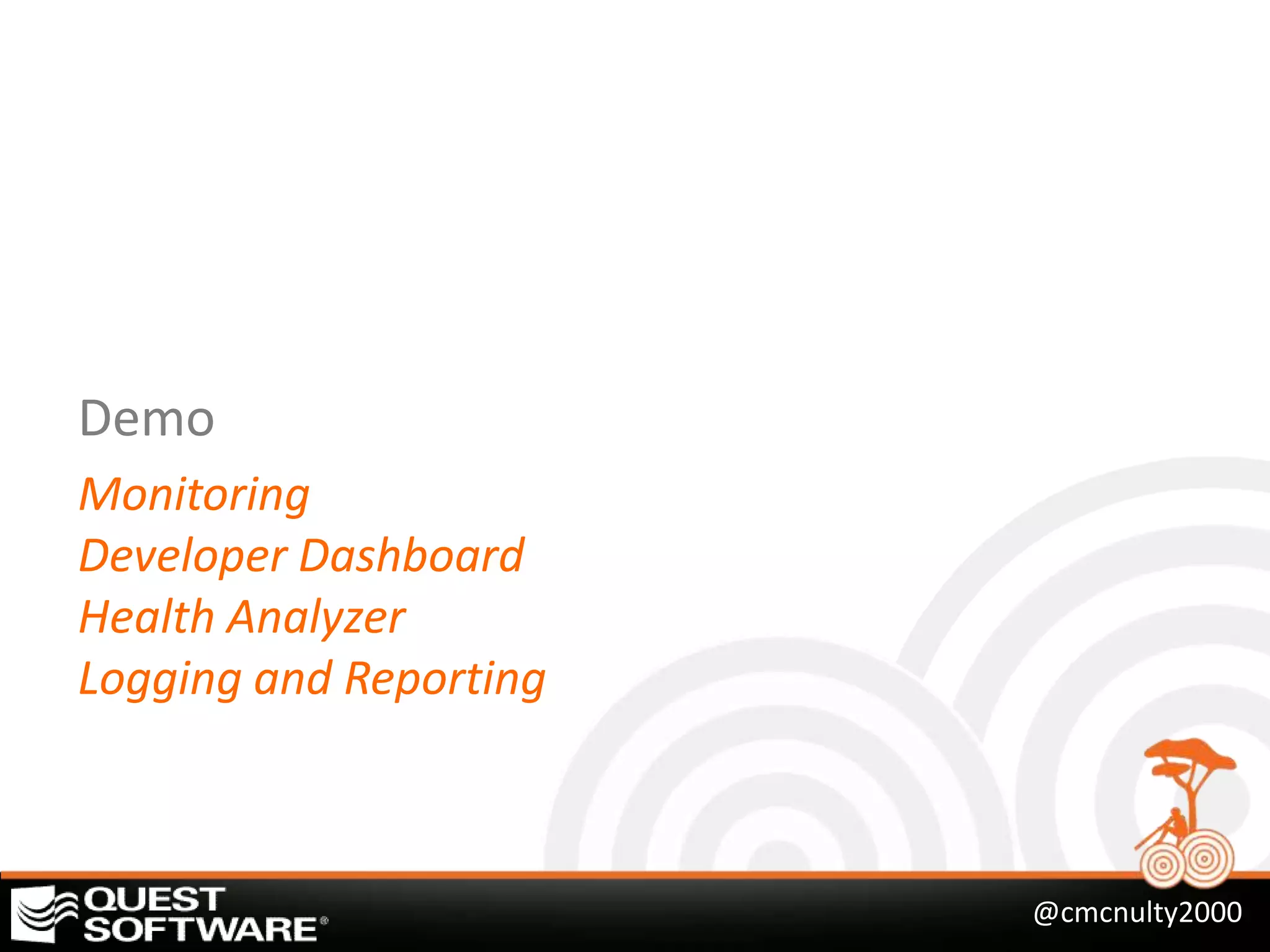

- 28. Demo Monitoring Developer Dashboard Health Analyzer Loggingand Reporting @cmcnulty2000
- 29. Optimization Optimization @cmcnulty2000

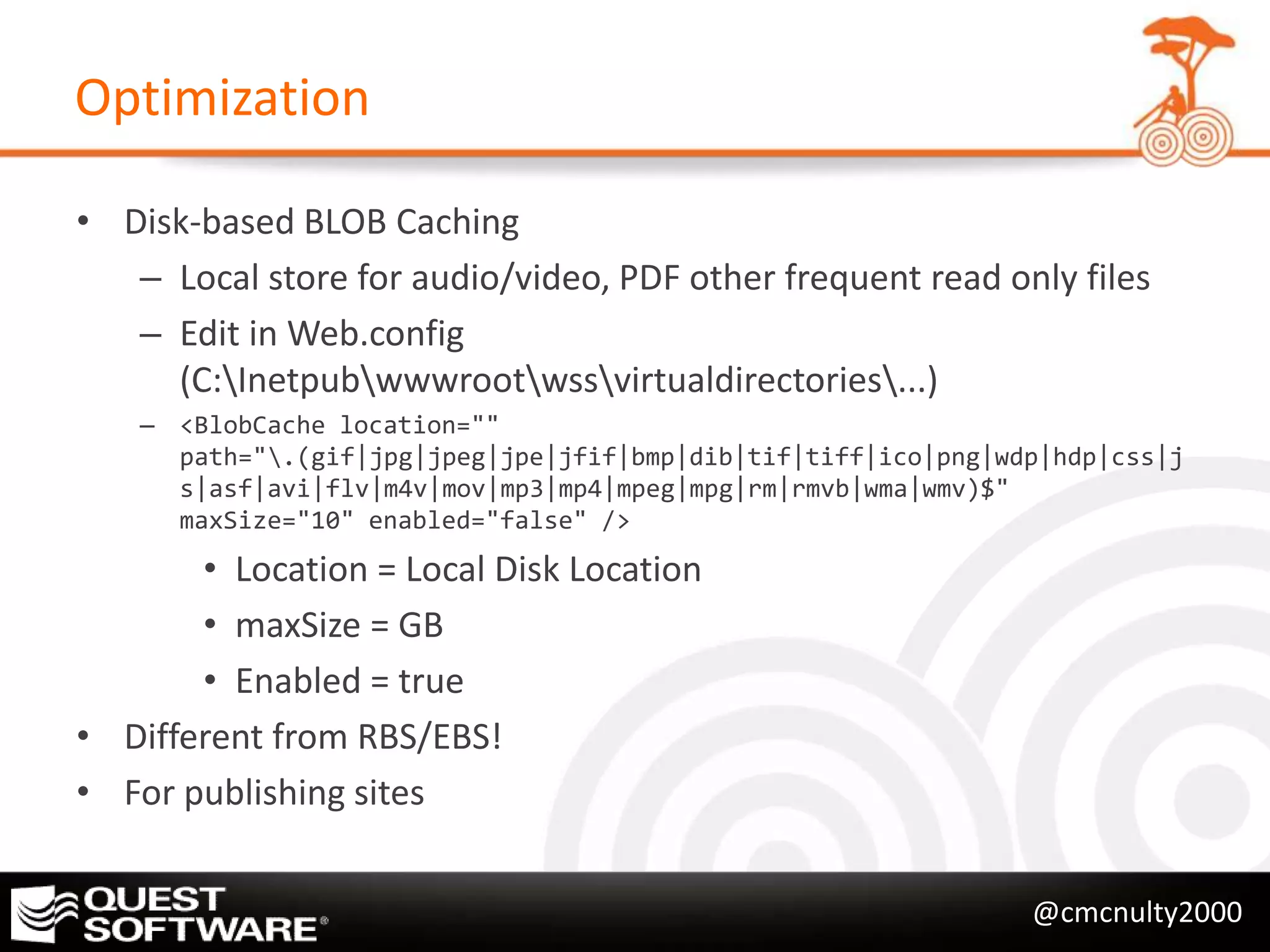

- 30. Optimization • Disk-based BLOBCaching – Local store for audio/video, PDF other frequent read only files – Edit in Web.config (C:Inetpubwwwrootwssvirtualdirectories...) – <BlobCache location="" path=".(gif|jpg|jpeg|jpe|jfif|bmp|dib|tif|tiff|ico|png|wdp|hdp|css|j s|asf|avi|flv|m4v|mov|mp3|mp4|mpeg|mpg|rm|rmvb|wma|wmv)$" maxSize="10" enabled="false" /> • Location = Local Disk Location • maxSize = GB • Enabled = true • Different from RBS/EBS! • For publishing sites @cmcnulty2000

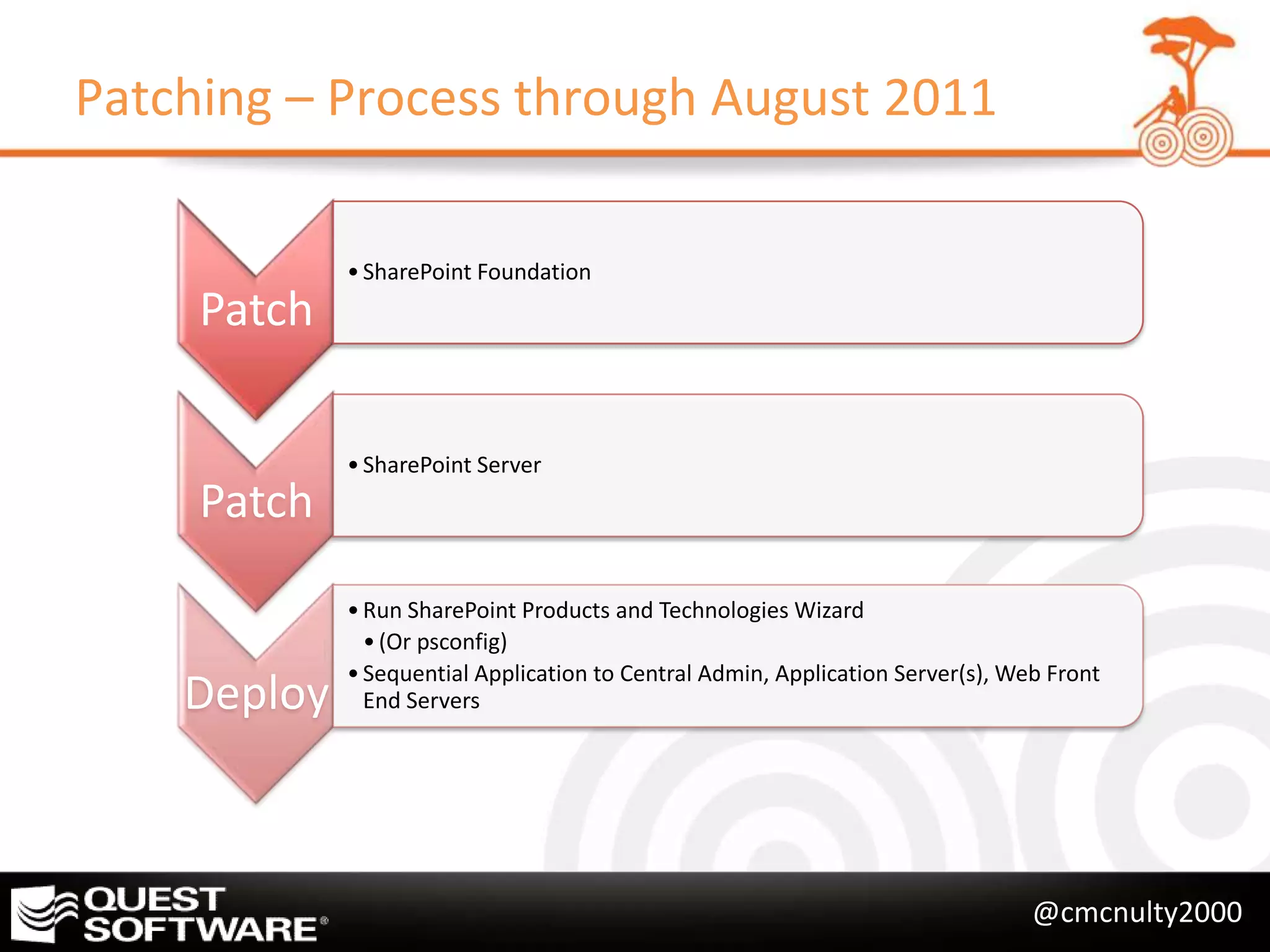

- 31. Patching – Processthrough August 2011 • SharePoint Foundation Patch • SharePoint Server Patch • Run SharePoint Products and Technologies Wizard • (Or psconfig) • Sequential Application to Central Admin, Application Server(s), Web Front Deploy End Servers @cmcnulty2000

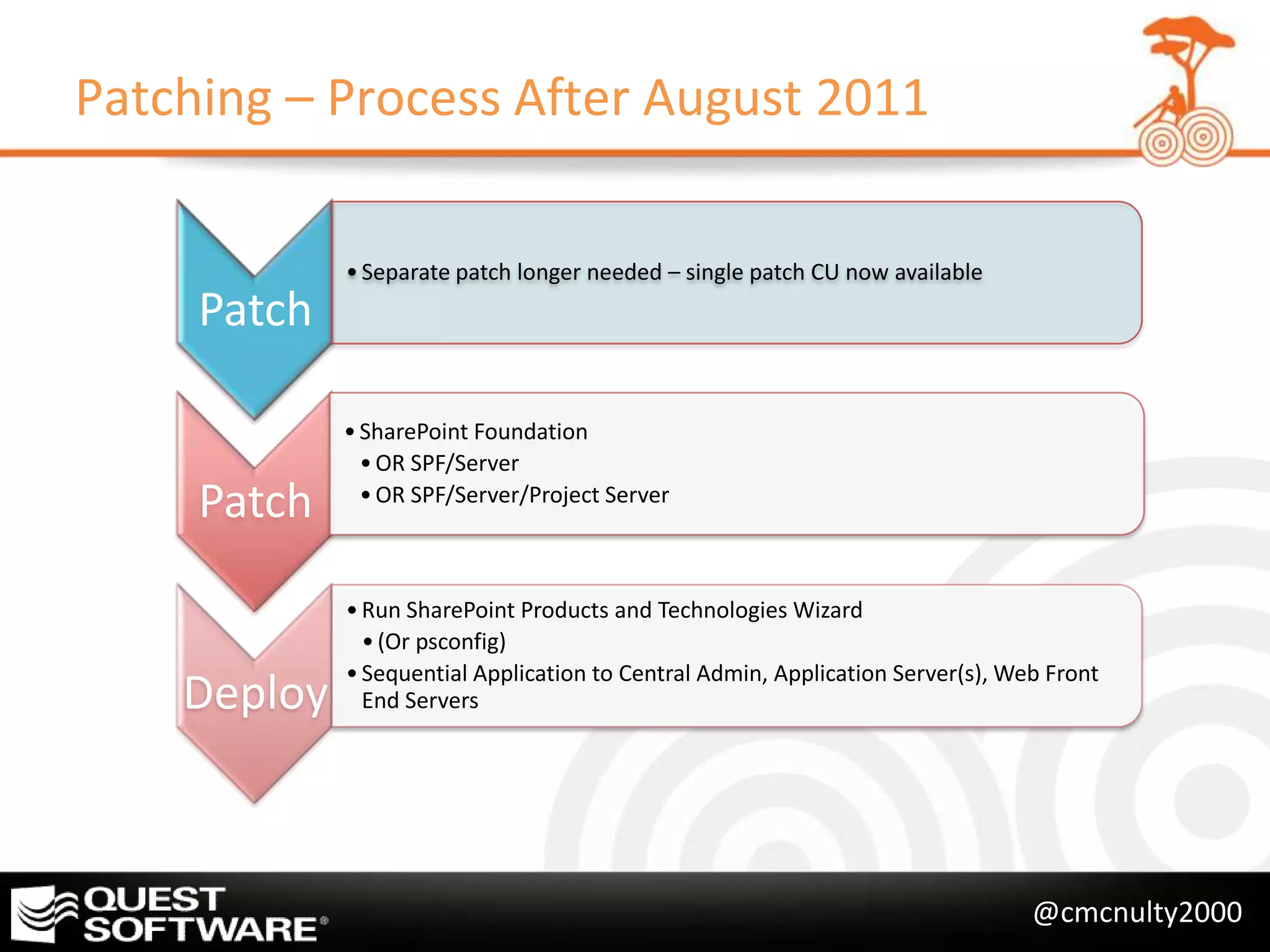

- 32. Patching – ProcessAfter August 2011 • Separate patch longer needed – single patch CU now available Patch • SharePoint Foundation • OR SPF/Server Patch • OR SPF/Server/Project Server • Run SharePoint Products and Technologies Wizard • (Or psconfig) • Sequential Application to Central Admin, Application Server(s), Web Front Deploy End Servers @cmcnulty2000

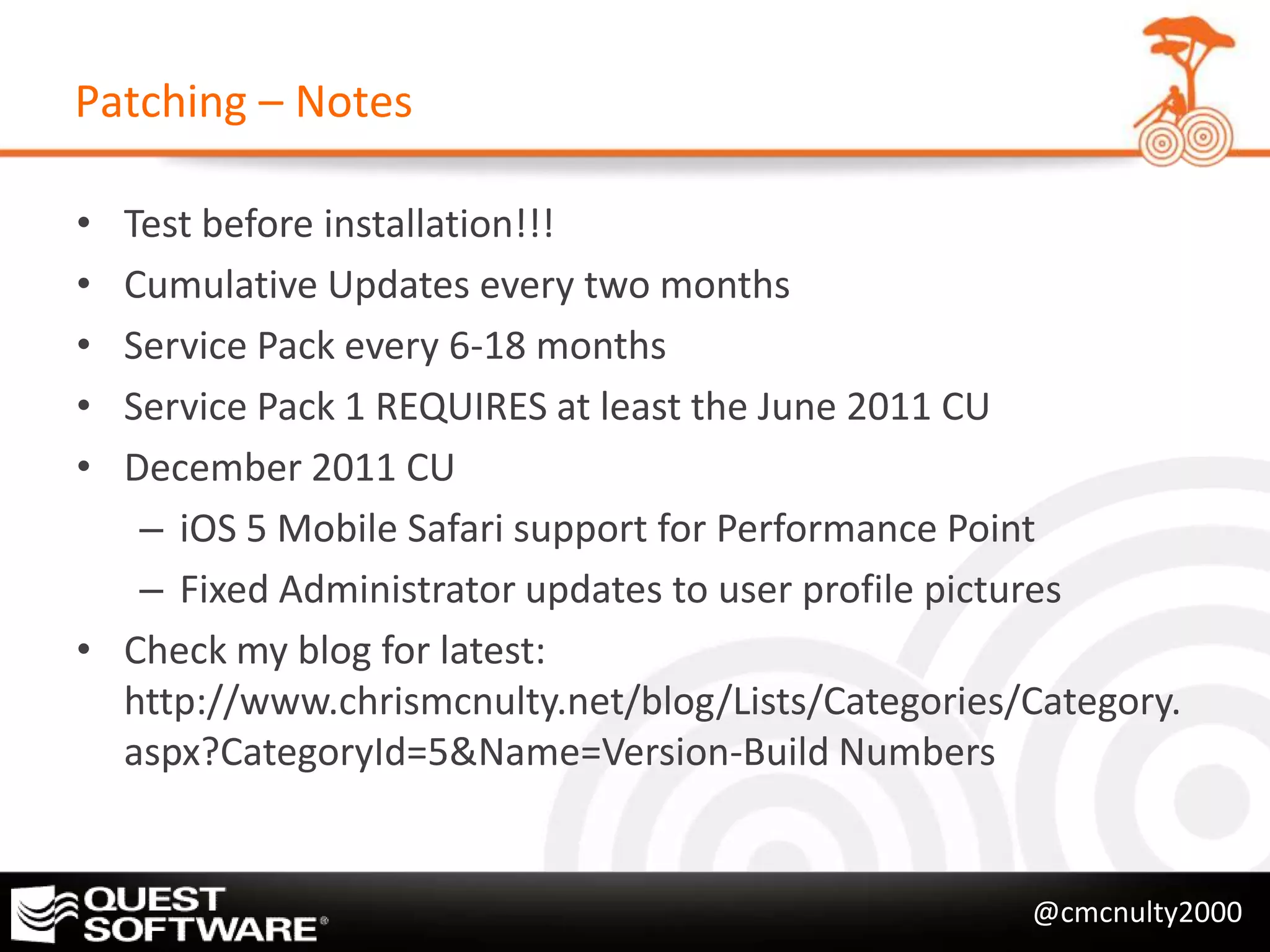

- 33. Patching – Notes •Test before installation!!! • Cumulative Updates every two months • Service Pack every 6-18 months • Service Pack 1 REQUIRES at least the June 2011 CU • December 2011 CU – iOS 5 Mobile Safari support for Performance Point – Fixed Administrator updates to user profile pictures • Check my blog for latest: http://www.chrismcnulty.net/blog/Lists/Categories/Category. aspx?CategoryId=5&Name=Version-Build Numbers @cmcnulty2000

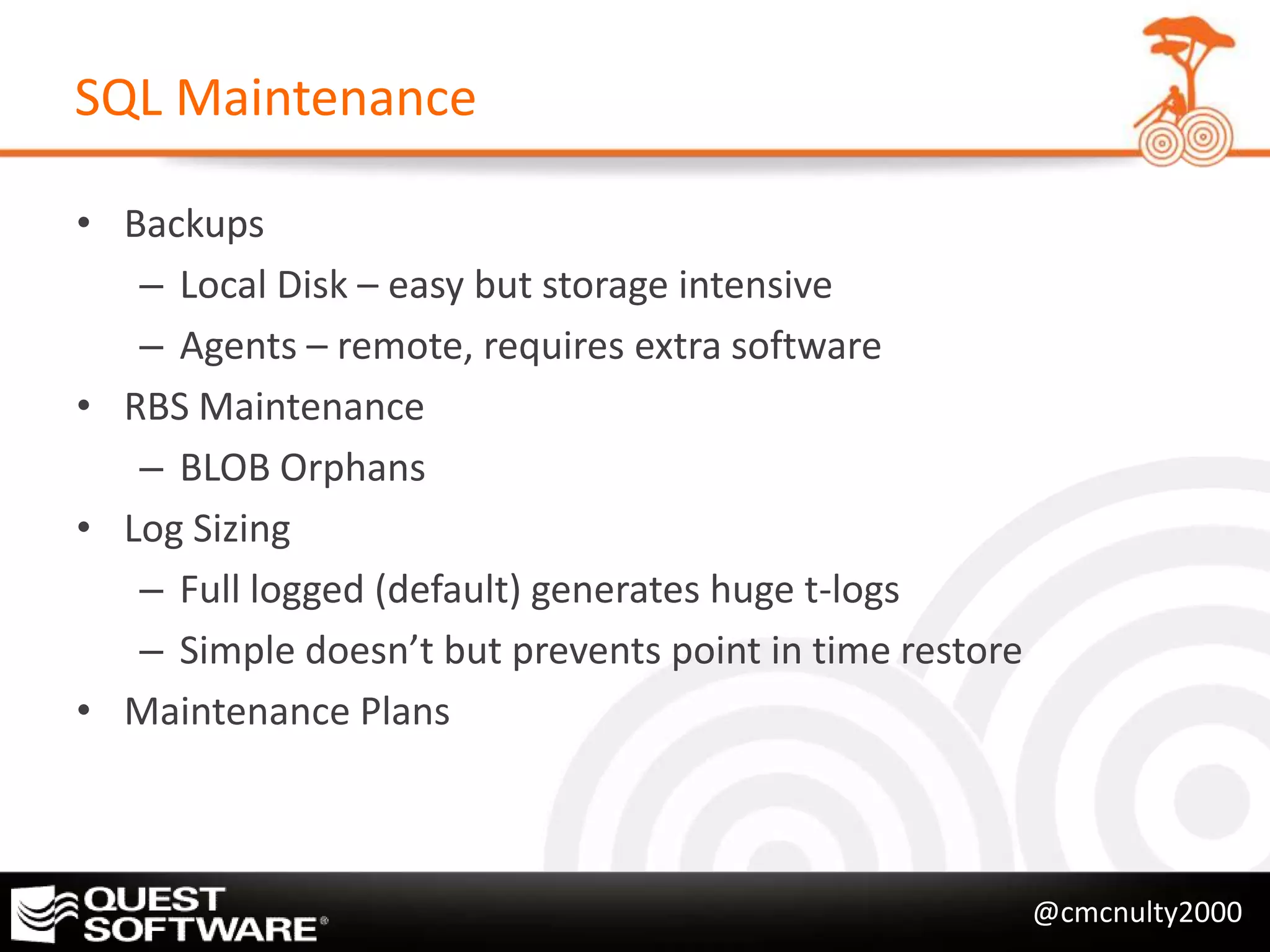

- 34. SQL Maintenance • Backups – Local Disk – easy but storage intensive – Agents – remote, requires extra software • RBS Maintenance – BLOB Orphans • Log Sizing – Full logged (default) generates huge t-logs – Simple doesn’t but prevents point in time restore • Maintenance Plans @cmcnulty2000

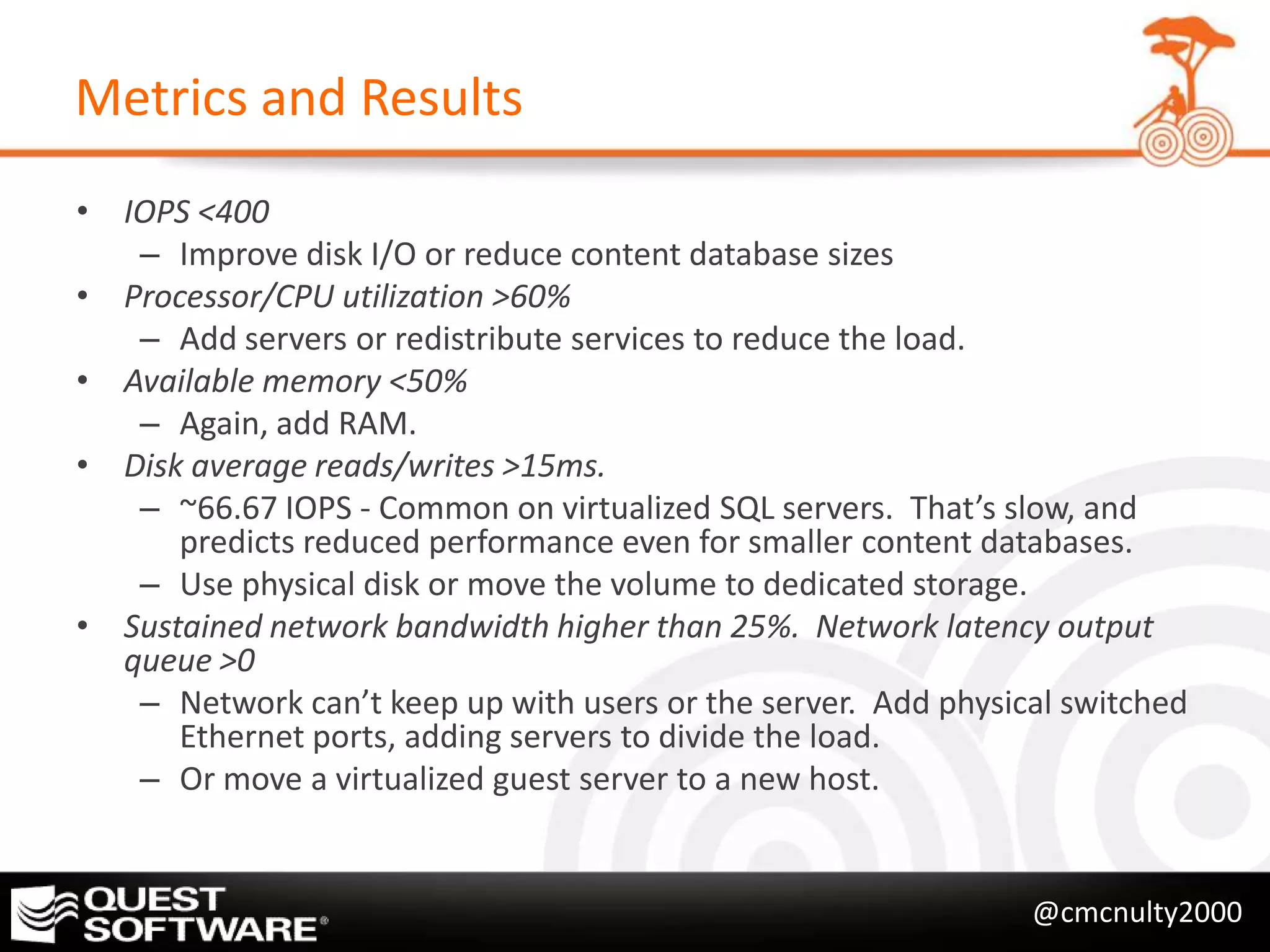

- 35. Metrics and Results •IOPS <400 – Improve disk I/O or reduce content database sizes • Processor/CPU utilization >60% – Add servers or redistribute services to reduce the load. • Available memory <50% – Again, add RAM. • Disk average reads/writes >15ms. – ~66.67 IOPS - Common on virtualized SQL servers. That’s slow, and predicts reduced performance even for smaller content databases. – Use physical disk or move the volume to dedicated storage. • Sustained network bandwidth higher than 25%. Network latency output queue >0 – Network can’t keep up with users or the server. Add physical switched Ethernet ports, adding servers to divide the load. – Or move a virtualized guest server to a new host. @cmcnulty2000

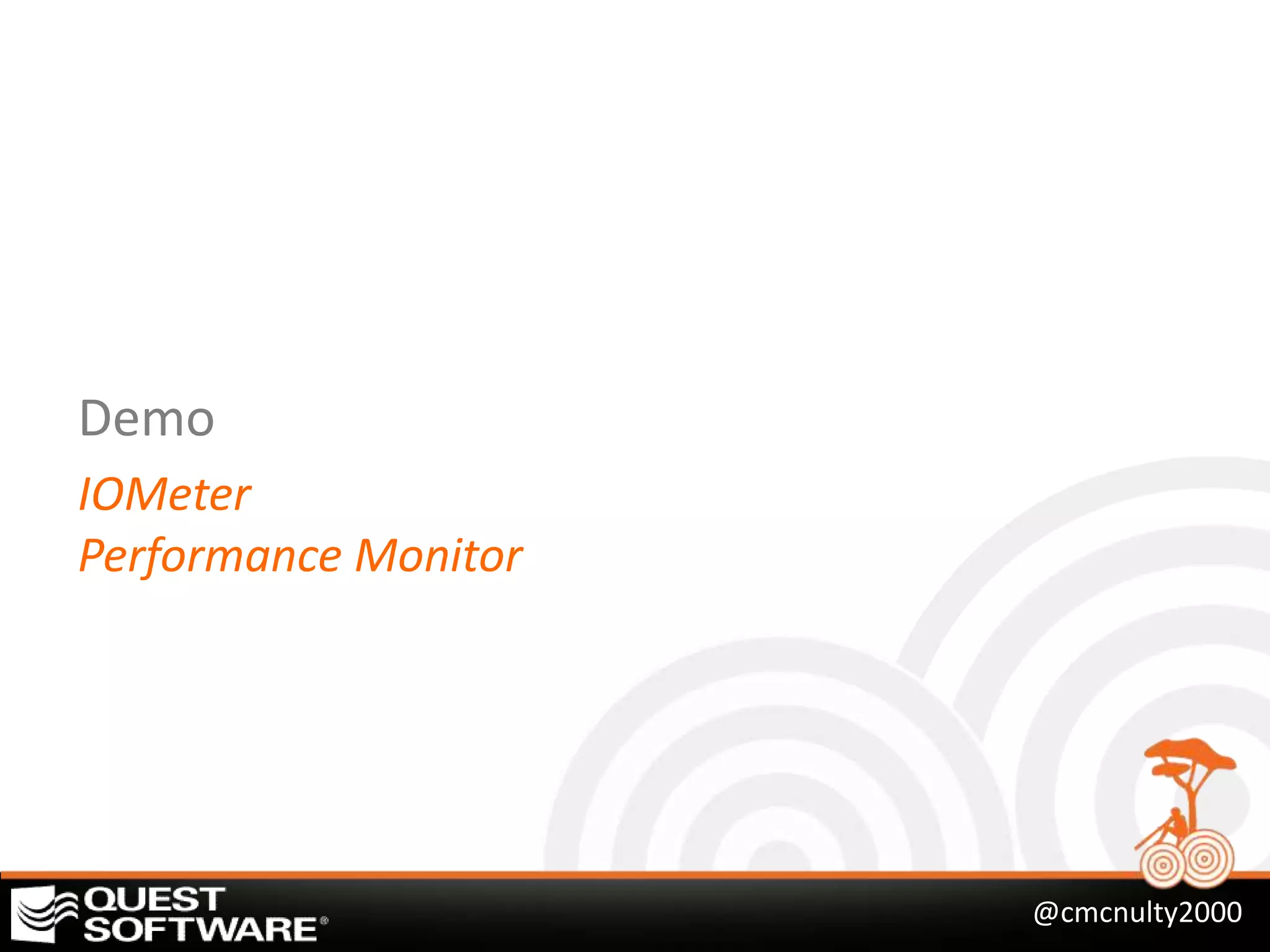

- 36. Demo IOMeter Performance Monitor @cmcnulty2000
- 37.

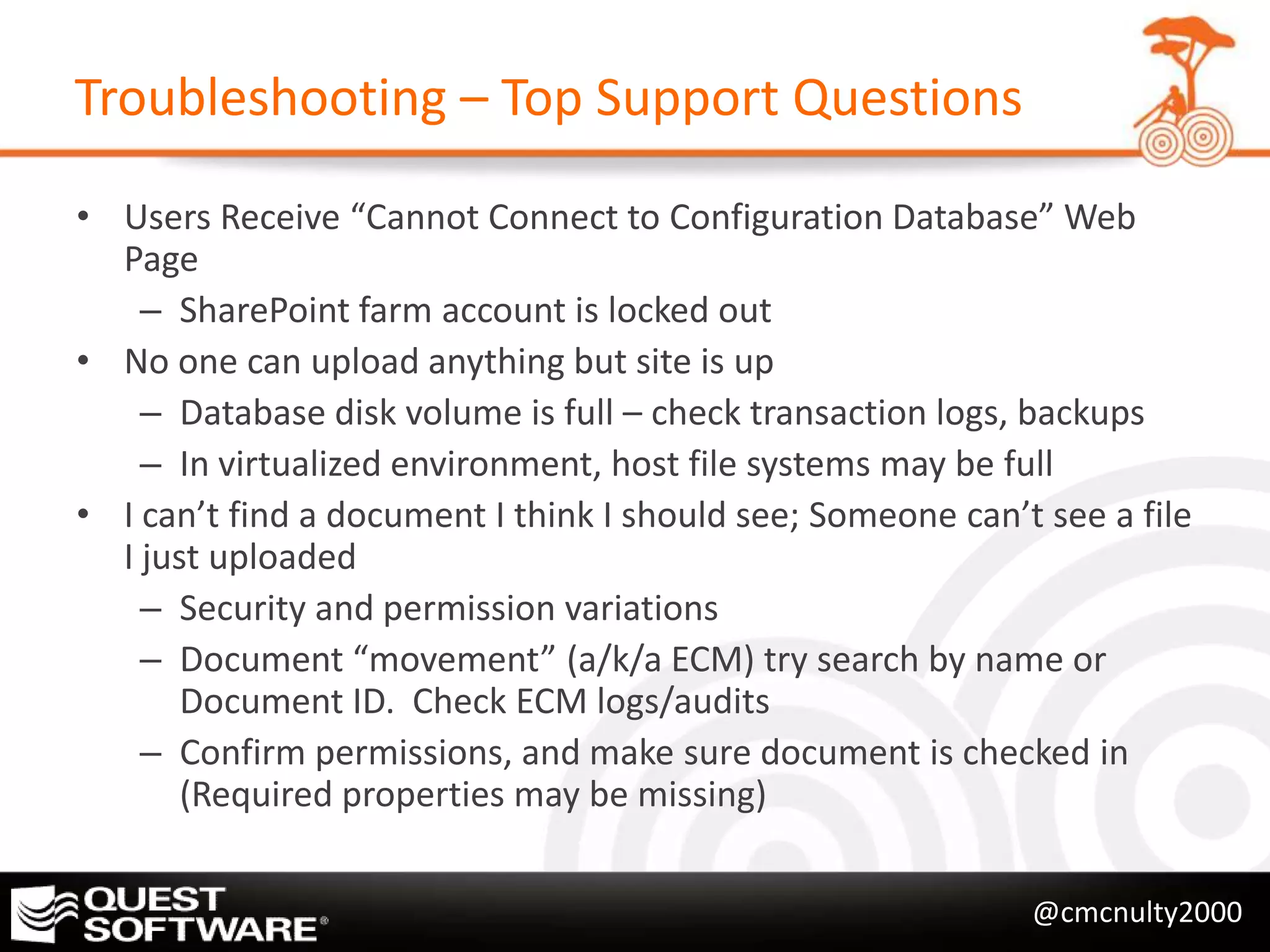

- 38. Troubleshooting – TopSupport Questions • Users Receive “Cannot Connect to Configuration Database” Web Page – SharePoint farm account is locked out • No one can upload anything but site is up – Database disk volume is full – check transaction logs, backups – In virtualized environment, host file systems may be full • I can’t find a document I think I should see; Someone can’t see a file I just uploaded – Security and permission variations – Document “movement” (a/k/a ECM) try search by name or Document ID. Check ECM logs/audits – Confirm permissions, and make sure document is checked in (Required properties may be missing) @cmcnulty2000

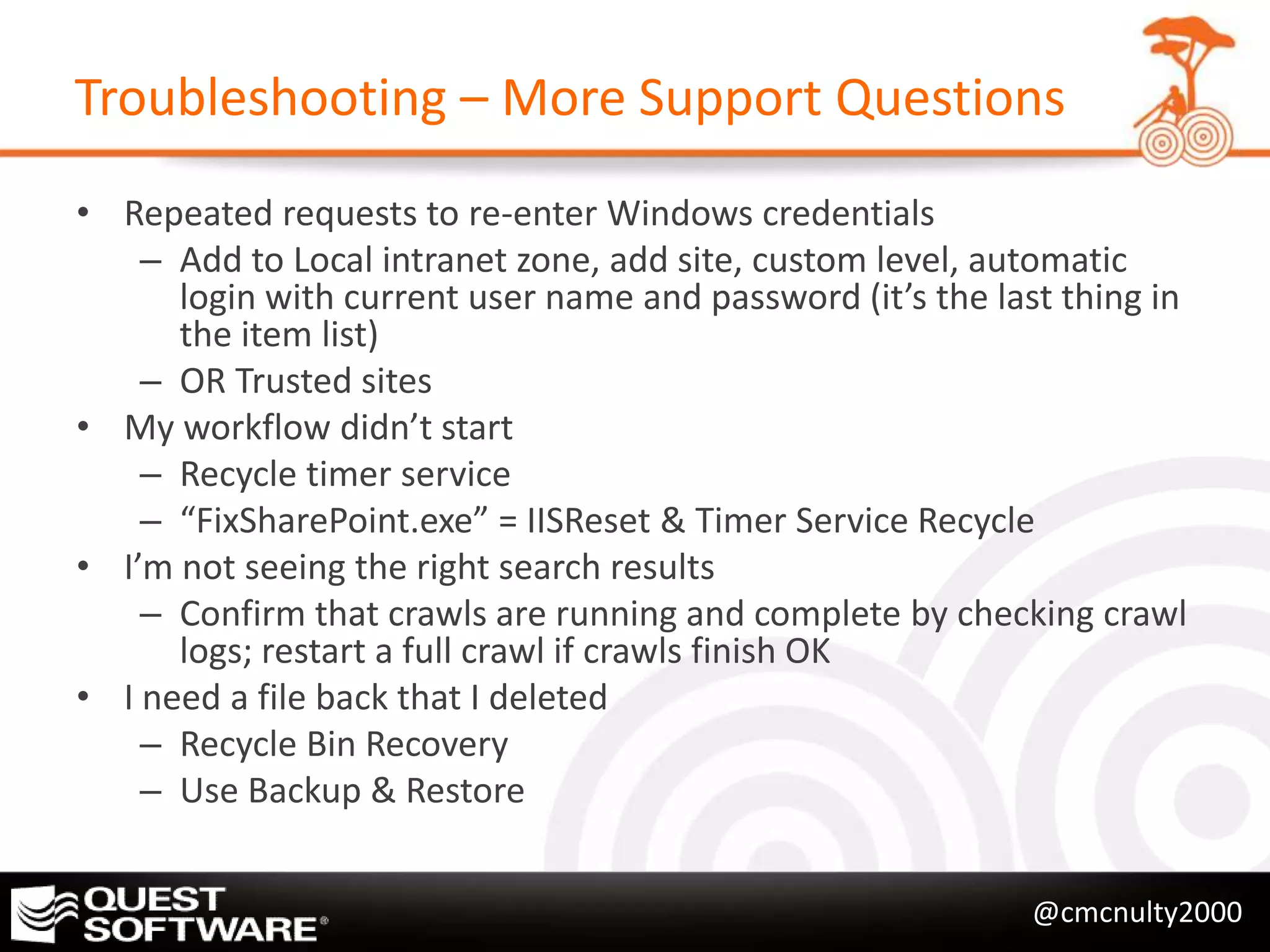

- 39. Troubleshooting – MoreSupport Questions • Repeated requests to re-enter Windows credentials – Add to Local intranet zone, add site, custom level, automatic login with current user name and password (it’s the last thing in the item list) – OR Trusted sites • My workflow didn’t start – Recycle timer service – “FixSharePoint.exe” = IISReset & Timer Service Recycle • I’m not seeing the right search results – Confirm that crawls are running and complete by checking crawl logs; restart a full crawl if crawls finish OK • I need a file back that I deleted – Recycle Bin Recovery – Use Backup & Restore @cmcnulty2000

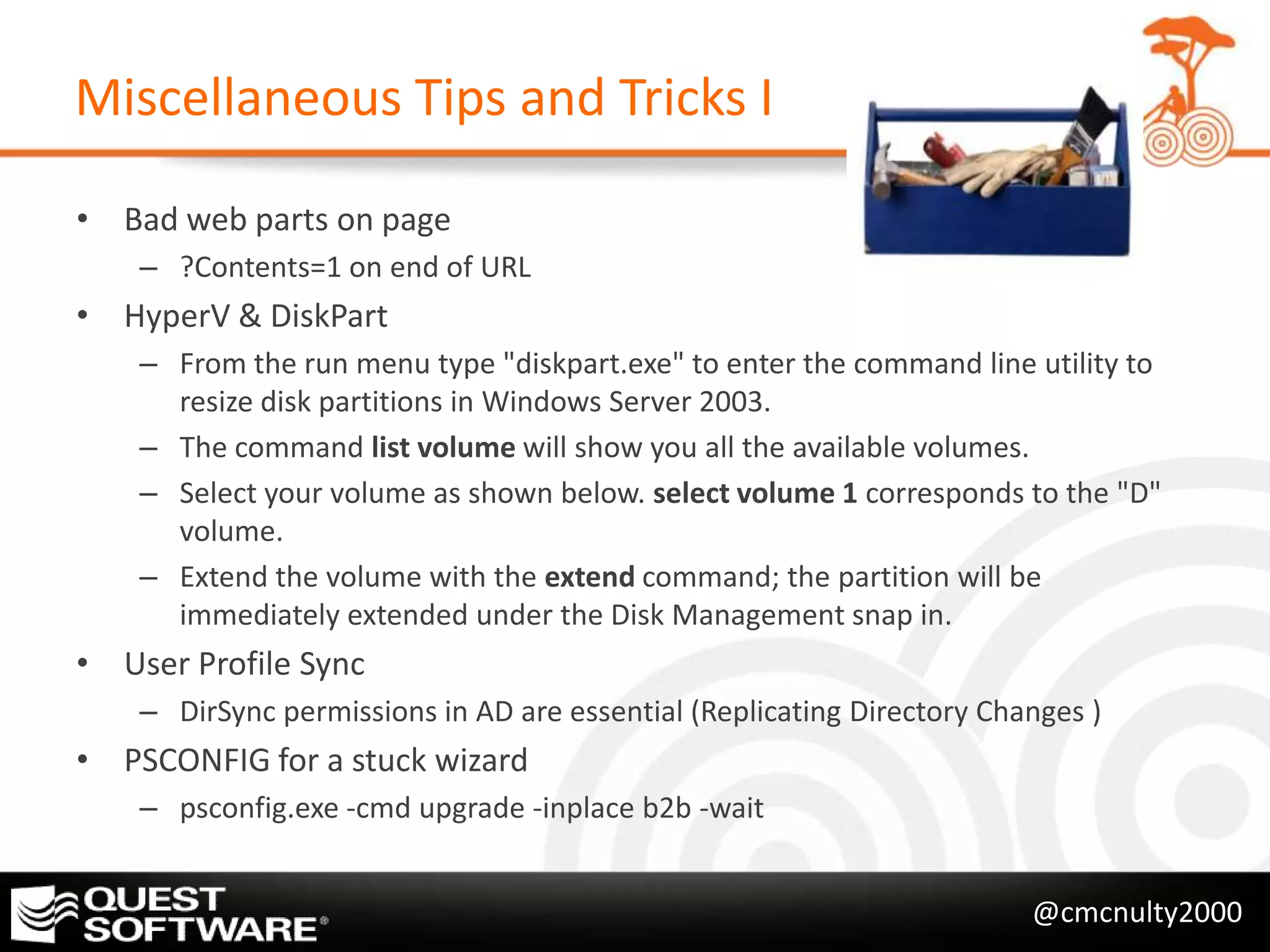

- 40. Miscellaneous Tips andTricks I • Bad web parts on page – ?Contents=1 on end of URL • HyperV & DiskPart – From the run menu type "diskpart.exe" to enter the command line utility to resize disk partitions in Windows Server 2003. – The command list volume will show you all the available volumes. – Select your volume as shown below. select volume 1 corresponds to the "D" volume. – Extend the volume with the extend command; the partition will be immediately extended under the Disk Management snap in. • User Profile Sync – DirSync permissions in AD are essential (Replicating Directory Changes ) • PSCONFIG for a stuck wizard – psconfig.exe -cmd upgrade -inplace b2b -wait @cmcnulty2000

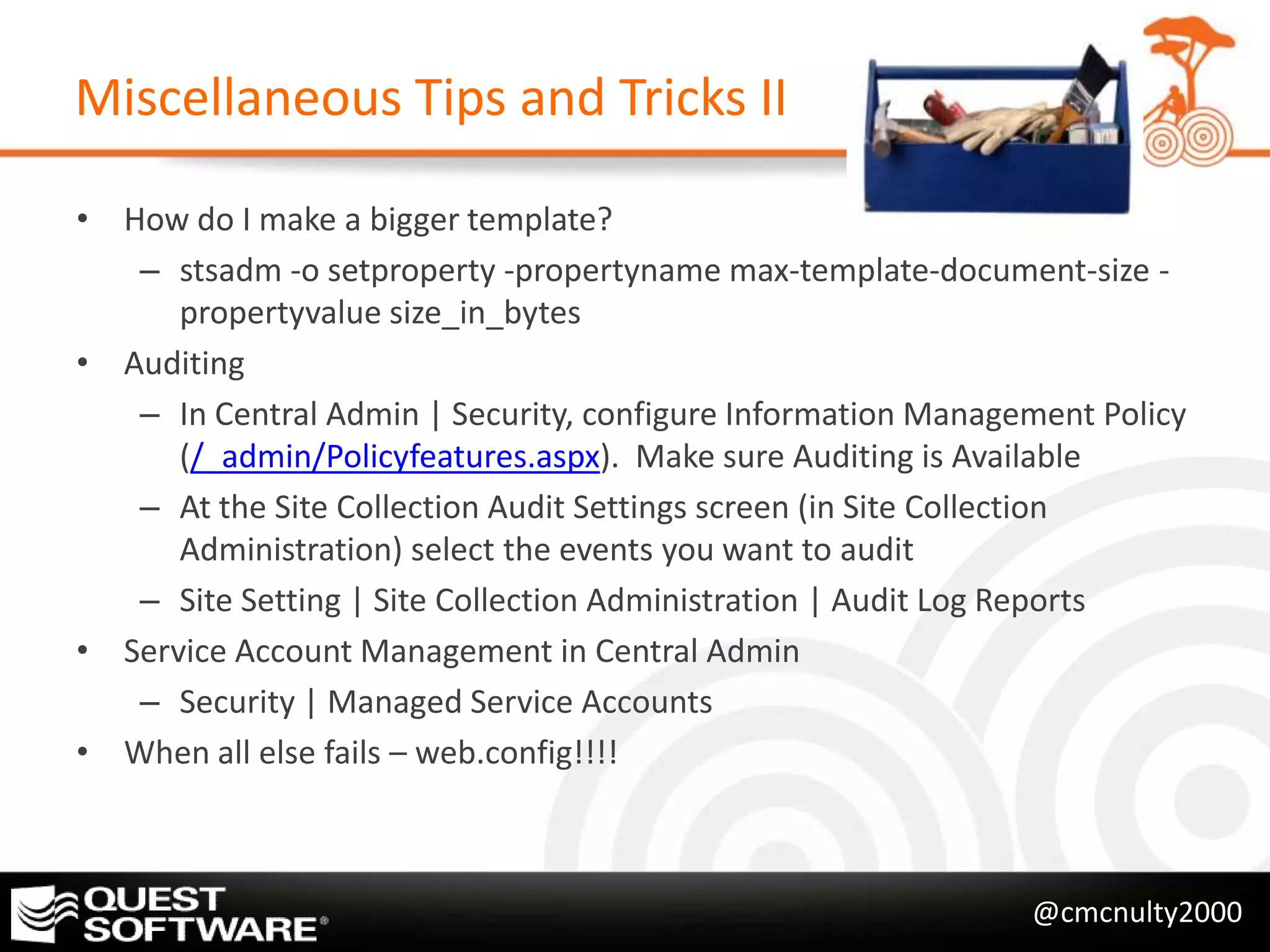

- 41. Miscellaneous Tips andTricks II • How do I make a bigger template? – stsadm -o setproperty -propertyname max-template-document-size - propertyvalue size_in_bytes • Auditing – In Central Admin | Security, configure Information Management Policy (/_admin/Policyfeatures.aspx). Make sure Auditing is Available – At the Site Collection Audit Settings screen (in Site Collection Administration) select the events you want to audit – Site Setting | Site Collection Administration | Audit Log Reports • Service Account Management in Central Admin – Security | Managed Service Accounts • When all else fails – web.config!!!! @cmcnulty2000
- 42. Seven Deadly Sinsfor the SharePoint Professional @cmcnulty2000

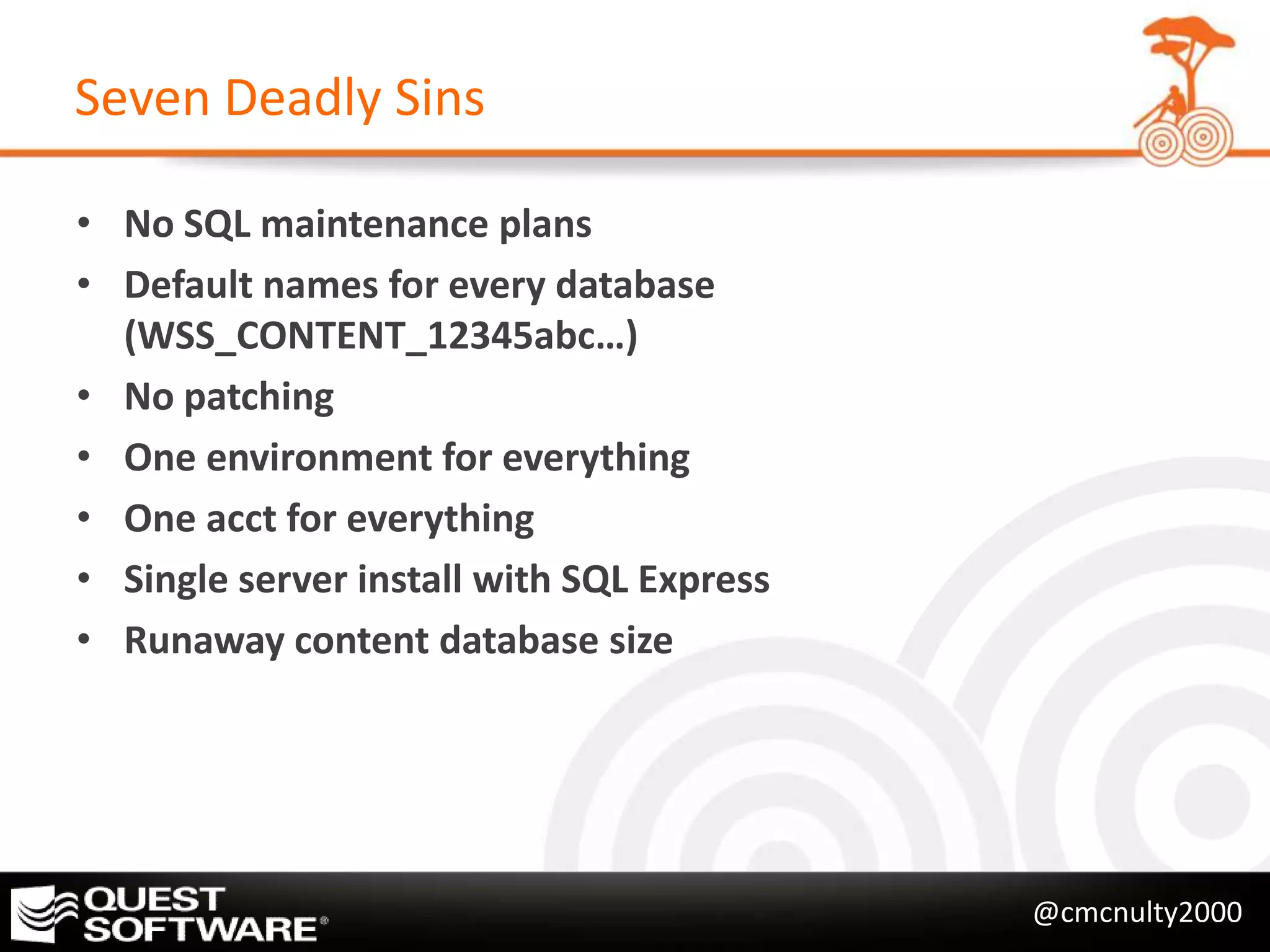

- 43. Seven Deadly Sins •No SQL maintenance plans • Default names for every database (WSS_CONTENT_12345abc…) • No patching • One environment for everything • One acct for everything • Single server install with SQL Express • Runaway content database size @cmcnulty2000
- 44. Seven Virtues forthe SharePoint Professional @cmcnulty2000

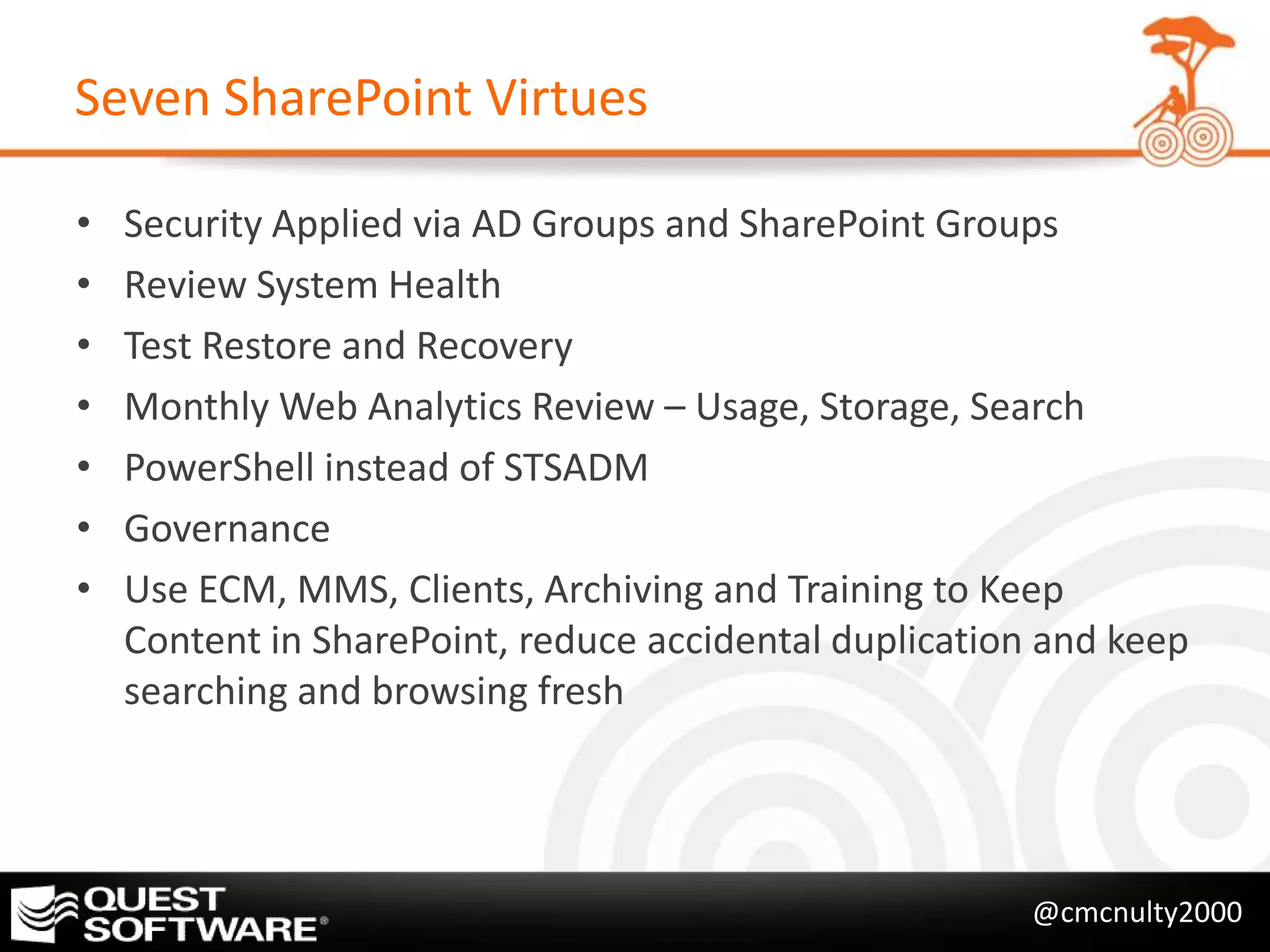

- 45. Seven SharePoint Virtues • Security Applied via AD Groups and SharePoint Groups • Review System Health • Test Restore and Recovery • Monthly Web Analytics Review – Usage, Storage, Search • PowerShell instead of STSADM • Governance • Use ECM, MMS, Clients, Archiving and Training to Keep Content in SharePoint, reduce accidental duplication and keep searching and browsing fresh @cmcnulty2000
- 46. • Questions • ContactMe • Prizes @cmcnulty2000

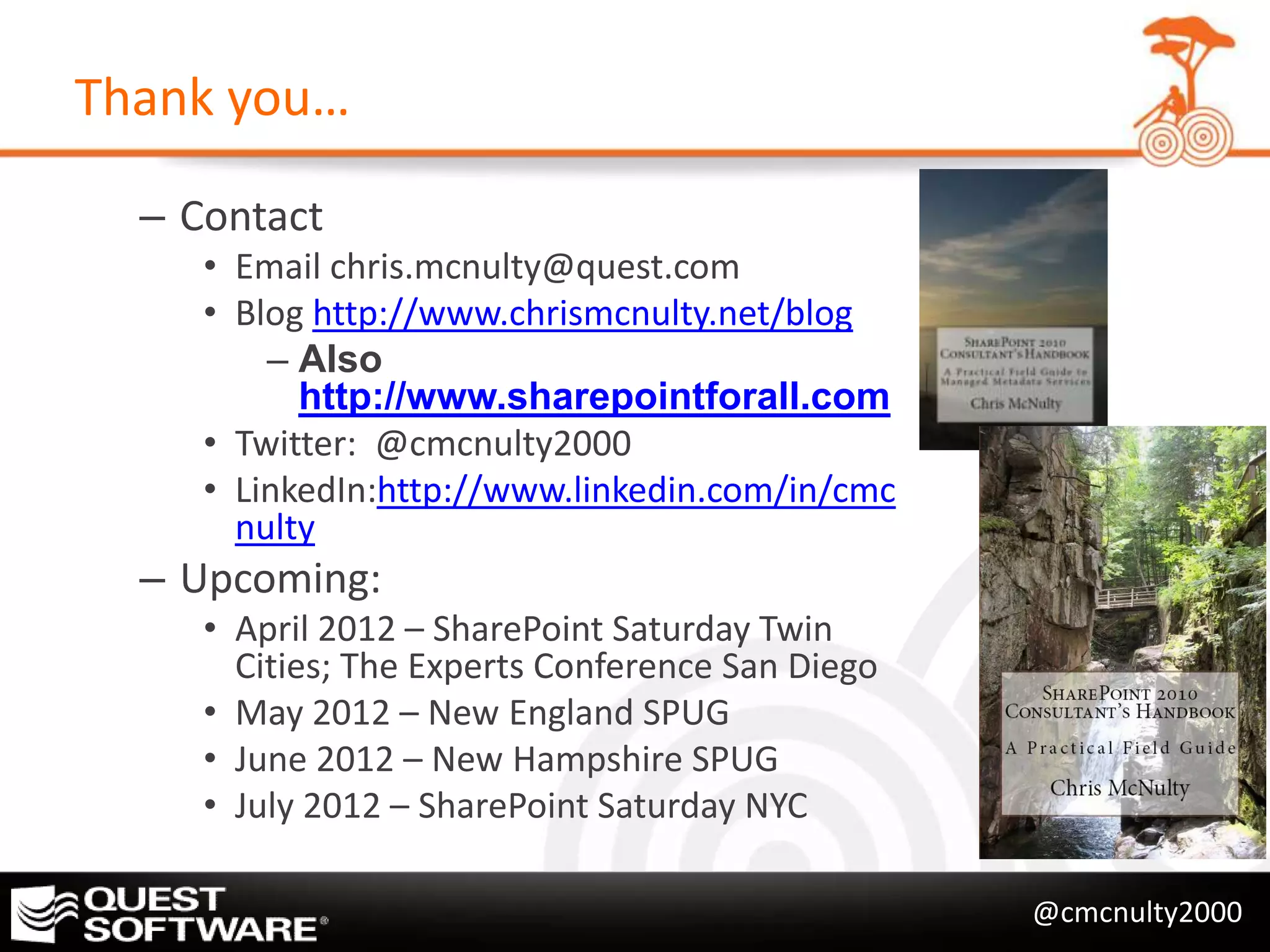

- 47. Thank you… – Contact • Email chris.mcnulty@quest.com • Blog http://www.chrismcnulty.net/blog – Also http://www.sharepointforall.com • Twitter: @cmcnulty2000 • LinkedIn:http://www.linkedin.com/in/cmc nulty – Upcoming: • April 2012 – SharePoint Saturday Twin Cities; The Experts Conference San Diego • May 2012 – New England SPUG • June 2012 – New Hampshire SPUG • July 2012 – SharePoint Saturday NYC @cmcnulty2000
- 48. Gold Sponsors Silver Sponsors Bronze Sponsors Media Sponsors @cmcnulty2000
- 49. ©2012 Quest Software,Inc. All rights reserved..
