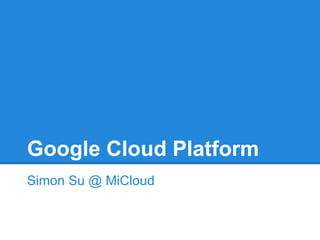

1. Google Cloud Platform
Simon Su @ MiCloud

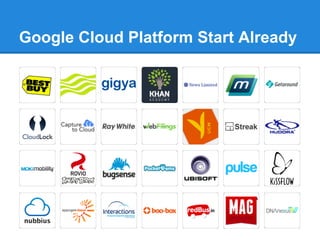

2. Google Cloud Platform Start Already

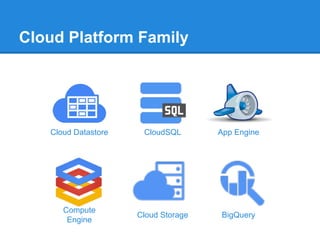

3. Cloud Platform Family
Cloud Datastore
CloudSQL
App Engine
Compute
Engine
Cloud Storage
BigQuery

4. Google App Engine
Google App Engine - A managed, scaled, robusted PaaS

5. What is GAE?
●
●
●
●
●
●
●
●
●
●
Load balancing
Caching
IDE
Monitor
Distribute
HA / DR
Version control
Resources
Pay by use
Common

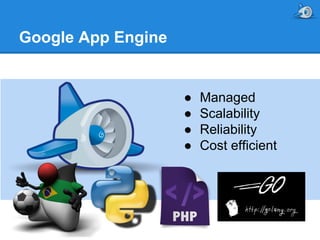

6. Google App Engine
●
●
●
●
Managed
Scalability
Reliability
Cost efficient

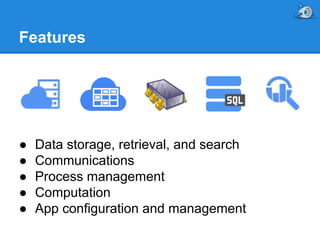

7. Features
●
●
●
●
●
Data storage, retrieval, and search
Communications
Process management
Computation
App configuration and management

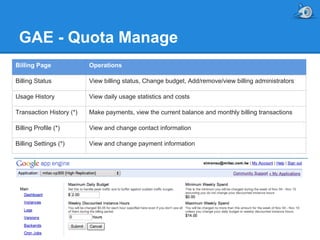

8. GAE - Quota Manage
Billing Page
Operations
Billing Status
View billing status, Change budget, Add/remove/view billing administrators
Usage History
View daily usage statistics and costs
Transaction History (*)
Make payments, view the current balance and monthly billing transactions
Billing Profile (*)
View and change contact information
Billing Settings (*)
View and change payment information

9. Growth and Revolution of GAE
(I/O2012)

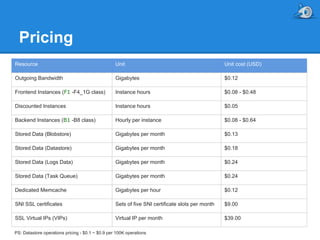

10. Pricing
Resource
Unit
Unit cost (USD)
Outgoing Bandwidth
Gigabytes
$0.12
Frontend Instances (F1 -F4_1G class)
Instance hours
$0.08 - $0.48
Discounted Instances
Instance hours
$0.05
Backend Instances (B1 -B8 class)
Hourly per instance
$0.08 - $0.64
Stored Data (Blobstore)
Gigabytes per month
$0.13
Stored Data (Datastore)
Gigabytes per month
$0.18
Stored Data (Logs Data)
Gigabytes per month
$0.24
Stored Data (Task Queue)
Gigabytes per month
$0.24
Dedicated Memcache
Gigabytes per hour
$0.12
SNI SSL certificates
Sets of five SNI certificate slots per month
$9.00
SSL Virtual IPs (VIPs)
Virtual IP per month
$39.00
PS: Datastore operations pricing - $0.1 ~ $0.9 per 100K operations

11. Cloud Datastore
Cloud Datastore - Schemaless object datastore with robust, scalable storage...

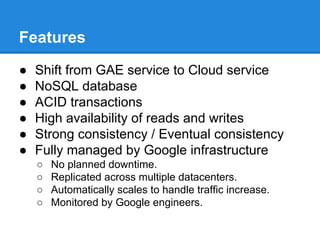

12. Features
●
●
●
●
●
●
Shift from GAE service to Cloud service
NoSQL database
ACID transactions
High availability of reads and writes
Strong consistency / Eventual consistency
Fully managed by Google infrastructure
○
○
○
○
No planned downtime.
Replicated across multiple datacenters.
Automatically scales to handle traffic increase.
Monitored by Google engineers.

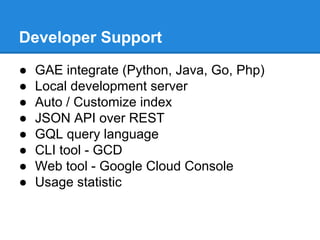

13. Developer Support
●
●
●
●
●
●
●
●
GAE integrate (Python, Java, Go, Php)
Local development server
Auto / Customize index
JSON API over REST
GQL query language
CLI tool - GCD
Web tool - Google Cloud Console
Usage statistic

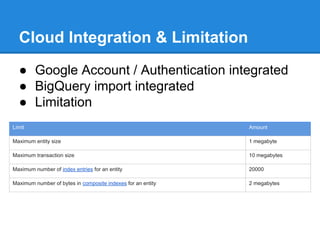

14. Cloud Integration & Limitation
● Google Account / Authentication integrated
● BigQuery import integrated
● Limitation
Limit
Amount
Maximum entity size
1 megabyte
Maximum transaction size
10 megabytes
Maximum number of index entries for an entity
20000
Maximum number of bytes in composite indexes for an entity
2 megabytes

15. Pricing
Resource
Free Default Daily Limit
Billing Enabled Default Limit
Stored Data (billable)
1 GB Note: Not a daily limit but a total
1 GB free; no maximum
limit.
Number of Indexes
200 Note: Not a daily limit but a total limit.
200
Write Operations
50,000
Unlimited
Read Operations
50,000
Unlimited
Small Operations
50,000
Unlimited

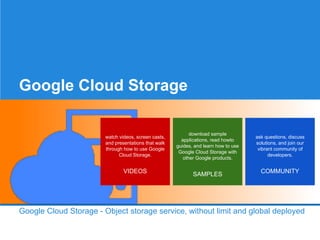

16. Google Cloud Storage
watch videos, screen casts,
and presentations that walk
through how to use Google
Cloud Storage.
VIDEOS
download sample
applications, read howto
guides, and learn how to use
Google Cloud Storage with
other Google products.
SAMPLES
ask questions, discuss
solutions, and join our
vibrant community of
developers.
COMMUNITY
Google Cloud Storage - Object storage service, without limit and global deployed

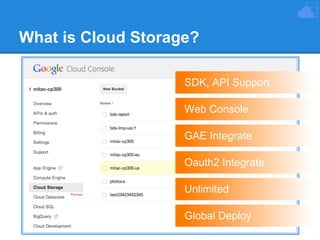

17. What is Cloud Storage?
SDK, API Support
Web Console
GAE Integrate
Oauth2 Integrate
Unlimited
Global Deploy

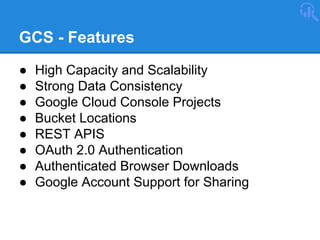

18. GCS - Features
●
●
●
●
●
●
●
●
High Capacity and Scalability
Strong Data Consistency
Google Cloud Console Projects
Bucket Locations
REST APIS
OAuth 2.0 Authentication
Authenticated Browser Downloads
Google Account Support for Sharing

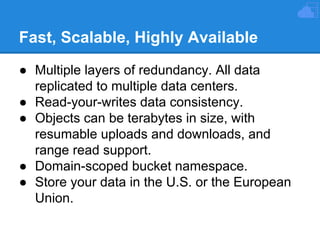

19. Fast, Scalable, Highly Available
● Multiple layers of redundancy. All data
replicated to multiple data centers.
● Read-your-writes data consistency.
● Objects can be terabytes in size, with
resumable uploads and downloads, and
range read support.
● Domain-scoped bucket namespace.
● Store your data in the U.S. or the European
Union.

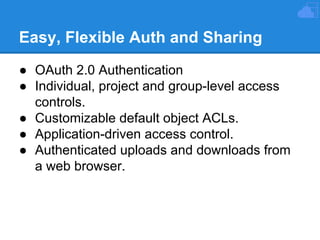

20. Easy, Flexible Auth and Sharing
● OAuth 2.0 Authentication
● Individual, project and group-level access
controls.
● Customizable default object ACLs.
● Application-driven access control.
● Authenticated uploads and downloads from
a web browser.

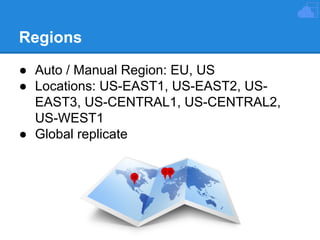

21. Regions
● Auto / Manual Region: EU, US
● Locations: US-EAST1, US-EAST2, USEAST3, US-CENTRAL1, US-CENTRAL2,
US-WEST1
● Global replicate

22. Developer Support
● Google App Engine Integrated Services
○ BlobStore
○ Upload URL
○ Image API
● CLI - gsutil
● XML API
● JSON API

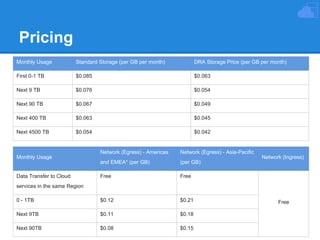

23. Pricing
Monthly Usage
Standard Storage (per GB per month)
DRA Storage Price (per GB per month)
First 0-1 TB
$0.085
$0.063
Next 9 TB
$0.076
$0.054
Next 90 TB
$0.067
$0.049
Next 400 TB
$0.063
$0.045
Next 4500 TB
$0.054
$0.042
Network (Egress) - Americas
Network (Egress) - Asia-Pacific
and EMEA* (per GB)
(per GB)
Free
Free
0 - 1TB
$0.12
$0.21
Next 9TB
$0.11
$0.18
Next 90TB
$0.08
$0.15
Monthly Usage
Data Transfer to Cloud
Network (Ingress)
services in the same Region
Free

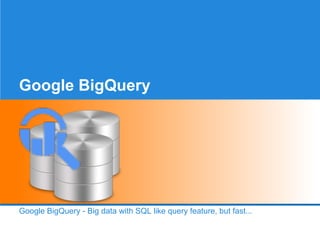

24. Google BigQuery
Google BigQuery - Big data with SQL like query feature, but fast...

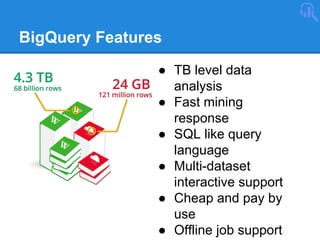

25. BigQuery Features
● TB level data
analysis
● Fast mining
response
● SQL like query
language
● Multi-dataset
interactive support
● Cheap and pay by
use
● Offline job support

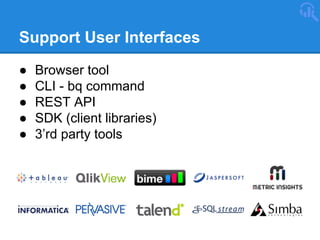

26. Support User Interfaces
●
●
●
●
●
Browser tool
CLI - bq command
REST API
SDK (client libraries)
3’rd party tools

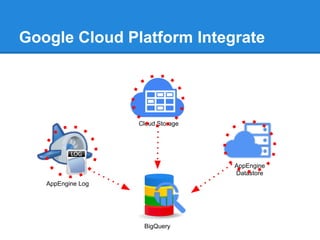

27. Google Cloud Platform Integrate
Cloud Storage
AppEngine
Datastore
AppEngine Log
BigQuery

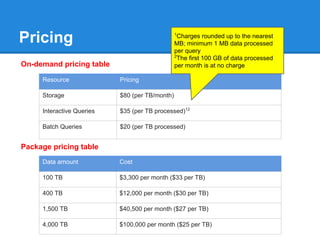

28. Pricing
1
Charges rounded up to the nearest
MB; minimum 1 MB data processed
per query
2
The first 100 GB of data processed
per month is at no charge
On-demand pricing table
Resource
Pricing
Storage
$80 (per TB/month)
Interactive Queries
$35 (per TB processed)12
Batch Queries
$20 (per TB processed)
Package pricing table
Data amount
Cost
100 TB
$3,300 per month ($33 per TB)
400 TB
$12,000 per month ($30 per TB)
1,500 TB
$40,500 per month ($27 per TB)
4,000 TB
$100,000 per month ($25 per TB)

29. Google Cloud SQL
Google Cloud SQL - Full managed MySQL database instance

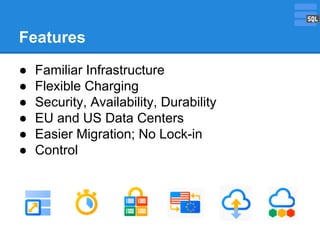

30. Features
●
●
●
●
●
●
Familiar Infrastructure
Flexible Charging
Security, Availability, Durability
EU and US Data Centers
Easier Migration; No Lock-in
Control

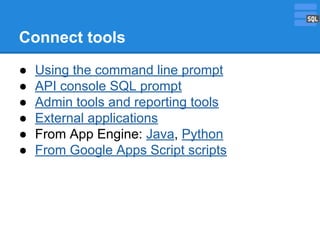

31. Connect tools
●
●
●
●
●
●
Using the command line prompt
API console SQL prompt
Admin tools and reporting tools
External applications
From App Engine: Java, Python
From Google Apps Script scripts

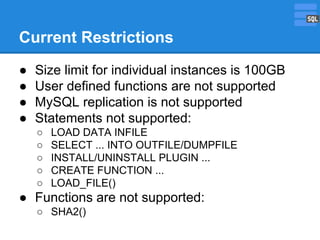

32. Current Restrictions
●
●
●
●
Size limit for individual instances is 100GB
User defined functions are not supported
MySQL replication is not supported
Statements not supported:
○
○
○
○
○
LOAD DATA INFILE
SELECT ... INTO OUTFILE/DUMPFILE
INSTALL/UNINSTALL PLUGIN ...
CREATE FUNCTION ...
LOAD_FILE()
● Functions are not supported:
○ SHA2()

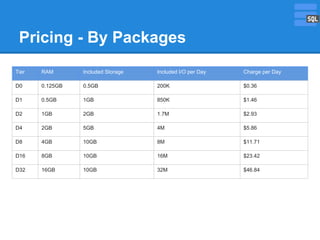

33. Pricing - By Packages
Tier
RAM
Included Storage
Included I/O per Day
Charge per Day
D0
0.125GB
0.5GB
200K
$0.36
D1
0.5GB
1GB
850K
$1.46
D2
1GB
2GB
1.7M
$2.93
D4
2GB
5GB
4M
$5.86
D8
4GB
10GB
8M
$11.71
D16
8GB
10GB
16M
$23.42
D32
16GB
10GB
32M
$46.84

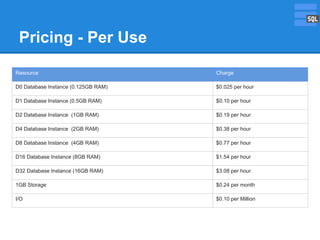

34. Pricing - Per Use
Resource
Charge
D0 Database Instance (0.125GB RAM)
$0.025 per hour
D1 Database Instance (0.5GB RAM)
$0.10 per hour
D2 Database Instance (1GB RAM)
$0.19 per hour
D4 Database Instance (2GB RAM)
$0.38 per hour
D8 Database Instance (4GB RAM)
$0.77 per hour
D16 Database Instance (8GB RAM)
$1.54 per hour
D32 Database Instance (16GB RAM)
$3.08 per hour
1GB Storage
$0.24 per month
I/O
$0.10 per Million

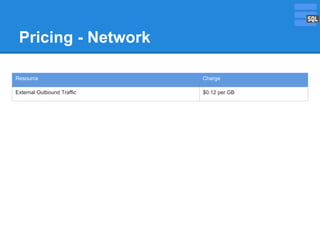

35. Pricing - Network
Resource
Charge
External Outbound Traffic
$0.12 per GB

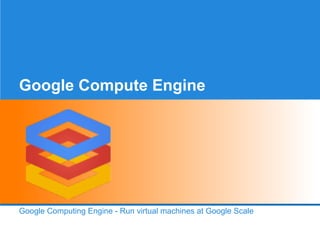

36. Google Compute Engine
Google Computing Engine - Run virtual machines at Google Scale

37. Features
●
●
●
●
●
Scale, performance, and value
Flexibility and an Open Environment
Predictable Performance
Strong Security
Environmental Impact

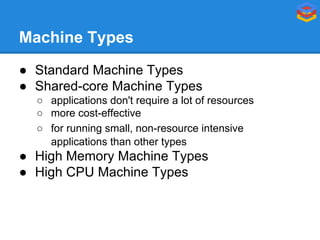

38. Machine Types
● Standard Machine Types
● Shared-core Machine Types
○ applications don't require a lot of resources
○ more cost-effective
○ for running small, non-resource intensive
applications than other types
● High Memory Machine Types
● High CPU Machine Types

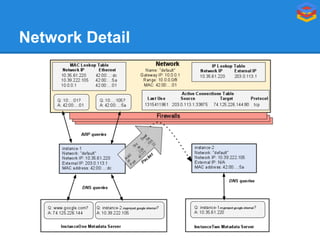

39. Network Detail

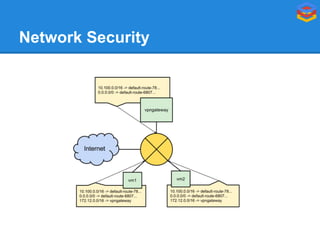

40. Network Security

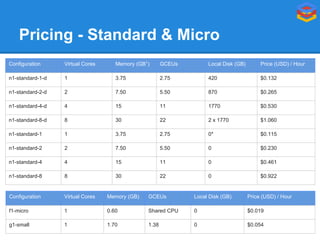

41. Pricing - Standard & Micro
Configuration
Virtual Cores
Memory (GB1)
GCEUs
Local Disk (GB)
Price (USD) / Hour
n1-standard-1-d
1
3.75
2.75
420
$0.132
n1-standard-2-d
2
7.50
5.50
870
$0.265
n1-standard-4-d
4
15
11
1770
$0.530
n1-standard-8-d
8
30
22
2 x 1770
$1.060
n1-standard-1
1
3.75
2.75
0*
$0.115
n1-standard-2
2
7.50
5.50
0
$0.230
n1-standard-4
4
15
11
0
$0.461
n1-standard-8
8
30
22
0
$0.922
Configuration
Virtual Cores
Memory (GB)
GCEUs
Local Disk (GB)
Price (USD) / Hour
f1-micro
1
0.60
Shared CPU
0
$0.019
g1-small
1
1.70
1.38
0
$0.054

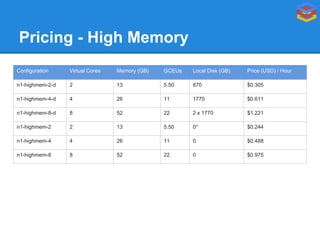

42. Pricing - High Memory
Configuration
Virtual Cores
Memory (GB)
GCEUs
Local Disk (GB)
Price (USD) / Hour
n1-highmem-2-d
2
13
5.50
870
$0.305
n1-highmem-4-d
4
26
11
1770
$0.611
n1-highmem-8-d
8
52
22
2 x 1770
$1.221
n1-highmem-2
2
13
5.50
0*
$0.244
n1-highmem-4
4
26
11
0
$0.488
n1-highmem-8
8
52
22
0
$0.975

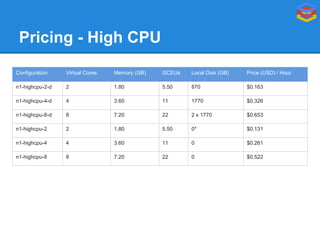

43. Pricing - High CPU
Configuration
Virtual Cores
Memory (GB)
GCEUs
Local Disk (GB)
Price (USD) / Hour
n1-highcpu-2-d
2
1.80
5.50
870
$0.163
n1-highcpu-4-d
4
3.60
11
1770
$0.326
n1-highcpu-8-d
8
7.20
22
2 x 1770
$0.653
n1-highcpu-2
2
1.80
5.50
0*
$0.131
n1-highcpu-4
4
3.60
11
0
$0.261
n1-highcpu-8
8
7.20
22
0
$0.522

44. Q&A
