Generative Adversarial Networks (GANs) show potential to reduce the need for large amounts of manual annotation in digital pathology. GANs can be used for tasks like image-to-image translation to normalize staining variations, perform domain adaptation across staining protocols, and enable unsupervised segmentation. GANs can also generate new images from latent variables to augment datasets or translate between image and label domains. While promising, GANs still face challenges in modeling complex morphological changes required for some tasks.

1. GANs in Digital Pathology
Based on Paper:
M. E. Tschuchnig, G. J. Oostingh, and M. Gadermayr, “Generative Adversarial Networks in
Digital Pathology: A Survey on Trends and Future Potential,” arXiv.org, 07-May-2020.
https://arxiv.org/abs/2004.14936.

2. Digital Pathology
Traditionally, skilled pathologists observe tissue slides under a
microscope. If slides are converted into a digital format, they can
be shared through telepathology and analyzed by Machine Learning
algorithms. Such methods can be used to automate the manual
counting of objects or for classifying the tissue condition, like tumor
classification. This has the prospective to decrease human error and
increase the accuracy of diagnoses. Furthermore, state-of-the-art
methods show a possibility for identifying patterns that cannot be
easily discovered, even by the human eye.

3. Deep Learning in Digital Pathology
 It is known that deep learning methods are very powerful and common tools
for a large variety of tasks in different fields. However, deep learning
approaches usually require large amounts of labeled data.
Manual annotation of histological images can be extremely time-
consuming due to the large image size. Since such tasks need to be done by
medical experts, it is not easy to advance deep learning methods in practice.
 Additionally, unintended variations in the pathology image domain are
produced by differences in the cutting and staining process. Intended
variations can be due to other staining methods, applied to extract other or
additional features from the image data. Varying staining methods showing
similar morphologies, but the different texture and color features, also require
separately trained image analysis models.

4. GAN
 Generative Adversarial Networks (GANs) demonstrate the potential
reduction of large amounts of manual labeling in digital pathology.
Recent investigations not only enhanced measures but also
introduced new applications.
 Several important architectures like GAN, cGAN, cycleGAN,
InfoGAN, BigGAN, and GAN based siamese Networks are showing
stable training in digital pathology for image analysis.

5. GAN
 GAN architecture enables the image generation by mapping an
unstructured latent space into an image Z  X, using a generator
(G). This generator (G) is trained with the goal of fooling a
discriminator (D) to produce images with desired features. The
discriminator (D) is trained to differentiate between real and
generated samples.
 In other words, GAN is a neural network model where two
networks are trained concurrently, with one concentrated on
image generation and the other focused on discrimination.

6. Digital pathology as a translation from
one input domain to another
 For simplicity, let’s define an application from digital pathology as
a translation from one input domain to another. There are three
such translations: Image-to-Image (I2I), Latent to-Image (Z2I),
and Image-to-Label (I2L).
 All tasks in digital pathology can be assigned to these three
translation settings that are mappings from one input domain to
another output domain. Specific GAN-based architectures are
used for solving these tasks.

7. Image-to-Image (I2I)
 Mapping from one image domain X1 to another image domain X2.
 For this purpose, Pix2Pix, CycleGAN as well as further GANs like the
encoder-decoder GAN and the adversarially trained siamese networks
can be applied. Training of I2I approaches can be categorized into two
major classes, namely paired (Pix2Pix and InfoGAN) and unpaired
(cycleGAN, encoder-decoder GAN, and the adversarial siamese
network). While paired training requires corresponding samples from
the two domains for training, unpaired training only needs two
individual data sets from both domains. While paired approaches
usually show better performance, unpaired methods enable additional
areas of application since paired data is not always available.

8. Image-to-Image (I2I)
 Stain normalization. This task reduces the color and intensity
variations present in stained images from different laboratories
(mapping from an original image domain Xo to a normalized
domain Xn. Xn). Apart from the stain, the mapping is proposed to
keep all other image characteristics. It is shown in general, that
cycleGAN is highly flexible and powerful and shows a general-
purpose architecture that is capable of stain normalization.

9. Image-to-Image (I2I)
 Stain/domain adaptation. This task where not (only) the
variability within one staining protocol (e.g. H&E), but between
different protocols, needs to be compensated. So, the domain
shift is supposed to be larger than in the case of stain
normalization. The domain adaptation is usually not performed on
an image but a feature level. Stain adaptation can be interpreted
as a special type of domain adaptation. CycleGAN, Pix2Pix were
adapted to translate between different stains. Siamese GAN was
introduced for domain adaptation.

10. Image-to-Image (I2I)
 Supervised Segmentation. The Pix2Pix network is an
established powerful segmentation approach. The GAN’s advantage
over other (non-adversarial) approaches here is the ability to
maintain fine details through the adversarial loss. GANs were also
applied to “enrich” the image domain in a segmentation setting.
Instead of increasing the number of samples, the information per
image was enlarged. This generated data was used to train and
test a segmentation network that outperformed the baseline
setting of a network trained and tested on the source domain only.
However, the positive effect of this application was only shown in
one very specific application in the field of kidney pathology.

11. Image-to-Image (I2I)
 Synthesis enabling Unsupervised Learning. Cycle-GAN, encoder-decoder
GAN, and Pix2Pix were introduced to generate virtual images out of label-
masks for obtaining labeled training samples. Other researchers performed
translation directly from the image to the label-mask domain. Translation
between the image and the segmentation label-mask domain (and vice versa)
shows a highly interesting field, with the potential for unsupervised
segmentation. The unpaired and thereby unsupervised approach can be
combined with manually labeled data to improve performance even further
(dependent on the number of labeling resources). Based on the publications
so far, it is hard to make a general statement, whether a translation from the
label-mask to the image domain or vice versa is more effective with regards to
unsupervised segmentation. Performing a translation from the image to the
label-mask domain is probably a task that is easier to learn.

12. Image-to-Image (I2I)
 Data Generation & Augmentation. CycleGAN was to translate
from one tissue category to another (here from normal to
abnormal). Based on existing samples it creates additional
samples of the other class. The difficulty of this task is, that not
only low-level image details, such as color, need to be changed. In
contrast, a translation from one class to another typically requires
a major change of the image morphology. It was showed that this
is effective in the considered application scenario as the achieved
classification performance could be increased. However, the
cycleGAN architecture in general is not optimized for performing
morphological changes.

13. Latent to-Image (Z2I)
 An original GAN’s idea of generating images out of the noise. This
task in digital pathology is to increase the data set size. Such a
mapping (Z2I: Z  X) is typically performed by conventional
GANs, cGANs, and their various modifications such as the
progressive-growing GAN and Wasserstein GAN. Furthermore,
latent samples can be translated into a structured space before
image generation to support interpretable changes.

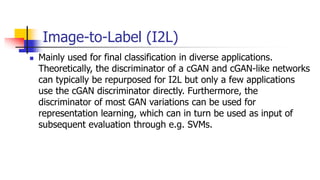

14. Image-to-Label (I2L)
 Mainly used for final classification in diverse applications.
Theoretically, the discriminator of a cGAN and cGAN-like networks
can typically be repurposed for I2L but only a few applications
use the cGAN discriminator directly. Furthermore, the
discriminator of most GAN variations can be used for
representation learning, which can in turn be used as input of
subsequent evaluation through e.g. SVMs.

15. Conclusion
 Overall, methods relying on Generative Adversarial Networks
(GANs) demonstrate the potential to decrease the necessity of
large amounts of manual annotations in digital pathology tasks.
 There is an optimism that this technology will play an important
role in real-world applications of image analysis in digital
pathology.
