The document discusses various aspects of the WPF application model including properties, events, commands, threading, animation, and triggers. It covers core concepts like the application class, element trees, routed events, dependency properties, commands framework, threading with dispatchers, and the different types of triggers in WPF. The document provides an overview of these key WPF concepts and how they work together to build Windows Presentation Foundation applications.

1. Presenter Name Title Microsoft Corporation

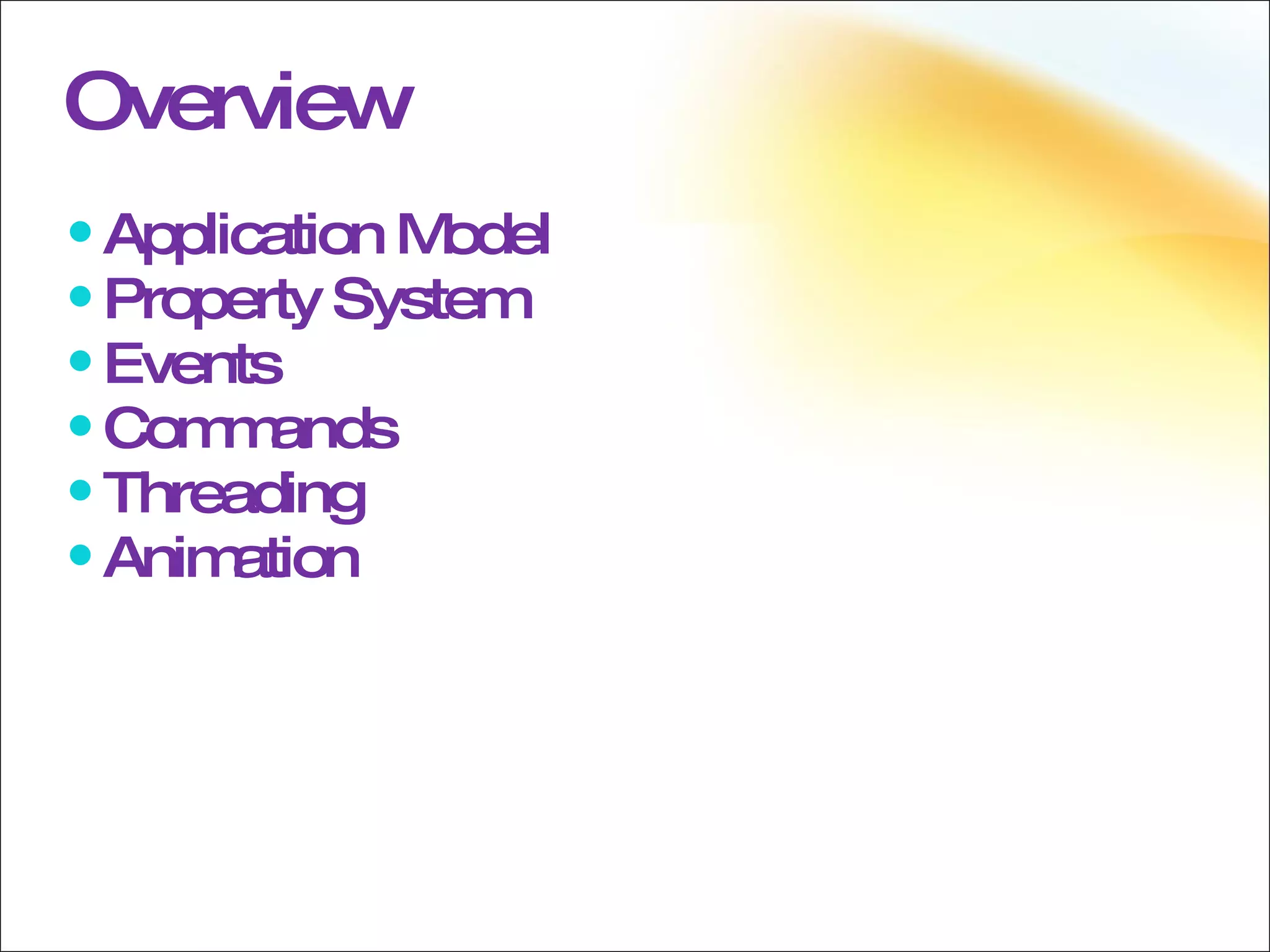

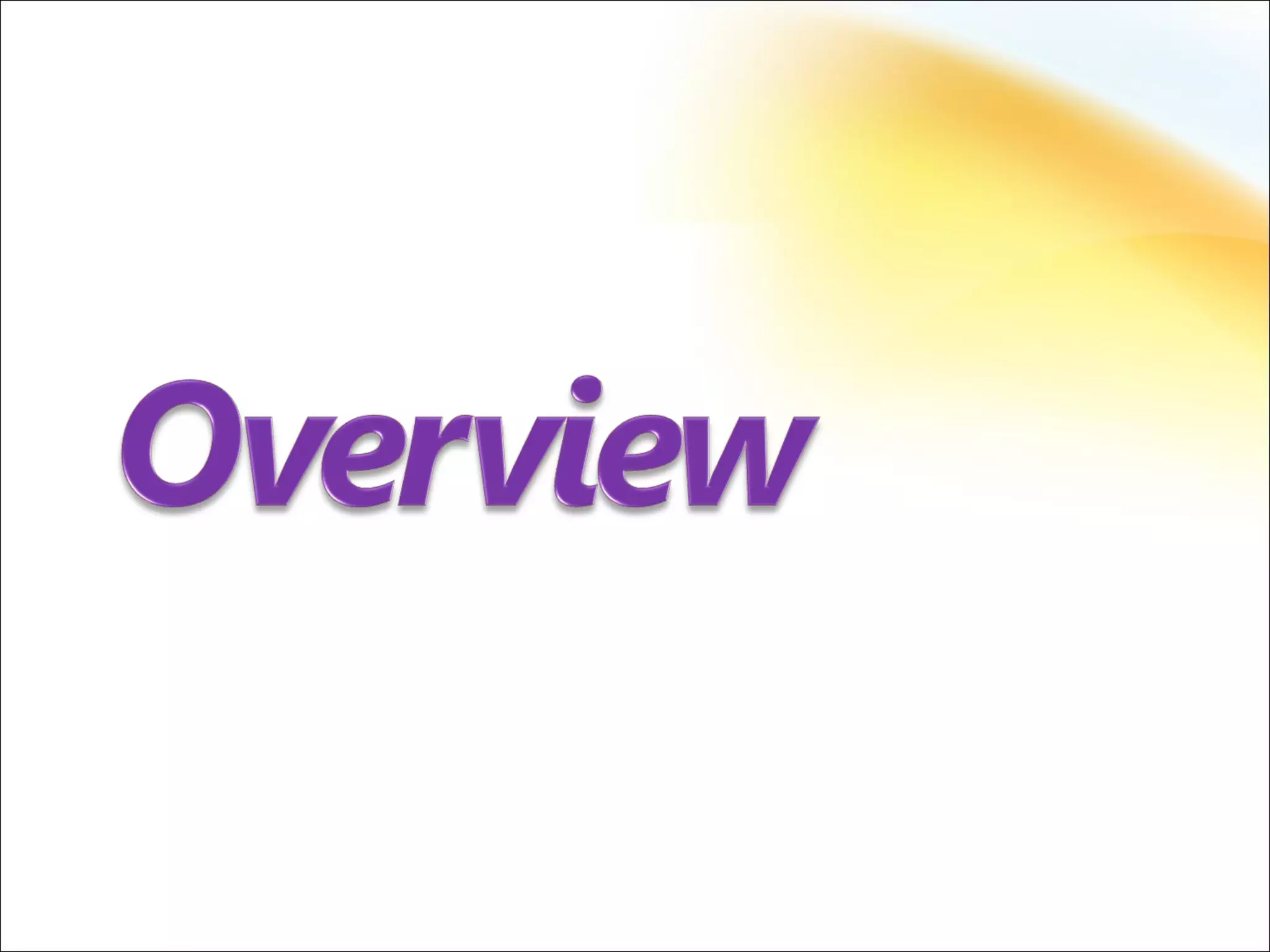

3. Overview Application Model Property System Events Commands Threading Animation

5. Application Model Application Class Types of Application Windows Application XAML Browser Application

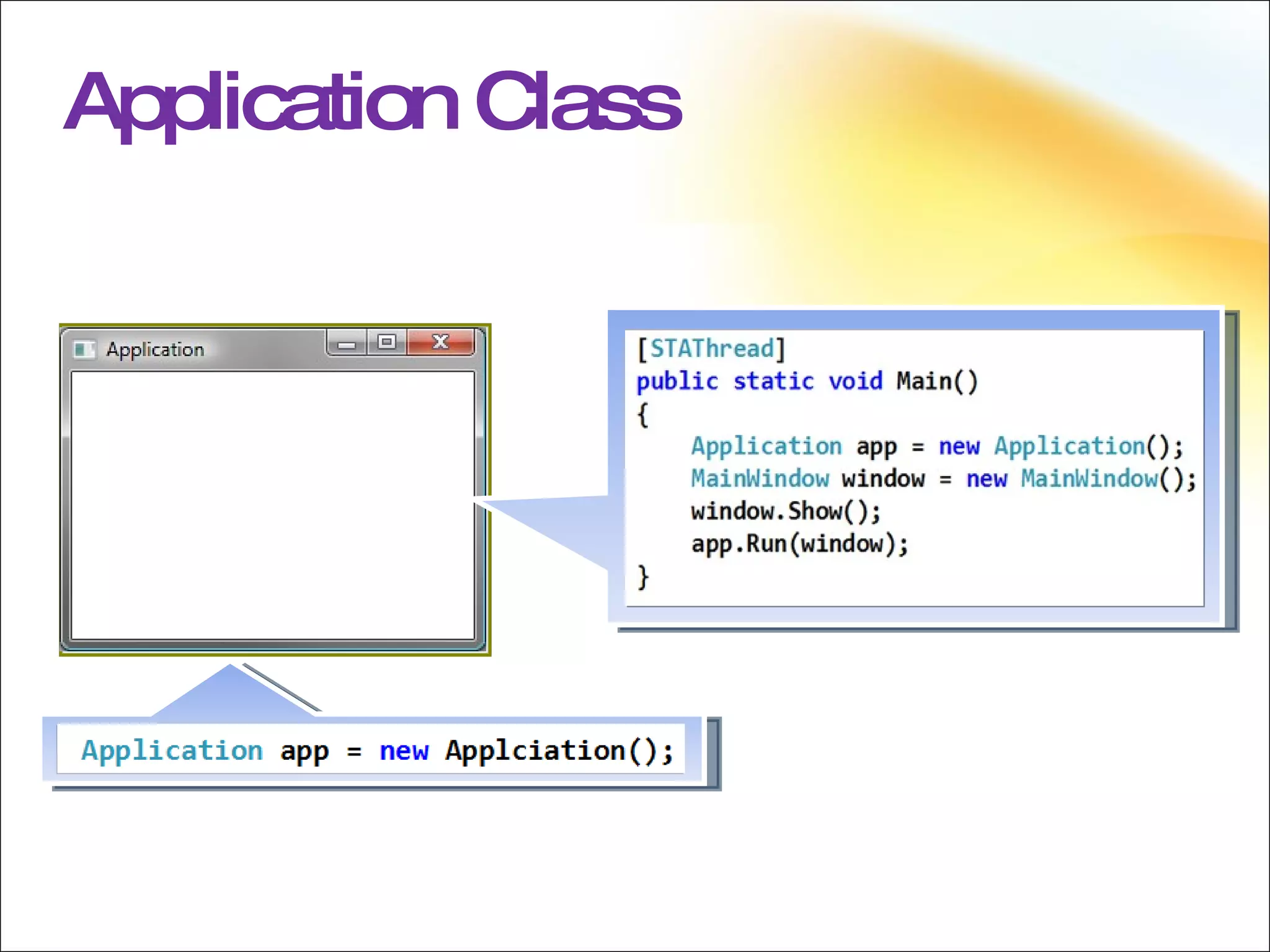

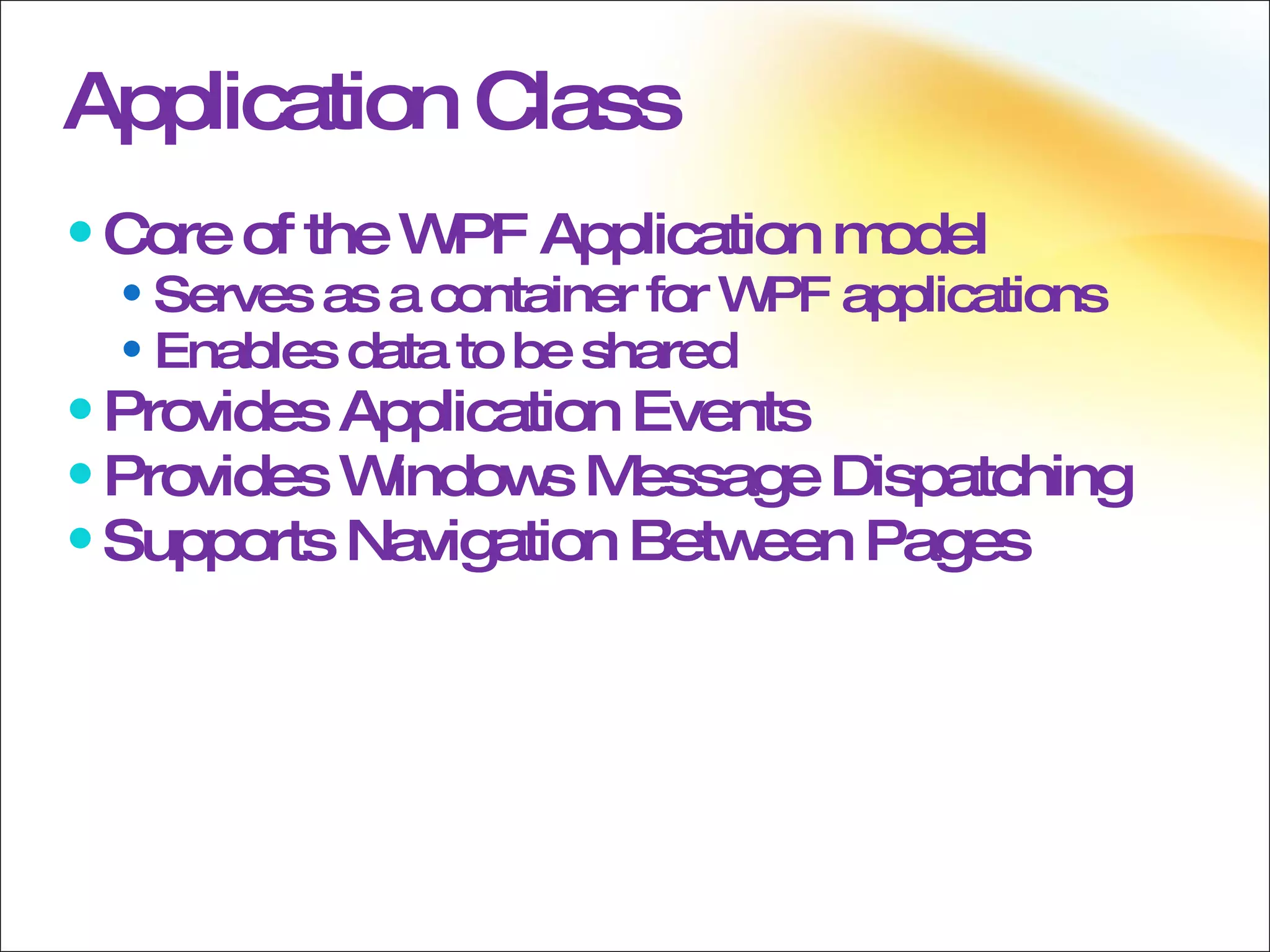

6. Application Class Core of the WPF Application model Serves as a container for WPF applications Enables data to be shared Provides Application Events Provides Windows Message Dispatching Supports Navigation Between Pages

7. Application Class WM_PAINT WM_MOUSEMOVE

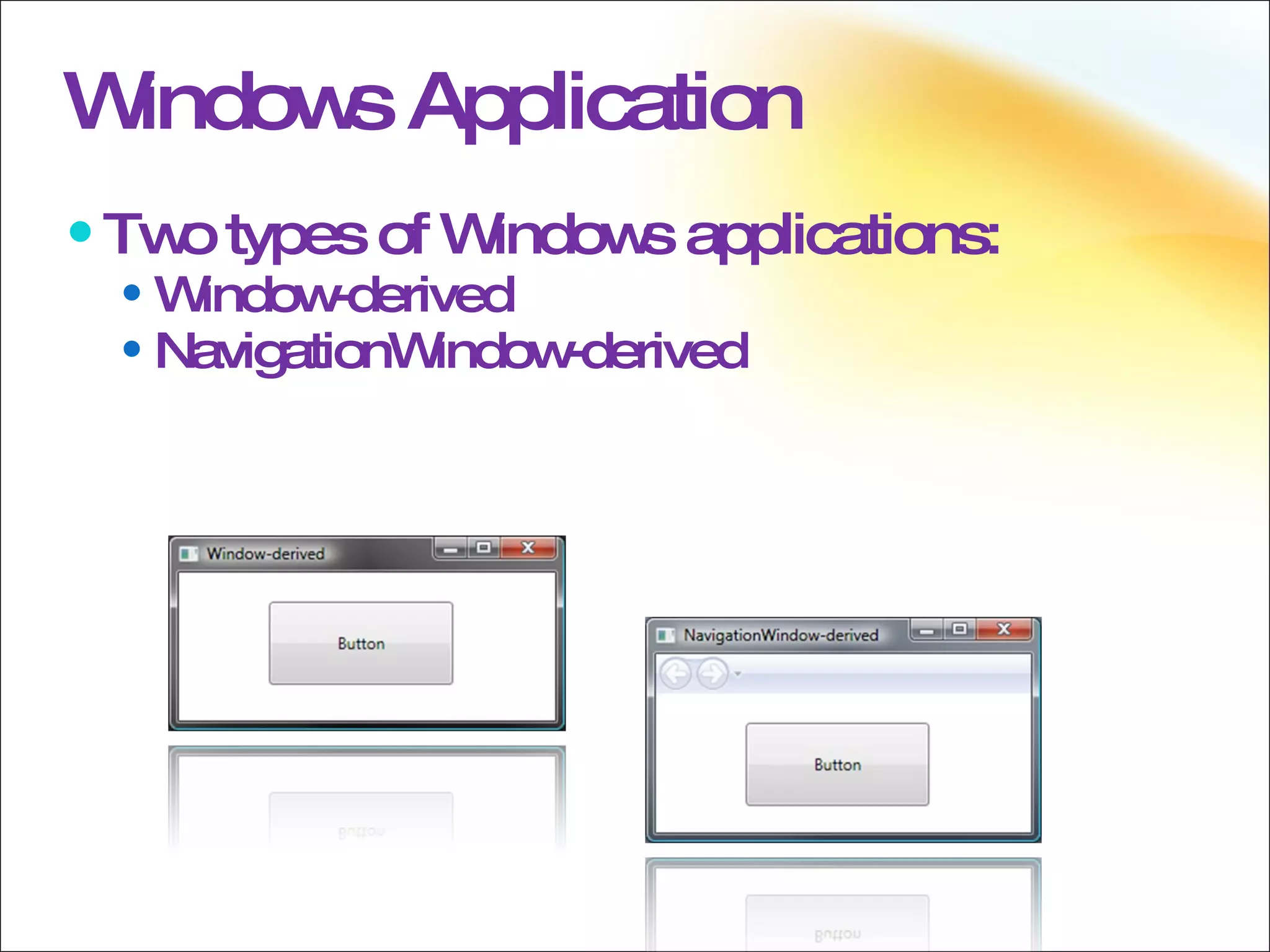

8. Windows Application Two types of Windows applications: Window-derived NavigationWindow-derived

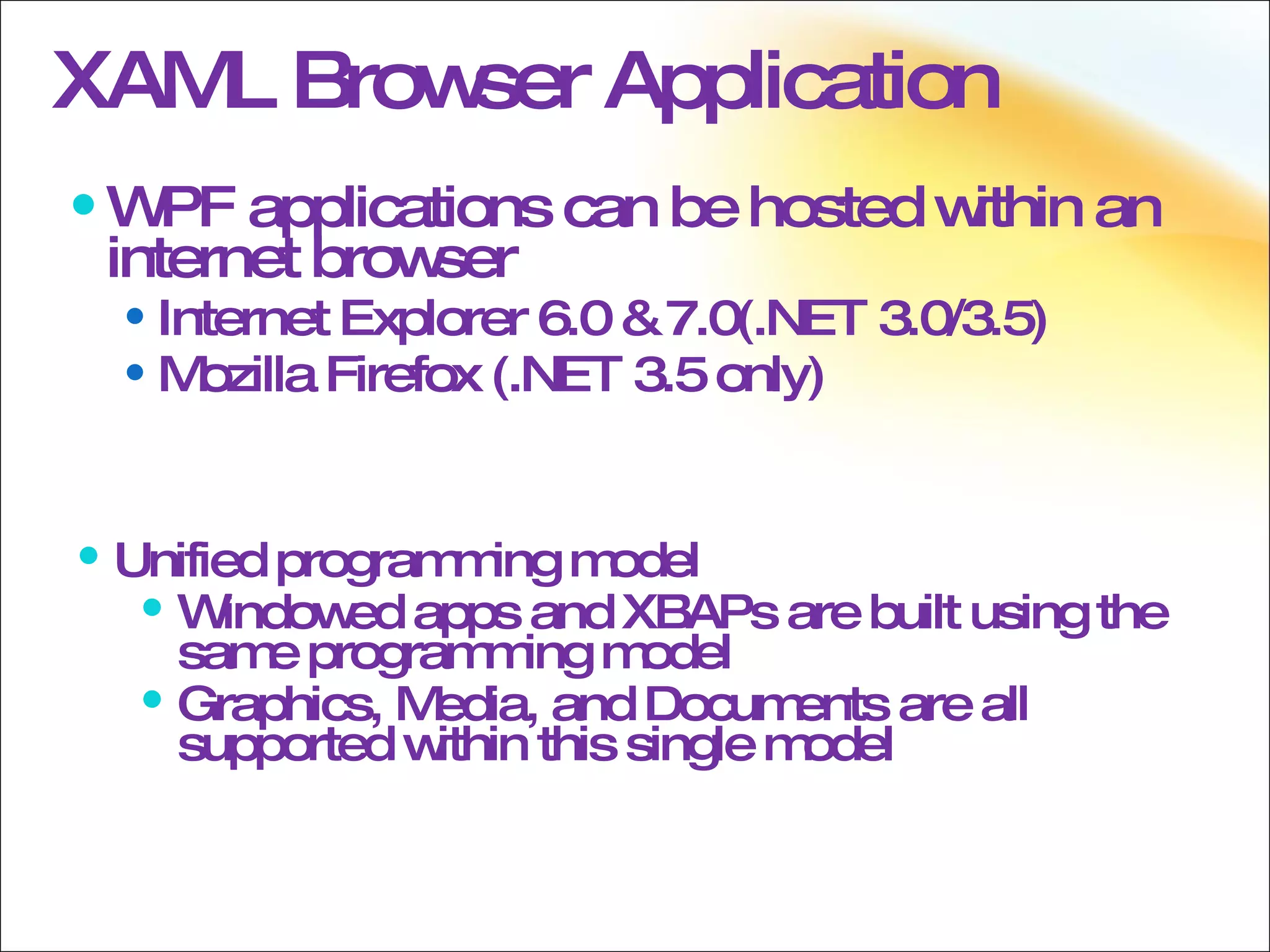

9. WPF applications can be hosted within an internet browser Internet Explorer 6.0 & 7.0(.NET 3.0/3.5) Mozilla Firefox (.NET 3.5 only) XAML Browser Application Unified programming model Windowed apps and XBAPs are built using the same programming model Graphics, Media, and Documents are all supported within this single model

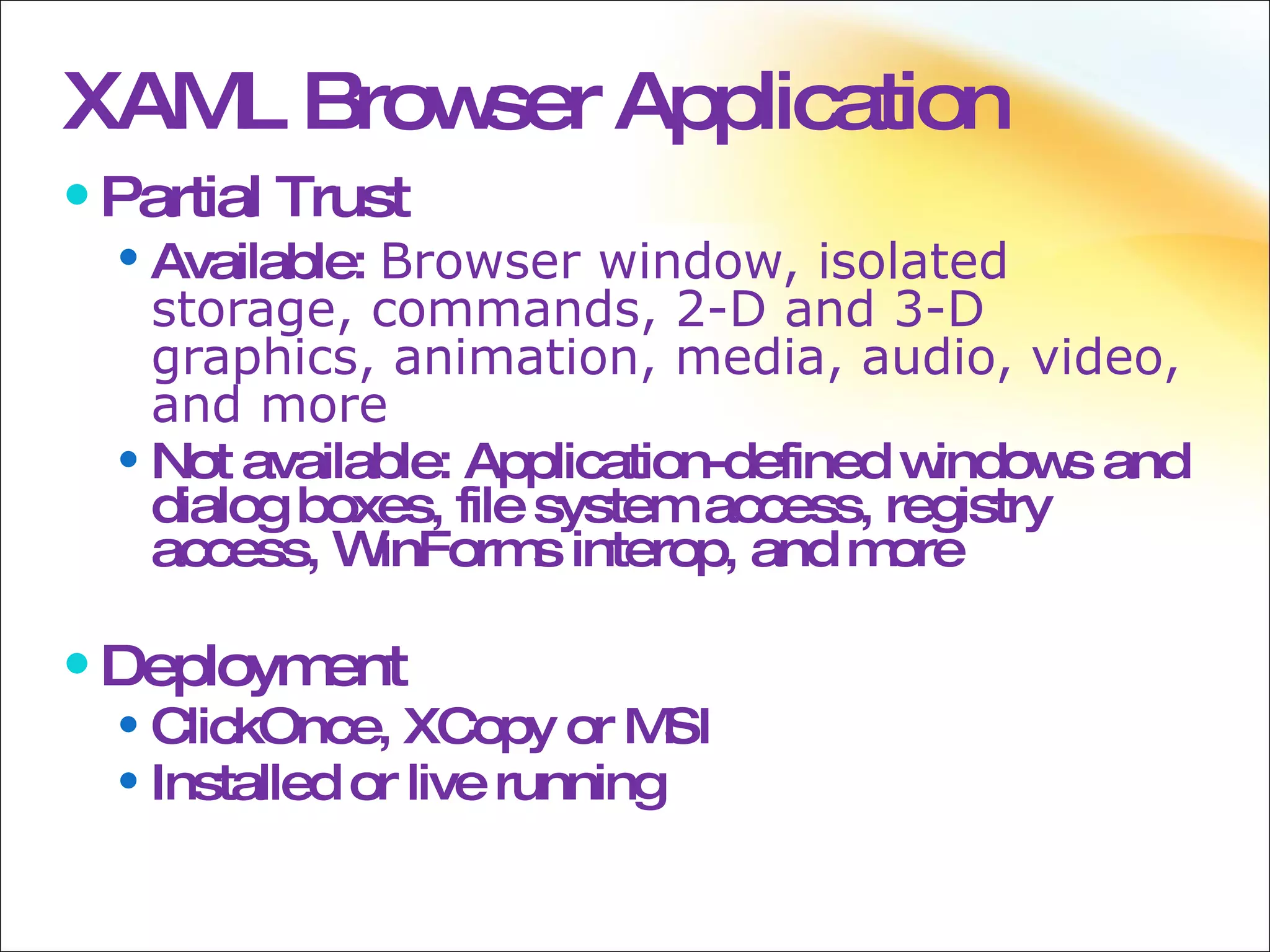

10. XAML Browser Application Partial Trust Available: Browser window, isolated storage, commands, 2-D and 3-D graphics, animation, media, audio, video, and more Not available: Application-defined windows and dialog boxes, file system access, registry access, WinForms interop, and more Deployment ClickOnce, XCopy or MSI Installed or live running

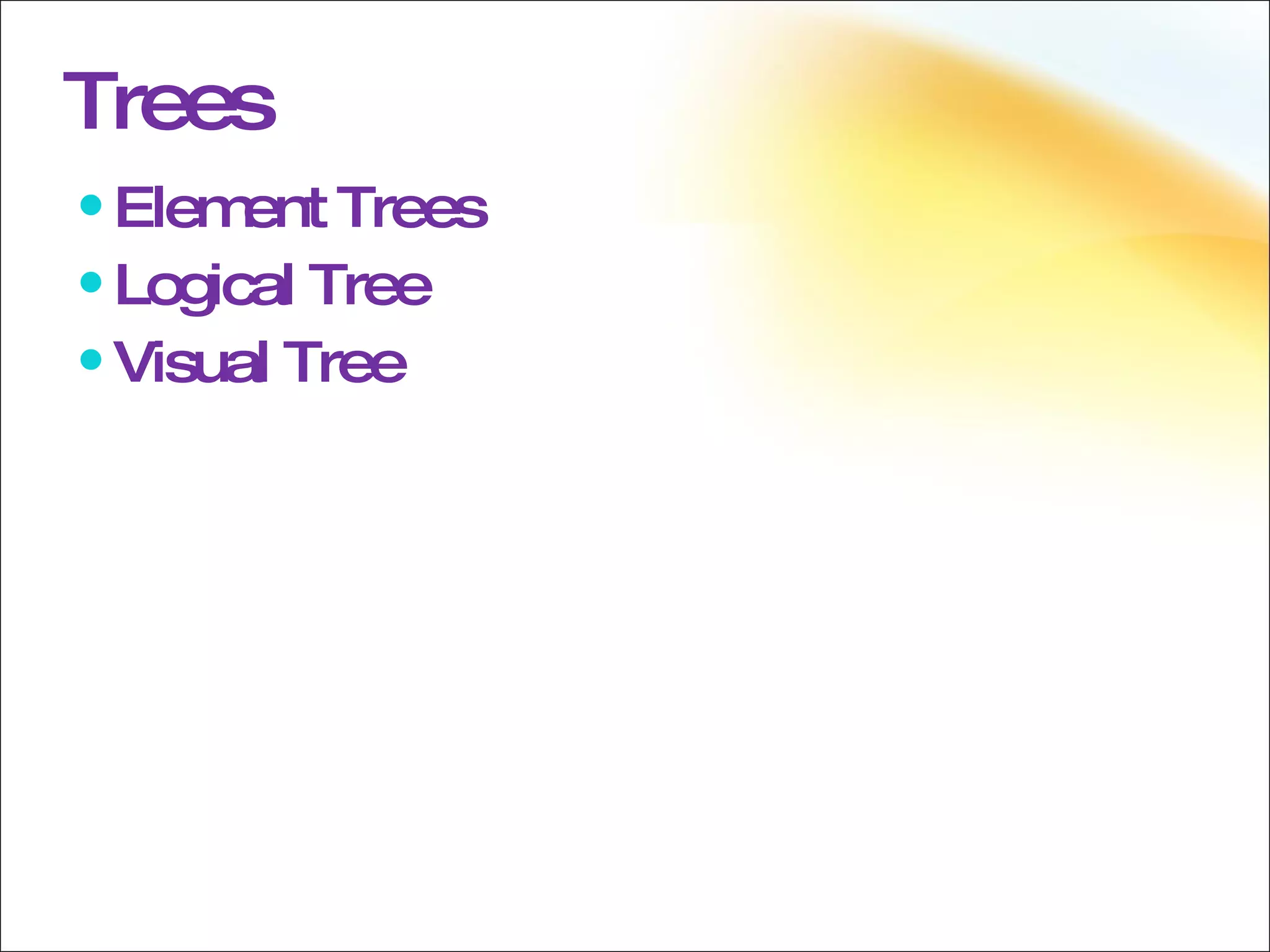

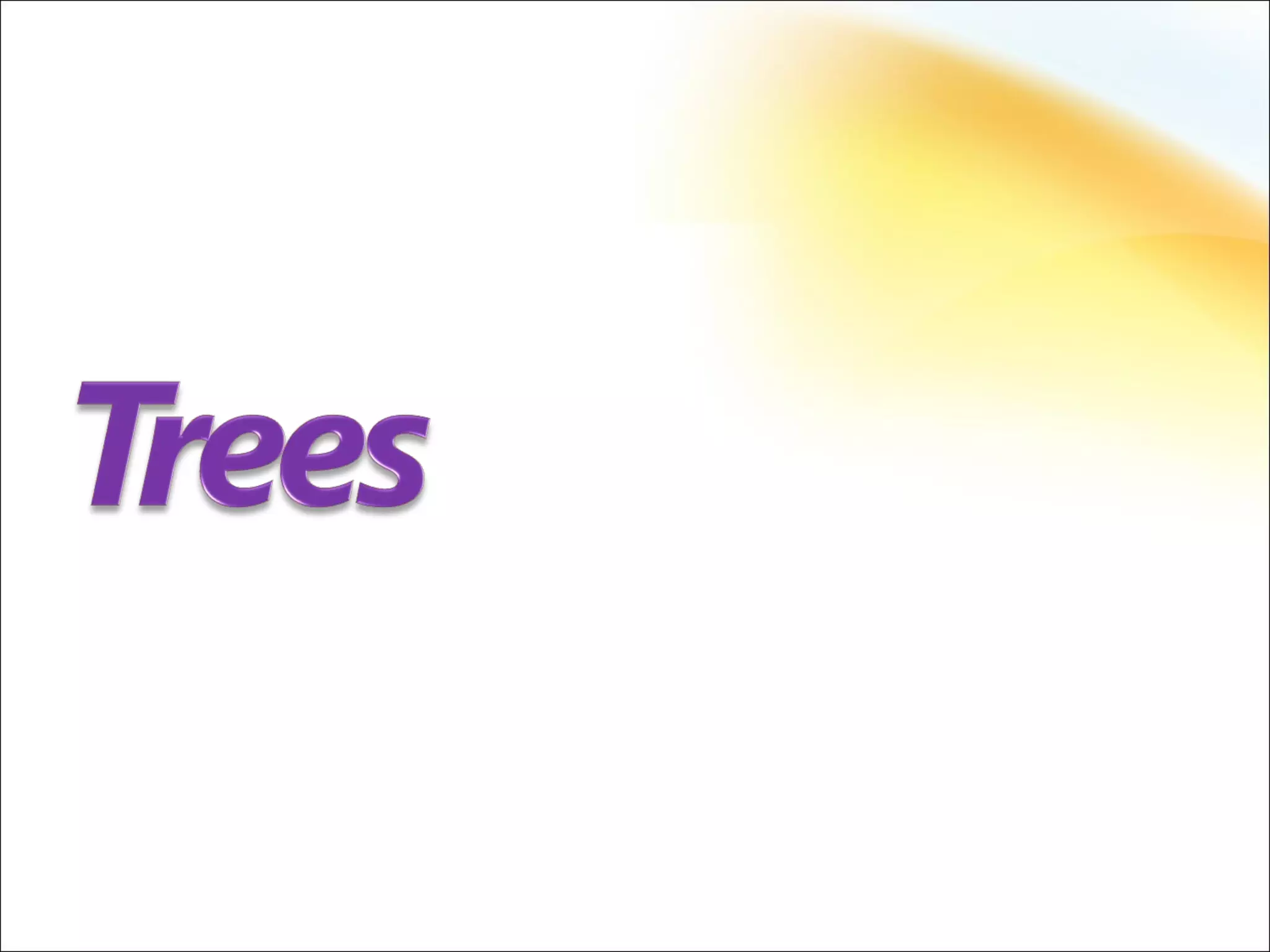

12. Trees Element Trees Logical Tree Visual Tree

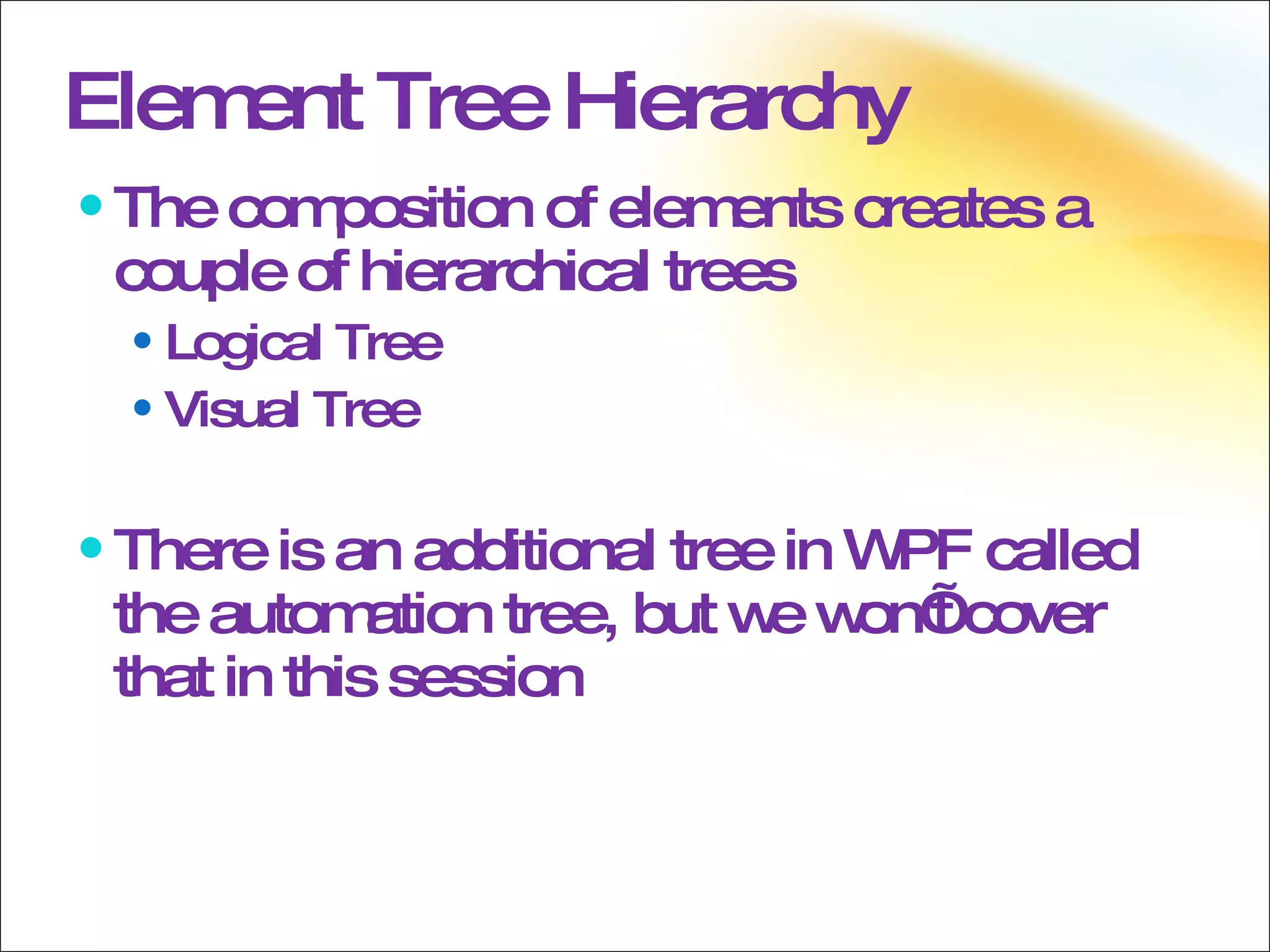

13. Element Tree Hierarchy The composition of elements creates a couple of hierarchical trees Logical Tree Visual Tree There is an additional tree in WPF called the automation tree, but we won’t cover that in this session

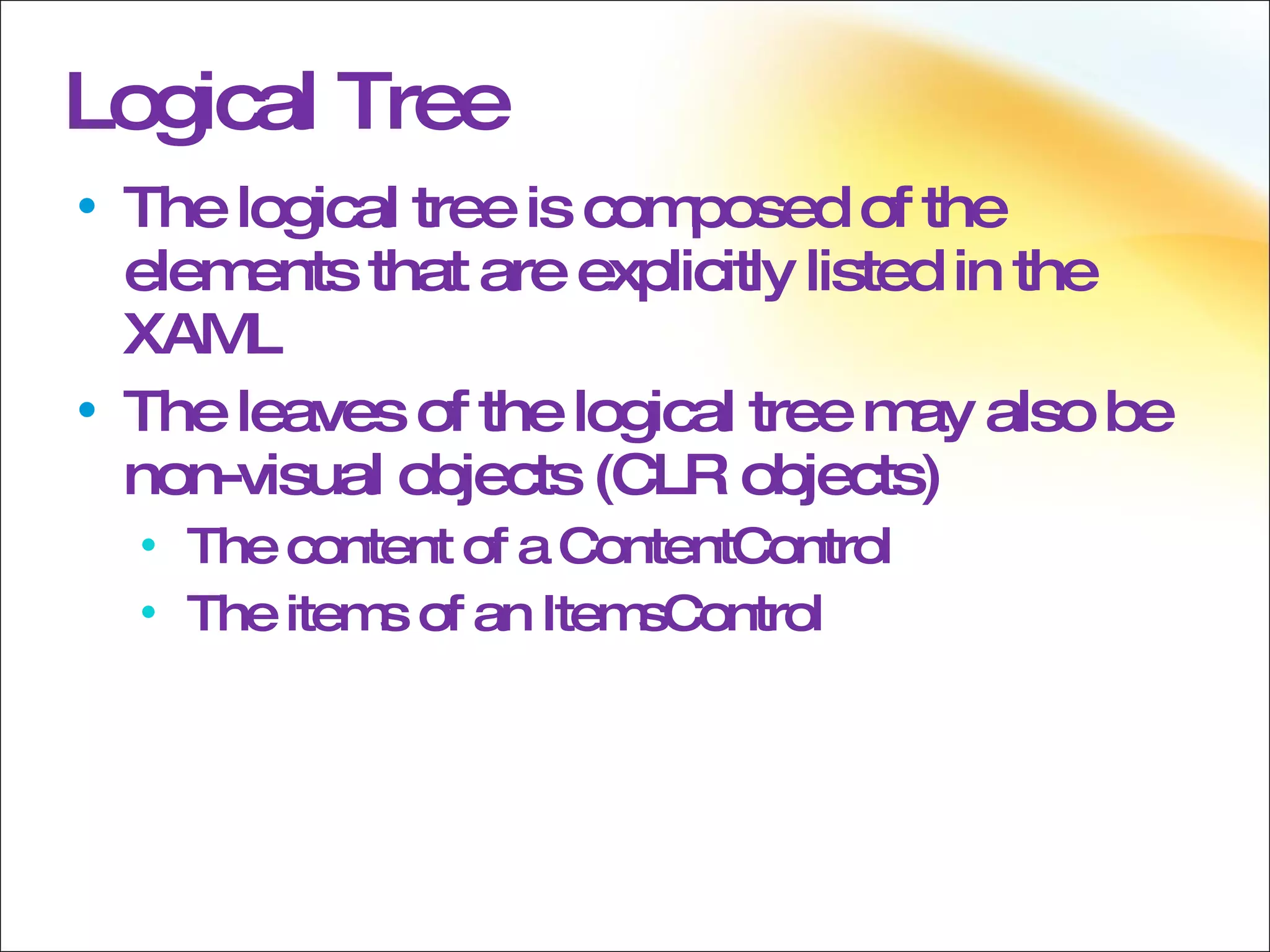

14. Logical Tree The logical tree is composed of the elements that are explicitly listed in the XAML The leaves of the logical tree may also be non-visual objects (CLR objects) The content of a ContentControl The items of an ItemsControl

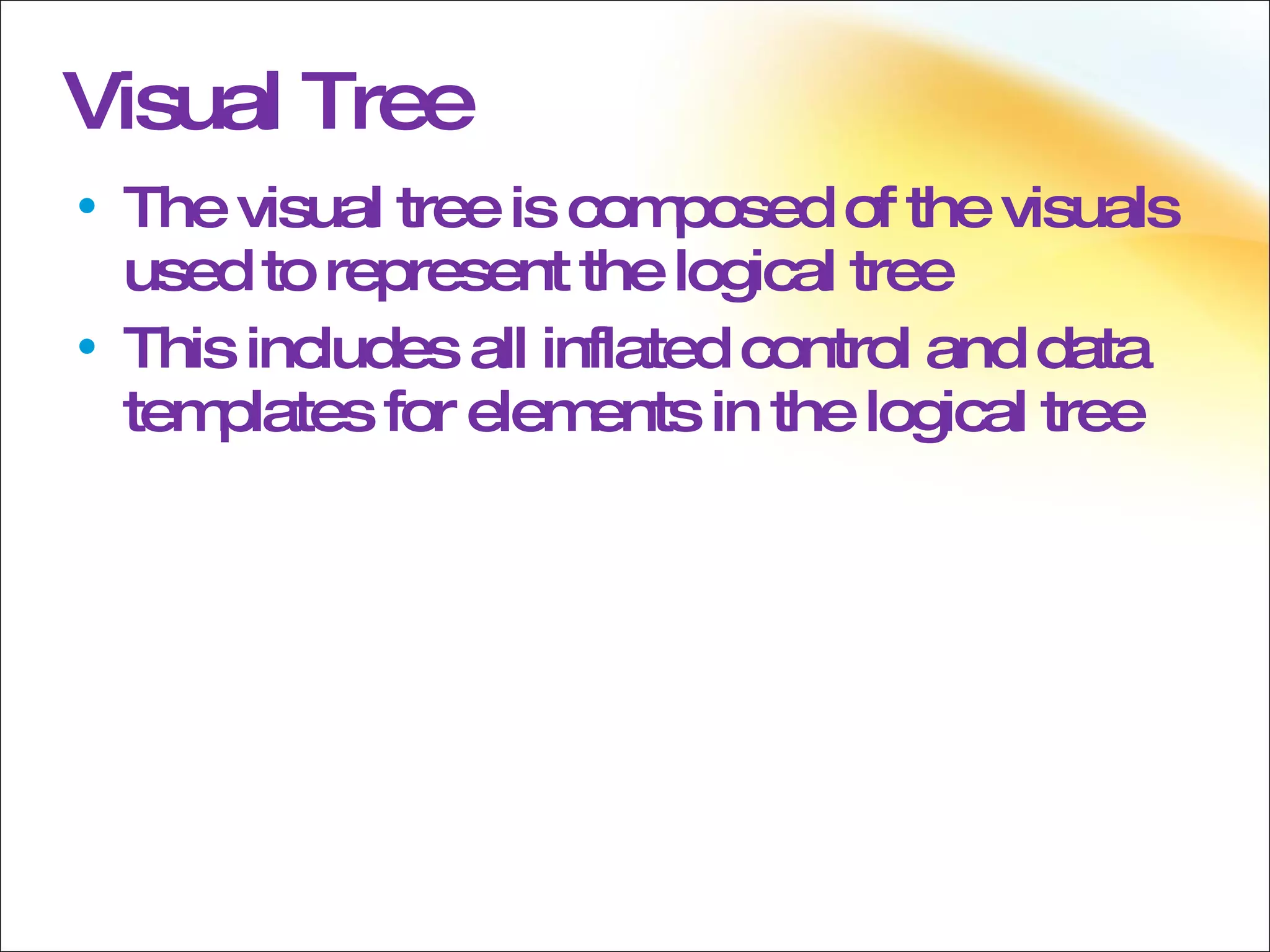

15. Visual Tree The visual tree is composed of the visuals used to represent the logical tree This includes all inflated control and data templates for elements in the logical tree

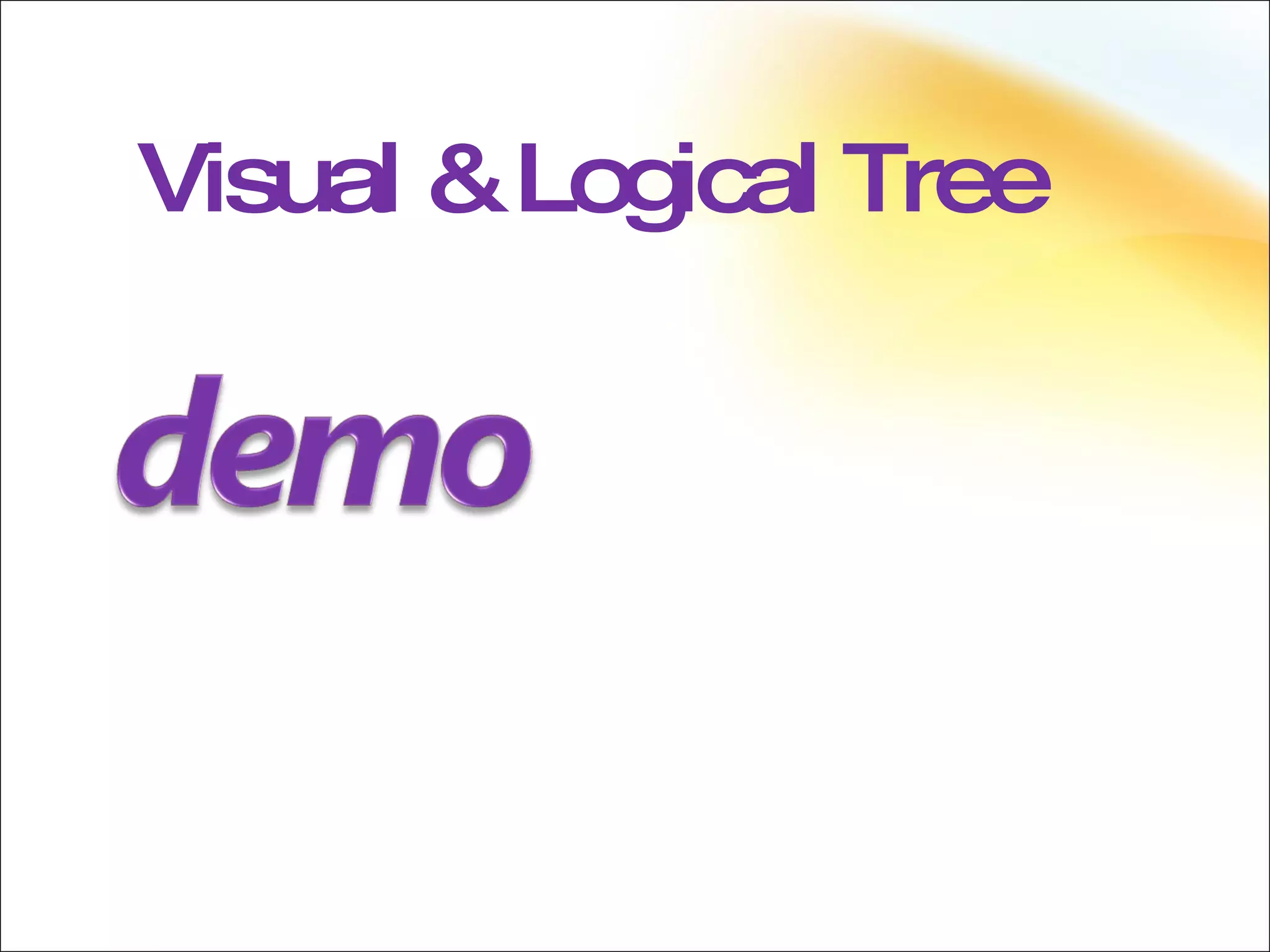

16. Visual & Logical Tree

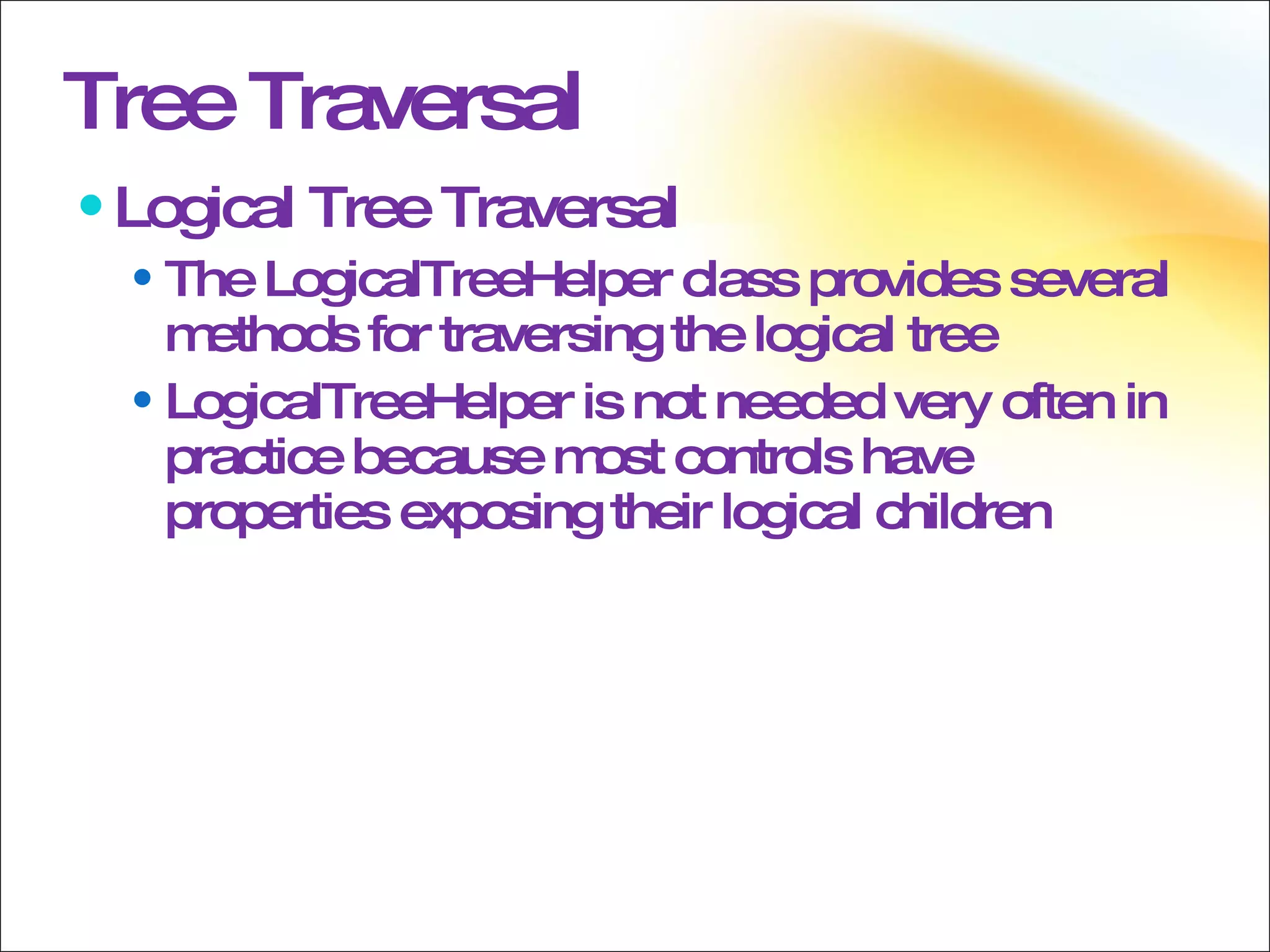

17. Tree Traversal Logical Tree Traversal The LogicalTreeHelper class provides several methods for traversing the logical tree LogicalTreeHelper is not needed very often in practice because most controls have properties exposing their logical children

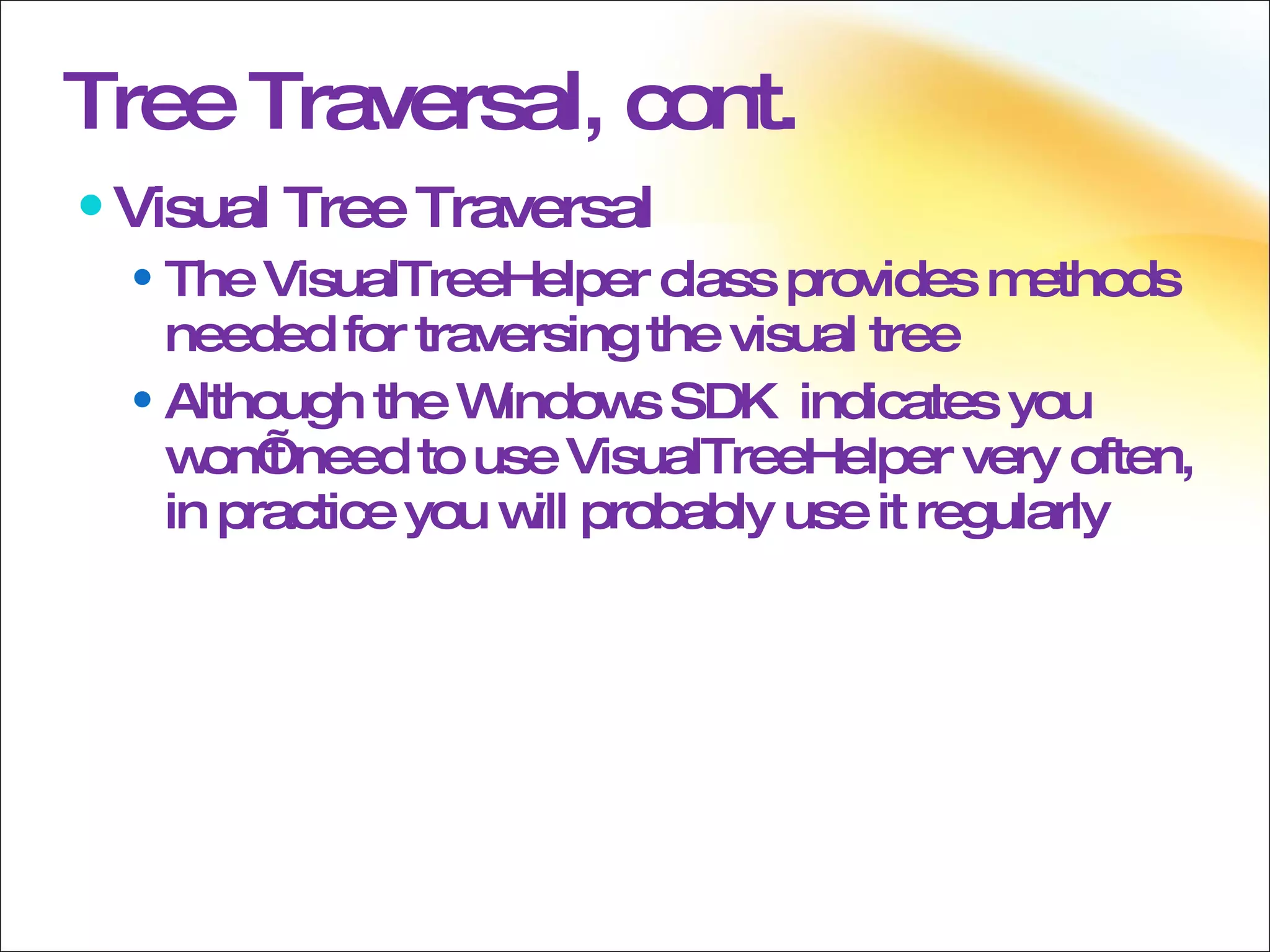

18. Tree Traversal, cont. Visual Tree Traversal The VisualTreeHelper class provides methods needed for traversing the visual tree Although the Windows SDK indicates you won’t need to use VisualTreeHelper very often, in practice you will probably use it regularly

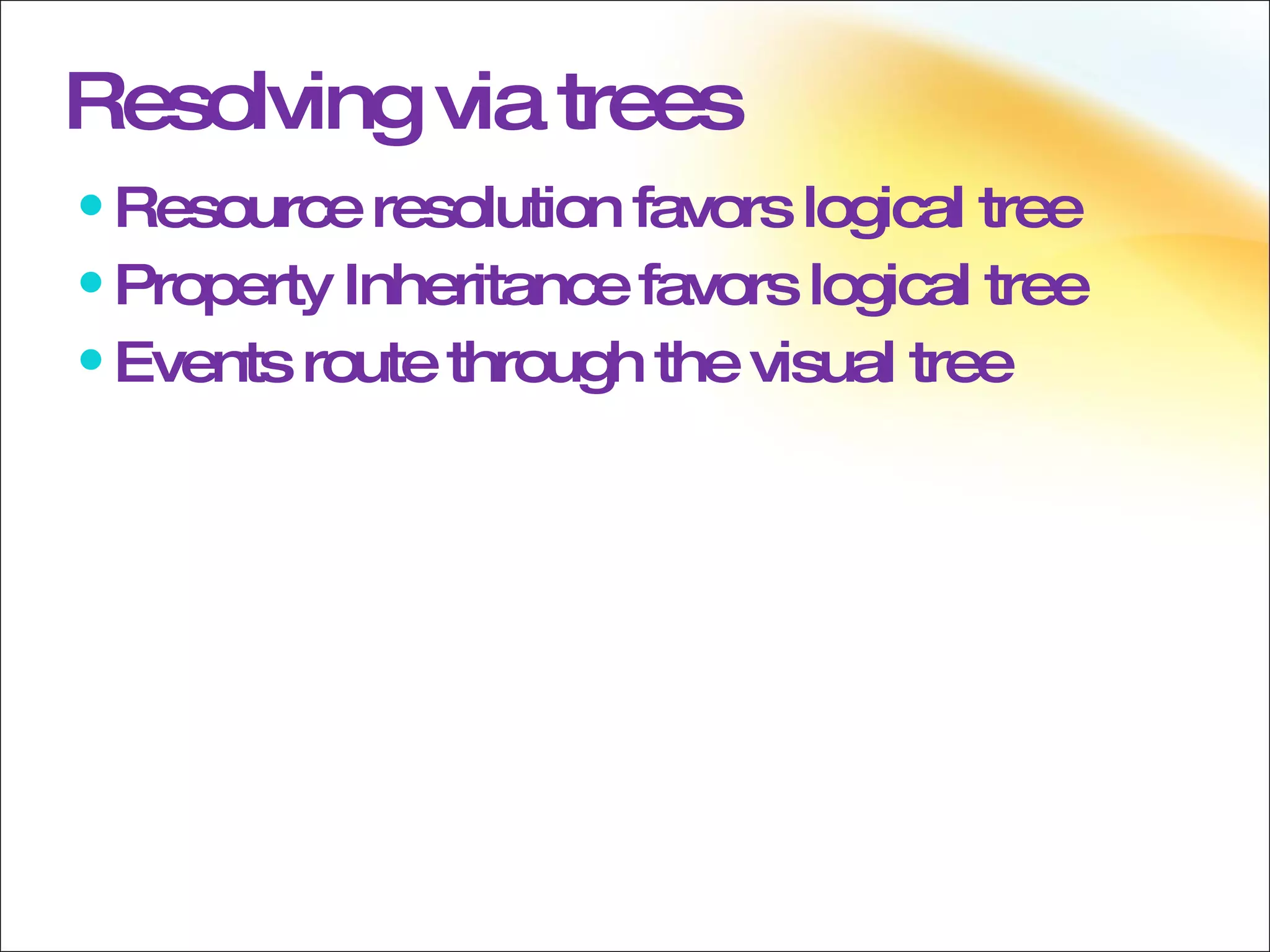

19. Resolving via trees Resource resolution favors logical tree Property Inheritance favors logical tree Events route through the visual tree

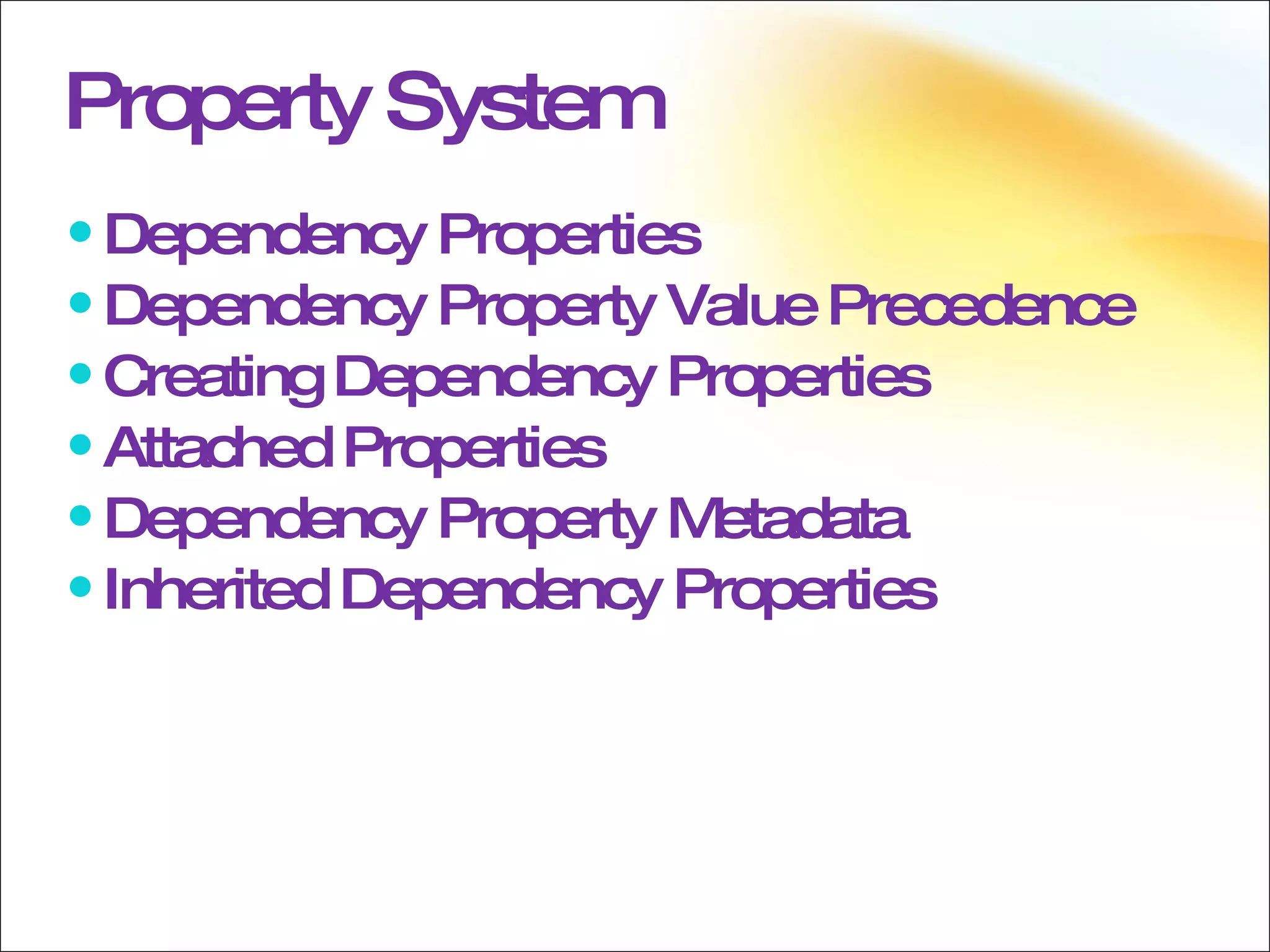

21. Property System Dependency Properties Dependency Property Value Precedence Creating Dependency Properties Attached Properties Dependency Property Metadata Inherited Dependency Properties

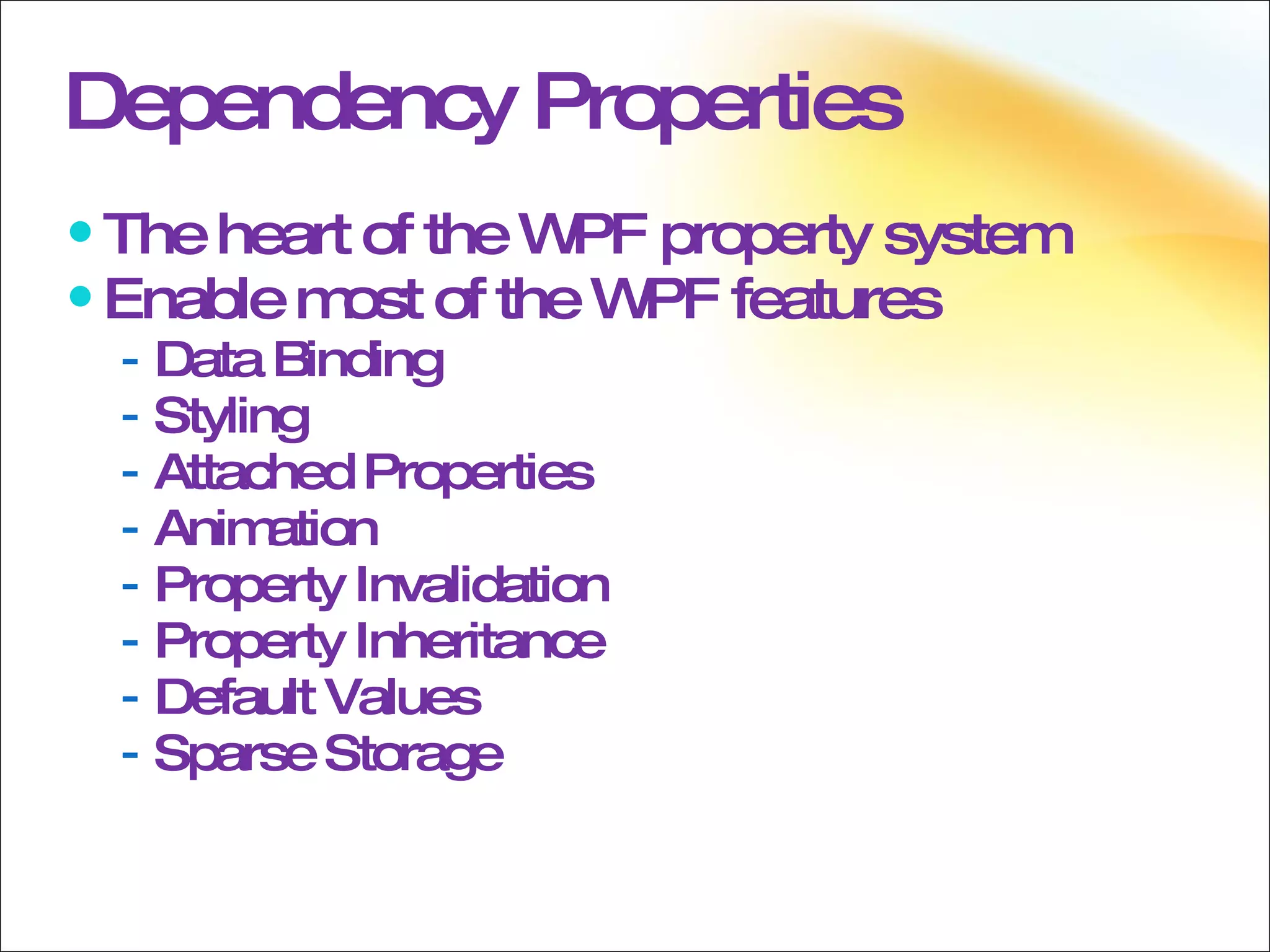

22. Dependency Properties The heart of the WPF property system Enable most of the WPF features Data Binding Styling Attached Properties Animation Property Invalidation Property Inheritance Default Values Sparse Storage

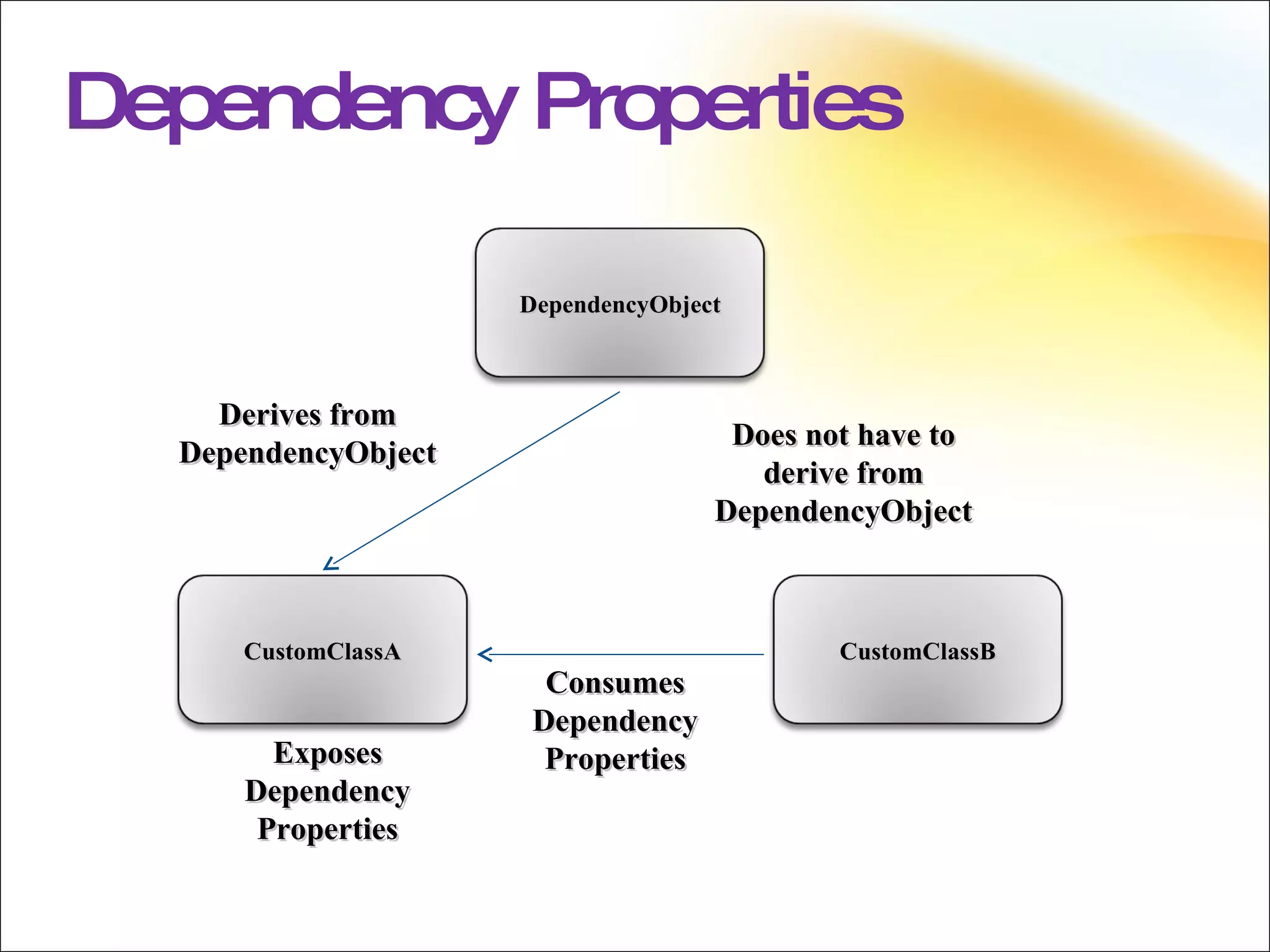

23. Dependency Properties Exposes Dependency Properties Consumes Dependency Properties Does not have to derive from DependencyObject Derives from DependencyObject DependencyObject CustomClassA CustomClassB

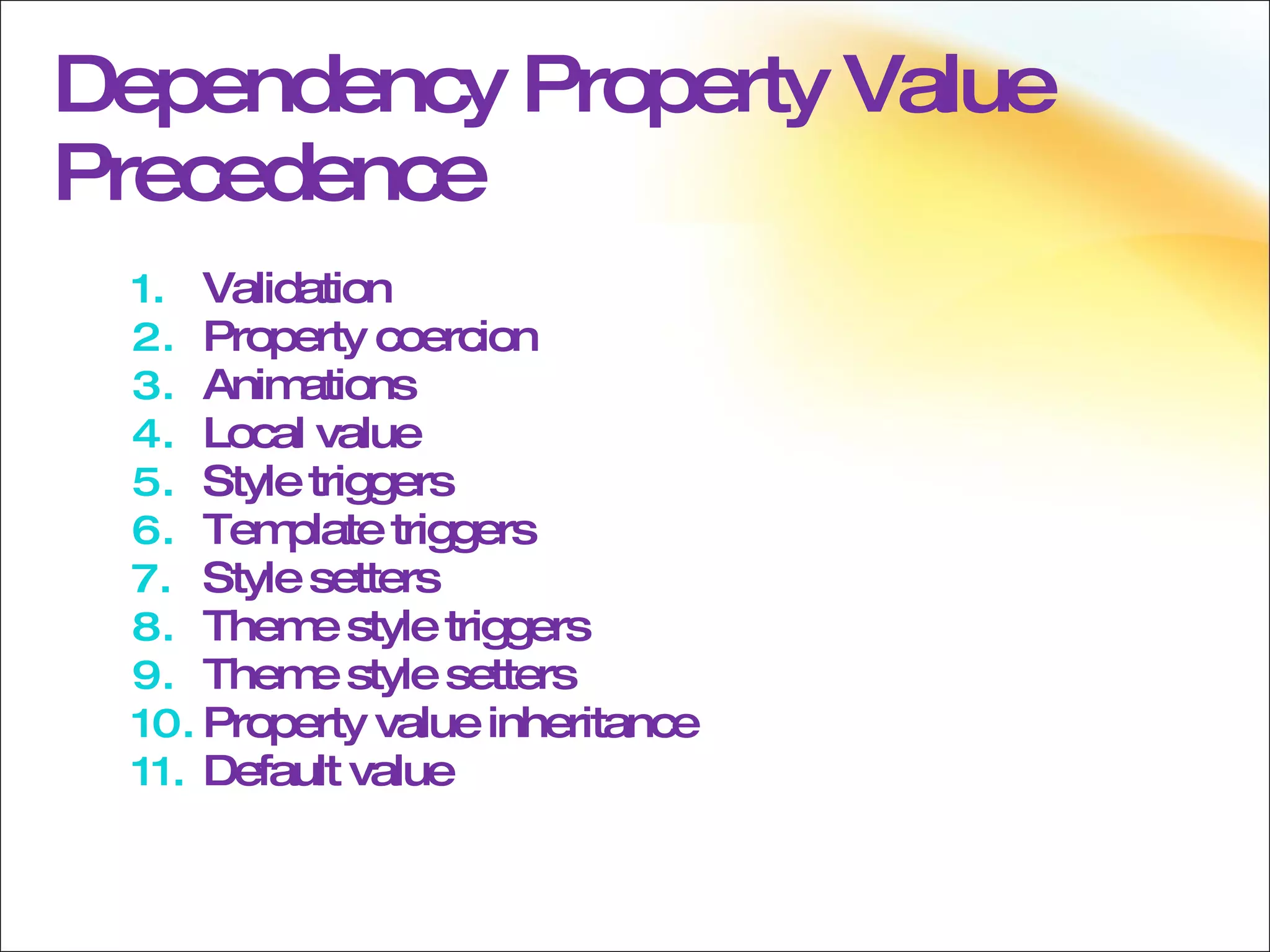

24. Dependency Property Value Precedence Validation Property coercion Animations Local value Style triggers Template triggers Style setters Theme style triggers Theme style setters Property value inheritance Default value

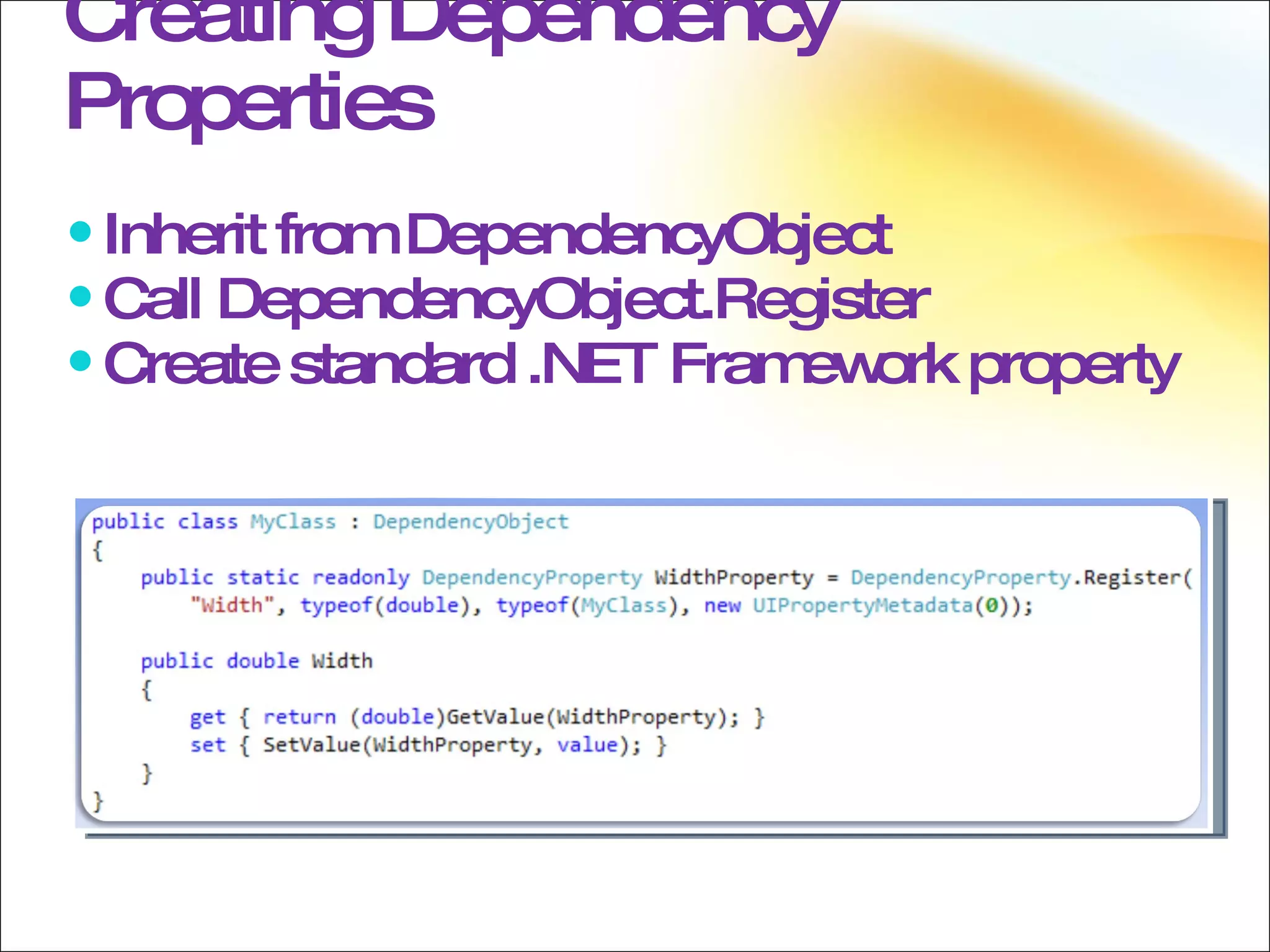

25. Creating Dependency Properties Inherit from DependencyObject Call DependencyObject.Register Create standard .NET Framework property

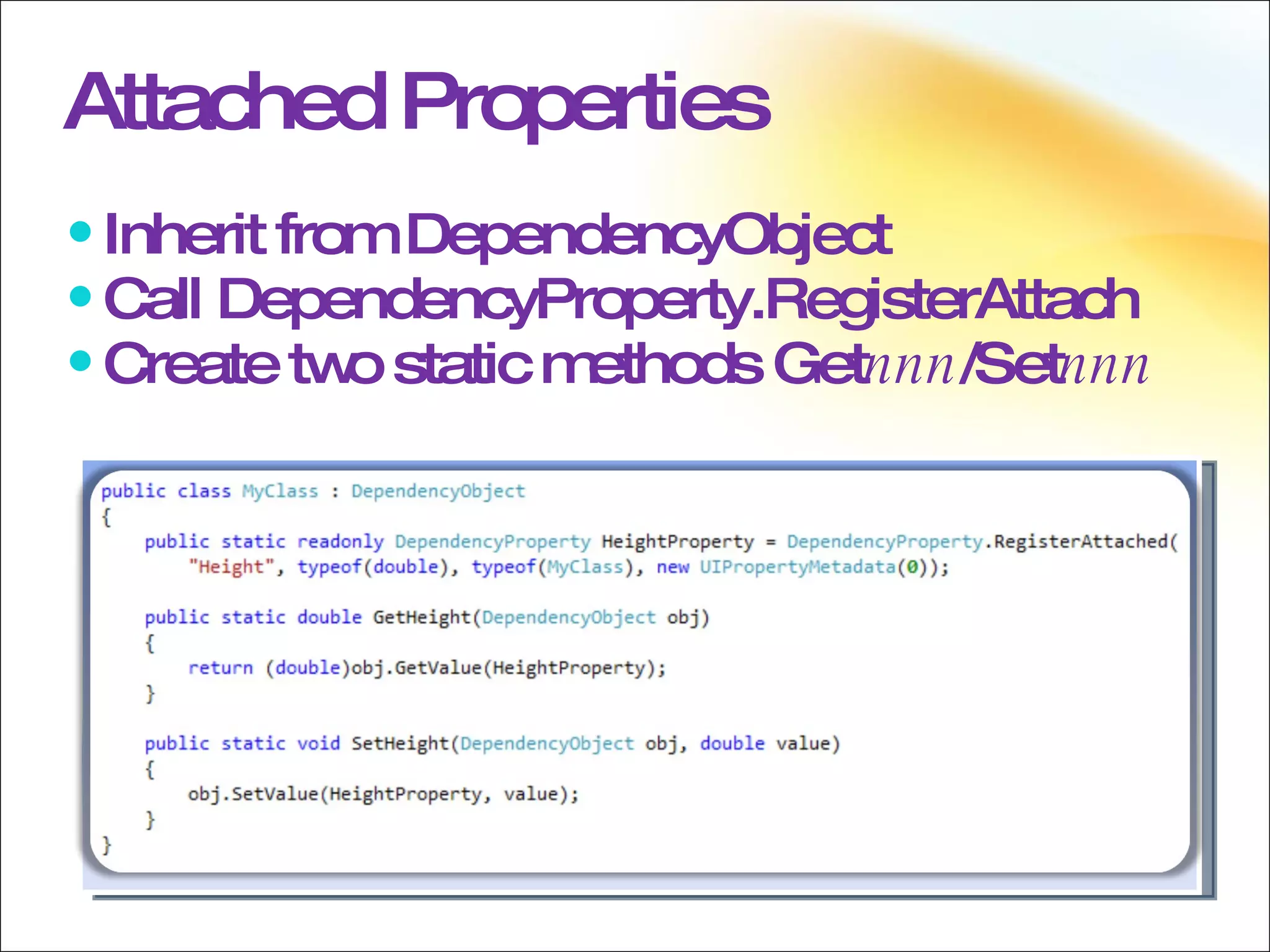

26. Attached Properties Inherit from DependencyObject Call DependencyProperty.RegisterAttach Create two static methods Get nnn /Set nnn

27. Dependency Property Metadata

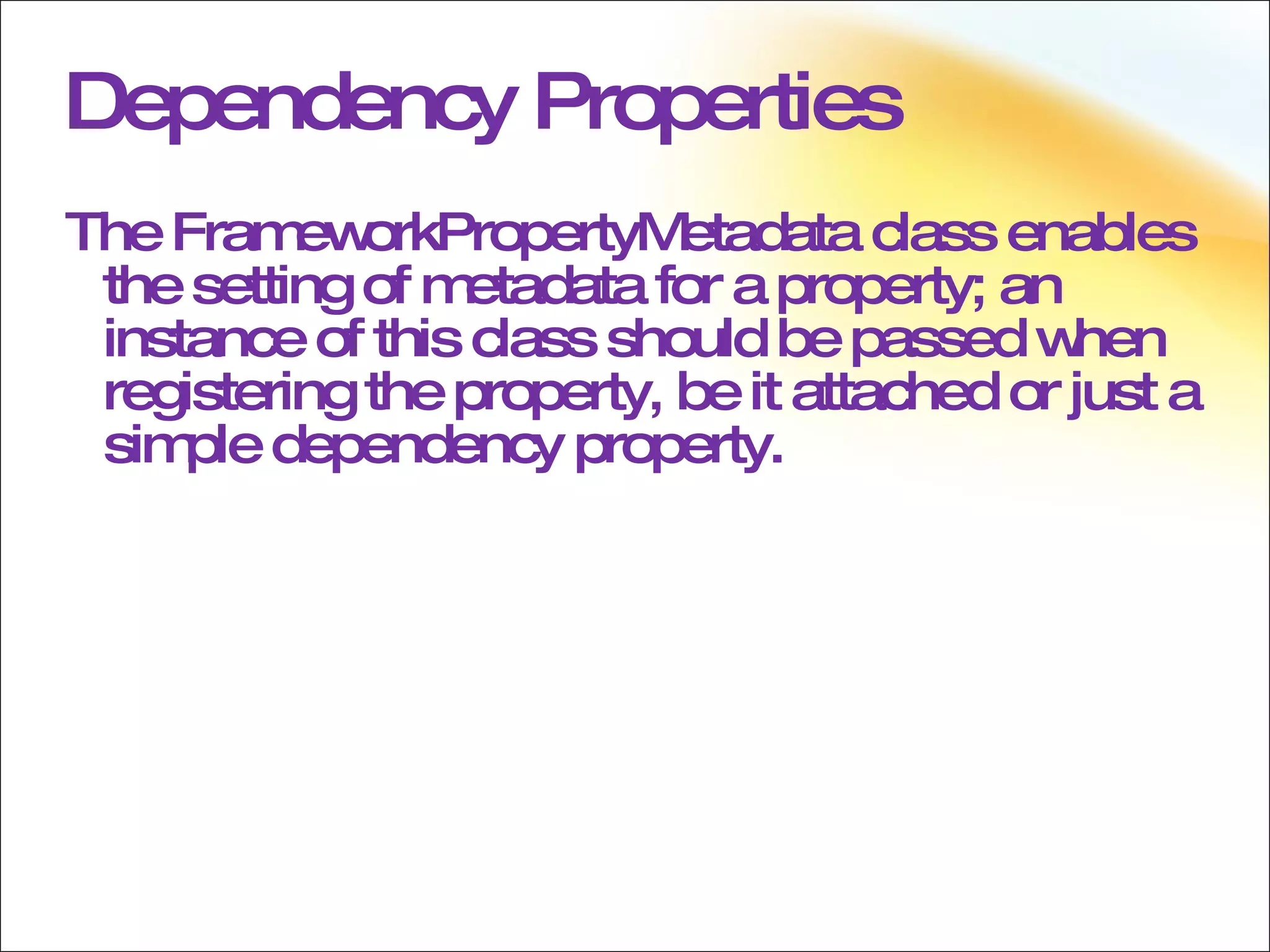

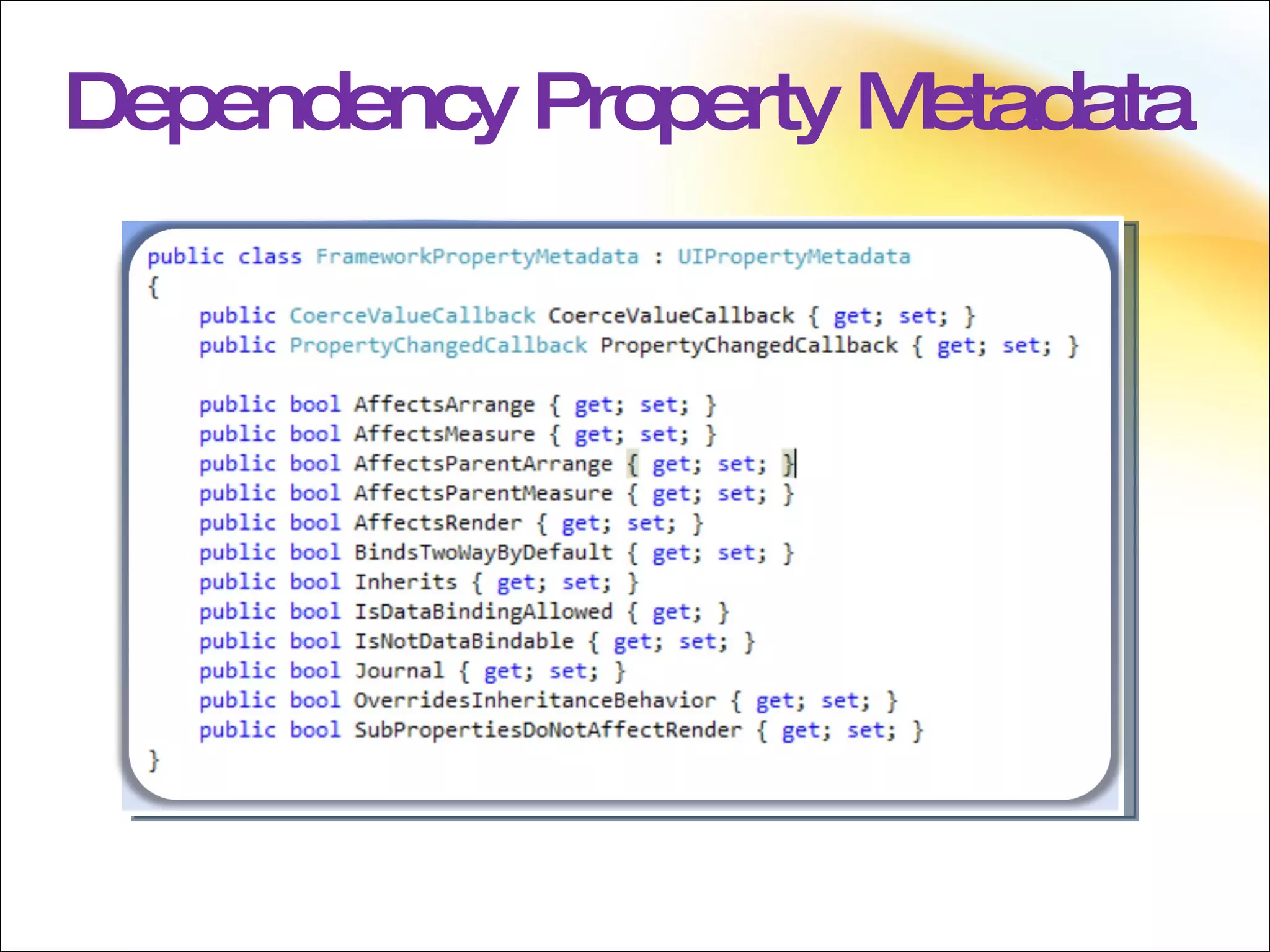

28. Dependency Properties The FrameworkPropertyMetadata class enables the setting of metadata for a property; an instance of this class should be passed when registering the property, be it attached or just a simple dependency property.

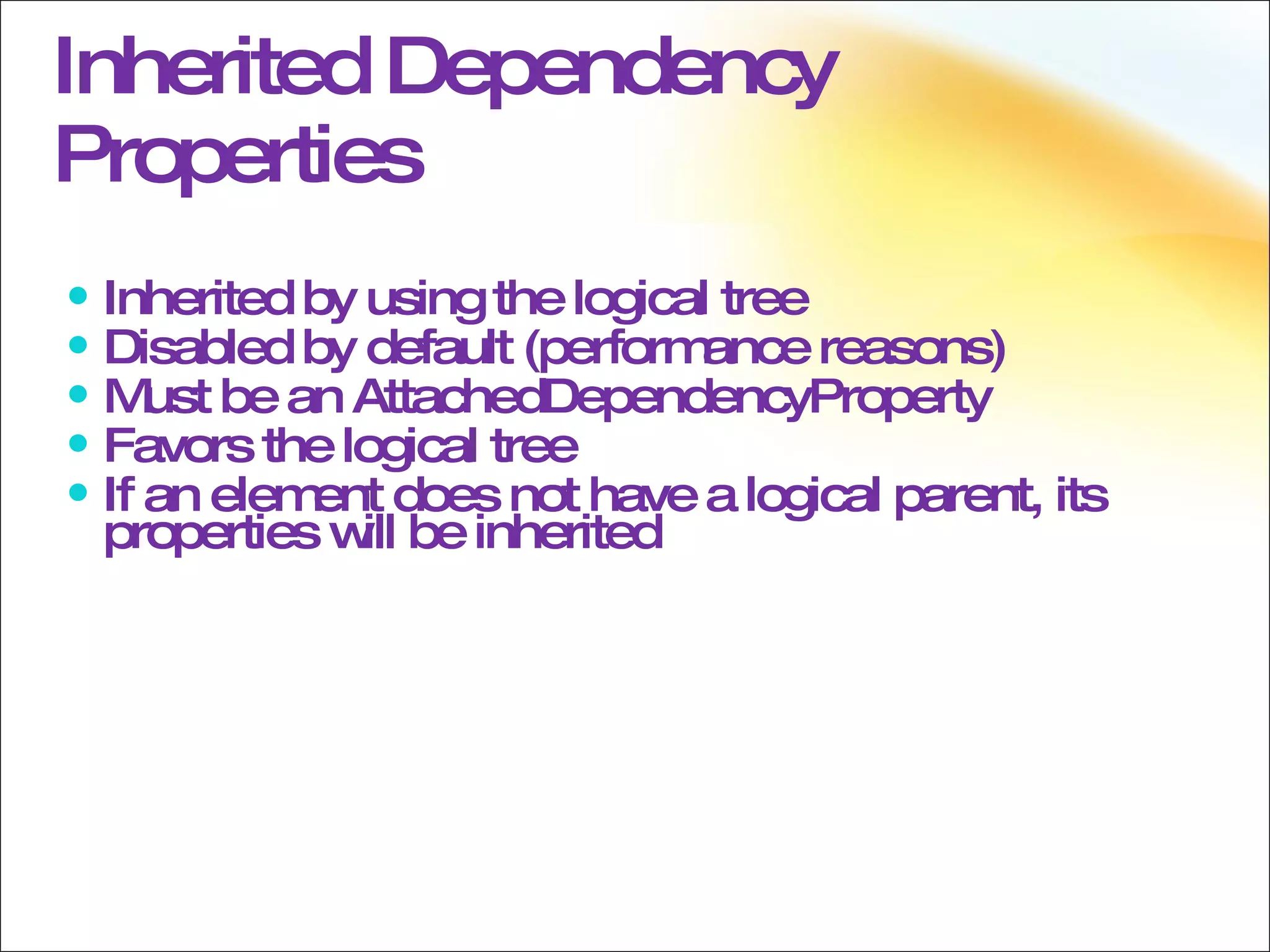

29. Inherited Dependency Properties Inherited by using the logical tree Disabled by default (performance reasons) Must be an AttachedDependencyProperty Favors the logical tree If an element does not have a logical parent, its properties will be inherited

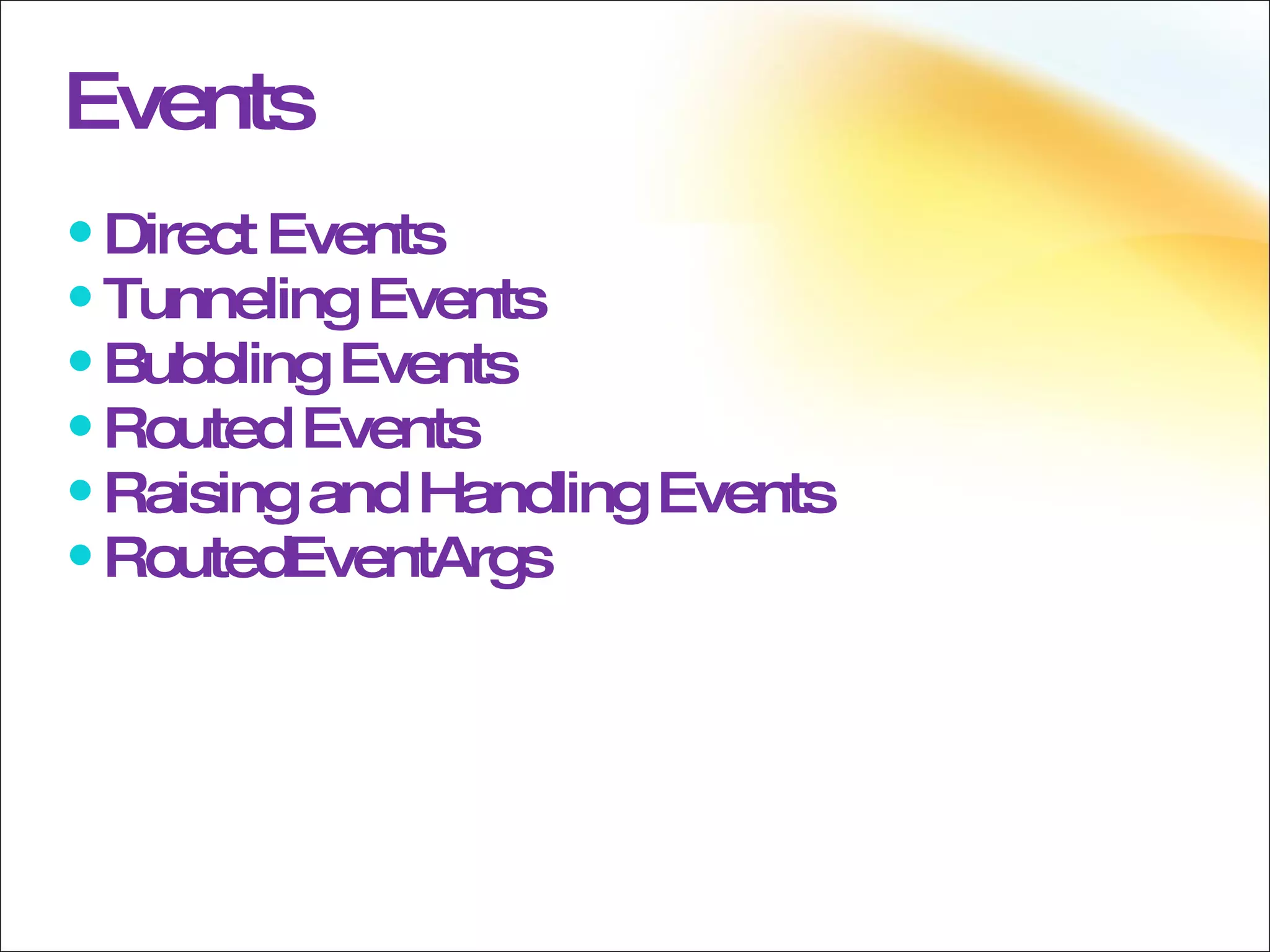

31. Events Direct Events Tunneling Events Bubbling Events Routed Events Raising and Handling Events RoutedEventArgs

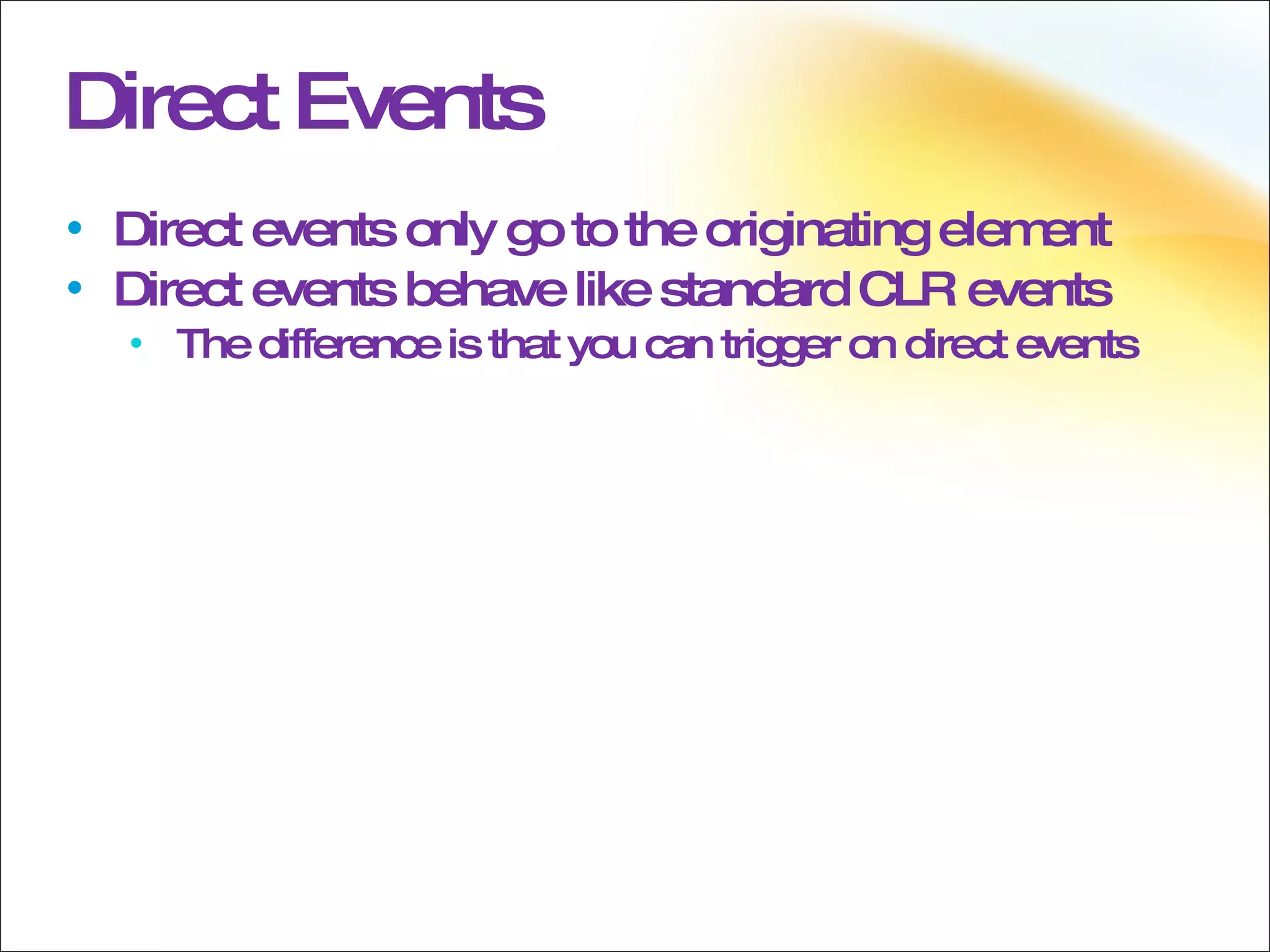

32. Direct Events Direct events only go to the originating element Direct events behave like standard CLR events The difference is that you can trigger on direct events

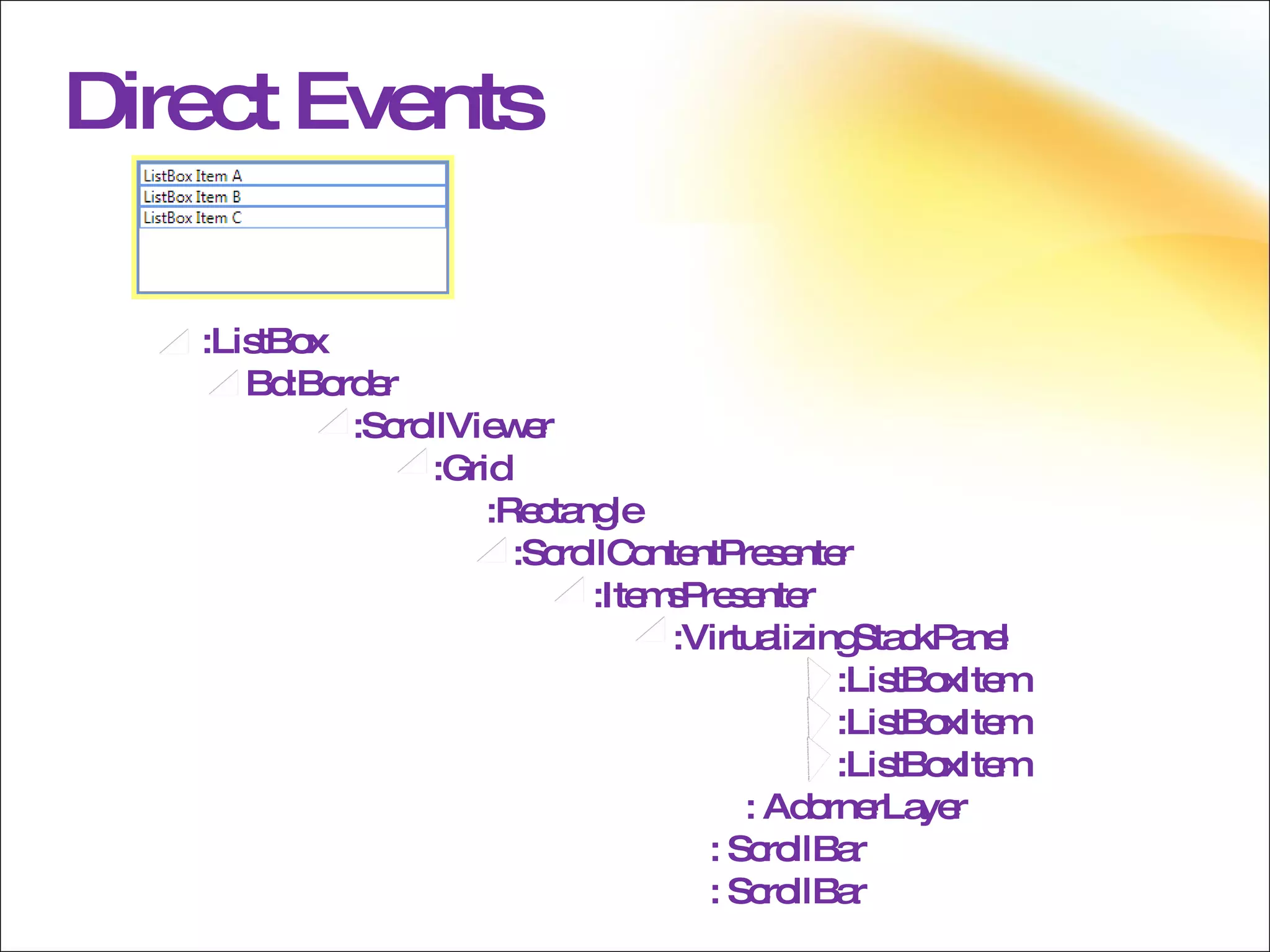

33. Direct Events :ListBox Bd:Border :ScrollViewer :Grid :Rectangle :ScrollContentPresenter :ItemsPresenter :VirtualizingStackPanel :ListBoxItem :ListBoxItem :ListBoxItem : AdornerLayer : ScrollBar : ScrollBar

34. Tunneling Events Tunneled events begin with the highest visual parent Moves down through the visual tree Tunneling events are, by convention, prefixed with the word “Preview”

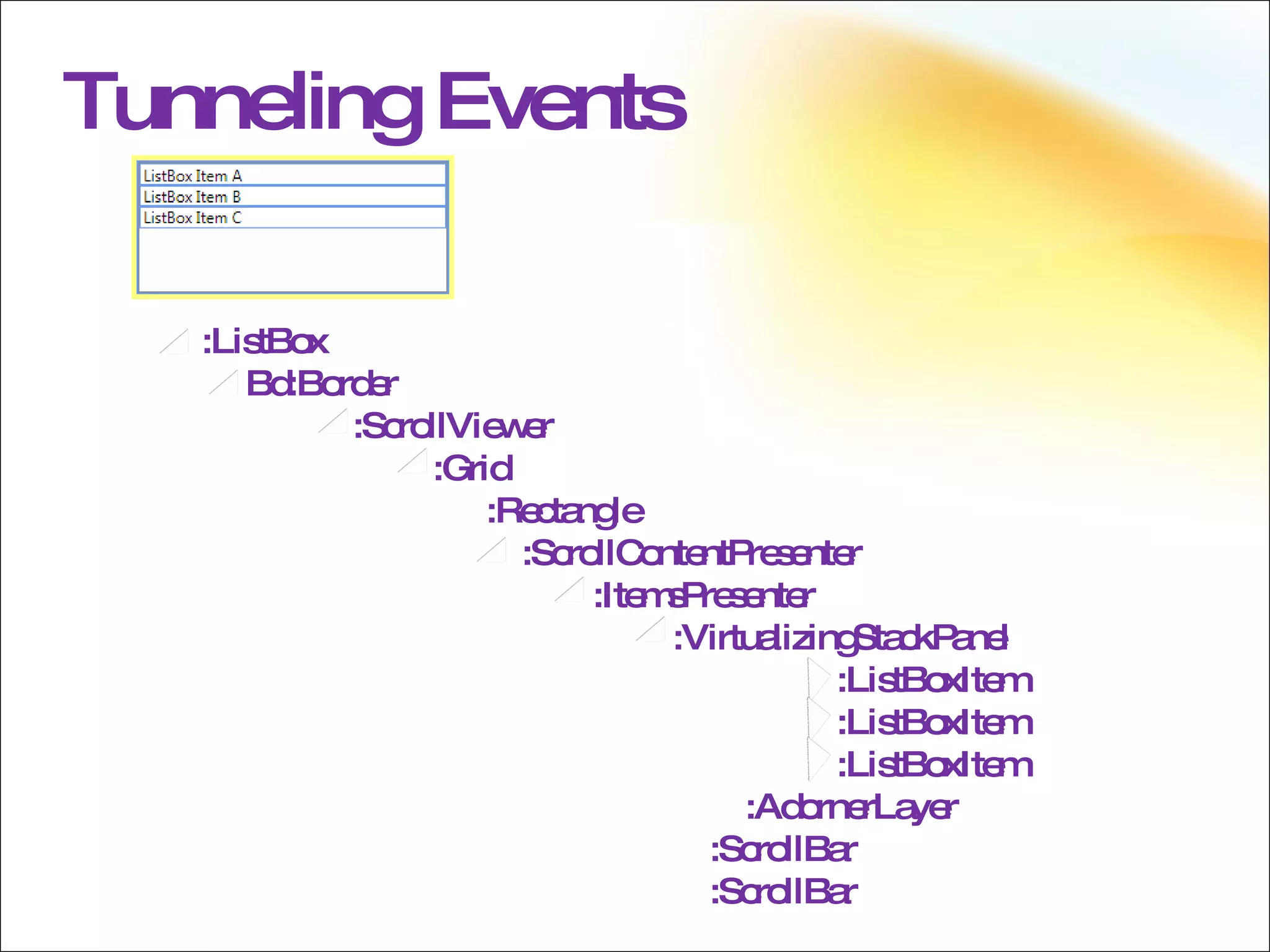

35. Tunneling Events :ListBox Bd:Border :ScrollViewer :Grid :Rectangle :ScrollContentPresenter :ItemsPresenter :VirtualizingStackPanel :ListBoxItem :ListBoxItem :ListBoxItem :AdornerLayer :ScrollBar :ScrollBar

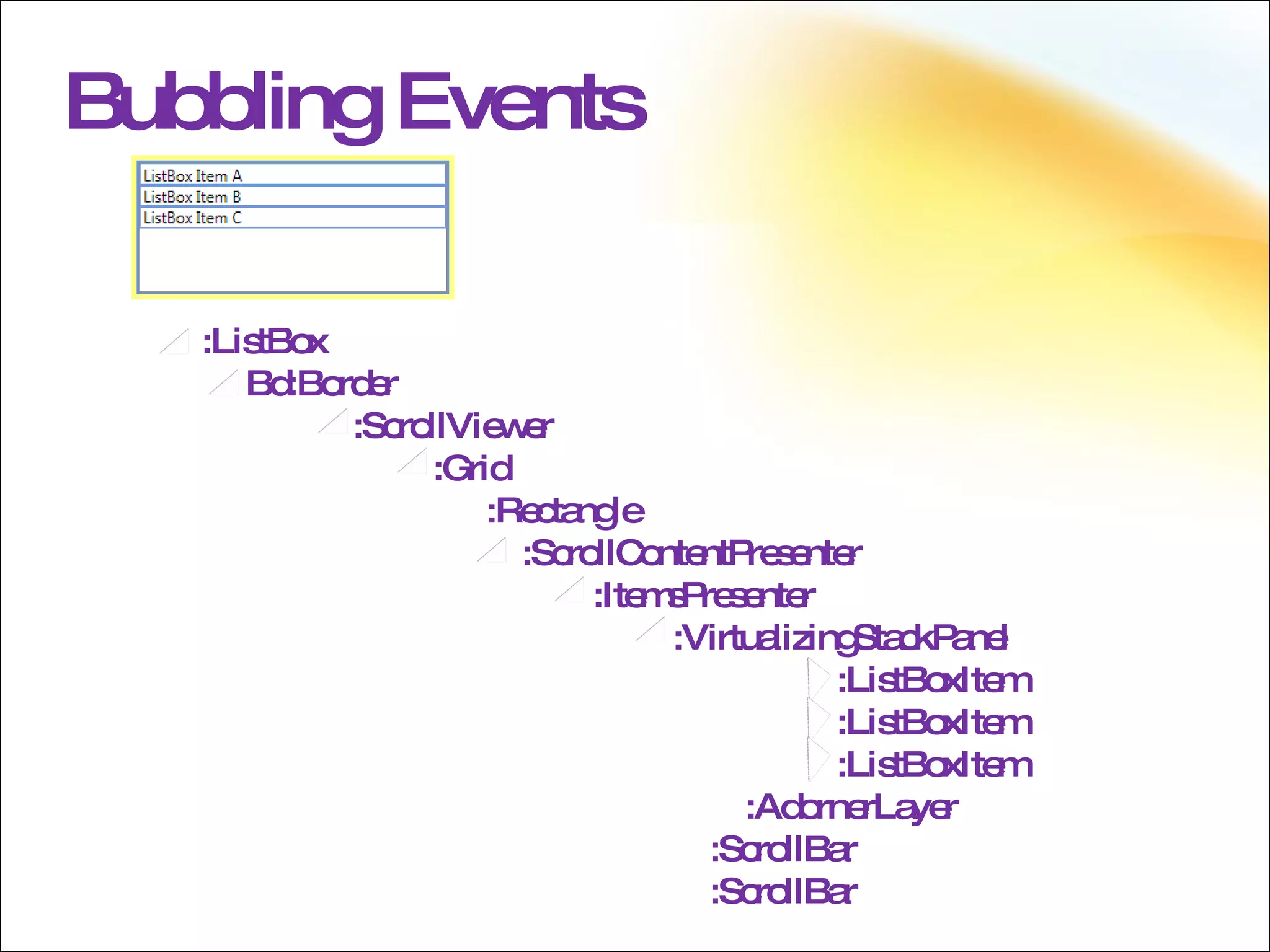

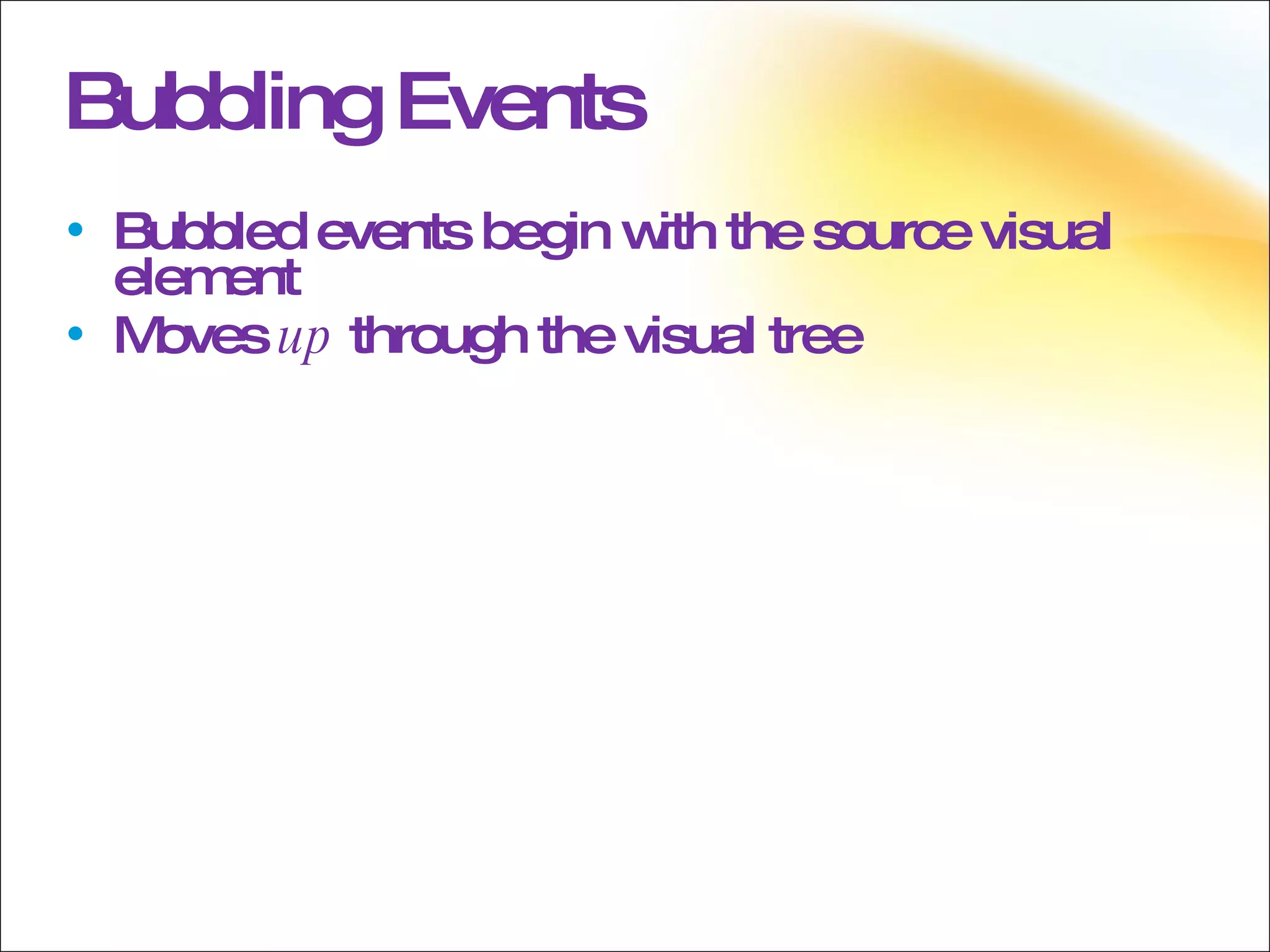

36. Bubbling Events Bubbled events begin with the source visual element Moves up through the visual tree

37. Bubbling Events :ListBox Bd:Border :ScrollViewer :Grid :Rectangle :ScrollContentPresenter :ItemsPresenter :VirtualizingStackPanel :ListBoxItem :ListBoxItem :ListBoxItem :AdornerLayer :ScrollBar :ScrollBar

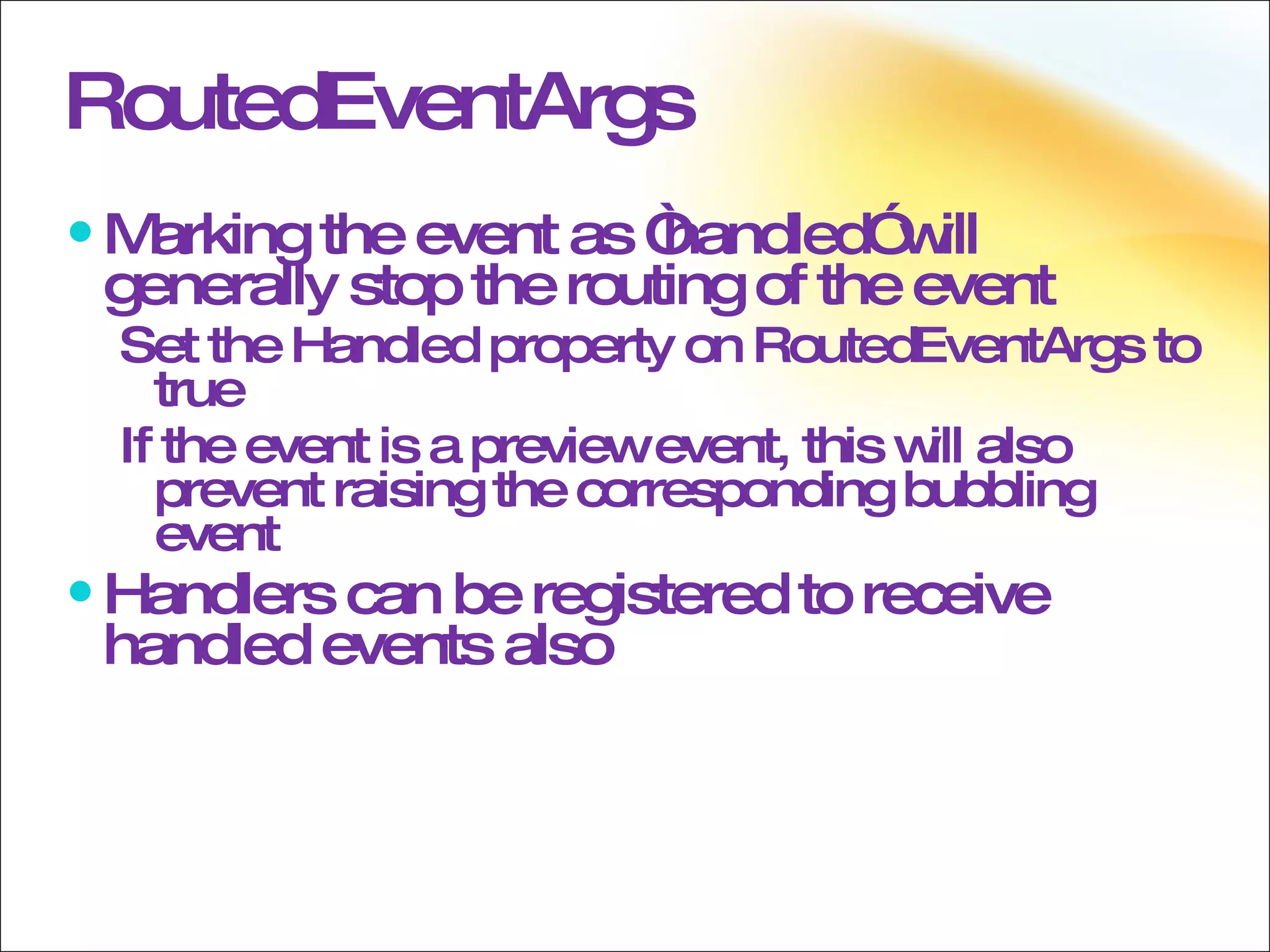

38. RoutedEventArgs Marking the event as “handled” will generally stop the routing of the event Set the Handled property on RoutedEventArgs to true If the event is a preview event, this will also prevent raising the corresponding bubbling event Handlers can be registered to receive handled events also

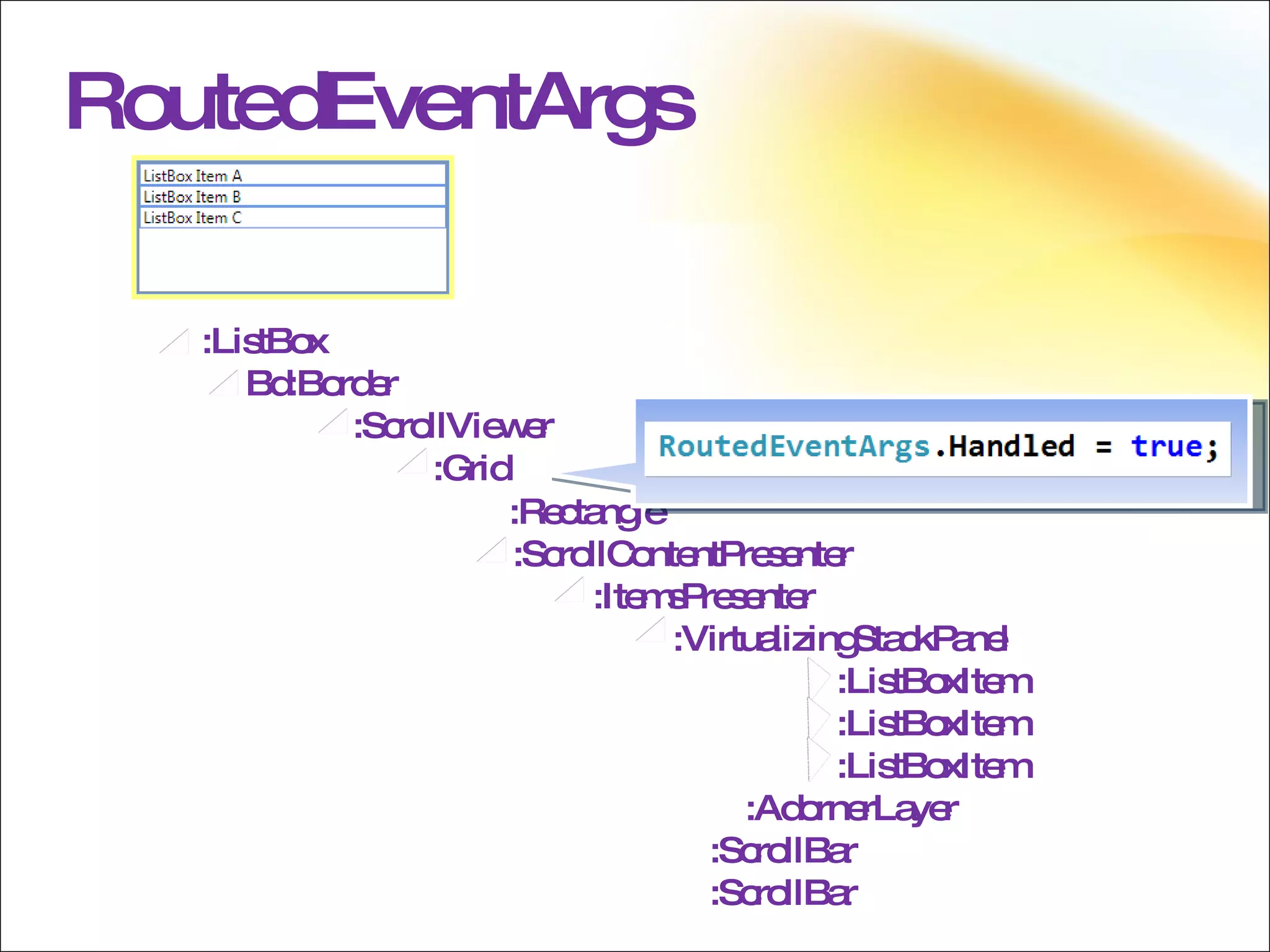

39. RoutedEventArgs :ListBox Bd:Border :ScrollViewer :Grid :Rectangle :ScrollContentPresenter :ItemsPresenter :VirtualizingStackPanel :ListBoxItem :ListBoxItem :ListBoxItem :AdornerLayer :ScrollBar :ScrollBar

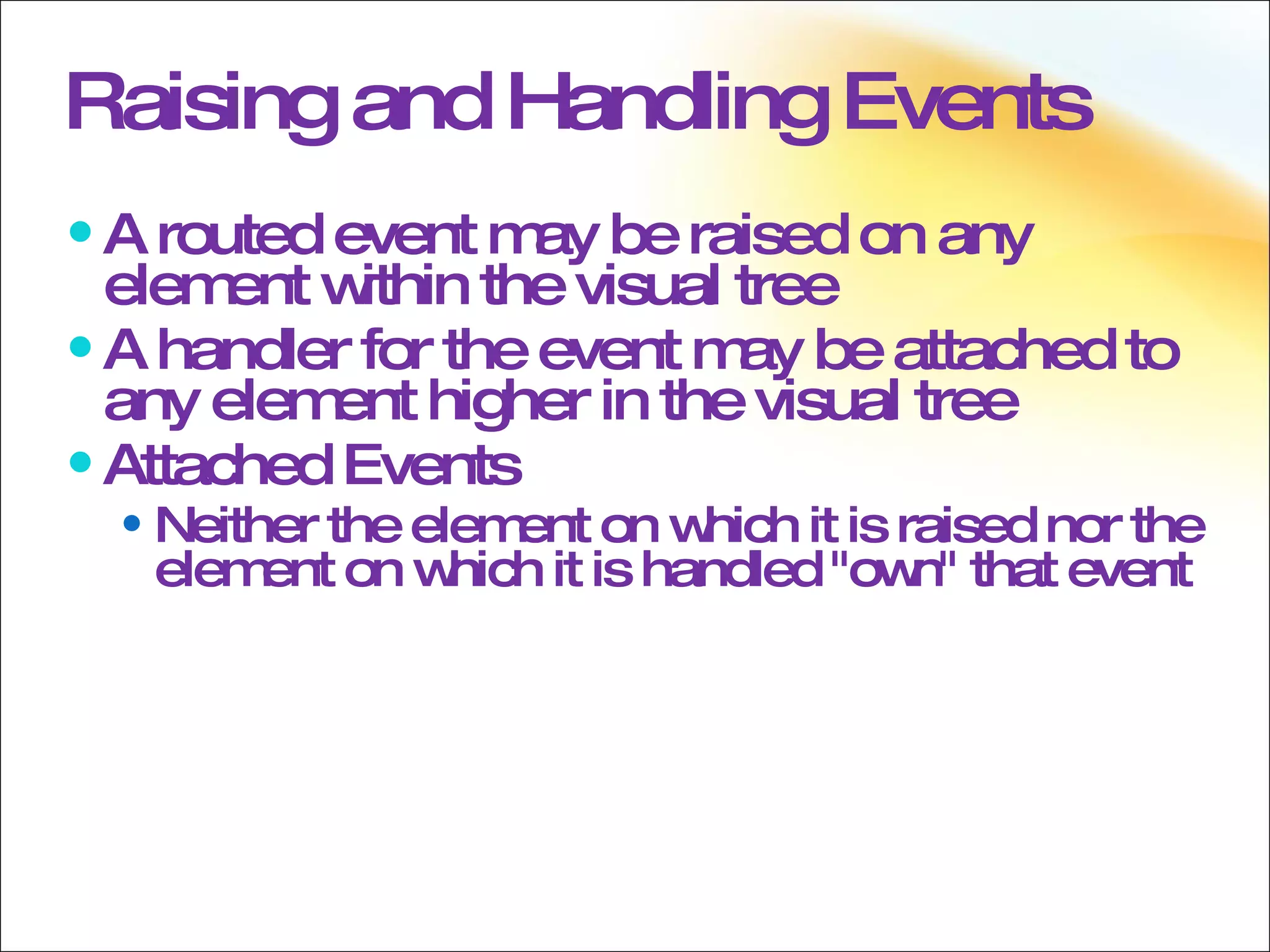

40. Raising and Handling Events A routed event may be raised on any element within the visual tree A handler for the event may be attached to any element higher in the visual tree Attached Events Neither the element on which it is raised nor the element on which it is handled "own" that event

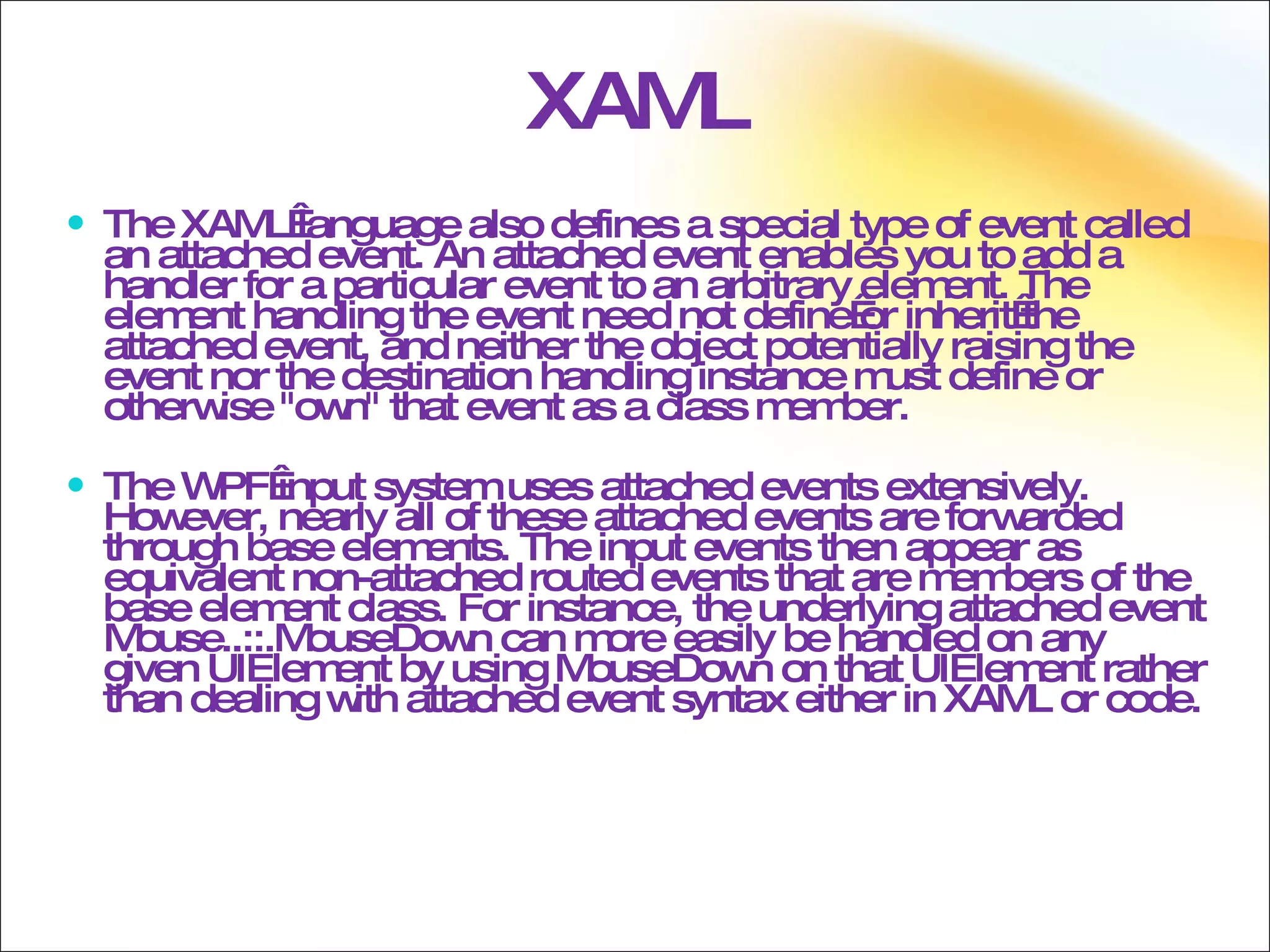

41. XAML The XAML language also defines a special type of event called an attached event. An attached event enables you to add a handler for a particular event to an arbitrary element. The element handling the event need not define or inherit the attached event, and neither the object potentially raising the event nor the destination handling instance must define or otherwise "own" that event as a class member. The WPF input system uses attached events extensively. However, nearly all of these attached events are forwarded through base elements. The input events then appear as equivalent non-attached routed events that are members of the base element class. For instance, the underlying attached event Mouse..::.MouseDown can more easily be handled on any given UIElement by using MouseDown on that UIElement rather than dealing with attached event syntax either in XAML or code.

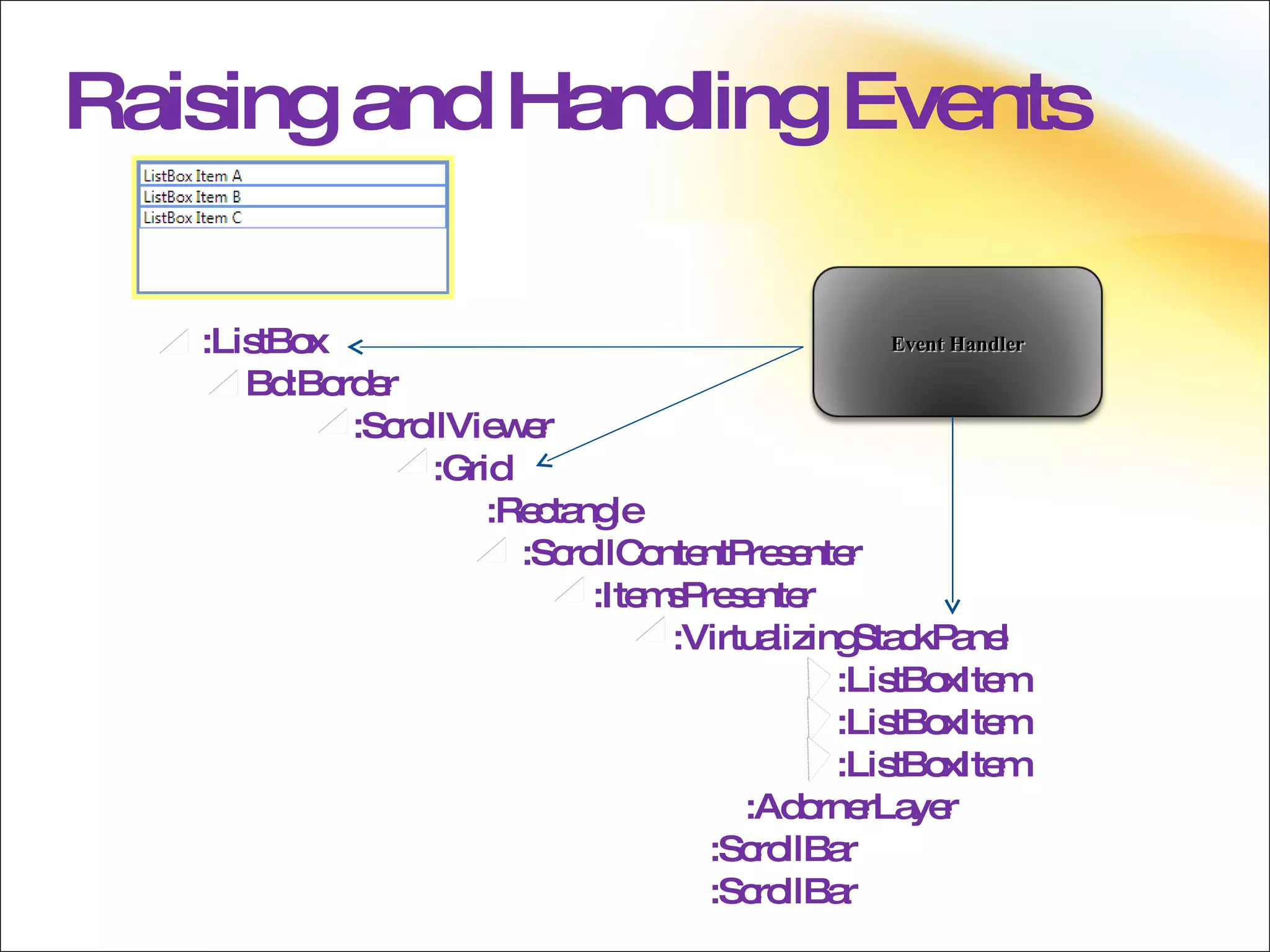

42. Raising and Handling Events :ListBox Bd:Border :ScrollViewer :Grid :Rectangle :ScrollContentPresenter :ItemsPresenter :VirtualizingStackPanel :ListBoxItem :ListBoxItem :ListBoxItem :AdornerLayer :ScrollBar :ScrollBar Event Handler

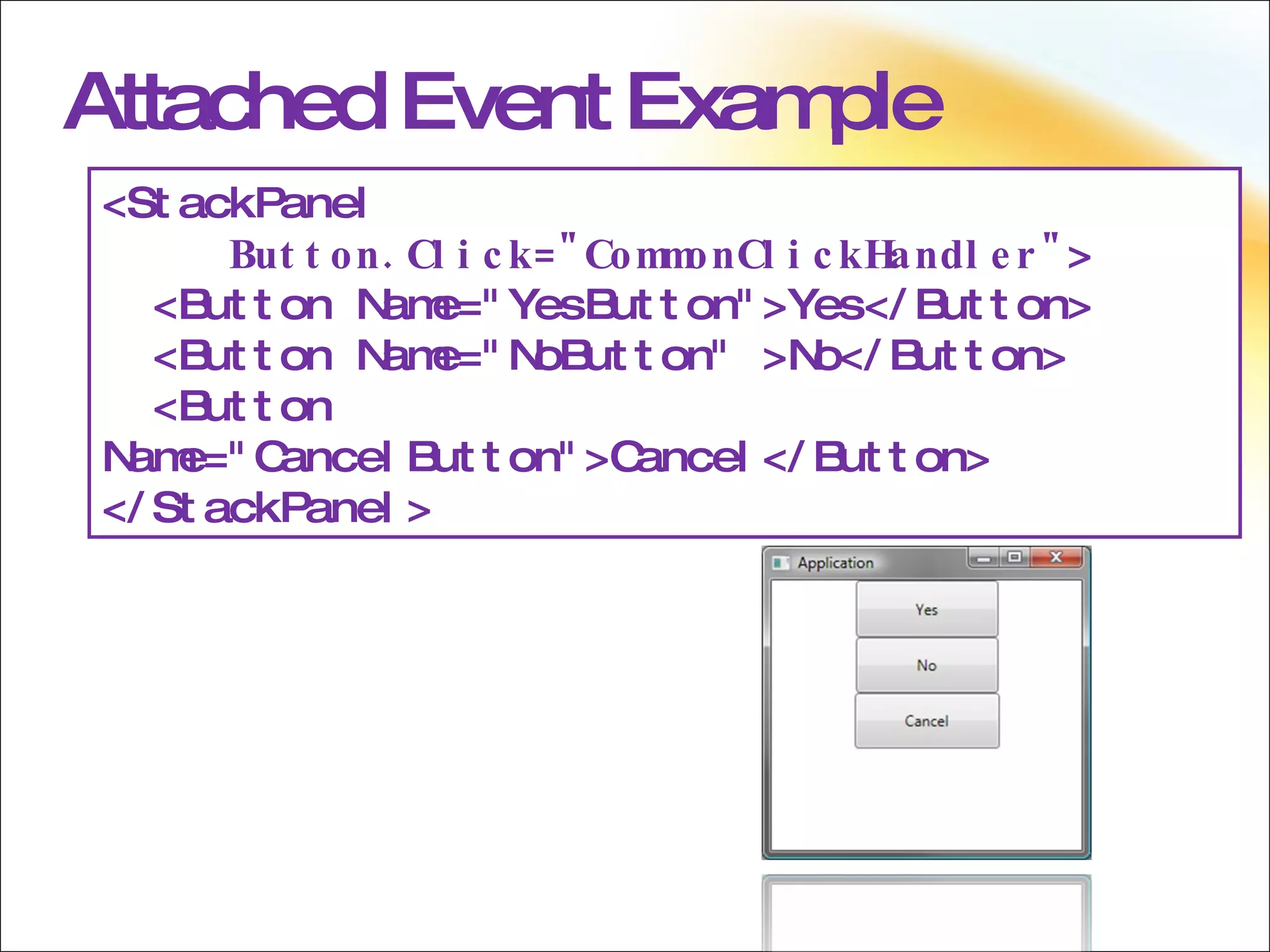

43. Attached Event Example <StackPanel Button.Click=&quot;CommonClickHandler&quot; > <Button Name=&quot;YesButton&quot;>Yes</Button> <Button Name=&quot;NoButton&quot; >No</Button> <Button Name=&quot;CancelButton&quot;>Cancel</Button> </StackPanel>

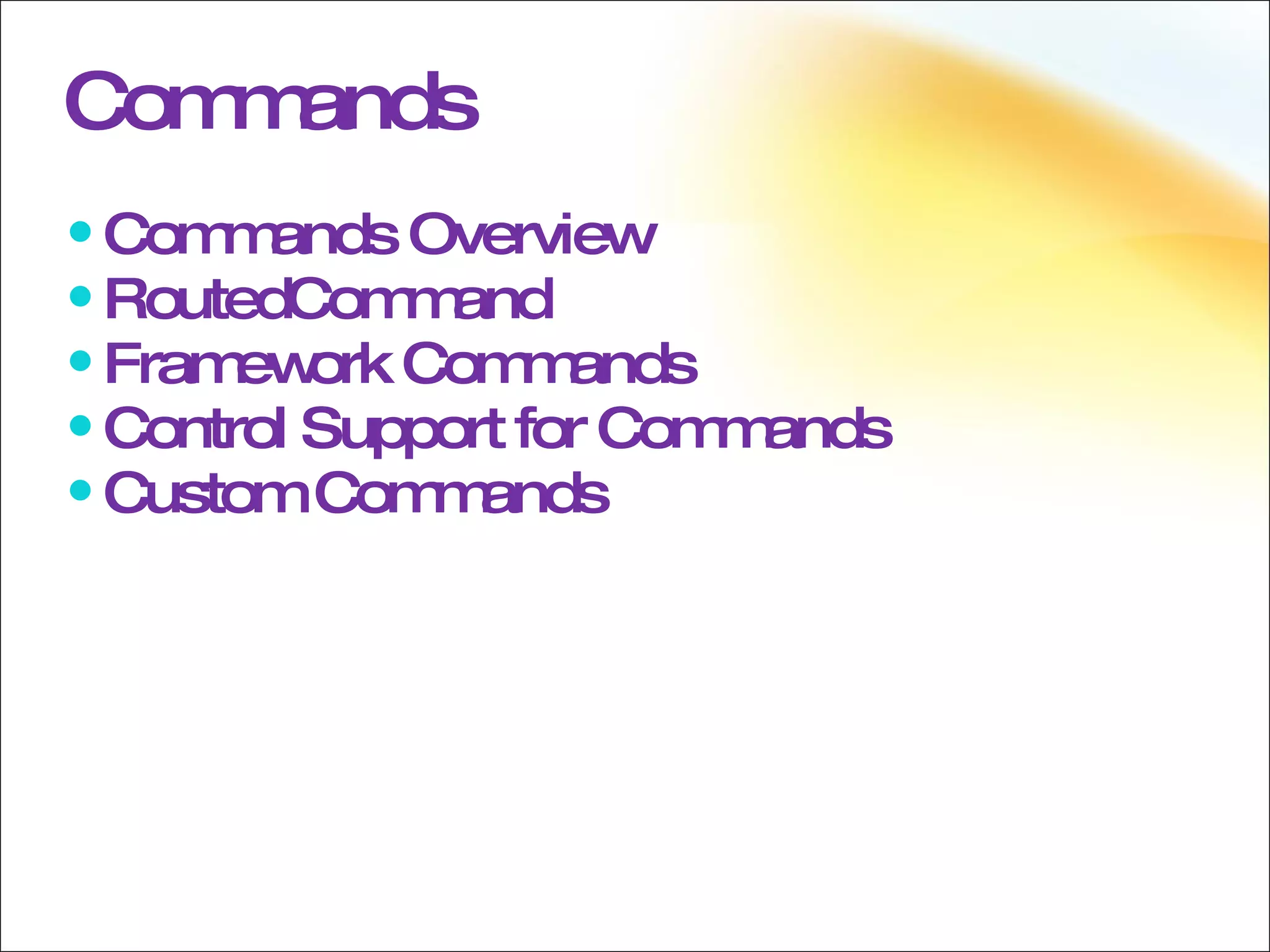

45. Commands Commands Overview RoutedCommand Framework Commands Control Support for Commands Custom Commands

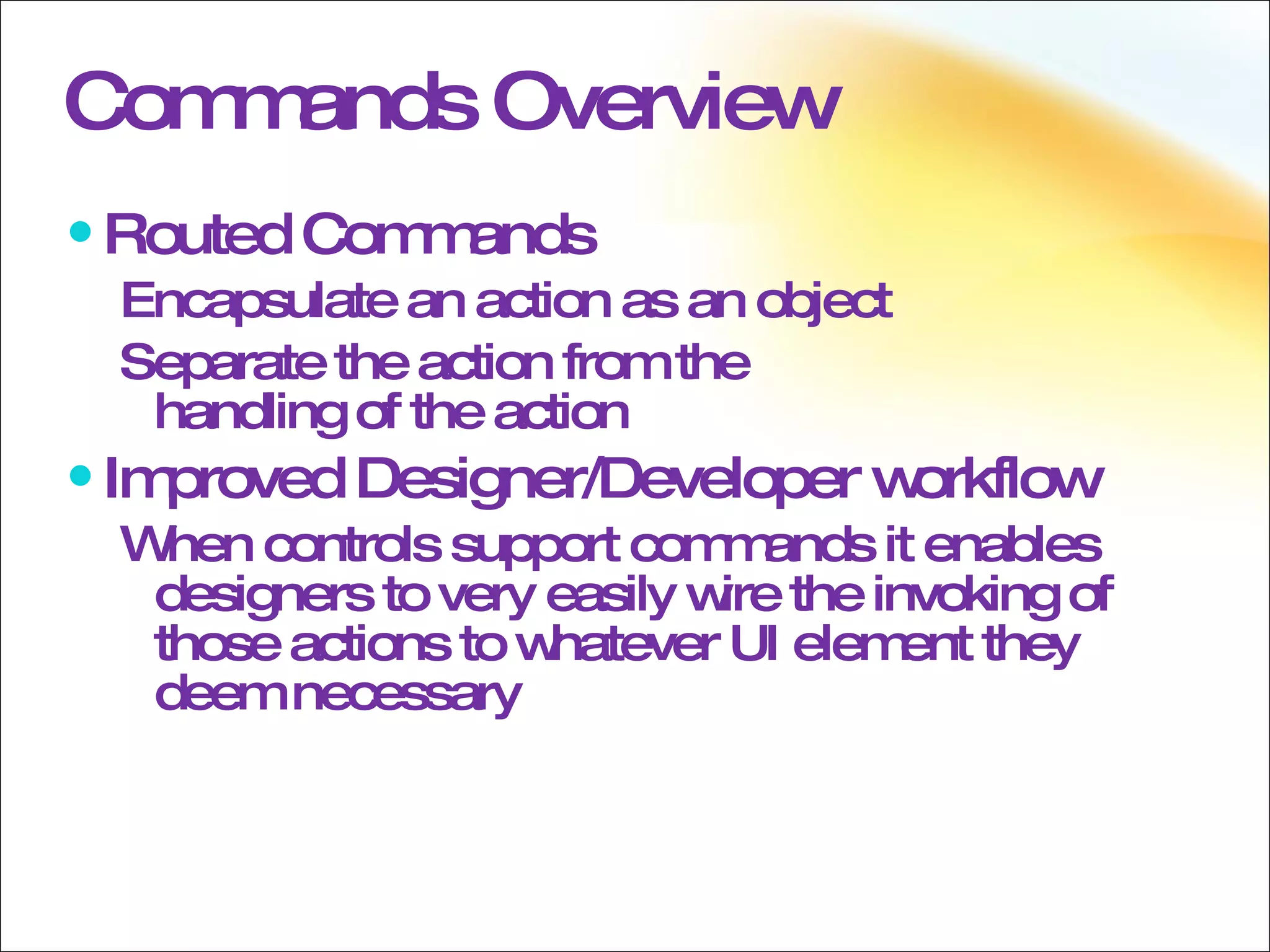

46. Commands Overview Routed Commands Encapsulate an action as an object Separate the action from the handling of the action Improved Designer/Developer workflow When controls support commands it enables designers to very easily wire the invoking of those actions to whatever UI element they deem necessary

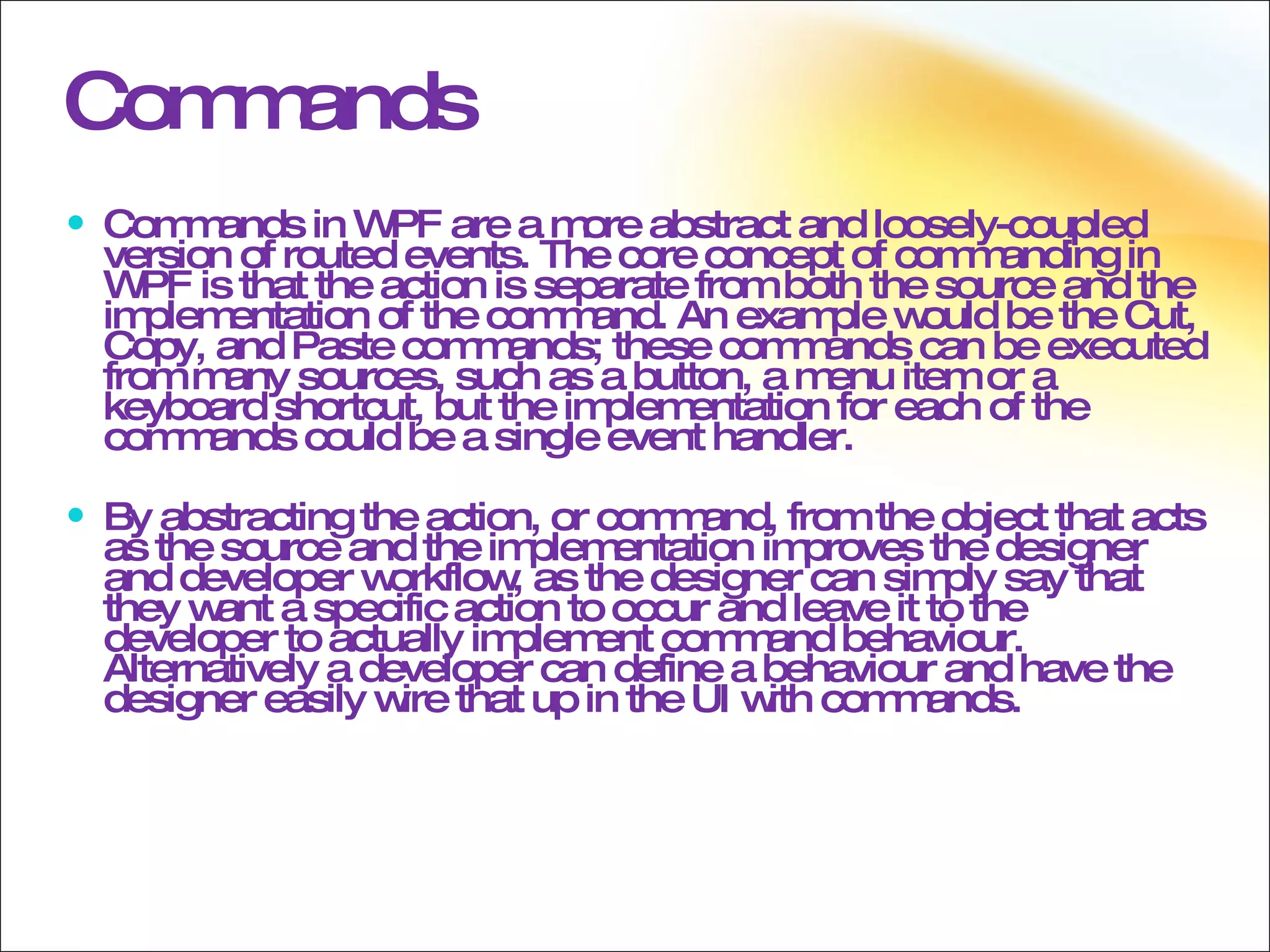

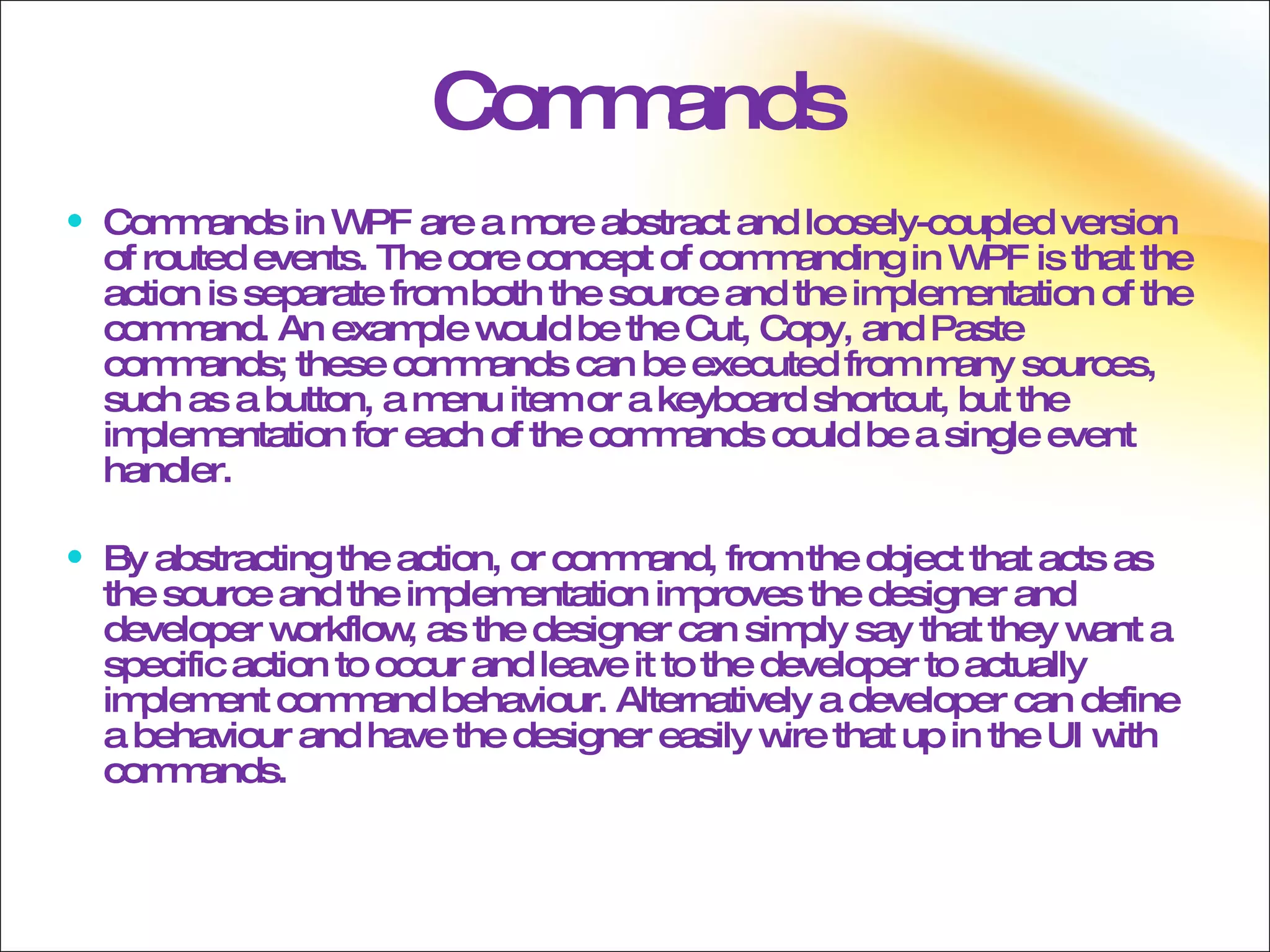

47. Commands Commands in WPF are a more abstract and loosely-coupled version of routed events. The core concept of commanding in WPF is that the action is separate from both the source and the implementation of the command. An example would be the Cut, Copy, and Paste commands; these commands can be executed from many sources, such as a button, a menu item or a keyboard shortcut, but the implementation for each of the commands could be a single event handler. By abstracting the action, or command, from the object that acts as the source and the implementation improves the designer and developer workflow, as the designer can simply say that they want a specific action to occur and leave it to the developer to actually implement command behaviour. Alternatively a developer can define a behaviour and have the designer easily wire that up in the UI with commands.

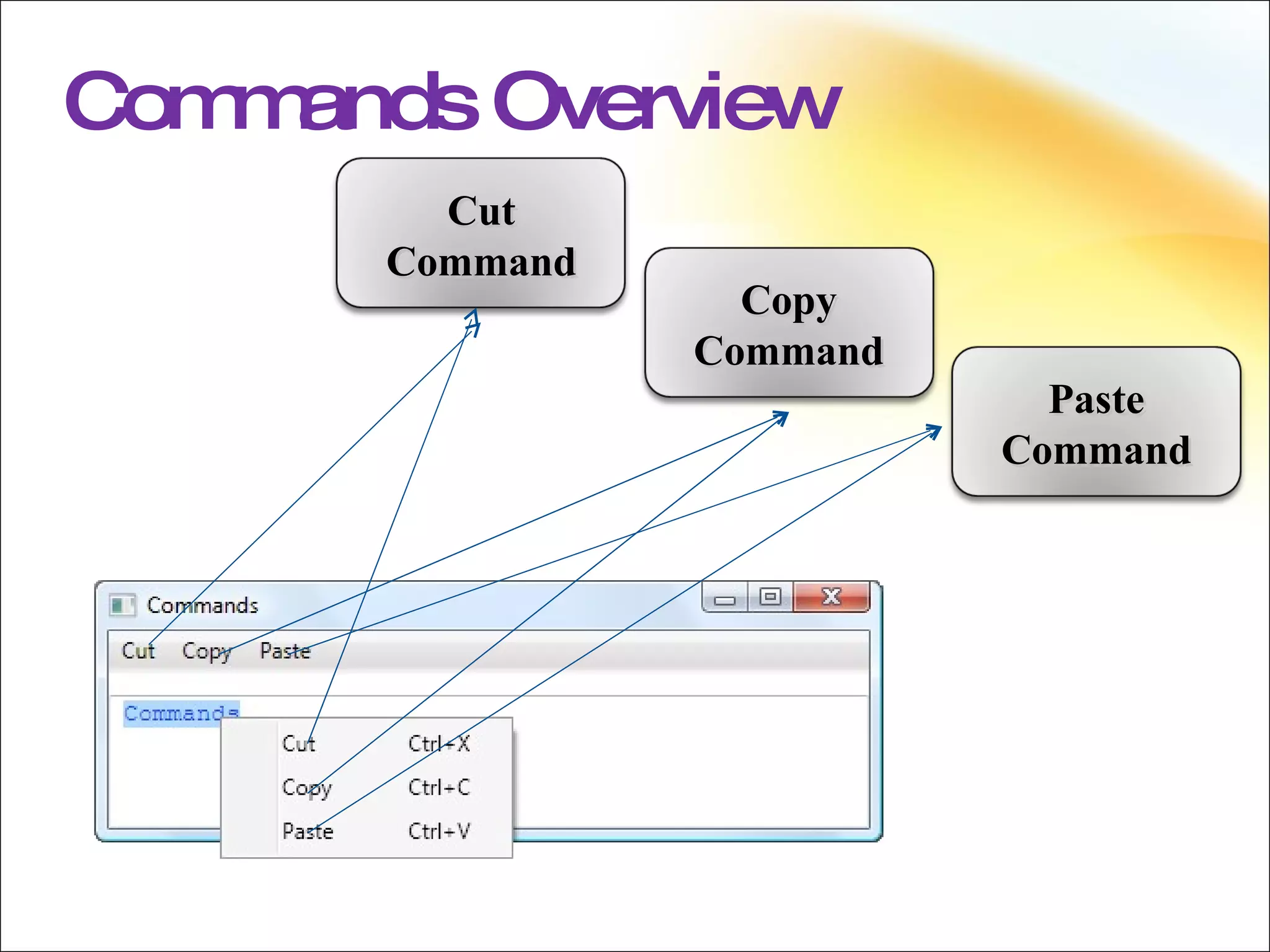

48. Commands Overview Cut Command Copy Command Paste Command

49. Commands Commands in WPF are a more abstract and loosely-coupled version of routed events. The core concept of commanding in WPF is that the action is separate from both the source and the implementation of the command. An example would be the Cut, Copy, and Paste commands; these commands can be executed from many sources, such as a button, a menu item or a keyboard shortcut, but the implementation for each of the commands could be a single event handler. By abstracting the action, or command, from the object that acts as the source and the implementation improves the designer and developer workflow, as the designer can simply say that they want a specific action to occur and leave it to the developer to actually implement command behaviour. Alternatively a developer can define a behaviour and have the designer easily wire that up in the UI with commands.

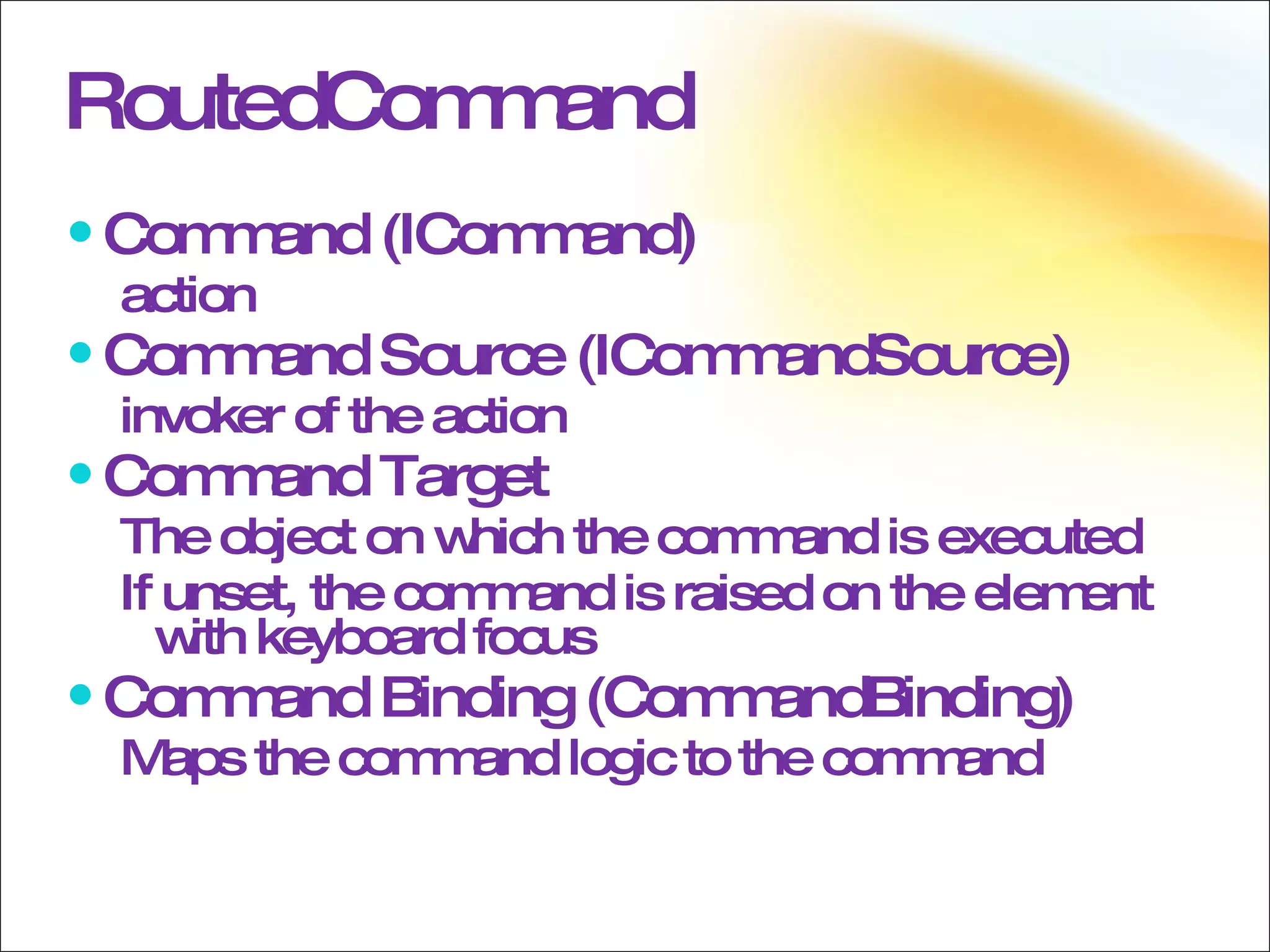

50. RoutedCommand Command (ICommand) action Command Source (ICommandSource) invoker of the action Command Target The object on which the command is executed If unset, the command is raised on the element with keyboard focus Command Binding (CommandBinding) Maps the command logic to the command

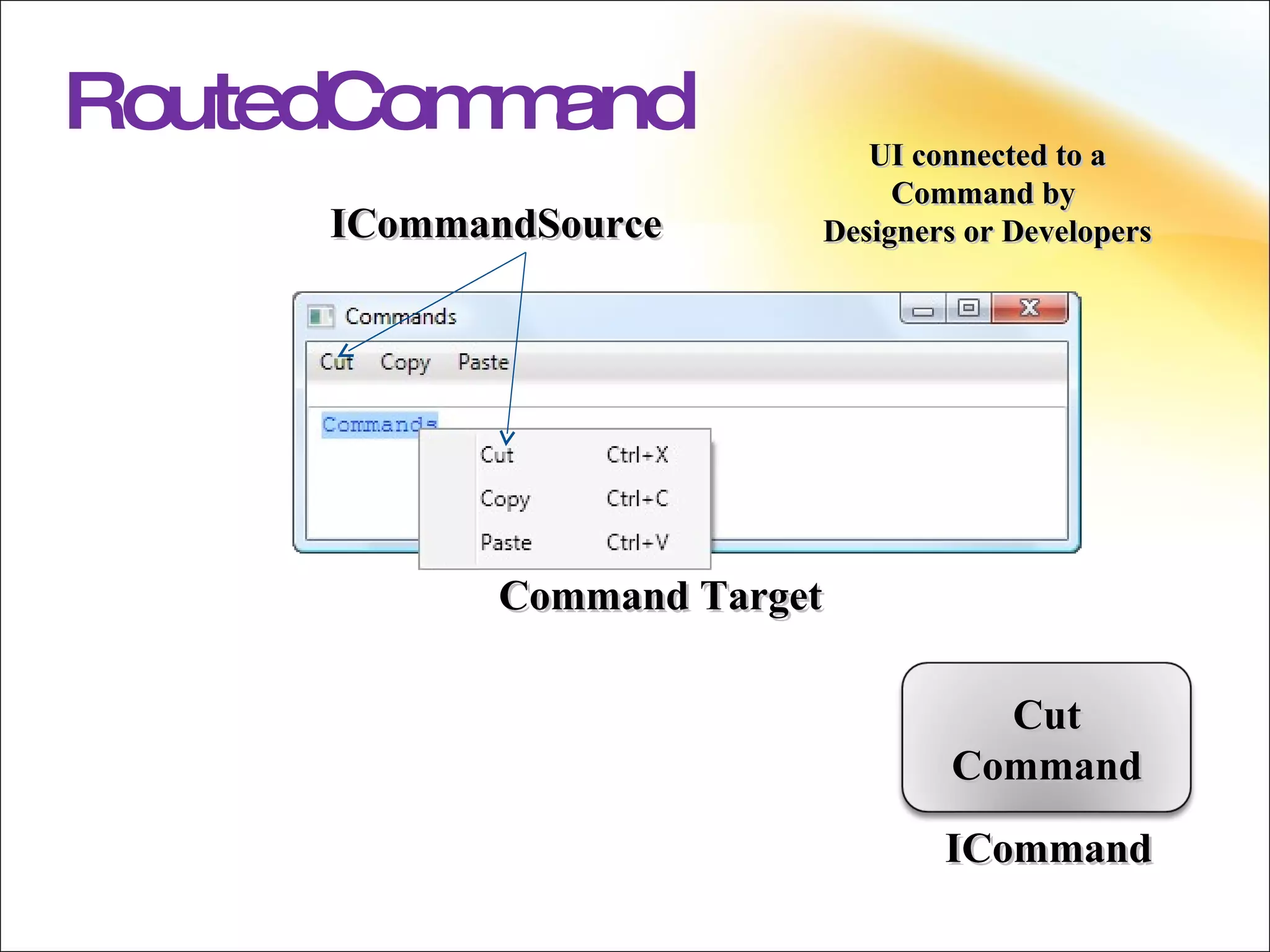

51. RoutedCommand ICommand ICommandSource Command Target UI connected to a Command by Designers or Developers Cut Command

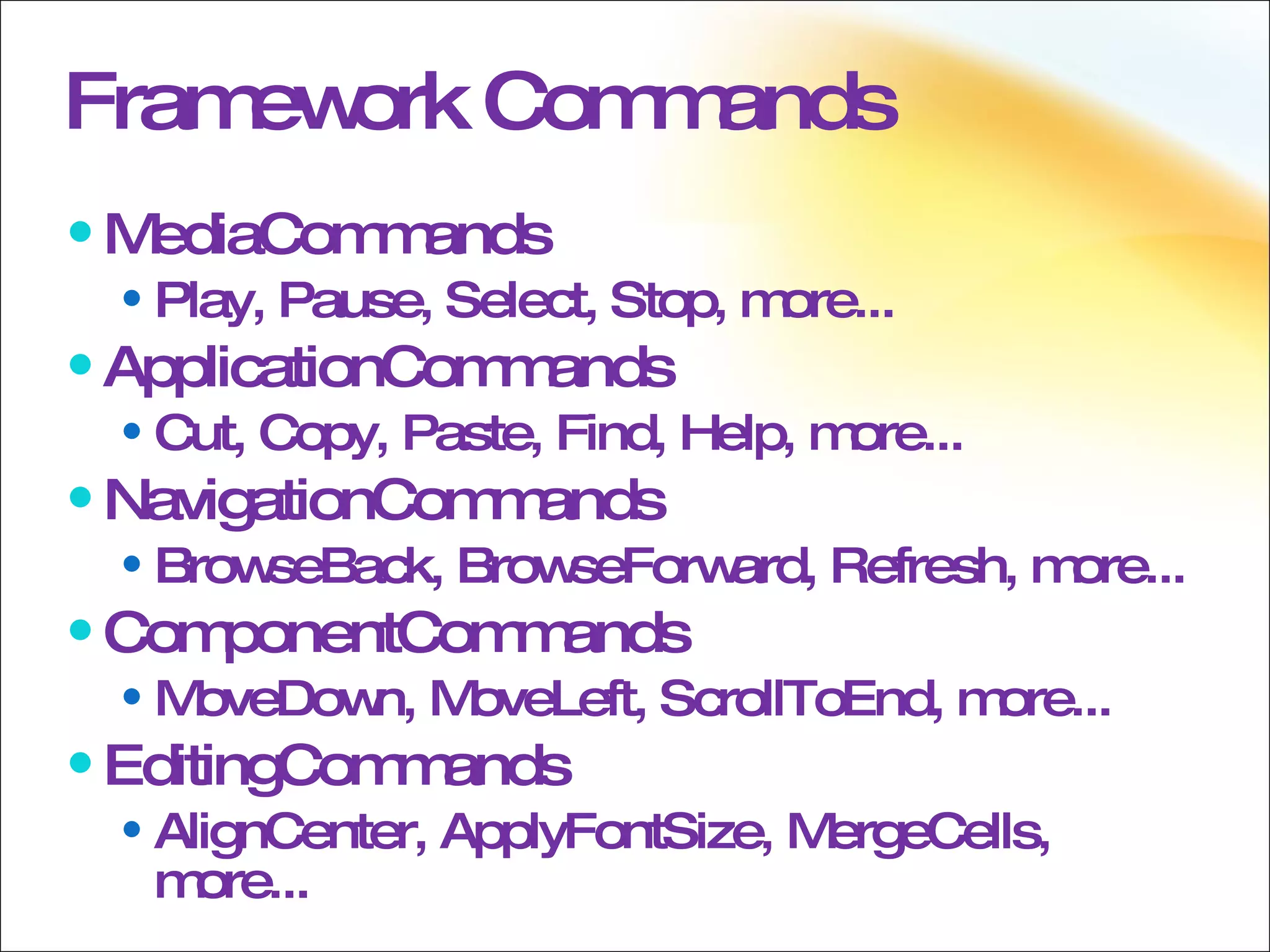

52. Framework Commands MediaCommands Play, Pause, Select, Stop, more... ApplicationCommands Cut, Copy, Paste, Find, Help, more... NavigationCommands BrowseBack, BrowseForward, Refresh, more... ComponentCommands MoveDown, MoveLeft, ScrollToEnd, more... EditingCommands AlignCenter, ApplyFontSize, MergeCells, more...

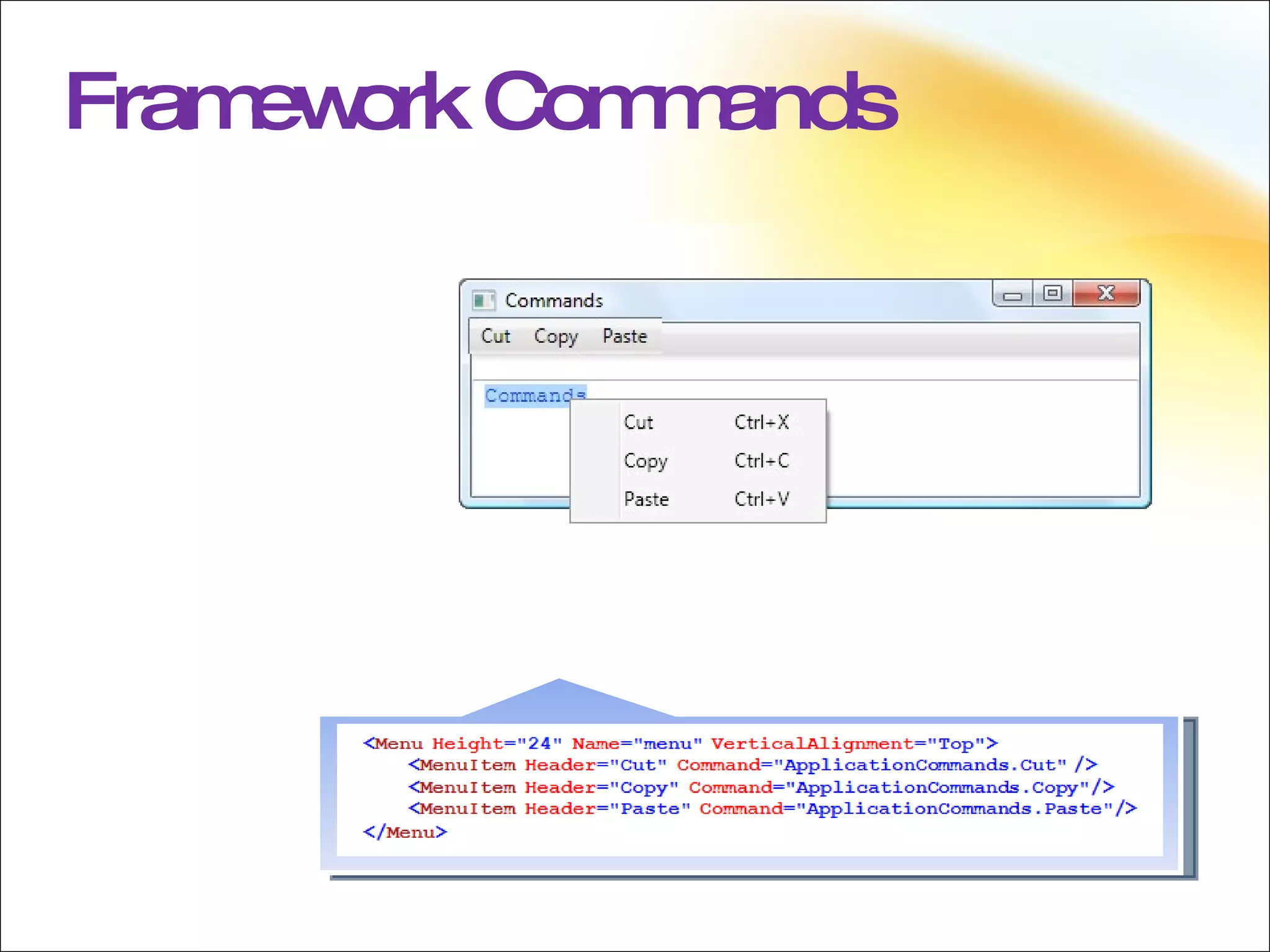

53. Framework Commands

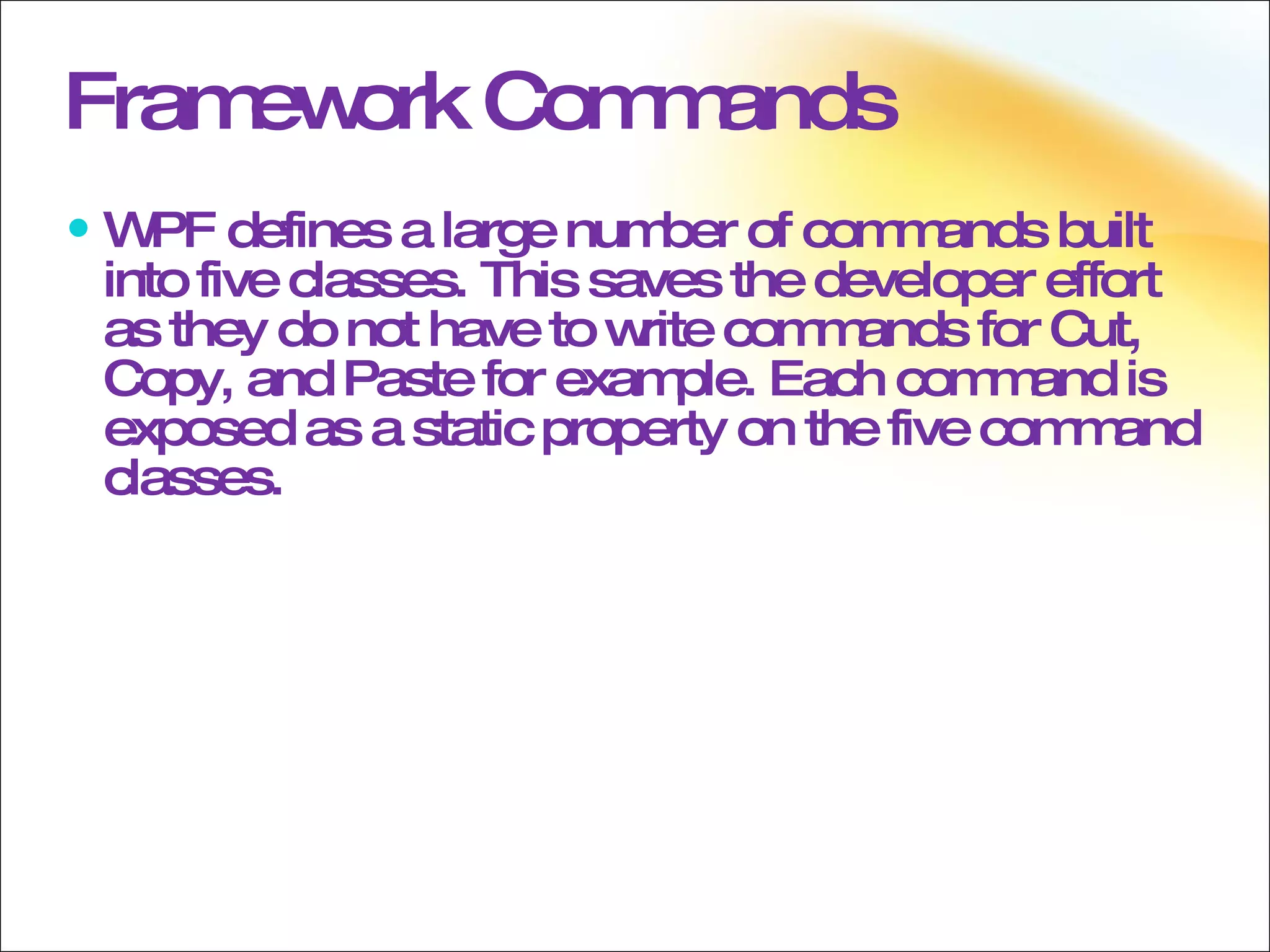

54. Framework Commands WPF defines a large number of commands built into five classes. This saves the developer effort as they do not have to write commands for Cut, Copy, and Paste for example. Each command is exposed as a static property on the five command classes.

55. Control Support for Commands Several WPF classes support easy execution of routed commands: MenuItem Button (by way of ButtonBase) Some WPF classes implement commands out of the box: TextBox RichTextBox By using the Command property on MenuItem or any ButtonBase-derived class commands are automatically executed on the logical click of the element. Some WPF controls ship with an implementation for some commands, for example the TextBox and RichTextBox controls both have implementations for the Cut, Copy, and Paste commands, by way of the ButtonBase class.

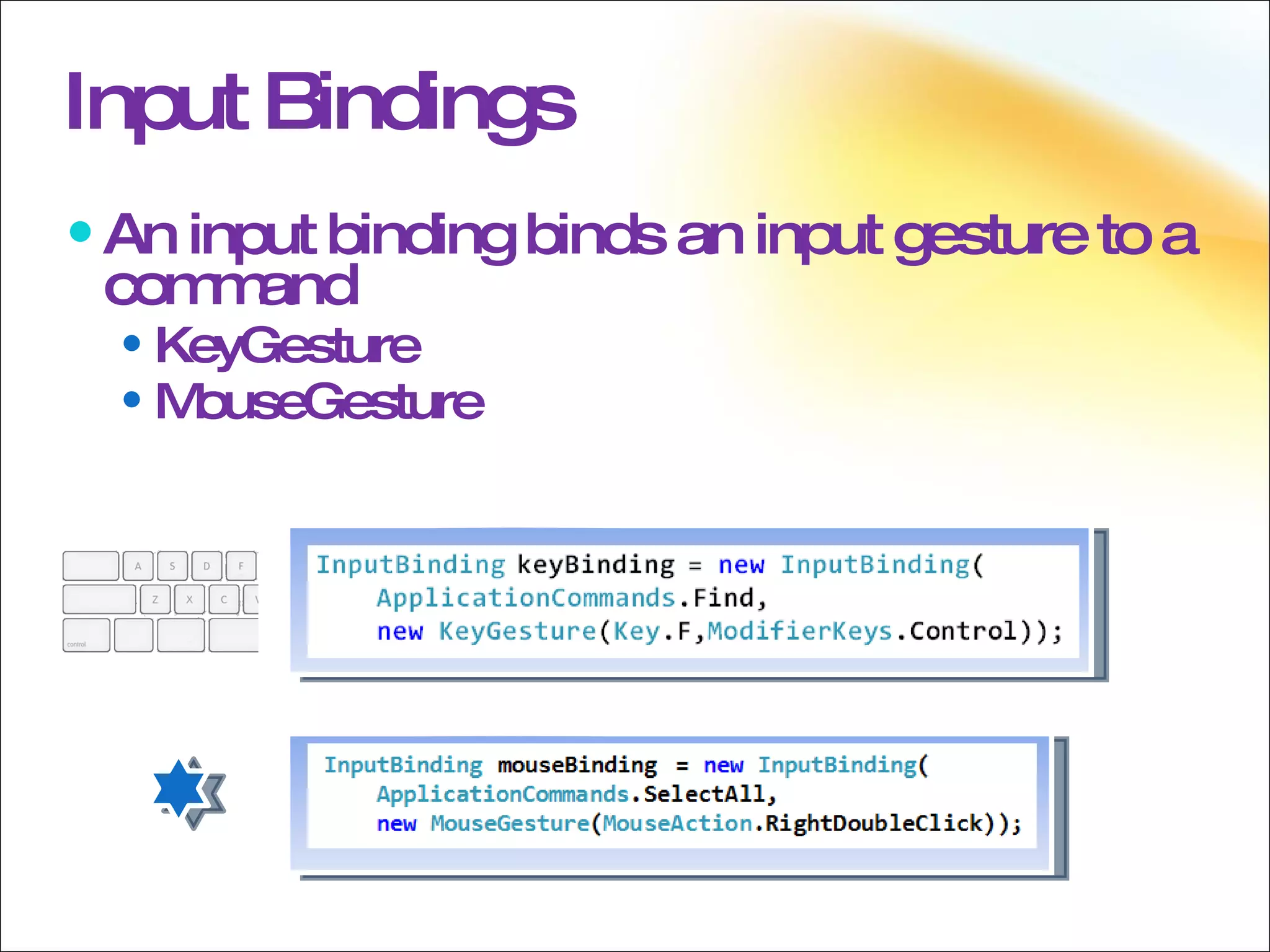

56. Input Bindings An input binding binds an input gesture to a command KeyGesture MouseGesture

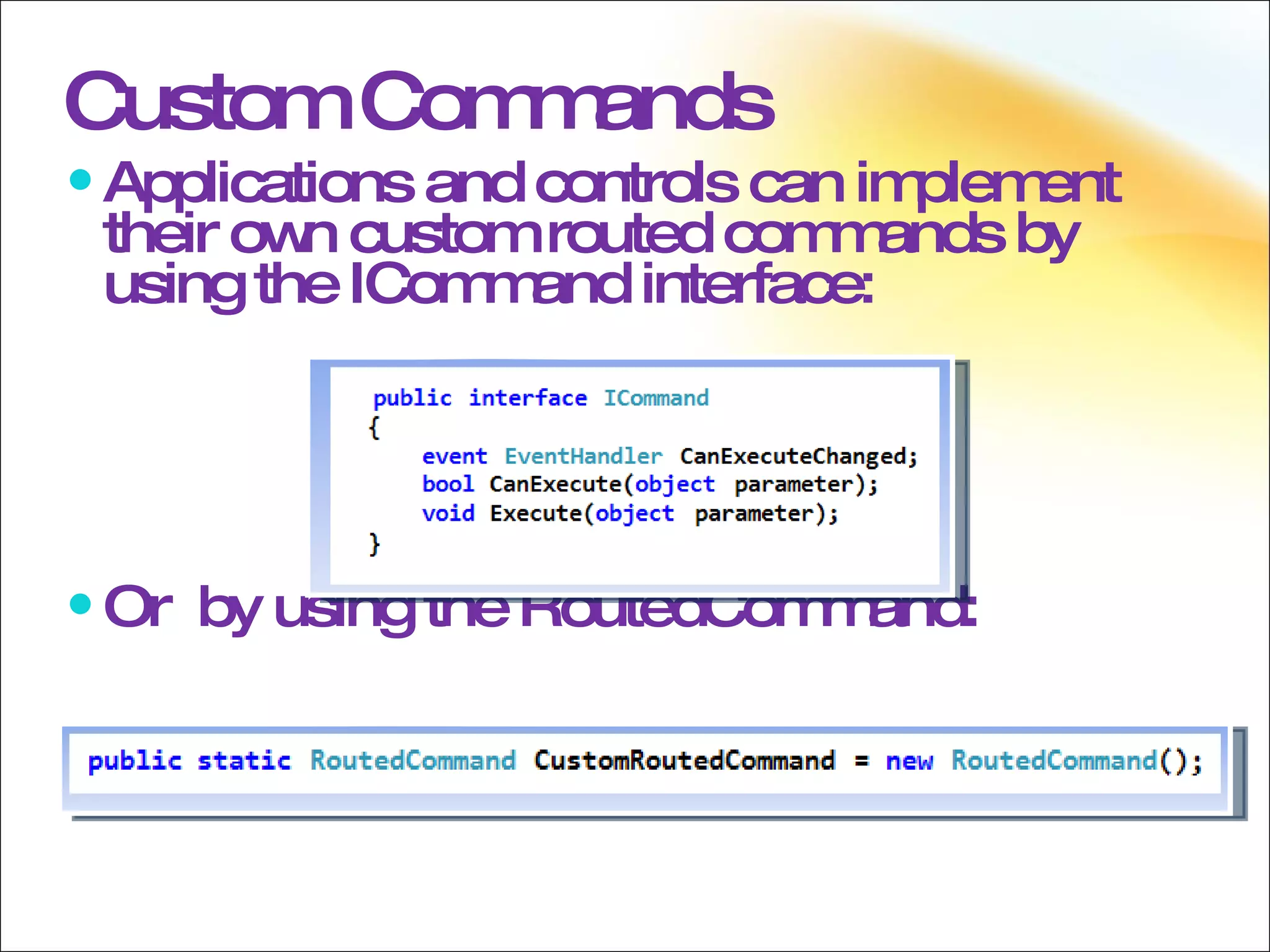

57. Applications and controls can implement their own custom routed commands by using the ICommand interface: Or by using the RoutedCommand: Custom Commands

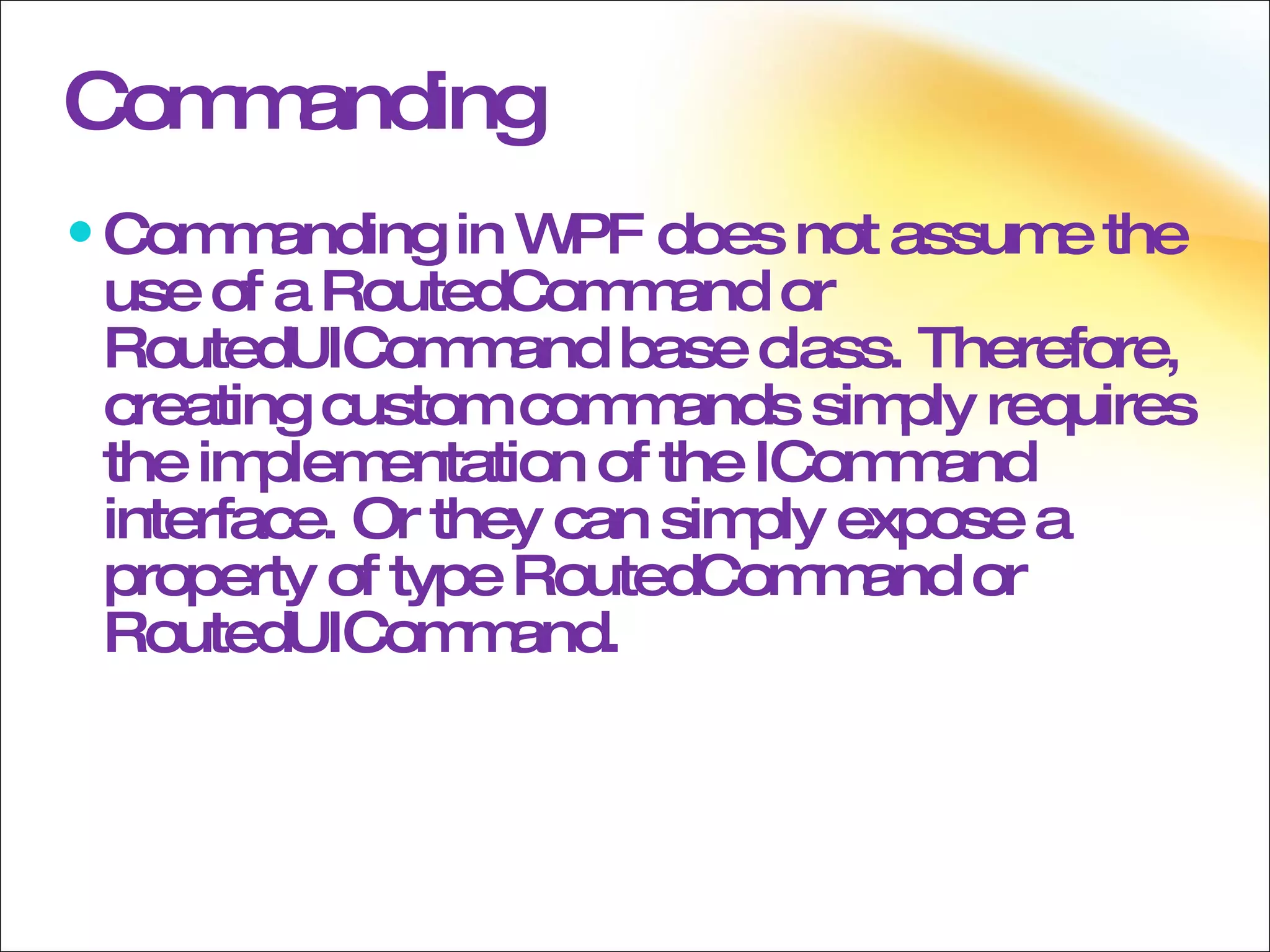

58. Commanding Commanding in WPF does not assume the use of a RoutedCommand or RoutedUICommand base class. Therefore, creating custom commands simply requires the implementation of the ICommand interface. Or they can simply expose a property of type RoutedCommand or RoutedUICommand.

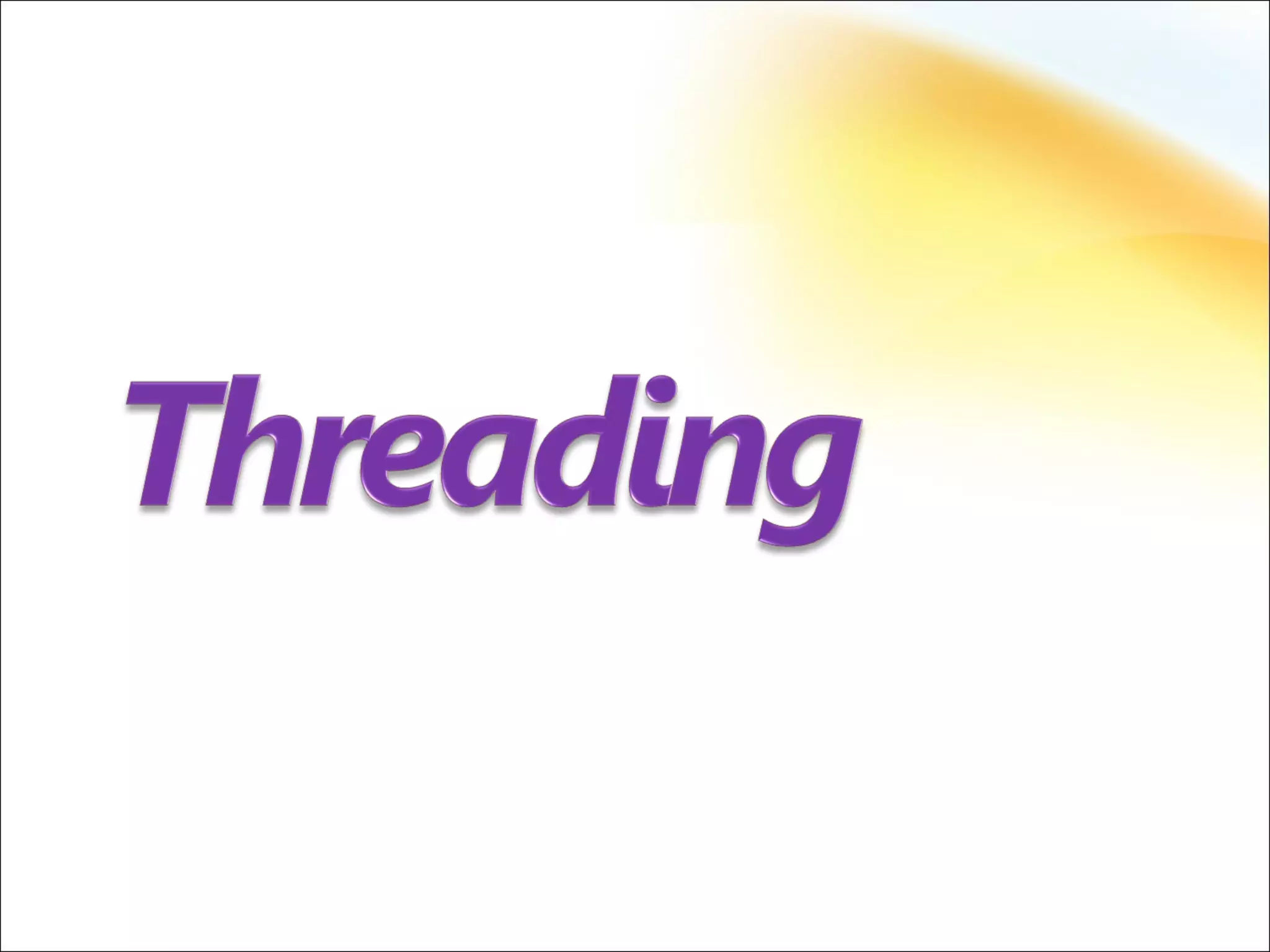

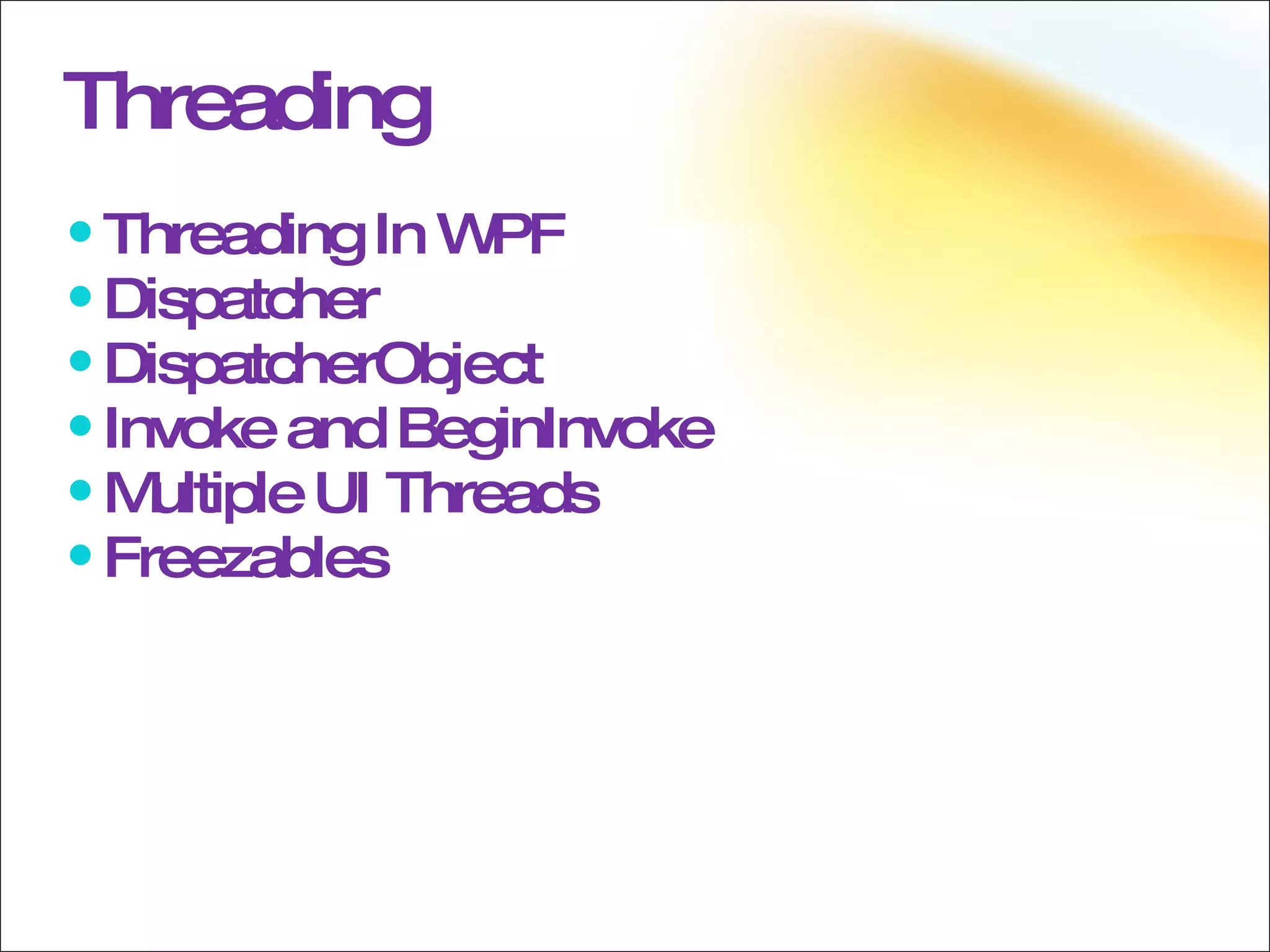

60. Threading Threading In WPF Dispatcher DispatcherObject Invoke and BeginInvoke Multiple UI Threads Freezables

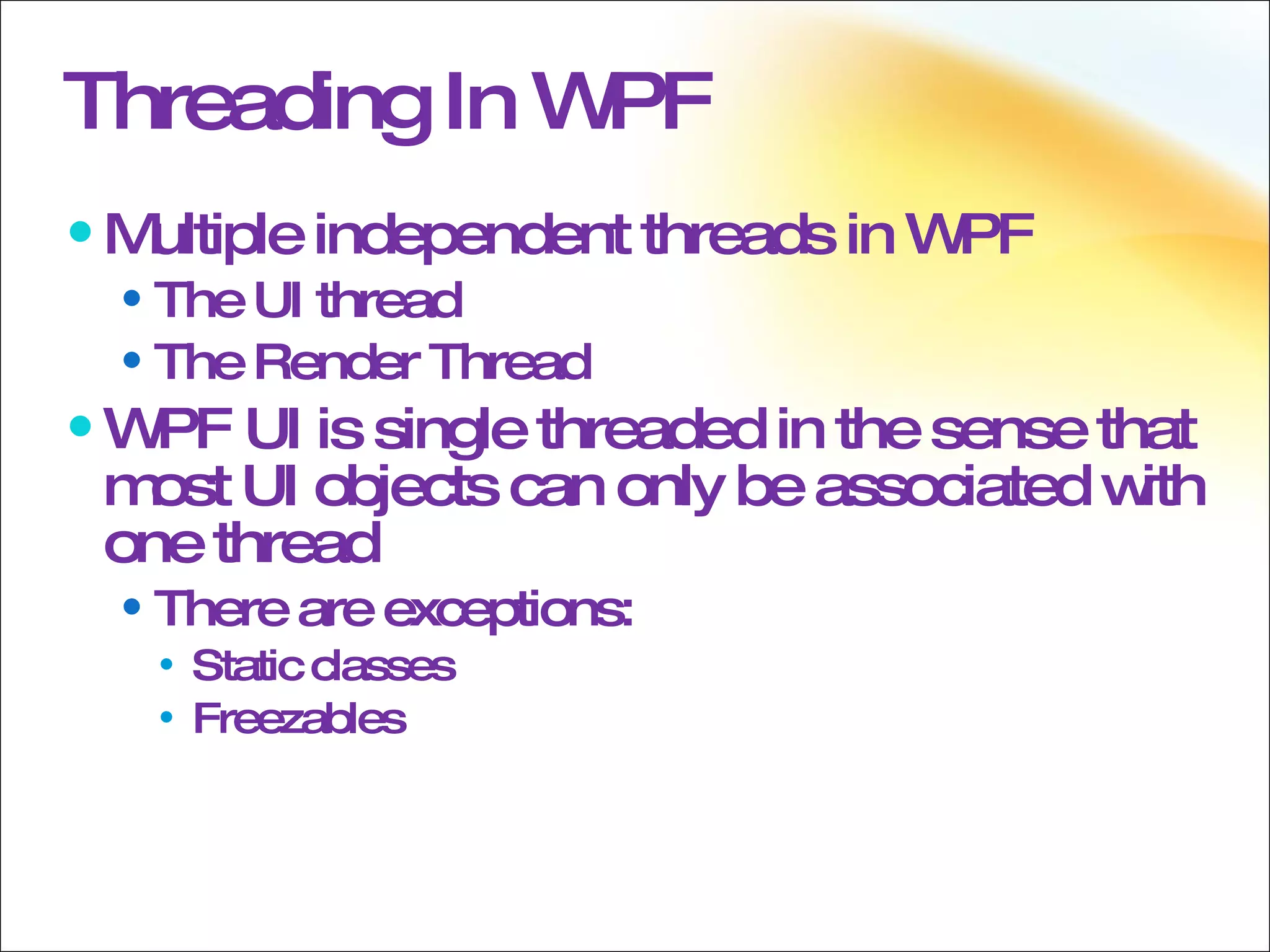

61. Threading In WPF Multiple independent threads in WPF The UI thread The Render Thread WPF UI is single threaded in the sense that most UI objects can only be associated with one thread There are exceptions: Static classes Freezables

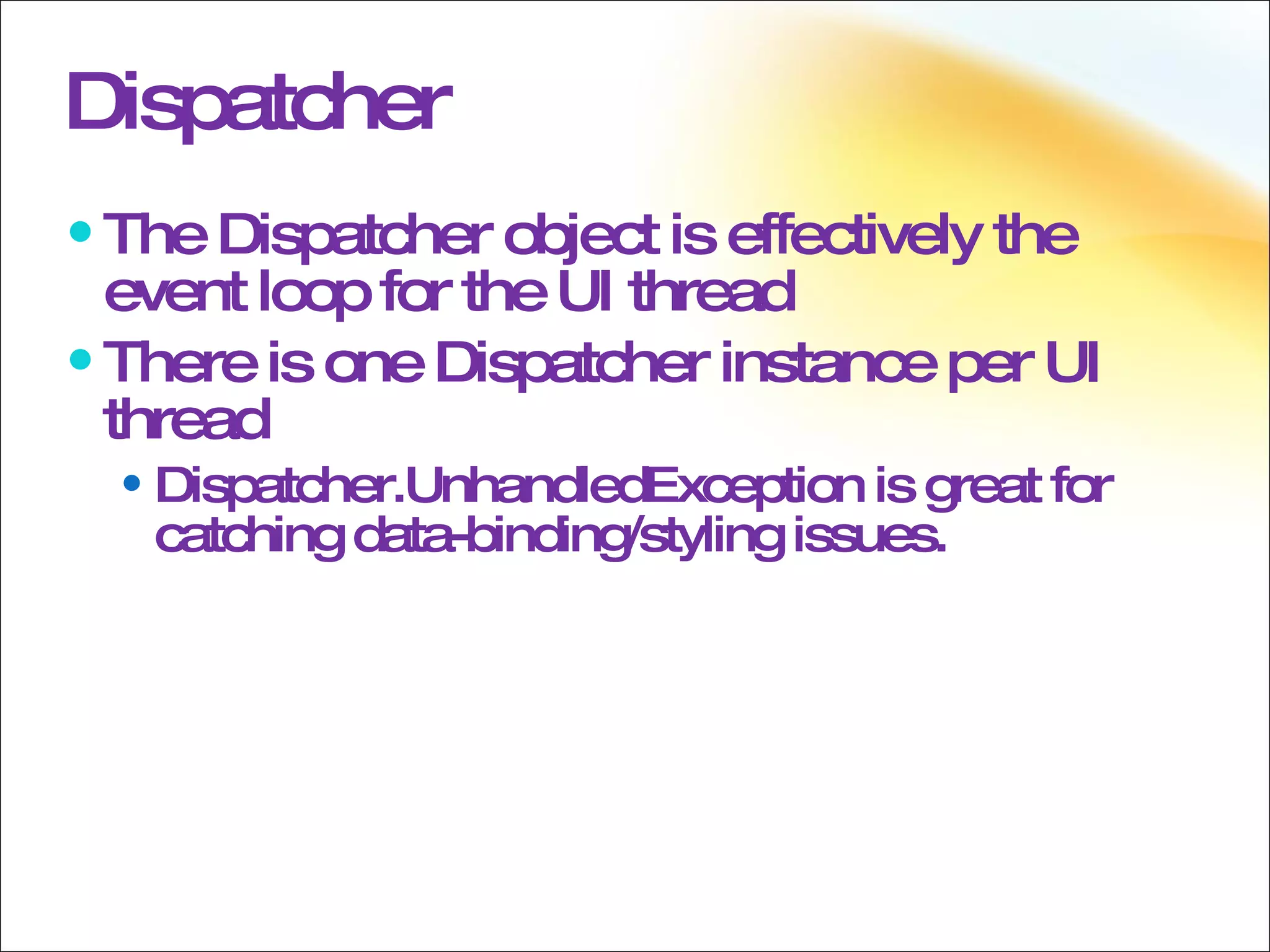

62. Dispatcher The Dispatcher object is effectively the event loop for the UI thread There is one Dispatcher instance per UI thread Dispatcher.UnhandledException is great for catching data-binding/styling issues.

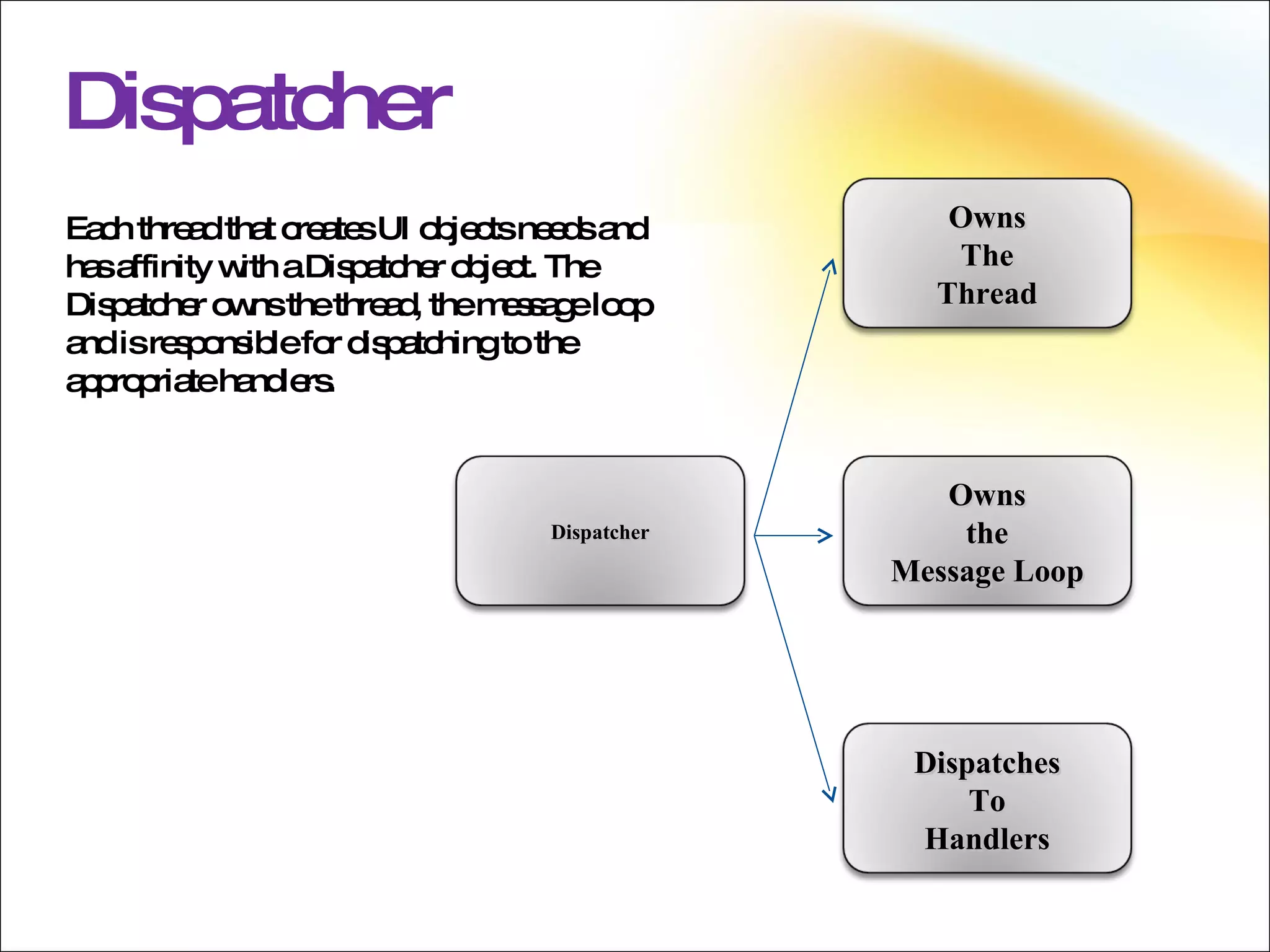

63. Dispatcher Each thread that creates UI objects needs and has affinity with a Dispatcher object. The Dispatcher owns the thread, the message loop and is responsible for dispatching to the appropriate handlers. Dispatcher Owns The Thread Owns the Message Loop Dispatches To Handlers

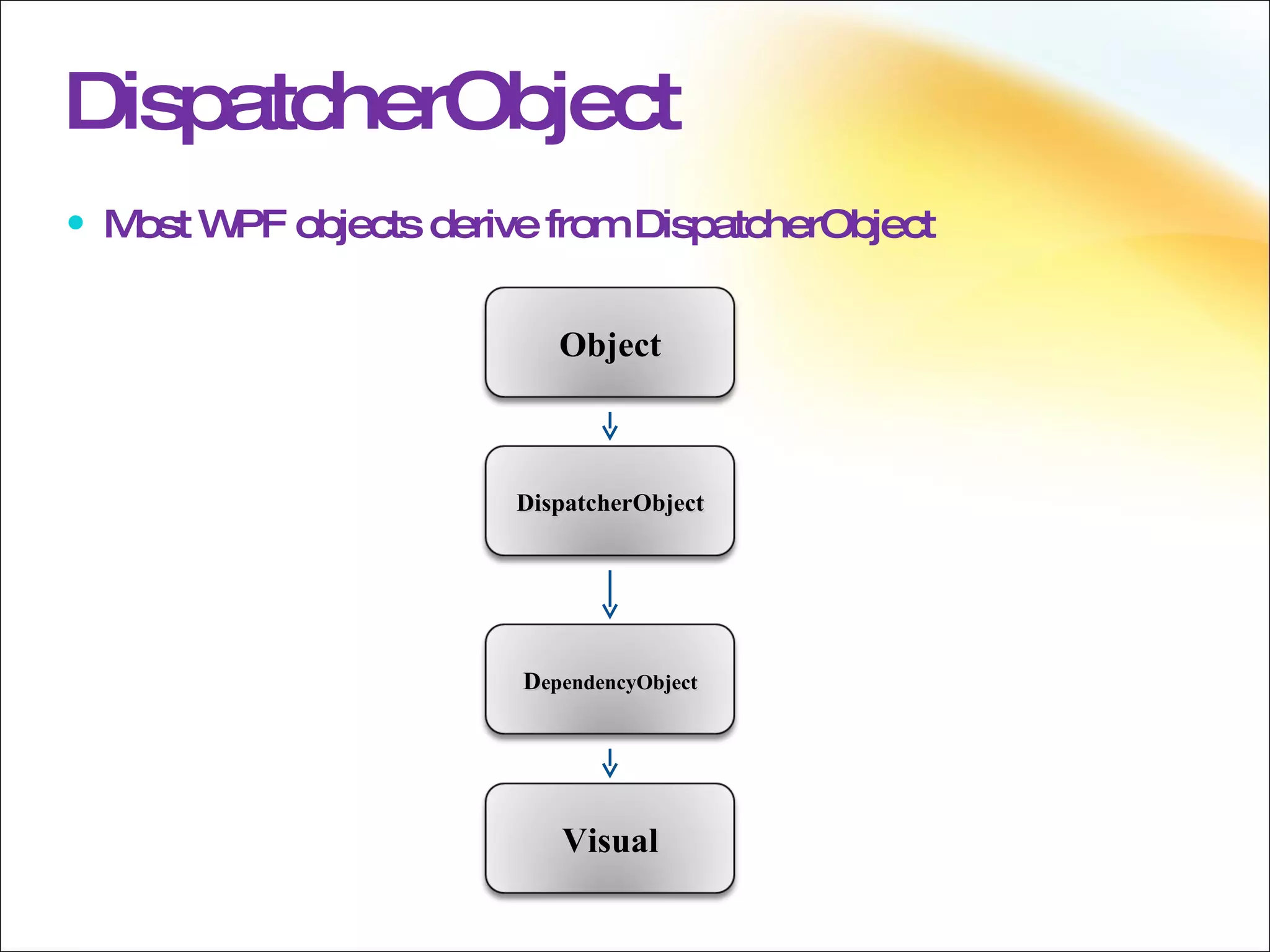

64. DispatcherObject Most WPF objects derive from DispatcherObject DispatcherObject Object Visual D ependencyObject

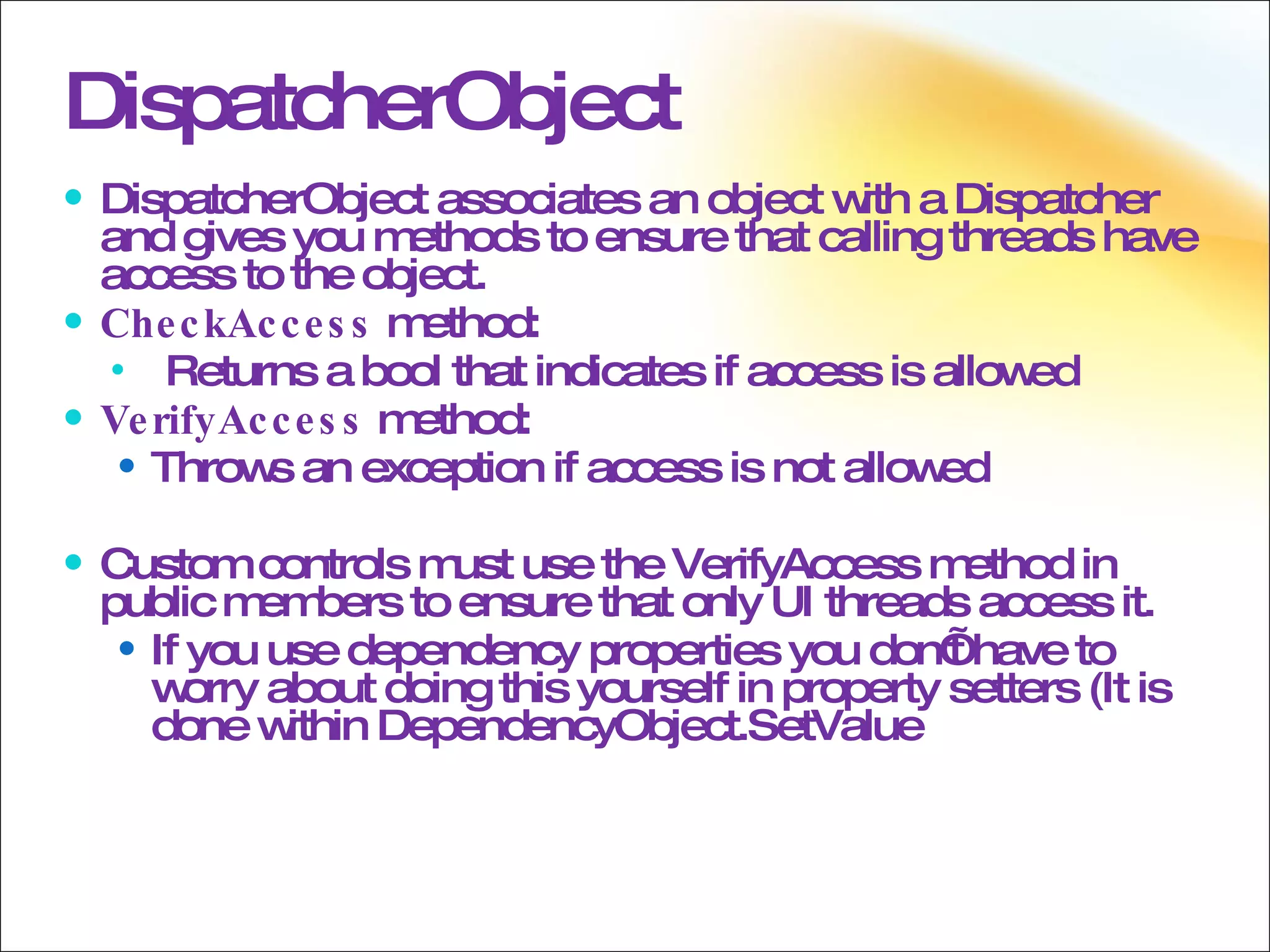

65. DispatcherObject DispatcherObject associates an object with a Dispatcher and gives you methods to ensure that calling threads have access to the object. CheckAccess method: Returns a bool that indicates if access is allowed VerifyAccess method: Throws an exception if access is not allowed Custom controls must use the VerifyAccess method in public members to ensure that only UI threads access it. If you use dependency properties you don’t have to worry about doing this yourself in property setters (It is done within DependencyObject.SetValue

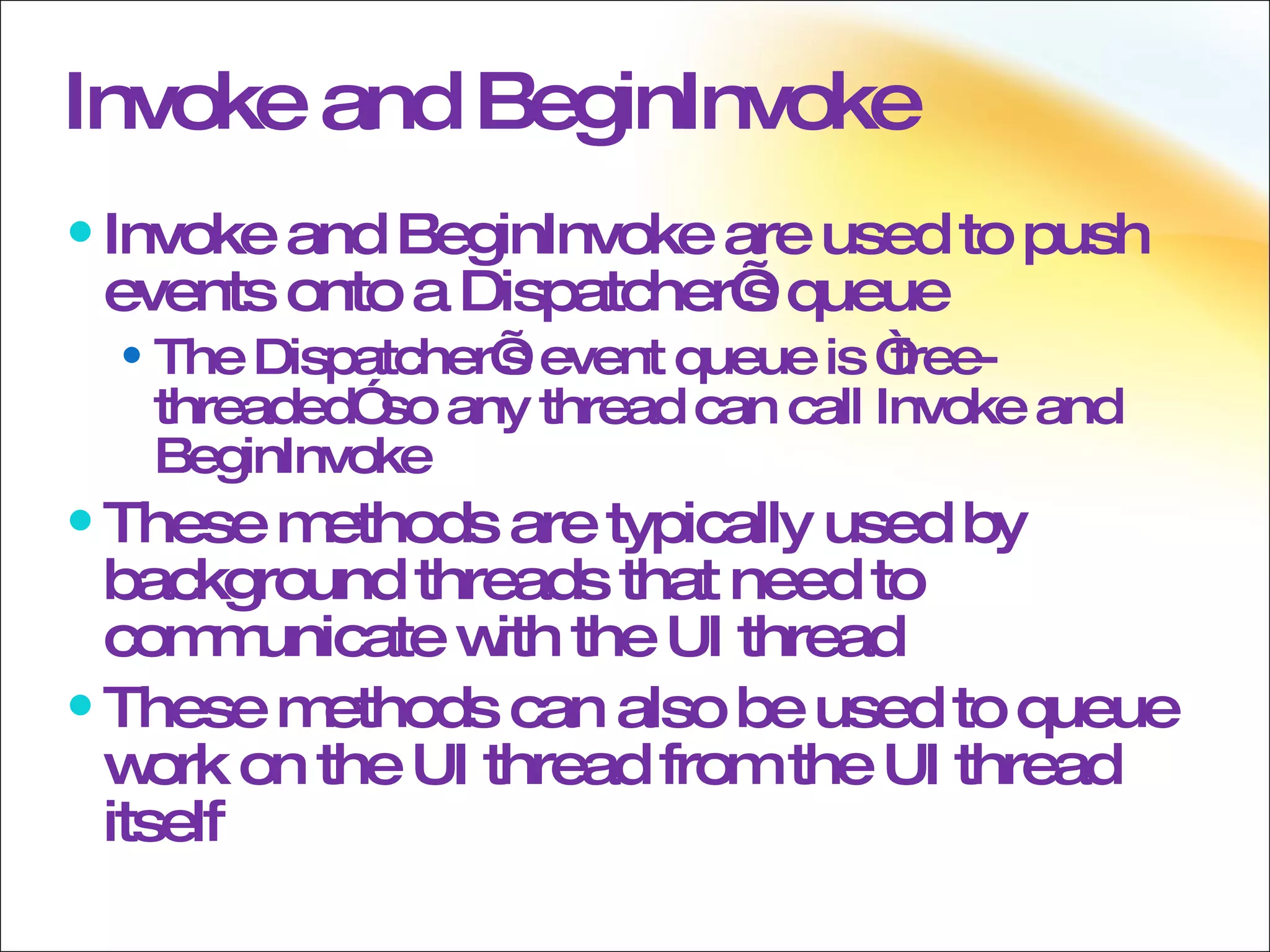

66. Invoke and BeginInvoke Invoke and BeginInvoke are used to push events onto a Dispatcher’s queue The Dispatcher’s event queue is “free-threaded” so any thread can call Invoke and BeginInvoke These methods are typically used by background threads that need to communicate with the UI thread These methods can also be used to queue work on the UI thread from the UI thread itself

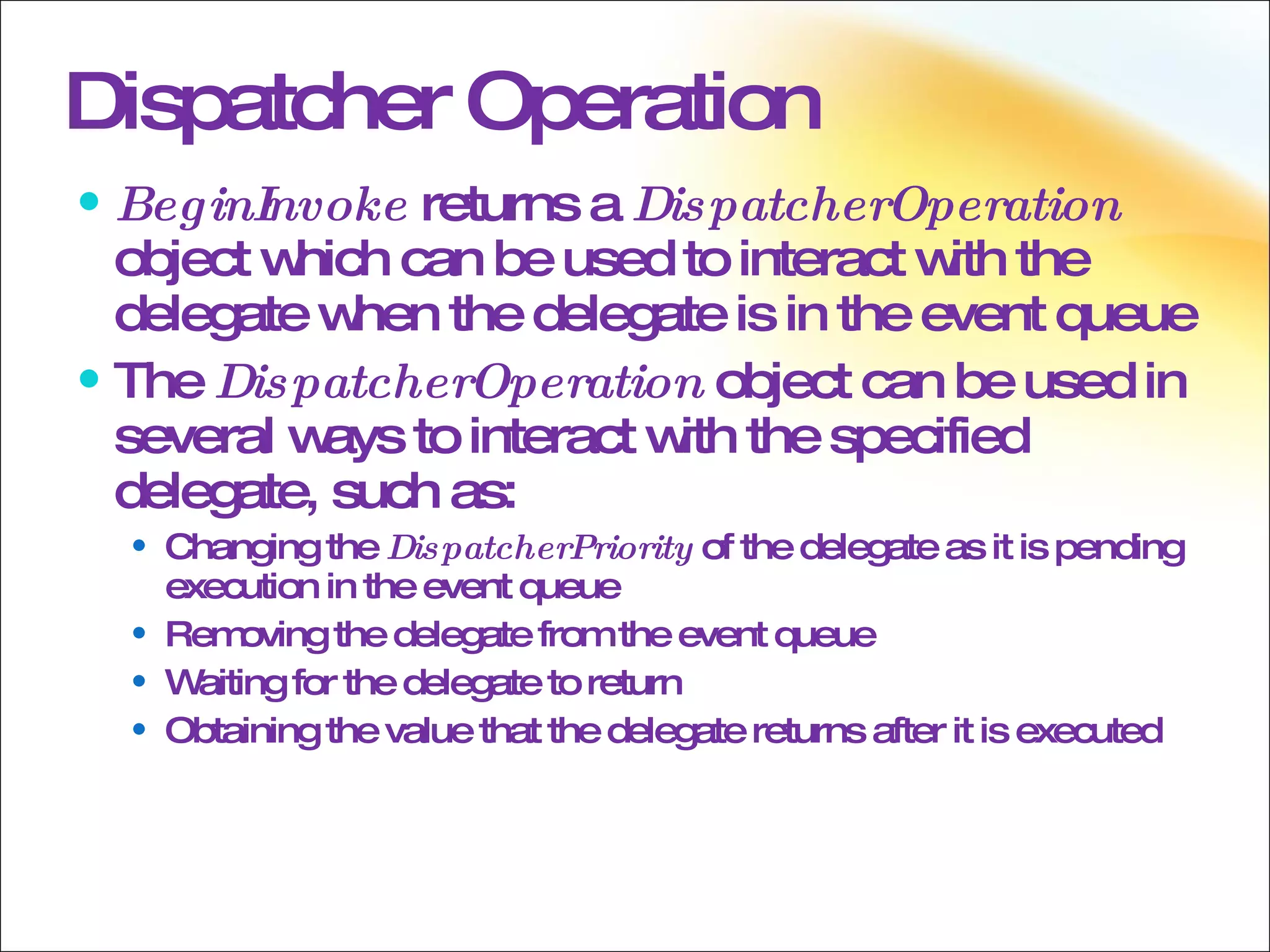

67. Dispatcher Operation BeginInvoke returns a DispatcherOperation object which can be used to interact with the delegate when the delegate is in the event queue The DispatcherOperation object can be used in several ways to interact with the specified delegate, such as: Changing the DispatcherPriority of the delegate as it is pending execution in the event queue Removing the delegate from the event queue Waiting for the delegate to return Obtaining the value that the delegate returns after it is executed

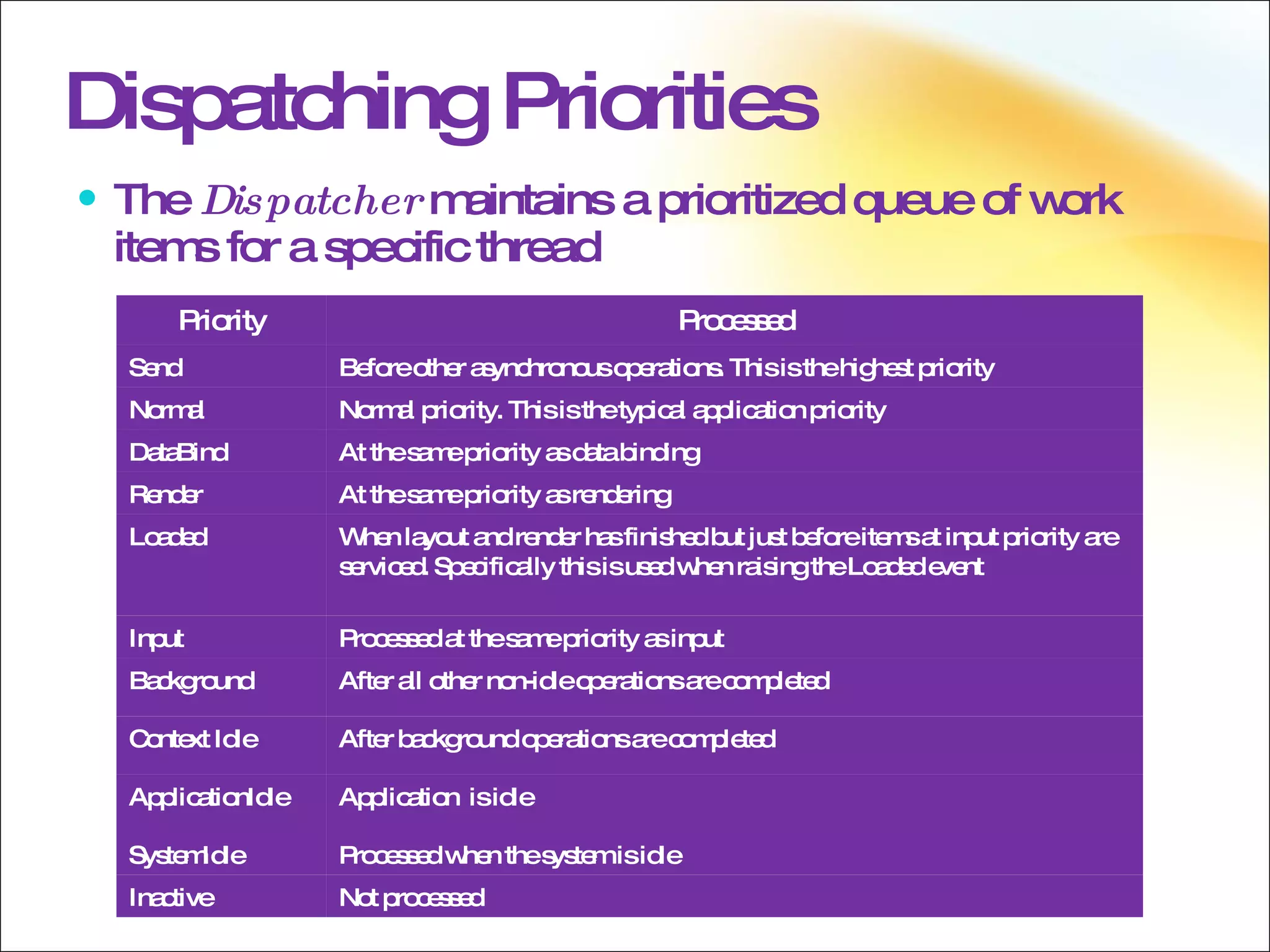

68. Dispatching Priorities The Dispatcher maintains a prioritized queue of work items for a specific thread Priority Processed Send Before other asynchronous operations. This is the highest priority Normal Normal priority. This is the typical application priority DataBind At the same priority as data binding Render At the same priority as rendering Loaded When layout and render has finished but just before items at input priority are serviced. Specifically this is used when raising the Loaded event Input Processed at the same priority as input Background After all other non-idle operations are completed Context Idle After background operations are completed ApplicationIdle Application is idle SystemIdle Processed when the system is idle Inactive Not processed

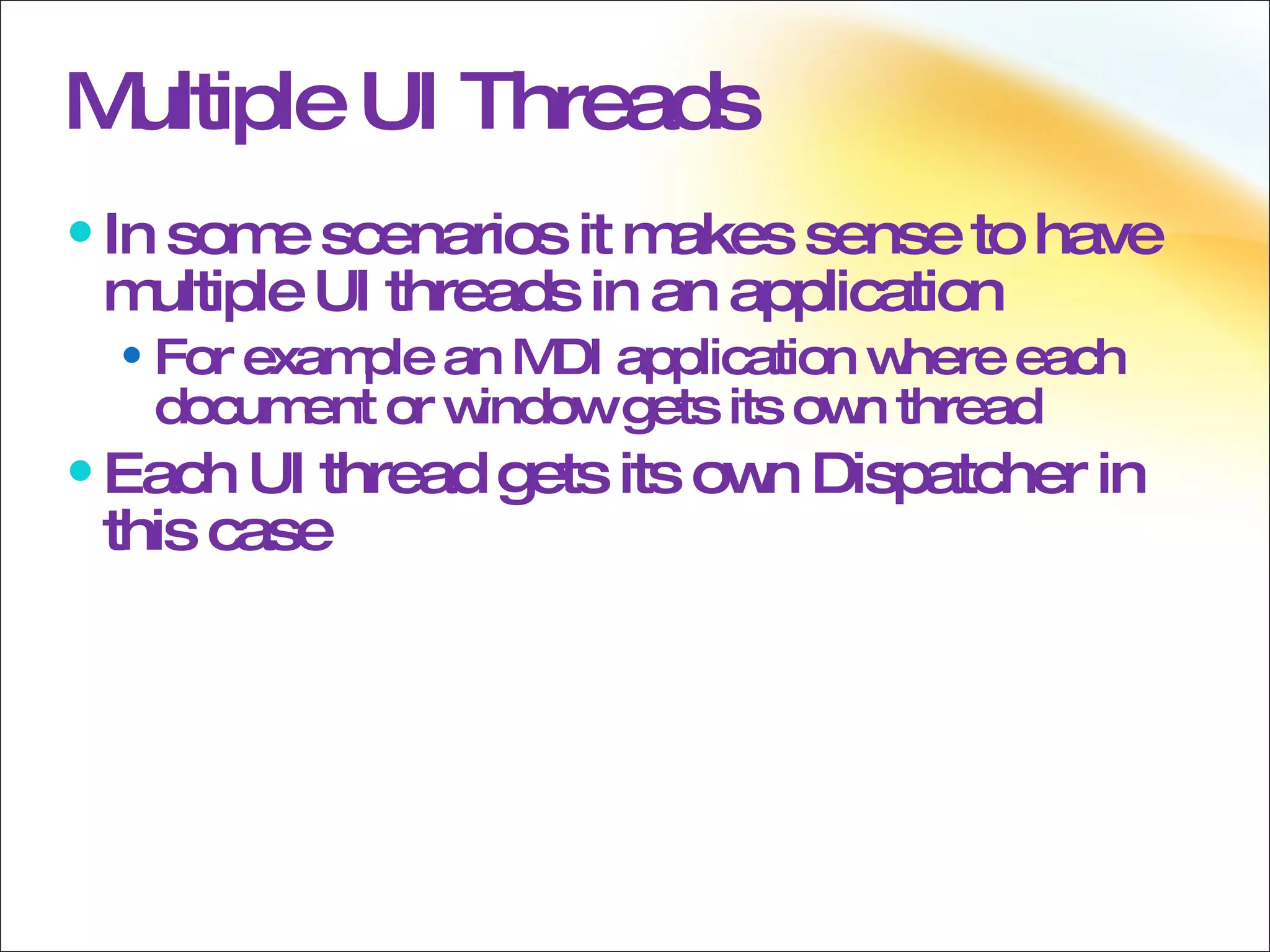

69. Multiple UI Threads In some scenarios it makes sense to have multiple UI threads in an application For example an MDI application where each document or window gets its own thread Each UI thread gets its own Dispatcher in this case

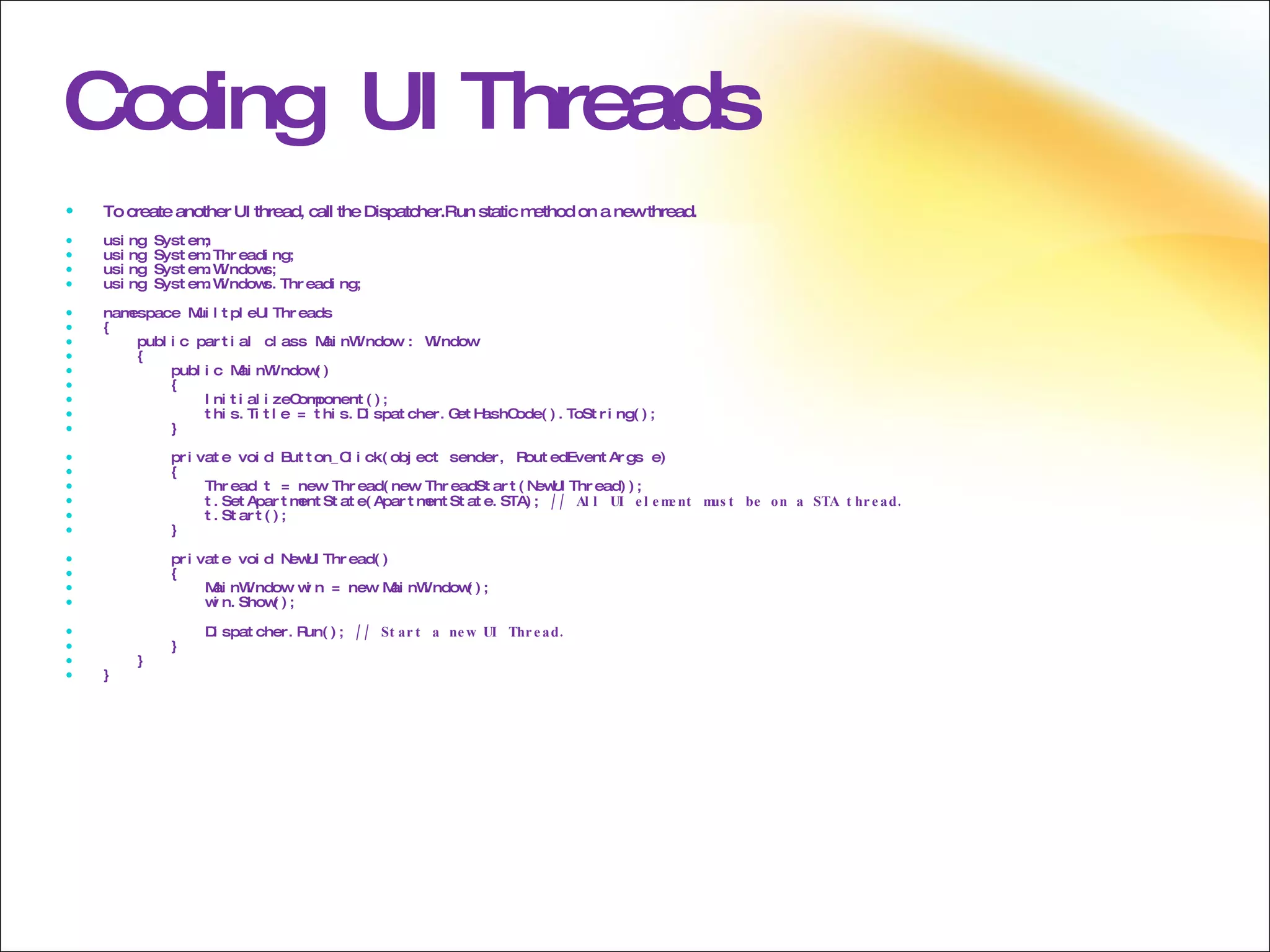

70. Coding UI Threads To create another UI thread, call the Dispatcher.Run static method on a new thread. using System; using System.Threading; using System.Windows; using System.Windows.Threading; namespace MuiltpleUIThreads { public partial class MainWindow : Window { public MainWindow() { InitializeComponent(); this.Title = this.Dispatcher.GetHashCode().ToString(); } private void Button_Click(object sender, RoutedEventArgs e) { Thread t = new Thread(new ThreadStart(NewUIThread)); t.SetApartmentState(ApartmentState.STA); // All UI element must be on a STA thread. t.Start(); } private void NewUIThread() { MainWindow win = new MainWindow(); win.Show(); Dispatcher.Run(); // Start a new UI Thread. } } }

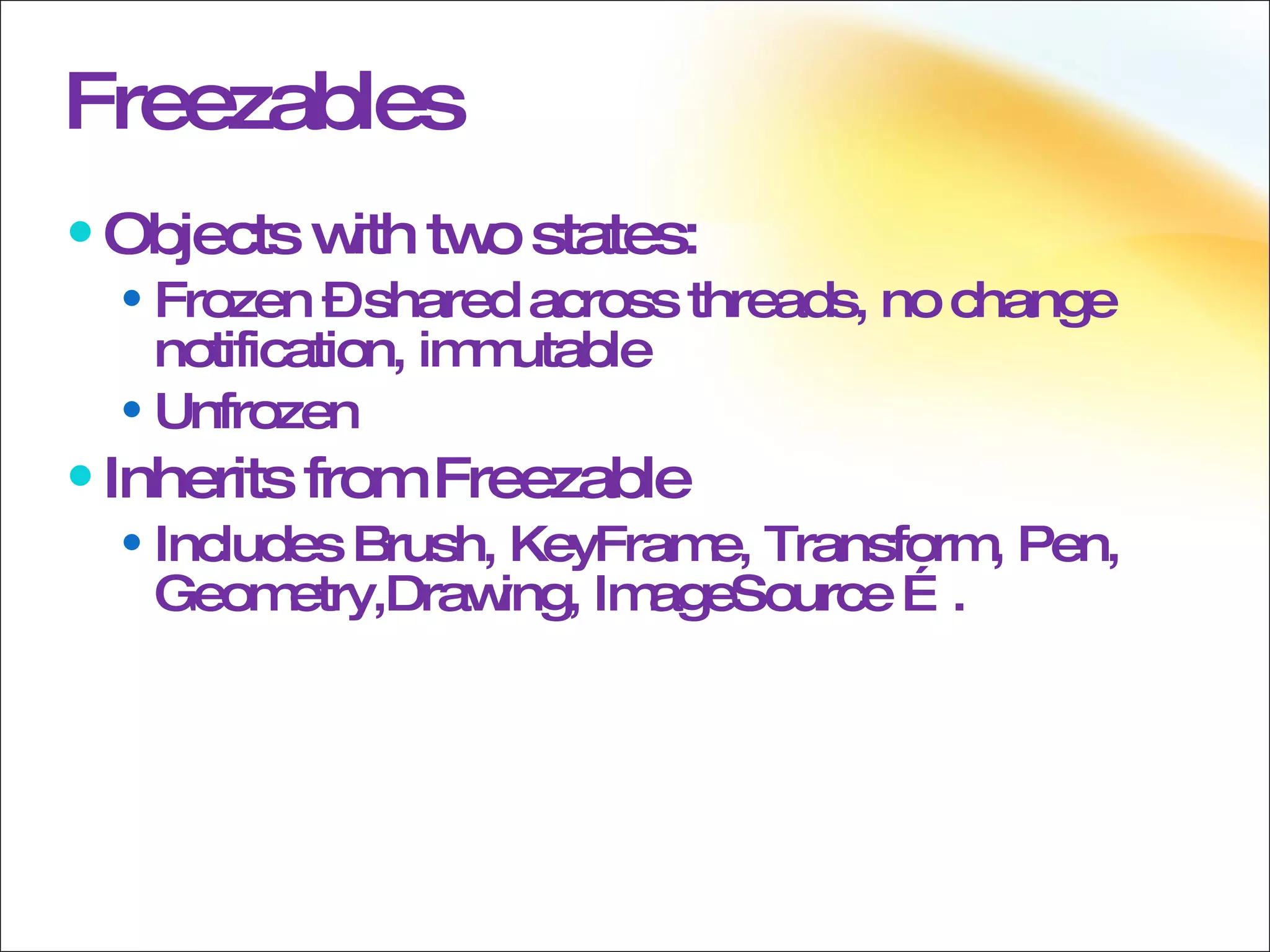

71. Freezables Objects with two states: Frozen – shared across threads, no change notification, immutable Unfrozen Inherits from Freezable Includes Brush, KeyFrame, Transform, Pen, Geometry,Drawing, ImageSource ….

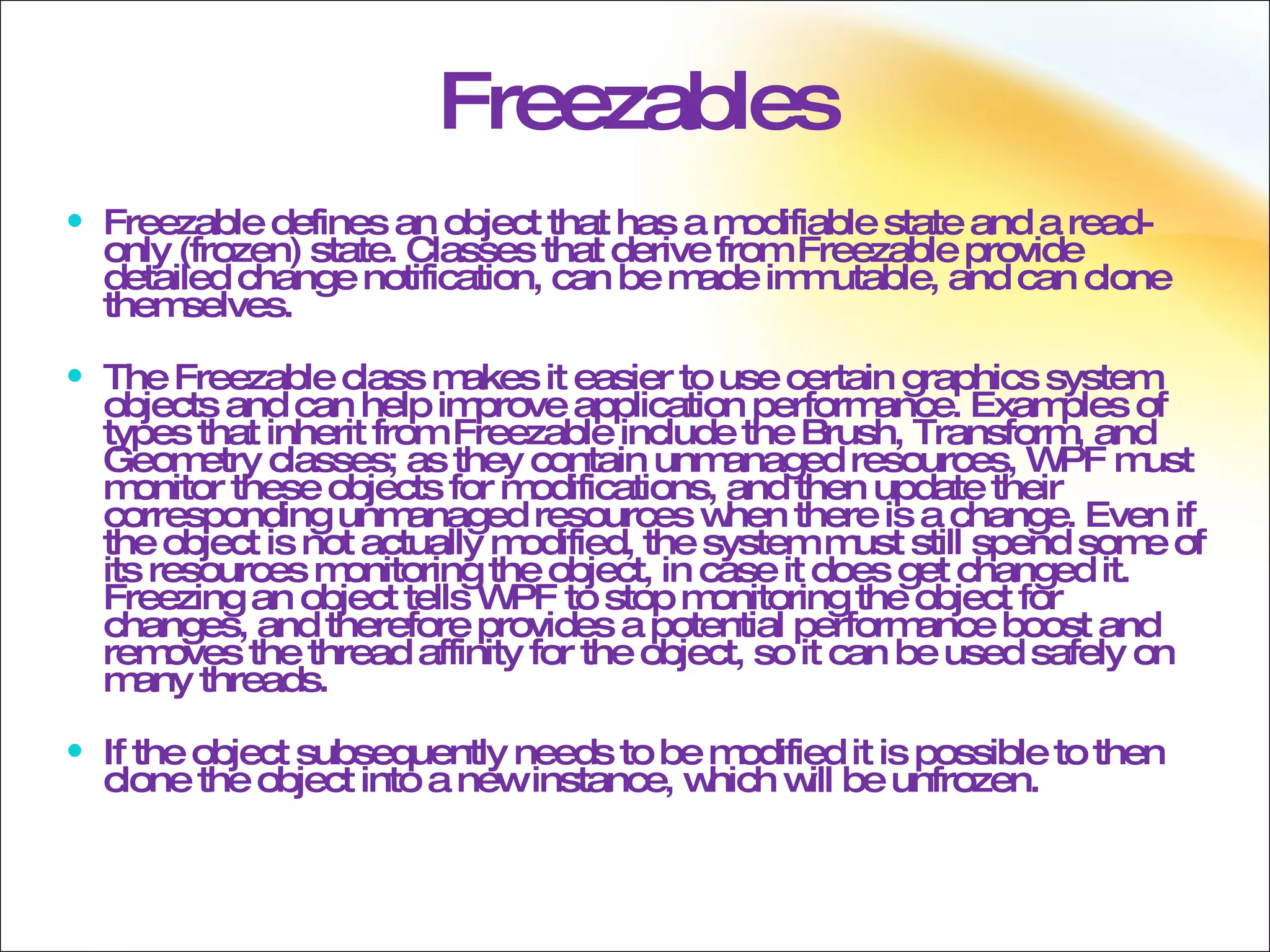

72. Freezables Freezable defines an object that has a modifiable state and a read-only (frozen) state. Classes that derive from Freezable provide detailed change notification, can be made immutable, and can clone themselves. The Freezable class makes it easier to use certain graphics system objects and can help improve application performance. Examples of types that inherit from Freezable include the Brush, Transform, and Geometry classes; as they contain unmanaged resources, WPF must monitor these objects for modifications, and then update their corresponding unmanaged resources when there is a change. Even if the object is not actually modified, the system must still spend some of its resources monitoring the object, in case it does get changed it. Freezing an object tells WPF to stop monitoring the object for changes, and therefore provides a potential performance boost and removes the thread affinity for the object, so it can be used safely on many threads. If the object subsequently needs to be modified it is possible to then clone the object into a new instance, which will be unfrozen.

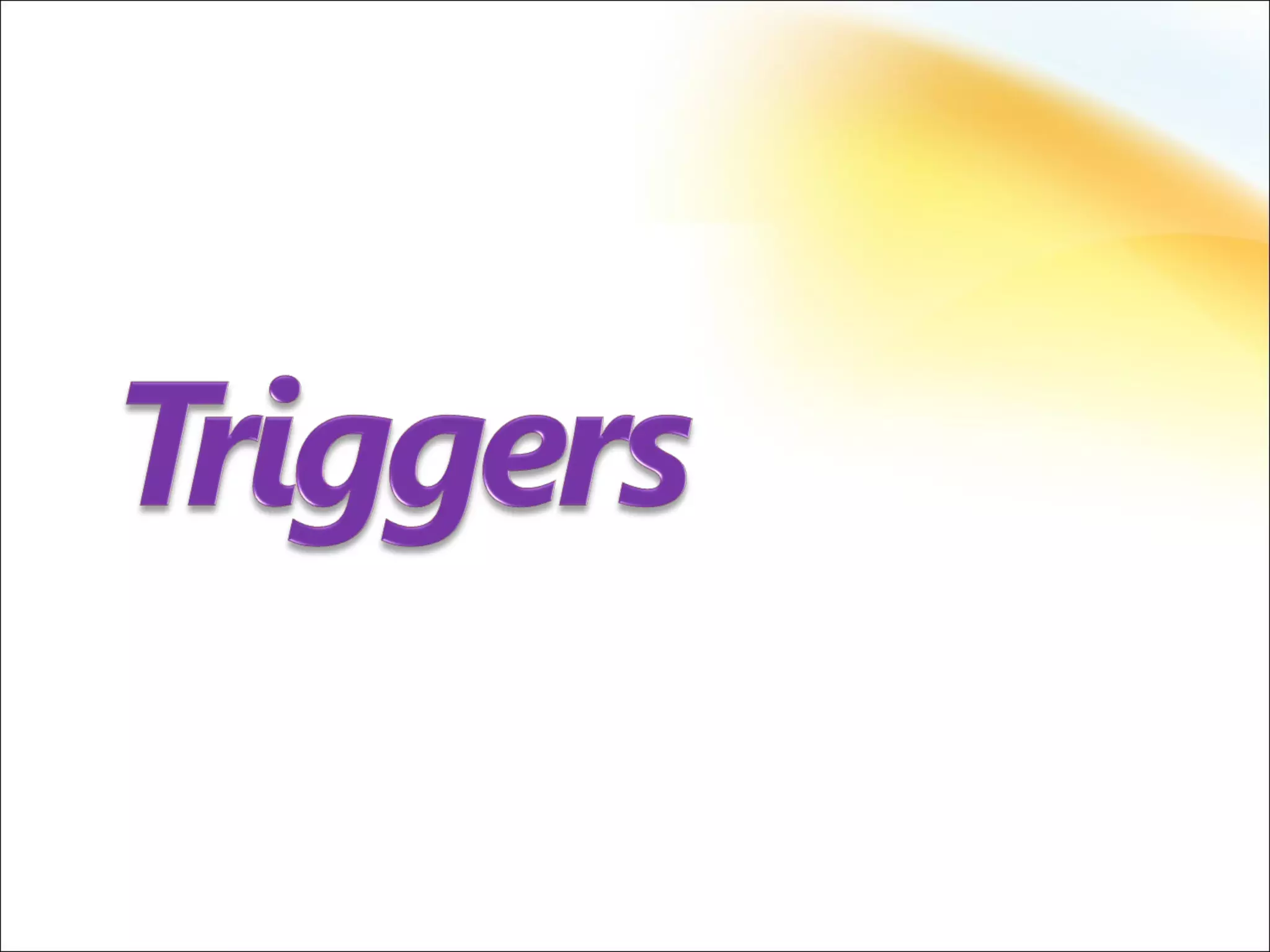

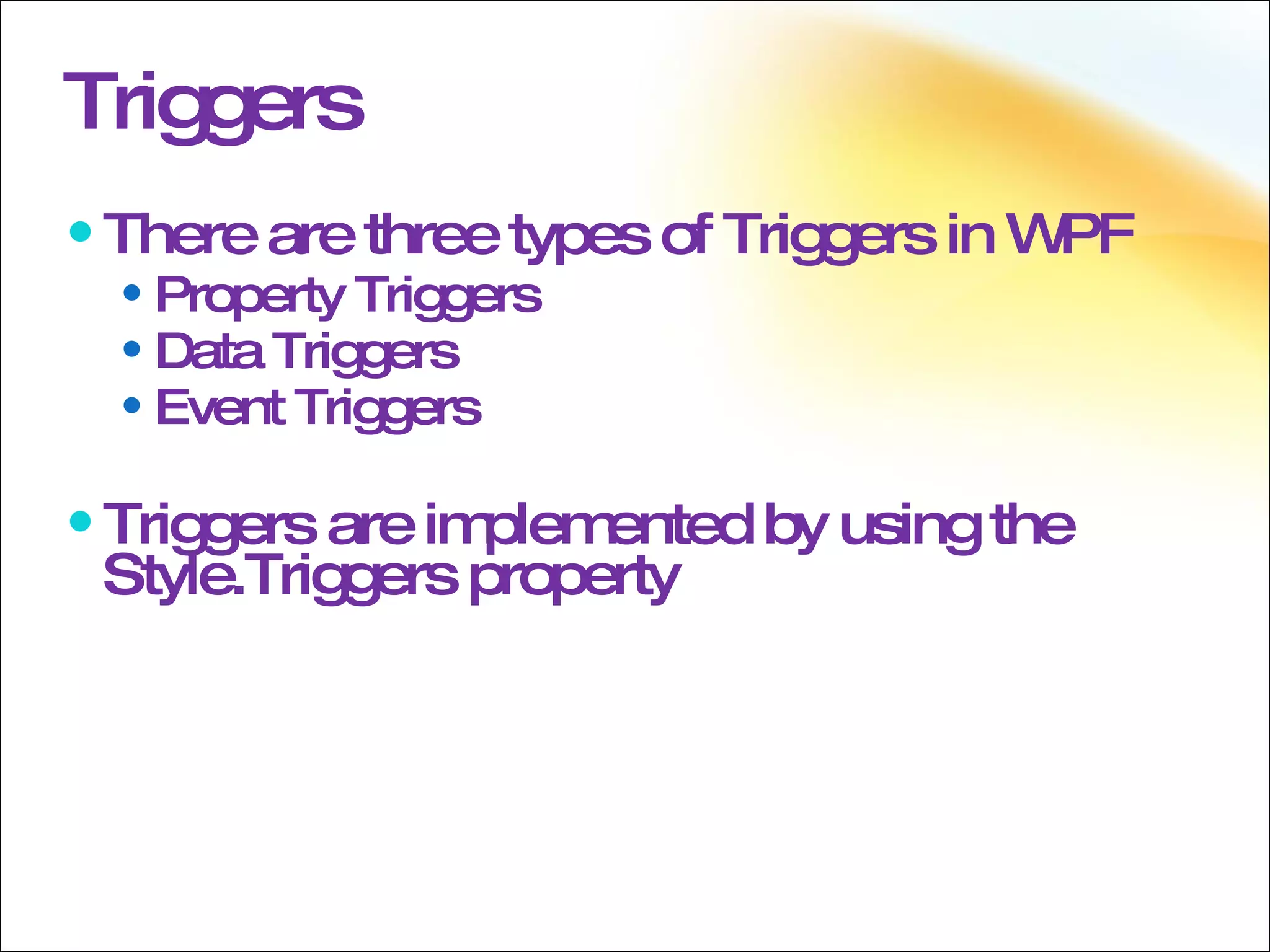

74. Triggers There are three types of Triggers in WPF Property Triggers Data Triggers Event Triggers Triggers are implemented by using the Style.Triggers property

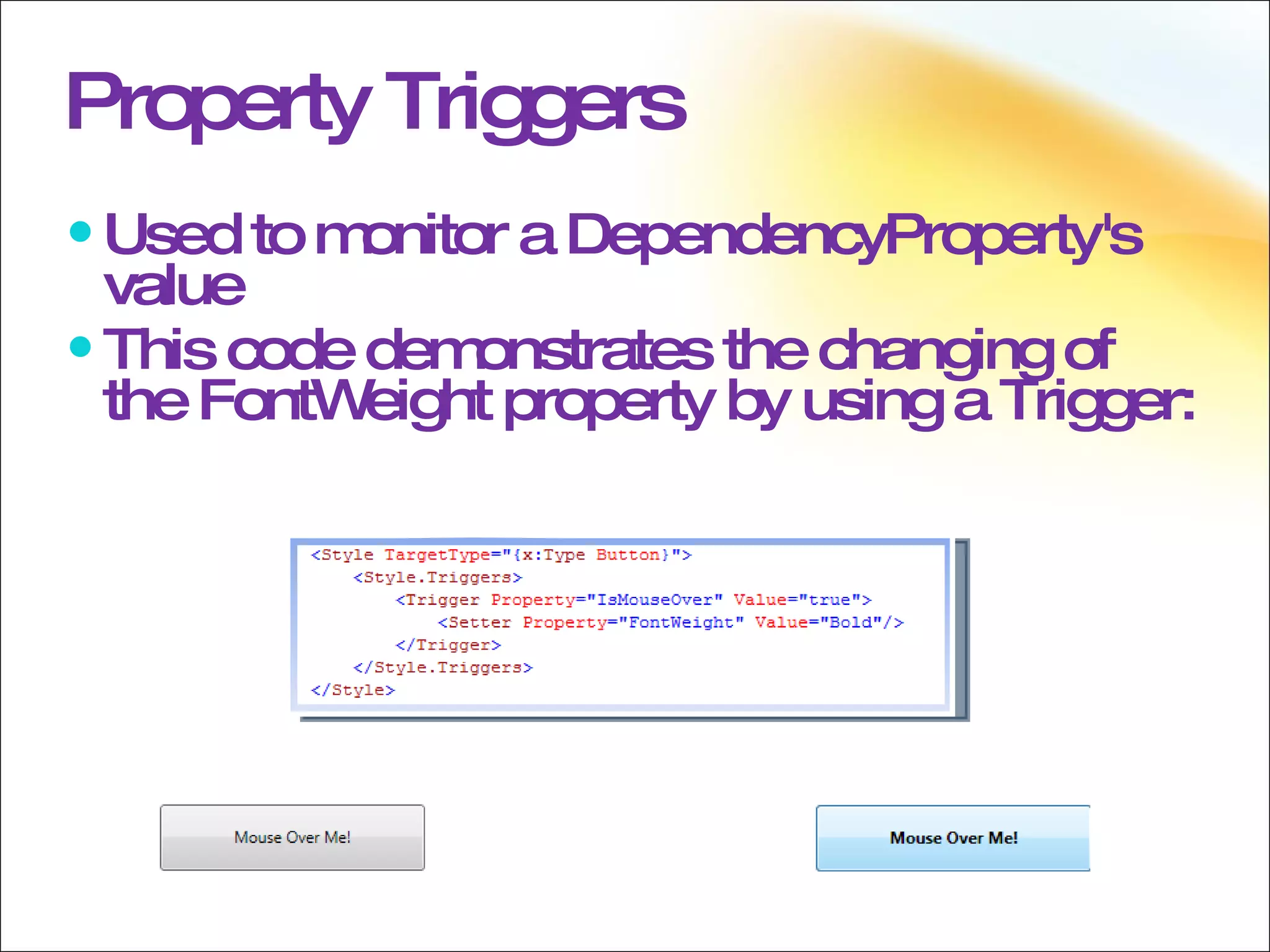

75. Property Triggers Used to monitor a DependencyProperty's value This code demonstrates the changing of the FontWeight property by using a Trigger:

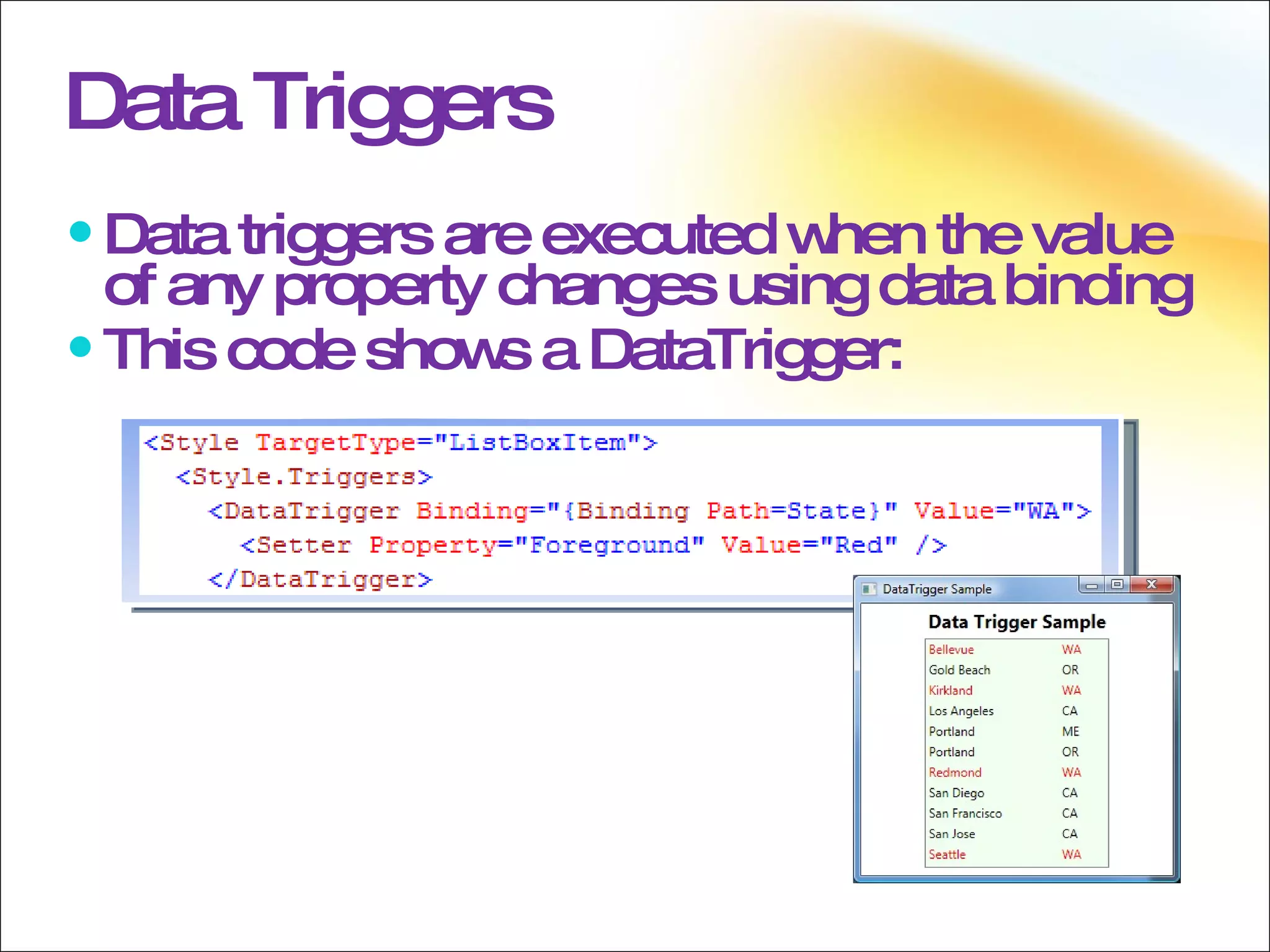

76. Data Triggers Data triggers are executed when the value of any property changes using data binding This code shows a DataTrigger:

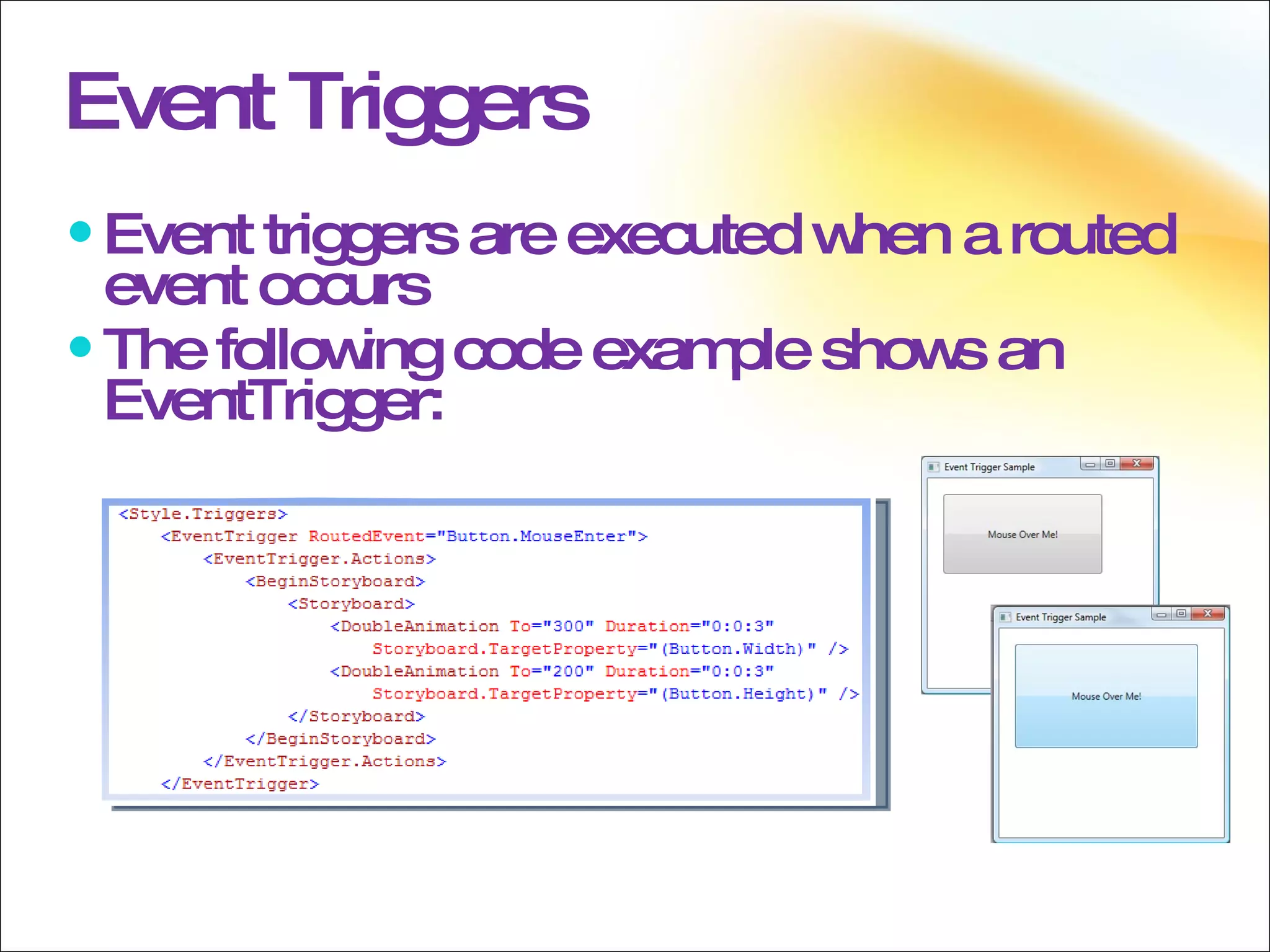

77. Event Triggers Event triggers are executed when a routed event occurs The following code example shows an EventTrigger:
