Satoshi Egi (Rakuten Institute of Technology, Rakuten, Inc.)
Yuichi Nishiwaki (The University of Tokyo)

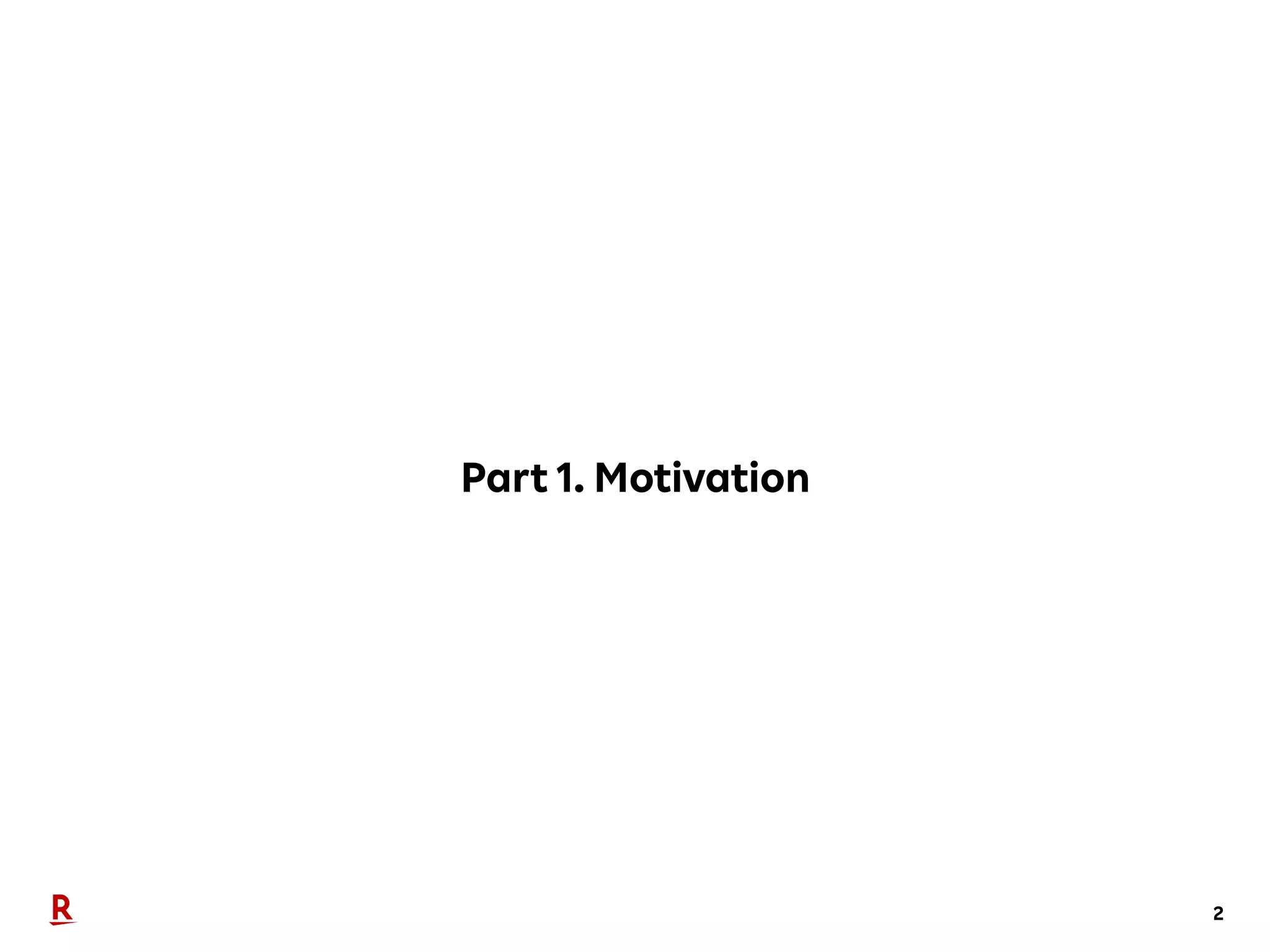

2. Part 1. Motivation
2

3. 3

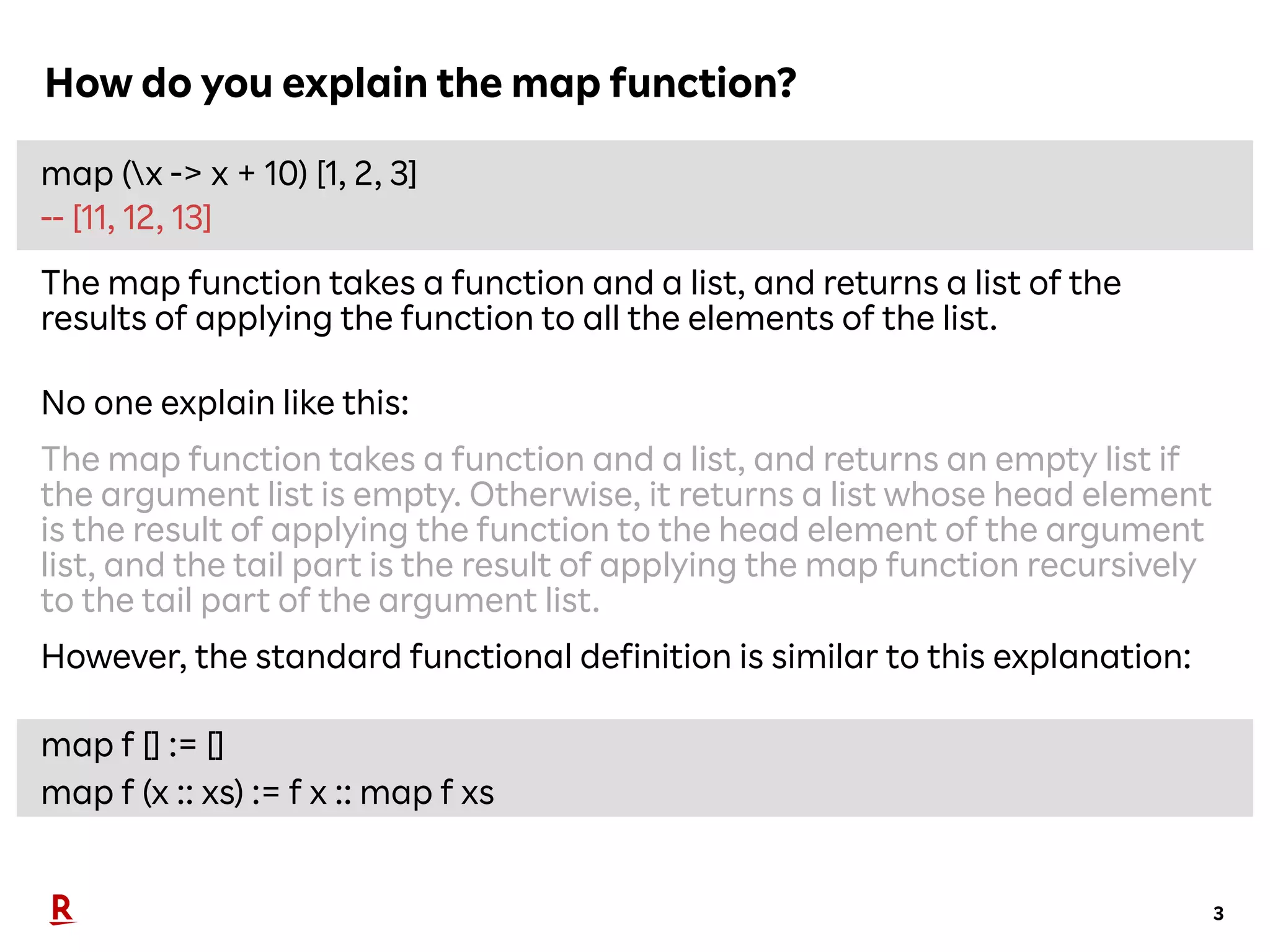

How do you explain the map function?
map (x -> x + 10) [1, 2, 3]
-- [11, 12, 13]
The map function takes a function and a list, and returns a list of the
results of applying the function to all the elements of the list.
No one explain like this:
The map function takes a function and a list, and returns an empty list if
the argument list is empty. Otherwise, it returns a list whose head element
is the result of applying the function to the head element of the argument
list, and the tail part is the result of applying the map function recursively
to the tail part of the argument list.
However, the standard functional definition is similar to this explanation:
map f [] := []
map f (x :: xs) := f x :: map f xs

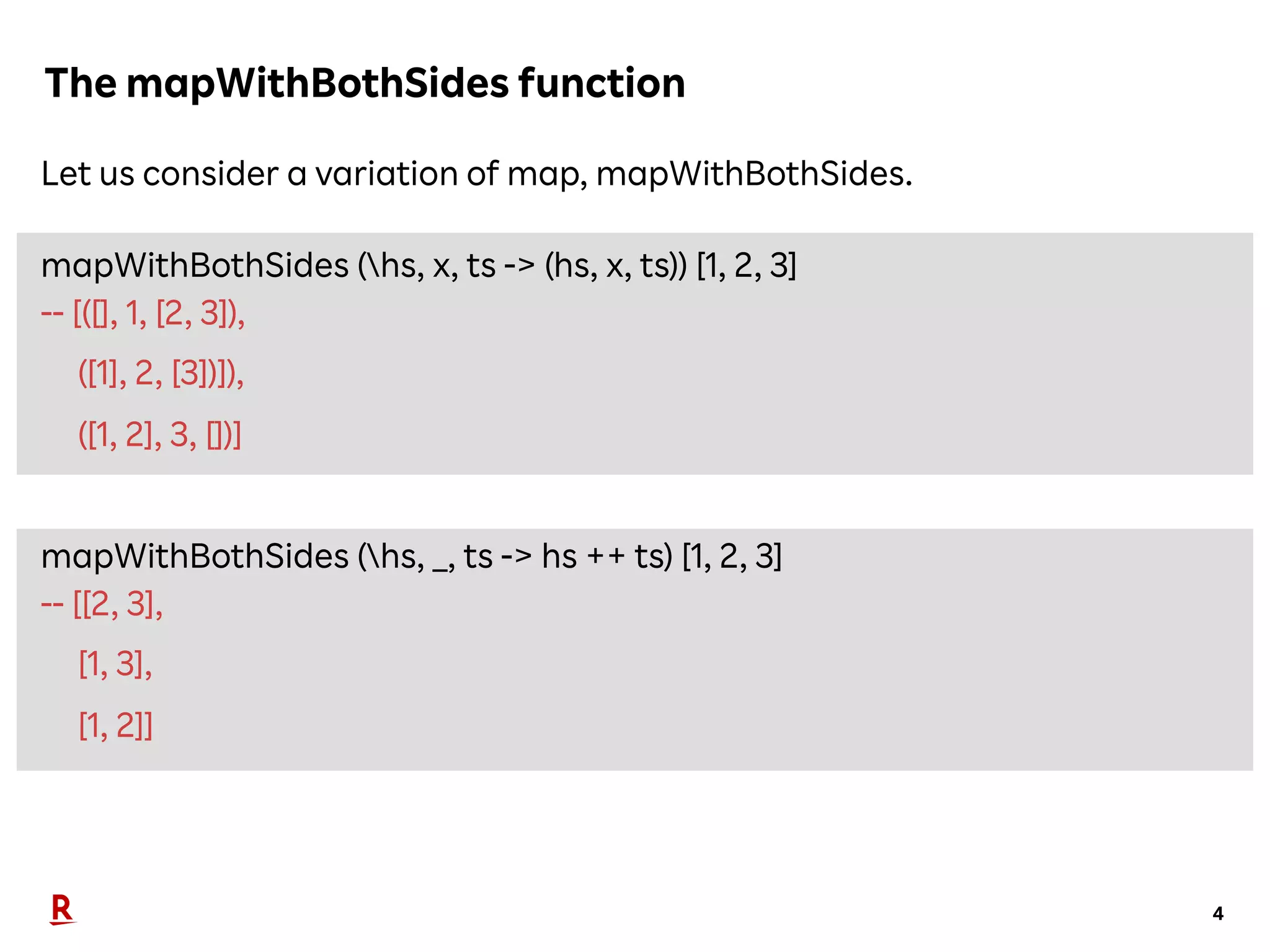

4. The mapWithBothSides function
4

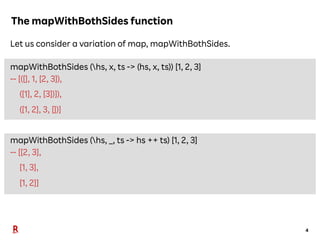

Let us consider a variation of map, mapWithBothSides.
mapWithBothSides (hs, x, ts -> (hs, x, ts)) [1, 2, 3]
-- [([], 1, [2, 3]),
([1], 2, [3])]),
([1, 2], 3, [])]
mapWithBothSides (hs, _, ts -> hs ++ ts) [1, 2, 3]
-- [[2, 3],
[1, 3],
[1, 2]]

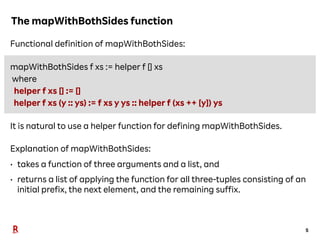

5. The mapWithBothSides function
5

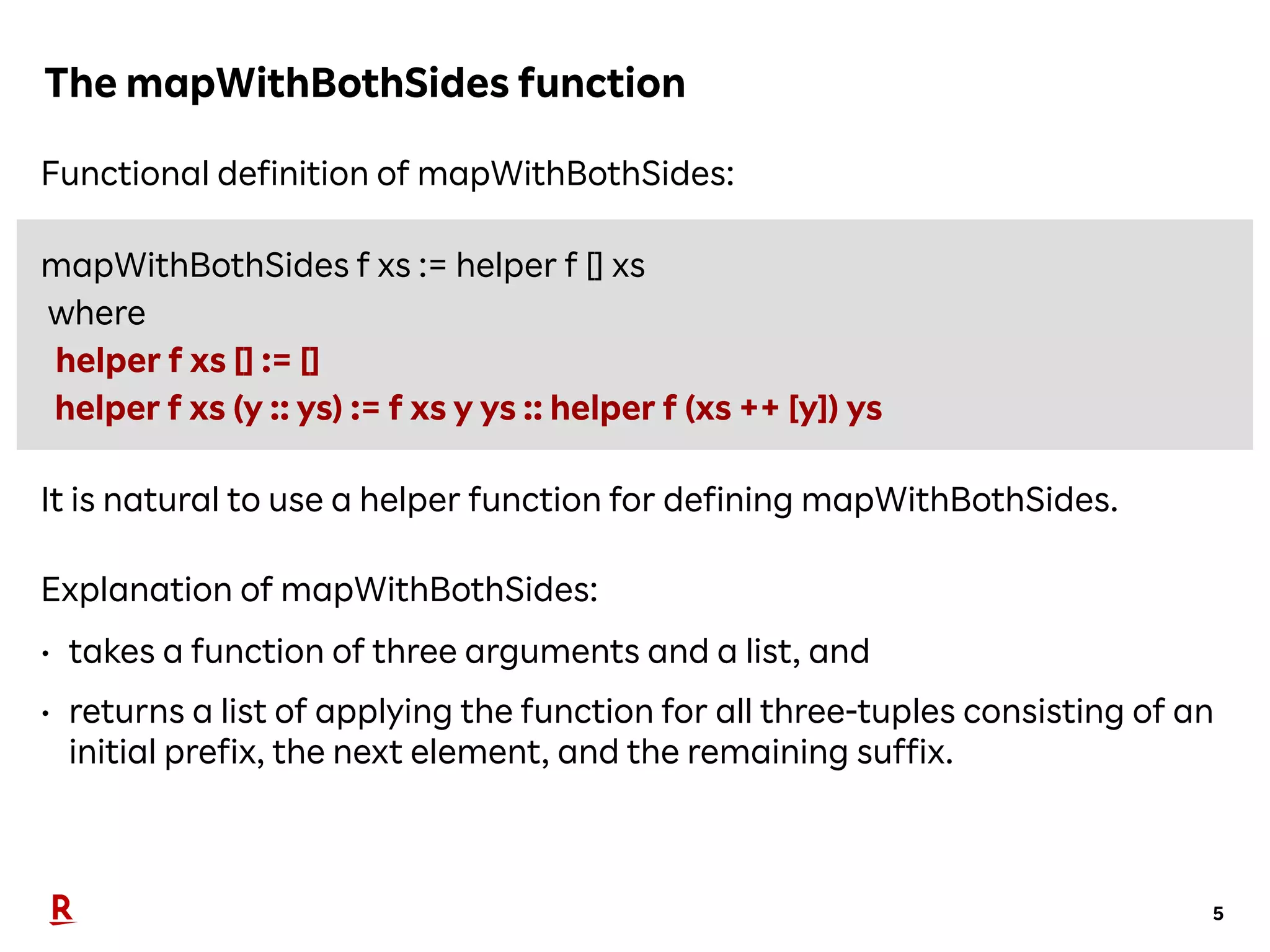

Functional definition of mapWithBothSides:
mapWithBothSides f xs := helper f [] xs
where
helper f xs [] := []
helper f xs (y :: ys) := f xs y ys :: helper f (xs ++ [y]) ys
It is natural to use a helper function for defining mapWithBothSides.
Explanation of mapWithBothSides:
• takes a function of three arguments and a list, and
• returns a list of applying the function for all three-tuples consisting of an
initial prefix, the next element, and the remaining suffix.

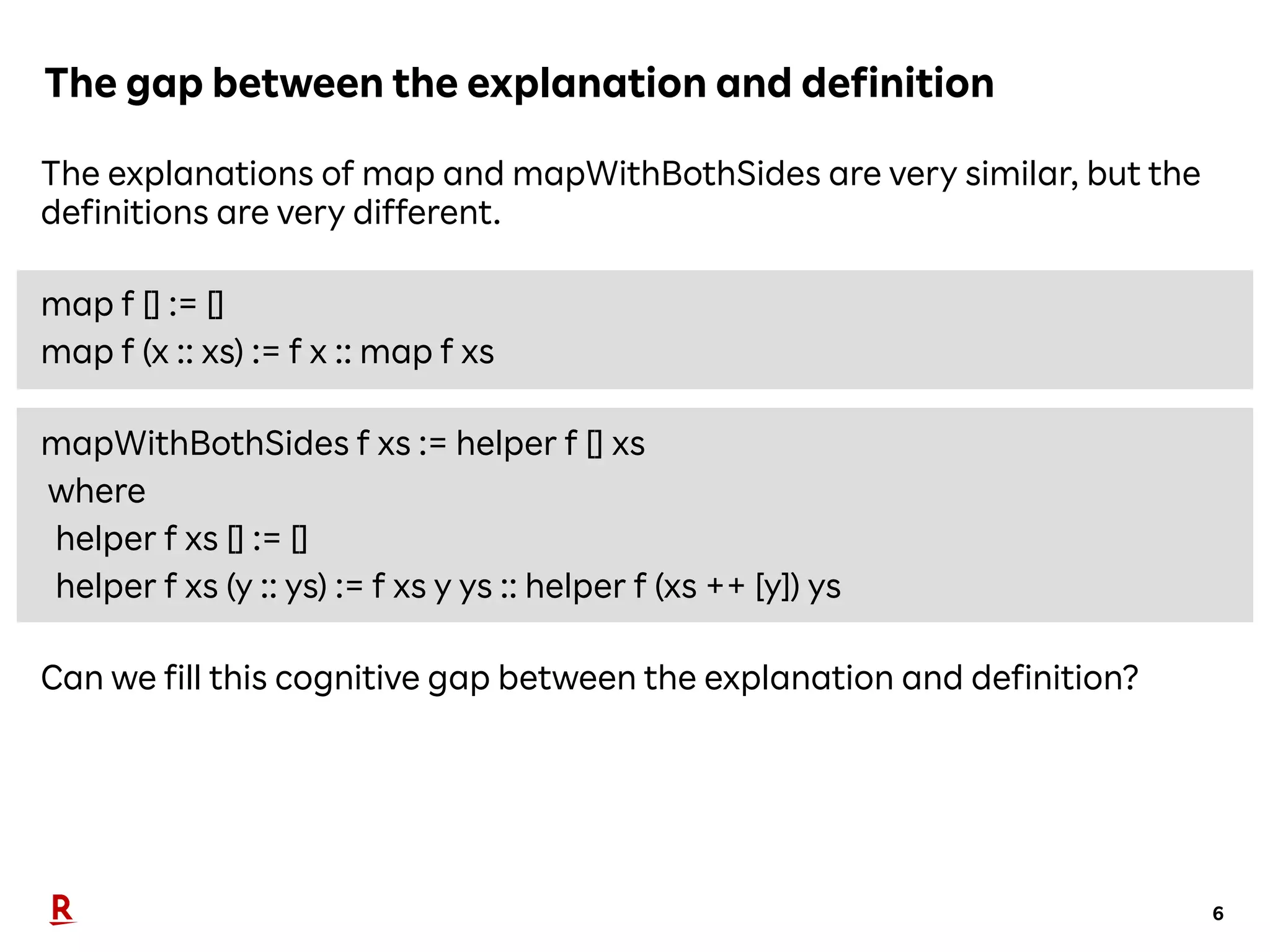

6. The gap between the explanation and definition
6
The explanations of map and mapWithBothSides are very similar, but the
definitions are very different.
map f [] := []
map f (x :: xs) := f x :: map f xs
mapWithBothSides f xs := helper f [] xs
where
helper f xs [] := []
helper f xs (y :: ys) := f xs y ys :: helper f (xs ++ [y]) ys
Can we fill this cognitive gap between the explanation and definition?

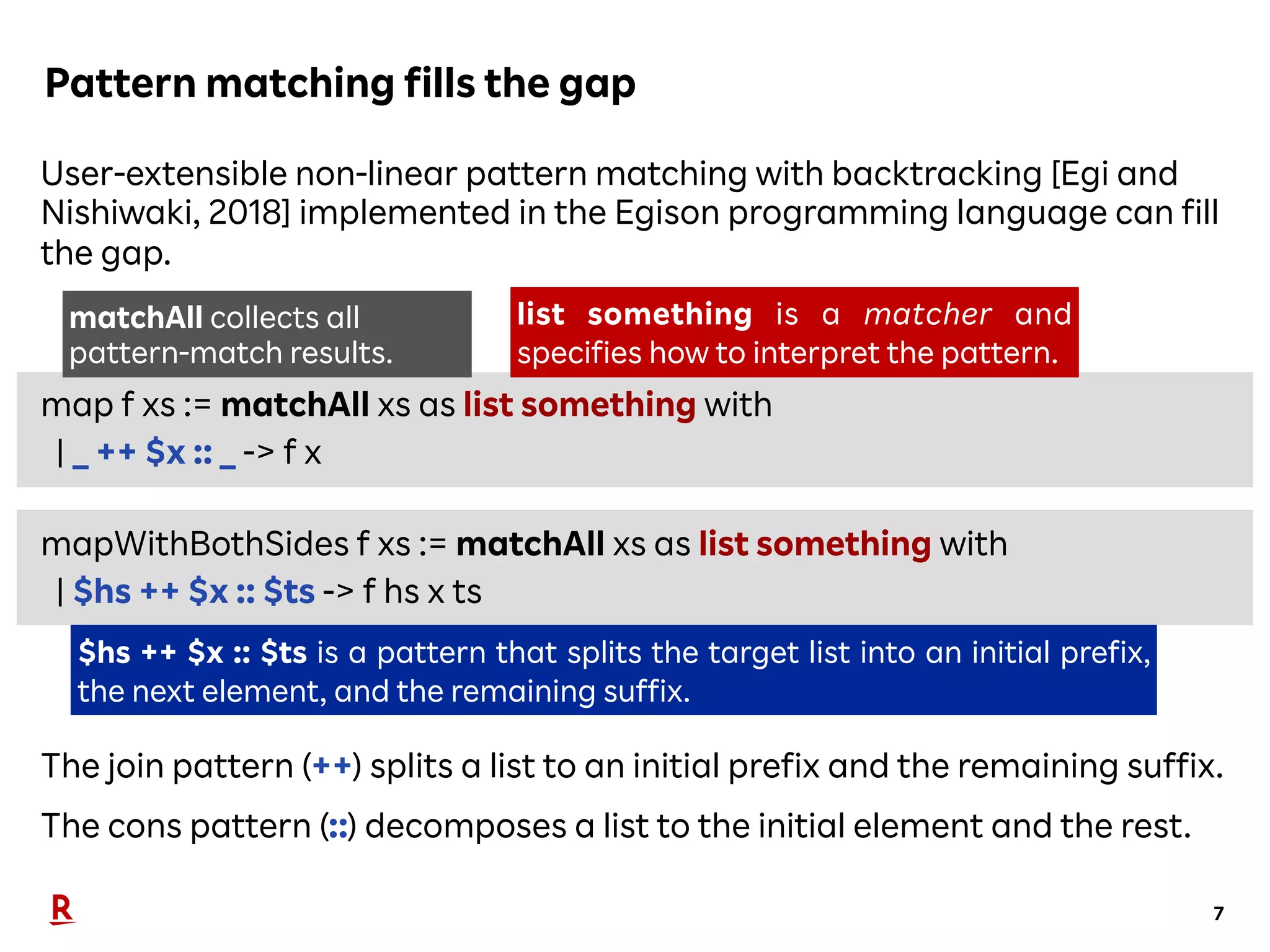

7. Pattern matching fills the gap
7
User-extensible non-linear pattern matching with backtracking [Egi and
Nishiwaki, 2018] implemented in the Egison programming language can fill
the gap.
map f xs := matchAll xs as list something with
| _ ++ $x :: _ -> f x
mapWithBothSides f xs := matchAll xs as list something with
| $hs ++ $x :: $ts -> f hs x ts
The join pattern (++) splits a list to an initial prefix and the remaining suffix.
The cons pattern (::) decomposes a list to the initial element and the rest.
matchAll collects all
pattern-match results.
list something is a matcher and
specifies how to interpret the pattern.
$hs ++ $x :: $ts is a pattern that splits the target list into an initial prefix,
the next element, and the remaining suffix.

8. Our approach: pattern-match-oriented programming (PMOP)
8

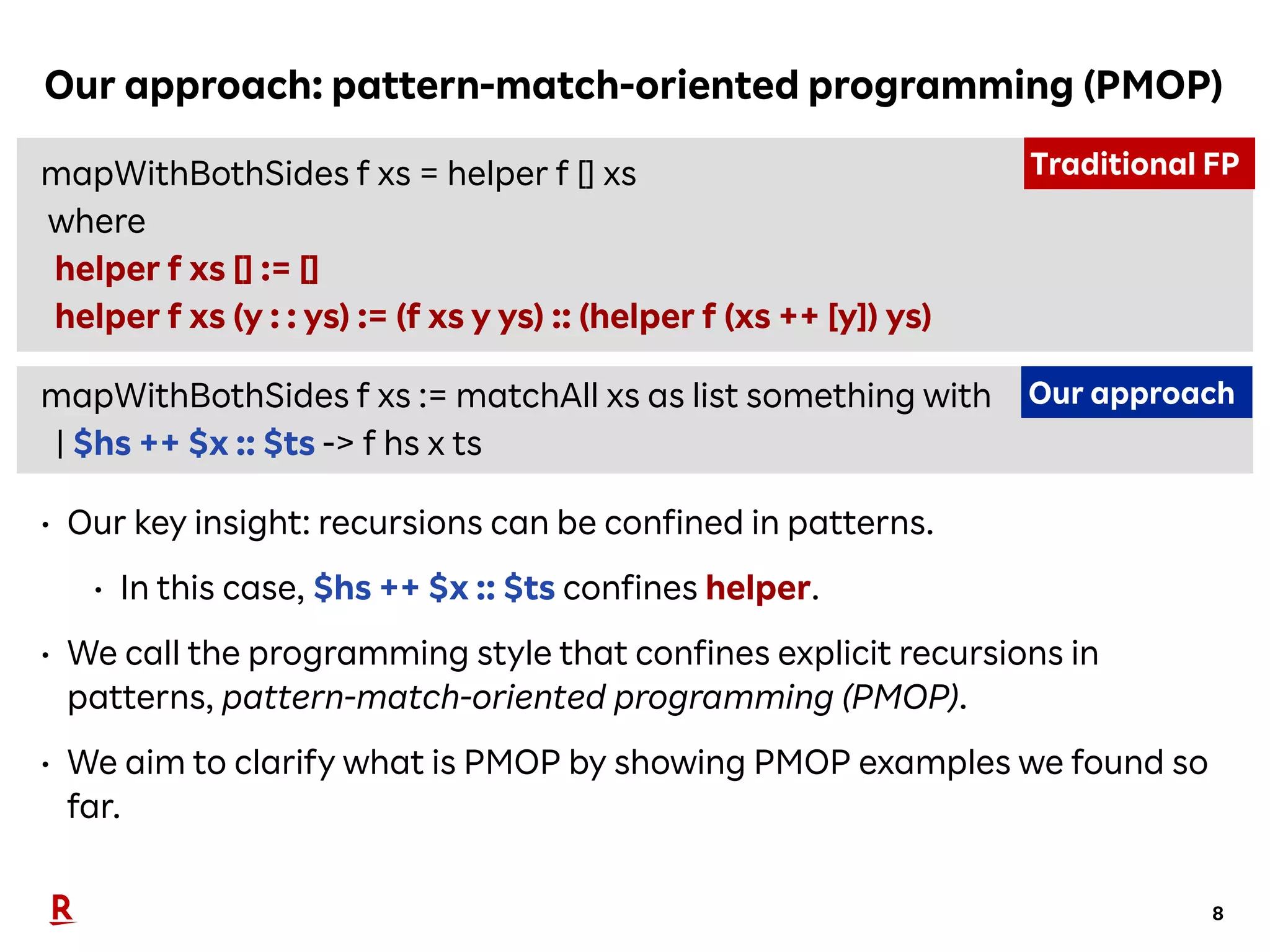

mapWithBothSides f xs = helper f [] xs
where
helper f xs [] := []
helper f xs (y : : ys) := (f xs y ys) :: (helper f (xs ++ [y]) ys)
mapWithBothSides f xs := matchAll xs as list something with
| $hs ++ $x :: $ts -> f hs x ts
• Our key insight: recursions can be confined in patterns.
• In this case, $hs ++ $x :: $ts confines helper.
• We call the programming style that confines explicit recursions in
patterns, pattern-match-oriented programming (PMOP).
• We aim to clarify what is PMOP by showing PMOP examples we found so
far.
Traditional FP
Our approach

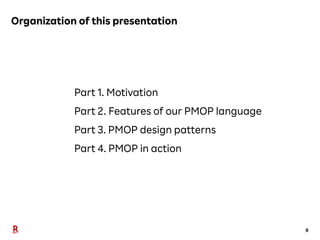

9. Organization of this presentation
9
Part 1. Motivation
Part 2. Features of our PMOP language
Part 3. PMOP design patterns
Part 4. PMOP in action

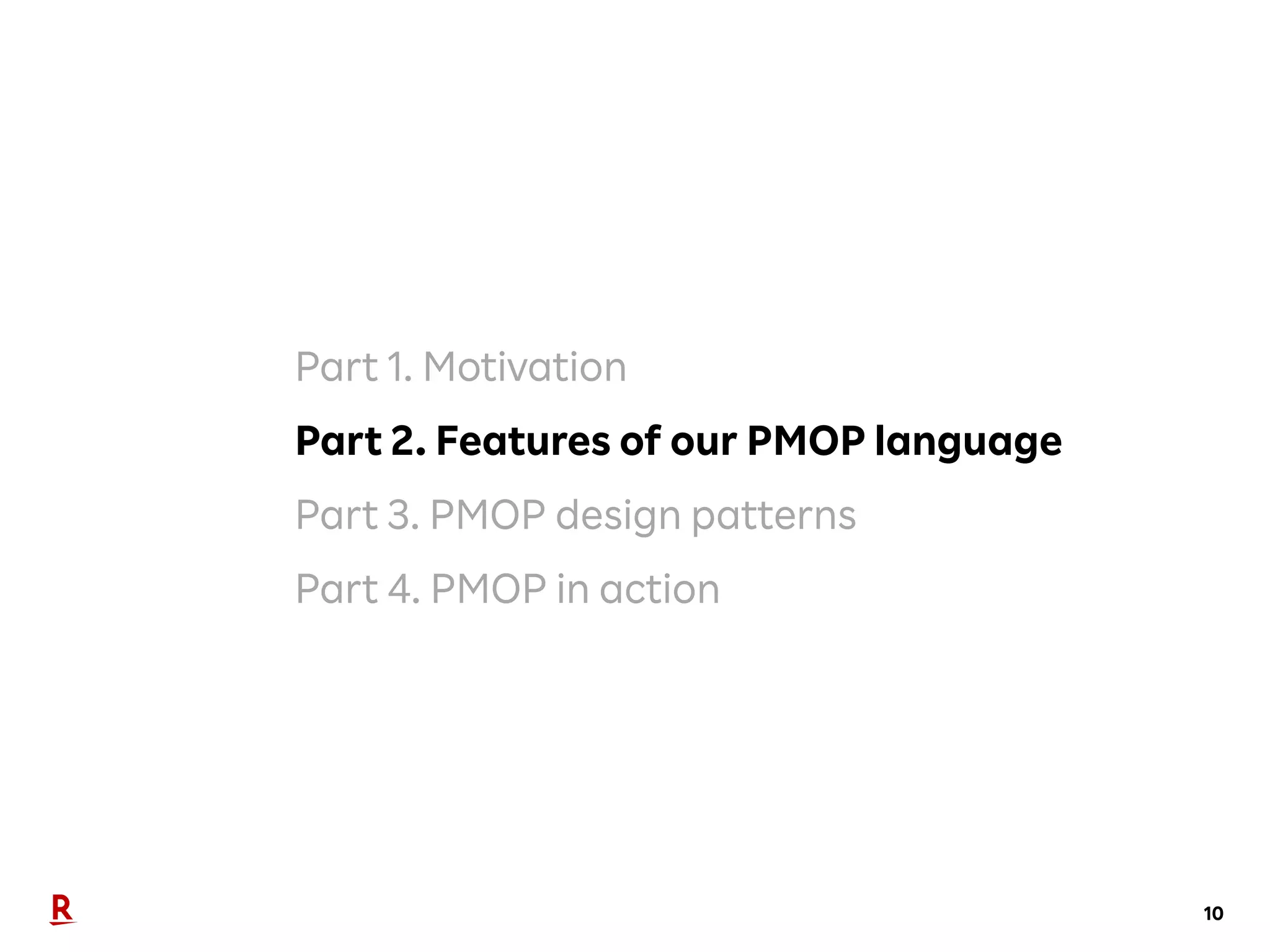

10. 10
Part 1. Motivation
Part 2. Features of our PMOP language
Part 3. PMOP design patterns
Part 4. PMOP in action

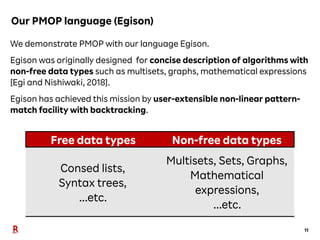

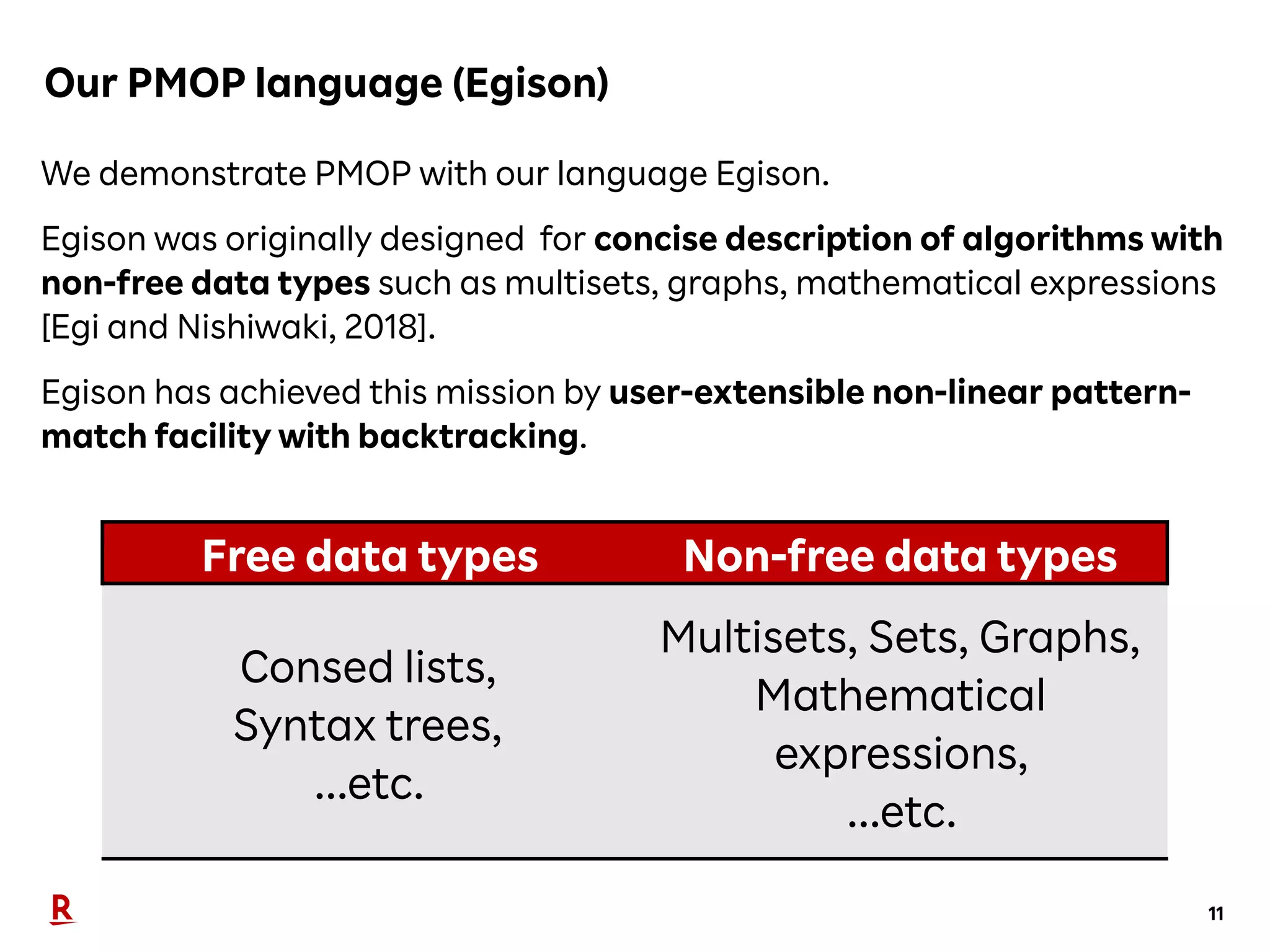

11. Our PMOP language (Egison)
11
We demonstrate PMOP with our language Egison.
Egison was originally designed for concise description of algorithms with
non-free data types such as multisets, graphs, mathematical expressions
[Egi and Nishiwaki, 2018].
Egison has achieved this mission by user-extensible non-linear pattern-
match facility with backtracking.
Free data types Non-free data types
Consed lists,
Syntax trees,
...etc.
Multisets, Sets, Graphs,
Mathematical
expressions,
...etc.

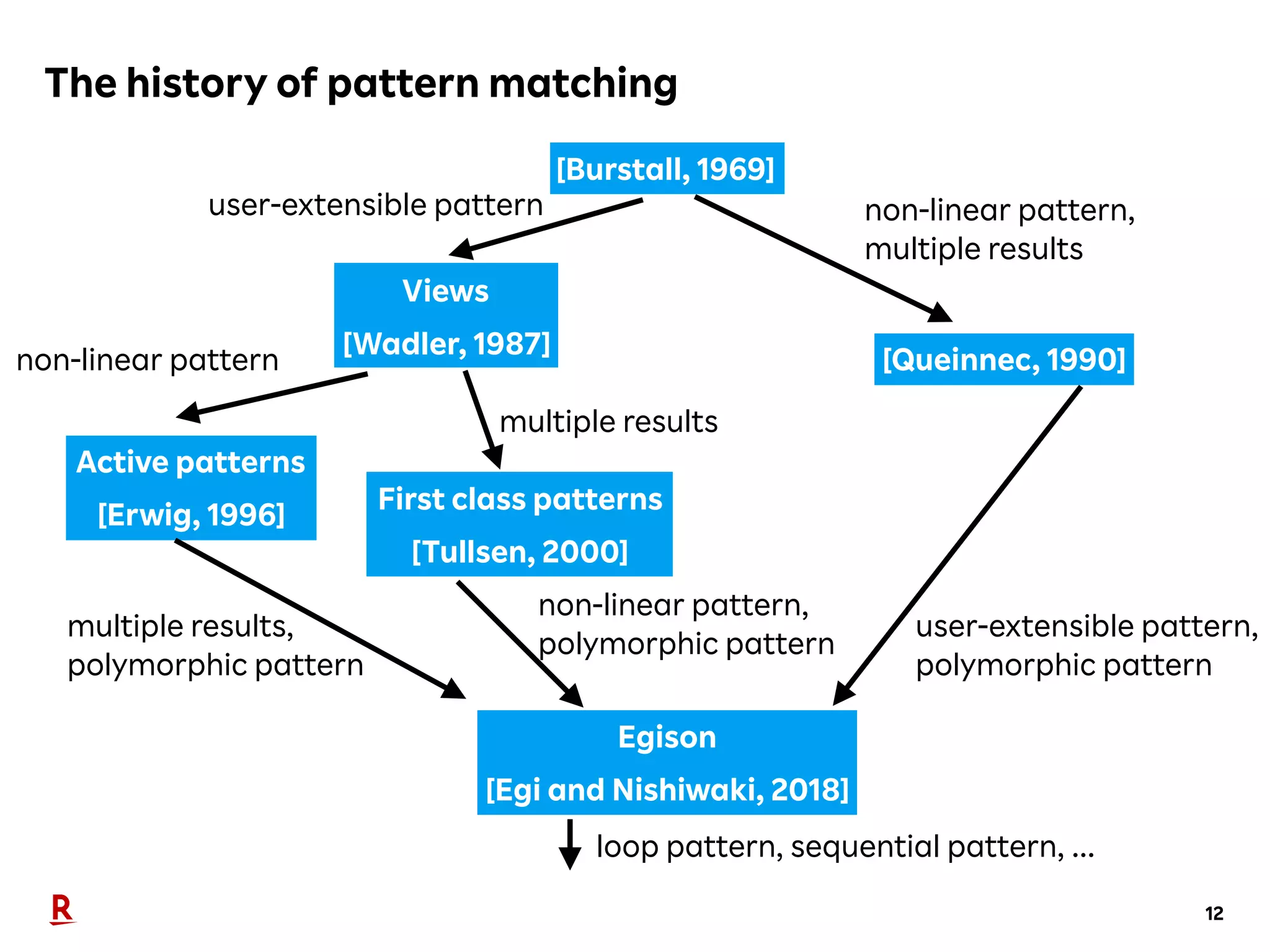

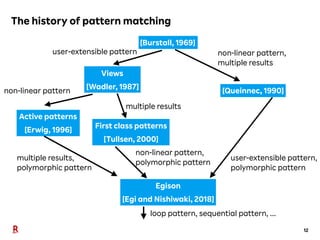

12. The history of pattern matching
12
[Burstall, 1969]
Views
[Wadler, 1987]
Active patterns
[Erwig, 1996]
First class patterns
[Tullsen, 2000]
[Queinnec, 1990]
Egison
[Egi and Nishiwaki, 2018]
non-linear pattern,
multiple results
user-extensible pattern,
polymorphic pattern
user-extensible pattern
non-linear pattern
multiple results
multiple results,
polymorphic pattern
non-linear pattern,
polymorphic pattern
loop pattern, sequential pattern, ...

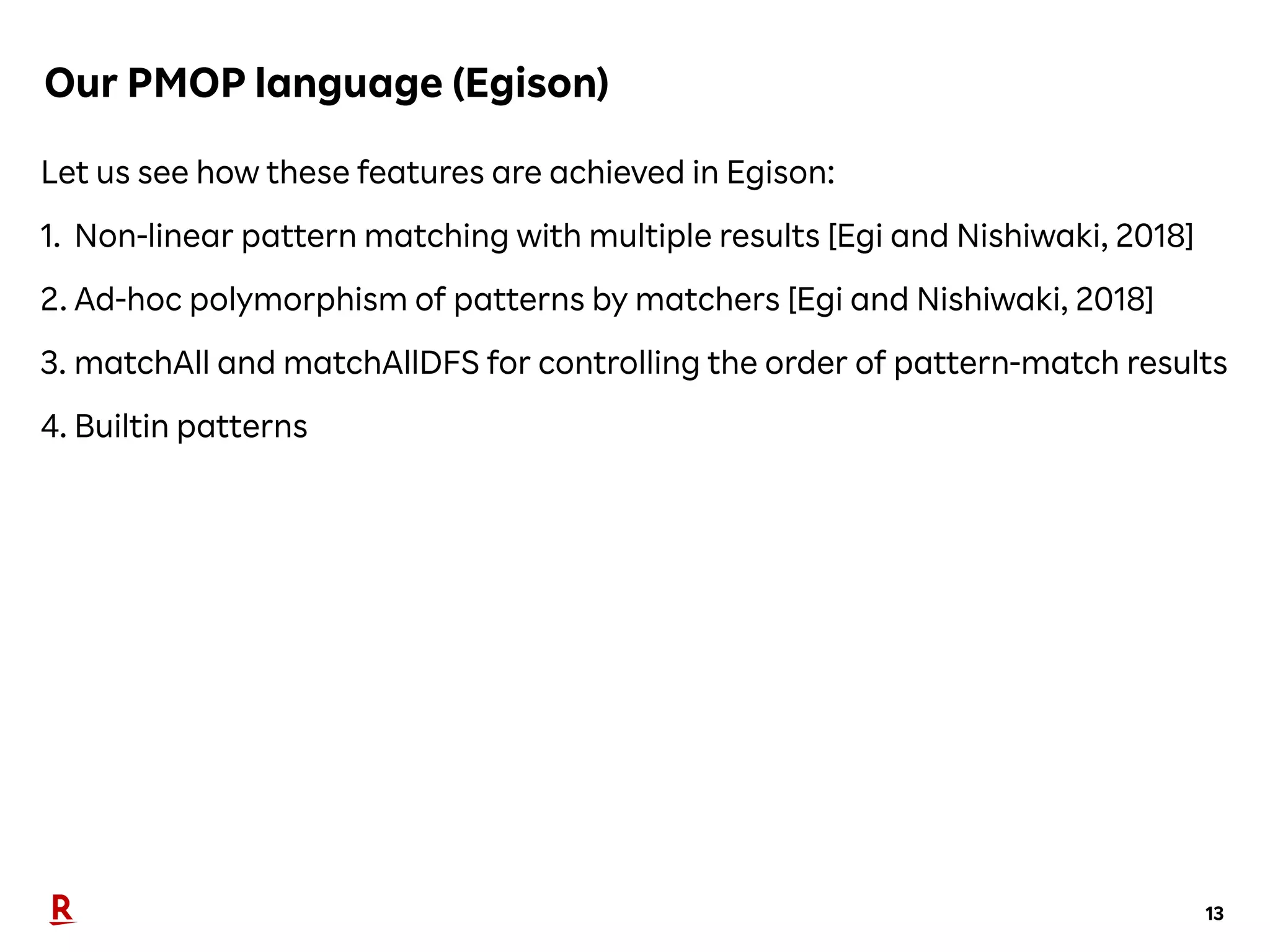

13. Our PMOP language (Egison)
13
Let us see how these features are achieved in Egison:
1. Non-linear pattern matching with multiple results [Egi and Nishiwaki, 2018]
2. Ad-hoc polymorphism of patterns by matchers [Egi and Nishiwaki, 2018]
3. matchAll and matchAllDFS for controlling the order of pattern-match results
4. Builtin patterns

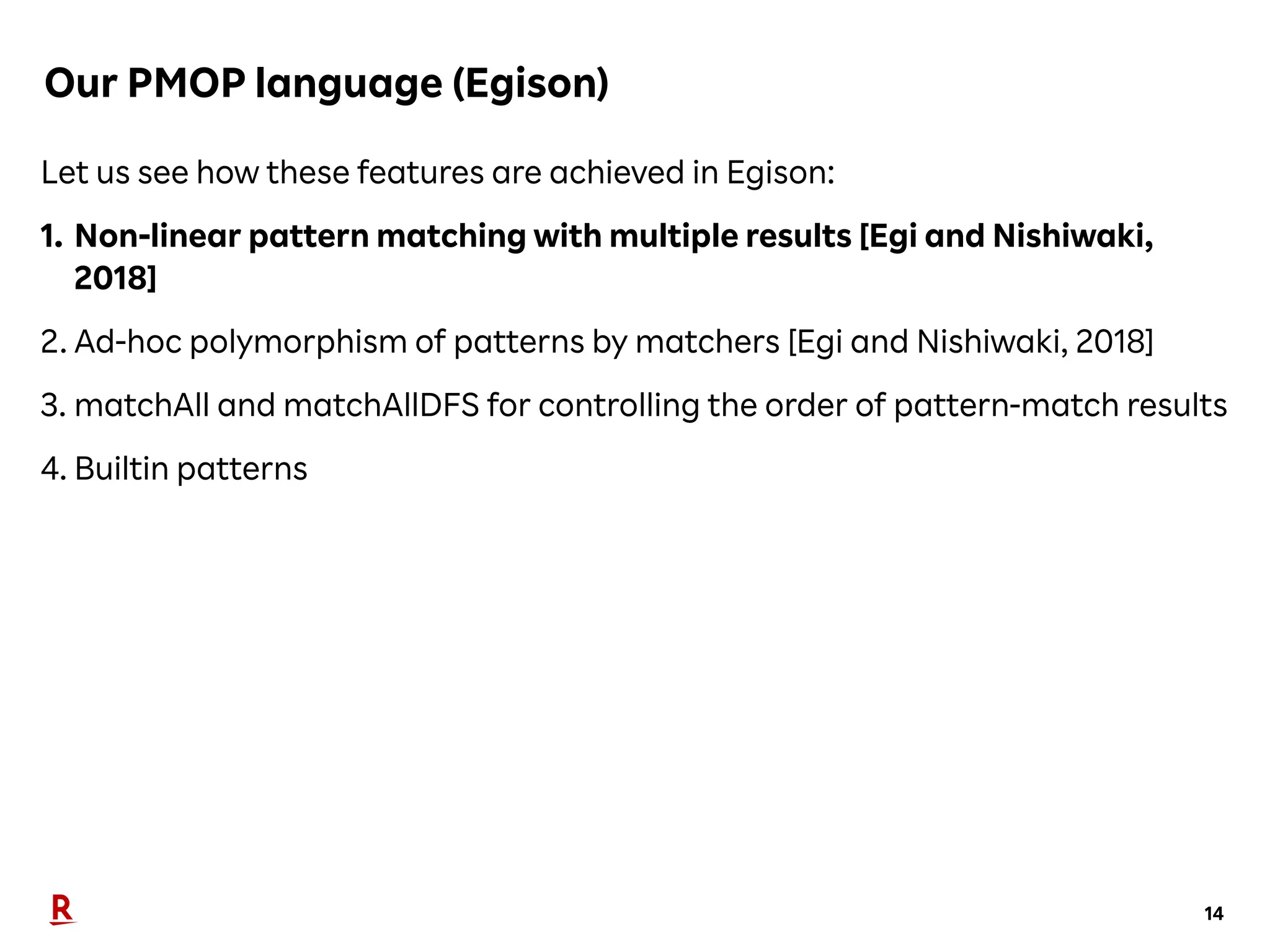

14. Our PMOP language (Egison)
14
Let us see how these features are achieved in Egison:
1. Non-linear pattern matching with multiple results [Egi and Nishiwaki,
2018]
2. Ad-hoc polymorphism of patterns by matchers [Egi and Nishiwaki, 2018]
3. matchAll and matchAllDFS for controlling the order of pattern-match results
4. Builtin patterns

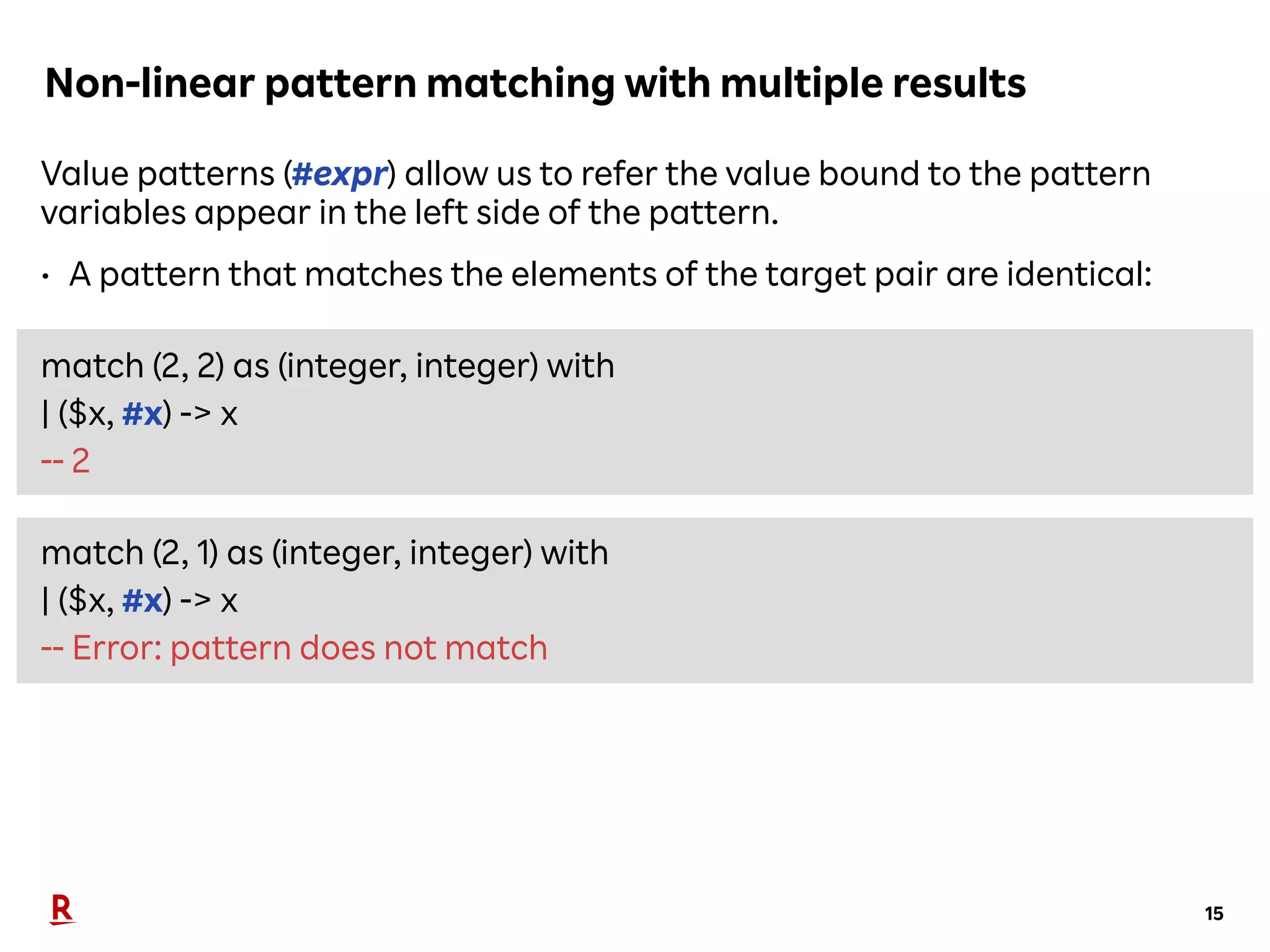

15. Non-linear pattern matching with multiple results
15
Value patterns (#expr) allow us to refer the value bound to the pattern
variables appear in the left side of the pattern.
• A pattern that matches the elements of the target pair are identical:
match (2, 2) as (integer, integer) with
| ($x, #x) -> x
-- 2
match (2, 1) as (integer, integer) with
| ($x, #x) -> x
-- Error: pattern does not match

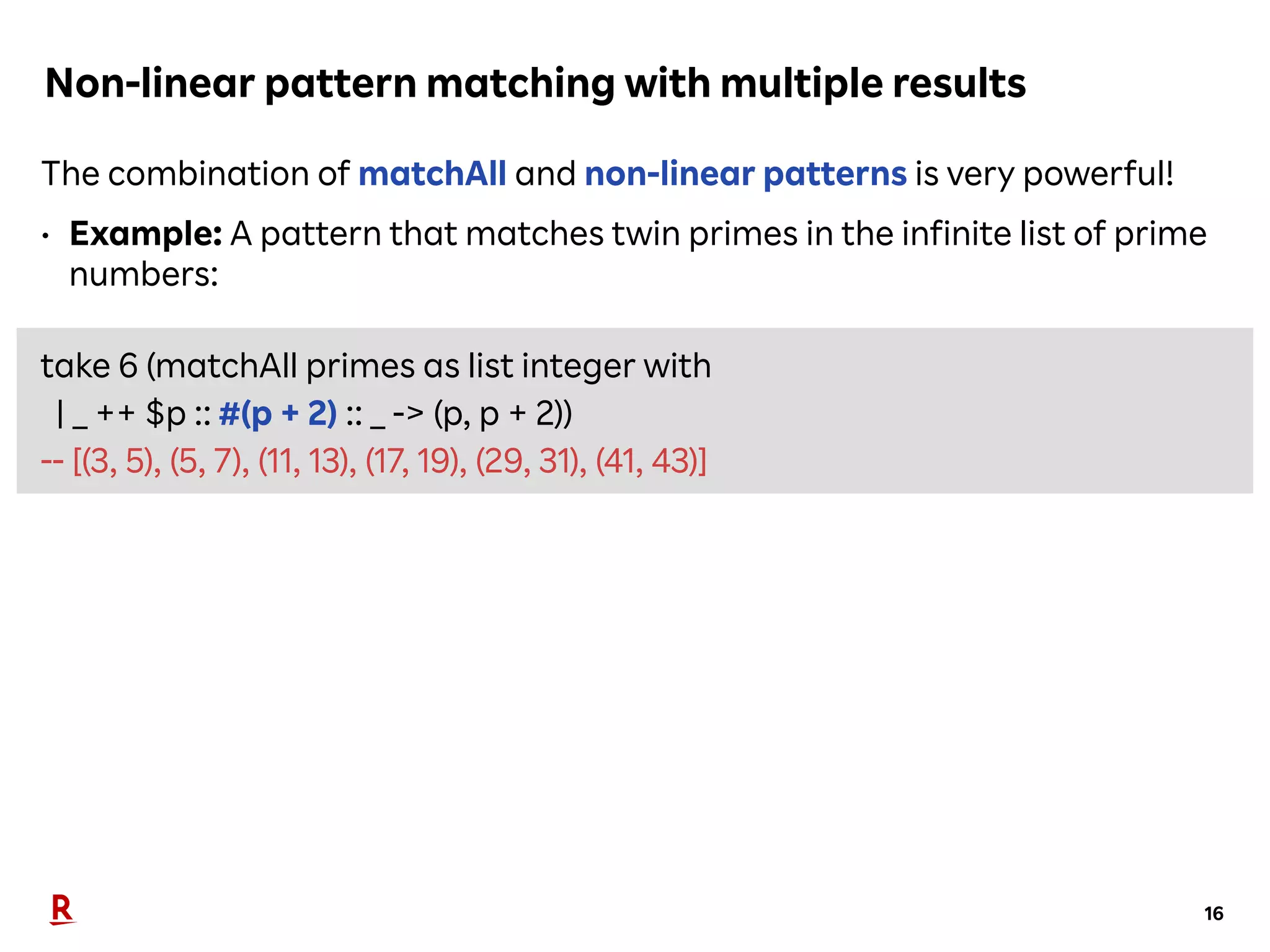

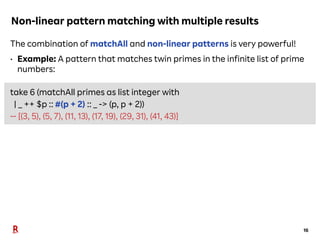

16. Non-linear pattern matching with multiple results
16
The combination of matchAll and non-linear patterns is very powerful!
• Example: A pattern that matches twin primes in the infinite list of prime
numbers:
take 6 (matchAll primes as list integer with
| _ ++ $p :: #(p + 2) :: _ -> (p, p + 2))
-- [(3, 5), (5, 7), (11, 13), (17, 19), (29, 31), (41, 43)]

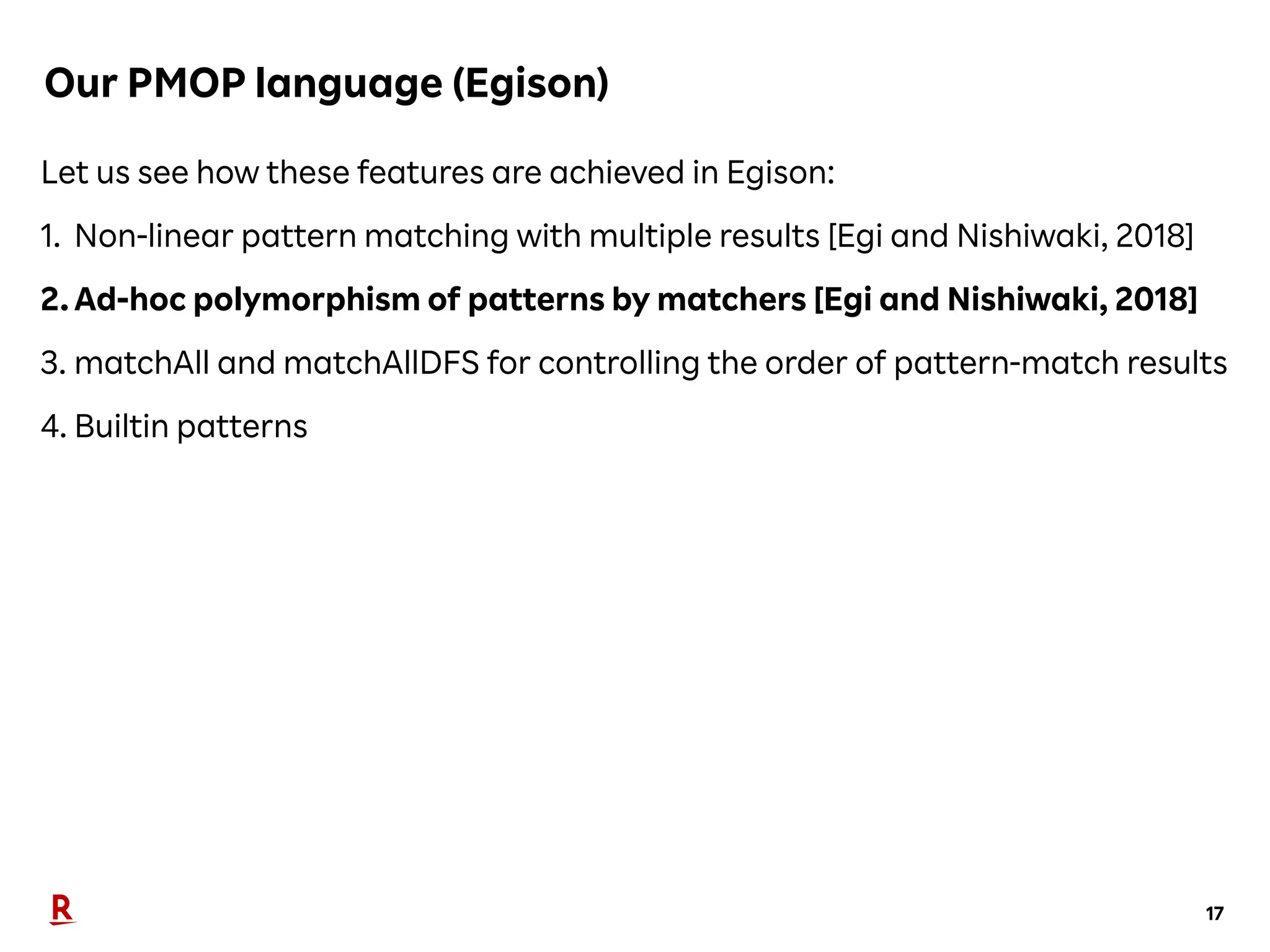

17. Our PMOP language (Egison)
17
Let us see how these features are achieved in Egison:
1. Non-linear pattern matching with multiple results [Egi and Nishiwaki, 2018]
2.Ad-hoc polymorphism of patterns by matchers [Egi and Nishiwaki, 2018]
3. matchAll and matchAllDFS for controlling the order of pattern-match results
4. Builtin patterns

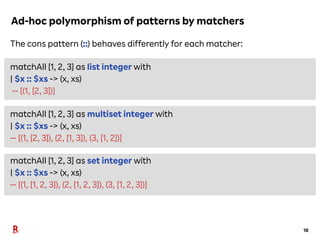

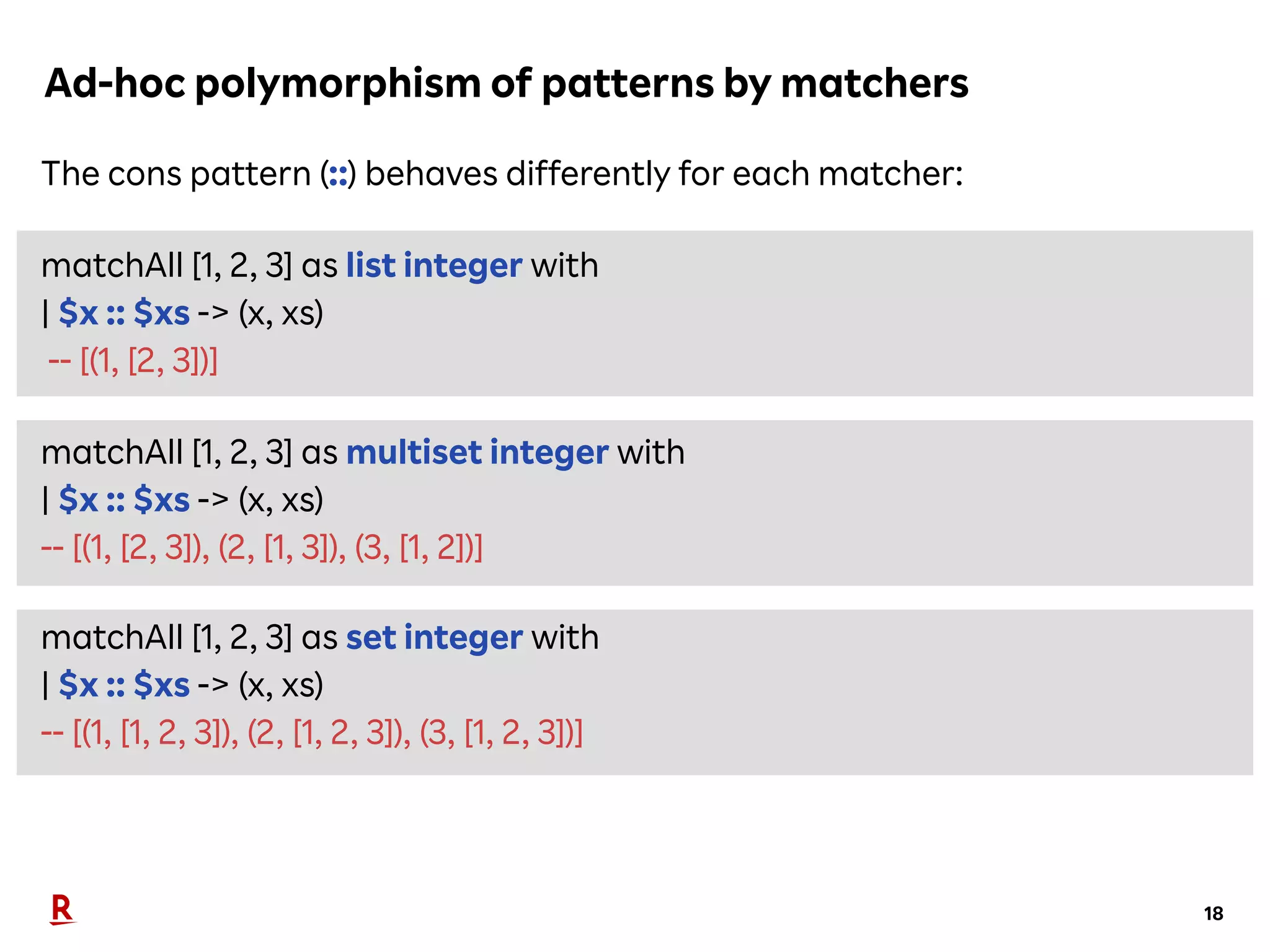

18. Ad-hoc polymorphism of patterns by matchers
18
The cons pattern (::) behaves differently for each matcher:
matchAll [1, 2, 3] as list integer with
| $x :: $xs -> (x, xs)
-- [(1, [2, 3])]
matchAll [1, 2, 3] as multiset integer with
| $x :: $xs -> (x, xs)
-- [(1, [2, 3]), (2, [1, 3]), (3, [1, 2])]
matchAll [1, 2, 3] as set integer with
| $x :: $xs -> (x, xs)
-- [(1, [1, 2, 3]), (2, [1, 2, 3]), (3, [1, 2, 3])]

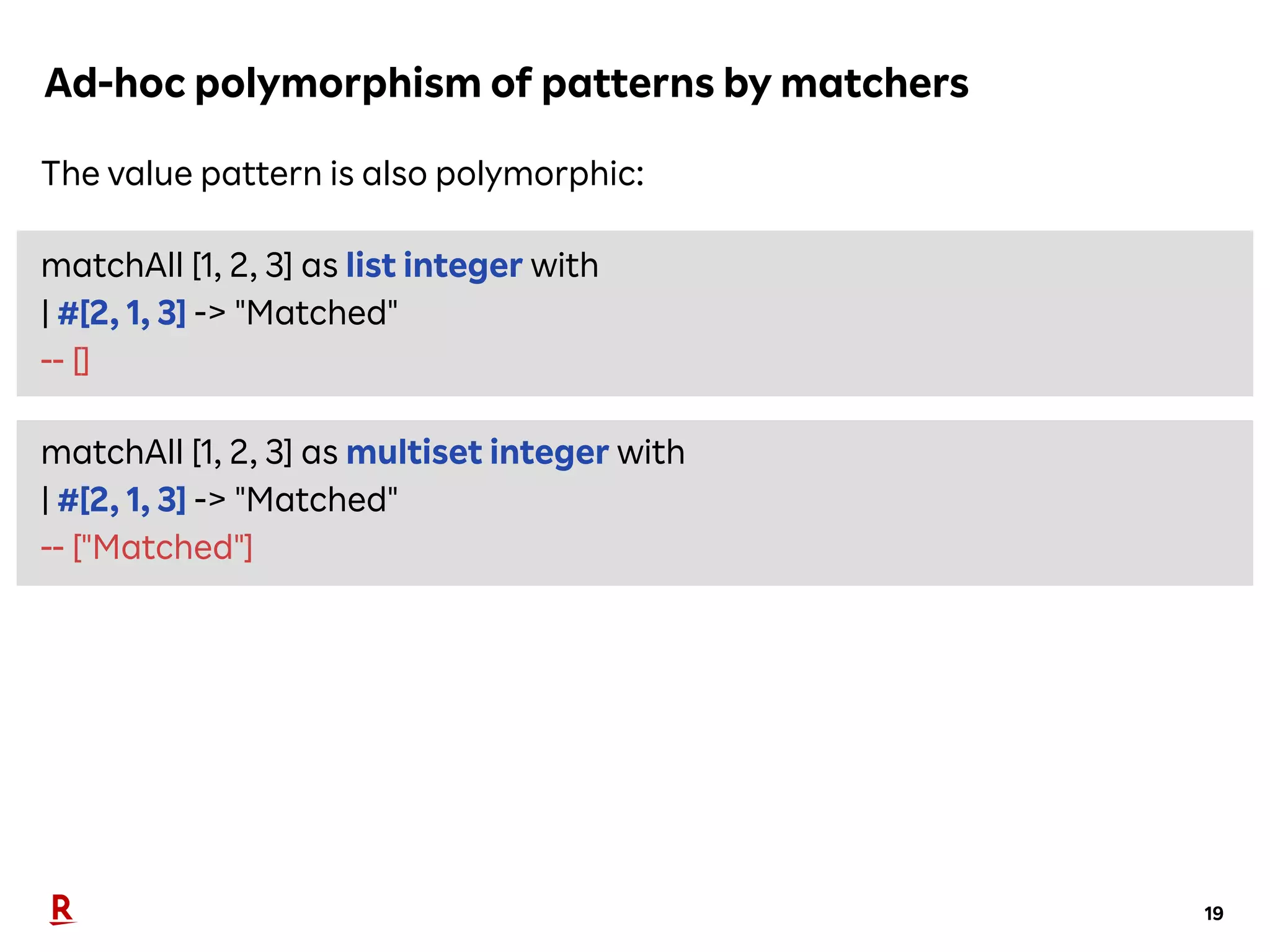

19. Ad-hoc polymorphism of patterns by matchers
19
The value pattern is also polymorphic:
matchAll [1, 2, 3] as list integer with
| #[2, 1, 3] -> "Matched"
-- []
matchAll [1, 2, 3] as multiset integer with
| #[2, 1, 3] -> "Matched"
-- ["Matched"]

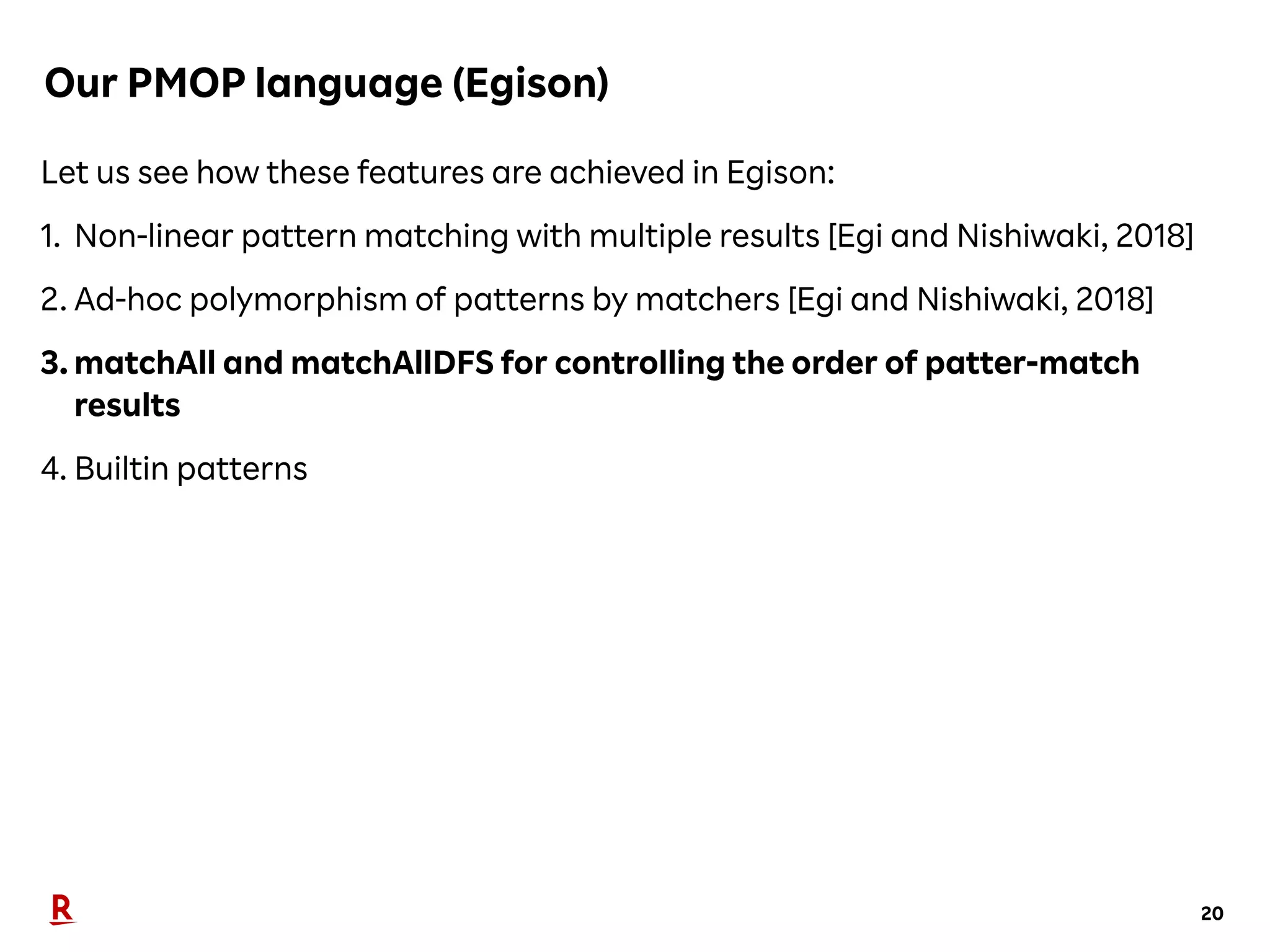

20. Our PMOP language (Egison)
20

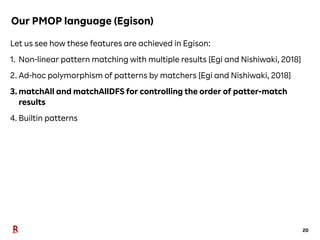

Let us see how these features are achieved in Egison:
1. Non-linear pattern matching with multiple results [Egi and Nishiwaki, 2018]
2. Ad-hoc polymorphism of patterns by matchers [Egi and Nishiwaki, 2018]
3. matchAll and matchAllDFS for controlling the order of patter-match
results
4. Builtin patterns

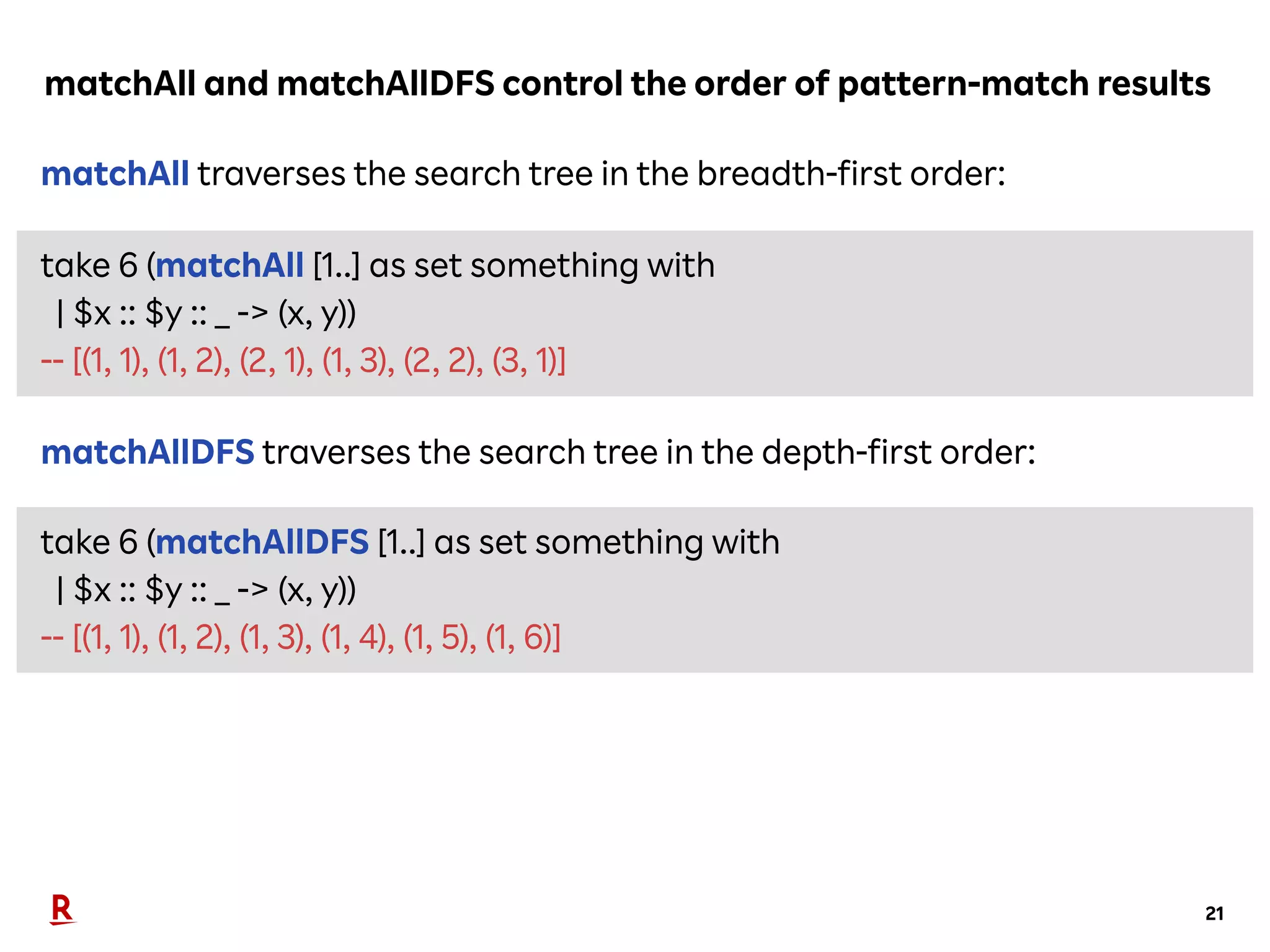

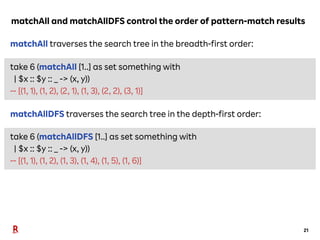

21. matchAll and matchAllDFS control the order of pattern-match results
21
matchAll traverses the search tree in the breadth-first order:
take 6 (matchAll [1..] as set something with
| $x :: $y :: _ -> (x, y))
-- [(1, 1), (1, 2), (2, 1), (1, 3), (2, 2), (3, 1)]
matchAllDFS traverses the search tree in the depth-first order:
take 6 (matchAllDFS [1..] as set something with
| $x :: $y :: _ -> (x, y))
-- [(1, 1), (1, 2), (1, 3), (1, 4), (1, 5), (1, 6)]

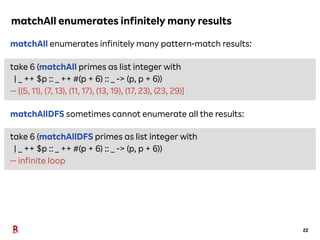

22. matchAll enumerates infinitely many results
22

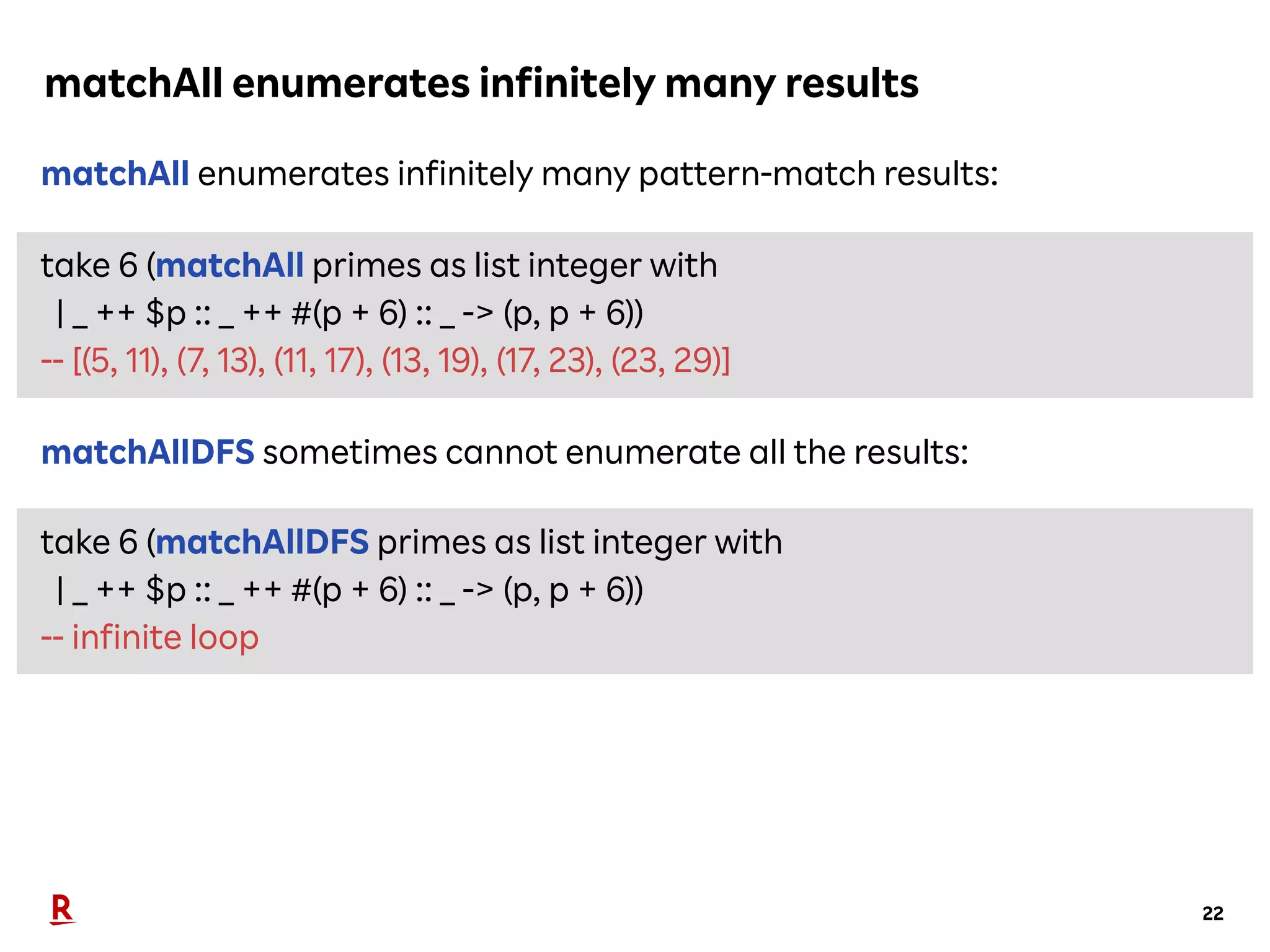

matchAll enumerates infinitely many pattern-match results:
take 6 (matchAll primes as list integer with
| _ ++ $p :: _ ++ #(p + 6) :: _ -> (p, p + 6))
-- [(5, 11), (7, 13), (11, 17), (13, 19), (17, 23), (23, 29)]
matchAllDFS sometimes cannot enumerate all the results:
take 6 (matchAllDFS primes as list integer with
| _ ++ $p :: _ ++ #(p + 6) :: _ -> (p, p + 6))
-- infinite loop

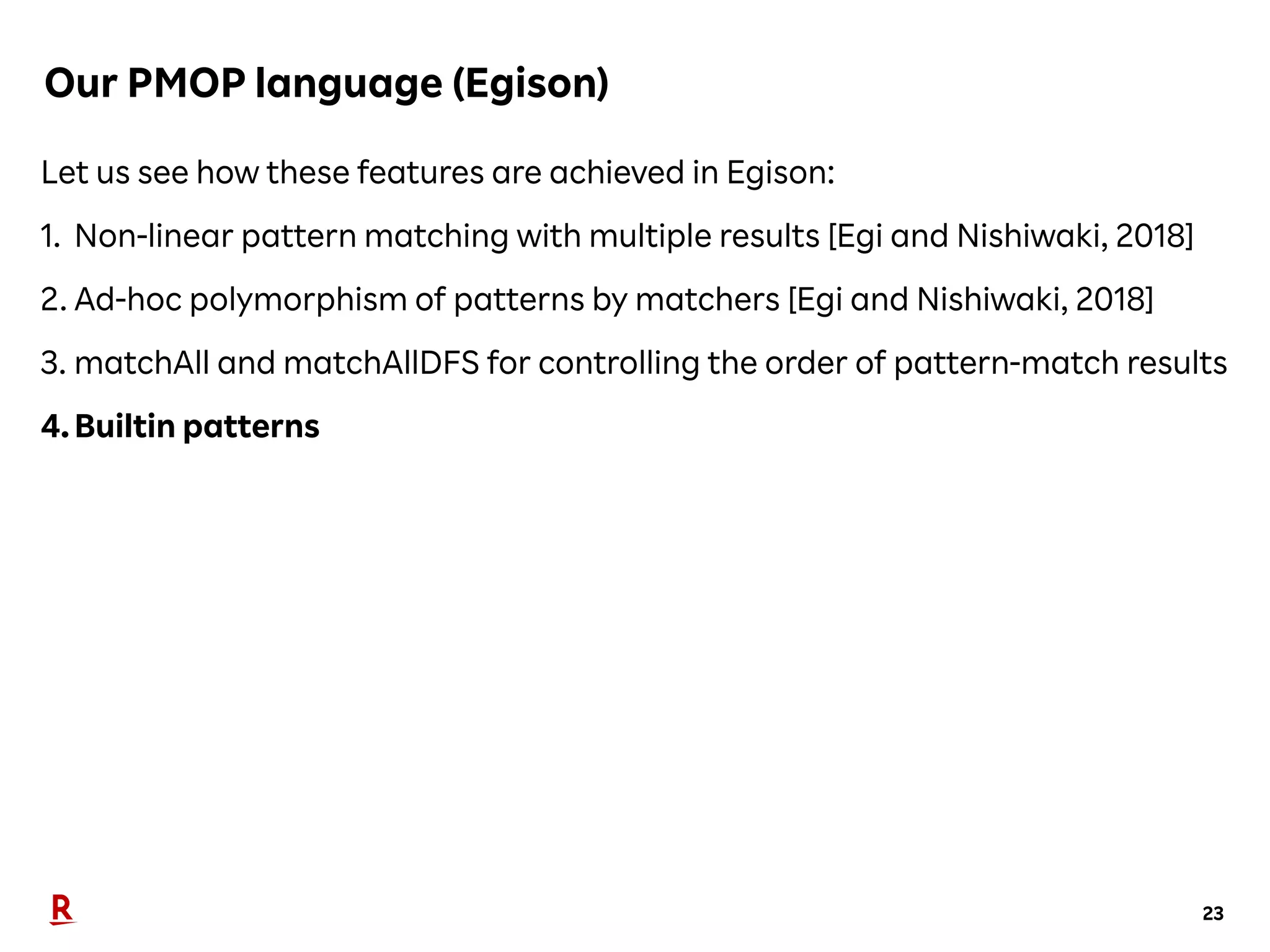

23. Our PMOP language (Egison)
23
Let us see how these features are achieved in Egison:
1. Non-linear pattern matching with multiple results [Egi and Nishiwaki, 2018]
2. Ad-hoc polymorphism of patterns by matchers [Egi and Nishiwaki, 2018]
3. matchAll and matchAllDFS for controlling the order of pattern-match results
4.Builtin patterns

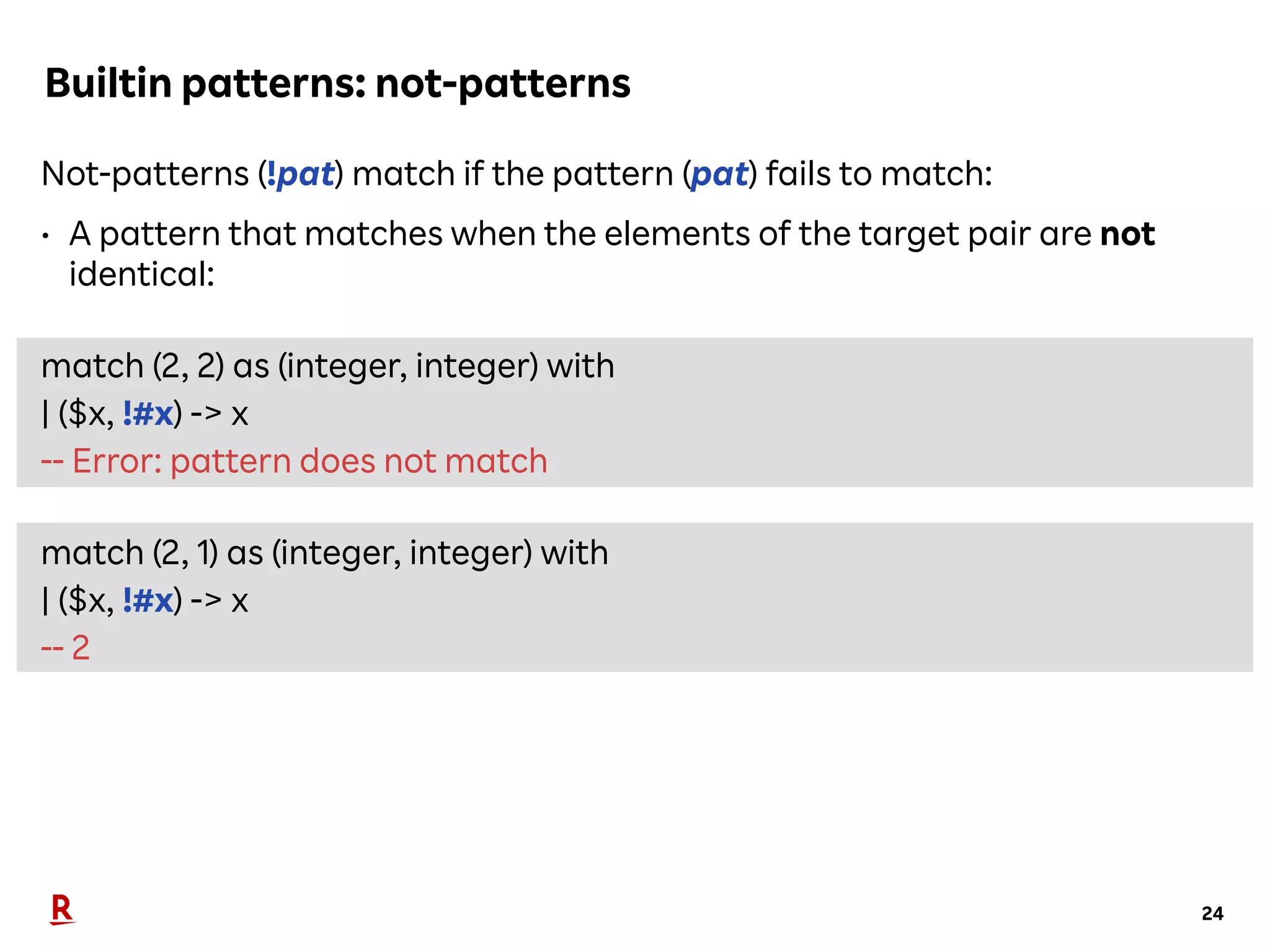

24. Builtin patterns: not-patterns
24
Not-patterns (!pat) match if the pattern (pat) fails to match:
• A pattern that matches when the elements of the target pair are not
identical:
match (2, 2) as (integer, integer) with
| ($x, !#x) -> x
-- Error: pattern does not match
match (2, 1) as (integer, integer) with
| ($x, !#x) -> x
-- 2

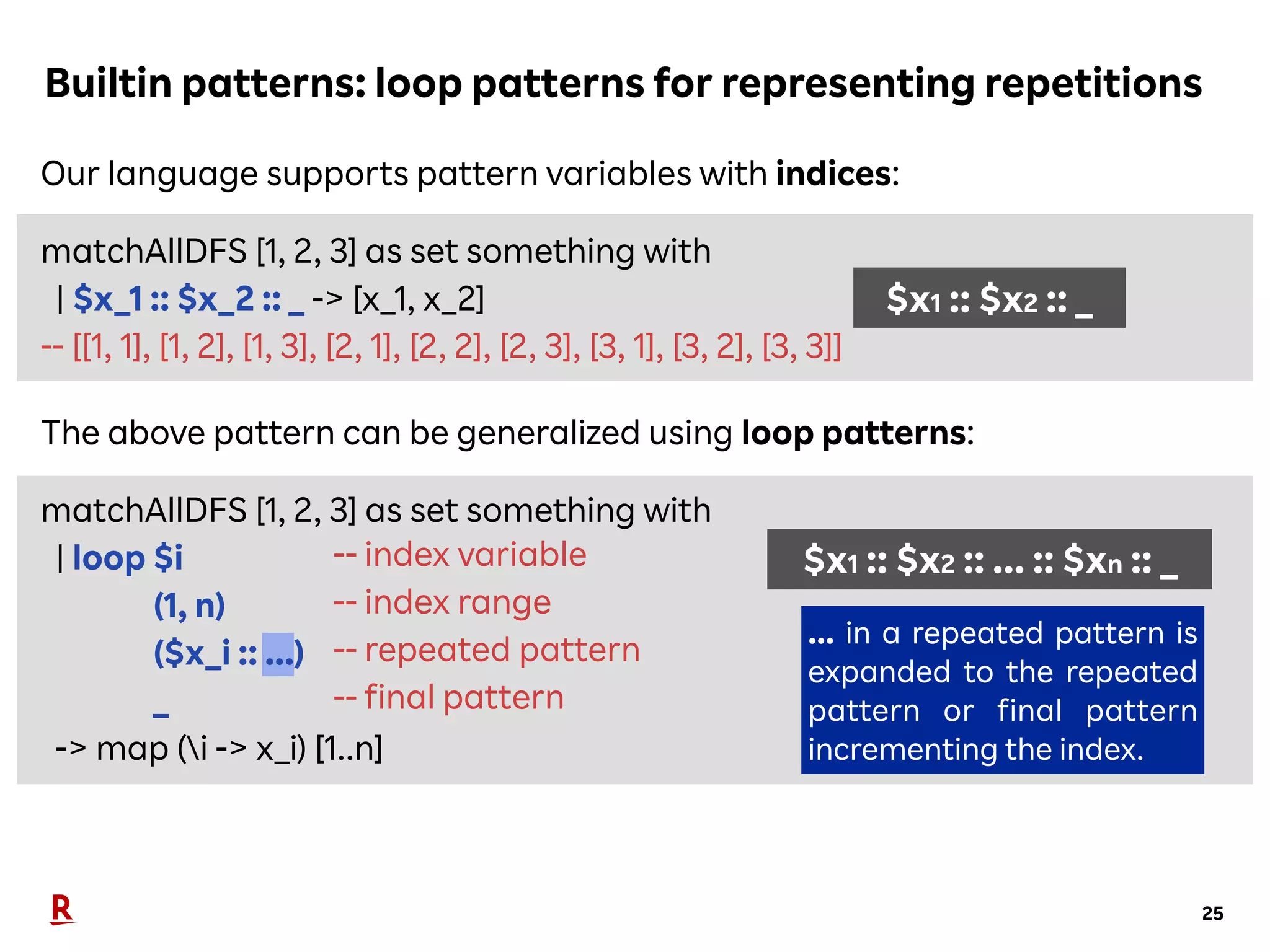

25. Our language supports pattern variables with indices:
matchAllDFS [1, 2, 3] as set something with
| $x_1 :: $x_2 :: _ -> [x_1, x_2]
-- [[1, 1], [1, 2], [1, 3], [2, 1], [2, 2], [2, 3], [3, 1], [3, 2], [3, 3]]
The above pattern can be generalized using loop patterns:
matchAllDFS [1, 2, 3] as set something with
| loop $i
(1, n)
($x_i :: ...)
_
-> map (i -> x_i) [1..n]
Builtin patterns: loop patterns for representing repetitions
25
-- index variable
-- index range
-- repeated pattern
-- final pattern
... in a repeated pattern is
expanded to the repeated
pattern or final pattern
incrementing the index.
$x1 :: $x2 :: ... :: $xn :: _
$x1 :: $x2 :: _

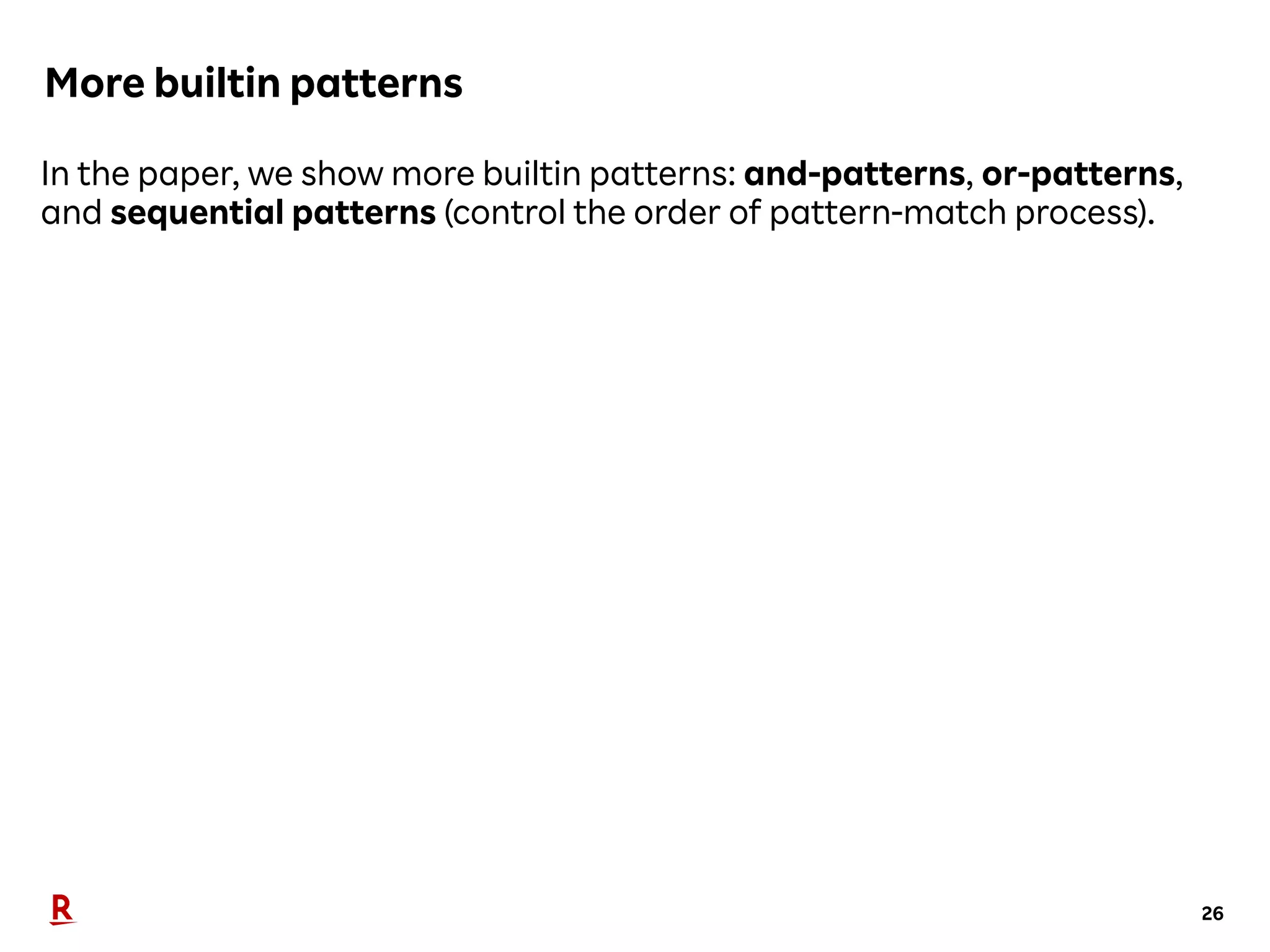

26. More builtin patterns
26

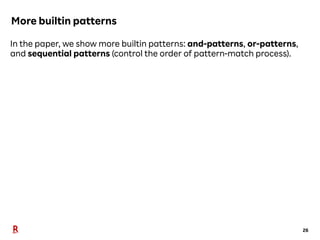

In the paper, we show more builtin patterns: and-patterns, or-patterns,
and sequential patterns (control the order of pattern-match process).

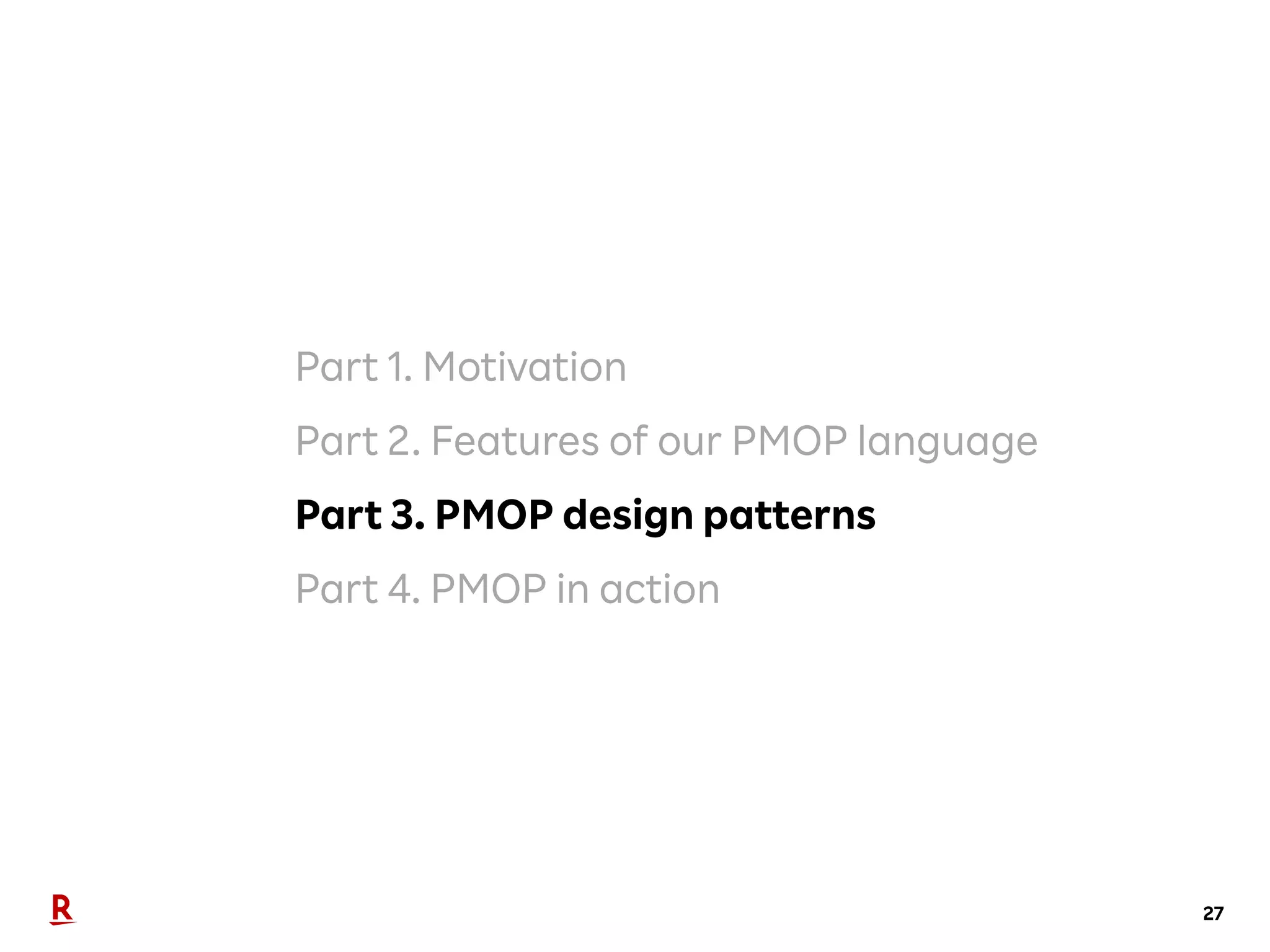

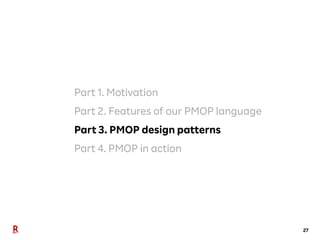

27. 27
Part 1. Motivation
Part 2. Features of our PMOP language
Part 3. PMOP design patterns
Part 4. PMOP in action

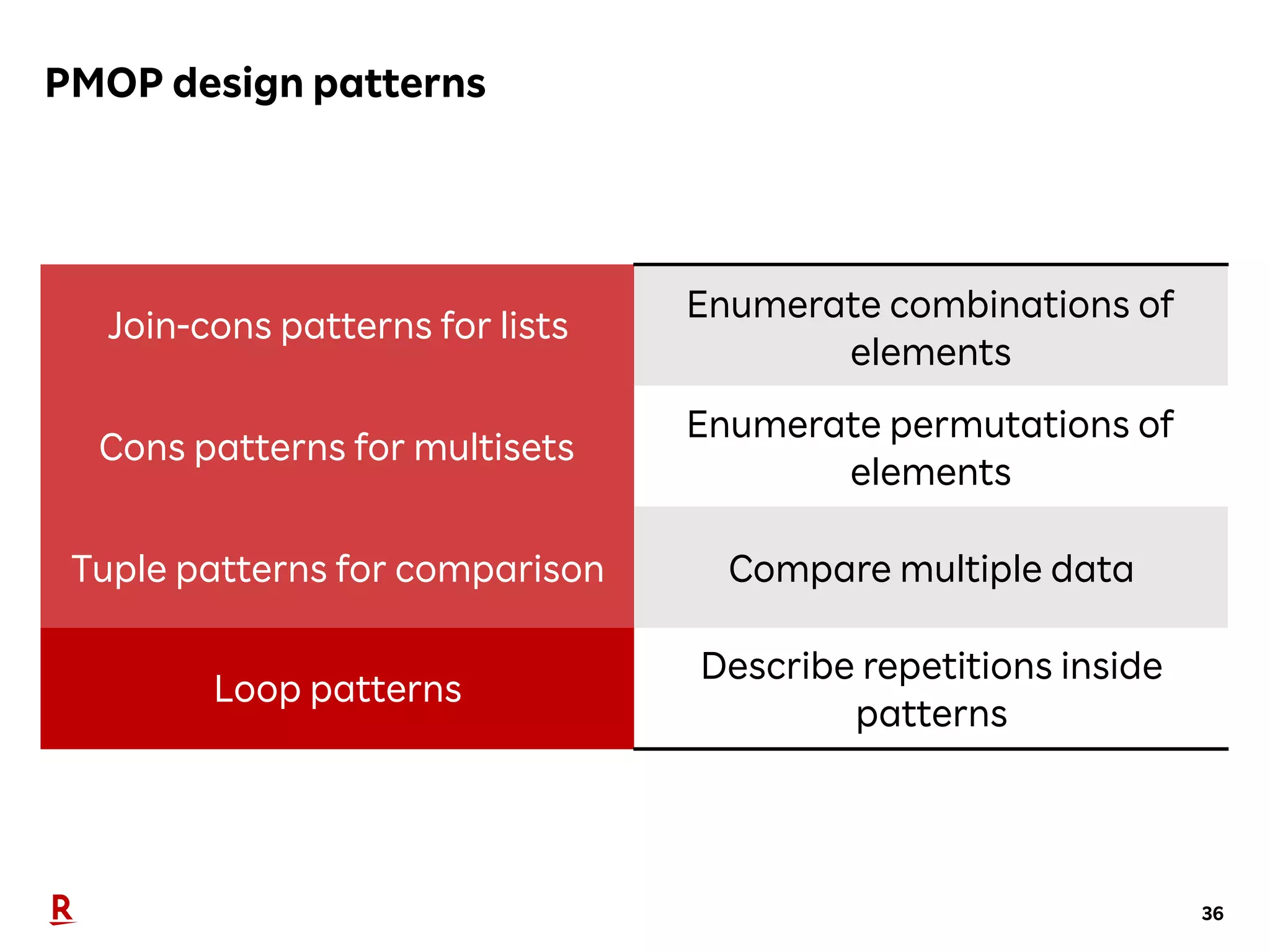

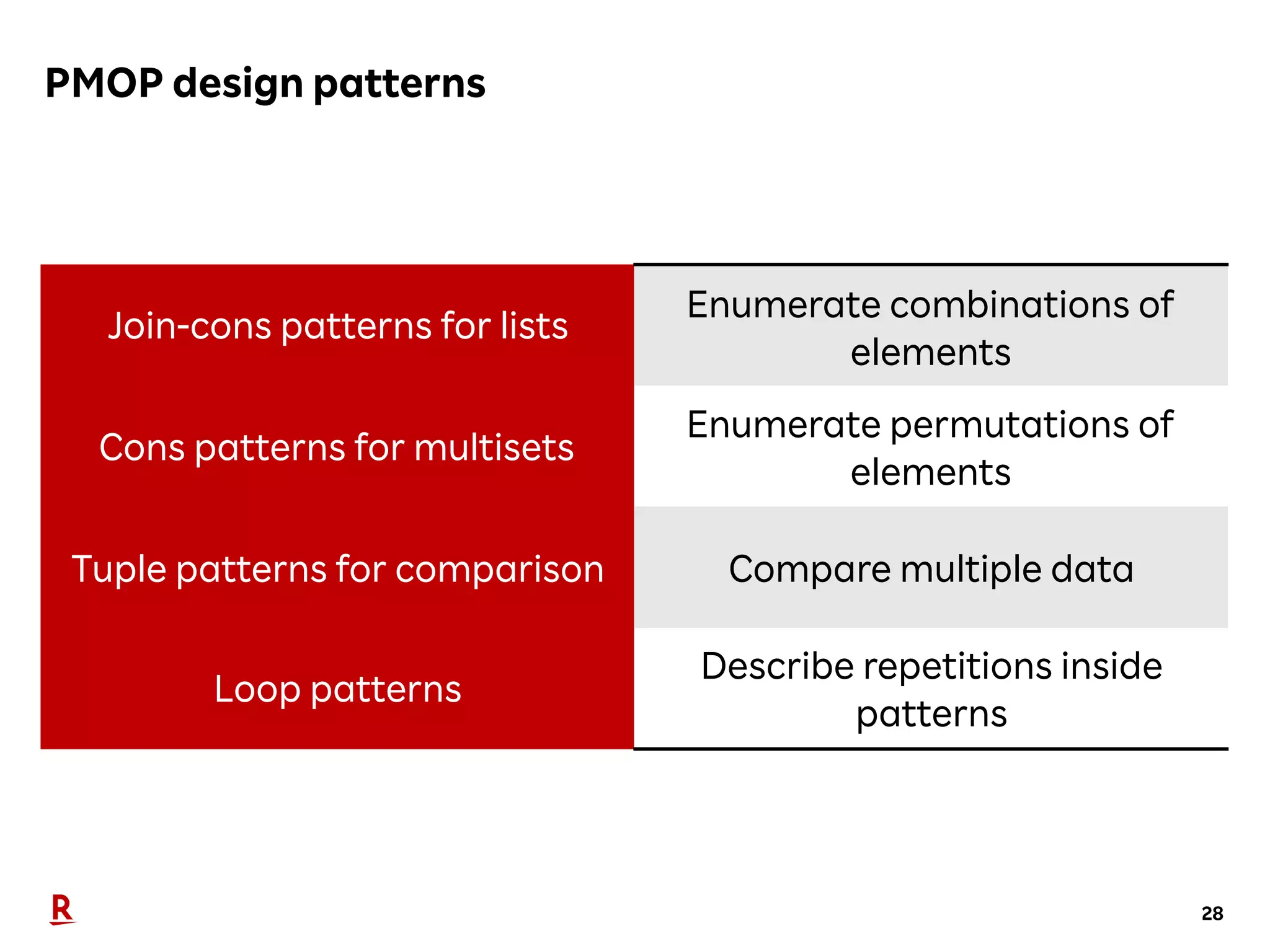

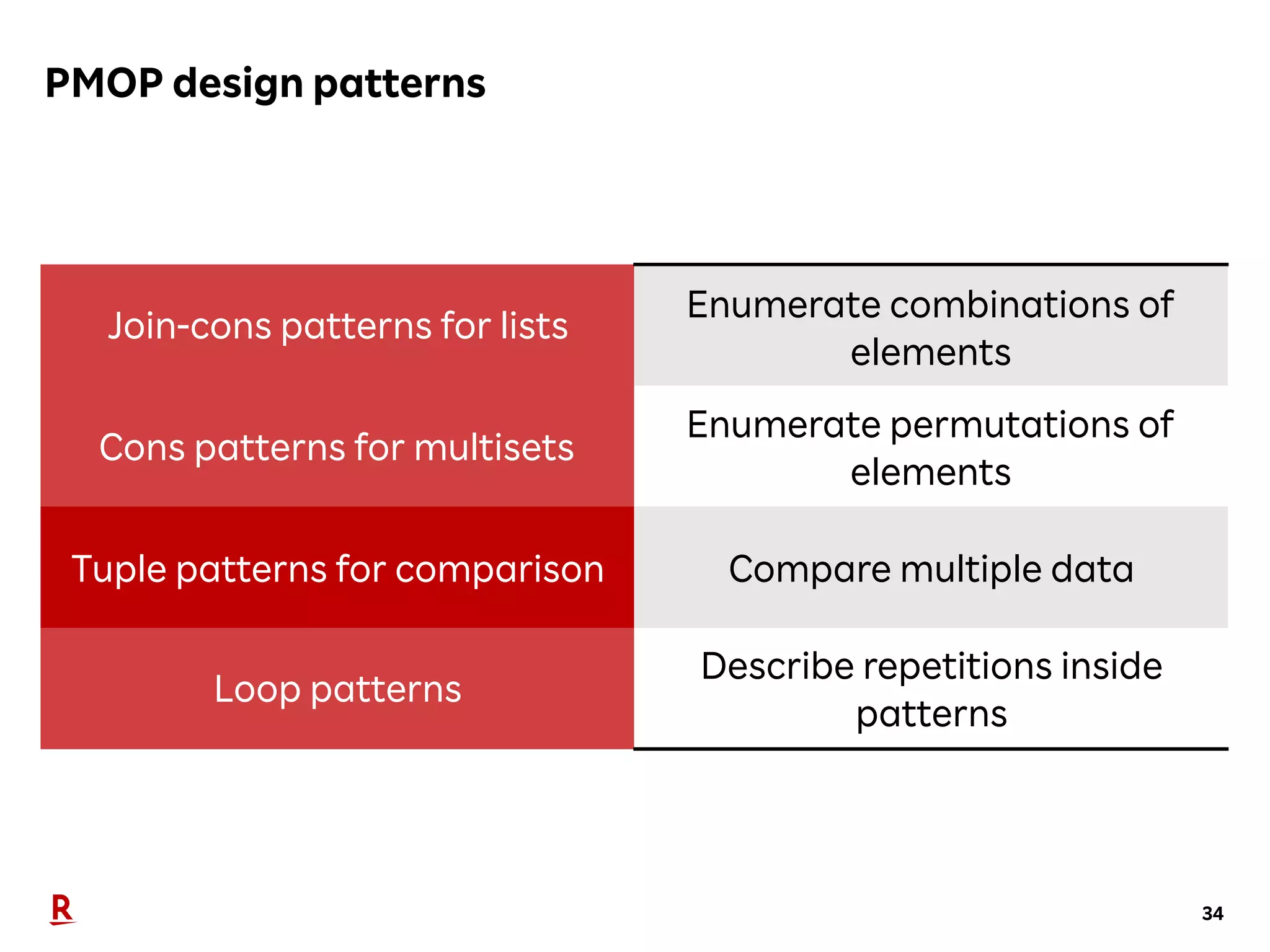

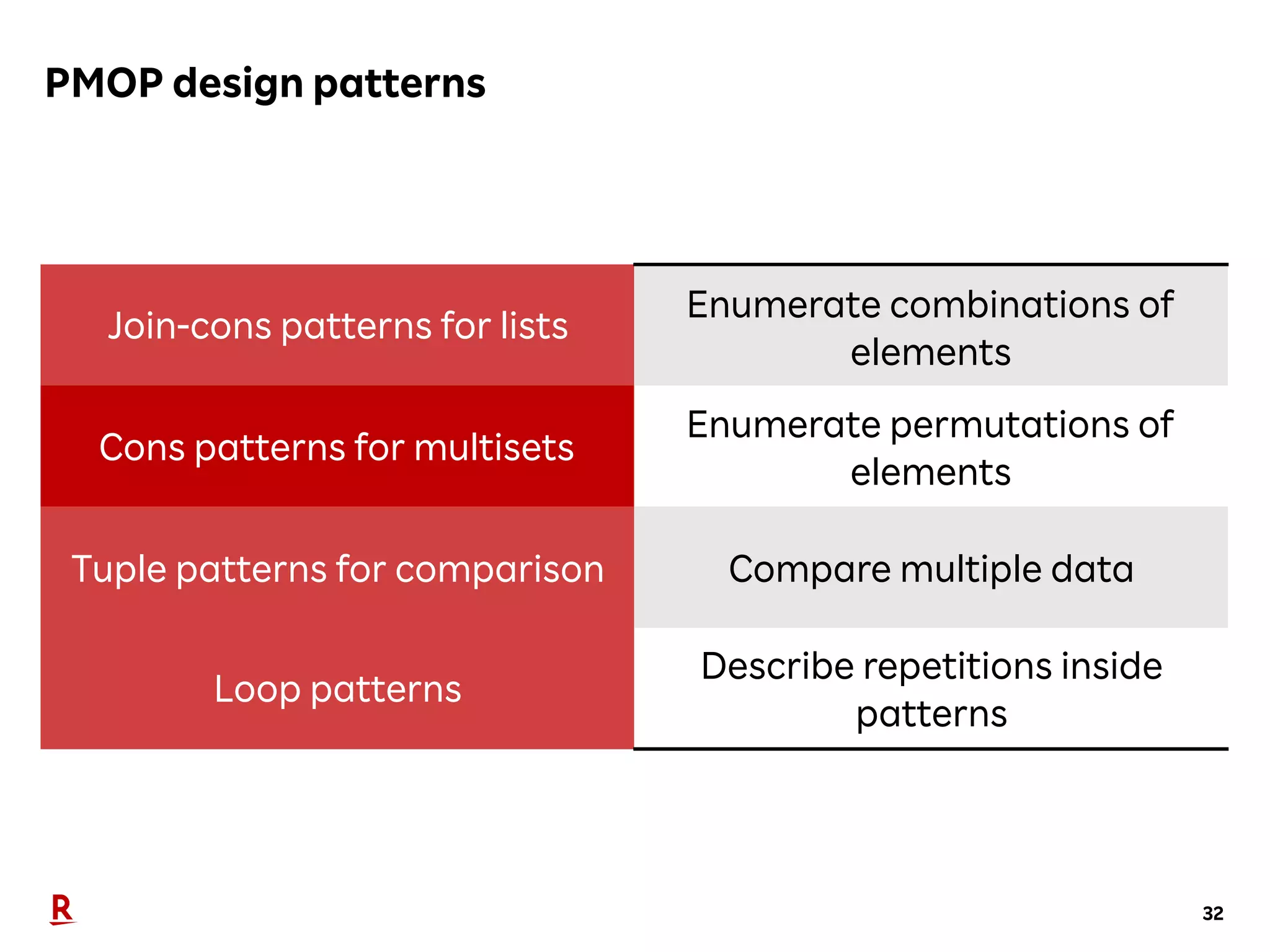

28. PMOP design patterns
28
Join-cons patterns for lists
Enumerate combinations of
elements
Cons patterns for multisets
Enumerate permutations of
elements
Tuple patterns for comparison Compare multiple data
Loop patterns
Describe repetitions inside
patterns

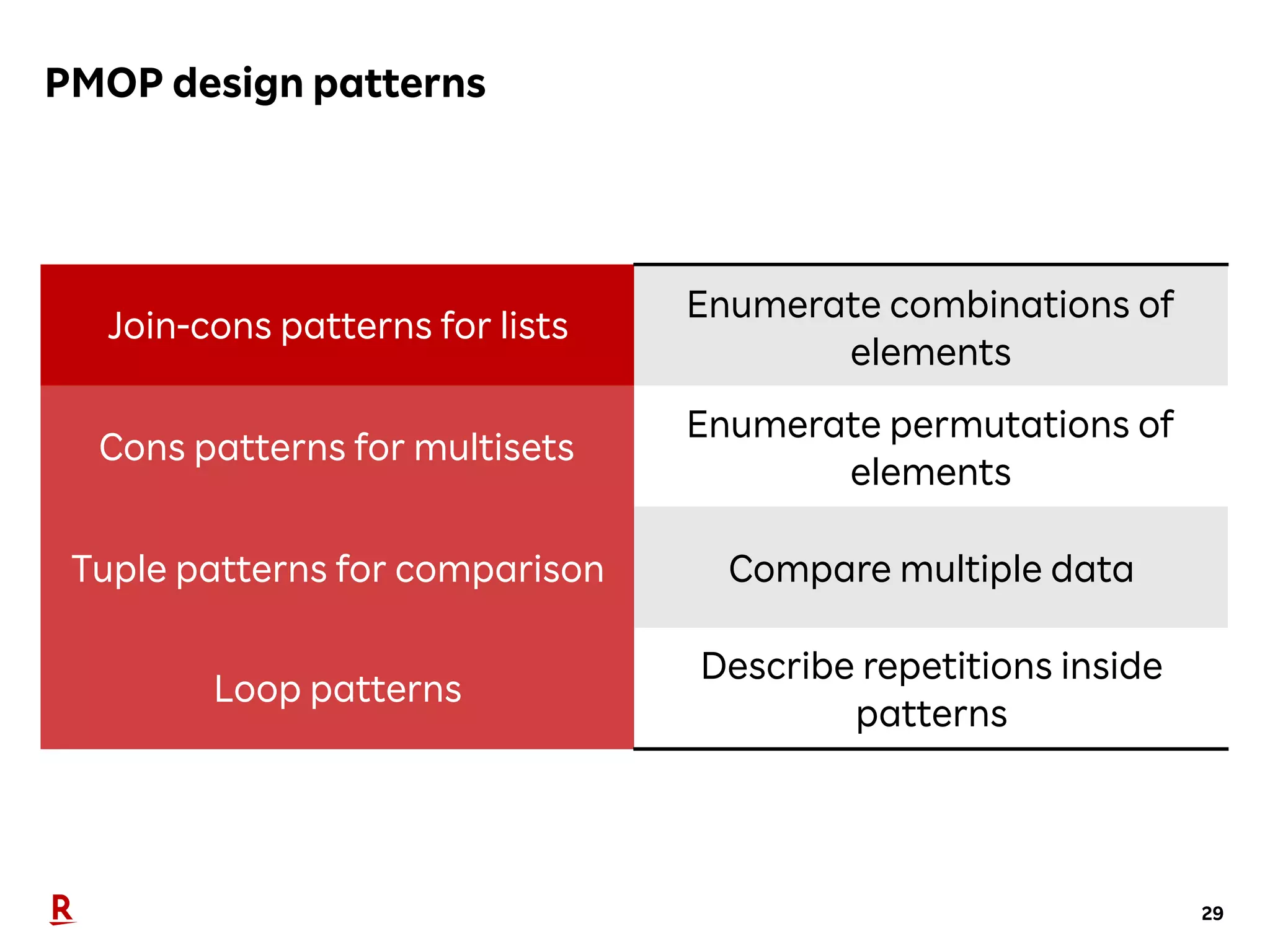

29. PMOP design patterns
29
Join-cons patterns for lists
Enumerate combinations of
elements
Cons patterns for multisets
Enumerate permutations of
elements
Tuple patterns for comparison Compare multiple data
Loop patterns
Describe repetitions inside
patterns

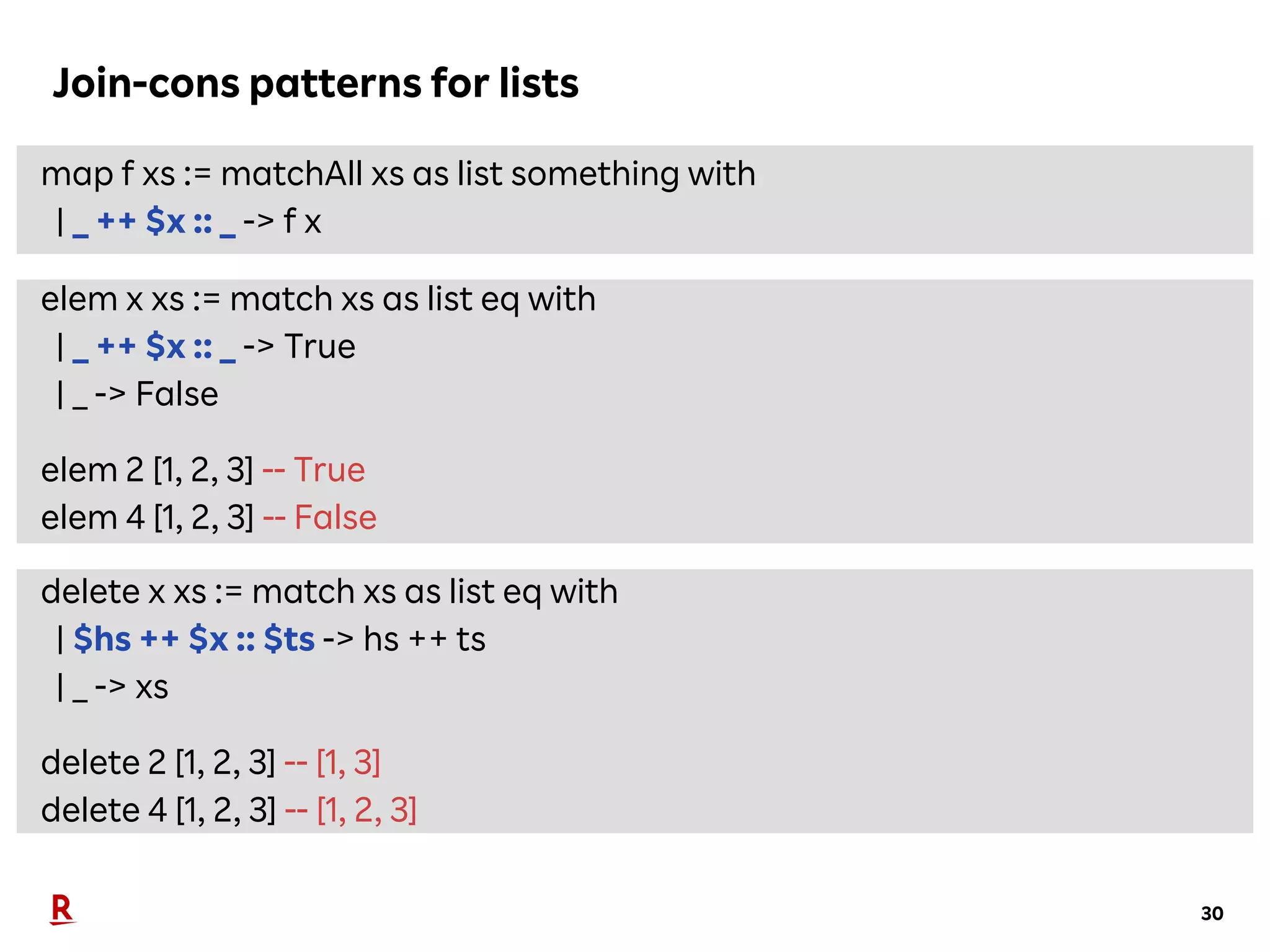

30. Join-cons patterns for lists
30
map f xs := matchAll xs as list something with
| _ ++ $x :: _ -> f x
elem x xs := match xs as list eq with
| _ ++ $x :: _ -> True
| _ -> False
elem 2 [1, 2, 3] -- True
elem 4 [1, 2, 3] -- False
delete x xs := match xs as list eq with
| $hs ++ $x :: $ts -> hs ++ ts
| _ -> xs
delete 2 [1, 2, 3] -- [1, 3]
delete 4 [1, 2, 3] -- [1, 2, 3]

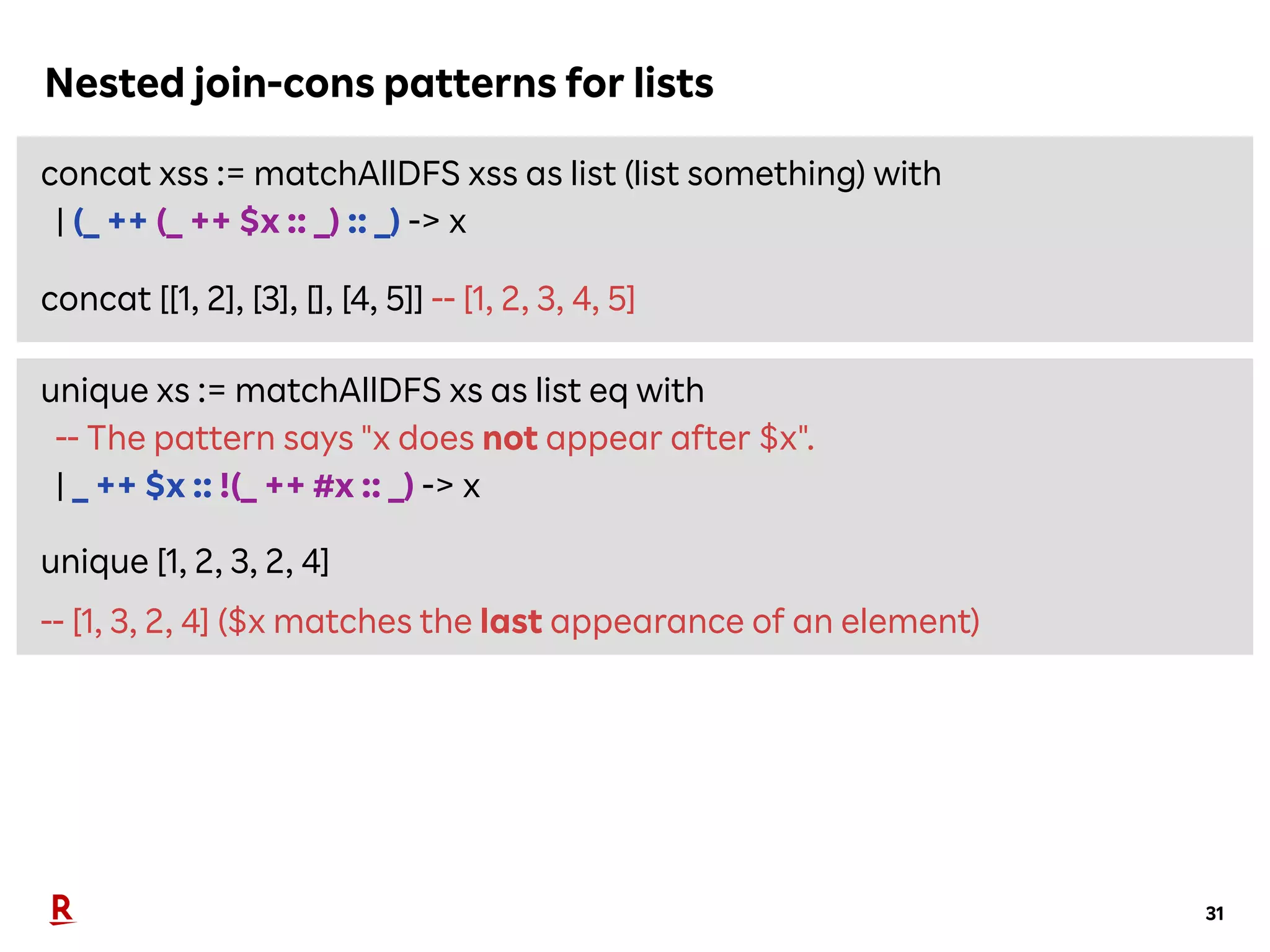

31. Nested join-cons patterns for lists
31
concat xss := matchAllDFS xss as list (list something) with
| (_ ++ (_ ++ $x :: _) :: _) -> x
concat [[1, 2], [3], [], [4, 5]] -- [1, 2, 3, 4, 5]
unique xs := matchAllDFS xs as list eq with
-- The pattern says "x does not appear after $x".
| _ ++ $x :: !(_ ++ #x :: _) -> x
unique [1, 2, 3, 2, 4]
-- [1, 3, 2, 4] ($x matches the last appearance of an element)

32. PMOP design patterns
32
Join-cons patterns for lists
Enumerate combinations of
elements
Cons patterns for multisets
Enumerate permutations of
elements
Tuple patterns for comparison Compare multiple data
Loop patterns
Describe repetitions inside
patterns

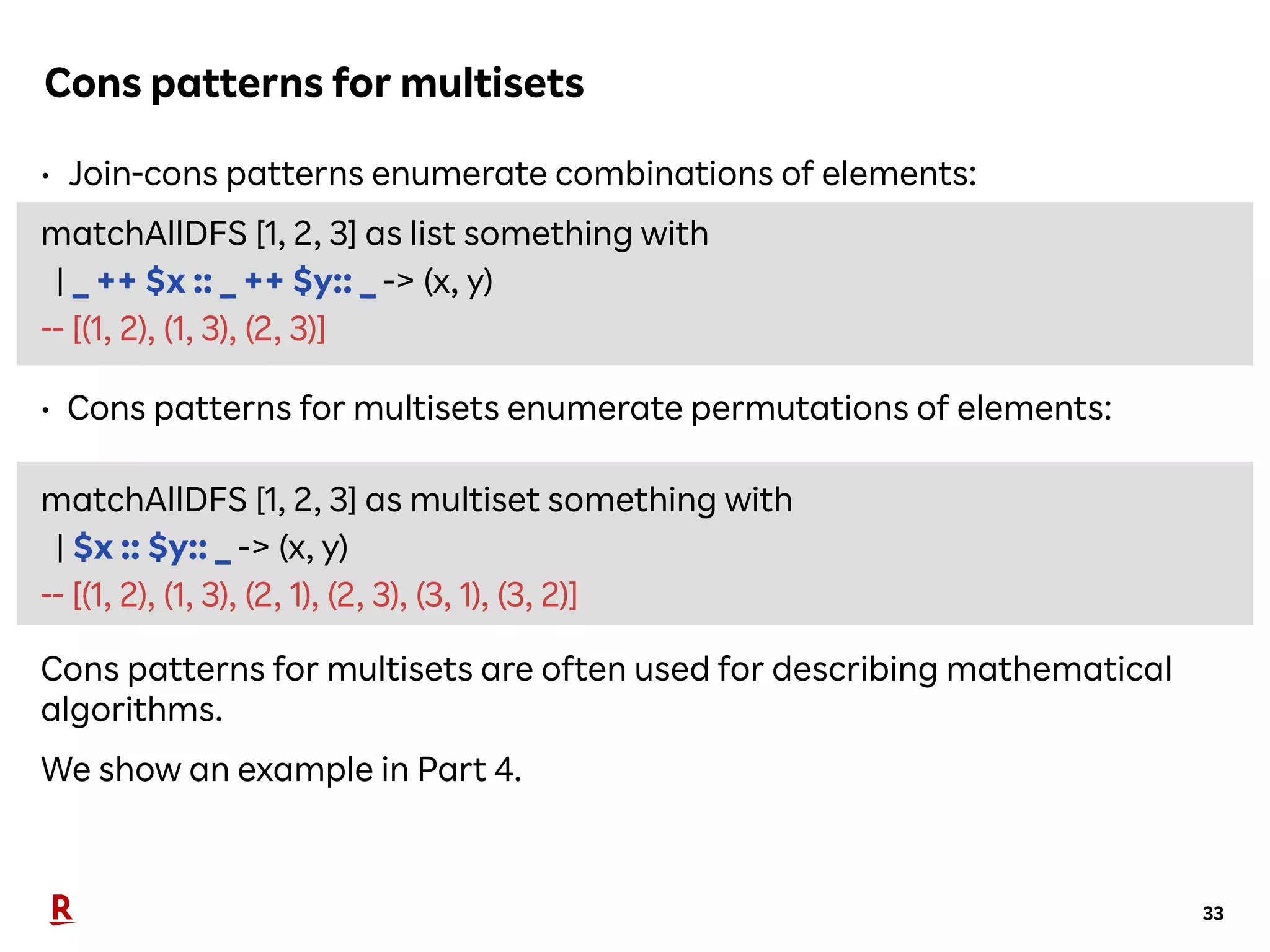

33. Cons patterns for multisets
33

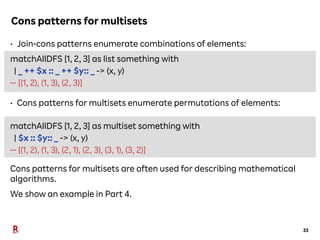

• Join-cons patterns enumerate combinations of elements:
matchAllDFS [1, 2, 3] as list something with
| _ ++ $x :: _ ++ $y:: _ -> (x, y)
-- [(1, 2), (1, 3), (2, 3)]
• Cons patterns for multisets enumerate permutations of elements:
matchAllDFS [1, 2, 3] as multiset something with
| $x :: $y:: _ -> (x, y)
-- [(1, 2), (1, 3), (2, 1), (2, 3), (3, 1), (3, 2)]
Cons patterns for multisets are often used for describing mathematical
algorithms.
We show an example in Part 4.

34. PMOP design patterns
34
Join-cons patterns for lists
Enumerate combinations of
elements
Cons patterns for multisets
Enumerate permutations of
elements
Tuple patterns for comparison Compare multiple data
Loop patterns
Describe repetitions inside
patterns

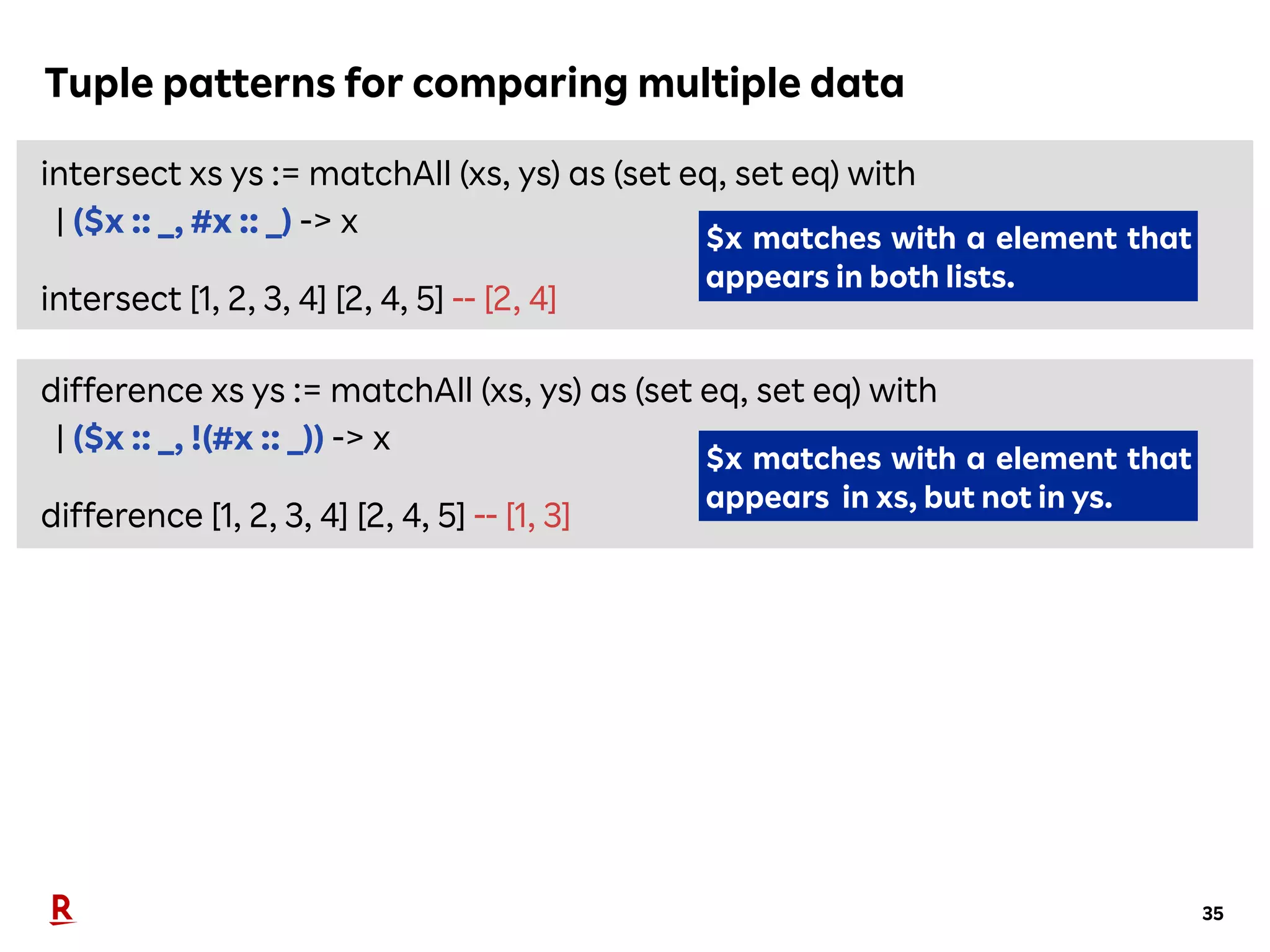

35. Tuple patterns for comparing multiple data
35
intersect xs ys := matchAll (xs, ys) as (set eq, set eq) with
| ($x :: _, #x :: _) -> x
intersect [1, 2, 3, 4] [2, 4, 5] -- [2, 4]
difference xs ys := matchAll (xs, ys) as (set eq, set eq) with
| ($x :: _, !(#x :: _)) -> x
difference [1, 2, 3, 4] [2, 4, 5] -- [1, 3]
$x matches with a element that
appears in both lists.
$x matches with a element that
appears in xs, but not in ys.

36. PMOP design patterns
36
Join-cons patterns for lists
Enumerate combinations of
elements
Cons patterns for multisets
Enumerate permutations of
elements
Tuple patterns for comparison Compare multiple data
Loop patterns
Describe repetitions inside
patterns

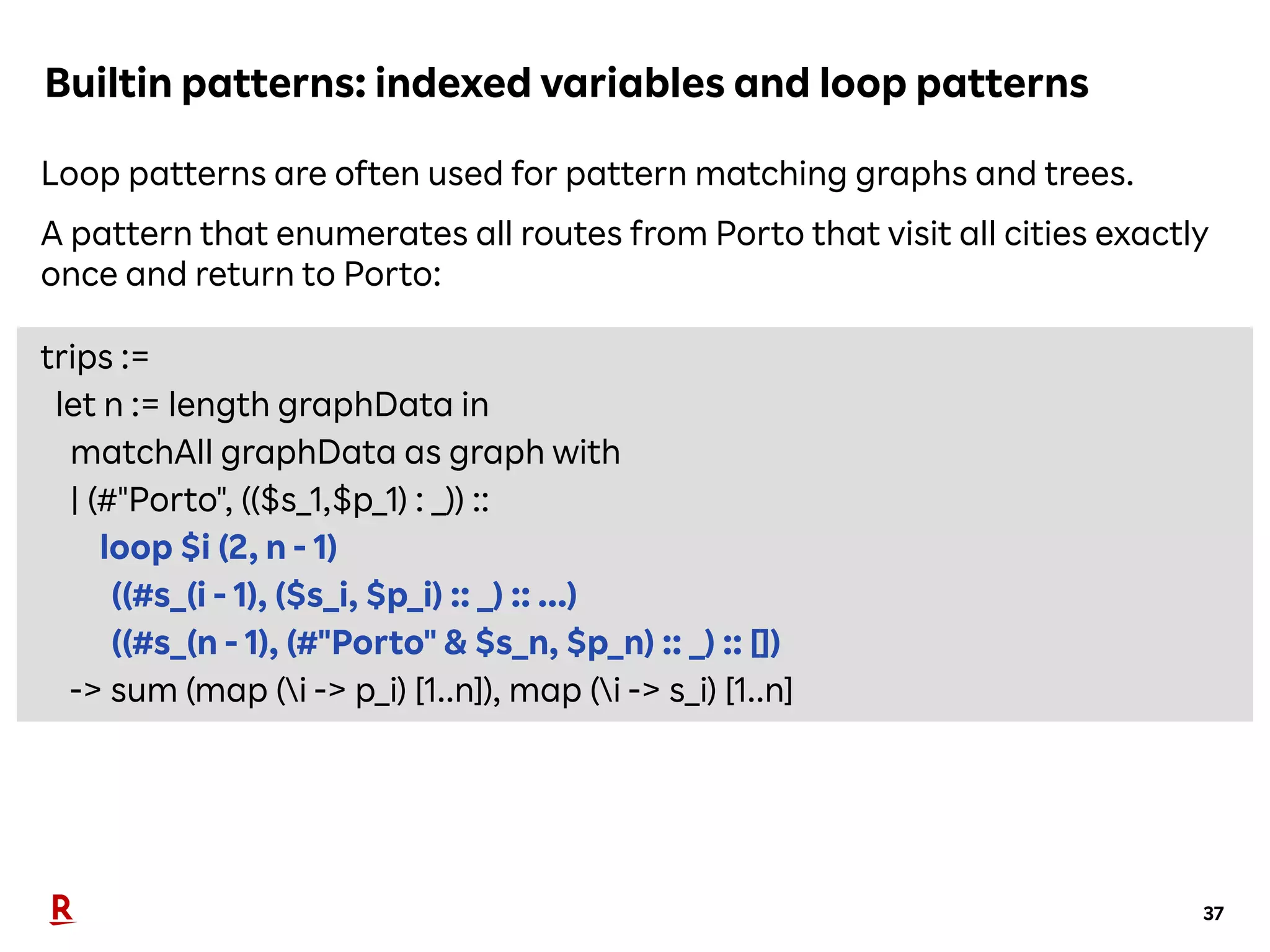

37. Builtin patterns: indexed variables and loop patterns
37
Loop patterns are often used for pattern matching graphs and trees.
A pattern that enumerates all routes from Porto that visit all cities exactly
once and return to Porto:
trips :=
let n := length graphData in
matchAll graphData as graph with
| (#"Porto", (($s_1,$p_1) : _)) ::
loop $i (2, n - 1)
((#s_(i - 1), ($s_i, $p_i) :: _) :: ...)
((#s_(n - 1), (#"Porto" & $s_n, $p_n) :: _) :: [])
-> sum (map (i -> p_i) [1..n]), map (i -> s_i) [1..n]

38. 38
Part 1. Motivation
Part 2. Features of our PMOP language
Part 3. PMOP design patterns
Part 4. PMOP in action

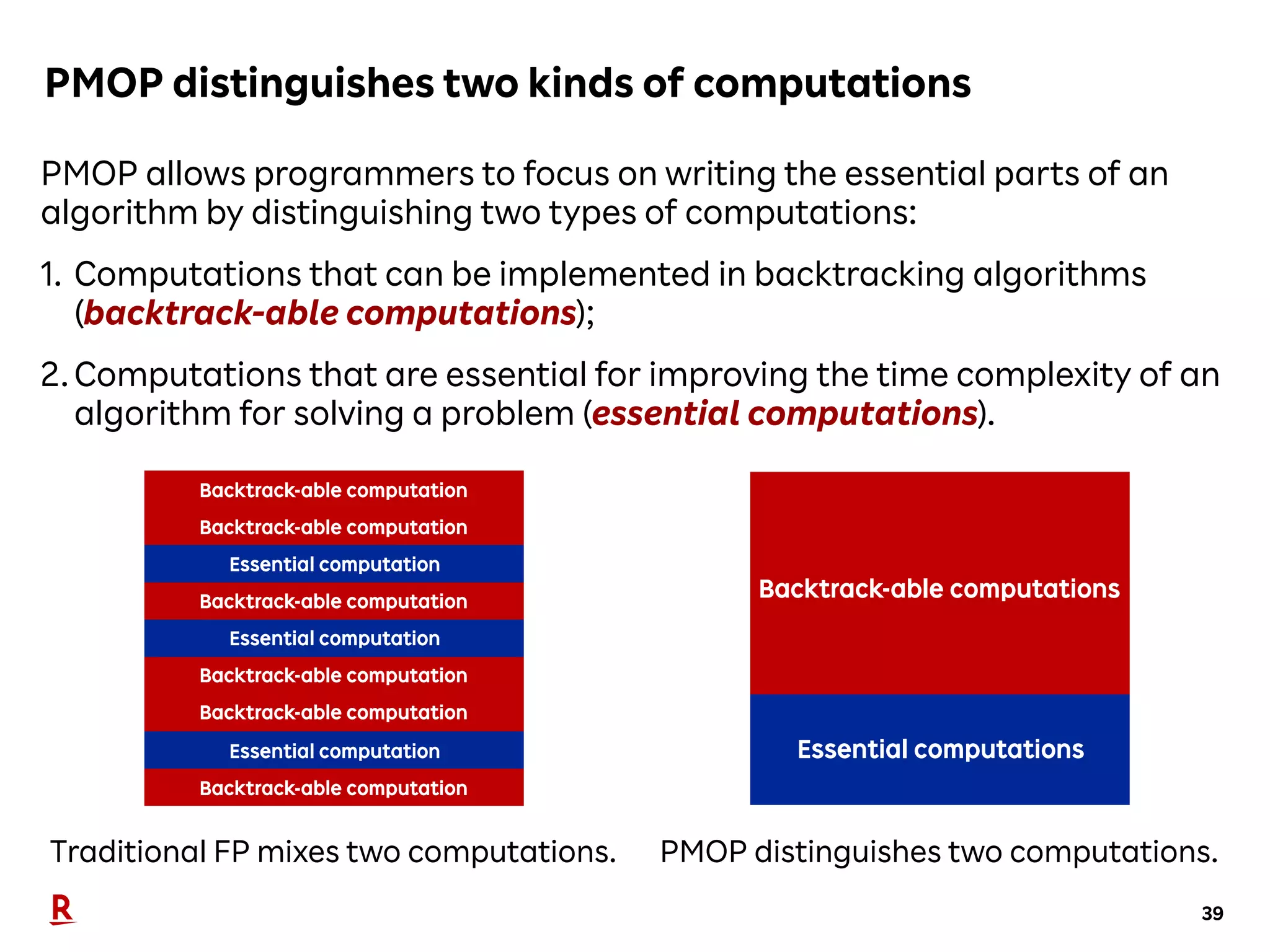

39. PMOP distinguishes two kinds of computations
39

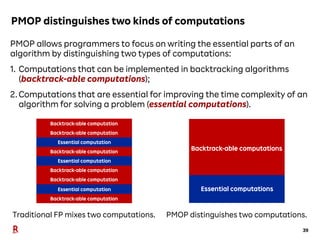

PMOP allows programmers to focus on writing the essential parts of an
algorithm by distinguishing two types of computations:
1. Computations that can be implemented in backtracking algorithms
(backtrack-able computations);
2.Computations that are essential for improving the time complexity of an
algorithm for solving a problem (essential computations).
Essential computations
Traditional FP mixes two computations. PMOP distinguishes two computations.
Backtrack-able computations
Backtrack-able computation
Backtrack-able computation
Backtrack-able computation
Backtrack-able computation
Backtrack-able computation
Backtrack-able computation
Essential computation
Essential computation
Essential computation

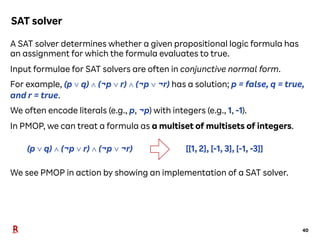

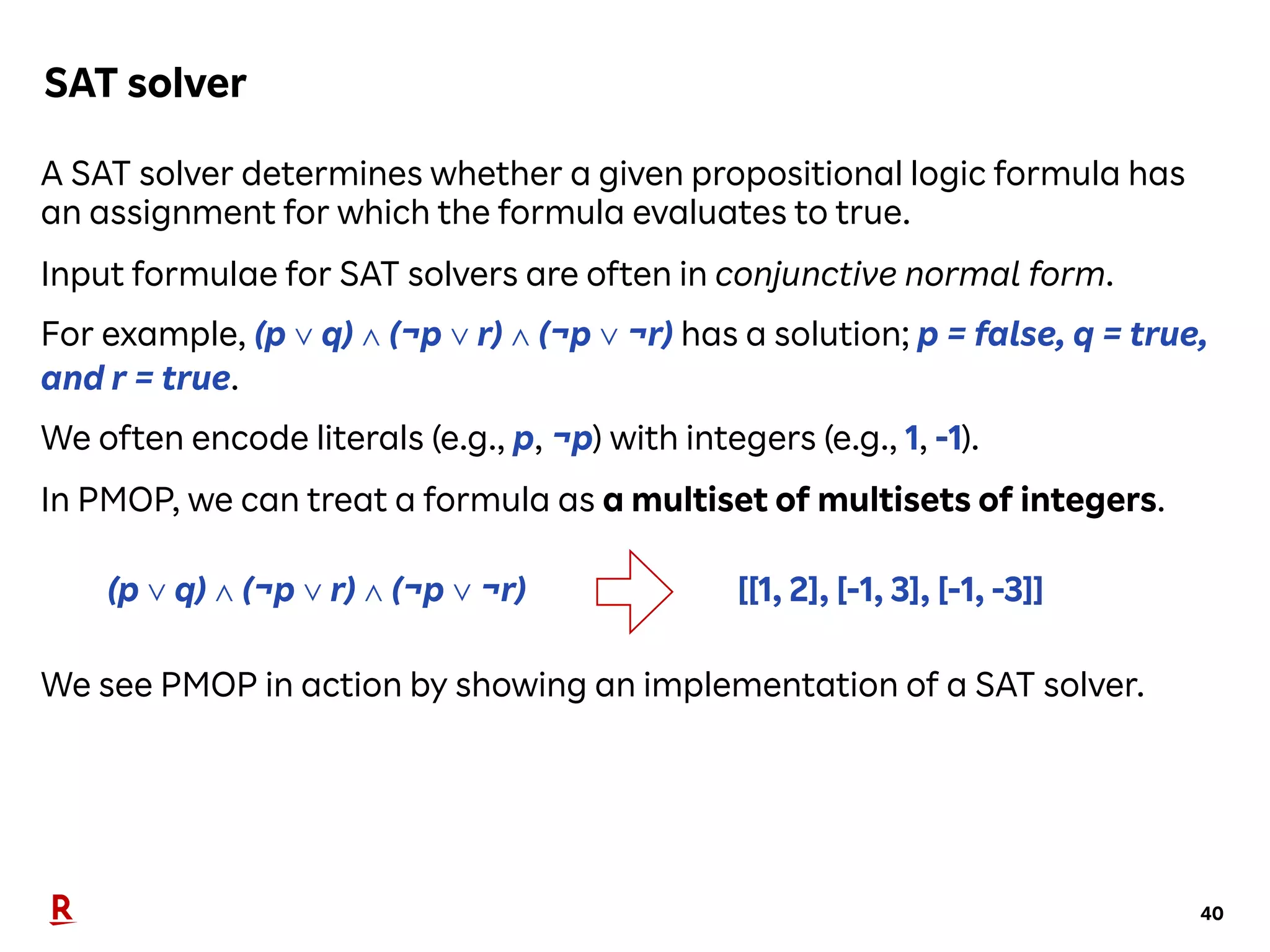

40. SAT solver
40
A SAT solver determines whether a given propositional logic formula has
an assignment for which the formula evaluates to true.
Input formulae for SAT solvers are often in conjunctive normal form.
For example, (p ∨ q) ∧ (¬p ∨ r) ∧ (¬p ∨ ¬r) has a solution; p = false, q = true,
and r = true.
We often encode literals (e.g., p, ¬p) with integers (e.g., 1, -1).
In PMOP, we can treat a formula as a multiset of multisets of integers.
(p ∨ q) ∧ (¬p ∨ r) ∧ (¬p ∨ ¬r) [[1, 2], [-1, 3], [-1, -3]]
We see PMOP in action by showing an implementation of a SAT solver.

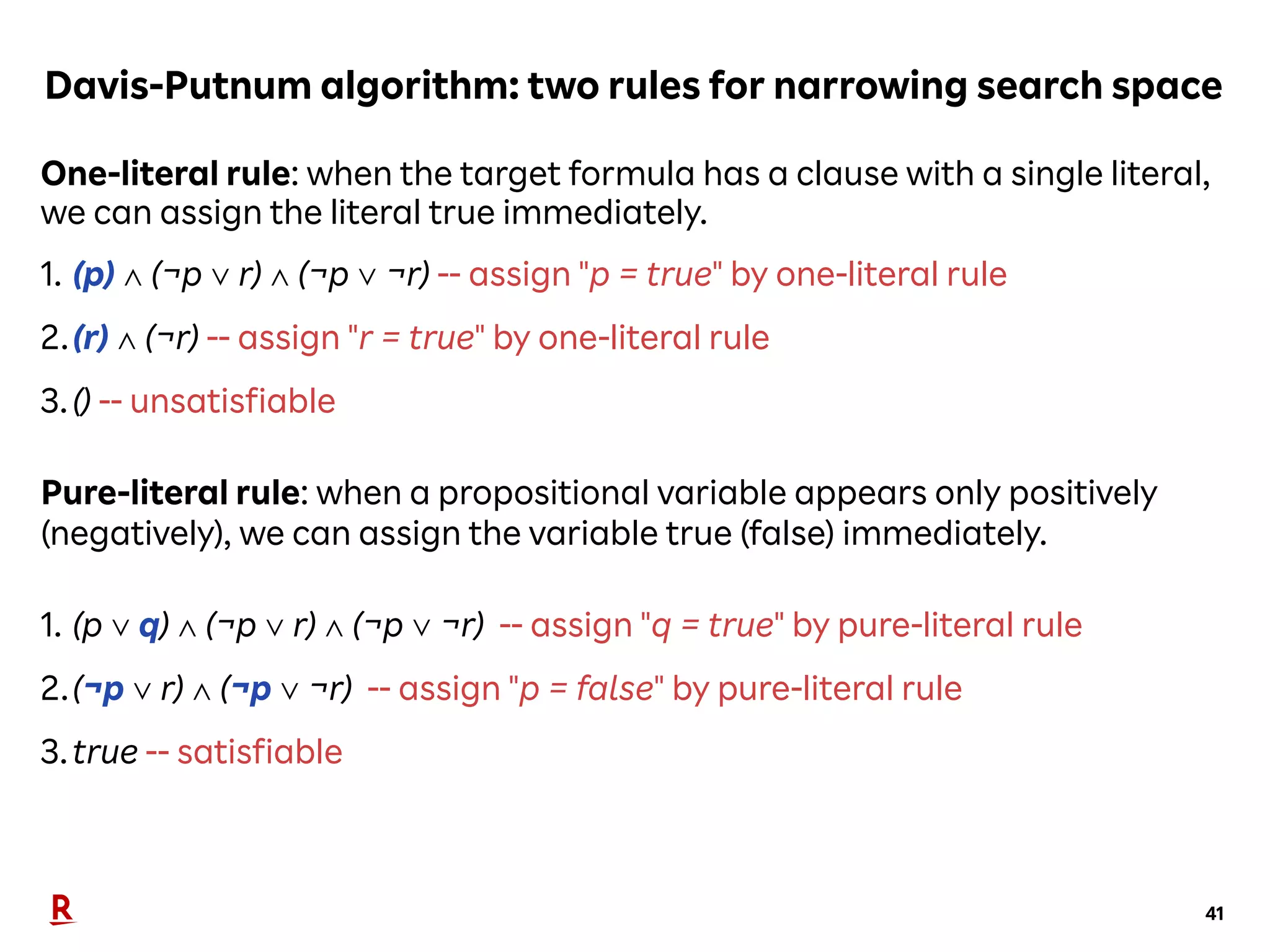

41. Davis-Putnum algorithm: two rules for narrowing search space
41
One-literal rule: when the target formula has a clause with a single literal,
we can assign the literal true immediately.
1. (p) ∧ (¬p ∨ r) ∧ (¬p ∨ ¬r) -- assign "p = true" by one-literal rule
2.(r) ∧ (¬r) -- assign "r = true" by one-literal rule
3.() -- unsatisfiable
Pure-literal rule: when a propositional variable appears only positively
(negatively), we can assign the variable true (false) immediately.
1. (p ∨ q) ∧ (¬p ∨ r) ∧ (¬p ∨ ¬r) -- assign "q = true" by pure-literal rule
2.(¬p ∨ r) ∧ (¬p ∨ ¬r) -- assign "p = false" by pure-literal rule
3.true -- satisfiable

42. let rec dp clauses =
if clauses = [] then true else if mem [] clauses then false else
try dp (one_literal_rule clauses) with Failure _ ->
try dp (pure_literal_rule clauses) with Failure _ ->
dp(resolution_rule clauses);;
let one_literal_rule clauses =
let u = hd (find (fun cl -> length cl = 1) clauses) in
assignTrue u clauses;;
let pure_literal_rule clauses =
let us = unions clauses in
let u = hd (find (u -> mem (negate u) us) us) in
assignTrue u clauses;;
The code is taken from [Harrison, 2009] and modified.

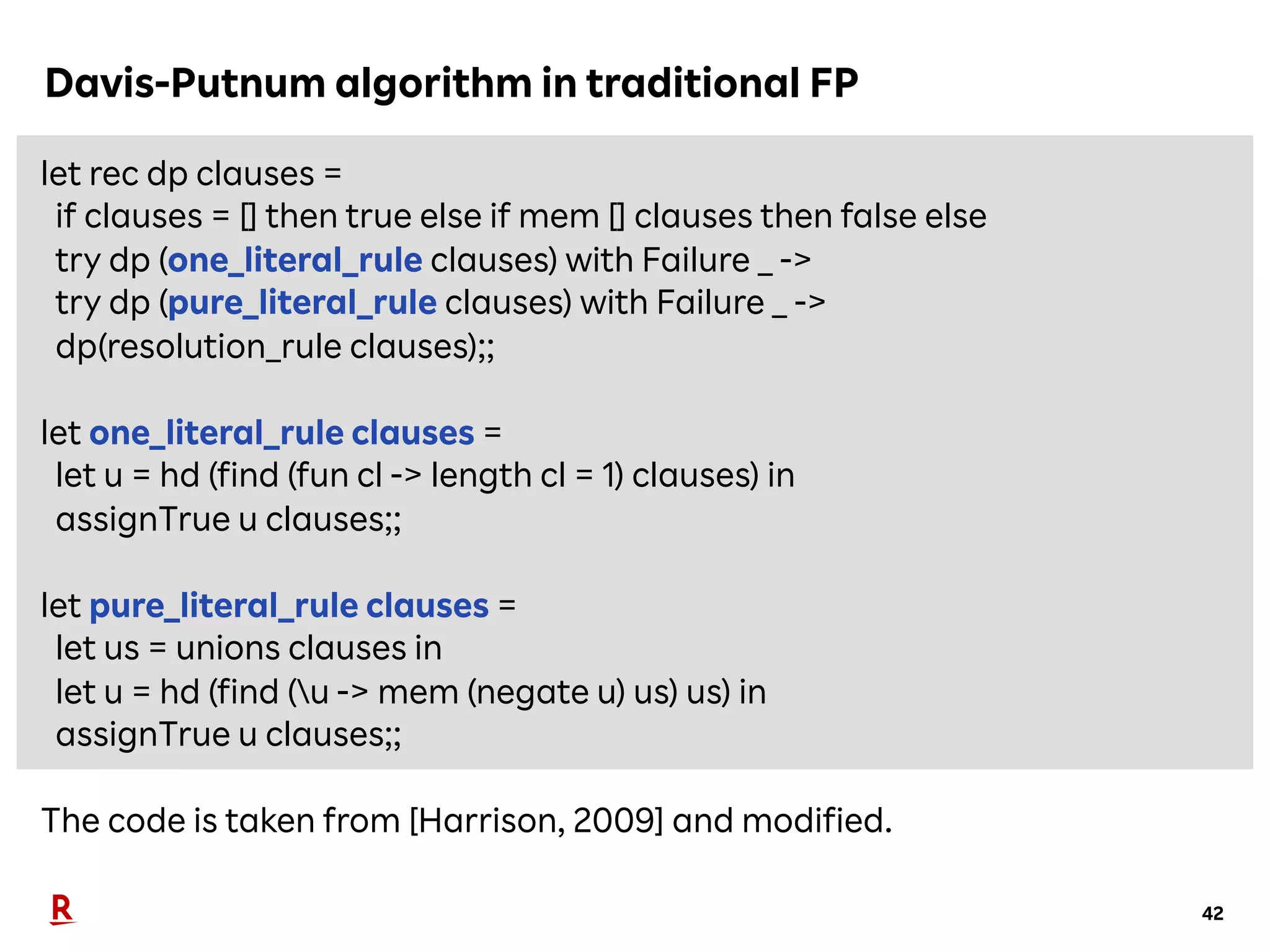

Davis-Putnum algorithm in traditional FP
42

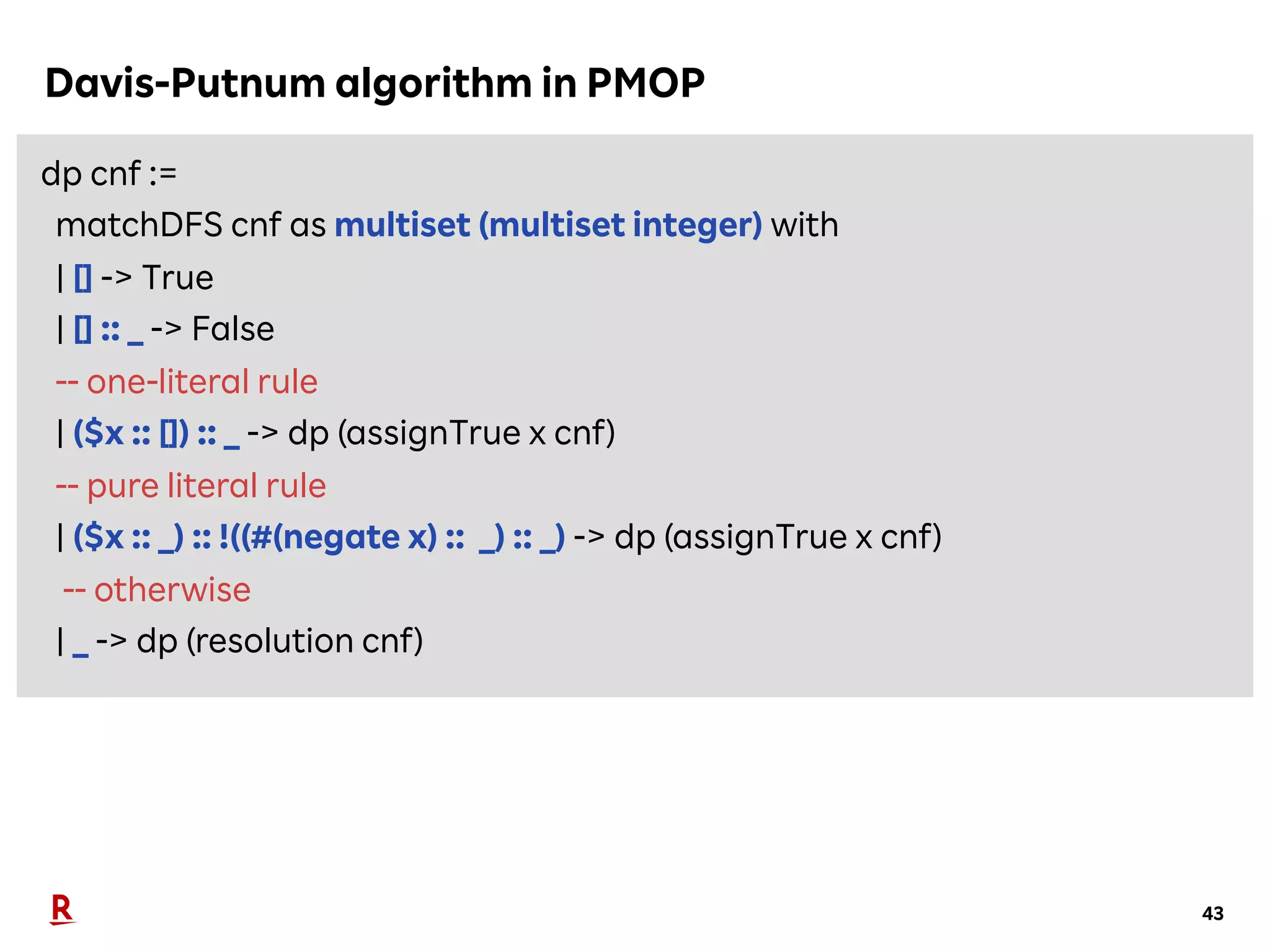

43. Davis-Putnum algorithm in PMOP
43
dp cnf :=
matchDFS cnf as multiset (multiset integer) with
| [] -> True
| [] :: _ -> False
-- one-literal rule
| ($x :: []) :: _ -> dp (assignTrue x cnf)
-- pure literal rule
| ($x :: _) :: !((#(negate x) :: _) :: _) -> dp (assignTrue x cnf)
-- otherwise
| _ -> dp (resolution cnf)

44. dp cnf :=
matchDFS cnf as multiset (multiset integer) with
| [] -> True
| [] :: _ -> False
-- one-literal rule
| ($x :: []) :: _ -> dp (assignTrue x cnf)
-- pure literal rule
| ($x :: _) :: !((#(negate x) :: _) :: _) -> dp (assignTrue x cnf)
-- otherwise
| _ -> dp (resolution cnf)
Davis-Putnum algorithm in PMOP
44

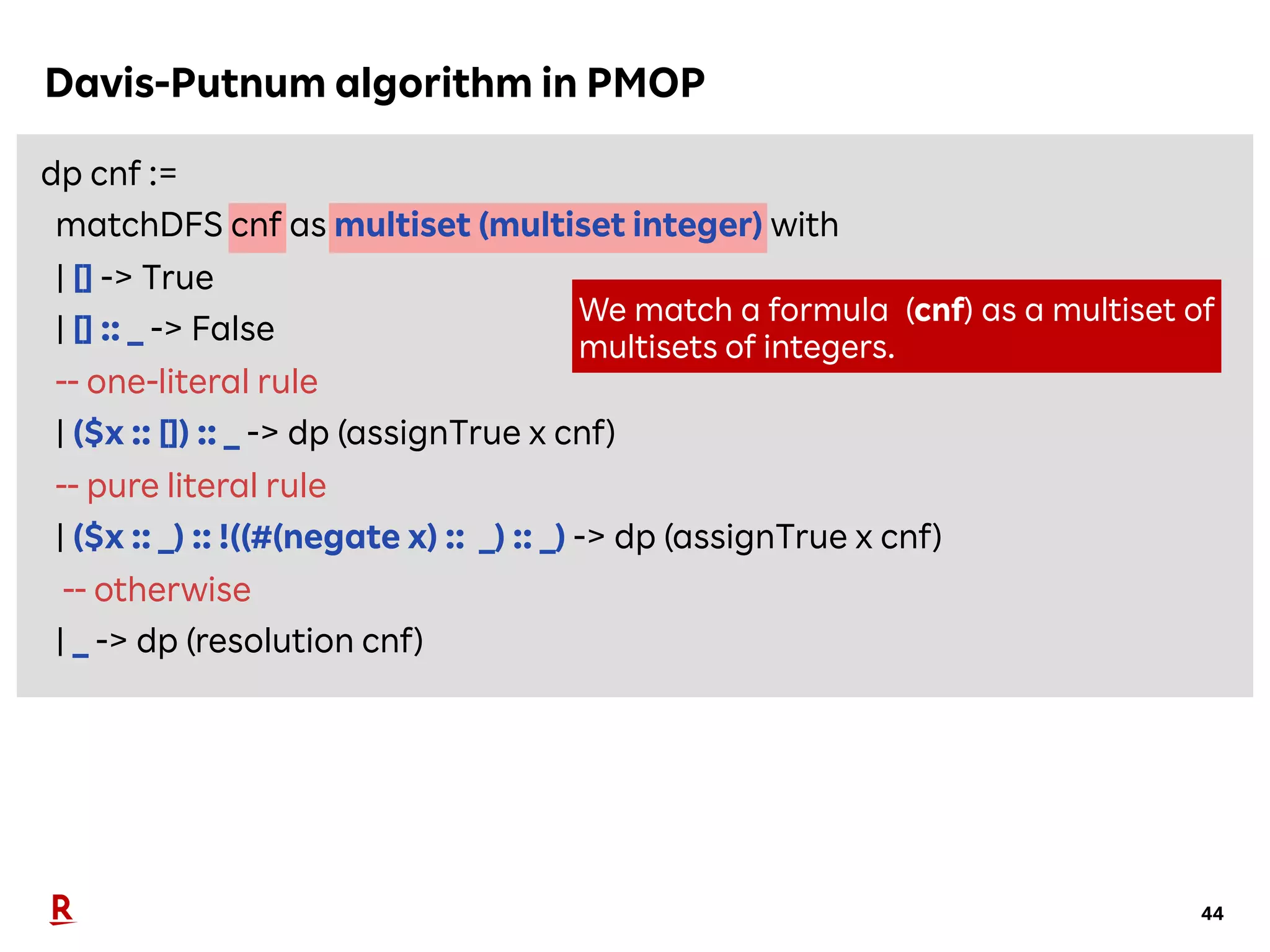

We match a formula (cnf) as a multiset of
multisets of integers.

45. dp cnf :=
matchDFS cnf as multiset (multiset integer) with
| [] -> True
| [] :: _ -> False
-- one-literal rule
| ($x :: []) :: _ -> dp (assignTrue x cnf)
-- pure literal rule
| ($x :: _) :: !((#(negate x) :: _) :: _) -> dp (assignTrue x cnf)
-- otherwise
| _ -> dp (resolution cnf)
Davis-Putnum algorithm in PMOP
45

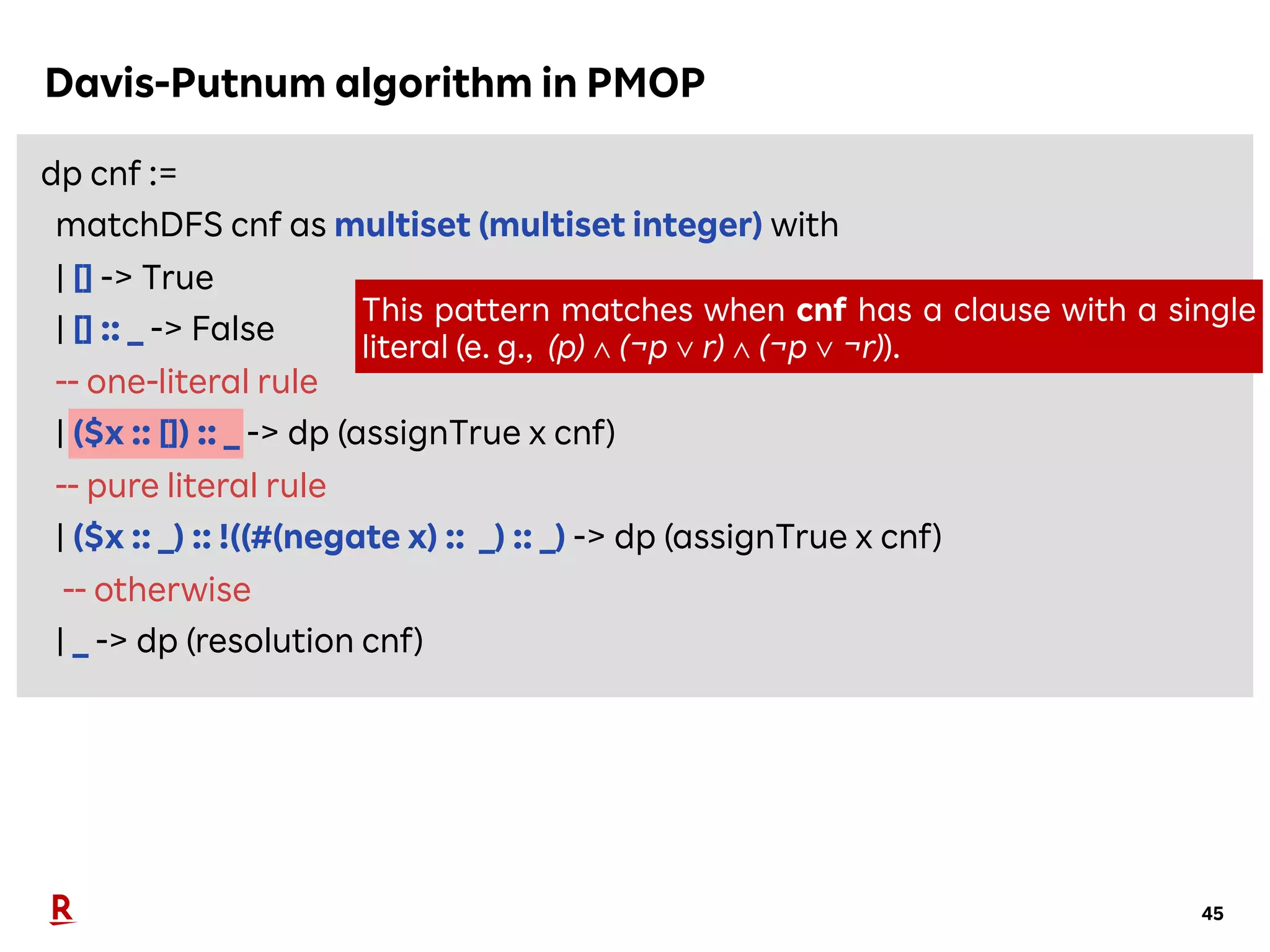

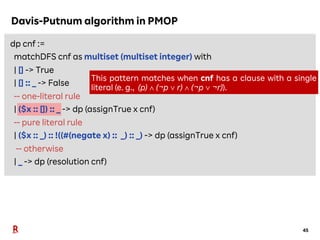

This pattern matches when cnf has a clause with a single
literal (e. g., (p) ∧ (¬p ∨ r) ∧ (¬p ∨ ¬r)).

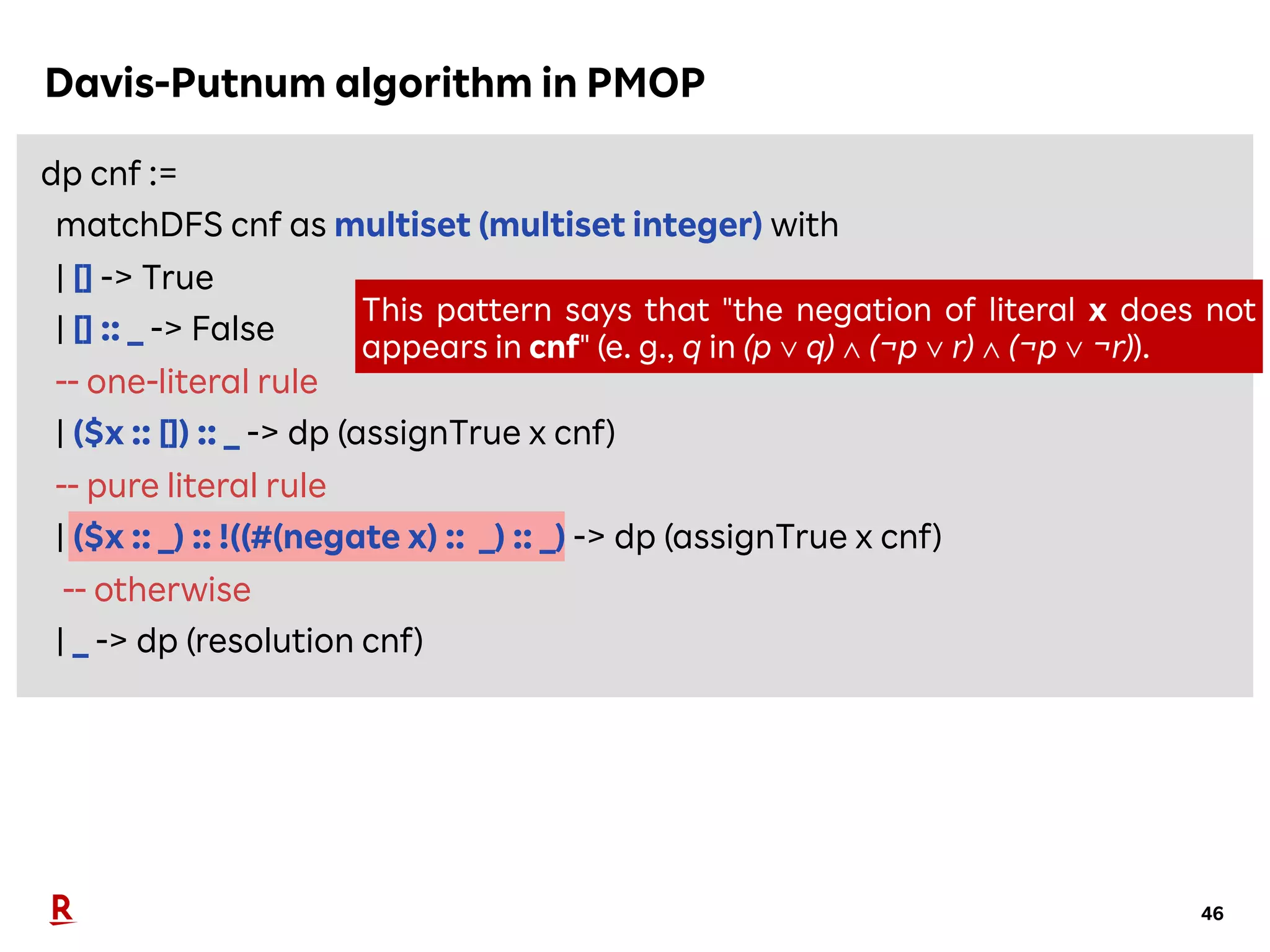

46. dp cnf :=
matchDFS cnf as multiset (multiset integer) with
| [] -> True
| [] :: _ -> False
-- one-literal rule
| ($x :: []) :: _ -> dp (assignTrue x cnf)
-- pure literal rule
| ($x :: _) :: !((#(negate x) :: _) :: _) -> dp (assignTrue x cnf)
-- otherwise
| _ -> dp (resolution cnf)
Davis-Putnum algorithm in PMOP
46

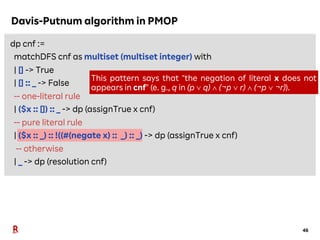

This pattern says that "the negation of literal x does not
appears in cnf" (e. g., q in (p ∨ q) ∧ (¬p ∨ r) ∧ (¬p ∨ ¬r)).

47. let rec dp clauses =
if clauses = [] then true else if mem [] clauses then false else
try dp (one_literal_rule clauses) with Failure _ ->
try dp (pure_literal_rule clauses) with Failure _ ->
dp(resolution_rule clauses);;
let one_literal_rule clauses =
let u = hd (find (fun cl -> length cl = 1) clauses) in
assignTrue u clauses;;
let pure_literal_rule clauses =
let us = unions clauses in
let u = hd (find (u -> mem (negate u) us) us) in
assignTrue u clauses;;
The code is taken from [Harrison, 2009] and modified.
Davis-Putnum algorithm in traditional FP
47

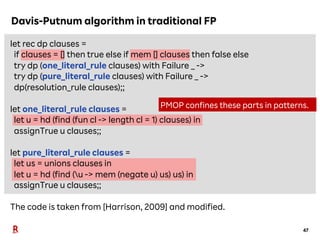

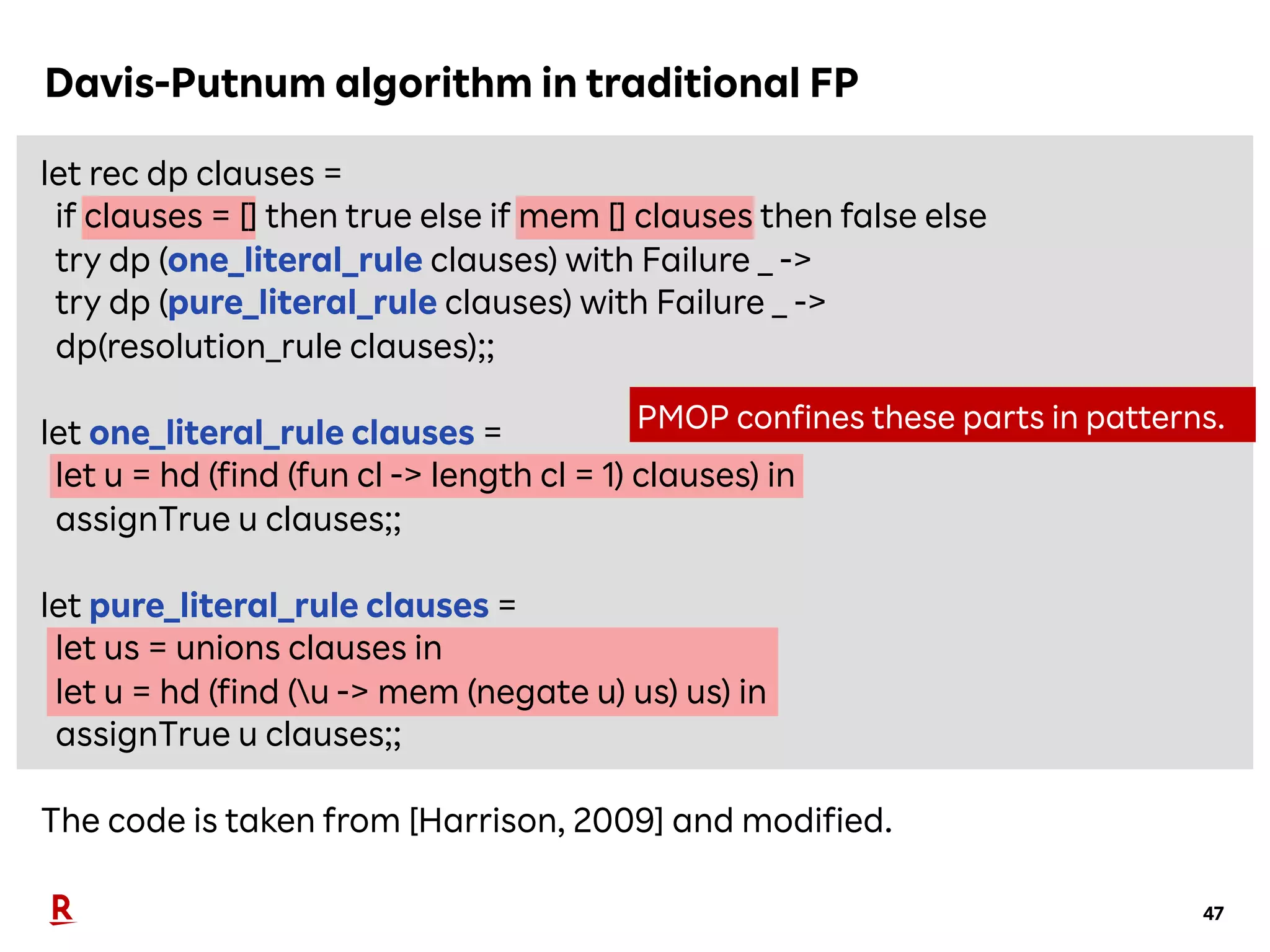

PMOP confines these parts in patterns.

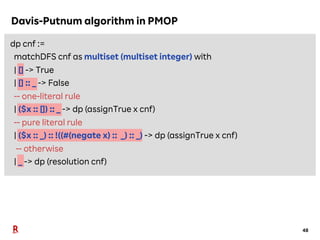

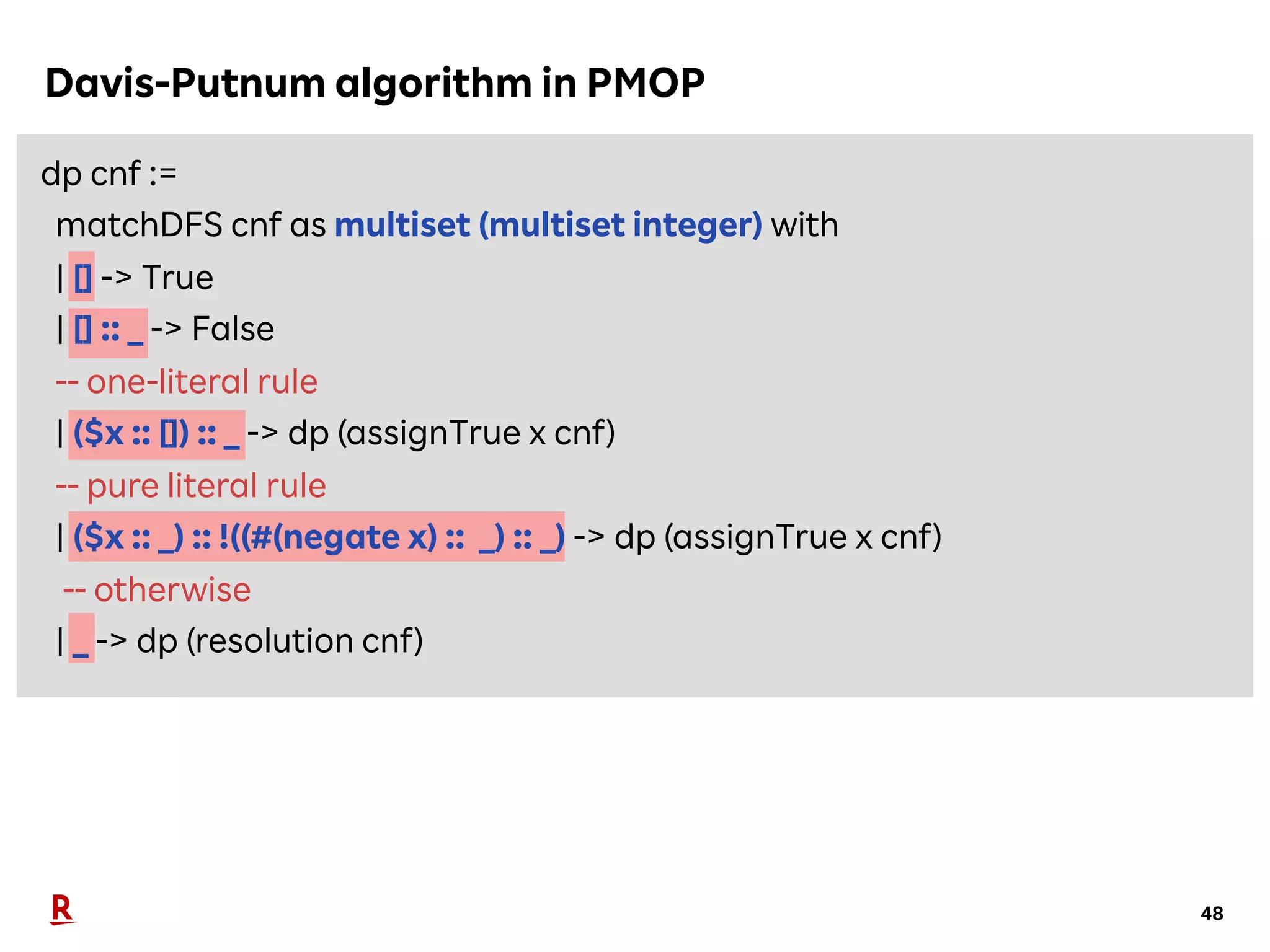

48. dp cnf :=
matchDFS cnf as multiset (multiset integer) with
| [] -> True
| [] :: _ -> False
-- one-literal rule
| ($x :: []) :: _ -> dp (assignTrue x cnf)
-- pure literal rule
| ($x :: _) :: !((#(negate x) :: _) :: _) -> dp (assignTrue x cnf)
-- otherwise
| _ -> dp (resolution cnf)
Davis-Putnum algorithm in PMOP
48

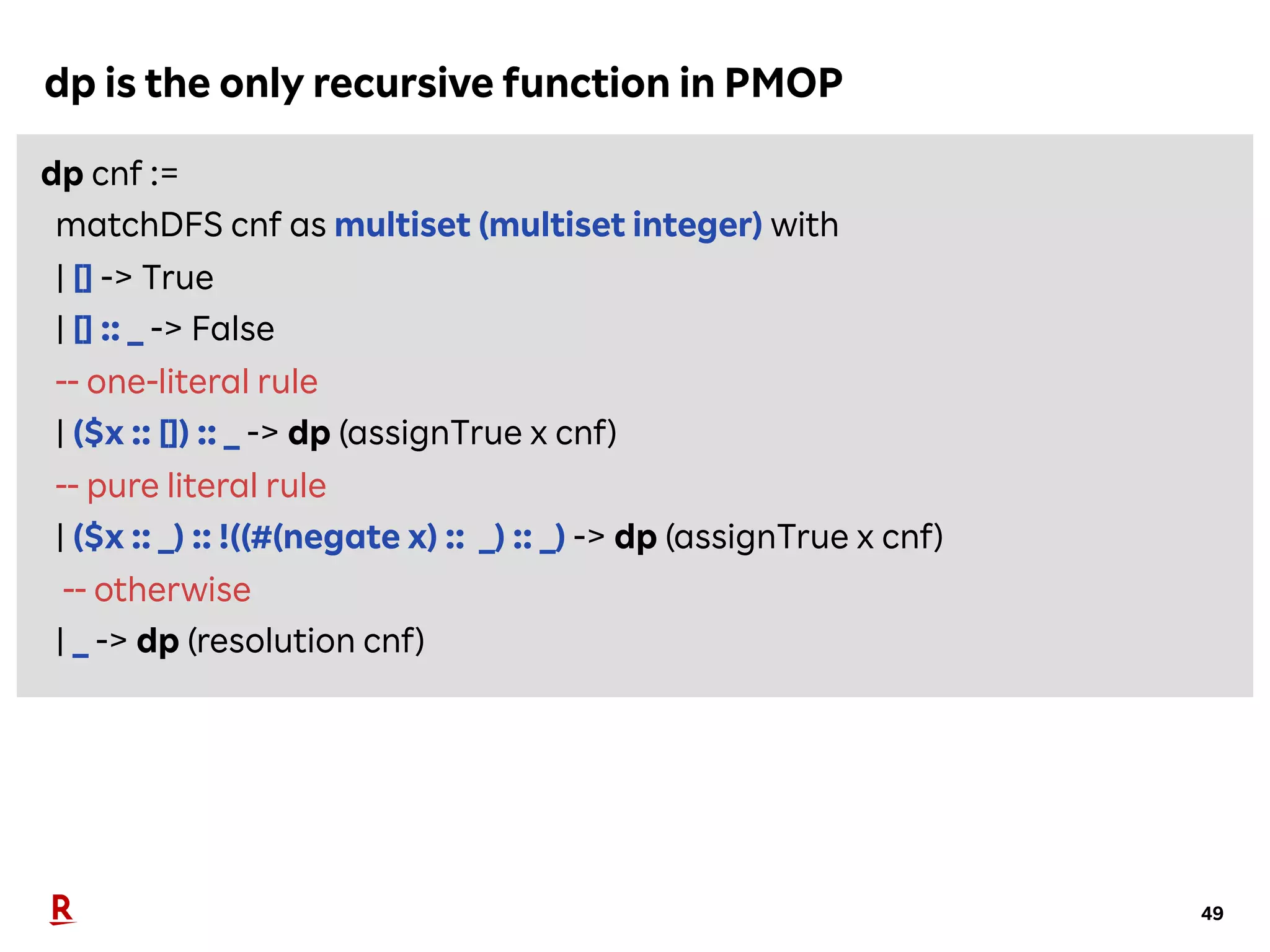

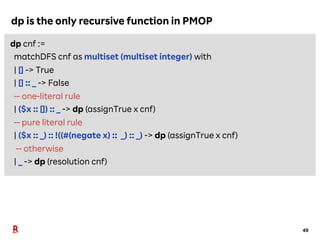

49. dp is the only recursive function in PMOP
49
dp cnf :=
matchDFS cnf as multiset (multiset integer) with
| [] -> True
| [] :: _ -> False
-- one-literal rule
| ($x :: []) :: _ -> dp (assignTrue x cnf)
-- pure literal rule
| ($x :: _) :: !((#(negate x) :: _) :: _) -> dp (assignTrue x cnf)
-- otherwise
| _ -> dp (resolution cnf)

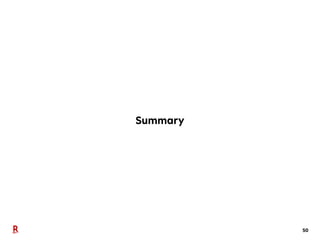

50. Summary
50

51. Summary
51

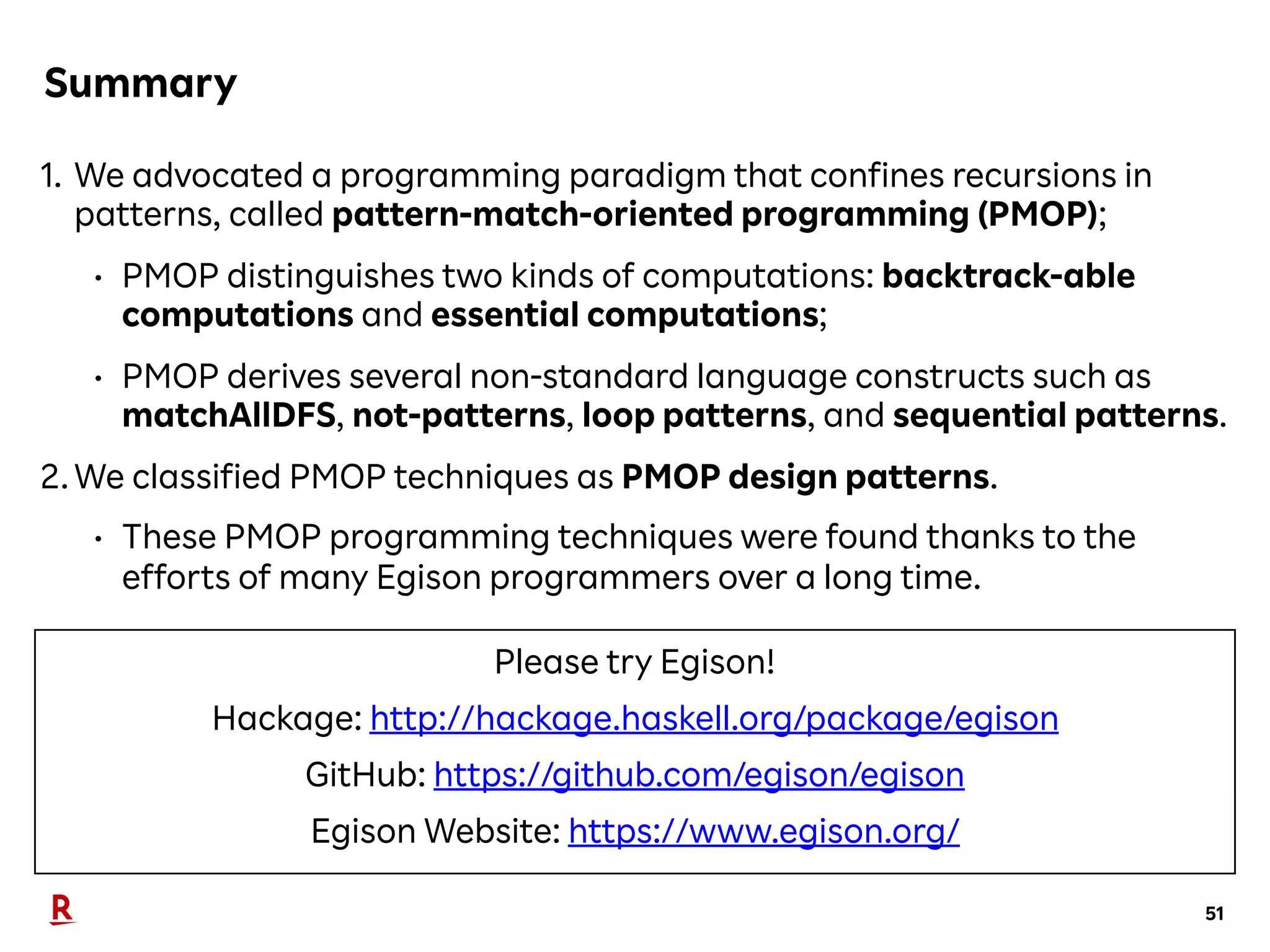

1. We advocated a programming paradigm that confines recursions in
patterns, called pattern-match-oriented programming (PMOP);
• PMOP distinguishes two kinds of computations: backtrack-able
computations and essential computations;
• PMOP derives several non-standard language constructs such as
matchAllDFS, not-patterns, loop patterns, and sequential patterns.
2.We classified PMOP techniques as PMOP design patterns.
• These PMOP programming techniques were found thanks to the
efforts of many Egison programmers over a long time.
Please try Egison!
Hackage: http://hackage.haskell.org/package/egison
GitHub: https://github.com/egison/egison
Egison Website: https://www.egison.org/
