- 1. Anomalous Networks Sevvandi Kandanaarachchi CSIRO’sData61 Pint of Science 2023 Work with Rob Hyndman
- 2. In a pubwe gather round, Pints in hand, laughter abound, But talk soon turns to networks strange, And patterns that we want to change. Networks, they change and evolve, Like a story unfolding with time, Some are ordinary and dull, But others are juicy and prime. With drama, intrigue, and political might, Anomalous networks do excite, Juicy details, strikes, and scandal, We want to know more, it's a healthy handle. Oddnet helps us uncover the truth, And lays bare the networks, with its sleuth, It shows us the patterns we couldn't see, The intrigue and mess in all its glory. Author: ChatGPT
- 3. What is anetwork from a scientific sense?
- 4.
- 5. • Circles arecalled nodes/vertices • Lines are called edges/links • Our network – we give it meaning In this example • Nodes are people • Edges denote if they are friends • Edge = “is friends with” Emily Rose Ben Andreas Kate Peter
- 6. Melbourne train network •Node = Train station • Edge = train line • subnetwork Burnley Heyington Hawthorn East Richmond https://en.wikipedia.org/wiki/List_of_railway_stations_in_Melbourne

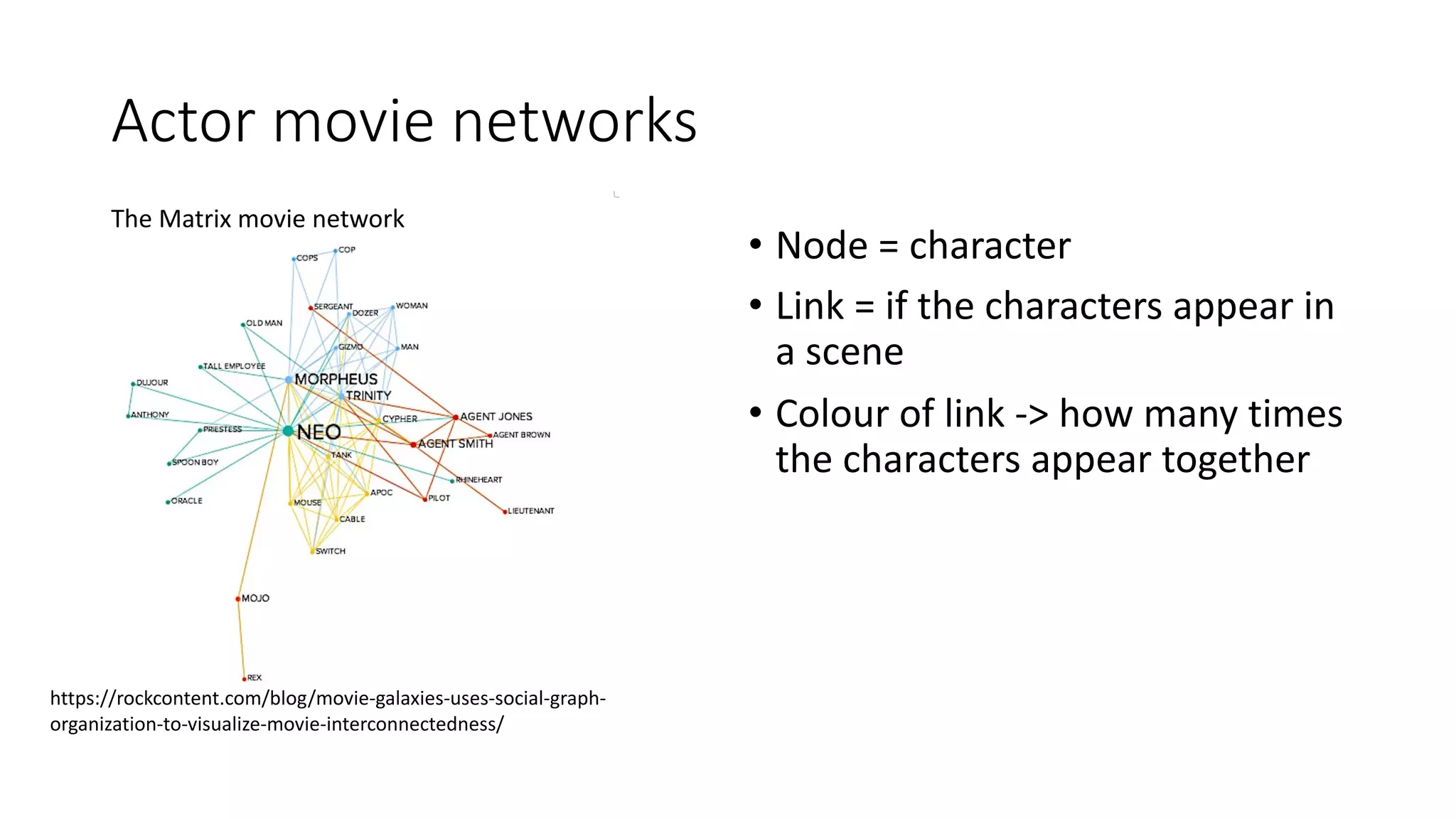

- 7. Actor movie networks •Node = character • Link = if the characters appear in a scene • Colour of link -> how many times the characters appear together https://rockcontent.com/blog/movie-galaxies-uses-social-graph- organization-to-visualize-movie-interconnectedness/ The Matrix movie network
- 8. Computer networks • Node= physical device • Edge = connection LAN: Local Area Network Smartphones Printer Smart Appliances Data Server Router
- 9. Networks Static Dynamic Does notchange over time Changes over time
- 10. Examples of dynamicnetworks • Traffic in computer networks • Friend/social networks • Political networks • Bill voting patterns • Research collaboration networks • Virus evolution (protein mutations)
- 11. 𝑡𝑖𝑚𝑒 = 1𝑡𝑖𝑚𝑒 = 2 𝑡𝑖𝑚𝑒 = 3 𝑡𝑖𝑚𝑒 = 4 𝑡𝑖𝑚𝑒 = 5 𝑡𝑖𝑚𝑒 = 6 𝑡𝑖𝑚𝑒 = 7 𝑡𝑖𝑚𝑒 = 8
- 12. Why are anomaliesimportant?
- 13. They tell adifferent story. Anomalies can signify important events!
- 14. Examples of anomalies •Astronomical anomalies – solar flares • Credit card fraud among billions of legitimate transactions • Computer networks - cyber attacks • Weather anomalies – tsunamis
- 15. 𝑡𝑖𝑚𝑒 = 1𝑡𝑖𝑚𝑒 = 2 𝑡𝑖𝑚𝑒 = 3 𝑡𝑖𝑚𝑒 = 4 𝑡𝑖𝑚𝑒 = 5 𝑡𝑖𝑚𝑒 = 6 𝑡𝑖𝑚𝑒 = 7 𝑡𝑖𝑚𝑒 = 8
- 16.
- 17.

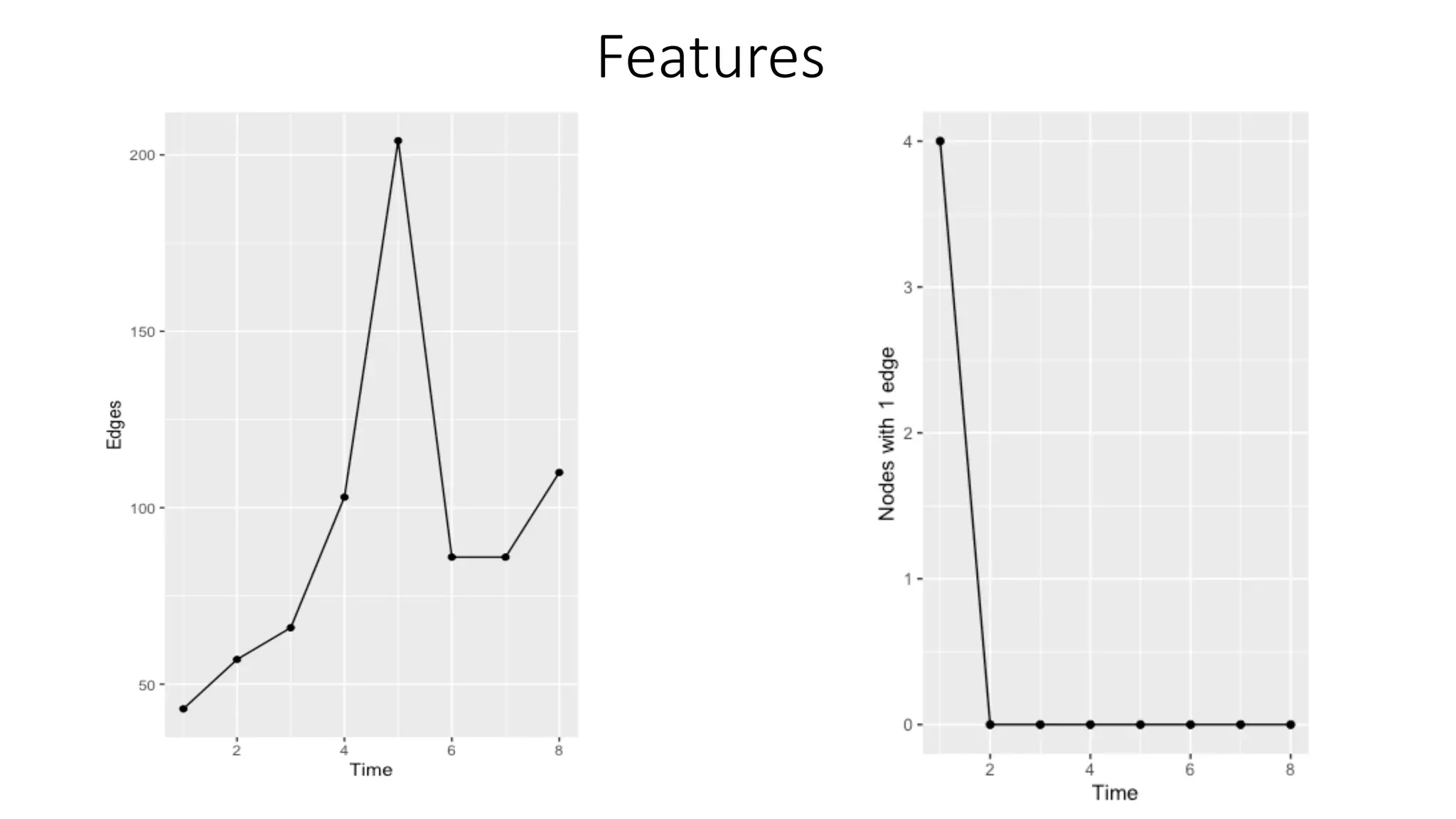

- 18. oddnet • Once wehave features it is much easier • We can see how features change • Many statistical methods to model features over time • Big deviations are anomalous
- 19. oddnet Features Networks Model featuresDeviations = anomalous
- 20. Why do weneed an algorithm if we can eyeball it?
- 21. We need automatedalgorithms because . . .
- 22. Its not sosimple! • Data arrives very fast • And lots and lots of data • Complex data • Cannot have a person manually finding anomalies • Example: Recent data breaches • Applications in cyber security

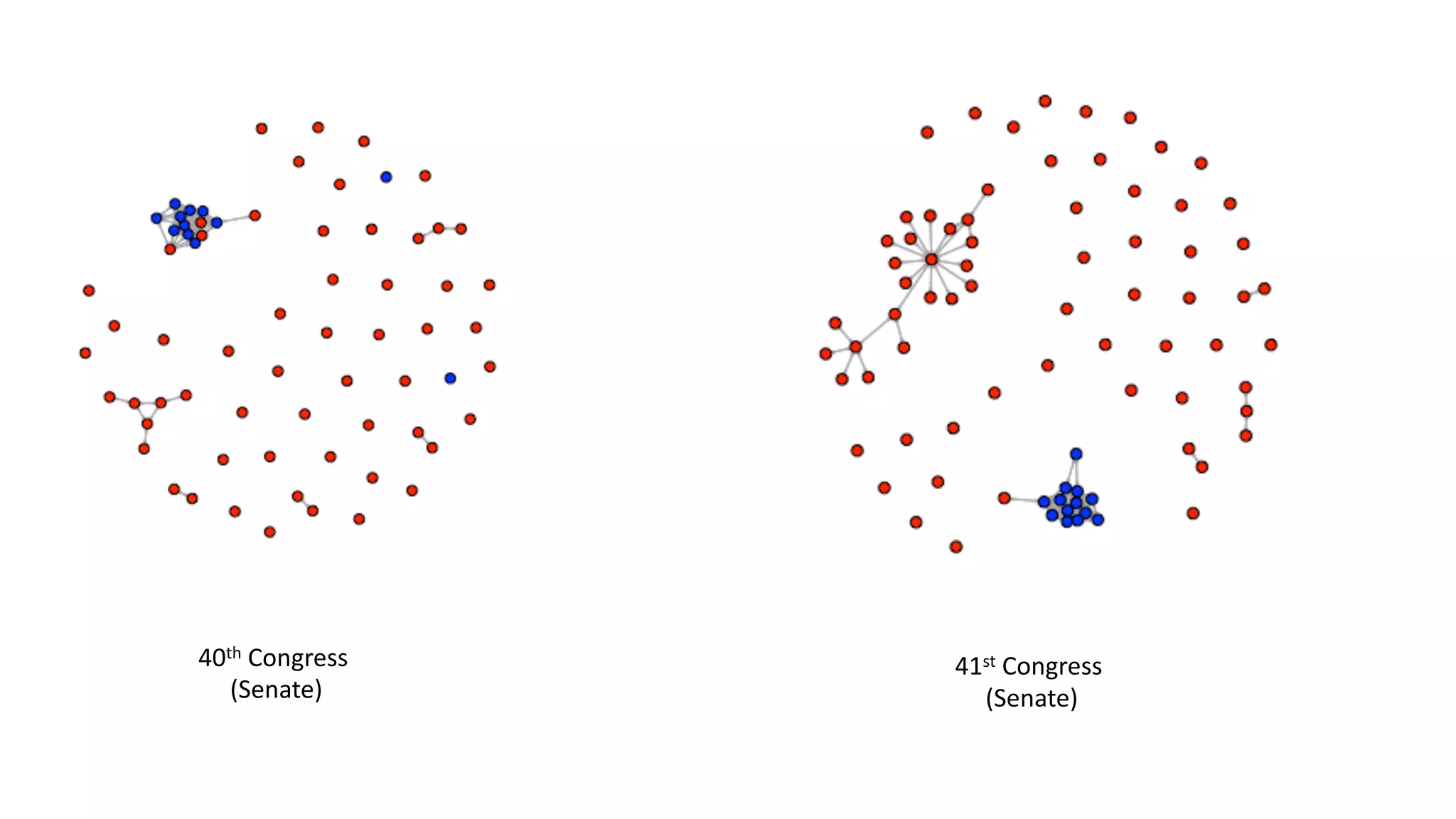

- 23. Example: US SenateVoting patterns • Why? It is interesting and the data is available. • Data from the 40th Congress until the 113th Congress • 40th Congress during 1867 – 1869 • 113th Congress during 2013 – 2015 • Node = senator • Edge = if they vote on the same bill • Red = Republican, Blue = Democrat
- 24.
- 25.
- 26. What happened there? •The Panic of 1873 • Financial crisis, strikes • Economic depression Wikipedia says In the United States, the Panic was known as the "Great Depression" until the events of 1929 and the early 1930s set a new standard. https://pixabay.com/illustrations/financial-crisis- stock-exchange-544944/ https://www.theage.com.au/national/victoria/protesters- bring-city-to-a-standstill-for-third-climate-change-protests- 20190920-p52tfw.html
- 27. Thank you forlistening, To the stories that we share, About networks that are anomalous, And the secrets they ensnare. - ChatGPT
