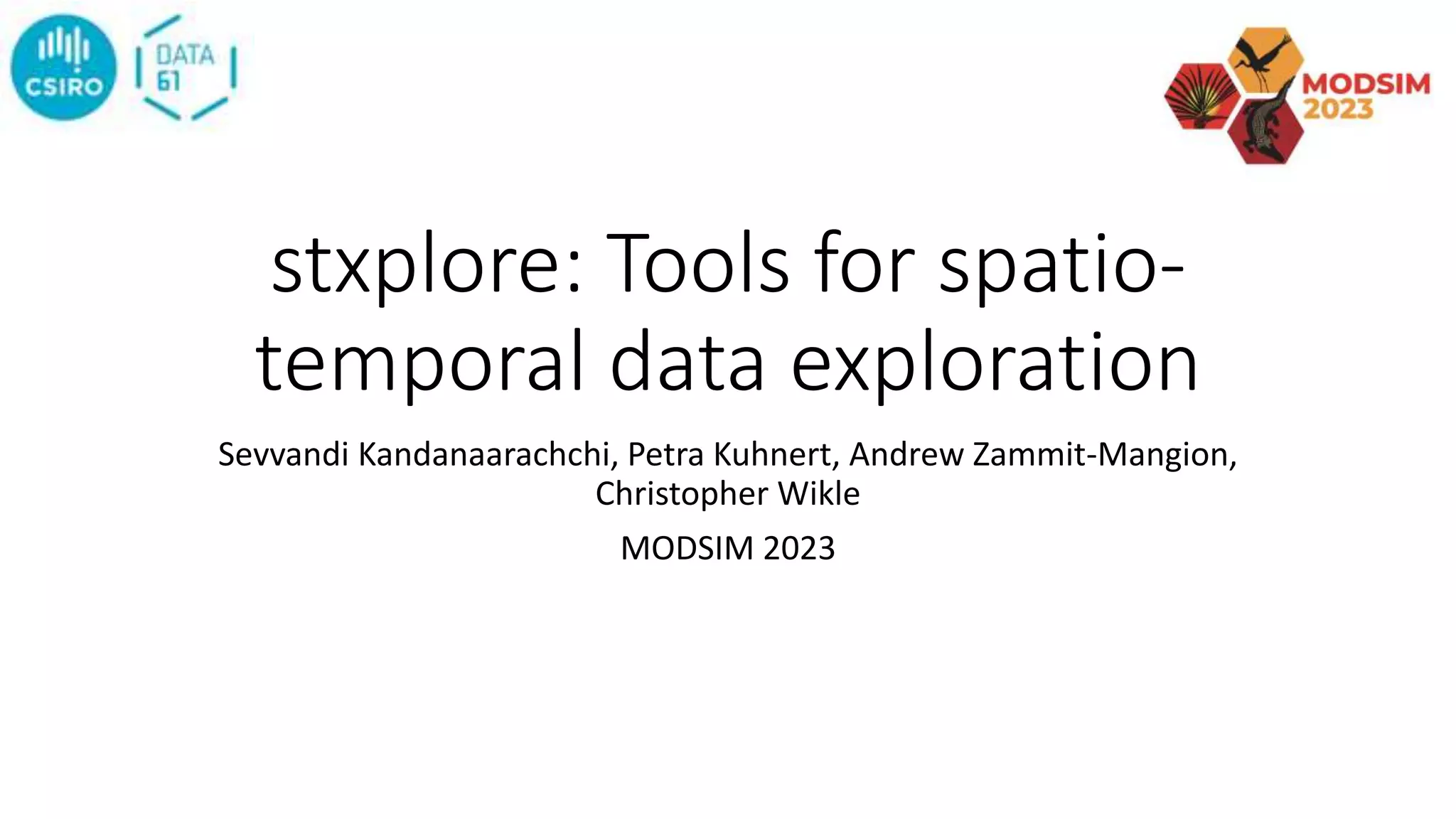

SlideShare a Scribd company logo
1 of 24
stxplore: Tools for spatio-
temporal data exploration
Sevvandi Kandanaarachchi, Petra Kuhnert, Andrew Zammit-Mangion,
Christopher Wikle
MODSIM 2023

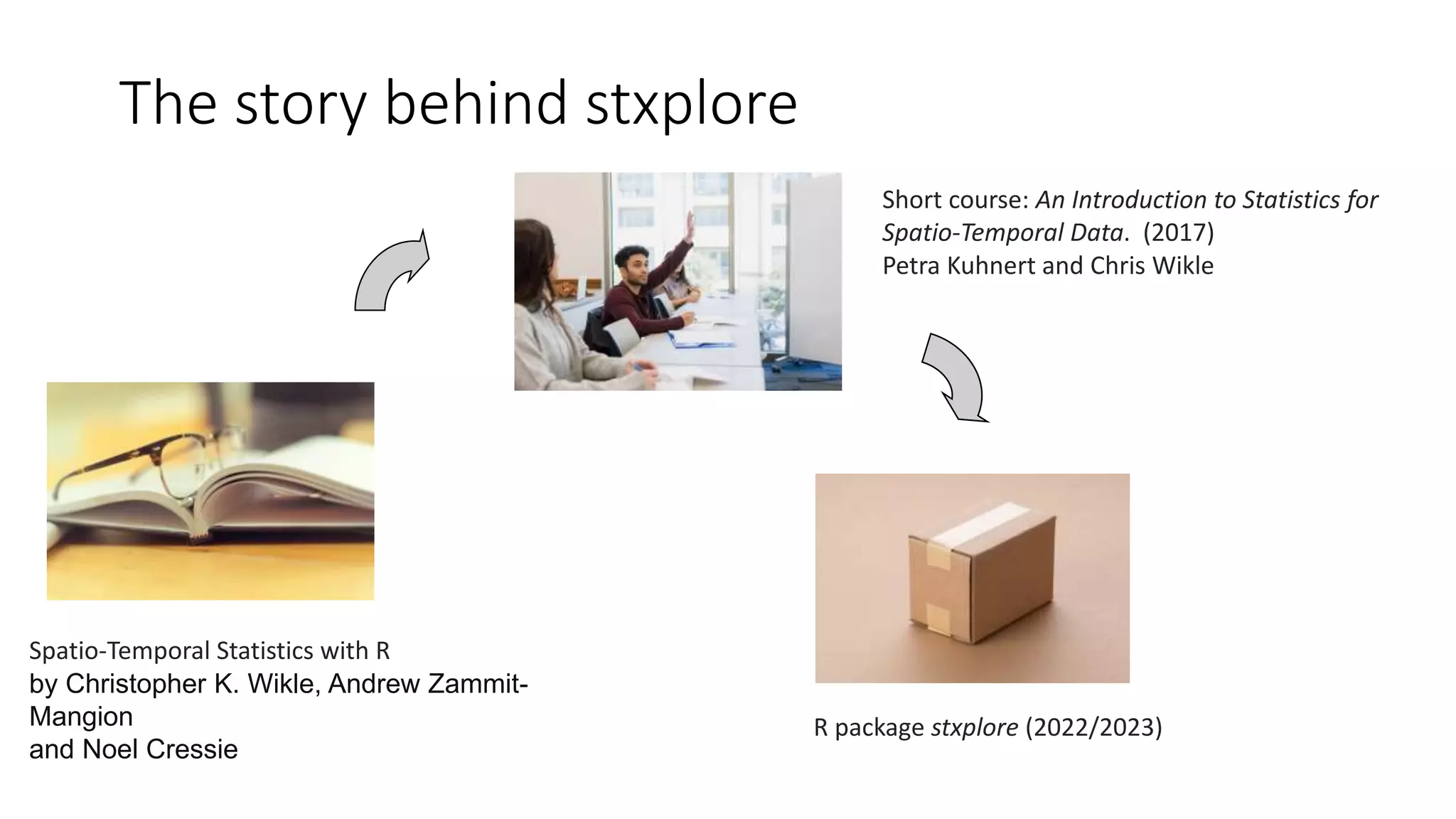

The story behind stxplore
Spatio-Temporal Statistics with R
by Christopher K. Wikle, Andrew Zammit-
Mangion
and Noel Cressie
Short course: An Introduction to Statistics for
Spatio-Temporal Data. (2017)
Petra Kuhnert and Chris Wikle
R package stxplore (2022/2023)

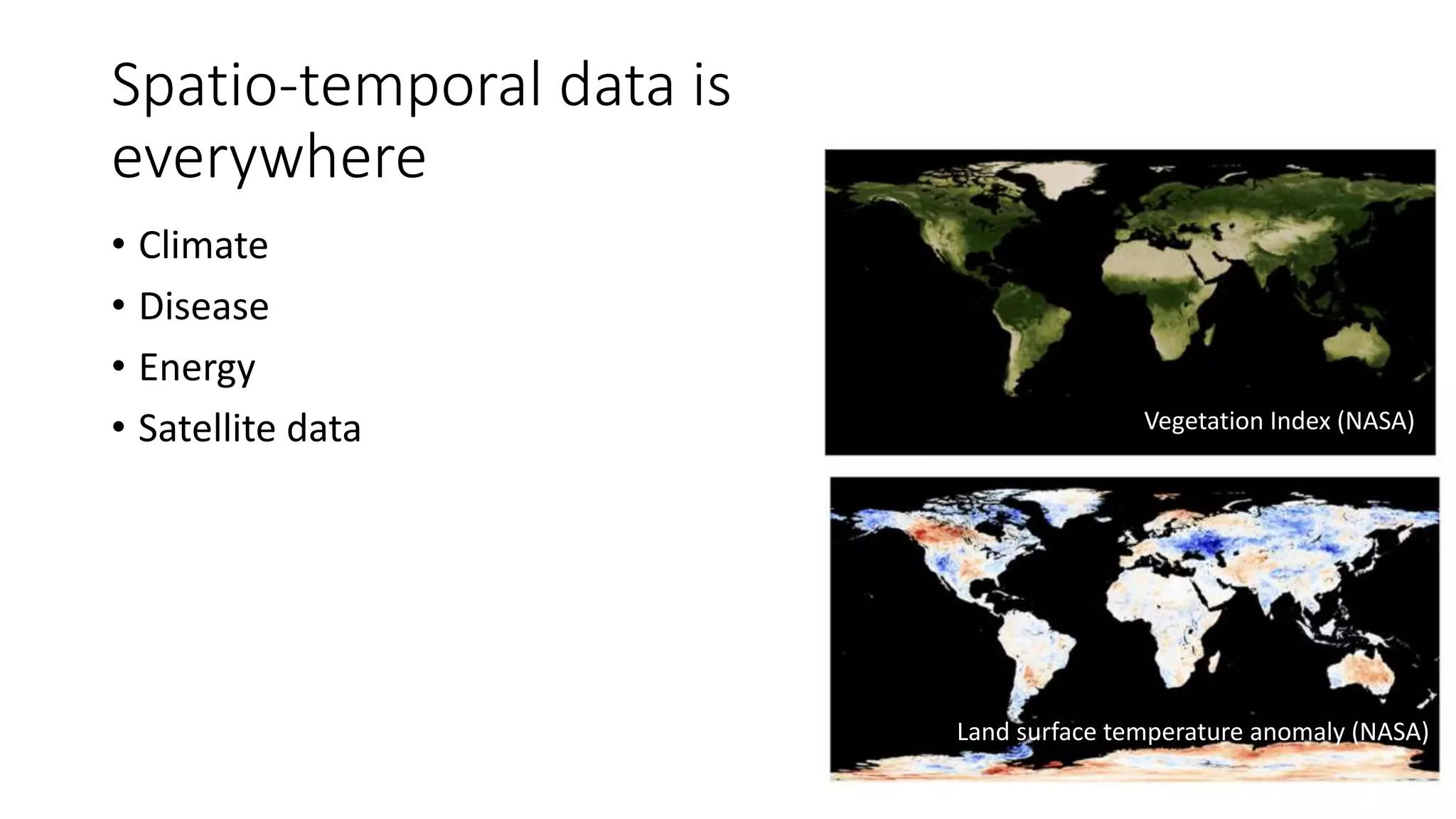

Spatio-temporal data is
everywhere
• Climate
• Disease
• Energy
• Satellite data Vegetation Index (NASA)
Land surface temperature anomaly (NASA)

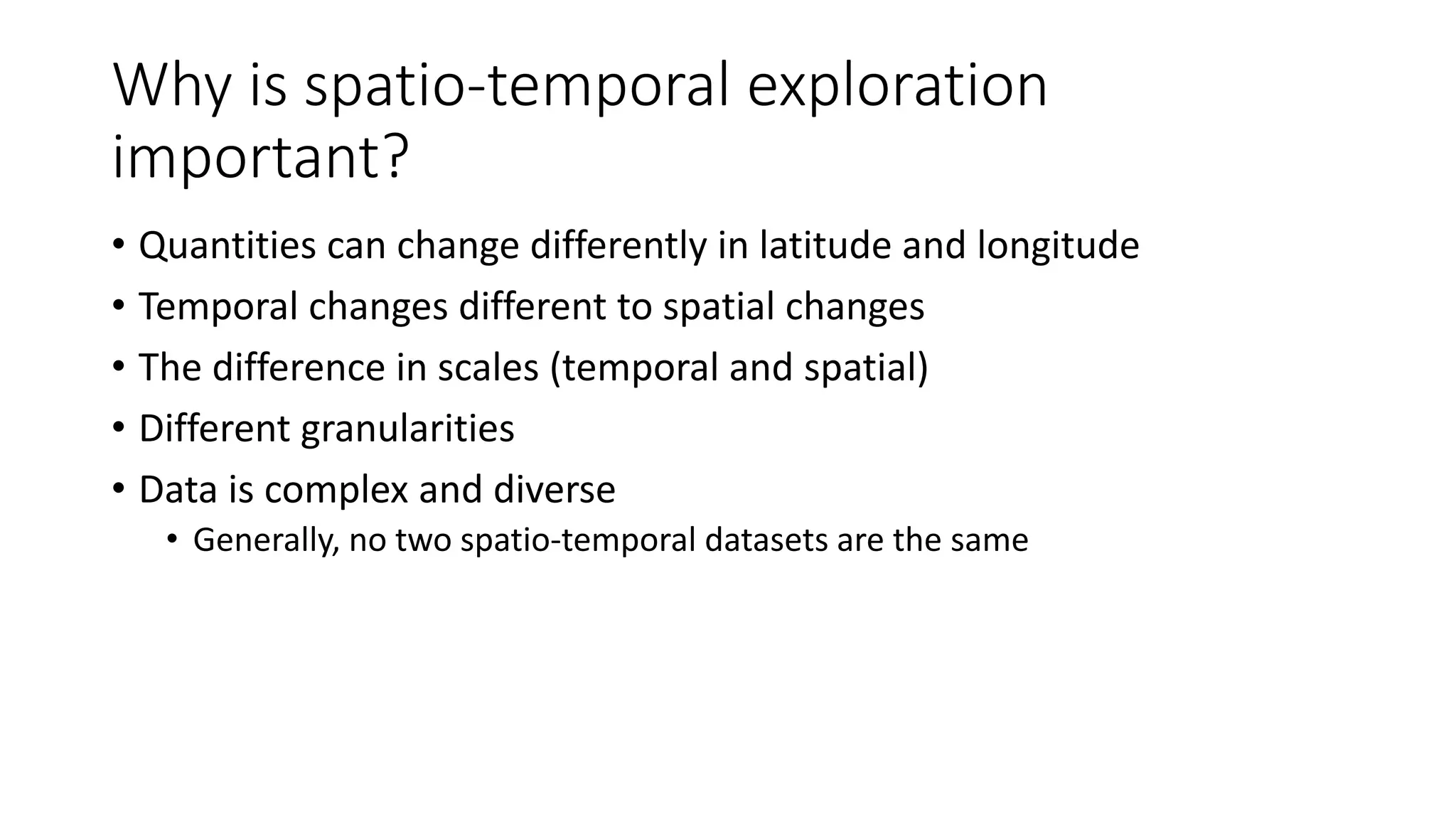

Why is spatio-temporal exploration
important?
• Quantities can change differently in latitude and longitude
• Temporal changes different to spatial changes
• The difference in scales (temporal and spatial)
• Different granularities
• Data is complex and diverse
• Generally, no two spatio-temporal datasets are the same

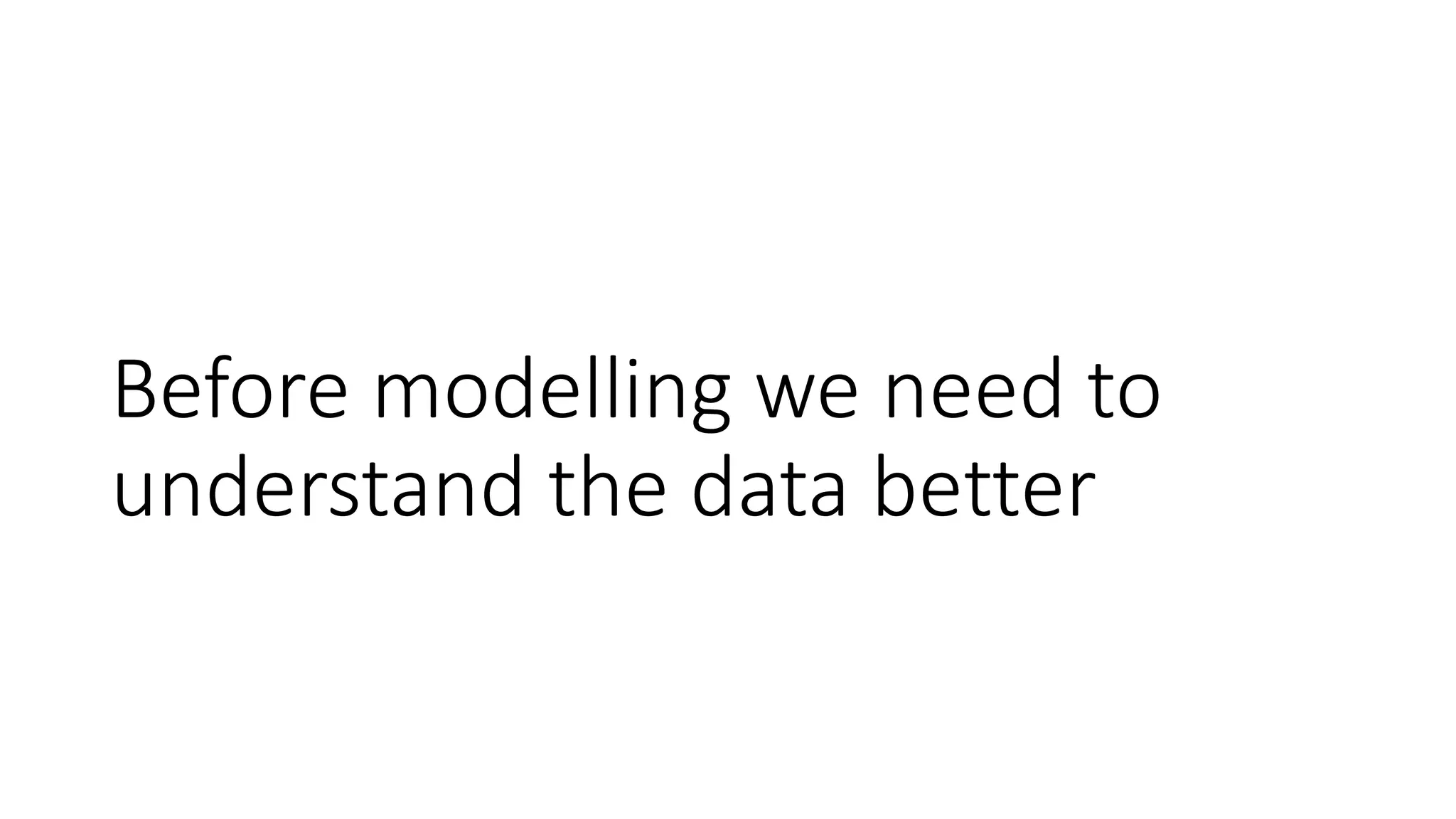

Before modelling we need to
understand the data better

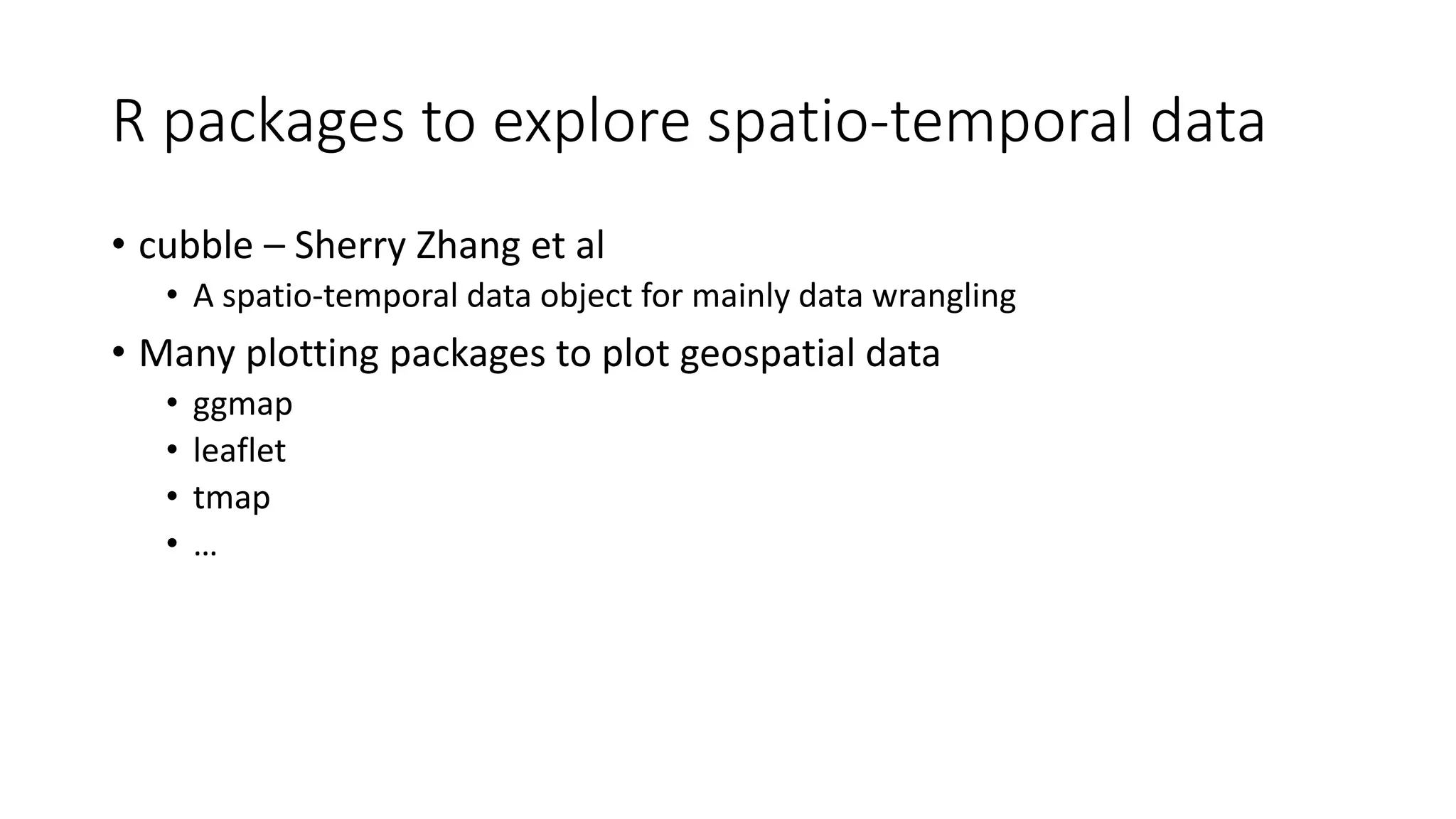

R packages to explore spatio-temporal data
• cubble – Sherry Zhang et al
• A spatio-temporal data object for mainly data wrangling
• Many plotting packages to plot geospatial data
• ggmap
• leaflet
• tmap
• …

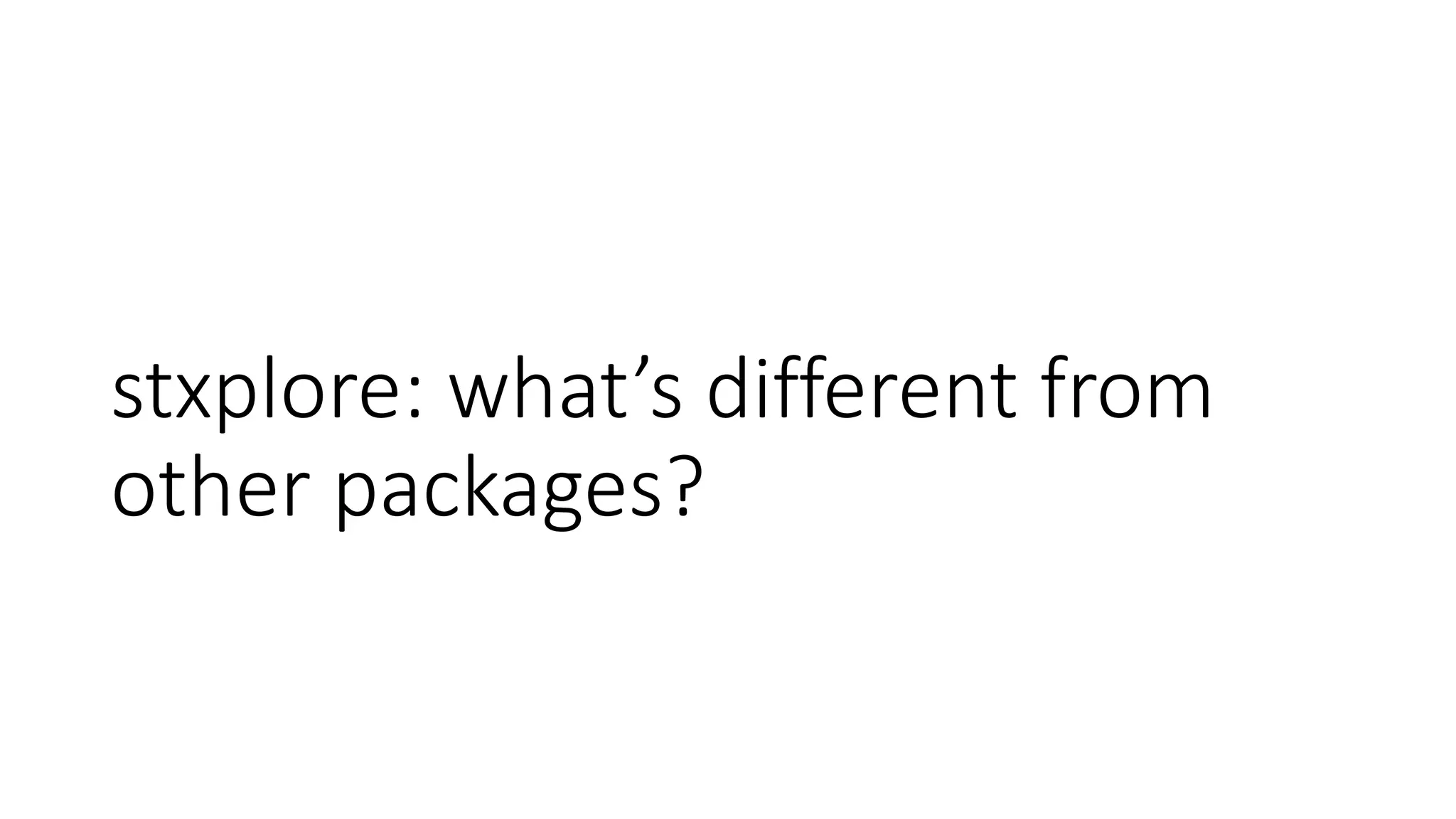

stxplore: what’s different from
other packages?

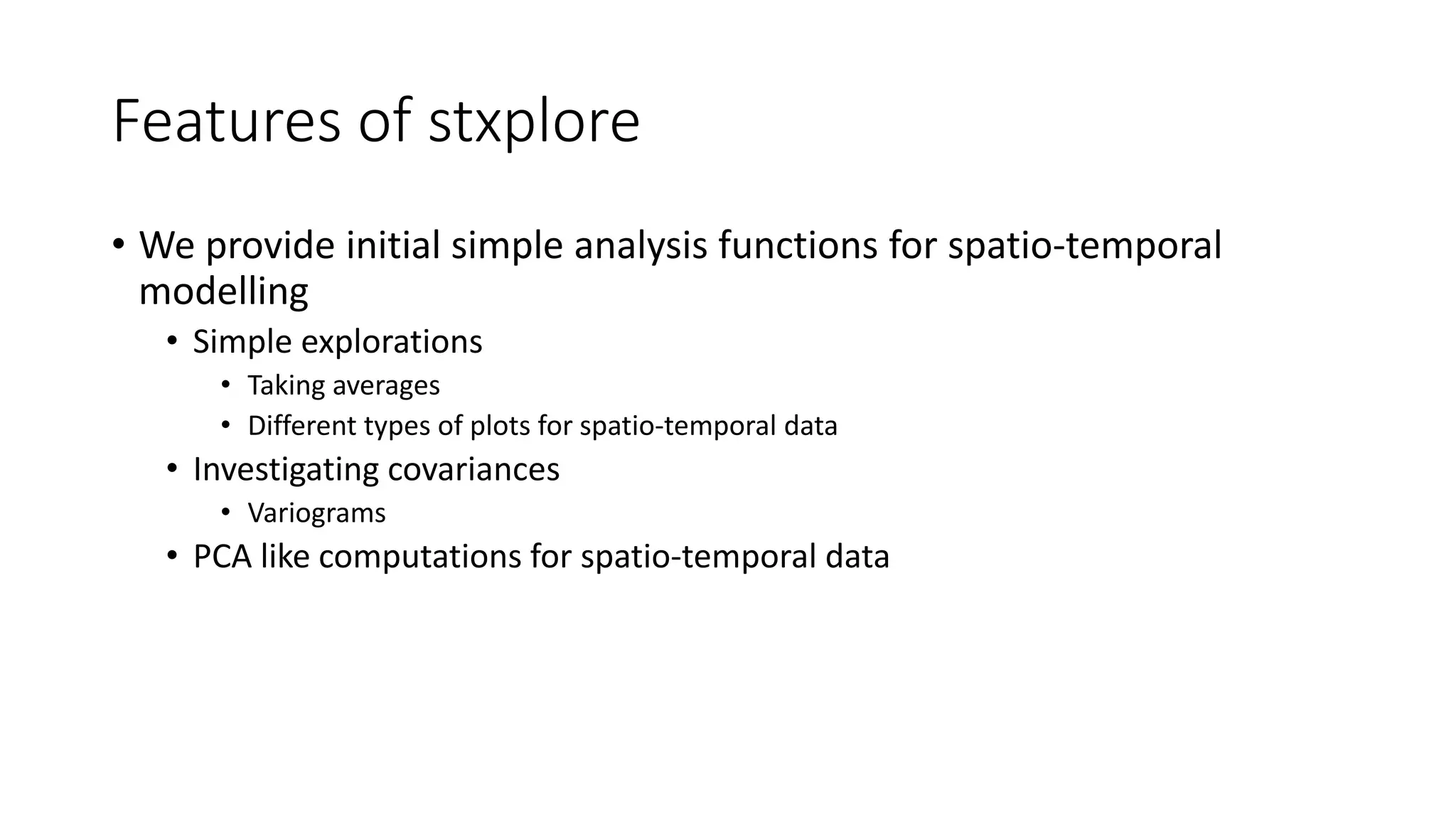

Features of stxplore
• We provide initial simple analysis functions for spatio-temporal
modelling
• Simple explorations
• Taking averages
• Different types of plots for spatio-temporal data
• Investigating covariances
• Variograms
• PCA like computations for spatio-temporal data

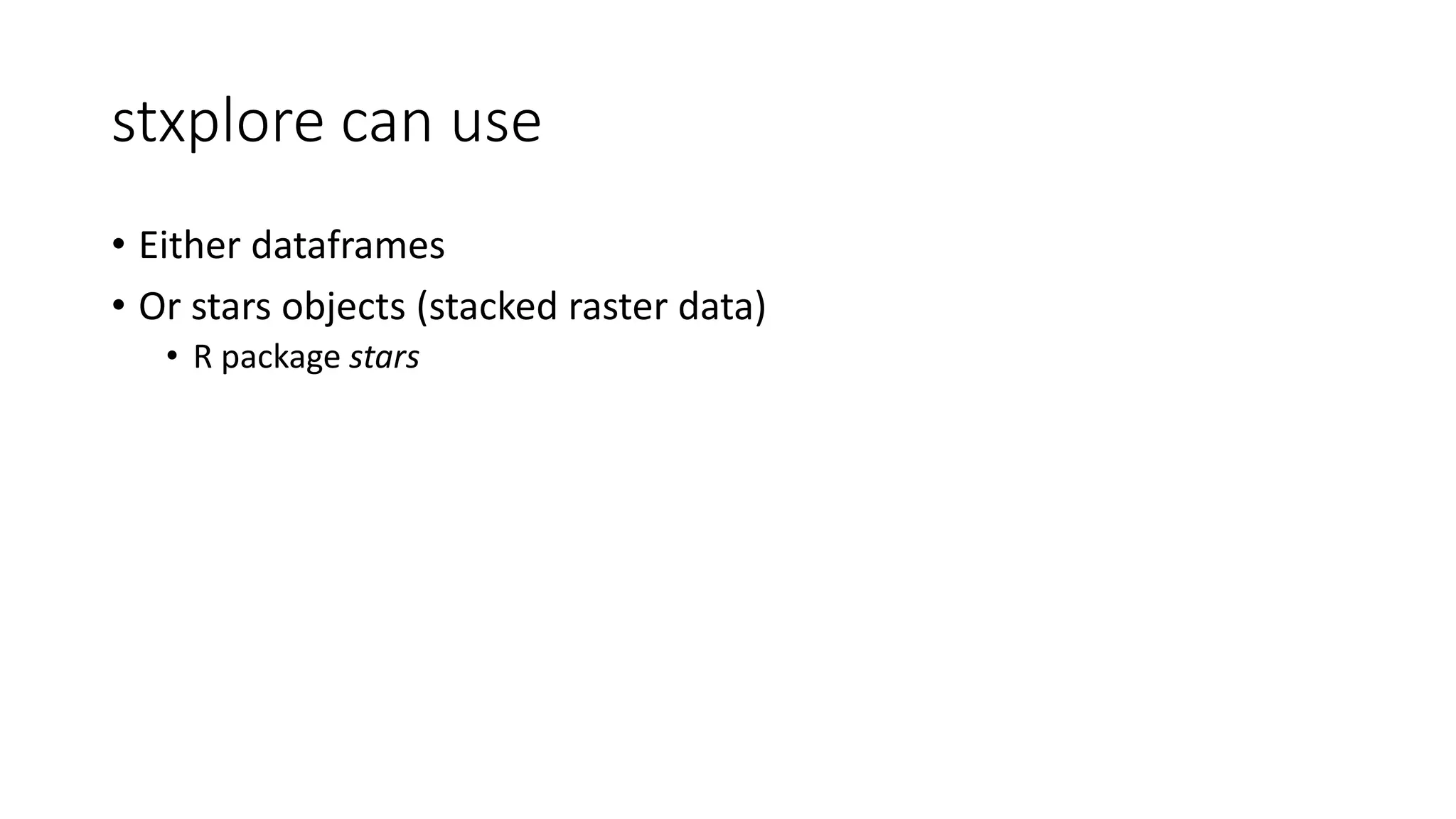

stxplore can use
• Either dataframes
• Or stars objects (stacked raster data)
• R package stars

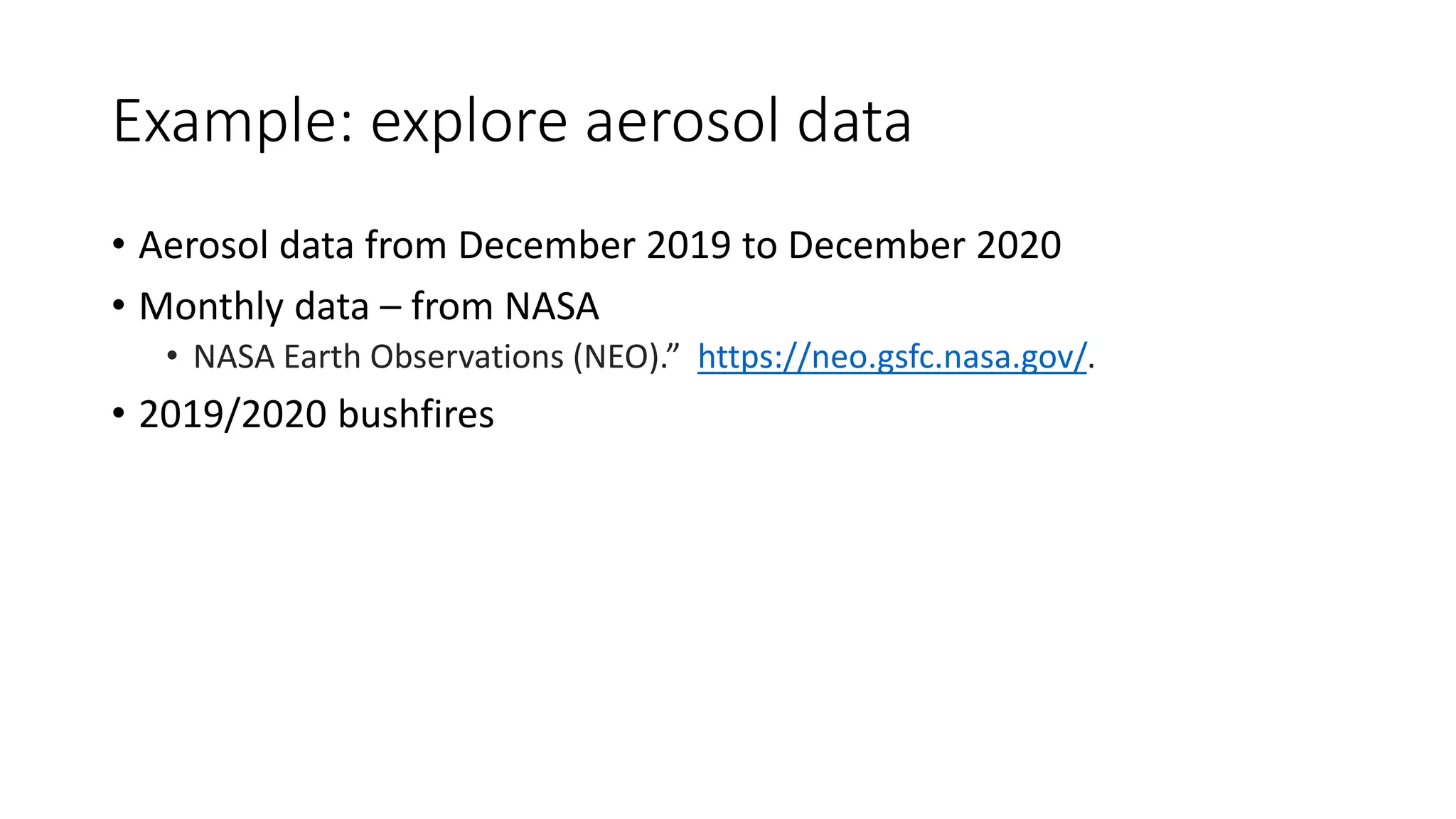

Example: explore aerosol data
• Aerosol data from December 2019 to December 2020
• Monthly data – from NASA
• NASA Earth Observations (NEO).” https://neo.gsfc.nasa.gov/.
• 2019/2020 bushfires
Initial explorations
2020−12−01
2020−08−01 2020−09−01 2020−10−01 2020−11−01
2020−04−01 2020−05−01 2020−06−01 2020−07−01
2019−12−01 2020−01−01 2020−02−01 2020−03−01
120 140 160 180
120 140 160 180 120 140 160 180 120 140 160 180
−60
−40
−20
0
−60
−40
−20
0
−60
−40
−20
0
−60
−40
−20
0
x
y
50
100
150
200
250
z

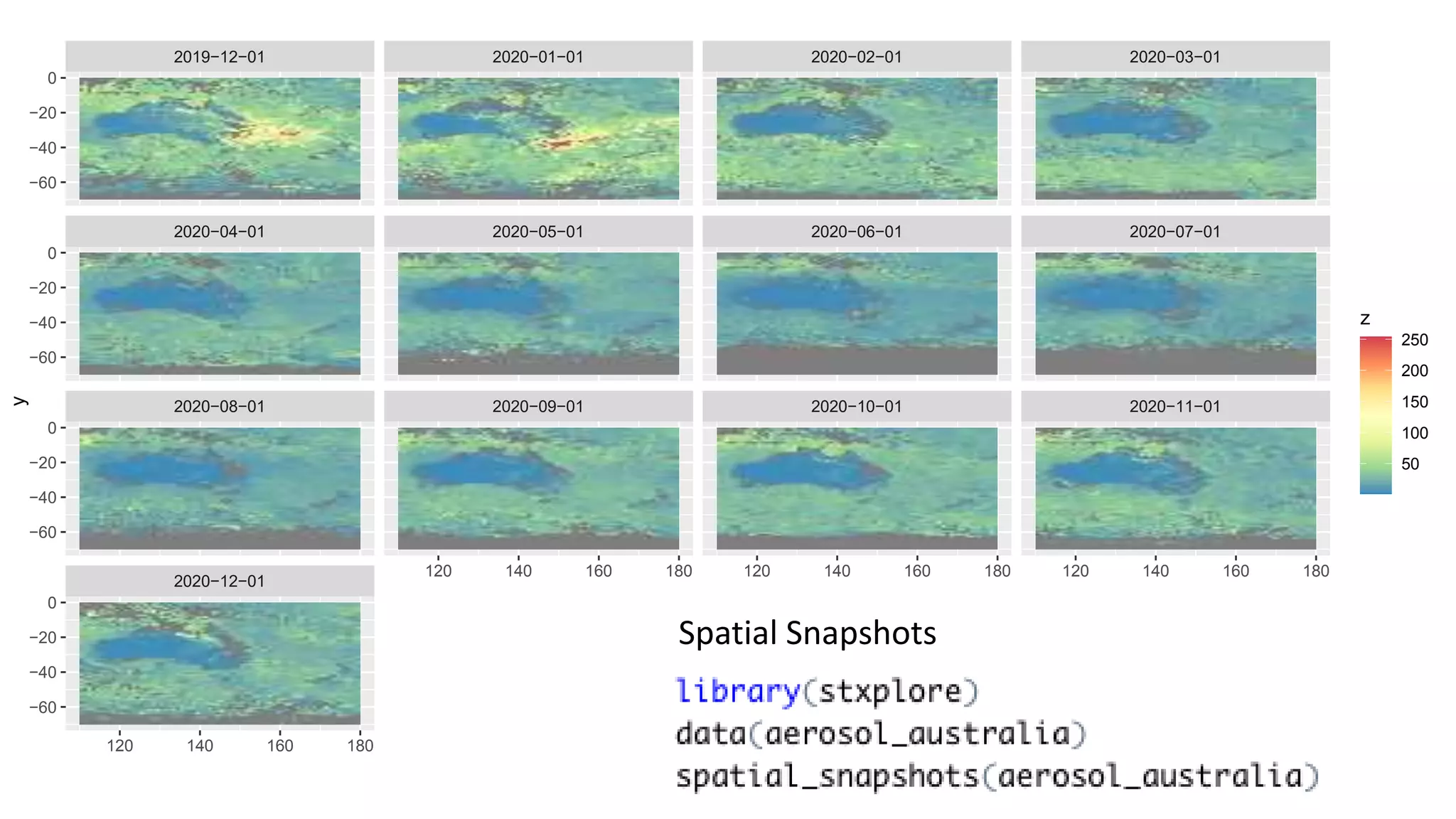

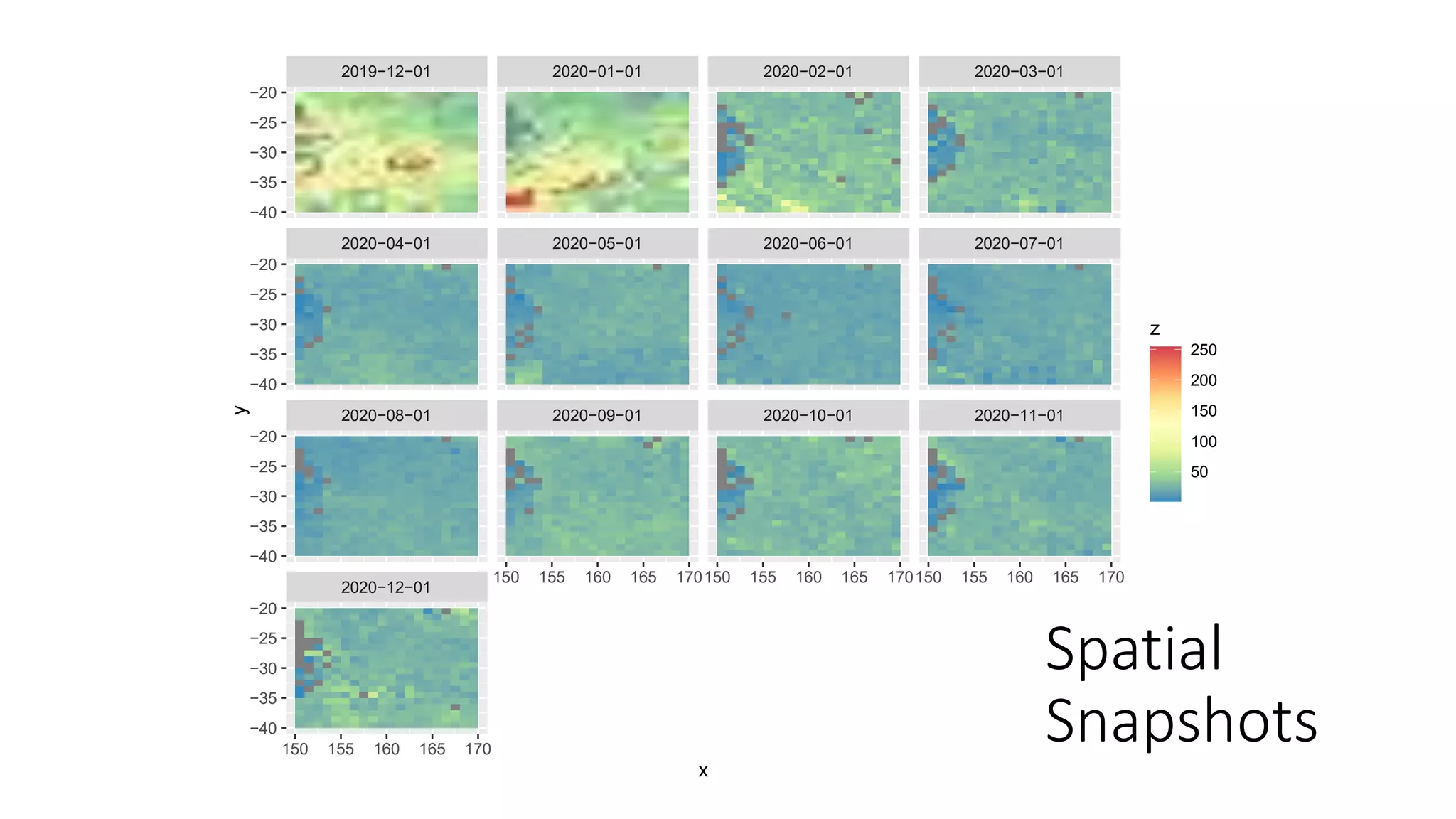

Spatial Snapshots

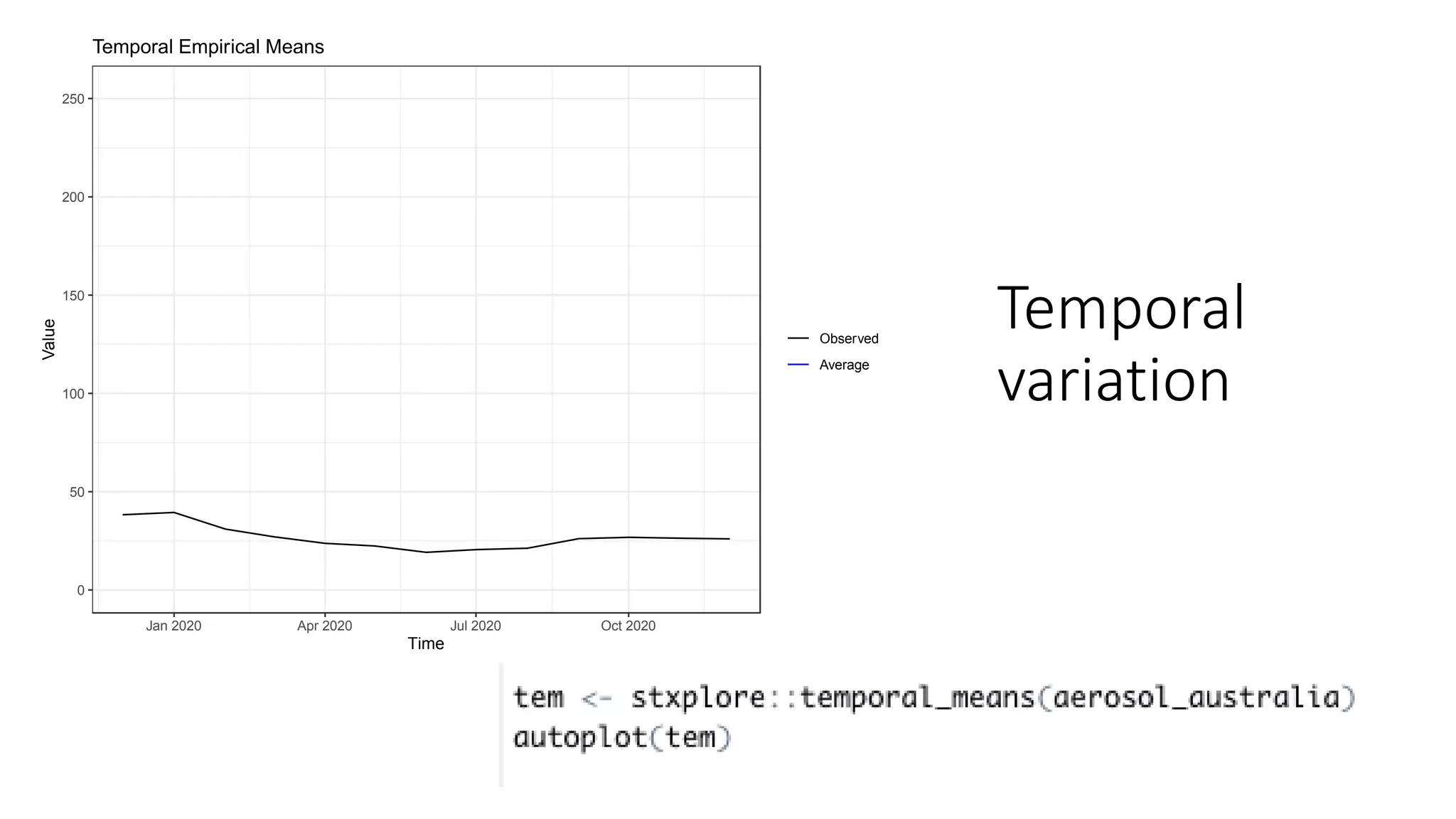

Temporal
variation
0
50
100
150
200
250
Jan 2020 Apr 2020 Jul 2020 Oct 2020
Time
Value
Observed
Average
Temporal Empirical Means

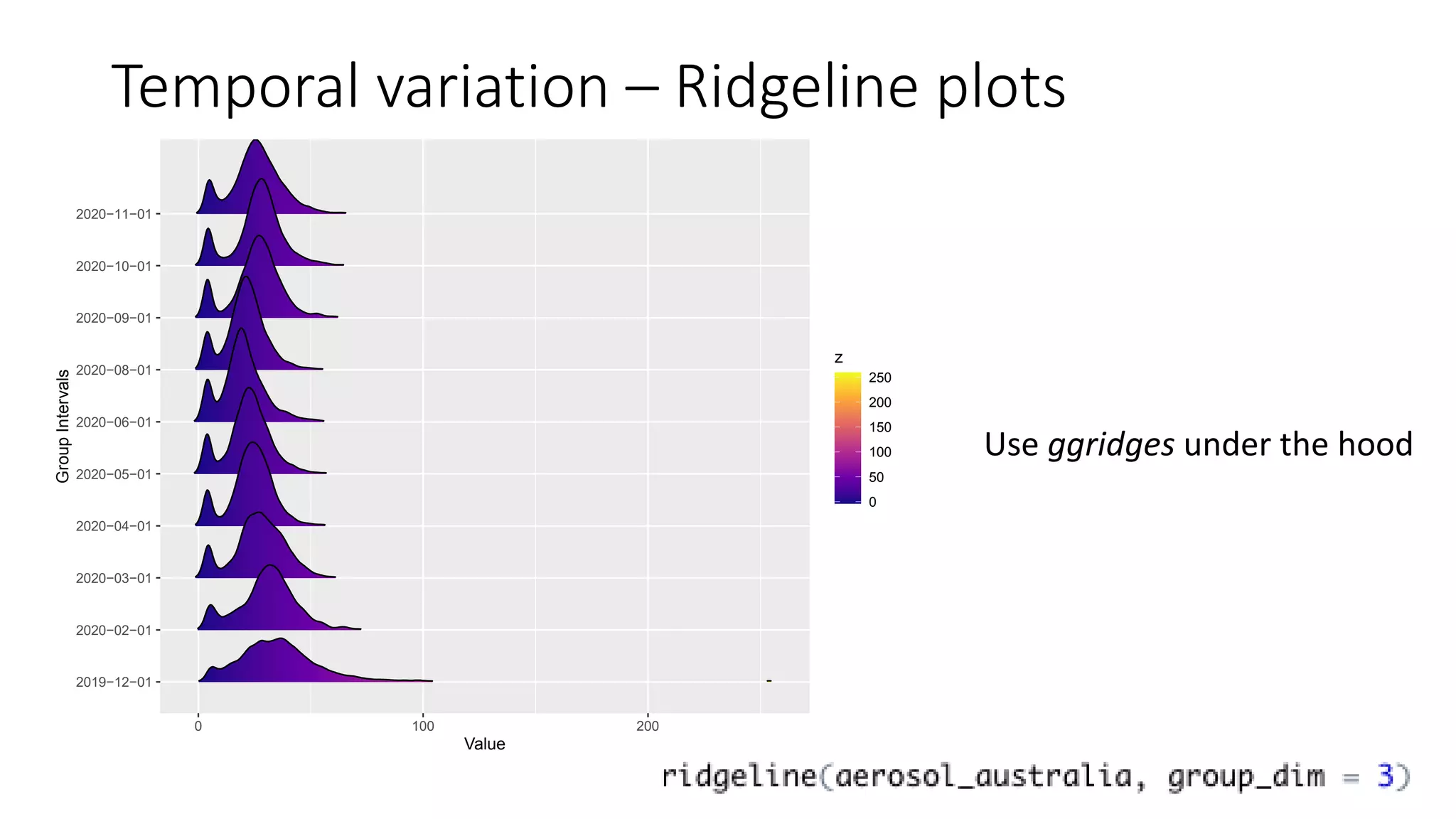

Temporal variation – Ridgeline plots
2019−12−01
2020−02−01
2020−03−01
2020−04−01
2020−05−01
2020−06−01
2020−08−01
2020−09−01
2020−10−01
2020−11−01
0 100 200
Value
Group
Intervals
0
50
100
150
200
250
z
Use ggridges under the hood
Jan 2020
Apr 2020
Jul 2020
Oct 2020
Jan 2021
120 140 160 180
Longitude
Day
z
20
30
40
50
Jan 2020
Apr 2020
Jul 2020
Oct 2020
Jan 2021
−60 −40 −20 0
Latitude
Day
z
20
30
40
50
60

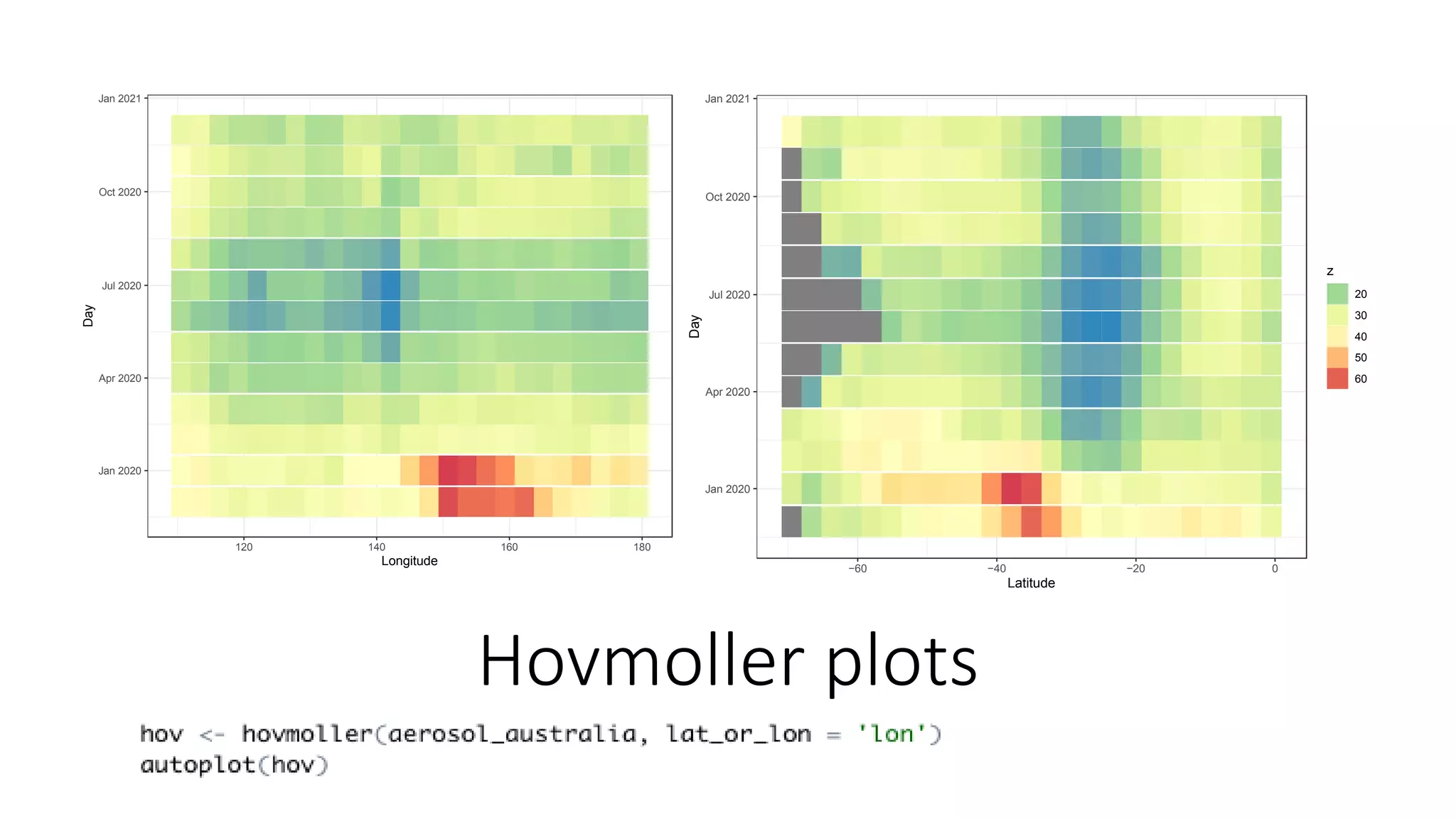

Hovmoller plots

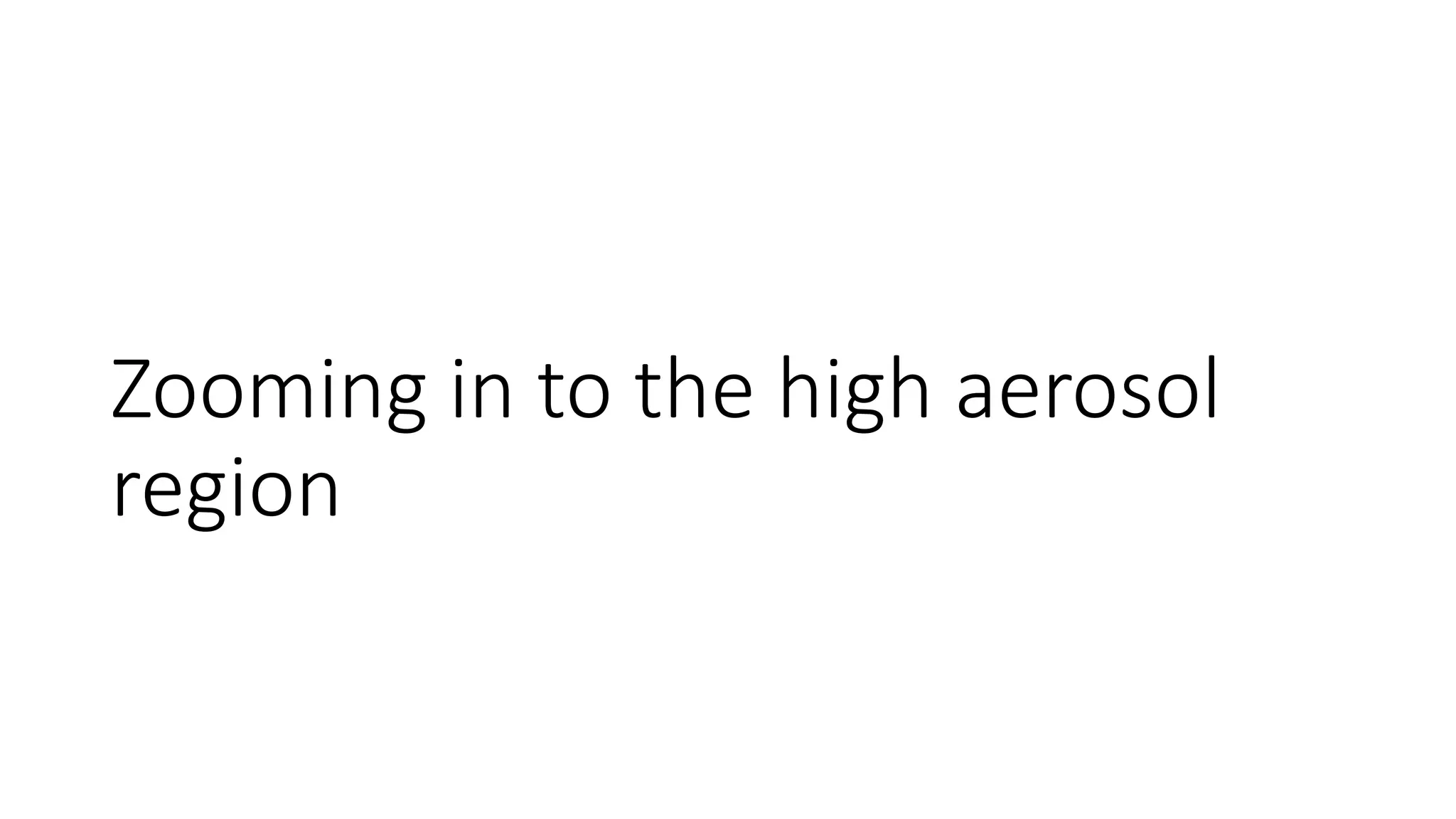

Zooming in to the high aerosol
region
2020−12−01
2020−08−01 2020−09−01 2020−10−01 2020−11−01
2020−04−01 2020−05−01 2020−06−01 2020−07−01
2019−12−01 2020−01−01 2020−02−01 2020−03−01
150 155 160 165 170
150 155 160 165 170150 155 160 165 170150 155 160 165 170
−40
−35
−30
−25
−20
−40
−35
−30
−25
−20
−40
−35
−30
−25
−20
−40
−35
−30
−25
−20
x
y
50
100
150
200
250
z
Spatial
Snapshots

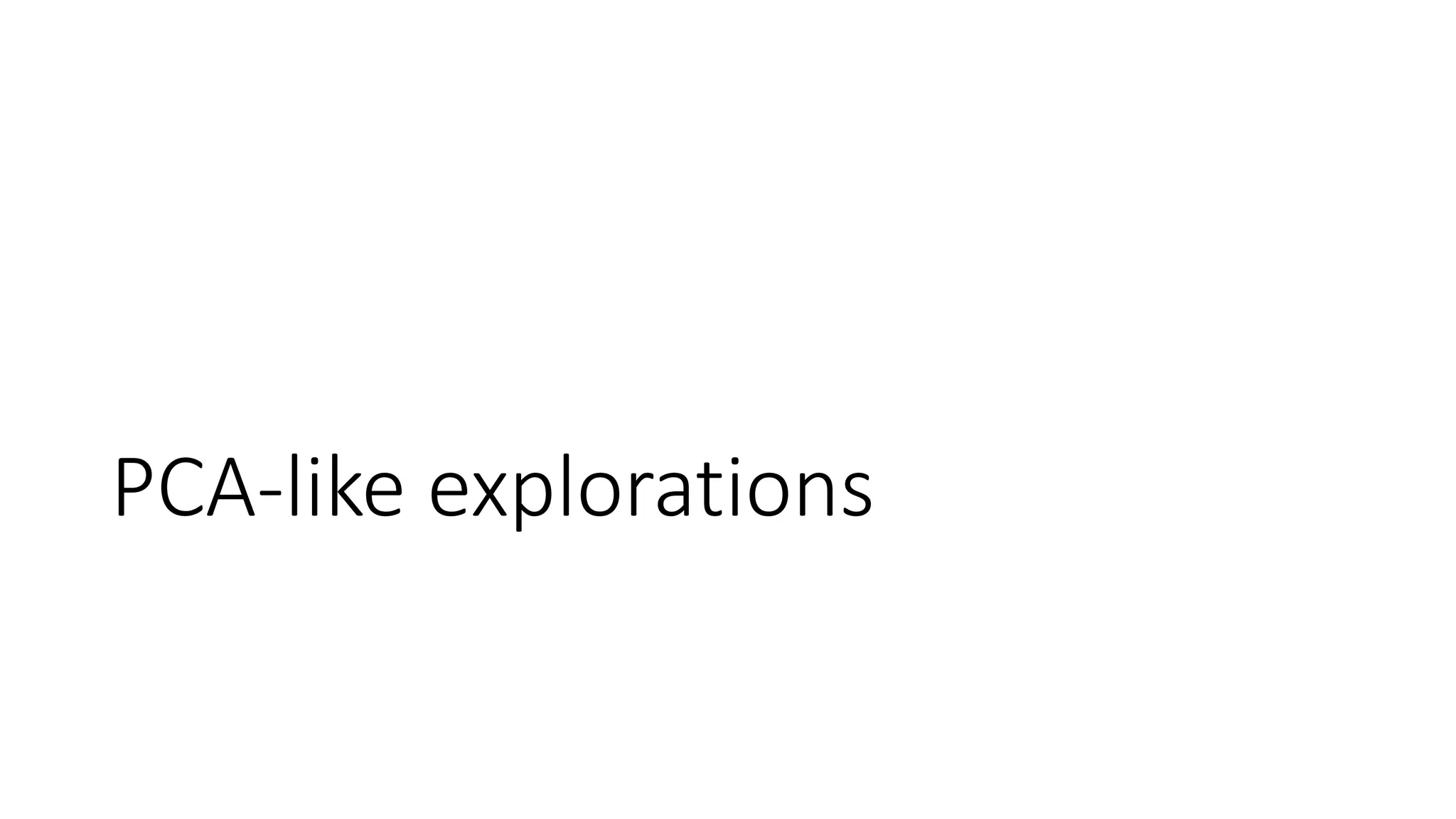

PCA-like explorations

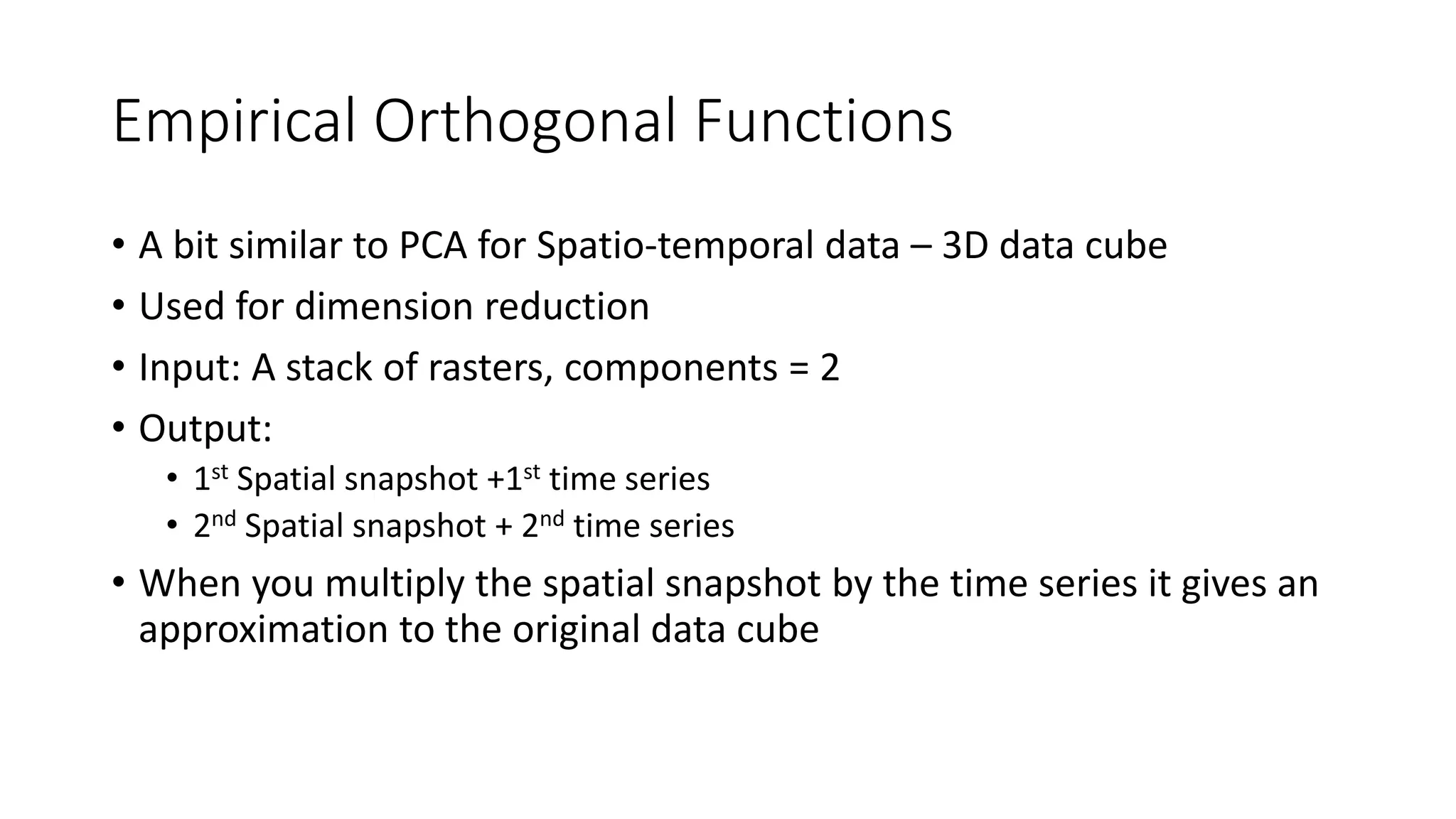

Empirical Orthogonal Functions
• A bit similar to PCA for Spatio-temporal data – 3D data cube
• Used for dimension reduction
• Input: A stack of rasters, components = 2
• Output:
• 1st Spatial snapshot +1st time series
• 2nd Spatial snapshot + 2nd time series
• When you multiply the spatial snapshot by the time series it gives an
approximation to the original data cube
−40
−35
−30
−25
−20
150 155 160 165 170
Longitude°
Latitude°
−0.16
−0.12
−0.08
−0.04
EOF1
EOF_1
−2
−1
0
5 10
Time (t)
Normalized
Principal
Component
PC Time series for EOF_1
−40
−35
−30
−25
−20
150 155 160 165 170
Longitude°
Latitude°
−0.2
−0.1
0.0
0.1
0.2
EOF2
EOF_2
−2
−1
0
1
2
5 10
Time (t)
Normalized
Principal
Component
PC Time series for EOF_2

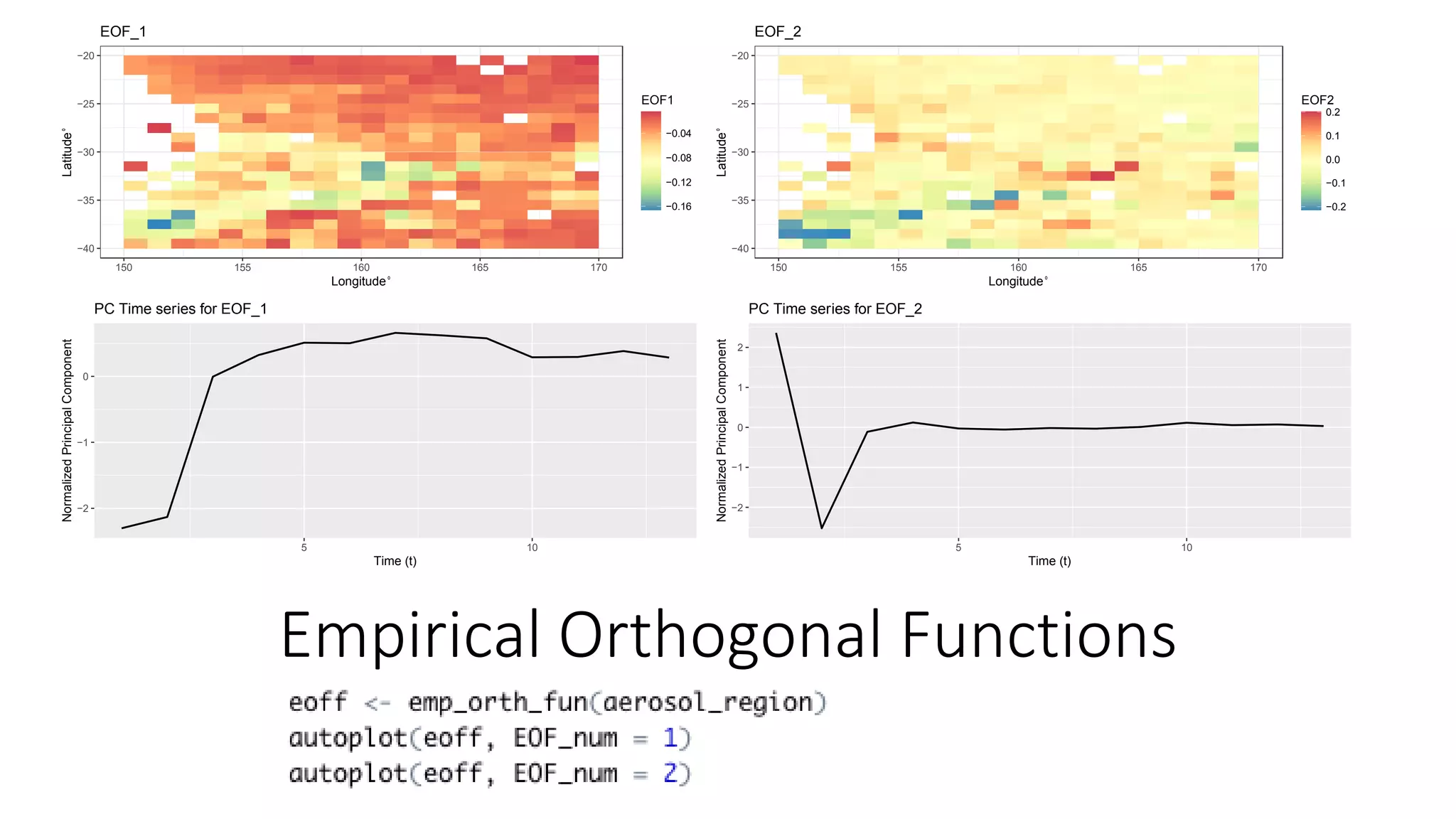

Empirical Orthogonal Functions

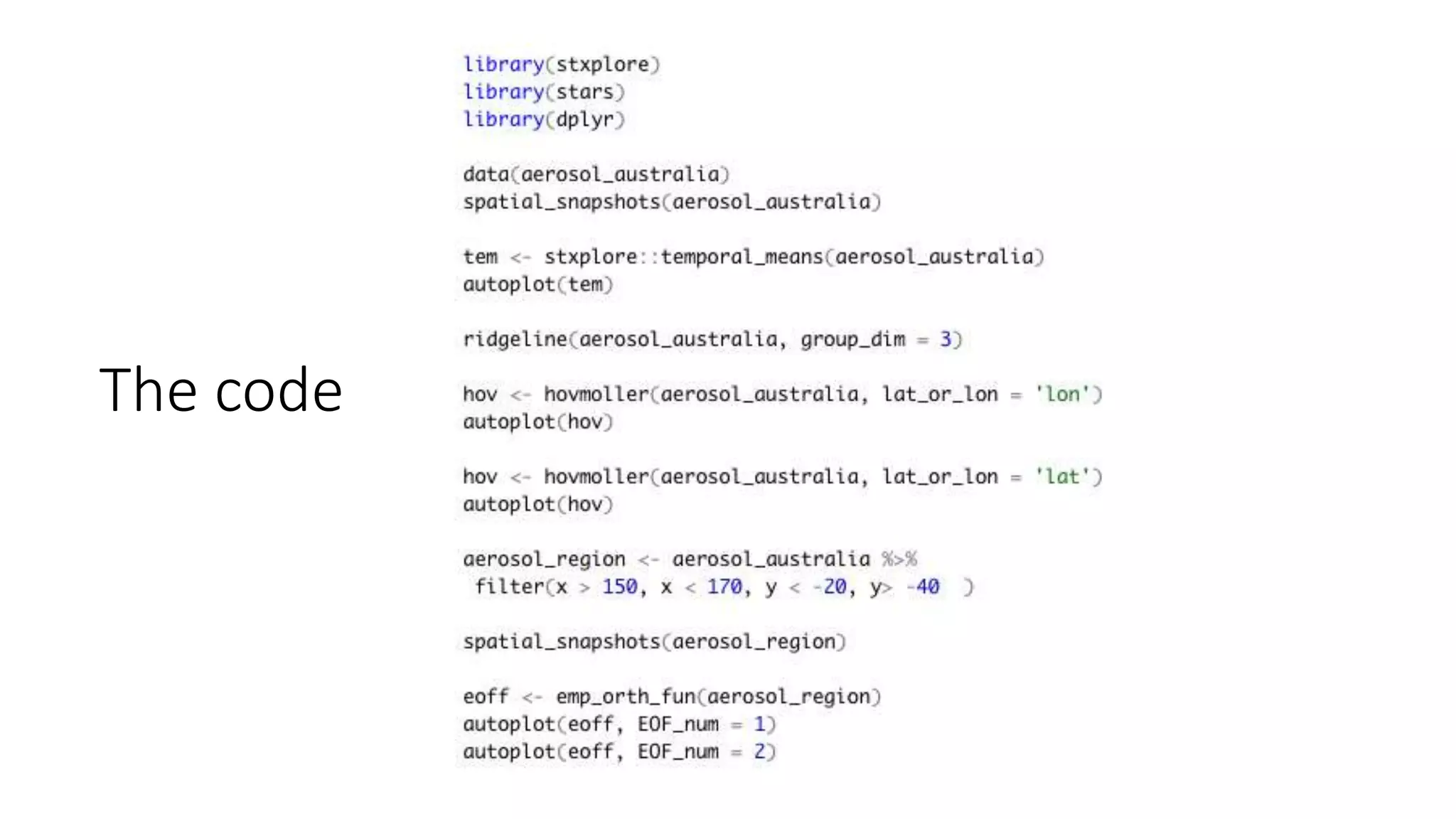

The code

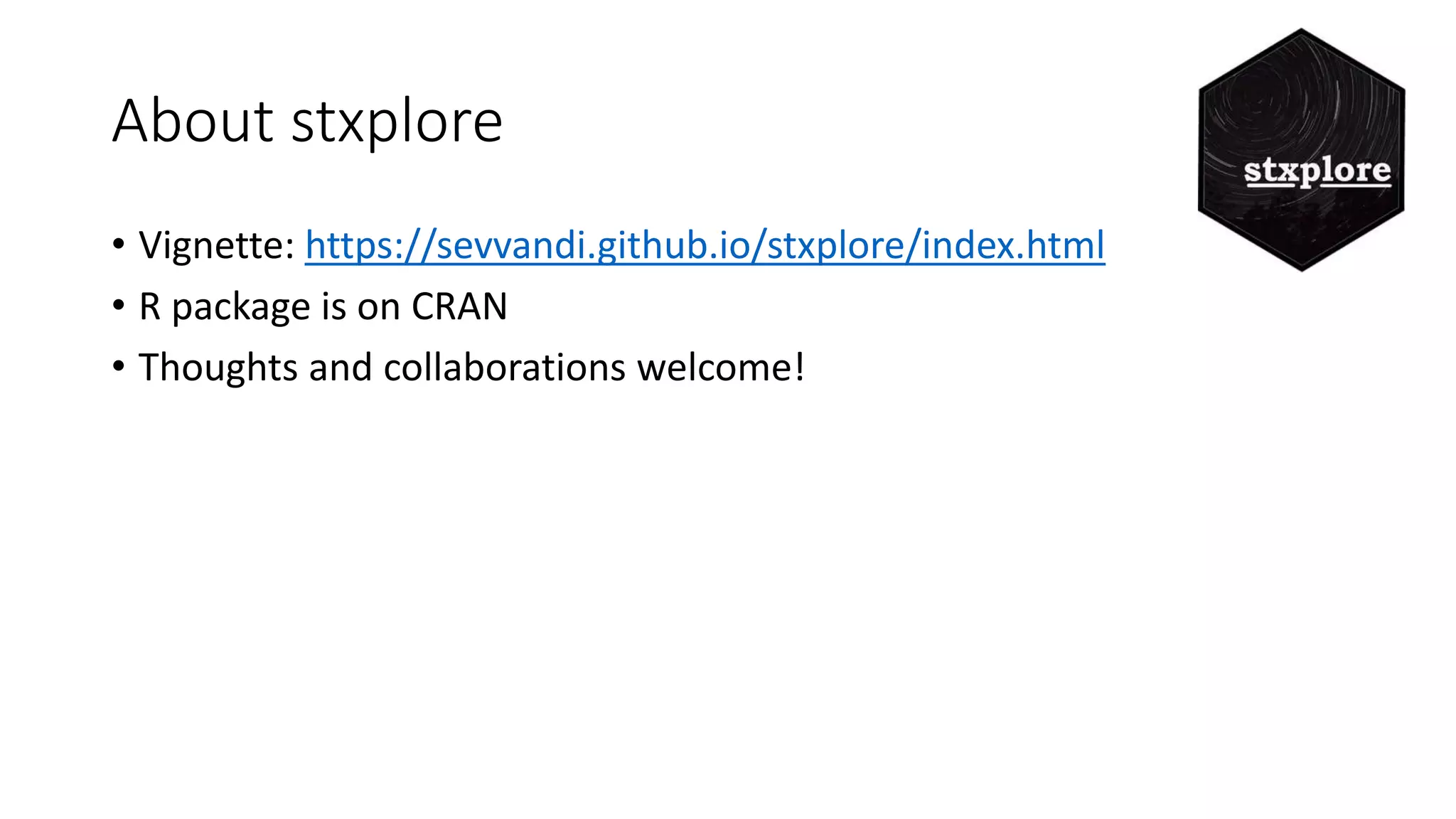

About stxplore
• Vignette: https://sevvandi.github.io/stxplore/index.html
• R package is on CRAN
• Thoughts and collaborations welcome!

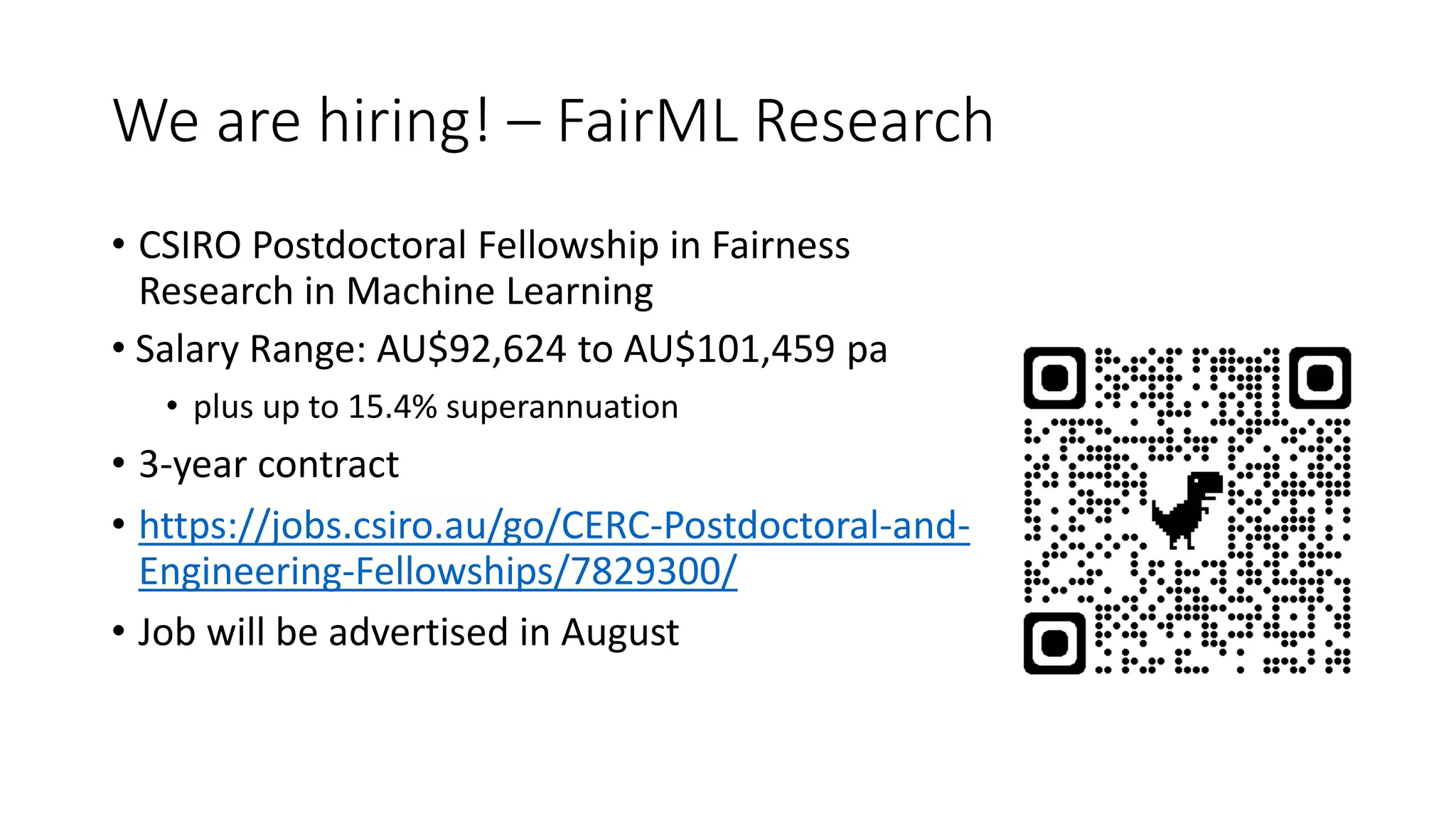

We are hiring! – FairML Research
• CSIRO Postdoctoral Fellowship in Fairness
Research in Machine Learning
• Salary Range: AU$92,624 to AU$101,459 pa
• plus up to 15.4% superannuation
• 3-year contract
• https://jobs.csiro.au/go/CERC-Postdoctoral-and-
Engineering-Fellowships/7829300/
• Job will be advertised in August
Thank you!
