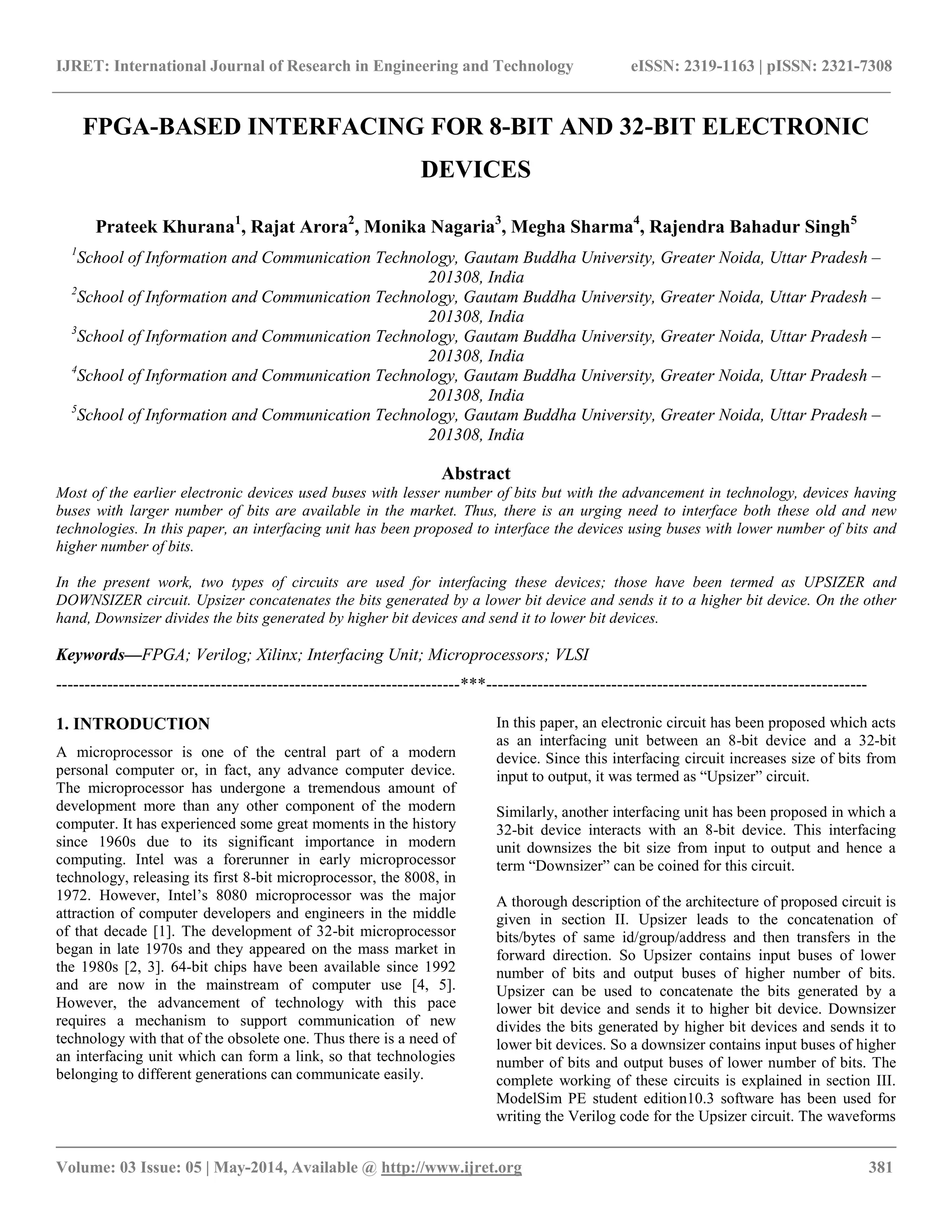

IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
__________________________________________________________________________________________
Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 381
FPGA-BASED INTERFACING FOR 8-BIT AND 32-BIT ELECTRONIC
DEVICES
Prateek Khurana1
, Rajat Arora2
, Monika Nagaria3
, Megha Sharma4
, Rajendra Bahadur Singh5
1
School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh –
201308, India
2
School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh –
201308, India
3
School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh –
201308, India
4
School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh –
201308, India
5
School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh –
201308, India
Abstract
Most of the earlier electronic devices used buses with lesser number of bits but with the advancement in technology, devices having
buses with larger number of bits are available in the market. Thus, there is an urging need to interface both these old and new
technologies. In this paper, an interfacing unit has been proposed to interface the devices using buses with lower number of bits and
higher number of bits.
In the present work, two types of circuits are used for interfacing these devices; those have been termed as UPSIZER and
DOWNSIZER circuit. Upsizer concatenates the bits generated by a lower bit device and sends it to a higher bit device. On the other
hand, Downsizer divides the bits generated by higher bit devices and send it to lower bit devices.
Keywords—FPGA; Verilog; Xilinx; Interfacing Unit; Microprocessors; VLSI
-----------------------------------------------------------------------***-------------------------------------------------------------------
1. INTRODUCTION
A microprocessor is one of the central part of a modern
personal computer or, in fact, any advance computer device.
The microprocessor has undergone a tremendous amount of
development more than any other component of the modern
computer. It has experienced some great moments in the history
since 1960s due to its significant importance in modern
computing. Intel was a forerunner in early microprocessor
technology, releasing its first 8-bit microprocessor, the 8008, in
1972. However, Intel’s 8080 microprocessor was the major
attraction of computer developers and engineers in the middle
of that decade [1]. The development of 32-bit microprocessor
began in late 1970s and they appeared on the mass market in
the 1980s [2, 3]. 64-bit chips have been available since 1992
and are now in the mainstream of computer use [4, 5].
However, the advancement of technology with this pace
requires a mechanism to support communication of new
technology with that of the obsolete one. Thus there is a need of
an interfacing unit which can form a link, so that technologies
belonging to different generations can communicate easily.
In this paper, an electronic circuit has been proposed which acts
as an interfacing unit between an 8-bit device and a 32-bit
device. Since this interfacing circuit increases size of bits from
input to output, it was termed as “Upsizer” circuit.
Similarly, another interfacing unit has been proposed in which a
32-bit device interacts with an 8-bit device. This interfacing
unit downsizes the bit size from input to output and hence a
term “Downsizer” can be coined for this circuit.
A thorough description of the architecture of proposed circuit is
given in section II. Upsizer leads to the concatenation of
bits/bytes of same id/group/address and then transfers in the
forward direction. So Upsizer contains input buses of lower
number of bits and output buses of higher number of bits.
Upsizer can be used to concatenate the bits generated by a
lower bit device and sends it to higher bit device. Downsizer
divides the bits generated by higher bit devices and sends it to
lower bit devices. So a downsizer contains input buses of higher
number of bits and output buses of lower number of bits. The
complete working of these circuits is explained in section III.
ModelSim PE student edition10.3 software has been used for
writing the Verilog code for the Upsizer circuit. The waveforms
IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
__________________________________________________________________________________________
Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 382
obtained on ModelSim have been shown in section IV. Xilinx
ISE tool has been used for the extensive synthesis of the
Verilog code which models this circuit. The results of this
synthesis are compiled in section V. The Verilog code was also
dumped on Xilinx Spartan®-3 FPGA kit which is explained in
section VI. This demonstrates the working of the circuit
proposed in this paper. The block diagram of the Upsizer and
Downsizer circuit are shown in Fig. 1 and Fig. 2 respectively.
Fig. 1.Block Diagram of Upsizer as an Interfacing Unit
Fig 2 Block Diagram of Downsizer as an Interfacing Unit
2. ARCHITECTURAL DESCRIPTION
To interface the devices using buses containing lower number
of bits and devices using buses containing higher number of
bits an Upsizer circuit was proposed. In this circuit,
concatenation of bits/bytes of same id/group/address was done
and transferred forward. So this circuit contained input buses of
lower number of bits and output buses of higher number of bits.
When an Upsizer circuit was employed, the device having a
lower fan-out acted as a master and drove the Upsizer circuit
that further lead to concatenation of bits and it transferred
higher number of bits to slave having a higher fan-in. Input
signals like VALID, DATA [7:0], ID [3:0] etc. were given by
the master to the Upsizer circuits. Output signals like
VALIDM, IDM [3:0], DATAM [31:0] etc. were used to drive
the slave by the Upsizer. The I/O pins of the Upsizer circuit are
shown in Fig. 3.
Fig 3 I/O pins of the Upsizer circuit.
In the above figure, except READYM signal, all other signals
were given as input to the Upsizer by the master which in this
case was a microprocessor or any other device having lower
number bits. This input data was concatenated according to
same id/group/address and transferred to the slave. VALID
input pin indicated the validity of input data, if it was high the
input data was considered valid. For its low value, the input was
considered invalid/unacceptable. This signal was generated by
the master. If it was required to perform the concatenation of
data, then data was to be accepted by the Upsizer, which was
only possible if VALID signal was high. The input data of 8
bits was sent by the master device along DATA [7:0] bus. It
was this data that was concatenated and transferred forward to
the slave device. ID [3:0] was used to differentiate the input 8
bit data. It acted like an address of the incoming data. It helped
in concatenating the input data because data of same id were
concatenated in 32 bits and transferred to slave. Master sent the
ID along with the 8-bit data. READYM signal was used in
communicating between slave and Upsizer. This signal was
generated by the slave. Whenever slave was not ready to accept
the data or was busy, this signal went low and it indicated the
Upsizer to stop transferring the data and wait for some clock
cycles. Data was not transferred to slave in that case even
though if it was concatenated and stored by the Upsizer.
Upsizer waited for the READYM signal to go high and then
resumed the data transfer to slave.
In the Fig. 3, except READY signal, all other signals were
given by the Upsizer as output to the slave which in this case
was a microprocessor or a device having higher no of bits. The
slave device received concatenated data according to same
id/group/address and was transferred by the Upsizer as
generated by the master. VALIDM signal was generated by the
Upsizer only when the input 8-bit data having same id were
concatenated and ready to transfer. This signal indicated the
slave that input data was valid and allowed acceptance of data
IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
__________________________________________________________________________________________
Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 383
by the slave. The output data of 32 bits was sent by the Upsizer
to the slave device along OUTPUT [31:0] bus. 8-bit data from
master of same id were concatenated in Upsizer and transferred
to slave through this 32 bit bus. IDM [3:0] gave the id of the
data which was getting transferred to the slave. BYTESM [4:0]
signal was generated by the Upsizer. It was a 4-bit wide data.
Each bit corresponded to the 8-bit wide in the 32-bit output
data. READY signal was another output signal generated by the
Upsizer. When this signal went low it indicated to master that
the Upsizer was busy/not ready to accept the data. Meanwhile
Upsizer generated some wait cycles and completed the
execution of the previous transfers.
Downsizer circuit was same as that of the Upsizer. The input
and the output signals of the Downsizer model had the same
functions as that of the Upsizer model. The only difference was
that Downsizer divided the bits generated by higher bit devices
and sent it to lower bit devices. Therefore a Downsizer was
used to convert large number of bits into small number of bits,
so that the data used by higher bit devices may be used by the
devices with lower bits. A Downsizer had input buses of higher
number of bits and output buses of lower number of bits. When
a Downsizer circuit was employed, the device having higher
fan-out acted as a master and drove the downsizer circuit. This
lead to division of bits and Downsizer transferred lower number
of bits to slave having lower fan-in.
Input signals like VALID, DATA [31:0], ID [3:0] etc. were
given by the master to the Downsizer circuit. Output signals
like VALIDM, IDM [3:0], DATAM [7:0] etc. were used to
drive the slave device by the Downsizer circuit. The I/O pins of
the Downsizer circuit are shown in Fig. 4.
Fig 4 I/O pins of the Downsizer circuit.
3. WORKING OF THE INTERFACING CIRCUITS
Upsizer handled the routing of data only and did not modify the
transfer type or response information. Input data of same id
were grouped together, so maximum 4 bytes data of same id
were concatenated if they arrived consecutively. If there was
any change in id after 1/2/3 bytes of data, then rest of the upper
bytes were zero padded and a total 4 bytes were forwarded.
Thus ID [3:0] played a major role in determining the address of
the incoming data and created groups of 32-bit data
accordingly, which were then transferred to the slave device.
The other input signals, including the 8-bit input data bus
DATA [7:0] were generated by the master device for the
Upsizer circuit.
If input data, generated by the master device for the first four
clocks is 11001100,00001111,11110000,10101010 and ID
remained same as 1001, then all these four bytes of data were
concatenated by the Upsizer circuit. The 32-bit output data
transferred to the slave device in 5th
clock cycle in this case was
10101010111100000000111111001100. This example has been
shown in Fig. 5.
Fig 5 Working of Upsize circuit without zero padding condition
Now for another instance, if input data, generated by the master
device for the first two clocks is10101010, 11110000 and ID is
1001, and for the next clock cycle ID got changed to 1010.
Then zero padding would be done and the two input data would
be sent by the Upsizer to the slave device as 32-bit output data:
00000000000000001111000010101010. This example has been
shown in Fig. 6.
Fig.6 Working of Upsizer circuit with zero padding condition
IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
__________________________________________________________________________________________
Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 384
The Downsizer worked in the similar fashion as Upsizer circuit.
The Downsizer divided the 32-bit data into four different bytes
of data and transferred it to the slave device. For the Downsizer
circuit, the master device had a higher fan-out i.e. 32-bit data.
The slave device had a lower fan-in i.e. 8-bit data. In this no
zero padding was required, because whatever the 32-bit data
was coming it got divided into 4 bytes and these 4 bytes were
transferred to the slave device.
For instance, if the input 32-bit data generated by the master
device was 11001100000011111111000010101010, then this
input data got divided into 4 bytes as 10101010, 11110000,
00001111, 11001100 with lower byte in the starting and higher
byte in the last of the data transfer. This example has been
shown in Fig. 7.
Fig 7 Working of Downsizer circuit
4. MODELSIM ALTERA SIMULATION
The Upsizer circuit whose logical description is given in the
above section has been realized with a hardware description
language (HDL) i.e. Verilog. Verilog language was invented by
a company called Gateway Design Automation in the early
1980s. Most of the modern electronic systems can be modeled
using this language at register transfer level of abstraction [6, 7
and 8]. The simulation software that has been used to simulate
the Verilog code of the circuit is MODELSIM PE 10.3. This
tool is basically a simulation and verification tool for Verilog,
VHDL, System C and mixed level designs. This simulator is
best suited for both ASIC and FPGA designs as it has an
excellent platform support that makes it easy to adopt in
majority of design and project flows. It provides high capacity,
performance and debugging capabilities that are essential to
simulate large blocks of code. The graphical user interface
(GUI) provided is also intelligently engineered that makes the
graphical interpretation of the design flexible and easily
understandable [9].
To design a circuit with this software, a certain step by step
process is followed otherwise it becomes quite a tedious task.
Firstly, a working design library needs to be created, and then
all the design files required for the simulation are compiled.
The next step is to load all the design files and then multiple
simulations are performed. The I/O waveforms are studied on
the waveform viewer, which is an essential part of this
software. The waveforms are also useful in studying and
debugging the results. The basic simulation flow of any HDL
code on this software is shown in Fig 8.
Fig 8 Basic Simulation Flow
A Verilog code was written for the Upsizer circuit according to
the basic simulation flow shown in Fig. 8. This Verilog code
was successfully compiled with no errors. A test bench was
written for this Verilog code that helped to force all possible
inputs at regular time intervals. Both the Verilog code for the
Upsizer circuit and its test bench were simulated and I/O
waveforms were studied in the waveform viewer. These
waveforms when extensively studied, verified the working of
the Upsizer circuit according to the logic discussed in the
previous section.
Consider for instance, if the input data was 00001111 and ID
was 0001 for four clock cycles, then the expected output data is
00001111000011110000111100001111. In this case, the input
data from the master device was concatenated since ID did not
change its value for four clock cycles. Thus Upsizer performed
its functions as it was desired. The simulation result for this
case has been shown in Fig. 9.
In another example, the input data was 10101010 for four clock
cycles and ID remained as 0000. As it was expected, the
Upsizer circuit concatenated the input data from the master four
times and the 32-bit output data sent to the slave device was
10101010101010101010101010101010. This has been shown
in Fig. 10.
IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
__________________________________________________________________________________________
Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 385
Fig 9 Simulation result with input data =00001111 and id =
0001 for four clocks and output =
00001111000011110000111100001111
Fig 10 Simulation result with input data =10101010 and id =
0000 for four clocks and output =
10101010101010101010101010101010
Now for the case when ID was 0001 for the first clock cycle,
and it was changed for the next clock cycle with input data
remaining constant as 10101010, zero padding was done. This
verifies the logic of Upsizer circuit. Since ID changed its value
just after the first clock cycle, the higher 24 bits of 32-bit data
were zero padded. The 32-bit output data obtained in this case
was 00000000000000000000000010101010. This simulation
result has been shown in Fig. 11.
Fig 11 Simulation result with input data = 10101010 and id =
0001 for first clock and id got changed,so the output =
00000000000000000000000010101010.
In another case, input 8-bit data was 10101010 and ID was
0010 for first clock cycle. For the second clock cycle, the input
data was 11110000 and ID was still 0010. The ID got changed
after second clock cycle. Considering the function of Upsizer
circuit, the higher 16 bits of the 32-bit output data were zero
padded. However, lower 16 bits consisted of the concatenated
input data. The simulation results has been shown in Fig. 12.
Fig 12 Simulation result with input data = 10101010 and id
=0010 for first clock and input data = 11110000 and id = 0010
for second clock, then id got changed, therefore output =
00000000000000001111000010101010
IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
__________________________________________________________________________________________
Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 386
Fig 13 A Verilog Testbench for the Upsizer Circuit Model
In all of the above cases, the input had to be forced manually to
achieve the output waveforms. Therefore it was not possible to
simulate all possible input combinations. In Verilog, it is
possible to create a Testbench for a module. Testbench is just
like a dummy template which basically declares inputs to the
circuit as registers and outputs from circuit as wires, then
instantiates the circuit for all these specified inputs. This
testbench can be used to automatically force all the input
combinations. Testbench techniques and virtual tester
development are heavily utilized in the presentation of circuit
simulations. To show the simulation of the Upsizer circuit for
all input combinations, a Testbench was written in Verilog and
was simulated on the ModelSim software. All the possible input
data combinations as well as IDs were considered. The output
waveforms so produced were studied. All possible output
waveforms were achieved. The simulation of the Testbench has
been shown in Fig. 13.
5. XILINX SYNTHESIS
Synthesis is the most important step in implementing a Verilog
design in the real world environment. Simulation only relies on
language features that are not synthesizable, but in this step, the
Verilog design is brought near to the actual hardware. It
basically transforms high level Verilog/ VHDL modules, which
don’t have any real physical hardware, which can be wired up
to perform the desired logic, into low level logical constructs.
These construct are modeled in the form of look up tables or
ASIC and FPGA hardware components. Xilinx ISE (Integrated
Software Tool) is the tool that has been used to perform the
synthesis of the Upsizer circuit. Xilinx is the inventor of this
tool. This tool mainly focuses on the synthesis and analysis of
HDL designs, giving an exact idea about the utilization of
various components of the hardware used in the design [10]. It
has the capability to perform timing analysis, examine the
register transfer level (RTL) diagrams, check syntax errors,
simulate the design for different set of input conditions and thus
configure the target device.
The Verilog code for the Upsizer circuit was also written in
Xilinx ISE tool. The test bench of this Verilog code was also
formed. The SPARTAN 3E version of the field programmable
gate array (FPGA) family was selected for synthesis of this
Verilog code. It was found that the Verilog code was
successfully synthesized with no errors or warnings. The device
utilization summary showing the logic utilization was generated
as shown in the Fig. 14.
Fig 14 Design Summary generated by the Xilinx ISE tool
As seen from the Fig. 14, the numbers of slice flip flops used
were 41 out of the total available 3541. The number of 4 input
LUTs (look up tables) used were 47 out of 3584 total LUTs
available. The logic distribution in the detailed map report
showed that the number of slices containing only related logic
were fully utilized i.e. 53 out of 53. Related logic is defined as
logic that shares connectivity - e.g. two LUTs are "related" if
they share common inputs. When assembling slices, Map gives
priority to combine logic that is related.
Doing so results in the best timing performance. The numbers
of slices containing unrelated logic were 0 out of 53. Unrelated
logic shares no connectivity. Map will only begin
packingunrelated logic into a slice once 99% of the slices are
occupied throughrelated logic packing.The percentage
utilization of the number of IOBs used was 46% i.e. 90 out of
the total 195 available IOBs were used.
The timing detail of the synthesis report is shown in Fig. 15.
The synthesis report gives the actual value of delay which
includes both gate delay and net delay of particular LUTs and
the total delay. The total memory usage for the synthesis was
189080 kilobytes. The total REAL time to Xst (Xilinx
Synthesis Technology) completion was 6.00 seconds and the
total CPU time to Xst completion was 6.97 seconds.
IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
__________________________________________________________________________________________
Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 387
Fig 15 Timing Details of the Synthesis Report
The RTL synthesis of the Verilog code was also carried out.
The schematic diagram of RTL synthesis was generated, that is
shown in Fig. 16. The input and output pins and the wires
declared in the Verilog Model were clearly shown in the
schematic diagram.
Fig 16 Schematic Diagram of RTL Synthesis
The final report of the HDL synthesis was generated which
showed the design statistics and cell usage. The cell usage
depicted that the number of flip flops used were 41 and there
were 89 IO buffers. Out of these IO buffers, 15 were input
buffers and 74 were output buffers. The cell usage showed that
number of BELS utilized were 88 and only 1 clock buffer was
used. This detailed final report has been shown in Fig. 17.
Fig.17 Final Report of the HDL synthesis
6. FPGA IMPLEMENTATION
After the synthesis of the Verilog code on Xilinx ISE tool, the
next step was FPGA (Field Programmable Gate Array)
implementation. A large number of circuits have been
implemented on FPGA for verifying the Verilog/VHDL design
proposed for these circuits. [11, 12 and 13]. The code
synthesized on Xilinx ISE tool was verified using a SPARTAN
3E FPGA kit manufactured by Texas Instruments. The FPGA
kit which was used has been shown in Fig. 18. The Verilog
code for the interfacing circuit was dumped on this FPGA kit.
Fig 18 SPARTAN-3E FPGA kit used for Implementation
IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
__________________________________________________________________________________________
Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 388
This input switches and output LEDs were linked with the input
and output variables of the code respectively to verify the
Verilog Design. Thus the programming file that was generated
was dumped on the FPGA kit successfully to verify the
working of Interfacing Circuit. For the working of the Upsizer
Circuit the 8-bit input data was given using the input switches
on the FPGA board. The output LEDs verified the result that
explained the working of Interfacing Circuit.
7. CONCLUSIONS
In this paper, a Verilog code for the interfacing circuit that has
been proposed, was written and simulated on ModelSim. The
results obtained from ModelSim simulation waveforms were
verified. A comprehensive synthesis of the Verilog model was
performed on the Xilinx ISE tool to get an idea of the
requirement of the resources on the FPGA kit. Finally the
Verilog code was dumped on the SPARTAN-3 FPGA kit which
further proved the proper functioning of the interfacing circuit.
The output has been checked and verified under various test
cases and hence this UPSIZER circuit can act as an interfacing
unit between an 8 bit and a 32 bit interface. The proposed
interfacing circuit may be used in burst transfers in which bulk
of data are transferred from master to slave having different bit
processors.
ACKNOWLEDGMENTS
The authors wish to thank Mr. Sharad and Mr. Rajendra
Bahadur Singh for their immense support and help whenever
required and for providing access to laboratory for testing
purposes.
REFERENCES
[1] P.J. Horne, “Implementation Of An Intel 8080
Microprocessor Developments System Using Existing
Minicomputers,” IEEE transactions on nuclear science,
Vol.NS-24, No.3, June 1977
[2] R. Sherbume, M. Katevenis, D. Patterson, and C.
Sequin, “A 32-bit microprocessor with a large register
file,” IEEE J. Solid-State Circuits, Vol. SC-19, no. 5,
Oct. 1984.
[3] Joan M. Pendleton, Shing I. Kong, Emil W. Brown,
Frank Dunlap, Christopher Marino, David M. Ungar,
David A. Patterson, and David A. Hodges, “ Design A
32-bit Microprocessor for Smalltalk,” IEEE Journal Of
Solid-State Circuits,Vol. SC-21, No. 5, October 1986.
[4] Hunt, Doug. "Advanced performance features of the 64-
bit PA-8000." InCompcon'95.'Technologies for the
Information Superhighway', Digest of Papers. pp. 123-
128. IEEE, 1995.
[5] Niveditha Domse, Kris Kumar, and K. N.
Balasubramanya Murthy, “64 bit Computer
Architectures for Space Applications – A study,”World
Academy of Science, Engineering and Technoloy,Vol:3
2009-03-28
[6] Girish Kumar B, Prabhu V, Siva Prasad T, Ruban
Thomas “ Design and Implementation of FPGA Based
Efficient Data Transmission Using Verilog,”
International Journal of Emerging Technology and
Advanced Engineering, Volume 3, Issue 11,ISSN 2250-
2459, November 2013
[7] Ulrich Golze, Peter Blinzer, Elma rCochlovius, Michael
Schafers,Klaus-Peter Wachsmann, “VLSI Chip Design
with the Hardware Description Language VERILOG:
An Introduction Based on a Large RISC Processor
Design,”VLSI Chip Design with the Hardware
Description Language VERILOG: An Introduction
Based on a Large RISC Processor Design 1st, Springer-
Verlag New York, Inc. Secaucus, NJ, USA 1996, ISBN
3540600329.
[8] Zaher S. Andraus, Karem A. Sakallah, “VLSI Automatic
abstraction and verification of verilog models,”DAC
'04 Proceedings of the 41st annual Design Automation
Conference, Pages 218-223, 2004-06-07,ISBN: 1-
58113-828-8
[9] P.V.Sasanka, Y.V.RamanaRao, A.L.Siridhara, “A
Verilog Model of Universal Scalable Binary Sequence
Detector,” International Journal of Scientific and
Research Publications, Volume 3, Issue 4, ISSN 2250-
3153, April 2011.
[10] Kaushik Chandra Deva Sarma, Amlan Deep Borah,
Lalan Kumar Mishra, “Design and Synthesis of 32 BIT
ALU Using Xilinx ISE V9.1i,” International Journal of
Engineering Research & Technology (IJERT), Vol. 2
Issue 5, ISSN: 2278-0181, May – 2013.
[11] Mangesh V. Benodkar and Prasad K. Bhasme, “A
Review Paper on Design and Simulation of Universal
Asynchronous Receiver Transmitter on Field
Programmable Gate Array Using VHDL,”International
Journal of Advance Research in Computer Science and
Management Studies, Volume 2, Issue 1, January 2014.
[12] Amit kumar Singh, S.K. Dubey,M.G. Bhatia,“ Design
and Simulation of FPGA based Digital System for Peak
Detection and Counting, “International Journal of
Advanced Research in Computer Science and Software
Engineering, Volume 3, Issue 11,ISSN: 2277 128X
November 2013
[13] Li Shang, Alireza S. Kaviani, Kusuma Bathala,
“Dynamic power consumption in Virtex™-II FPGA
family,” FPGA '02 Proceedings of the 2002
ACM/SIGDA tenth international symposium on Field-
programmable gate arrays, Pages 157-164, 2002-02-24.
[14] Ciletti, Michael D. Advanced digital design with the
Verilog HDL. Vol. 2. Prentice Hall, 2003.
[15] Palnitkar, Samir. Verilog HDL: a guide to digital design
and synthesis. Vol. 1. Prentice Hall Professional, 2003.

More Related Content

What's hot

IRJET- Power Theft Detection and Monitoring using GSM Technology
IRJET-  	  Power Theft Detection and Monitoring using GSM TechnologyIRJET-  	  Power Theft Detection and Monitoring using GSM Technology
IRJET- Power Theft Detection and Monitoring using GSM TechnologyIRJET Journal

Protocol converter (uart, i2 c, manchester protocols to usb)
Protocol converter (uart, i2 c, manchester protocols to usb)Protocol converter (uart, i2 c, manchester protocols to usb)
Protocol converter (uart, i2 c, manchester protocols to usb)eSAT Journals

Development and Application of a Failure Monitoring System by Using the Vibra...
Development and Application of a Failure Monitoring System by Using the Vibra...Development and Application of a Failure Monitoring System by Using the Vibra...
Development and Application of a Failure Monitoring System by Using the Vibra...inventy

.Introduction.to.Microprocessors.and.Microcontrollers.Jan.2004.pdf
.Introduction.to.Microprocessors.and.Microcontrollers.Jan.2004.pdf.Introduction.to.Microprocessors.and.Microcontrollers.Jan.2004.pdf
.Introduction.to.Microprocessors.and.Microcontrollers.Jan.2004.pdfSadamoTaga

Intel microprocessor history
Intel microprocessor historyIntel microprocessor history
Intel microprocessor historyRamzi Alqrainy

Introduction to-microprocessors
Introduction to-microprocessorsIntroduction to-microprocessors
Introduction to-microprocessorsmudulin

Arduino based Real Time Clock with Ringing of Bell and National Anthem
Arduino based Real Time Clock with Ringing of Bell and National AnthemArduino based Real Time Clock with Ringing of Bell and National Anthem
Arduino based Real Time Clock with Ringing of Bell and National Anthemrahulmonikasharma

IRJET- Dynamic Status Tracking & Security System
IRJET- Dynamic Status Tracking & Security SystemIRJET- Dynamic Status Tracking & Security System
IRJET- Dynamic Status Tracking & Security SystemIRJET Journal

Software, Hardware Components of Gasoline station APP System
Software, Hardware Components of Gasoline station APP SystemSoftware, Hardware Components of Gasoline station APP System
Software, Hardware Components of Gasoline station APP SystemNick liu

IRJET - Robot for Prescription Writing
IRJET -  	  Robot for Prescription WritingIRJET -  	  Robot for Prescription Writing
IRJET - Robot for Prescription WritingIRJET Journal

Intelligent vehicle control based on identification of road signs by solar po...
Intelligent vehicle control based on identification of road signs by solar po...Intelligent vehicle control based on identification of road signs by solar po...
Intelligent vehicle control based on identification of road signs by solar po...eSAT Journals

Microprocessor 80286
Microprocessor 80286Microprocessor 80286
Microprocessor 80286Smile Hossain

IRJET - Vehicle Commencement Process using Fingerprint with Speed Locking Sys...
IRJET - Vehicle Commencement Process using Fingerprint with Speed Locking Sys...IRJET - Vehicle Commencement Process using Fingerprint with Speed Locking Sys...
IRJET - Vehicle Commencement Process using Fingerprint with Speed Locking Sys...IRJET Journal

IRJET- Effect of Newly Developed Data Security Algorithm on the 128-Bits Plai...
IRJET- Effect of Newly Developed Data Security Algorithm on the 128-Bits Plai...IRJET- Effect of Newly Developed Data Security Algorithm on the 128-Bits Plai...
IRJET- Effect of Newly Developed Data Security Algorithm on the 128-Bits Plai...IRJET Journal

Tongue Motion Controlled Wheelchair
Tongue Motion Controlled WheelchairTongue Motion Controlled Wheelchair
Tongue Motion Controlled Wheelchairijtsrd


What's hot (20)

IRJET- Power Theft Detection and Monitoring using GSM Technology
IRJET-  	  Power Theft Detection and Monitoring using GSM TechnologyIRJET-  	  Power Theft Detection and Monitoring using GSM Technology
IRJET- Power Theft Detection and Monitoring using GSM Technology

Protocol converter (uart, i2 c, manchester protocols to usb)
Protocol converter (uart, i2 c, manchester protocols to usb)Protocol converter (uart, i2 c, manchester protocols to usb)
Protocol converter (uart, i2 c, manchester protocols to usb)

Development and Application of a Failure Monitoring System by Using the Vibra...
Development and Application of a Failure Monitoring System by Using the Vibra...Development and Application of a Failure Monitoring System by Using the Vibra...
Development and Application of a Failure Monitoring System by Using the Vibra...

Microprocessor Systems
Microprocessor Systems Microprocessor Systems
Microprocessor Systems

.Introduction.to.Microprocessors.and.Microcontrollers.Jan.2004.pdf
.Introduction.to.Microprocessors.and.Microcontrollers.Jan.2004.pdf.Introduction.to.Microprocessors.and.Microcontrollers.Jan.2004.pdf
.Introduction.to.Microprocessors.and.Microcontrollers.Jan.2004.pdf

Intel microprocessor history
Intel microprocessor historyIntel microprocessor history
Intel microprocessor history

Introduction to-microprocessors
Introduction to-microprocessorsIntroduction to-microprocessors
Introduction to-microprocessors

Arduino based Real Time Clock with Ringing of Bell and National Anthem
Arduino based Real Time Clock with Ringing of Bell and National AnthemArduino based Real Time Clock with Ringing of Bell and National Anthem
Arduino based Real Time Clock with Ringing of Bell and National Anthem

IRJET- Dynamic Status Tracking & Security System
IRJET- Dynamic Status Tracking & Security SystemIRJET- Dynamic Status Tracking & Security System
IRJET- Dynamic Status Tracking & Security System

Software, Hardware Components of Gasoline station APP System
Software, Hardware Components of Gasoline station APP SystemSoftware, Hardware Components of Gasoline station APP System
Software, Hardware Components of Gasoline station APP System

IRJET - Robot for Prescription Writing
IRJET -  	  Robot for Prescription WritingIRJET -  	  Robot for Prescription Writing
IRJET - Robot for Prescription Writing

Microprocessor
MicroprocessorMicroprocessor
Microprocessor

E033021025
E033021025E033021025
E033021025

Modbus communication in inSis suite
Modbus communication in inSis suiteModbus communication in inSis suite
Modbus communication in inSis suite

Intelligent vehicle control based on identification of road signs by solar po...
Intelligent vehicle control based on identification of road signs by solar po...Intelligent vehicle control based on identification of road signs by solar po...
Intelligent vehicle control based on identification of road signs by solar po...

Microprocessor 80286
Microprocessor 80286Microprocessor 80286
Microprocessor 80286

IRJET - Vehicle Commencement Process using Fingerprint with Speed Locking Sys...
IRJET - Vehicle Commencement Process using Fingerprint with Speed Locking Sys...IRJET - Vehicle Commencement Process using Fingerprint with Speed Locking Sys...
IRJET - Vehicle Commencement Process using Fingerprint with Speed Locking Sys...

IRJET- Effect of Newly Developed Data Security Algorithm on the 128-Bits Plai...
IRJET- Effect of Newly Developed Data Security Algorithm on the 128-Bits Plai...IRJET- Effect of Newly Developed Data Security Algorithm on the 128-Bits Plai...
IRJET- Effect of Newly Developed Data Security Algorithm on the 128-Bits Plai...

Microprocessor
MicroprocessorMicroprocessor
Microprocessor

Tongue Motion Controlled Wheelchair
Tongue Motion Controlled WheelchairTongue Motion Controlled Wheelchair
Tongue Motion Controlled Wheelchair


Viewers also liked

Modeling a well stimulation process using the meor technique
Modeling a well stimulation process using the meor techniqueModeling a well stimulation process using the meor technique
Modeling a well stimulation process using the meor techniqueeSAT Publishing House

Fault detection and diagnosis ingears using wavelet
Fault detection and diagnosis ingears using waveletFault detection and diagnosis ingears using wavelet
Fault detection and diagnosis ingears using waveleteSAT Publishing House

Adaptive neurofuzzy system for asthama
Adaptive neurofuzzy system for asthamaAdaptive neurofuzzy system for asthama
Adaptive neurofuzzy system for asthamaeSAT Publishing House

The interconnecting mechanism for monitoring regular domestic condition
The interconnecting mechanism for monitoring regular domestic conditionThe interconnecting mechanism for monitoring regular domestic condition
The interconnecting mechanism for monitoring regular domestic conditioneSAT Publishing House

System to convert 2 d x-ray image into 3-d x-ray image in dentistry
System to convert 2 d x-ray image into 3-d x-ray image in dentistrySystem to convert 2 d x-ray image into 3-d x-ray image in dentistry
System to convert 2 d x-ray image into 3-d x-ray image in dentistryeSAT Publishing House

Study of macro mechanical properties of ultra high strength concrete using qu...
Study of macro mechanical properties of ultra high strength concrete using qu...Study of macro mechanical properties of ultra high strength concrete using qu...
Study of macro mechanical properties of ultra high strength concrete using qu...eSAT Publishing House

Cyclone disaster on housing and coastal area
Cyclone disaster on housing and coastal areaCyclone disaster on housing and coastal area
Cyclone disaster on housing and coastal areaeSAT Publishing House

Design and analysis of worm pair used in self locking system with development...
Design and analysis of worm pair used in self locking system with development...Design and analysis of worm pair used in self locking system with development...
Design and analysis of worm pair used in self locking system with development...eSAT Publishing House

Fpga based highly reliable fault tolerant approach for network on chip (noc)
Fpga based highly reliable fault tolerant approach for network on chip (noc)Fpga based highly reliable fault tolerant approach for network on chip (noc)
Fpga based highly reliable fault tolerant approach for network on chip (noc)eSAT Publishing House

Power reduction through merged flip flops
Power reduction through merged flip flopsPower reduction through merged flip flops
Power reduction through merged flip flopseSAT Publishing House

Analysis the effects of different types of tool on metal spinning process
Analysis the effects of different types of tool on metal spinning processAnalysis the effects of different types of tool on metal spinning process
Analysis the effects of different types of tool on metal spinning processeSAT Publishing House

Analyzing the rainfall and temperature influence on municipal water consumpti...
Analyzing the rainfall and temperature influence on municipal water consumpti...Analyzing the rainfall and temperature influence on municipal water consumpti...
Analyzing the rainfall and temperature influence on municipal water consumpti...eSAT Publishing House

Risk assessment of a hydroelectric dam with parallel
Risk assessment of a hydroelectric dam with parallelRisk assessment of a hydroelectric dam with parallel
Risk assessment of a hydroelectric dam with paralleleSAT Publishing House

Gis in assessing topographical aspects of hilly regions
Gis in assessing topographical aspects of hilly regionsGis in assessing topographical aspects of hilly regions
Gis in assessing topographical aspects of hilly regionseSAT Publishing House

An overview of stress analysis of high energy pipeline systems used in therma...
An overview of stress analysis of high energy pipeline systems used in therma...An overview of stress analysis of high energy pipeline systems used in therma...
An overview of stress analysis of high energy pipeline systems used in therma...eSAT Publishing House

Optimization of workload prediction based on map reduce frame work in a cloud...
Optimization of workload prediction based on map reduce frame work in a cloud...Optimization of workload prediction based on map reduce frame work in a cloud...
Optimization of workload prediction based on map reduce frame work in a cloud...eSAT Publishing House

Tank information system of kunigal taluk tumkur district, karanataka using ge...
Tank information system of kunigal taluk tumkur district, karanataka using ge...Tank information system of kunigal taluk tumkur district, karanataka using ge...
Tank information system of kunigal taluk tumkur district, karanataka using ge...eSAT Publishing House

Root cause failure analysis of blanking device of strainer housing used in st...
Root cause failure analysis of blanking device of strainer housing used in st...Root cause failure analysis of blanking device of strainer housing used in st...
Root cause failure analysis of blanking device of strainer housing used in st...eSAT Publishing House

Stability analysis of open pit slope by finite difference method
Stability analysis of open pit slope by finite difference methodStability analysis of open pit slope by finite difference method
Stability analysis of open pit slope by finite difference methodeSAT Publishing House


Viewers also liked (20)

Terrestrial gps positioning system
Terrestrial gps positioning systemTerrestrial gps positioning system
Terrestrial gps positioning system

Modeling a well stimulation process using the meor technique
Modeling a well stimulation process using the meor techniqueModeling a well stimulation process using the meor technique
Modeling a well stimulation process using the meor technique

Fault detection and diagnosis ingears using wavelet
Fault detection and diagnosis ingears using waveletFault detection and diagnosis ingears using wavelet
Fault detection and diagnosis ingears using wavelet

Adaptive neurofuzzy system for asthama
Adaptive neurofuzzy system for asthamaAdaptive neurofuzzy system for asthama
Adaptive neurofuzzy system for asthama

The interconnecting mechanism for monitoring regular domestic condition
The interconnecting mechanism for monitoring regular domestic conditionThe interconnecting mechanism for monitoring regular domestic condition
The interconnecting mechanism for monitoring regular domestic condition

System to convert 2 d x-ray image into 3-d x-ray image in dentistry
System to convert 2 d x-ray image into 3-d x-ray image in dentistrySystem to convert 2 d x-ray image into 3-d x-ray image in dentistry
System to convert 2 d x-ray image into 3-d x-ray image in dentistry

Study of macro mechanical properties of ultra high strength concrete using qu...
Study of macro mechanical properties of ultra high strength concrete using qu...Study of macro mechanical properties of ultra high strength concrete using qu...
Study of macro mechanical properties of ultra high strength concrete using qu...

Cyclone disaster on housing and coastal area
Cyclone disaster on housing and coastal areaCyclone disaster on housing and coastal area
Cyclone disaster on housing and coastal area

Design and analysis of worm pair used in self locking system with development...
Design and analysis of worm pair used in self locking system with development...Design and analysis of worm pair used in self locking system with development...
Design and analysis of worm pair used in self locking system with development...

Fpga based highly reliable fault tolerant approach for network on chip (noc)
Fpga based highly reliable fault tolerant approach for network on chip (noc)Fpga based highly reliable fault tolerant approach for network on chip (noc)
Fpga based highly reliable fault tolerant approach for network on chip (noc)

Power reduction through merged flip flops
Power reduction through merged flip flopsPower reduction through merged flip flops
Power reduction through merged flip flops

Analysis the effects of different types of tool on metal spinning process
Analysis the effects of different types of tool on metal spinning processAnalysis the effects of different types of tool on metal spinning process
Analysis the effects of different types of tool on metal spinning process

Analyzing the rainfall and temperature influence on municipal water consumpti...
Analyzing the rainfall and temperature influence on municipal water consumpti...Analyzing the rainfall and temperature influence on municipal water consumpti...
Analyzing the rainfall and temperature influence on municipal water consumpti...

Risk assessment of a hydroelectric dam with parallel
Risk assessment of a hydroelectric dam with parallelRisk assessment of a hydroelectric dam with parallel
Risk assessment of a hydroelectric dam with parallel

Gis in assessing topographical aspects of hilly regions
Gis in assessing topographical aspects of hilly regionsGis in assessing topographical aspects of hilly regions
Gis in assessing topographical aspects of hilly regions

An overview of stress analysis of high energy pipeline systems used in therma...
An overview of stress analysis of high energy pipeline systems used in therma...An overview of stress analysis of high energy pipeline systems used in therma...
An overview of stress analysis of high energy pipeline systems used in therma...

Optimization of workload prediction based on map reduce frame work in a cloud...
Optimization of workload prediction based on map reduce frame work in a cloud...Optimization of workload prediction based on map reduce frame work in a cloud...
Optimization of workload prediction based on map reduce frame work in a cloud...

Tank information system of kunigal taluk tumkur district, karanataka using ge...
Tank information system of kunigal taluk tumkur district, karanataka using ge...Tank information system of kunigal taluk tumkur district, karanataka using ge...
Tank information system of kunigal taluk tumkur district, karanataka using ge...

Root cause failure analysis of blanking device of strainer housing used in st...
Root cause failure analysis of blanking device of strainer housing used in st...Root cause failure analysis of blanking device of strainer housing used in st...
Root cause failure analysis of blanking device of strainer housing used in st...

Stability analysis of open pit slope by finite difference method
Stability analysis of open pit slope by finite difference methodStability analysis of open pit slope by finite difference method
Stability analysis of open pit slope by finite difference method


Similar to Fpga based interfacing for 8-bit and 32-bit electronic devices

Internet enebled data acquisition and device control
Internet enebled data acquisition and device controlInternet enebled data acquisition and device control
Internet enebled data acquisition and device controleSAT Journals

Design &Implementation of I2C Master Controller Interfaced With RAM Using VHDL
Design &Implementation of I2C Master Controller Interfaced With RAM Using VHDLDesign &Implementation of I2C Master Controller Interfaced With RAM Using VHDL
Design &Implementation of I2C Master Controller Interfaced With RAM Using VHDLIJERA Editor

AUTOMATED BLOOD BANK SYSTEM
AUTOMATED BLOOD BANK SYSTEMAUTOMATED BLOOD BANK SYSTEM
AUTOMATED BLOOD BANK SYSTEMIRJET Journal

IRJET- Android based Home Automation System with Power Optimization Modes
IRJET-  	  Android based Home Automation System with Power Optimization ModesIRJET-  	  Android based Home Automation System with Power Optimization Modes
IRJET- Android based Home Automation System with Power Optimization ModesIRJET Journal

VERIFICATION OF FOUR PORT ROUTER FOR NETWORK ON CHIP
VERIFICATION OF FOUR PORT ROUTER FOR NETWORK ON CHIPVERIFICATION OF FOUR PORT ROUTER FOR NETWORK ON CHIP
VERIFICATION OF FOUR PORT ROUTER FOR NETWORK ON CHIPEditor IJMTER

Wireless Data Acquisition System Using ARM Cortex M-3
Wireless Data Acquisition System Using ARM Cortex M-3Wireless Data Acquisition System Using ARM Cortex M-3
Wireless Data Acquisition System Using ARM Cortex M-3IOSR Journals

IRJET-Experimental Investigation on the Effect of TiO2 Particles on Mortars
IRJET-Experimental Investigation on the Effect of TiO2 Particles on MortarsIRJET-Experimental Investigation on the Effect of TiO2 Particles on Mortars
IRJET-Experimental Investigation on the Effect of TiO2 Particles on MortarsIRJET Journal

Optimized mapping and navigation of remote area through an autonomous robot
Optimized mapping and navigation of remote area through an autonomous robotOptimized mapping and navigation of remote area through an autonomous robot
Optimized mapping and navigation of remote area through an autonomous roboteSAT Publishing House

Verification of uart ip core using uvm
Verification of uart ip core using uvmVerification of uart ip core using uvm
Verification of uart ip core using uvmeSAT Publishing House

DATA ACQUISITION AND ALERT SYSTEM USING BLYNK PLATFORM
DATA ACQUISITION AND ALERT SYSTEM USING BLYNK PLATFORMDATA ACQUISITION AND ALERT SYSTEM USING BLYNK PLATFORM
DATA ACQUISITION AND ALERT SYSTEM USING BLYNK PLATFORMIRJET Journal

Low cost data acquisition from digital caliper to pc
Low cost data acquisition from digital caliper to pcLow cost data acquisition from digital caliper to pc
Low cost data acquisition from digital caliper to pceSAT Journals

Intelligent Device TO Device Communication Using IoT
 Intelligent Device TO Device Communication Using IoT Intelligent Device TO Device Communication Using IoT
Intelligent Device TO Device Communication Using IoTIJCERT

Fpga implementation of multi protocol data
Fpga implementation of multi protocol dataFpga implementation of multi protocol data
Fpga implementation of multi protocol dataeSAT Publishing House

Design and implementation of uart on soc
Design and implementation of uart on socDesign and implementation of uart on soc
Design and implementation of uart on socIjrdt Journal

Design and Verification of the UART and SPI protocol using UVM
Design and Verification of the UART and SPI protocol using UVMDesign and Verification of the UART and SPI protocol using UVM
Design and Verification of the UART and SPI protocol using UVMIRJET Journal

A 2 stage data word packet communication decoder using rate 1-by-3 viterbi de...
A 2 stage data word packet communication decoder using rate 1-by-3 viterbi de...A 2 stage data word packet communication decoder using rate 1-by-3 viterbi de...
A 2 stage data word packet communication decoder using rate 1-by-3 viterbi de...eSAT Journals

Advanced Braille System-Communication Device for Blind-Deaf People
Advanced Braille System-Communication Device for Blind-Deaf PeopleAdvanced Braille System-Communication Device for Blind-Deaf People
Advanced Braille System-Communication Device for Blind-Deaf PeopleIRJET Journal

IRJET - Hand Gesture Recognition and Voice Conversion System using IoT
IRJET -  	  Hand Gesture Recognition and Voice Conversion System using IoTIRJET -  	  Hand Gesture Recognition and Voice Conversion System using IoT
IRJET - Hand Gesture Recognition and Voice Conversion System using IoTIRJET Journal


Similar to Fpga based interfacing for 8-bit and 32-bit electronic devices (20)

Internet enebled data acquisition and device control
Internet enebled data acquisition and device controlInternet enebled data acquisition and device control
Internet enebled data acquisition and device control

M010617376
M010617376M010617376
M010617376

Design &Implementation of I2C Master Controller Interfaced With RAM Using VHDL
Design &Implementation of I2C Master Controller Interfaced With RAM Using VHDLDesign &Implementation of I2C Master Controller Interfaced With RAM Using VHDL
Design &Implementation of I2C Master Controller Interfaced With RAM Using VHDL

AUTOMATED BLOOD BANK SYSTEM
AUTOMATED BLOOD BANK SYSTEMAUTOMATED BLOOD BANK SYSTEM
AUTOMATED BLOOD BANK SYSTEM

IRJET- Android based Home Automation System with Power Optimization Modes
IRJET-  	  Android based Home Automation System with Power Optimization ModesIRJET-  	  Android based Home Automation System with Power Optimization Modes
IRJET- Android based Home Automation System with Power Optimization Modes

VERIFICATION OF FOUR PORT ROUTER FOR NETWORK ON CHIP
VERIFICATION OF FOUR PORT ROUTER FOR NETWORK ON CHIPVERIFICATION OF FOUR PORT ROUTER FOR NETWORK ON CHIP
VERIFICATION OF FOUR PORT ROUTER FOR NETWORK ON CHIP

Wireless Data Acquisition System Using ARM Cortex M-3
Wireless Data Acquisition System Using ARM Cortex M-3Wireless Data Acquisition System Using ARM Cortex M-3
Wireless Data Acquisition System Using ARM Cortex M-3

E010113235
E010113235E010113235
E010113235

IRJET-Experimental Investigation on the Effect of TiO2 Particles on Mortars
IRJET-Experimental Investigation on the Effect of TiO2 Particles on MortarsIRJET-Experimental Investigation on the Effect of TiO2 Particles on Mortars
IRJET-Experimental Investigation on the Effect of TiO2 Particles on Mortars

Optimized mapping and navigation of remote area through an autonomous robot
Optimized mapping and navigation of remote area through an autonomous robotOptimized mapping and navigation of remote area through an autonomous robot
Optimized mapping and navigation of remote area through an autonomous robot

Verification of uart ip core using uvm
Verification of uart ip core using uvmVerification of uart ip core using uvm
Verification of uart ip core using uvm

DATA ACQUISITION AND ALERT SYSTEM USING BLYNK PLATFORM
DATA ACQUISITION AND ALERT SYSTEM USING BLYNK PLATFORMDATA ACQUISITION AND ALERT SYSTEM USING BLYNK PLATFORM
DATA ACQUISITION AND ALERT SYSTEM USING BLYNK PLATFORM

Low cost data acquisition from digital caliper to pc
Low cost data acquisition from digital caliper to pcLow cost data acquisition from digital caliper to pc
Low cost data acquisition from digital caliper to pc

Intelligent Device TO Device Communication Using IoT
 Intelligent Device TO Device Communication Using IoT Intelligent Device TO Device Communication Using IoT
Intelligent Device TO Device Communication Using IoT

Fpga implementation of multi protocol data
Fpga implementation of multi protocol dataFpga implementation of multi protocol data
Fpga implementation of multi protocol data

Design and implementation of uart on soc
Design and implementation of uart on socDesign and implementation of uart on soc
Design and implementation of uart on soc

Design and Verification of the UART and SPI protocol using UVM
Design and Verification of the UART and SPI protocol using UVMDesign and Verification of the UART and SPI protocol using UVM
Design and Verification of the UART and SPI protocol using UVM

A 2 stage data word packet communication decoder using rate 1-by-3 viterbi de...
A 2 stage data word packet communication decoder using rate 1-by-3 viterbi de...A 2 stage data word packet communication decoder using rate 1-by-3 viterbi de...
A 2 stage data word packet communication decoder using rate 1-by-3 viterbi de...

Advanced Braille System-Communication Device for Blind-Deaf People
Advanced Braille System-Communication Device for Blind-Deaf PeopleAdvanced Braille System-Communication Device for Blind-Deaf People
Advanced Braille System-Communication Device for Blind-Deaf People

IRJET - Hand Gesture Recognition and Voice Conversion System using IoT
IRJET -  	  Hand Gesture Recognition and Voice Conversion System using IoTIRJET -  	  Hand Gesture Recognition and Voice Conversion System using IoT
IRJET - Hand Gesture Recognition and Voice Conversion System using IoT


More from eSAT Publishing House

Likely impacts of hudhud on the environment of visakhapatnam
Likely impacts of hudhud on the environment of visakhapatnamLikely impacts of hudhud on the environment of visakhapatnam
Likely impacts of hudhud on the environment of visakhapatnameSAT Publishing House

Impact of flood disaster in a drought prone area – case study of alampur vill...
Impact of flood disaster in a drought prone area – case study of alampur vill...Impact of flood disaster in a drought prone area – case study of alampur vill...
Impact of flood disaster in a drought prone area – case study of alampur vill...eSAT Publishing House

Hudhud cyclone – a severe disaster in visakhapatnam
Hudhud cyclone – a severe disaster in visakhapatnamHudhud cyclone – a severe disaster in visakhapatnam
Hudhud cyclone – a severe disaster in visakhapatnameSAT Publishing House

Groundwater investigation using geophysical methods a case study of pydibhim...
Groundwater investigation using geophysical methods  a case study of pydibhim...Groundwater investigation using geophysical methods  a case study of pydibhim...
Groundwater investigation using geophysical methods a case study of pydibhim...eSAT Publishing House

Flood related disasters concerned to urban flooding in bangalore, india
Flood related disasters concerned to urban flooding in bangalore, indiaFlood related disasters concerned to urban flooding in bangalore, india
Flood related disasters concerned to urban flooding in bangalore, indiaeSAT Publishing House

Enhancing post disaster recovery by optimal infrastructure capacity building
Enhancing post disaster recovery by optimal infrastructure capacity buildingEnhancing post disaster recovery by optimal infrastructure capacity building
Enhancing post disaster recovery by optimal infrastructure capacity buildingeSAT Publishing House

Effect of lintel and lintel band on the global performance of reinforced conc...
Effect of lintel and lintel band on the global performance of reinforced conc...Effect of lintel and lintel band on the global performance of reinforced conc...
Effect of lintel and lintel band on the global performance of reinforced conc...eSAT Publishing House

Wind damage to trees in the gitam university campus at visakhapatnam by cyclo...
Wind damage to trees in the gitam university campus at visakhapatnam by cyclo...Wind damage to trees in the gitam university campus at visakhapatnam by cyclo...
Wind damage to trees in the gitam university campus at visakhapatnam by cyclo...eSAT Publishing House

Wind damage to buildings, infrastrucuture and landscape elements along the be...
Wind damage to buildings, infrastrucuture and landscape elements along the be...Wind damage to buildings, infrastrucuture and landscape elements along the be...
Wind damage to buildings, infrastrucuture and landscape elements along the be...eSAT Publishing House

Shear strength of rc deep beam panels – a review
Shear strength of rc deep beam panels – a reviewShear strength of rc deep beam panels – a review
Shear strength of rc deep beam panels – a revieweSAT Publishing House

Role of voluntary teams of professional engineers in dissater management – ex...
Role of voluntary teams of professional engineers in dissater management – ex...Role of voluntary teams of professional engineers in dissater management – ex...
Role of voluntary teams of professional engineers in dissater management – ex...eSAT Publishing House

Risk analysis and environmental hazard management
Risk analysis and environmental hazard managementRisk analysis and environmental hazard management
Risk analysis and environmental hazard managementeSAT Publishing House

Review study on performance of seismically tested repaired shear walls
Review study on performance of seismically tested repaired shear wallsReview study on performance of seismically tested repaired shear walls
Review study on performance of seismically tested repaired shear wallseSAT Publishing House

Monitoring and assessment of air quality with reference to dust particles (pm...
Monitoring and assessment of air quality with reference to dust particles (pm...Monitoring and assessment of air quality with reference to dust particles (pm...
Monitoring and assessment of air quality with reference to dust particles (pm...eSAT Publishing House

Low cost wireless sensor networks and smartphone applications for disaster ma...
Low cost wireless sensor networks and smartphone applications for disaster ma...Low cost wireless sensor networks and smartphone applications for disaster ma...
Low cost wireless sensor networks and smartphone applications for disaster ma...eSAT Publishing House

Coastal zones – seismic vulnerability an analysis from east coast of india
Coastal zones – seismic vulnerability an analysis from east coast of indiaCoastal zones – seismic vulnerability an analysis from east coast of india
Coastal zones – seismic vulnerability an analysis from east coast of indiaeSAT Publishing House

Can fracture mechanics predict damage due disaster of structures
Can fracture mechanics predict damage due disaster of structuresCan fracture mechanics predict damage due disaster of structures
Can fracture mechanics predict damage due disaster of structureseSAT Publishing House

Assessment of seismic susceptibility of rc buildings
Assessment of seismic susceptibility of rc buildingsAssessment of seismic susceptibility of rc buildings
Assessment of seismic susceptibility of rc buildingseSAT Publishing House

A geophysical insight of earthquake occurred on 21 st may 2014 off paradip, b...
A geophysical insight of earthquake occurred on 21 st may 2014 off paradip, b...A geophysical insight of earthquake occurred on 21 st may 2014 off paradip, b...
A geophysical insight of earthquake occurred on 21 st may 2014 off paradip, b...eSAT Publishing House

Effect of hudhud cyclone on the development of visakhapatnam as smart and gre...
Effect of hudhud cyclone on the development of visakhapatnam as smart and gre...Effect of hudhud cyclone on the development of visakhapatnam as smart and gre...
Effect of hudhud cyclone on the development of visakhapatnam as smart and gre...eSAT Publishing House


More from eSAT Publishing House (20)

Likely impacts of hudhud on the environment of visakhapatnam
Likely impacts of hudhud on the environment of visakhapatnamLikely impacts of hudhud on the environment of visakhapatnam
Likely impacts of hudhud on the environment of visakhapatnam

Impact of flood disaster in a drought prone area – case study of alampur vill...
Impact of flood disaster in a drought prone area – case study of alampur vill...Impact of flood disaster in a drought prone area – case study of alampur vill...
Impact of flood disaster in a drought prone area – case study of alampur vill...

Hudhud cyclone – a severe disaster in visakhapatnam
Hudhud cyclone – a severe disaster in visakhapatnamHudhud cyclone – a severe disaster in visakhapatnam
Hudhud cyclone – a severe disaster in visakhapatnam

Groundwater investigation using geophysical methods a case study of pydibhim...
Groundwater investigation using geophysical methods  a case study of pydibhim...Groundwater investigation using geophysical methods  a case study of pydibhim...
Groundwater investigation using geophysical methods a case study of pydibhim...

Flood related disasters concerned to urban flooding in bangalore, india
Flood related disasters concerned to urban flooding in bangalore, indiaFlood related disasters concerned to urban flooding in bangalore, india
Flood related disasters concerned to urban flooding in bangalore, india

Enhancing post disaster recovery by optimal infrastructure capacity building
Enhancing post disaster recovery by optimal infrastructure capacity buildingEnhancing post disaster recovery by optimal infrastructure capacity building
Enhancing post disaster recovery by optimal infrastructure capacity building

Effect of lintel and lintel band on the global performance of reinforced conc...
Effect of lintel and lintel band on the global performance of reinforced conc...Effect of lintel and lintel band on the global performance of reinforced conc...
Effect of lintel and lintel band on the global performance of reinforced conc...

Wind damage to trees in the gitam university campus at visakhapatnam by cyclo...
Wind damage to trees in the gitam university campus at visakhapatnam by cyclo...Wind damage to trees in the gitam university campus at visakhapatnam by cyclo...
Wind damage to trees in the gitam university campus at visakhapatnam by cyclo...

Wind damage to buildings, infrastrucuture and landscape elements along the be...
Wind damage to buildings, infrastrucuture and landscape elements along the be...Wind damage to buildings, infrastrucuture and landscape elements along the be...
Wind damage to buildings, infrastrucuture and landscape elements along the be...

Shear strength of rc deep beam panels – a review
Shear strength of rc deep beam panels – a reviewShear strength of rc deep beam panels – a review
Shear strength of rc deep beam panels – a review

Role of voluntary teams of professional engineers in dissater management – ex...
Role of voluntary teams of professional engineers in dissater management – ex...Role of voluntary teams of professional engineers in dissater management – ex...
Role of voluntary teams of professional engineers in dissater management – ex...

Risk analysis and environmental hazard management
Risk analysis and environmental hazard managementRisk analysis and environmental hazard management
Risk analysis and environmental hazard management

Review study on performance of seismically tested repaired shear walls
Review study on performance of seismically tested repaired shear wallsReview study on performance of seismically tested repaired shear walls
Review study on performance of seismically tested repaired shear walls

Monitoring and assessment of air quality with reference to dust particles (pm...
Monitoring and assessment of air quality with reference to dust particles (pm...Monitoring and assessment of air quality with reference to dust particles (pm...
Monitoring and assessment of air quality with reference to dust particles (pm...

Low cost wireless sensor networks and smartphone applications for disaster ma...
Low cost wireless sensor networks and smartphone applications for disaster ma...Low cost wireless sensor networks and smartphone applications for disaster ma...
Low cost wireless sensor networks and smartphone applications for disaster ma...

Coastal zones – seismic vulnerability an analysis from east coast of india
Coastal zones – seismic vulnerability an analysis from east coast of indiaCoastal zones – seismic vulnerability an analysis from east coast of india
Coastal zones – seismic vulnerability an analysis from east coast of india

Can fracture mechanics predict damage due disaster of structures
Can fracture mechanics predict damage due disaster of structuresCan fracture mechanics predict damage due disaster of structures
Can fracture mechanics predict damage due disaster of structures

Assessment of seismic susceptibility of rc buildings
Assessment of seismic susceptibility of rc buildingsAssessment of seismic susceptibility of rc buildings
Assessment of seismic susceptibility of rc buildings

A geophysical insight of earthquake occurred on 21 st may 2014 off paradip, b...
A geophysical insight of earthquake occurred on 21 st may 2014 off paradip, b...A geophysical insight of earthquake occurred on 21 st may 2014 off paradip, b...
A geophysical insight of earthquake occurred on 21 st may 2014 off paradip, b...

Effect of hudhud cyclone on the development of visakhapatnam as smart and gre...
Effect of hudhud cyclone on the development of visakhapatnam as smart and gre...Effect of hudhud cyclone on the development of visakhapatnam as smart and gre...
Effect of hudhud cyclone on the development of visakhapatnam as smart and gre...


Recently uploaded

GDSC ASEB Gen AI study jams presentation
GDSC ASEB Gen AI study jams presentationGDSC ASEB Gen AI study jams presentation
GDSC ASEB Gen AI study jams presentationGDSCAESB

Microscopic Analysis of Ceramic Materials.pptx
Microscopic Analysis of Ceramic Materials.pptxMicroscopic Analysis of Ceramic Materials.pptx
Microscopic Analysis of Ceramic Materials.pptxpurnimasatapathy1234

Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...
Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...
Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...Dr.Costas Sachpazis

Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...srsj9000

Call Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile serviceCall Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile servicerehmti665

(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...ranjana rawat

VIP Call Girls Service Hitech City Hyderabad Call +91-8250192130
VIP Call Girls Service Hitech City Hyderabad Call +91-8250192130VIP Call Girls Service Hitech City Hyderabad Call +91-8250192130
VIP Call Girls Service Hitech City Hyderabad Call +91-8250192130Suhani Kapoor

Porous Ceramics seminar and technical writing
Porous Ceramics seminar and technical writingPorous Ceramics seminar and technical writing
Porous Ceramics seminar and technical writingrakeshbaidya232001

Coefficient of Thermal Expansion and their Importance.pptx
Coefficient of Thermal Expansion and their Importance.pptxCoefficient of Thermal Expansion and their Importance.pptx
Coefficient of Thermal Expansion and their Importance.pptxAsutosh Ranjan

Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...Dr.Costas Sachpazis

HARMONY IN THE NATURE AND EXISTENCE - Unit-IV
HARMONY IN THE NATURE AND EXISTENCE - Unit-IVHARMONY IN THE NATURE AND EXISTENCE - Unit-IV
HARMONY IN THE NATURE AND EXISTENCE - Unit-IVRajaP95

Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur Escorts
Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur EscortsCall Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur Escorts
Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur EscortsCall Girls in Nagpur High Profile

High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur EscortsHigh Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escortsranjana rawat

Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝soniya singh

MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINEMANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINESIVASHANKAR N

VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130
VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130
VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130Suhani Kapoor


Recently uploaded (20)

GDSC ASEB Gen AI study jams presentation
GDSC ASEB Gen AI study jams presentationGDSC ASEB Gen AI study jams presentation
GDSC ASEB Gen AI study jams presentation

Microscopic Analysis of Ceramic Materials.pptx
Microscopic Analysis of Ceramic Materials.pptxMicroscopic Analysis of Ceramic Materials.pptx
Microscopic Analysis of Ceramic Materials.pptx

Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...
Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...
Sheet Pile Wall Design and Construction: A Practical Guide for Civil Engineer...

Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...

Call Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile serviceCall Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile service

(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...

9953056974 Call Girls In South Ex, Escorts (Delhi) NCR.pdf
9953056974 Call Girls In South Ex, Escorts (Delhi) NCR.pdf9953056974 Call Girls In South Ex, Escorts (Delhi) NCR.pdf
9953056974 Call Girls In South Ex, Escorts (Delhi) NCR.pdf

VIP Call Girls Service Hitech City Hyderabad Call +91-8250192130
VIP Call Girls Service Hitech City Hyderabad Call +91-8250192130VIP Call Girls Service Hitech City Hyderabad Call +91-8250192130
VIP Call Girls Service Hitech City Hyderabad Call +91-8250192130

Porous Ceramics seminar and technical writing
Porous Ceramics seminar and technical writingPorous Ceramics seminar and technical writing
Porous Ceramics seminar and technical writing

Coefficient of Thermal Expansion and their Importance.pptx
Coefficient of Thermal Expansion and their Importance.pptxCoefficient of Thermal Expansion and their Importance.pptx
Coefficient of Thermal Expansion and their Importance.pptx

Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...

Roadmap to Membership of RICS - Pathways and Routes
Roadmap to Membership of RICS - Pathways and RoutesRoadmap to Membership of RICS - Pathways and Routes
Roadmap to Membership of RICS - Pathways and Routes

★ CALL US 9953330565 ( HOT Young Call Girls In Badarpur delhi NCR
★ CALL US 9953330565 ( HOT Young Call Girls In Badarpur delhi NCR★ CALL US 9953330565 ( HOT Young Call Girls In Badarpur delhi NCR
★ CALL US 9953330565 ( HOT Young Call Girls In Badarpur delhi NCR

DJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINE
DJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINEDJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINE
DJARUM4D - SLOT GACOR ONLINE | SLOT DEMO ONLINE

HARMONY IN THE NATURE AND EXISTENCE - Unit-IV
HARMONY IN THE NATURE AND EXISTENCE - Unit-IVHARMONY IN THE NATURE AND EXISTENCE - Unit-IV
HARMONY IN THE NATURE AND EXISTENCE - Unit-IV

Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur Escorts
Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur EscortsCall Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur Escorts
Call Girls Service Nagpur Tanvi Call 7001035870 Meet With Nagpur Escorts

High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur EscortsHigh Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Isha Call 7001035870 Meet With Nagpur Escorts

Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝

MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINEMANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE

VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130
VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130
VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130


Fpga based interfacing for 8-bit and 32-bit electronic devices

  • 1. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308 __________________________________________________________________________________________ Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 381 FPGA-BASED INTERFACING FOR 8-BIT AND 32-BIT ELECTRONIC DEVICES Prateek Khurana1 , Rajat Arora2 , Monika Nagaria3 , Megha Sharma4 , Rajendra Bahadur Singh5 1 School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh – 201308, India 2 School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh – 201308, India 3 School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh – 201308, India 4 School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh – 201308, India 5 School of Information and Communication Technology, Gautam Buddha University, Greater Noida, Uttar Pradesh – 201308, India Abstract Most of the earlier electronic devices used buses with lesser number of bits but with the advancement in technology, devices having buses with larger number of bits are available in the market. Thus, there is an urging need to interface both these old and new technologies. In this paper, an interfacing unit has been proposed to interface the devices using buses with lower number of bits and higher number of bits. In the present work, two types of circuits are used for interfacing these devices; those have been termed as UPSIZER and DOWNSIZER circuit. Upsizer concatenates the bits generated by a lower bit device and sends it to a higher bit device. On the other hand, Downsizer divides the bits generated by higher bit devices and send it to lower bit devices. Keywords—FPGA; Verilog; Xilinx; Interfacing Unit; Microprocessors; VLSI -----------------------------------------------------------------------***------------------------------------------------------------------- 1. INTRODUCTION A microprocessor is one of the central part of a modern personal computer or, in fact, any advance computer device. The microprocessor has undergone a tremendous amount of development more than any other component of the modern computer. It has experienced some great moments in the history since 1960s due to its significant importance in modern computing. Intel was a forerunner in early microprocessor technology, releasing its first 8-bit microprocessor, the 8008, in 1972. However, Intel’s 8080 microprocessor was the major attraction of computer developers and engineers in the middle of that decade [1]. The development of 32-bit microprocessor began in late 1970s and they appeared on the mass market in the 1980s [2, 3]. 64-bit chips have been available since 1992 and are now in the mainstream of computer use [4, 5]. However, the advancement of technology with this pace requires a mechanism to support communication of new technology with that of the obsolete one. Thus there is a need of an interfacing unit which can form a link, so that technologies belonging to different generations can communicate easily. In this paper, an electronic circuit has been proposed which acts as an interfacing unit between an 8-bit device and a 32-bit device. Since this interfacing circuit increases size of bits from input to output, it was termed as “Upsizer” circuit. Similarly, another interfacing unit has been proposed in which a 32-bit device interacts with an 8-bit device. This interfacing unit downsizes the bit size from input to output and hence a term “Downsizer” can be coined for this circuit. A thorough description of the architecture of proposed circuit is given in section II. Upsizer leads to the concatenation of bits/bytes of same id/group/address and then transfers in the forward direction. So Upsizer contains input buses of lower number of bits and output buses of higher number of bits. Upsizer can be used to concatenate the bits generated by a lower bit device and sends it to higher bit device. Downsizer divides the bits generated by higher bit devices and sends it to lower bit devices. So a downsizer contains input buses of higher number of bits and output buses of lower number of bits. The complete working of these circuits is explained in section III. ModelSim PE student edition10.3 software has been used for writing the Verilog code for the Upsizer circuit. The waveforms
  • 2. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308 __________________________________________________________________________________________ Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 382 obtained on ModelSim have been shown in section IV. Xilinx ISE tool has been used for the extensive synthesis of the Verilog code which models this circuit. The results of this synthesis are compiled in section V. The Verilog code was also dumped on Xilinx Spartan®-3 FPGA kit which is explained in section VI. This demonstrates the working of the circuit proposed in this paper. The block diagram of the Upsizer and Downsizer circuit are shown in Fig. 1 and Fig. 2 respectively. Fig. 1.Block Diagram of Upsizer as an Interfacing Unit Fig 2 Block Diagram of Downsizer as an Interfacing Unit 2. ARCHITECTURAL DESCRIPTION To interface the devices using buses containing lower number of bits and devices using buses containing higher number of bits an Upsizer circuit was proposed. In this circuit, concatenation of bits/bytes of same id/group/address was done and transferred forward. So this circuit contained input buses of lower number of bits and output buses of higher number of bits. When an Upsizer circuit was employed, the device having a lower fan-out acted as a master and drove the Upsizer circuit that further lead to concatenation of bits and it transferred higher number of bits to slave having a higher fan-in. Input signals like VALID, DATA [7:0], ID [3:0] etc. were given by the master to the Upsizer circuits. Output signals like VALIDM, IDM [3:0], DATAM [31:0] etc. were used to drive the slave by the Upsizer. The I/O pins of the Upsizer circuit are shown in Fig. 3. Fig 3 I/O pins of the Upsizer circuit. In the above figure, except READYM signal, all other signals were given as input to the Upsizer by the master which in this case was a microprocessor or any other device having lower number bits. This input data was concatenated according to same id/group/address and transferred to the slave. VALID input pin indicated the validity of input data, if it was high the input data was considered valid. For its low value, the input was considered invalid/unacceptable. This signal was generated by the master. If it was required to perform the concatenation of data, then data was to be accepted by the Upsizer, which was only possible if VALID signal was high. The input data of 8 bits was sent by the master device along DATA [7:0] bus. It was this data that was concatenated and transferred forward to the slave device. ID [3:0] was used to differentiate the input 8 bit data. It acted like an address of the incoming data. It helped in concatenating the input data because data of same id were concatenated in 32 bits and transferred to slave. Master sent the ID along with the 8-bit data. READYM signal was used in communicating between slave and Upsizer. This signal was generated by the slave. Whenever slave was not ready to accept the data or was busy, this signal went low and it indicated the Upsizer to stop transferring the data and wait for some clock cycles. Data was not transferred to slave in that case even though if it was concatenated and stored by the Upsizer. Upsizer waited for the READYM signal to go high and then resumed the data transfer to slave. In the Fig. 3, except READY signal, all other signals were given by the Upsizer as output to the slave which in this case was a microprocessor or a device having higher no of bits. The slave device received concatenated data according to same id/group/address and was transferred by the Upsizer as generated by the master. VALIDM signal was generated by the Upsizer only when the input 8-bit data having same id were concatenated and ready to transfer. This signal indicated the slave that input data was valid and allowed acceptance of data
  • 3. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308 __________________________________________________________________________________________ Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 383 by the slave. The output data of 32 bits was sent by the Upsizer to the slave device along OUTPUT [31:0] bus. 8-bit data from master of same id were concatenated in Upsizer and transferred to slave through this 32 bit bus. IDM [3:0] gave the id of the data which was getting transferred to the slave. BYTESM [4:0] signal was generated by the Upsizer. It was a 4-bit wide data. Each bit corresponded to the 8-bit wide in the 32-bit output data. READY signal was another output signal generated by the Upsizer. When this signal went low it indicated to master that the Upsizer was busy/not ready to accept the data. Meanwhile Upsizer generated some wait cycles and completed the execution of the previous transfers. Downsizer circuit was same as that of the Upsizer. The input and the output signals of the Downsizer model had the same functions as that of the Upsizer model. The only difference was that Downsizer divided the bits generated by higher bit devices and sent it to lower bit devices. Therefore a Downsizer was used to convert large number of bits into small number of bits, so that the data used by higher bit devices may be used by the devices with lower bits. A Downsizer had input buses of higher number of bits and output buses of lower number of bits. When a Downsizer circuit was employed, the device having higher fan-out acted as a master and drove the downsizer circuit. This lead to division of bits and Downsizer transferred lower number of bits to slave having lower fan-in. Input signals like VALID, DATA [31:0], ID [3:0] etc. were given by the master to the Downsizer circuit. Output signals like VALIDM, IDM [3:0], DATAM [7:0] etc. were used to drive the slave device by the Downsizer circuit. The I/O pins of the Downsizer circuit are shown in Fig. 4. Fig 4 I/O pins of the Downsizer circuit. 3. WORKING OF THE INTERFACING CIRCUITS Upsizer handled the routing of data only and did not modify the transfer type or response information. Input data of same id were grouped together, so maximum 4 bytes data of same id were concatenated if they arrived consecutively. If there was any change in id after 1/2/3 bytes of data, then rest of the upper bytes were zero padded and a total 4 bytes were forwarded. Thus ID [3:0] played a major role in determining the address of the incoming data and created groups of 32-bit data accordingly, which were then transferred to the slave device. The other input signals, including the 8-bit input data bus DATA [7:0] were generated by the master device for the Upsizer circuit. If input data, generated by the master device for the first four clocks is 11001100,00001111,11110000,10101010 and ID remained same as 1001, then all these four bytes of data were concatenated by the Upsizer circuit. The 32-bit output data transferred to the slave device in 5th clock cycle in this case was 10101010111100000000111111001100. This example has been shown in Fig. 5. Fig 5 Working of Upsize circuit without zero padding condition Now for another instance, if input data, generated by the master device for the first two clocks is10101010, 11110000 and ID is 1001, and for the next clock cycle ID got changed to 1010. Then zero padding would be done and the two input data would be sent by the Upsizer to the slave device as 32-bit output data: 00000000000000001111000010101010. This example has been shown in Fig. 6. Fig.6 Working of Upsizer circuit with zero padding condition
  • 4. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308 __________________________________________________________________________________________ Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 384 The Downsizer worked in the similar fashion as Upsizer circuit. The Downsizer divided the 32-bit data into four different bytes of data and transferred it to the slave device. For the Downsizer circuit, the master device had a higher fan-out i.e. 32-bit data. The slave device had a lower fan-in i.e. 8-bit data. In this no zero padding was required, because whatever the 32-bit data was coming it got divided into 4 bytes and these 4 bytes were transferred to the slave device. For instance, if the input 32-bit data generated by the master device was 11001100000011111111000010101010, then this input data got divided into 4 bytes as 10101010, 11110000, 00001111, 11001100 with lower byte in the starting and higher byte in the last of the data transfer. This example has been shown in Fig. 7. Fig 7 Working of Downsizer circuit 4. MODELSIM ALTERA SIMULATION The Upsizer circuit whose logical description is given in the above section has been realized with a hardware description language (HDL) i.e. Verilog. Verilog language was invented by a company called Gateway Design Automation in the early 1980s. Most of the modern electronic systems can be modeled using this language at register transfer level of abstraction [6, 7 and 8]. The simulation software that has been used to simulate the Verilog code of the circuit is MODELSIM PE 10.3. This tool is basically a simulation and verification tool for Verilog, VHDL, System C and mixed level designs. This simulator is best suited for both ASIC and FPGA designs as it has an excellent platform support that makes it easy to adopt in majority of design and project flows. It provides high capacity, performance and debugging capabilities that are essential to simulate large blocks of code. The graphical user interface (GUI) provided is also intelligently engineered that makes the graphical interpretation of the design flexible and easily understandable [9]. To design a circuit with this software, a certain step by step process is followed otherwise it becomes quite a tedious task. Firstly, a working design library needs to be created, and then all the design files required for the simulation are compiled. The next step is to load all the design files and then multiple simulations are performed. The I/O waveforms are studied on the waveform viewer, which is an essential part of this software. The waveforms are also useful in studying and debugging the results. The basic simulation flow of any HDL code on this software is shown in Fig 8. Fig 8 Basic Simulation Flow A Verilog code was written for the Upsizer circuit according to the basic simulation flow shown in Fig. 8. This Verilog code was successfully compiled with no errors. A test bench was written for this Verilog code that helped to force all possible inputs at regular time intervals. Both the Verilog code for the Upsizer circuit and its test bench were simulated and I/O waveforms were studied in the waveform viewer. These waveforms when extensively studied, verified the working of the Upsizer circuit according to the logic discussed in the previous section. Consider for instance, if the input data was 00001111 and ID was 0001 for four clock cycles, then the expected output data is 00001111000011110000111100001111. In this case, the input data from the master device was concatenated since ID did not change its value for four clock cycles. Thus Upsizer performed its functions as it was desired. The simulation result for this case has been shown in Fig. 9. In another example, the input data was 10101010 for four clock cycles and ID remained as 0000. As it was expected, the Upsizer circuit concatenated the input data from the master four times and the 32-bit output data sent to the slave device was 10101010101010101010101010101010. This has been shown in Fig. 10.
  • 5. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308 __________________________________________________________________________________________ Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 385 Fig 9 Simulation result with input data =00001111 and id = 0001 for four clocks and output = 00001111000011110000111100001111 Fig 10 Simulation result with input data =10101010 and id = 0000 for four clocks and output = 10101010101010101010101010101010 Now for the case when ID was 0001 for the first clock cycle, and it was changed for the next clock cycle with input data remaining constant as 10101010, zero padding was done. This verifies the logic of Upsizer circuit. Since ID changed its value just after the first clock cycle, the higher 24 bits of 32-bit data were zero padded. The 32-bit output data obtained in this case was 00000000000000000000000010101010. This simulation result has been shown in Fig. 11. Fig 11 Simulation result with input data = 10101010 and id = 0001 for first clock and id got changed,so the output = 00000000000000000000000010101010. In another case, input 8-bit data was 10101010 and ID was 0010 for first clock cycle. For the second clock cycle, the input data was 11110000 and ID was still 0010. The ID got changed after second clock cycle. Considering the function of Upsizer circuit, the higher 16 bits of the 32-bit output data were zero padded. However, lower 16 bits consisted of the concatenated input data. The simulation results has been shown in Fig. 12. Fig 12 Simulation result with input data = 10101010 and id =0010 for first clock and input data = 11110000 and id = 0010 for second clock, then id got changed, therefore output = 00000000000000001111000010101010
  • 6. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308 __________________________________________________________________________________________ Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 386 Fig 13 A Verilog Testbench for the Upsizer Circuit Model In all of the above cases, the input had to be forced manually to achieve the output waveforms. Therefore it was not possible to simulate all possible input combinations. In Verilog, it is possible to create a Testbench for a module. Testbench is just like a dummy template which basically declares inputs to the circuit as registers and outputs from circuit as wires, then instantiates the circuit for all these specified inputs. This testbench can be used to automatically force all the input combinations. Testbench techniques and virtual tester development are heavily utilized in the presentation of circuit simulations. To show the simulation of the Upsizer circuit for all input combinations, a Testbench was written in Verilog and was simulated on the ModelSim software. All the possible input data combinations as well as IDs were considered. The output waveforms so produced were studied. All possible output waveforms were achieved. The simulation of the Testbench has been shown in Fig. 13. 5. XILINX SYNTHESIS Synthesis is the most important step in implementing a Verilog design in the real world environment. Simulation only relies on language features that are not synthesizable, but in this step, the Verilog design is brought near to the actual hardware. It basically transforms high level Verilog/ VHDL modules, which don’t have any real physical hardware, which can be wired up to perform the desired logic, into low level logical constructs. These construct are modeled in the form of look up tables or ASIC and FPGA hardware components. Xilinx ISE (Integrated Software Tool) is the tool that has been used to perform the synthesis of the Upsizer circuit. Xilinx is the inventor of this tool. This tool mainly focuses on the synthesis and analysis of HDL designs, giving an exact idea about the utilization of various components of the hardware used in the design [10]. It has the capability to perform timing analysis, examine the register transfer level (RTL) diagrams, check syntax errors, simulate the design for different set of input conditions and thus configure the target device. The Verilog code for the Upsizer circuit was also written in Xilinx ISE tool. The test bench of this Verilog code was also formed. The SPARTAN 3E version of the field programmable gate array (FPGA) family was selected for synthesis of this Verilog code. It was found that the Verilog code was successfully synthesized with no errors or warnings. The device utilization summary showing the logic utilization was generated as shown in the Fig. 14. Fig 14 Design Summary generated by the Xilinx ISE tool As seen from the Fig. 14, the numbers of slice flip flops used were 41 out of the total available 3541. The number of 4 input LUTs (look up tables) used were 47 out of 3584 total LUTs available. The logic distribution in the detailed map report showed that the number of slices containing only related logic were fully utilized i.e. 53 out of 53. Related logic is defined as logic that shares connectivity - e.g. two LUTs are "related" if they share common inputs. When assembling slices, Map gives priority to combine logic that is related. Doing so results in the best timing performance. The numbers of slices containing unrelated logic were 0 out of 53. Unrelated logic shares no connectivity. Map will only begin packingunrelated logic into a slice once 99% of the slices are occupied throughrelated logic packing.The percentage utilization of the number of IOBs used was 46% i.e. 90 out of the total 195 available IOBs were used. The timing detail of the synthesis report is shown in Fig. 15. The synthesis report gives the actual value of delay which includes both gate delay and net delay of particular LUTs and the total delay. The total memory usage for the synthesis was 189080 kilobytes. The total REAL time to Xst (Xilinx Synthesis Technology) completion was 6.00 seconds and the total CPU time to Xst completion was 6.97 seconds.
  • 7. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308 __________________________________________________________________________________________ Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 387 Fig 15 Timing Details of the Synthesis Report The RTL synthesis of the Verilog code was also carried out. The schematic diagram of RTL synthesis was generated, that is shown in Fig. 16. The input and output pins and the wires declared in the Verilog Model were clearly shown in the schematic diagram. Fig 16 Schematic Diagram of RTL Synthesis The final report of the HDL synthesis was generated which showed the design statistics and cell usage. The cell usage depicted that the number of flip flops used were 41 and there were 89 IO buffers. Out of these IO buffers, 15 were input buffers and 74 were output buffers. The cell usage showed that number of BELS utilized were 88 and only 1 clock buffer was used. This detailed final report has been shown in Fig. 17. Fig.17 Final Report of the HDL synthesis 6. FPGA IMPLEMENTATION After the synthesis of the Verilog code on Xilinx ISE tool, the next step was FPGA (Field Programmable Gate Array) implementation. A large number of circuits have been implemented on FPGA for verifying the Verilog/VHDL design proposed for these circuits. [11, 12 and 13]. The code synthesized on Xilinx ISE tool was verified using a SPARTAN 3E FPGA kit manufactured by Texas Instruments. The FPGA kit which was used has been shown in Fig. 18. The Verilog code for the interfacing circuit was dumped on this FPGA kit. Fig 18 SPARTAN-3E FPGA kit used for Implementation
  • 8. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308 __________________________________________________________________________________________ Volume: 03 Issue: 05 | May-2014, Available @ http://www.ijret.org 388 This input switches and output LEDs were linked with the input and output variables of the code respectively to verify the Verilog Design. Thus the programming file that was generated was dumped on the FPGA kit successfully to verify the working of Interfacing Circuit. For the working of the Upsizer Circuit the 8-bit input data was given using the input switches on the FPGA board. The output LEDs verified the result that explained the working of Interfacing Circuit. 7. CONCLUSIONS In this paper, a Verilog code for the interfacing circuit that has been proposed, was written and simulated on ModelSim. The results obtained from ModelSim simulation waveforms were verified. A comprehensive synthesis of the Verilog model was performed on the Xilinx ISE tool to get an idea of the requirement of the resources on the FPGA kit. Finally the Verilog code was dumped on the SPARTAN-3 FPGA kit which further proved the proper functioning of the interfacing circuit. The output has been checked and verified under various test cases and hence this UPSIZER circuit can act as an interfacing unit between an 8 bit and a 32 bit interface. The proposed interfacing circuit may be used in burst transfers in which bulk of data are transferred from master to slave having different bit processors. ACKNOWLEDGMENTS The authors wish to thank Mr. Sharad and Mr. Rajendra Bahadur Singh for their immense support and help whenever required and for providing access to laboratory for testing purposes. REFERENCES [1] P.J. Horne, “Implementation Of An Intel 8080 Microprocessor Developments System Using Existing Minicomputers,” IEEE transactions on nuclear science, Vol.NS-24, No.3, June 1977 [2] R. Sherbume, M. Katevenis, D. Patterson, and C. Sequin, “A 32-bit microprocessor with a large register file,” IEEE J. Solid-State Circuits, Vol. SC-19, no. 5, Oct. 1984. [3] Joan M. Pendleton, Shing I. Kong, Emil W. Brown, Frank Dunlap, Christopher Marino, David M. Ungar, David A. Patterson, and David A. Hodges, “ Design A 32-bit Microprocessor for Smalltalk,” IEEE Journal Of Solid-State Circuits,Vol. SC-21, No. 5, October 1986. [4] Hunt, Doug. "Advanced performance features of the 64- bit PA-8000." InCompcon'95.'Technologies for the Information Superhighway', Digest of Papers. pp. 123- 128. IEEE, 1995. [5] Niveditha Domse, Kris Kumar, and K. N. Balasubramanya Murthy, “64 bit Computer Architectures for Space Applications – A study,”World Academy of Science, Engineering and Technoloy,Vol:3 2009-03-28 [6] Girish Kumar B, Prabhu V, Siva Prasad T, Ruban Thomas “ Design and Implementation of FPGA Based Efficient Data Transmission Using Verilog,” International Journal of Emerging Technology and Advanced Engineering, Volume 3, Issue 11,ISSN 2250- 2459, November 2013 [7] Ulrich Golze, Peter Blinzer, Elma rCochlovius, Michael Schafers,Klaus-Peter Wachsmann, “VLSI Chip Design with the Hardware Description Language VERILOG: An Introduction Based on a Large RISC Processor Design,”VLSI Chip Design with the Hardware Description Language VERILOG: An Introduction Based on a Large RISC Processor Design 1st, Springer- Verlag New York, Inc. Secaucus, NJ, USA 1996, ISBN 3540600329. [8] Zaher S. Andraus, Karem A. Sakallah, “VLSI Automatic abstraction and verification of verilog models,”DAC '04 Proceedings of the 41st annual Design Automation Conference, Pages 218-223, 2004-06-07,ISBN: 1- 58113-828-8 [9] P.V.Sasanka, Y.V.RamanaRao, A.L.Siridhara, “A Verilog Model of Universal Scalable Binary Sequence Detector,” International Journal of Scientific and Research Publications, Volume 3, Issue 4, ISSN 2250- 3153, April 2011. [10] Kaushik Chandra Deva Sarma, Amlan Deep Borah, Lalan Kumar Mishra, “Design and Synthesis of 32 BIT ALU Using Xilinx ISE V9.1i,” International Journal of Engineering Research & Technology (IJERT), Vol. 2 Issue 5, ISSN: 2278-0181, May – 2013. [11] Mangesh V. Benodkar and Prasad K. Bhasme, “A Review Paper on Design and Simulation of Universal Asynchronous Receiver Transmitter on Field Programmable Gate Array Using VHDL,”International Journal of Advance Research in Computer Science and Management Studies, Volume 2, Issue 1, January 2014. [12] Amit kumar Singh, S.K. Dubey,M.G. Bhatia,“ Design and Simulation of FPGA based Digital System for Peak Detection and Counting, “International Journal of Advanced Research in Computer Science and Software Engineering, Volume 3, Issue 11,ISSN: 2277 128X November 2013 [13] Li Shang, Alireza S. Kaviani, Kusuma Bathala, “Dynamic power consumption in Virtex™-II FPGA family,” FPGA '02 Proceedings of the 2002 ACM/SIGDA tenth international symposium on Field- programmable gate arrays, Pages 157-164, 2002-02-24. [14] Ciletti, Michael D. Advanced digital design with the Verilog HDL. Vol. 2. Prentice Hall, 2003. [15] Palnitkar, Samir. Verilog HDL: a guide to digital design and synthesis. Vol. 1. Prentice Hall Professional, 2003.
