Concrete Gravity Dam Components
A gallery is a small passage in a dam for providing an access to the interior of the dam.
The gallery is usually rectangular in shape with its top and bottom either flat or semi circular.
For a gallery with its top and bottom flat, it is necessary that all the corners should be rounded. The width of gallery generally varies from 1.5 to 1.8 m. The height of the gallery in between 2.2 to 2.4 m, so that a person can easily walk inside it.
To provide drainage of the dam section.
2. To provide space for equipment required for drilling holes and grouting the hole to form a grout curtain in the foundation.
3. To provide space for header and return pipes for post cooling of concrete.
4. A gallery provide an access to the interior of the dam for inspection ard maintenance.
5. A Gallery also provides space for installing various instruments in the dam to study its structural behaviour.
6. A gallery can provide space for the mechanical and electrical equipment required for the operation of gates for spillways and outlets.
A shaft is a vertical opening provided in a dam. Shafts are required for locating headers of the post cooling system and for locating measuring devices.
Shafts are also required for the movement of elevators and the hoisting equipment. Sometimes shafts are constructed inclined to connect two galleries or the same gallery at two different elevations by a staircase or a lift arrangement.
A plumb line shaft is constructed at the maximum section of the dam to make observations of the deflection of the dam under loads.
A plumb bob is suspended by a wire fixed at the top of the shaft. As the dam deflects relative to the base, the plumb bob also moves by the same amount.
A stilling well shaft is a special shaft used to record fluctuations of the water level in the reservoir. The shaft is connected to the reservoir at a point below the minimum reservoir level.
There is a floating mechanism in the stilling well shaft which records fluctuations in the water level.
The spillway in a gravity dam is called overflow section. Spillway is provided to dispose of surplus water from the reservoir to the downstream.
Spillways are provided for all dams as a safety measure against overtopping and the consequent damages, and failure. spillway may be located either in the middle of the dam or at the end of the dam near abutment.
It must have adequate discharge capacity.
It must be hydraulically and structurally safe.
The surface of the spillway must be erosion resistant.
It should be provided with some device for the dissipation of excess energy
The portion of the gravity dam other than the spillway is a non-overflow section, a road is located on the non-overflow section of the dam.
At the one end of a gravity dam a power house is located. Water from the reservoir passes tnrough penstock and rotates the turbine provided at power elevations to produce electricity.
Water flowing over a spillway has a ver
Concrete Gravity Dam Components
A gallery is a small passage in a dam for providing an access to the interior of the dam.
The gallery is usually rectangular in shape with its top and bottom either flat or semi circular.
For a gallery with its top and bottom flat, it is necessary that all the corners should be rounded. The width of gallery generally varies from 1.5 to 1.8 m. The height of the gallery in between 2.2 to 2.4 m, so that a person can easily walk inside it.
To provide drainage of the dam section.
2. To provide space for equipment required for drilling holes and grouting the hole to form a grout curtain in the foundation.
3. To provide space for header and return pipes for post cooling of concrete.
4. A gallery provide an access to the interior of the dam for inspection ard maintenance.
5. A Gallery also provides space for installing various instruments in the dam to study its structural behaviour.
6. A gallery can provide space for the mechanical and electrical equipment required for the operation of gates for spillways and outlets.
A shaft is a vertical opening provided in a dam. Shafts are required for locating headers of the post cooling system and for locating measuring devices.
Shafts are also required for the movement of elevators and the hoisting equipment. Sometimes shafts are constructed inclined to connect two galleries or the same gallery at two different elevations by a staircase or a lift arrangement.
A plumb line shaft is constructed at the maximum section of the dam to make observations of the deflection of the dam under loads.
A plumb bob is suspended by a wire fixed at the top of the shaft. As the dam deflects relative to the base, the plumb bob also moves by the same amount.
A stilling well shaft is a special shaft used to record fluctuations of the water level in the reservoir. The shaft is connected to the reservoir at a point below the minimum reservoir level.
There is a floating mechanism in the stilling well shaft which records fluctuations in the water level.
The spillway in a gravity dam is called overflow section. Spillway is provided to dispose of surplus water from the reservoir to the downstream.
Spillways are provided for all dams as a safety measure against overtopping and the consequent damages, and failure. spillway may be located either in the middle of the dam or at the end of the dam near abutment.
It must have adequate discharge capacity.
It must be hydraulically and structurally safe.
The surface of the spillway must be erosion resistant.
It should be provided with some device for the dissipation of excess energy
The portion of the gravity dam other than the spillway is a non-overflow section, a road is located on the non-overflow section of the dam.
At the one end of a gravity dam a power house is located. Water from the reservoir passes tnrough penstock and rotates the turbine provided at power elevations to produce electricity.
Water flowing over a spillway has a ver
PracticalProfileofSpillwaY
When the profile for the crest of the ogee spillway is plotted over the triangular profile the section of a gravity dam (non-overflow section) ,it is found that it goes beyond vie downstream face of the dam , thu requiring thickening of the section for the spillway .
However,this extra concrete can be saved by shifting the curve of the nappe in a backward direction until this curve becomes tangential to the downstream face of the dam .
Design of spillway
Design an ogee spillway for concrete gravity dam, for the following data :
(1) Average river bed level = 100.0 m
(2) R.L. of spillway crest =204.0 m
(3) Slope of d/s face of gravity dam = 0.7 H : 1 V
(4) Design discharge = 8000 cumecs
(5) Length of spillway = 6 spans with a clear width of 10 m each.
(6) Thickness of each pier = 2.5 m
If h/Hd is greater than 1.7 than high spillway so effect of velocity is neglected
The co-ordinates from x = 0 to x = 27.4 m are worked out in the table below :
A spillways is a structure constructed a or near the dam site to dispose of surplus water from the reservoir to the channel downstream.
https://engineeringuniverse1.blogspot.com/
The underwater concreting techniques designed mostly to prevent cement washout. These methods did not obtain the full purpose of avoiding cement wash out at early stages of using under water concreting apart from cases where large masses of concreting were employed.
Spillways, Spillway capacity, flood routing through spillways, different type...Denish Jangid
Spillways: Spillway capacity, flood routing through spillways, different types & FUNCTION
of spillways and gate,Component parts of Spillways, energy dissipation below spillways Approach channel Control structure Discharge carrier Discharge channel Energy dissipators Overfall spillway spillway Saddle spillway Shaft spillway Side channel spillway Emergency spillway siphon spillway
PracticalProfileofSpillwaY
When the profile for the crest of the ogee spillway is plotted over the triangular profile the section of a gravity dam (non-overflow section) ,it is found that it goes beyond vie downstream face of the dam , thu requiring thickening of the section for the spillway .
However,this extra concrete can be saved by shifting the curve of the nappe in a backward direction until this curve becomes tangential to the downstream face of the dam .
Design of spillway
Design an ogee spillway for concrete gravity dam, for the following data :
(1) Average river bed level = 100.0 m
(2) R.L. of spillway crest =204.0 m
(3) Slope of d/s face of gravity dam = 0.7 H : 1 V
(4) Design discharge = 8000 cumecs
(5) Length of spillway = 6 spans with a clear width of 10 m each.
(6) Thickness of each pier = 2.5 m
If h/Hd is greater than 1.7 than high spillway so effect of velocity is neglected
The co-ordinates from x = 0 to x = 27.4 m are worked out in the table below :
A spillways is a structure constructed a or near the dam site to dispose of surplus water from the reservoir to the channel downstream.
https://engineeringuniverse1.blogspot.com/
The underwater concreting techniques designed mostly to prevent cement washout. These methods did not obtain the full purpose of avoiding cement wash out at early stages of using under water concreting apart from cases where large masses of concreting were employed.
Spillways, Spillway capacity, flood routing through spillways, different type...Denish Jangid
Spillways: Spillway capacity, flood routing through spillways, different types & FUNCTION
of spillways and gate,Component parts of Spillways, energy dissipation below spillways Approach channel Control structure Discharge carrier Discharge channel Energy dissipators Overfall spillway spillway Saddle spillway Shaft spillway Side channel spillway Emergency spillway siphon spillway
Techniques of rain water harvesting in urban and rural areasIEI GSC
Rainwater harvesting (RWH)is the process of arresting and storing rain water for efficient application and conservation. This is an effective way of utilising large quantum of water which otherwise goes as surface runoff. RWH has 2 components: 1)Rain water collection for storage
2)Recharging groundwater The talk cum presentation shall demonstrate several ways & methods to harvest rainwater in urban as well as rural areas
Literature Review Basics and Understanding Reference Management.pptxDr Ramhari Poudyal
Three-day training on academic research focuses on analytical tools at United Technical College, supported by the University Grant Commission, Nepal. 24-26 May 2024
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Online aptitude test management system project report.pdfKamal Acharya
The purpose of on-line aptitude test system is to take online test in an efficient manner and no time wasting for checking the paper. The main objective of on-line aptitude test system is to efficiently evaluate the candidate thoroughly through a fully automated system that not only saves lot of time but also gives fast results. For students they give papers according to their convenience and time and there is no need of using extra thing like paper, pen etc. This can be used in educational institutions as well as in corporate world. Can be used anywhere any time as it is a web based application (user Location doesn’t matter). No restriction that examiner has to be present when the candidate takes the test.
Every time when lecturers/professors need to conduct examinations they have to sit down think about the questions and then create a whole new set of questions for each and every exam. In some cases the professor may want to give an open book online exam that is the student can take the exam any time anywhere, but the student might have to answer the questions in a limited time period. The professor may want to change the sequence of questions for every student. The problem that a student has is whenever a date for the exam is declared the student has to take it and there is no way he can take it at some other time. This project will create an interface for the examiner to create and store questions in a repository. It will also create an interface for the student to take examinations at his convenience and the questions and/or exams may be timed. Thereby creating an application which can be used by examiners and examinee’s simultaneously.
Examination System is very useful for Teachers/Professors. As in the teaching profession, you are responsible for writing question papers. In the conventional method, you write the question paper on paper, keep question papers separate from answers and all this information you have to keep in a locker to avoid unauthorized access. Using the Examination System you can create a question paper and everything will be written to a single exam file in encrypted format. You can set the General and Administrator password to avoid unauthorized access to your question paper. Every time you start the examination, the program shuffles all the questions and selects them randomly from the database, which reduces the chances of memorizing the questions.
Understanding Inductive Bias in Machine LearningSUTEJAS
This presentation explores the concept of inductive bias in machine learning. It explains how algorithms come with built-in assumptions and preferences that guide the learning process. You'll learn about the different types of inductive bias and how they can impact the performance and generalizability of machine learning models.
The presentation also covers the positive and negative aspects of inductive bias, along with strategies for mitigating potential drawbacks. We'll explore examples of how bias manifests in algorithms like neural networks and decision trees.
By understanding inductive bias, you can gain valuable insights into how machine learning models work and make informed decisions when building and deploying them.
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
We have compiled the most important slides from each speaker's presentation. This year’s compilation, available for free, captures the key insights and contributions shared during the DfMAy 2024 conference.
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressionsVictor Morales
K8sGPT is a tool that analyzes and diagnoses Kubernetes clusters. This presentation was used to share the requirements and dependencies to deploy K8sGPT in a local environment.

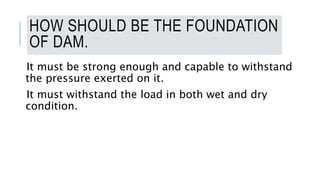

2. HOW SHOULD BE THE FOUNDATION
OF DAM.
It must be strong enough and capable to withstand
the pressure exerted on it.
It must withstand the load in both wet and dry
condition.
3. CASE STUDIES.
1) St. Francis dam, California. Height of dam was about 62m high and
210m long. It failed soon after its completion.
Cause of failure: Presence of conglomerate in one abutment. It was
weakened after exposure to moisture from the reservoir.
2) Austin Dam on Colorado river in Texas, year 1900.
Cause of failure: Large cavities had been dissolved in its limestone
foundation.

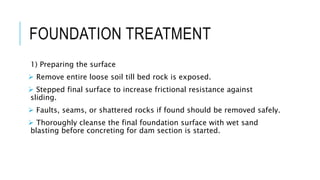

4. FOUNDATION TREATMENT
1) Preparing the surface
Remove entire loose soil till bed rock is exposed.
Stepped final surface to increase frictional resistance against
sliding.
Faults, seams, or shattered rocks if found should be removed safely.
Thoroughly cleanse the final foundation surface with wet sand
blasting before concreting for dam section is started.
5. 2) Grouting the foundation
a) Consolidation grouting: Entire foundation is consolidated by
grouting.
Shallow holes are drilled through the foundation rock. Holes vary
between 10-15m and 5-20m apart.
Mixture of cement and water is forced into holes at low pressure about
30-40N/cm2.
B) Curtain grouting: It helps forming a curtain against seepage through
foundation and reduces uplift pressures.
Deep holes are drilled about 1.2 – 1.5m apart. Holes then with 10-12m
apart are filled with the grout and then the intermediate holes are filled
with varying depth.
Depth of holes may vary 30-40% of total u/s water head.
FOUNDATION TREATMENT

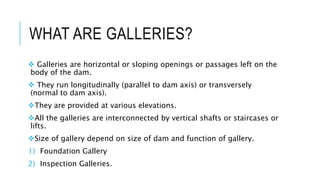

7. WHAT ARE GALLERIES?
Galleries are horizontal or sloping openings or passages left on the
body of the dam.
They run longitudinally (parallel to dam axis) or transversely
(normal to dam axis).
They are provided at various elevations.
All the galleries are interconnected by vertical shafts or staircases or
lifts.
Size of gallery depend on size of dam and function of gallery.
1) Foundation Gallery
2) Inspection Galleries.

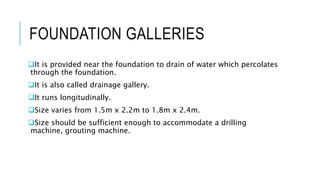

8. FOUNDATION GALLERIES
It is provided near the foundation to drain of water which percolates
through the foundation.
It is also called drainage gallery.
It runs longitudinally.
Size varies from 1.5m x 2.2m to 1.8m x 2.4m.
Size should be sufficient enough to accommodate a drilling
machine, grouting machine.

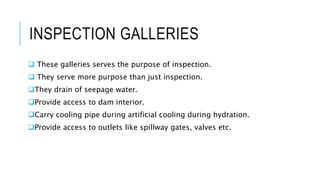

9. INSPECTION GALLERIES
