The document discusses the integration of Internet of Things (IoT) technology for improved energy efficiency and the challenges associated with creating an open messaging layer to facilitate communication among diverse systems. It highlights the role of XMPP as a scalable, federated messaging network, emphasizing security, encryption, and the need for standardization through various XEPs. Joachim Lindborg, the document's author, advocates for open systems in IoT that enhance human interactions and proposes solutions for integrating multiple technologies related to smart home services.

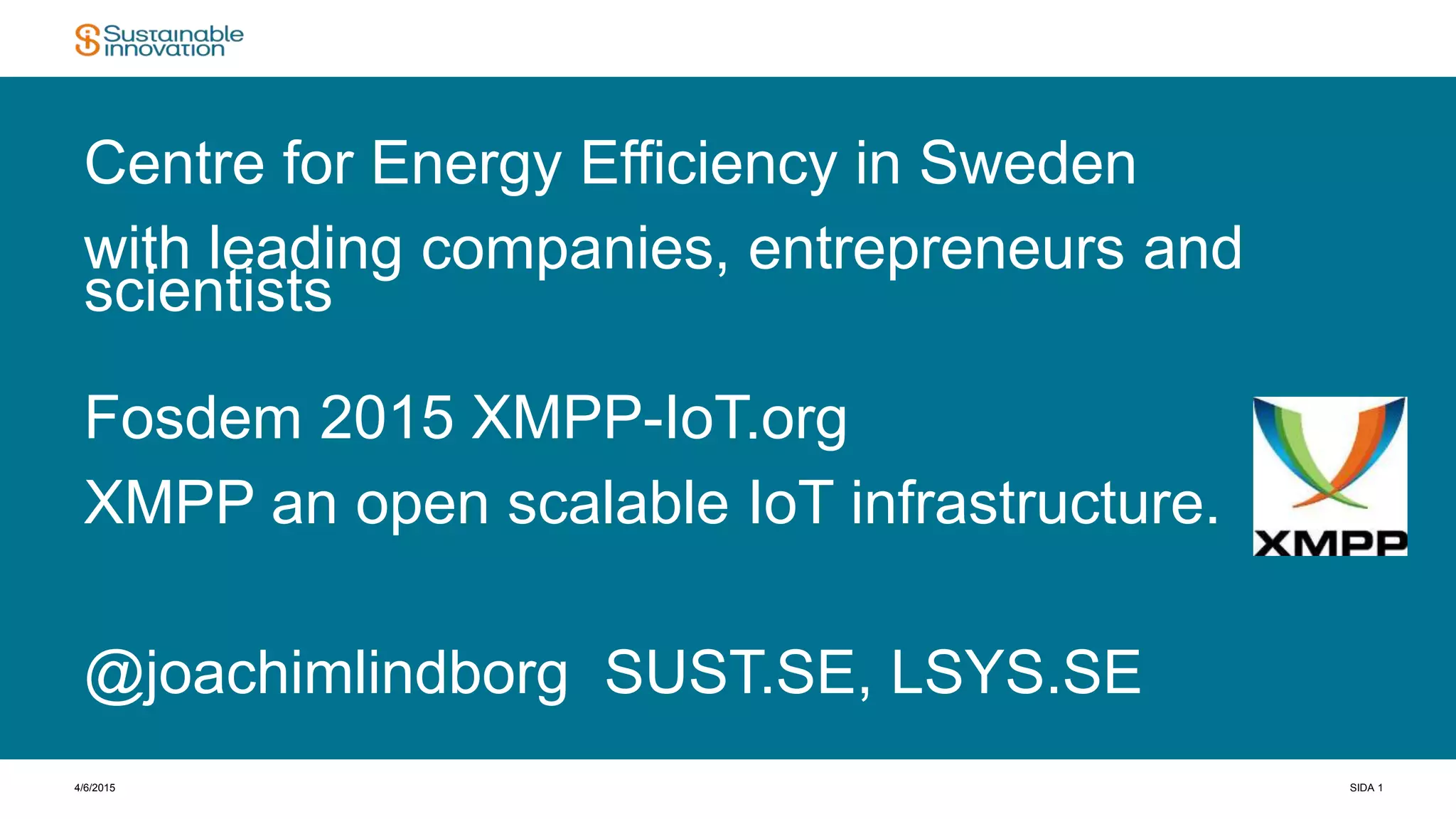

1. 4/6/2015 SIDA 1
Centre for Energy Efficiency in Sweden
with leading companies, entrepreneurs and
scientists
Fosdem 2015 XMPP-IoT.org
XMPP an open scalable IoT infrastructure.
@joachimlindborg SUST.SE, LSYS.SE

2. 4/6/2015 SIDA 3
3

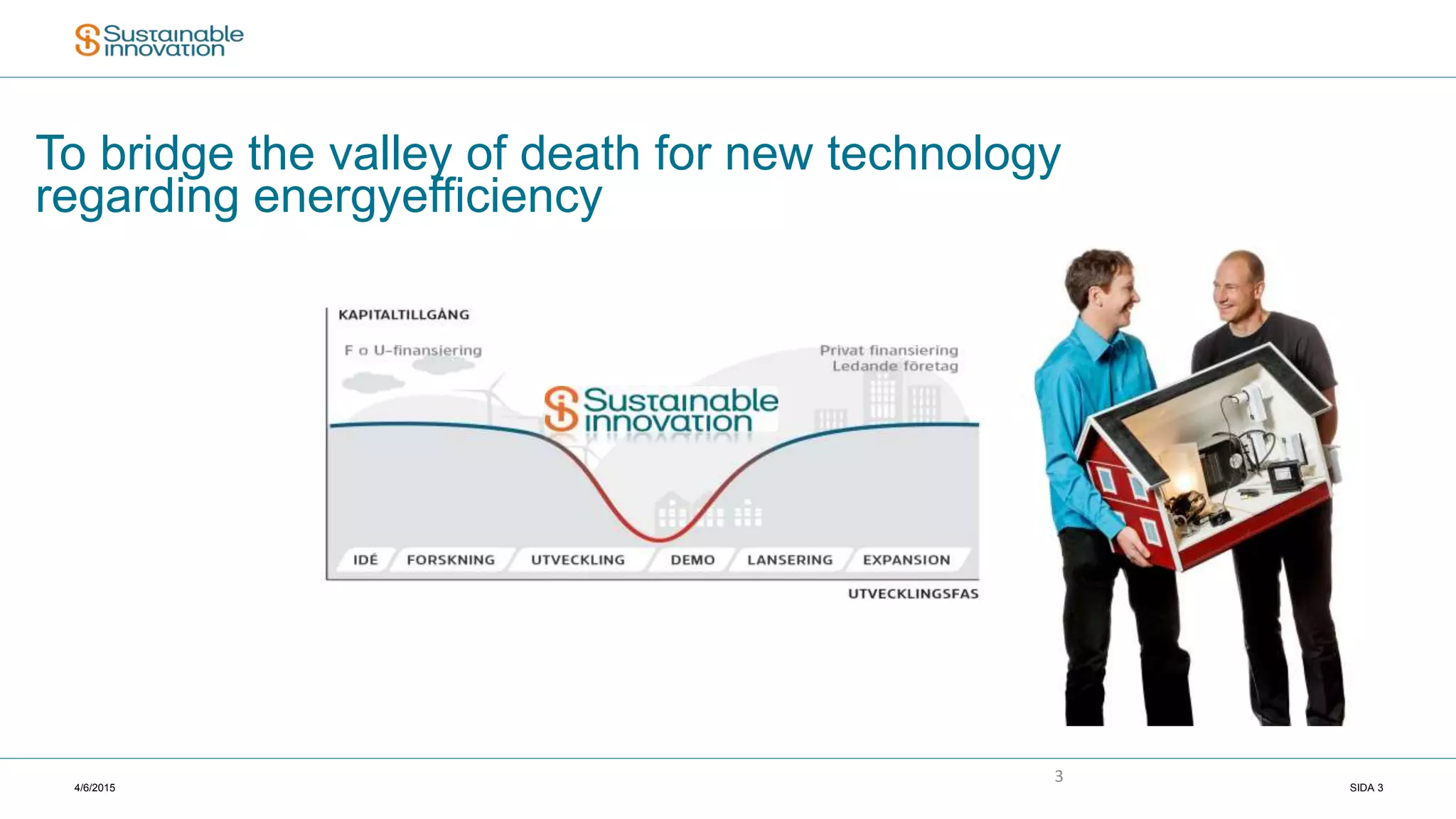

To bridge the valley of death for new technology
regarding energyefficiency

3. 4/6/2015 SIDA 4
42015-04-06

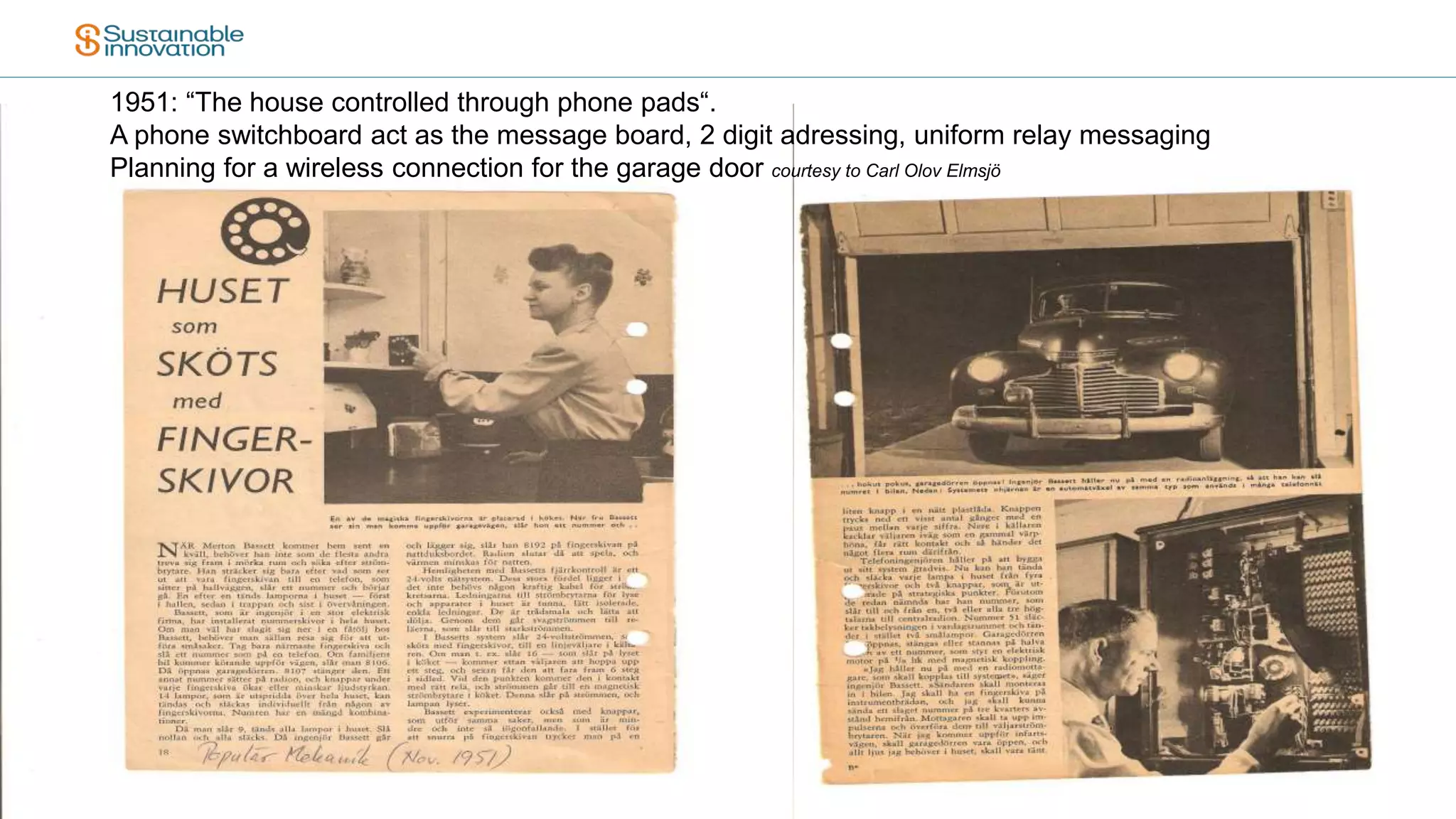

1951: “The house controlled through phone pads“.
A phone switchboard act as the message board, 2 digit adressing, uniform relay messaging
Planning for a wireless connection for the garage door courtesy to Carl Olov Elmsjö

4. 4/6/2015 SIDA 5
5

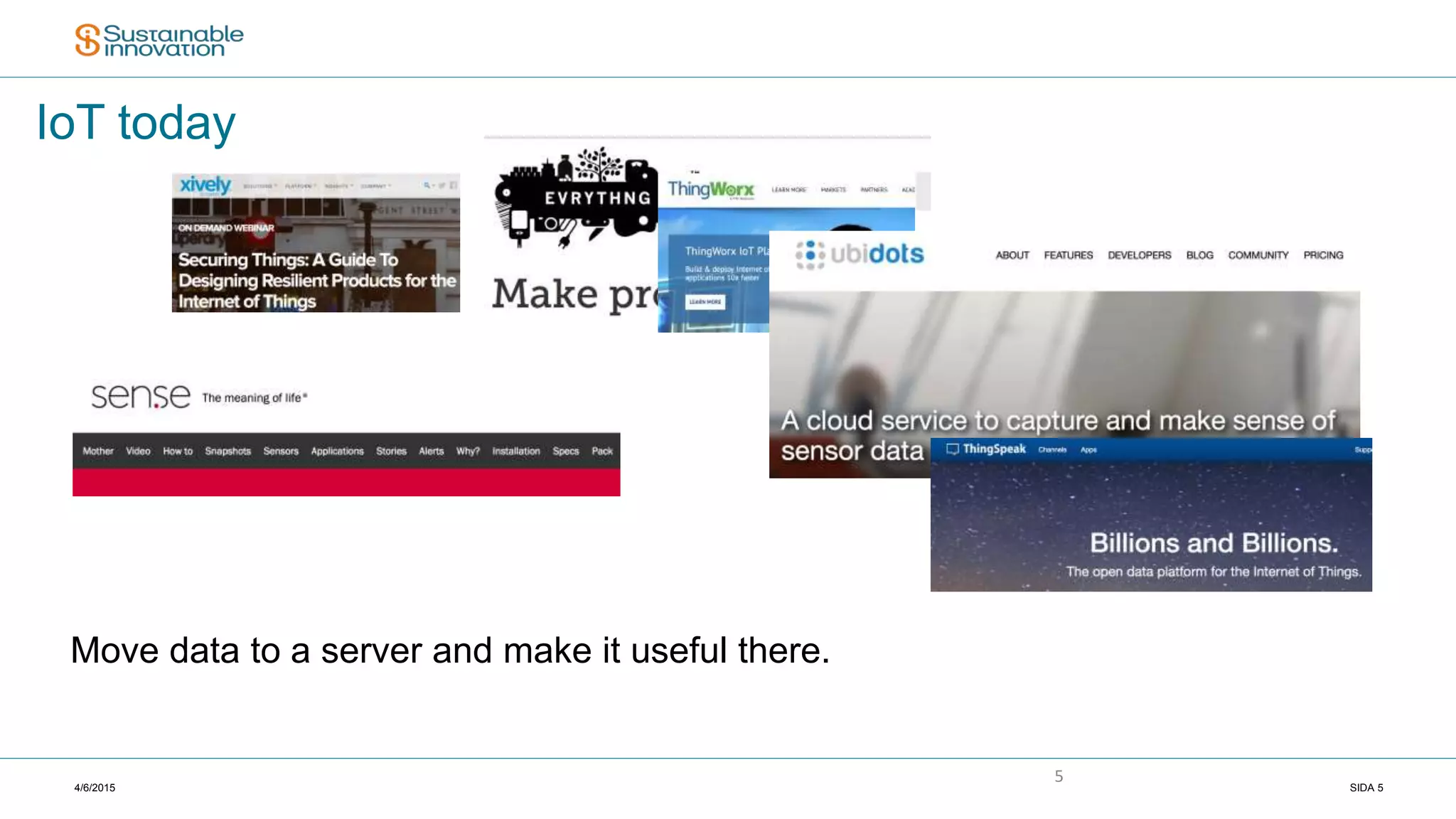

IoT today
Move data to a server and make it useful there.

5. 4/6/2015 SIDA 6

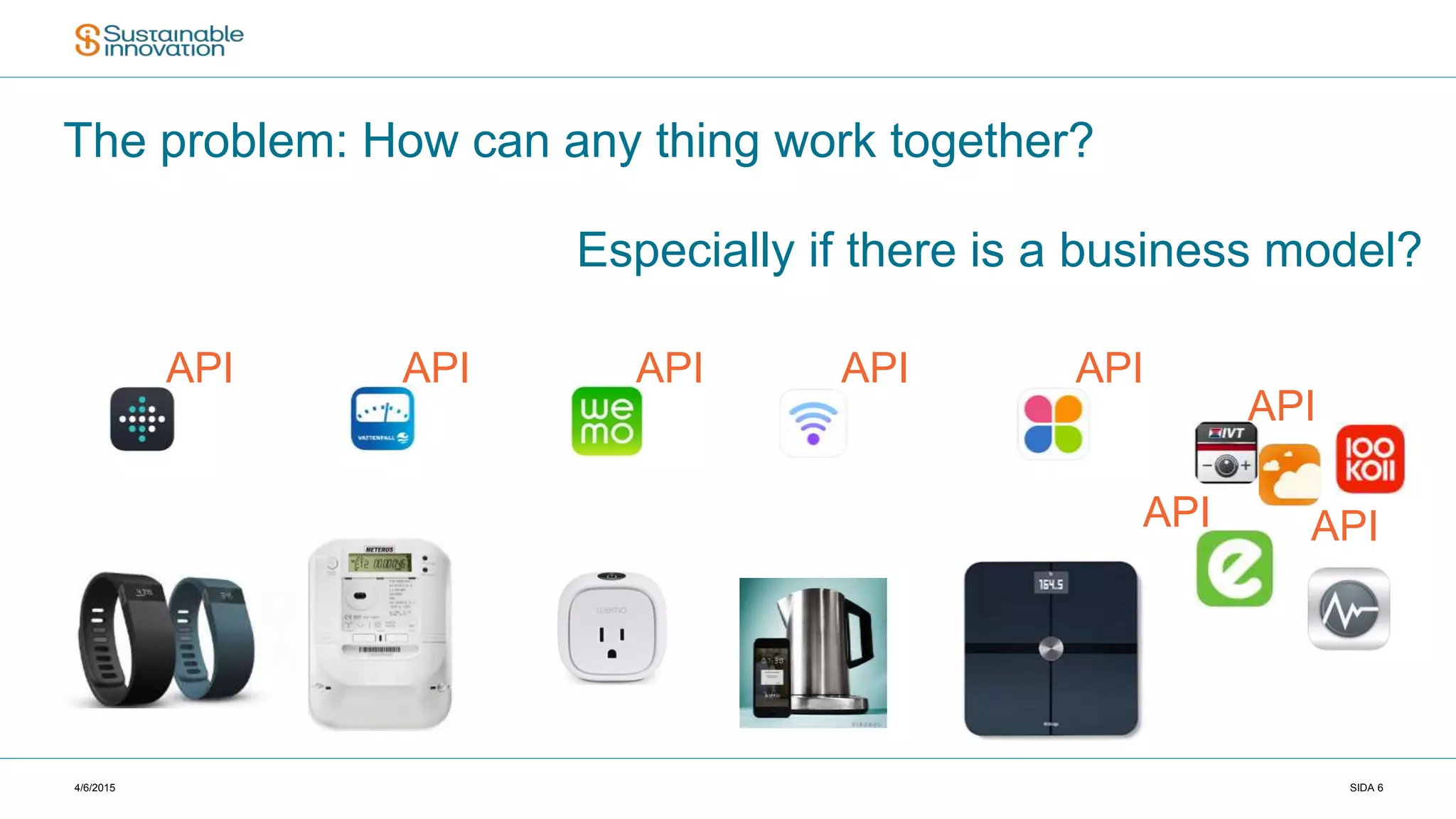

The problem: How can any thing work together?
API API API API API
API
API API
Especially if there is a business model?

6. 4/6/2015 SIDA 8

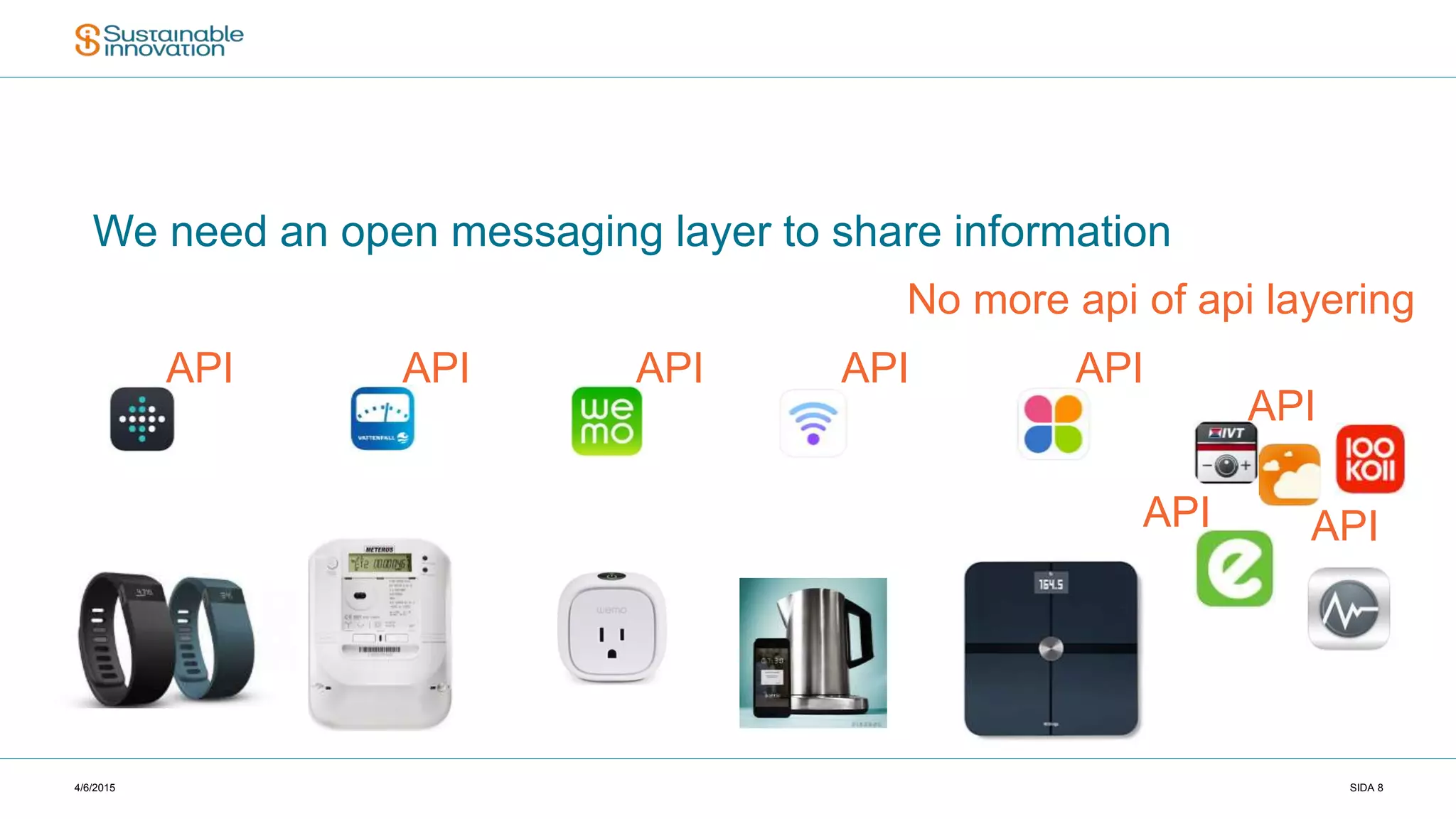

We need an open messaging layer to share information
API API API API API
API
API API
No more api of api layering

7. 4/6/2015 SIDA 9
9

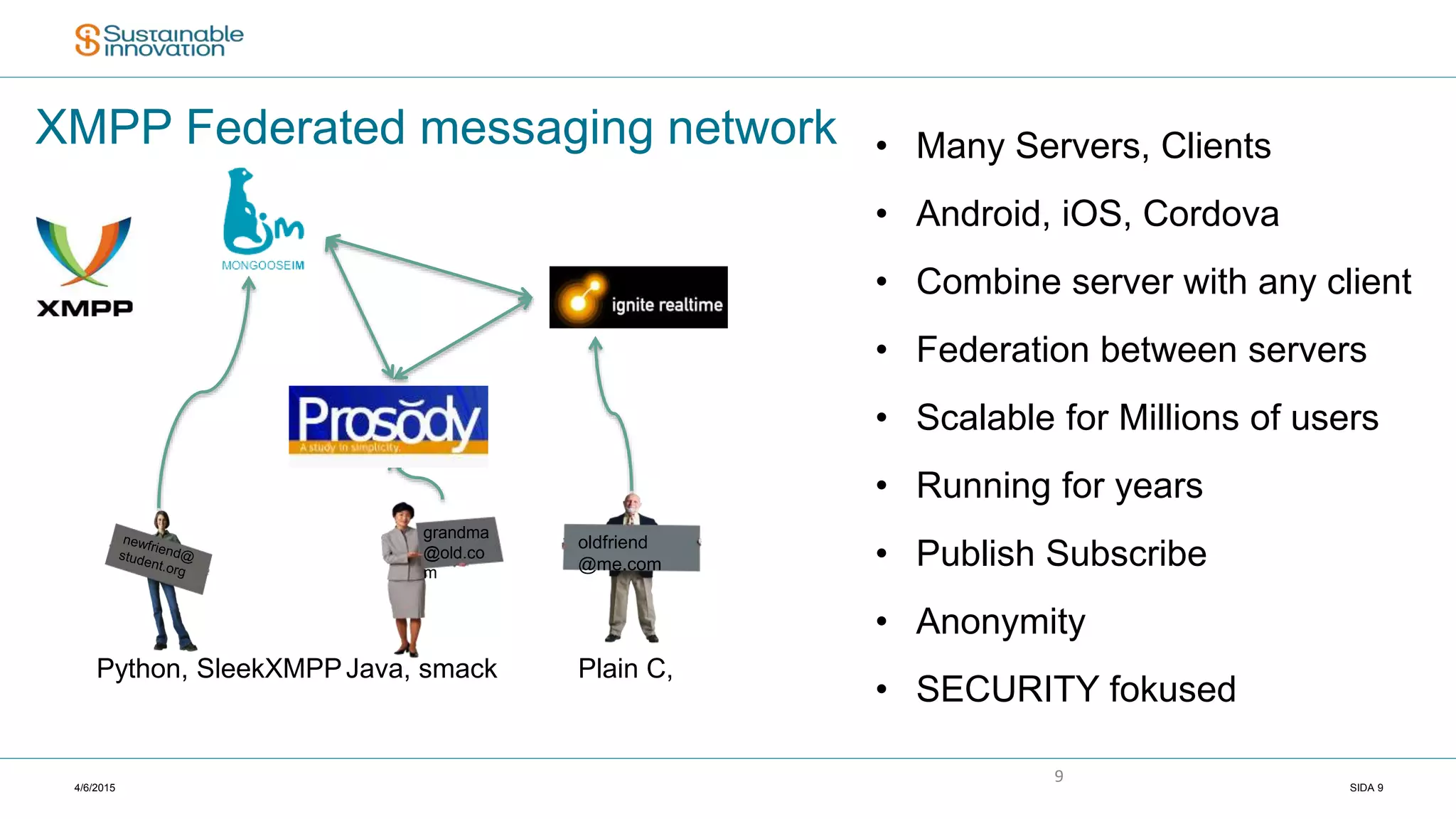

XMPP Federated messaging network • Many Servers, Clients
• Android, iOS, Cordova
• Combine server with any client
• Federation between servers
• Scalable for Millions of users
• Running for years
• Publish Subscribe
• Anonymity
• SECURITY fokused
grandma
@old.co
m
oldfriend
@me.com
Java, smackPython, SleekXMPP Plain C,

8. 4/6/2015 SIDA 10
10

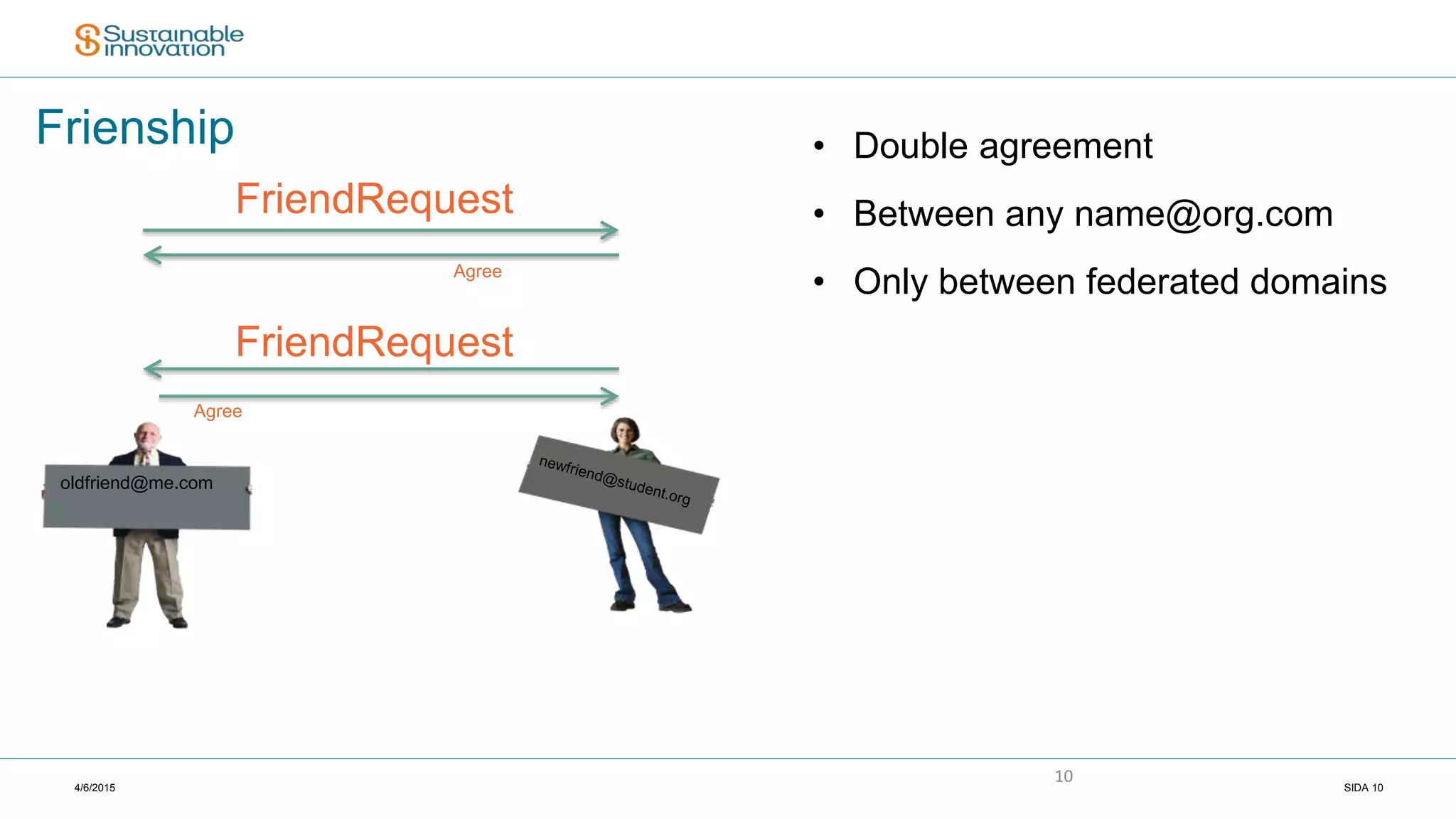

Frienship • Double agreement
• Between any name@org.com
• Only between federated domains
oldfriend@me.com
FriendRequest
Agree
FriendRequest
Agree

9. 4/6/2015 SIDA 11
11

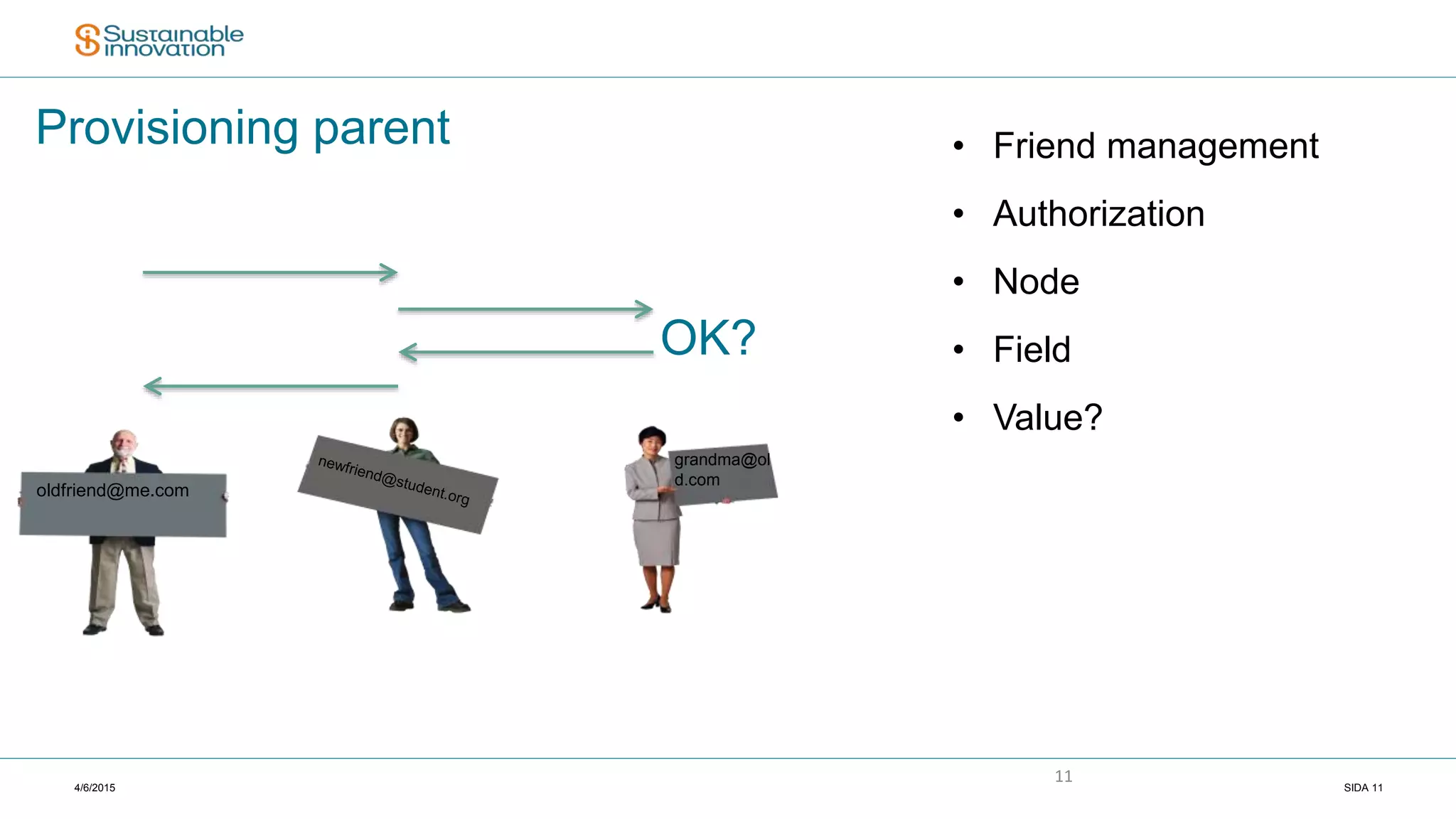

Provisioning parent • Friend management
• Authorization
• Node
• Field
• Value?
oldfriend@me.com
OK?
grandma@ol
d.com

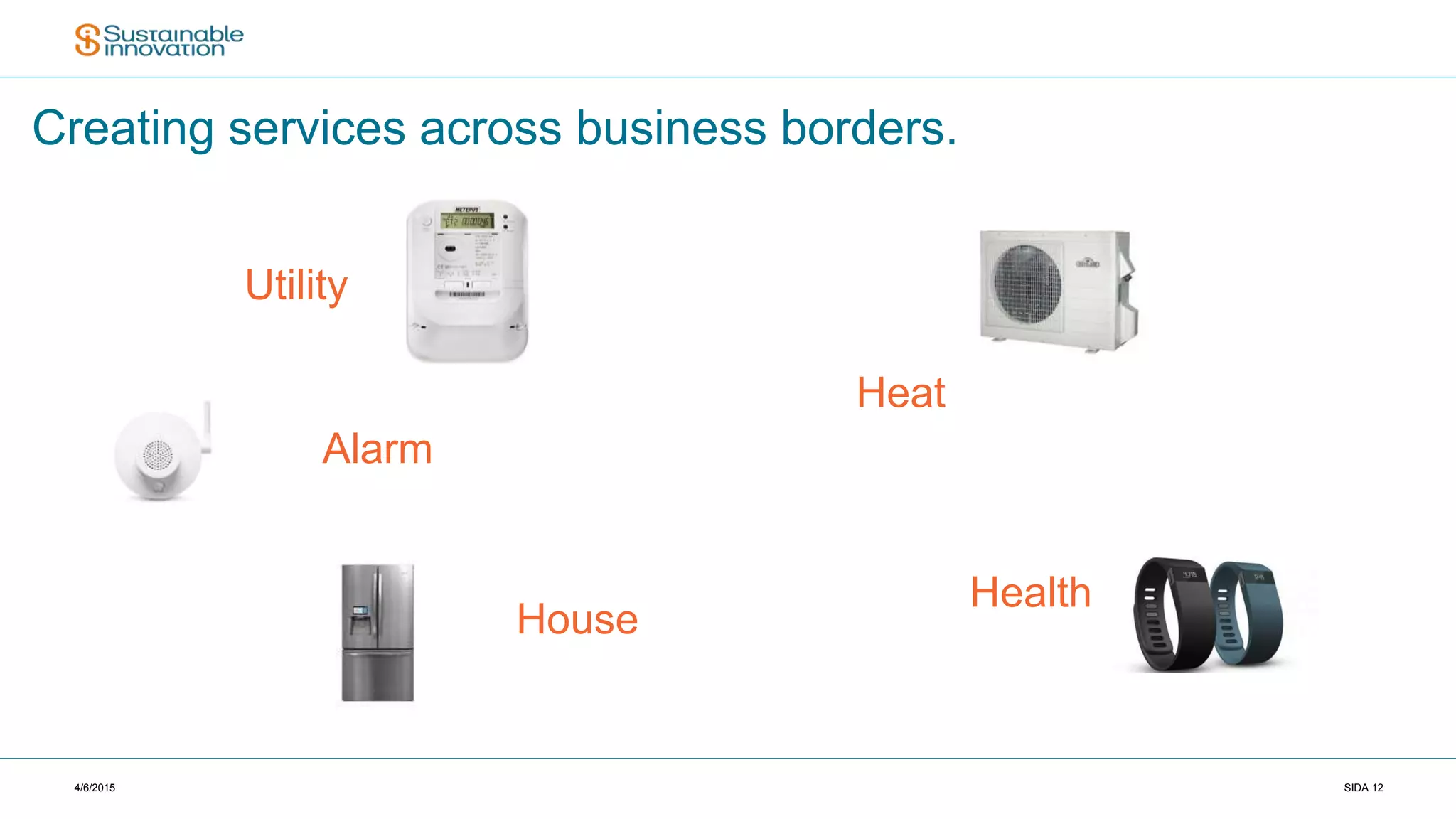

10. 4/6/2015 SIDA 12
Creating services across business borders.
Utility
Health
Heat
Alarm
House

11. 4/6/2015 SIDA 13

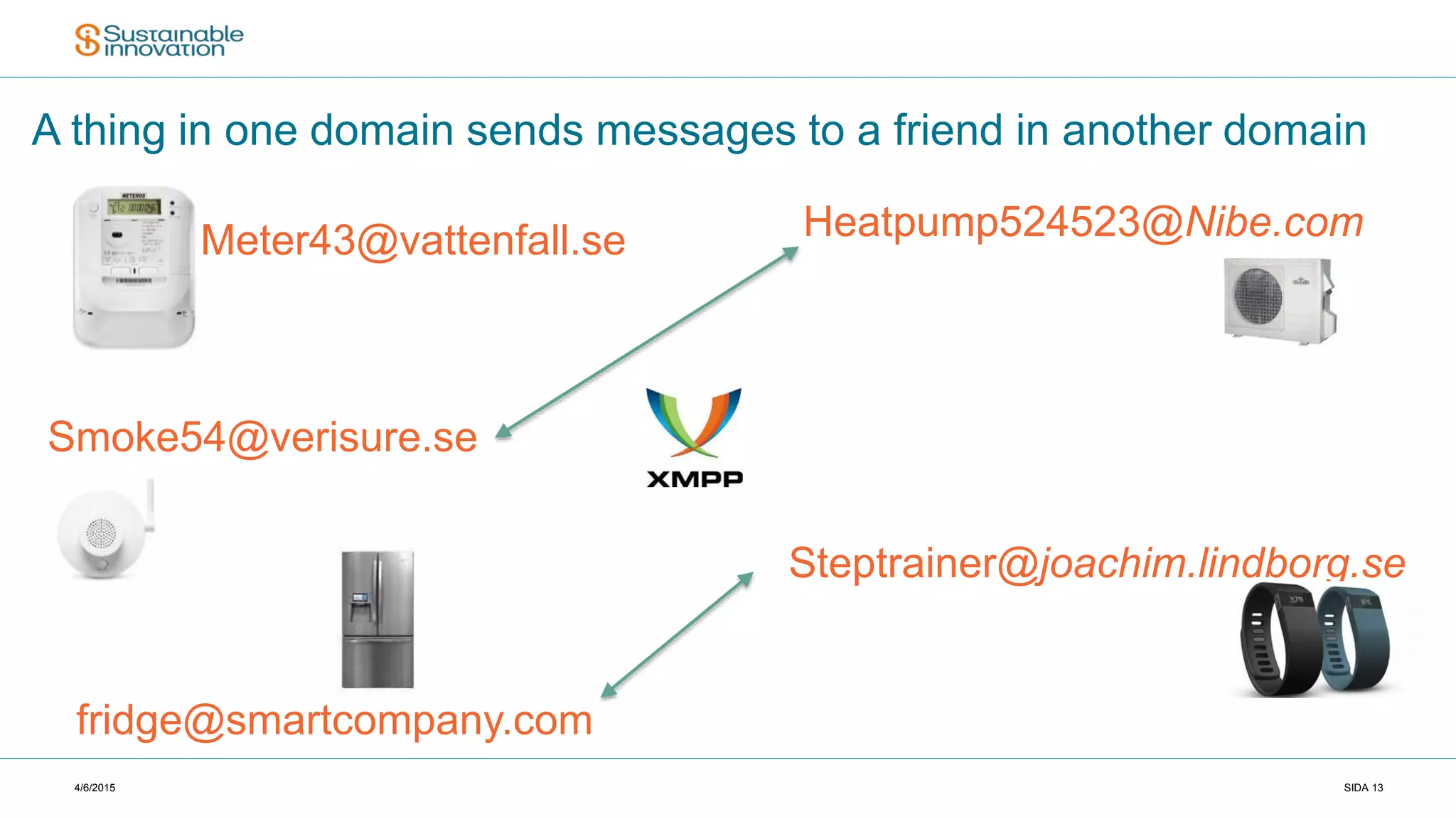

A thing in one domain sends messages to a friend in another domain
Meter43@vattenfall.se
Smoke54@verisure.se
Heatpump524523@Nibe.com
Steptrainer@joachim.lindborg.se
fridge@smartcompany.com

12. 4/6/2015 SIDA 14

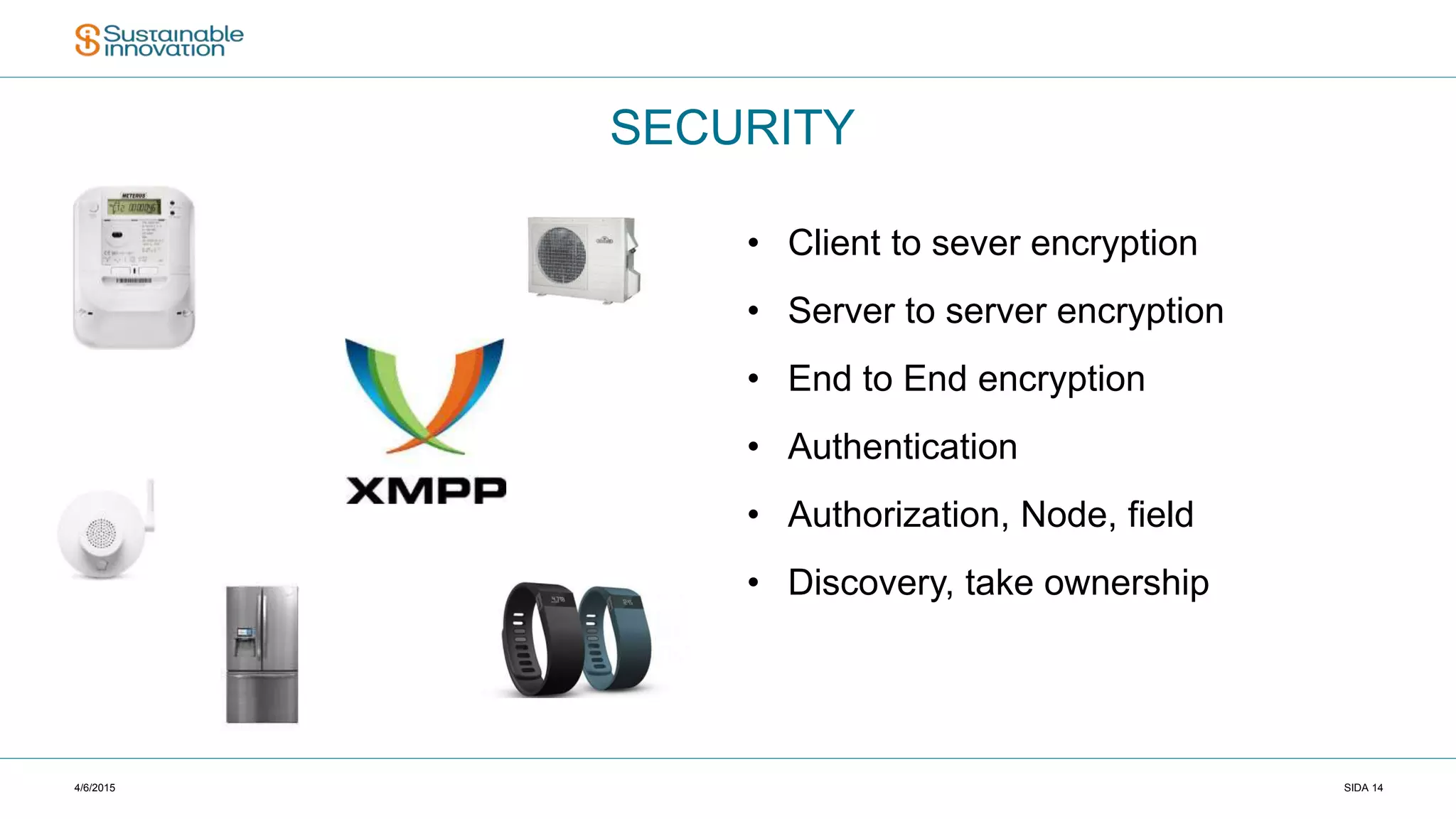

SECURITY
• Client to sever encryption
• Server to server encryption
• End to End encryption
• Authentication
• Authorization, Node, field
• Discovery, take ownership

13. 4/6/2015 SIDA 15
15
Demo
SwedenFosdem
XMPP network
HouseRaspberryMe Relays Hue

14. 4/6/2015 SIDA 16
16

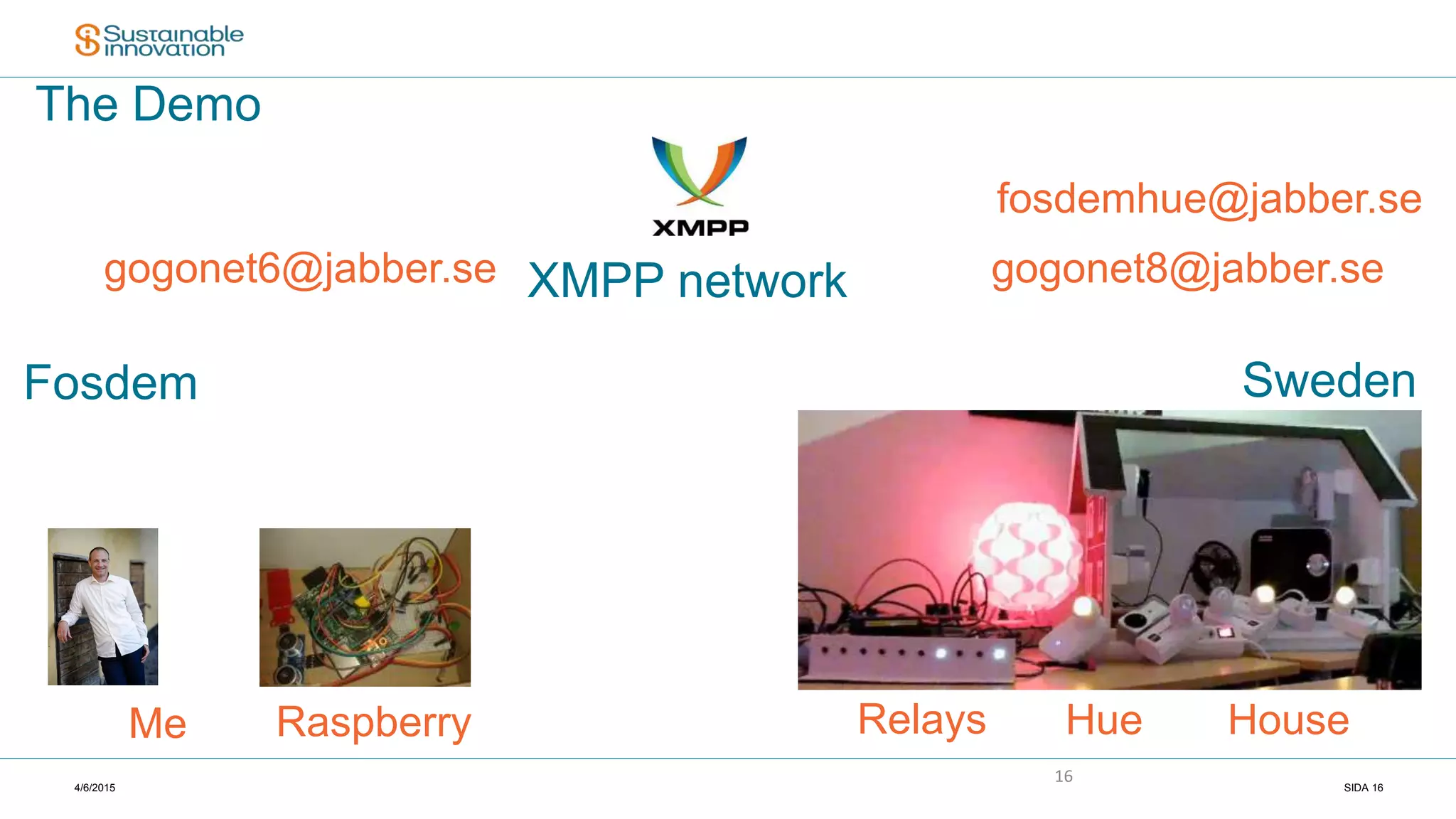

The Demo
SwedenFosdem
XMPP network
HouseRaspberryMe Relays Hue
gogonet8@jabber.se
fosdemhue@jabber.se
gogonet6@jabber.se

15. 4/6/2015 SIDA 17
17

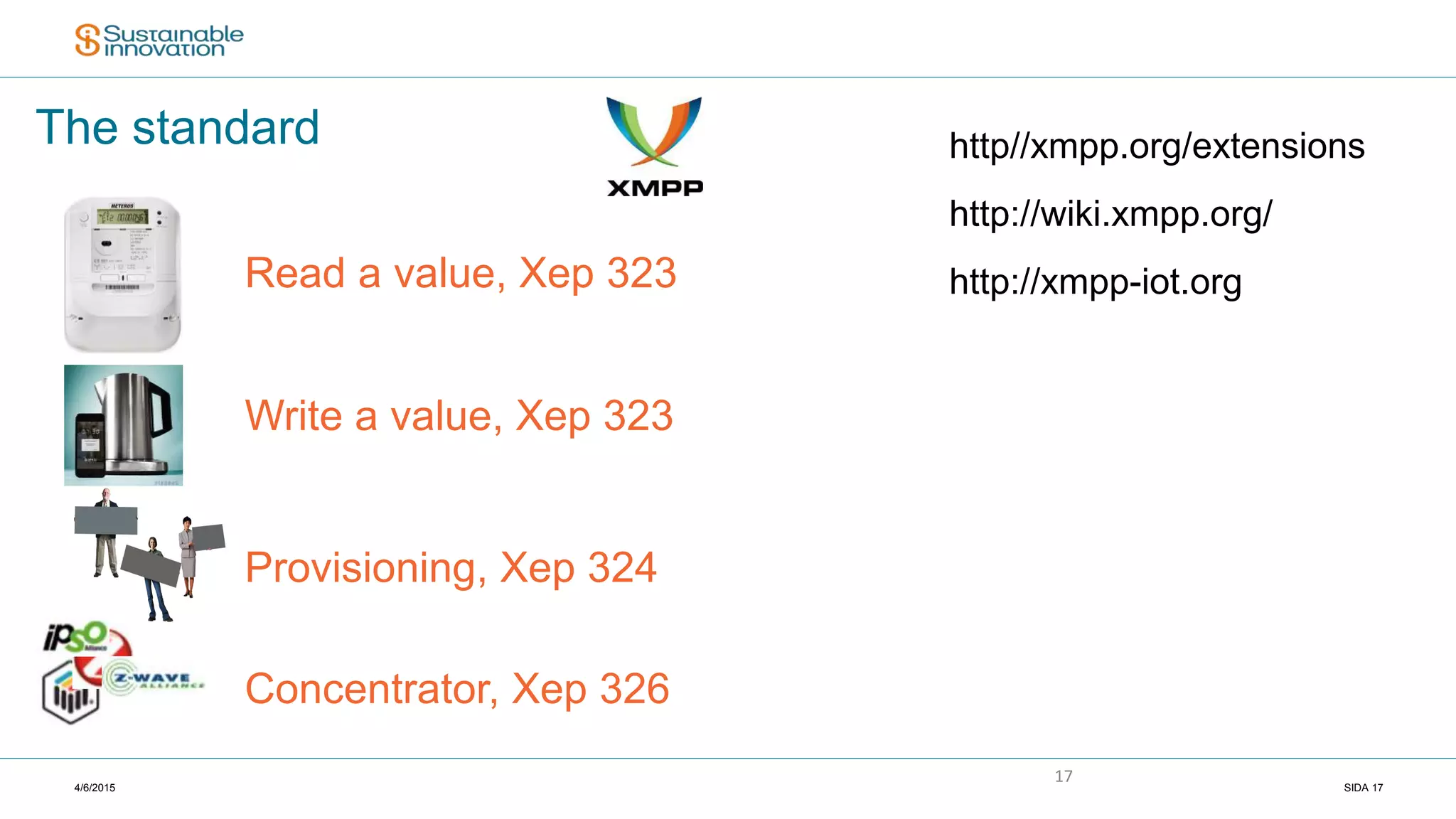

The standard http//xmpp.org/extensions
http://wiki.xmpp.org/
http://xmpp-iot.orgRead a value, Xep 323
Write a value, Xep 323
Provisioning, Xep 324
Concentrator, Xep 326

16. 4/6/2015 SIDA 18
18

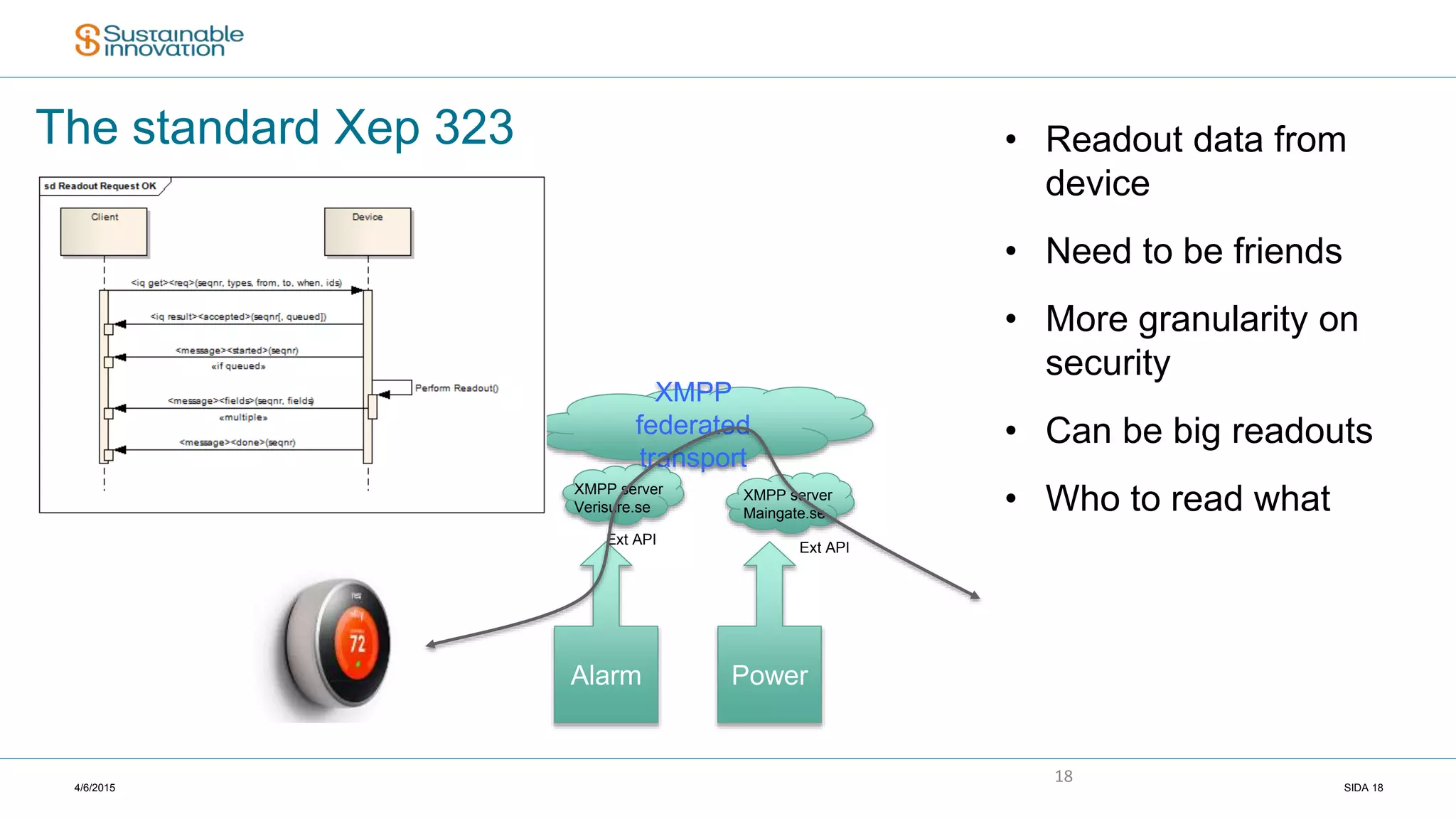

The standard Xep 323 • Readout data from
device
• Need to be friends
• More granularity on
security
• Can be big readouts
• Who to read what
Alarm Power
XMPP
federated
transport
XMPP server
Verisure.se
XMPP server
Maingate.se
Ext API
Ext API

17. 4/6/2015 SIDA 19
19

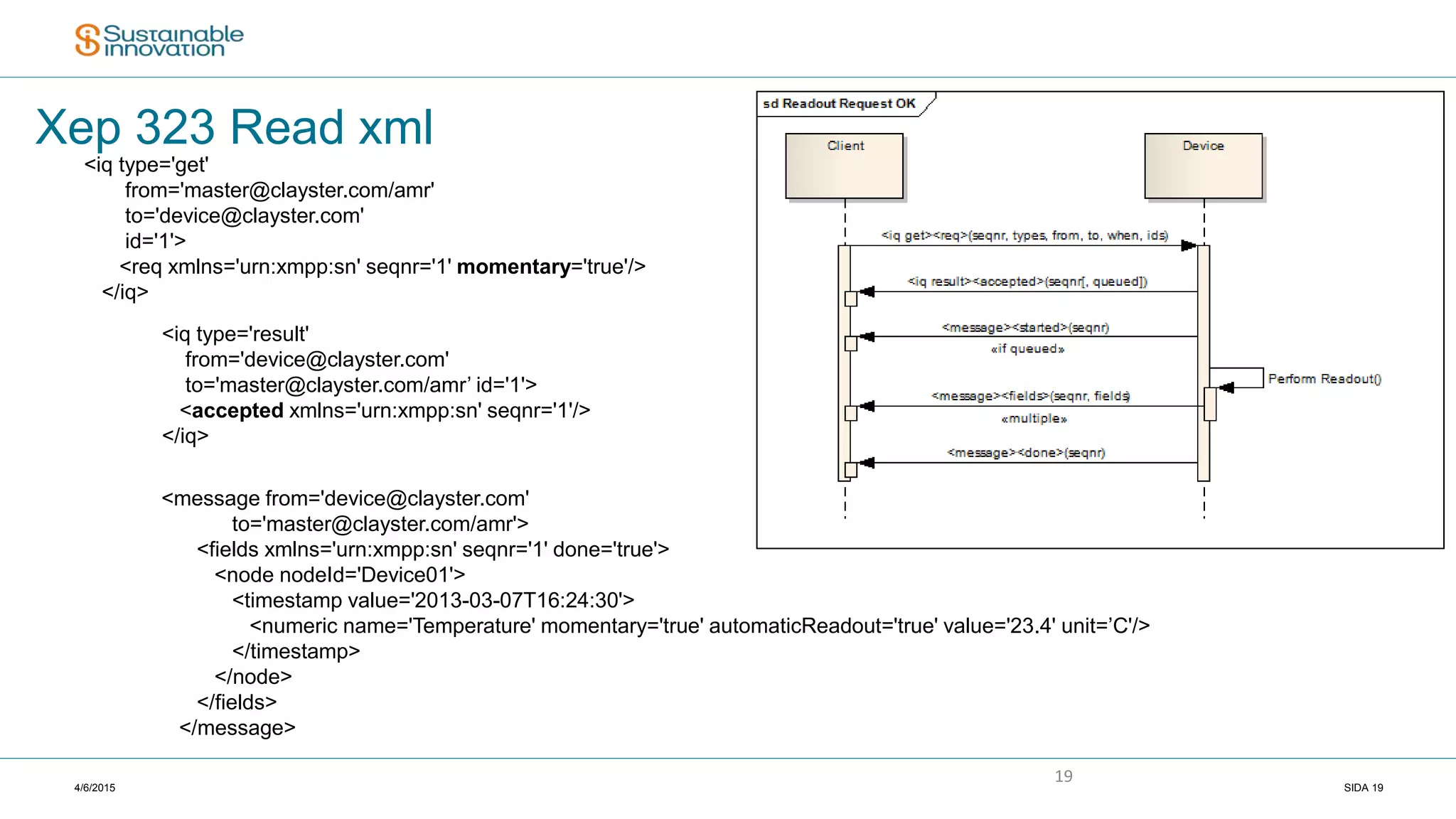

Xep 323 Read xml
<iq type='get'
from='master@clayster.com/amr'
to='device@clayster.com'
id='1'>
<req xmlns='urn:xmpp:sn' seqnr='1' momentary='true'/>
</iq>
<iq type='result'
from='device@clayster.com'
to='master@clayster.com/amr’ id='1'>
<accepted xmlns='urn:xmpp:sn' seqnr='1'/>
</iq>
<message from='device@clayster.com'
to='master@clayster.com/amr'>
<fields xmlns='urn:xmpp:sn' seqnr='1' done='true'>
<node nodeId='Device01'>
<timestamp value='2013-03-07T16:24:30'>
<numeric name='Temperature' momentary='true' automaticReadout='true' value='23.4' unit=’C'/>
</timestamp>
</node>
</fields>
</message>

18. 4/6/2015 SIDA 20
20

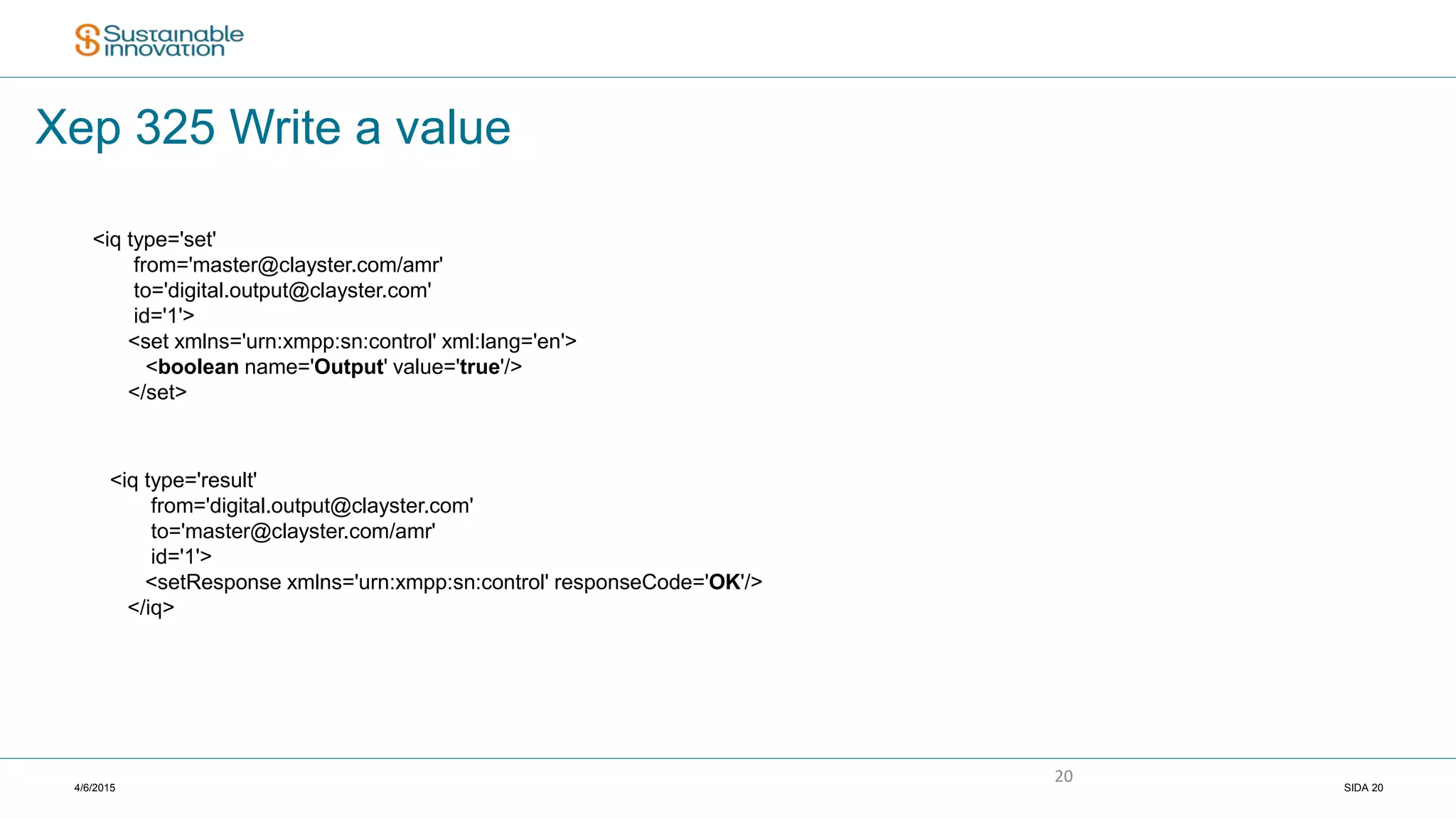

Xep 325 Write a value
<iq type='set'
from='master@clayster.com/amr'
to='digital.output@clayster.com'
id='1'>
<set xmlns='urn:xmpp:sn:control' xml:lang='en'>
<boolean name='Output' value='true'/>
</set>
<iq type='result'
from='digital.output@clayster.com'
to='master@clayster.com/amr'
id='1'>
<setResponse xmlns='urn:xmpp:sn:control' responseCode='OK'/>
</iq>

19. 4/6/2015 SIDA 21
21

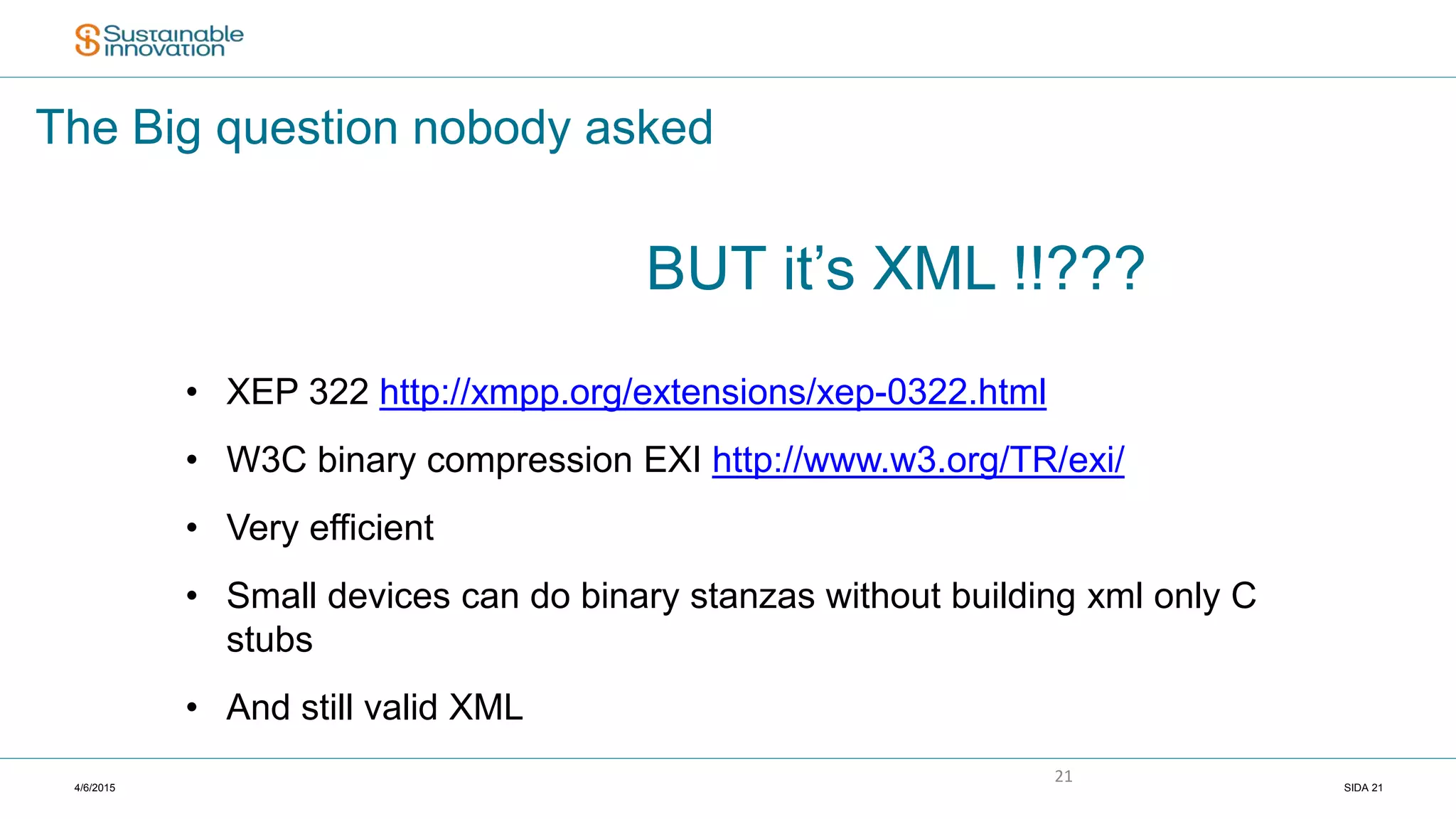

The Big question nobody asked
BUT it’s XML !!???
• XEP 322 http://xmpp.org/extensions/xep-0322.html
• W3C binary compression EXI http://www.w3.org/TR/exi/
• Very efficient
• Small devices can do binary stanzas without building xml only C
stubs
• And still valid XML

20. 4/6/2015 SIDA 22

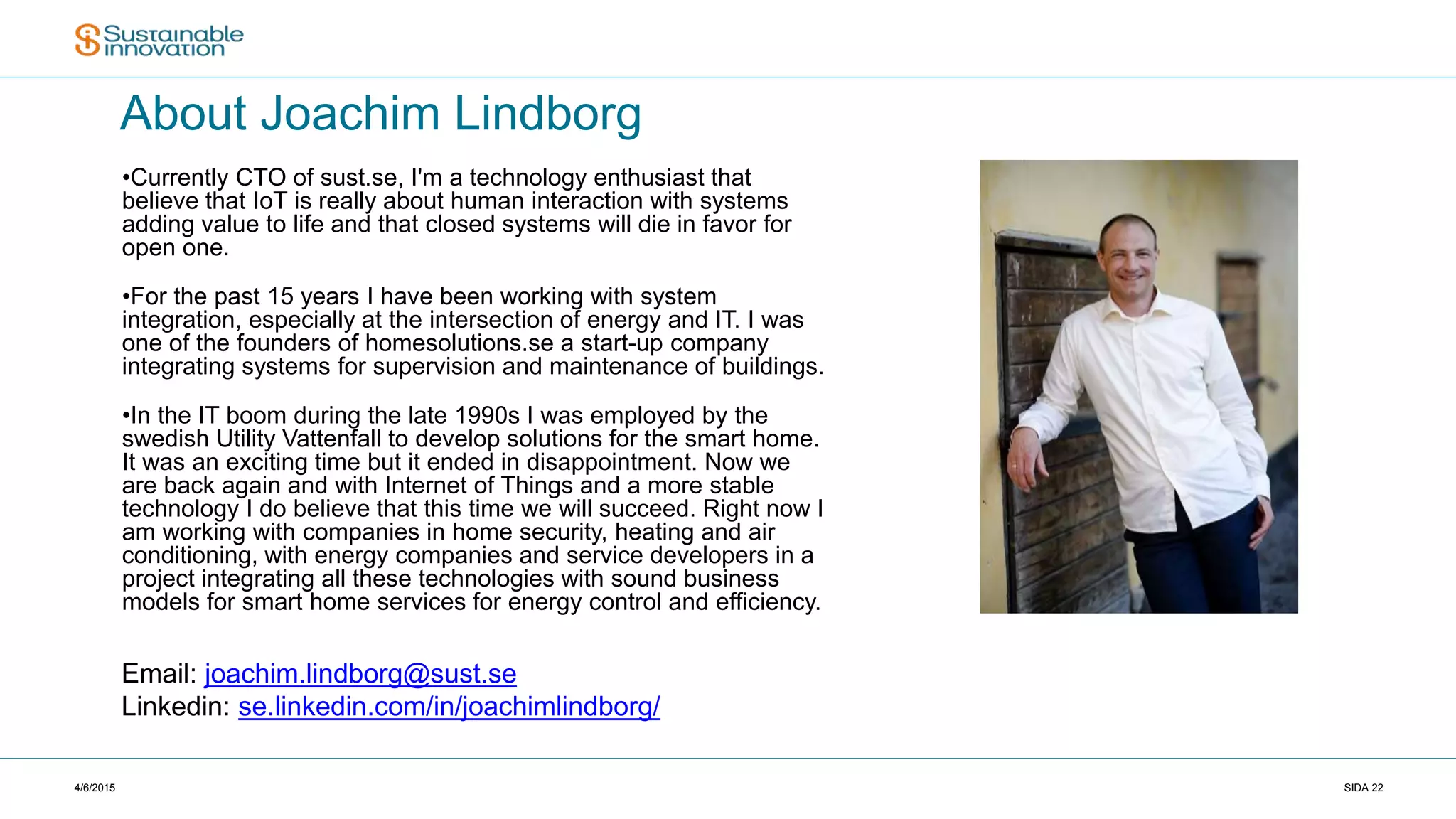

About Joachim Lindborg
•Currently CTO of sust.se, I'm a technology enthusiast that
believe that IoT is really about human interaction with systems
adding value to life and that closed systems will die in favor for
open one.
•For the past 15 years I have been working with system
integration, especially at the intersection of energy and IT. I was
one of the founders of homesolutions.se a start-up company
integrating systems for supervision and maintenance of buildings.
•In the IT boom during the late 1990s I was employed by the
swedish Utility Vattenfall to develop solutions for the smart home.
It was an exciting time but it ended in disappointment. Now we
are back again and with Internet of Things and a more stable
technology I do believe that this time we will succeed. Right now I
am working with companies in home security, heating and air
conditioning, with energy companies and service developers in a
project integrating all these technologies with sound business
models for smart home services for energy control and efficiency.
Email: joachim.lindborg@sust.se
Linkedin: se.linkedin.com/in/joachimlindborg/
