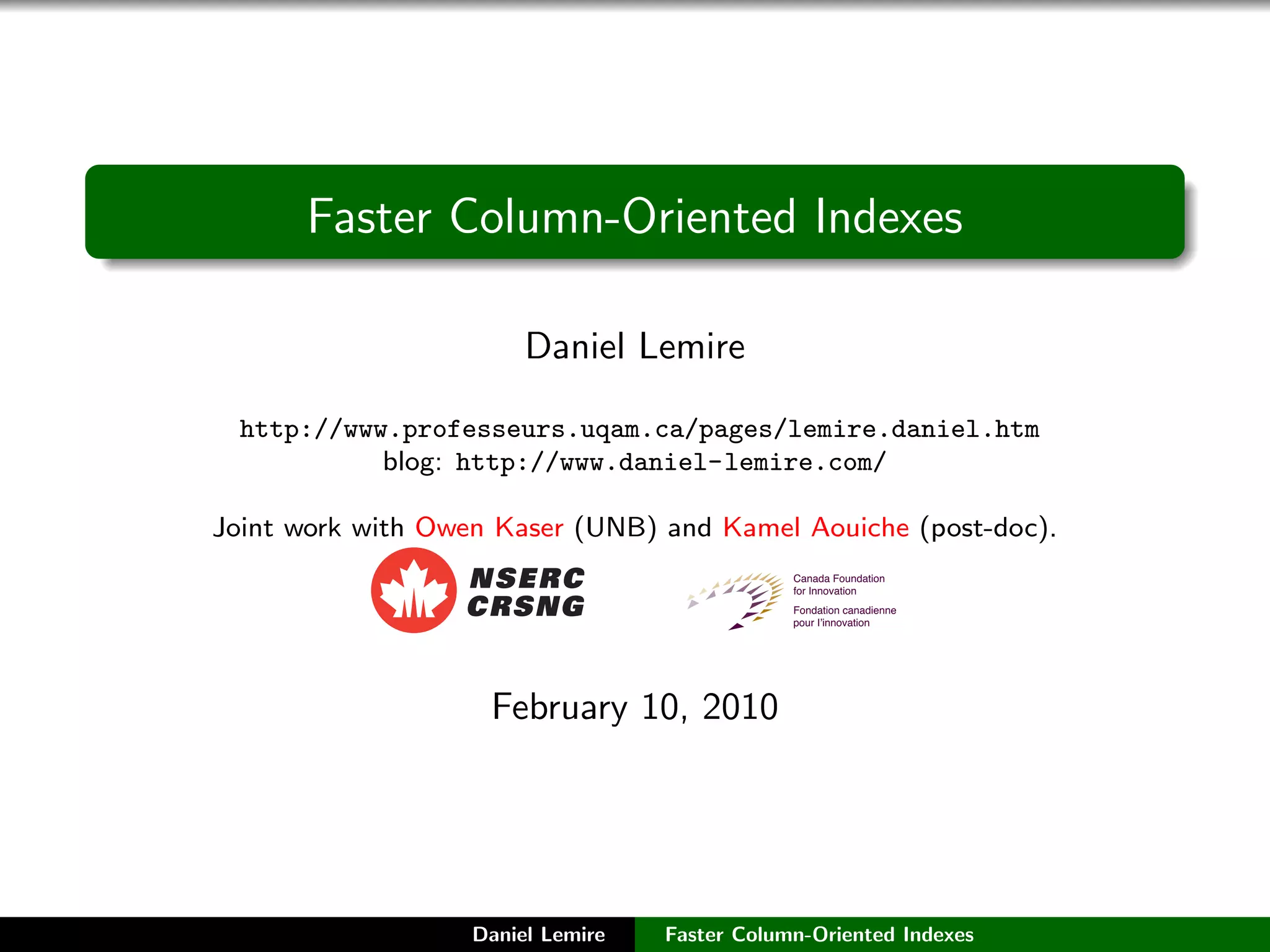

Faster Column-Oriented Indexes

Faster Column-Oriented Indexes

Daniel Lemire

http://www.professeurs.uqam.ca/pages/lemire.daniel.htm
blog: http://www.daniel-lemire.com/

Joint work with Owen Kaser (UNB) and Kamel Aouiche (post-doc).

February 10, 2010

Daniel Lemire Faster Column-Oriented Indexes

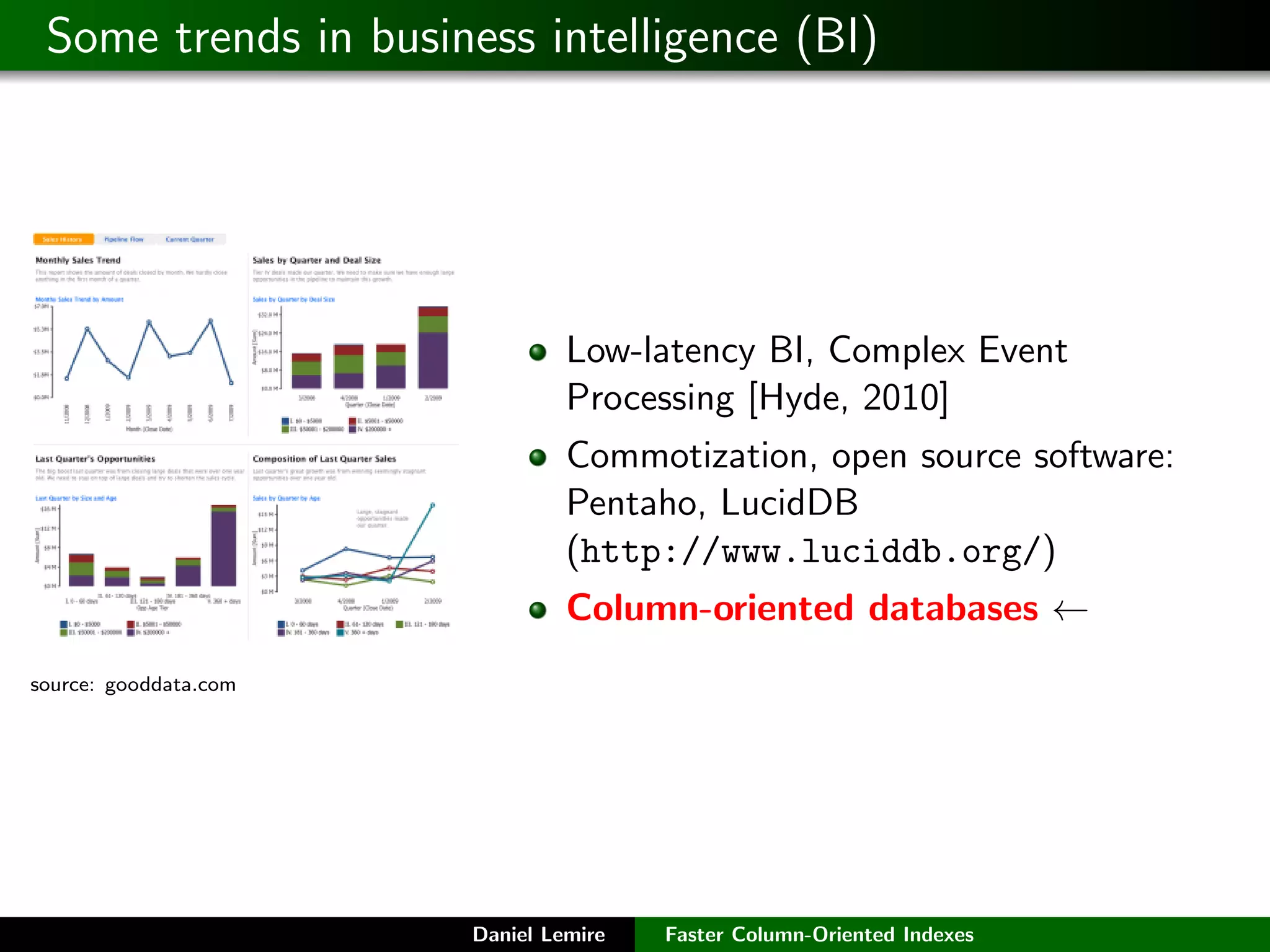

Some trends in business intelligence (BI)

Low-latency BI, Complex Event
Processing [Hyde, 2010]
Commotization, open source software:
Pentaho, LucidDB
(http://www.luciddb.org/)
Column-oriented databases ←
source: gooddata.com

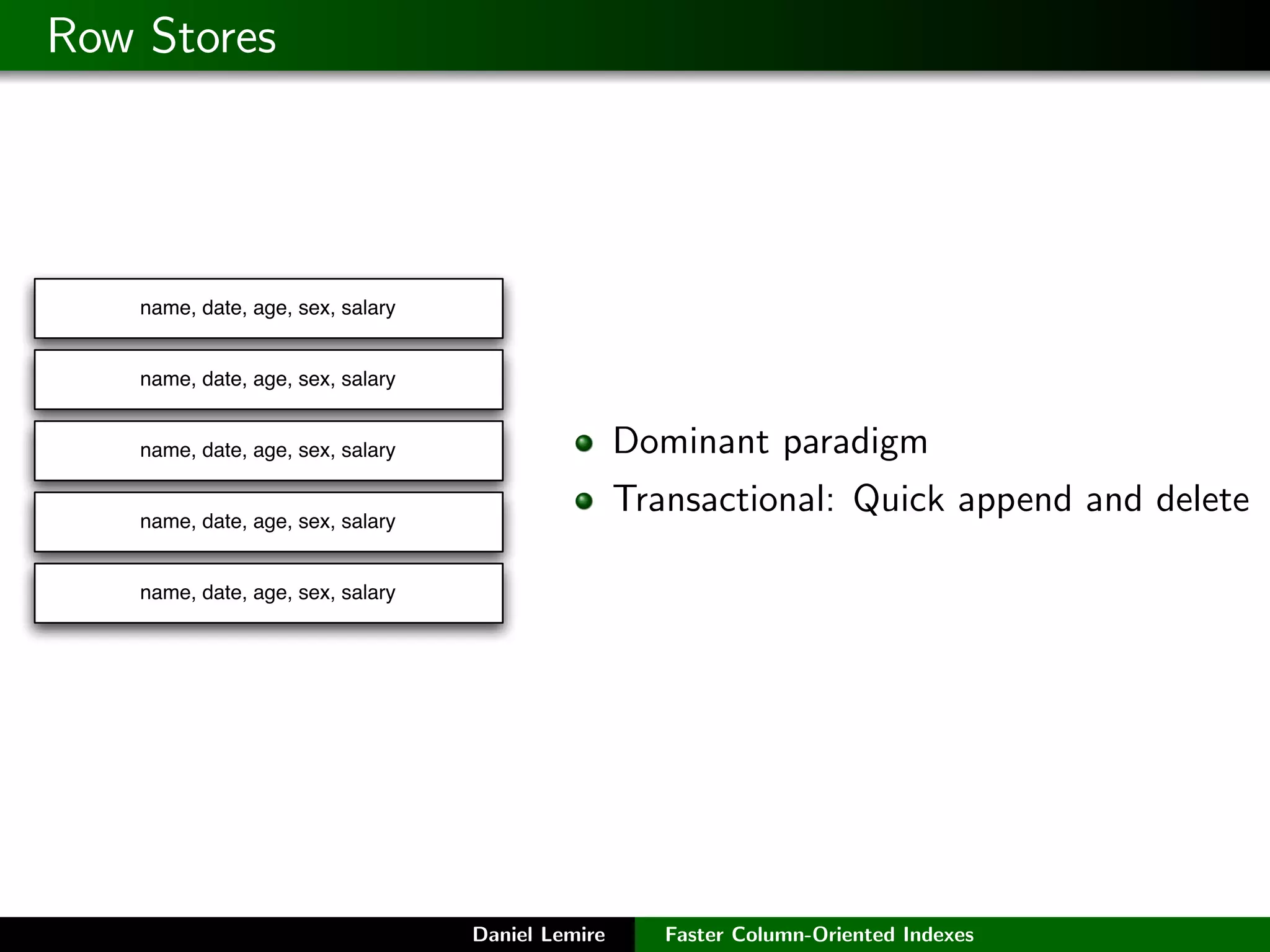

Row Stores

name, date, age, sex, salary


name, date, age, sex, salary Dominant paradigm
Transactional: Quick append and delete

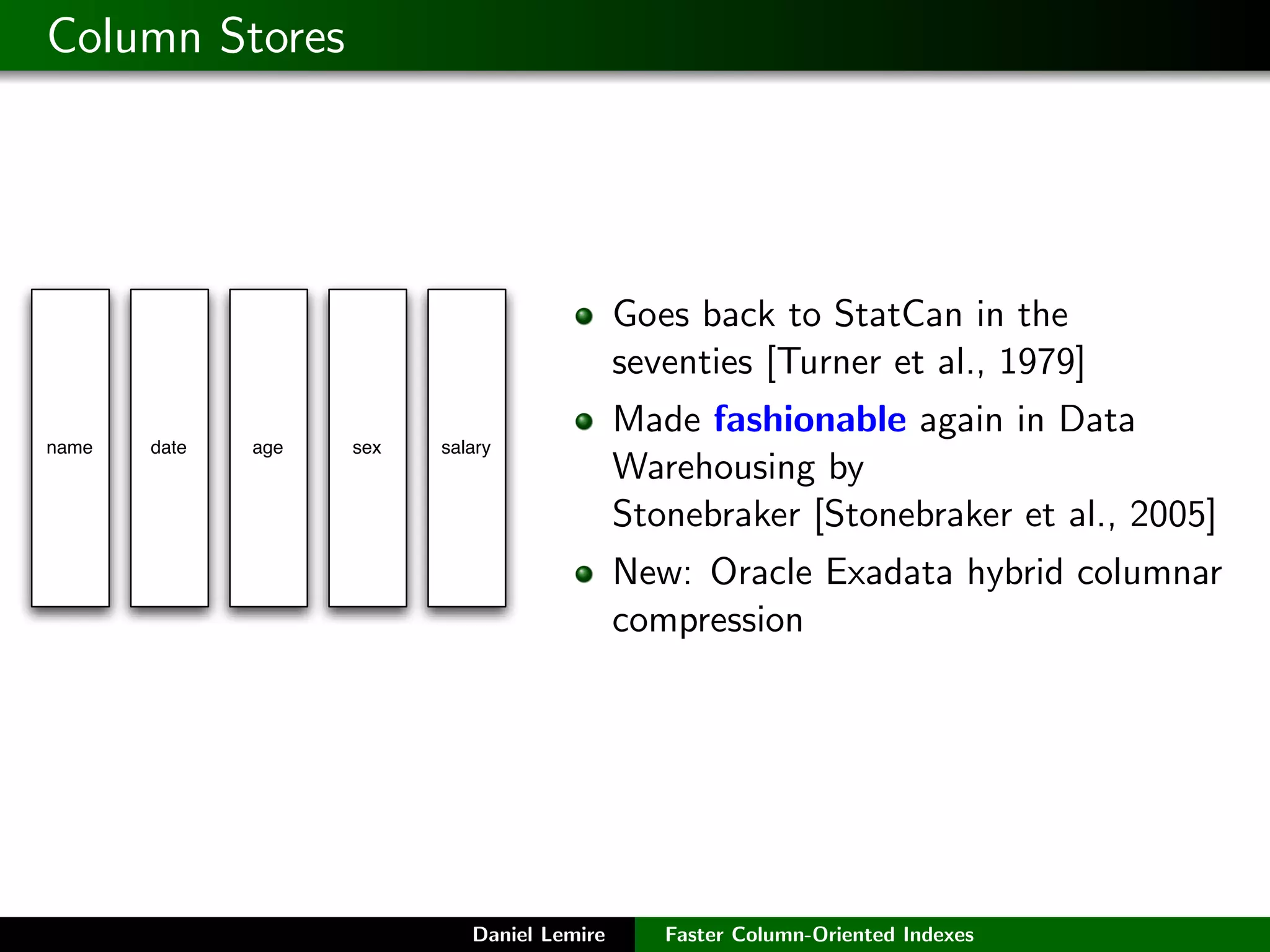

Column Stores

Goes back to StatCan in the
seventies [Turner et al., 1979]
Made fashionable again in Data
name date age sex salary
Warehousing by
Stonebraker [Stonebraker et al., 2005]
New: Oracle Exadata hybrid columnar
compression


Vectorization

Modern superscalar CPUs support
const i n t N = 2048; vectorization (SSE)
i n t a [N] , b [N ] ; This code is four times faster with
i n t i =0; -ftree-vectorize (GNU GCC)
f o r ( ; i <N ; i ++) Need long streams, same data type, and
a [ i ] += b [ i ] ; no branching.
Columns are good candidates!

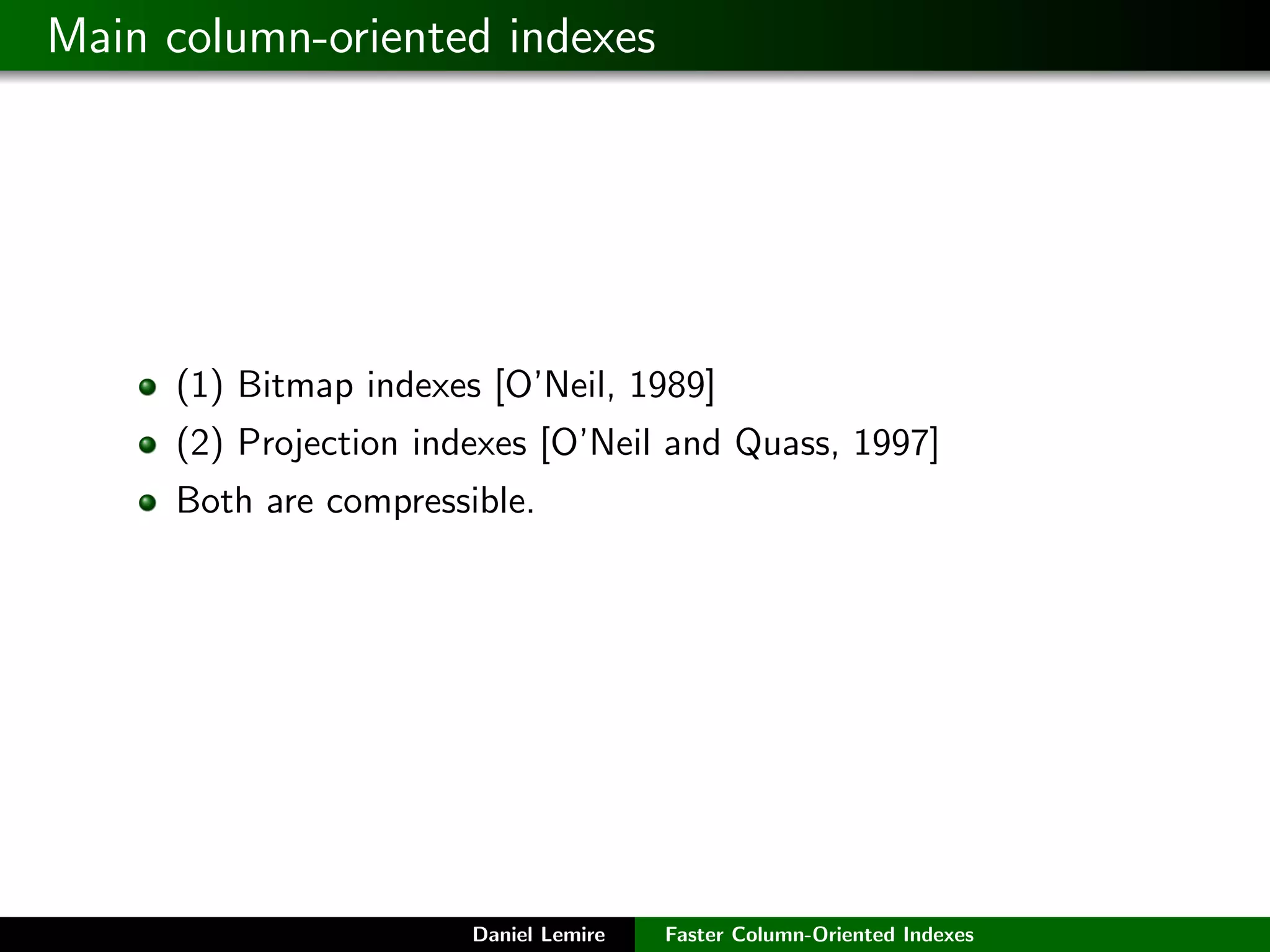

Main column-oriented indexes

(1) Bitmap indexes [O’Neil, 1989]
(2) Projection indexes [O’Neil and Quass, 1997]
Both are compressible.

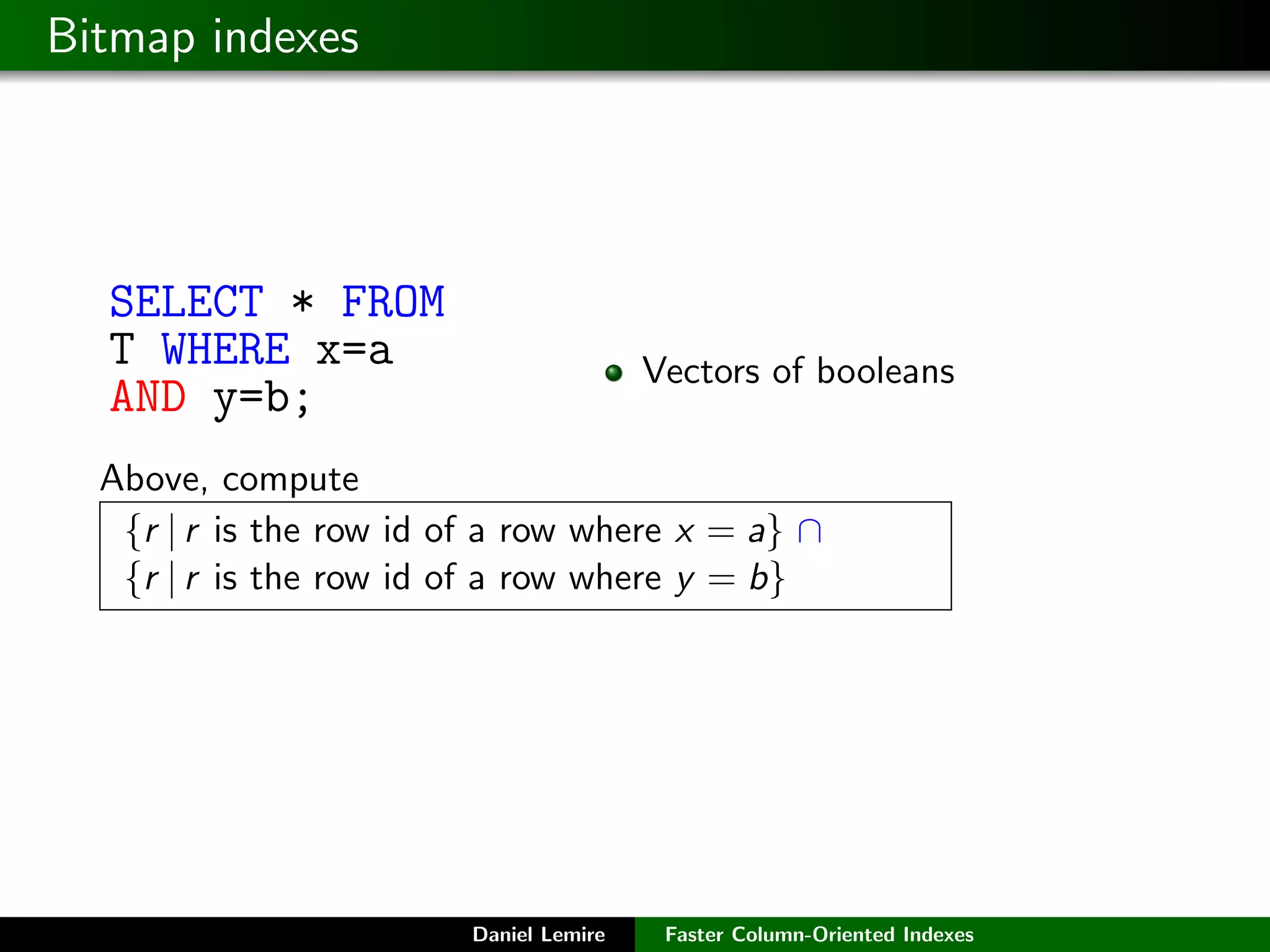

Bitmap indexes

SELECT * FROM
T WHERE x=a Vectors of booleans
AND y=b;
Above, compute
{r | r is the row id of a row where x = a} ∩
{r | r is the row id of a row where y = b}

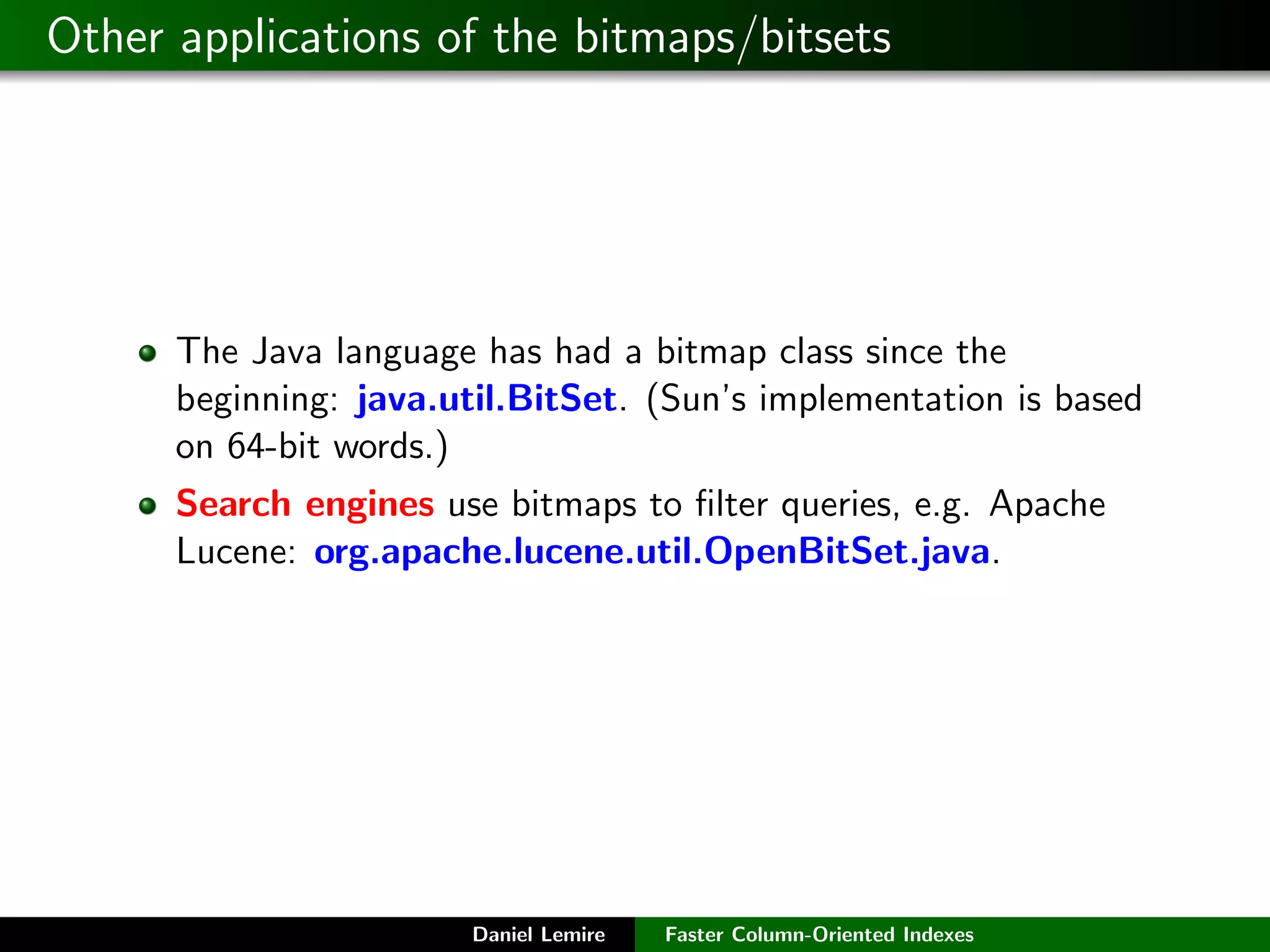

Other applications of the bitmaps/bitsets

The Java language has had a bitmap class since the
beginning: java.util.BitSet. (Sun’s implementation is based
on 64-bit words.)
Search engines use bitmaps to ﬁlter queries, e.g. Apache
Lucene: org.apache.lucene.util.OpenBitSet.java.

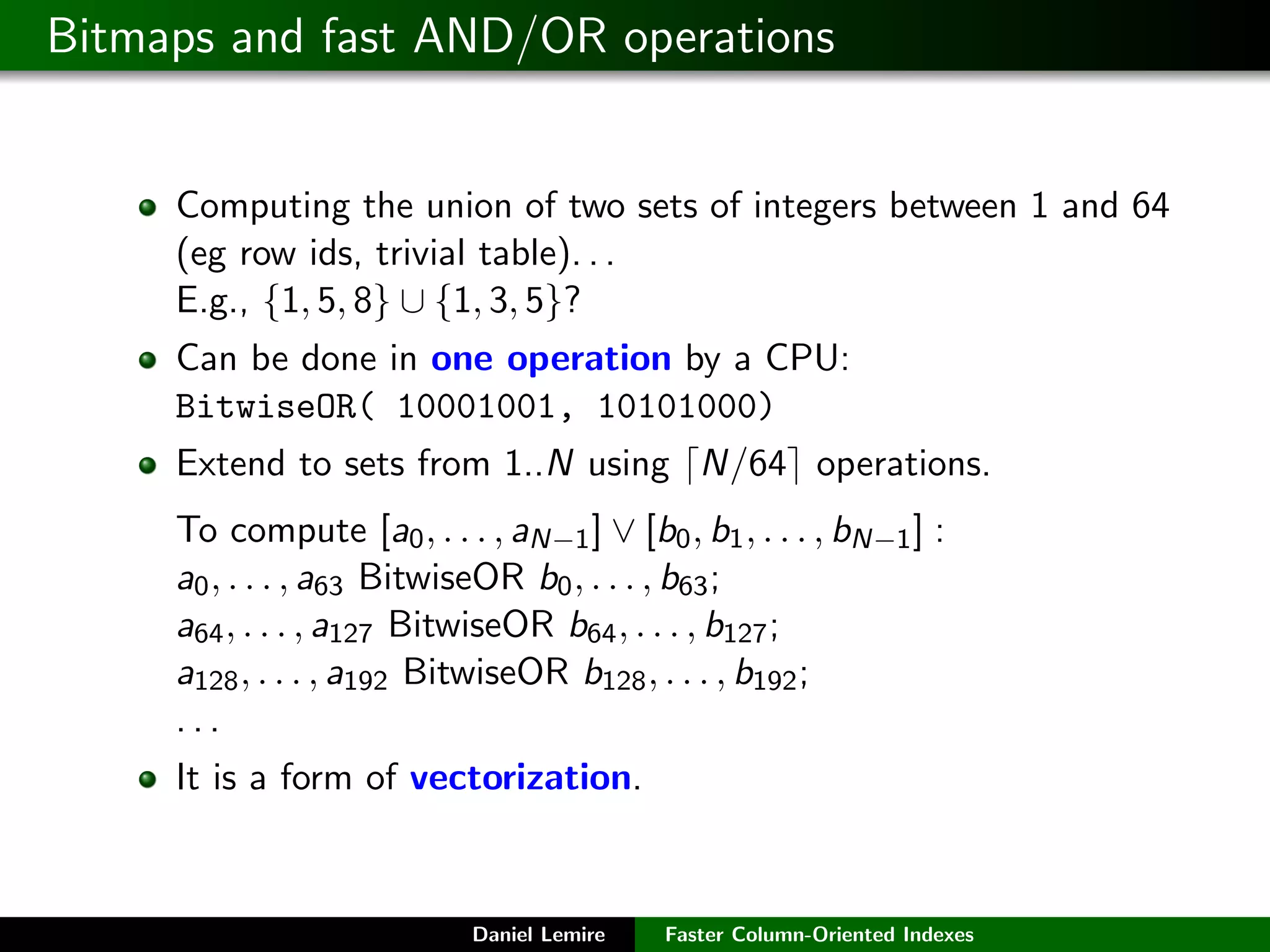

Bitmaps and fast AND/OR operations

Computing the union of two sets of integers between 1 and 64
(eg row ids, trivial table). . .
E.g., {1, 5, 8} ∪ {1, 3, 5}?
Can be done in one operation by a CPU:
BitwiseOR( 10001001, 10101000)
Extend to sets from 1..N using N/64 operations.
To compute [a0 , . . . , aN−1 ] ∨ [b0 , b1 , . . . , bN−1 ] :
a0 , . . . , a63 BitwiseOR b0 , . . . , b63 ;
a64 , . . . , a127 BitwiseOR b64 , . . . , b127 ;
a128 , . . . , a192 BitwiseOR b128 , . . . , b192 ;
...
It is a form of vectorization.

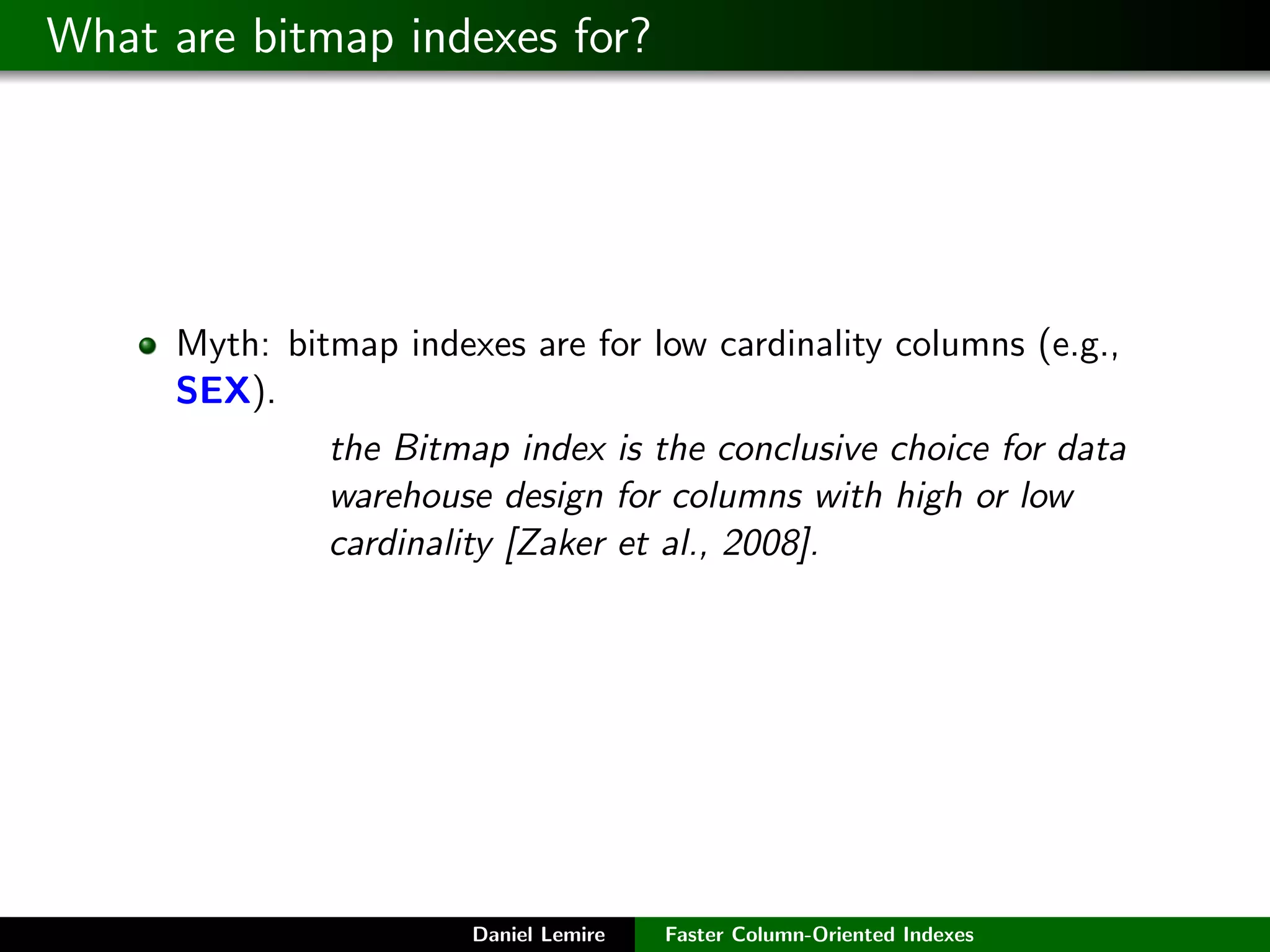

What are bitmap indexes for?

Myth: bitmap indexes are for low cardinality columns (e.g.,
SEX).
the Bitmap index is the conclusive choice for data
warehouse design for columns with high or low
cardinality [Zaker et al., 2008].

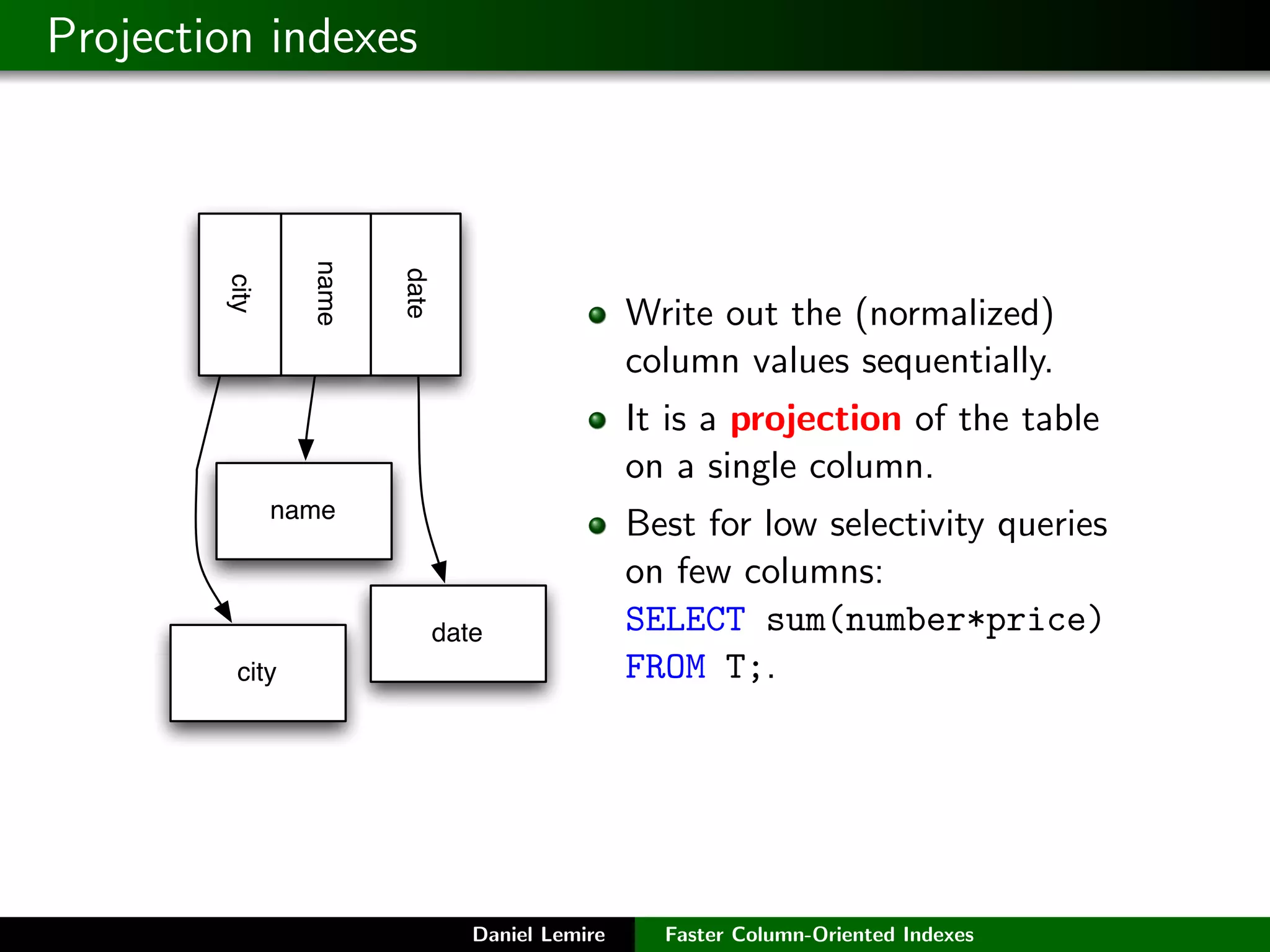

Projection indexes

name

date
city

Write out the (normalized)
column values sequentially.
It is a projection of the table
on a single column.
name
Best for low selectivity queries
on few columns:
date SELECT sum(number*price)
city FROM T;.

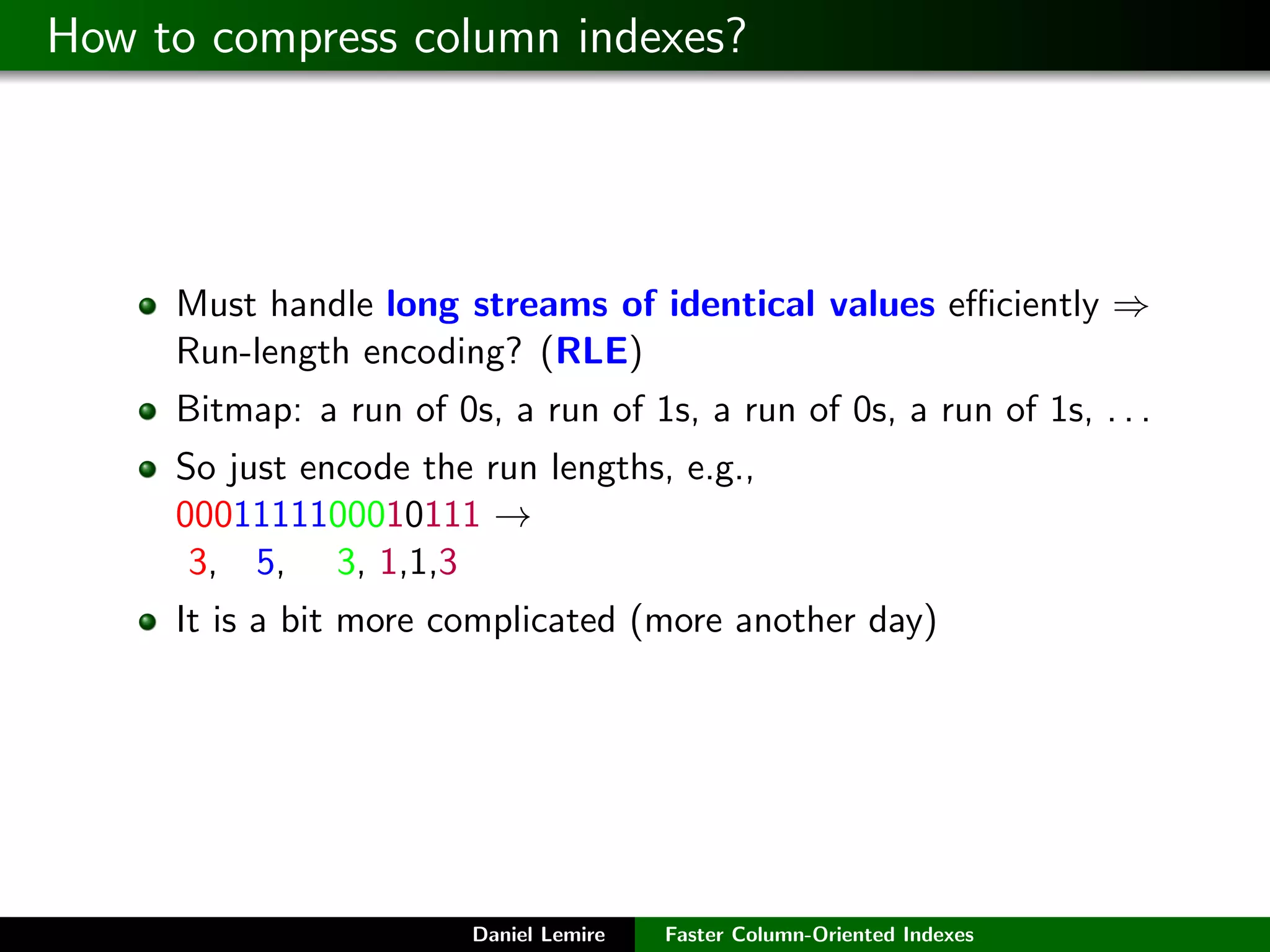

How to compress column indexes?

Must handle long streams of identical values eﬃciently ⇒
Run-length encoding? (RLE)
Bitmap: a run of 0s, a run of 1s, a run of 0s, a run of 1s, . . .
So just encode the run lengths, e.g.,
0001111100010111 →
3, 5, 3, 1,1,3
It is a bit more complicated (more another day)

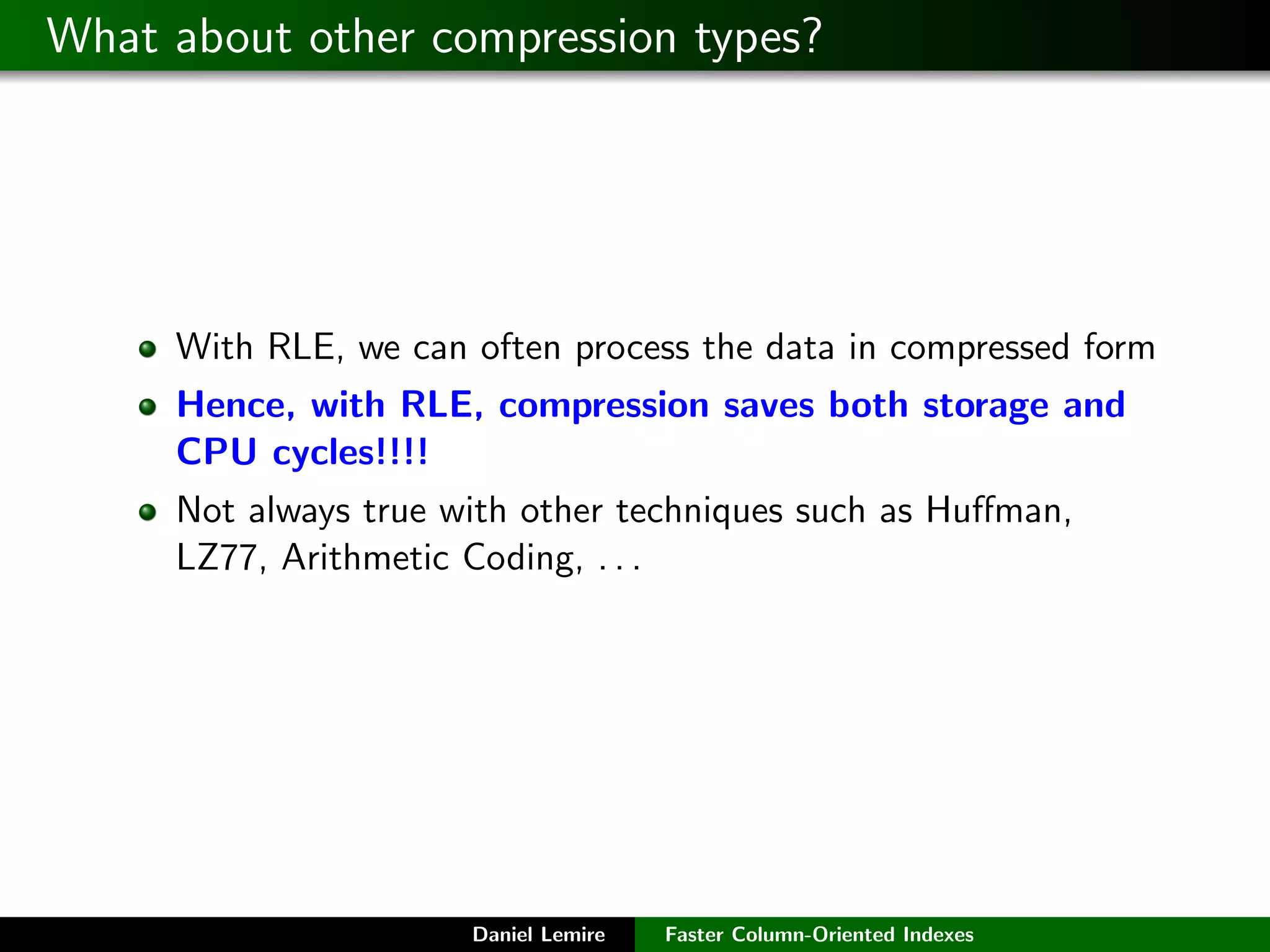

What about other compression types?

With RLE, we can often process the data in compressed form
Hence, with RLE, compression saves both storage and
CPU cycles!!!!
Not always true with other techniques such as Huﬀman,
LZ77, Arithmetic Coding, . . .

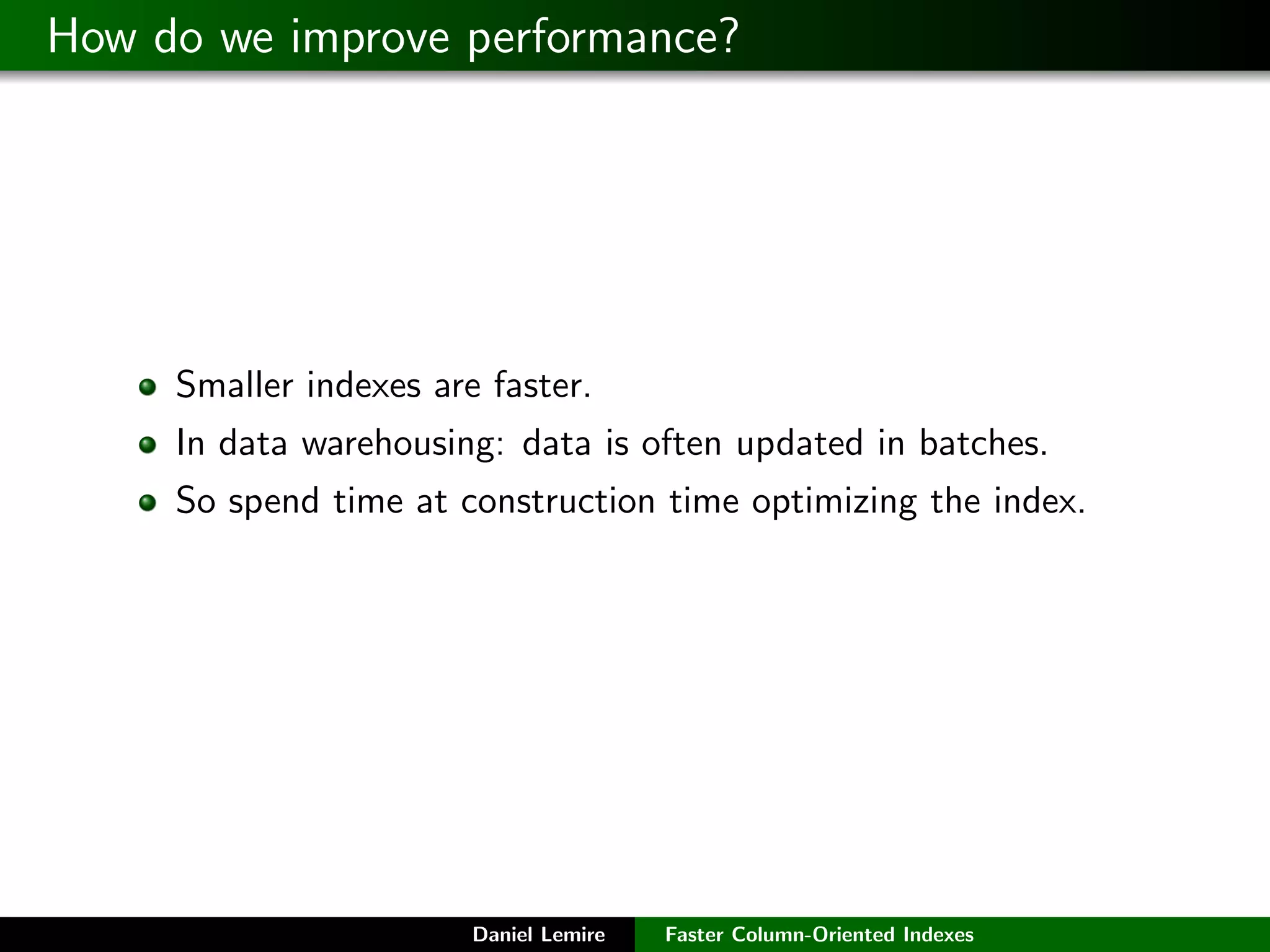

How do we improve performance?

Smaller indexes are faster.
In data warehousing: data is often updated in batches.
So spend time at construction time optimizing the index.

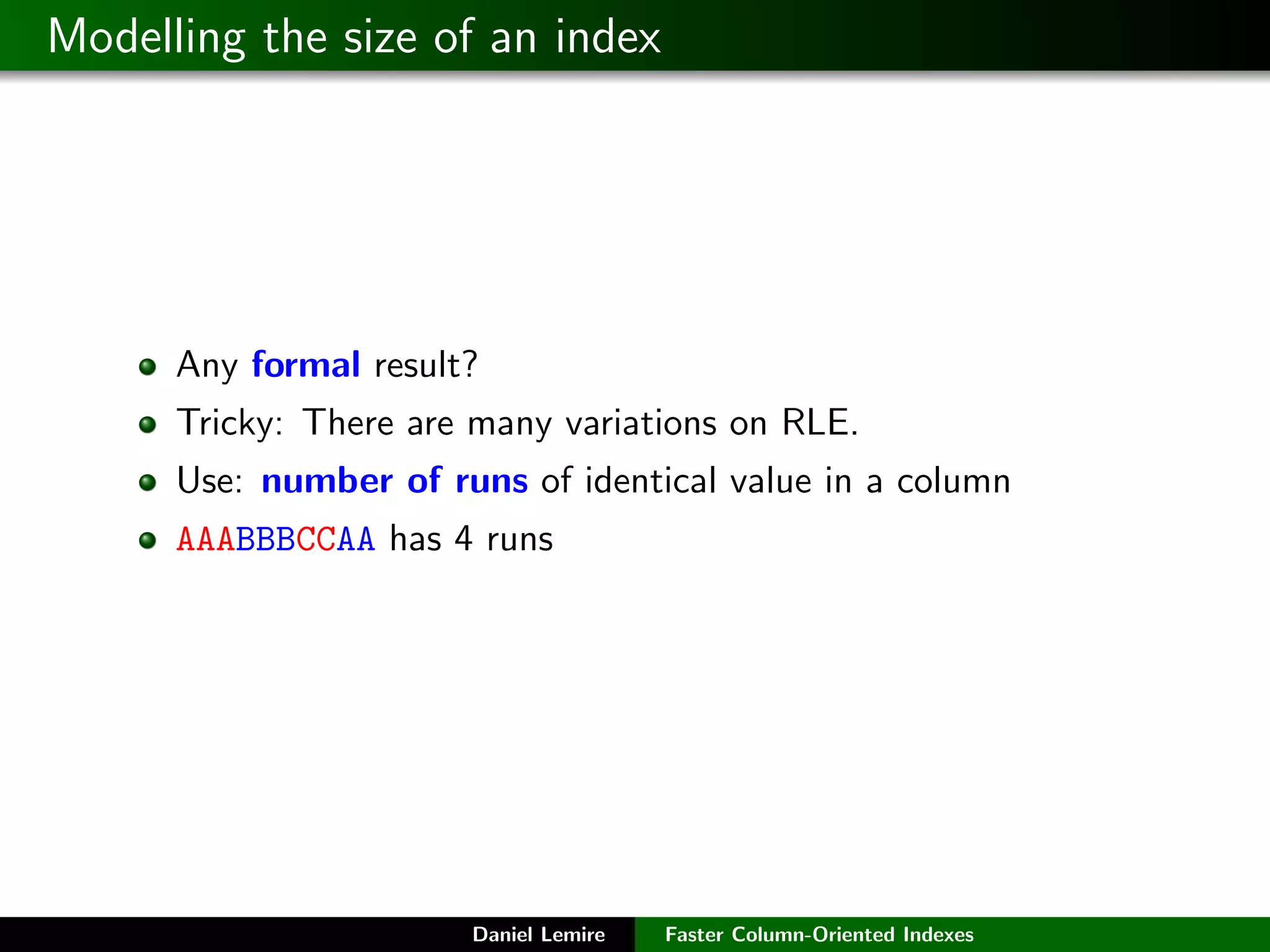

Modelling the size of an index

Any formal result?
Tricky: There are many variations on RLE.
Use: number of runs of identical value in a column
AAABBBCCAA has 4 runs

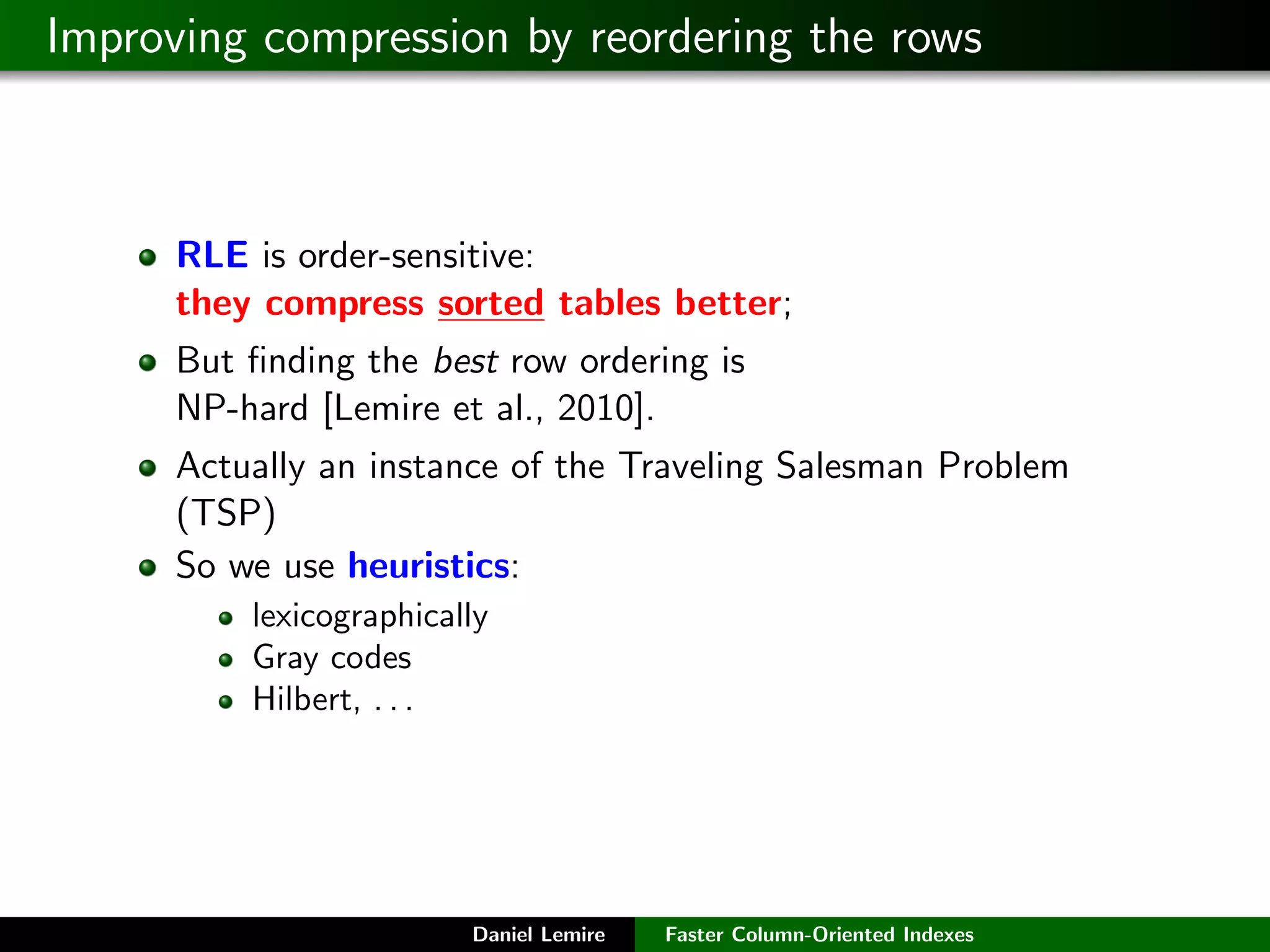

Improving compression by reordering the rows

RLE is order-sensitive:
they compress sorted tables better;
But ﬁnding the best row ordering is
NP-hard [Lemire et al., 2010].
Actually an instance of the Traveling Salesman Problem
(TSP)
So we use heuristics:
lexicographically
Gray codes
Hilbert, . . .

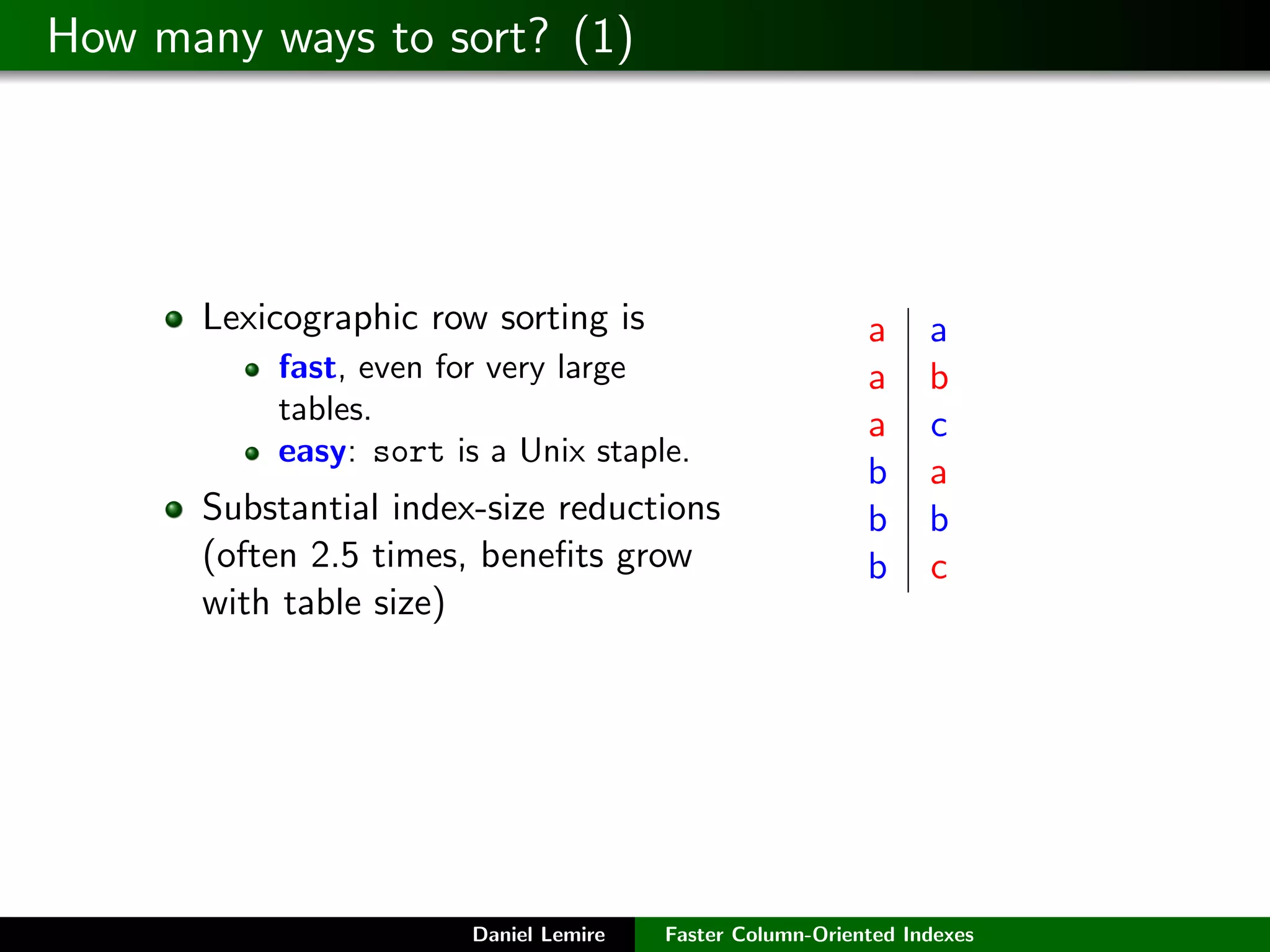

How many ways to sort? (1)

Lexicographic row sorting is a a
fast, even for very large a b
tables. a c
easy: sort is a Unix staple.
b a
Substantial index-size reductions b b
(often 2.5 times, beneﬁts grow b c
with table size)

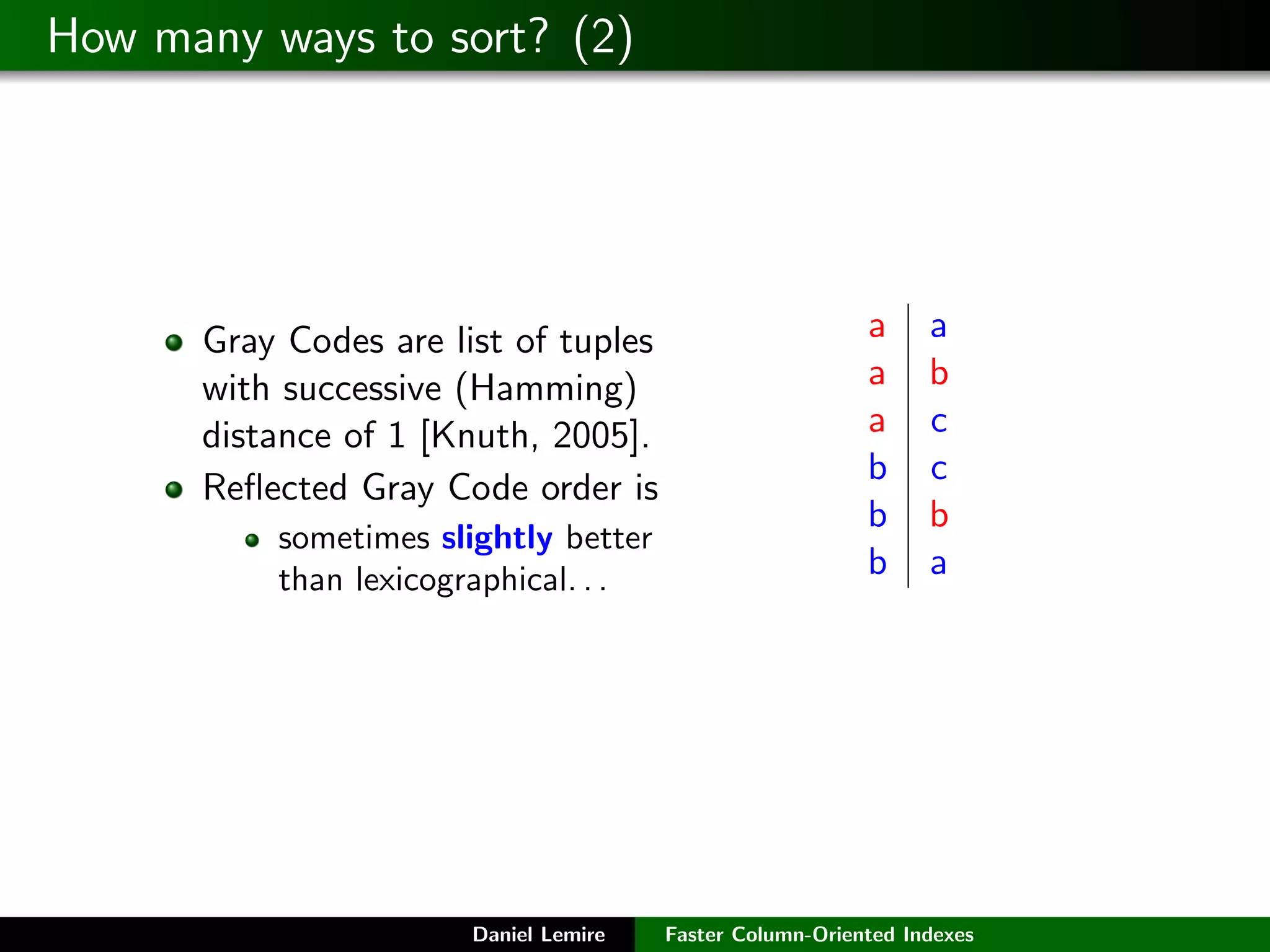

Gray Codes are list of tuples a a
with successive (Hamming) a b
distance of 1 [Knuth, 2005]. a c
b c
Reﬂected Gray Code order is
b b
sometimes slightly better
than lexicographical. . . b a



a a

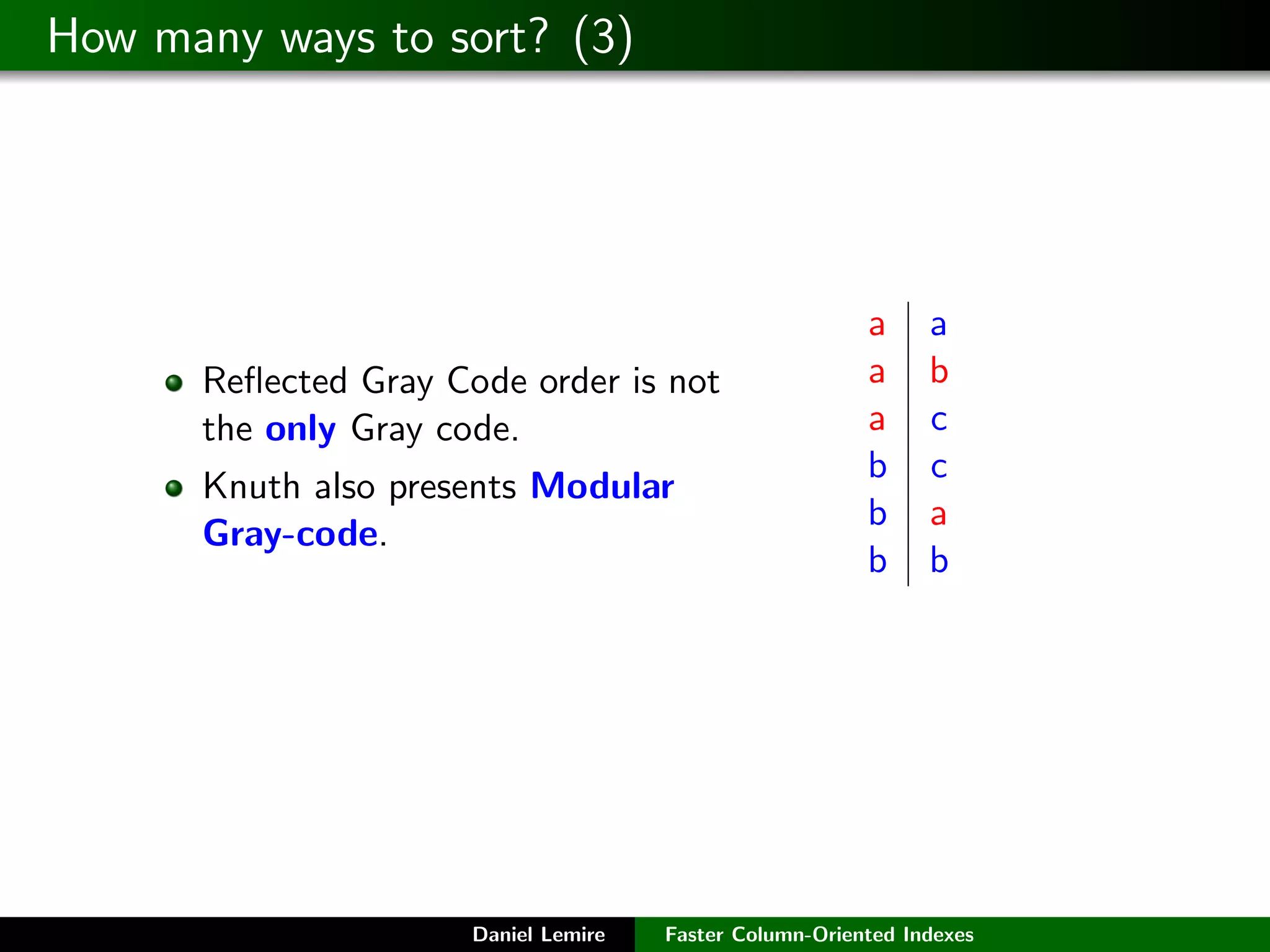

Reﬂected Gray Code order is not a b
the only Gray code. a c
b c
Knuth also presents Modular
b a
Gray-code.
b b

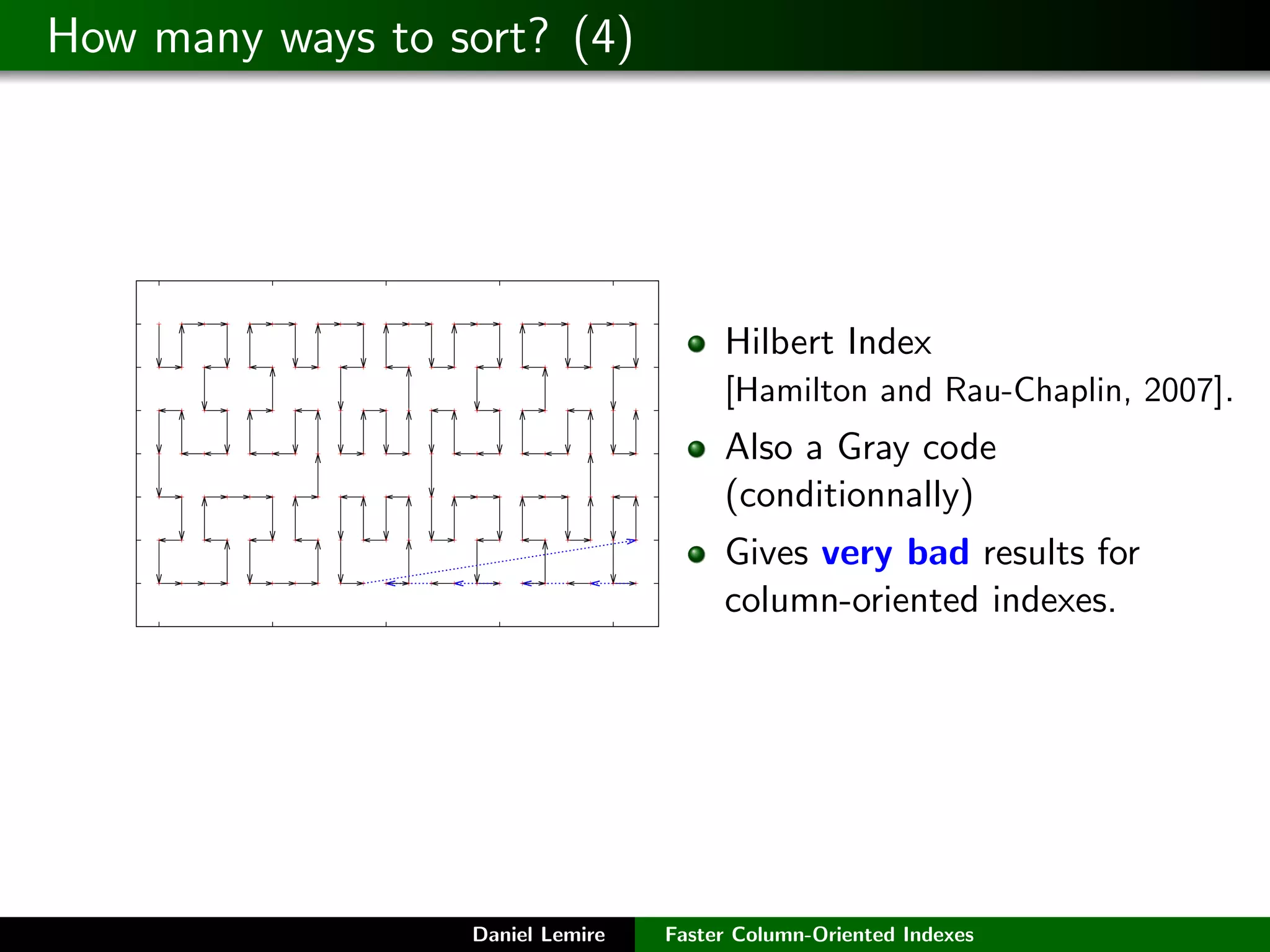

Hilbert Index
[Hamilton and Rau-Chaplin, 2007].
Also a Gray code
(conditionnally)
Gives very bad results for
column-oriented indexes.

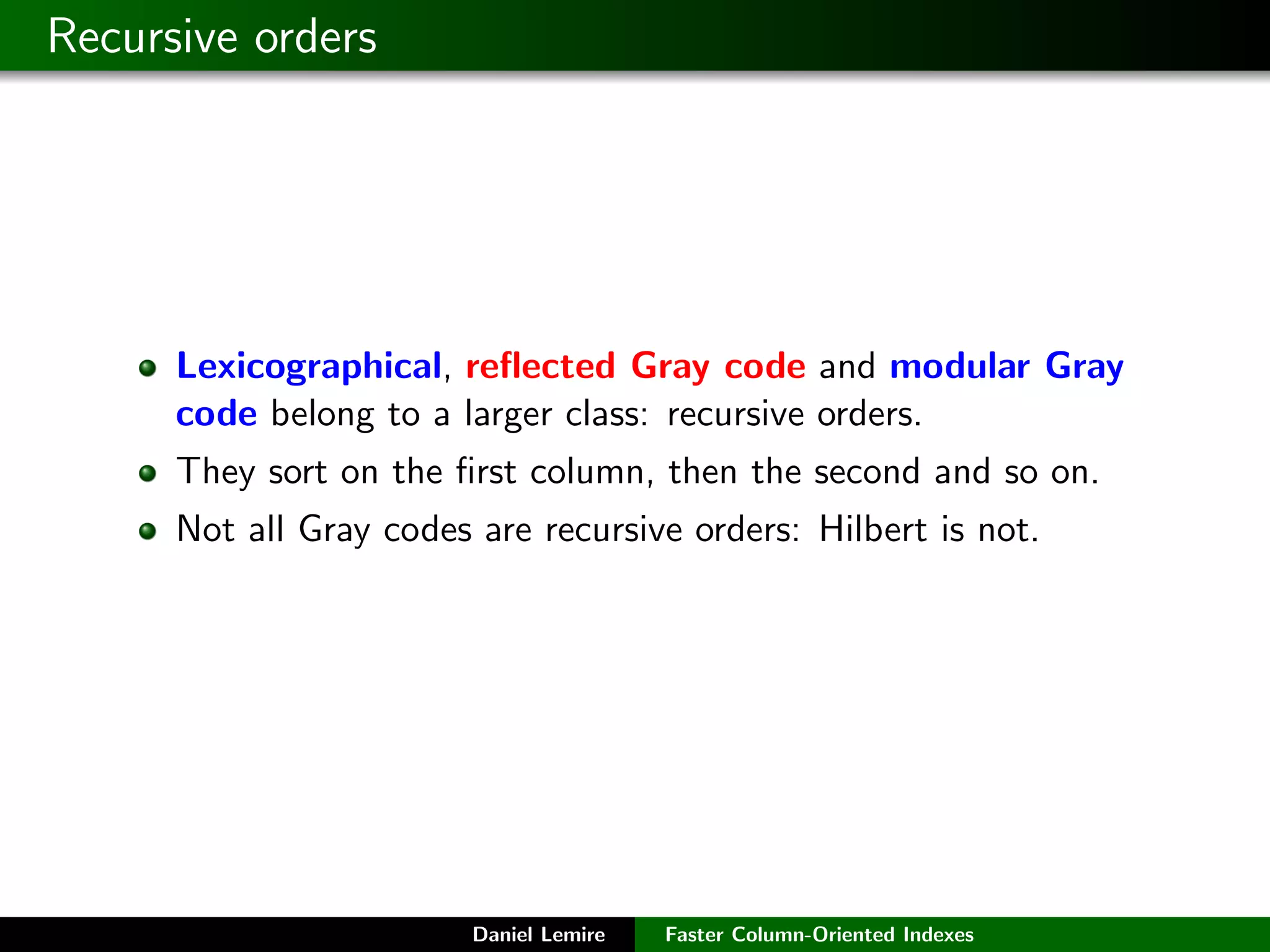

Recursive orders

Lexicographical, reﬂected Gray code and modular Gray
code belong to a larger class: recursive orders.
They sort on the ﬁrst column, then the second and so on.
Not all Gray codes are recursive orders: Hilbert is not.

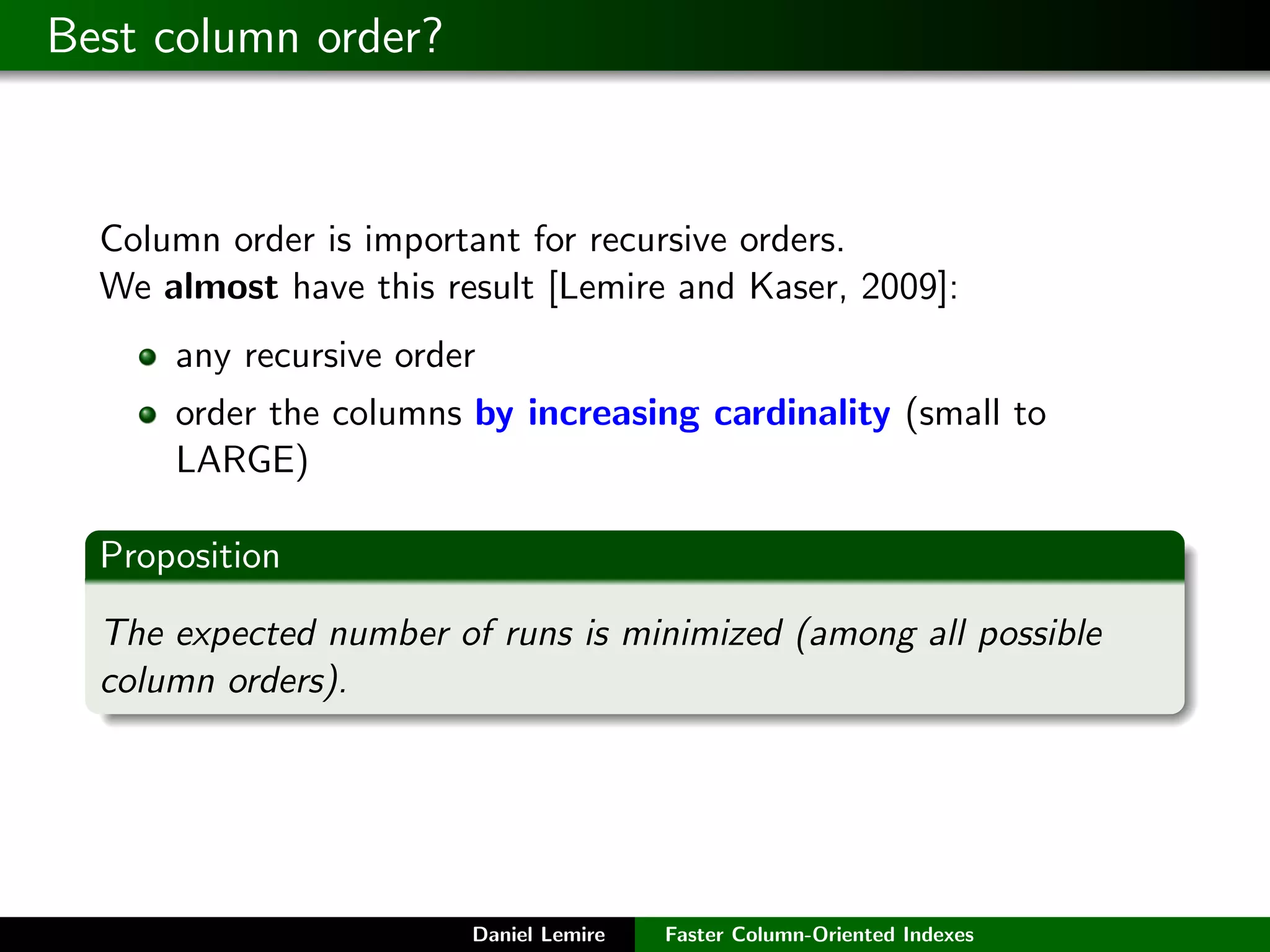

Best column order?

Column order is important for recursive orders.
We almost have this result [Lemire and Kaser, 2009]:
any recursive order
order the columns by increasing cardinality (small to
LARGE)

Proposition

The expected number of runs is minimized (among all possible
column orders).

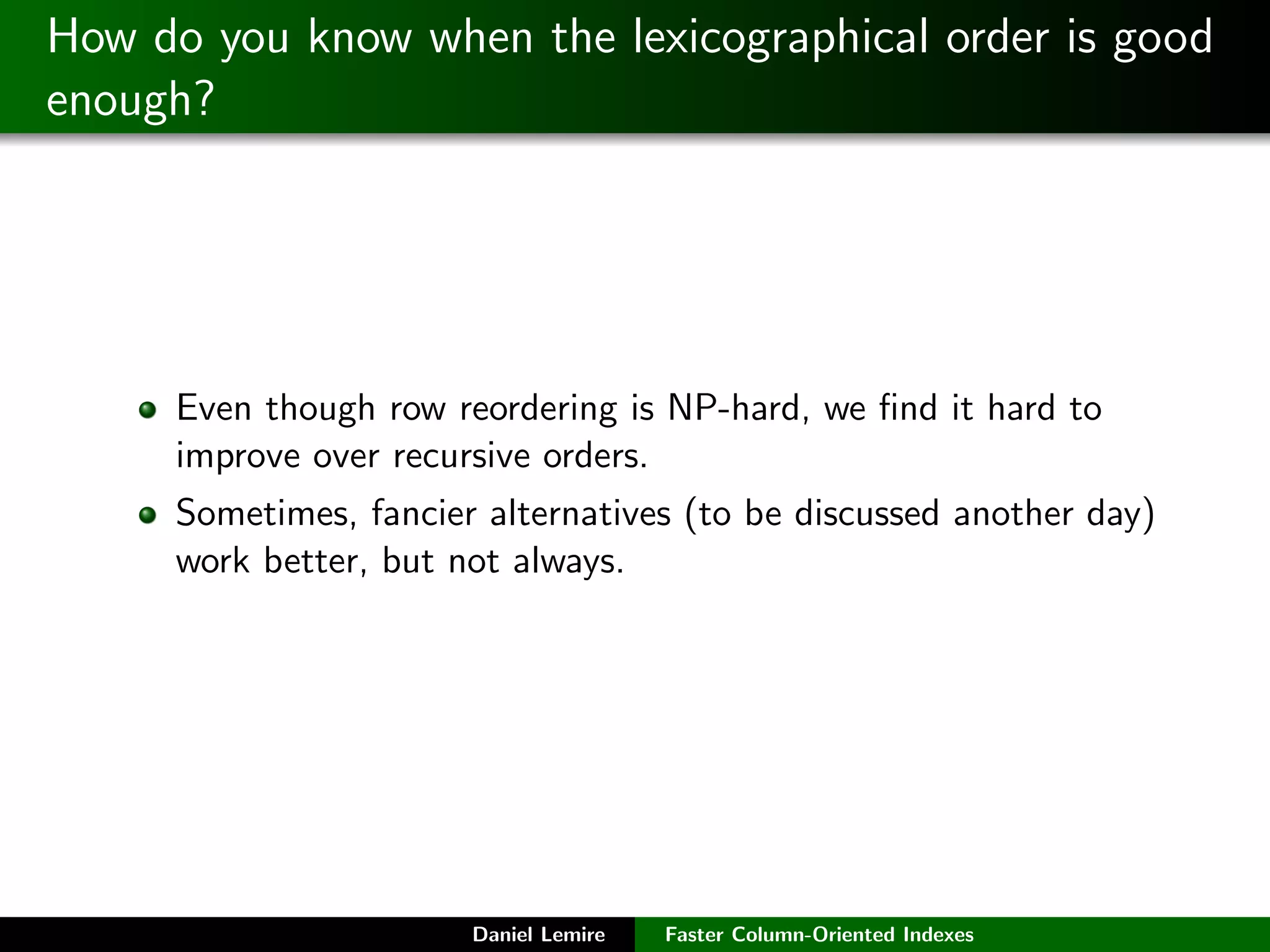

How do you know when the lexicographical order is good
enough?

Even though row reordering is NP-hard, we ﬁnd it hard to
improve over recursive orders.
Sometimes, fancier alternatives (to be discussed another day)
work better, but not always.

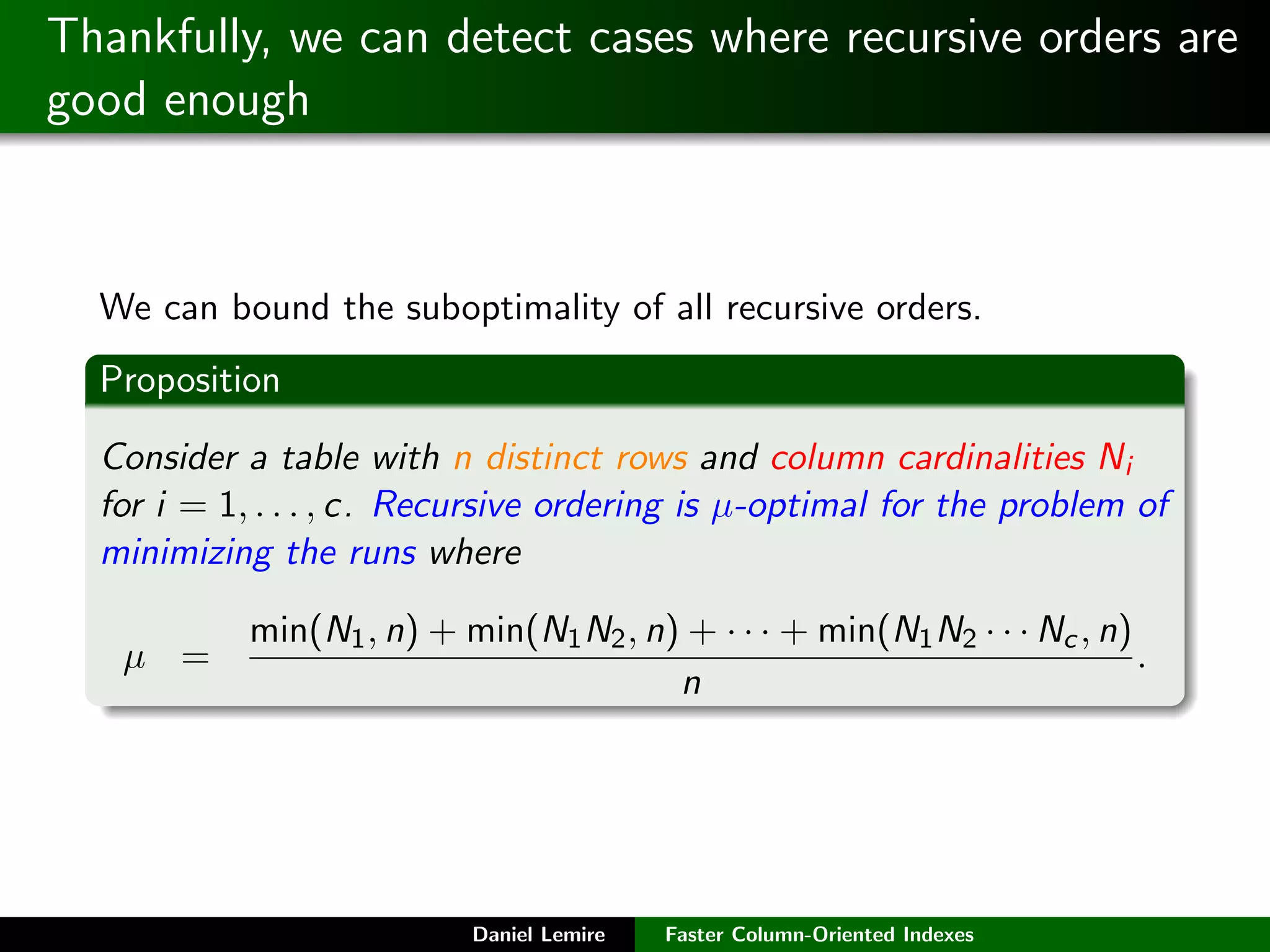

Thankfully, we can detect cases where recursive orders are
good enough

We can bound the suboptimality of all recursive orders.
Proposition

Consider a table with n distinct rows and column cardinalities Ni
for i = 1, . . . , c. Recursive ordering is µ-optimal for the problem of
minimizing the runs where

min(N1 , n) + min(N1 N2 , n) + · · · + min(N1 N2 · · · Nc , n)
µ = .
n

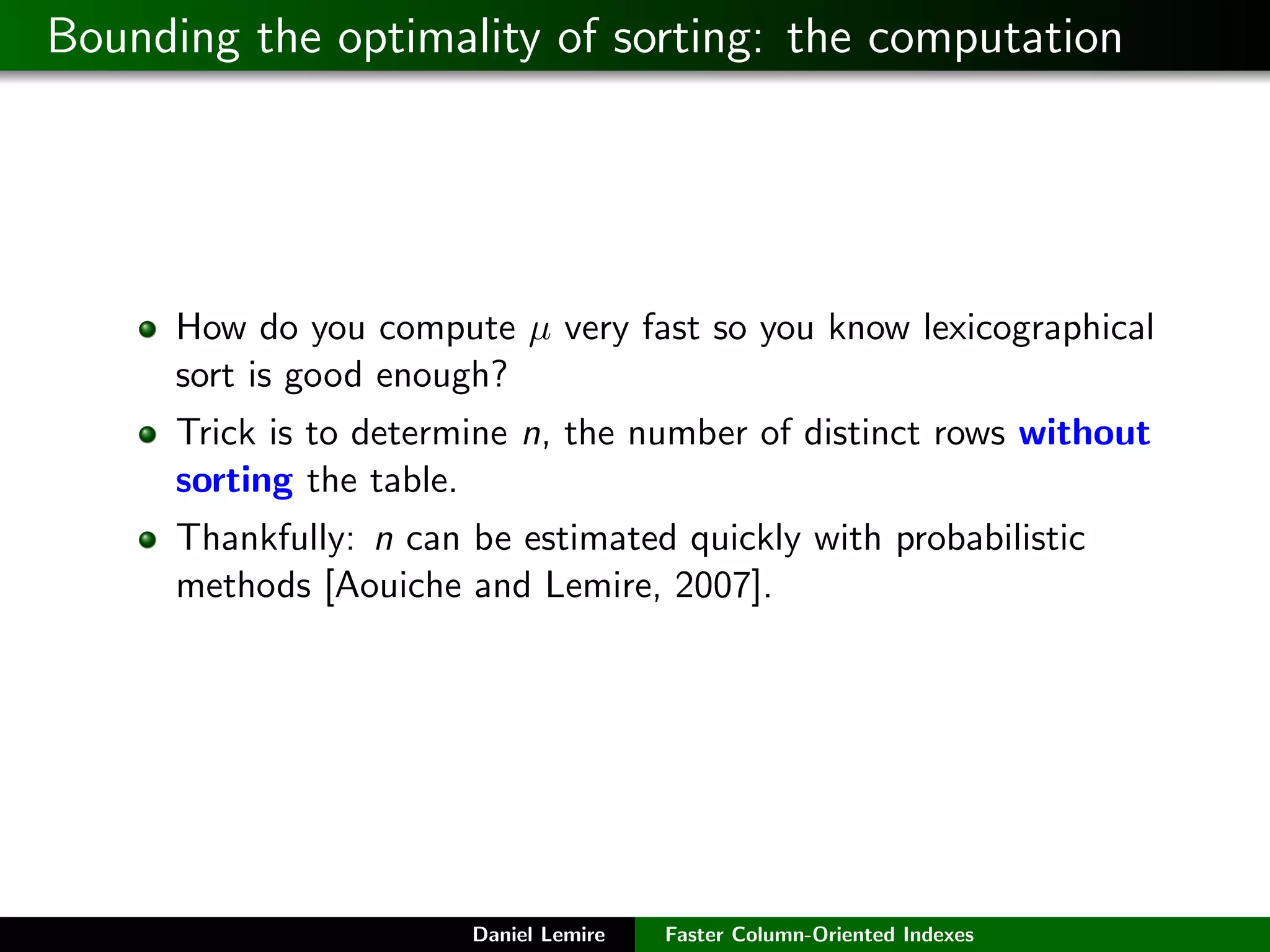

Bounding the optimality of sorting: the computation

How do you compute µ very fast so you know lexicographical
sort is good enough?
Trick is to determine n, the number of distinct rows without
sorting the table.
Thankfully: n can be estimated quickly with probabilistic
methods [Aouiche and Lemire, 2007].

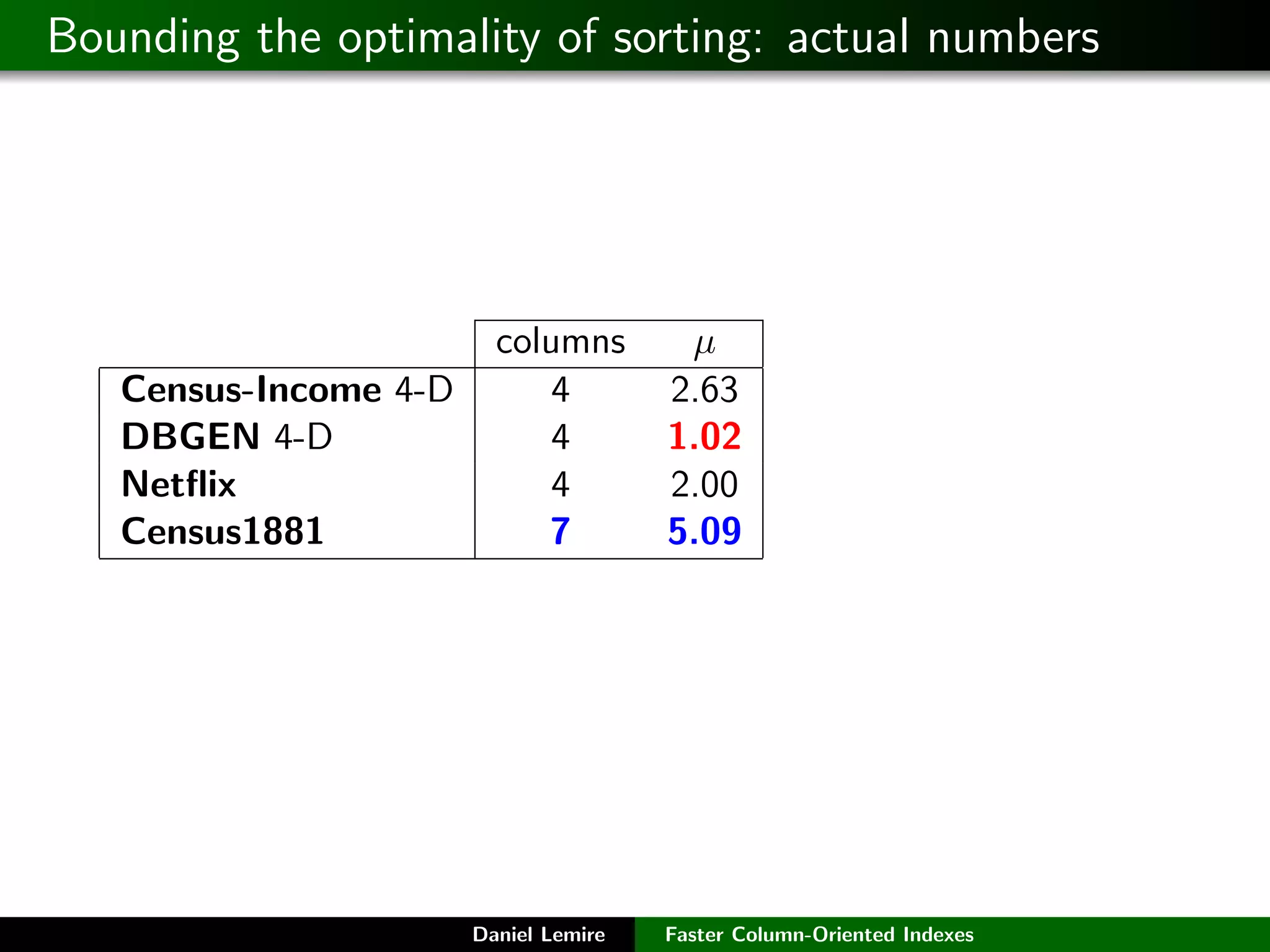

Bounding the optimality of sorting: actual numbers

columns µ
Census-Income 4-D 4 2.63
DBGEN 4-D 4 1.02
Netﬂix 4 2.00
Census1881 7 5.09

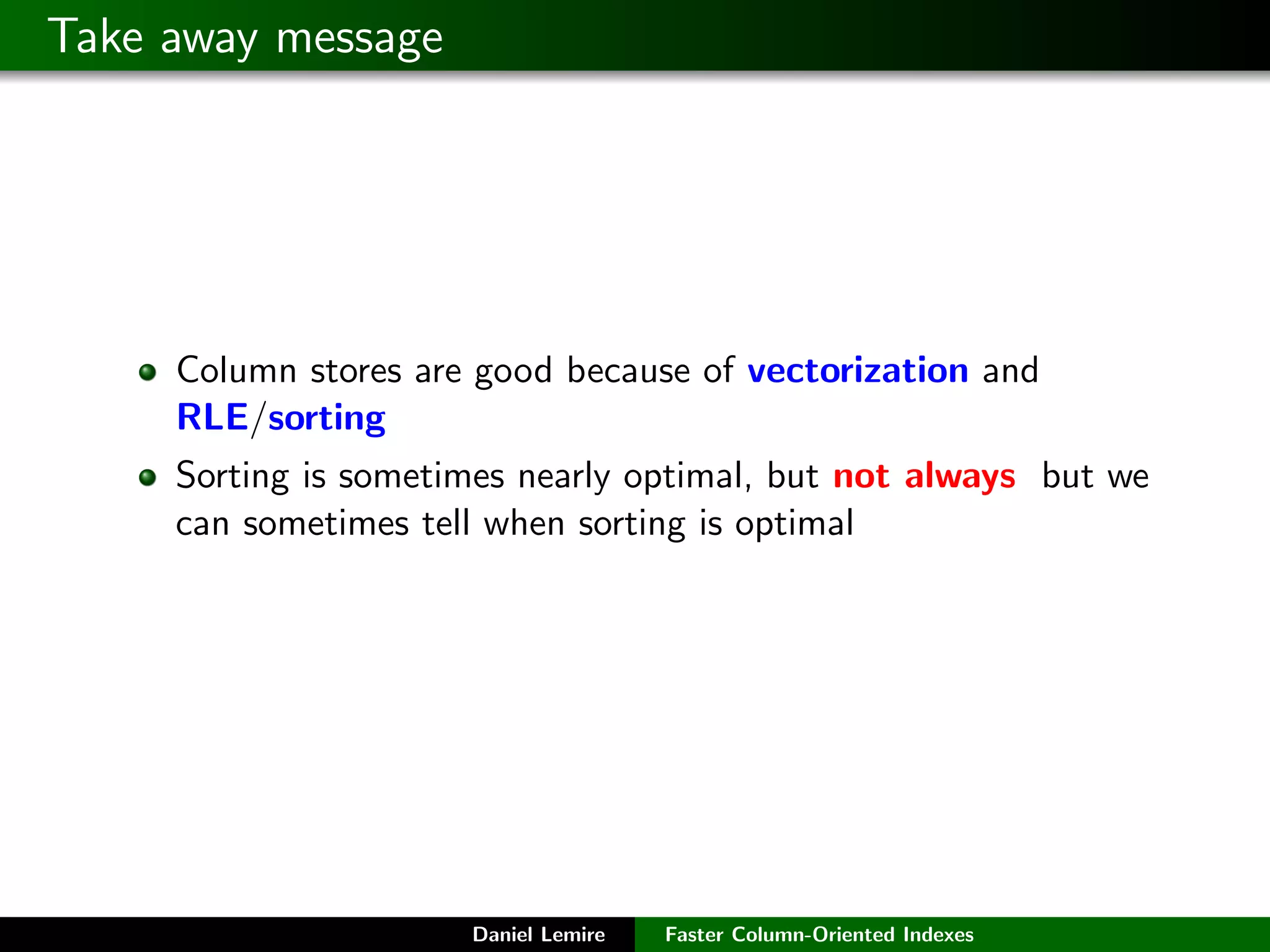

Take away message

Column stores are good because of vectorization and
RLE/sorting
Sorting is sometimes nearly optimal, but not always but we
can sometimes tell when sorting is optimal

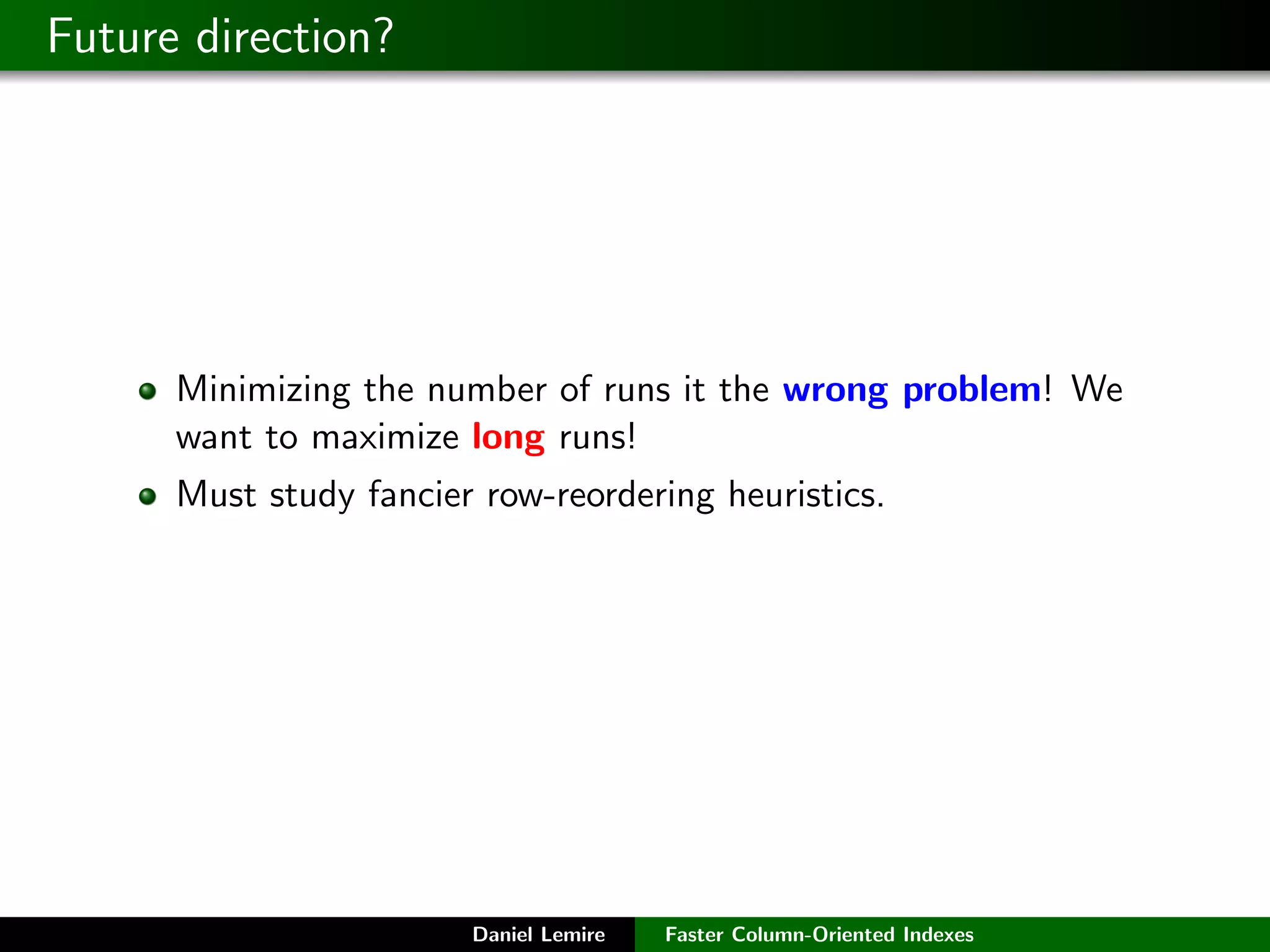

Future direction?

Minimizing the number of runs it the wrong problem! We
want to maximize long runs!
Must study fancier row-reordering heuristics.

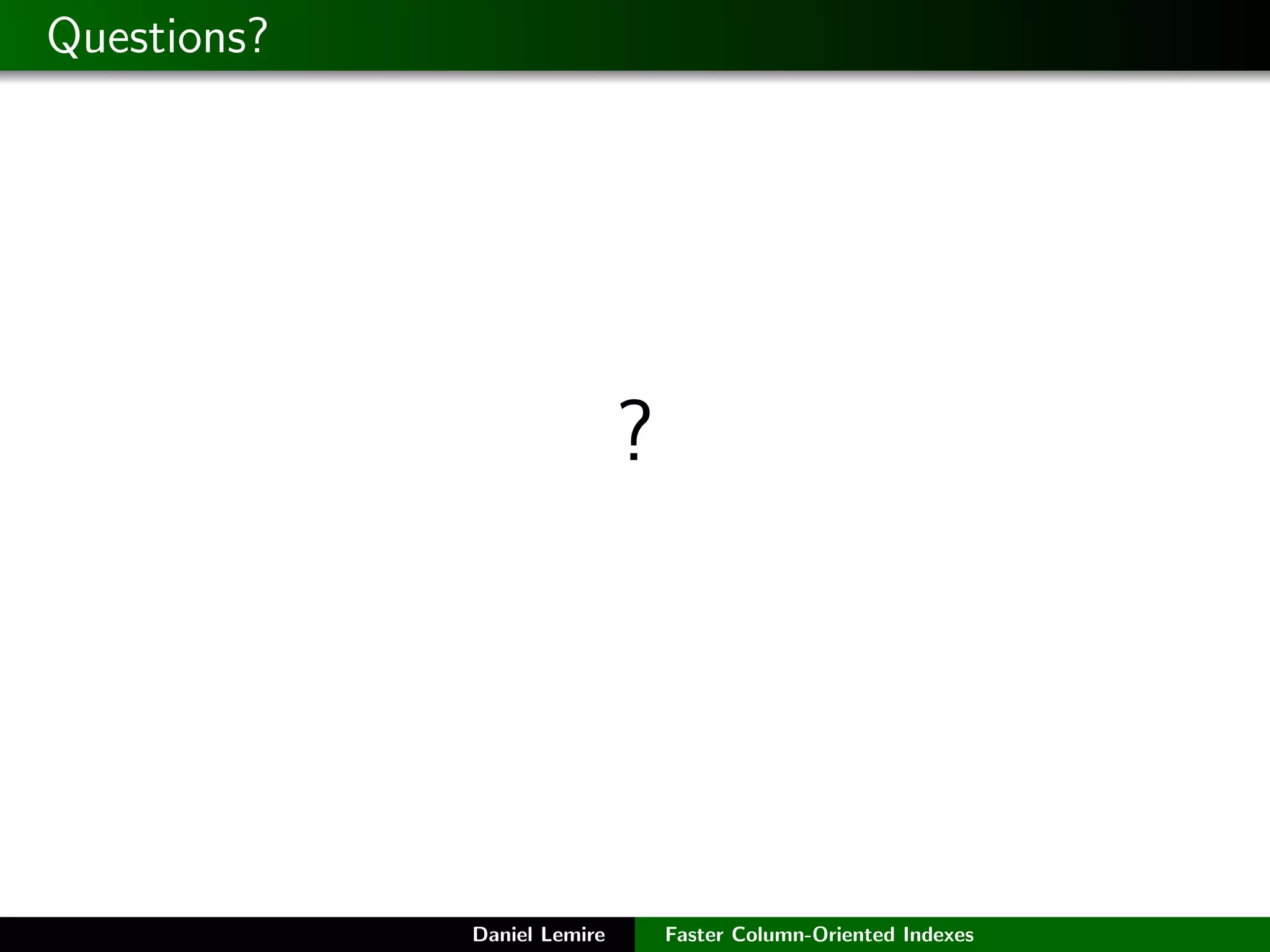

Questions?

?

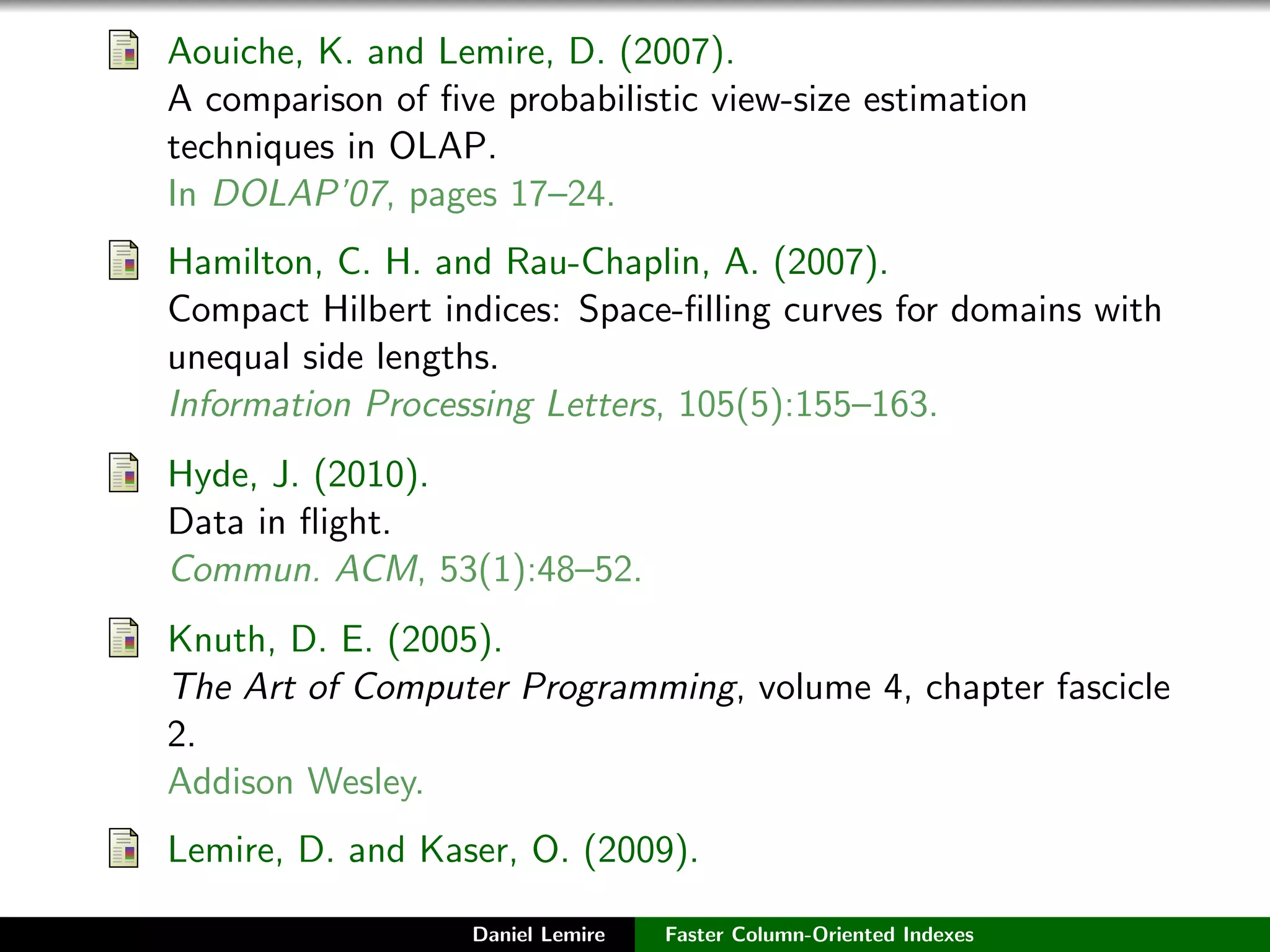

Aouiche, K. and Lemire, D. (2007).
A comparison of five probabilistic view-size estimation
techniques in OLAP.
In DOLAP’07, pages 17–24.
Hamilton, C. H. and Rau-Chaplin, A. (2007).
Compact Hilbert indices: Space-filling curves for domains with
unequal side lengths.
Information Processing Letters, 105(5):155–163.
Hyde, J. (2010).
Data in flight.
Commun. ACM, 53(1):48–52.
Knuth, D. E. (2005).
The Art of Computer Programming, volume 4, chapter fascicle
2.
Addison Wesley.

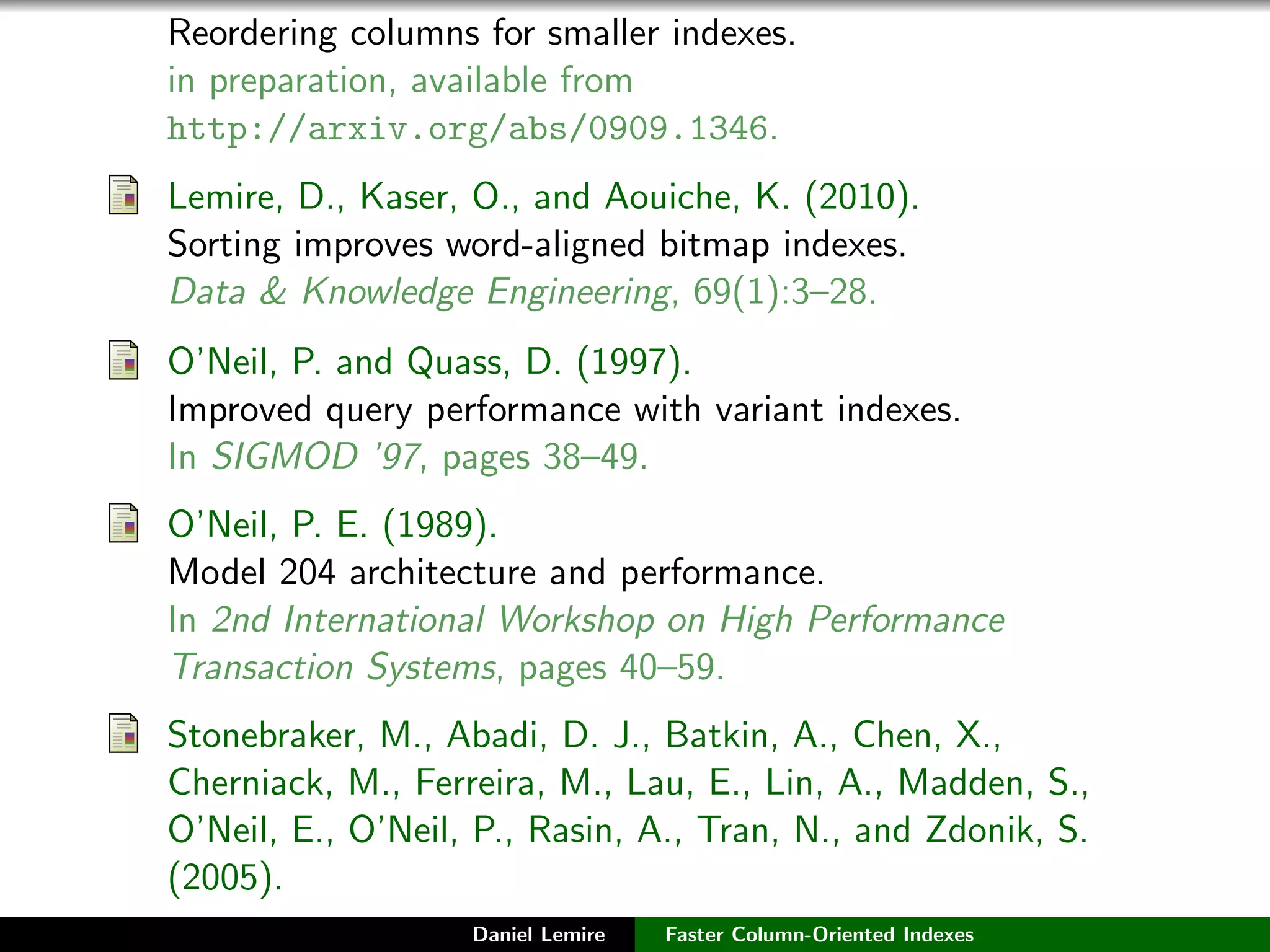

Lemire, D. and Kaser, O. (2009).


Reordering columns for smaller indexes.
in preparation, available from
http://arxiv.org/abs/0909.1346.
Lemire, D., Kaser, O., and Aouiche, K. (2010).
Sorting improves word-aligned bitmap indexes.
Data & Knowledge Engineering, 69(1):3–28.
O’Neil, P. and Quass, D. (1997).
Improved query performance with variant indexes.
In SIGMOD ’97, pages 38–49.
O’Neil, P. E. (1989).
Model 204 architecture and performance.
In 2nd International Workshop on High Performance
Transaction Systems, pages 40–59.
Stonebraker, M., Abadi, D. J., Batkin, A., Chen, X.,
Cherniack, M., Ferreira, M., Lau, E., Lin, A., Madden, S.,
O’Neil, E., O’Neil, P., Rasin, A., Tran, N., and Zdonik, S.
(2005).

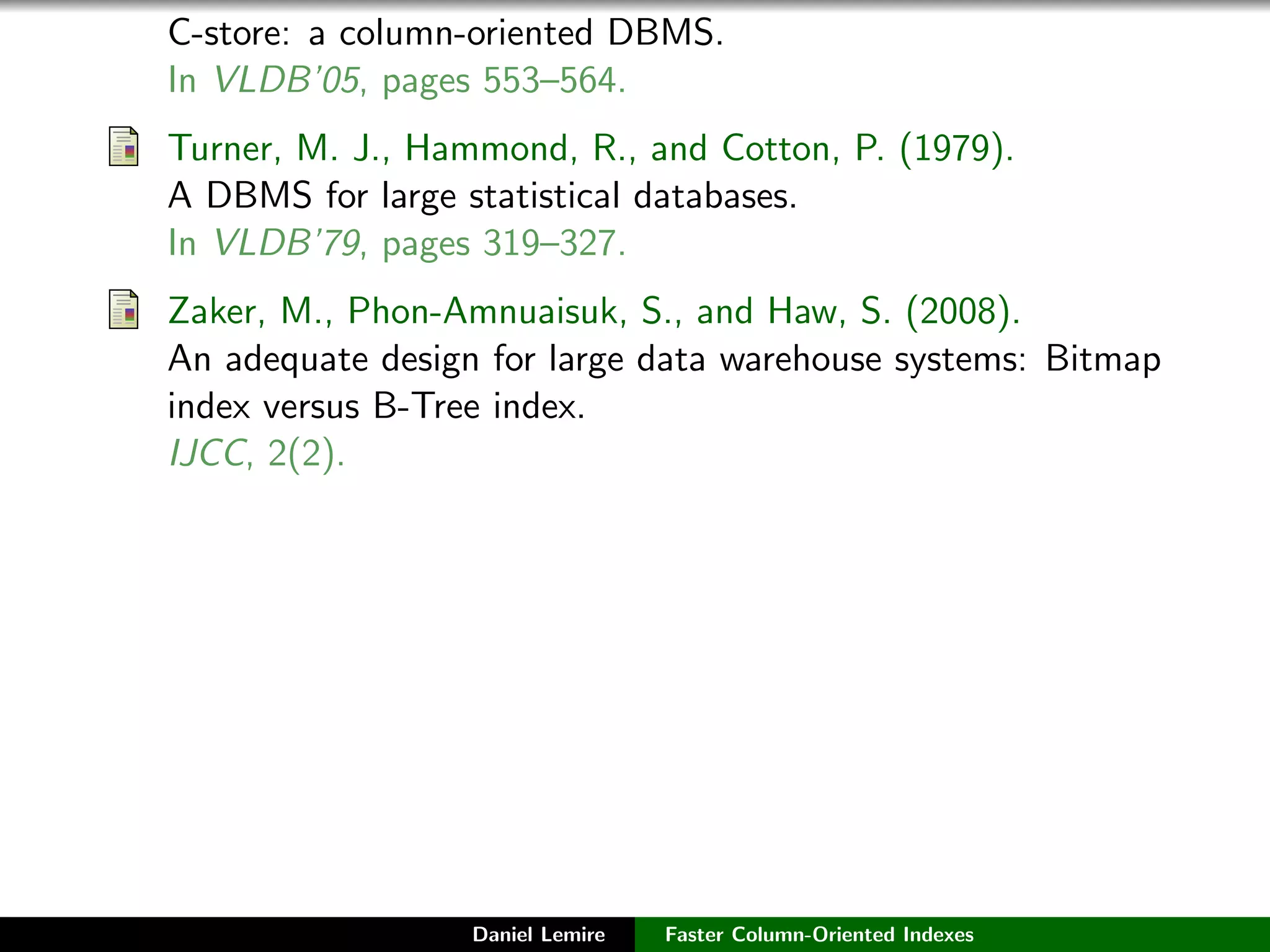

C-store: a column-oriented DBMS.
In VLDB’05, pages 553–564.
Turner, M. J., Hammond, R., and Cotton, P. (1979).
A DBMS for large statistical databases.
In VLDB’79, pages 319–327.
Zaker, M., Phon-Amnuaisuk, S., and Haw, S. (2008).
An adequate design for large data warehouse systems: Bitmap
index versus B-Tree index.
IJCC, 2(2).
