Debugging of Python with gdb
PyCon Ukraine 2017
Lviv, Ukraine
April 9th, 2017
by Roman Podoliaka, Development Manager at Mirantis
twitter: @rpodoliaka
blog: http://podoliaka.org
slides: http://podoliaka.org/talks/
Goals of this talk
make gdb "a known unknown", so that you consider it as an
option in the future
highlight the common gotchas

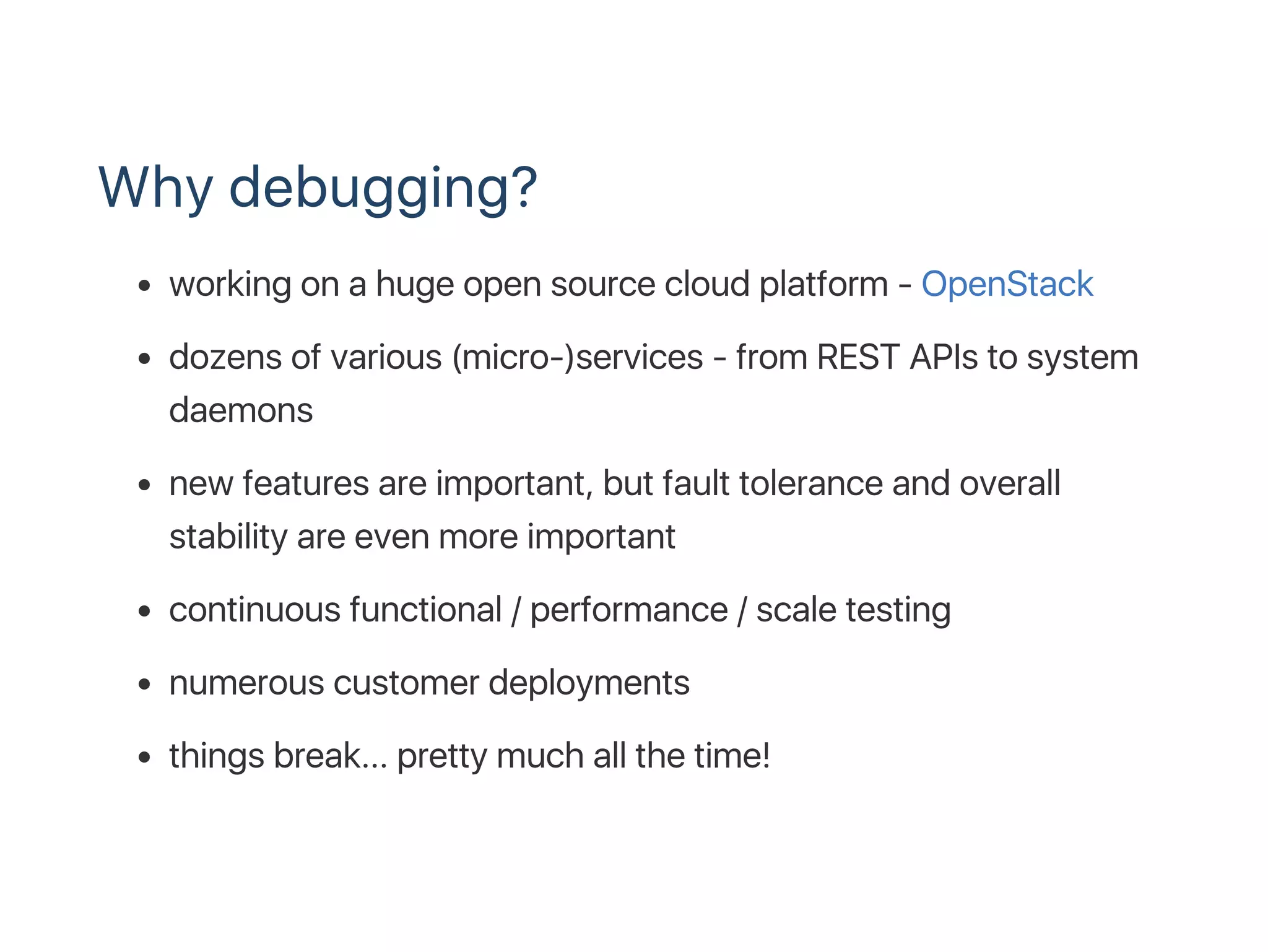

Why debugging?
working on a huge open source cloud platform ‑ OpenStack
dozens of various (micro‑)services ‑ from REST APIs to system
daemons
new features are important, but fault tolerance and overall
stability are even more important
continuous functional / performance / scale testing
numerous customer deployments
things break... pretty much all the time!

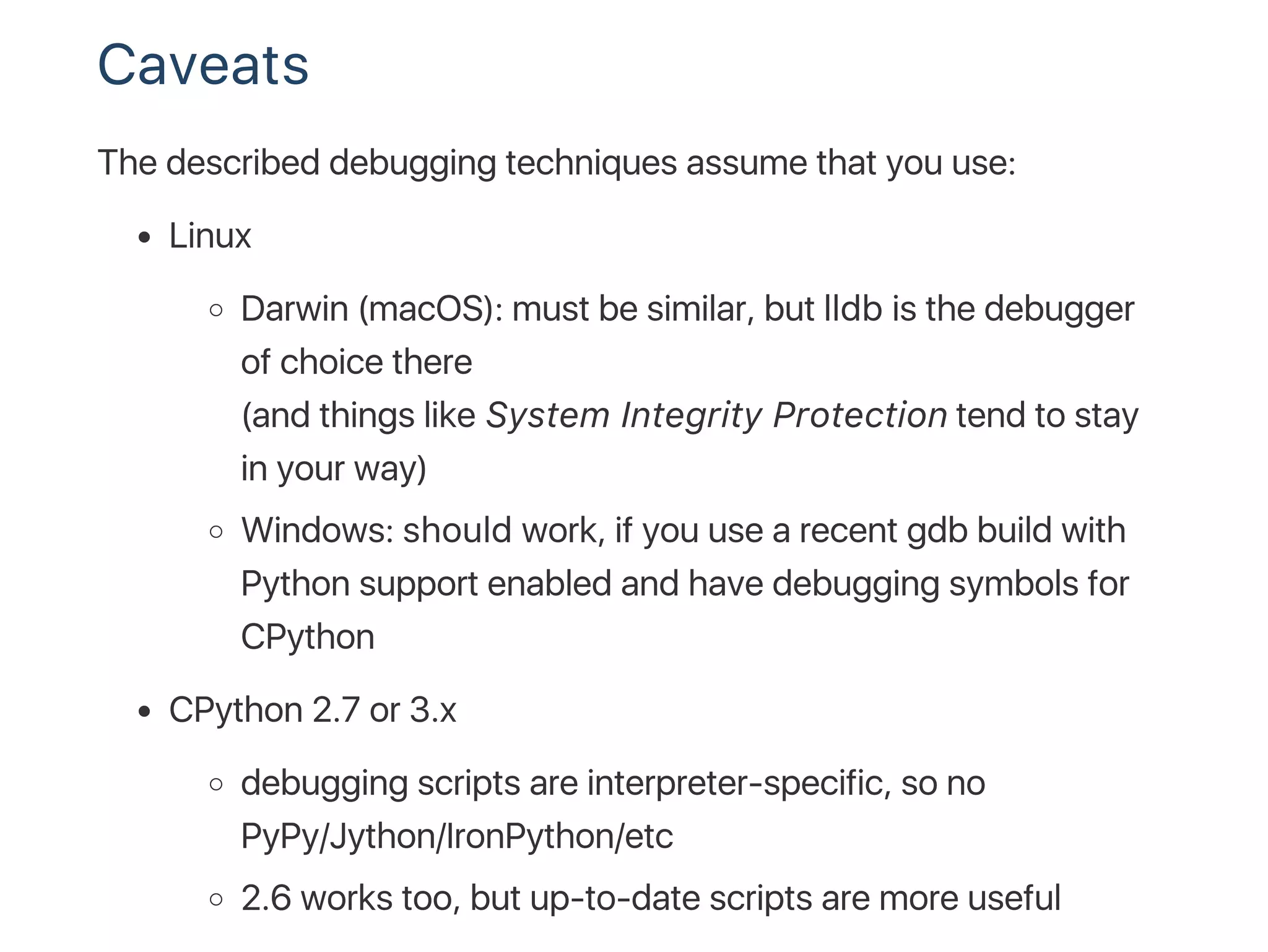

Caveats
The described debugging techniques assume that you use:
Linux
Darwin (macOS): must be similar, but lldb is the debugger
of choice there
(and things like System Integrity Protection tend to stay
in your way)
Windows: should work, if you use a recent gdb build with
Python support enabled and have debugging symbols for
CPython
CPython 2.7 or 3.x
debugging scripts are interpreter‑specific, so no
PyPy/Jython/IronPython/etc
2.6 works too, but up‑to‑date scripts are more useful

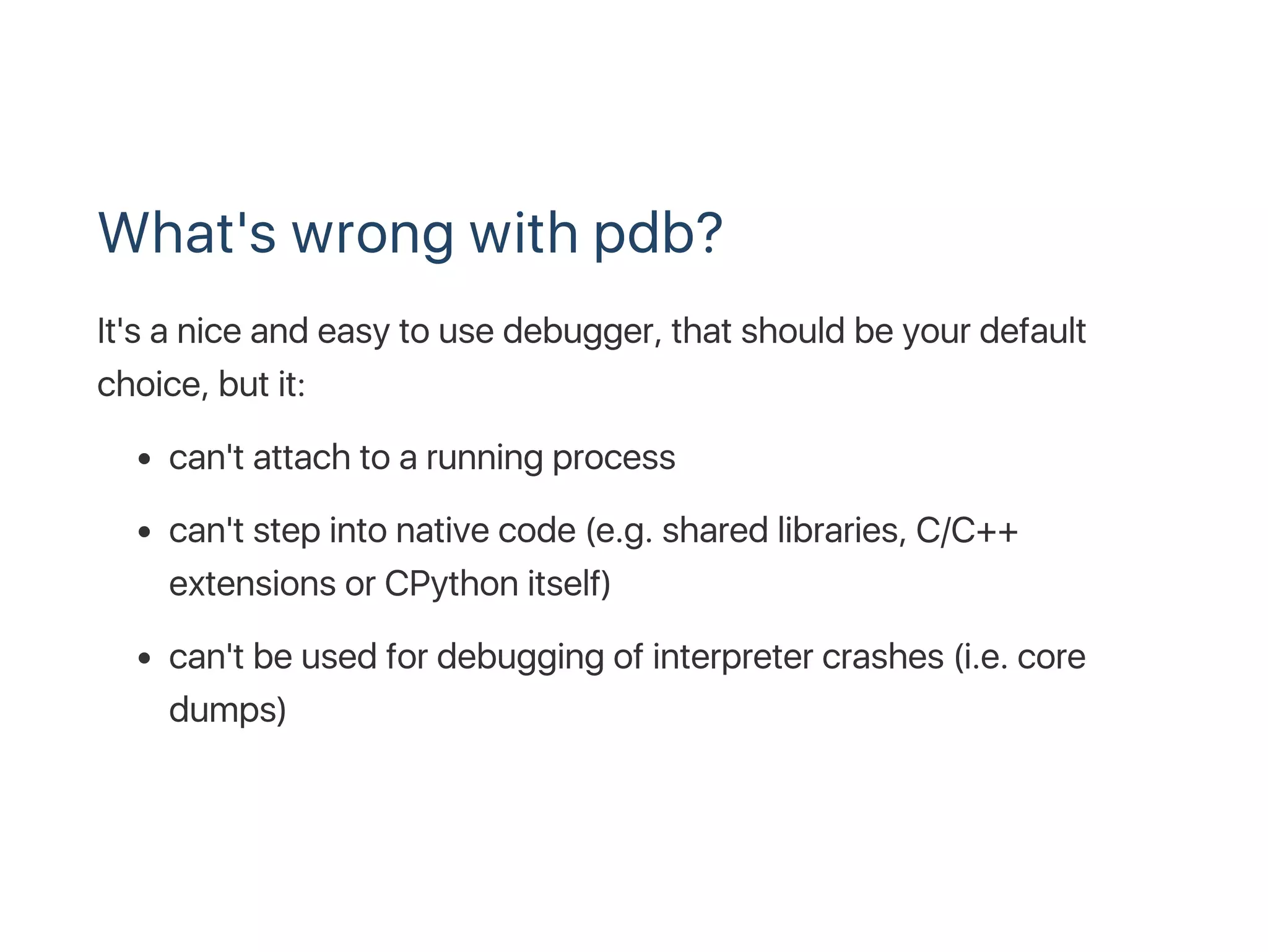

What's wrong with pdb?
It's a nice and easy to use debugger, that should be your default
choice, but it:
can't attach to a running process
can't step into native code (e.g. shared libraries, C/C++
extensions or CPython itself)
can't be used for debugging of interpreter crashes (i.e. core
dumps)
Typical problems: hung process
a process is stuck in  S (sleeping) state and does not respond
 strace 'ing shows that it is trying to acquire a lock (i.e.
 futex(...) )
one needs a way to map this to the exact line in the application
code
especially important if you use cooperative concurrency (i.e.
asyncio, eventlet, gevent, etc)

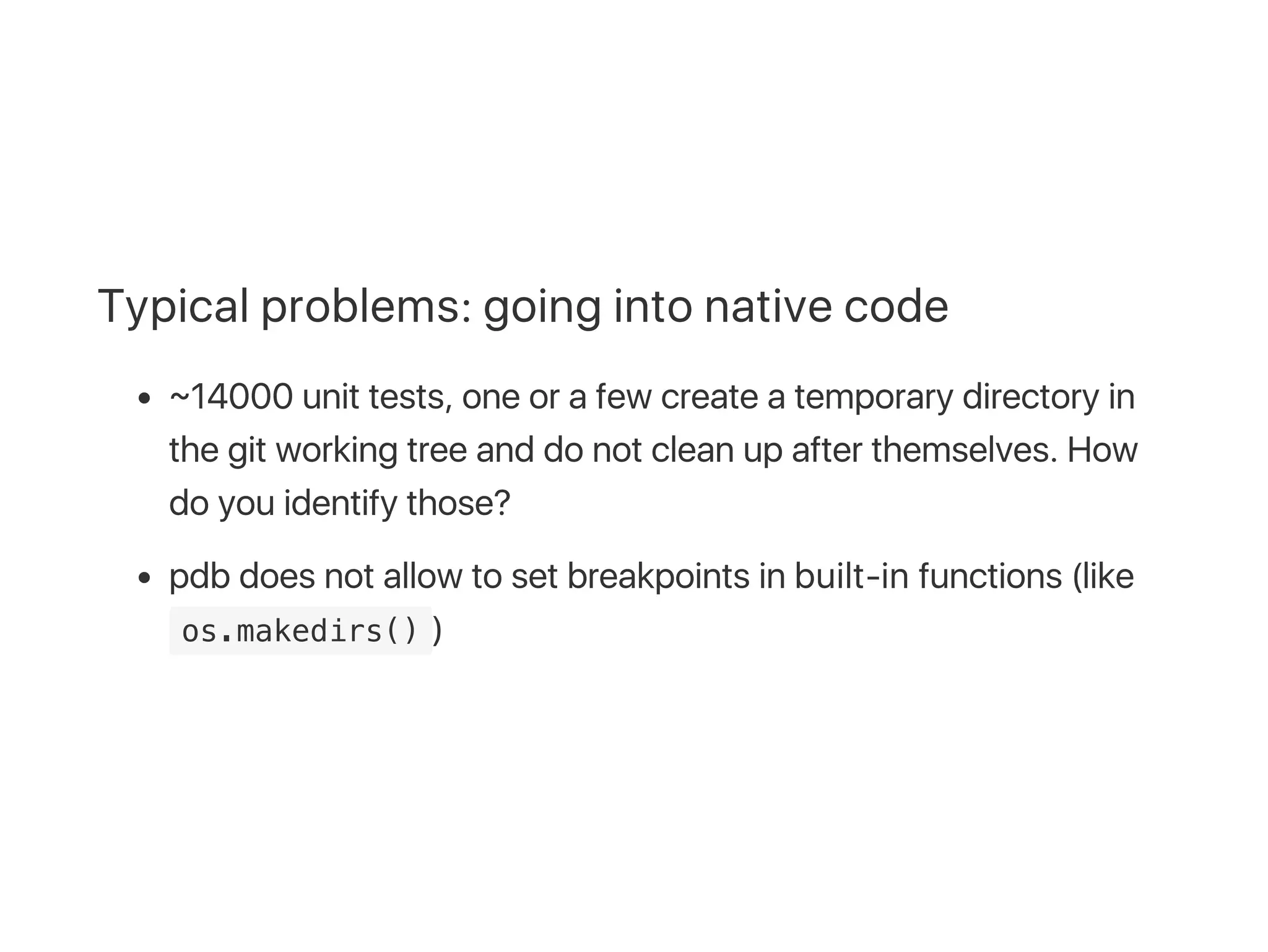

Typical problems: going into native code
~14000 unit tests, one or a few create a temporary directory in
the git working tree and do not clean up after themselves. How
do you identify those?
pdb does not allow to set breakpoints in built‑in functions (like
 os.makedirs() )

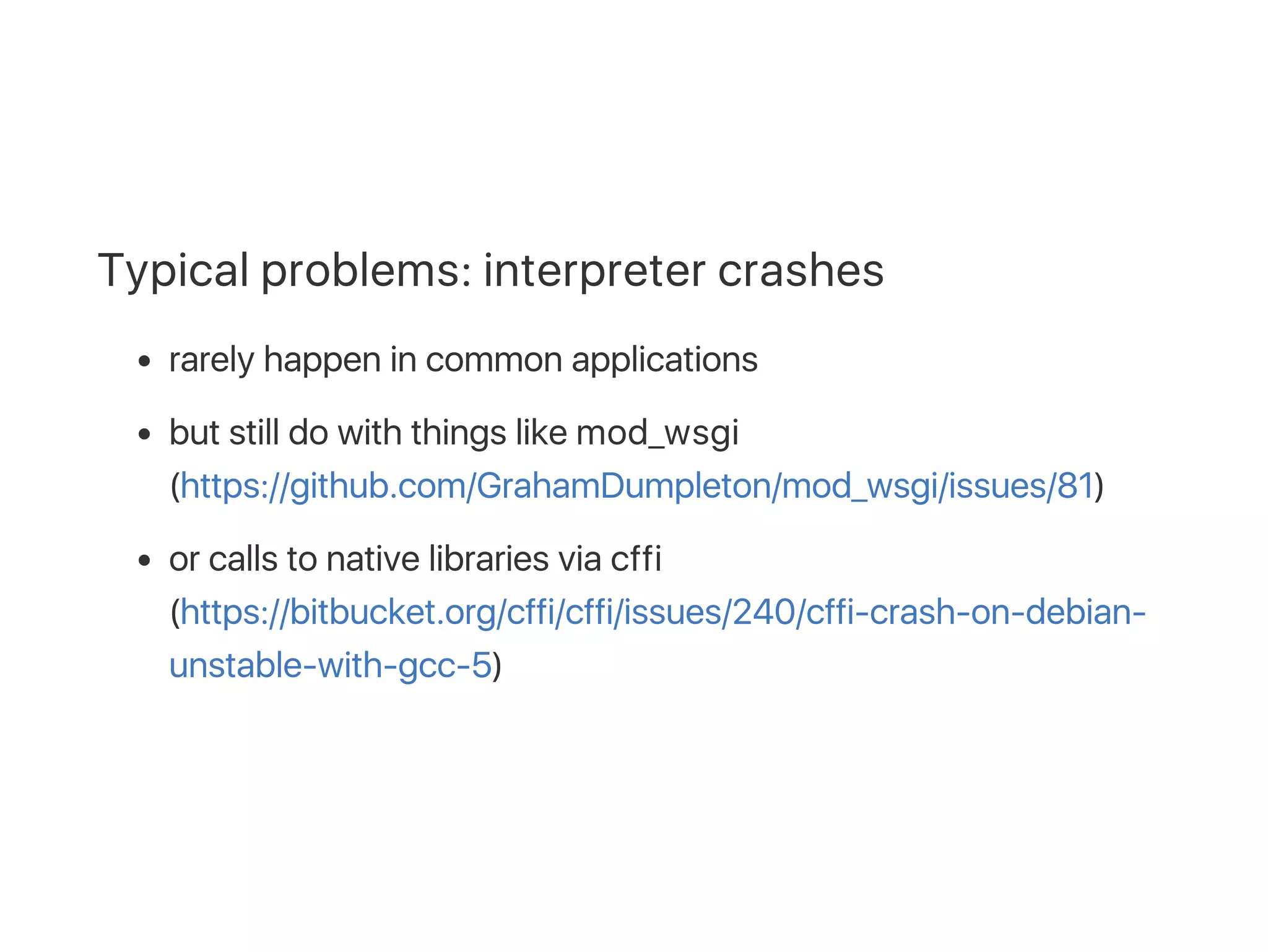

Typical problems: interpreter crashes
rarely happen in common applications
but still do with things like mod_wsgi
(https://github.com/GrahamDumpleton/mod_wsgi/issues/81)
or calls to native libraries via cffi
(https://bitbucket.org/cffi/cffi/issues/240/cffi‑crash‑on‑debian‑
unstable‑with‑gcc‑5)

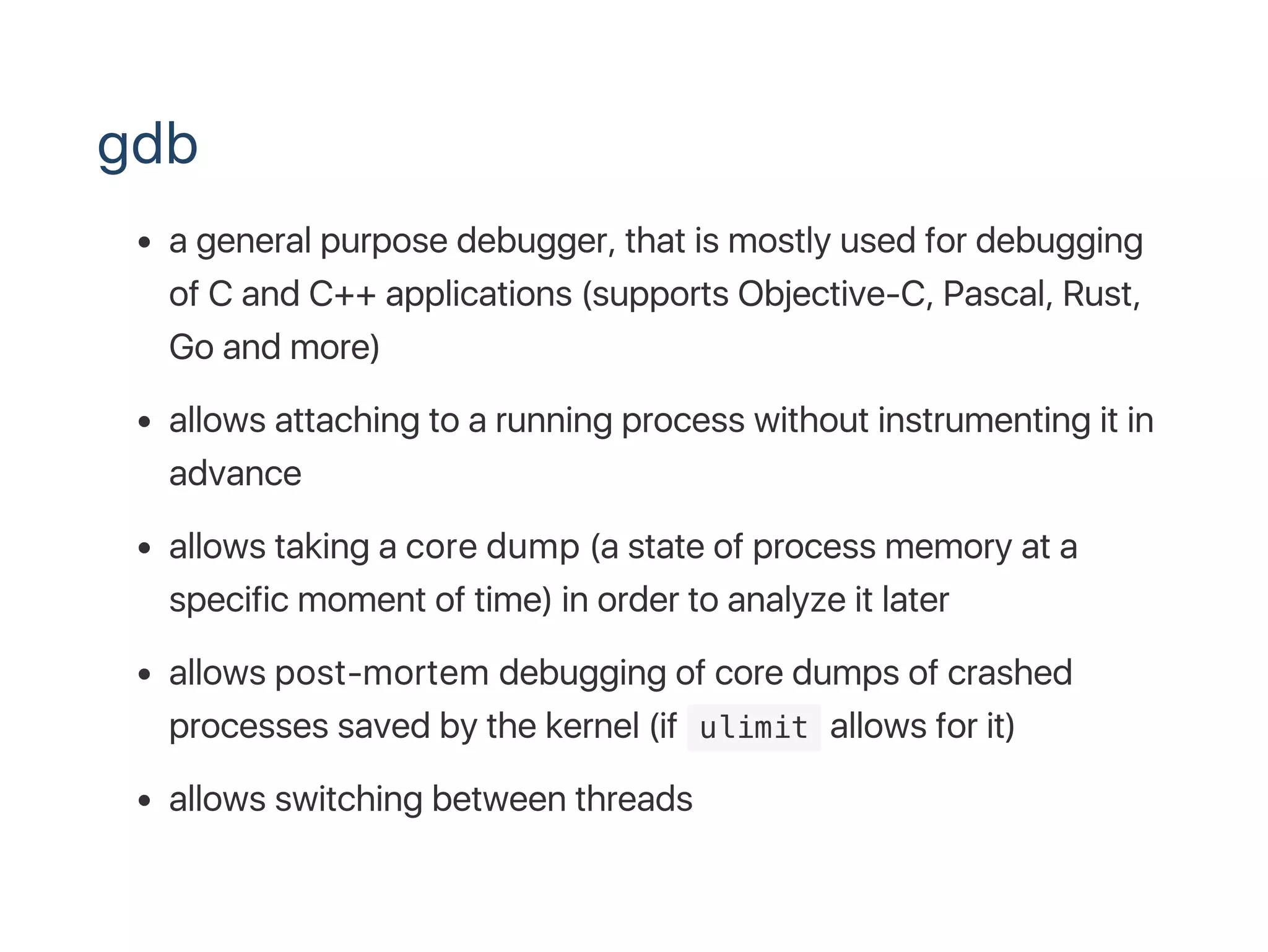

gdb
a general purpose debugger, that is mostly used for debugging
of C and C++ applications (supports Objective‑C, Pascal, Rust,
Go and more)
allows attaching to a running process without instrumenting it in
advance
allows taking a core dump (a state of process memory at a
specific moment of time) in order to analyze it later
allows post‑mortem debugging of core dumps of crashed
processes saved by the kernel (if  ulimit allows for it)
allows switching between threads

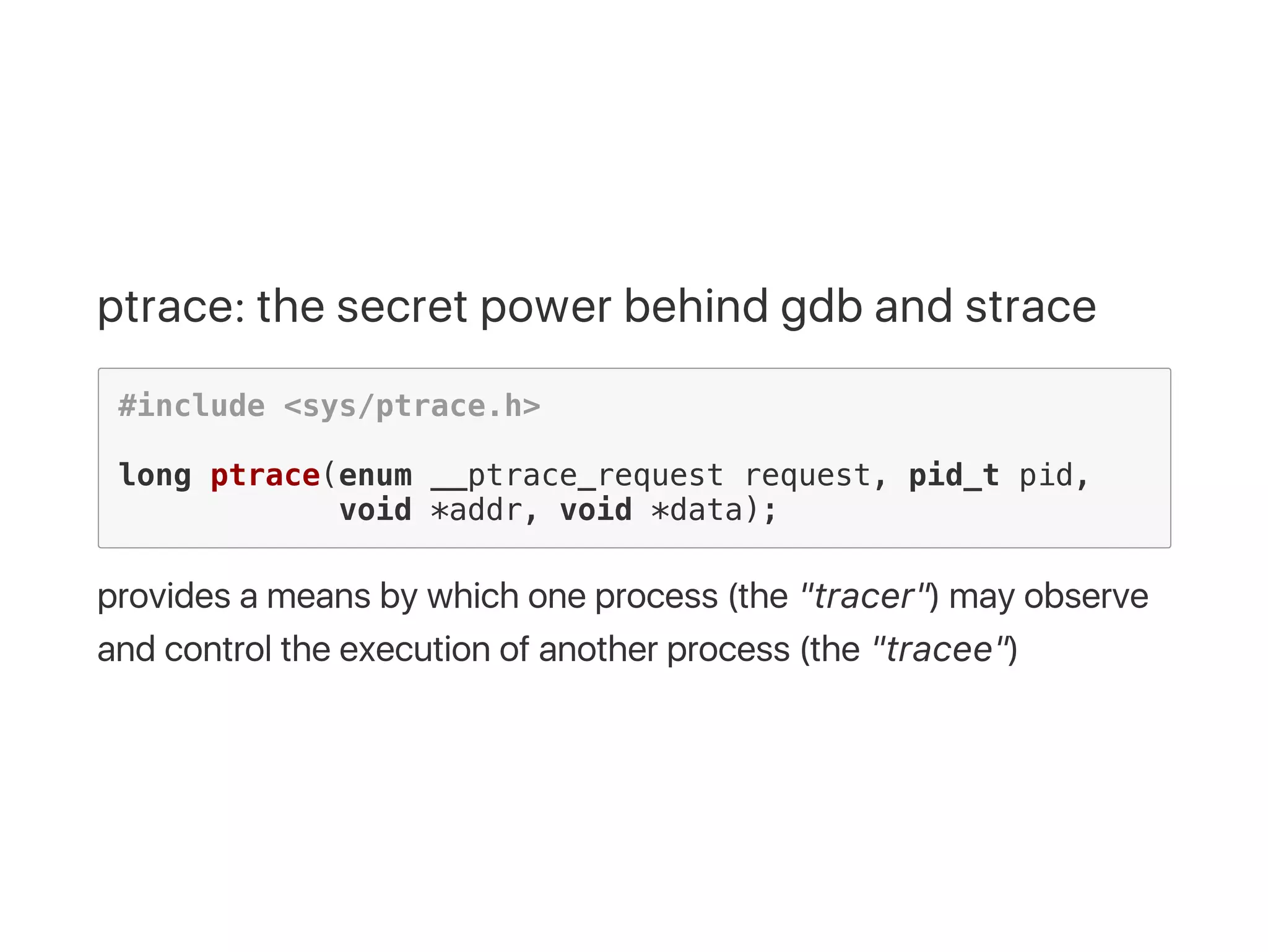

ptrace: the secret power behind gdb and strace
#include <sys/ptrace.h>
long ptrace(enum __ptrace_request request, pid_t pid,
void *addr, void *data);
provides a means by which one process (the "tracer") may observe
and control the execution of another process (the "tracee")

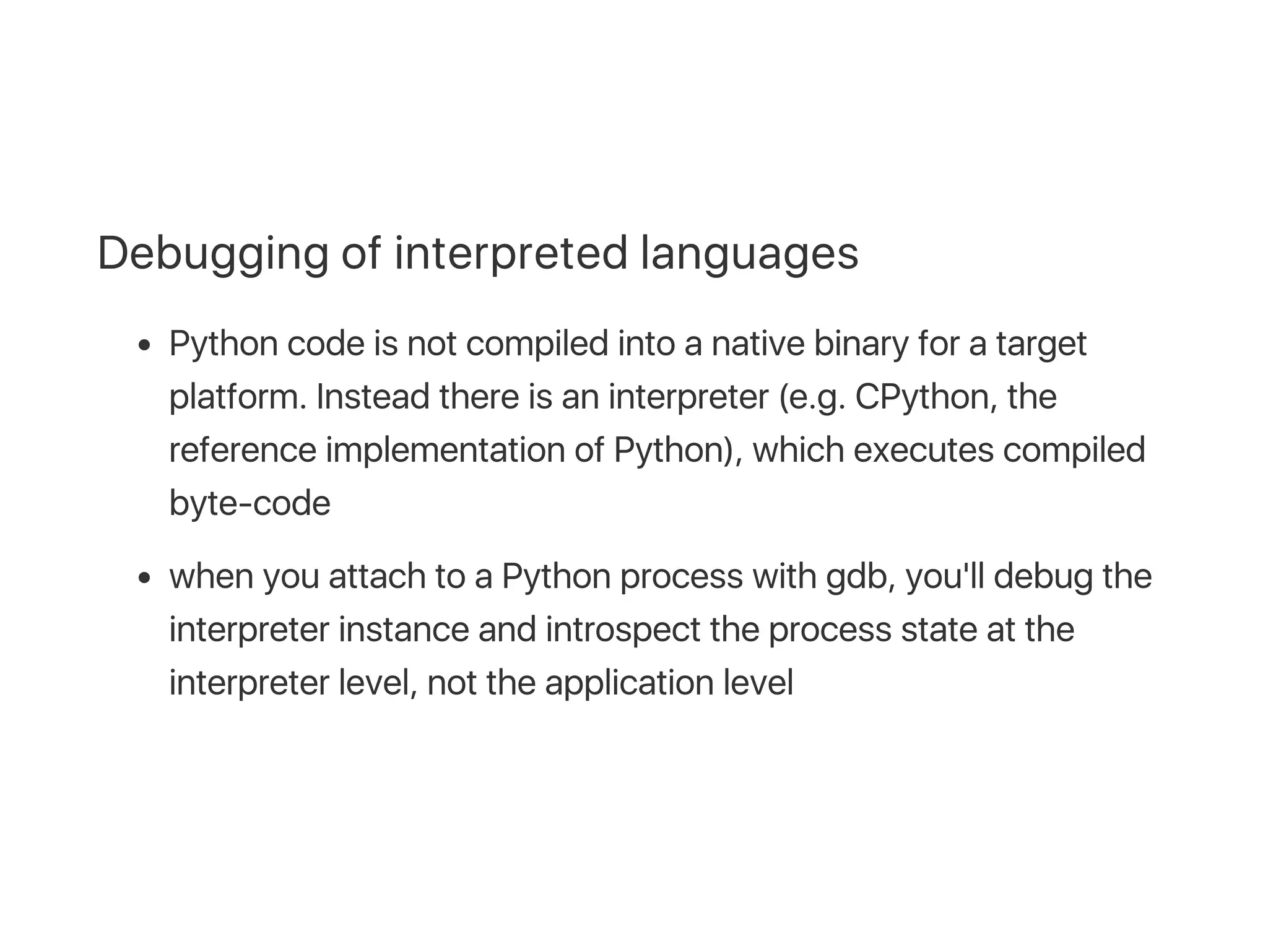

Debugging of interpreted languages
Python code is not compiled into a native binary for a target
platform. Instead there is an interpreter (e.g. CPython, the
reference implementation of Python), which executes compiled
byte‑code
when you attach to a Python process with gdb, you'll debug the
interpreter instance and introspect the process state at the
interpreter level, not the application level

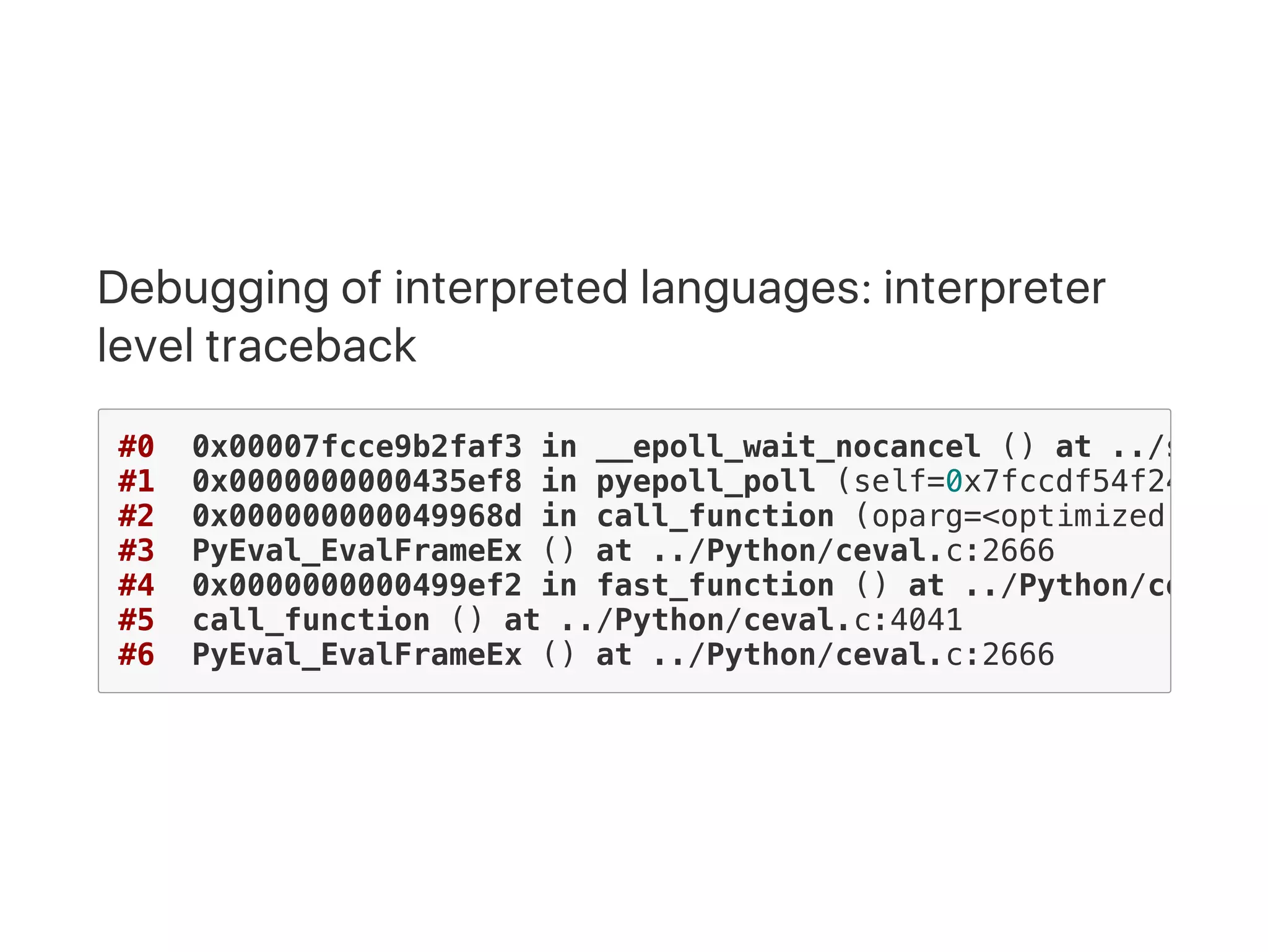

Debugging of interpreted languages: interpreter
level traceback
#0 0x00007fcce9b2faf3 in __epoll_wait_nocancel () at ../sysdep
#1 0x0000000000435ef8 in pyepoll_poll (self=0x7fccdf54f240, ar
#2 0x000000000049968d in call_function (oparg=<optimized out>,
#3 PyEval_EvalFrameEx () at ../Python/ceval.c:2666
#4 0x0000000000499ef2 in fast_function () at ../Python/ceval
#5 call_function () at ../Python/ceval.c:4041
#6 PyEval_EvalFrameEx () at ../Python/ceval.c:2666

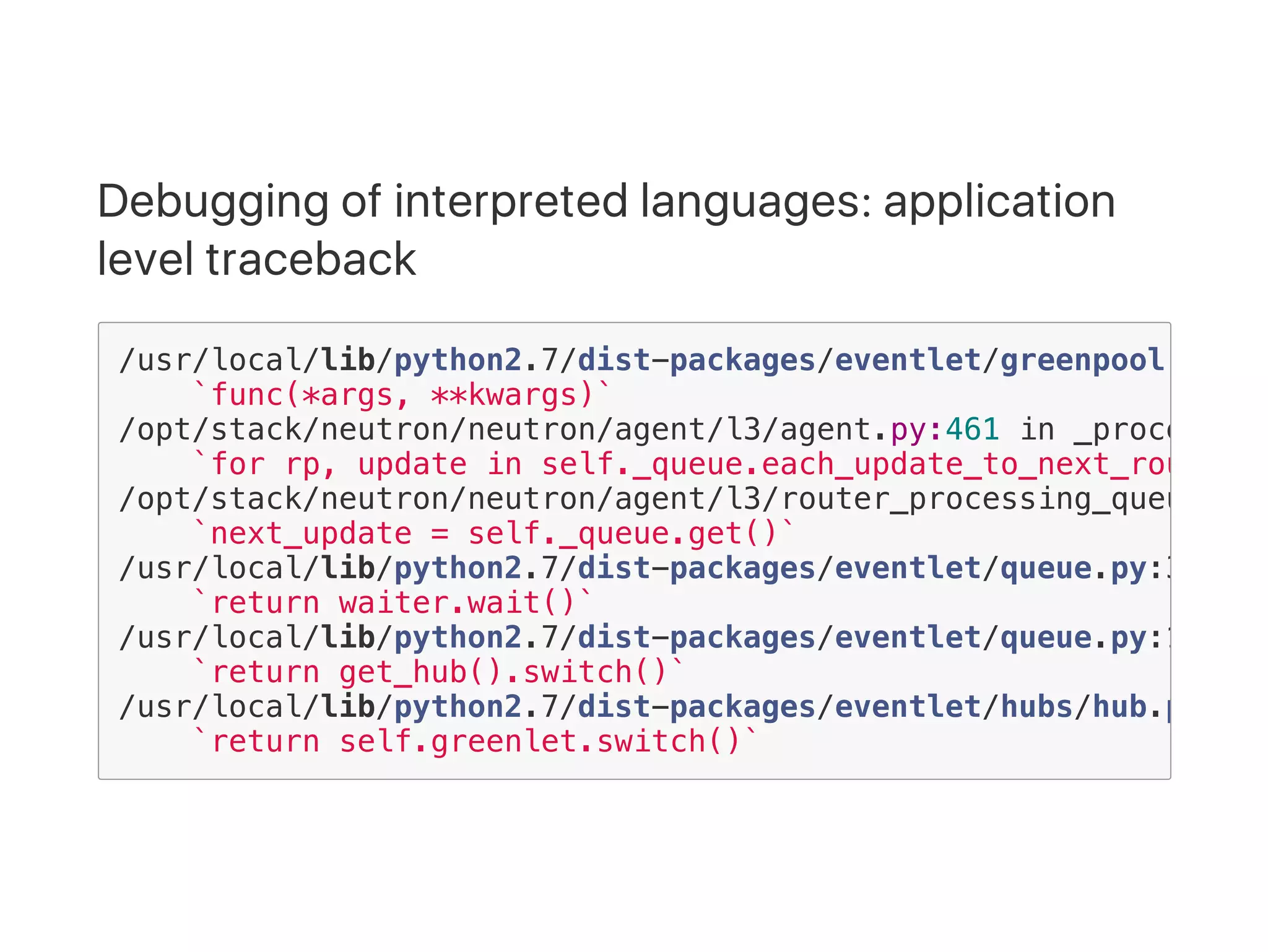

Debugging of interpreted languages: application
level traceback
/usr/local/lib/python2.7/dist-packages/eventlet/greenpool.
`func(*args, **kwargs)`
/opt/stack/neutron/neutron/agent/l3/agent.py:461 in _process_ro
`for rp, update in self._queue.each_update_to_next_router()
/opt/stack/neutron/neutron/agent/l3/router_processing_queue.
`next_update = self._queue.get()`
/usr/local/lib/python2.7/dist-packages/eventlet/queue.py:313
`return waiter.wait()`
/usr/local/lib/python2.7/dist-packages/eventlet/queue.py:141
`return get_hub().switch()`
/usr/local/lib/python2.7/dist-packages/eventlet/hubs/hub.py
`return self.greenlet.switch()`
PyEval_EvalFrameEx
PyEval_EvalFrameEx(PyFrameObject *f, int throwflag)
{
/* variable declaration and initialization stuff */
for (;;) {
/* do periodic housekeeping once in a few opcodes */
opcode = NEXTOP();
if (HAS_ARG(opcode)) oparg = NEXTARG();
switch (opcode) {
case NOP:
goto fast_next_opcode;
/* lots of more complex opcode implementations */
default:
/* become rather unhappy */
}
/* handle exceptions or runtime errors, if any */
}
/* we are finished, pop the frame stack */
tstate->frame = f->f_back;
return retval;
}

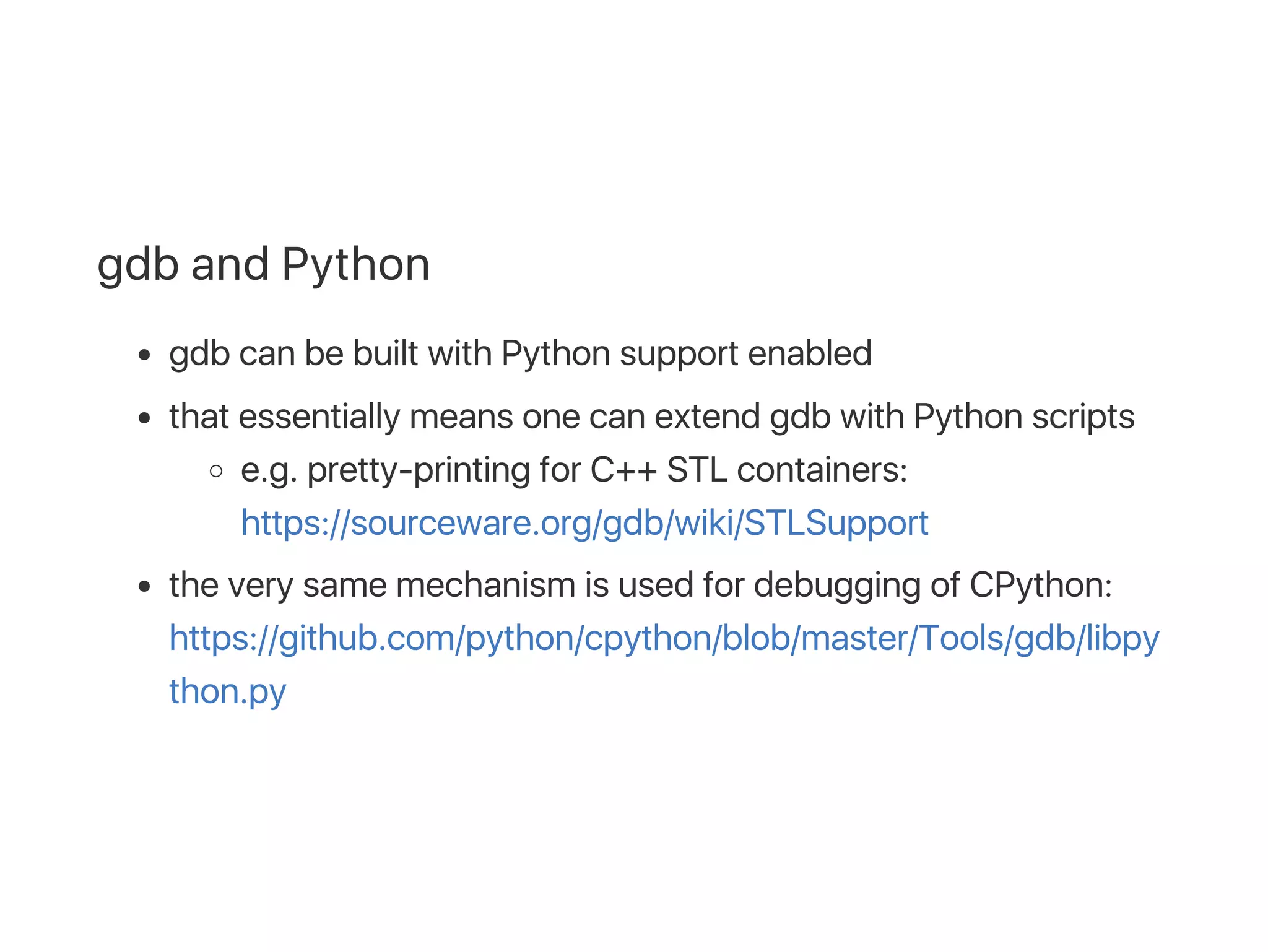

gdb and Python
gdb can be built with Python support enabled
that essentially means one can extend gdb with Python scripts
e.g. pretty‑printing for C++ STL containers:
https://sourceware.org/gdb/wiki/STLSupport
the very same mechanism is used for debugging of CPython:
https://github.com/python/cpython/blob/master/Tools/gdb/libpy
thon.py

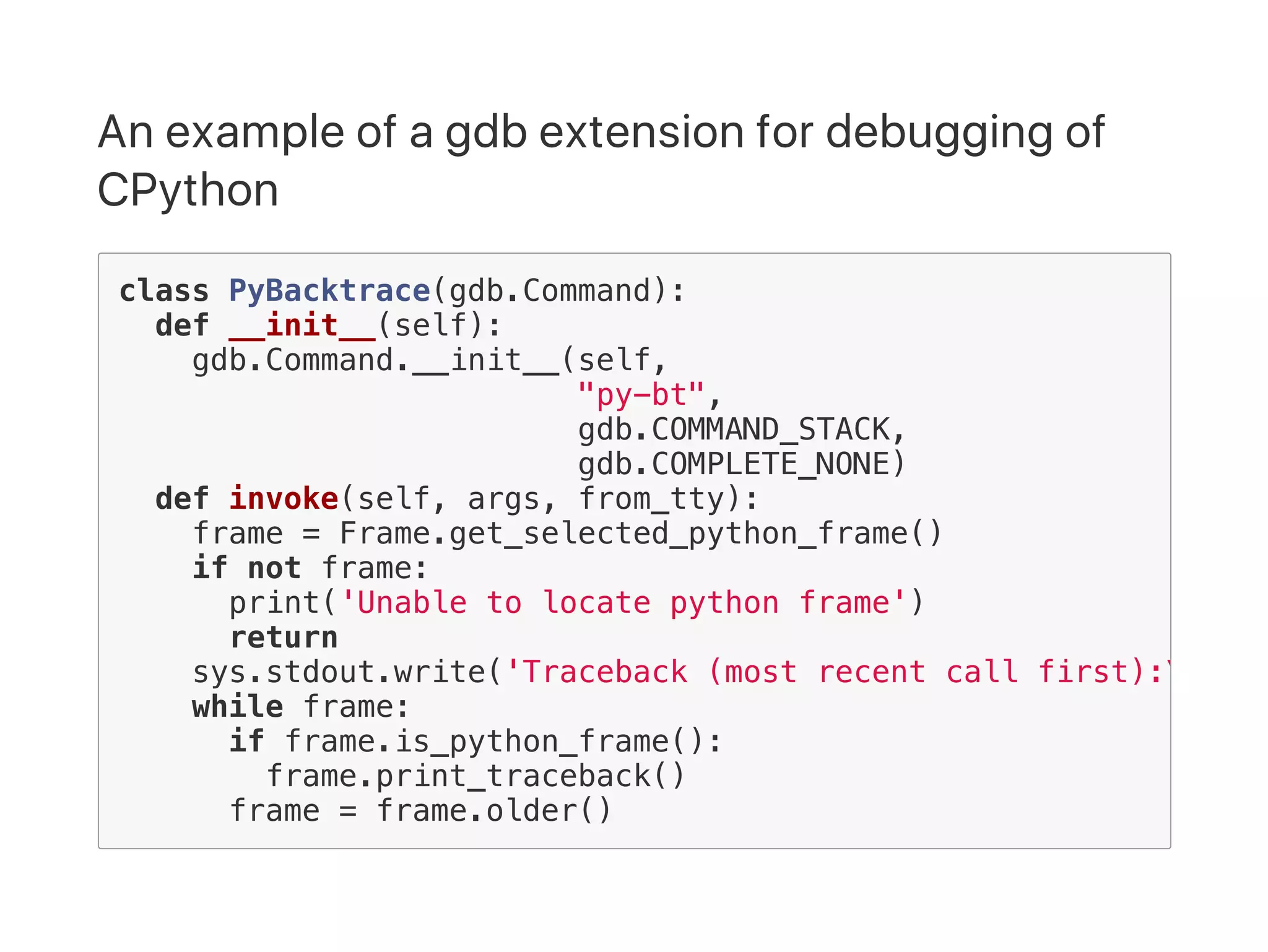

An example of a gdb extension for debugging of
CPython
class PyBacktrace(gdb.Command):
def __init__(self):
gdb.Command.__init__(self,
"py-bt",
gdb.COMMAND_STACK,
gdb.COMPLETE_NONE)
def invoke(self, args, from_tty):
frame = Frame.get_selected_python_frame()
if not frame:
print('Unable to locate python frame')
return
sys.stdout.write('Traceback (most recent call first):n'
while frame:
if frame.is_python_frame():
frame.print_traceback()
frame = frame.older()

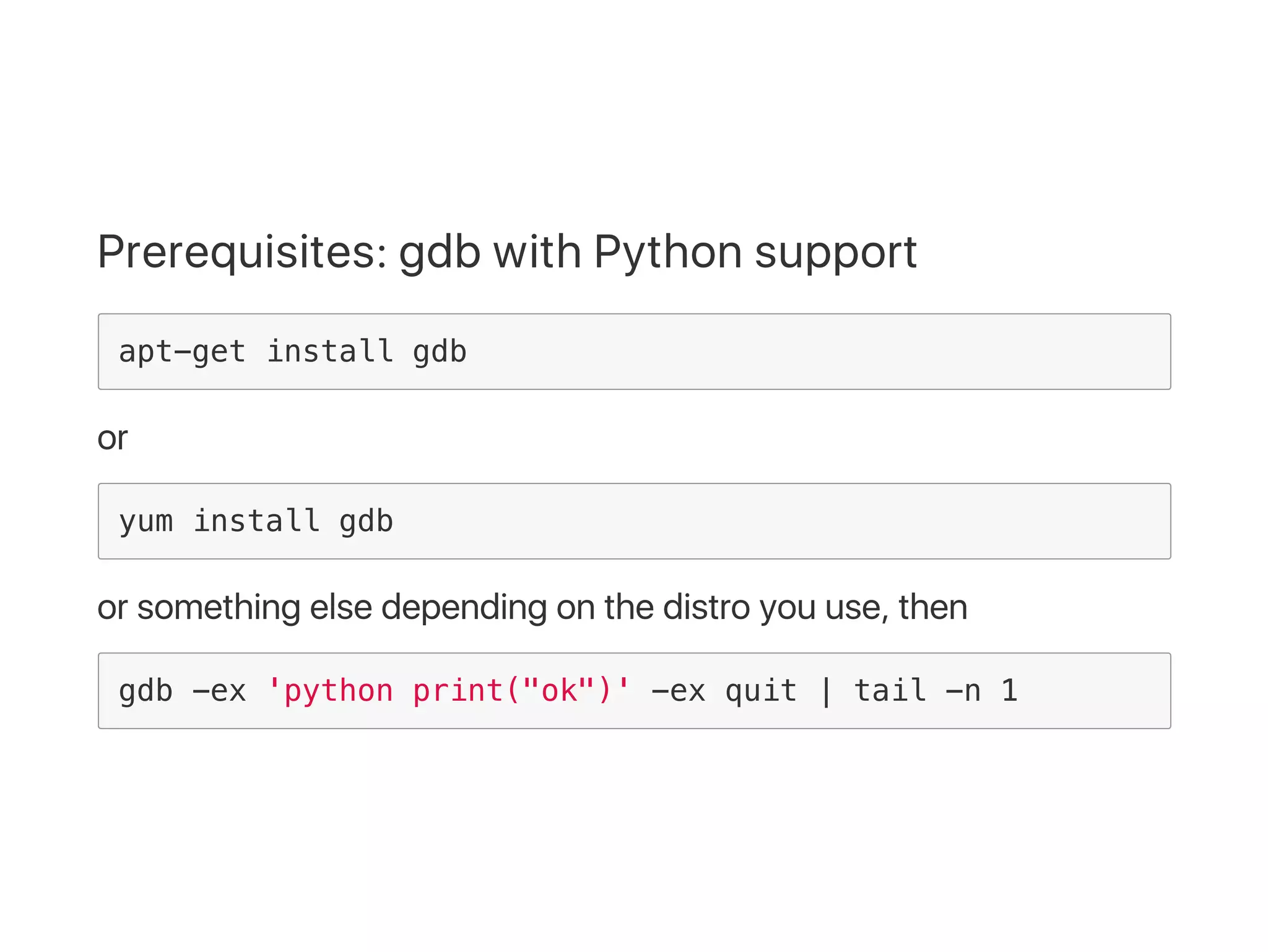

Prerequisites: gdb with Python support
apt-get install gdb
or
yum install gdb
or something else depending on the distro you use, then
gdb -ex 'python print("ok")' -ex quit | tail -n 1

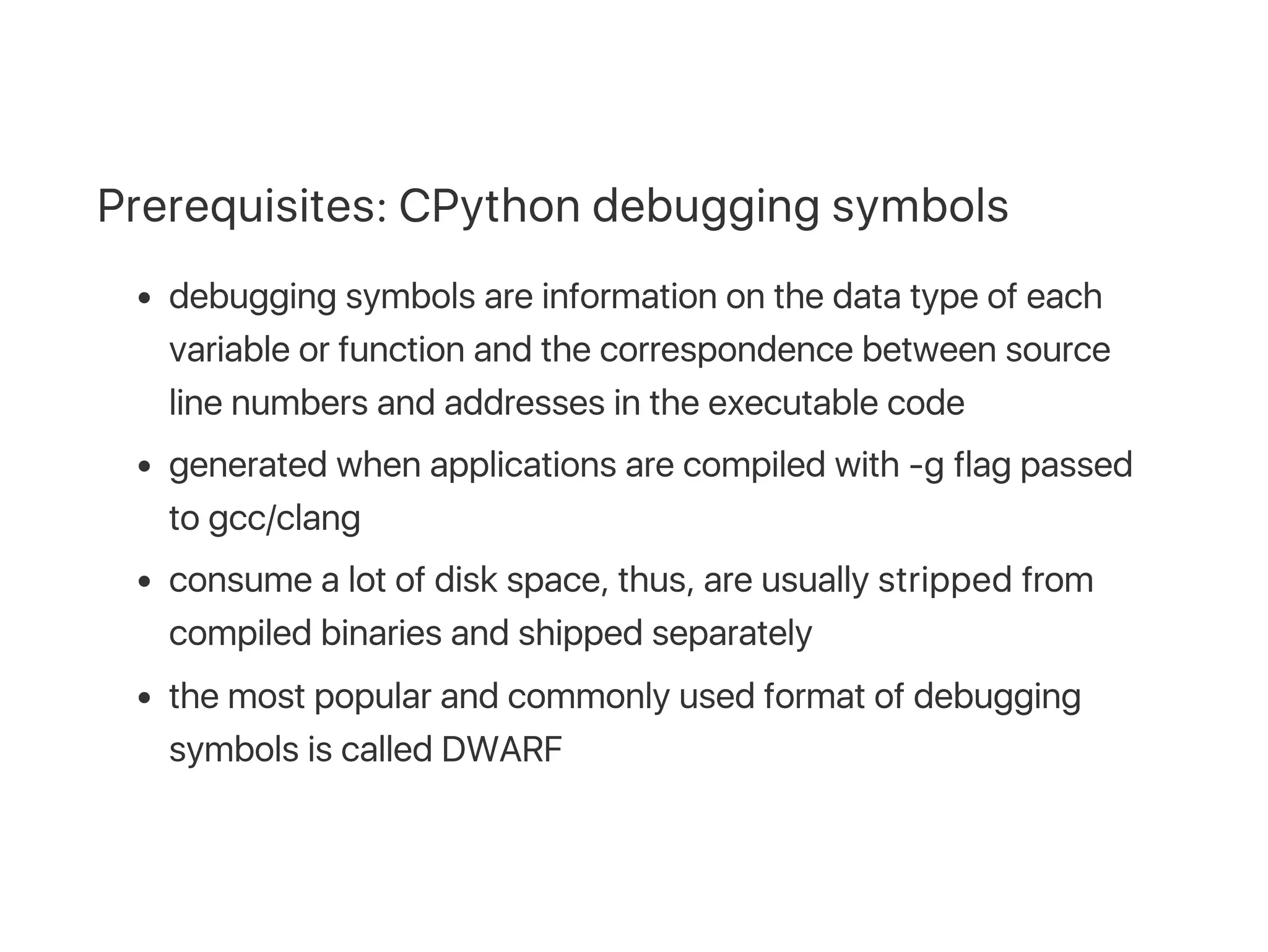

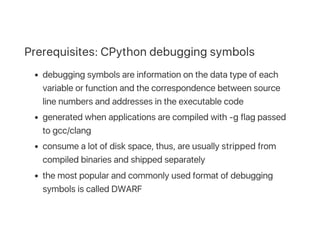

Prerequisites: CPython debugging symbols
debugging symbols are information on the data type of each
variable or function and the correspondence between source
line numbers and addresses in the executable code
generated when applications are compiled with ‑g flag passed
to gcc/clang
consume a lot of disk space, thus, are usually stripped from
compiled binaries and shipped separately
the most popular and commonly used format of debugging
symbols is called DWARF

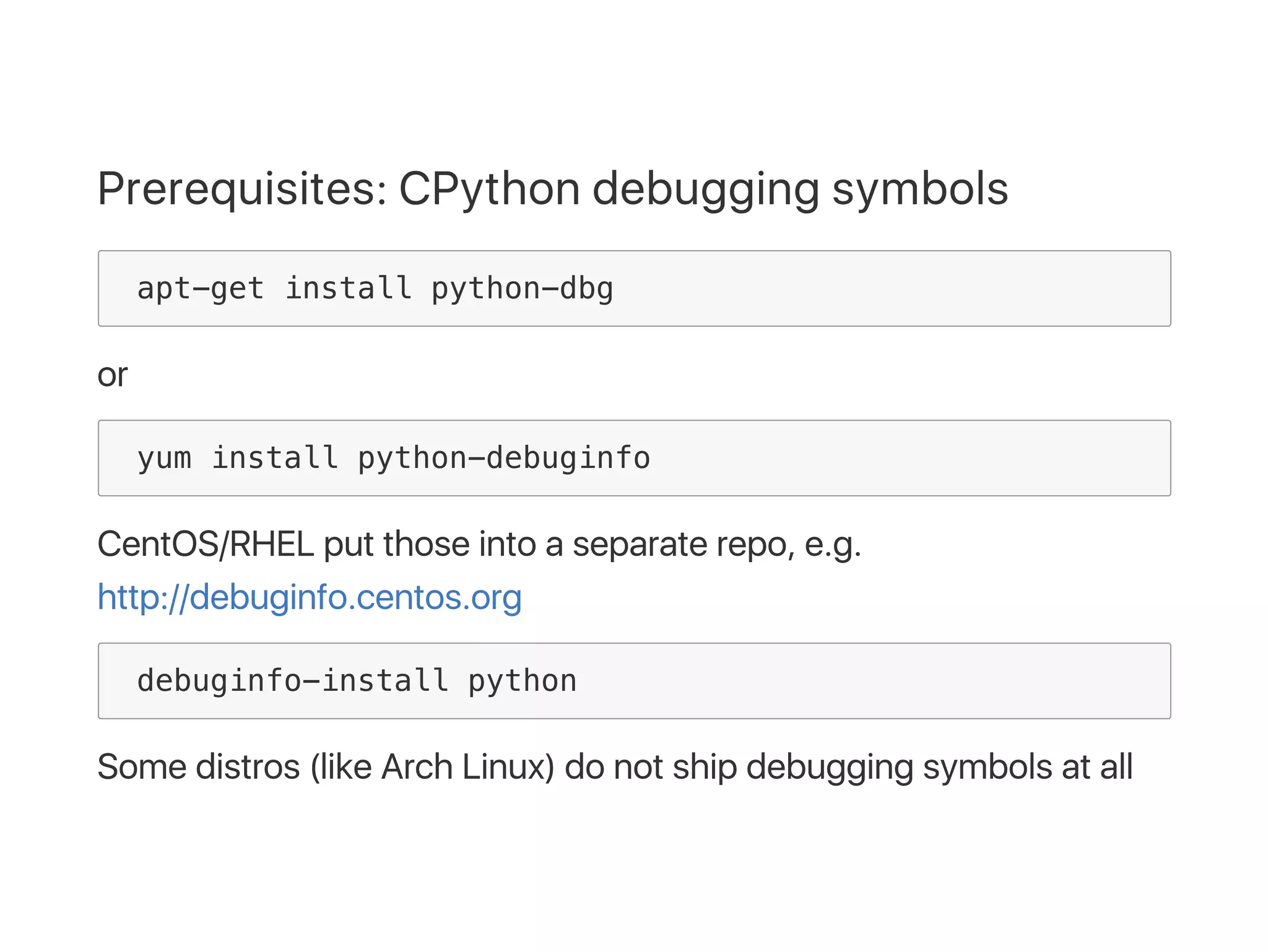

Prerequisites: CPython debugging symbols
apt-get install python-dbg
or
yum install python-debuginfo
CentOS/RHEL put those into a separate repo, e.g.
http://debuginfo.centos.org
debuginfo-install python
Some distros (like Arch Linux) do not ship debugging symbols at all

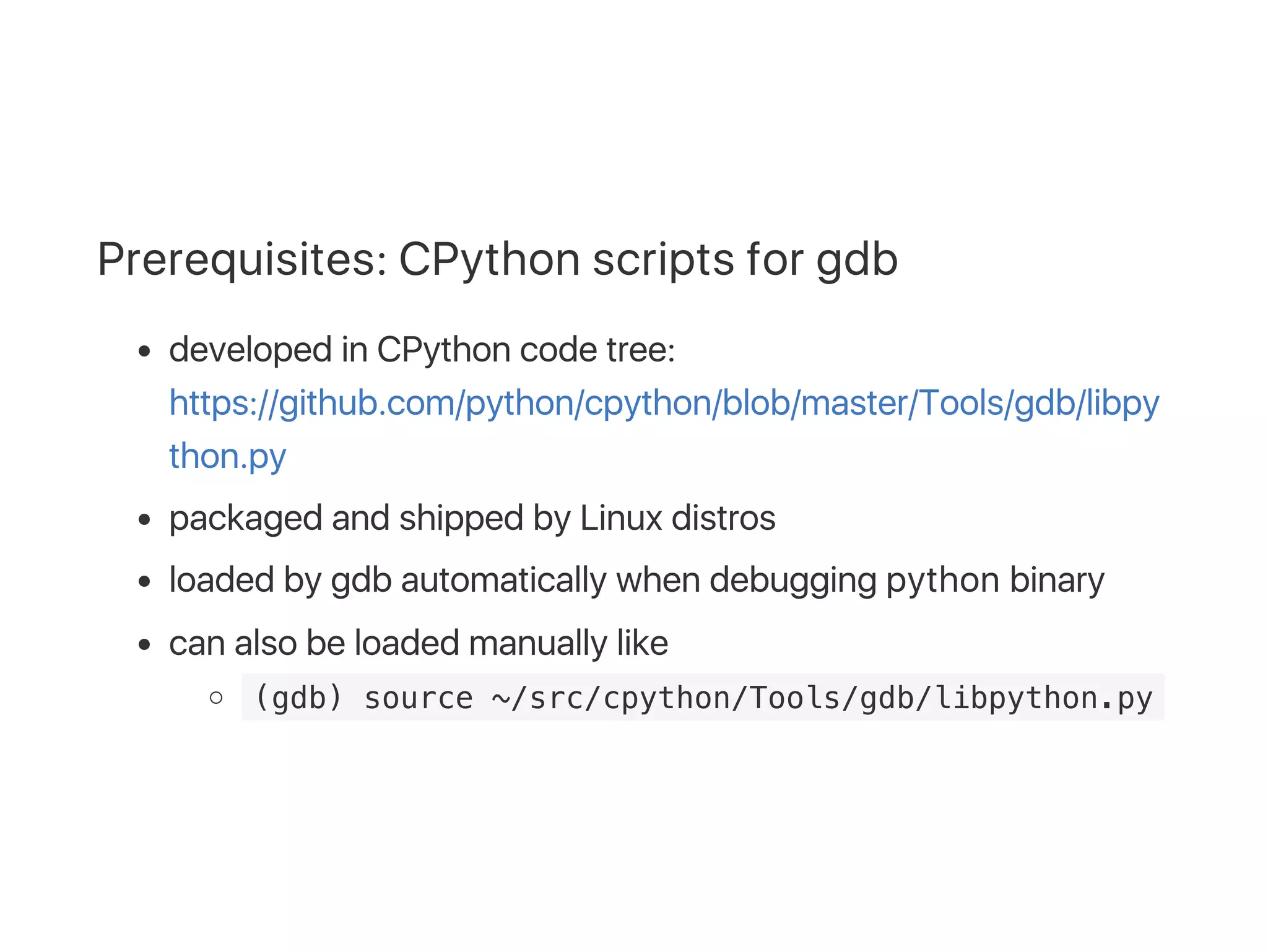

Prerequisites: CPython scripts for gdb
developed in CPython code tree:
https://github.com/python/cpython/blob/master/Tools/gdb/libpy
thon.py
packaged and shipped by Linux distros
loaded by gdb automatically when debugging python binary
can also be loaded manually like
 (gdb) source ~/src/cpython/Tools/gdb/libpython.py

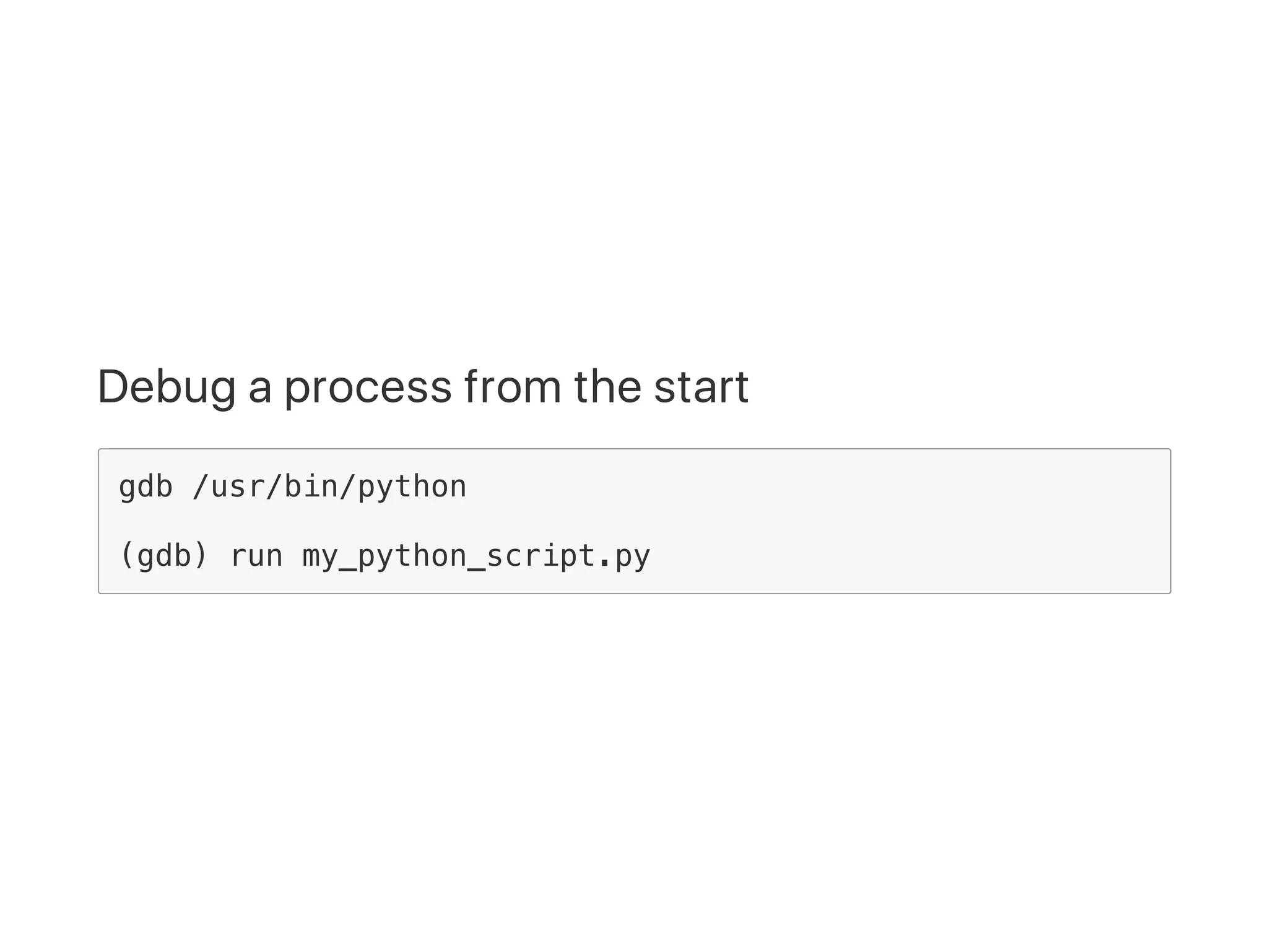

Debug a process from the start
gdb /usr/bin/python
(gdb) run my_python_script.py

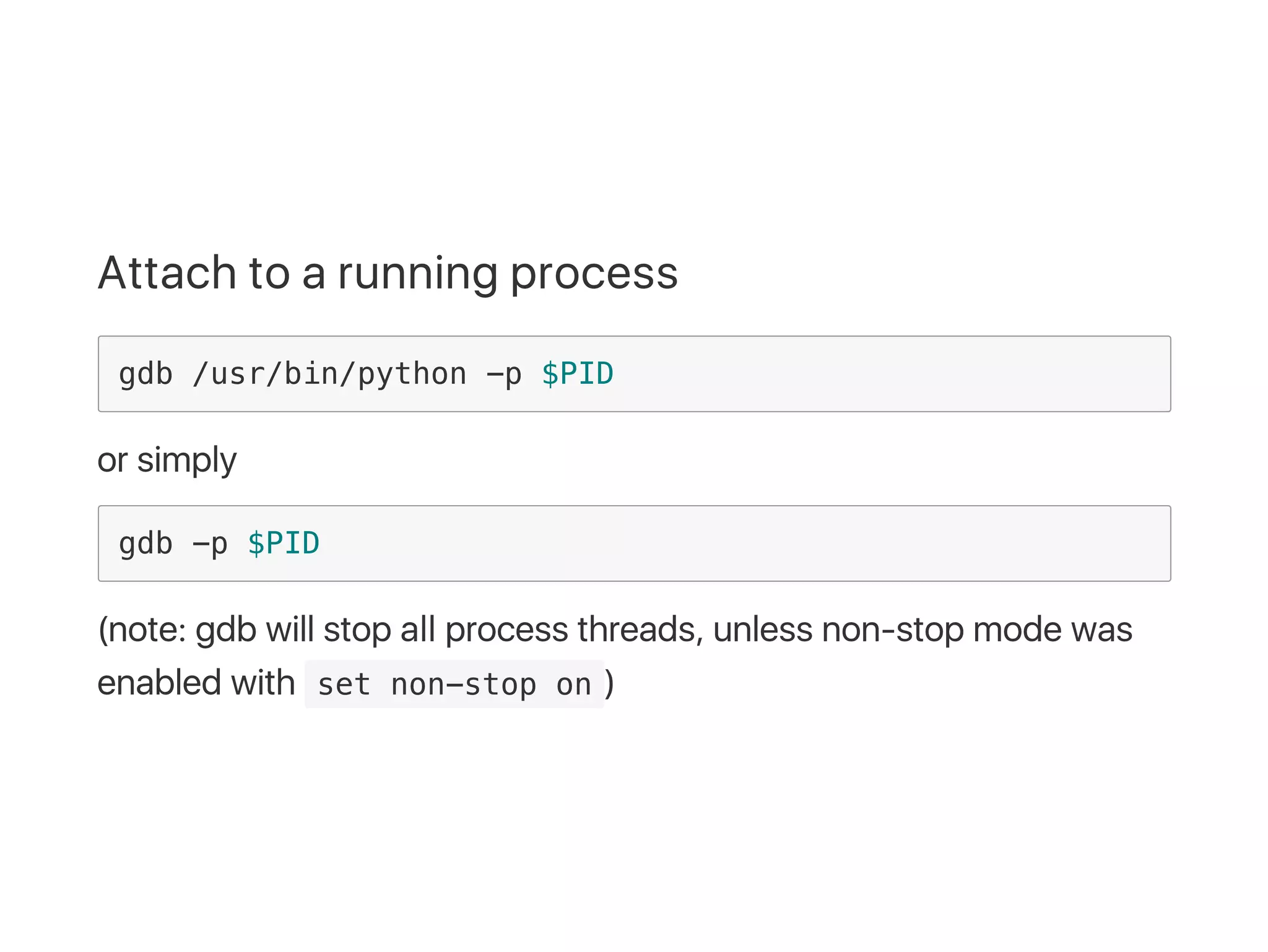

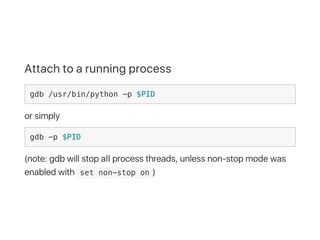

Attach to a running process
gdb /usr/bin/python -p $PID
or simply
gdb -p $PID
(note: gdb will stop all process threads, unless non‑stop mode was
enabled with  set non-stop on )

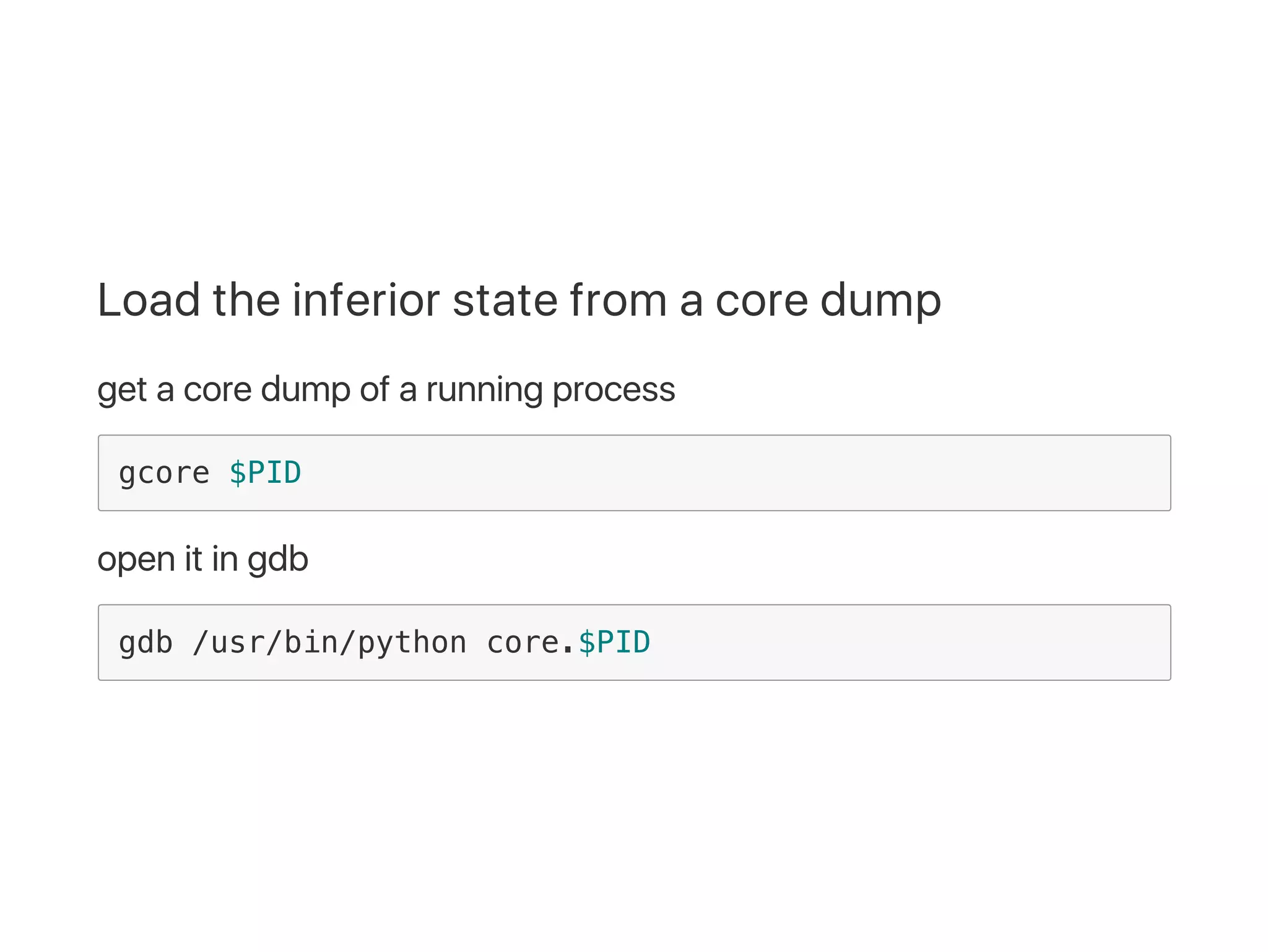

Load the inferior state from a core dump
get a core dump of a running process
gcore $PID
open it in gdb
gdb /usr/bin/python core.$PID

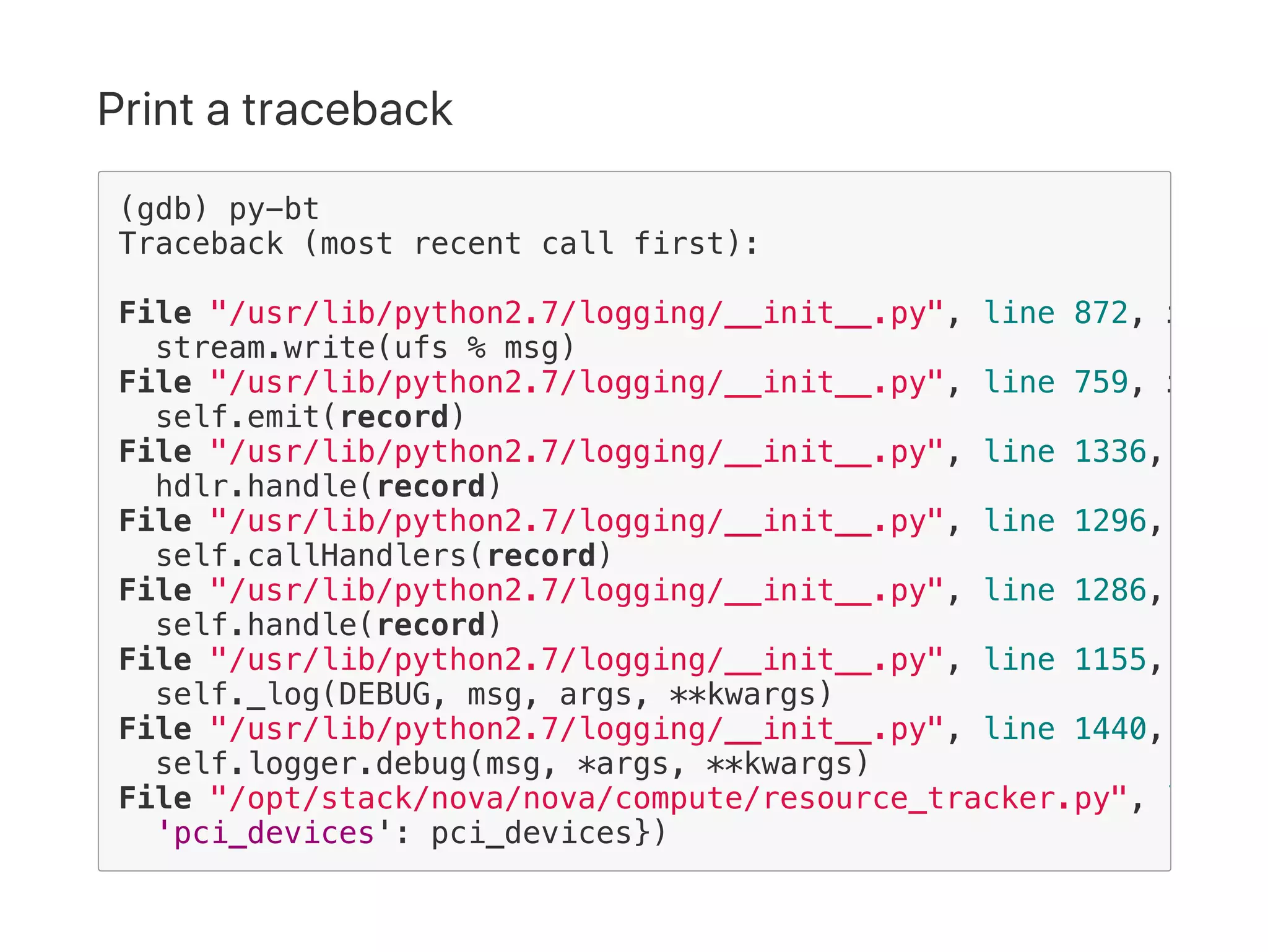

Print a traceback
(gdb) py-bt
Traceback (most recent call first):
File "/usr/lib/python2.7/logging/__init__.py", line 872, in
stream.write(ufs % msg)
File "/usr/lib/python2.7/logging/__init__.py", line 759, in
self.emit(record)
File "/usr/lib/python2.7/logging/__init__.py", line 1336,
hdlr.handle(record)
File "/usr/lib/python2.7/logging/__init__.py", line 1296,
self.callHandlers(record)
File "/usr/lib/python2.7/logging/__init__.py", line 1286,
self.handle(record)
File "/usr/lib/python2.7/logging/__init__.py", line 1155,
self._log(DEBUG, msg, args, **kwargs)
File "/usr/lib/python2.7/logging/__init__.py", line 1440,
self.logger.debug(msg, *args, **kwargs)
File "/opt/stack/nova/nova/compute/resource_tracker.py", line
'pci_devices': pci_devices})

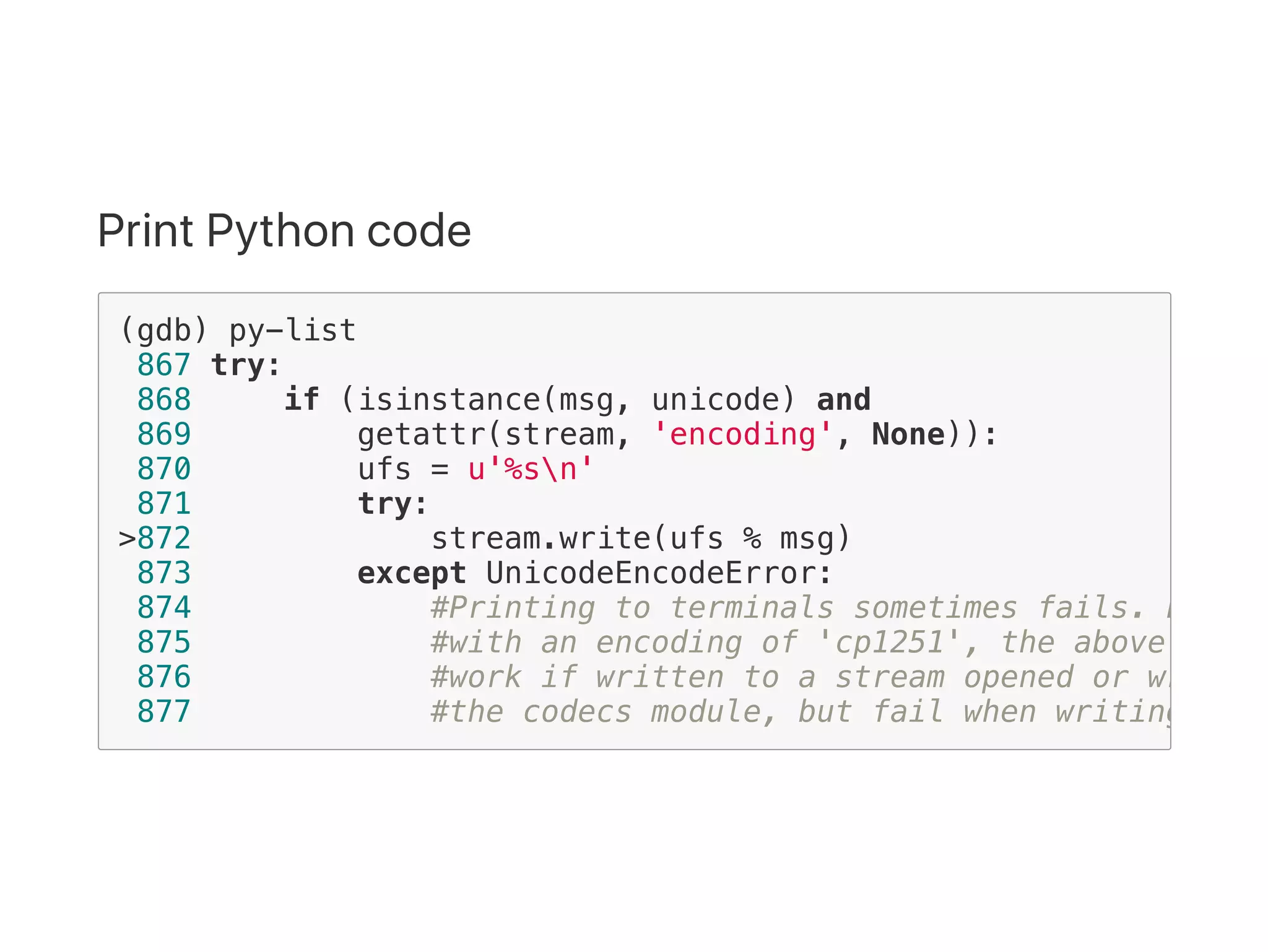

Print Python code
(gdb) py-list
867 try:
868 if (isinstance(msg, unicode) and
869 getattr(stream, 'encoding', None)):
870 ufs = u'%sn'
871 try:
>872 stream.write(ufs % msg)
873 except UnicodeEncodeError:
874 #Printing to terminals sometimes fails. For ex
875 #with an encoding of 'cp1251', the above write
876 #work if written to a stream opened or wrapped
877 #the codecs module, but fail when writing to a

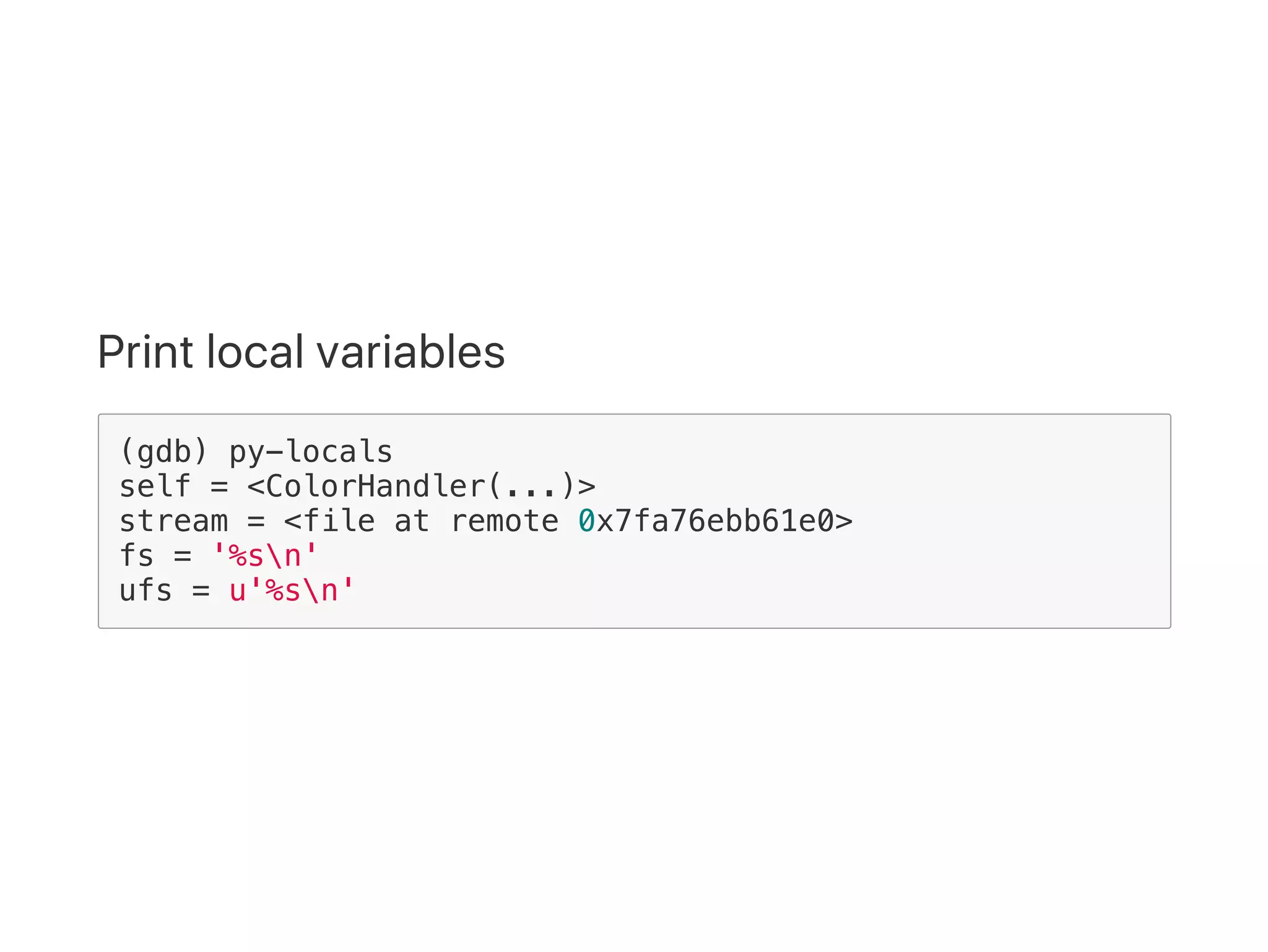

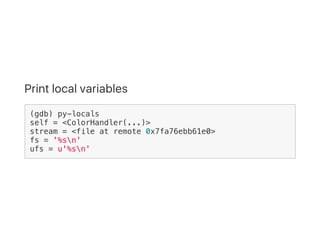

Print local variables
(gdb) py-locals
self = <ColorHandler(...)>
stream = <file at remote 0x7fa76ebb61e0>
fs = '%sn'
ufs = u'%sn'

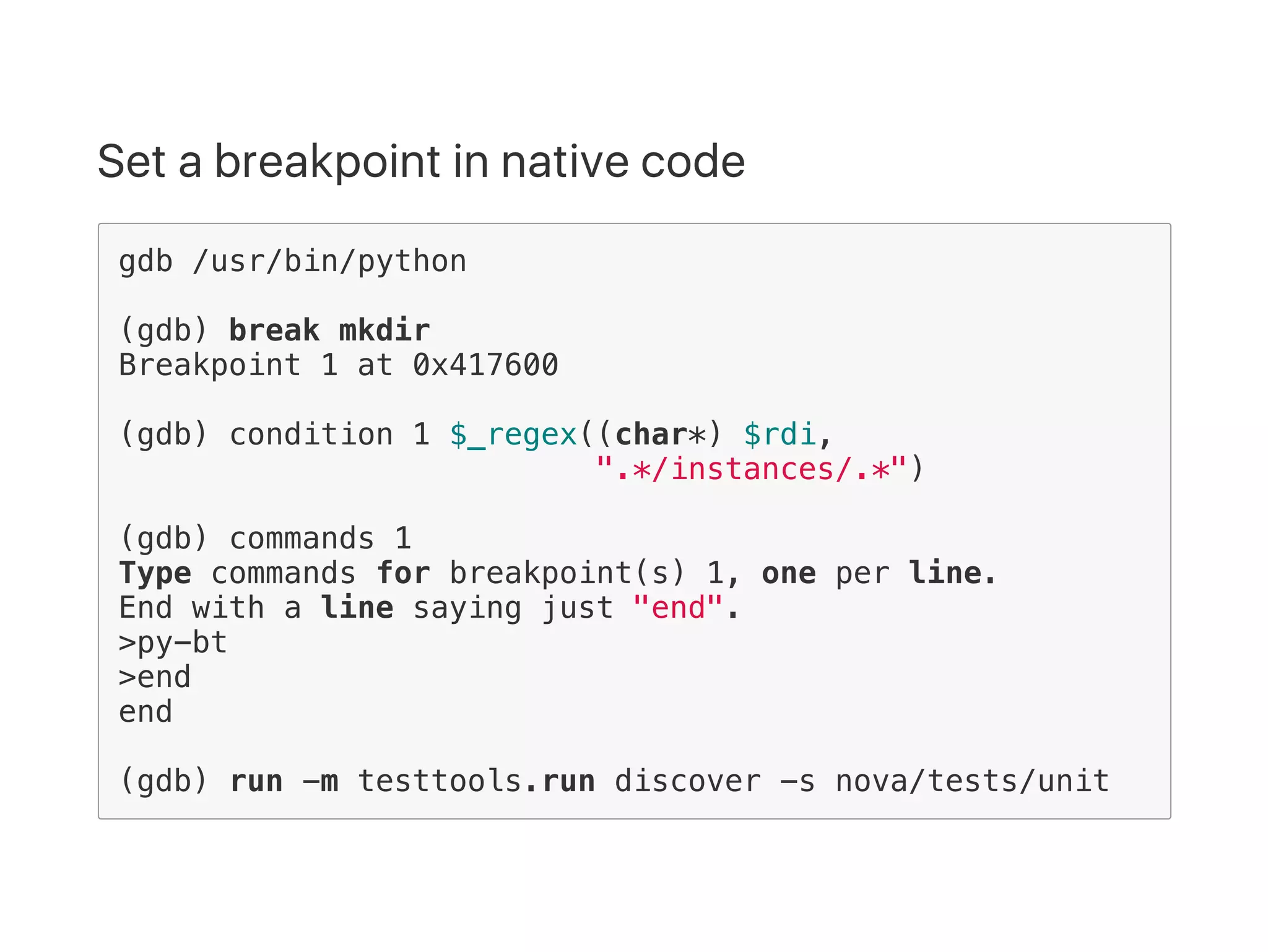

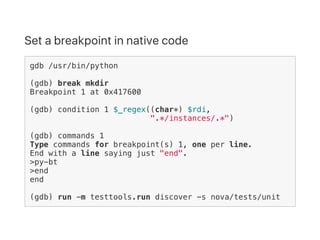

Set a breakpoint in native code
gdb /usr/bin/python
(gdb) break mkdir
Breakpoint 1 at 0x417600
(gdb) condition 1 $_regex((char*) $rdi,
".*/instances/.*")
(gdb) commands 1
Type commands for breakpoint(s) 1, one per line.
End with a line saying just "end".
>py-bt
>end
end
(gdb) run -m testtools.run discover -s nova/tests/unit

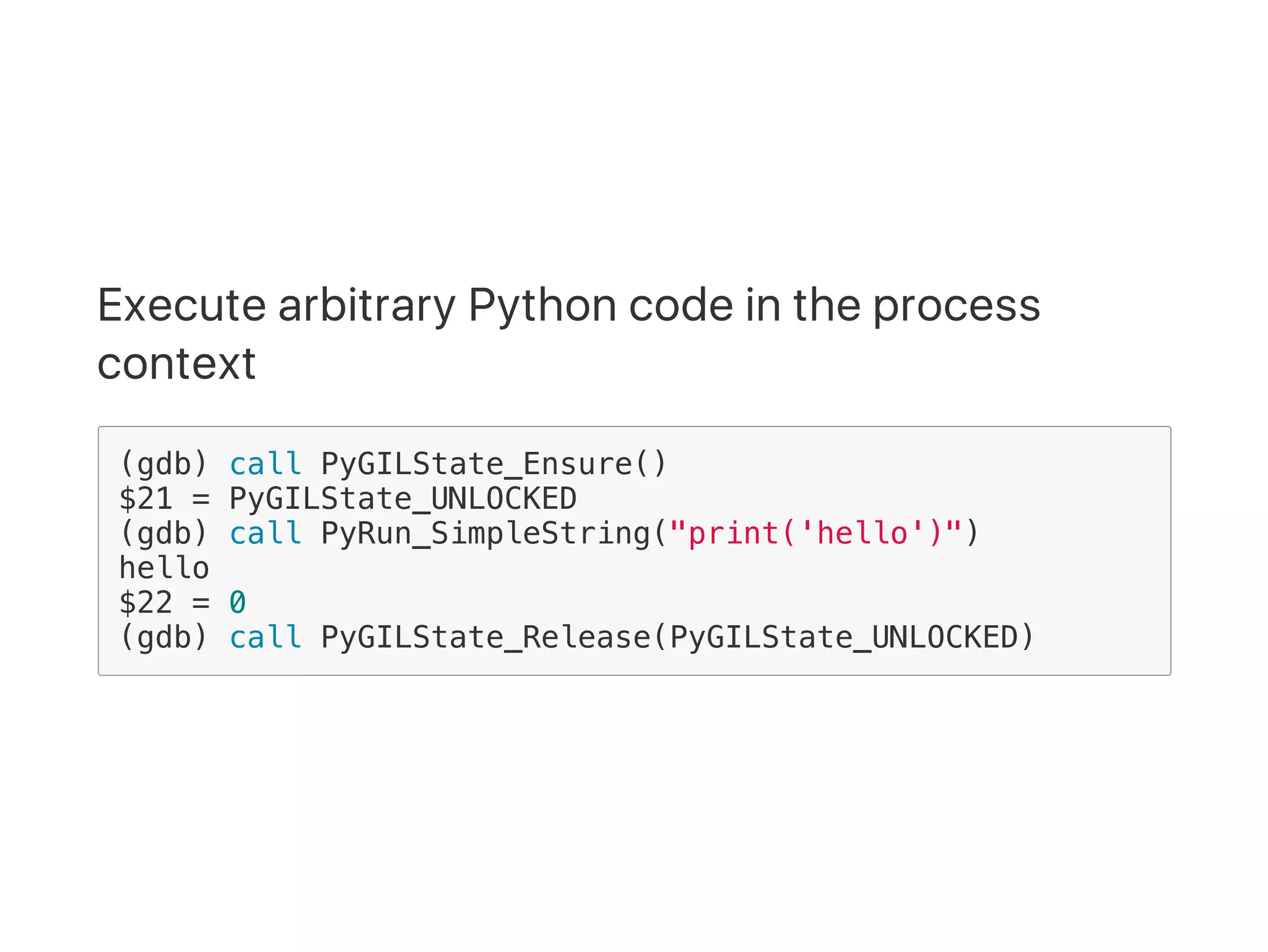

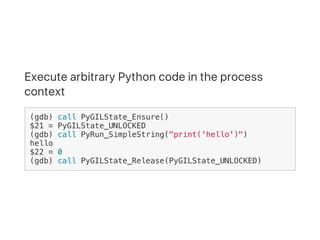

Execute arbitrary Python code in the process
context
(gdb) call PyGILState_Ensure()
$21 = PyGILState_UNLOCKED
(gdb) call PyRun_SimpleString("print('hello')")
hello
$22 = 0
(gdb) call PyGILState_Release(PyGILState_UNLOCKED)

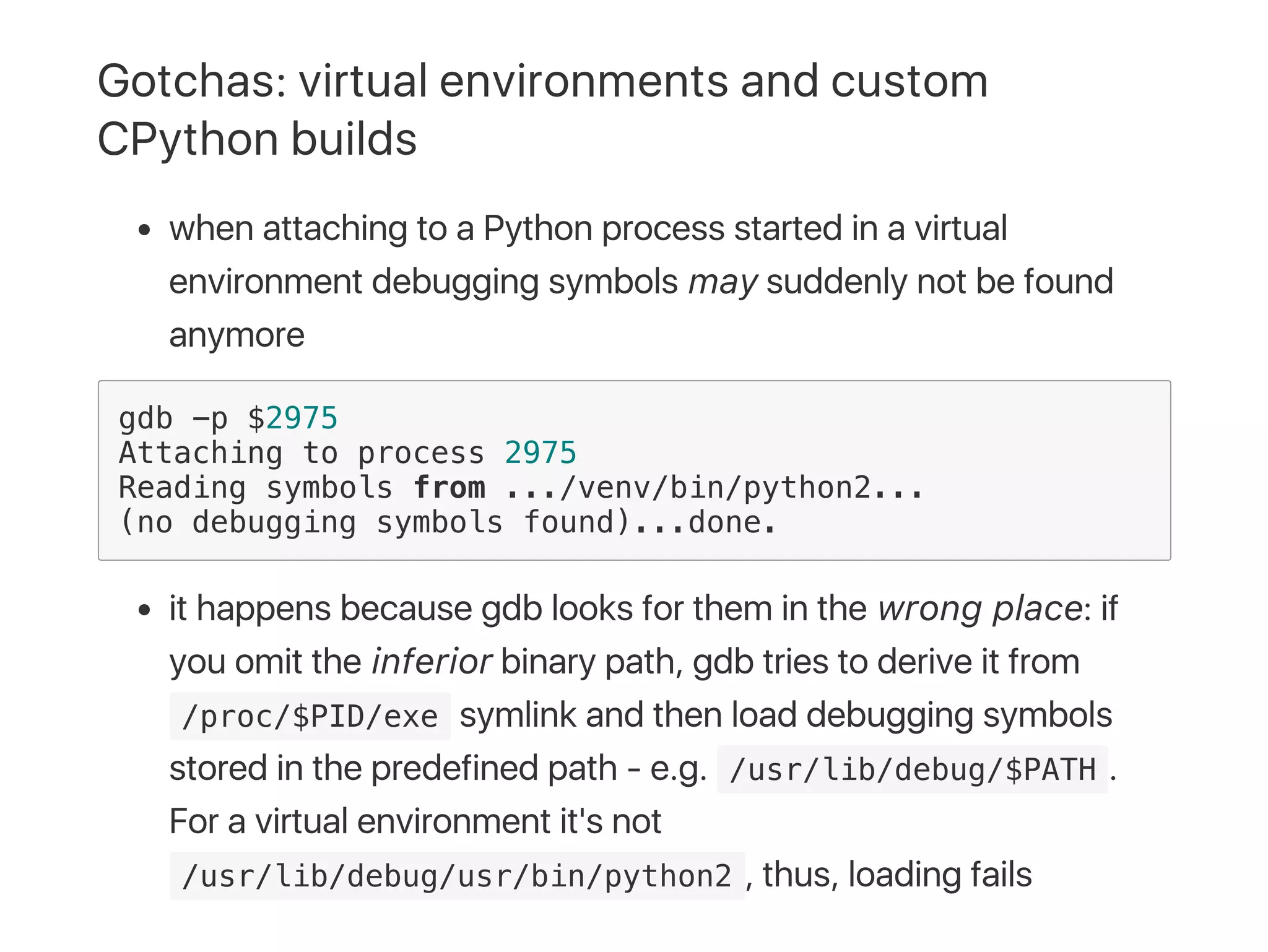

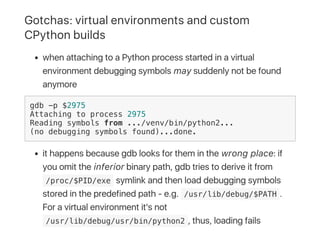

Gotchas: virtual environments and custom
CPython builds
when attaching to a Python process started in a virtual
environment debugging symbols may suddenly not be found
anymore
gdb -p $2975
Attaching to process 2975
Reading symbols from .../venv/bin/python2...
(no debugging symbols found)...done.
it happens because gdb looks for them in the wrong place: if
you omit the inferior binary path, gdb tries to derive it from
 /proc/$PID/exe symlink and then load debugging symbols
stored in the predefined path ‑ e.g.  /usr/lib/debug/$PATH .
For a virtual environment it's not
 /usr/lib/debug/usr/bin/python2 , thus, loading fails

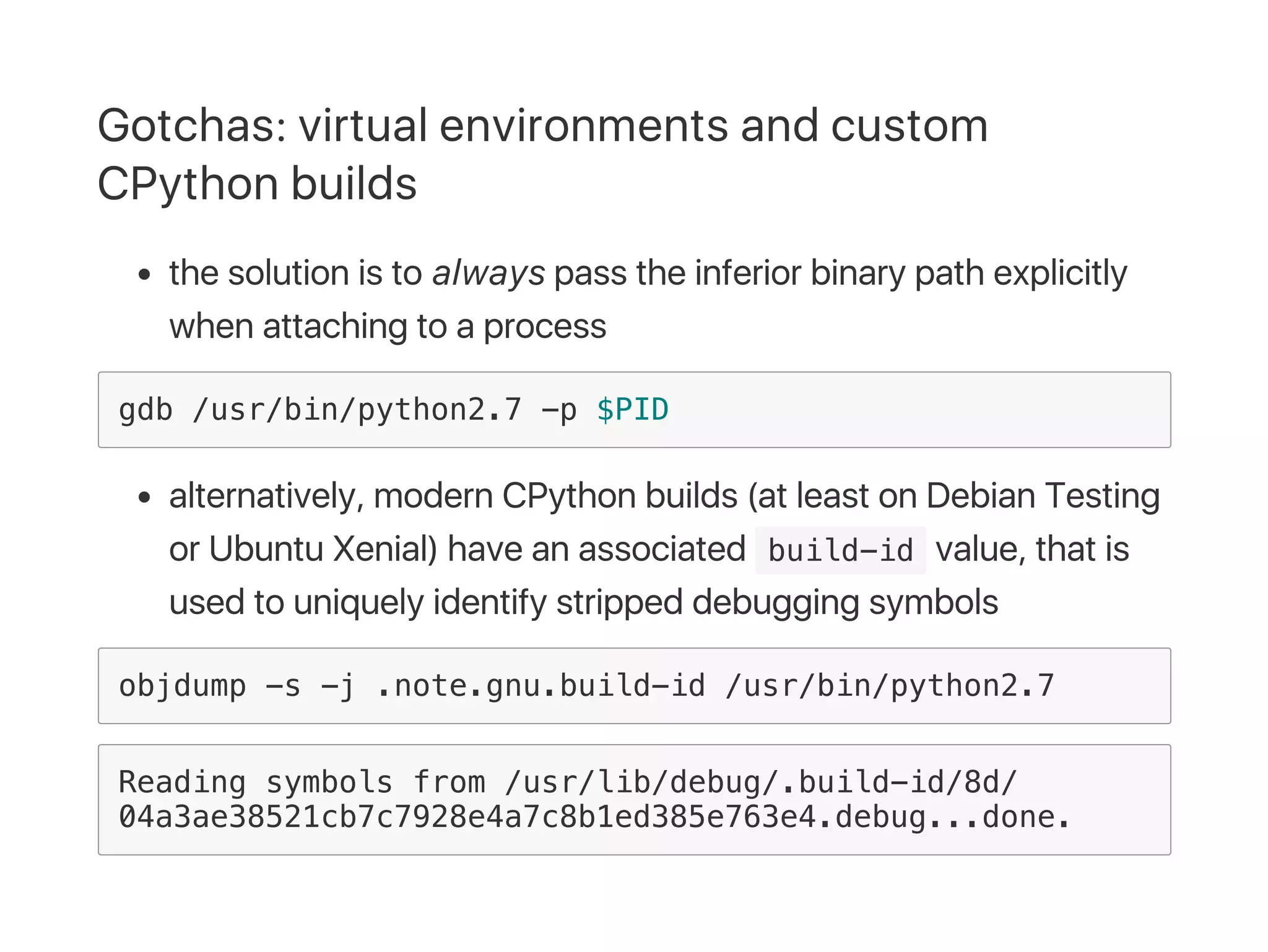

Gotchas: virtual environments and custom
CPython builds
the solution is to always pass the inferior binary path explicitly
when attaching to a process
gdb /usr/bin/python2.7 -p $PID
alternatively, modern CPython builds (at least on Debian Testing
or Ubuntu Xenial) have an associated  build-id value, that is
used to uniquely identify stripped debugging symbols
objdump -s -j .note.gnu.build-id /usr/bin/python2.7
Reading symbols from /usr/lib/debug/.build-id/8d/
04a3ae38521cb7c7928e4a7c8b1ed385e763e4.debug...done.

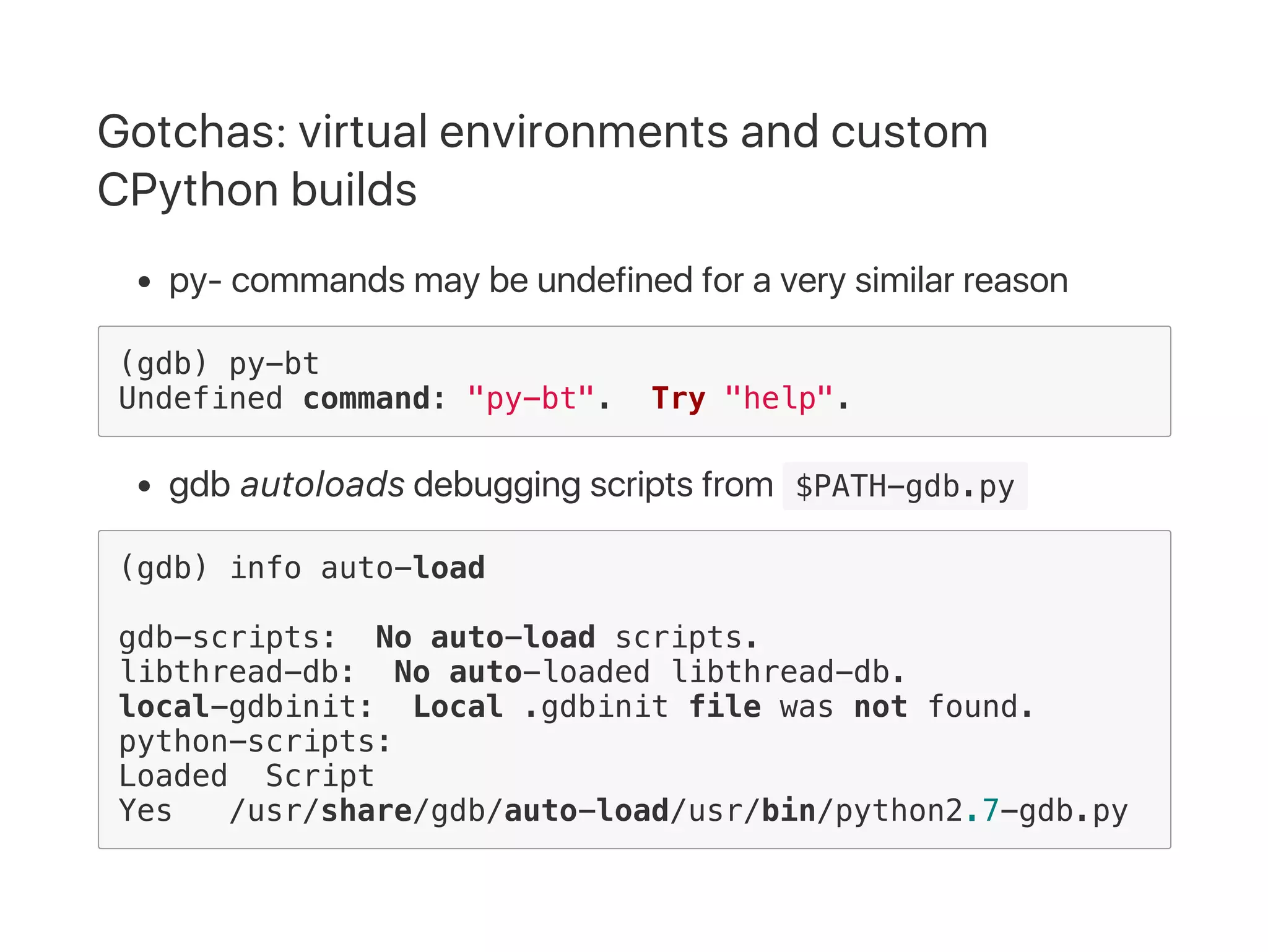

Gotchas: virtual environments and custom
CPython builds
py‑ commands may be undefined for a very similar reason
(gdb) py-bt
Undefined command: "py-bt". Try "help".
gdb autoloads debugging scripts from  $PATH-gdb.py
(gdb) info auto-load
gdb-scripts: No auto-load scripts.
libthread-db: No auto-loaded libthread-db.
local-gdbinit: Local .gdbinit file was not found.
python-scripts:
Loaded Script
Yes /usr/share/gdb/auto-load/usr/bin/python2.7-gdb.py

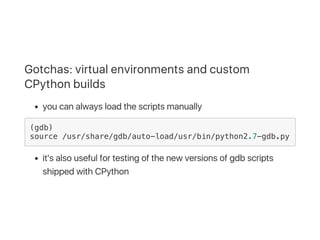

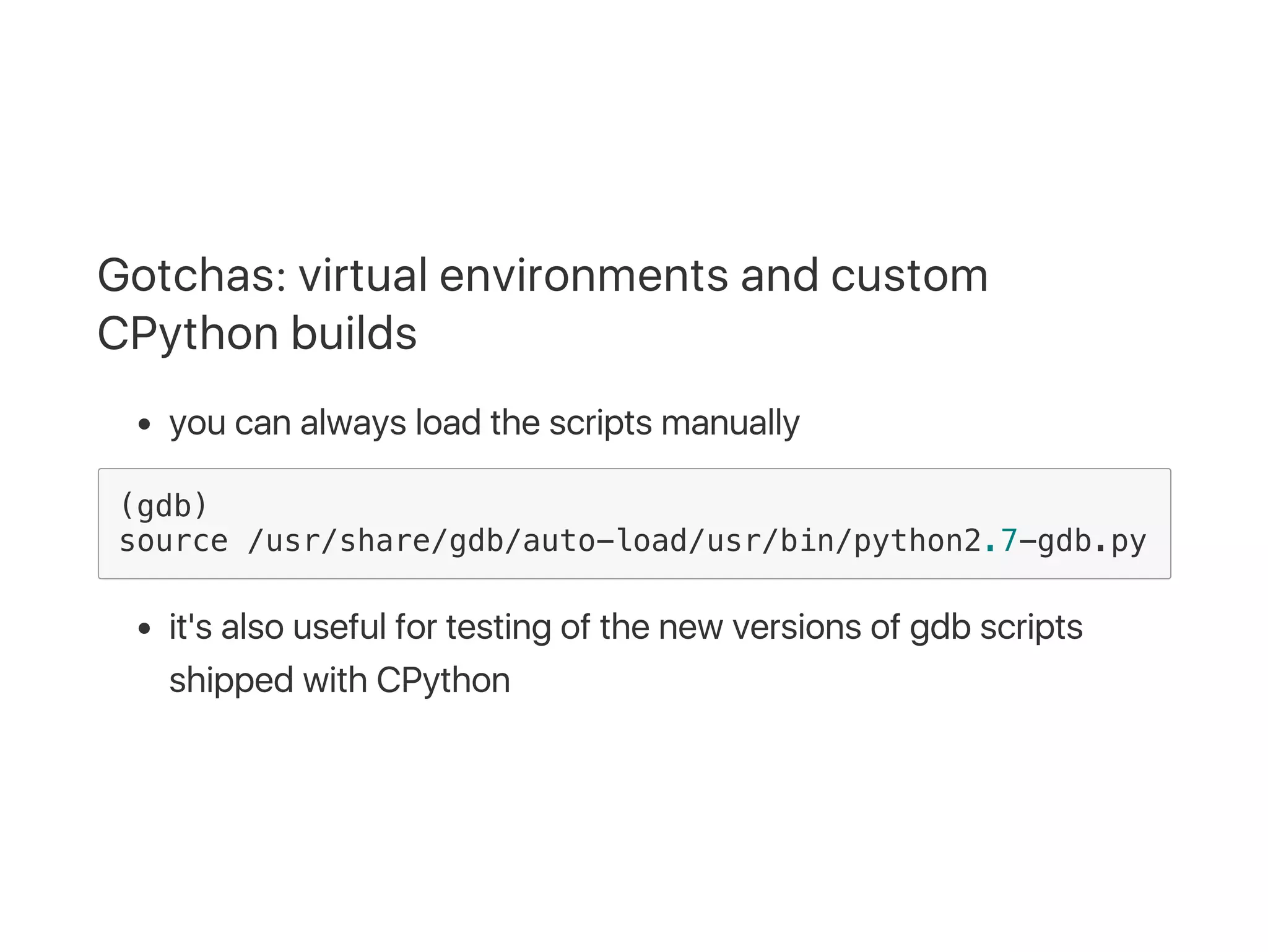

Gotchas: virtual environments and custom
CPython builds
you can always load the scripts manually
(gdb)
source /usr/share/gdb/auto-load/usr/bin/python2.7-gdb.py
it's also useful for testing of the new versions of gdb scripts
shipped with CPython

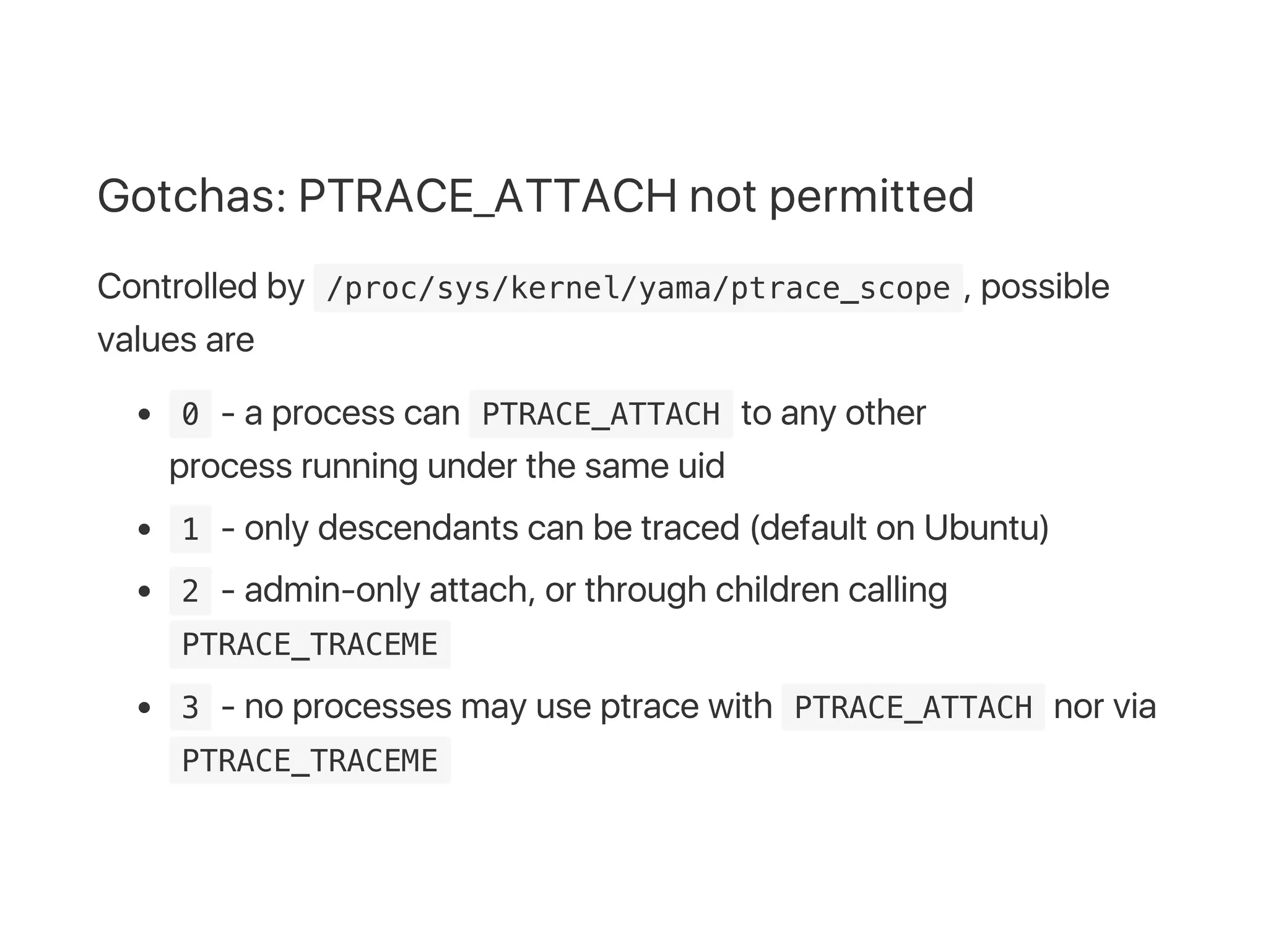

Gotchas: PTRACE_ATTACH not permitted
Controlled by  /proc/sys/kernel/yama/ptrace_scope , possible
values are
 0 ‑ a process can  PTRACE_ATTACH to any other
process running under the same uid
 1 ‑ only descendants can be traced (default on Ubuntu)
 2 ‑ admin‑only attach, or through children calling
 PTRACE_TRACEME
 3 ‑ no processes may use ptrace with  PTRACE_ATTACH nor via
 PTRACE_TRACEME

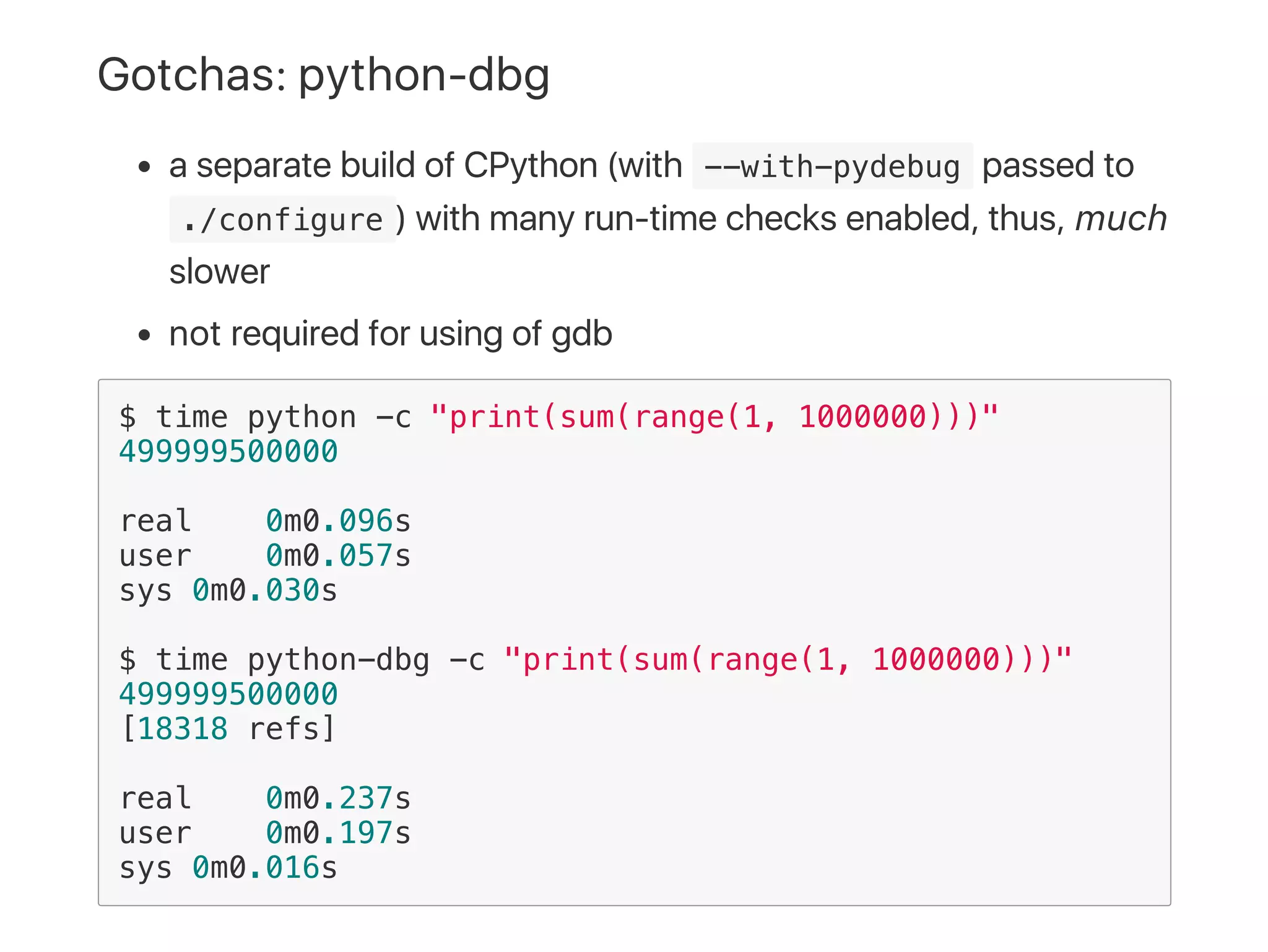

Gotchas: python‑dbg
a separate build of CPython (with  --with-pydebug passed to
 ./configure ) with many run‑time checks enabled, thus, much
slower
not required for using of gdb
$ time python -c "print(sum(range(1, 1000000)))"
499999500000
real 0m0.096s
user 0m0.057s
sys 0m0.030s
$ time python-dbg -c "print(sum(range(1, 1000000)))"
499999500000
[18318 refs]
real 0m0.237s
user 0m0.197s
sys 0m0.016s

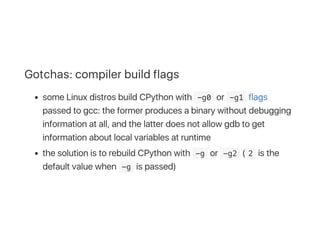

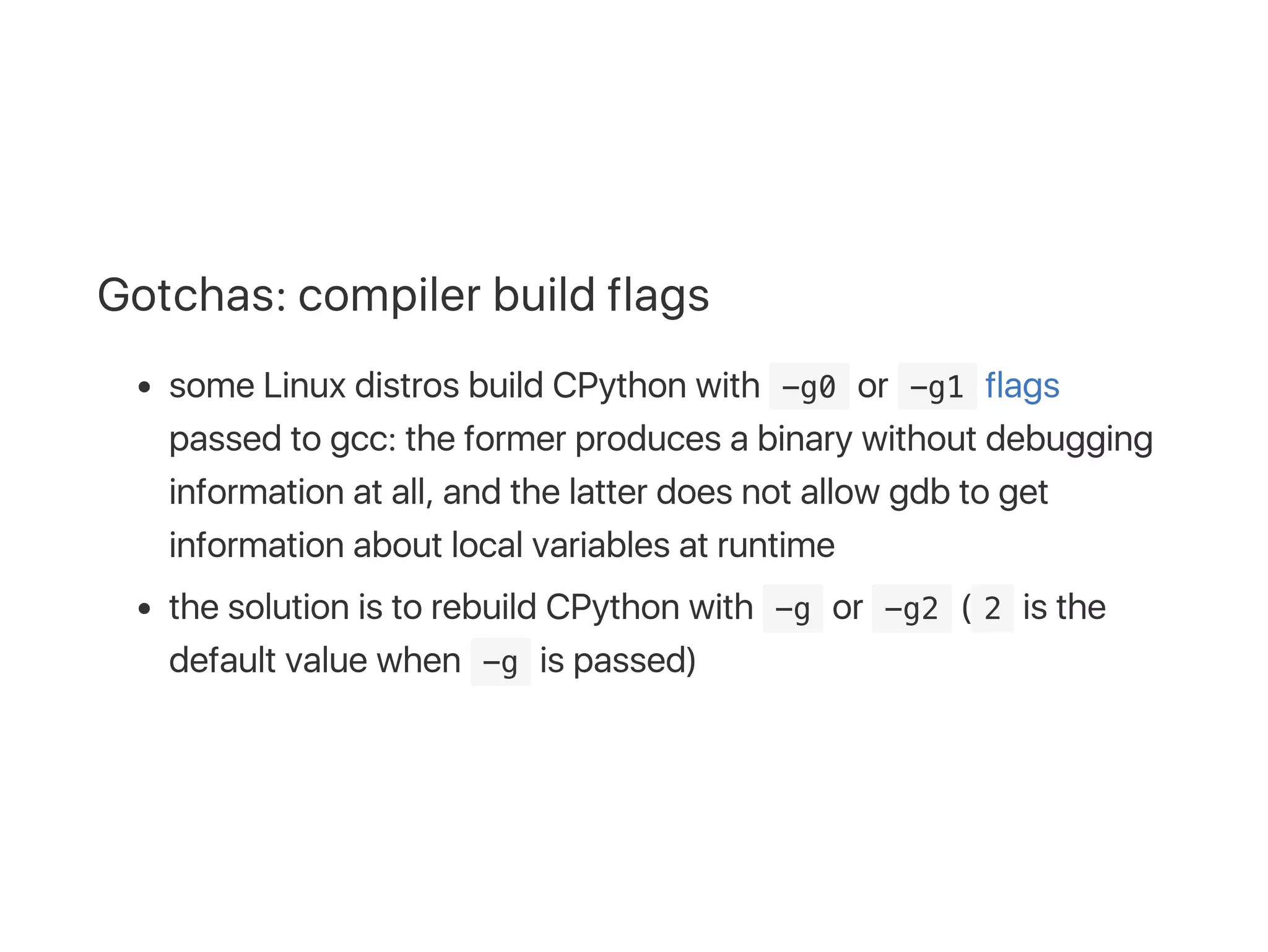

Gotchas: compiler build flags
some Linux distros build CPython with  -g0 or  -g1 flags
passed to gcc: the former produces a binary without debugging
information at all, and the latter does not allow gdb to get
information about local variables at runtime
the solution is to rebuild CPython with  -g or  -g2 ( 2 is the
default value when  -g is passed)

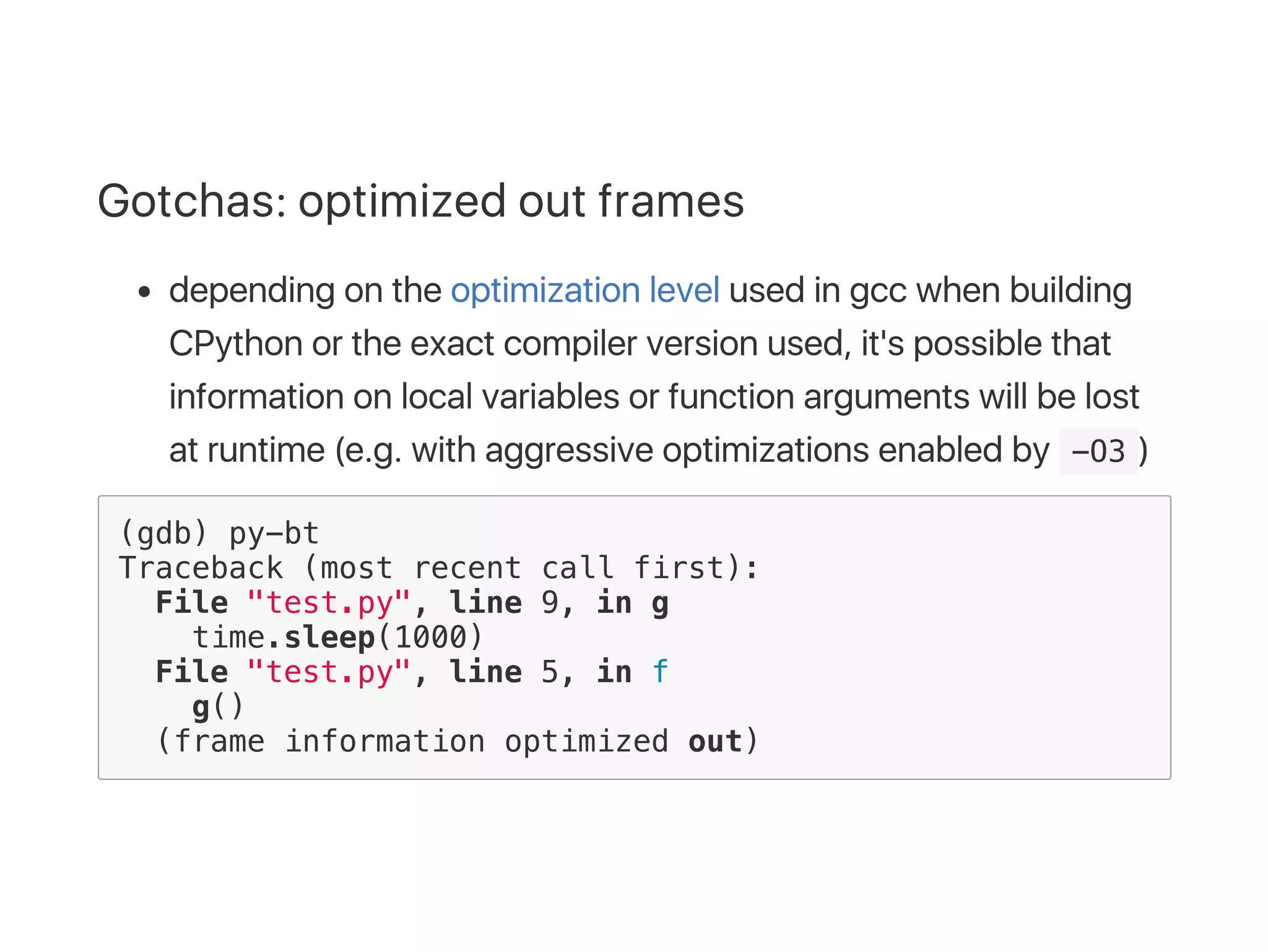

Gotchas: optimized out frames
depending on the optimization level used in gcc when building
CPython or the exact compiler version used, it's possible that
information on local variables or function arguments will be lost
at runtime (e.g. with aggressive optimizations enabled by  -O3 )
(gdb) py-bt
Traceback (most recent call first):
File "test.py", line 9, in g
time.sleep(1000)
File "test.py", line 5, in f
g()
(frame information optimized out)

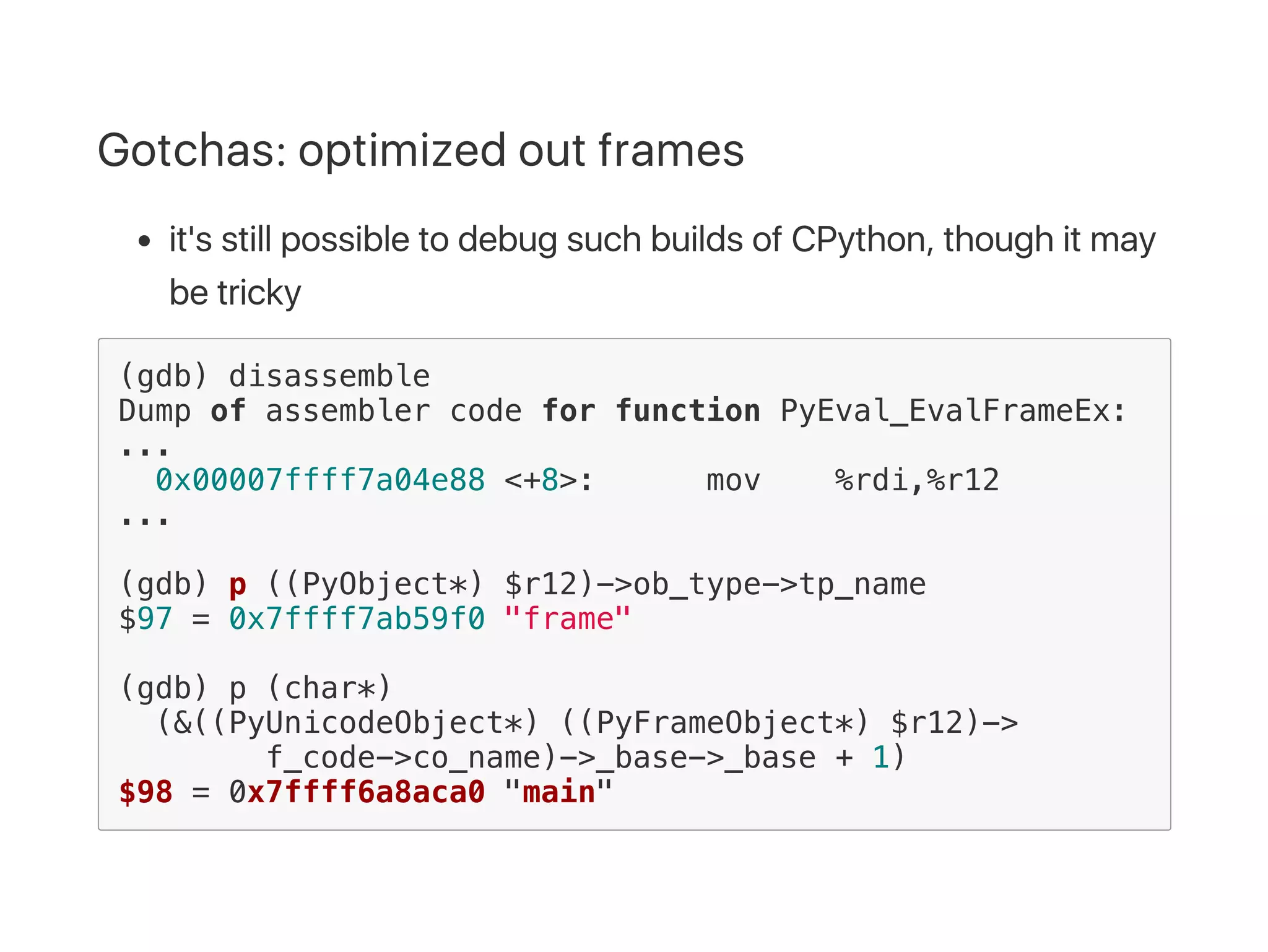

Gotchas: optimized out frames
it's still possible to debug such builds of CPython, though it may
be tricky
(gdb) disassemble
Dump of assembler code for function PyEval_EvalFrameEx:
...
0x00007ffff7a04e88 <+8>: mov %rdi,%r12
...
(gdb) p ((PyObject*) $r12)->ob_type->tp_name
$97 = 0x7ffff7ab59f0 "frame"
(gdb) p (char*)
(&((PyUnicodeObject*) ((PyFrameObject*) $r12)->
f_code->co_name)->_base->_base + 1)
$98 = 0x7ffff6a8aca0 "main"
Gotchas: PyPy, Jython, etc
the described debugging technique is only feasible for the
CPython interpreter as is, as the gdb extension is specifically
written to introspect the state of CPython internals (e.g.
 PyEval_EvalFrameEx calls)
for PyPy there is an open issue on Bitbucket, where it was
proposed to provide integration with gdb, but looks like the
attached patches have not been merged yet and the person,
who wrote those, lost interest in this
for Jython you could probably use standard tools for debugging
of JVM applications, e.g. VisualVM

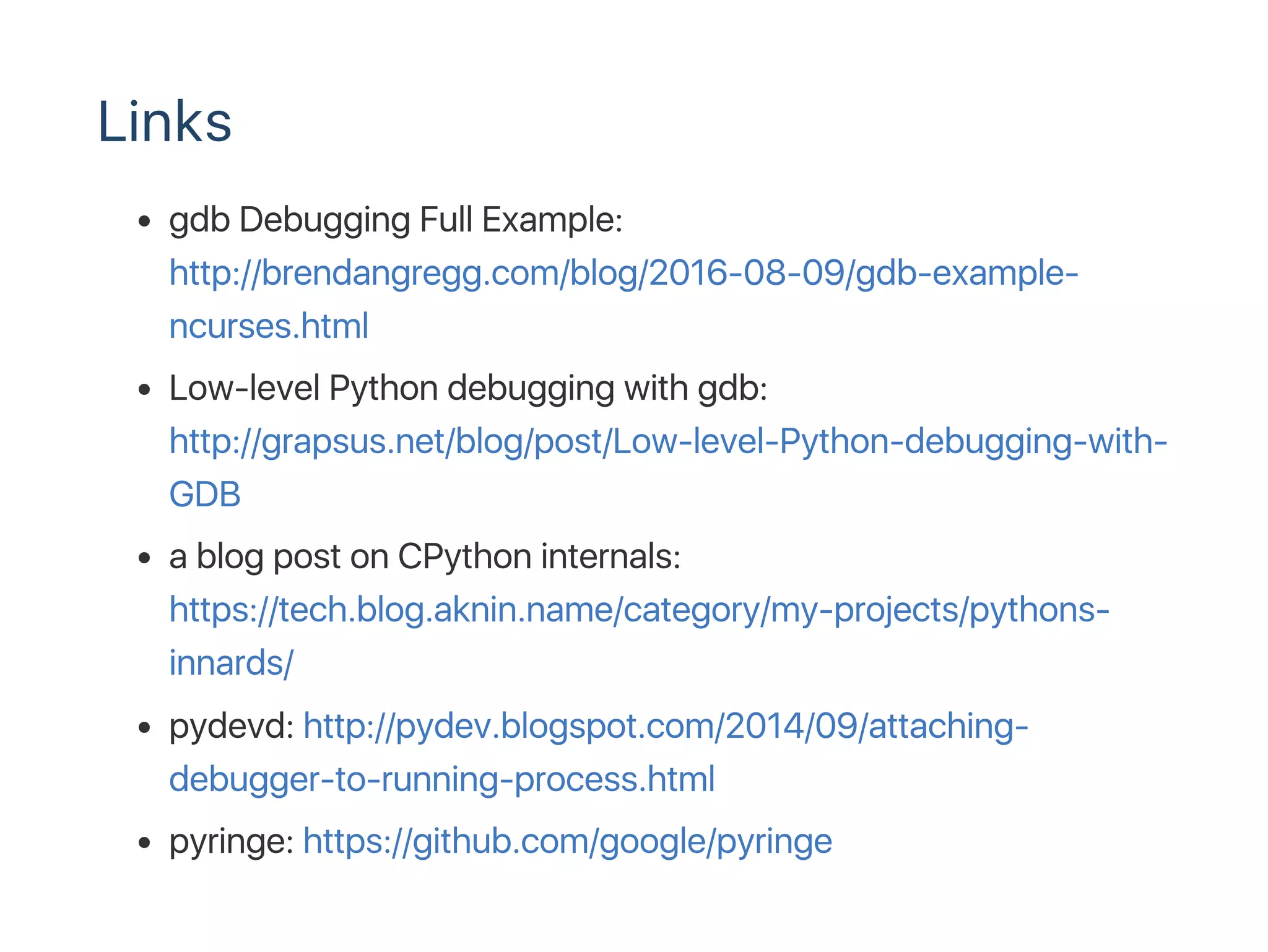

Links
gdb Debugging Full Example:
http://brendangregg.com/blog/2016‑08‑09/gdb‑example‑
ncurses.html
Low‑level Python debugging with gdb:
http://grapsus.net/blog/post/Low‑level‑Python‑debugging‑with‑
GDB
a blog post on CPython internals:
https://tech.blog.aknin.name/category/my‑projects/pythons‑
innards/
pydevd: http://pydev.blogspot.com/2014/09/attaching‑
debugger‑to‑running‑process.html
pyringe: https://github.com/google/pyringe

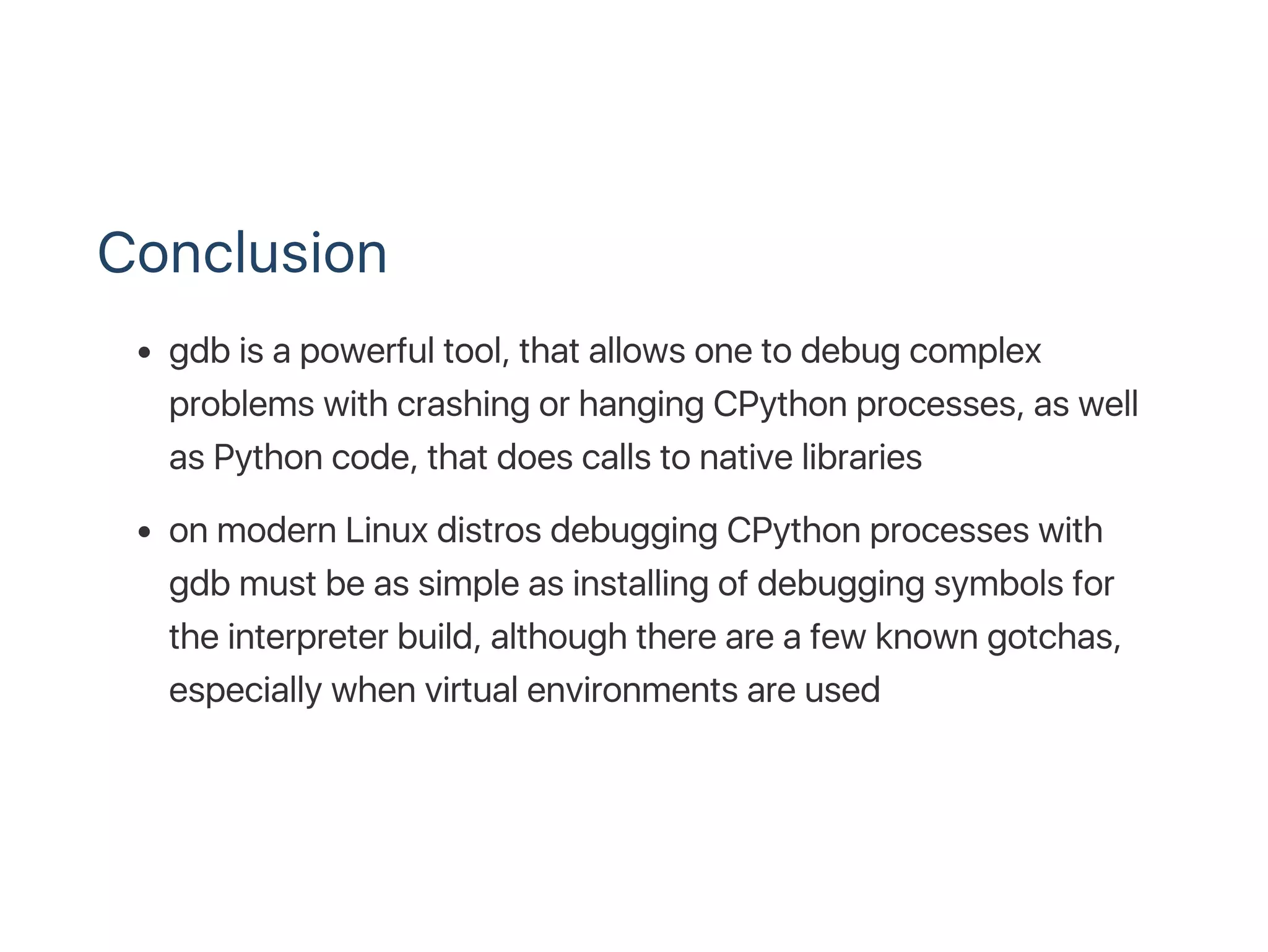

Conclusion
gdb is a powerful tool, that allows one to debug complex
problems with crashing or hanging CPython processes, as well
as Python code, that does calls to native libraries
on modern Linux distros debugging CPython processes with
gdb must be as simple as installing of debugging symbols for
the interpreter build, although there are a few known gotchas,
especially when virtual environments are used

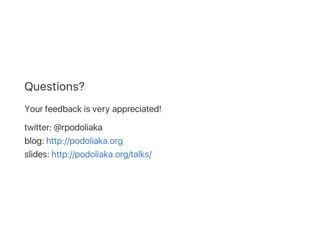

Questions?
Your feedback is very appreciated!
twitter: @rpodoliaka
blog: http://podoliaka.org
slides: http://podoliaka.org/talks/

More Related Content

What's hot

Robo Recallで使われている 最新のVR開発テクニックをご紹介!
Robo Recallで使われている最新のVR開発テクニックをご紹介!Robo Recallで使われている最新のVR開発テクニックをご紹介!
Robo Recallで使われている 最新のVR開発テクニックをご紹介!
エピック・ゲームズ・ジャパン Epic Games Japan

Optimization Deep Dive: Unreal Engine 4 on Intel
Optimization Deep Dive: Unreal Engine 4 on IntelOptimization Deep Dive: Unreal Engine 4 on Intel
Optimization Deep Dive: Unreal Engine 4 on Intel
Intel® Software

UE4を用いたTPS制作事例 EDF:IR パラメータ管理実装実例
UE4を用いたTPS制作事例 EDF:IR パラメータ管理実装実例UE4を用いたTPS制作事例 EDF:IR パラメータ管理実装実例
UE4を用いたTPS制作事例 EDF:IR パラメータ管理実装実例
エピック・ゲームズ・ジャパン Epic Games Japan

Low-level Shader Optimization for Next-Gen and DX11 by Emil Persson
Low-level Shader Optimization for Next-Gen and DX11 by Emil PerssonLow-level Shader Optimization for Next-Gen and DX11 by Emil Persson
Low-level Shader Optimization for Next-Gen and DX11 by Emil Persson
AMD Developer Central

【Unity道場スペシャル 2017大阪】トゥーンシェーダー・マニアクス2 〜ユニティちゃんトゥーンシェーダー2.0徹底解説〜
【Unity道場スペシャル 2017大阪】トゥーンシェーダー・マニアクス2 〜ユニティちゃんトゥーンシェーダー2.0徹底解説〜【Unity道場スペシャル 2017大阪】トゥーンシェーダー・マニアクス2 〜ユニティちゃんトゥーンシェーダー2.0徹底解説〜
【Unity道場スペシャル 2017大阪】トゥーンシェーダー・マニアクス2 〜ユニティちゃんトゥーンシェーダー2.0徹底解説〜
Unity Technologies Japan K.K.

ゲームデータの圧縮・解凍ツール Oodle 最新情報 - RAD ゲームツールズ - GTMF 2018 TOKYO
ゲームデータの圧縮・解凍ツール Oodle 最新情報 - RAD ゲームツールズ - GTMF 2018 TOKYOゲームデータの圧縮・解凍ツール Oodle 最新情報 - RAD ゲームツールズ - GTMF 2018 TOKYO
ゲームデータの圧縮・解凍ツール Oodle 最新情報 - RAD ゲームツールズ - GTMF 2018 TOKYO
Game Tools & Middleware Forum

Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14
Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14
Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14
AMD Developer Central

【Unite Tokyo 2018 Training Day】ProBuilderで学ぶレベルデザイン レベルデザインについて
【Unite Tokyo 2018 Training Day】ProBuilderで学ぶレベルデザイン レベルデザインについて【Unite Tokyo 2018 Training Day】ProBuilderで学ぶレベルデザイン レベルデザインについて
【Unite Tokyo 2018 Training Day】ProBuilderで学ぶレベルデザイン レベルデザインについて
Unity Technologies Japan K.K.

Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)
Takahiro Harada

UE4を用いたTPS制作事例 EDF:IR 地球を衛る兵士の作り方
UE4を用いたTPS制作事例 EDF:IR 地球を衛る兵士の作り方UE4を用いたTPS制作事例 EDF:IR 地球を衛る兵士の作り方
UE4を用いたTPS制作事例 EDF:IR 地球を衛る兵士の作り方
エピック・ゲームズ・ジャパン Epic Games Japan

アプリ起動時間高速化 ~推測するな、計測せよ~
アプリ起動時間高速化 ~推測するな、計測せよ~アプリ起動時間高速化 ~推測するな、計測せよ~
アプリ起動時間高速化 ~推測するな、計測せよ~
gree_tech

フロントエンドエンジニアが知るべきFirebaseの世界
フロントエンドエンジニアが知るべきFirebaseの世界フロントエンドエンジニアが知るべきFirebaseの世界
フロントエンドエンジニアが知るべきFirebaseの世界
Kenjiro Kubota

徹底解説!UE4を使ったモバイルゲーム開発におけるコンテンツアップデートの極意!
徹底解説!UE4を使ったモバイルゲーム開発におけるコンテンツアップデートの極意!徹底解説!UE4を使ったモバイルゲーム開発におけるコンテンツアップデートの極意!
徹底解説!UE4を使ったモバイルゲーム開発におけるコンテンツアップデートの極意!
エピック・ゲームズ・ジャパン Epic Games Japan

DirectX 11 Rendering in Battlefield 3
DirectX 11 Rendering in Battlefield 3DirectX 11 Rendering in Battlefield 3
DirectX 11 Rendering in Battlefield 3
Electronic Arts / DICE

AEC分野におけるUnreal Engine / Twinmotionの活用について【Archi Future 2020】
AEC分野におけるUnreal Engine / Twinmotionの活用について【Archi Future 2020】AEC分野におけるUnreal Engine / Twinmotionの活用について【Archi Future 2020】
AEC分野におけるUnreal Engine / Twinmotionの活用について【Archi Future 2020】
エピック・ゲームズ・ジャパン Epic Games Japan

Unreal Engine最新機能 アニメーション+物理ショーケース!
Unreal Engine最新機能 アニメーション+物理ショーケース!Unreal Engine最新機能 アニメーション+物理ショーケース!
Unreal Engine最新機能 アニメーション+物理ショーケース!
エピック・ゲームズ・ジャパン Epic Games Japan

UE4におけるLoadingとGCのProfilingと最適化手法
UE4におけるLoadingとGCのProfilingと最適化手法UE4におけるLoadingとGCのProfilingと最適化手法
UE4におけるLoadingとGCのProfilingと最適化手法
エピック・ゲームズ・ジャパン Epic Games Japan

Dockerを利用したローカル環境から本番環境までの構築設計
Dockerを利用したローカル環境から本番環境までの構築設計Dockerを利用したローカル環境から本番環境までの構築設計
Dockerを利用したローカル環境から本番環境までの構築設計
Koichi Nagaoka

모바일 게임 최적화
모바일 게임 최적화 모바일 게임 최적화
모바일 게임 최적화
tartist

Rendering Techniques in Rise of the Tomb Raider
Rendering Techniques in Rise of the Tomb RaiderRendering Techniques in Rise of the Tomb Raider
Rendering Techniques in Rise of the Tomb Raider
Eidos-Montréal


What's hot (20)

Robo Recallで使われている 最新のVR開発テクニックをご紹介!
Robo Recallで使われている最新のVR開発テクニックをご紹介!Robo Recallで使われている最新のVR開発テクニックをご紹介!
Robo Recallで使われている 最新のVR開発テクニックをご紹介!

Optimization Deep Dive: Unreal Engine 4 on Intel
Optimization Deep Dive: Unreal Engine 4 on IntelOptimization Deep Dive: Unreal Engine 4 on Intel
Optimization Deep Dive: Unreal Engine 4 on Intel

UE4を用いたTPS制作事例 EDF:IR パラメータ管理実装実例
UE4を用いたTPS制作事例 EDF:IR パラメータ管理実装実例UE4を用いたTPS制作事例 EDF:IR パラメータ管理実装実例
UE4を用いたTPS制作事例 EDF:IR パラメータ管理実装実例

Low-level Shader Optimization for Next-Gen and DX11 by Emil Persson
Low-level Shader Optimization for Next-Gen and DX11 by Emil PerssonLow-level Shader Optimization for Next-Gen and DX11 by Emil Persson
Low-level Shader Optimization for Next-Gen and DX11 by Emil Persson

【Unity道場スペシャル 2017大阪】トゥーンシェーダー・マニアクス2 〜ユニティちゃんトゥーンシェーダー2.0徹底解説〜
【Unity道場スペシャル 2017大阪】トゥーンシェーダー・マニアクス2 〜ユニティちゃんトゥーンシェーダー2.0徹底解説〜【Unity道場スペシャル 2017大阪】トゥーンシェーダー・マニアクス2 〜ユニティちゃんトゥーンシェーダー2.0徹底解説〜
【Unity道場スペシャル 2017大阪】トゥーンシェーダー・マニアクス2 〜ユニティちゃんトゥーンシェーダー2.0徹底解説〜

ゲームデータの圧縮・解凍ツール Oodle 最新情報 - RAD ゲームツールズ - GTMF 2018 TOKYO
ゲームデータの圧縮・解凍ツール Oodle 最新情報 - RAD ゲームツールズ - GTMF 2018 TOKYOゲームデータの圧縮・解凍ツール Oodle 最新情報 - RAD ゲームツールズ - GTMF 2018 TOKYO
ゲームデータの圧縮・解凍ツール Oodle 最新情報 - RAD ゲームツールズ - GTMF 2018 TOKYO

Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14
Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14
Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14

【Unite Tokyo 2018 Training Day】ProBuilderで学ぶレベルデザイン レベルデザインについて
【Unite Tokyo 2018 Training Day】ProBuilderで学ぶレベルデザイン レベルデザインについて【Unite Tokyo 2018 Training Day】ProBuilderで学ぶレベルデザイン レベルデザインについて
【Unite Tokyo 2018 Training Day】ProBuilderで学ぶレベルデザイン レベルデザインについて

Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)

UE4を用いたTPS制作事例 EDF:IR 地球を衛る兵士の作り方
UE4を用いたTPS制作事例 EDF:IR 地球を衛る兵士の作り方UE4を用いたTPS制作事例 EDF:IR 地球を衛る兵士の作り方
UE4を用いたTPS制作事例 EDF:IR 地球を衛る兵士の作り方

アプリ起動時間高速化 ~推測するな、計測せよ~
アプリ起動時間高速化 ~推測するな、計測せよ~アプリ起動時間高速化 ~推測するな、計測せよ~
アプリ起動時間高速化 ~推測するな、計測せよ~

フロントエンドエンジニアが知るべきFirebaseの世界
フロントエンドエンジニアが知るべきFirebaseの世界フロントエンドエンジニアが知るべきFirebaseの世界
フロントエンドエンジニアが知るべきFirebaseの世界

徹底解説!UE4を使ったモバイルゲーム開発におけるコンテンツアップデートの極意!
徹底解説!UE4を使ったモバイルゲーム開発におけるコンテンツアップデートの極意!徹底解説!UE4を使ったモバイルゲーム開発におけるコンテンツアップデートの極意!
徹底解説!UE4を使ったモバイルゲーム開発におけるコンテンツアップデートの極意!

DirectX 11 Rendering in Battlefield 3
DirectX 11 Rendering in Battlefield 3DirectX 11 Rendering in Battlefield 3
DirectX 11 Rendering in Battlefield 3

AEC分野におけるUnreal Engine / Twinmotionの活用について【Archi Future 2020】
AEC分野におけるUnreal Engine / Twinmotionの活用について【Archi Future 2020】AEC分野におけるUnreal Engine / Twinmotionの活用について【Archi Future 2020】
AEC分野におけるUnreal Engine / Twinmotionの活用について【Archi Future 2020】

Unreal Engine最新機能 アニメーション+物理ショーケース!
Unreal Engine最新機能 アニメーション+物理ショーケース!Unreal Engine最新機能 アニメーション+物理ショーケース!
Unreal Engine最新機能 アニメーション+物理ショーケース!

UE4におけるLoadingとGCのProfilingと最適化手法
UE4におけるLoadingとGCのProfilingと最適化手法UE4におけるLoadingとGCのProfilingと最適化手法
UE4におけるLoadingとGCのProfilingと最適化手法

Dockerを利用したローカル環境から本番環境までの構築設計
Dockerを利用したローカル環境から本番環境までの構築設計Dockerを利用したローカル環境から本番環境までの構築設計
Dockerを利用したローカル環境から本番環境までの構築設計

모바일 게임 최적화
모바일 게임 최적화 모바일 게임 최적화
모바일 게임 최적화

Rendering Techniques in Rise of the Tomb Raider
Rendering Techniques in Rise of the Tomb RaiderRendering Techniques in Rise of the Tomb Raider
Rendering Techniques in Rise of the Tomb Raider


Similar to Debugging Python with gdb

Debugging of (C)Python applications
Debugging of (C)Python applicationsDebugging of (C)Python applications
Debugging of (C)Python applications
Roman Podoliaka

carrow - Go bindings to Apache Arrow via C++-API
carrow - Go bindings to Apache Arrow via C++-APIcarrow - Go bindings to Apache Arrow via C++-API
carrow - Go bindings to Apache Arrow via C++-API
Yoni Davidson

Debugging Hung Python Processes With GDB
Debugging Hung Python Processes With GDBDebugging Hung Python Processes With GDB
Debugging Hung Python Processes With GDB
bmbouter

LibOS as a regression test framework for Linux networking #netdev1.1
LibOS as a regression test framework for Linux networking #netdev1.1LibOS as a regression test framework for Linux networking #netdev1.1
LibOS as a regression test framework for Linux networking #netdev1.1
Hajime Tazaki

Linux kernel tracing superpowers in the cloud
Linux kernel tracing superpowers in the cloudLinux kernel tracing superpowers in the cloud
Linux kernel tracing superpowers in the cloud
Andrea Righi

App container rkt
App container rktApp container rkt
App container rkt
Xiaofeng Guo

C tutorial
C tutorialC tutorial
C tutorial
Amit Dhiman

Hack Like It's 2013 (The Workshop)
Hack Like It's 2013 (The Workshop)Hack Like It's 2013 (The Workshop)
Hack Like It's 2013 (The Workshop)
Itzik Kotler

D. Fast, Simple User-Space Network Functions with Snabb (RIPE 77)
D. Fast, Simple User-Space Network Functions with Snabb (RIPE 77)D. Fast, Simple User-Space Network Functions with Snabb (RIPE 77)
D. Fast, Simple User-Space Network Functions with Snabb (RIPE 77)
Igalia

Advance Android Application Development
Advance Android Application DevelopmentAdvance Android Application Development
Advance Android Application Development
Ramesh Prasad

Virtual platform
Virtual platformVirtual platform
Virtual platform
sean chen

Multicore
MulticoreMulticore
C Under Linux
C Under LinuxC Under Linux
C Under Linux
mohan43u

Advanced debugging  techniques in different environments
Advanced debugging  techniques in different environmentsAdvanced debugging  techniques in different environments
Advanced debugging  techniques in different environments
Andrii Soldatenko

[ CNCF Q1 2024 ] Intro to Continuous Profiling and Grafana Pyroscope.pdf
[ CNCF Q1 2024 ] Intro to Continuous Profiling and Grafana Pyroscope.pdf[ CNCF Q1 2024 ] Intro to Continuous Profiling and Grafana Pyroscope.pdf
[ CNCF Q1 2024 ] Intro to Continuous Profiling and Grafana Pyroscope.pdf
Steve Caron

EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4
Max Kleiner

Dependencies Managers in C/C++. Using stdcpp 2014
Dependencies Managers in C/C++. Using stdcpp 2014Dependencies Managers in C/C++. Using stdcpp 2014
Dependencies Managers in C/C++. Using stdcpp 2014
biicode

(1) c sharp introduction_basics_dot_net
(1) c sharp introduction_basics_dot_net(1) c sharp introduction_basics_dot_net
(1) c sharp introduction_basics_dot_net
Nico Ludwig

Understanding eBPF in a Hurry!
Understanding eBPF in a Hurry!Understanding eBPF in a Hurry!
Understanding eBPF in a Hurry!
Ray Jenkins

Pragmatic Optimization in Modern Programming - Demystifying the Compiler
Pragmatic Optimization in Modern Programming - Demystifying the CompilerPragmatic Optimization in Modern Programming - Demystifying the Compiler
Pragmatic Optimization in Modern Programming - Demystifying the Compiler
Marina Kolpakova


Similar to Debugging Python with gdb (20)

Debugging of (C)Python applications
Debugging of (C)Python applicationsDebugging of (C)Python applications
Debugging of (C)Python applications

carrow - Go bindings to Apache Arrow via C++-API
carrow - Go bindings to Apache Arrow via C++-APIcarrow - Go bindings to Apache Arrow via C++-API
carrow - Go bindings to Apache Arrow via C++-API

Debugging Hung Python Processes With GDB
Debugging Hung Python Processes With GDBDebugging Hung Python Processes With GDB
Debugging Hung Python Processes With GDB

LibOS as a regression test framework for Linux networking #netdev1.1
LibOS as a regression test framework for Linux networking #netdev1.1LibOS as a regression test framework for Linux networking #netdev1.1
LibOS as a regression test framework for Linux networking #netdev1.1

Linux kernel tracing superpowers in the cloud
Linux kernel tracing superpowers in the cloudLinux kernel tracing superpowers in the cloud
Linux kernel tracing superpowers in the cloud

App container rkt
App container rktApp container rkt
App container rkt

C tutorial
C tutorialC tutorial
C tutorial

Hack Like It's 2013 (The Workshop)
Hack Like It's 2013 (The Workshop)Hack Like It's 2013 (The Workshop)
Hack Like It's 2013 (The Workshop)

D. Fast, Simple User-Space Network Functions with Snabb (RIPE 77)
D. Fast, Simple User-Space Network Functions with Snabb (RIPE 77)D. Fast, Simple User-Space Network Functions with Snabb (RIPE 77)
D. Fast, Simple User-Space Network Functions with Snabb (RIPE 77)

Advance Android Application Development
Advance Android Application DevelopmentAdvance Android Application Development
Advance Android Application Development

Virtual platform
Virtual platformVirtual platform
Virtual platform

Multicore
MulticoreMulticore
Multicore

C Under Linux
C Under LinuxC Under Linux
C Under Linux

Advanced debugging  techniques in different environments
Advanced debugging  techniques in different environmentsAdvanced debugging  techniques in different environments
Advanced debugging  techniques in different environments

[ CNCF Q1 2024 ] Intro to Continuous Profiling and Grafana Pyroscope.pdf
[ CNCF Q1 2024 ] Intro to Continuous Profiling and Grafana Pyroscope.pdf[ CNCF Q1 2024 ] Intro to Continuous Profiling and Grafana Pyroscope.pdf
[ CNCF Q1 2024 ] Intro to Continuous Profiling and Grafana Pyroscope.pdf

EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4

Dependencies Managers in C/C++. Using stdcpp 2014
Dependencies Managers in C/C++. Using stdcpp 2014Dependencies Managers in C/C++. Using stdcpp 2014
Dependencies Managers in C/C++. Using stdcpp 2014

(1) c sharp introduction_basics_dot_net
(1) c sharp introduction_basics_dot_net(1) c sharp introduction_basics_dot_net
(1) c sharp introduction_basics_dot_net

Understanding eBPF in a Hurry!
Understanding eBPF in a Hurry!Understanding eBPF in a Hurry!
Understanding eBPF in a Hurry!

Pragmatic Optimization in Modern Programming - Demystifying the Compiler
Pragmatic Optimization in Modern Programming - Demystifying the CompilerPragmatic Optimization in Modern Programming - Demystifying the Compiler
Pragmatic Optimization in Modern Programming - Demystifying the Compiler


Recently uploaded

gray level transformation unit 3(image processing))
gray level transformation unit 3(image processing))gray level transformation unit 3(image processing))
gray level transformation unit 3(image processing))
shivani5543

Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...
bijceesjournal

Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
IJECEIAES

ML Based Model for NIDS MSc Updated Presentation.v2.pptx
ML Based Model for NIDS MSc Updated Presentation.v2.pptxML Based Model for NIDS MSc Updated Presentation.v2.pptx
ML Based Model for NIDS MSc Updated Presentation.v2.pptx
JamalHussainArman

Manufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptxManufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptx
Madan Karki

The Python for beginners. This is an advance computer language.
The Python for beginners. This is an advance computer language.The Python for beginners. This is an advance computer language.
The Python for beginners. This is an advance computer language.
sachin chaurasia

Curve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods RegressionCurve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods Regression
Nada Hikmah

ISPM 15 Heat Treated Wood Stamps and why your shipping must have one
ISPM 15 Heat Treated Wood Stamps and why your shipping must have oneISPM 15 Heat Treated Wood Stamps and why your shipping must have one
ISPM 15 Heat Treated Wood Stamps and why your shipping must have one
Las Vegas Warehouse

一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
ecqow

Computational Engineering IITH Presentation
Computational Engineering IITH PresentationComputational Engineering IITH Presentation
Computational Engineering IITH Presentation
co23btech11018

KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressionsKuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
Victor Morales

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation
kandramariana6

BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdfBPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
MIGUELANGEL966976

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
IJECEIAES

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring
IJECEIAES

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
shadow0702a

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesHarnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Christina Lin

Understanding Inductive Bias in Machine Learning
Understanding Inductive Bias in Machine LearningUnderstanding Inductive Bias in Machine Learning
Understanding Inductive Bias in Machine Learning
SUTEJAS

Properties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptxProperties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptx
MDSABBIROJJAMANPAYEL

LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by AnantLLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
Anant Corporation


Recently uploaded (20)

gray level transformation unit 3(image processing))
gray level transformation unit 3(image processing))gray level transformation unit 3(image processing))
gray level transformation unit 3(image processing))

Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...Comparative analysis between traditional aquaponics and reconstructed aquapon...
Comparative analysis between traditional aquaponics and reconstructed aquapon...

Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...

ML Based Model for NIDS MSc Updated Presentation.v2.pptx
ML Based Model for NIDS MSc Updated Presentation.v2.pptxML Based Model for NIDS MSc Updated Presentation.v2.pptx
ML Based Model for NIDS MSc Updated Presentation.v2.pptx

Manufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptxManufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptx

The Python for beginners. This is an advance computer language.
The Python for beginners. This is an advance computer language.The Python for beginners. This is an advance computer language.
The Python for beginners. This is an advance computer language.

Curve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods RegressionCurve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods Regression

ISPM 15 Heat Treated Wood Stamps and why your shipping must have one
ISPM 15 Heat Treated Wood Stamps and why your shipping must have oneISPM 15 Heat Treated Wood Stamps and why your shipping must have one
ISPM 15 Heat Treated Wood Stamps and why your shipping must have one

一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理

Computational Engineering IITH Presentation
Computational Engineering IITH PresentationComputational Engineering IITH Presentation
Computational Engineering IITH Presentation

KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressionsKuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation

BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdfBPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesHarnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines

Understanding Inductive Bias in Machine Learning
Understanding Inductive Bias in Machine LearningUnderstanding Inductive Bias in Machine Learning
Understanding Inductive Bias in Machine Learning

Properties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptxProperties Railway Sleepers and Test.pptx
Properties Railway Sleepers and Test.pptx

LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by AnantLLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant


Debugging Python with gdb

  • 1. Debugging of Python with gdb PyCon Ukraine 2017 Lviv, Ukraine April 9th, 2017 by Roman Podoliaka, Development Manager at Mirantis twitter: @rpodoliaka blog: http://podoliaka.org slides: http://podoliaka.org/talks/
  • 2. Goals of this talk make gdb "a known unknown", so that you consider it as an option in the future highlight the common gotchas
  • 3. Why debugging? working on a huge open source cloud platform ‑ OpenStack dozens of various (micro‑)services ‑ from REST APIs to system daemons new features are important, but fault tolerance and overall stability are even more important continuous functional / performance / scale testing numerous customer deployments things break... pretty much all the time!
  • 4. Caveats The described debugging techniques assume that you use: Linux Darwin (macOS): must be similar, but lldb is the debugger of choice there (and things like System Integrity Protection tend to stay in your way) Windows: should work, if you use a recent gdb build with Python support enabled and have debugging symbols for CPython CPython 2.7 or 3.x debugging scripts are interpreter‑specific, so no PyPy/Jython/IronPython/etc 2.6 works too, but up‑to‑date scripts are more useful
  • 5. What's wrong with pdb? It's a nice and easy to use debugger, that should be your default choice, but it: can't attach to a running process can't step into native code (e.g. shared libraries, C/C++ extensions or CPython itself) can't be used for debugging of interpreter crashes (i.e. core dumps)
  • 6. Typical problems: hung process a process is stuck in  S (sleeping) state and does not respond  strace 'ing shows that it is trying to acquire a lock (i.e.  futex(...) ) one needs a way to map this to the exact line in the application code especially important if you use cooperative concurrency (i.e. asyncio, eventlet, gevent, etc)
  • 7. Typical problems: going into native code ~14000 unit tests, one or a few create a temporary directory in the git working tree and do not clean up after themselves. How do you identify those? pdb does not allow to set breakpoints in built‑in functions (like  os.makedirs() )
  • 8. Typical problems: interpreter crashes rarely happen in common applications but still do with things like mod_wsgi (https://github.com/GrahamDumpleton/mod_wsgi/issues/81) or calls to native libraries via cffi (https://bitbucket.org/cffi/cffi/issues/240/cffi‑crash‑on‑debian‑ unstable‑with‑gcc‑5)
  • 9. gdb a general purpose debugger, that is mostly used for debugging of C and C++ applications (supports Objective‑C, Pascal, Rust, Go and more) allows attaching to a running process without instrumenting it in advance allows taking a core dump (a state of process memory at a specific moment of time) in order to analyze it later allows post‑mortem debugging of core dumps of crashed processes saved by the kernel (if  ulimit allows for it) allows switching between threads
  • 10. ptrace: the secret power behind gdb and strace #include <sys/ptrace.h> long ptrace(enum __ptrace_request request, pid_t pid, void *addr, void *data); provides a means by which one process (the "tracer") may observe and control the execution of another process (the "tracee")
  • 11. Debugging of interpreted languages Python code is not compiled into a native binary for a target platform. Instead there is an interpreter (e.g. CPython, the reference implementation of Python), which executes compiled byte‑code when you attach to a Python process with gdb, you'll debug the interpreter instance and introspect the process state at the interpreter level, not the application level
  • 12. Debugging of interpreted languages: interpreter level traceback #0 0x00007fcce9b2faf3 in __epoll_wait_nocancel () at ../sysdep #1 0x0000000000435ef8 in pyepoll_poll (self=0x7fccdf54f240, ar #2 0x000000000049968d in call_function (oparg=<optimized out>, #3 PyEval_EvalFrameEx () at ../Python/ceval.c:2666 #4 0x0000000000499ef2 in fast_function () at ../Python/ceval #5 call_function () at ../Python/ceval.c:4041 #6 PyEval_EvalFrameEx () at ../Python/ceval.c:2666
  • 13. Debugging of interpreted languages: application level traceback /usr/local/lib/python2.7/dist-packages/eventlet/greenpool. `func(*args, **kwargs)` /opt/stack/neutron/neutron/agent/l3/agent.py:461 in _process_ro `for rp, update in self._queue.each_update_to_next_router() /opt/stack/neutron/neutron/agent/l3/router_processing_queue. `next_update = self._queue.get()` /usr/local/lib/python2.7/dist-packages/eventlet/queue.py:313 `return waiter.wait()` /usr/local/lib/python2.7/dist-packages/eventlet/queue.py:141 `return get_hub().switch()` /usr/local/lib/python2.7/dist-packages/eventlet/hubs/hub.py `return self.greenlet.switch()`
  • 14. PyEval_EvalFrameEx PyEval_EvalFrameEx(PyFrameObject *f, int throwflag) { /* variable declaration and initialization stuff */ for (;;) { /* do periodic housekeeping once in a few opcodes */ opcode = NEXTOP(); if (HAS_ARG(opcode)) oparg = NEXTARG(); switch (opcode) { case NOP: goto fast_next_opcode; /* lots of more complex opcode implementations */ default: /* become rather unhappy */ } /* handle exceptions or runtime errors, if any */ } /* we are finished, pop the frame stack */ tstate->frame = f->f_back; return retval; }
  • 15. gdb and Python gdb can be built with Python support enabled that essentially means one can extend gdb with Python scripts e.g. pretty‑printing for C++ STL containers: https://sourceware.org/gdb/wiki/STLSupport the very same mechanism is used for debugging of CPython: https://github.com/python/cpython/blob/master/Tools/gdb/libpy thon.py
  • 16. An example of a gdb extension for debugging of CPython class PyBacktrace(gdb.Command): def __init__(self): gdb.Command.__init__(self, "py-bt", gdb.COMMAND_STACK, gdb.COMPLETE_NONE) def invoke(self, args, from_tty): frame = Frame.get_selected_python_frame() if not frame: print('Unable to locate python frame') return sys.stdout.write('Traceback (most recent call first):n' while frame: if frame.is_python_frame(): frame.print_traceback() frame = frame.older()
  • 17. Prerequisites: gdb with Python support apt-get install gdb or yum install gdb or something else depending on the distro you use, then gdb -ex 'python print("ok")' -ex quit | tail -n 1
  • 18. Prerequisites: CPython debugging symbols debugging symbols are information on the data type of each variable or function and the correspondence between source line numbers and addresses in the executable code generated when applications are compiled with ‑g flag passed to gcc/clang consume a lot of disk space, thus, are usually stripped from compiled binaries and shipped separately the most popular and commonly used format of debugging symbols is called DWARF
  • 19. Prerequisites: CPython debugging symbols apt-get install python-dbg or yum install python-debuginfo CentOS/RHEL put those into a separate repo, e.g. http://debuginfo.centos.org debuginfo-install python Some distros (like Arch Linux) do not ship debugging symbols at all
  • 20. Prerequisites: CPython scripts for gdb developed in CPython code tree: https://github.com/python/cpython/blob/master/Tools/gdb/libpy thon.py packaged and shipped by Linux distros loaded by gdb automatically when debugging python binary can also be loaded manually like  (gdb) source ~/src/cpython/Tools/gdb/libpython.py
  • 21. Debug a process from the start gdb /usr/bin/python (gdb) run my_python_script.py
  • 22. Attach to a running process gdb /usr/bin/python -p $PID or simply gdb -p $PID (note: gdb will stop all process threads, unless non‑stop mode was enabled with  set non-stop on )
  • 23. Load the inferior state from a core dump get a core dump of a running process gcore $PID open it in gdb gdb /usr/bin/python core.$PID
  • 24. Print a traceback (gdb) py-bt Traceback (most recent call first): File "/usr/lib/python2.7/logging/__init__.py", line 872, in stream.write(ufs % msg) File "/usr/lib/python2.7/logging/__init__.py", line 759, in self.emit(record) File "/usr/lib/python2.7/logging/__init__.py", line 1336, hdlr.handle(record) File "/usr/lib/python2.7/logging/__init__.py", line 1296, self.callHandlers(record) File "/usr/lib/python2.7/logging/__init__.py", line 1286, self.handle(record) File "/usr/lib/python2.7/logging/__init__.py", line 1155, self._log(DEBUG, msg, args, **kwargs) File "/usr/lib/python2.7/logging/__init__.py", line 1440, self.logger.debug(msg, *args, **kwargs) File "/opt/stack/nova/nova/compute/resource_tracker.py", line 'pci_devices': pci_devices})
  • 25. Print Python code (gdb) py-list 867 try: 868 if (isinstance(msg, unicode) and 869 getattr(stream, 'encoding', None)): 870 ufs = u'%sn' 871 try: >872 stream.write(ufs % msg) 873 except UnicodeEncodeError: 874 #Printing to terminals sometimes fails. For ex 875 #with an encoding of 'cp1251', the above write 876 #work if written to a stream opened or wrapped 877 #the codecs module, but fail when writing to a
  • 26. Print local variables (gdb) py-locals self = <ColorHandler(...)> stream = <file at remote 0x7fa76ebb61e0> fs = '%sn' ufs = u'%sn'
  • 27. Set a breakpoint in native code gdb /usr/bin/python (gdb) break mkdir Breakpoint 1 at 0x417600 (gdb) condition 1 $_regex((char*) $rdi, ".*/instances/.*") (gdb) commands 1 Type commands for breakpoint(s) 1, one per line. End with a line saying just "end". >py-bt >end end (gdb) run -m testtools.run discover -s nova/tests/unit
  • 28. Execute arbitrary Python code in the process context (gdb) call PyGILState_Ensure() $21 = PyGILState_UNLOCKED (gdb) call PyRun_SimpleString("print('hello')") hello $22 = 0 (gdb) call PyGILState_Release(PyGILState_UNLOCKED)
  • 29. Gotchas: virtual environments and custom CPython builds when attaching to a Python process started in a virtual environment debugging symbols may suddenly not be found anymore gdb -p $2975 Attaching to process 2975 Reading symbols from .../venv/bin/python2... (no debugging symbols found)...done. it happens because gdb looks for them in the wrong place: if you omit the inferior binary path, gdb tries to derive it from  /proc/$PID/exe symlink and then load debugging symbols stored in the predefined path ‑ e.g.  /usr/lib/debug/$PATH . For a virtual environment it's not  /usr/lib/debug/usr/bin/python2 , thus, loading fails
  • 30. Gotchas: virtual environments and custom CPython builds the solution is to always pass the inferior binary path explicitly when attaching to a process gdb /usr/bin/python2.7 -p $PID alternatively, modern CPython builds (at least on Debian Testing or Ubuntu Xenial) have an associated  build-id value, that is used to uniquely identify stripped debugging symbols objdump -s -j .note.gnu.build-id /usr/bin/python2.7 Reading symbols from /usr/lib/debug/.build-id/8d/ 04a3ae38521cb7c7928e4a7c8b1ed385e763e4.debug...done.
  • 31. Gotchas: virtual environments and custom CPython builds py‑ commands may be undefined for a very similar reason (gdb) py-bt Undefined command: "py-bt". Try "help". gdb autoloads debugging scripts from  $PATH-gdb.py  (gdb) info auto-load gdb-scripts: No auto-load scripts. libthread-db: No auto-loaded libthread-db. local-gdbinit: Local .gdbinit file was not found. python-scripts: Loaded Script Yes /usr/share/gdb/auto-load/usr/bin/python2.7-gdb.py
  • 32. Gotchas: virtual environments and custom CPython builds you can always load the scripts manually (gdb) source /usr/share/gdb/auto-load/usr/bin/python2.7-gdb.py it's also useful for testing of the new versions of gdb scripts shipped with CPython
  • 33. Gotchas: PTRACE_ATTACH not permitted Controlled by  /proc/sys/kernel/yama/ptrace_scope , possible values are  0 ‑ a process can  PTRACE_ATTACH to any other process running under the same uid  1 ‑ only descendants can be traced (default on Ubuntu)  2 ‑ admin‑only attach, or through children calling  PTRACE_TRACEME   3 ‑ no processes may use ptrace with  PTRACE_ATTACH nor via  PTRACE_TRACEME
  • 34. Gotchas: python‑dbg a separate build of CPython (with  --with-pydebug passed to  ./configure ) with many run‑time checks enabled, thus, much slower not required for using of gdb $ time python -c "print(sum(range(1, 1000000)))" 499999500000 real 0m0.096s user 0m0.057s sys 0m0.030s $ time python-dbg -c "print(sum(range(1, 1000000)))" 499999500000 [18318 refs] real 0m0.237s user 0m0.197s sys 0m0.016s
  • 35. Gotchas: compiler build flags some Linux distros build CPython with  -g0 or  -g1 flags passed to gcc: the former produces a binary without debugging information at all, and the latter does not allow gdb to get information about local variables at runtime the solution is to rebuild CPython with  -g or  -g2 ( 2 is the default value when  -g is passed)
  • 36. Gotchas: optimized out frames depending on the optimization level used in gcc when building CPython or the exact compiler version used, it's possible that information on local variables or function arguments will be lost at runtime (e.g. with aggressive optimizations enabled by  -O3 ) (gdb) py-bt Traceback (most recent call first): File "test.py", line 9, in g time.sleep(1000) File "test.py", line 5, in f g() (frame information optimized out)
  • 37. Gotchas: optimized out frames it's still possible to debug such builds of CPython, though it may be tricky (gdb) disassemble Dump of assembler code for function PyEval_EvalFrameEx: ... 0x00007ffff7a04e88 <+8>: mov %rdi,%r12 ... (gdb) p ((PyObject*) $r12)->ob_type->tp_name $97 = 0x7ffff7ab59f0 "frame" (gdb) p (char*) (&((PyUnicodeObject*) ((PyFrameObject*) $r12)-> f_code->co_name)->_base->_base + 1) $98 = 0x7ffff6a8aca0 "main"
  • 38. Gotchas: PyPy, Jython, etc the described debugging technique is only feasible for the CPython interpreter as is, as the gdb extension is specifically written to introspect the state of CPython internals (e.g.  PyEval_EvalFrameEx calls) for PyPy there is an open issue on Bitbucket, where it was proposed to provide integration with gdb, but looks like the attached patches have not been merged yet and the person, who wrote those, lost interest in this for Jython you could probably use standard tools for debugging of JVM applications, e.g. VisualVM
  • 39. Links gdb Debugging Full Example: http://brendangregg.com/blog/2016‑08‑09/gdb‑example‑ ncurses.html Low‑level Python debugging with gdb: http://grapsus.net/blog/post/Low‑level‑Python‑debugging‑with‑ GDB a blog post on CPython internals: https://tech.blog.aknin.name/category/my‑projects/pythons‑ innards/ pydevd: http://pydev.blogspot.com/2014/09/attaching‑ debugger‑to‑running‑process.html pyringe: https://github.com/google/pyringe
  • 40. Conclusion gdb is a powerful tool, that allows one to debug complex problems with crashing or hanging CPython processes, as well as Python code, that does calls to native libraries on modern Linux distros debugging CPython processes with gdb must be as simple as installing of debugging symbols for the interpreter build, although there are a few known gotchas, especially when virtual environments are used
  • 41. Questions? Your feedback is very appreciated! twitter: @rpodoliaka blog: http://podoliaka.org slides: http://podoliaka.org/talks/
