The Language of
Mobile Software is APIs
timburks@google.com

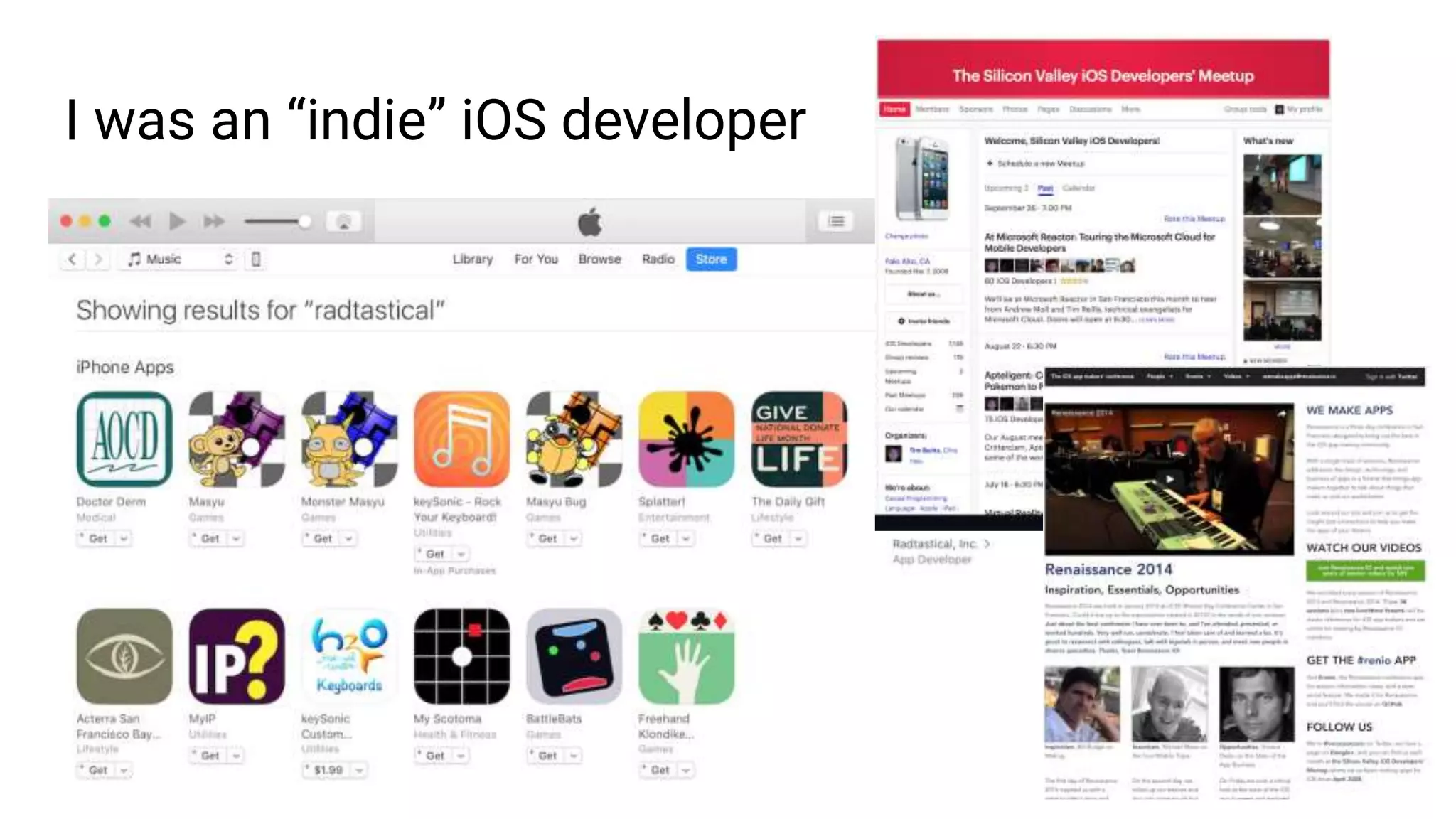

I was an “indie” iOS developer
One OS (more or less) for all Apple devices.
Darwin Kernel, based on Mach, apps run in sandboxes.
Many platforms, both new (tvOS, watchOS) and old (macOS).
Apps are developed in Objective-C & Swift.
Life moves pretty fast:
Quick OS update cycle
Swift and APIs still changing
Apps are frequently distributed systems.
iOS developers know this...
10 Billion
API calls
every second
Will all the world’s computers be in data centers?
No way!
(Lots of them will be on eBay)
What if we thought of those data centers
as one computer?
At Google, we’re building an operating
system for distributed computing...
1. Borg → Kubernetes
2. Stubby → gRPC
3. One Platform → Endpoints
But there’s this wall.
Conway’s Law: “organizations which design systems... are constrained to produce
designs which are copies of the communication structures of these organizations.”
Swift can help us
tear down that wall.
Are iOS developers ready for this?
We are used to change.
iOS 10 adoption is high.
Swift has iterated rapidly.
We’ve been burned by BaaS.
Proprietary Parse and StackMob were shut down.
Open Source Apache Usergrid hasn’t particularly taken off.
So let’s build everything with one language!
Sorry, all developers don’t write with the same language or on the same OS.
APIsare how we connect the parts of our distributed systems, and they work pretty well.
Standardized description of REST APIs
Documentation generation
Code generation
API service configuration
API authoring and creation
What does an OpenAPI spec look like?
Documentation Generation
Code Generation
API Services
OpenAPI is focused on REST APIs
What’s not-so-great about REST?
Resources don’t always map well to URI paths.
Actions don’t always map well to HTTP verbs.
REST APIs are stateless, so multi-step transactions are more difficult with state
carried in “back doors” like headers or query parameters.
REST APIs don’t support streaming.
Most REST payloads and architectures are expensive at large scale.
gRPC enables remote procedure calls with streaming:
send a protocol buffer, get a protocol buffer
send a protocol buffer, get a stream of protocol buffers
send a stream of protocol buffers, get a protocol buffer
send a stream of protocol buffers, get a stream of protocol buffers
Not limited to protocol buffers, but with built-in support for them.
Protocol buffers are a language-neutral, platform-neutral, extensible mechanism
for serializing structured data.
Implemented in many languages, sometimes many times...
“Protocol Buffers” means several things
1. A serialization mechanism
2. An interface description language
3. A methodology
Protocol Buffer Serialization
It’s just a stream of bytes
[field_number<<3 + wire_type] [length if necessary] [data]...
$ hexdump /tmp/request.bin
0000000 0a 05 68 65 6c 6c 6f
0a is “0000 1010”, so
field_number = 1
wire_type = 2
public enum FieldType: Int {
case double = 1
case float = 2
case int64 = 3
case uint64 = 4
case int32 = 5
case fixed64 = 6
case fixed32 = 7
case bool = 8
case string = 9
case group = 10
case message = 11
case bytes = 12
case uint32 = 13
case enumeration = 14
case sfixed32 = 15
case sfixed64 = 16
case sint32 = 17 // ZigZag encoded
case sint64 = 18 // ZigZag encoded
}
public enum WireType: Int {
case varint = 0
case fixed64 = 1
case lengthDelimited = 2
case startGroup = 3
case endGroup = 4
case fixed32 = 5
}
Q. How do we know the field type?
The Protocol Buffer Language
echo.proto
syntax = "proto3";
package echo;
service Echo {
rpc Get(EchoRequest) returns (EchoResponse) {}
rpc Update(stream EchoRequest) returns (stream EchoResponse) {}
}
message EchoRequest {
string text = 1;
}
message EchoResponse {
string text = 1;
}
The Protocol Buffer methodology
$ protoc echo.proto -o echo.out --go_out=.
$ which protoc-gen-go
../bin/protoc-gen-go
$ more echo.pb.go
// Code generated by protoc-gen-go.
// source: echo.proto
// DO NOT EDIT!
...
Interface Builder
Visual designer
Saves coding
Builds on message sending
conventions of Objective-C.
It isn’t exactly a code
generator...
but it is a lot like a code
generator.
Protocol Buffers is Interface Builder for Data.
Interface Builder: Developers specify
their interfaces using a special tool,
tooling compiles and integrates that into
their apps.
Protocol Buffers: Developers specify
their data structures using a special
language, tooling compiles and
integrates that into their apps.
message Person {
string name = 1;
int32 id = 2;
string email = 3;
enum PhoneType {
MOBILE = 0;
HOME = 1;
WORK = 2;
}
message PhoneNumber {
string number = 1;
PhoneType type = 2;
}
repeated PhoneNumber phone = 4;
}
How to use Apple’s Swift Protocol Buffer Library
What is gRPC ?
A remote procedure call (RPC) framework layered on HTTP/2
Enables client and server applications to communicate transparently
Client “calls” methods on a Server (which may be on a different machine) as if it
were a local service
Makes it easy to build heterogeneous distributed systems
Separate full implementations in C, Java, and Go.
What is gRPC ?
Google Cloud Platform
Interoperability
Java
Service
Python
Service
GoLang
Service
C++
Service
gRPC
Service
gRPC
Stub
gRPC
Stub
gRPC
Stub
gRPC
Stub
gRPC
Service
gRPC
Service
gRPC
Service
gRPC
Stub
Google Cloud Platform
Google Cloud Platform
First Law of Distributed Object Design:
don't distribute your objects.
Martin Fowler
http://martinfowler.com/articles/distributed-objects-microservices.html
“ ”
Google Cloud Platform
The Fallacies of Distributed Computing
The network is reliable
Latency is zero
Bandwidth is infinite
The network is secure
https://blogs.oracle.com/jag/resource/Fallacies.html
Topology doesn't change
There is one administrator
Transport cost is zero
The network is homogeneous
Google Cloud PlatformGoogle Cloud Platform
Services not Objects, Messages not References.
Promote the microservices design philosophy of
coarse-grained message exchange between
systems while avoiding the pitfalls of distributed
objects and the fallacies of ignoring the network.
gRPC Principles & Requirements
http://www.grpc.io/blog/principles
Google Cloud Platform 67
First-class feature in gRPC.
Deadline is an absolute point in time.
Deadline indicates to the server how
long the client is willing to wait for an
answer.
RPC will fail with DEADLINE_EXCEEDED
status code when deadline reached.
gRPC Deadlines
Google Cloud Platform
Timeouts?
GW
A1 A2 A3
B1 B2 B3
C1 C2 C3
200 ms
?
?
?
? ?
? ?
? ?
Google Cloud Platform
Timeout Propagation
Gateway
90 ms
timeout =
200 - 40
ms
timeout =
160 - 90 - 20
ms
timeout =
200 ms
40 ms
20 ms
20 ms 60 ms
timeout
reached!
230 ms
Google Cloud Platform
gRPC Deadline Propagation
Gateway
90 ms
Now =
1476600000000
Deadline =
1476600000200
40 ms
20 ms
20 ms 60 ms
withDeadlineAfter(200, MILLISECONDS)
Now =
1476600000040
Deadline =
1476600000200
Now =
1476600000150
Deadline =
1476600000200
Now =
1476600000230
Deadline =
1476600000200
DEADLINE_EXCEEDED DEADLINE_EXCEEDED DEADLINE_EXCEEDED DEADLINE_EXCEEDED
Google Cloud Platform
Timeouts?
GW
A1 A2 A3
B1 B2 B3
C1 C2 C3
200 ms
?
?
?
? ?
? ?
? ?
Google Cloud Platform
Timeouts for Real World?
GW
A1 A2 A3
B1 B2 B3
C1 C2 C3
200 ms
gRPC use cases
Client-server
communication
Access Google Cloud
Services
Build distributed
applications
• In data-centers
• In public/private cloud
• Clients and servers
across:
• Mobile
• Web
• Cloud
• Also
• Embedded
systems, IoT
• From GCP
• From Android and iOS
devices
• From everywhere else
Unary API:
Client sends a request, server sends a response
Streaming APIs:
Multiple messages back and forth between Client and Server within the same call.
Three types of streaming APIs
Client Streaming API
Server Streaming API
Bi-directional Streaming API
gRPC API Styles
Unary API
syntax = “proto3”;
message HelloRequest {
string name = 1;
}
message HelloReply {
string message = 1;
}
service HelloService {
rpc SayHello(HelloRequest) returns (HelloReply);
}
Unary API: Client sends a
request, server sends a
response
Streaming APIs - 1 (of 3) Client Streaming
syntax = “proto3”;
message Latency {
string name = 1;
double val = 2;
}
message Histogram {
string name = 1
double p99 = 2;
double p999 = 3;
double avg = 4;
}
service MetricsService {
rpc ReportLateny(stream Latency) returns Histogram;
}
Client Streaming API: Client
sends multiple messages;
Server sends one response
(Note: Server may choose to send the response
before all the client messages are received)
Streaming APIs - 2 (of 3) Server Streaming
syntax = “proto3”;
message StockRequest {
string stocksymbol = 1;
}
message StockResponse {
double price = 1;
}
service StockTickerService {
rpc GetTicker(StockRequest) returns (stream StockResponse);
}
Server Streaming API: Client
sends one message; Server
sends multiple messages
Streaming APIs - 3 (of 3) Bidirectional Streaming
syntax = “proto3”;
message ChatMessage {
string msg = 1;
}
service ChatService {
rpc Chat(stream ChatMessage) returns (stream ChatMessage);
}
Bidi Streaming API: Client and
Server can send multiple
messages to each other
(Note: Client and server can independently send
messages to each other i.e they do not have to wait
for receiving a client message before sending a
message)
Google Cloud Platform
gRPC vs JSON/HTTP for Google Cloud Pub/Sub
Publishing 50KB messages at
maximum throughput from a
single n1-highcpu-16 GPE VM
instance, using 9 gRPC channels.
More impressive than the
almost 3x increase in
throughput, is that it took only
1/4 of the CPU resources.
11x difference per CPU3x increase in throughput
https://cloud.google.com/blog/big-data/2016/03/announcing-grpc-alpha-for-google-cloud-pubsub
Google Cloud Platform
gRPC API in Google Cloud
A massively scalable
NoSQL database
service.
A fully-managed real-
time messaging
service.
Speech to text
conversion powered
by machine learning.
Cloud Speech APICloud Bigtable Cloud PubSub
Google Cloud Platform
Some gRPC Adopters
Google Cloud Platform
Netflix deprecated its RPC framework in favor of
gRPC:
“Our team has instead building an RPC solution on top
of gRPC. We are doing this transition for two main
reasons: multi-language support and better
extensibility/composability through request
interceptors. That’s our current plan moving forward.”
https://github.com/Netflix/ribbon
gRPC Adopters
got code?
echo.proto
syntax = "proto3";
package echo;
service Echo {
rpc Get(EchoRequest) returns (EchoResponse) {}
rpc Update(stream EchoRequest) returns (stream EchoResponse) {}
}
message EchoRequest {
string text = 1;
}
message EchoResponse {
string text = 1;
}
echo.pb.go (generated messsages)
package echo
...
type EchoRequest struct {
Text string `protobuf:"bytes,1,opt,name=text" json:"text,omitempty"`
}
func (m *EchoRequest) Reset() { *m = EchoRequest{} }
func (m *EchoRequest) String() string { return proto.CompactTextString(m) }
func (*EchoRequest) ProtoMessage() {}
func (*EchoRequest) Descriptor() ([]byte, []int) { return fileDescriptor0, []int{0} }
type EchoResponse struct {
Text string `protobuf:"bytes,1,opt,name=text" json:"text,omitempty"`
}
func (m *EchoResponse) Reset() { *m = EchoResponse{} }
func (m *EchoResponse) String() string { return proto.CompactTextString(m) }
func (*EchoResponse) ProtoMessage() {}
func (*EchoResponse) Descriptor() ([]byte, []int) { return fileDescriptor0, []int{1} }
echo.pb.go (generated client support)
// Client API for Echo service
type EchoClient interface {
Get(ctx context.Context, in *EchoRequest, opts ...grpc.CallOption) (*EchoResponse, error)
Update(ctx context.Context, opts ...grpc.CallOption) (Echo_UpdateClient, error)
}
type echoClient struct {
cc *grpc.ClientConn
}
func NewEchoClient(cc *grpc.ClientConn) EchoClient {
return &echoClient{cc}
}
func (c *echoClient) Get(ctx context.Context, in *EchoRequest, opts ...grpc.CallOption) (*EchoResponse, error) {
out := new(EchoResponse)
err := grpc.Invoke(ctx, "/echo.Echo/Get", in, out, c.cc, opts...)
if err != nil {
return nil, err
}
return out, nil
}
func (c *echoClient) Update(ctx context.Context, opts ...grpc.CallOption) (Echo_UpdateClient, error) {
client.go (hand-written)
// Set up a connection to the server.
var conn *grpc.ClientConn
var err error
if !*useTLS {
if *address == "" {
*address = "localhost:8080"
}
conn, err = grpc.Dial(*address, grpc.WithInsecure())
} else {
if *address == "" {
*address = "localhost:443"
}
conn, err = grpc.Dial(*address,
grpc.WithTransportCredentials(credentials.NewTLS(&tls.Config{
// remove the following line if the server certificate is signed by a certificate
authority
InsecureSkipVerify: true,
})))
}
defer conn.Close()
c := pb.NewEchoClient(conn)
client.go (hand-written)
response, err := c.Get(context.Background(), &pb.EchoRequest{Text: message})
echo.pb.go (generated server support)
// Server API for Echo service
type EchoServer interface {
Get(context.Context, *EchoRequest) (*EchoResponse, error)
Update(Echo_UpdateServer) error
}
func RegisterEchoServer(s *grpc.Server, srv EchoServer) {
s.RegisterService(&_Echo_serviceDesc, srv)
}
func _Echo_Get_Handler(srv interface{}, ctx context.Context, dec func(interface{}) error, interceptor grpc.UnaryServerInterceptor) (interface{}, error) {
in := new(EchoRequest)
if err := dec(in); err != nil {
return nil, err
}
if interceptor == nil {
return srv.(EchoServer).Get(ctx, in)
}
info := &grpc.UnaryServerInfo{
Server: srv,
FullMethod: "/echo.Echo/Get",
}
handler := func(ctx context.Context, req interface{}) (interface{}, error) {
return srv.(EchoServer).Get(ctx, req.(*EchoRequest))
server.go (hand-written)
func main() {
var useTLS = flag.Bool("tls", false, "Use tls for connections.")
flag.Parse()
var err error
var lis net.Listener
var grpcServer *grpc.Server
if !*useTLS {
lis, err = net.Listen("tcp", ":8080")
if err != nil {
log.Fatalf("failed to listen: %v", err)
}
grpcServer = grpc.NewServer()
} else {
certFile := "ssl.crt"
keyFile := "ssl.key"
creds, err := credentials.NewServerTLSFromFile(certFile, keyFile)
lis, err = net.Listen("tcp", ":443")
if err != nil {
log.Fatalf("failed to listen: %v", err)
}
grpcServer = grpc.NewServer(grpc.Creds(creds))
}
pb.RegisterEchoServer(grpcServer, &echoServer)
grpcServer.Serve(lis)
}
server.go (hand-written)
func (s *EchoServer)
Get(ctx context.Context, r *pb.EchoRequest) (*pb.EchoResponse, error) {
response := &pb.EchoResponse{}
response.Text = "Go nonstreaming echo " + r.Text
fmt.Printf("Get received: %sn", r.Text)
return response, nil
}
What is Google doing?
We’re building Swift support for gRPC.
We are working to add Protocol Buffers
and gRPC to OpenAPI.
We’re embracing OpenAPI.
Publish OpenAPI specifications for all Google APIs
and engage with the community to
create and support open-source API services for clients and servers.
OpenAPI enables a “true” Interface Builder for APIs.
Replace protoc with an OpenAPI-based graphical API builder.
Have that builder implement protoc’s plugin architecture.
Use all the existing protoc plugins!
OpenAPI-based
graphical API editor
Java
C#
Python
Swift
PHP
C++
Ruby
Objective-C
protoc plugins
You can run Swift on Google Cloud Platform right now.
Source: Lorem ipsum dolor sit amet, consectetur adipiscing elit. Duis non erat sem
Proprietary + Confidential
● API Management from Google
● This architecture serves hundreds of
billions of requests per day
● All configuration happens through
Open API spec or via GRPC
Cloud Endpoints
What is API Management?
Key features
Across all use cases (public, private, mobile, microservice), 3 key needs:
Control access,
authenticate users
Logging and monitoring
of key metrics
Speed and scalability
Source: Lorem ipsum dolor sit amet, consectetur adipiscing elit. Duis non erat sem
Proprietary + Confidential
Dashboards and UI
Configuration (access,
auth, etc) enforced at
runtime
What does Google offer?
Your
Code
We’re hiring.
jobs.google.com
timburks@google.com

More Related Content

What's hot

05 rpc-case studies
05 rpc-case studies05 rpc-case studies
05 rpc-case studies
hushu

MPI Introduction
MPI IntroductionMPI Introduction
MPI Introduction
Rohit Banga


What's hot (20)

Bringing Learnings from Googley Microservices with gRPC - Varun Talwar, Google
Bringing Learnings from Googley Microservices with gRPC - Varun Talwar, GoogleBringing Learnings from Googley Microservices with gRPC - Varun Talwar, Google
Bringing Learnings from Googley Microservices with gRPC - Varun Talwar, Google

Microsoft .NET Platform
Microsoft .NET PlatformMicrosoft .NET Platform
Microsoft .NET Platform

Robert Kubis - gRPC - boilerplate to high-performance scalable APIs - code.t...
 Robert Kubis - gRPC - boilerplate to high-performance scalable APIs - code.t... Robert Kubis - gRPC - boilerplate to high-performance scalable APIs - code.t...
Robert Kubis - gRPC - boilerplate to high-performance scalable APIs - code.t...

gRPC and Microservices
gRPC and MicroservicesgRPC and Microservices
gRPC and Microservices

RESTLess Design with Apache Thrift: Experiences from Apache Airavata
RESTLess Design with Apache Thrift: Experiences from Apache AiravataRESTLess Design with Apache Thrift: Experiences from Apache Airavata
RESTLess Design with Apache Thrift: Experiences from Apache Airavata

Talk Python To Me: Stream Processing in your favourite Language with Beam on ...
Talk Python To Me: Stream Processing in your favourite Language with Beam on ...Talk Python To Me: Stream Processing in your favourite Language with Beam on ...
Talk Python To Me: Stream Processing in your favourite Language with Beam on ...

Network Socket Programming with JAVA
Network Socket Programming with JAVANetwork Socket Programming with JAVA
Network Socket Programming with JAVA

Generating Unified APIs with Protocol Buffers and gRPC
Generating Unified APIs with Protocol Buffers and gRPCGenerating Unified APIs with Protocol Buffers and gRPC
Generating Unified APIs with Protocol Buffers and gRPC

GRPC 101 - DevFest Belgium 2016
GRPC 101 - DevFest Belgium 2016GRPC 101 - DevFest Belgium 2016
GRPC 101 - DevFest Belgium 2016

MPI
MPIMPI
MPI

05 rpc-case studies
05 rpc-case studies05 rpc-case studies
05 rpc-case studies

MPI Introduction
MPI IntroductionMPI Introduction
MPI Introduction

Ethereum dapps20180120
Ethereum dapps20180120Ethereum dapps20180120
Ethereum dapps20180120

Network programming in Java
Network programming in JavaNetwork programming in Java
Network programming in Java

Patterns for JVM languages JokerConf
Patterns for JVM languages JokerConfPatterns for JVM languages JokerConf
Patterns for JVM languages JokerConf

Java networking programs - theory
Java networking programs - theoryJava networking programs - theory
Java networking programs - theory

Networking in Java
Networking in JavaNetworking in Java
Networking in Java

Apache Thrift
Apache ThriftApache Thrift
Apache Thrift

An introduction to Apache Thrift
An introduction to Apache ThriftAn introduction to Apache Thrift
An introduction to Apache Thrift

Socket Programming - nitish nagar
Socket Programming - nitish nagarSocket Programming - nitish nagar
Socket Programming - nitish nagar


Similar to CocoaConf: The Language of Mobile Software is APIs

Rpc (Distributed computing)
Rpc (Distributed computing)Rpc (Distributed computing)
Rpc (Distributed computing)
Sri Prasanna


Similar to CocoaConf: The Language of Mobile Software is APIs (20)

Networked APIs with swift
Networked APIs with swiftNetworked APIs with swift
Networked APIs with swift

Fast and Reliable Swift APIs with gRPC
Fast and Reliable Swift APIs with gRPCFast and Reliable Swift APIs with gRPC
Fast and Reliable Swift APIs with gRPC

apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...
apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...
apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...

Build Great Networked APIs with Swift, OpenAPI, and gRPC
Build Great Networked APIs with Swift, OpenAPI, and gRPCBuild Great Networked APIs with Swift, OpenAPI, and gRPC
Build Great Networked APIs with Swift, OpenAPI, and gRPC

Communication Mechanisms, Past, Present & Future
Communication Mechanisms, Past, Present & FutureCommunication Mechanisms, Past, Present & Future
Communication Mechanisms, Past, Present & Future

What you need to know about .NET Core 3.0 and beyond
What you need to know about .NET Core 3.0 and beyondWhat you need to know about .NET Core 3.0 and beyond
What you need to know about .NET Core 3.0 and beyond

Modern webservices using gRPC and Protocol Buffers in Golang
Modern webservices using gRPC and Protocol Buffers in GolangModern webservices using gRPC and Protocol Buffers in Golang
Modern webservices using gRPC and Protocol Buffers in Golang

Creating Great REST and gRPC API Experiences (in Swift)
Creating Great REST and gRPC API Experiences (in Swift)Creating Great REST and gRPC API Experiences (in Swift)
Creating Great REST and gRPC API Experiences (in Swift)

OpenAPI and gRPC Side by-Side
OpenAPI and gRPC Side by-SideOpenAPI and gRPC Side by-Side
OpenAPI and gRPC Side by-Side

LF_APIStrat17_OpenAPI and gRPC Side-by-Side
LF_APIStrat17_OpenAPI and gRPC Side-by-SideLF_APIStrat17_OpenAPI and gRPC Side-by-Side
LF_APIStrat17_OpenAPI and gRPC Side-by-Side

XML-RPC and SOAP (April 2003)
XML-RPC and SOAP (April 2003)XML-RPC and SOAP (April 2003)
XML-RPC and SOAP (April 2003)

Creating microservices architectures using node.js and Kubernetes
Creating microservices architectures using node.js and KubernetesCreating microservices architectures using node.js and Kubernetes
Creating microservices architectures using node.js and Kubernetes

.NET Core Today and Tomorrow
.NET Core Today and Tomorrow.NET Core Today and Tomorrow
.NET Core Today and Tomorrow

Up and Running with gRPC & Cloud Career [GDG-Cloud-Dhaka-IO/2022}
Up and Running with gRPC & Cloud Career [GDG-Cloud-Dhaka-IO/2022}Up and Running with gRPC & Cloud Career [GDG-Cloud-Dhaka-IO/2022}
Up and Running with gRPC & Cloud Career [GDG-Cloud-Dhaka-IO/2022}

Rpc (Distributed computing)
Rpc (Distributed computing)Rpc (Distributed computing)
Rpc (Distributed computing)

SignalR Overview
SignalR OverviewSignalR Overview
SignalR Overview

Chapter2 Application
Chapter2 ApplicationChapter2 Application
Chapter2 Application

Hands on with CoAP and Californium
Hands on with CoAP and CaliforniumHands on with CoAP and Californium
Hands on with CoAP and Californium

Building scalable and language-independent Java services using Apache Thrift ...
Building scalable and language-independent Java services using Apache Thrift ...Building scalable and language-independent Java services using Apache Thrift ...
Building scalable and language-independent Java services using Apache Thrift ...

Cloud Presentation.pdf
Cloud Presentation.pdfCloud Presentation.pdf
Cloud Presentation.pdf


Recently uploaded

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
FIDO Alliance

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
FIDO Alliance

TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc


Recently uploaded (20)

Choreo: Empowering the Future of Enterprise Software Engineering
Choreo: Empowering the Future of Enterprise Software EngineeringChoreo: Empowering the Future of Enterprise Software Engineering
Choreo: Empowering the Future of Enterprise Software Engineering

Overview of Hyperledger Foundation
Overview of Hyperledger FoundationOverview of Hyperledger Foundation
Overview of Hyperledger Foundation

Design and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data ScienceDesign and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data Science

ADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptxADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptx

Navigating Identity and Access Management in the Modern Enterprise
Navigating Identity and Access Management in the Modern EnterpriseNavigating Identity and Access Management in the Modern Enterprise
Navigating Identity and Access Management in the Modern Enterprise

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform Engineering

Portal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russePortal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russe

UiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overviewUiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overview

Modernizing Legacy Systems Using Ballerina
Modernizing Legacy Systems Using BallerinaModernizing Legacy Systems Using Ballerina
Modernizing Legacy Systems Using Ballerina

WSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering DevelopersWSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering Developers

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)

DBX First Quarter 2024 Investor Presentation
DBX First Quarter 2024 Investor PresentationDBX First Quarter 2024 Investor Presentation
DBX First Quarter 2024 Investor Presentation

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by Anitaraj

WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...
WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...
WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...

Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)
Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)
Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)


CocoaConf: The Language of Mobile Software is APIs

  • 1. The Language of Mobile Software is APIs timburks@google.com
  • 2. I was an “indie” iOS developer
  • 3.
  • 4.
  • 5.
  • 6. One OS (more or less) for all Apple devices. Darwin Kernel, based on Mach, apps run in sandboxes. Many platforms, both new (tvOS, watchOS) and old (macOS). Apps are developed in Objective-C & Swift. Life moves pretty fast: Quick OS update cycle Swift and APIs still changing Apps are frequently distributed systems. iOS developers know this...
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26. Will all the world’s computers be in data centers?
  • 27. No way! (Lots of them will be on eBay)
  • 28. What if we thought of those data centers as one computer?
  • 29. At Google, we’re building an operating system for distributed computing... 1. Borg → Kubernetes 2. Stubby → gRPC 3. One Platform → Endpoints
  • 30. But there’s this wall. Conway’s Law: “organizations which design systems... are constrained to produce designs which are copies of the communication structures of these organizations.”
  • 31. Swift can help us tear down that wall.
  • 32.
  • 33. Are iOS developers ready for this? We are used to change. iOS 10 adoption is high. Swift has iterated rapidly. We’ve been burned by BaaS. Proprietary Parse and StackMob were shut down. Open Source Apache Usergrid hasn’t particularly taken off.
  • 34. So let’s build everything with one language!
  • 35. Sorry, all developers don’t write with the same language or on the same OS. APIsare how we connect the parts of our distributed systems, and they work pretty well.
  • 36. Standardized description of REST APIs Documentation generation Code generation API service configuration API authoring and creation
  • 37.
  • 38.
  • 39.
  • 40. What does an OpenAPI spec look like?
  • 41.
  • 45. OpenAPI is focused on REST APIs What’s not-so-great about REST? Resources don’t always map well to URI paths. Actions don’t always map well to HTTP verbs. REST APIs are stateless, so multi-step transactions are more difficult with state carried in “back doors” like headers or query parameters. REST APIs don’t support streaming. Most REST payloads and architectures are expensive at large scale.
  • 46. gRPC enables remote procedure calls with streaming: send a protocol buffer, get a protocol buffer send a protocol buffer, get a stream of protocol buffers send a stream of protocol buffers, get a protocol buffer send a stream of protocol buffers, get a stream of protocol buffers Not limited to protocol buffers, but with built-in support for them.
  • 47. Protocol buffers are a language-neutral, platform-neutral, extensible mechanism for serializing structured data. Implemented in many languages, sometimes many times...
  • 48. “Protocol Buffers” means several things 1. A serialization mechanism 2. An interface description language 3. A methodology
  • 49. Protocol Buffer Serialization It’s just a stream of bytes [field_number<<3 + wire_type] [length if necessary] [data]... $ hexdump /tmp/request.bin 0000000 0a 05 68 65 6c 6c 6f 0a is “0000 1010”, so field_number = 1 wire_type = 2
  • 50. public enum FieldType: Int { case double = 1 case float = 2 case int64 = 3 case uint64 = 4 case int32 = 5 case fixed64 = 6 case fixed32 = 7 case bool = 8 case string = 9 case group = 10 case message = 11 case bytes = 12 case uint32 = 13 case enumeration = 14 case sfixed32 = 15 case sfixed64 = 16 case sint32 = 17 // ZigZag encoded case sint64 = 18 // ZigZag encoded } public enum WireType: Int { case varint = 0 case fixed64 = 1 case lengthDelimited = 2 case startGroup = 3 case endGroup = 4 case fixed32 = 5 }
  • 51. Q. How do we know the field type?
  • 53. echo.proto syntax = "proto3"; package echo; service Echo { rpc Get(EchoRequest) returns (EchoResponse) {} rpc Update(stream EchoRequest) returns (stream EchoResponse) {} } message EchoRequest { string text = 1; } message EchoResponse { string text = 1; }
  • 54. The Protocol Buffer methodology $ protoc echo.proto -o echo.out --go_out=. $ which protoc-gen-go ../bin/protoc-gen-go $ more echo.pb.go // Code generated by protoc-gen-go. // source: echo.proto // DO NOT EDIT! ...
  • 55.
  • 56.
  • 57. Interface Builder Visual designer Saves coding Builds on message sending conventions of Objective-C. It isn’t exactly a code generator... but it is a lot like a code generator.
  • 58. Protocol Buffers is Interface Builder for Data. Interface Builder: Developers specify their interfaces using a special tool, tooling compiles and integrates that into their apps. Protocol Buffers: Developers specify their data structures using a special language, tooling compiles and integrates that into their apps. message Person { string name = 1; int32 id = 2; string email = 3; enum PhoneType { MOBILE = 0; HOME = 1; WORK = 2; } message PhoneNumber { string number = 1; PhoneType type = 2; } repeated PhoneNumber phone = 4; }
  • 59. How to use Apple’s Swift Protocol Buffer Library
  • 61. A remote procedure call (RPC) framework layered on HTTP/2 Enables client and server applications to communicate transparently Client “calls” methods on a Server (which may be on a different machine) as if it were a local service Makes it easy to build heterogeneous distributed systems Separate full implementations in C, Java, and Go. What is gRPC ?
  • 64. Google Cloud Platform First Law of Distributed Object Design: don't distribute your objects. Martin Fowler http://martinfowler.com/articles/distributed-objects-microservices.html “ ”
  • 65. Google Cloud Platform The Fallacies of Distributed Computing The network is reliable Latency is zero Bandwidth is infinite The network is secure https://blogs.oracle.com/jag/resource/Fallacies.html Topology doesn't change There is one administrator Transport cost is zero The network is homogeneous
  • 66. Google Cloud PlatformGoogle Cloud Platform Services not Objects, Messages not References. Promote the microservices design philosophy of coarse-grained message exchange between systems while avoiding the pitfalls of distributed objects and the fallacies of ignoring the network. gRPC Principles & Requirements http://www.grpc.io/blog/principles
  • 67. Google Cloud Platform 67 First-class feature in gRPC. Deadline is an absolute point in time. Deadline indicates to the server how long the client is willing to wait for an answer. RPC will fail with DEADLINE_EXCEEDED status code when deadline reached. gRPC Deadlines
  • 68. Google Cloud Platform Timeouts? GW A1 A2 A3 B1 B2 B3 C1 C2 C3 200 ms ? ? ? ? ? ? ? ? ?
  • 69. Google Cloud Platform Timeout Propagation Gateway 90 ms timeout = 200 - 40 ms timeout = 160 - 90 - 20 ms timeout = 200 ms 40 ms 20 ms 20 ms 60 ms timeout reached! 230 ms
  • 70. Google Cloud Platform gRPC Deadline Propagation Gateway 90 ms Now = 1476600000000 Deadline = 1476600000200 40 ms 20 ms 20 ms 60 ms withDeadlineAfter(200, MILLISECONDS) Now = 1476600000040 Deadline = 1476600000200 Now = 1476600000150 Deadline = 1476600000200 Now = 1476600000230 Deadline = 1476600000200 DEADLINE_EXCEEDED DEADLINE_EXCEEDED DEADLINE_EXCEEDED DEADLINE_EXCEEDED
  • 71. Google Cloud Platform Timeouts? GW A1 A2 A3 B1 B2 B3 C1 C2 C3 200 ms ? ? ? ? ? ? ? ? ?
  • 72. Google Cloud Platform Timeouts for Real World? GW A1 A2 A3 B1 B2 B3 C1 C2 C3 200 ms
  • 73. gRPC use cases Client-server communication Access Google Cloud Services Build distributed applications • In data-centers • In public/private cloud • Clients and servers across: • Mobile • Web • Cloud • Also • Embedded systems, IoT • From GCP • From Android and iOS devices • From everywhere else
  • 74. Unary API: Client sends a request, server sends a response Streaming APIs: Multiple messages back and forth between Client and Server within the same call. Three types of streaming APIs Client Streaming API Server Streaming API Bi-directional Streaming API gRPC API Styles
  • 75. Unary API syntax = “proto3”; message HelloRequest { string name = 1; } message HelloReply { string message = 1; } service HelloService { rpc SayHello(HelloRequest) returns (HelloReply); } Unary API: Client sends a request, server sends a response
  • 76. Streaming APIs - 1 (of 3) Client Streaming syntax = “proto3”; message Latency { string name = 1; double val = 2; } message Histogram { string name = 1 double p99 = 2; double p999 = 3; double avg = 4; } service MetricsService { rpc ReportLateny(stream Latency) returns Histogram; } Client Streaming API: Client sends multiple messages; Server sends one response (Note: Server may choose to send the response before all the client messages are received)
  • 77. Streaming APIs - 2 (of 3) Server Streaming syntax = “proto3”; message StockRequest { string stocksymbol = 1; } message StockResponse { double price = 1; } service StockTickerService { rpc GetTicker(StockRequest) returns (stream StockResponse); } Server Streaming API: Client sends one message; Server sends multiple messages
  • 78. Streaming APIs - 3 (of 3) Bidirectional Streaming syntax = “proto3”; message ChatMessage { string msg = 1; } service ChatService { rpc Chat(stream ChatMessage) returns (stream ChatMessage); } Bidi Streaming API: Client and Server can send multiple messages to each other (Note: Client and server can independently send messages to each other i.e they do not have to wait for receiving a client message before sending a message)
  • 79. Google Cloud Platform gRPC vs JSON/HTTP for Google Cloud Pub/Sub Publishing 50KB messages at maximum throughput from a single n1-highcpu-16 GPE VM instance, using 9 gRPC channels. More impressive than the almost 3x increase in throughput, is that it took only 1/4 of the CPU resources. 11x difference per CPU3x increase in throughput https://cloud.google.com/blog/big-data/2016/03/announcing-grpc-alpha-for-google-cloud-pubsub
  • 80. Google Cloud Platform gRPC API in Google Cloud A massively scalable NoSQL database service. A fully-managed real- time messaging service. Speech to text conversion powered by machine learning. Cloud Speech APICloud Bigtable Cloud PubSub
  • 81. Google Cloud Platform Some gRPC Adopters
  • 82. Google Cloud Platform Netflix deprecated its RPC framework in favor of gRPC: “Our team has instead building an RPC solution on top of gRPC. We are doing this transition for two main reasons: multi-language support and better extensibility/composability through request interceptors. That’s our current plan moving forward.” https://github.com/Netflix/ribbon gRPC Adopters
  • 84. echo.proto syntax = "proto3"; package echo; service Echo { rpc Get(EchoRequest) returns (EchoResponse) {} rpc Update(stream EchoRequest) returns (stream EchoResponse) {} } message EchoRequest { string text = 1; } message EchoResponse { string text = 1; }
  • 85. echo.pb.go (generated messsages) package echo ... type EchoRequest struct { Text string `protobuf:"bytes,1,opt,name=text" json:"text,omitempty"` } func (m *EchoRequest) Reset() { *m = EchoRequest{} } func (m *EchoRequest) String() string { return proto.CompactTextString(m) } func (*EchoRequest) ProtoMessage() {} func (*EchoRequest) Descriptor() ([]byte, []int) { return fileDescriptor0, []int{0} } type EchoResponse struct { Text string `protobuf:"bytes,1,opt,name=text" json:"text,omitempty"` } func (m *EchoResponse) Reset() { *m = EchoResponse{} } func (m *EchoResponse) String() string { return proto.CompactTextString(m) } func (*EchoResponse) ProtoMessage() {} func (*EchoResponse) Descriptor() ([]byte, []int) { return fileDescriptor0, []int{1} }
  • 86. echo.pb.go (generated client support) // Client API for Echo service type EchoClient interface { Get(ctx context.Context, in *EchoRequest, opts ...grpc.CallOption) (*EchoResponse, error) Update(ctx context.Context, opts ...grpc.CallOption) (Echo_UpdateClient, error) } type echoClient struct { cc *grpc.ClientConn } func NewEchoClient(cc *grpc.ClientConn) EchoClient { return &echoClient{cc} } func (c *echoClient) Get(ctx context.Context, in *EchoRequest, opts ...grpc.CallOption) (*EchoResponse, error) { out := new(EchoResponse) err := grpc.Invoke(ctx, "/echo.Echo/Get", in, out, c.cc, opts...) if err != nil { return nil, err } return out, nil } func (c *echoClient) Update(ctx context.Context, opts ...grpc.CallOption) (Echo_UpdateClient, error) {
  • 87. client.go (hand-written) // Set up a connection to the server. var conn *grpc.ClientConn var err error if !*useTLS { if *address == "" { *address = "localhost:8080" } conn, err = grpc.Dial(*address, grpc.WithInsecure()) } else { if *address == "" { *address = "localhost:443" } conn, err = grpc.Dial(*address, grpc.WithTransportCredentials(credentials.NewTLS(&tls.Config{ // remove the following line if the server certificate is signed by a certificate authority InsecureSkipVerify: true, }))) } defer conn.Close() c := pb.NewEchoClient(conn)
  • 88. client.go (hand-written) response, err := c.Get(context.Background(), &pb.EchoRequest{Text: message})
  • 89. echo.pb.go (generated server support) // Server API for Echo service type EchoServer interface { Get(context.Context, *EchoRequest) (*EchoResponse, error) Update(Echo_UpdateServer) error } func RegisterEchoServer(s *grpc.Server, srv EchoServer) { s.RegisterService(&_Echo_serviceDesc, srv) } func _Echo_Get_Handler(srv interface{}, ctx context.Context, dec func(interface{}) error, interceptor grpc.UnaryServerInterceptor) (interface{}, error) { in := new(EchoRequest) if err := dec(in); err != nil { return nil, err } if interceptor == nil { return srv.(EchoServer).Get(ctx, in) } info := &grpc.UnaryServerInfo{ Server: srv, FullMethod: "/echo.Echo/Get", } handler := func(ctx context.Context, req interface{}) (interface{}, error) { return srv.(EchoServer).Get(ctx, req.(*EchoRequest))
  • 90. server.go (hand-written) func main() { var useTLS = flag.Bool("tls", false, "Use tls for connections.") flag.Parse() var err error var lis net.Listener var grpcServer *grpc.Server if !*useTLS { lis, err = net.Listen("tcp", ":8080") if err != nil { log.Fatalf("failed to listen: %v", err) } grpcServer = grpc.NewServer() } else { certFile := "ssl.crt" keyFile := "ssl.key" creds, err := credentials.NewServerTLSFromFile(certFile, keyFile) lis, err = net.Listen("tcp", ":443") if err != nil { log.Fatalf("failed to listen: %v", err) } grpcServer = grpc.NewServer(grpc.Creds(creds)) } pb.RegisterEchoServer(grpcServer, &echoServer) grpcServer.Serve(lis) }
  • 91. server.go (hand-written) func (s *EchoServer) Get(ctx context.Context, r *pb.EchoRequest) (*pb.EchoResponse, error) { response := &pb.EchoResponse{} response.Text = "Go nonstreaming echo " + r.Text fmt.Printf("Get received: %sn", r.Text) return response, nil }
  • 92. What is Google doing?
  • 93.
  • 94. We’re building Swift support for gRPC.
  • 95. We are working to add Protocol Buffers and gRPC to OpenAPI.
  • 96. We’re embracing OpenAPI. Publish OpenAPI specifications for all Google APIs and engage with the community to create and support open-source API services for clients and servers.
  • 97. OpenAPI enables a “true” Interface Builder for APIs. Replace protoc with an OpenAPI-based graphical API builder. Have that builder implement protoc’s plugin architecture. Use all the existing protoc plugins! OpenAPI-based graphical API editor Java C# Python Swift PHP C++ Ruby Objective-C protoc plugins
  • 98. You can run Swift on Google Cloud Platform right now.
  • 99. Source: Lorem ipsum dolor sit amet, consectetur adipiscing elit. Duis non erat sem Proprietary + Confidential ● API Management from Google ● This architecture serves hundreds of billions of requests per day ● All configuration happens through Open API spec or via GRPC Cloud Endpoints
  • 100. What is API Management?
  • 101. Key features Across all use cases (public, private, mobile, microservice), 3 key needs: Control access, authenticate users Logging and monitoring of key metrics Speed and scalability
  • 102. Source: Lorem ipsum dolor sit amet, consectetur adipiscing elit. Duis non erat sem Proprietary + Confidential Dashboards and UI Configuration (access, auth, etc) enforced at runtime What does Google offer? Your Code
  • 103.
  • 104.
