This document summarizes a knowledge sharing session on Javascript sourcemaps and Angular compilation. It discusses how sourcemaps allow minified code to be mapped back to original source code for debugging purposes. It also explains the different stages of Angular compilation including initialization, analysis, resolution, type checking and emitting. The key differences between just-in-time (JIT) compilation and ahead-of-time (AOT) compilation are outlined, noting that AOT produces smaller bundles but requires compilation during the build. The advantages of sourcemaps and AOT for production use are highlighted.

1. Knowledge Sharing Session on
Javascript SourceMaps & Angular
Compilation
1
Md. Zahidur Rahman
Software Engineer
Cefalo Bangladesh Ltd.
linkedin.com/in/zahid-rahman492

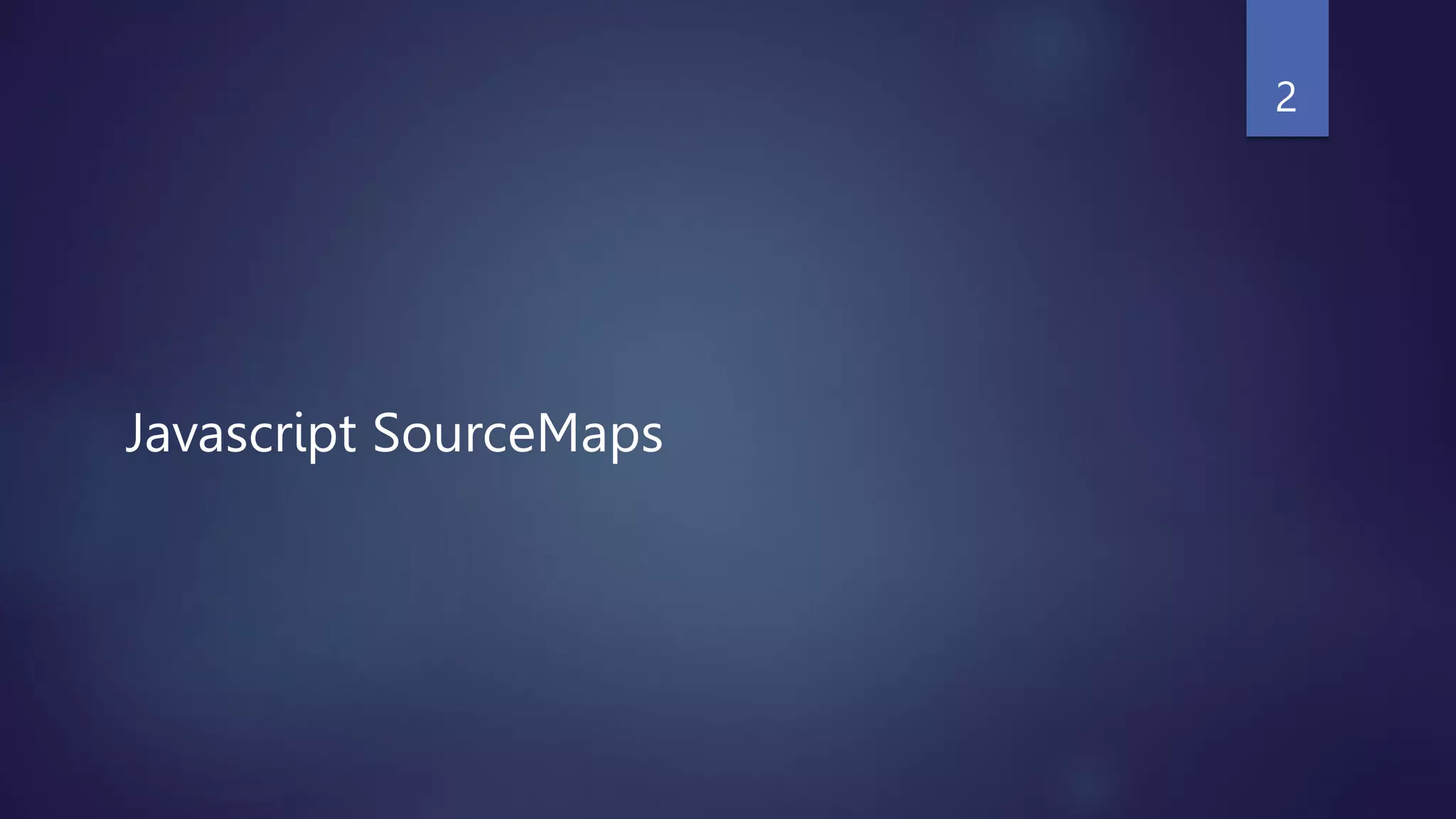

2. Javascript SourceMaps
2

3. Let’s discuss first problem?
3

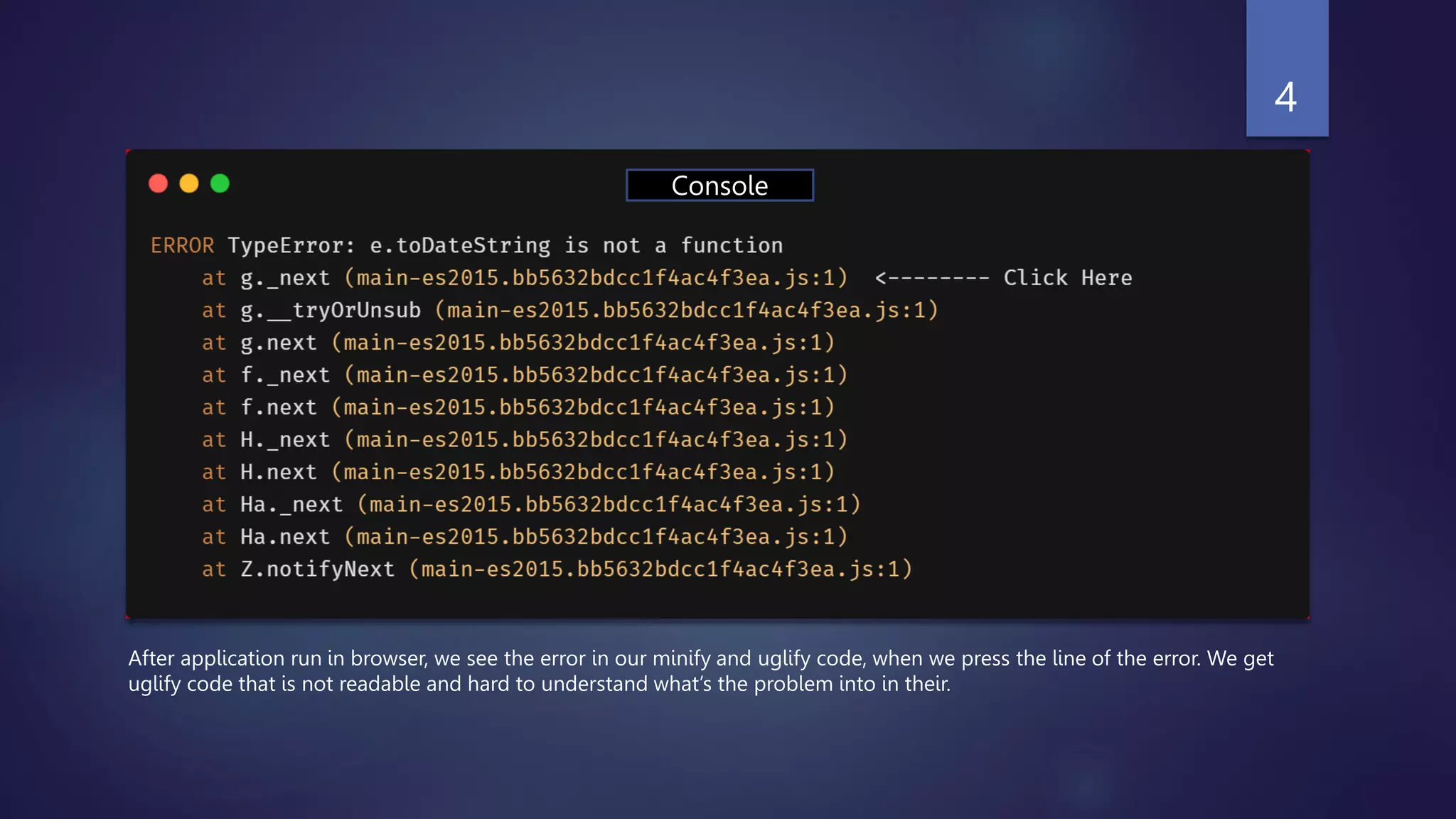

4. After application run in browser, we see the error in our minify and uglify code, when we press the line of the error. We get
uglify code that is not readable and hard to understand what’s the problem into in their.
4
Console

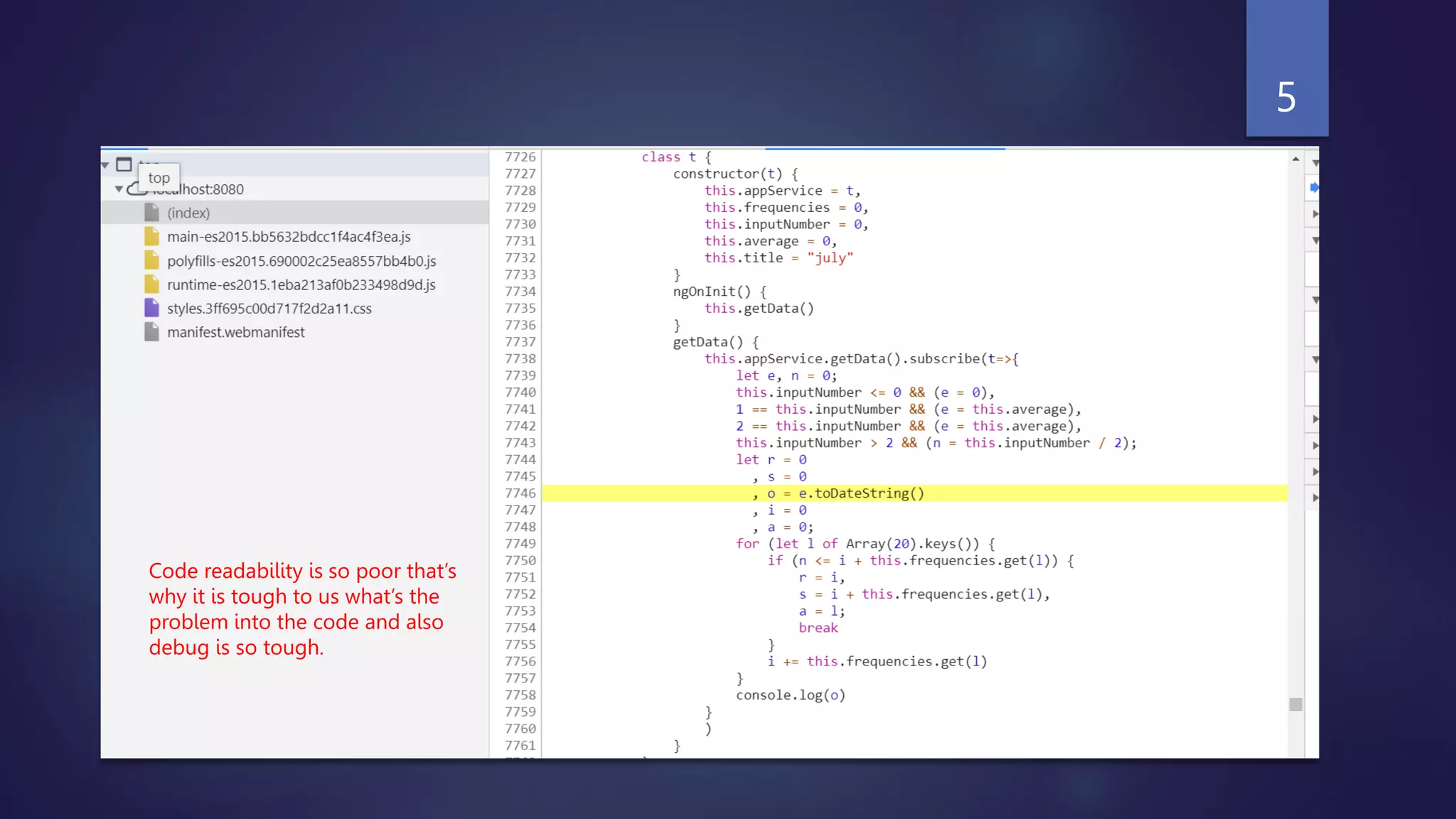

5. Code readability is so poor that’s
why it is tough to us what’s the
problem into the code and also
debug is so tough.
5

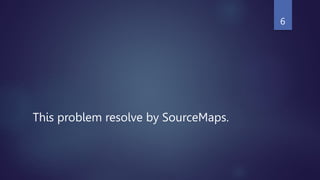

6. This problem resolve by SourceMaps.
6

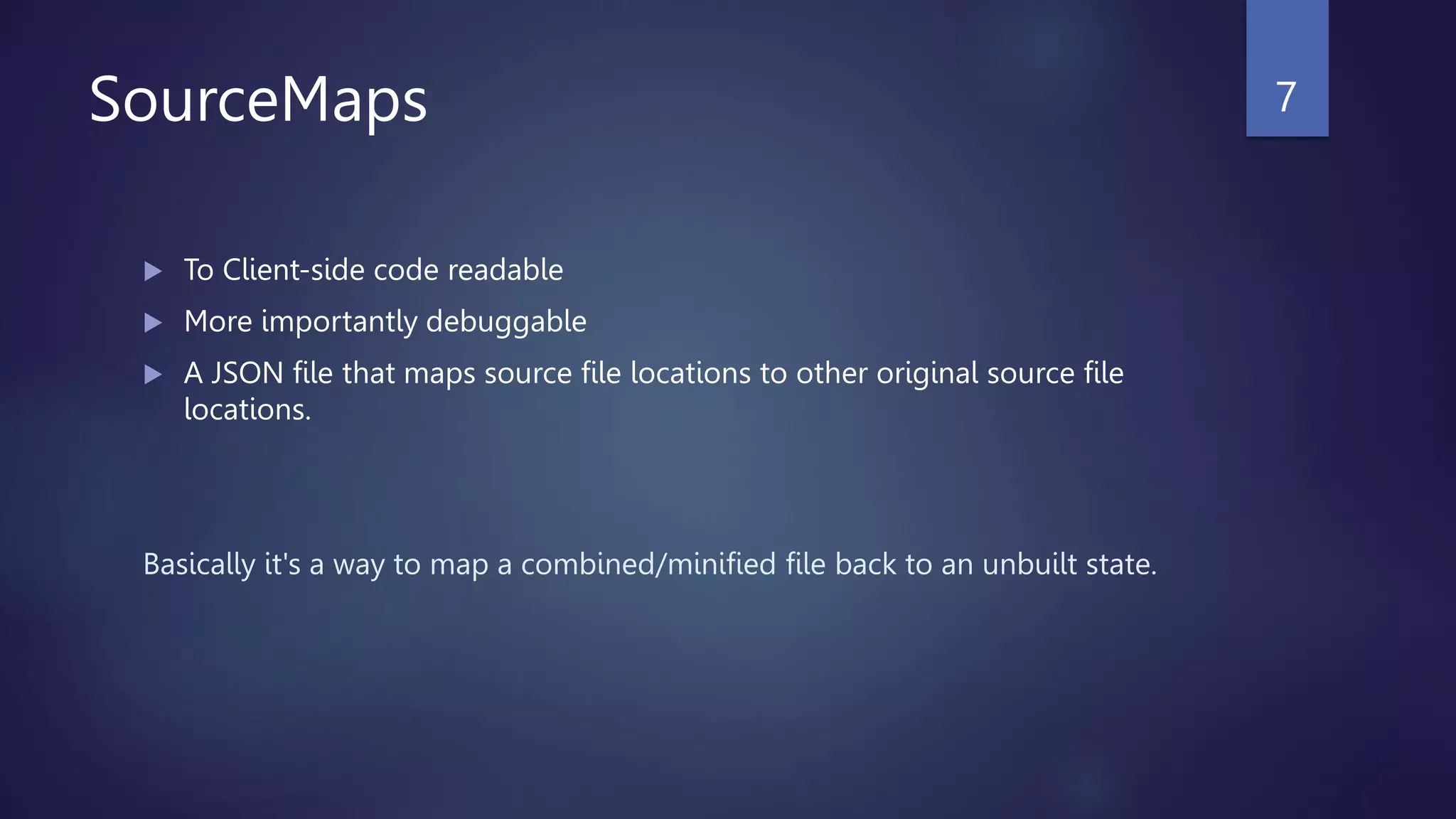

7. SourceMaps
 To Client-side code readable
 More importantly debuggable
 A JSON file that maps source file locations to other original source file
locations.
Basically it's a way to map a combined/minified file back to an unbuilt state.
7

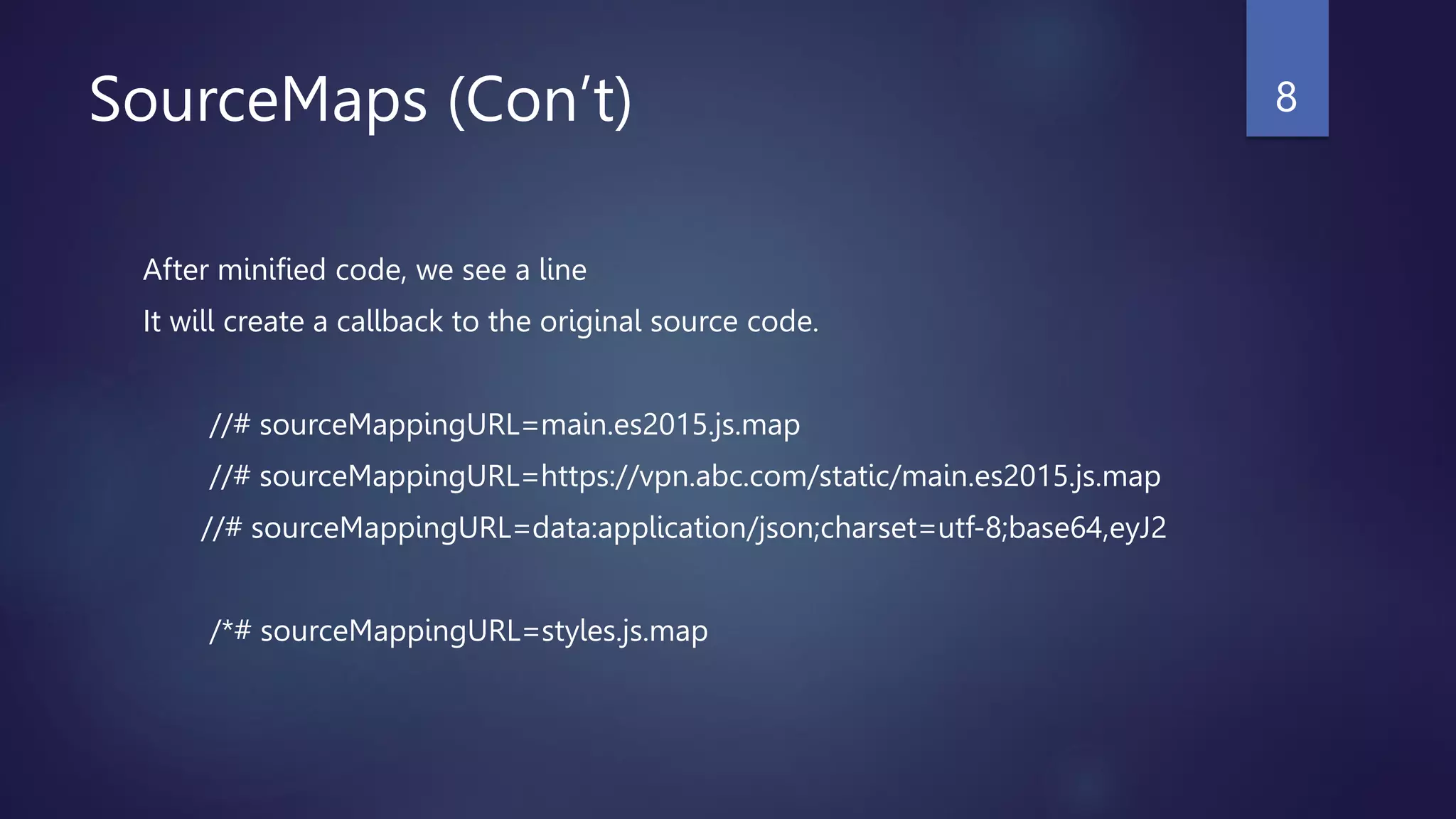

8. SourceMaps (Con’t)
After minified code, we see a line
It will create a callback to the original source code.
//# sourceMappingURL=main.es2015.js.map
//# sourceMappingURL=https://vpn.abc.com/static/main.es2015.js.map
//# sourceMappingURL=data:application/json;charset=utf-8;base64,eyJ2
/*# sourceMappingURL=styles.js.map
8

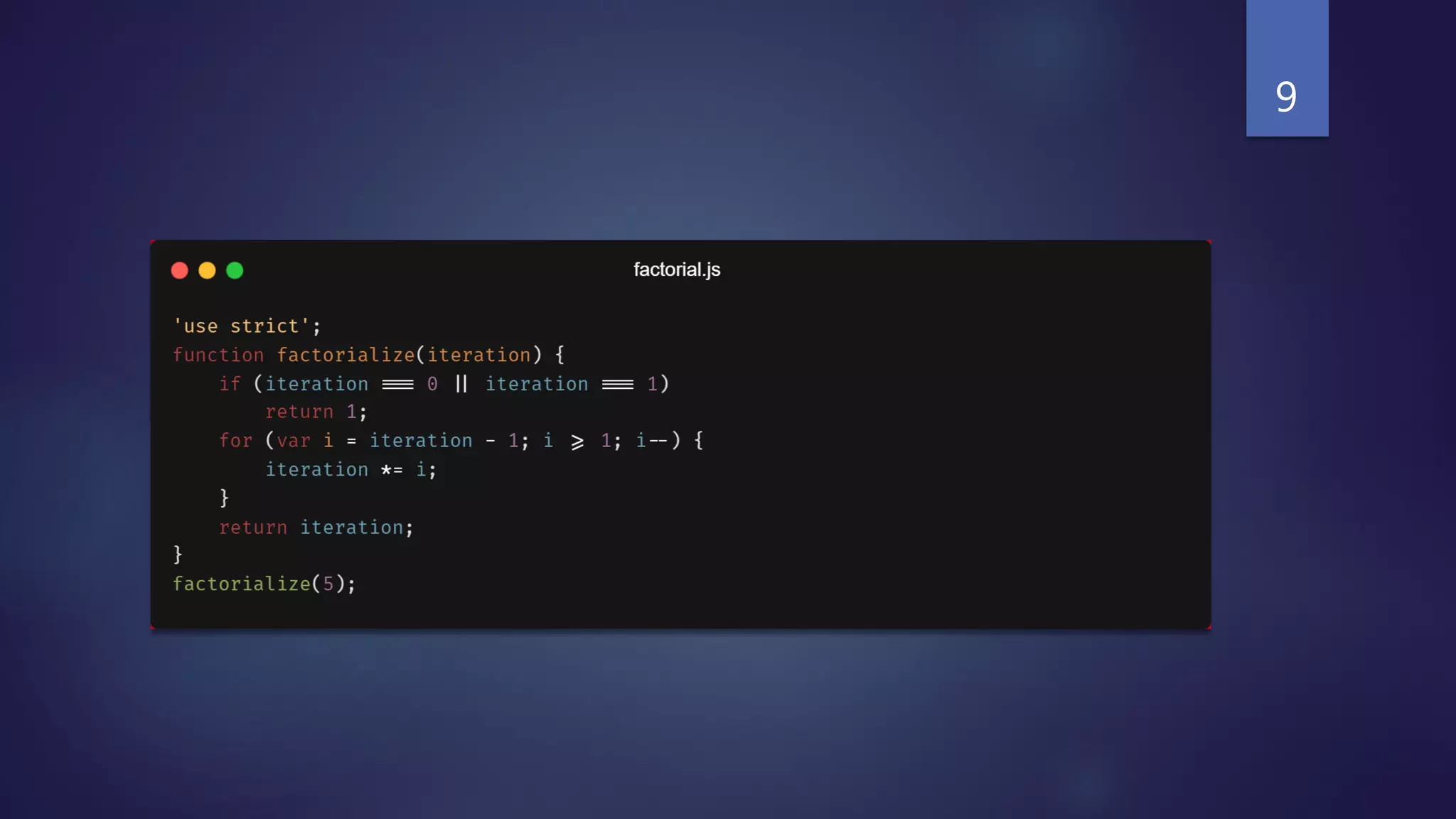

9. 9

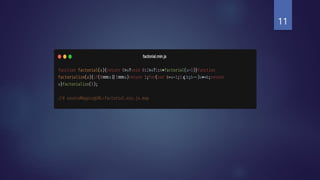

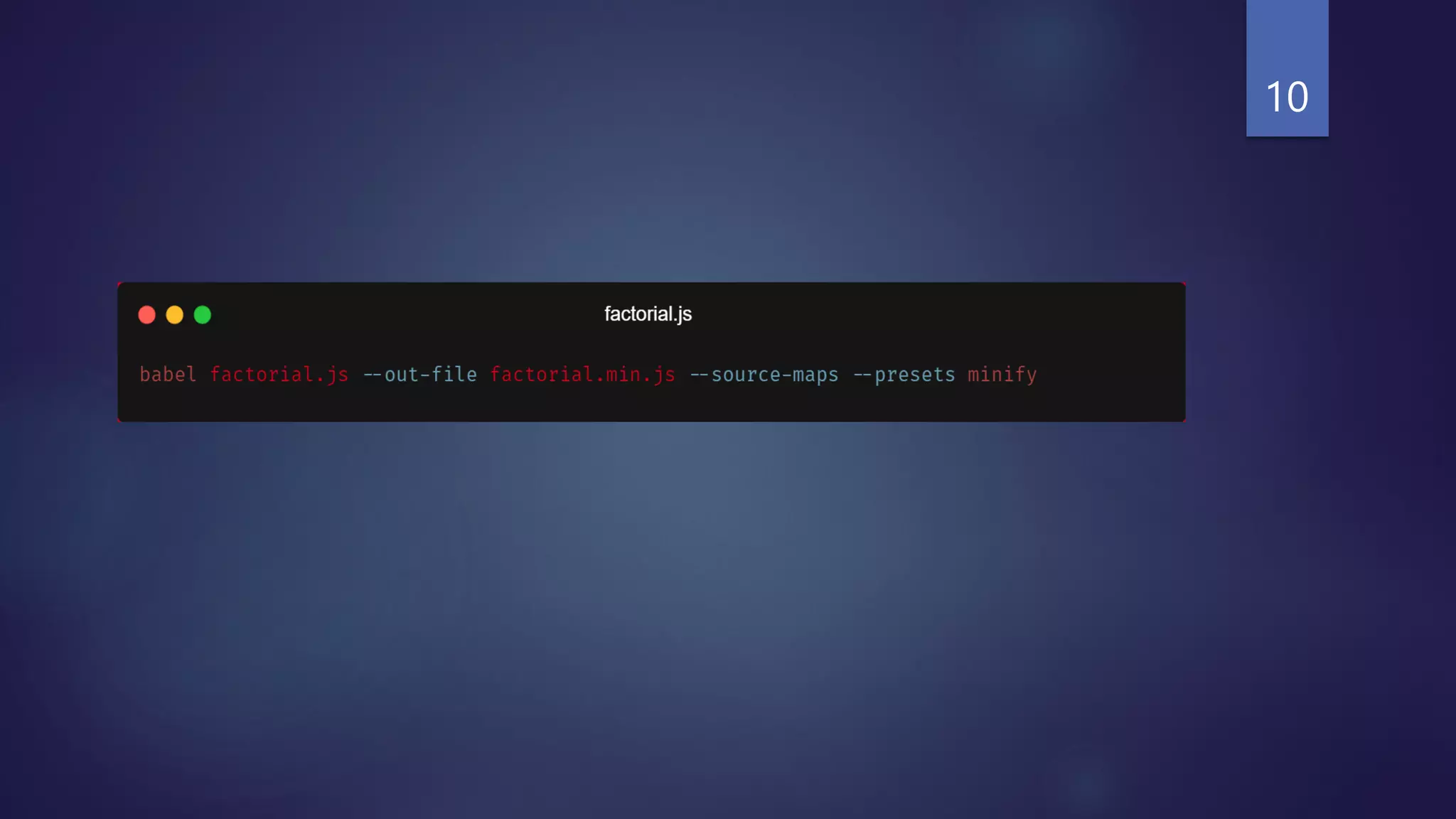

10. 10

11. 11

12. Source Map (JSON)
version SoureMaps spec
version currently 3
sources Input sources file
directory
file Output source code
file
sourceContent Raw source code
mappings Mapping from
Output file to Input
File
12

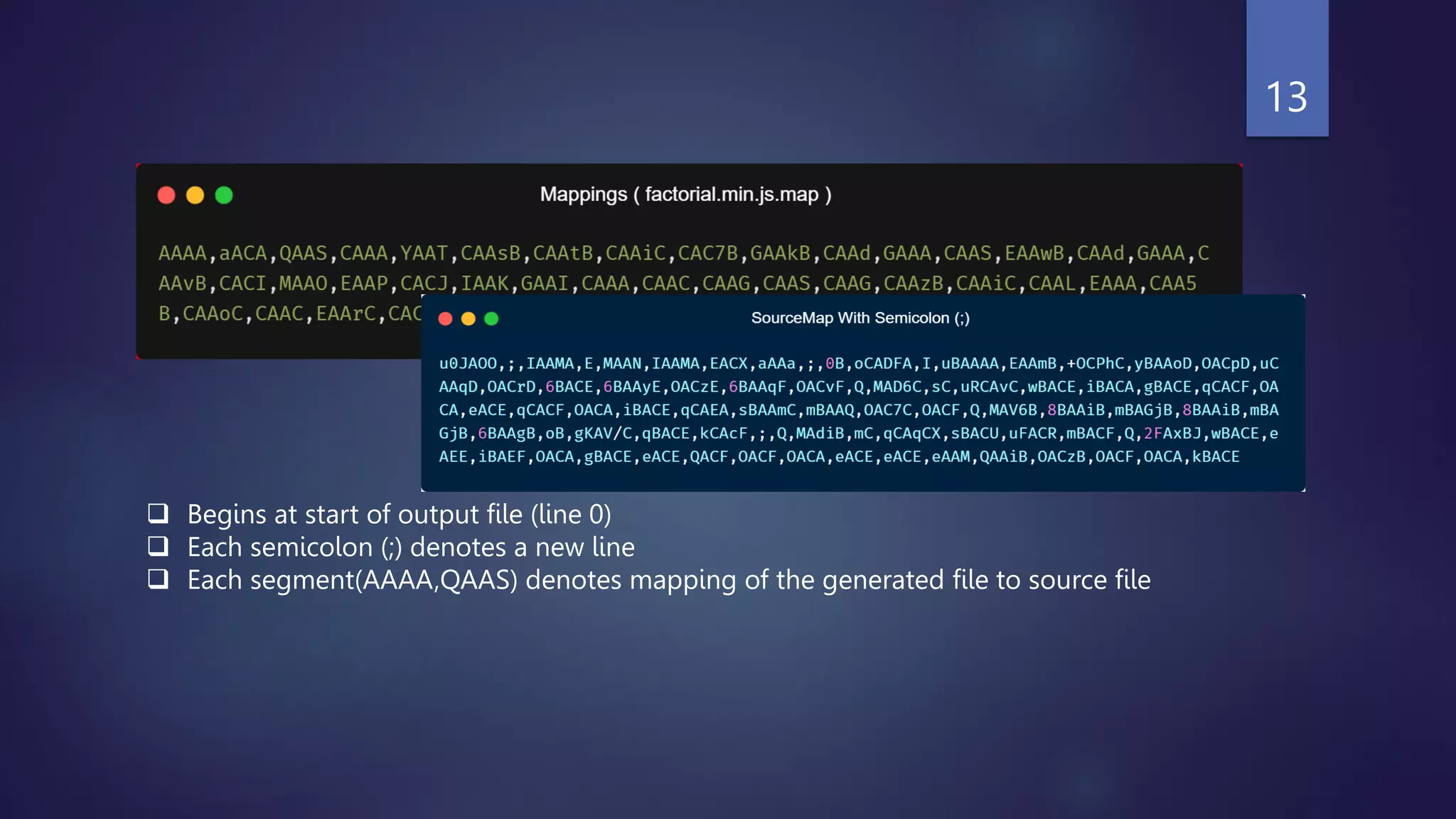

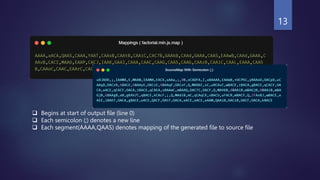

13.  Begins at start of output file (line 0)
 Each semicolon (;) denotes a new line
 Each segment(AAAA,QAAS) denotes mapping of the generated file to source file
13

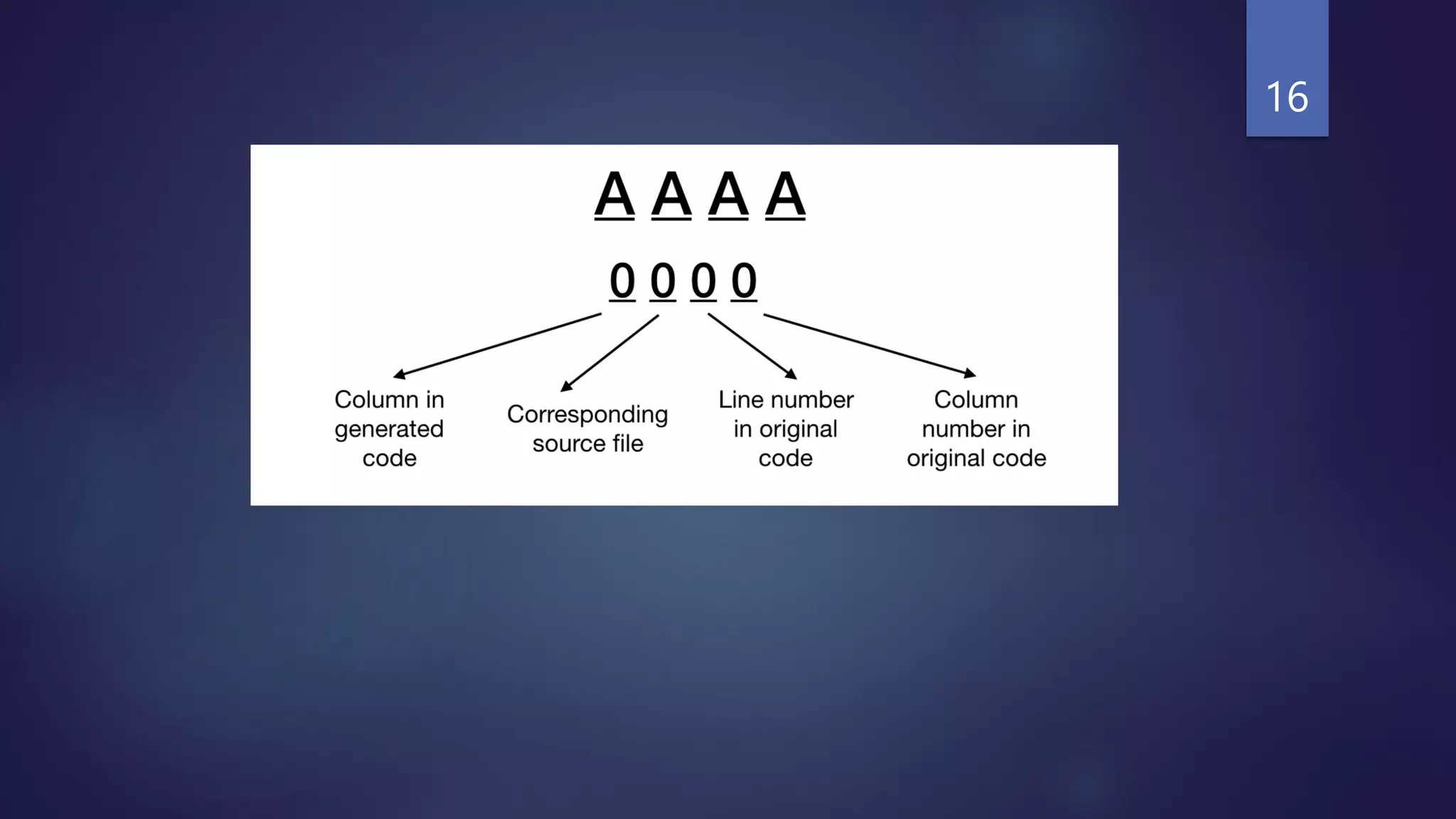

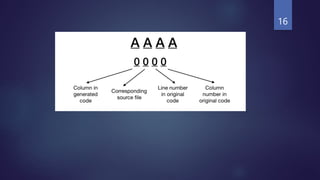

14. AAAA?
14

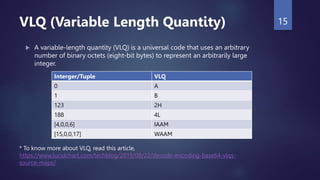

15. VLQ (Variable Length Quantity)
 A variable-length quantity (VLQ) is a universal code that uses an arbitrary
number of binary octets (eight-bit bytes) to represent an arbitrarily large
integer.
15
Interger/Tuple VLQ
0 A
1 B
123 2H
188 4L
[4,0,0,6] IAAM
[15,0,0,17] WAAM
* To know more about VLQ, read this article,
https://www.lucidchart.com/techblog/2019/08/22/decode-encoding-base64-vlqs-
source-maps/

16. 16

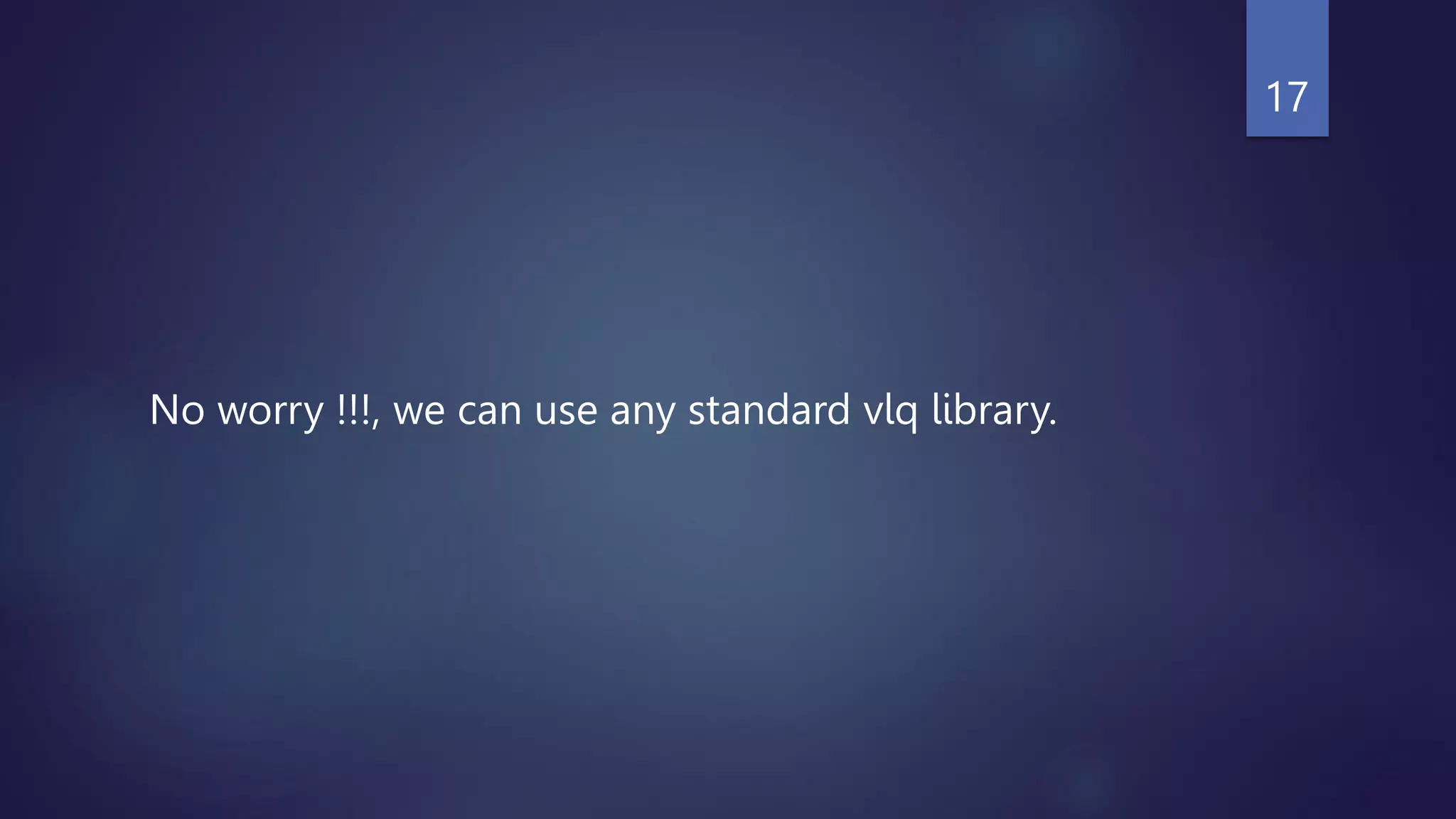

17. No worry !!!, we can use any standard vlq library.
17

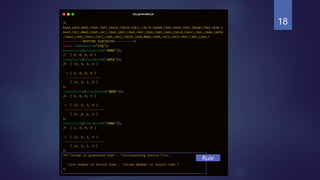

18. 18
Rule

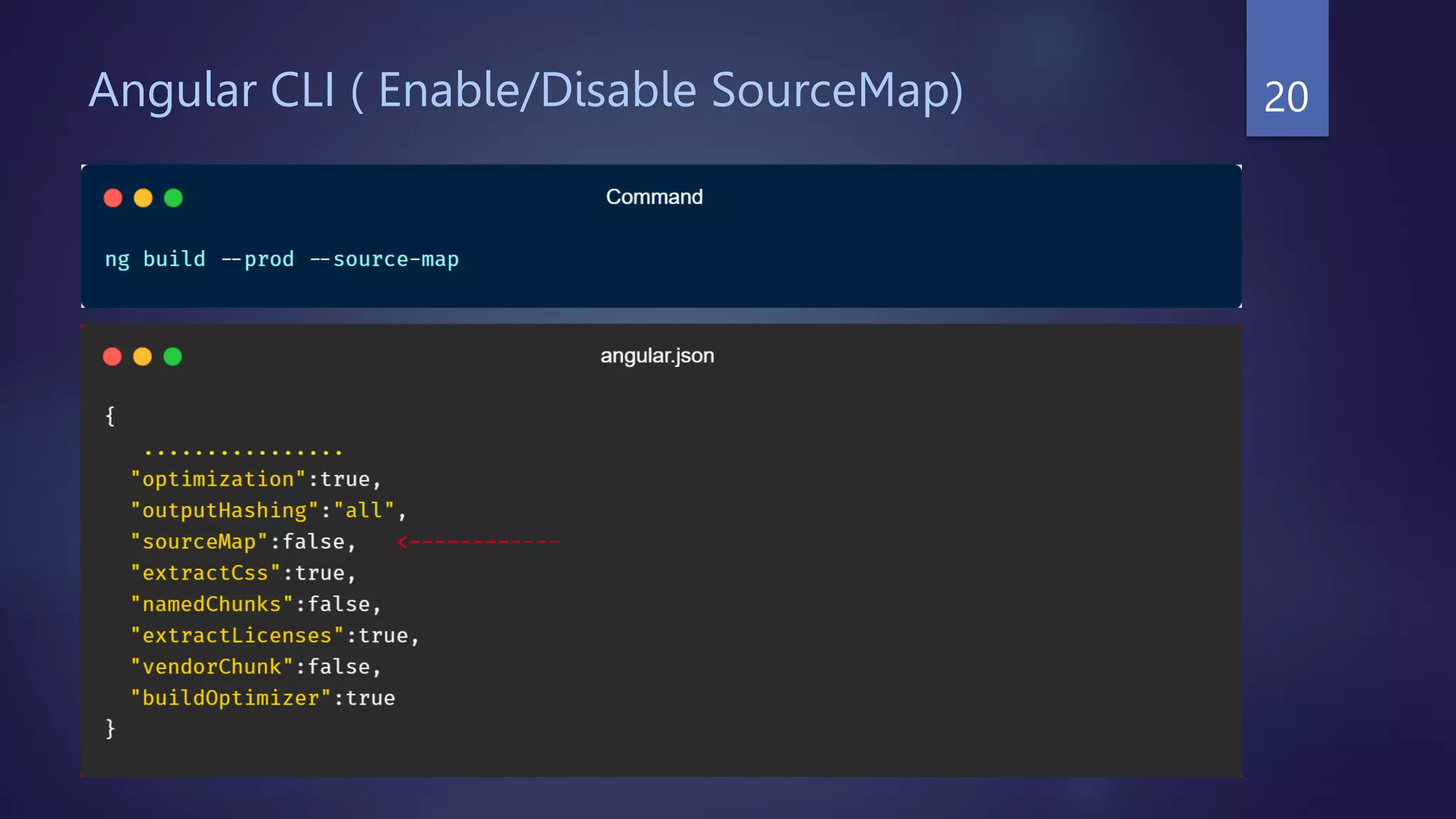

20. Angular CLI ( Enable/Disable SourceMap) 20

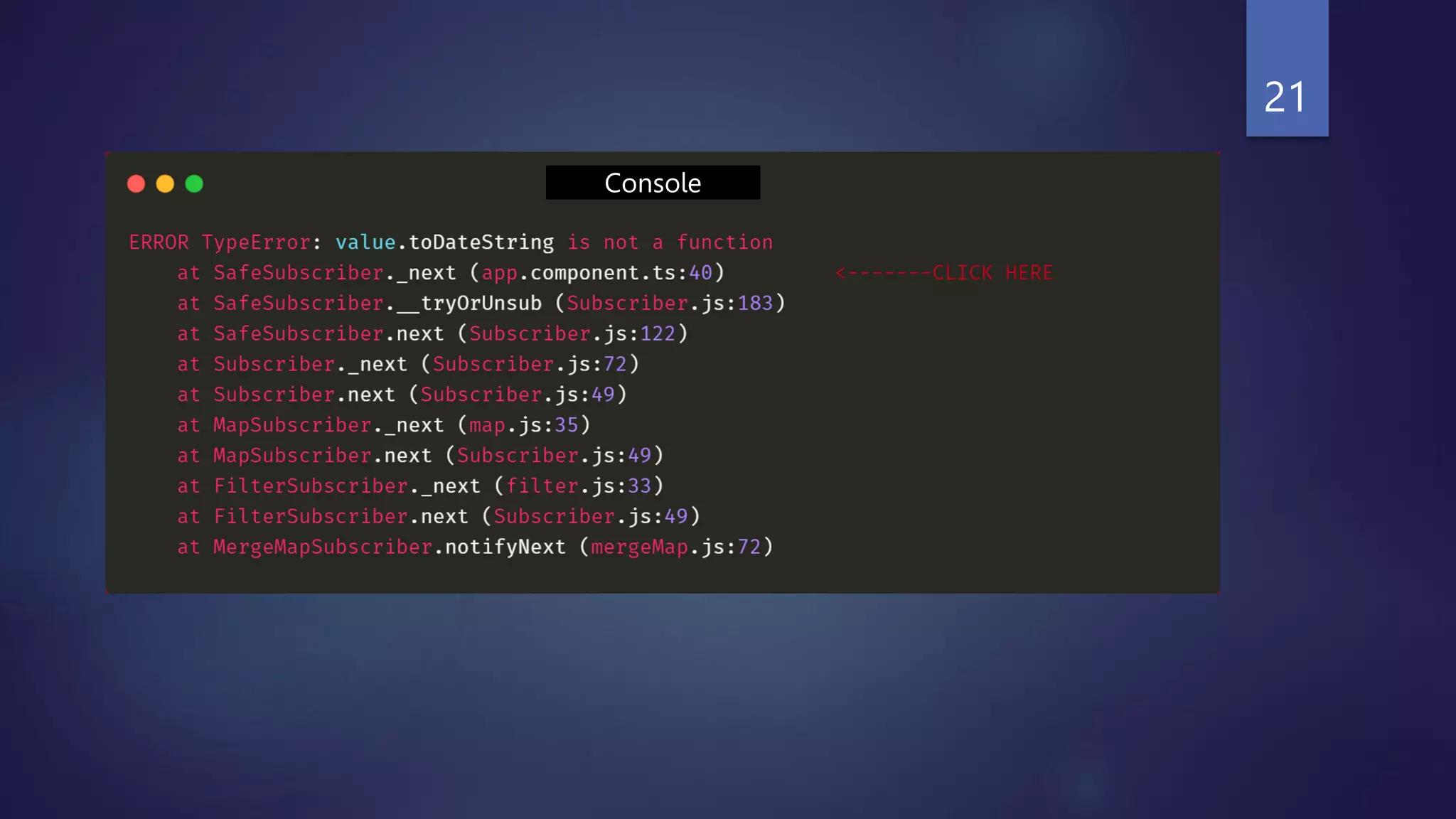

21. Console
21

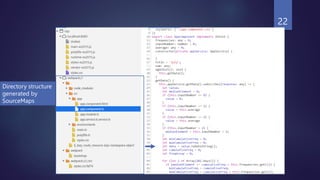

22. 22
Directory structure
generated by
SourceMaps

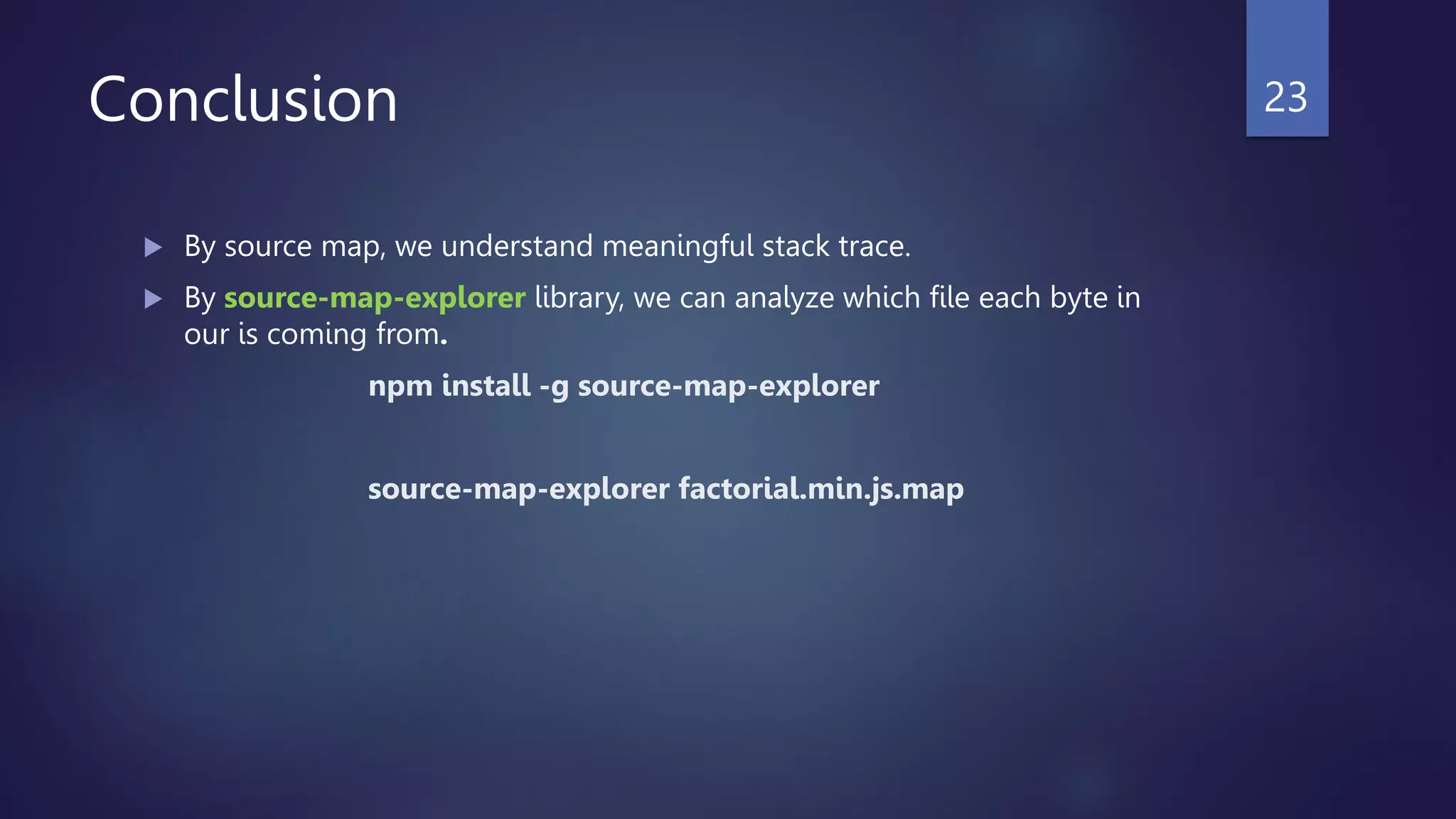

23. Conclusion
 By source map, we understand meaningful stack trace.
 By source-map-explorer library, we can analyze which file each byte in
our is coming from.
npm install -g source-map-explorer
source-map-explorer factorial.min.js.map
23

24. Questions?
24

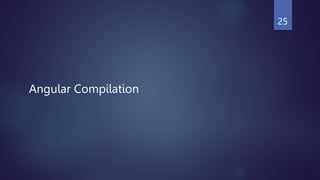

25. Angular Compilation
25

26. The Compiler transforms the source code of an
Angular application for achieving higher efficiency.
26

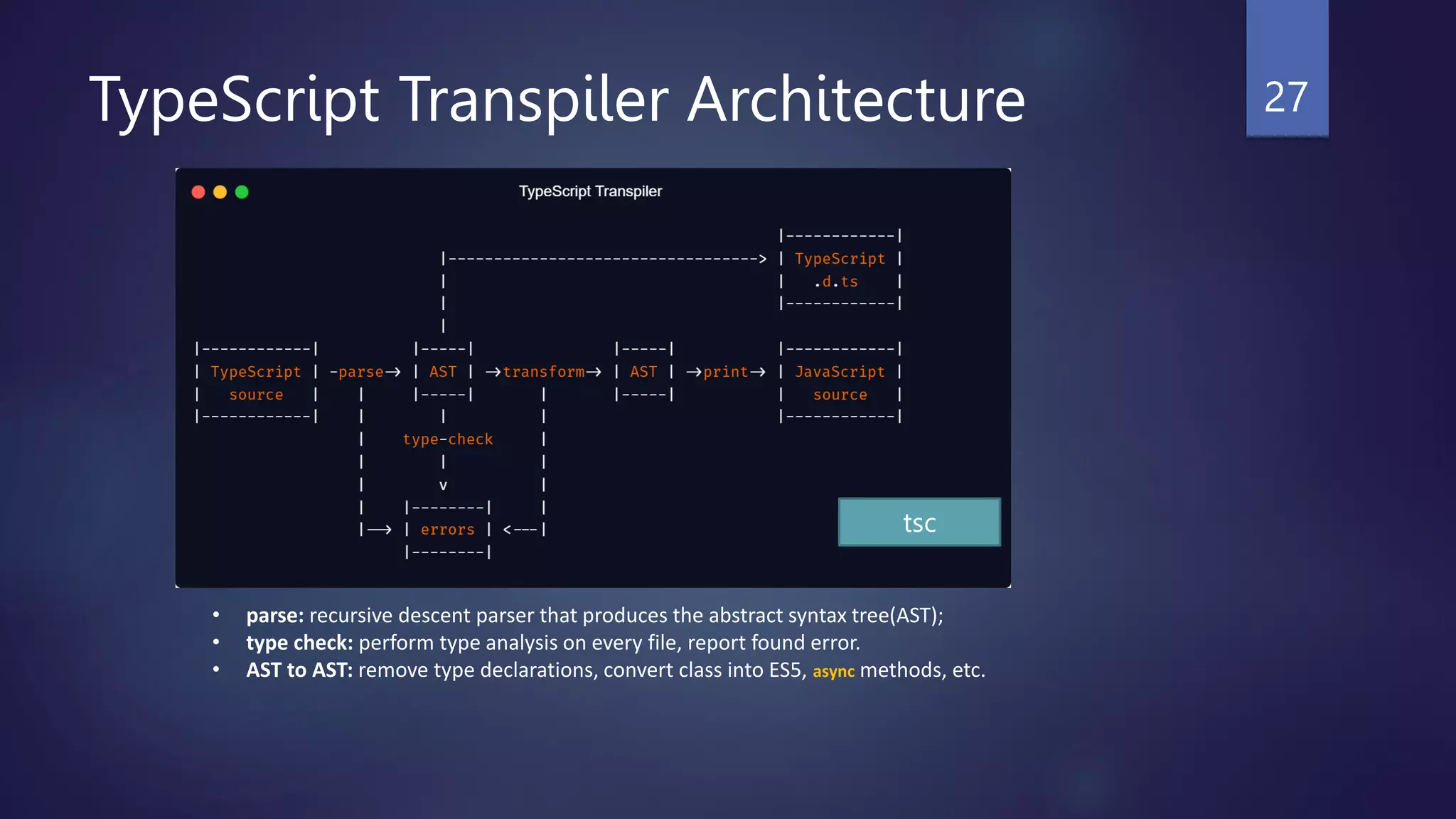

27. TypeScript Transpiler Architecture 27
• parse: recursive descent parser that produces the abstract syntax tree(AST);
• type check: perform type analysis on every file, report found error.
• AST to AST: remove type declarations, convert class into ES5, async methods, etc.
tsc

28. Type Definition 28
***.d.ts : It describes the interface or public API of the library. It helps us to static type check when
you import this library.

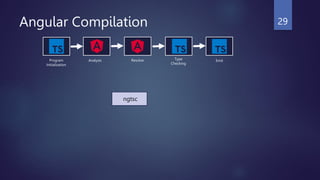

29. ngtsc
Angular Compilation 29
Program
Initialization
Analysis Resolve Type
Checking
Emit

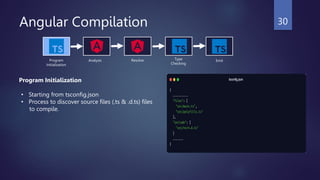

30. Angular Compilation 30
Program
Initialization
Analysis Resolve Type
Checking
Emit
Program Initialization
• Starting from tsconfig.json
• Process to discover source files (.ts & .d.ts) files
to compile.

31. Angular Compilation 31
Program
Initialization
Analysis Resolve Type
Checking
Emit
Analysis
• Collect all ts file class by class
• Looks for angular directive
• Try to understand each component/directive/pipe
• Gathering information about the structure

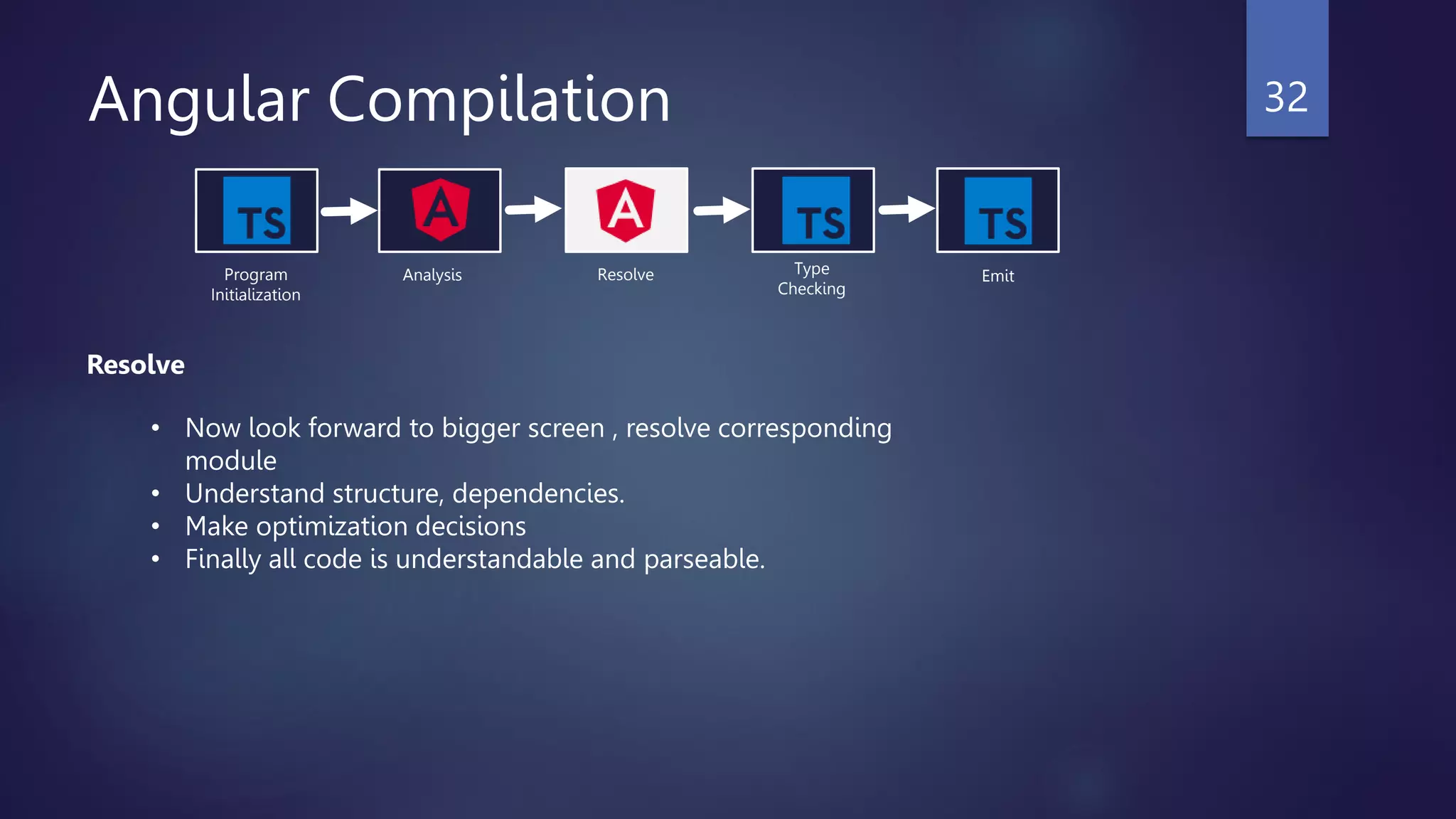

32. Angular Compilation 32
Program
Initialization
Analysis Resolve Type
Checking
Emit
Resolve
• Now look forward to bigger screen , resolve corresponding
module
• Understand structure, dependencies.
• Make optimization decisions
• Finally all code is understandable and parseable.

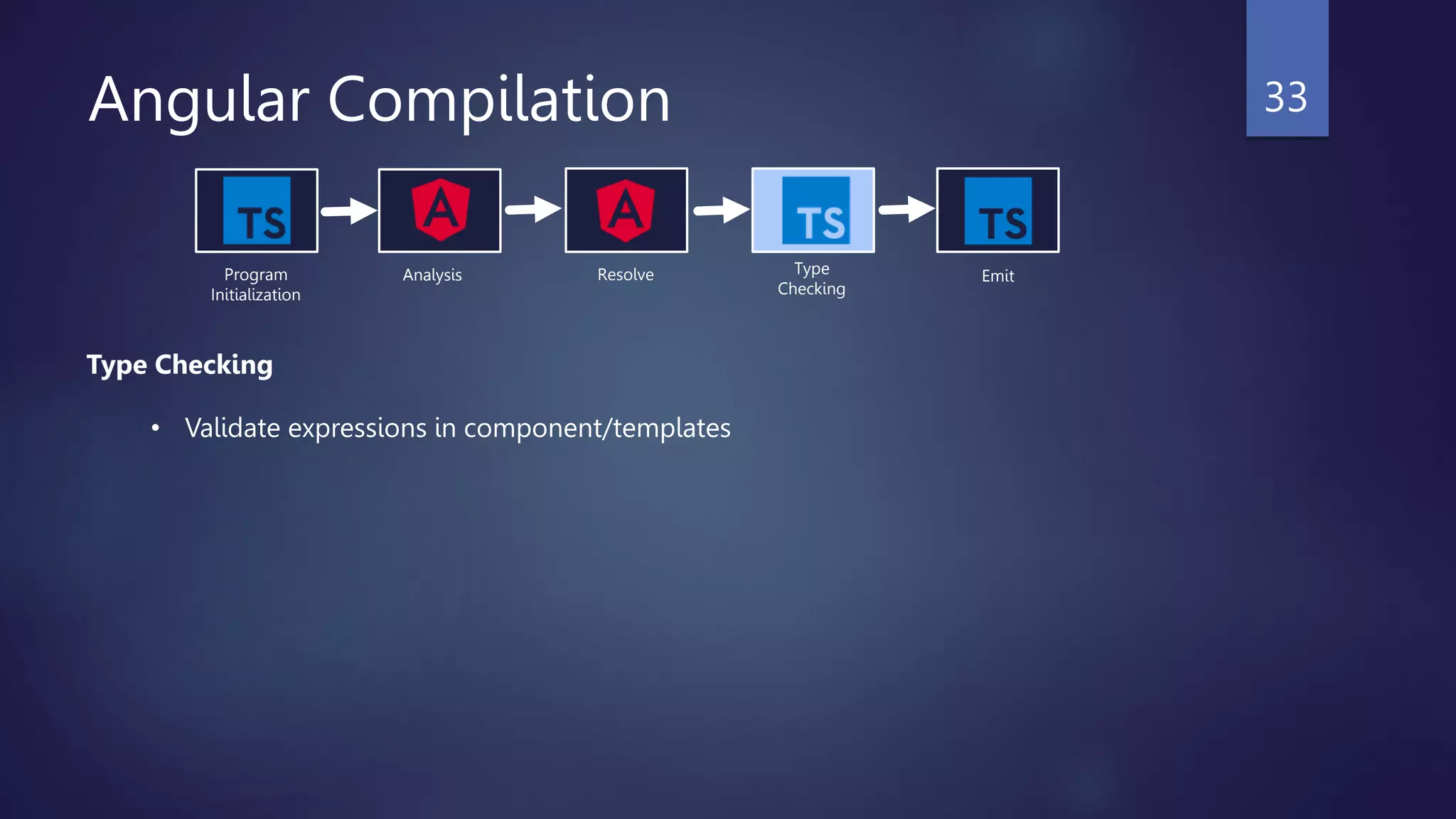

33. Angular Compilation 33
Program
Initialization
Analysis Resolve Type
Checking
Emit
Type Checking
• Validate expressions in component/templates

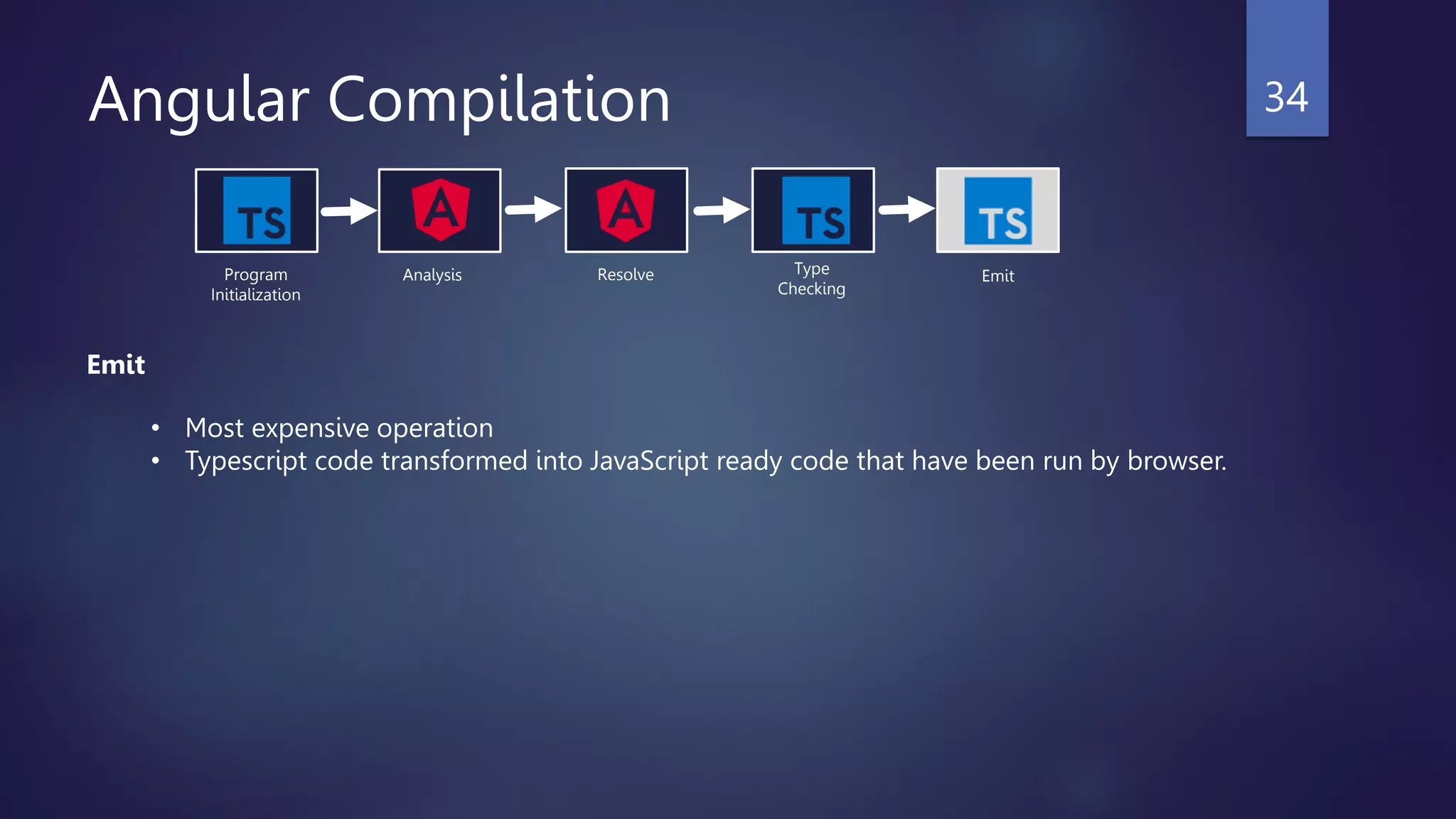

34. Angular Compilation 34
Program
Initialization
Analysis Resolve Type
Checking
Emit
Emit
• Most expensive operation
• Typescript code transformed into JavaScript ready code that have been run by browser.

35. Angular Compilation Mode
 JIT( Just In Time)
 AOT (Ahead Of Time)
35

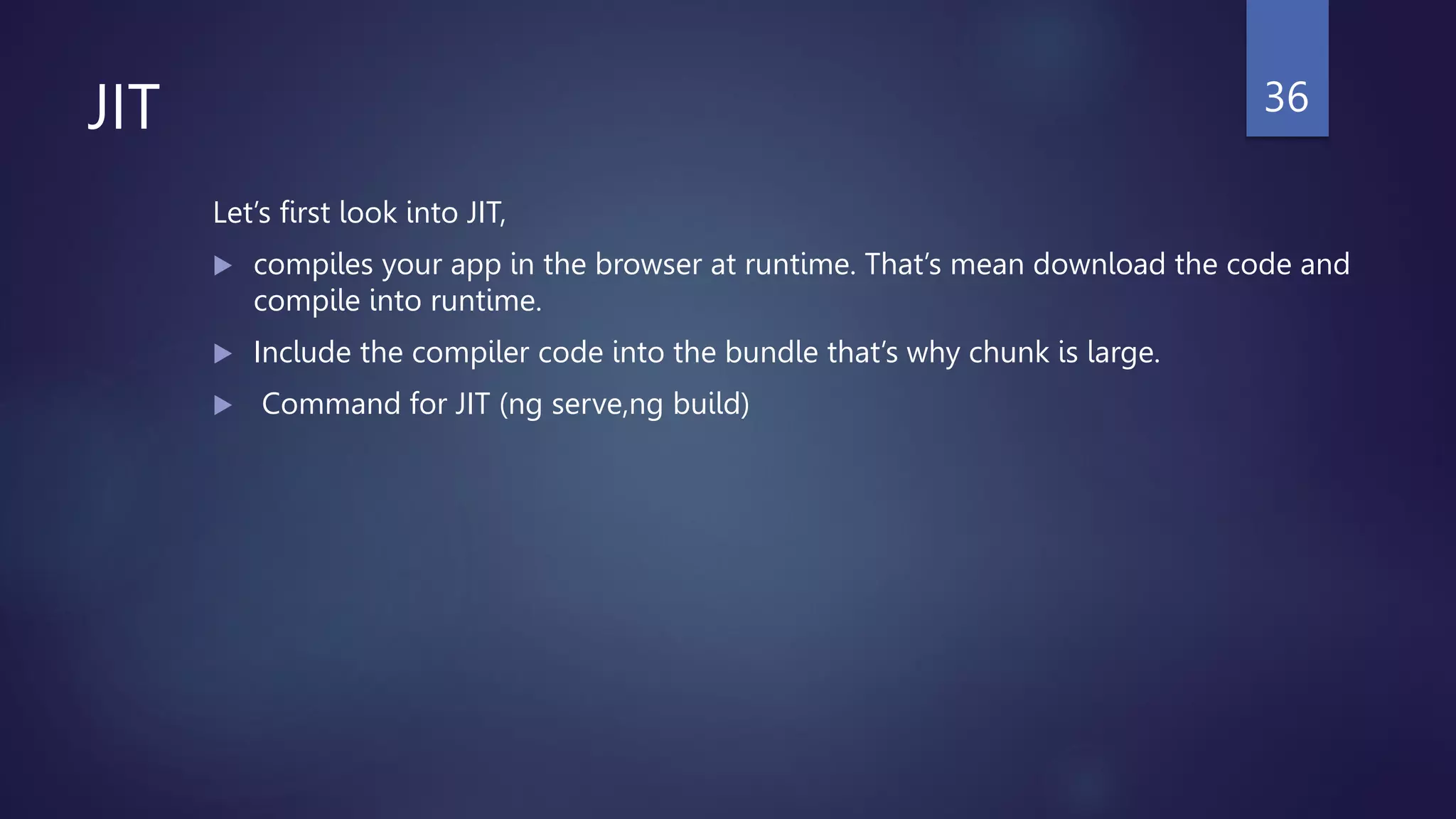

36. JIT
Let’s first look into JIT,
 compiles your app in the browser at runtime. That’s mean download the code and
compile into runtime.
 Include the compiler code into the bundle that’s why chunk is large.
 Command for JIT (ng serve,ng build)
36

37. 37

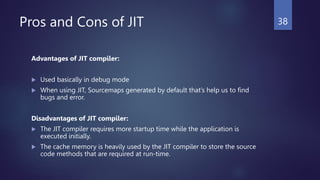

38. Pros and Cons of JIT
Advantages of JIT compiler:
 Used basically in debug mode
 When using JIT, Sourcemaps generated by default that’s help us to find
bugs and error.
Disadvantages of JIT compiler:
 The JIT compiler requires more startup time while the application is
executed initially.
 The cache memory is heavily used by the JIT compiler to store the source
code methods that are required at run-time.
38

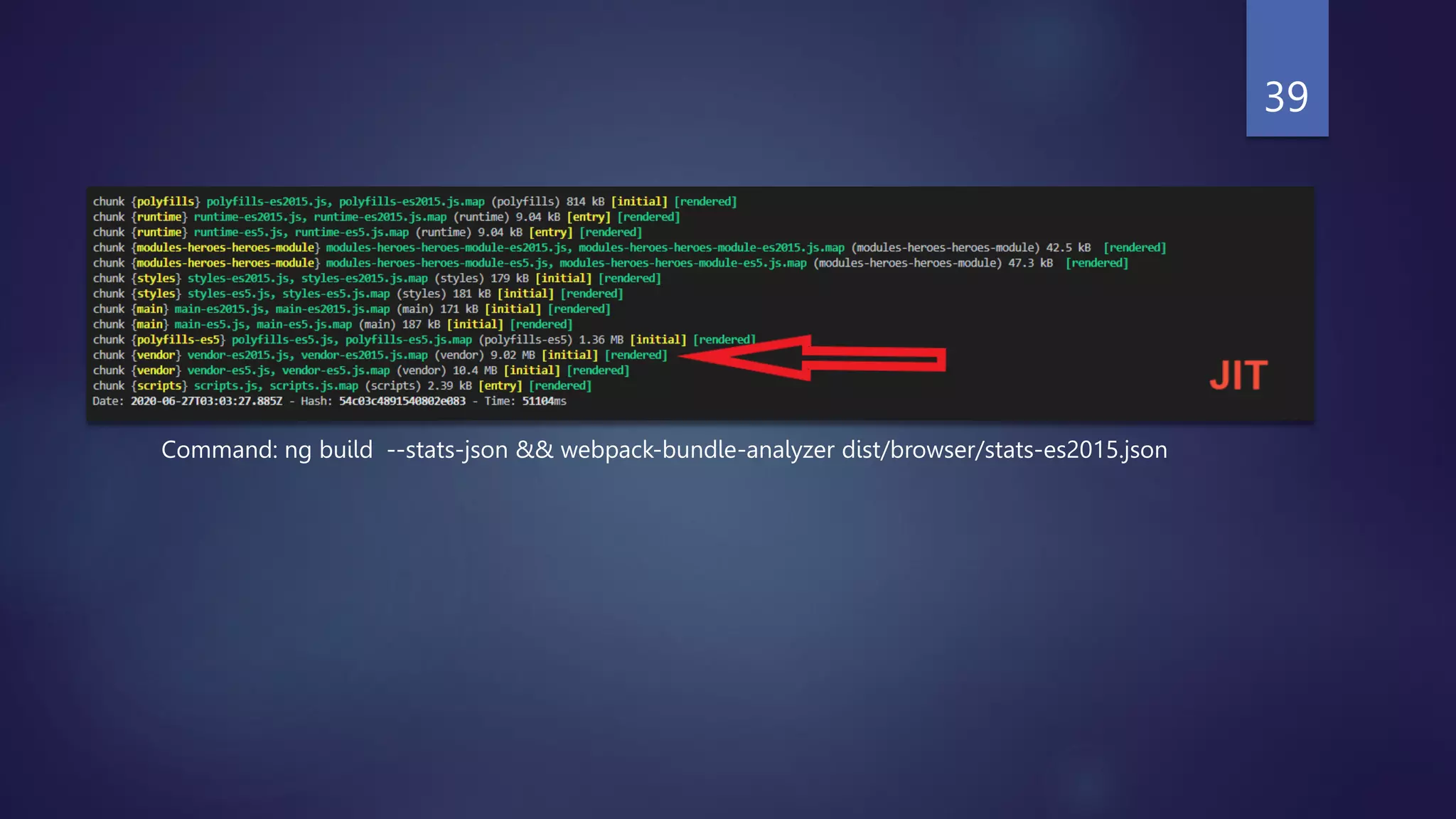

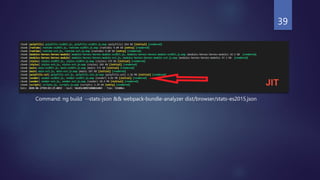

39. Command: ng build --stats-json && webpack-bundle-analyzer dist/browser/stats-es2015.json
39

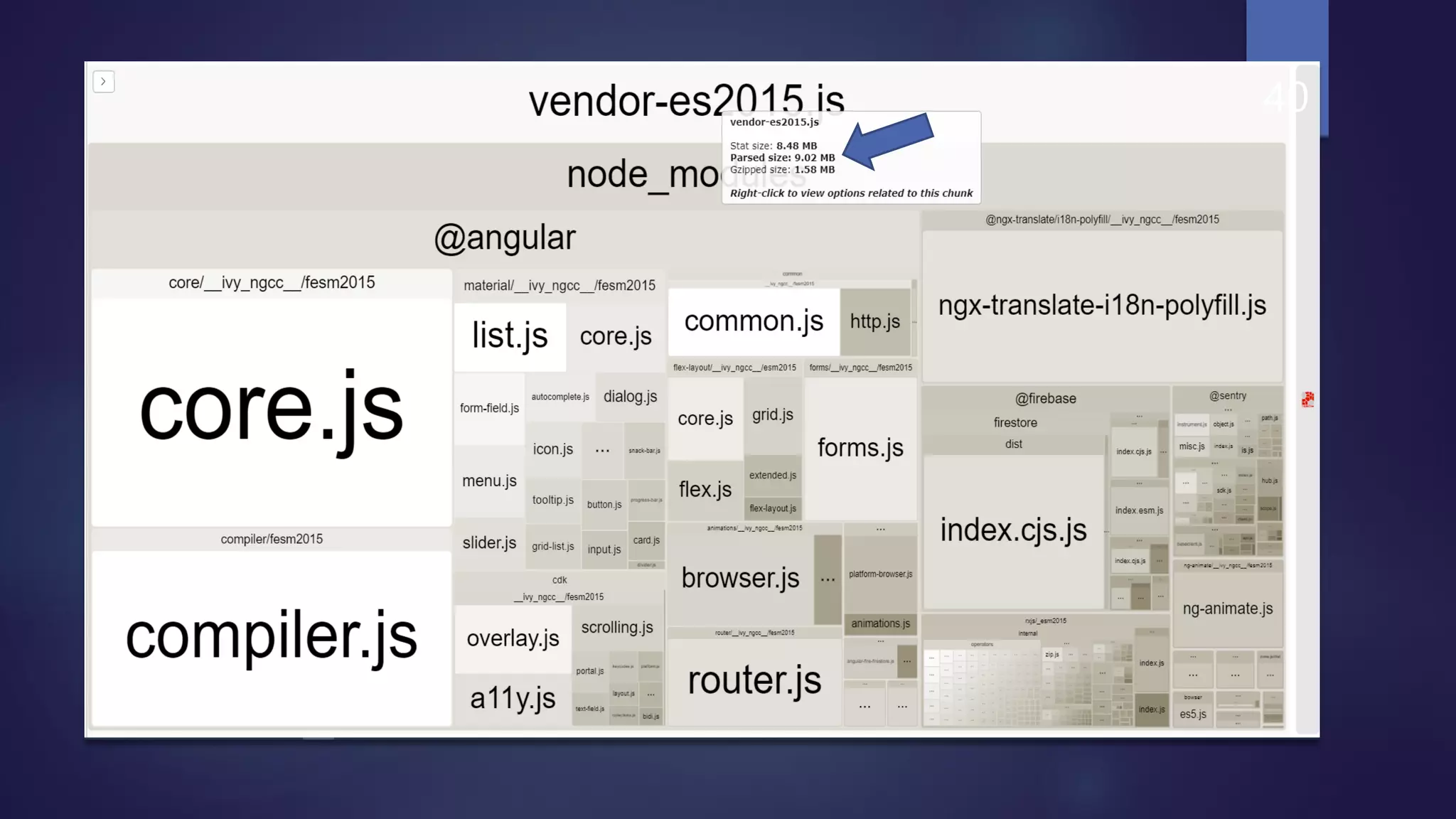

40. 40

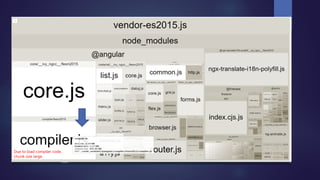

41. Due to load compiler code,
chunk size large

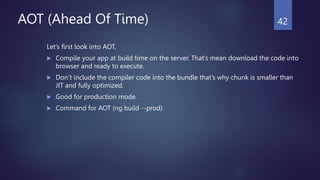

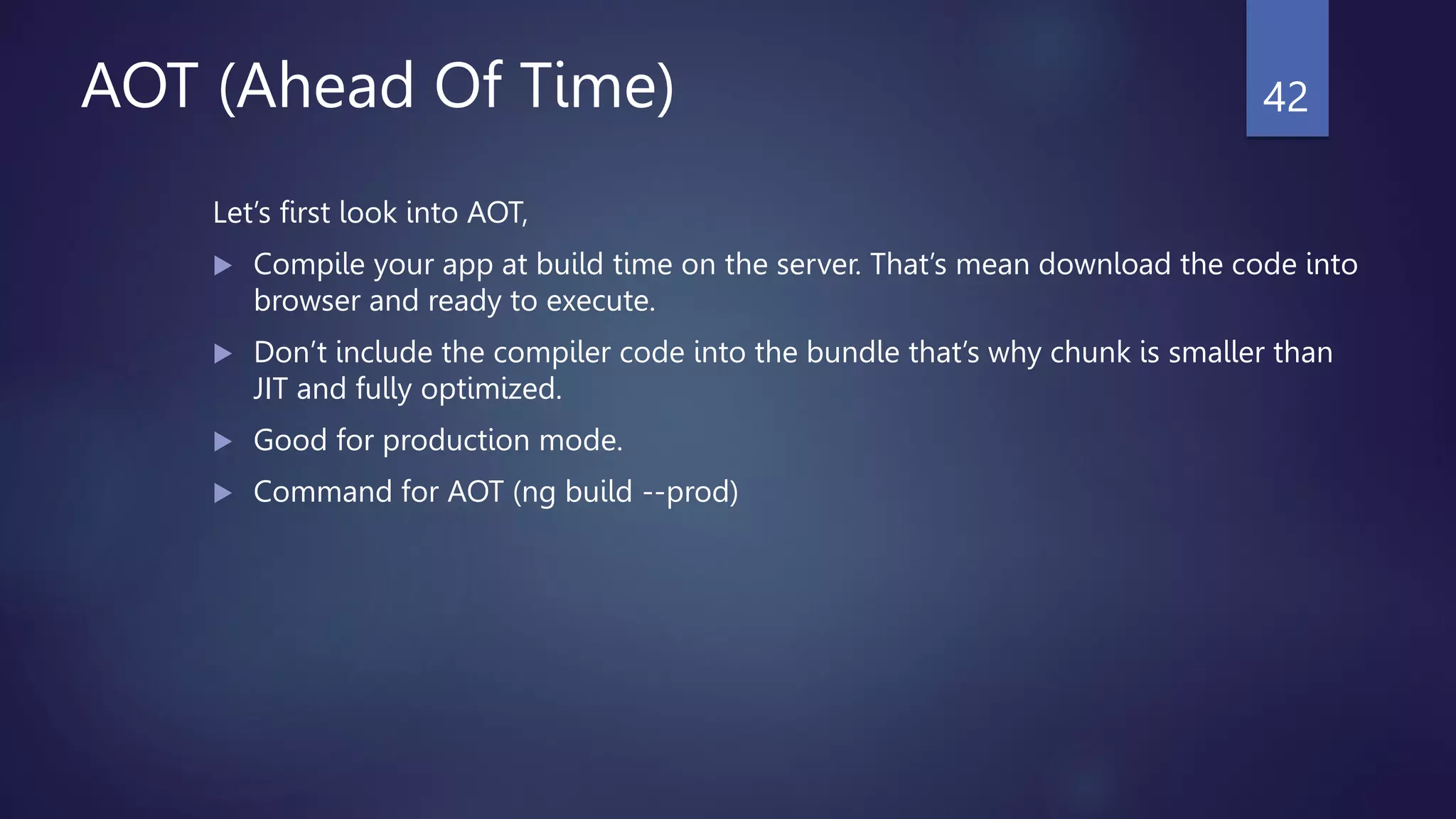

42. AOT (Ahead Of Time)
Let’s first look into AOT,
 Compile your app at build time on the server. That’s mean download the code into
browser and ready to execute.
 Don’t include the compiler code into the bundle that’s why chunk is smaller than
JIT and fully optimized.
 Good for production mode.
 Command for AOT (ng build --prod)
42

43. 43

44. 44

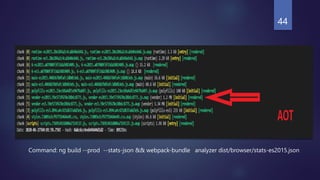

Command: ng build --prod --stats-json && webpack-bundle analyzer dist/browser/stats-es2015.json

45. 45
No Compiler
Related Code in
Chunk
Optimized

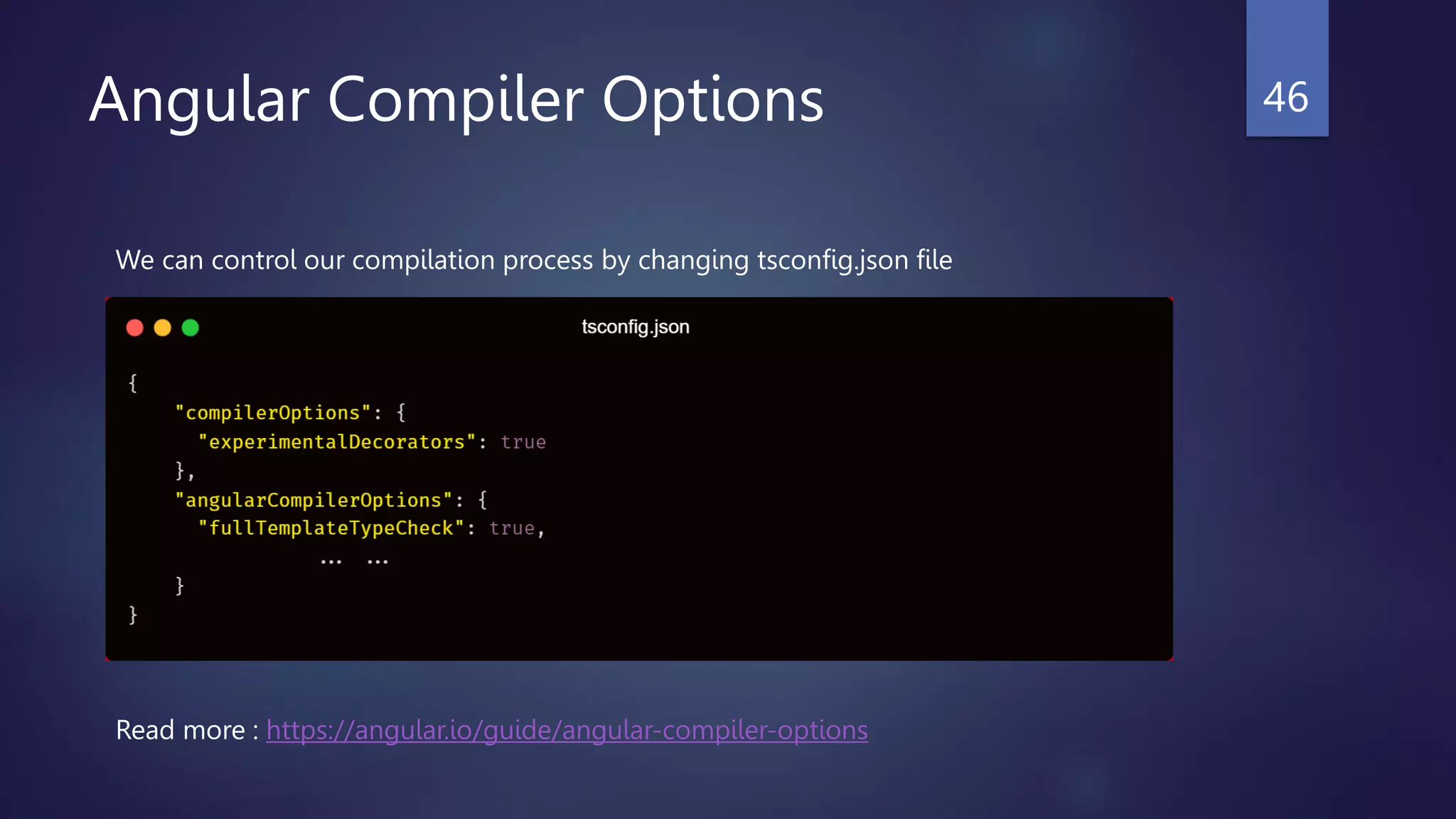

46. Angular Compiler Options 46
We can control our compilation process by changing tsconfig.json file
Read more : https://angular.io/guide/angular-compiler-options

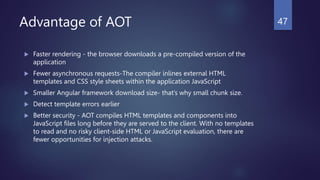

47. Advantage of AOT
 Faster rendering - the browser downloads a pre-compiled version of the
application
 Fewer asynchronous requests-The compiler inlines external HTML
templates and CSS style sheets within the application JavaScript
 Smaller Angular framework download size- that’s why small chunk size.
 Detect template errors earlier
 Better security - AOT compiles HTML templates and components into
JavaScript files long before they are served to the client. With no templates
to read and no risky client-side HTML or JavaScript evaluation, there are
fewer opportunities for injection attacks.
47

48. Questions?
48

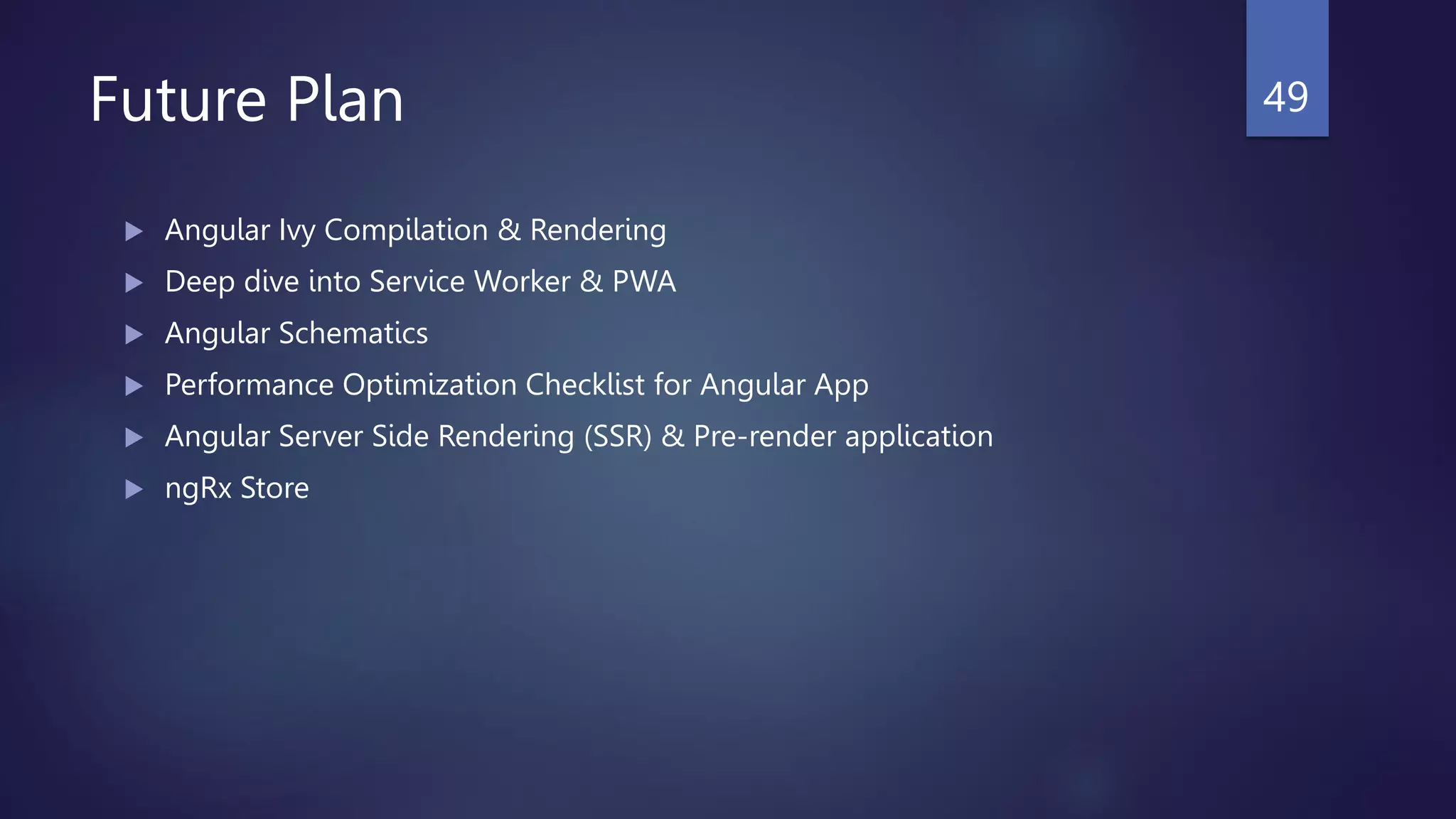

49. Future Plan
 Angular Ivy Compilation & Rendering
 Deep dive into Service Worker & PWA
 Angular Schematics
 Performance Optimization Checklist for Angular App
 Angular Server Side Rendering (SSR) & Pre-render application
 ngRx Store
49

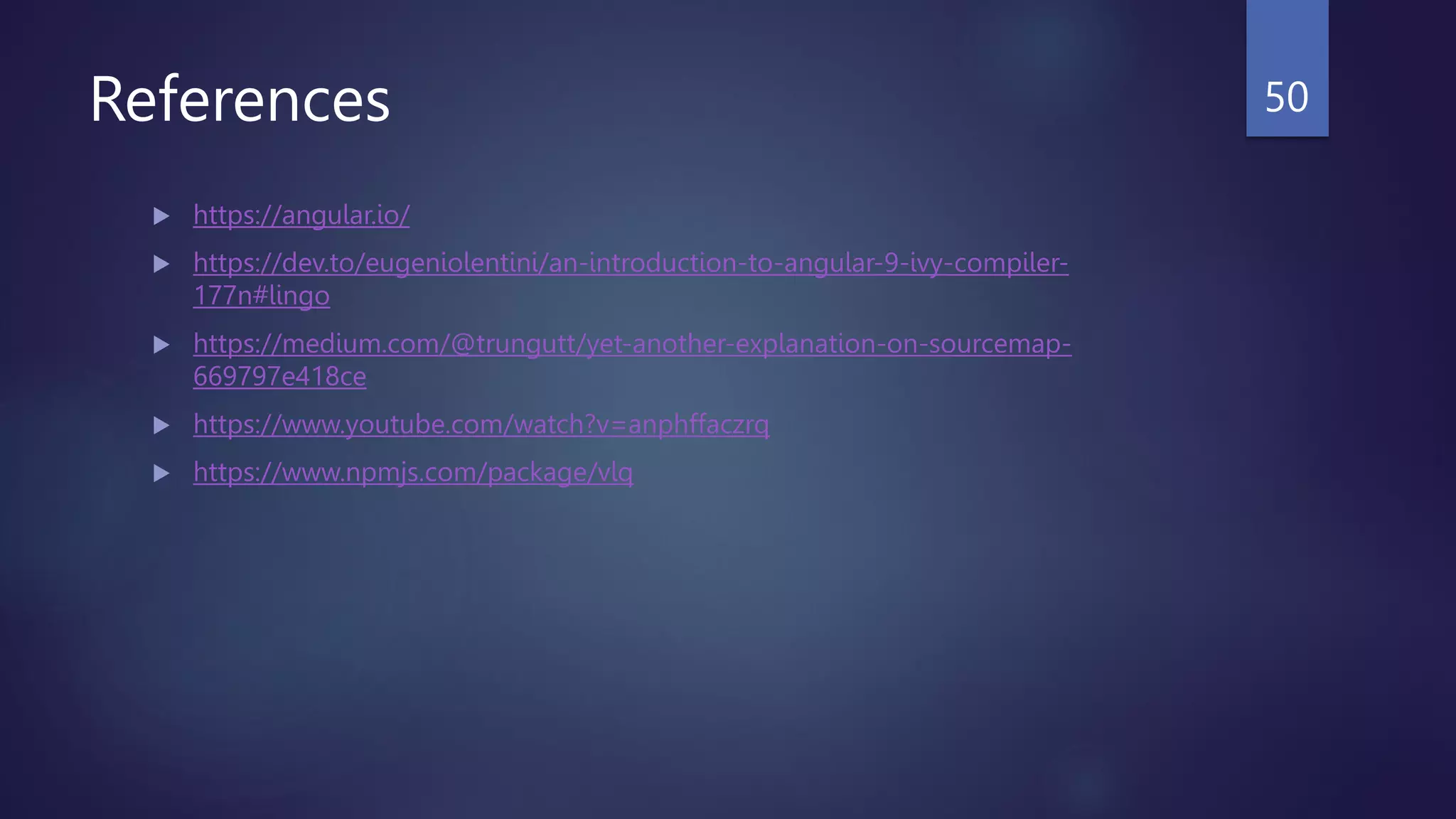

50. References
 https://angular.io/
 https://dev.to/eugeniolentini/an-introduction-to-angular-9-ivy-compiler-
177n#lingo
 https://medium.com/@trungutt/yet-another-explanation-on-sourcemap-
669797e418ce
 https://www.youtube.com/watch?v=anphffaczrq
 https://www.npmjs.com/package/vlq
50

51. Thank You
51
