The document discusses real-time face detection systems using the Viola-Jones algorithm, which focuses on high detection rates and low false-positive rates by employing techniques such as Haar features, integral images, and AdaBoost for feature selection. It outlines the algorithm's steps, including the use of cascade classifiers to efficiently evaluate sub-windows in an image for face detection. Additionally, it mentions advancements in object detection algorithms, particularly deep learning methods, highlighting their effectiveness in improving accuracy in face recognition.

1. 1
Hi all !!

2. Real Time Face Detection
Systems Using Viola Johns
Algorithm
-Sreerag Sreenath
Sec A
Final Year B.Tech ECE
January 24 , 2017

3. Face Detection
3
Basic idea: slide a window across image and evaluate a face model at every
location of a given image

4. Overview
• Robust – very high Detection Rate (True-Positive Rate) & very low False-
Positive Rate… always.
• Real Time – For practical applications at least 2 frames per second must be
processed.
• Face Detection – not recognition. The goal is to distinguish faces from non-
faces (face detection is the first step in the identification process)
4

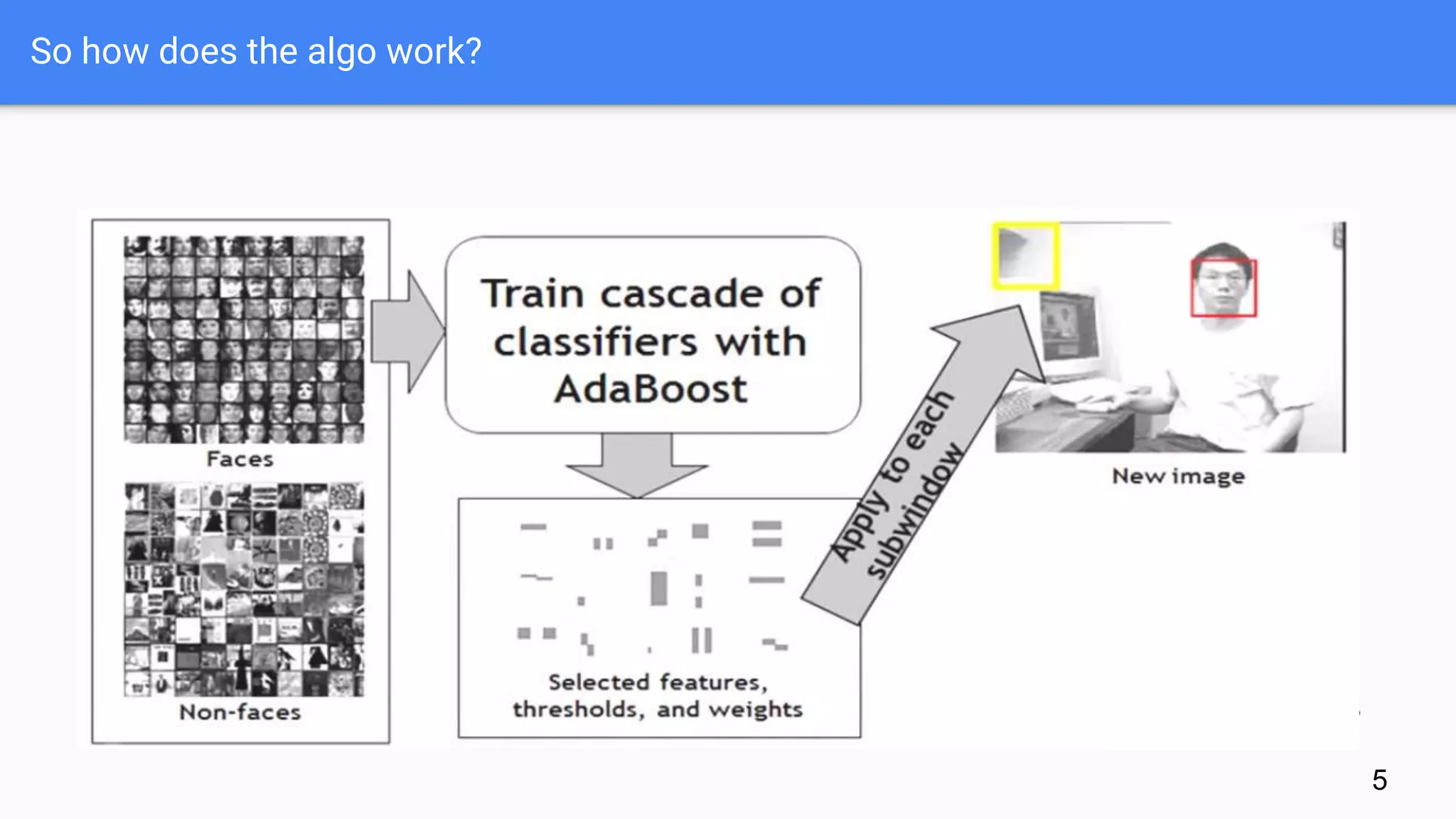

5. So how does the algo work?
5

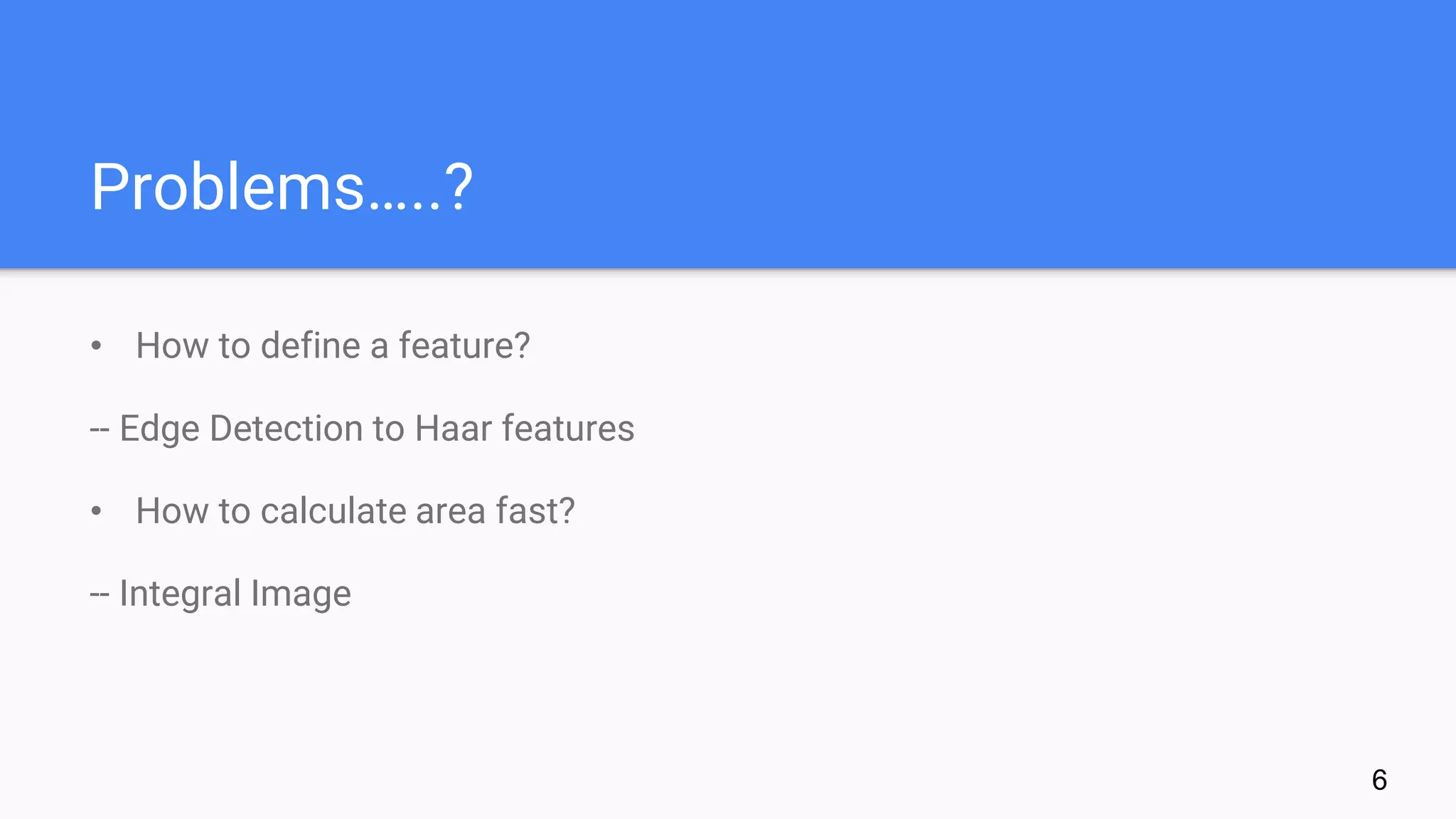

6. Problems…..?
• How to define a feature?
-- Edge Detection to Haar features
• How to calculate area fast?
-- Integral Image
6

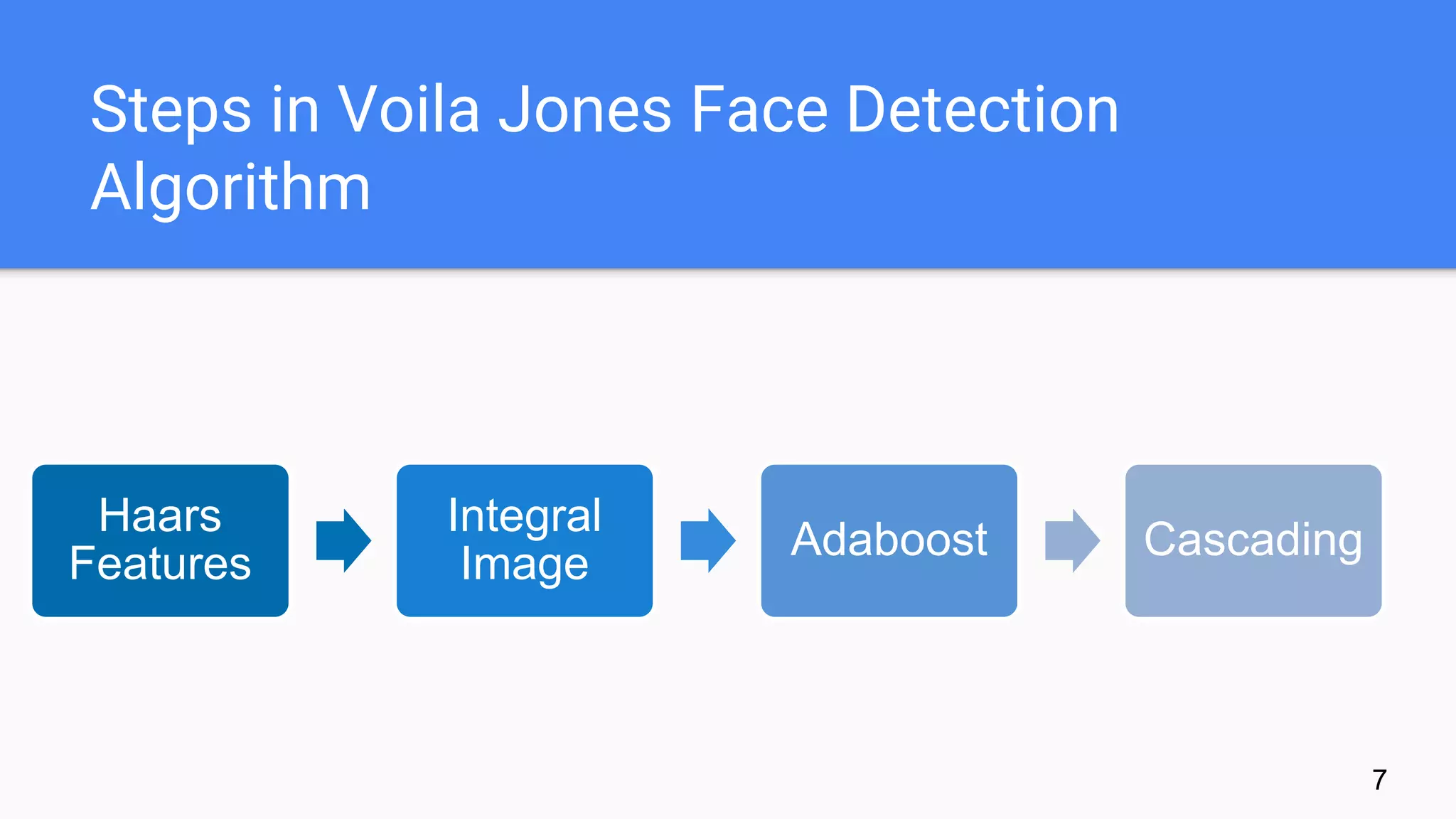

7. Steps in Voila Jones Face Detection
Algorithm
Haars
Features
Integral
Adaboost Cascading
7

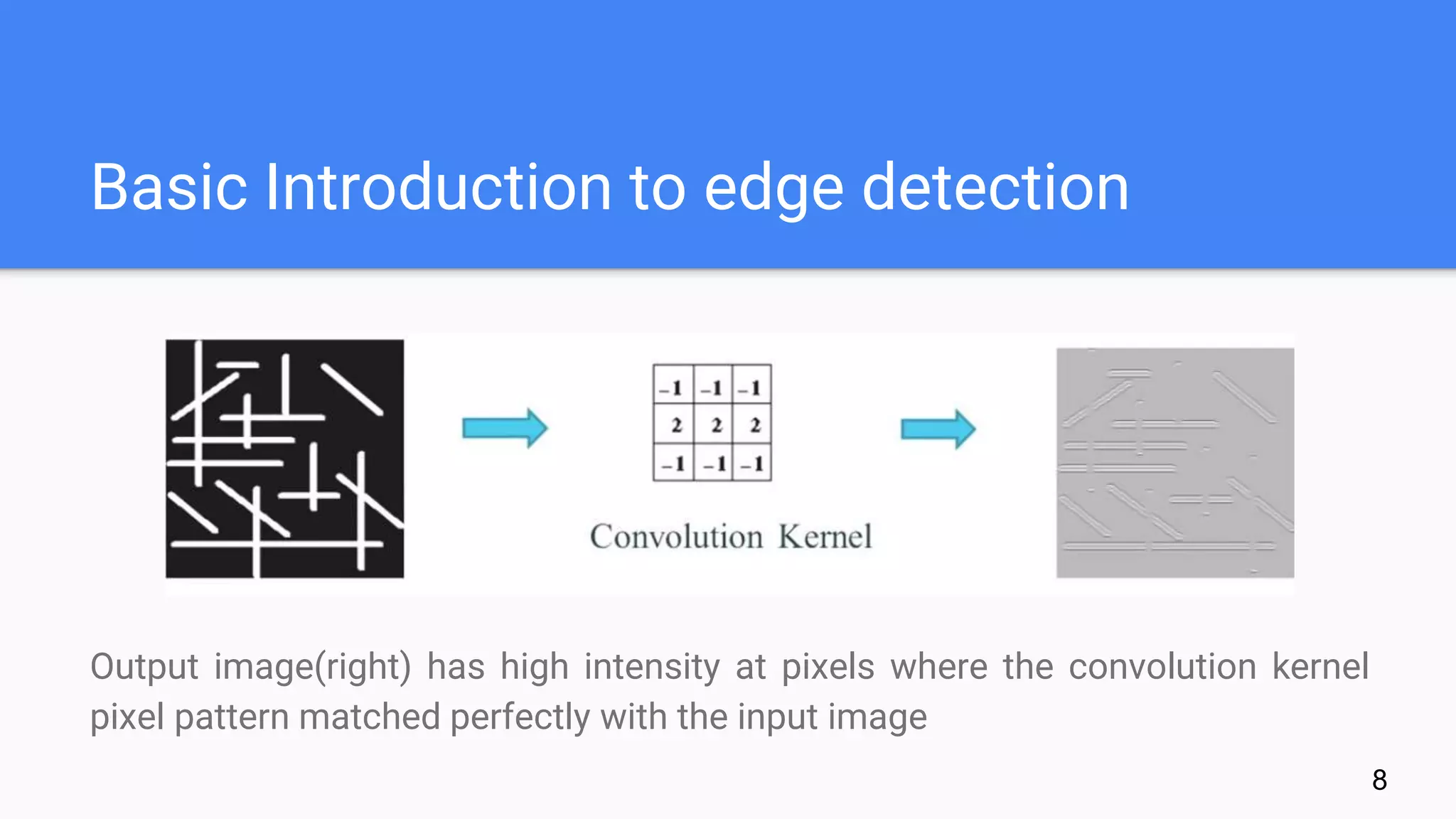

8. Basic Introduction to edge detection
Output image(right) has high intensity at pixels where the convolution kernel
pixel pattern matched perfectly with the input image
8

9. Haar Features
9
• Haar features are similar to these convolution kernels which are used to
detect the presence of that feature in the given image.
• Each feature results in a single value which is calculated by subtracting the
sum of pixels under white rectangle from the sum of pixels under black

10. Haar Features
10
• Viola Jones algorithm uses a 24x24 window as the base window size to
start evaluating these features in any given image.
• If we consider all the possible parameters of the haars features like position,
scale and type we will end up calculating about 160,000+ features in this
window.

11. Integral Window
11
• In an integral image the value at pixel(x,y) is the sum of pixels above and to
the left of (x,y)
• Integral image allows for the calculation of sum of all pixels inside any given
rectangle using only four values at the Conner of the rectangle.

12. Adaboost
12
• As stated previously there can be 160,000+ feature values within a detector
at 24x24 base resolution which needs to be calculated. But it is to be
understood that only few set of features will be useful among all these
features to identify a face .

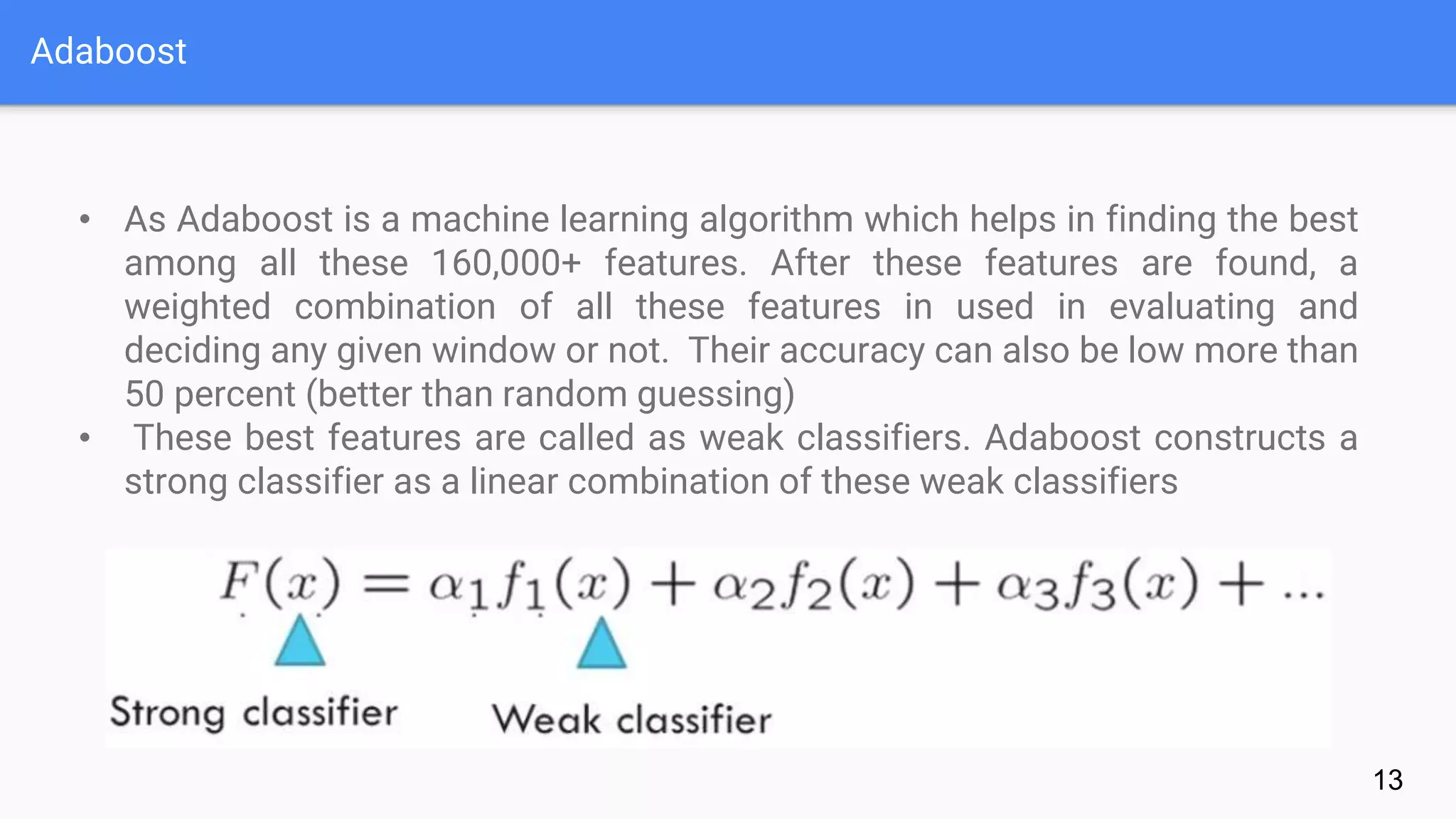

13. Adaboost
13
• As Adaboost is a machine learning algorithm which helps in finding the best
among all these 160,000+ features. After these features are found, a
weighted combination of all these features in used in evaluating and
deciding any given window or not. Their accuracy can also be low more than
50 percent (better than random guessing)
• These best features are called as weak classifiers. Adaboost constructs a
strong classifier as a linear combination of these weak classifiers

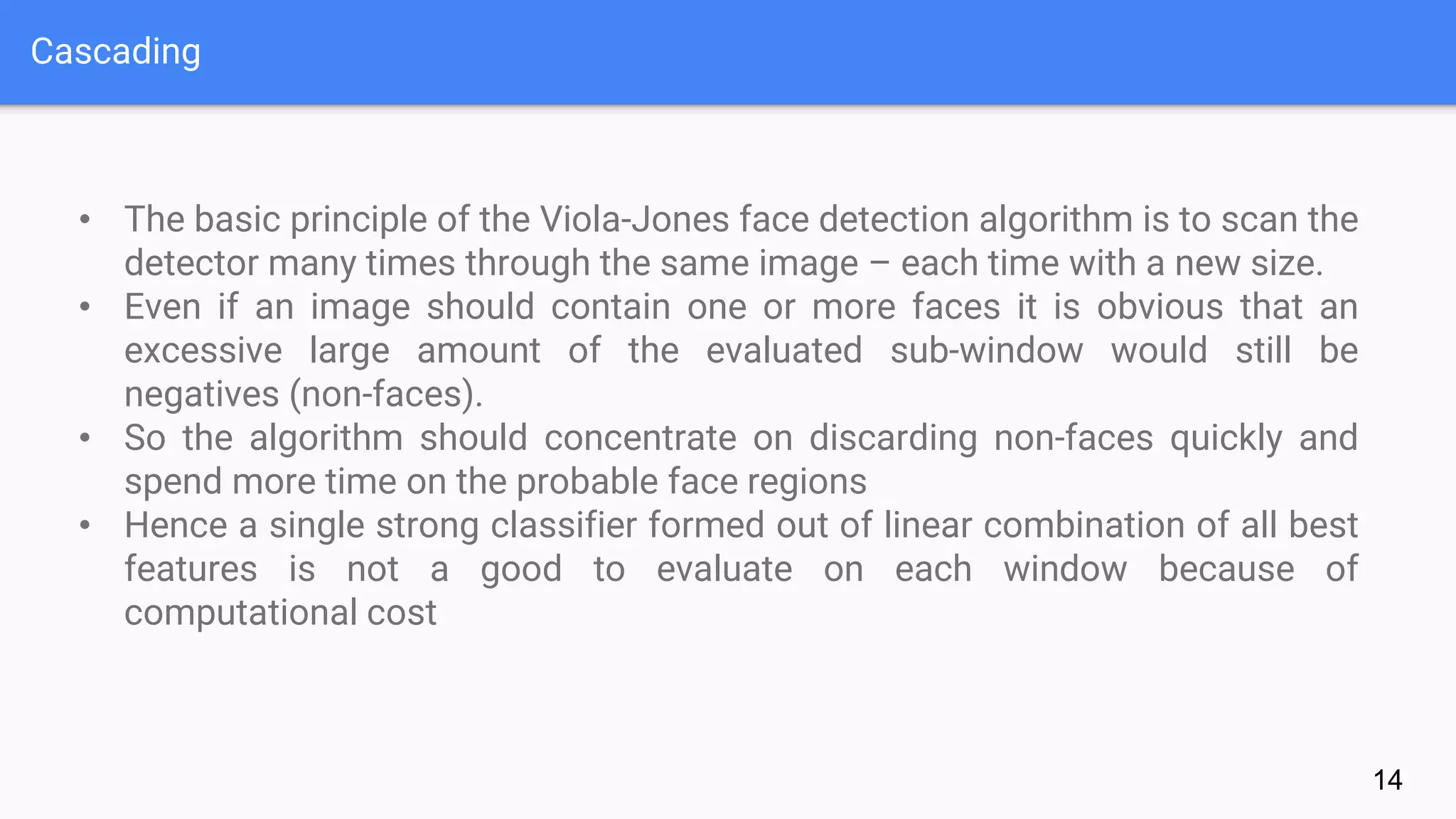

14. Cascading
14
• The basic principle of the Viola-Jones face detection algorithm is to scan the
detector many times through the same image – each time with a new size.
• Even if an image should contain one or more faces it is obvious that an
excessive large amount of the evaluated sub-window would still be
negatives (non-faces).
• So the algorithm should concentrate on discarding non-faces quickly and
spend more time on the probable face regions
• Hence a single strong classifier formed out of linear combination of all best
features is not a good to evaluate on each window because of
computational cost

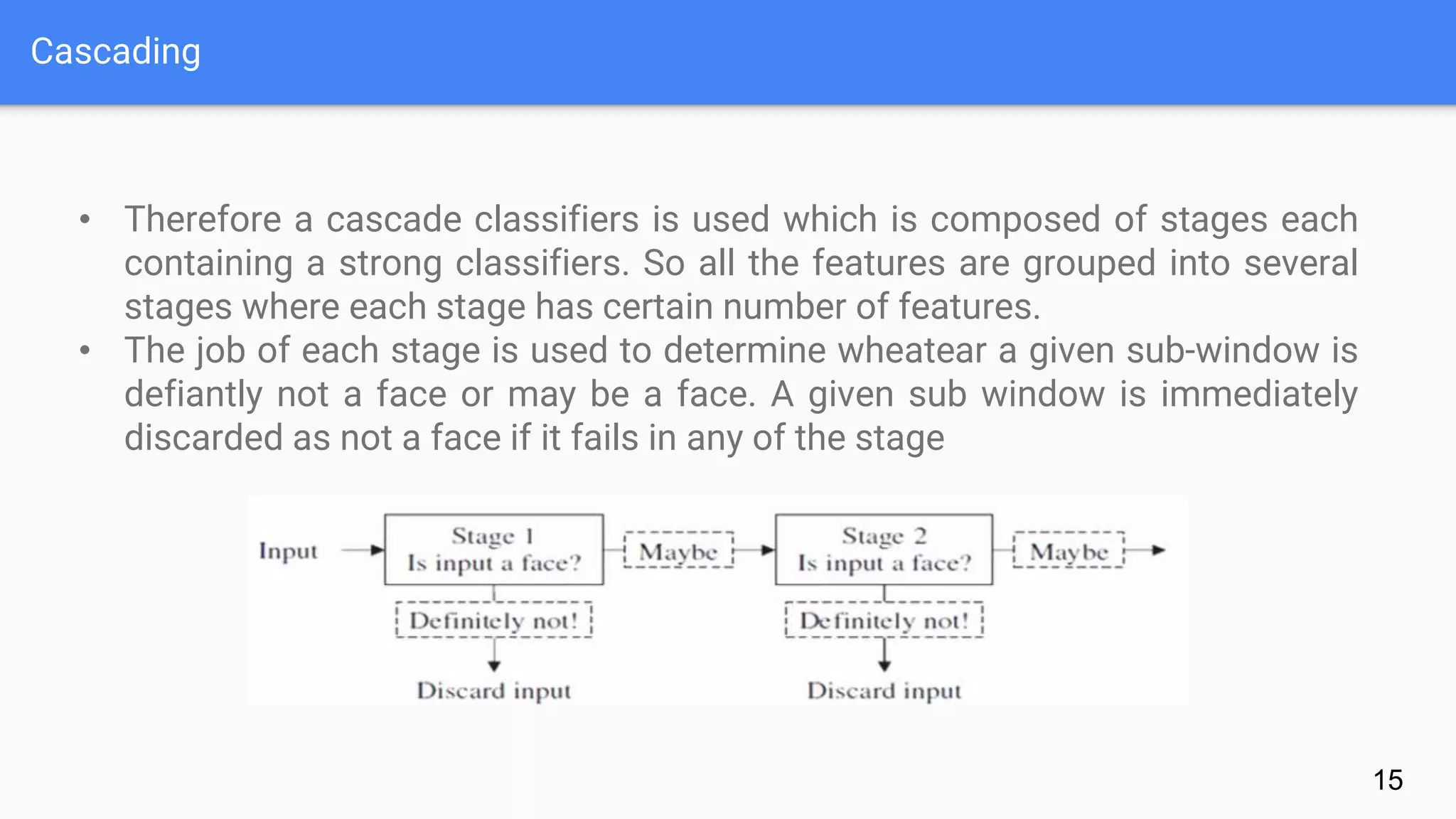

15. Cascading
15
• Therefore a cascade classifiers is used which is composed of stages each
containing a strong classifiers. So all the features are grouped into several
stages where each stage has certain number of features.
• The job of each stage is used to determine wheatear a given sub-window is
defiantly not a face or may be a face. A given sub window is immediately
discarded as not a face if it fails in any of the stage

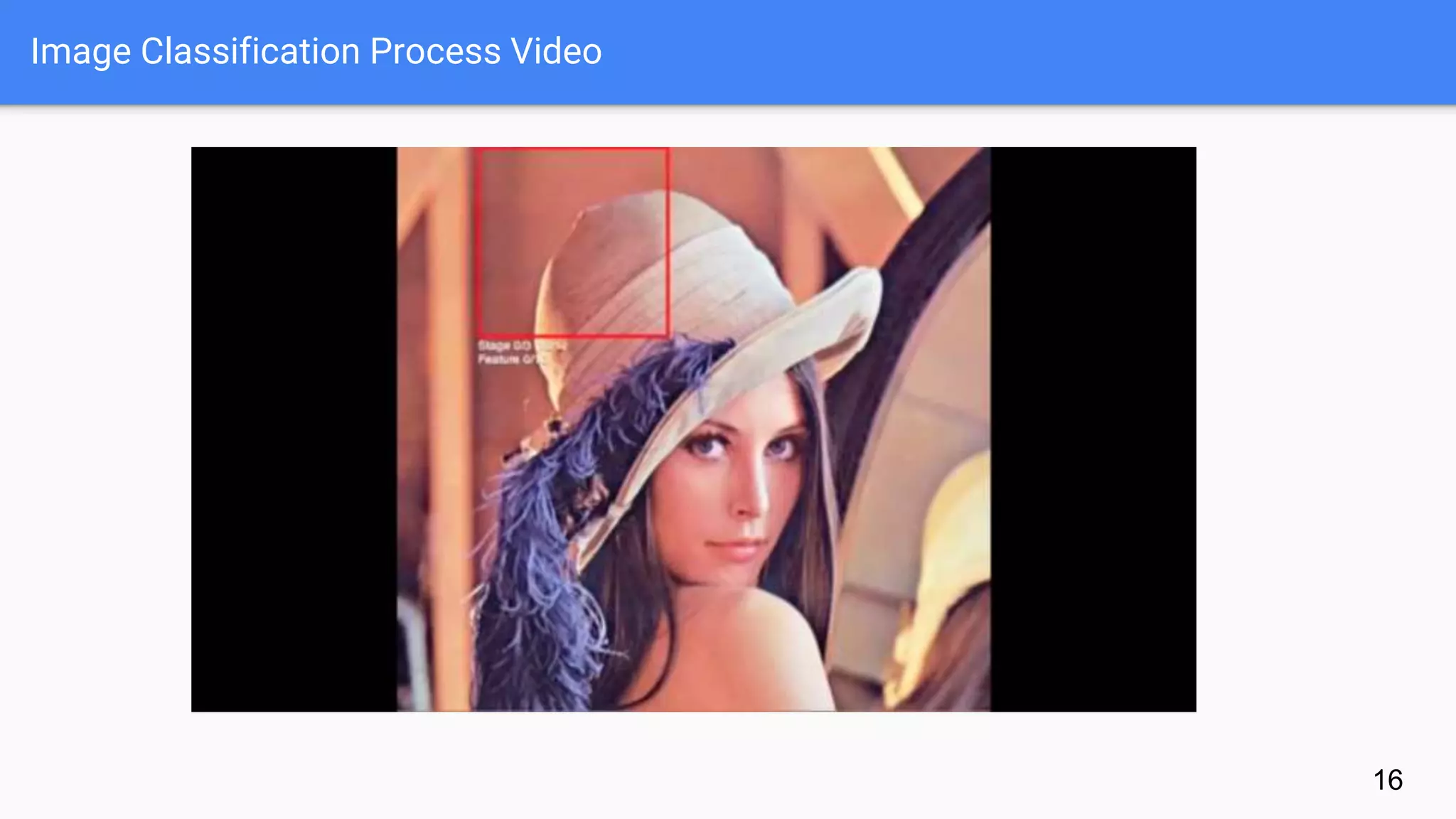

16. Image Classification Process Video
16

17. Now the training to an XML file
17

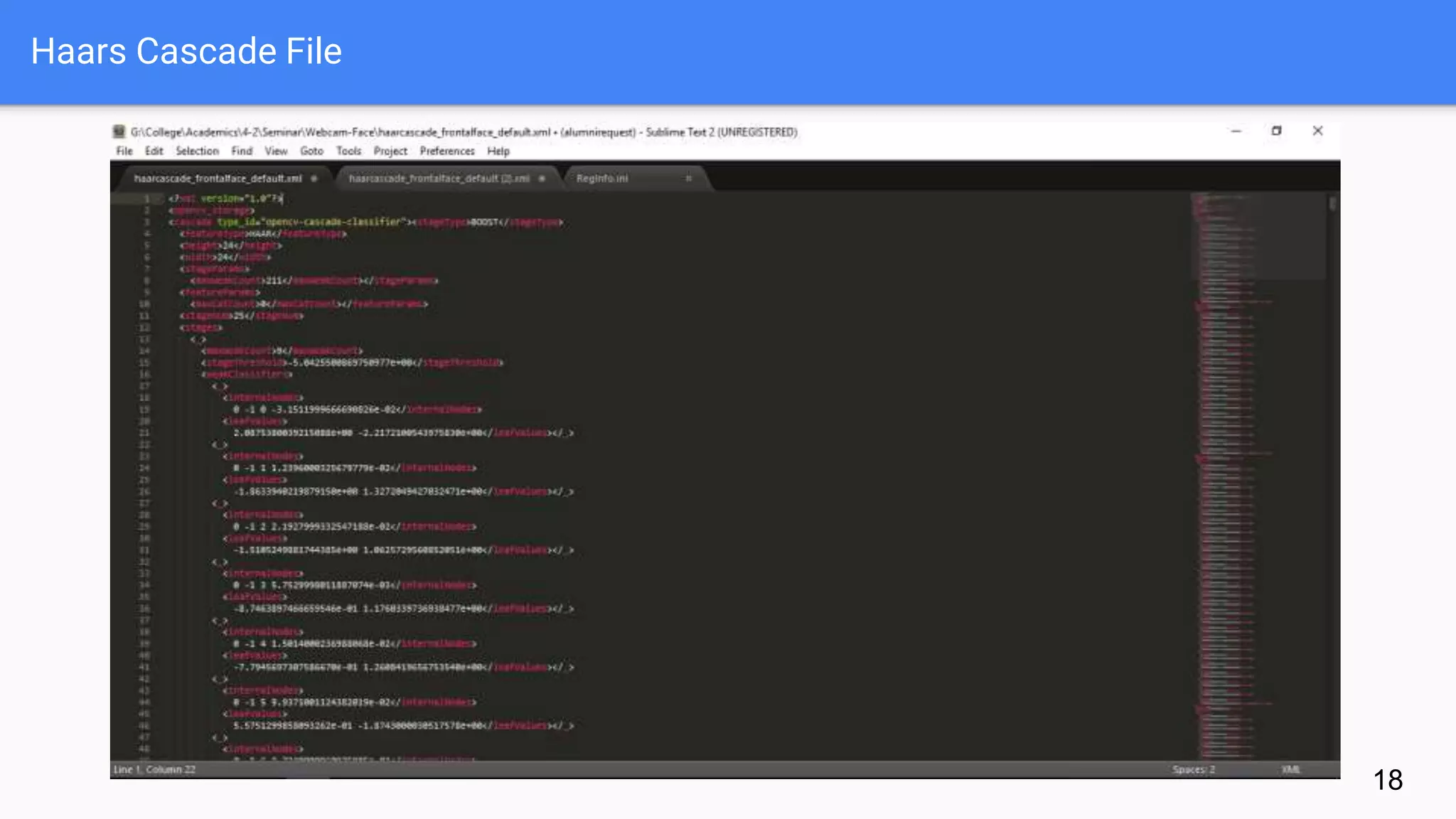

18. Haars Cascade File
18

19. Face Detection Test
19

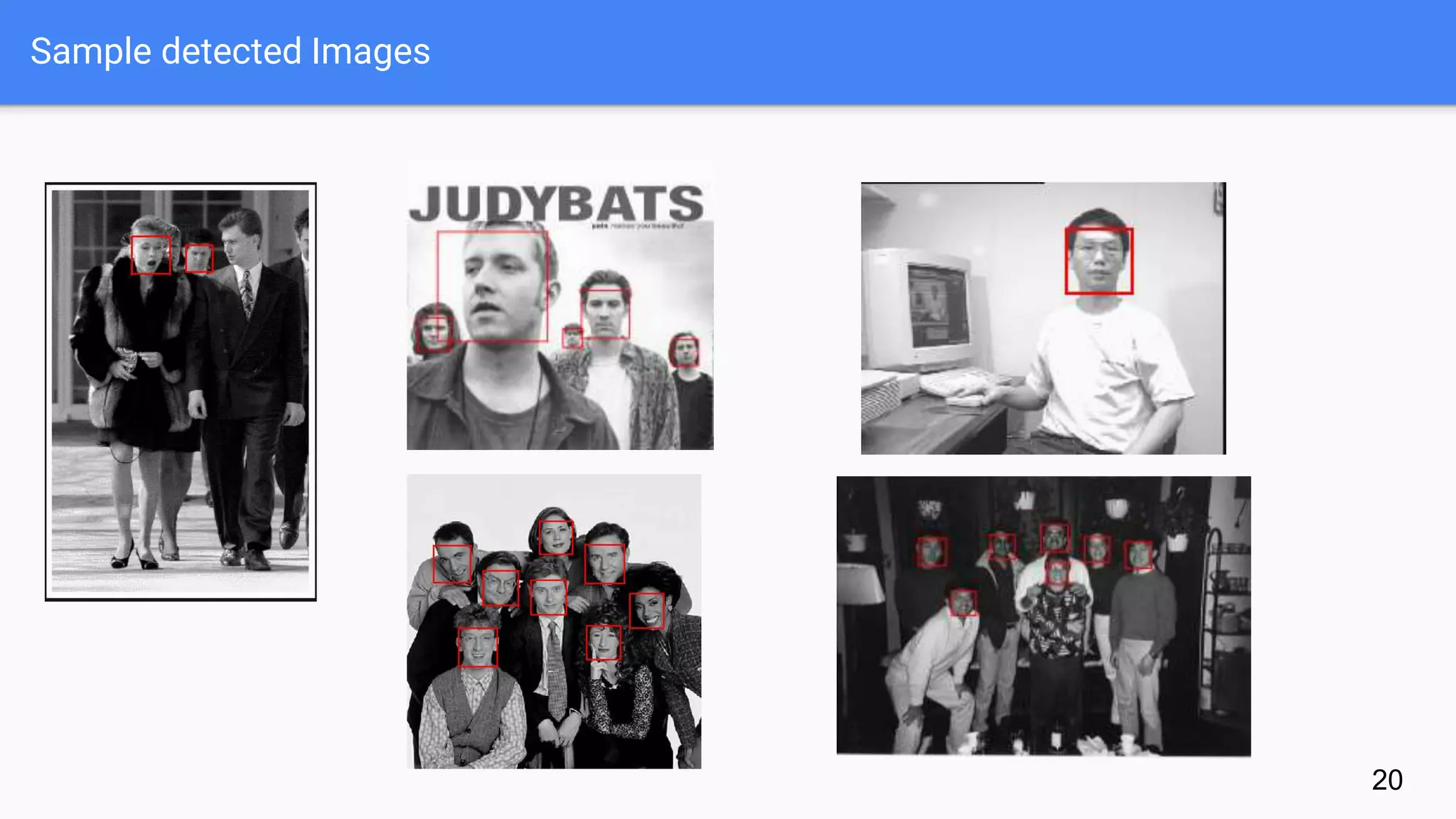

20. Sample detected Images
20

21. Further Improved Algorithms
21
• There have been a lot of research and development in object detection
algorithms since then. Feature Point detection, Bag-of-Words
models, Histogram-of-oriented gradients (HOG), Deformable Parts
Models, Exemplar models, etc. are some modern techniques that have been
used to great success. Deep learning (convolutional neural networks) is the
absolute state-of-the-art technique for object detection and has produced
great strides in the field.
• There are a lot of great papers and cutting-edge research. For example,
consider Facebook's DeepFace face recognition algorithm, DeepFace had
produced a face recognition accuracy of 97.35% on the Labelled Faces in
the Wild dataset, which is quite near human-level performance (97.53%)! So
yes, modern and state-of-the-art algorithms hold a lot of promise.

22. Thank You
22
