- 1. Physical Virtual Cloud A Blueprint for the Next Generation Data Center Sergio Rodríguez Morgado Sr. Account Manager – Mexico & Central America [email_address] © 2009 Extreme Networks, Inc. All rights reserved. Page
- 2. Evolution of ComputingEnvironments Evolution timeline Mainframe Mini Computer Personal Computer Cloud computing Network and Communications Infrastructure © 2009 Extreme Networks, Inc. All rights reserved. Page

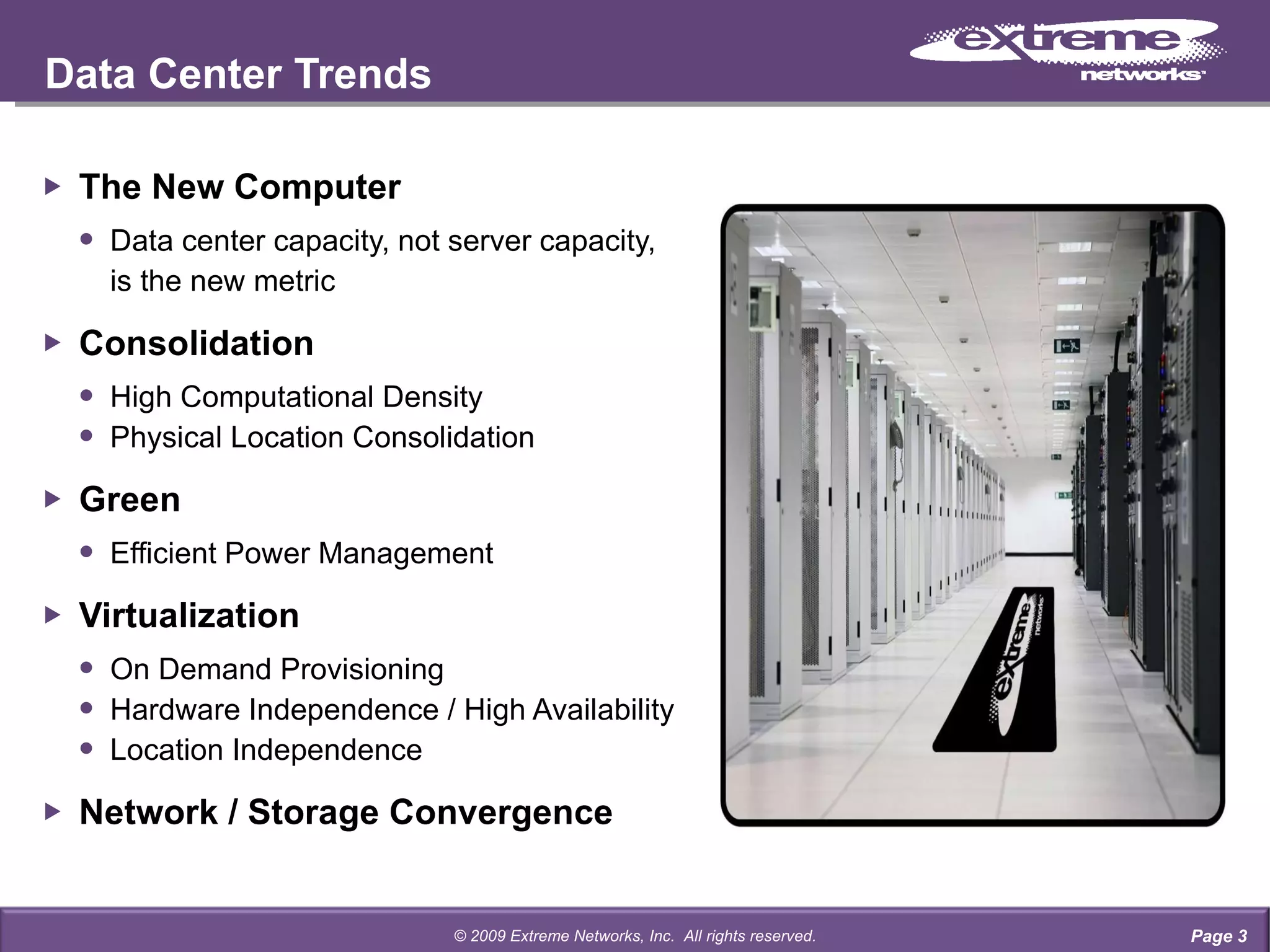

- 3. The New ComputerData center capacity, not server capacity, is the new metric Consolidation High Computational Density Physical Location Consolidation Green Efficient Power Management Virtualization On Demand Provisioning Hardware Independence / High Availability Location Independence Network / Storage Convergence Data Center Trends Page © 2009 Extreme Networks, Inc. All rights reserved.

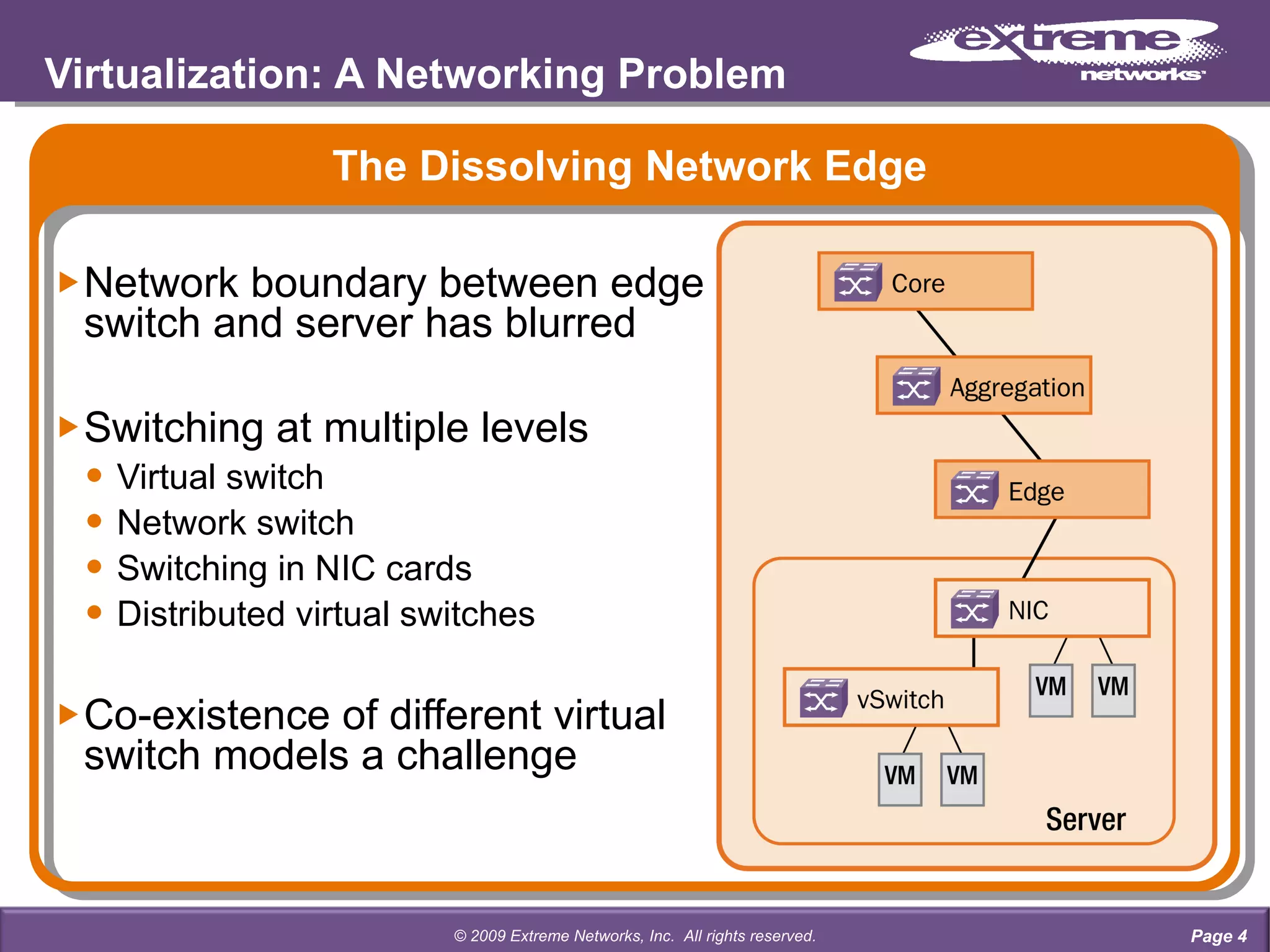

- 4. The Dissolving NetworkEdge Network boundary between edge switch and server has blurred Switching at multiple levels Virtual switch Network switch Switching in NIC cards Distributed virtual switches Co-existence of different virtual switch models a challenge Virtualization: A Networking Problem Page © 2009 Extreme Networks, Inc. All rights reserved.

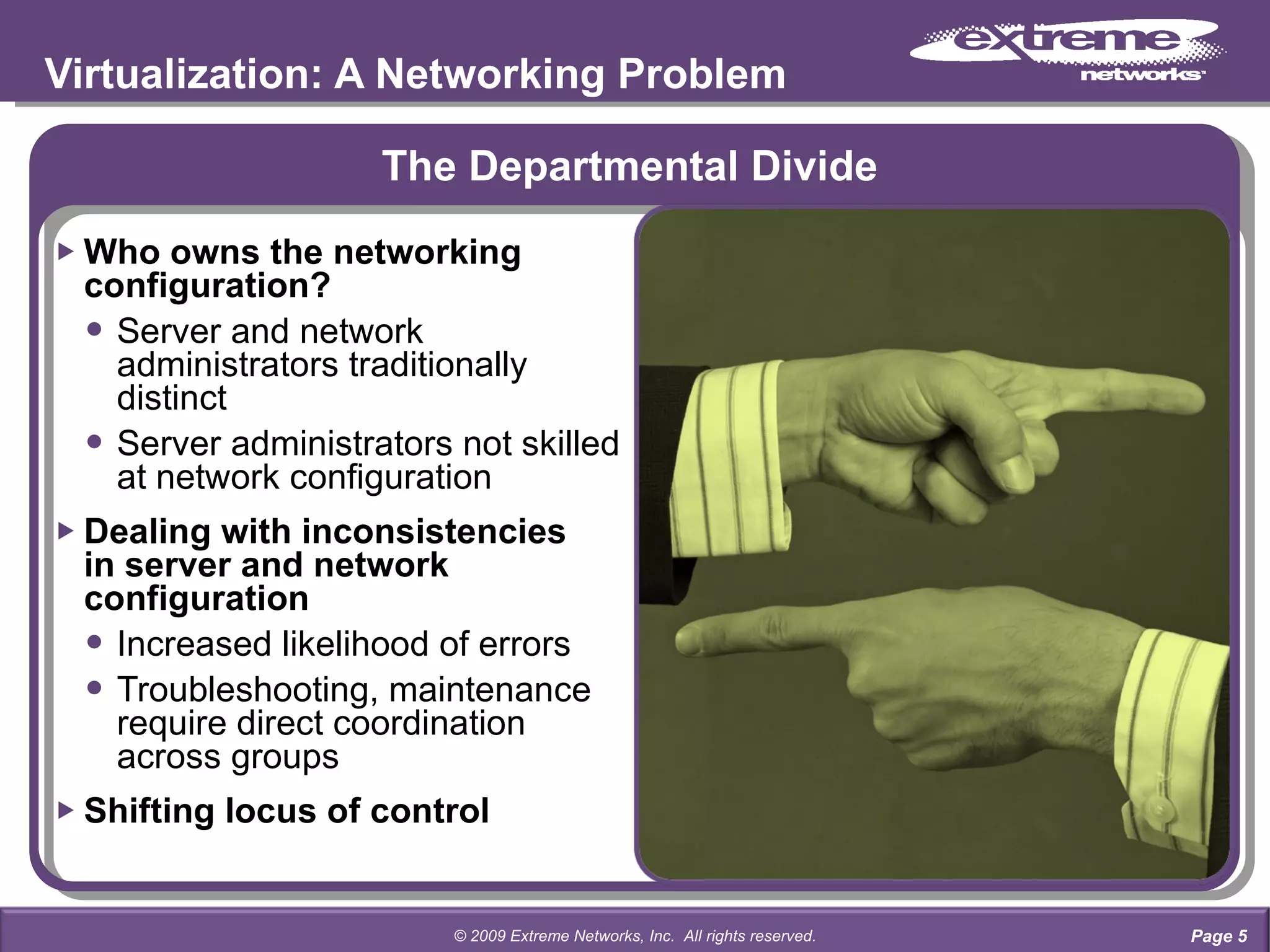

- 5. The Departmental DivideWho owns the networking configuration? Server and network administrators traditionally distinct Server administrators not skilled at network configuration Dealing with inconsistencies in server and network configuration Increased likelihood of errors Troubleshooting, maintenance require direct coordination across groups Shifting locus of control Virtualization: A Networking Problem Page © 2009 Extreme Networks, Inc. All rights reserved.

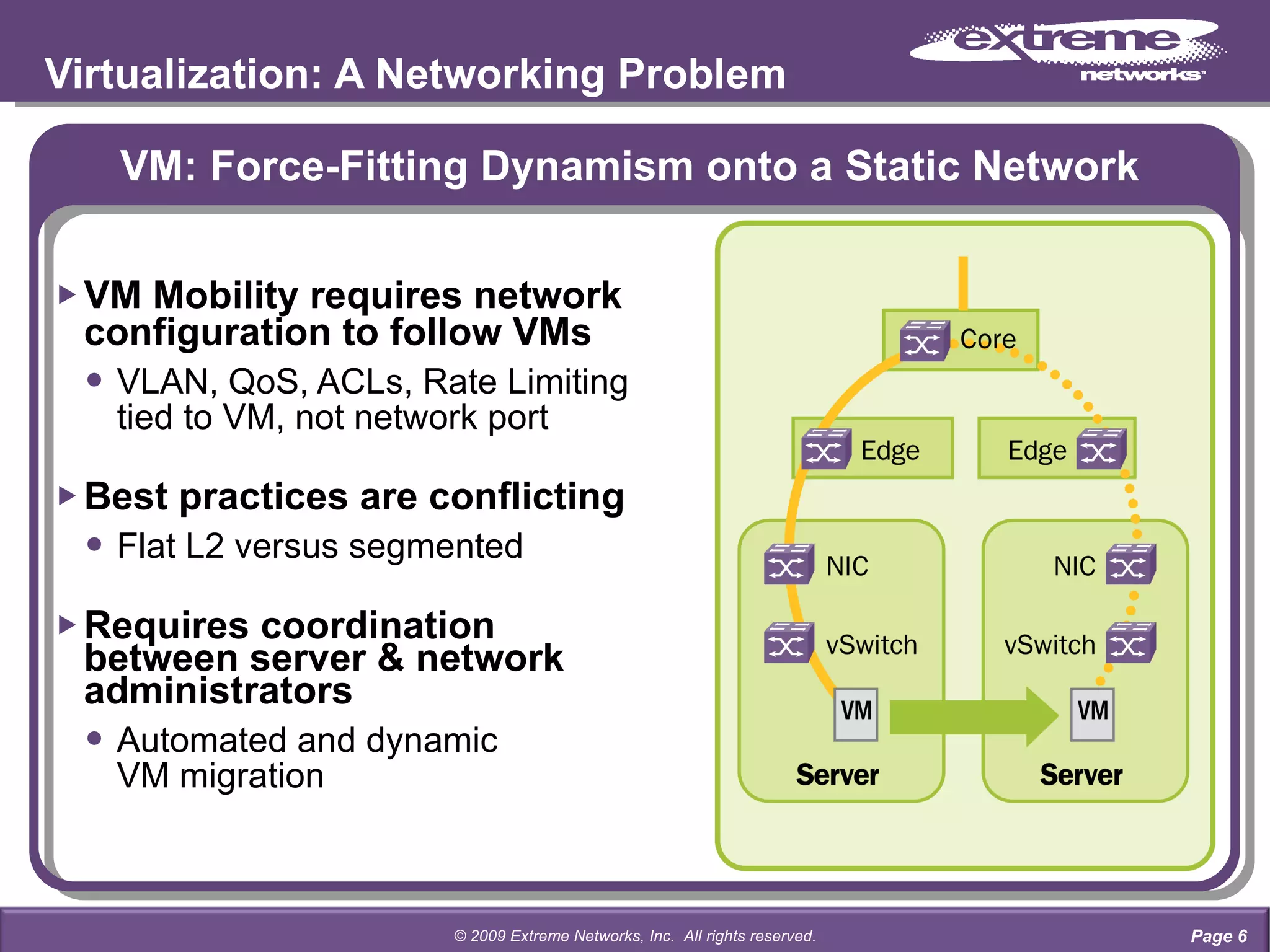

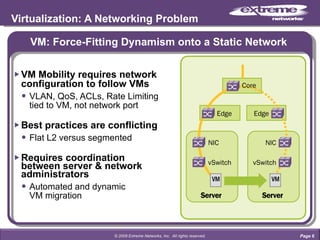

- 6. Virtualization: A NetworkingProblem VM: Force-Fitting Dynamism onto a Static Network VM Mobility requires network configuration to follow VMs VLAN, QoS, ACLs, Rate Limiting tied to VM, not network port Best practices are conflicting Flat L2 versus segmented Requires coordination between server & network administrators Automated and dynamic VM migration Page © 2009 Extreme Networks, Inc. All rights reserved.

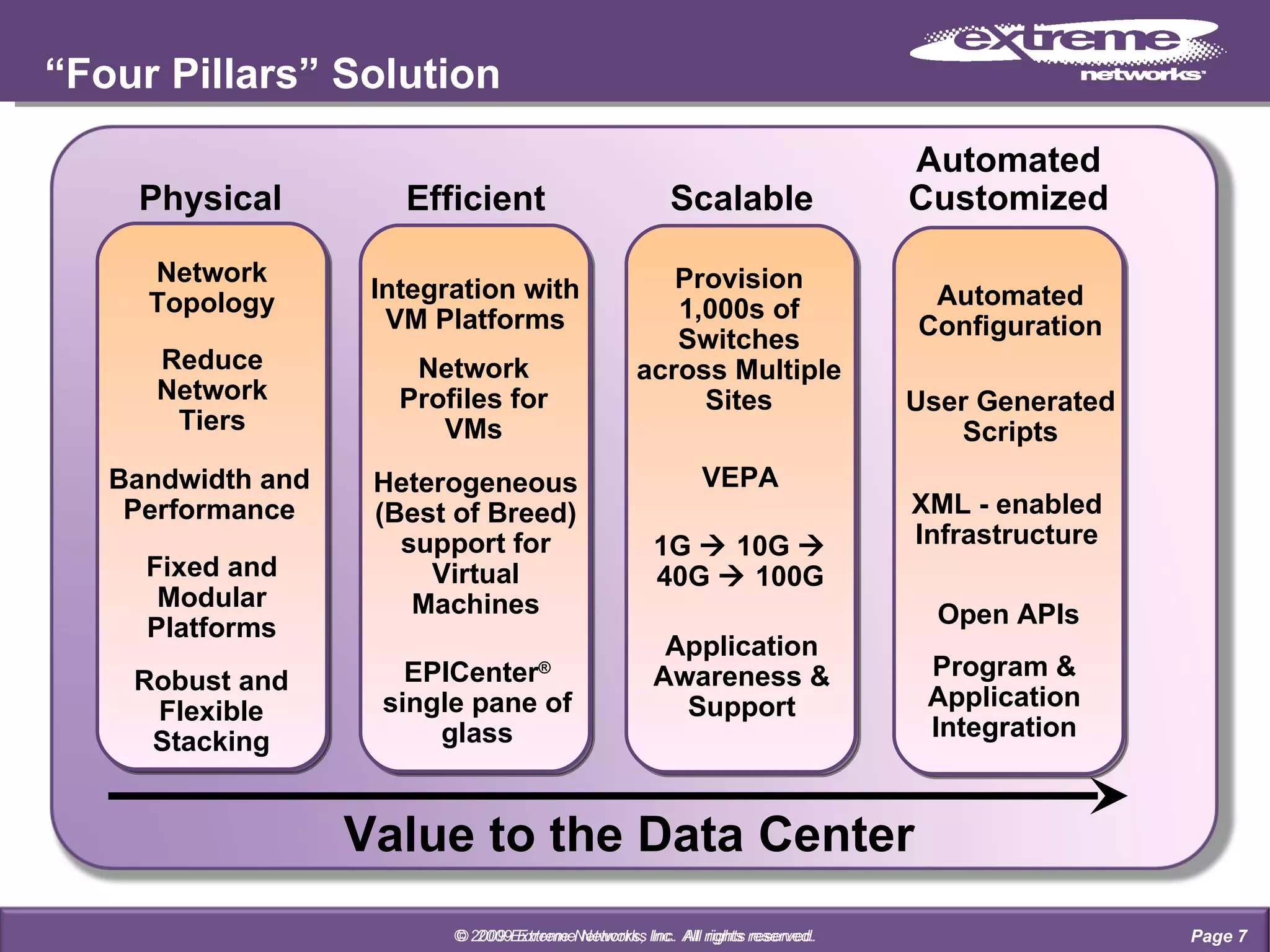

- 7. “ Four Pillars”Solution Automated Customized Program & Application Integration XML - enabled Infrastructure Open APIs Physical Bandwidth and Performance Fixed and Modular Platforms Robust and Flexible Stacking Efficient Integration with VM Platforms Heterogeneous (Best of Breed) support for Virtual Machines Scalable Application Awareness & Support Provision 1,000s of Switches across Multiple Sites Reduce Network Tiers User Generated Scripts 1G 10G 40G 100G EPICenter ® single pane of glass VEPA Network Topology Network Profiles for VMs Automated Configuration © 2009 Extreme Networks Inc. All rights reserved. Page © 2009 Extreme Networks, Inc. All rights reserved. Value to the Data Center

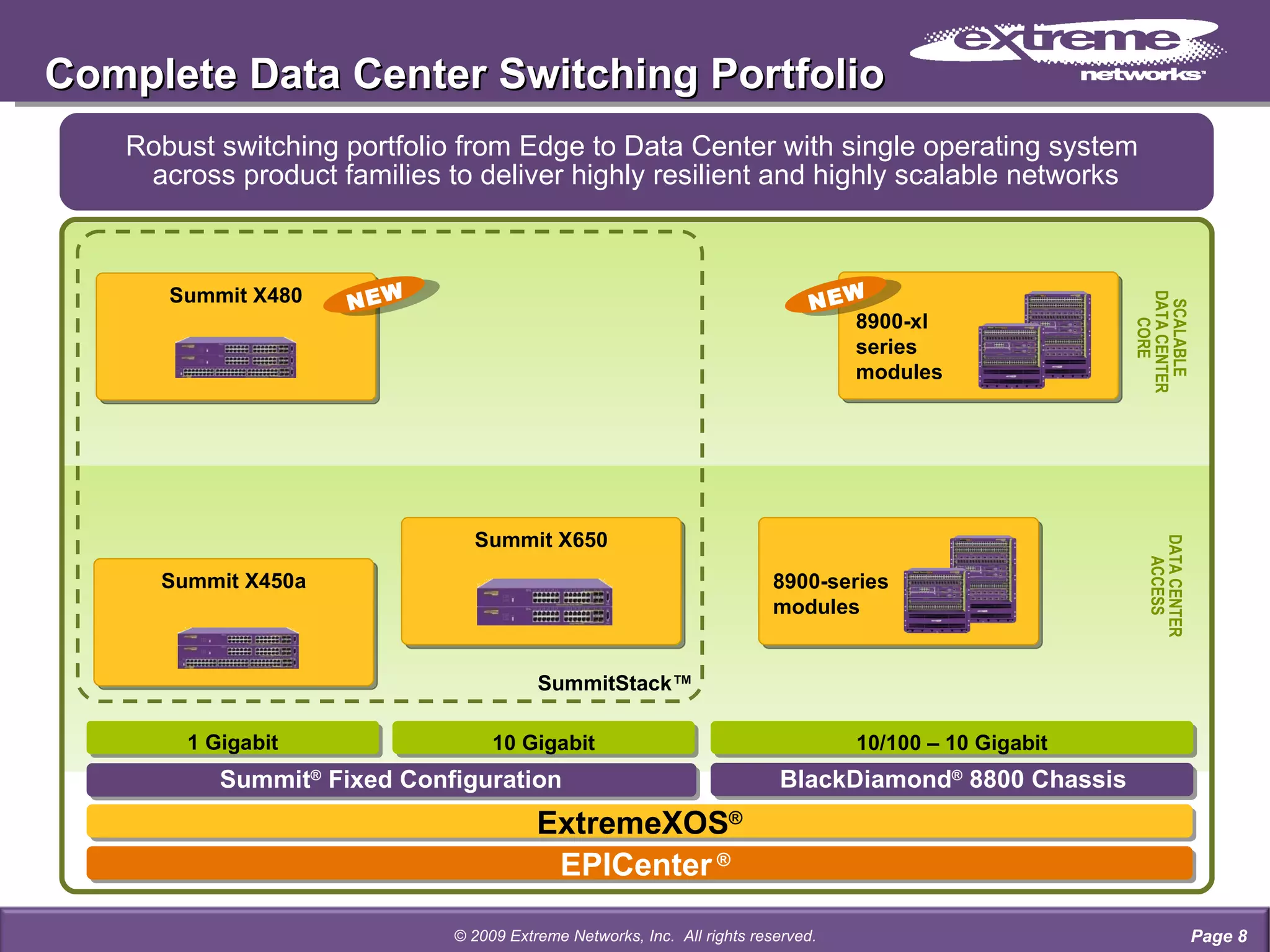

- 8. Complete Data CenterSwitching Portfolio DATA CENTER ACCESS Summit X650 8900-series modules Robust switching portfolio from Edge to Data Center with single operating system across product families to deliver highly resilient and highly scalable networks Summit X480 Summit X450a SCALABLE DATA CENTER CORE 8900-xl series modules EPICenter ® Summit ® Fixed Configuration BlackDiamond ® 8800 Chassis 1 Gigabit 10 Gigabit 10/100 – 10 Gigabit SummitStack™ ExtremeXOS ® Page © 2009 Extreme Networks, Inc. All rights reserved. NEW NEW

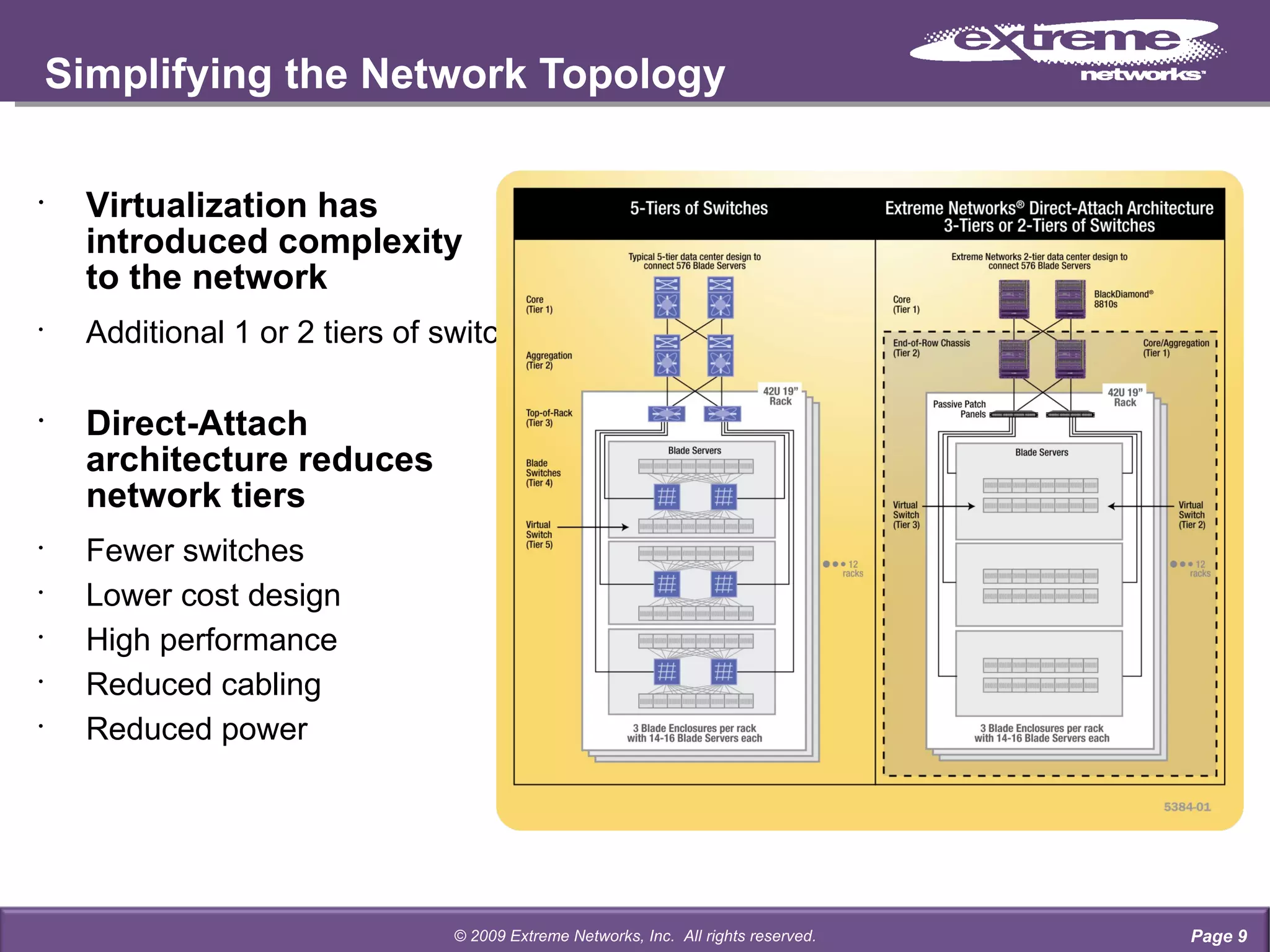

- 9. Simplifying the NetworkTopology Virtualization has introduced complexity to the network Additional 1 or 2 tiers of switching Direct-Attach architecture reduces network tiers Fewer switches Lower cost design High performance Reduced cabling Reduced power Page © 2009 Extreme Networks, Inc. All rights reserved.

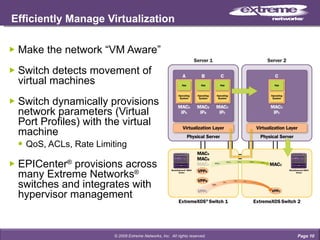

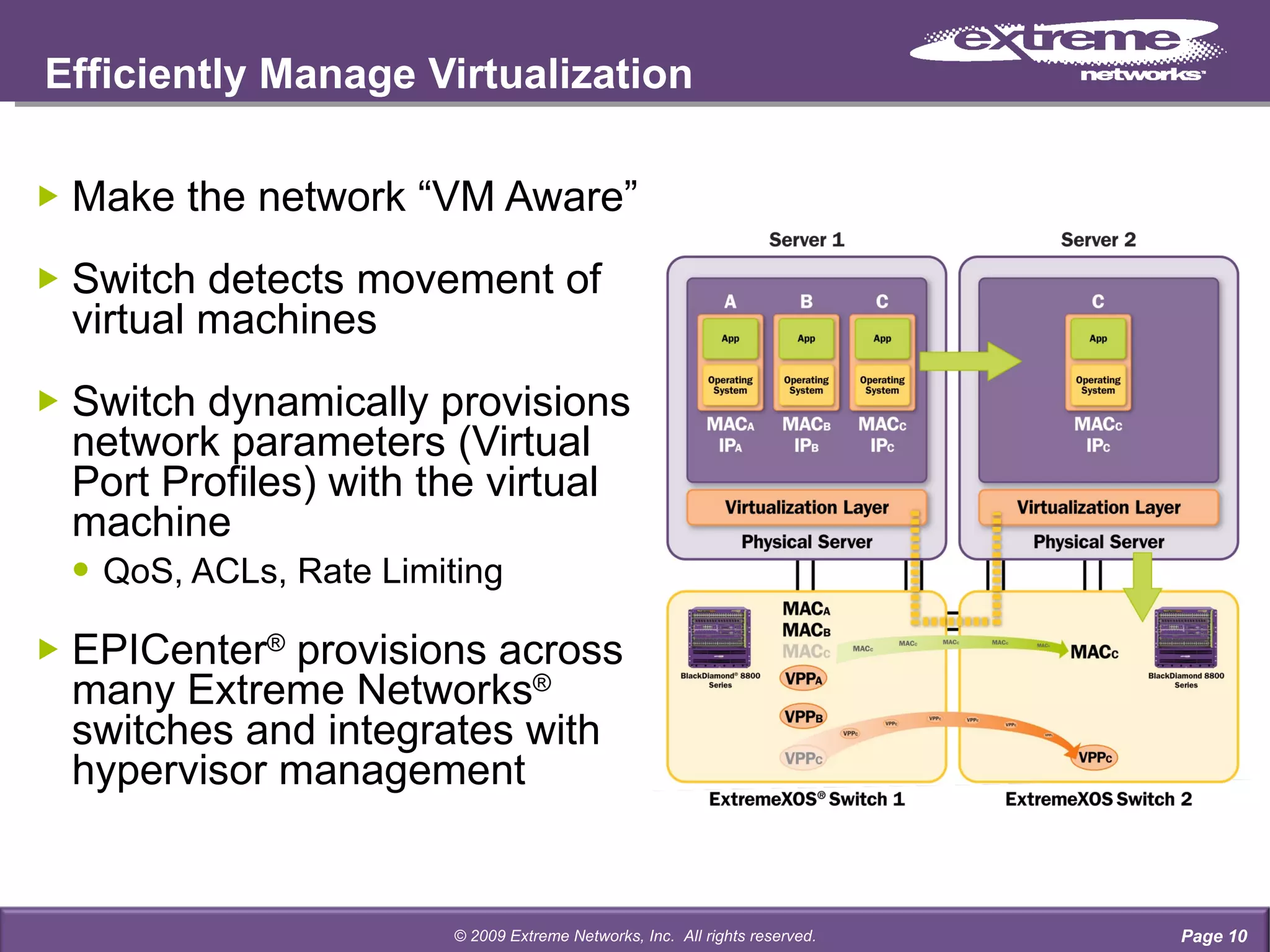

- 10. Efficiently Manage VirtualizationMake the network “VM Aware” Switch detects movement of virtual machines Switch dynamically provisions network parameters (Virtual Port Profiles) with the virtual machine QoS, ACLs, Rate Limiting EPICenter ® provisions across many Extreme Networks ® switches and integrates with hypervisor management Page © 2009 Extreme Networks, Inc. All rights reserved.

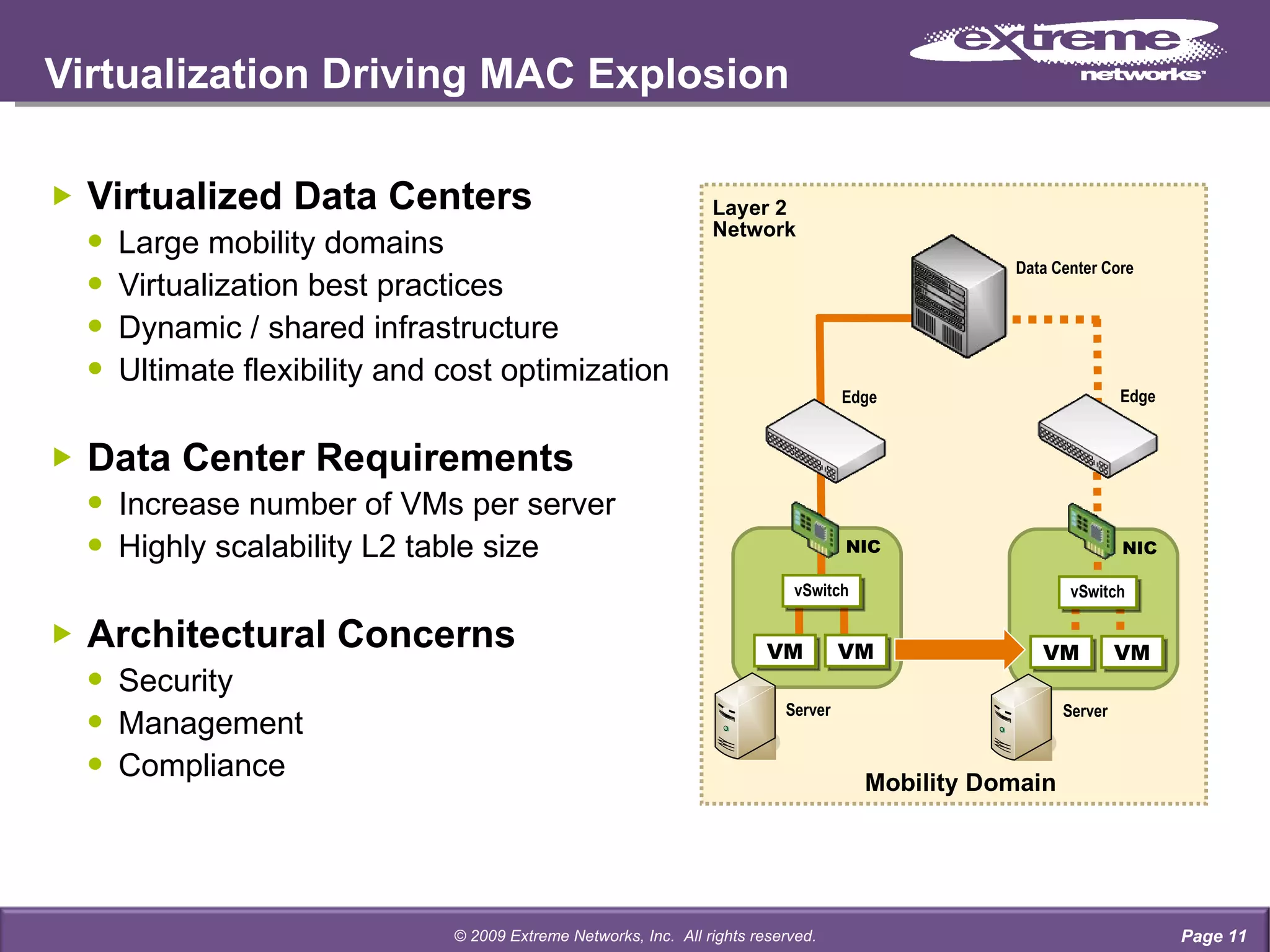

- 11. Virtualization Driving MACExplosion Virtualized Data Centers Large mobility domains Virtualization best practices Dynamic / shared infrastructure Ultimate flexibility and cost optimization Data Center Requirements Increase number of VMs per server Highly scalability L2 table size Architectural Concerns Security Management Compliance Page © 2009 Extreme Networks, Inc. All rights reserved. Mobility Domain NIC VM VM vSwitch NIC VM VM vSwitch Data Center Core Edge Edge Layer 2 Network Server Server

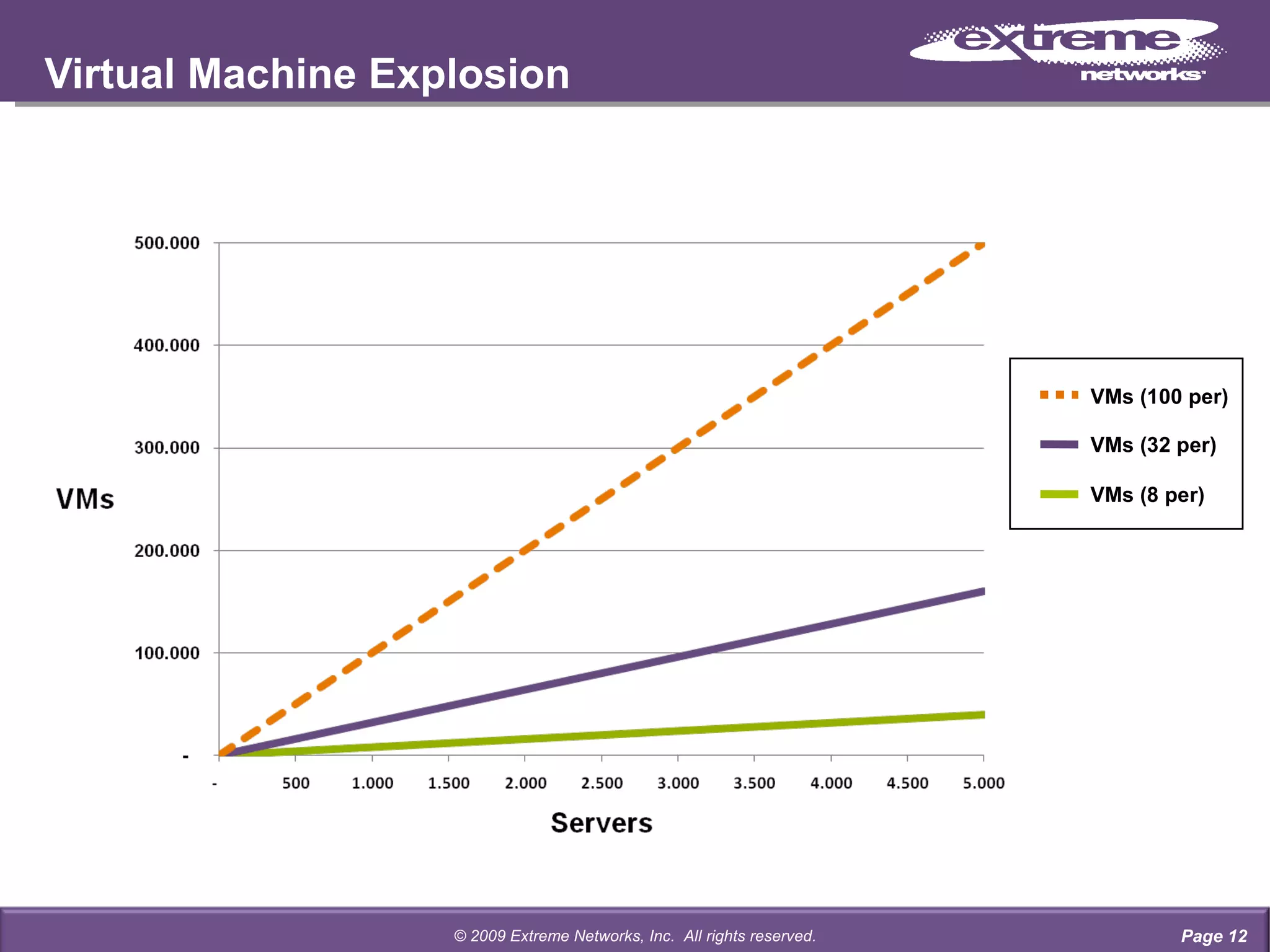

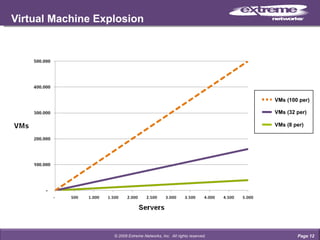

- 12. Virtual Machine ExplosionPage © 2009 Extreme Networks, Inc. All rights reserved. VMs (100 per) VMs (32 per) VMs (8 per)

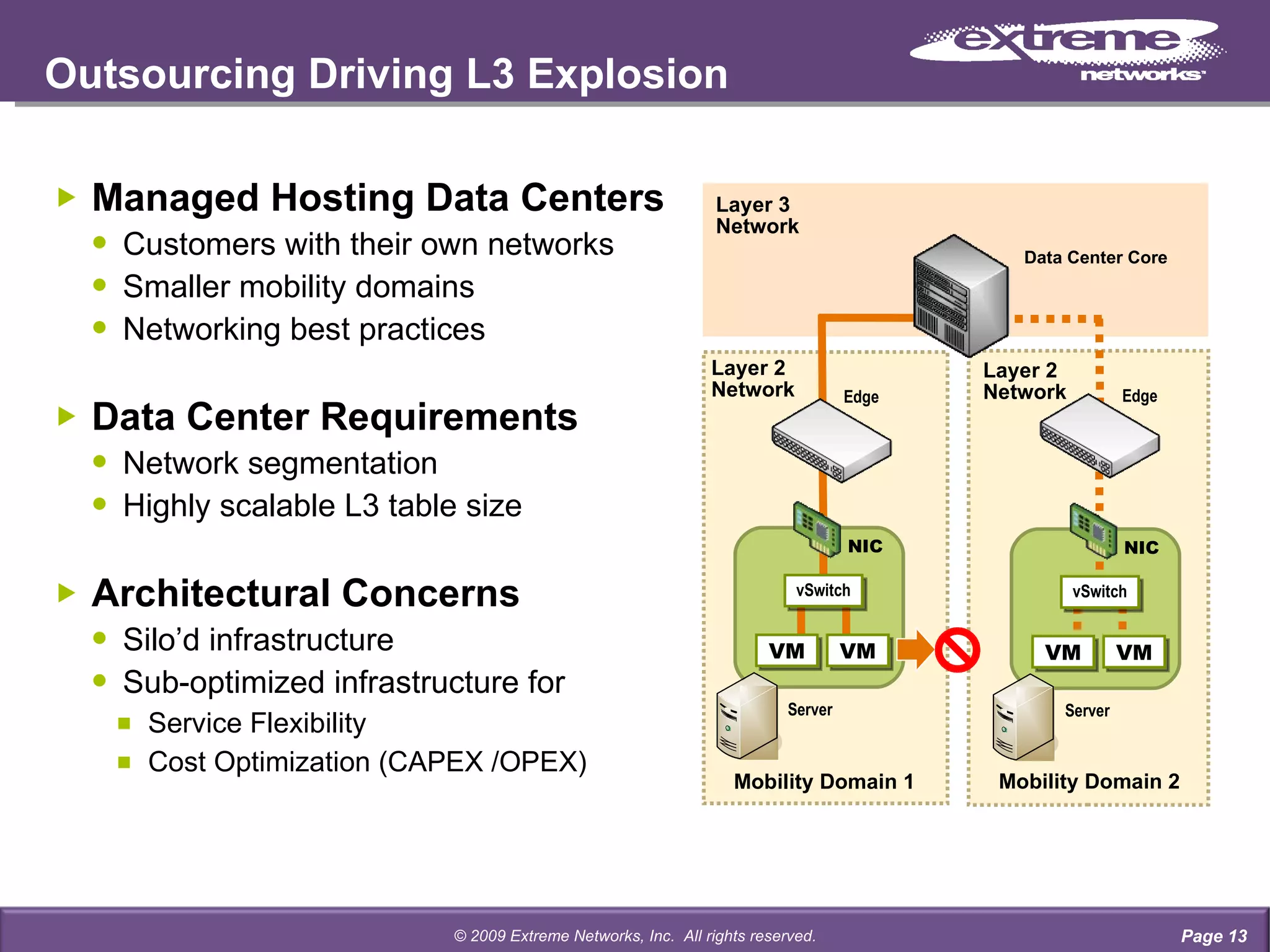

- 13. Outsourcing Driving L3Explosion Managed Hosting Data Centers Customers with their own networks Smaller mobility domains Networking best practices Data Center Requirements Network segmentation Highly scalable L3 table size Architectural Concerns Silo’d infrastructure Sub-optimized infrastructure for Service Flexibility Cost Optimization (CAPEX /OPEX) Page © 2009 Extreme Networks, Inc. All rights reserved. NIC VM VM vSwitch NIC VM VM vSwitch Edge Edge Layer 2 Network Layer 3 Network Data Center Core Layer 2 Network Mobility Domain 2 Server Server Mobility Domain 1

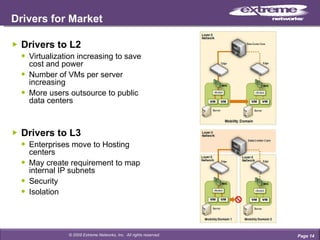

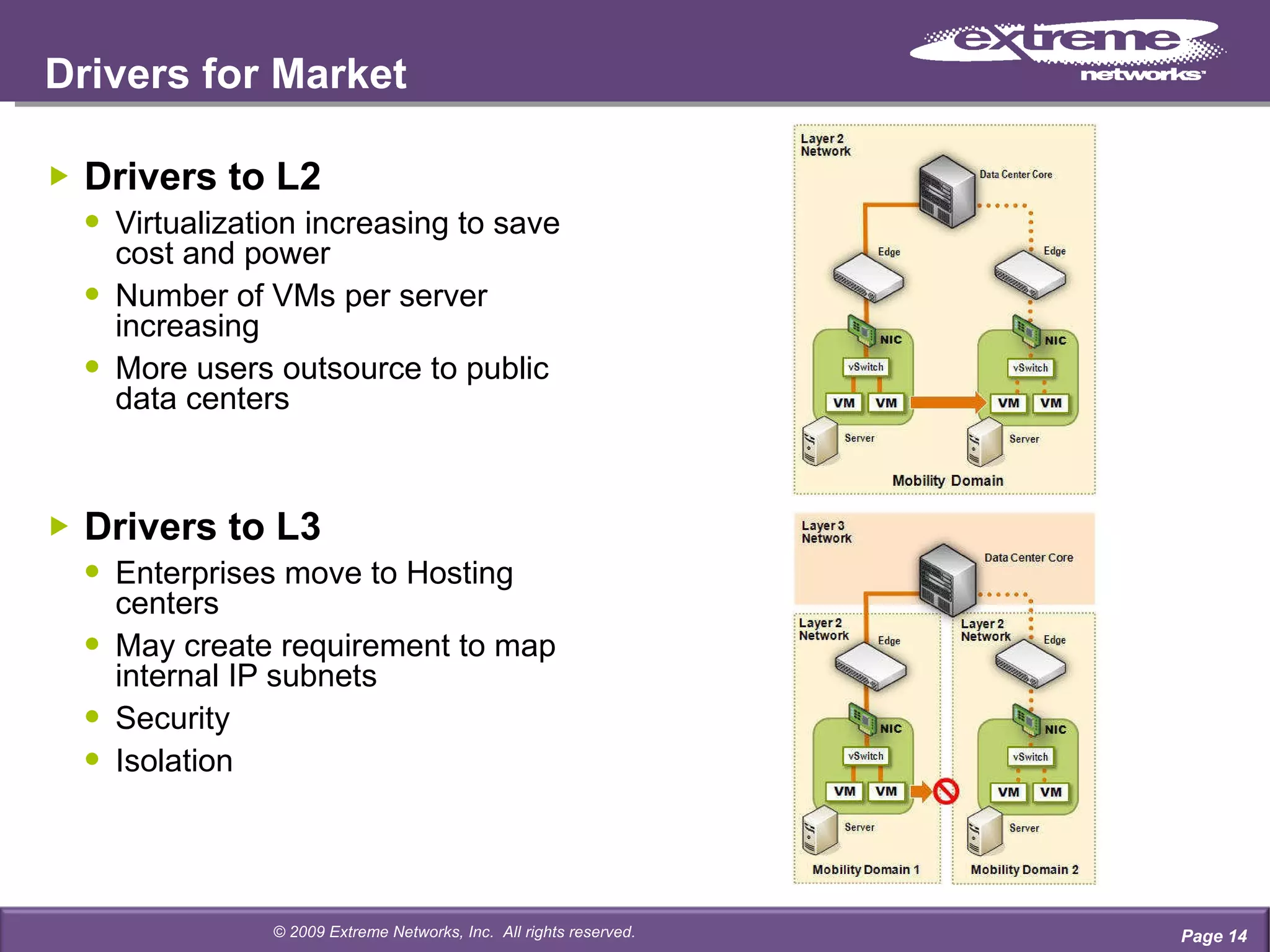

- 14. Drivers for MarketDrivers to L2 Virtualization increasing to save cost and power Number of VMs per server increasing More users outsource to public data centers Drivers to L3 Enterprises move to Hosting centers May create requirement to map internal IP subnets Security Isolation Page © 2009 Extreme Networks, Inc. All rights reserved.

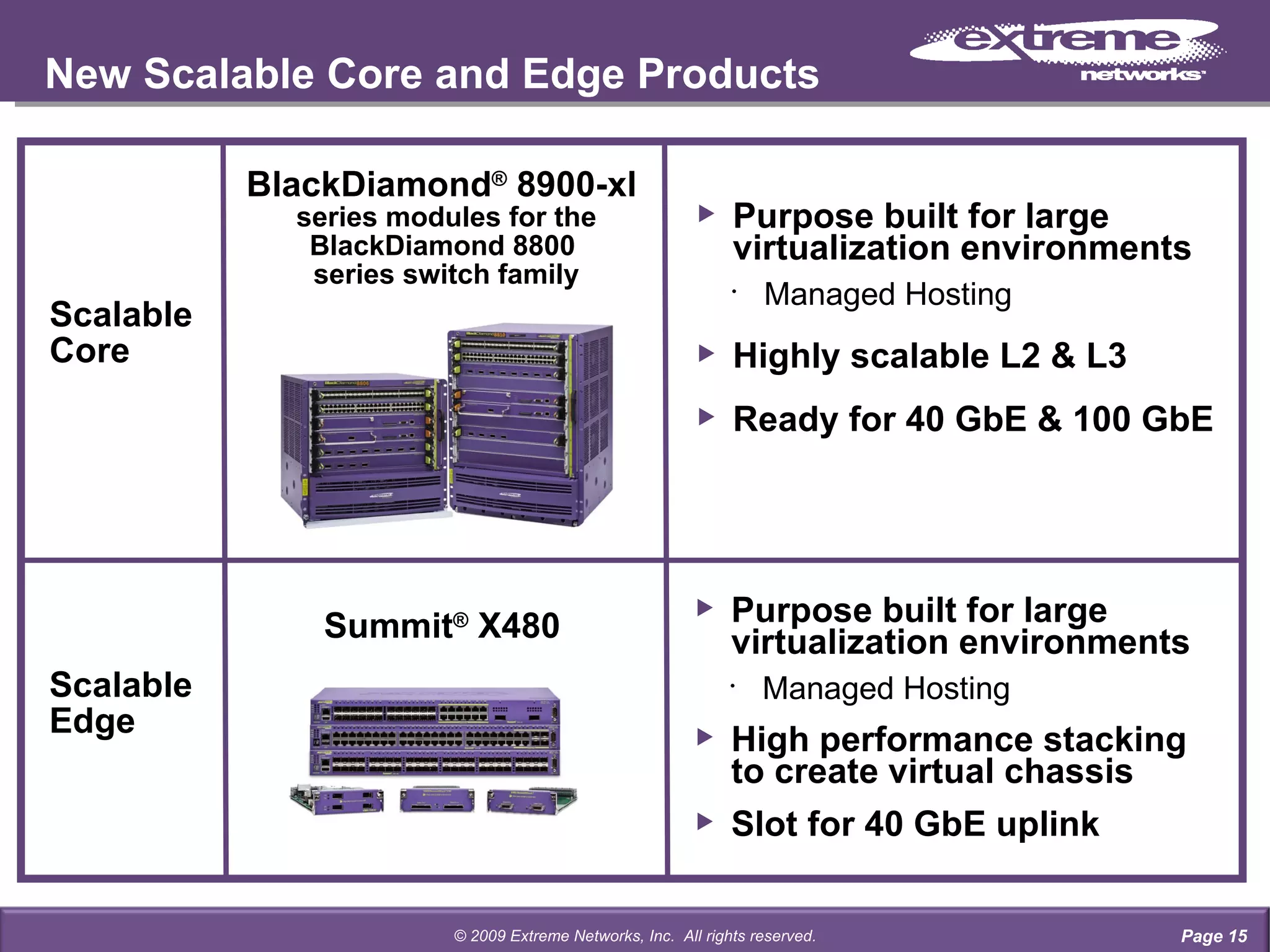

- 15. New Scalable Coreand Edge Products Scalable Core Scalable Edge Page © 2009 Extreme Networks, Inc. All rights reserved. Purpose built for large virtualization environments Managed Hosting High performance stacking to create virtual chassis Slot for 40 GbE uplink Summit ® X480 Purpose built for large virtualization environments Managed Hosting Highly scalable L2 & L3 Ready for 40 GbE & 100 GbE BlackDiamond ® 8900-xl series modules for the BlackDiamond 8800 series switch family

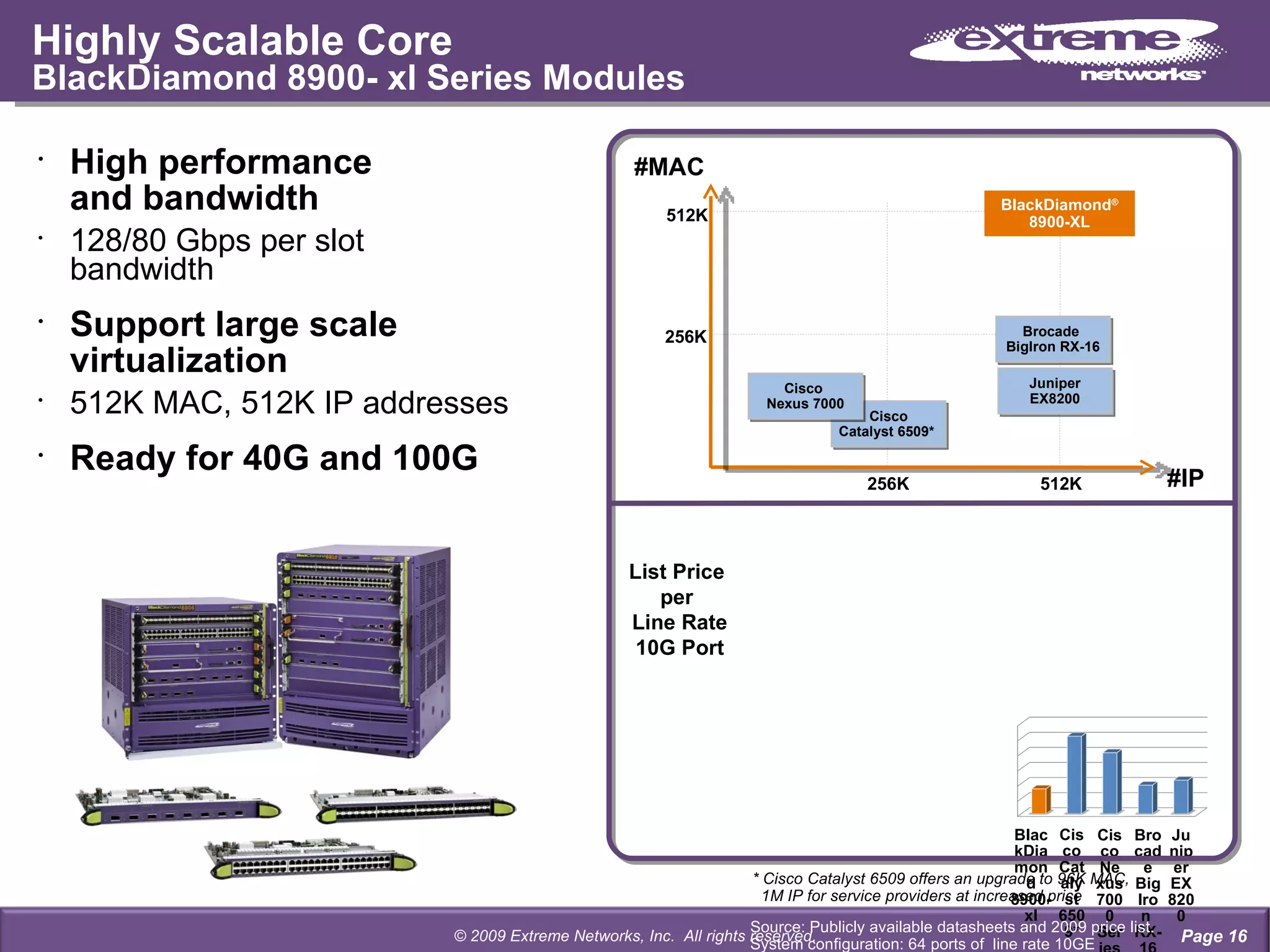

- 16. Highly Scalable CoreBlackDiamond 8900- xl Series Modules High performance and bandwidth 128/80 Gbps per slot bandwidth Support large scale virtualization 512K MAC, 512K IP addresses Ready for 40G and 100G * Cisco Catalyst 6509 offers an upgrade to 96K MAC, 1M IP for service providers at increased price Source: Publicly available datasheets and 2009 price list. System configuration: 64 ports of line rate 10GE Page List Price per Line Rate 10G Port #IP © 2009 Extreme Networks, Inc. All rights reserved. BlackDiamond 8900-xl Cisco Catalyst 6509* Cisco Nexus 7000 Series Brocade BigIron RX-16 Juniper EX8200 BlackDiamond ® 8900-XL #MAC Brocade BigIron RX-16 Cisco Catalyst 6509* Cisco Nexus 7000 Juniper EX8200 512K 256K 256K 512K

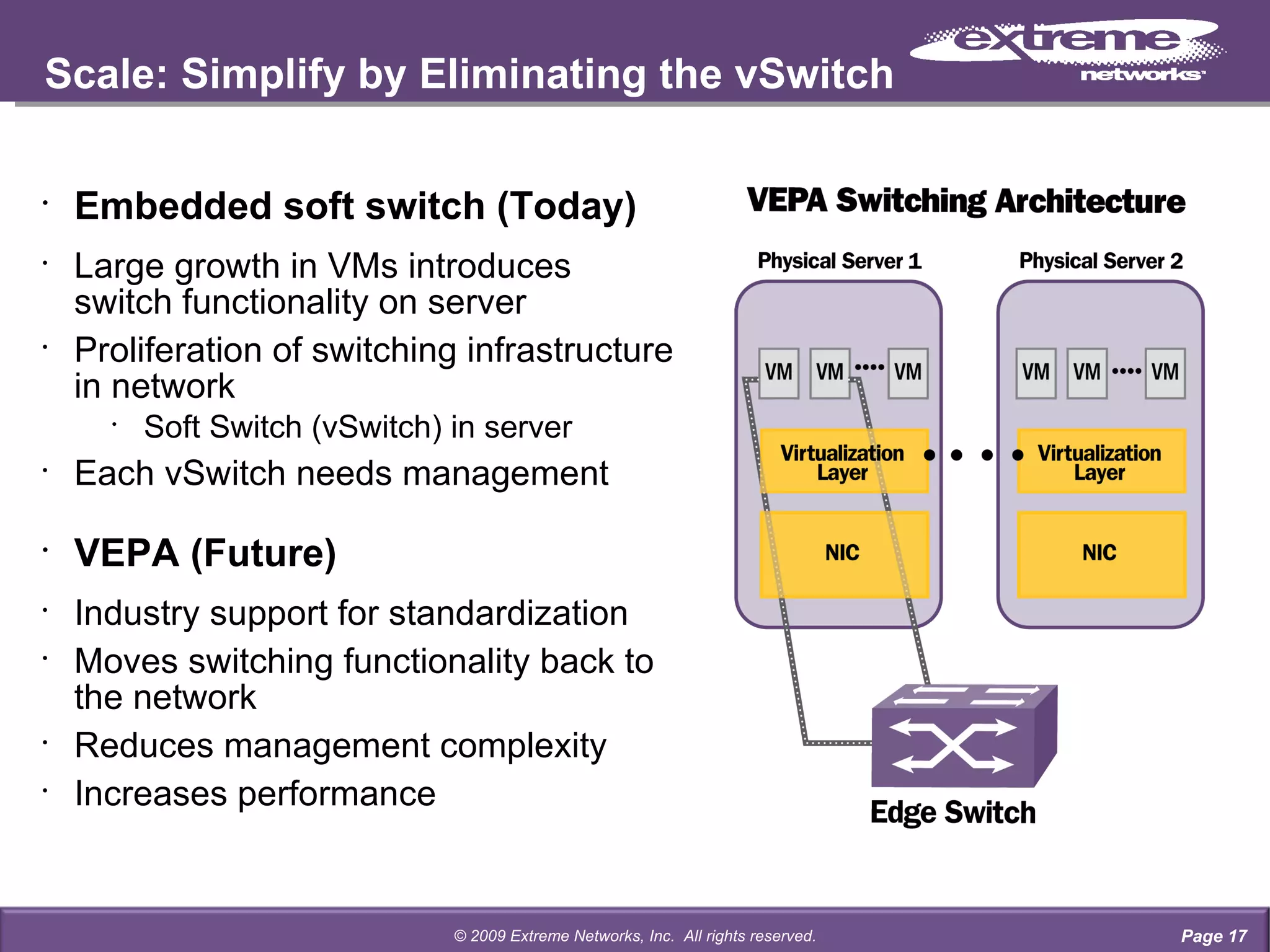

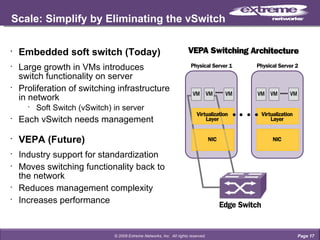

- 17. Scale: Simplify byEliminating the vSwitch Embedded soft switch (Today) Large growth in VMs introduces switch functionality on server Proliferation of switching infrastructure in network Soft Switch (vSwitch) in server Each vSwitch needs management VEPA (Future) Industry support for standardization Moves switching functionality back to the network Reduces management complexity Increases performance Page © 2009 Extreme Networks, Inc. All rights reserved.

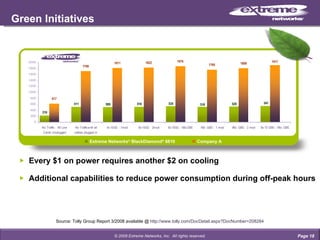

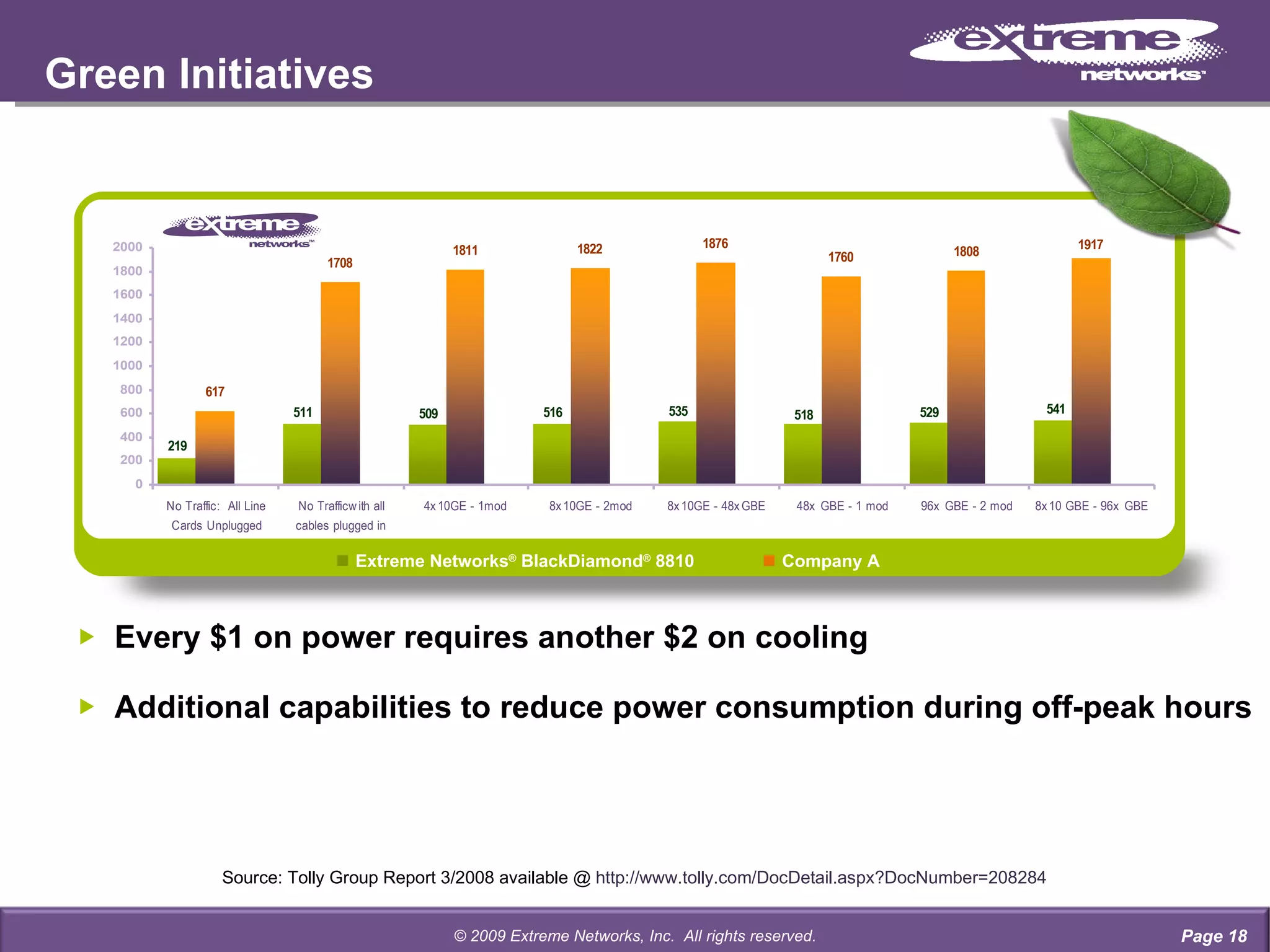

- 18. Every $1 onpower requires another $2 on cooling Additional capabilities to reduce power consumption during off-peak hours Green Initiatives Source: Tolly Group Report 3/2008 available @ http://www.tolly.com/DocDetail.aspx?DocNumber=208284 Page © 2009 Extreme Networks, Inc. All rights reserved. Extreme Networks ® BlackDiamond ® 8810 Company A

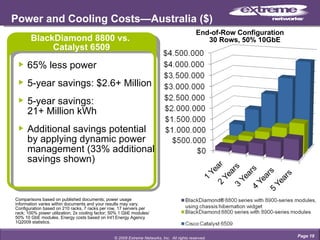

- 19. Power and CoolingCosts—Australia ($) Page Comparisons based on published documents; power usage information varies within documents and your results may vary. Configuration based on 210 racks, 7 racks per row, 17 servers per rack; 100% power utilization; 2x cooling factor; 50% 1 GbE modules/50% 10 GbE modules. Energy costs based on Int’l Energy Agency 1Q2009 statistics. 65% less power 5-year savings: $2.6+ Million 5-year savings: 21+ Million kWh Additional savings potential by applying dynamic power management (33% additional savings shown) BlackDiamond 8800 vs. Catalyst 6509 End-of-Row Configuration 30 Rows, 50% 10GbE © 2009 Extreme Networks, Inc. All rights reserved.

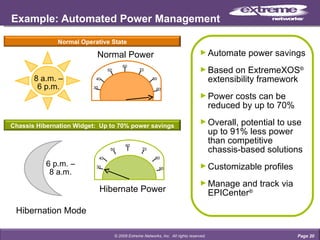

- 20. Example: Automated PowerManagement Hibernation Mode 8 a.m. – 6 p.m. 6 p.m. – 8 a.m. Hibernate Power Automate power savings Based on ExtremeXOS ® extensibility framework Power costs can be reduced by up to 70% Overall, potential to use up to 91% less power than competitive chassis-based solutions Customizable profiles Manage and track via EPICenter ® Page © 2009 Extreme Networks, Inc. All rights reserved. Chassis Hibernation Widget: Up to 70% power savings 60 30 40 50 70 80 90 Normal Power 60 30 40 50 70 80 90 Normal Operative State

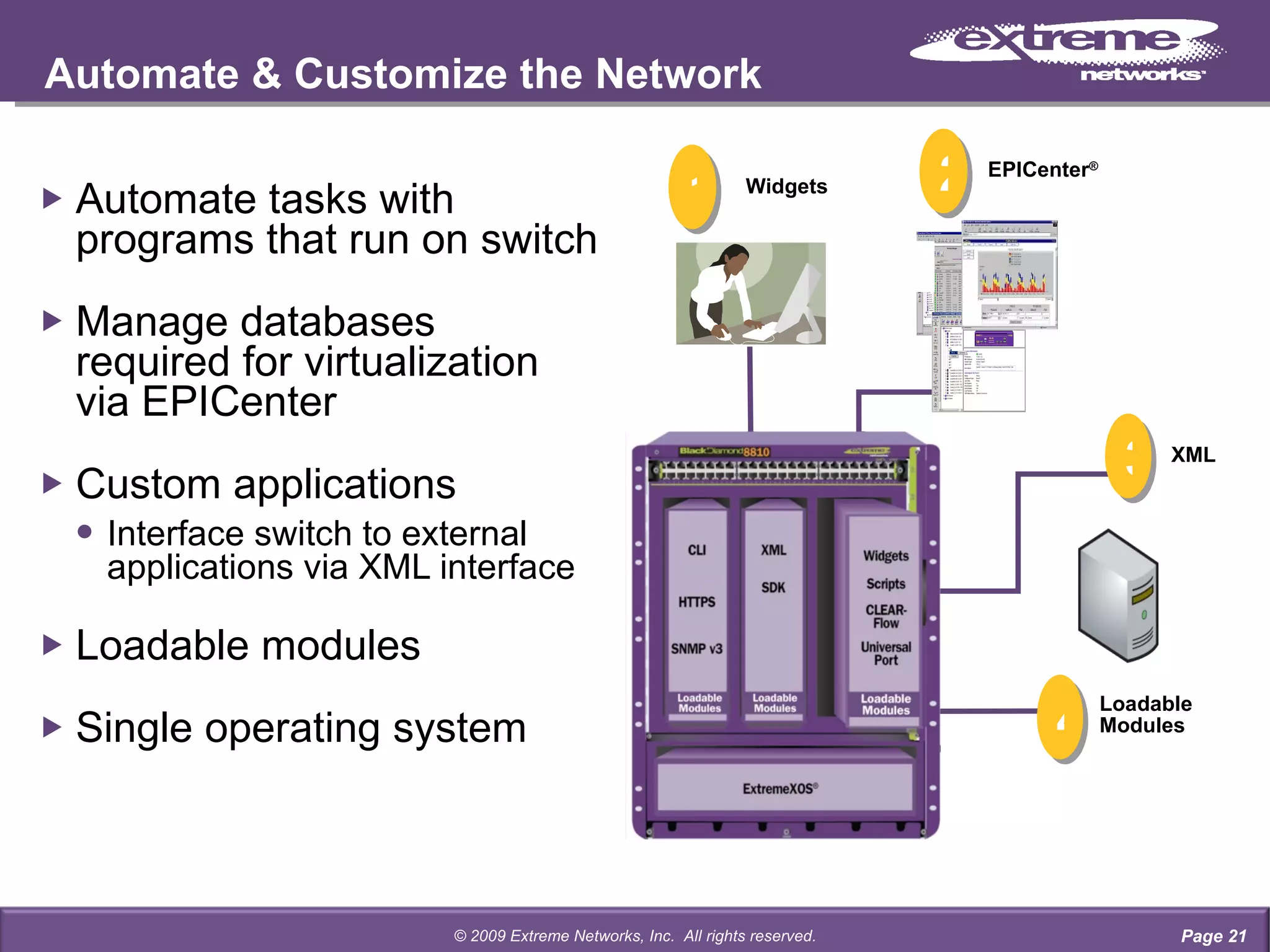

- 21. Automate tasks withprograms that run on switch Manage databases required for virtualization via EPICenter Custom applications Interface switch to external applications via XML interface Loadable modules Single operating system Automate & Customize the Network 2 3 EPICenter ® XML Widgets 1 Loadable Modules 4 Page © 2009 Extreme Networks, Inc. All rights reserved.

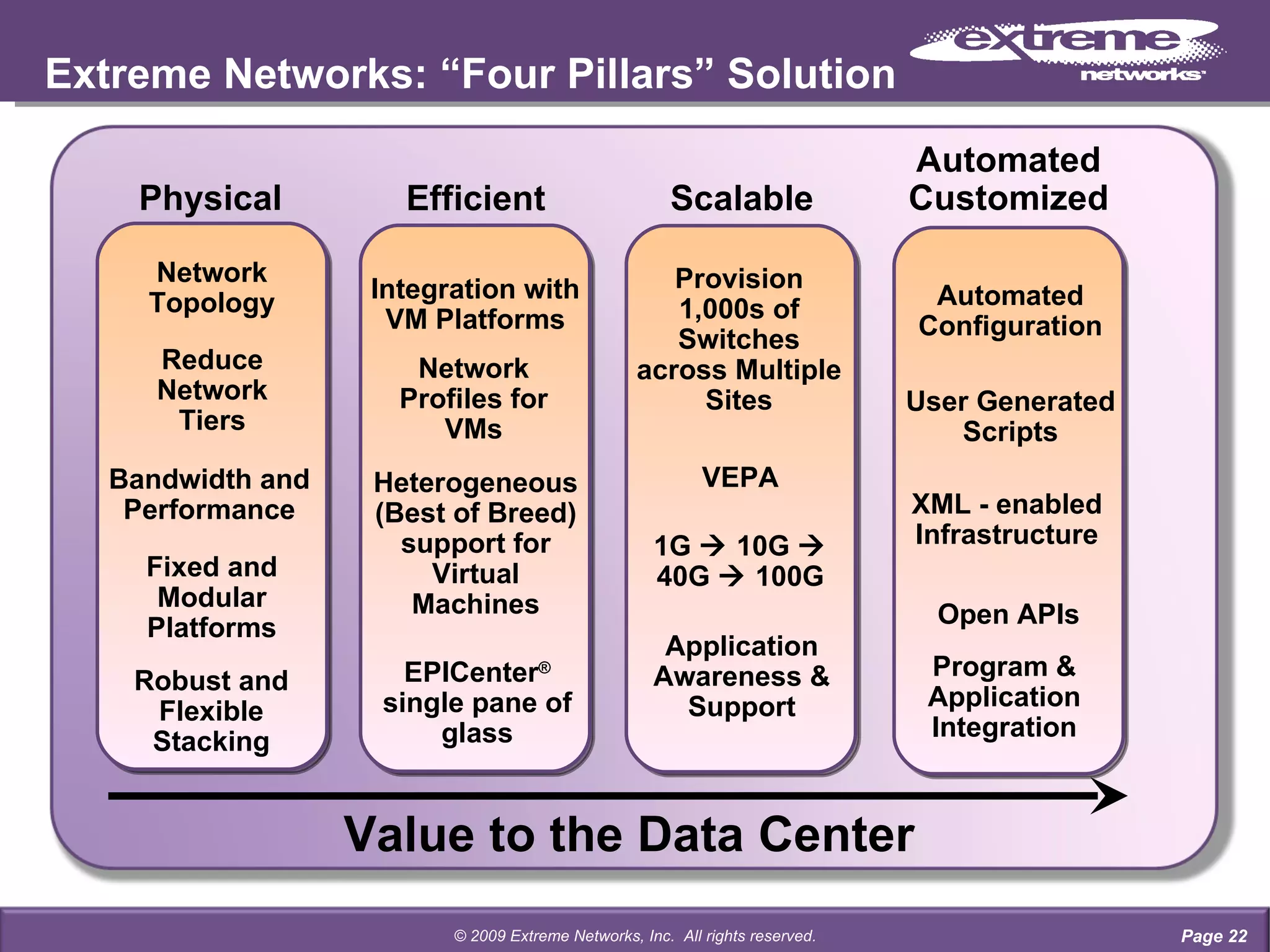

- 22. Extreme Networks: “FourPillars” Solution Automated Customized Program & Application Integration XML - enabled Infrastructure Open APIs Physical Bandwidth and Performance Fixed and Modular Platforms Robust and Flexible Stacking Efficient Integration with VM Platforms Heterogeneous (Best of Breed) support for Virtual Machines Scalable Application Awareness & Support Provision 1,000s of Switches across Multiple Sites Reduce Network Tiers User Generated Scripts 1G 10G 40G 100G EPICenter ® single pane of glass VEPA Network Topology Network Profiles for VMs Automated Configuration Page © 2009 Extreme Networks, Inc. All rights reserved. Value to the Data Center
- 23. Thank You Page © 2009 Extreme Networks, Inc. All rights reserved.
- 24. © 2009 ExtremeNetworks, Inc. All rights reserved.
Editor's Notes
- #2 Extreme Networks ® has developed a network infrastructure solution that will accommodate the evolving technology landscape in the data center. This solution will allow users to migrate from a traditional or “physical” infrastructure to a virtual one without forcing a certain technology, or operating methodology on the user. This approach applies to Enterprises and hosting centers of any scale. © 2009 Extreme Networks, Inc. All rights reserved.
- #4 The Data Center has become the new computer. Enterprise and service providers are looking to enable the ability to simply submit jobs and provision applications on the fly with no consideration of server capacity, memory or even location. Blade servers, rack servers, multi-core processors are virtualization are enabling a high degree of consolidation in the data center. These technologies have led to a much greater computational density in the server, rack and data center. As a result, Enterprises have been able to greatly reduce the number of and physical footprint of their data center locations. It is vary common for enterprises today to look to host their data centers in a two or three locations as opposed to 10 or greater. Efficient power management is becoming key. Costs of power are increasing and the new high density data centers are drawing more power and cooling. Governments around the world are putting caps in place as governments look to reduce carbon emissions. Data centers looking to optimize power consumption by automating power management in the Data Center, an example of this is moving to follow the moon models due to lower power costs at night. There are many similarities between enterprise and managed hosted with enterprise data center looking more like service providers having application level SLAs with internal departments. The immediate opportunity is for virtualization – storage solutions are 18 months away. © 2009 Extreme Networks, Inc. All rights reserved.
- #5 With the advent of blade switches and soft switches in the hypervisor, we are seeing a blurring of the network edge in the data center, The traditional switching model of 2 or 3 tier networks where the edge is where switching begins has been replaced by the addition of 1 or 2 tiers of switching in the server. This model has greatly increased the complexity of switching in the data center both in terms of number of switches in the network, but also in terms of complexity of switching in the Data Center. Ability to configure and manage different virtual switches is an issue. Today, no standards exist for virtual switches. Each vendor has their own set of functionalities and capabilities. The challenge is how to have all these network layers, and different vendors co-exist, not just in data center, but even within a single server. © 2009 Extreme Networks, Inc. All rights reserved.
- #6 The other issue that is created by the inclusion of switches in the server, either are a virtual switch or a blade switch, is who has responsibility for configuration and management of the switch in the server,. Traditionally, the ownership was with the networking group, but now that line has blurred. This blurring of the line between the server and the network can lead to an increase in the likelihood of errors and more complicated maintenance troubleshooting between the server and networking groups. This blurring of the line between the server and the network has created a shift in the control and management of networking level functions in the network. © 2009 Extreme Networks, Inc. All rights reserved.
- #7 VM mobility is one of the biggest promises of virtualization. Disaster and site recovery processes count on the ability to dynamically move workloads. Resiliency and fault tolerance count heavily on this dynamic capability as well. The ability to provision new workloads dynamically relies on being able to move workloads around. Yet networks are static. Traditionally, network configurations were set up and rarely changed. As networks become dynamic, that changes and there is a requirement for the network to become dynamic. By this we mean, VM mobility requires the network configuration (VLAN, QoS, ACLs, etc) to dynamically follow the virtual machine as it moves through the network. © 2009 Extreme Networks, Inc. All rights reserved.
- #8 We have broken our solution down into four pillars. You can think of these as phases of implementation for users. The leftmost pillar we call “Physical”. This is really the physical network where most users are today. As this physical network is the foundation for all virtualization it is incredibly important that this infrastructure be robust, easy to manage and scalable. Based upon this physical infrastructure, we move to a virtualized infrastructure which for us is a series of software modules that are loaded into ExtremeXOS ® . The second pillar – the first phase of virtualization we call “Efficient” From here we move through several phases of virtualization. The second pillar we call “efficient”. This is where the efficiencies of virtualization are realized through the network. The third pillar we call “Scalable”. This is where we provide dramatic scale in terms of number of switches and virtual machines that we support as well as moving to a highly scalable VEPA based architecture to support switching of the virtual machines in the network as opposes to on the server. The final is “Automated and Customized” This is where we provide a model for users to customize their environment and automate routine tasks that can be very time consuming at scale. We’ll address these in more detail in the next 30 minutes, but we wanted to put this framework up so that things will fit into context. © 2009 Extreme Networks, Inc. All rights reserved.
- #9 Extreme Networks Confidential and Proprietary. © 2010 Extreme Networks Inc. All rights reserved.
- #10 One way we have enabled the simplification of the data center network is to reduce the number of tiers required to support these highly virtualized environments. With our “Direct Attach” model, we are able to reduce the complexity and number of network tiers by 1 or two tiers based on the configuration deployed. This architecture can greatly reduce cost, power and cabling and as well as increase performance in the network. The architecture leverages our BlackDiamond ® 8900-series modules that utilize the MRJ21 connector for high density data center environments. © 2009 Extreme Networks, Inc. All rights reserved.
- #11 We have enabled the data center product family to be able to dynamically manage virtualization in the network. We use EPICenter ® , our management platform, to provide Hypervisor management integration and coordination as well as inventory of VMs, and future security functions. This VM aware capability enables us to tightly and dynamically mange virtualization moves and the associated virtual port profile moves (VPP) within the network – enabling a highly efficient and automated virtualization environment where the network and the virtual machines are tightly integrated. © 2009 Extreme Networks, Inc. All rights reserved.
- #12 Extreme Networks Confidential and Proprietary. © 2010 Extreme Networks Inc. All rights reserved.
- #13 Extreme Networks Confidential and Proprietary. © 2010 Extreme Networks Inc. All rights reserved.
- #14 Extreme Networks Confidential and Proprietary. © 2010 Extreme Networks Inc. All rights reserved.
- #15 Extreme Networks Confidential and Proprietary. © 2010 Extreme Networks Inc. All rights reserved.
- #16 Extreme Networks Confidential and Proprietary. © 2010 Extreme Networks Inc. All rights reserved.
- #17 Page Extreme Networks Confidential and Proprietary. © 2010 Extreme Networks Inc. All rights reserved.
- #18 Today’s architecture includes having switching done at the virtual switch level. This architecture enables virtualization today, but there is a move within the industry to move the networking functionality back to the network. The industry is working on a standard called VEPA (Virtual Ethernet Port Adapter.) This standard allows switching to be moved back to the network. This has multiple benefits including reducing complexity, taking the switching burden off of the server, increasing security and removing the organizational complexity introduced by the virtual switch. © 2009 Extreme Networks, Inc. All rights reserved.
- #21 Given the big push towards green and escalating cost of power, the network infra is an important part of the power equation. $1 in power consumes $2 in cooling BlackDiamond ® 8800 series consumes 1/3 of some of the competitors. Further ability to reduce power during off peak hours using customizable profiles. Profiles are essentially scripts that based on Time of day can turn off power to blades or ports on a stackable Allows data centers to truly follow the moon and be more power efficient © 2009 Extreme Networks, Inc. All rights reserved.
- #22 The Extreme Networks ® product family is designed from the ground up to support automation and customization in the data center. We have a single operating system that runs across the product family. This single operating system has a standard XML API and SDK for easy integration as well as scripting capability (widgets) that enable easy automation of routine tasks. The product family also includes EPICenter ® , a management platform for managing and configuring the entire product portfolio. The platform also supports the ability to add loadable modules to the network to enable various functionality and capabilities. © 2009 Extreme Networks, Inc. All rights reserved.
- #23 We have broken our solution down into four pillars. You can think of these as phases of implementation for users. The leftmost pillar we call “Physical”. This is really the physical network where most users are today. As this physical network is the foundation for all virtualization it is incredibly important that this infrastructure be robust, easy to manage and scalable. Based upon this physical infrastructure, we move to a virtualized infrastructure which for us is a series of software modules that are loaded into ExtremeXOS ® . The second pillar – the first phase of virtualization we call “Efficient” From here we move through several phases of virtualization. The second pillar we call “efficient”. This is where the efficiencies of virtualization are realized through the network. The third pillar we call “Scalable”. This is where we provide dramatic scale in terms of number of switches and virtual machines that we support as well as moving to a highly scaleable VEPA based architecture to support switching of the virtual machines in the network as opposes to on the server. The final is “Automated and Customized” This is where we provide a model for users to customize their environment and automate routine tasks that can be very time consuming at scale. © 2009 Extreme Networks, Inc. All rights reserved.
