1. Extra corporeal circulation
Dr. Arati Mohan Badgandi

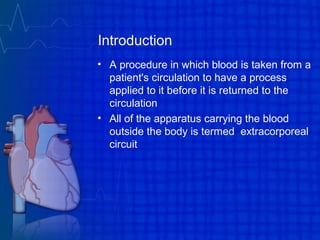

2. Introduction
• A procedure in which blood is taken from a
patient's circulation to have a process
applied to it before it is returned to the
circulation
• All of the apparatus carrying the blood
outside the body is termed extracorporeal
circuit

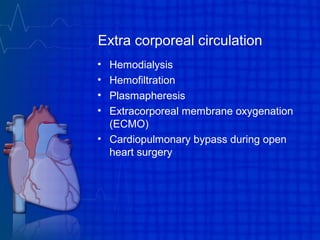

3. Extra corporeal circulation
• Hemodialysis
• Hemofiltration
• Plasmapheresis
• Extracorporeal membrane oxygenation
(ECMO)
• Cardiopulmonary bypass during open
heart surgery

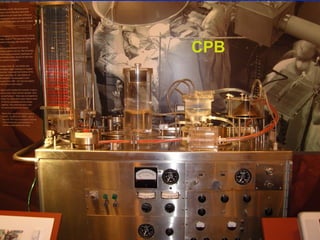

4. CPB
CPB

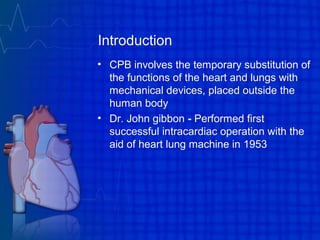

5. Introduction
• CPB involves the temporary substitution of
the functions of the heart and lungs with
mechanical devices, placed outside the
human body
• Dr. John gibbon - Performed first
successful intracardiac operation with the
aid of heart lung machine in 1953

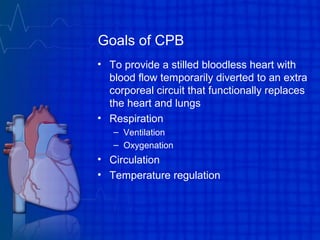

6. Goals of CPB
• To provide a stilled bloodless heart with
blood flow temporarily diverted to an extra
corporeal circuit that functionally replaces
the heart and lungs
• Respiration
– Ventilation
– Oxygenation
• Circulation
• Temperature regulation

7. Indications
• Surgical correction of congenital, ischemic or
valvular heart diseases
• Coronary artery bypass
• Valve replacement
• Correction of septal defects
• Advances of CPB technology have been
utilized in the development of other complex
medical devices like
– Artificial hearts
– ECMO
– Ventricular assist devices

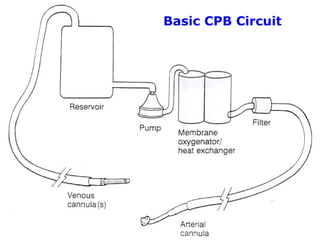

8. Basic CPB Circuit

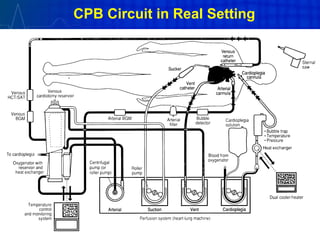

9. CPB Circuit in Real Setting

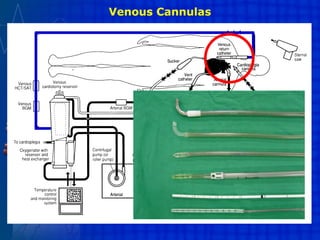

10. Venous Cannulas

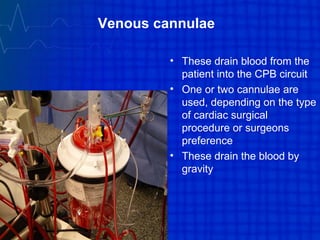

11. Venous cannulae
• These drain blood from the
patient into the CPB circuit
• One or two cannulae are
used, depending on the type
of cardiac surgical
procedure or surgeons
preference
• These drain the blood by
gravity

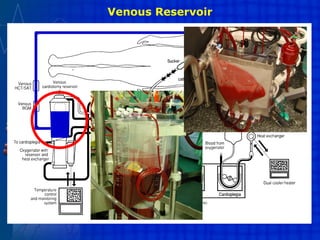

12. Venous Reservoir

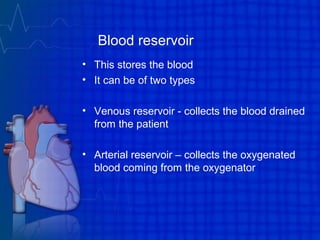

13. Blood reservoir
• This stores the blood
• It can be of two types
• Venous reservoir - collects the blood drained
from the patient
• Arterial reservoir – collects the oxygenated
blood coming from the oxygenator

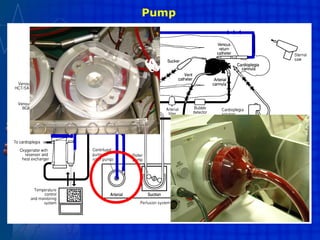

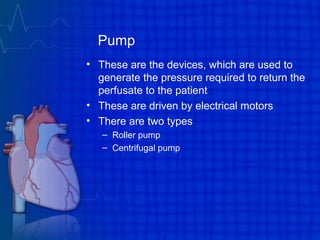

14. Pump

15. Pump
• These are the devices, which are used to
generate the pressure required to return the
perfusate to the patient
• These are driven by electrical motors
• There are two types
– Roller pump
– Centrifugal pump

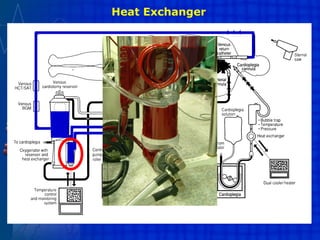

16. Heat Exchanger

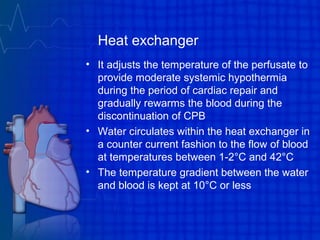

17. Heat exchanger
• It adjusts the temperature of the perfusate to
provide moderate systemic hypothermia
during the period of cardiac repair and
gradually rewarms the blood during the
discontinuation of CPB
• Water circulates within the heat exchanger in
a counter current fashion to the flow of blood
at temperatures between 1-2°C and 42°C
• The temperature gradient between the water
and blood is kept at 10°C or less

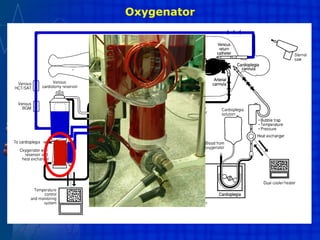

18. Oxygenator

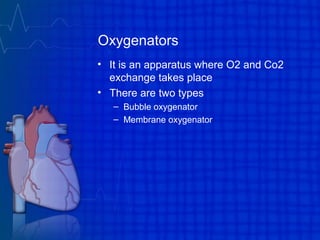

19. Oxygenators
• It is an apparatus where O2 and Co2
exchange takes place
• There are two types
– Bubble oxygenator
– Membrane oxygenator

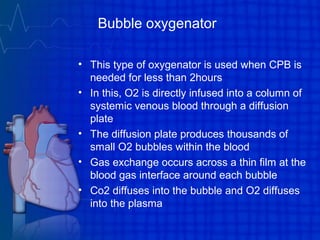

20. Bubble oxygenator
• This type of oxygenator is used when CPB is
needed for less than 2hours
• In this, O2 is directly infused into a column of
systemic venous blood through a diffusion
plate
• The diffusion plate produces thousands of
small O2 bubbles within the blood
• Gas exchange occurs across a thin film at the
blood gas interface around each bubble
• Co2 diffuses into the bubble and O2 diffuses
into the plasma

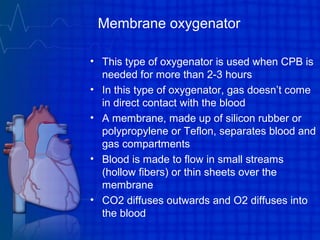

21. Membrane oxygenator
• This type of oxygenator is used when CPB is
needed for more than 2-3 hours
• In this type of oxygenator, gas doesn’t come
in direct contact with the blood
• A membrane, made up of silicon rubber or
polypropylene or Teflon, separates blood and
gas compartments
• Blood is made to flow in small streams
(hollow fibers) or thin sheets over the
membrane
• CO2 diffuses outwards and O2 diffuses into
the blood

22. Filters

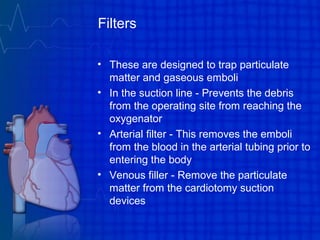

23. Filters
• These are designed to trap particulate
matter and gaseous emboli
• In the suction line - Prevents the debris
from the operating site from reaching the
oxygenator
• Arterial filter - This removes the emboli
from the blood in the arterial tubing prior to
entering the body
• Venous filler - Remove the particulate
matter from the cardiotomy suction
devices

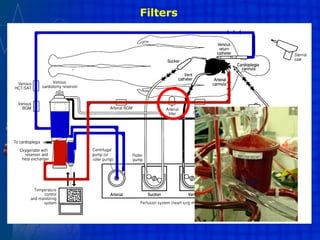

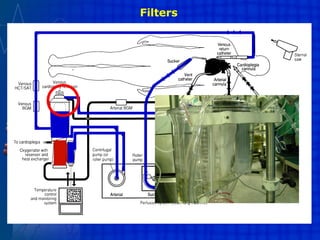

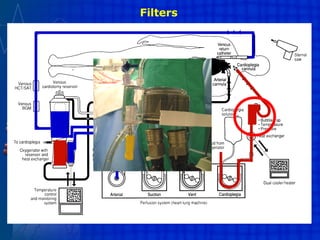

24. Filters

25. Filters

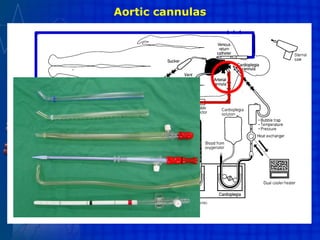

26. Aortic cannulas

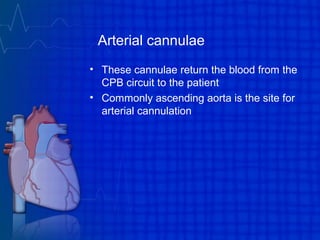

27. Arterial cannulae
• These cannulae return the blood from the
CPB circuit to the patient
• Commonly ascending aorta is the site for
arterial cannulation

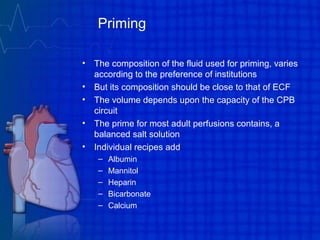

28. Priming
• The composition of the fluid used for priming, varies
according to the preference of institutions
• But its composition should be close to that of ECF
• The volume depends upon the capacity of the CPB
circuit
• The prime for most adult perfusions contains, a
balanced salt solution
• Individual recipes add
– Albumin
– Mannitol
– Heparin
– Bicarbonate
– Calcium

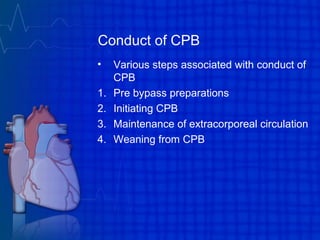

29. Conduct of CPB
• Various steps associated with conduct of
CPB
1. Pre bypass preparations
2. Initiating CPB
3. Maintenance of extracorporeal circulation
4. Weaning from CPB

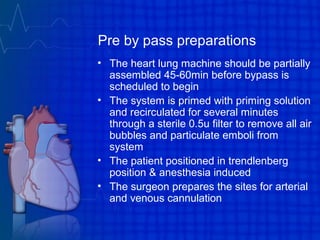

30. Pre by pass preparations
• The heart lung machine should be partially
assembled 45-60min before bypass is
scheduled to begin
• The system is primed with priming solution
and recirculated for several minutes
through a sterile 0.5u filter to remove all air
bubbles and particulate emboli from
system
• The patient positioned in trendlenberg
position & anesthesia induced
• The surgeon prepares the sites for arterial
and venous cannulation

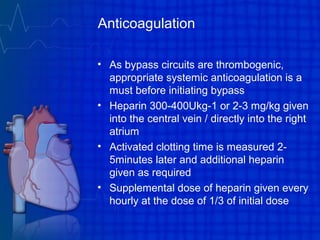

31. Anticoagulation
• As bypass circuits are thrombogenic,
appropriate systemic anticoagulation is a
must before initiating bypass
• Heparin 300-400Ukg-1 or 2-3 mg/kg given
into the central vein / directly into the right
atrium
• Activated clotting time is measured 2-
5minutes later and additional heparin
given as required
• Supplemental dose of heparin given every
hourly at the dose of 1/3 of initial dose

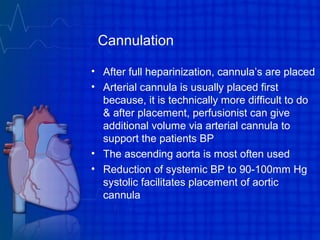

32. Cannulation
• After full heparinization, cannula’s are placed
• Arterial cannula is usually placed first
because, it is technically more difficult to do
& after placement, perfusionist can give
additional volume via arterial cannula to
support the patients BP
• The ascending aorta is most often used
• Reduction of systemic BP to 90-100mm Hg
systolic facilitates placement of aortic
cannula

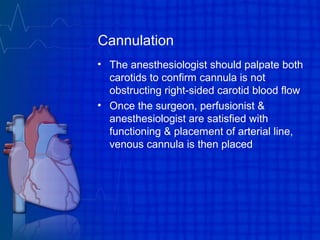

33. Cannulation
• The anesthesiologist should palpate both
carotids to confirm cannula is not
obstructing right-sided carotid blood flow
• Once the surgeon, perfusionist &
anesthesiologist are satisfied with
functioning & placement of arterial line,
venous cannula is then placed

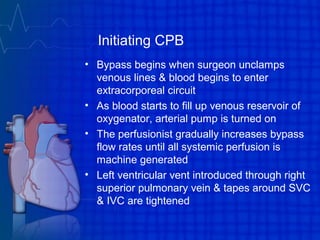

34. Initiating CPB
• Bypass begins when surgeon unclamps
venous lines & blood begins to enter
extracorporeal circuit
• As blood starts to fill up venous reservoir of
oxygenator, arterial pump is turned on
• The perfusionist gradually increases bypass
flow rates until all systemic perfusion is
machine generated
• Left ventricular vent introduced through right
superior pulmonary vein & tapes around SVC
& IVC are tightened

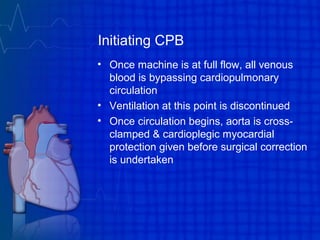

35. Initiating CPB
• Once machine is at full flow, all venous
blood is bypassing cardiopulmonary
circulation
• Ventilation at this point is discontinued
• Once circulation begins, aorta is cross-
clamped & cardioplegic myocardial
protection given before surgical correction
is undertaken

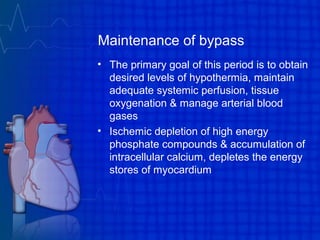

36. Maintenance of bypass
• The primary goal of this period is to obtain
desired levels of hypothermia, maintain
adequate systemic perfusion, tissue
oxygenation & manage arterial blood
gases
• Ischemic depletion of high energy
phosphate compounds & accumulation of
intracellular calcium, depletes the energy
stores of myocardium

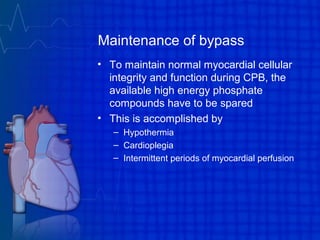

37. Maintenance of bypass
• To maintain normal myocardial cellular
integrity and function during CPB, the
available high energy phosphate
compounds have to be spared
• This is accomplished by
– Hypothermia
– Cardioplegia
– Intermittent periods of myocardial perfusion

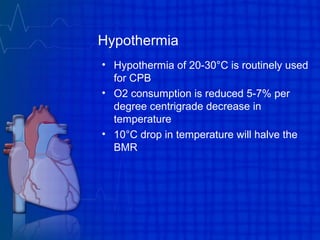

38. Hypothermia
• Hypothermia of 20-30°C is routinely used
for CPB
• O2 consumption is reduced 5-7% per
degree centrigrade decrease in
temperature
• 10°C drop in temperature will halve the
BMR

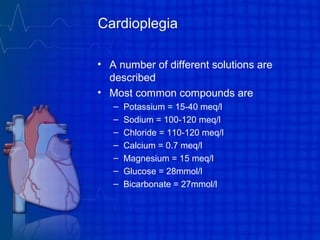

39. Cardioplegia
• A number of different solutions are
described
• Most common compounds are
– Potassium = 15-40 meq/l
– Sodium = 100-120 meq/l
– Chloride = 110-120 meq/l
– Calcium = 0.7 meq/l
– Magnesium = 15 meq/l
– Glucose = 28mmol/l
– Bicarbonate = 27mmol/l

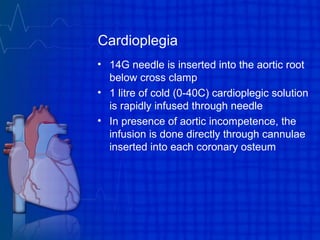

40. Cardioplegia
• 14G needle is inserted into the aortic root
below cross clamp
• 1 litre of cold (0-40C) cardioplegic solution
is rapidly infused through needle
• In presence of aortic incompetence, the
infusion is done directly through cannulae
inserted into each coronary osteum

41. Mechanism of action
Increased extracellular potassium
↓
Decrease in transmembrane potential
↓
Impairment of Na+ transport
↓
Abolition of action potential generation
↓
Cardiac arrest in diastole

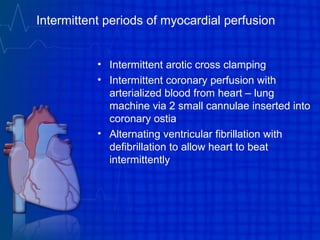

42. Intermittent periods of myocardial perfusion
• Intermittent arotic cross clamping
• Intermittent coronary perfusion with
arterialized blood from heart – lung
machine via 2 small cannulae inserted into
coronary ostia
• Alternating ventricular fibrillation with
defibrillation to allow heart to beat
intermittently

43. Blood gas management
• Acid base management during CPB is
done by two methods
– Alpha stat method
– pH stat method

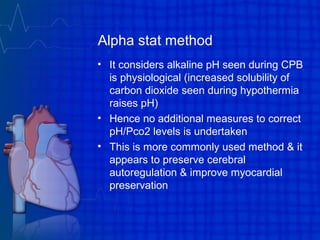

44. Alpha stat method
• It considers alkaline pH seen during CPB
is physiological (increased solubility of
carbon dioxide seen during hypothermia
raises pH)
• Hence no additional measures to correct
pH/Pco2 levels is undertaken
• This is more commonly used method & it
appears to preserve cerebral
autoregulation & improve myocardial
preservation

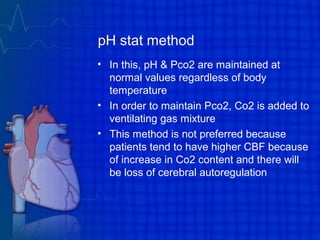

45. pH stat method
• In this, pH & Pco2 are maintained at
normal values regardless of body
temperature
• In order to maintain Pco2, Co2 is added to
ventilating gas mixture
• This method is not preferred because
patients tend to have higher CBF because
of increase in Co2 content and there will
be loss of cerebral autoregulation

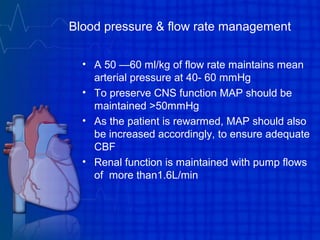

46. Blood pressure & flow rate management
• A 50 —60 ml/kg of flow rate maintains mean
arterial pressure at 40- 60 mmHg
• To preserve CNS function MAP should be
maintained >50mmHg
• As the patient is rewarmed, MAP should also
be increased accordingly, to ensure adequate
CBF
• Renal function is maintained with pump flows
of more than1.6L/min

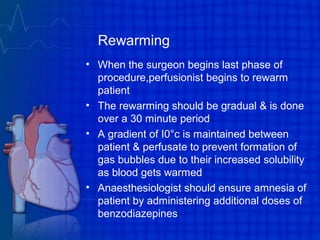

47. Rewarming
• When the surgeon begins last phase of
procedure,perfusionist begins to rewarm
patient
• The rewarming should be gradual & is done
over a 30 minute period
• A gradient of I0°c is maintained between
patient & perfusate to prevent formation of
gas bubbles due to their increased solubility
as blood gets warmed
• Anaesthesiologist should ensure amnesia of
patient by administering additional doses of
benzodiazepines

48. Rewarming
• Upon completion of the surgical repair, any
residual air in ventricles to be removed
• The anaesthesiologist vigorously inflates
lungs to remove air from pulmonary veins
& aids in filling of cardiac chambers
• TEE assesses the effectiveness of
deairing process
• The aortic clamp removed to resume
myocardial perfusion
• The heart is defibrillated & allowed to beat
empty

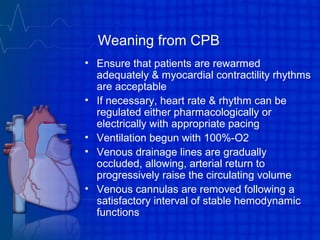

49. Weaning from CPB
• Ensure that patients are rewarmed
adequately & myocardial contractility rhythms
are acceptable
• If necessary, heart rate & rhythm can be
regulated either pharmacologically or
electrically with appropriate pacing
• Ventilation begun with 100%-O2
• Venous drainage lines are gradually
occluded, allowing, arterial return to
progressively raise the circulating volume
• Venous cannulas are removed following a
satisfactory interval of stable hemodynamic
functions

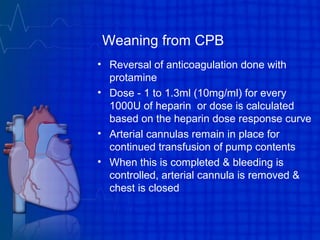

50. Weaning from CPB
• Reversal of anticoagulation done with
protamine
• Dose - 1 to 1.3ml (10mg/ml) for every
1000U of heparin or dose is calculated
based on the heparin dose response curve
• Arterial cannulas remain in place for
continued transfusion of pump contents
• When this is completed & bleeding is
controlled, arterial cannula is removed &
chest is closed

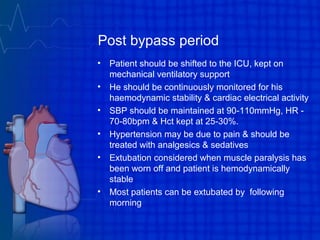

51. Post bypass period
• Patient should be shifted to the ICU, kept on
mechanical ventilatory support
• He should be continuously monitored for his
haemodynamic stability & cardiac electrical activity
• SBP should be maintained at 90-110mmHg, HR -
70-80bpm & Hct kept at 25-30%.
• Hypertension may be due to pain & should be
treated with analgesics & sedatives
• Extubation considered when muscle paralysis has
been worn off and patient is hemodynamically
stable
• Most patients can be extubated by following
morning

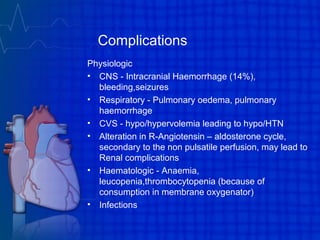

52. Complications
Physiologic
• CNS - Intracranial Haemorrhage (14%),
bleeding,seizures
• Respiratory - Pulmonary oedema, pulmonary
haemorrhage
• CVS - hypo/hypervolemia leading to hypo/HTN
• Alteration in R-Angiotensin – aldosterone cycle,
secondary to the non pulsatile perfusion, may lead to
Renal complications
• Haematologic - Anaemia,
leucopenia,thrombocytopenia (because of
consumption in membrane oxygenator)
• Infections

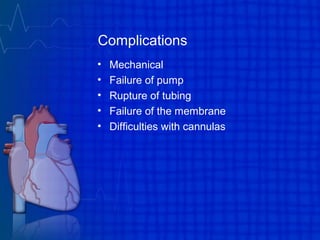

53. Complications
• Mechanical
• Failure of pump
• Rupture of tubing
• Failure of the membrane
• Difficulties with cannulas
