Extent Test Report with Appium/Selenium – Version 3
Generating the stunning HTML Extent Report in Appium/Selenium
Raman Hullur

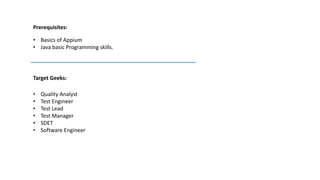

Prerequisites:
• Basics of Appium
• Java basic Programming skills.
Target Geeks:
• Quality Analyst
• Test Engineer
• Test Lead
• Test Manager
• SDET
• Software Engineer
http://extentreports.com/community/#Version_3 OR
https://www.nuget.org/packages/ExtentReports/
http://extentreports.relevantcodes.com/
https://mvnrepository.com/artifact/org.freemarker/freemarker
https://mvnrepository.com/artifact/org.mongodb/bson
Go through the extent report documentation before starting the scripting:
http://extentreports.com/community
Required .jars can be downloaded here:
List of jars which are required for Extent Report(Make sure all below the jars are present in your project!)
FAQ:
How to add external jar files for Eclipse Project Directory?
https://stackoverflow.com/questions/3280353/how-to-import-a-jar-in-eclipse
How to use TestNG framework in eclipse projects?
https://www.slideshare.net/ramanhullur/testng-installation

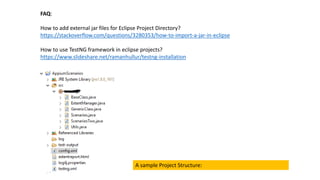

A sample Project Structure:
• Create a Java Project under eclipse IDE
• Add all Appium dependency .jar files and earlier mentioned Extent Report jars files to project.
http://www.oxfordmathcenter.com/drupal7/node/44
• Create a config.xml file under project folder and copy default xml content of extent report skeleton.
Code Ref: htmlReporter.loadXMLConfig("./config.xml"); [xml script file attached in next slide]
• Create an extentreport.html file under project folder/directory.
Code Ref: private static String filePath = "./extentreport.html"; [keep it blank in project]
• Create a ExtentManager.java defualt class under project package where Base class created.
• Declare below the classes and import respective packages:
Packages:
import com.aventstack.extentreports.ExtentReports;
import com.aventstack.extentreports.ExtentTest;
import com.aventstack.extentreports.reporter.ExtentHtmlReporter;
Classes:
private static ExtentReports extent;
private static ExtentTest test;
private static ExtentHtmlReporter htmlReporter; //contd/-
config.xml default xml script. Copy and Paste into config.xml file.

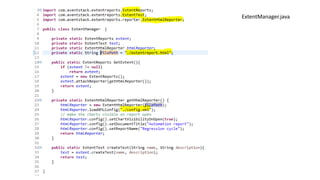

ExtentManager.java
• Create a Base class to add Appium capabilities or @BeforeSuite/Class method to launch app, to create a sample
base class refer: http://toolsqa.com/mobile-automation/appium/first-appium-test-to-launch-amazon-app/
@BeforeSuite or @BeforeClass method for Base class

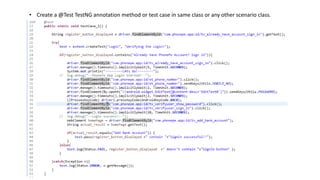

• Create a @Test TestNG annotation method or test case in same class or any other scenario class.
• Create a testng.xml file under project folder & Add xml content.
• Declare below the class variables in Base class of Project.
public static ExtentReports extent;
public static ExtentTest test;
• Initialize extent class variable within the @BeforeSuite/Class Method.
extent = ExtentManager.GetExtent();
• Extend Base class if you have written separate scenario class to write test case with @Test annotation.
• Initialize test ExtentTest class variable into test case method.
test = extent.createTest("TestCase1", "Testcase Description");

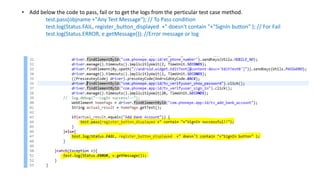

• Add below the code to pass, fail or to get the logs from the perticular test case method.
test.pass(objname +"Any Test Message"); // To Pass condition
test.log(Status.FAIL, register_button_displayed +" doesn't contain "+"SignIn button" ); // For Fail
test.log(Status.ERROR, e.getMessage()); //Error message or log

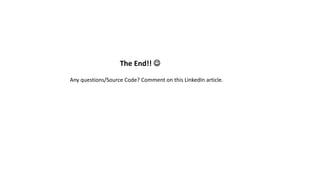

The End!! 
