1. Extensions 101: Building
Interactive Experiences

2. Introductions
Greg Humphreys
Lead Developer
Twitch: DeflatorMouse7
Twitter: @deflatormouse7
Pat Sanchez
Engineering Manager
Twitch: splatwes
Twitter: @splatwes

3. What are Extensions?

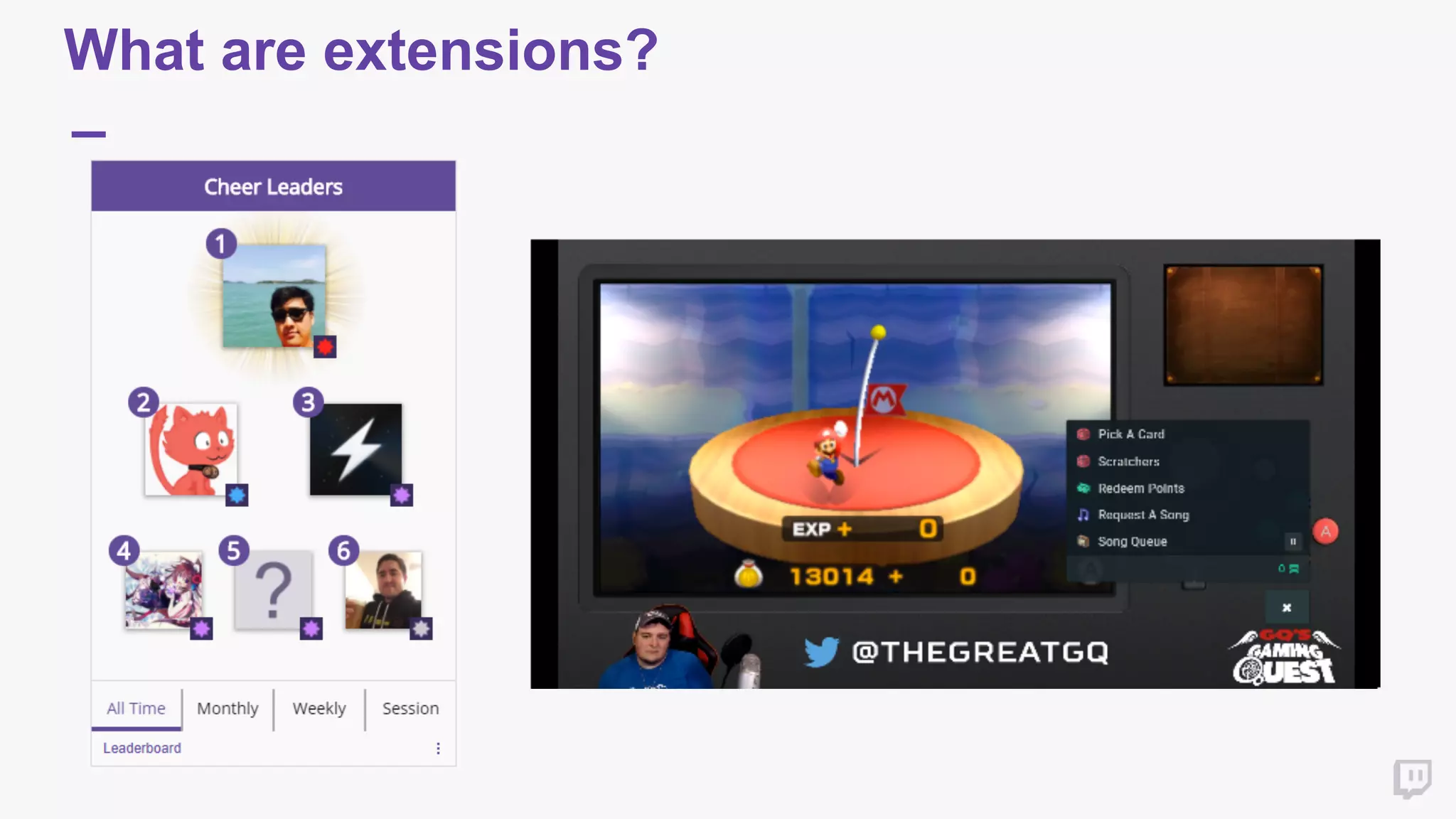

4. What are extensions?

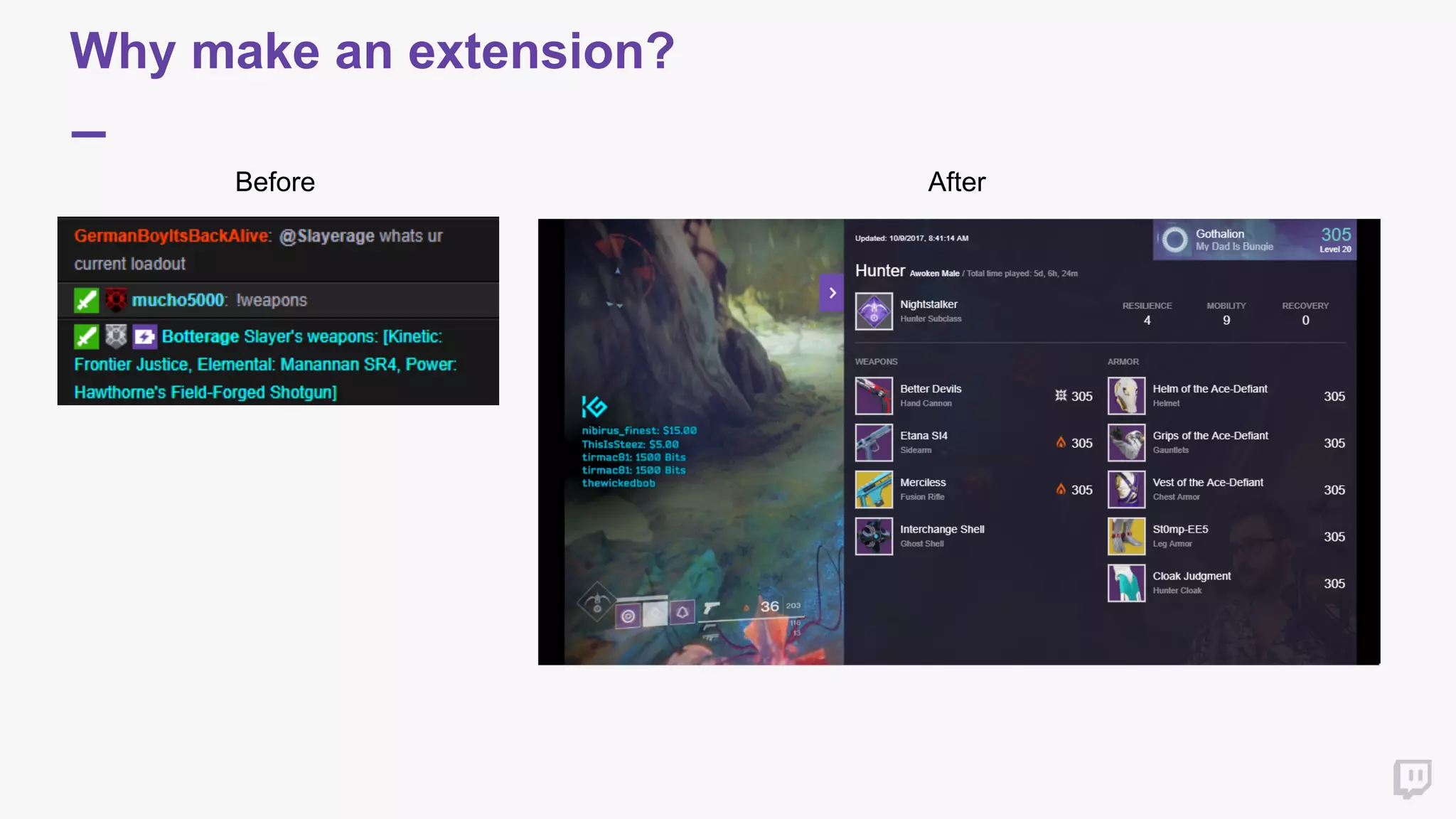

5. Why make an extension?
Before After

6. Extension Architecture

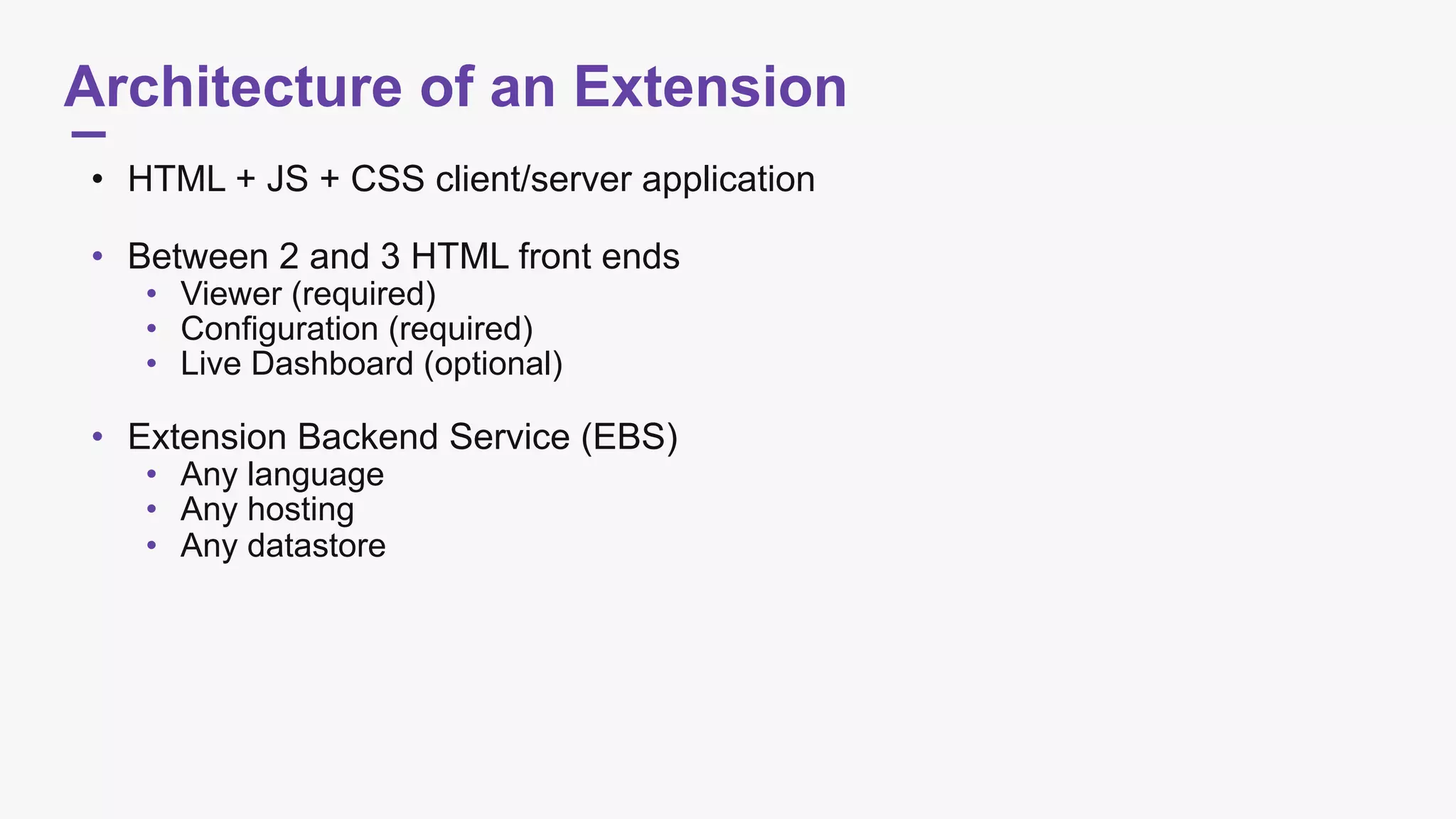

7. Architecture of an Extension
• HTML + JS + CSS client/server application
• Between 2 and 3 HTML front ends
• Viewer (required)
• Configuration (required)
• Live Dashboard (optional)
• Extension Backend Service (EBS)
• Any language
• Any hosting
• Any datastore

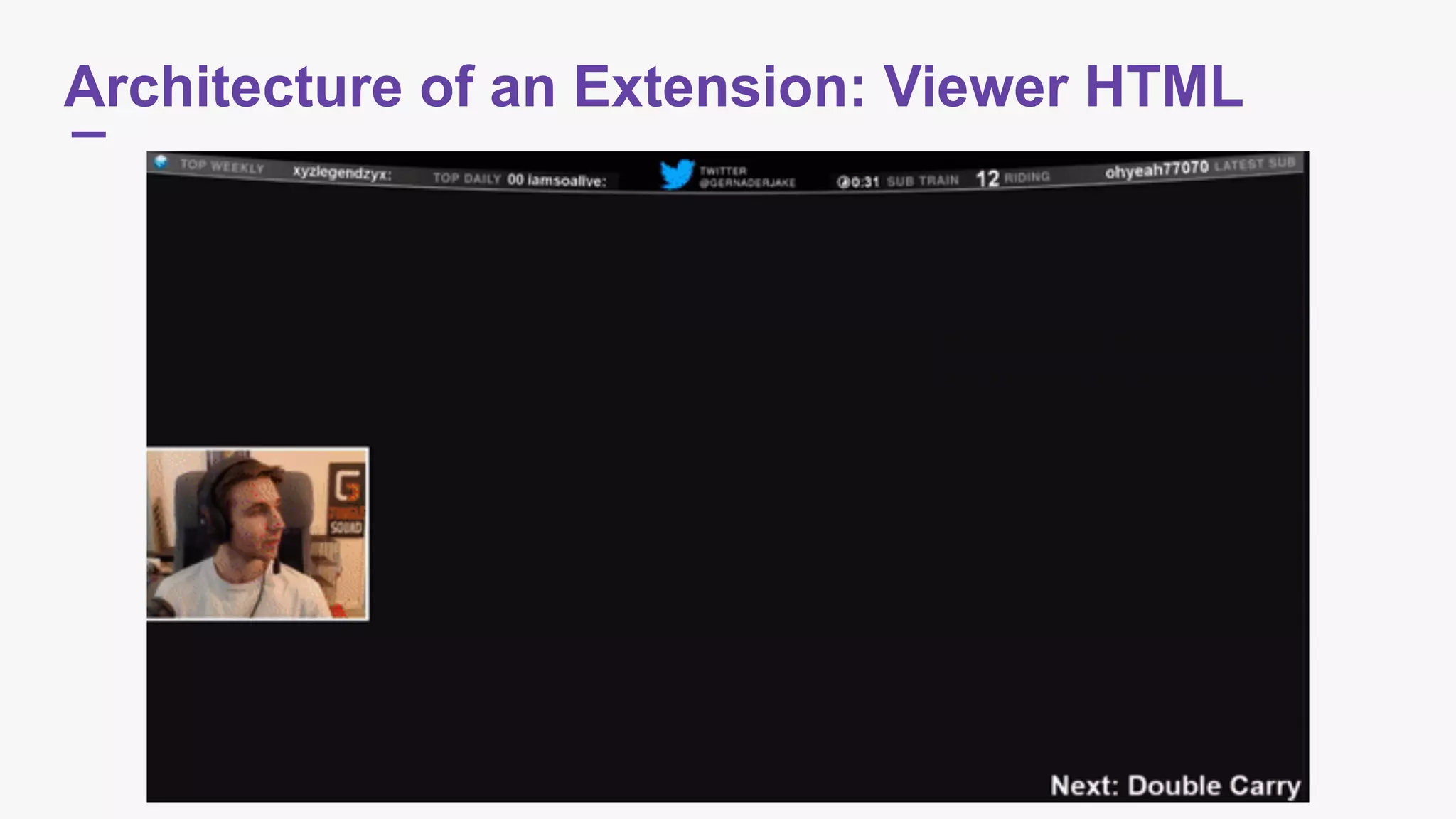

8. Architecture of an Extension: Viewer HTML

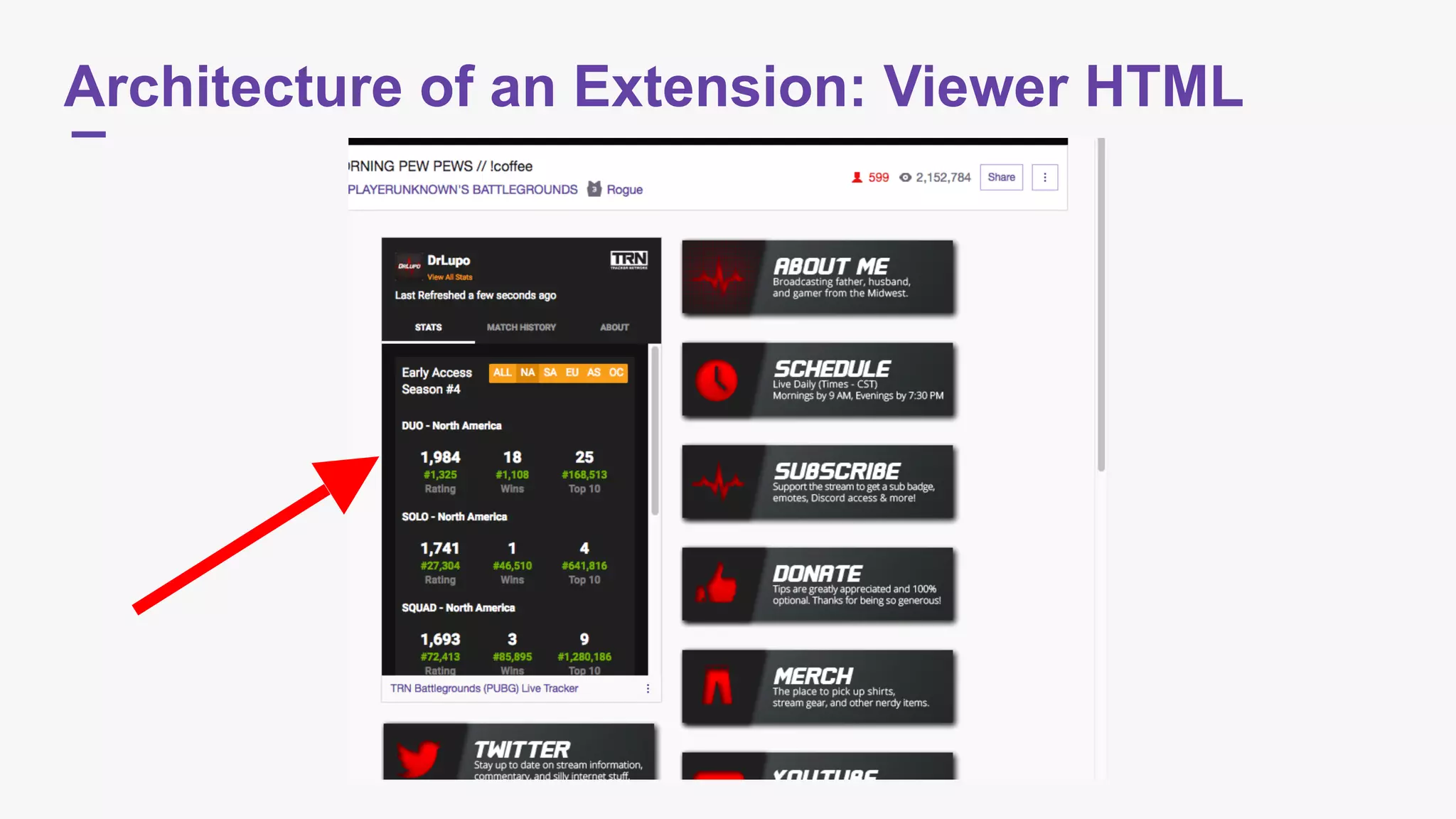

9. Architecture of an Extension: Viewer HTML

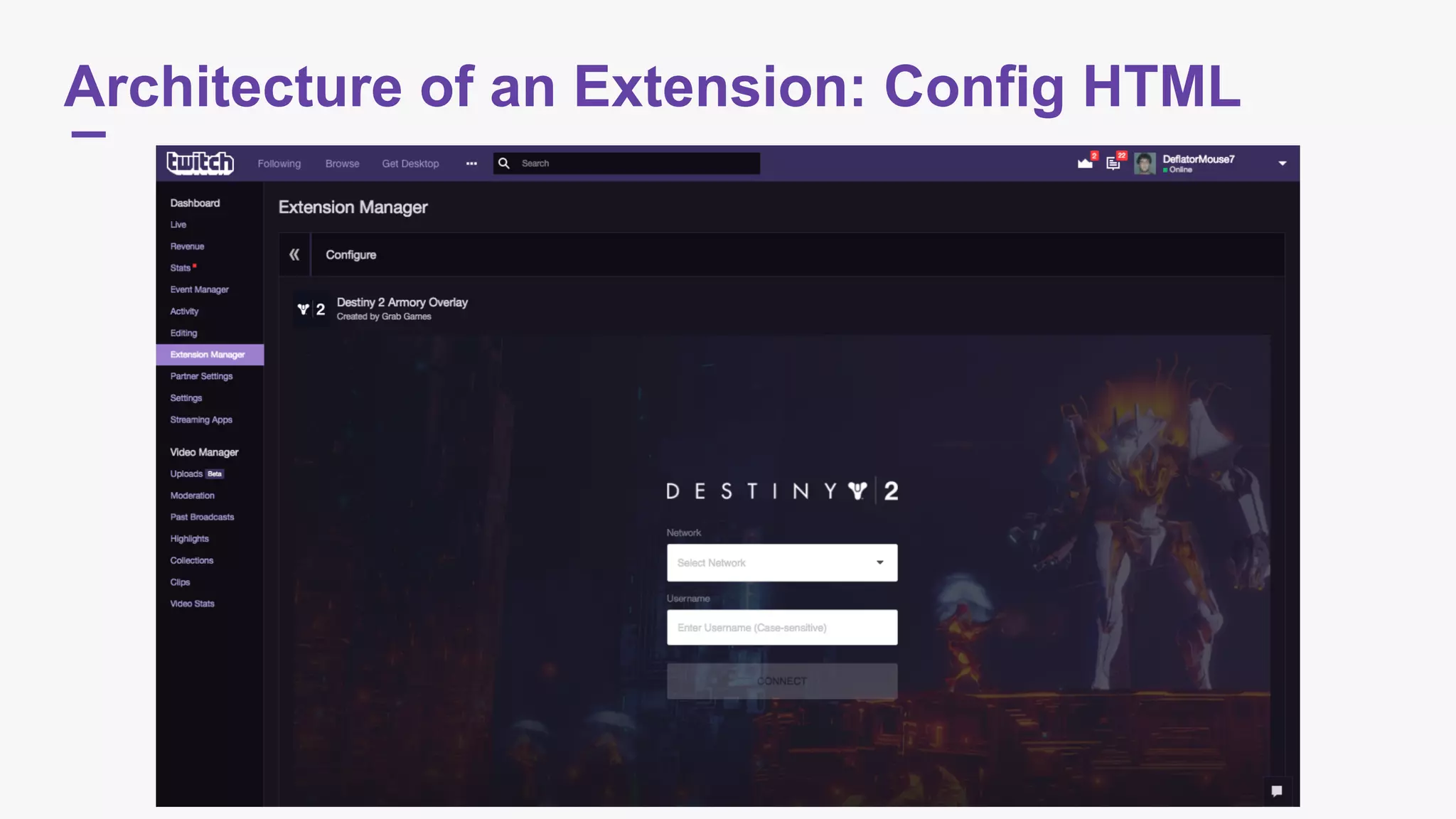

10. Architecture of an Extension: Config HTML

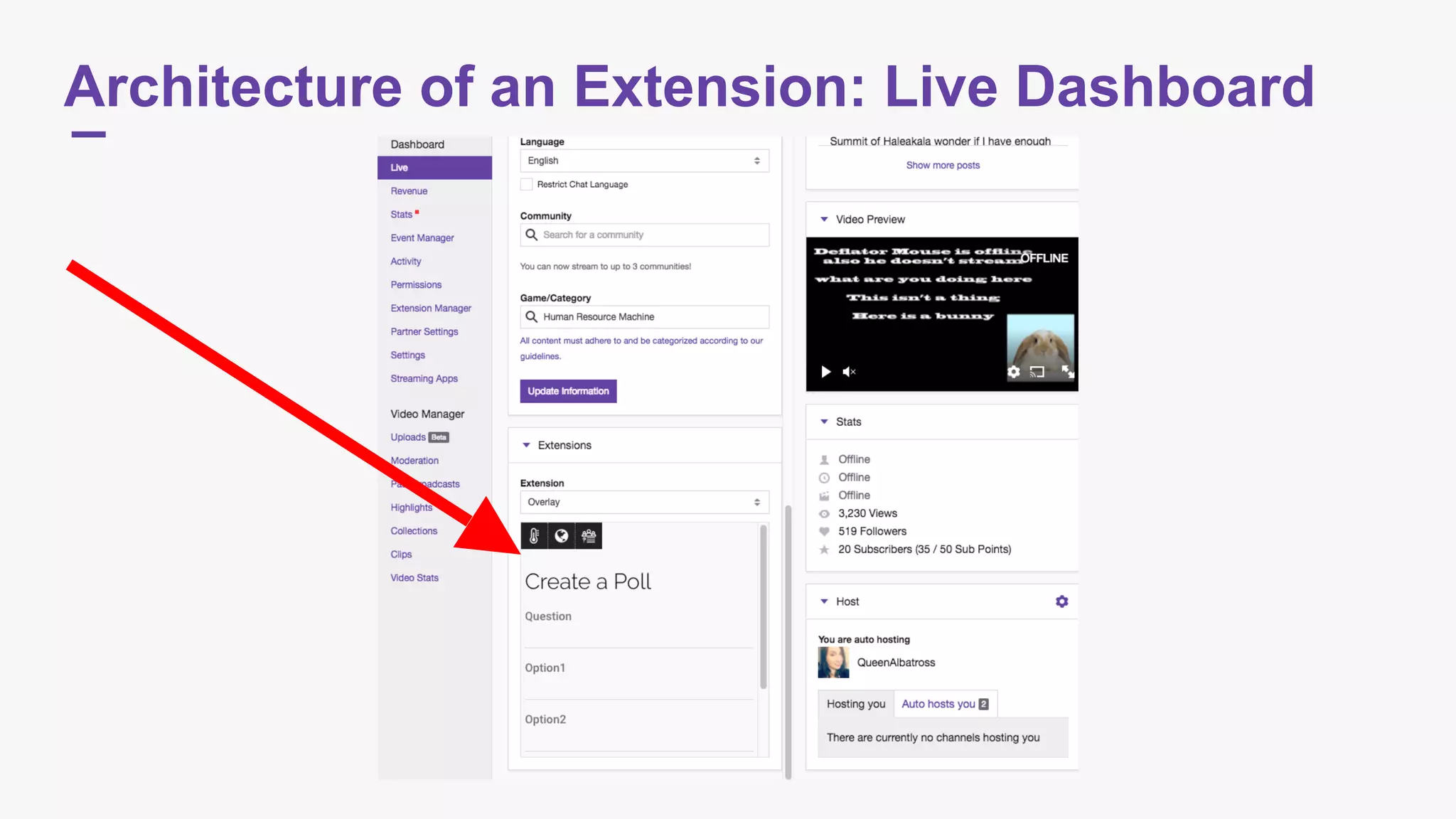

11. Architecture of an Extension: Live Dashboard

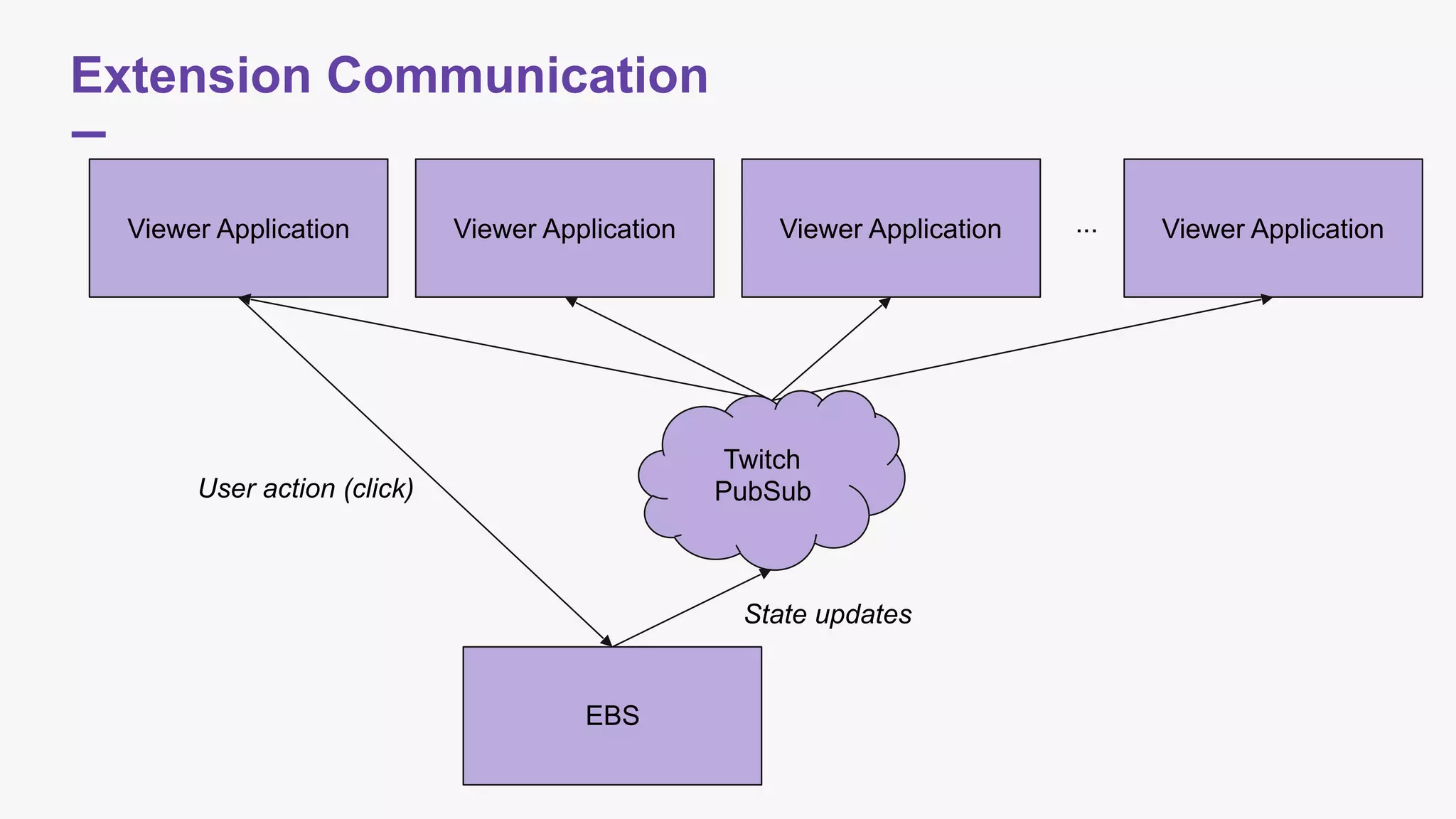

12. Extension Communication
Viewer Application
EBS
User action (click)
Viewer Application Viewer Application Viewer Application...
Twitch
PubSub
State updates

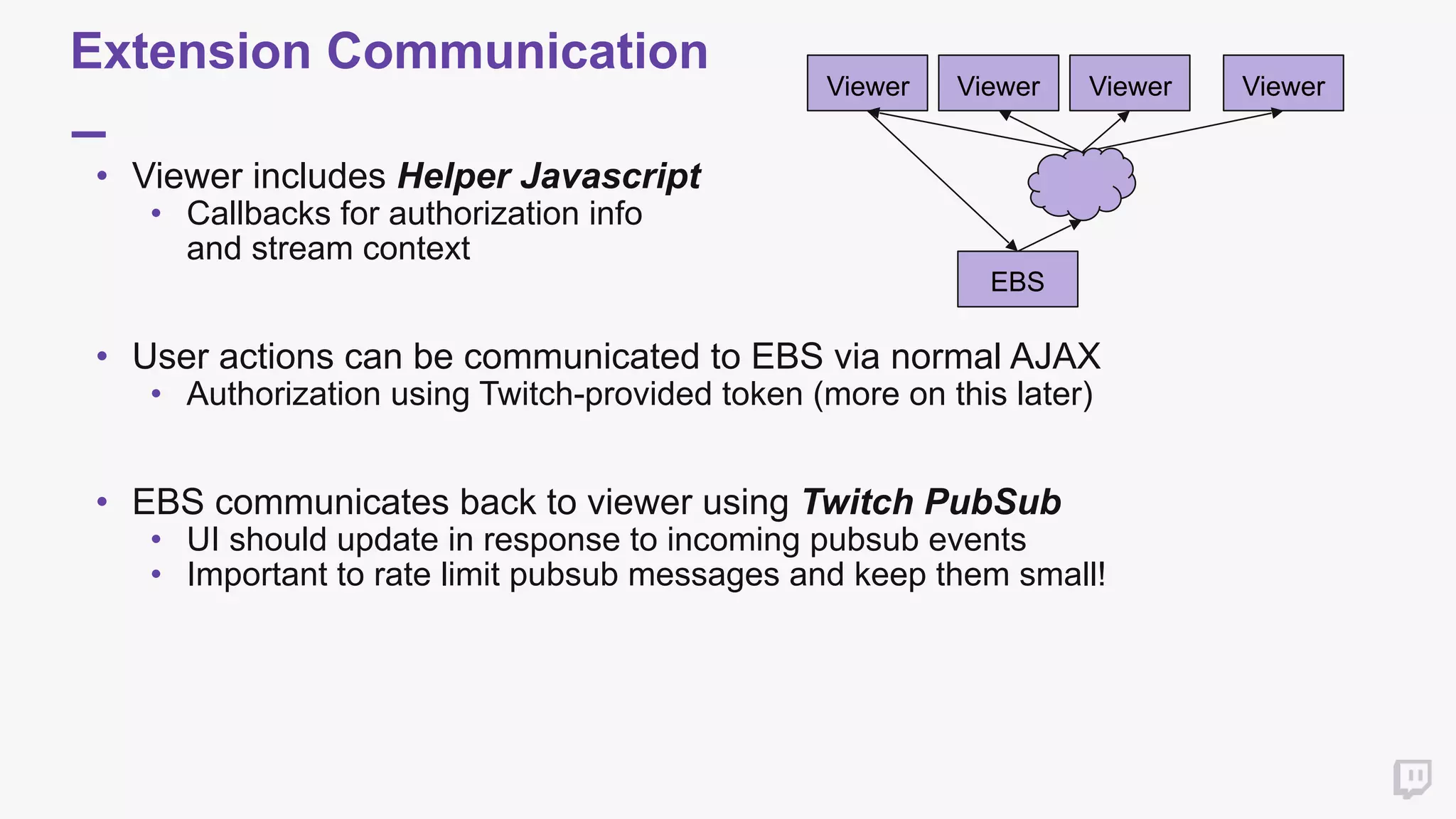

13. Extension Communication
• Viewer includes Helper Javascript
• Callbacks for authorization info
and stream context
• User actions can be communicated to EBS via normal AJAX
• Authorization using Twitch-provided token (more on this later)
• EBS communicates back to viewer using Twitch PubSub
• UI should update in response to incoming pubsub events
• Important to rate limit pubsub messages and keep them small!
Viewer
EBS
Viewer Viewer Viewer

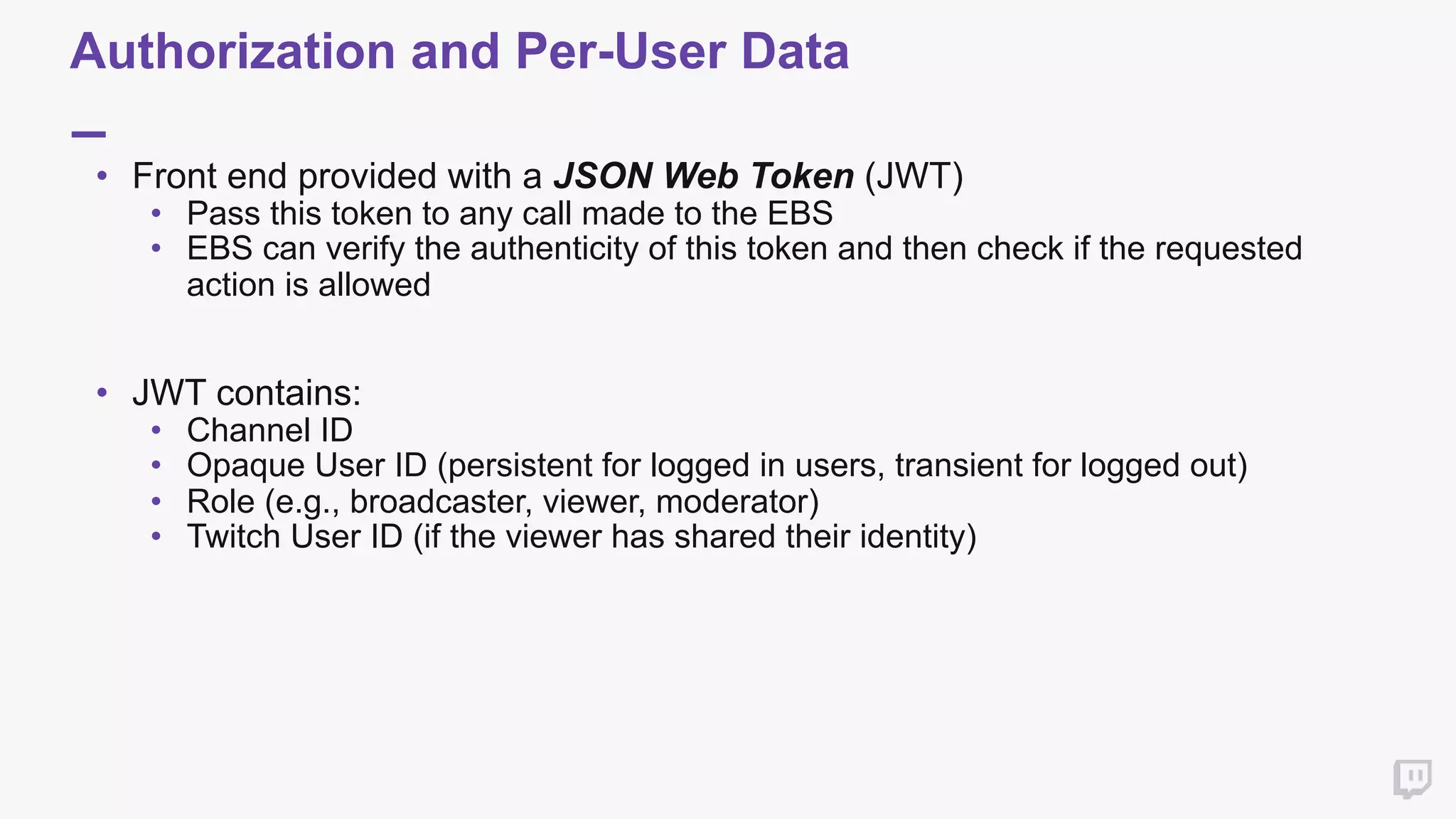

14. Authorization and Per-User Data
• Front end provided with a JSON Web Token (JWT)
• Pass this token to any call made to the EBS
• EBS can verify the authenticity of this token and then check if the requested
action is allowed
• JWT contains:
• Channel ID
• Opaque User ID (persistent for logged in users, transient for logged out)
• Role (e.g., broadcaster, viewer, moderator)
• Twitch User ID (if the viewer has shared their identity)

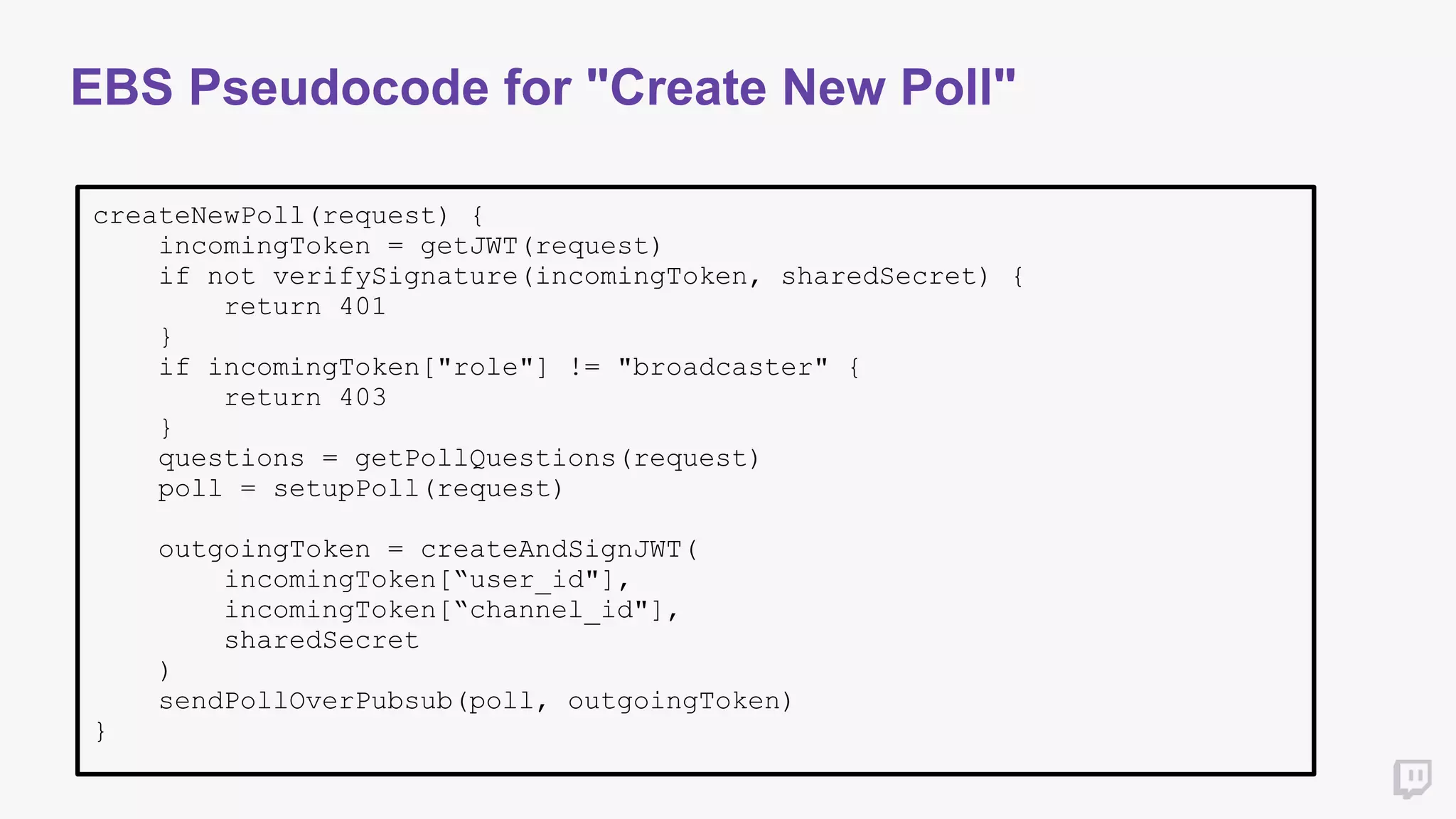

15. EBS Pseudocode for "Create New Poll"
createNewPoll(request) {
incomingToken = getJWT(request)
if not verifySignature(incomingToken, sharedSecret) {
return 401
}
if incomingToken["role"] != "broadcaster" {
return 403
}
questions = getPollQuestions(request)
poll = setupPoll(request)
outgoingToken = createAndSignJWT(
incomingToken[“user_id"],
incomingToken[“channel_id"],
sharedSecret
)
sendPollOverPubsub(poll, outgoingToken)
}

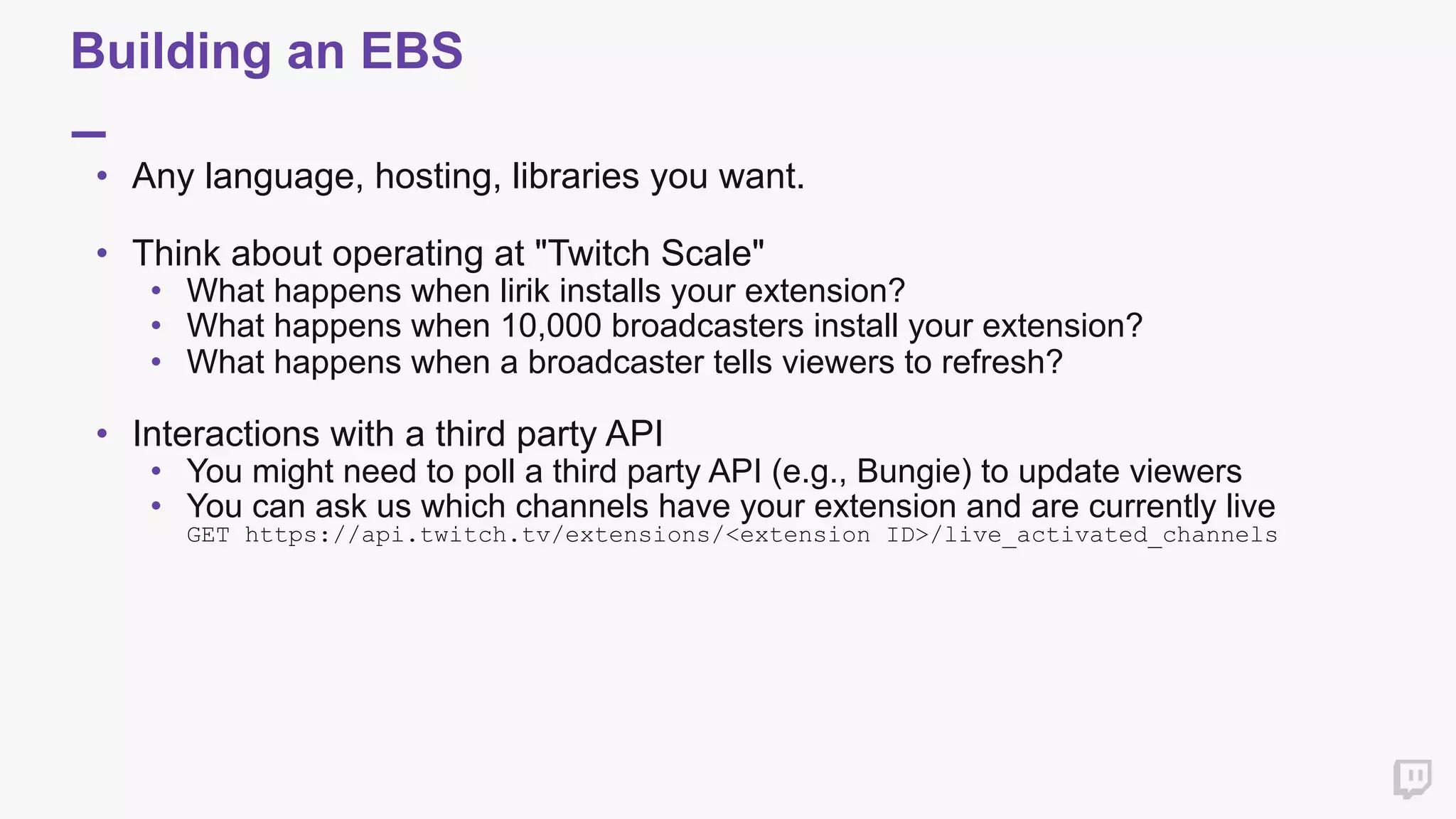

16. Building an EBS
• Any language, hosting, libraries you want.
• Think about operating at "Twitch Scale"
• What happens when lirik installs your extension?
• What happens when 10,000 broadcasters install your extension?
• What happens when a broadcaster tells viewers to refresh?
• Interactions with a third party API
• You might need to poll a third party API (e.g., Bungie) to update viewers
• You can ask us which channels have your extension and are currently live
GET https://api.twitch.tv/extensions/<extension ID>/live_activated_channels

17. Development, Review and
Release

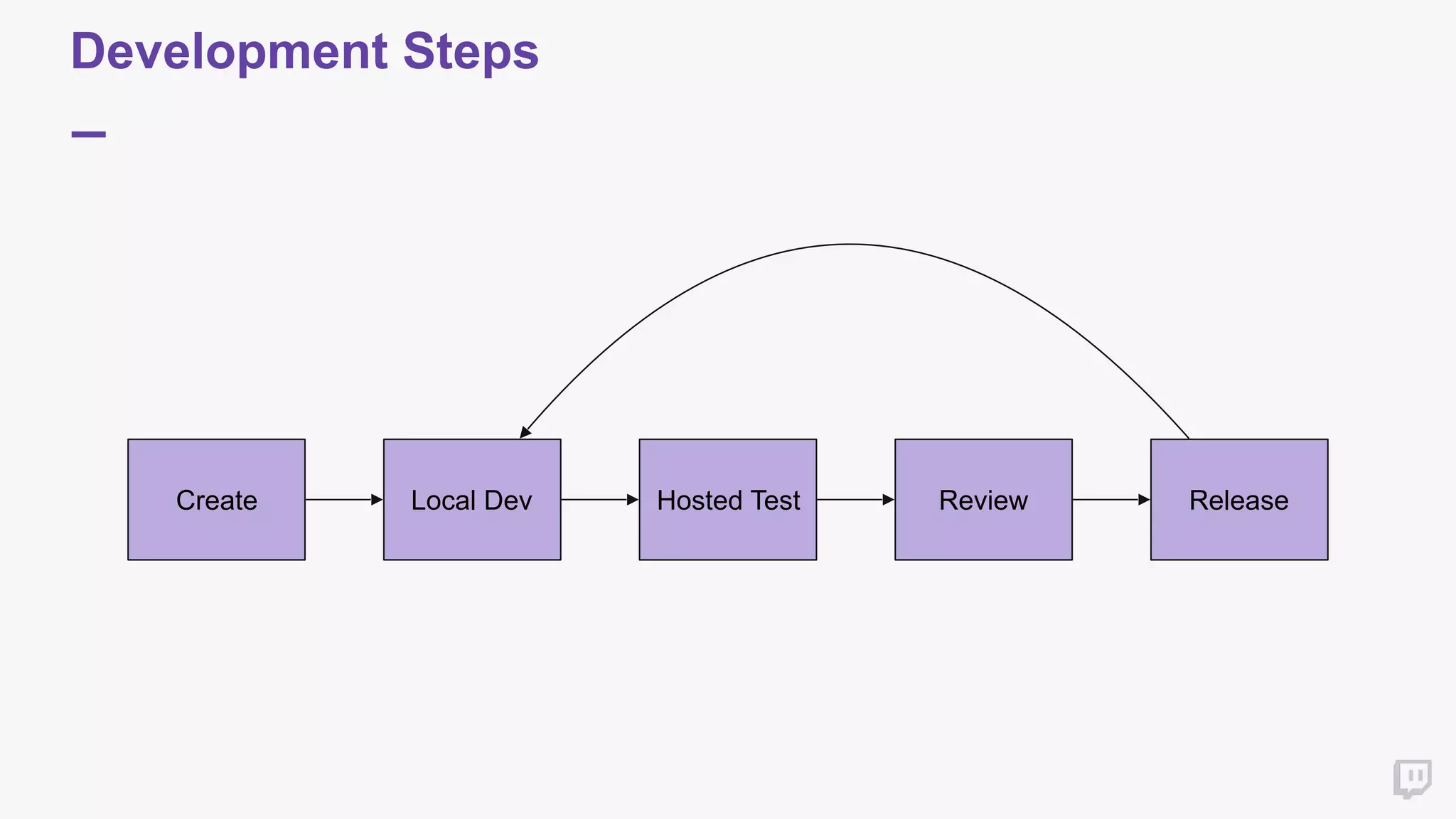

18. Development Steps
Create Local Dev Review ReleaseHosted Test

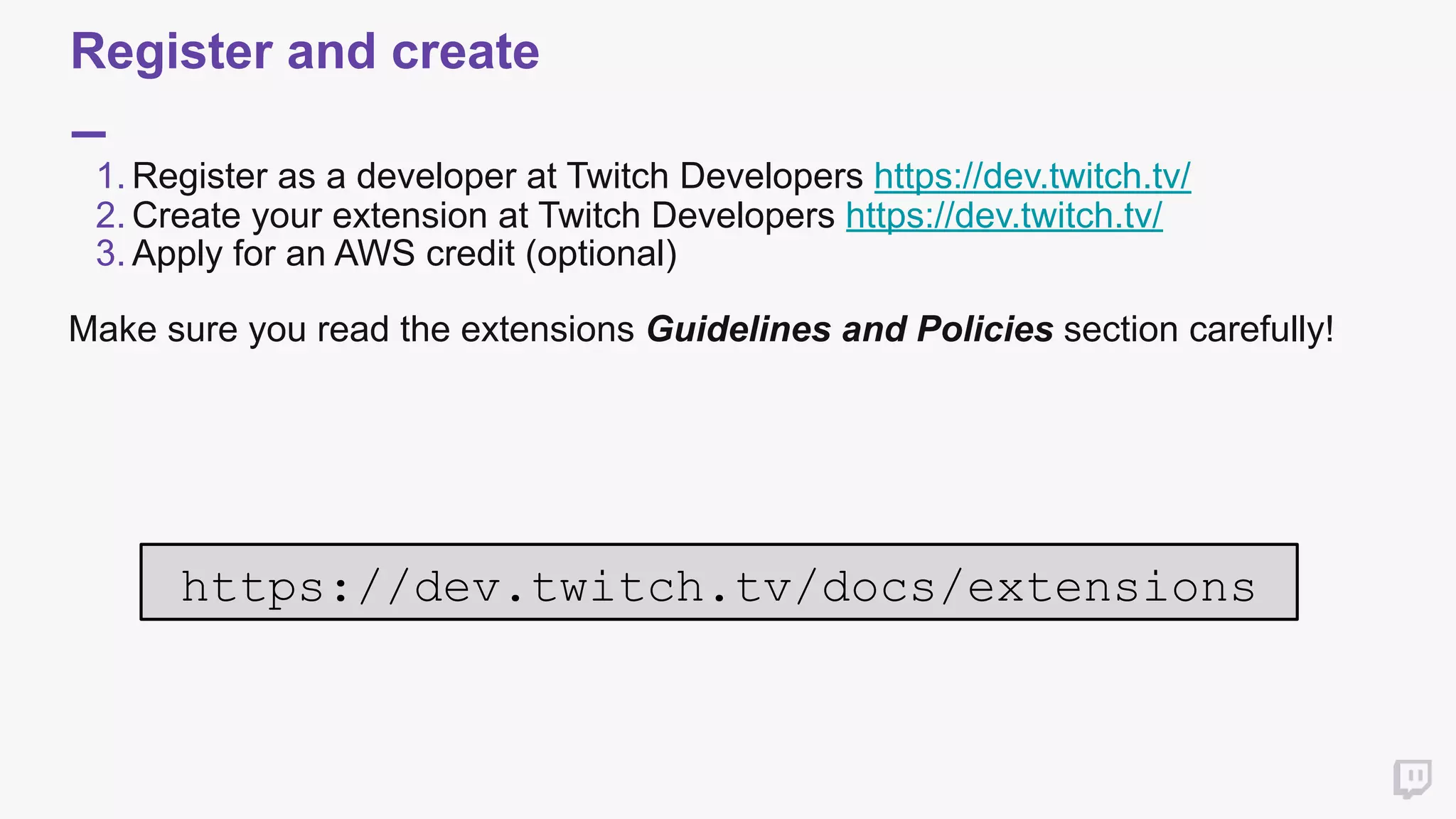

19. Register and create
1. Register as a developer at Twitch Developers https://dev.twitch.tv/
2. Create your extension at Twitch Developers https://dev.twitch.tv/
3. Apply for an AWS credit (optional)
Make sure you read the extensions Guidelines and Policies section carefully!
https://dev.twitch.tv/docs/extensions

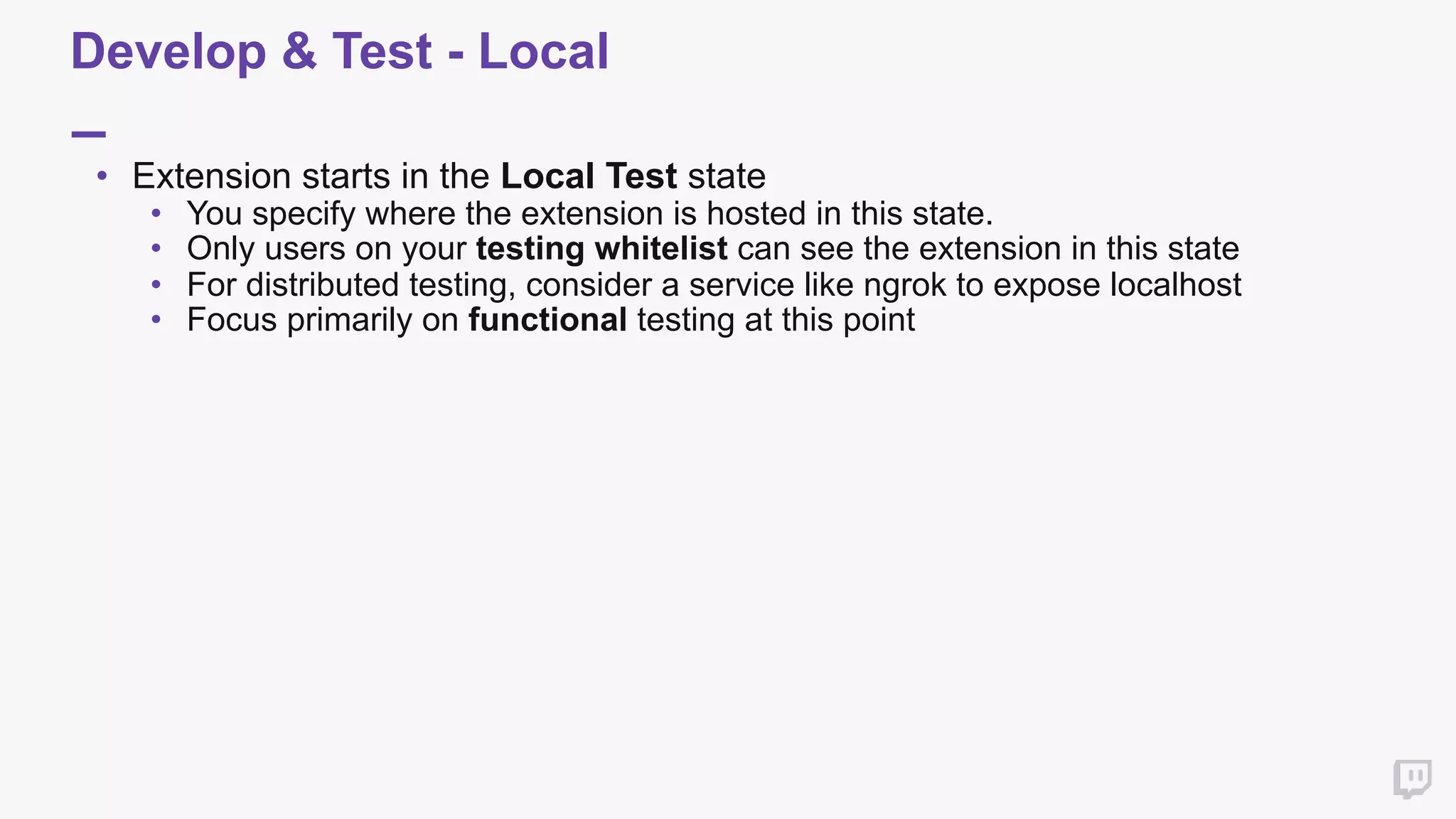

20. Develop & Test - Local
• Extension starts in the Local Test state
• You specify where the extension is hosted in this state.
• Only users on your testing whitelist can see the extension in this state
• For distributed testing, consider a service like ngrok to expose localhost
• Focus primarily on functional testing at this point

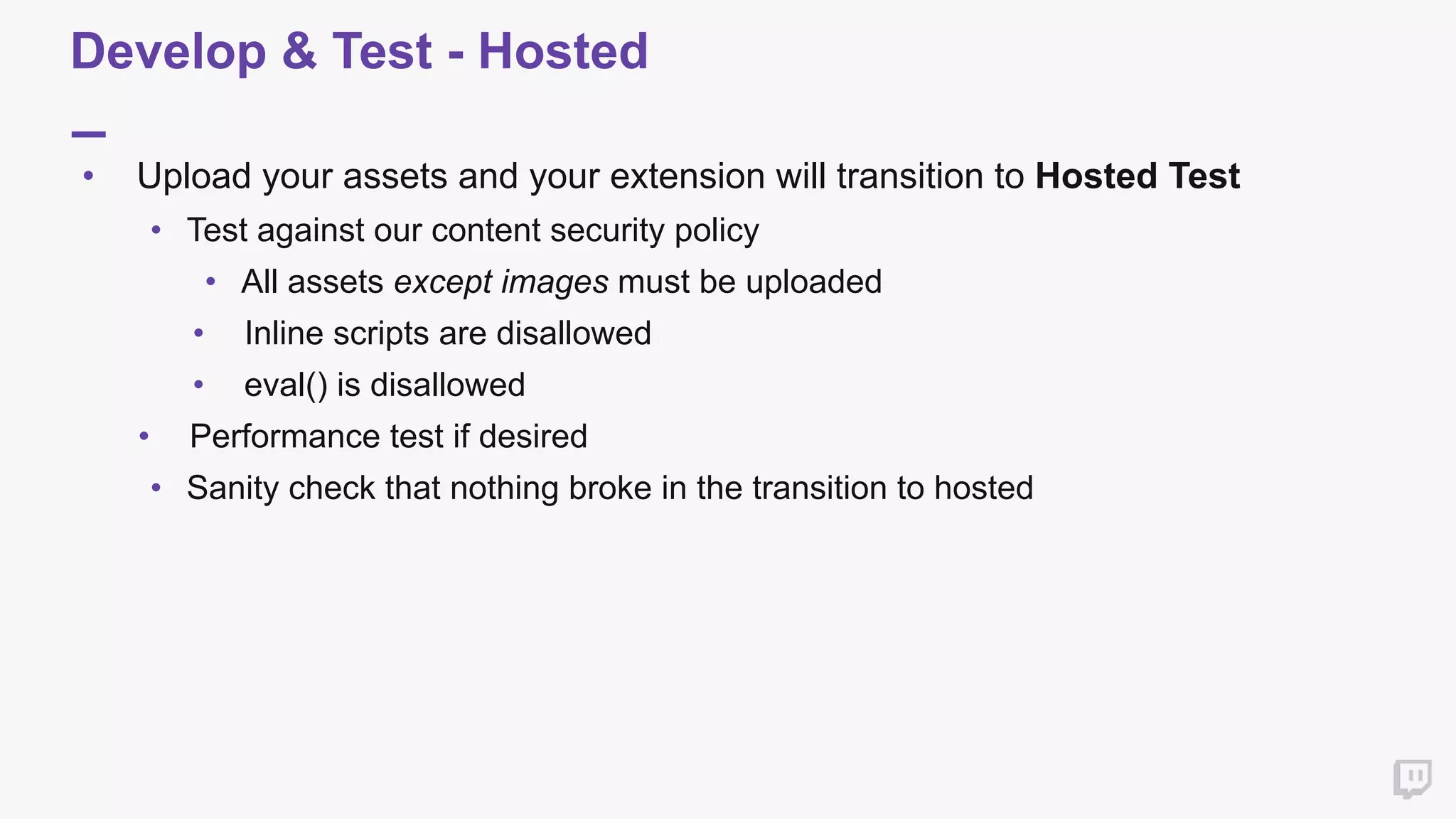

21. Develop & Test - Hosted
• Upload your assets and your extension will transition to Hosted Test
• Test against our content security policy
• All assets except images must be uploaded
• Inline scripts are disallowed
• eval() is disallowed
• Performance test if desired
• Sanity check that nothing broke in the transition to hosted

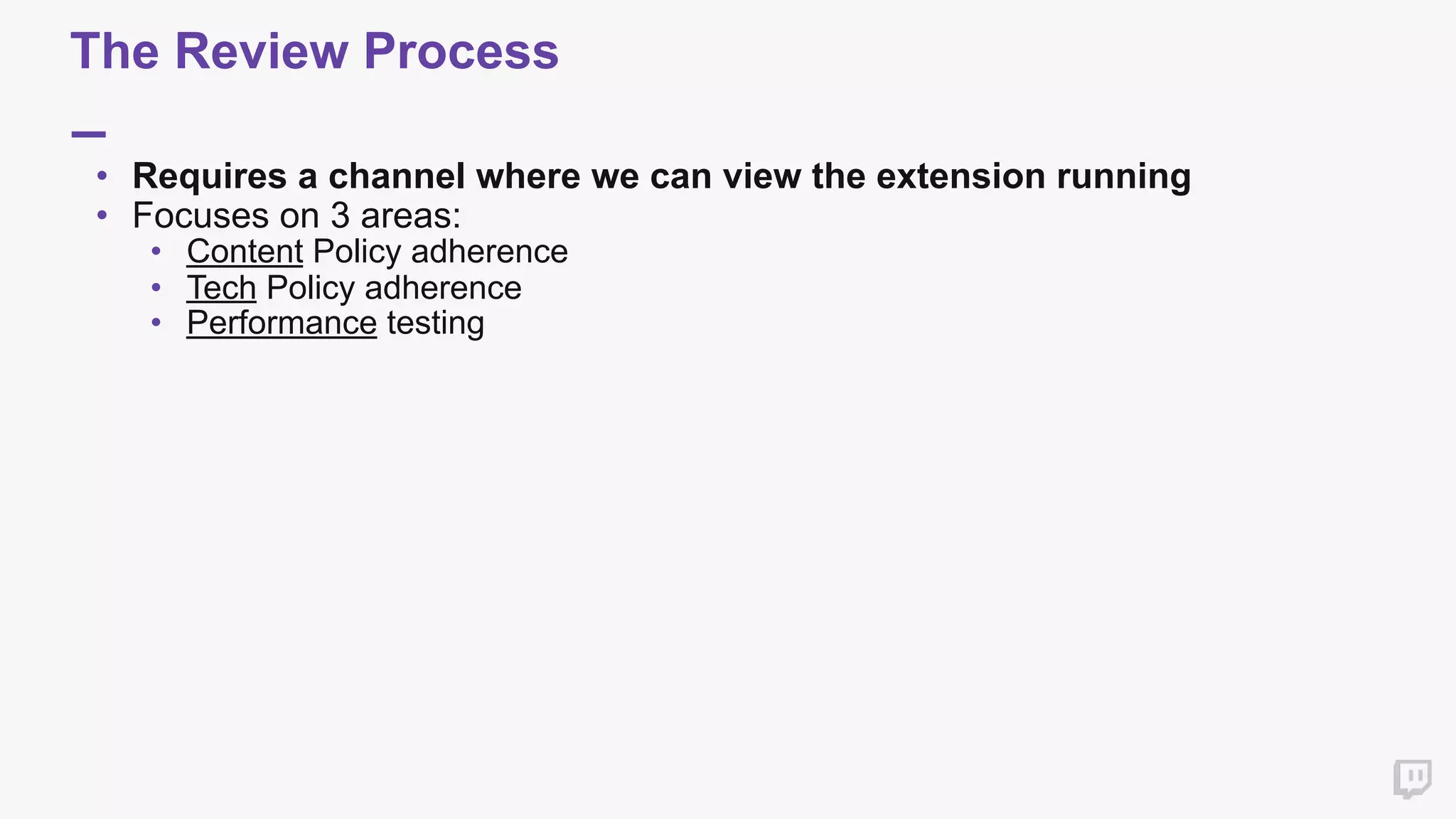

22. The Review Process
• Requires a channel where we can view the extension running
• Focuses on 3 areas:
• Content Policy adherence
• Tech Policy adherence
• Performance testing

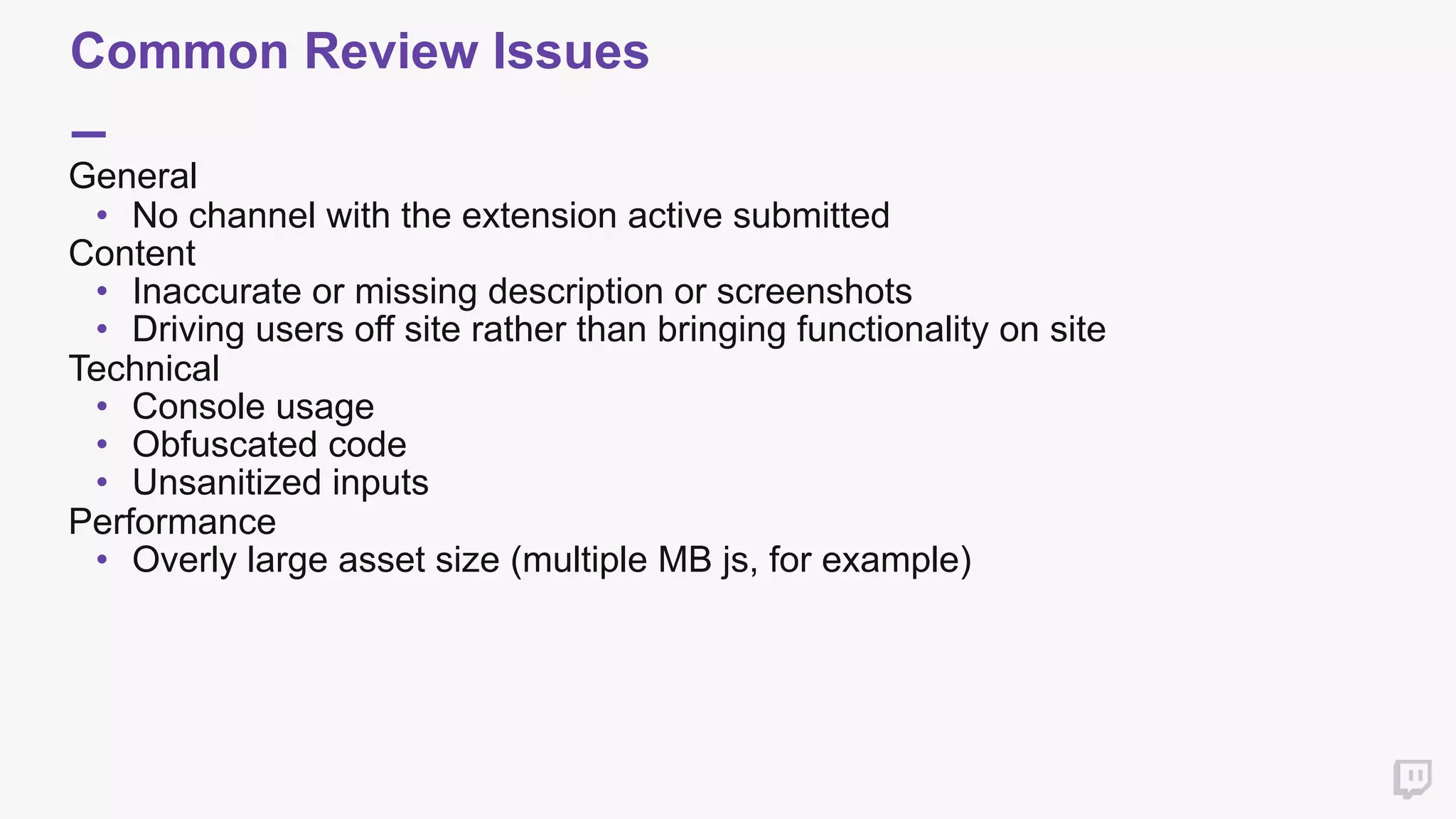

23. Common Review Issues
General
• No channel with the extension active submitted
Content
• Inaccurate or missing description or screenshots
• Driving users off site rather than bringing functionality on site
Technical
• Console usage
• Obfuscated code
• Unsanitized inputs
Performance
• Overly large asset size (multiple MB js, for example)

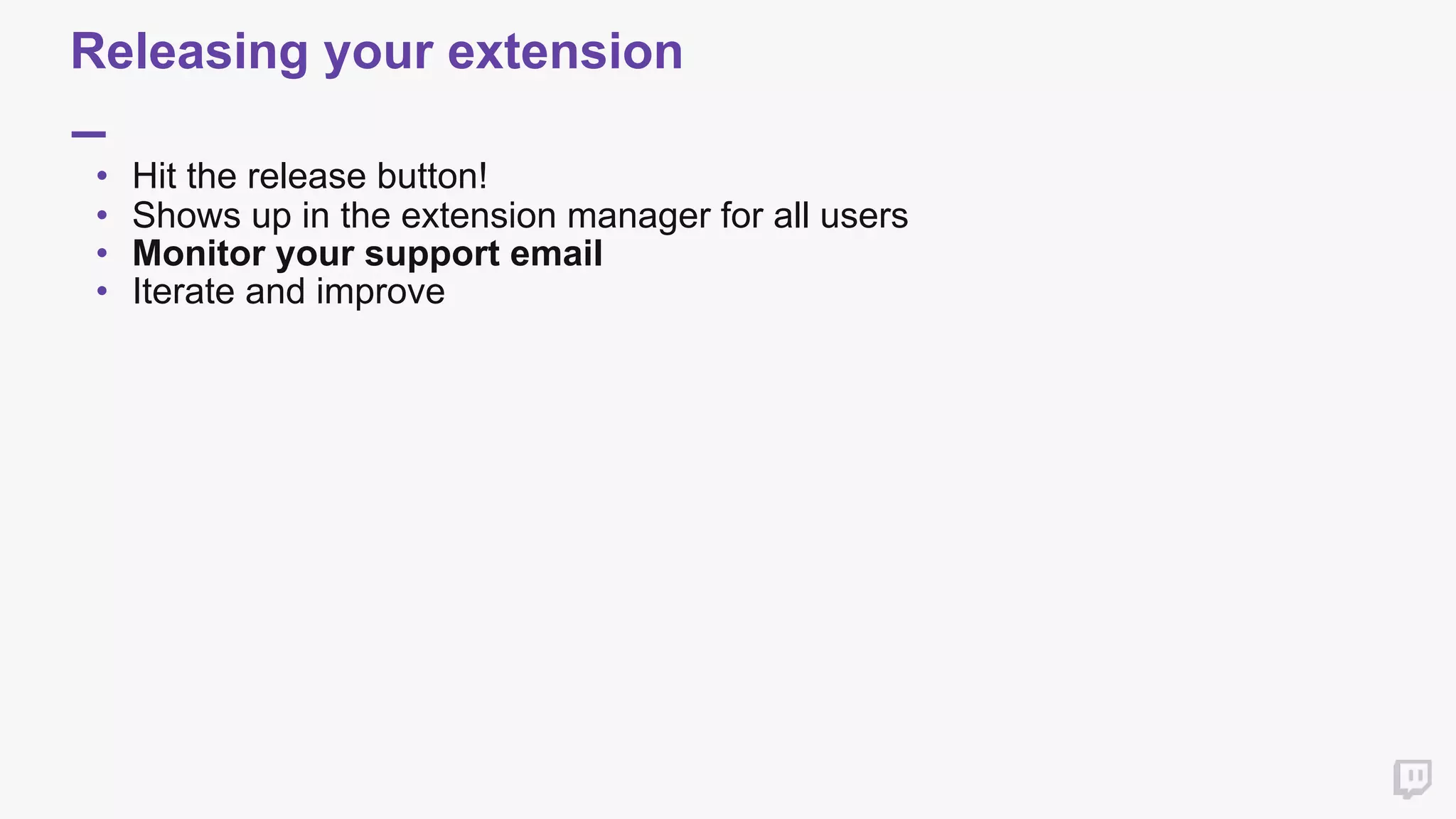

24. Releasing your extension
• Hit the release button!
• Shows up in the extension manager for all users
• Monitor your support email
• Iterate and improve

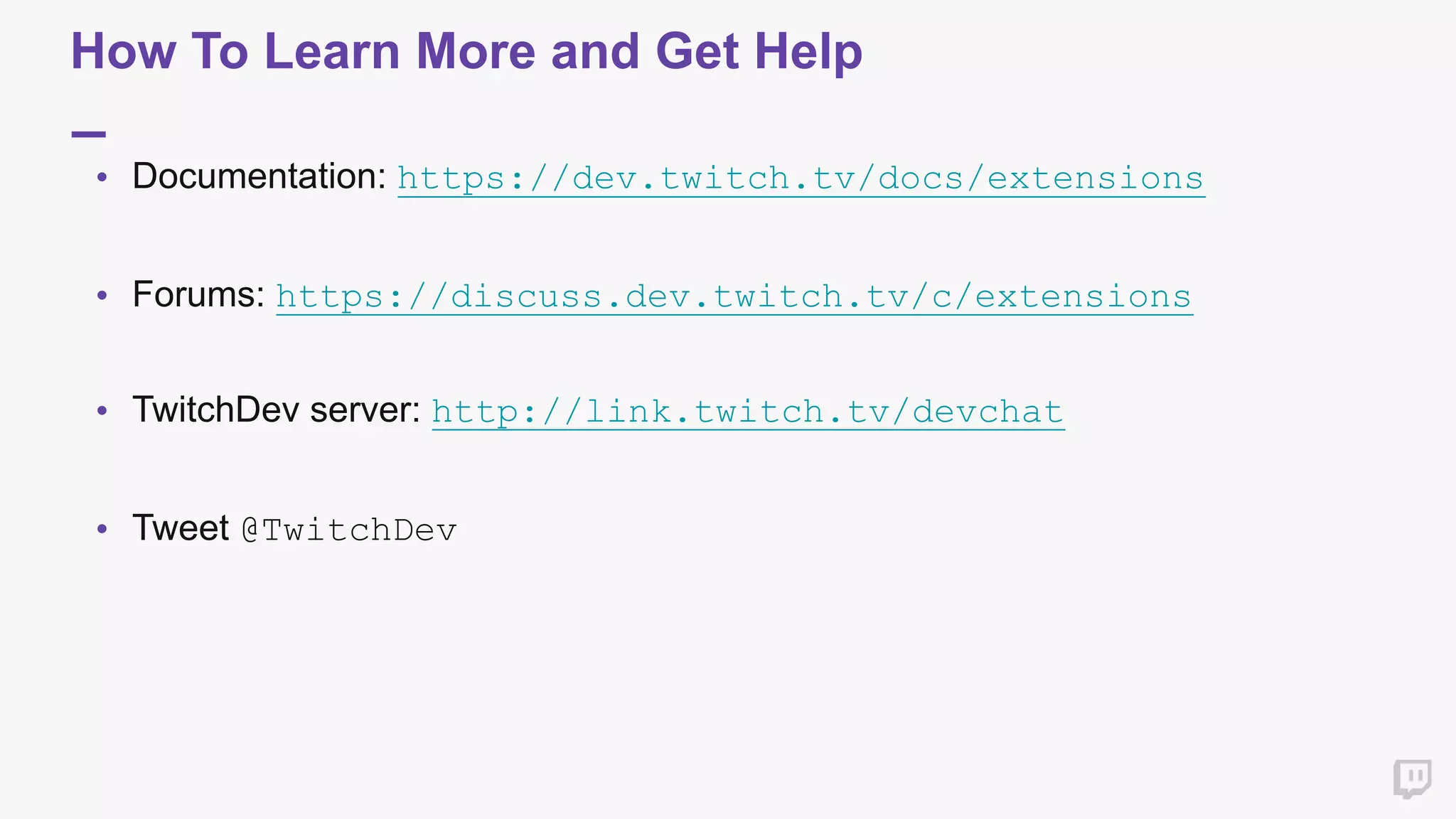

25. How To Learn More and Get Help
• Documentation: https://dev.twitch.tv/docs/extensions
• Forums: https://discuss.dev.twitch.tv/c/extensions
• TwitchDev server: http://link.twitch.tv/devchat
• Tweet @TwitchDev

26. Thank you
