Extending Pandas using Apache Arrow and Numba
The presentation discusses extending the Pandas library using Apache Arrow and Numba to address its shortcomings, such as limitations with data types and performance. It highlights Arrow's efficient in-memory columnar data layout and its ability to handle more native data types, while also noting the integration of Numba for faster computations. The document also references the Fletcher library, which implements Arrow-based extension arrays and demonstrates their applications.
More Related Content
Similar to Extending Pandas using Apache Arrow and Numba
Extending Pandas using Apache Arrow and Numba
- 1. 1 PyData Berlin 2018 UweL. Korn Extending Pandas using Apache Arrow and Numba
- 2. 2 PyData Berlin 2018 UweL. Korn Extending Pandas using Apache Arrow and Numba
- 3. 3 PyData Berlin 2018 UweL. Korn Strings, Strings, please give me Strings!
- 4. 4 • Senior DataScientist at Blue Yonder (@BlueYonderTech) • Apache {Arrow, Parquet} PMC • Data Engineer and Architect with heavy focus around Pandas About me xhochy mail@uwekorn.com

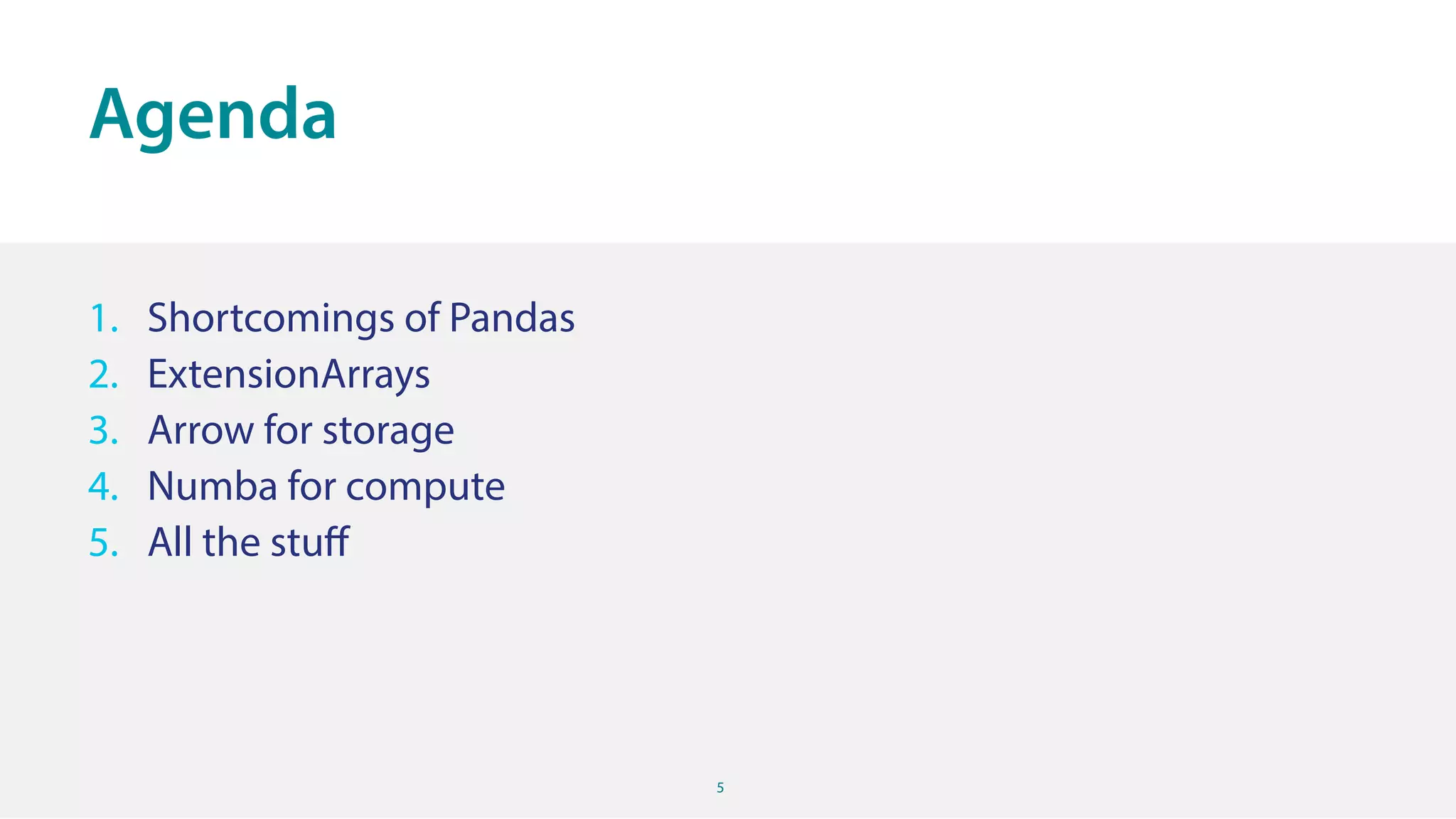

- 5. 5 1. Shortcomings ofPandas 2. ExtensionArrays 3. Arrow for storage 4. Numba for compute 5. All the stuff Agenda

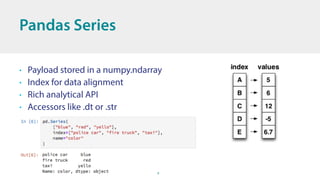

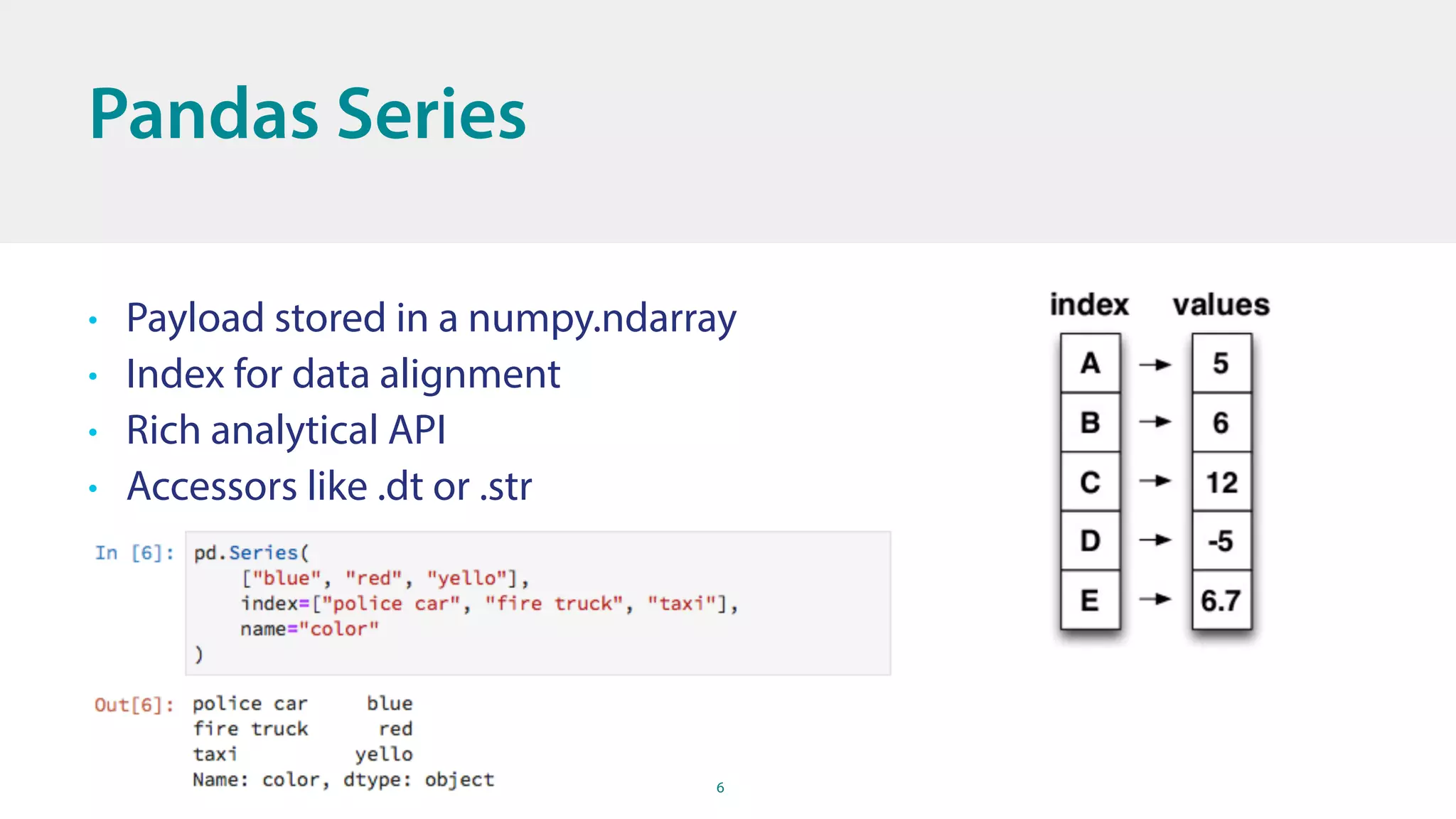

- 6. 6 Pandas Series • Payloadstored in a numpy.ndarray • Index for data alignment • Rich analytical API • Accessors like .dt or .str

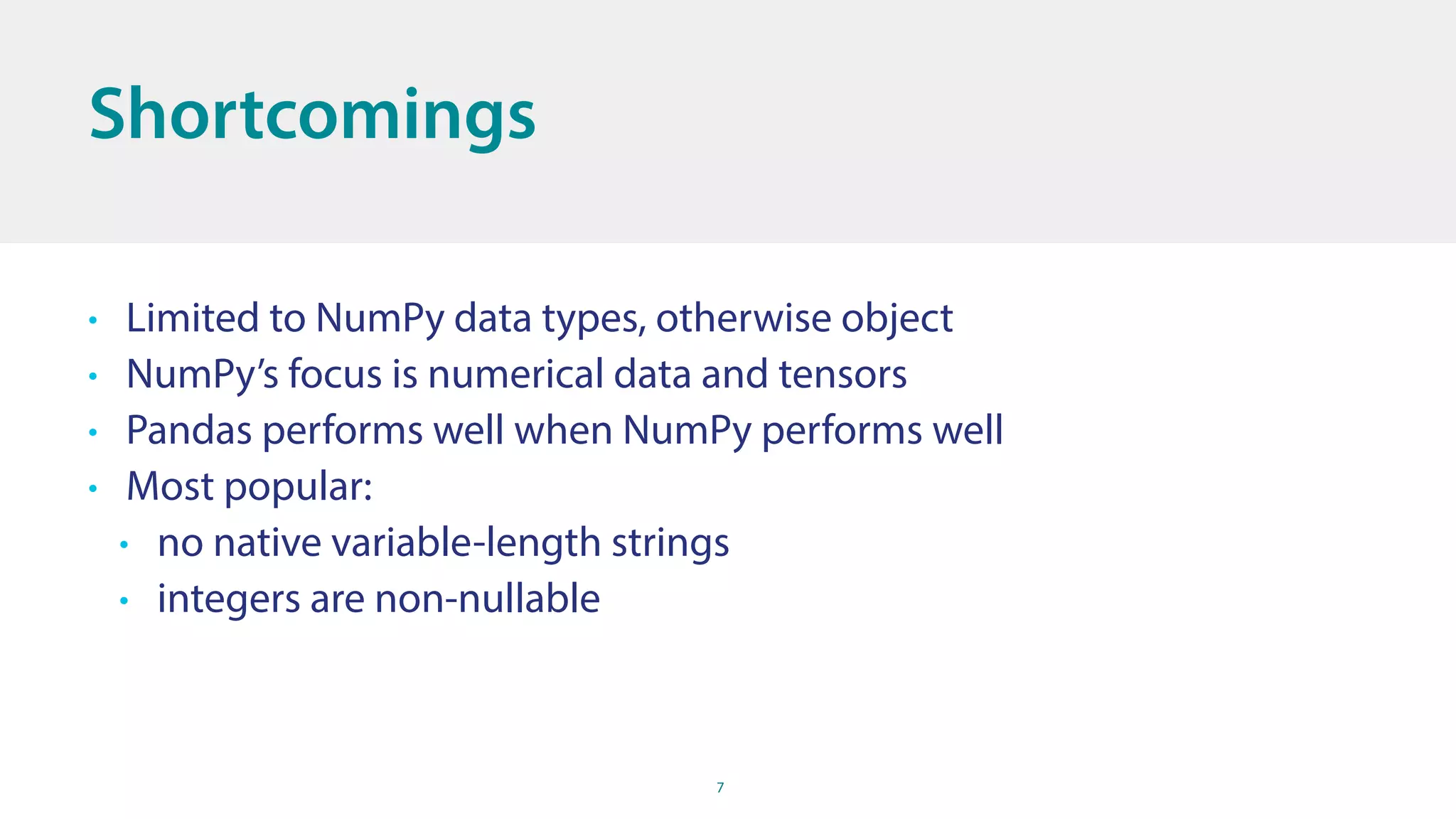

- 7. 7 Shortcomings • Limited toNumPy data types, otherwise object • NumPy’s focus is numerical data and tensors • Pandas performs well when NumPy performs well • Most popular: • no native variable-length strings • integers are non-nullable
- 8.
- 9.

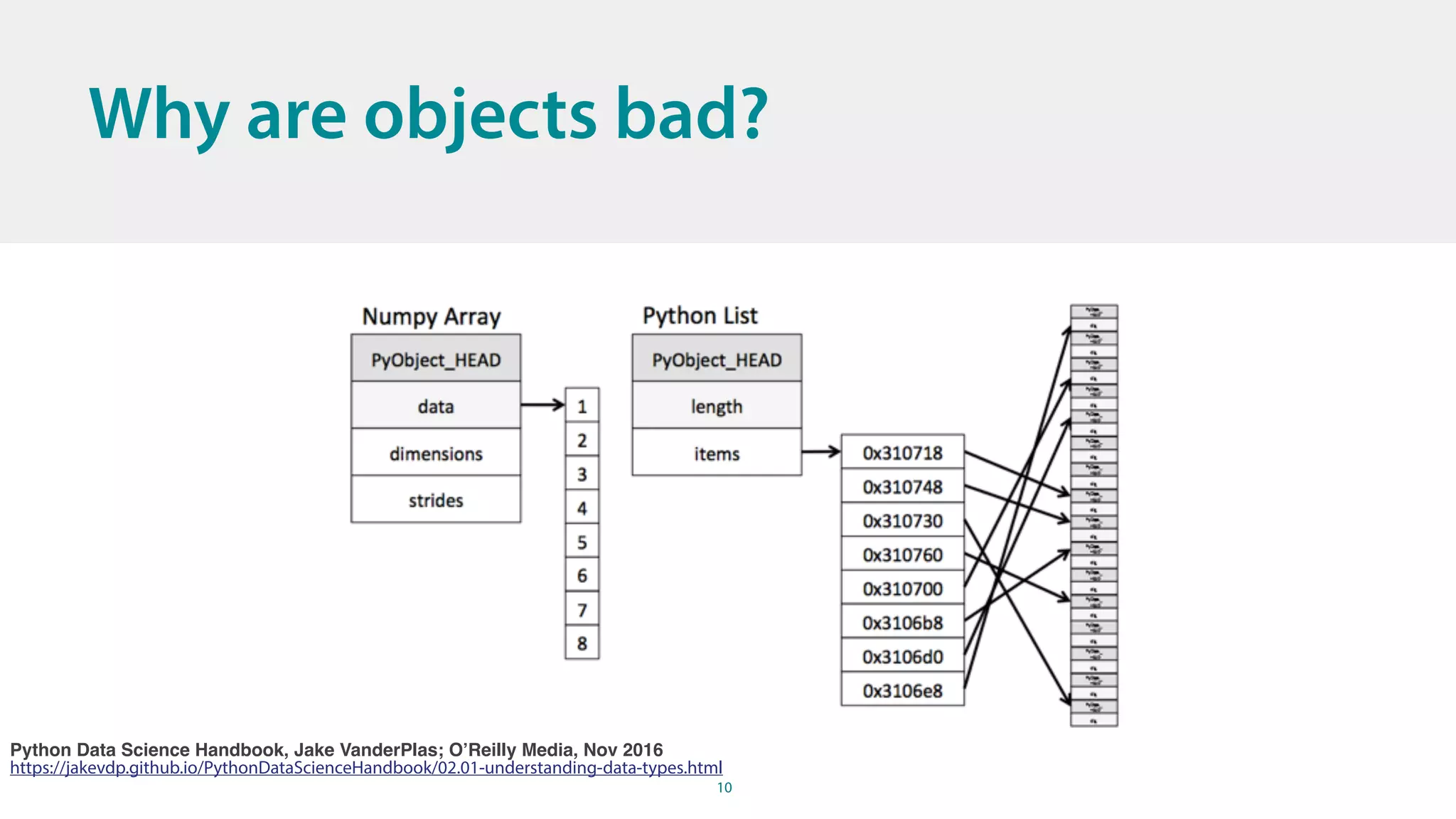

- 10. 10 Why are objectsbad? Python Data Science Handbook, Jake VanderPlas; O’Reilly Media, Nov 2016 https://jakevdp.github.io/PythonDataScienceHandbook/02.01-understanding-data-types.html

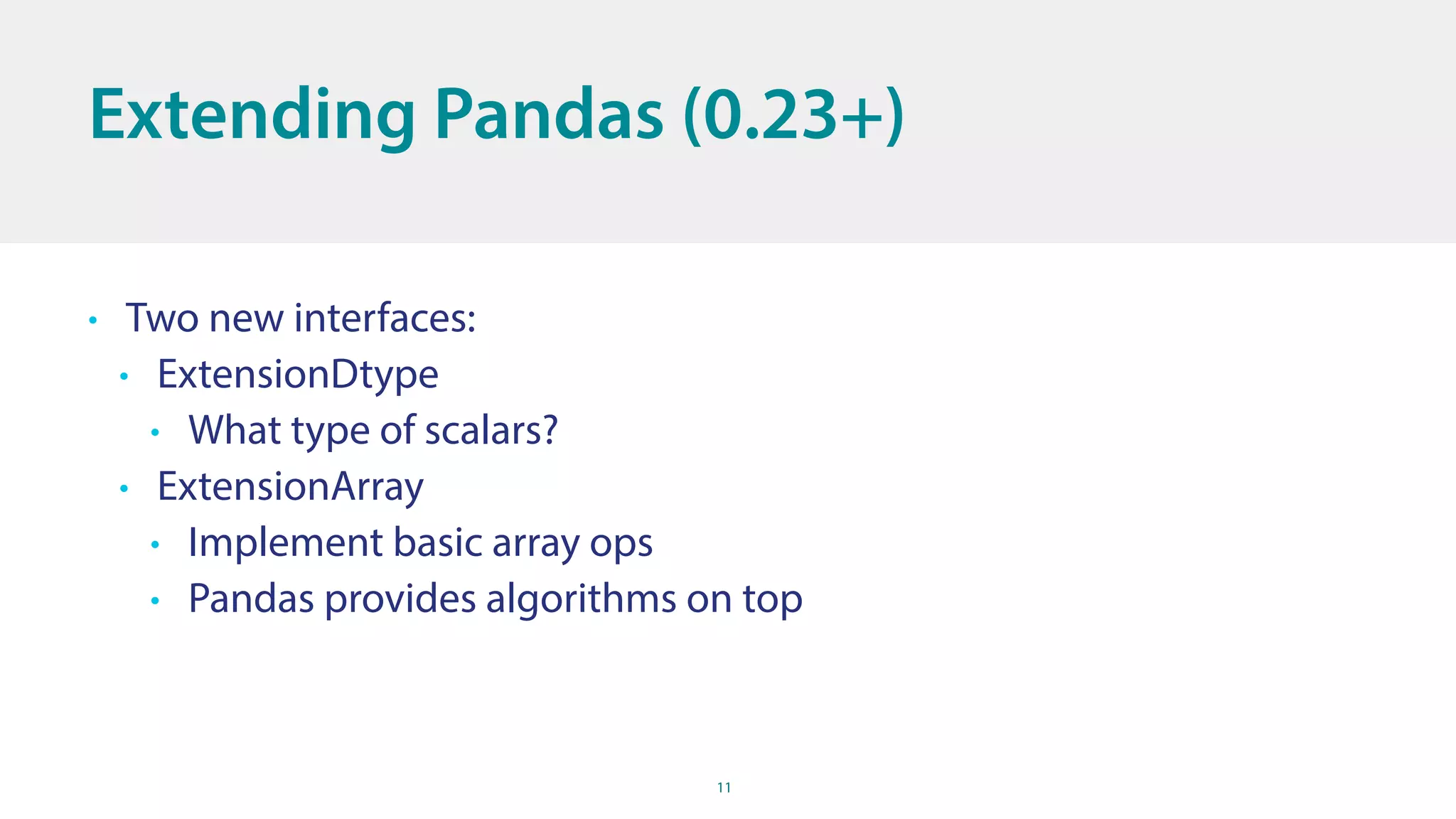

- 11. 11 Extending Pandas (0.23+) •Two new interfaces: • ExtensionDtype • What type of scalars? • ExtensionArray • Implement basic array ops • Pandas provides algorithms on top
- 12.

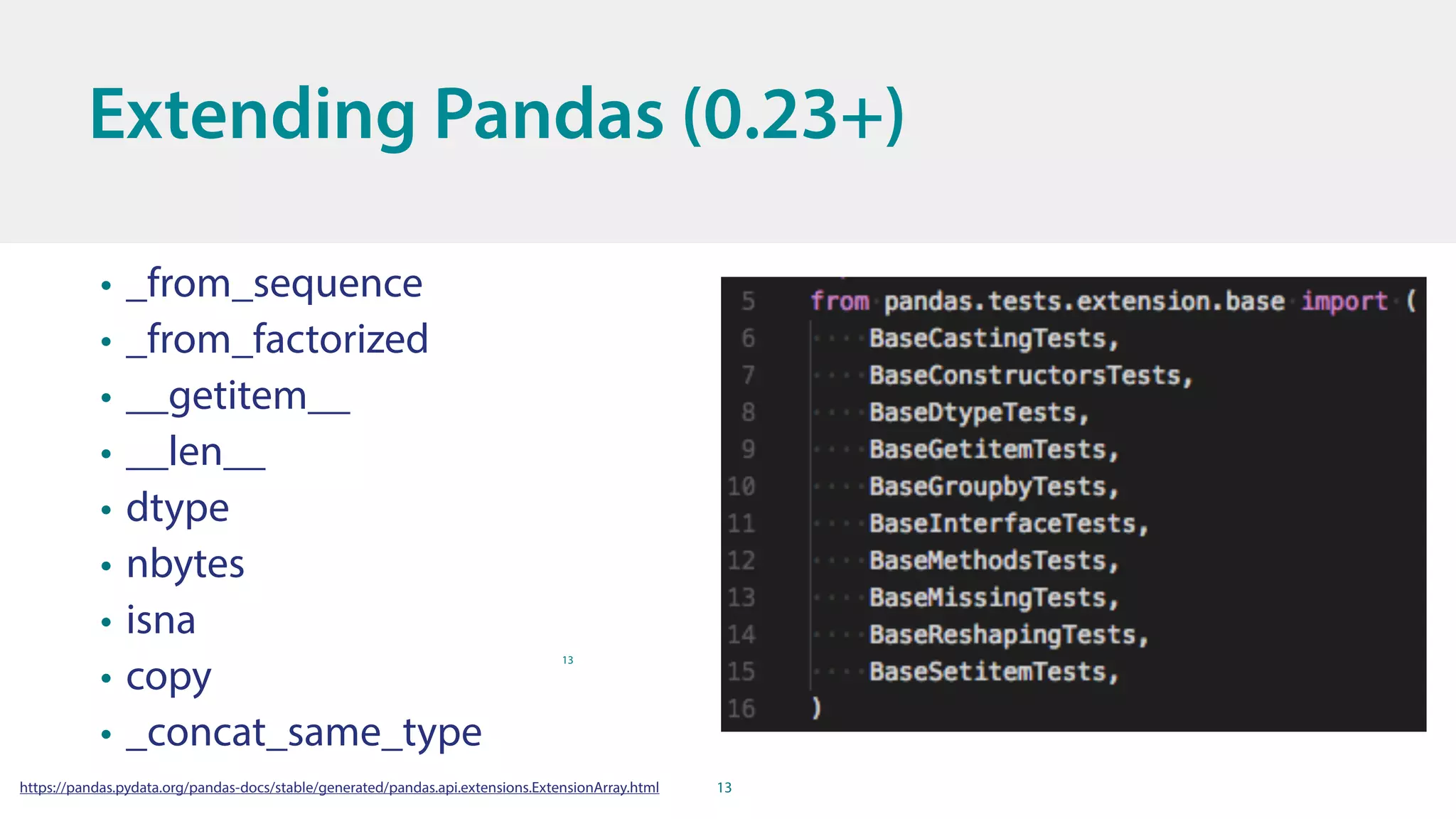

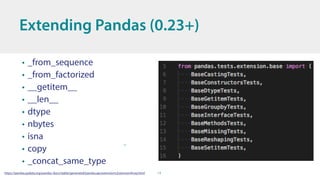

- 13. 13 Extending Pandas (0.23+) •_from_sequence • _from_factorized • __getitem__ • __len__ • dtype • nbytes • isna • copy • _concat_same_type https://pandas.pydata.org/pandas-docs/stable/generated/pandas.api.extensions.ExtensionArray.html 13

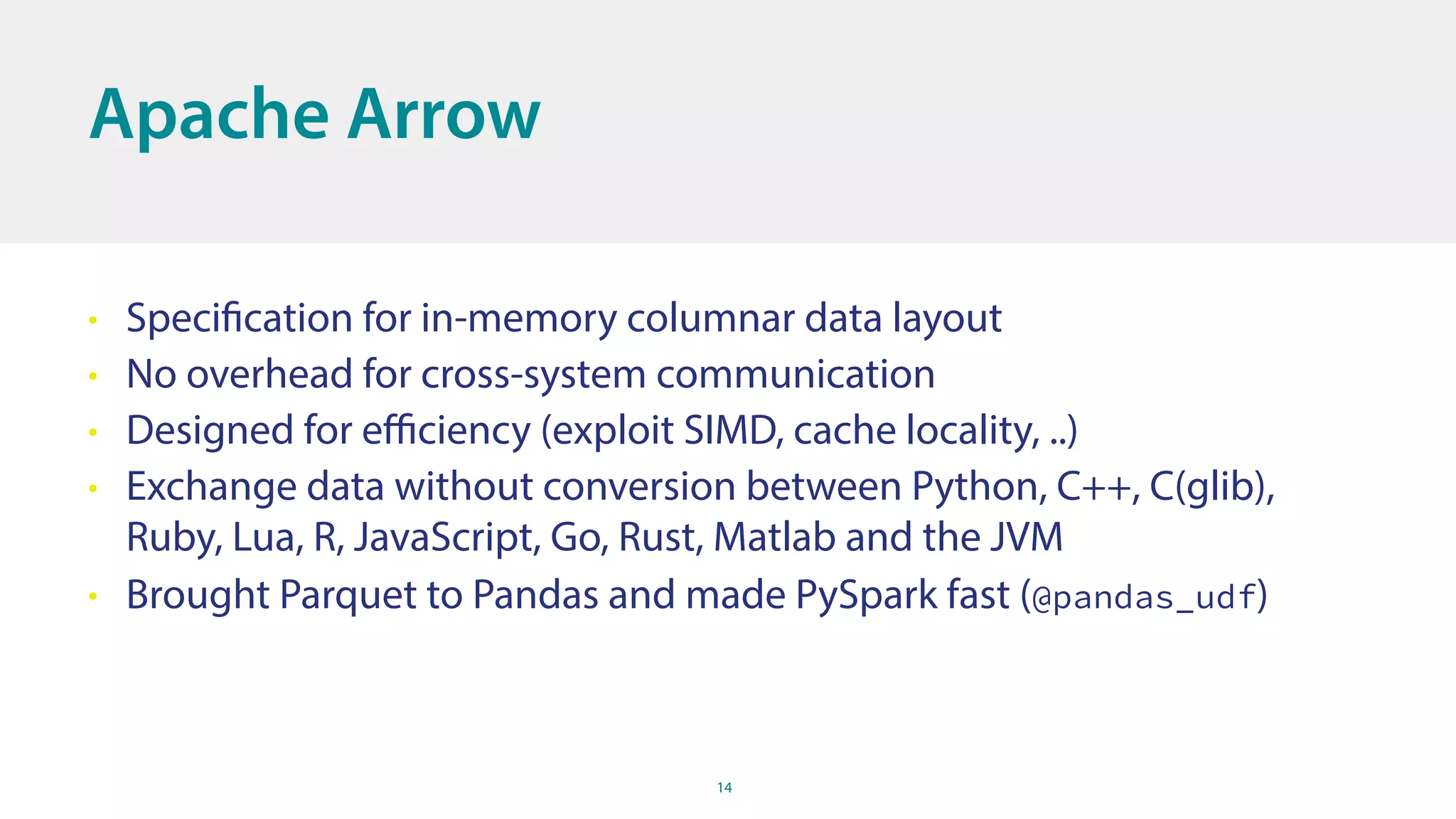

- 14. 14 Apache Arrow • Specificationfor in-memory columnar data layout • No overhead for cross-system communication • Designed for efficiency (exploit SIMD, cache locality, ..) • Exchange data without conversion between Python, C++, C(glib), Ruby, Lua, R, JavaScript, Go, Rust, Matlab and the JVM • Brought Parquet to Pandas and made PySpark fast (@pandas_udf)

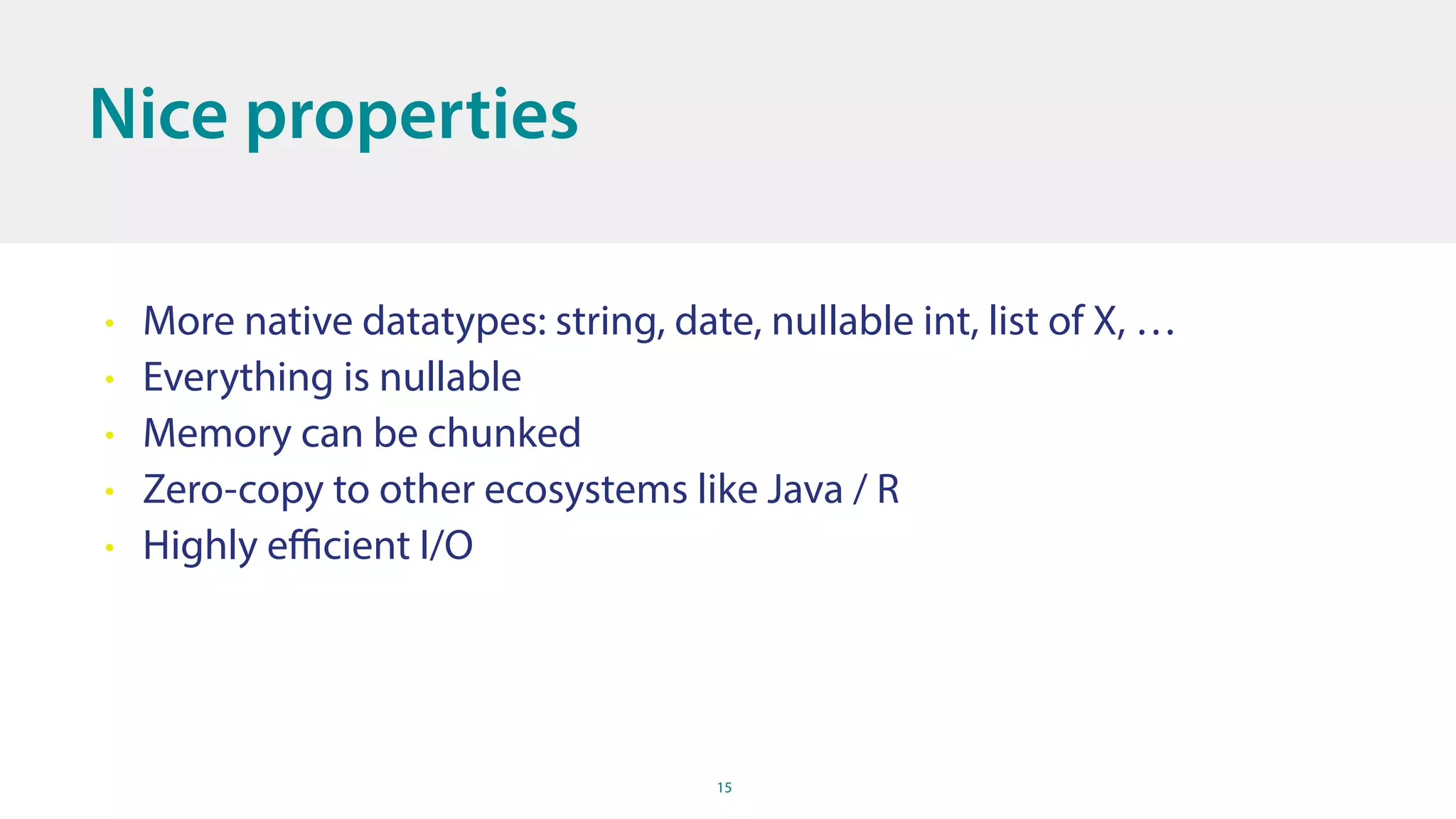

- 15. 15 Nice properties • Morenative datatypes: string, date, nullable int, list of X, … • Everything is nullable • Memory can be chunked • Zero-copy to other ecosystems like Java / R • Highly efficient I/O

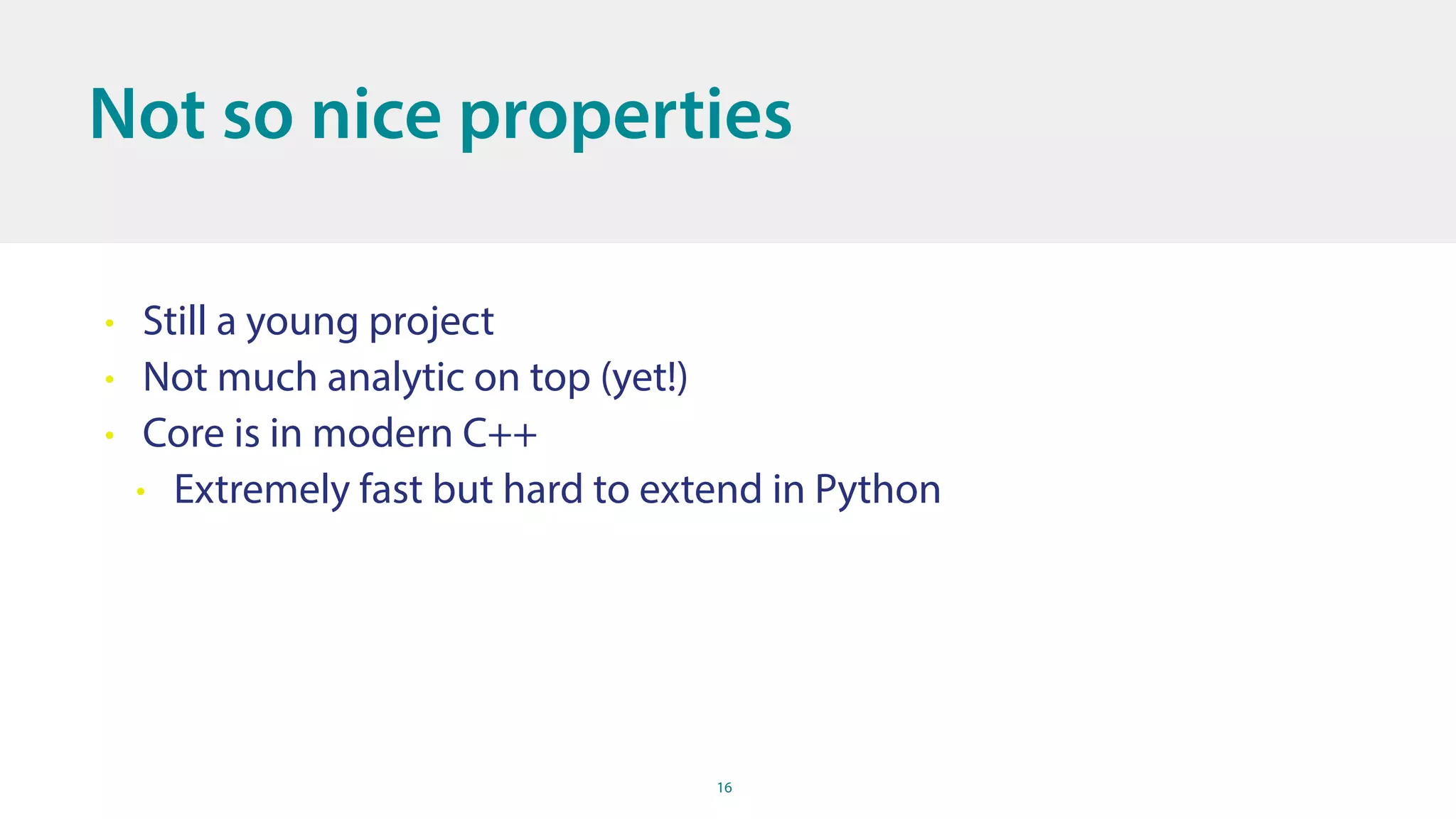

- 16. 16 Not so niceproperties • Still a young project • Not much analytic on top (yet!) • Core is in modern C++ • Extremely fast but hard to extend in Python

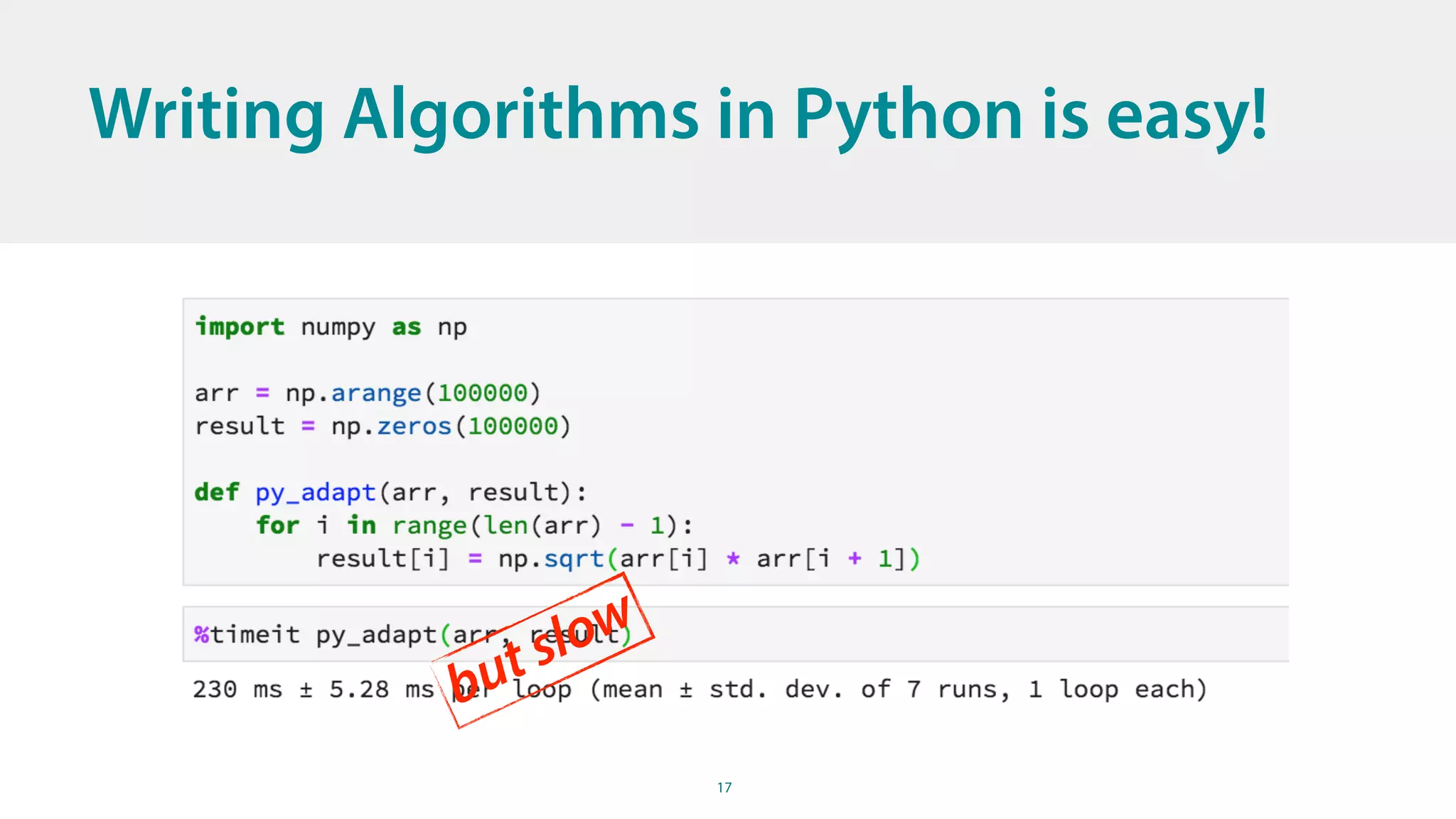

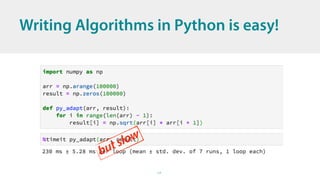

- 17. 17 Writing Algorithms inPython is easy! but slow
- 18.
- 19.

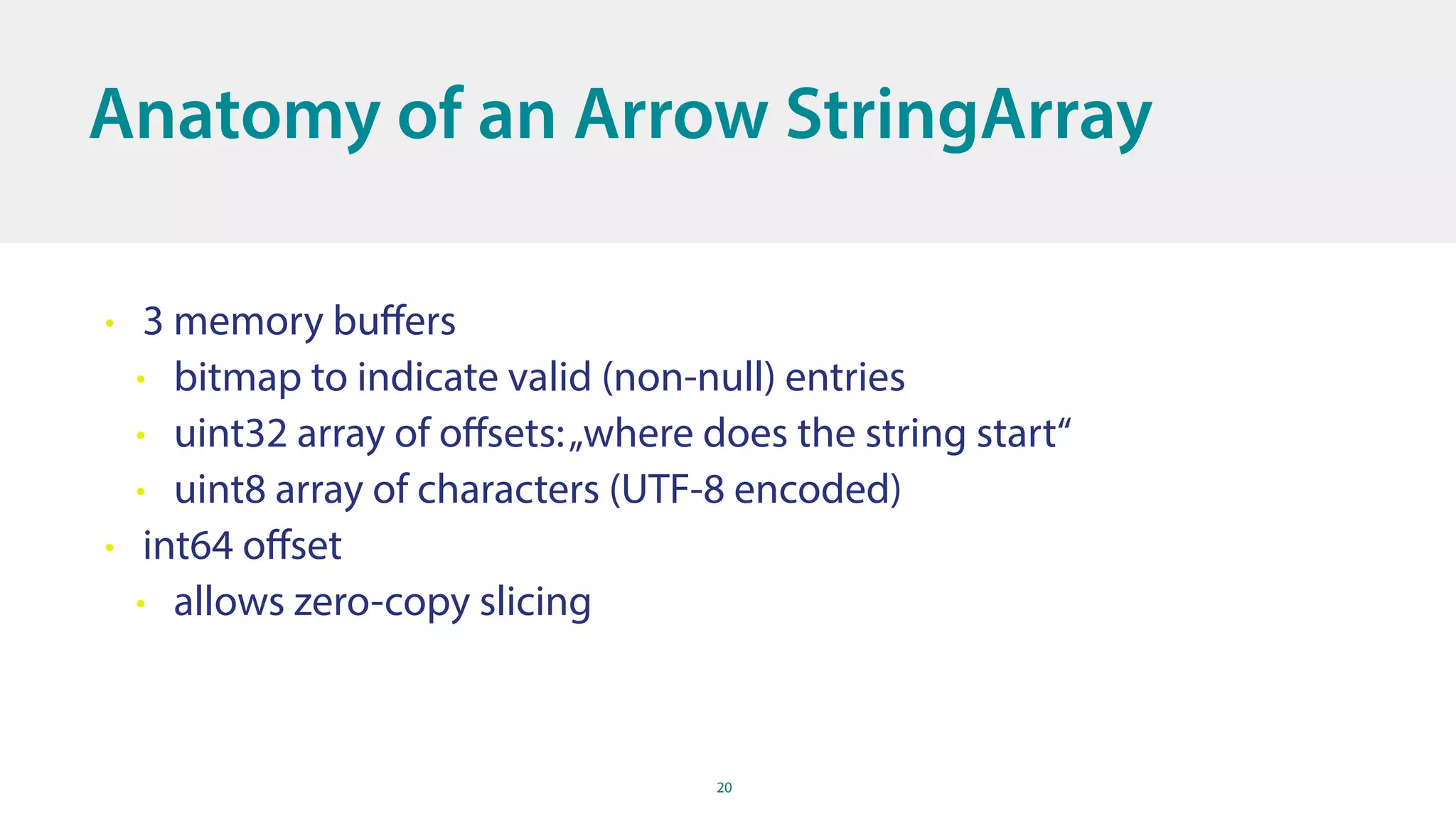

- 20. 20 Anatomy of anArrow StringArray • 3 memory buffers • bitmap to indicate valid (non-null) entries • uint32 array of offsets:„where does the string start“ • uint8 array of characters (UTF-8 encoded) • int64 offset • allows zero-copy slicing
- 21.
- 22.
- 23. 23 Photo by NiklasTidbury on Unsplash

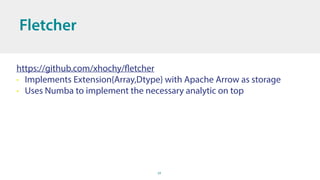

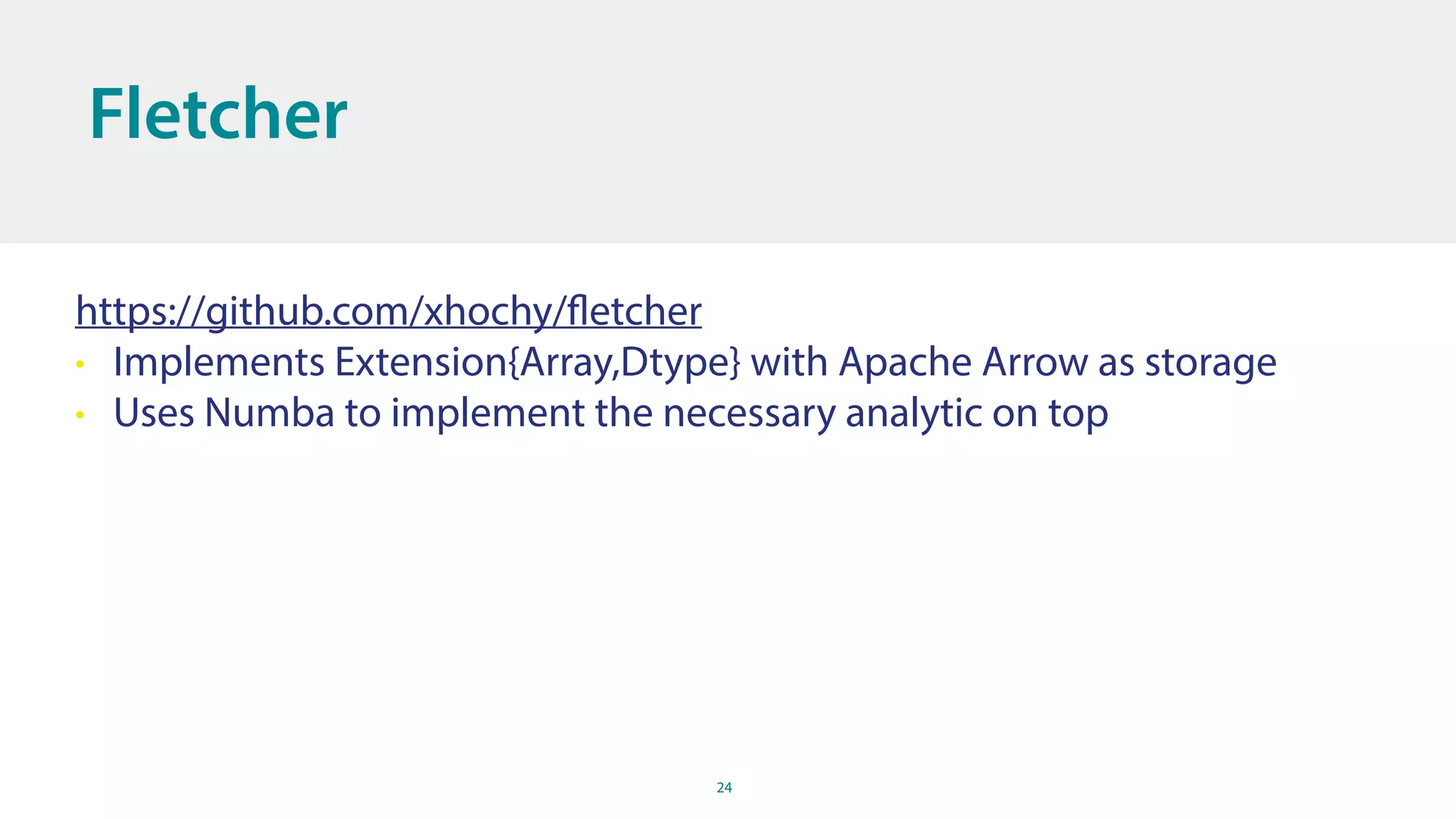

- 24. 24 Fletcher https://github.com/xhochy/fletcher • Implements Extension{Array,Dtype}with Apache Arrow as storage • Uses Numba to implement the necessary analytic on top
- 25.
- 26.
- 27.
- 28.
- 29.

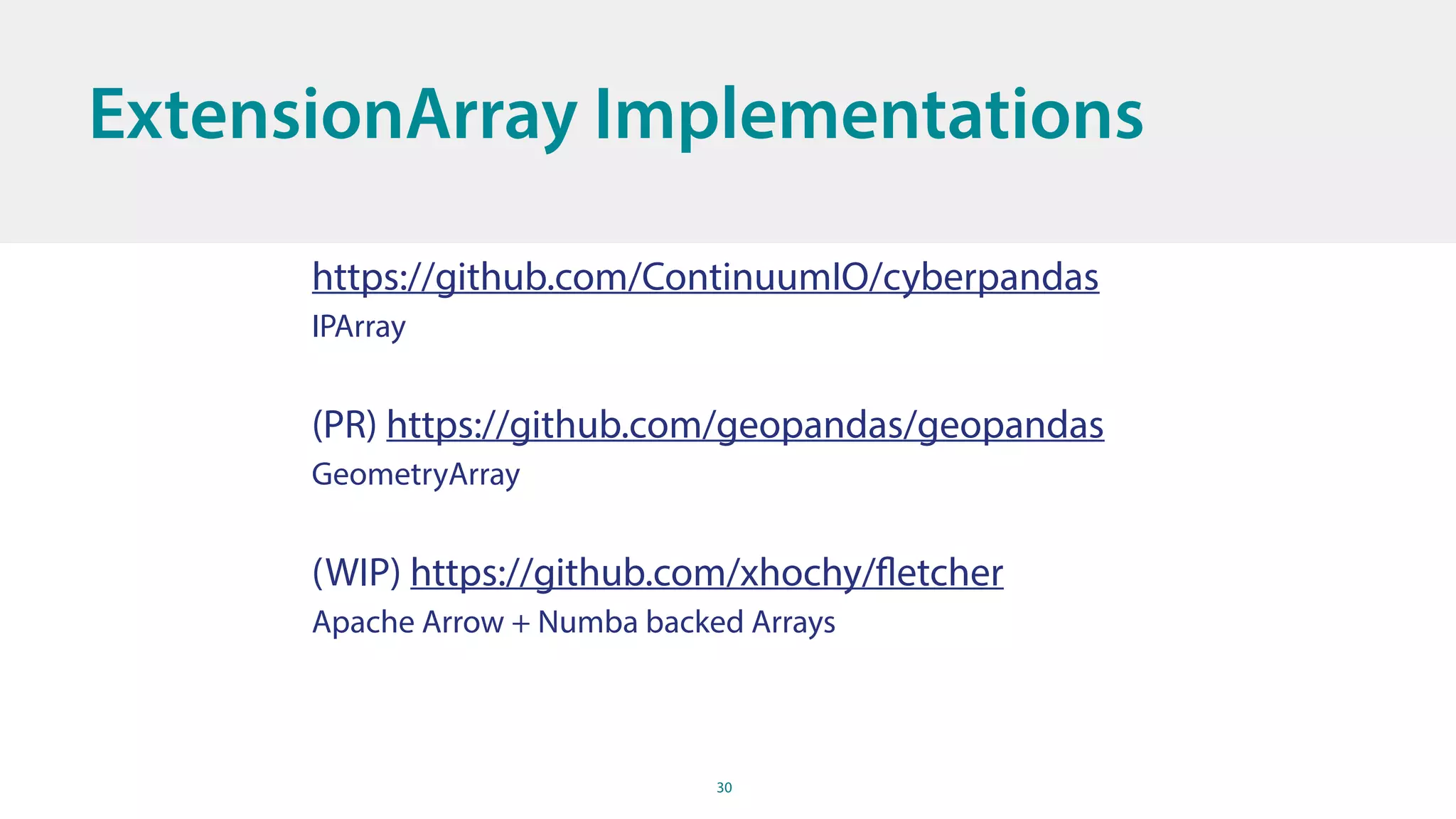

- 30. 30 ExtensionArray Implementations https://github.com/ContinuumIO/cyberpandas IPArray (PR) https://github.com/geopandas/geopandas GeometryArray (WIP)https://github.com/xhochy/fletcher Apache Arrow + Numba backed Arrays
- 31. 31 Photo by IsraelSundseth on Unsplash pip install fletcher
- 32. 32 By JOEXX (Ownwork) [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons By JOEXX (Own work) [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons 24. - 26. October + 2 days of sprints (27/28.10.) ZKM Karlsruhe, DEKarlsruhe Call for Participation opens next week.
- 33. 33 I’m Uwe Korn Twitter:@xhochy https://github.com/xhochy Thank you!
