POINTERS

2
Introduction of Pointer
• Pointers are variables which holds the the
address of other variables.
• Pointer variables are denoted by ‘*ptr’
• Pointers are the derived data type

3

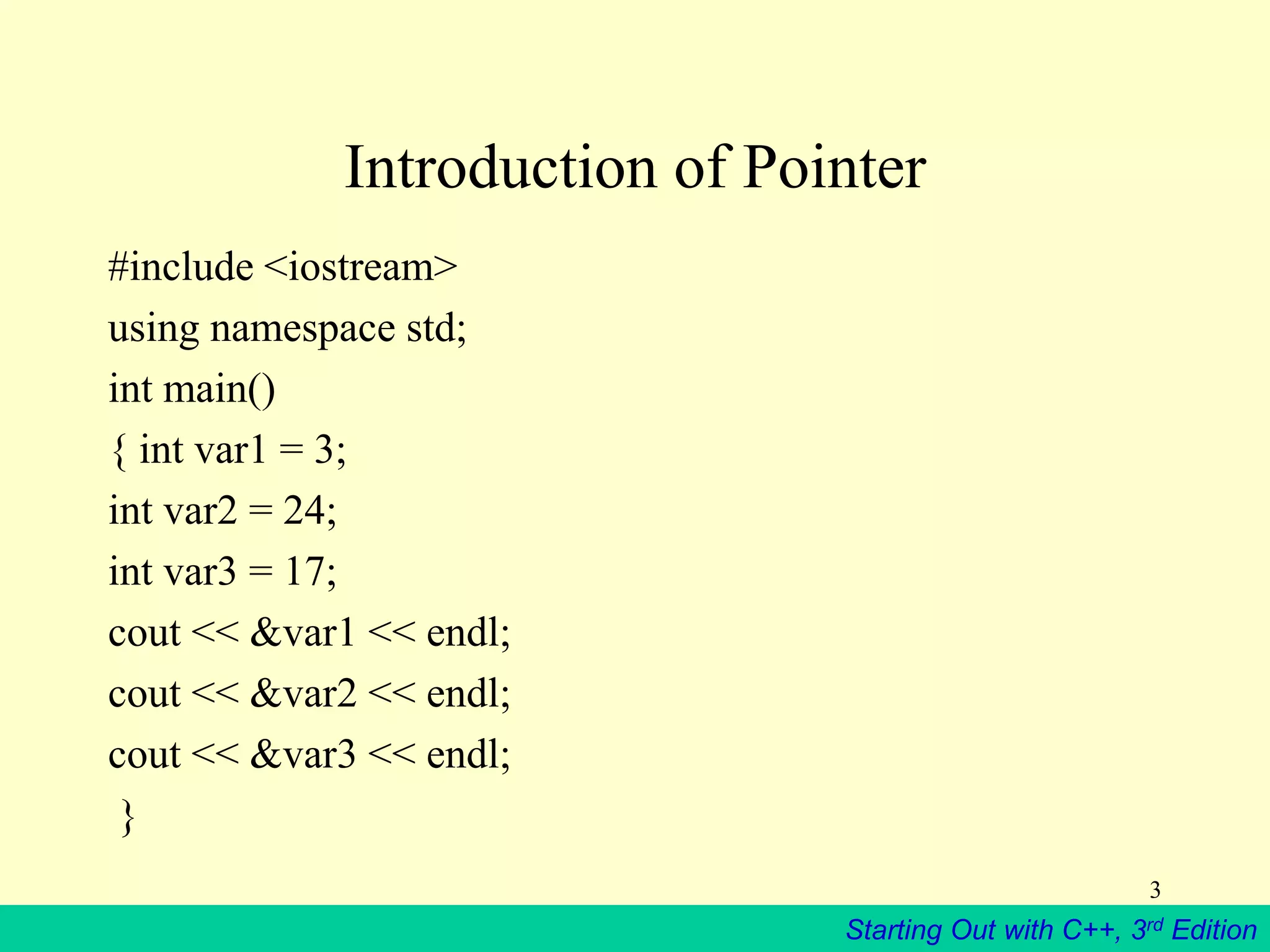

Introduction of Pointer
#include <iostream>
using namespace std;
int main()
{ int var1 = 3;
int var2 = 24;
int var3 = 17;
cout << &var1 << endl;
}

4

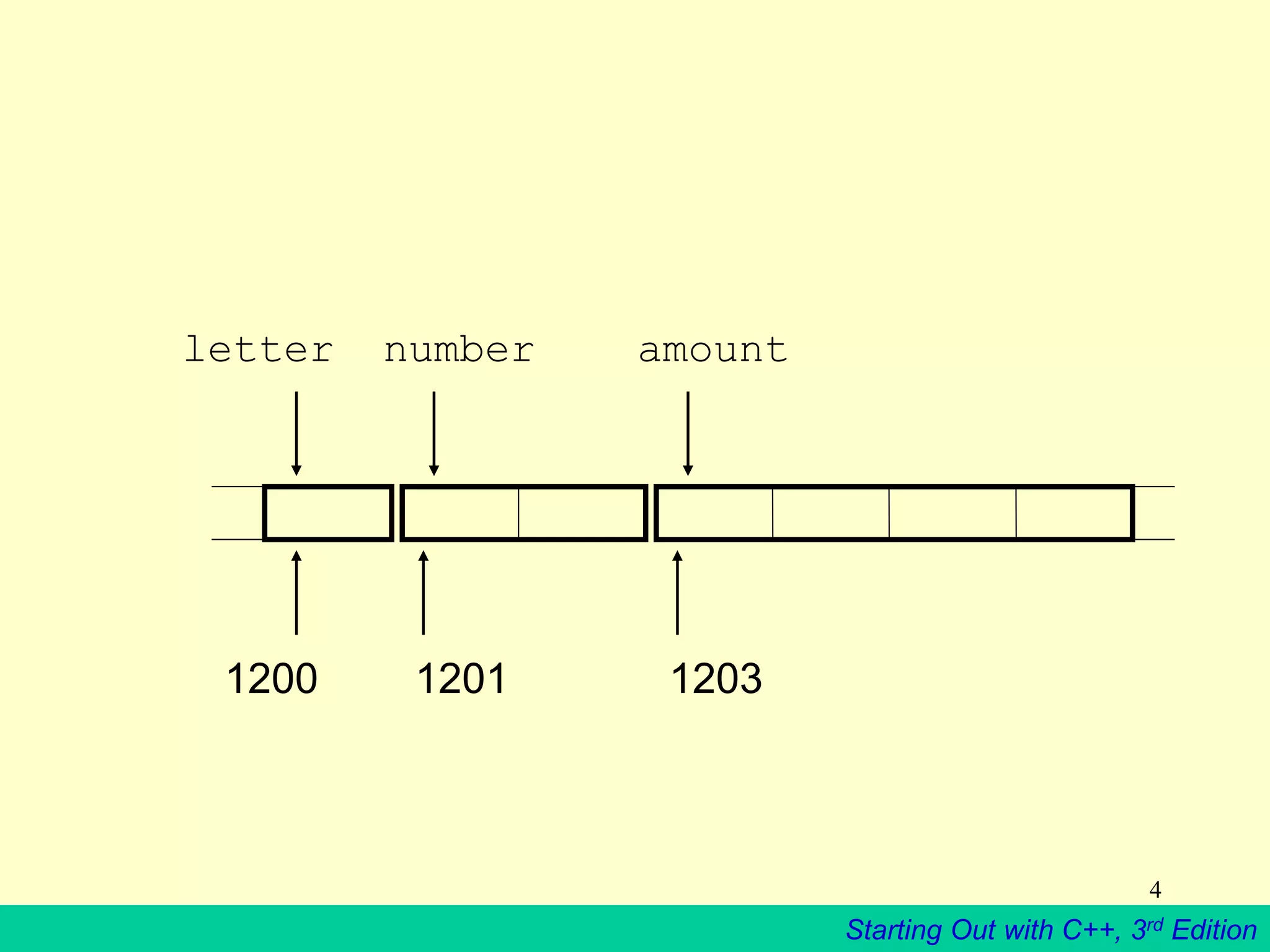

1200 1201 1203
letter number amount

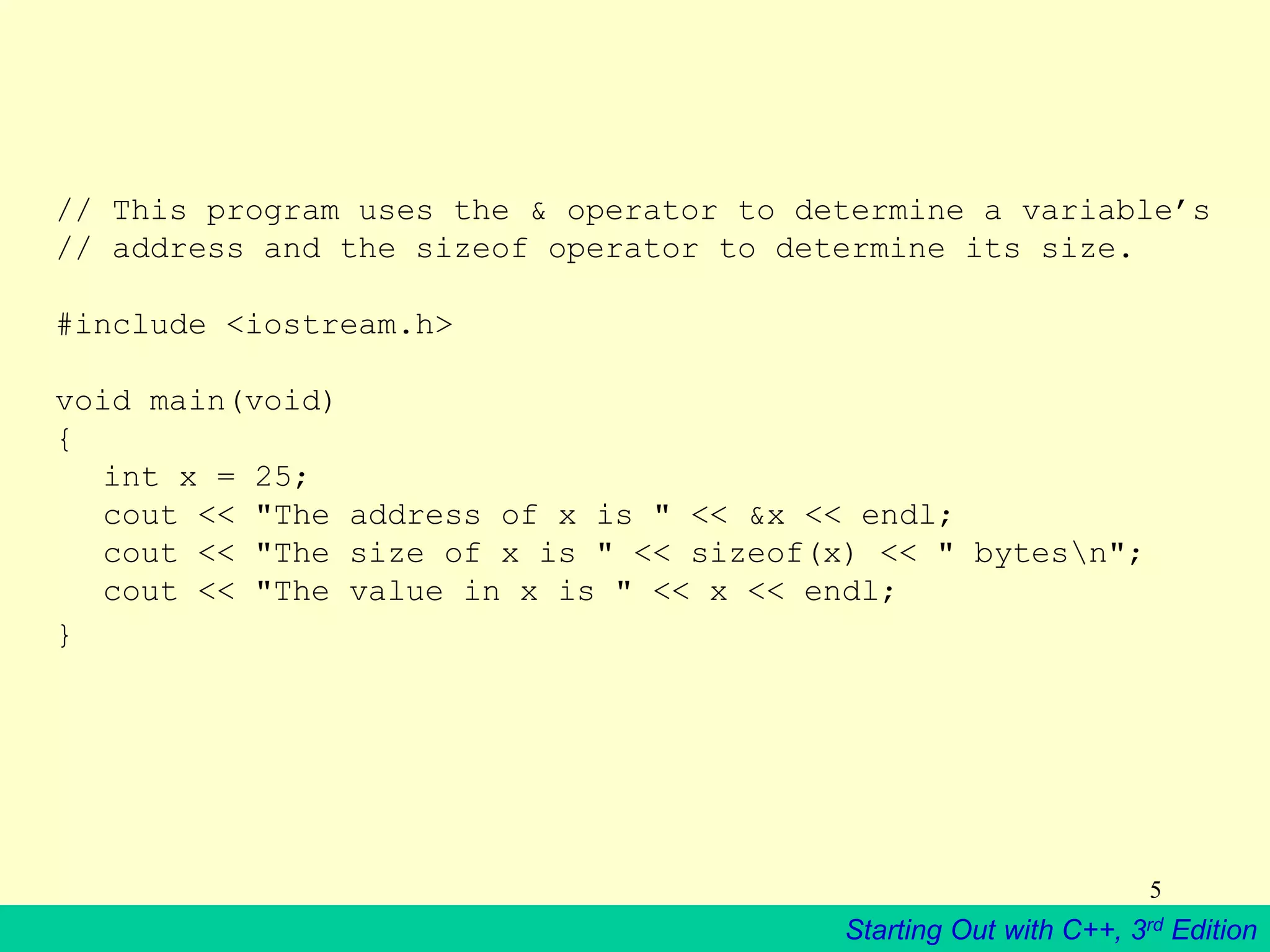

5

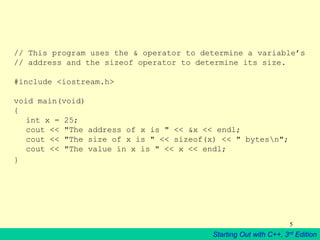

// This program uses the & operator to determine a variable’s
// address and the sizeof operator to determine its size.
#include <iostream.h>
void main(void)
{
int x = 25;
cout << "The address of x is " << &x << endl;
cout << "The size of x is " << sizeof(x) << " bytesn";
cout << "The value in x is " << x << endl;
}

6

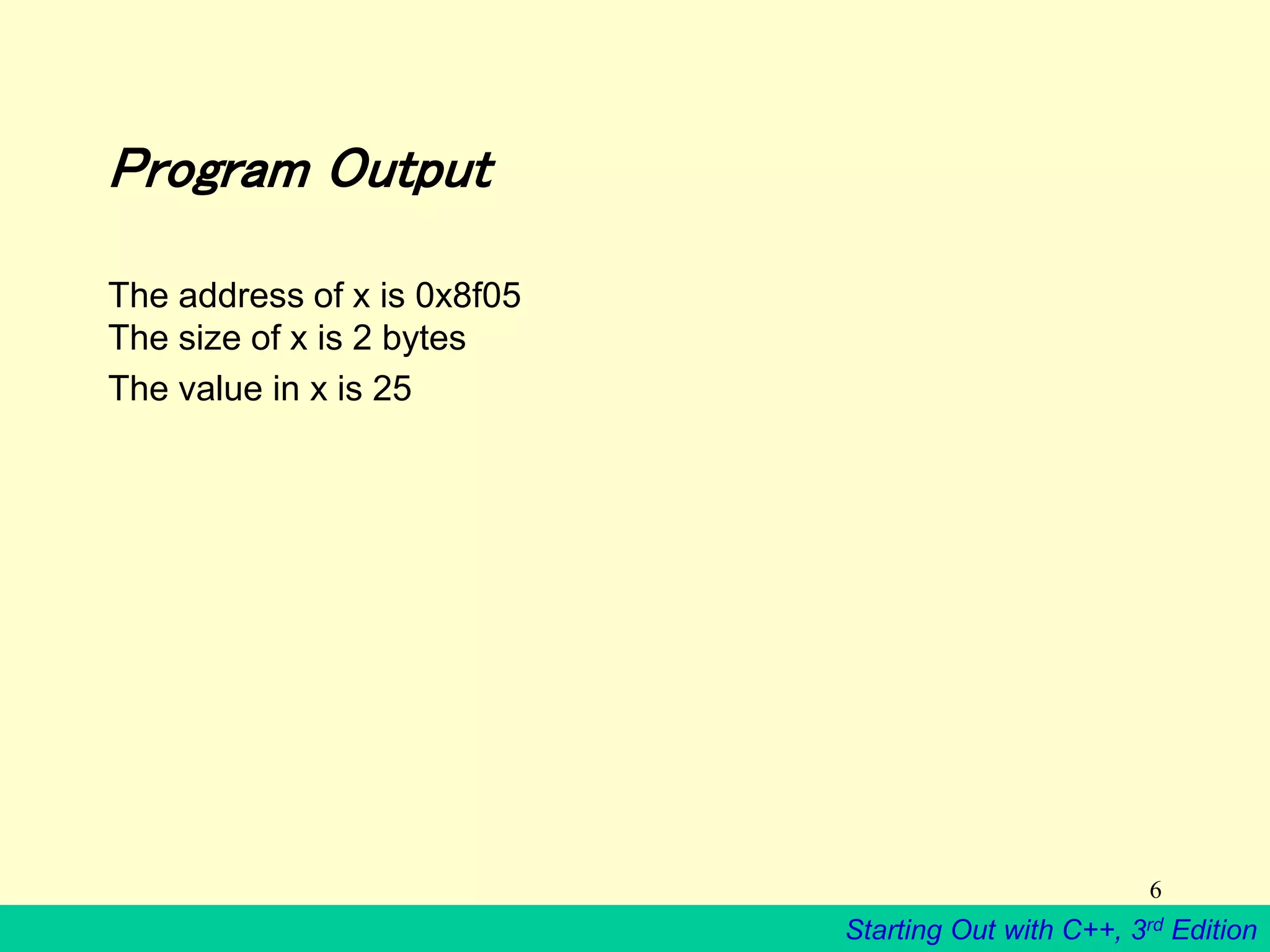

Program Output
The address of x is 0x8f05
The size of x is 2 bytes
The value in x is 25

7

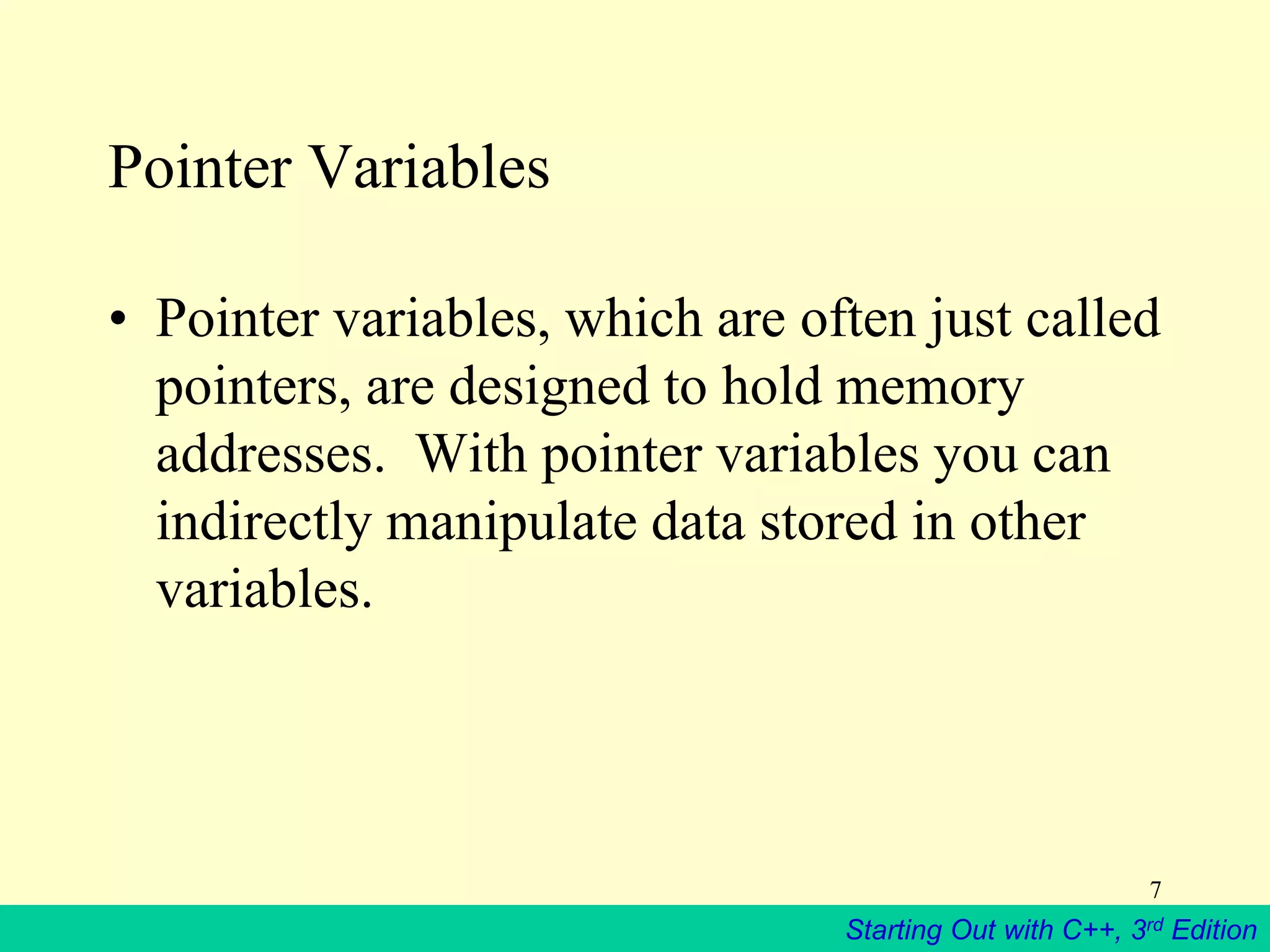

Pointer Variables
• Pointer variables, which are often just called
pointers, are designed to hold memory
addresses. With pointer variables you can
indirectly manipulate data stored in other
variables.

8

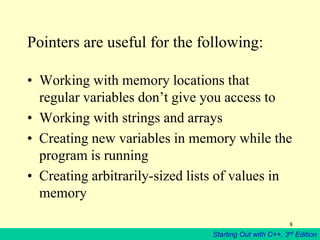

Pointers are useful for the following:
• Working with memory locations that
regular variables don’t give you access to
• Working with strings and arrays
• Creating new variables in memory while the
program is running
• Creating arbitrarily-sized lists of values in
memory

9

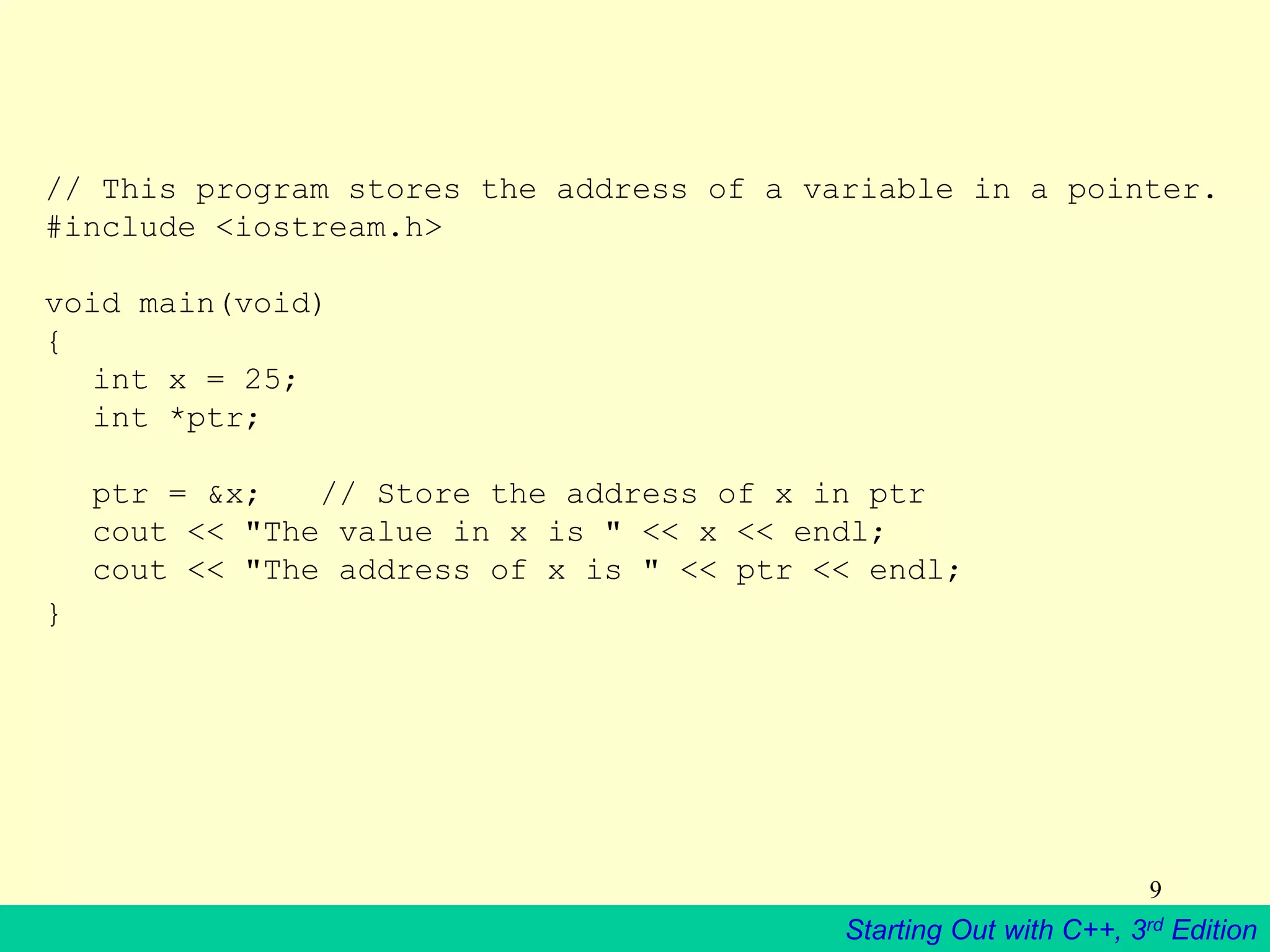

// This program stores the address of a variable in a pointer.
void main(void)
{
int x = 25;
int *ptr;
ptr = &x; // Store the address of x in ptr
cout << "The value in x is " << x << endl;
cout << "The address of x is " << ptr << endl;
}

10

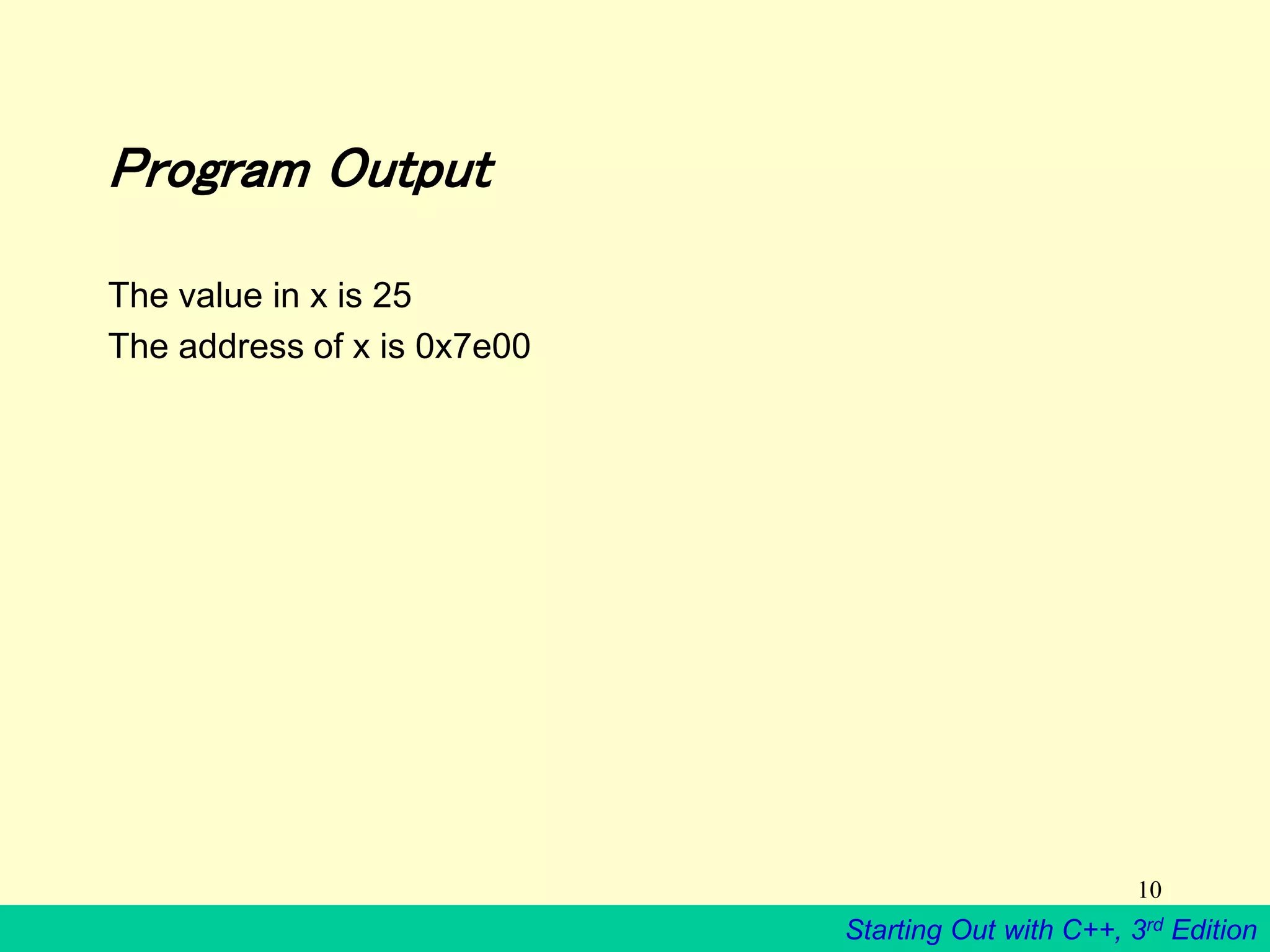

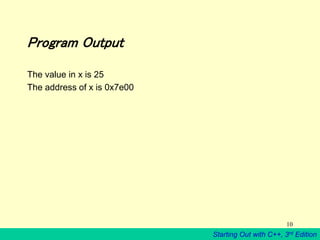

Program Output
The value in x is 25
The address of x is 0x7e00

11

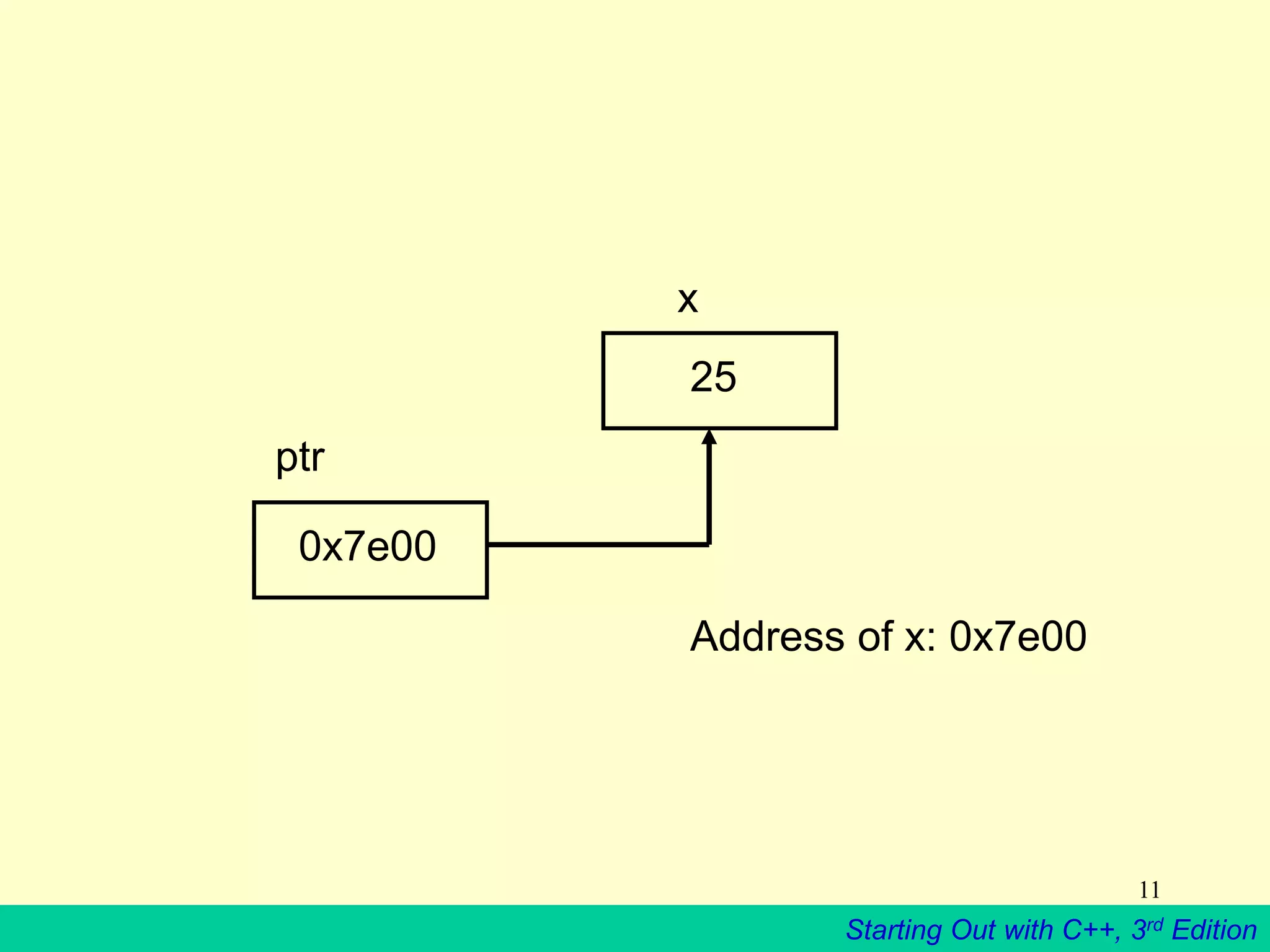

0x7e00
25
ptr
x
Address of x: 0x7e00

12

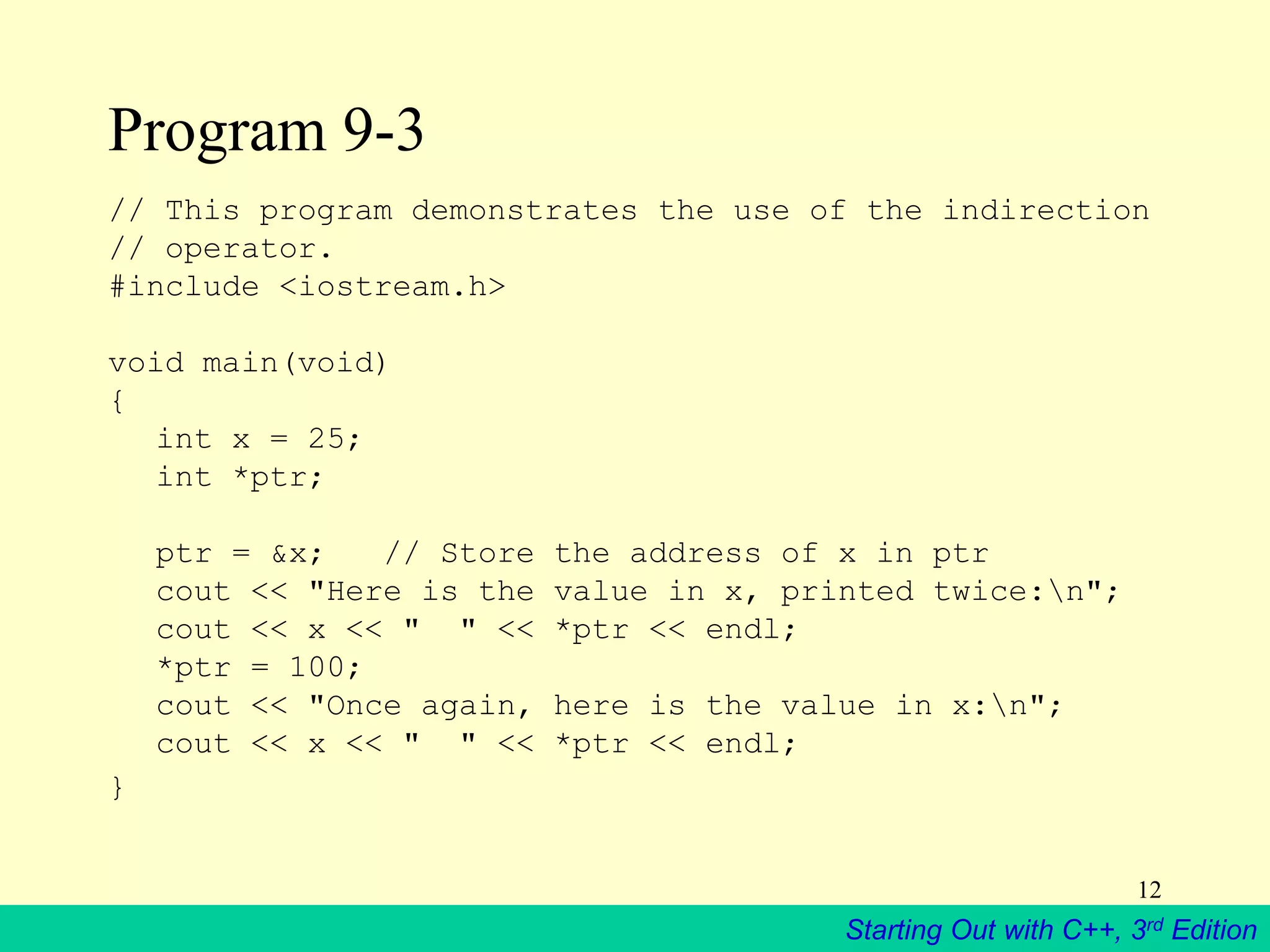

Program 9-3
// This program demonstrates the use of the indirection
// operator.
void main(void)
{
int x = 25;
int *ptr;
cout << "Here is the value in x, printed twice:n";
cout << x << " " << *ptr << endl;
*ptr = 100;
cout << "Once again, here is the value in x:n";
cout << x << " " << *ptr << endl;
}

13

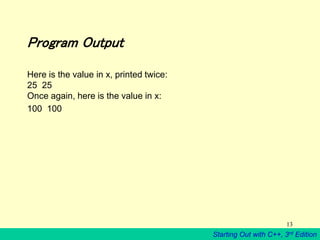

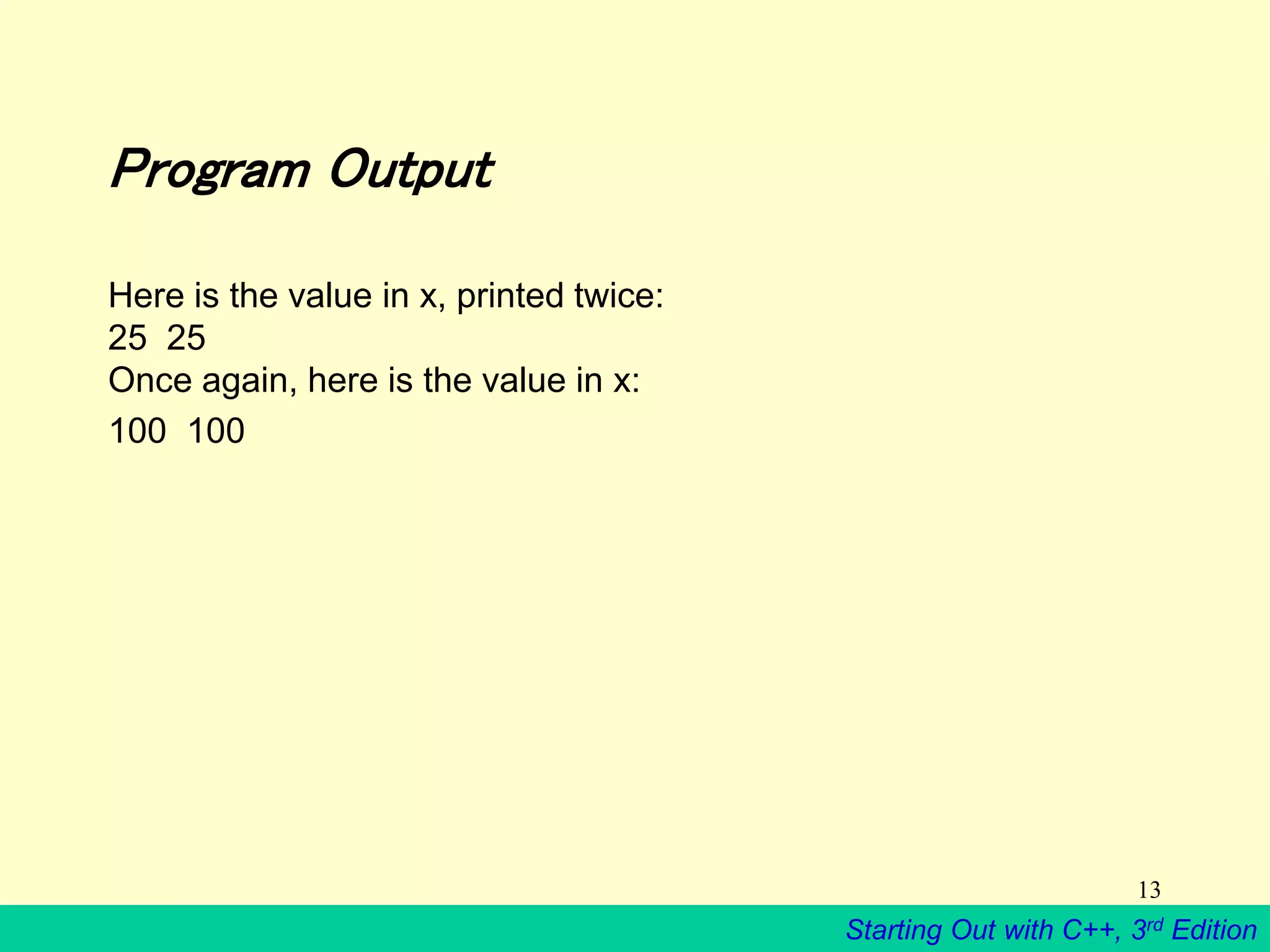

Program Output
Here is the value in x, printed twice:
25 25
Once again, here is the value in x:
100 100

14

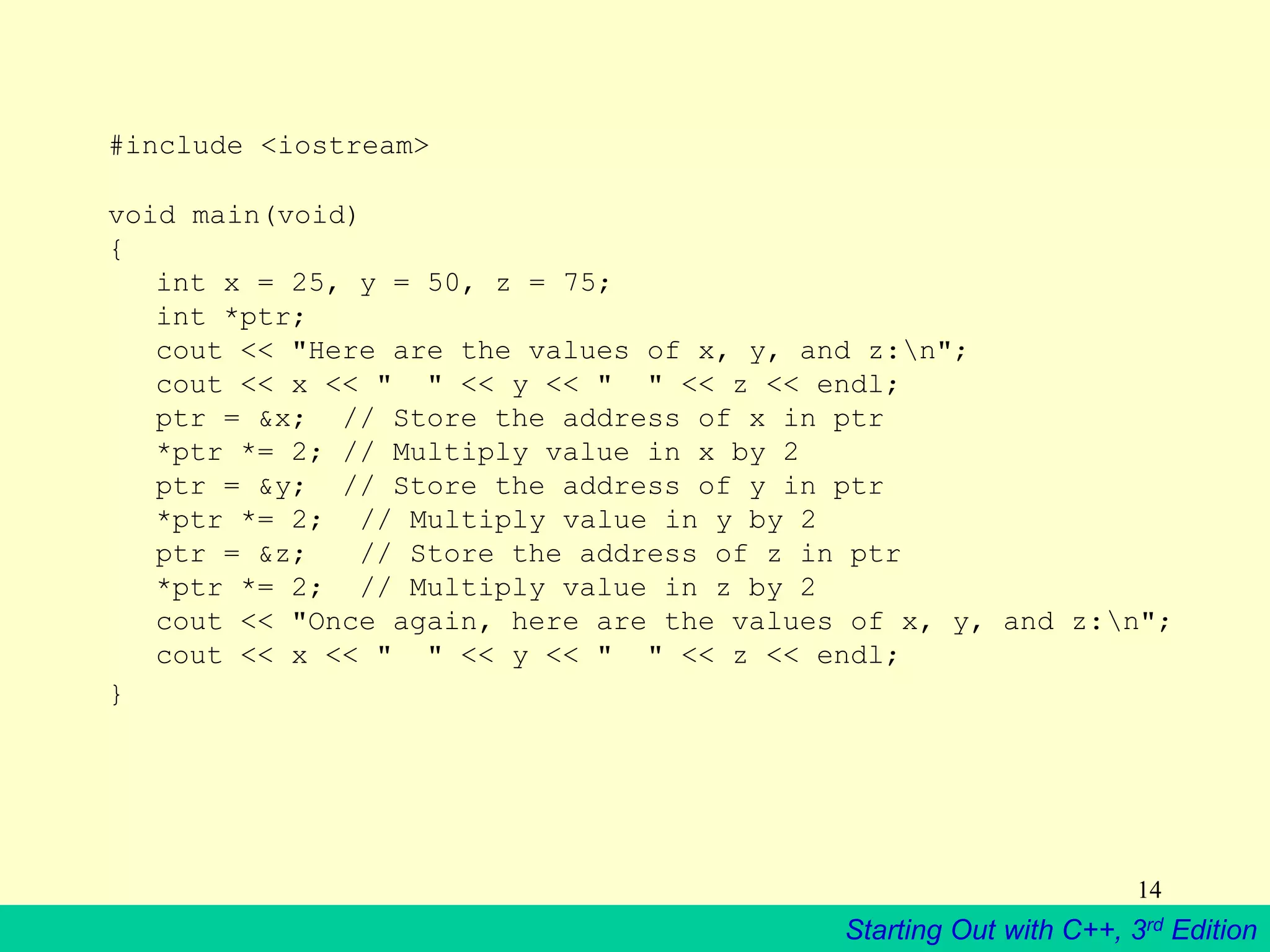

#include <iostream>
void main(void)
{
int x = 25, y = 50, z = 75;
int *ptr;
cout << "Here are the values of x, y, and z:n";
cout << x << " " << y << " " << z << endl;
*ptr *= 2; // Multiply value in x by 2
ptr = &y; // Store the address of y in ptr
*ptr *= 2; // Multiply value in y by 2
ptr = &z; // Store the address of z in ptr
*ptr *= 2; // Multiply value in z by 2
cout << "Once again, here are the values of x, y, and z:n";
cout << x << " " << y << " " << z << endl;
}

15

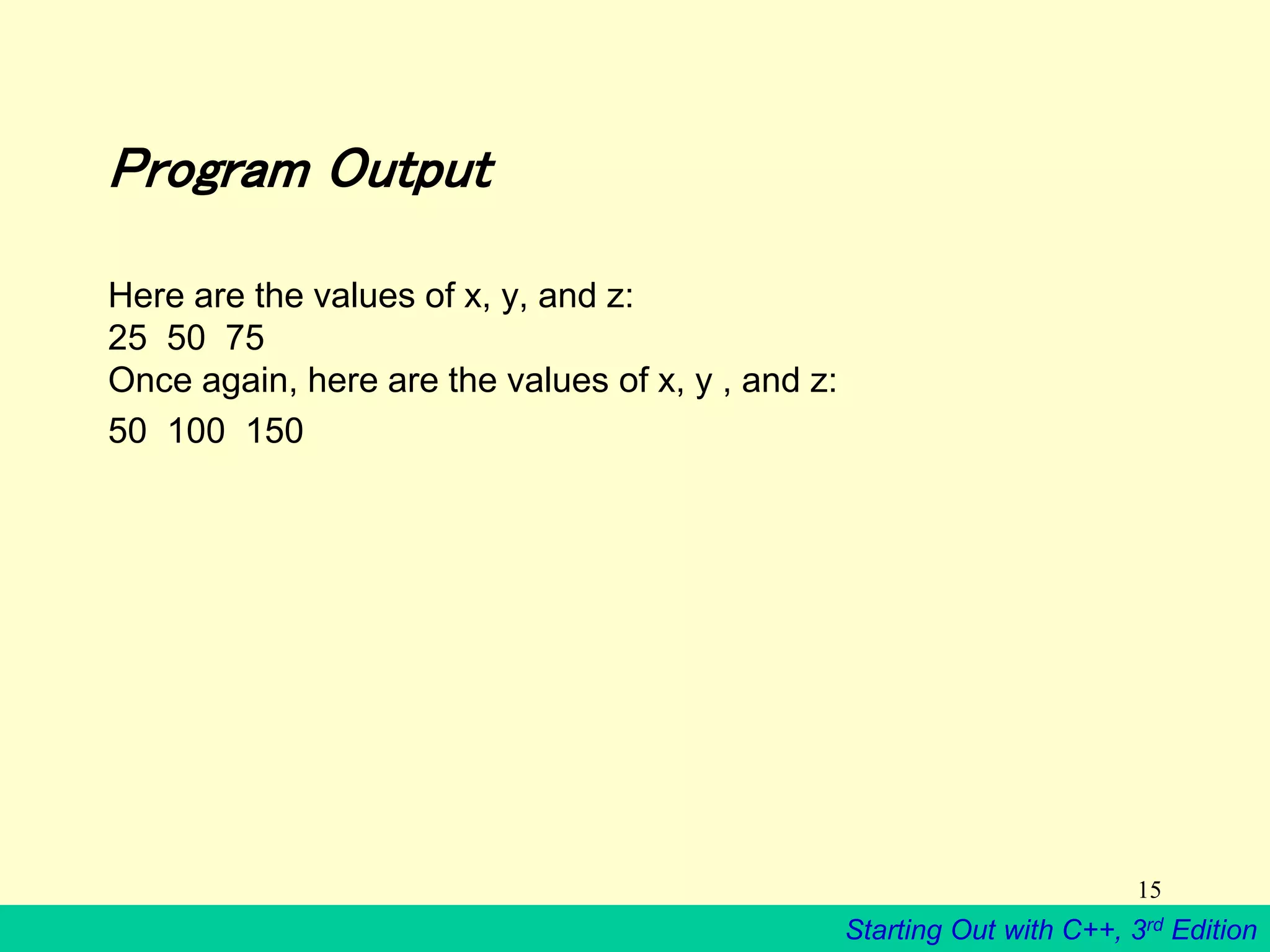

Program Output
Here are the values of x, y, and z:
25 50 75
Once again, here are the values of x, y , and z:
50 100 150

16

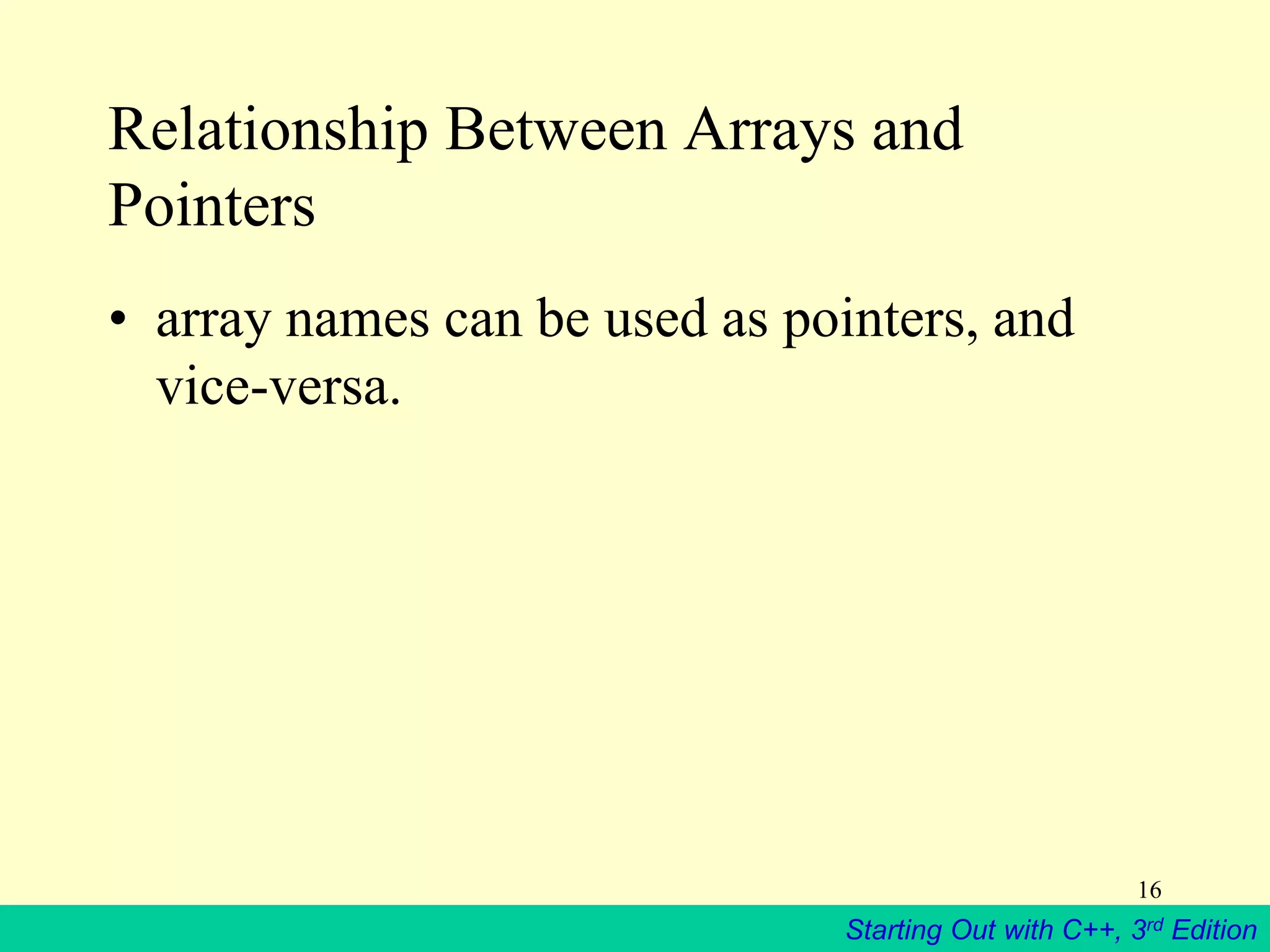

Relationship Between Arrays and
Pointers
• array names can be used as pointers, and
vice-versa.

17

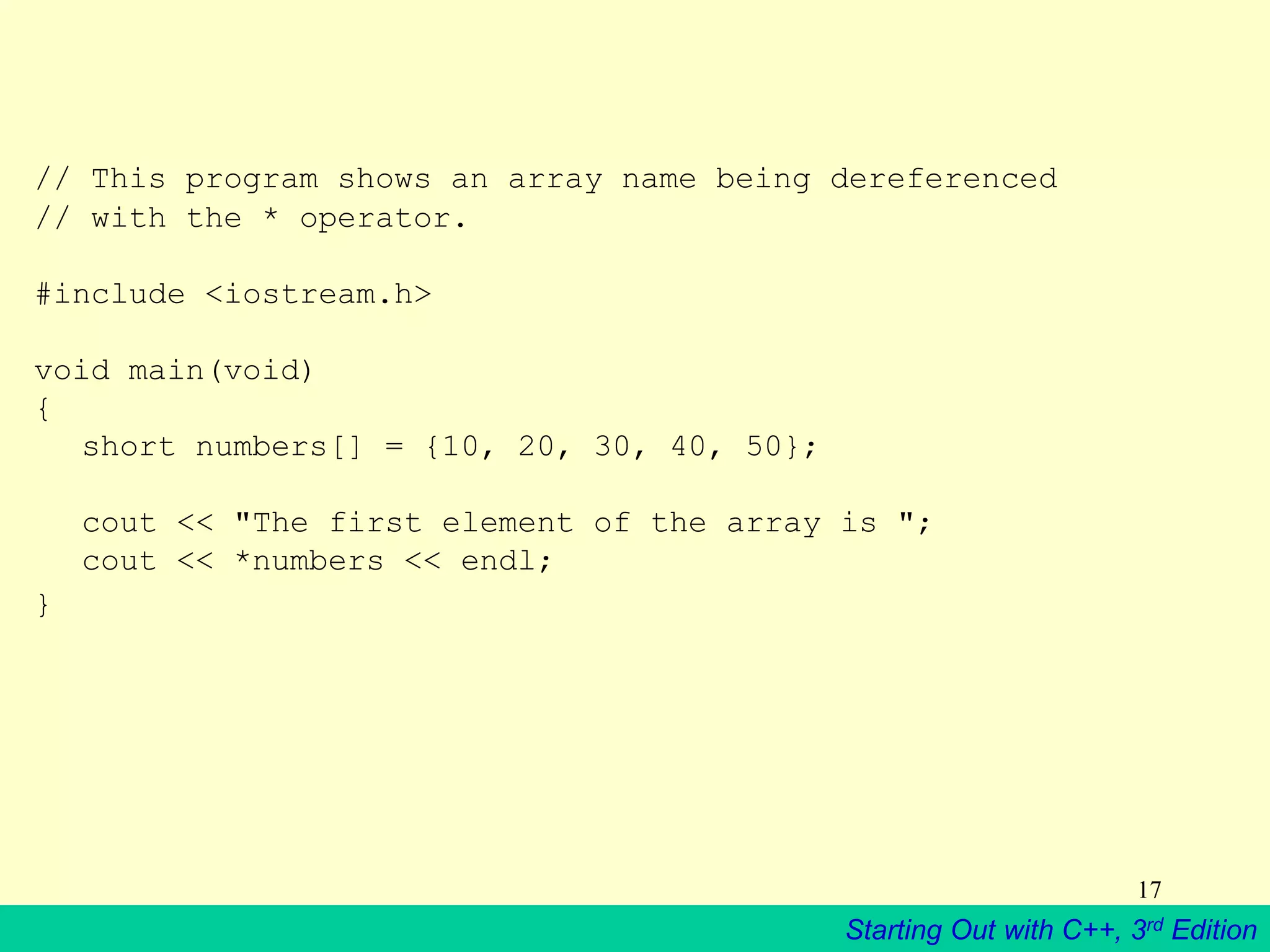

// This program shows an array name being dereferenced
// with the * operator.
void main(void)
{
short numbers[] = {10, 20, 30, 40, 50};
cout << "The first element of the array is ";
cout << *numbers << endl;
}

18

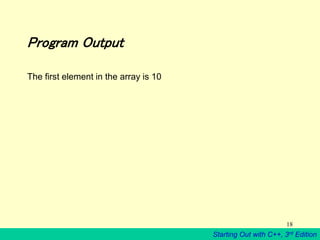

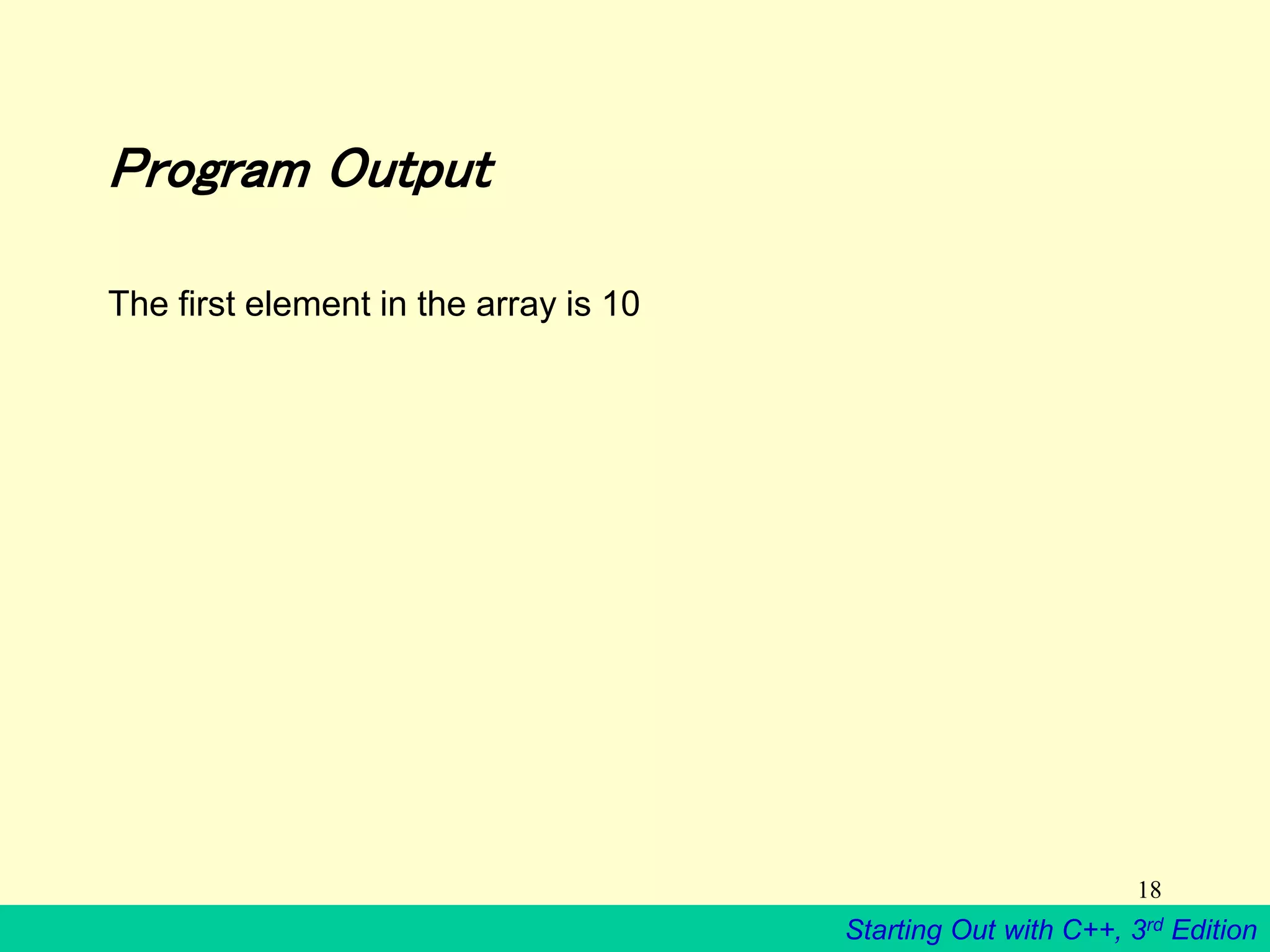

Program Output
The first element in the array is 10

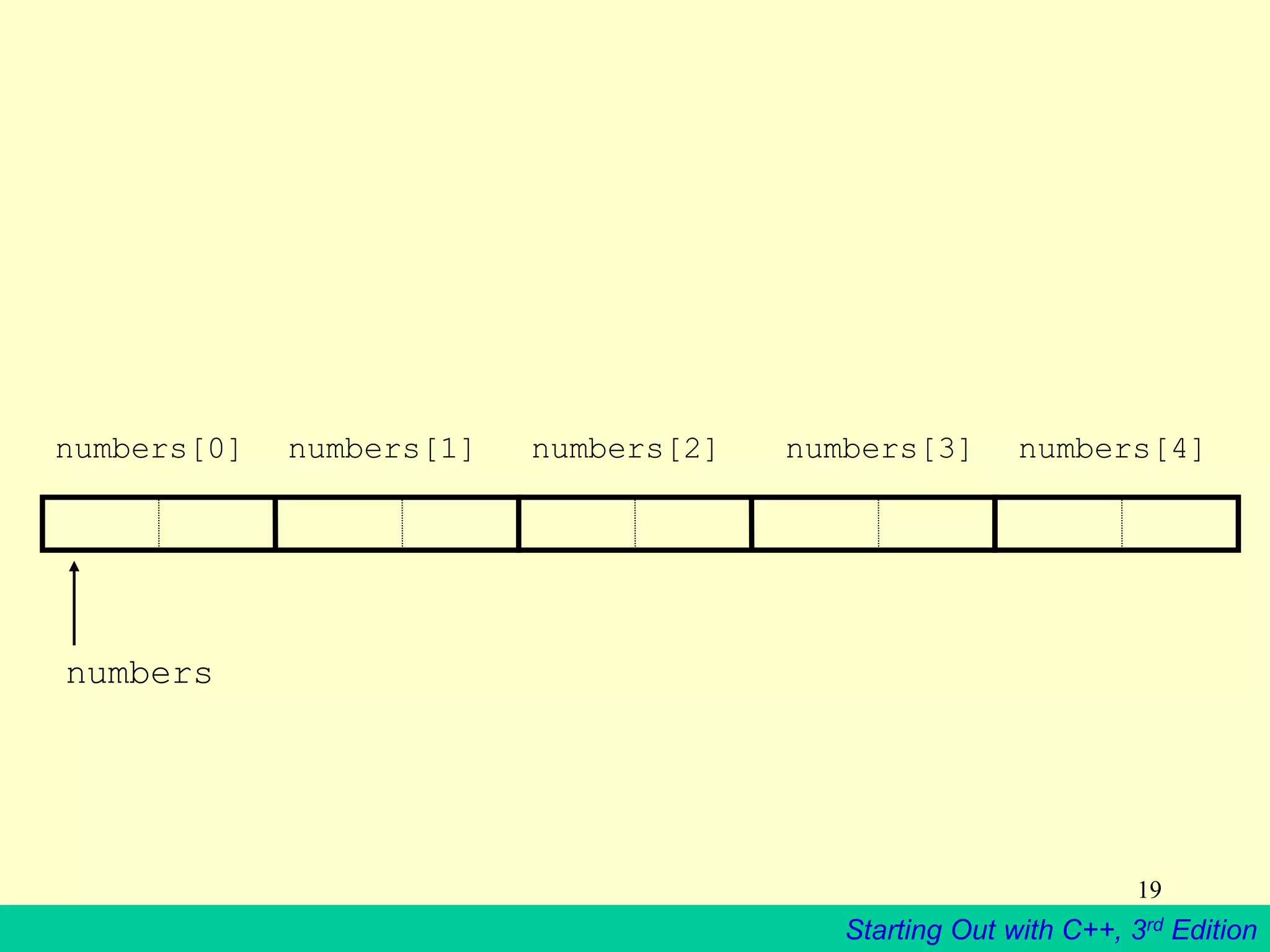

19

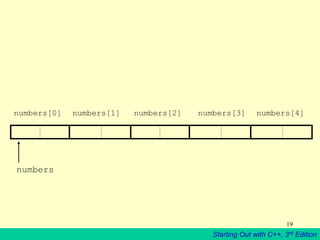

numbers
numbers[0] numbers[1] numbers[2] numbers[3] numbers[4]

20

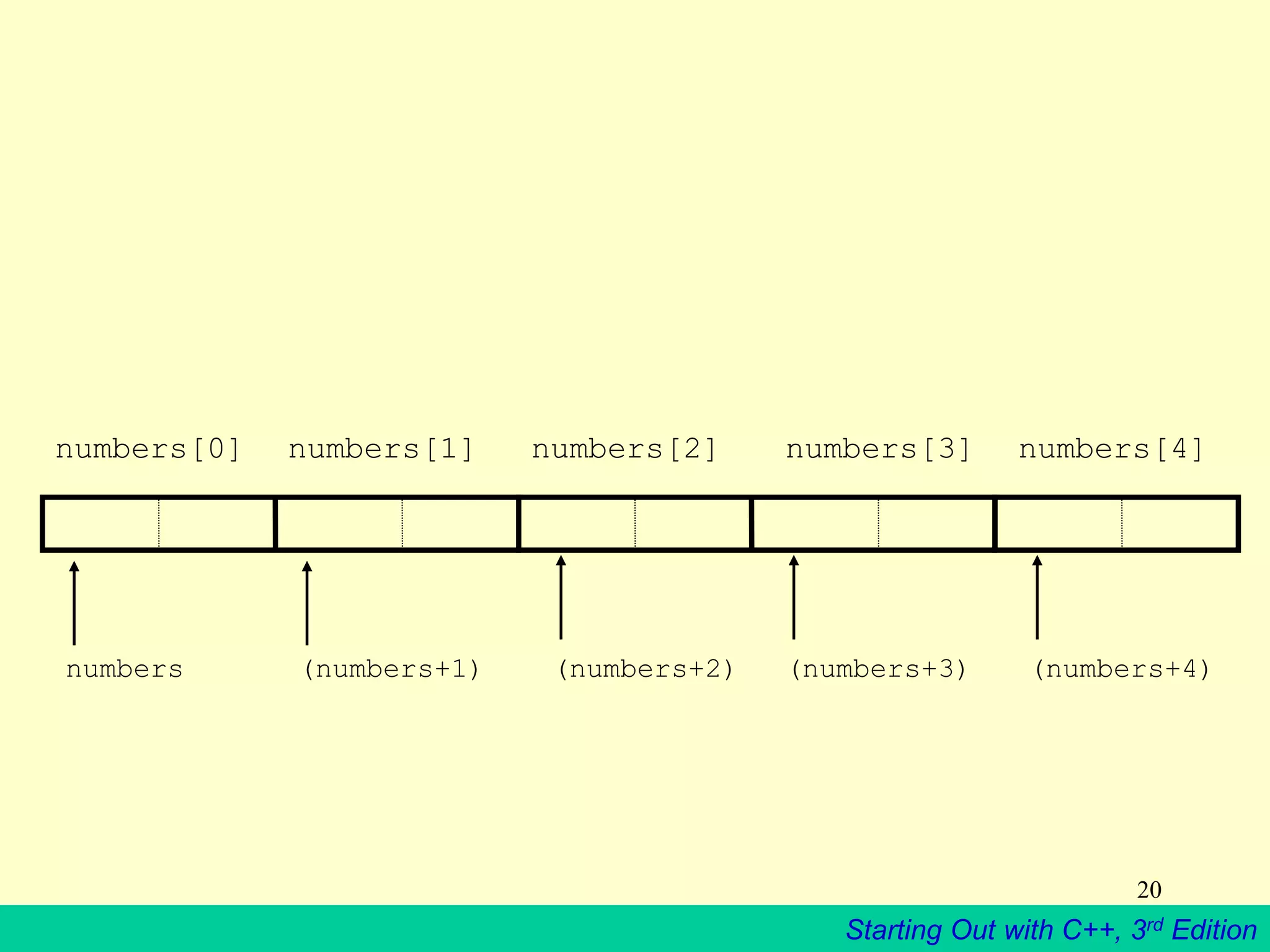

numbers
numbers[0] numbers[1] numbers[2] numbers[3] numbers[4]
(numbers+1) (numbers+2) (numbers+3) (numbers+4)

21

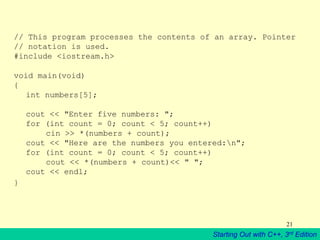

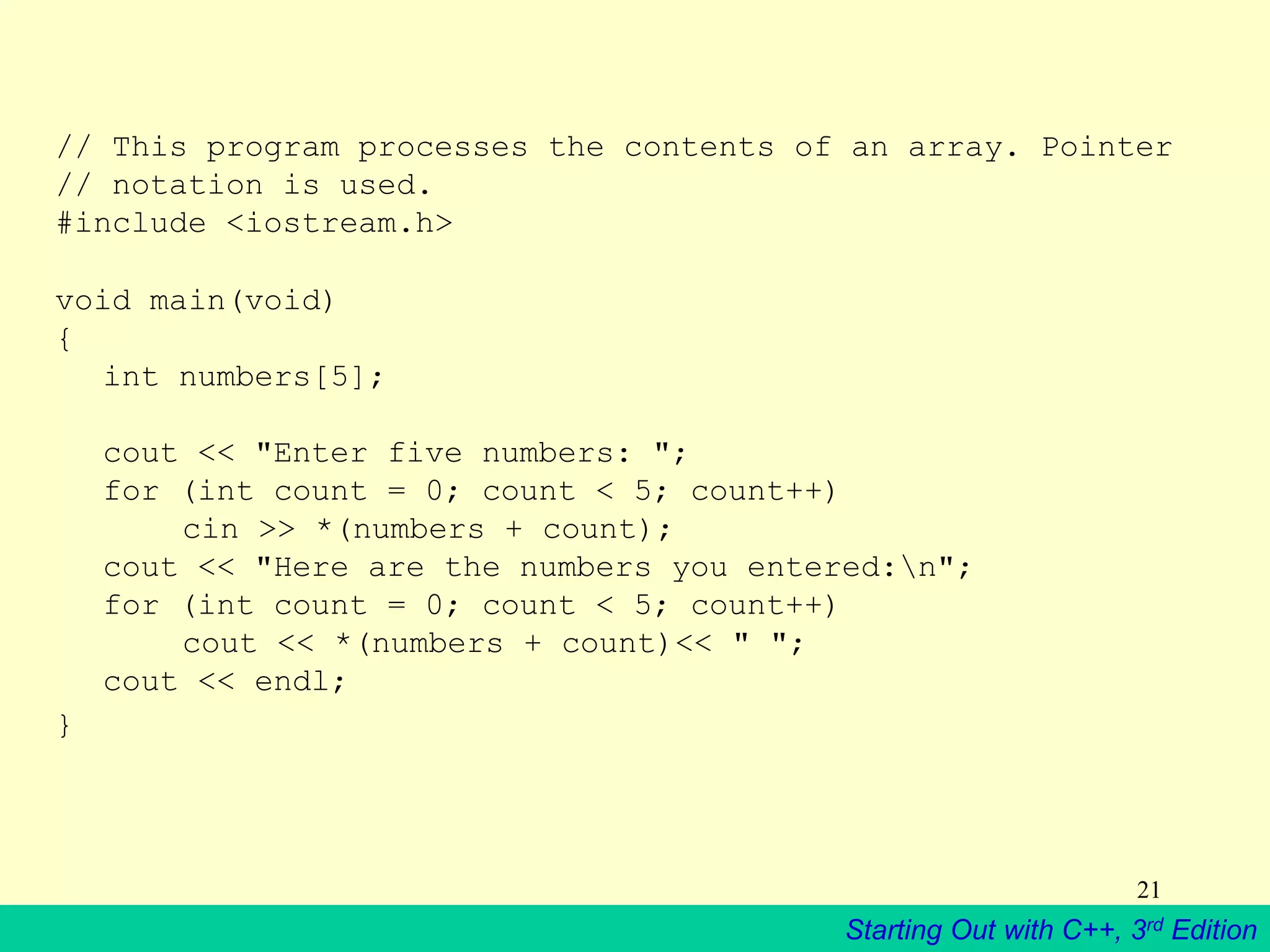

// This program processes the contents of an array. Pointer
// notation is used.
void main(void)
{
int numbers[5];
cout << "Enter five numbers: ";
for (int count = 0; count < 5; count++)
cin >> *(numbers + count);
cout << "Here are the numbers you entered:n";
cout << *(numbers + count)<< " ";
cout << endl;
}

22

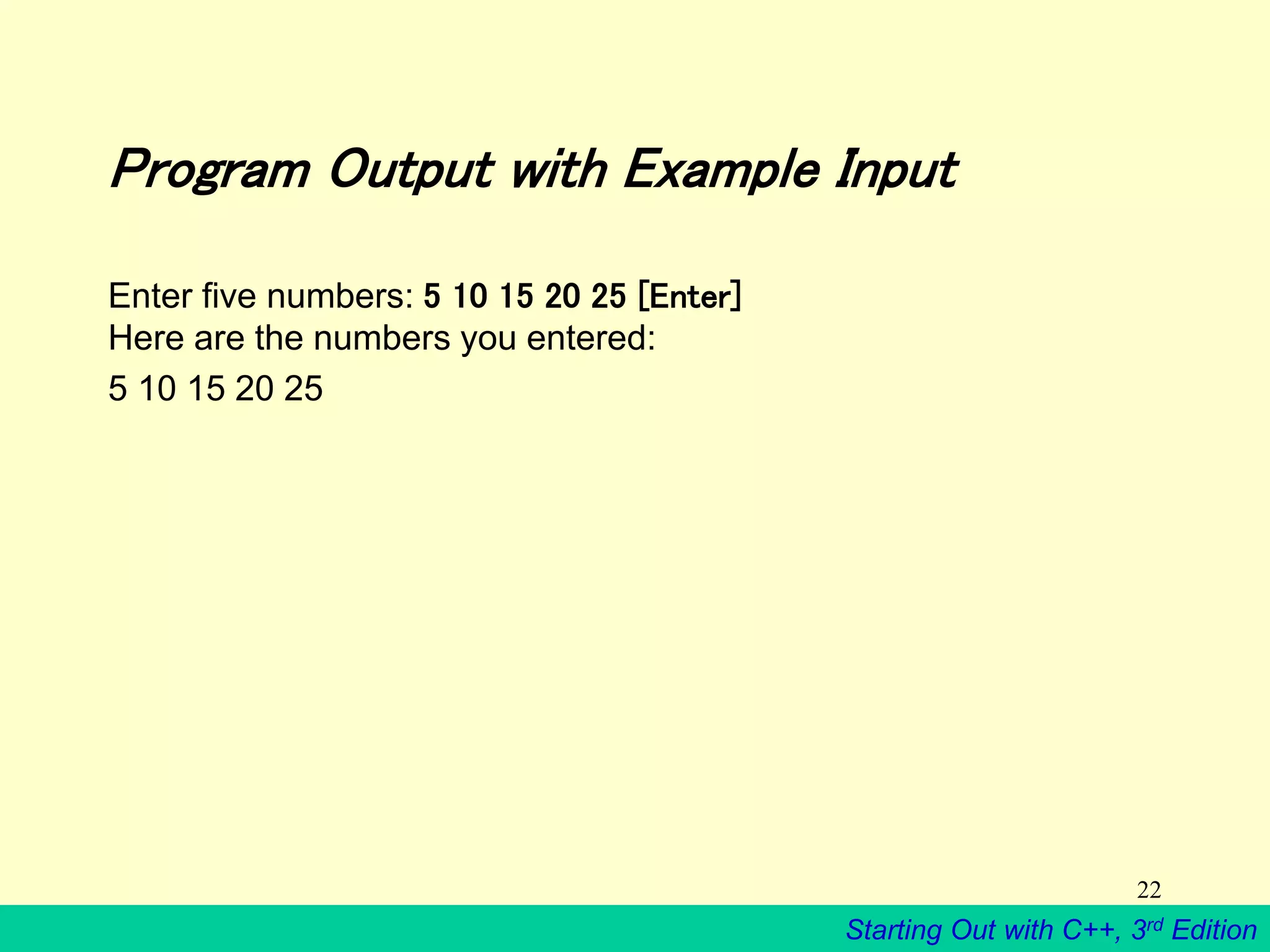

Program Output with Example Input
Enter five numbers: 5 10 15 20 25 [Enter]
Here are the numbers you entered:
5 10 15 20 25

23

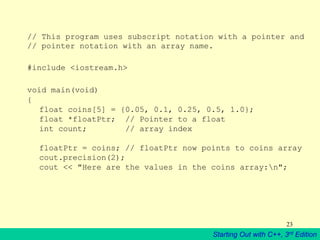

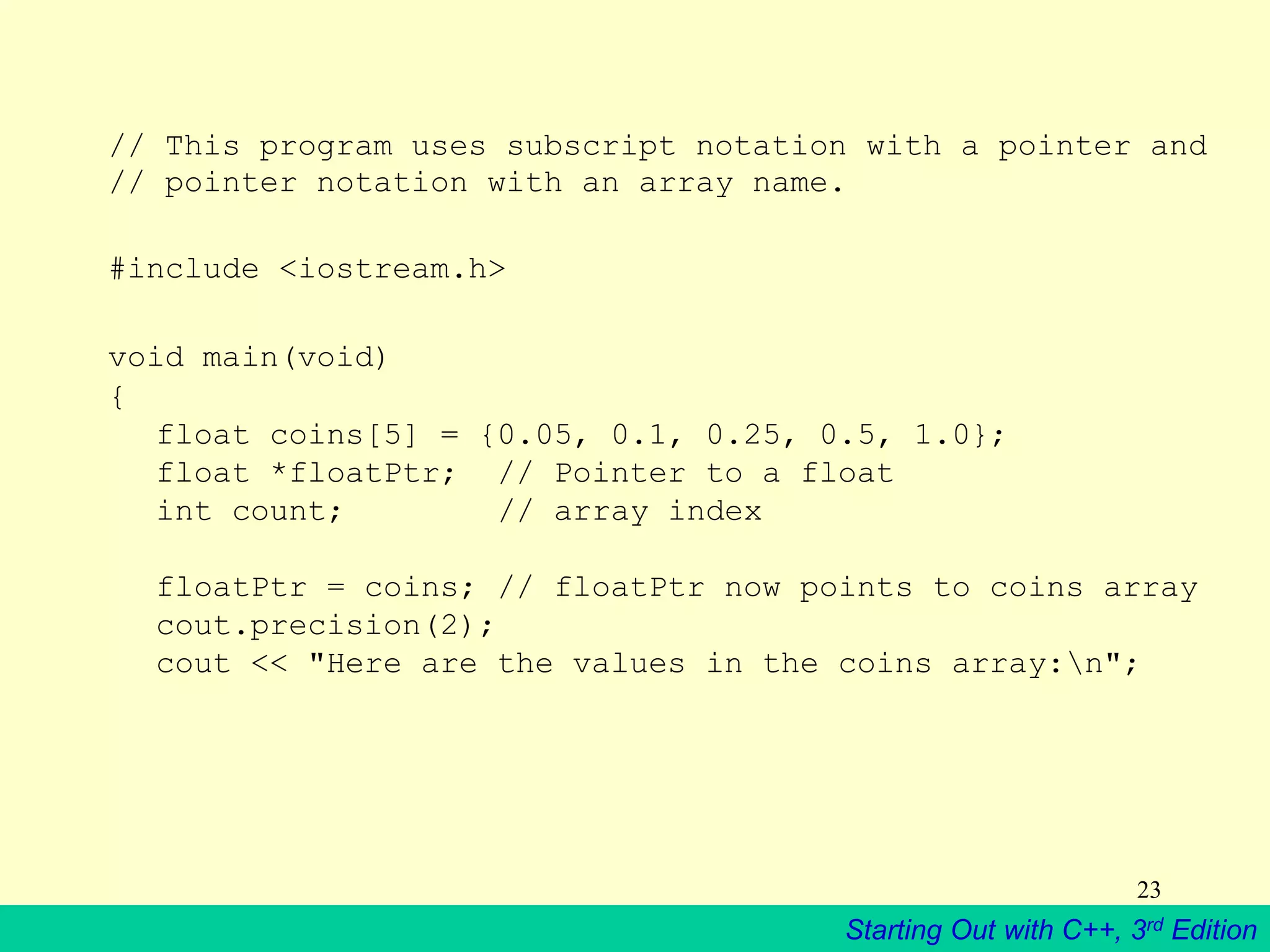

// This program uses subscript notation with a pointer and
// pointer notation with an array name.
void main(void)
{
float coins[5] = {0.05, 0.1, 0.25, 0.5, 1.0};
float *floatPtr; // Pointer to a float
int count; // array index
floatPtr = coins; // floatPtr now points to coins array
cout.precision(2);
cout << "Here are the values in the coins array:n";

24

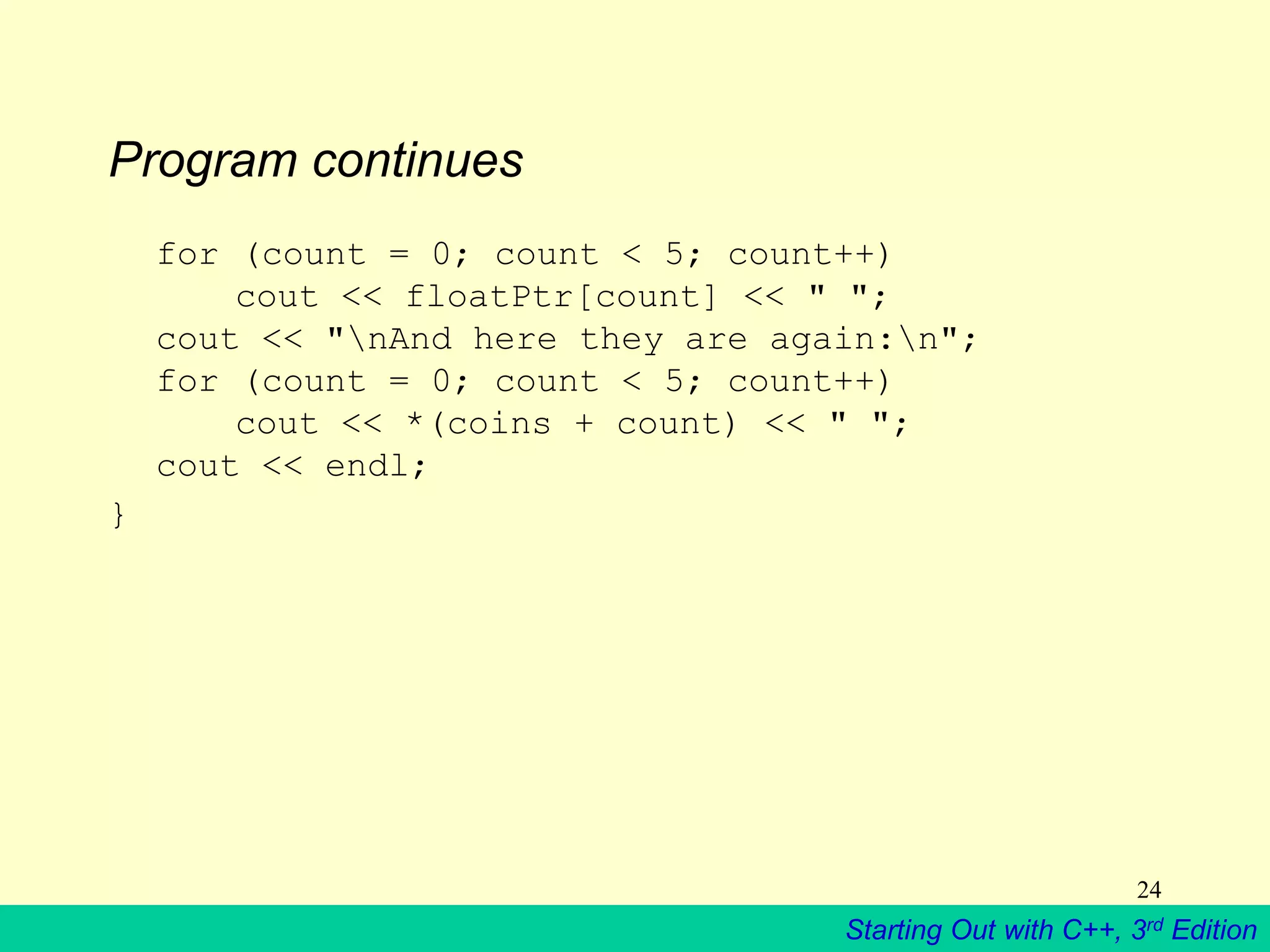

Program continues
for (count = 0; count < 5; count++)
cout << floatPtr[count] << " ";
cout << "nAnd here they are again:n";
cout << *(coins + count) << " ";
cout << endl;
}

25

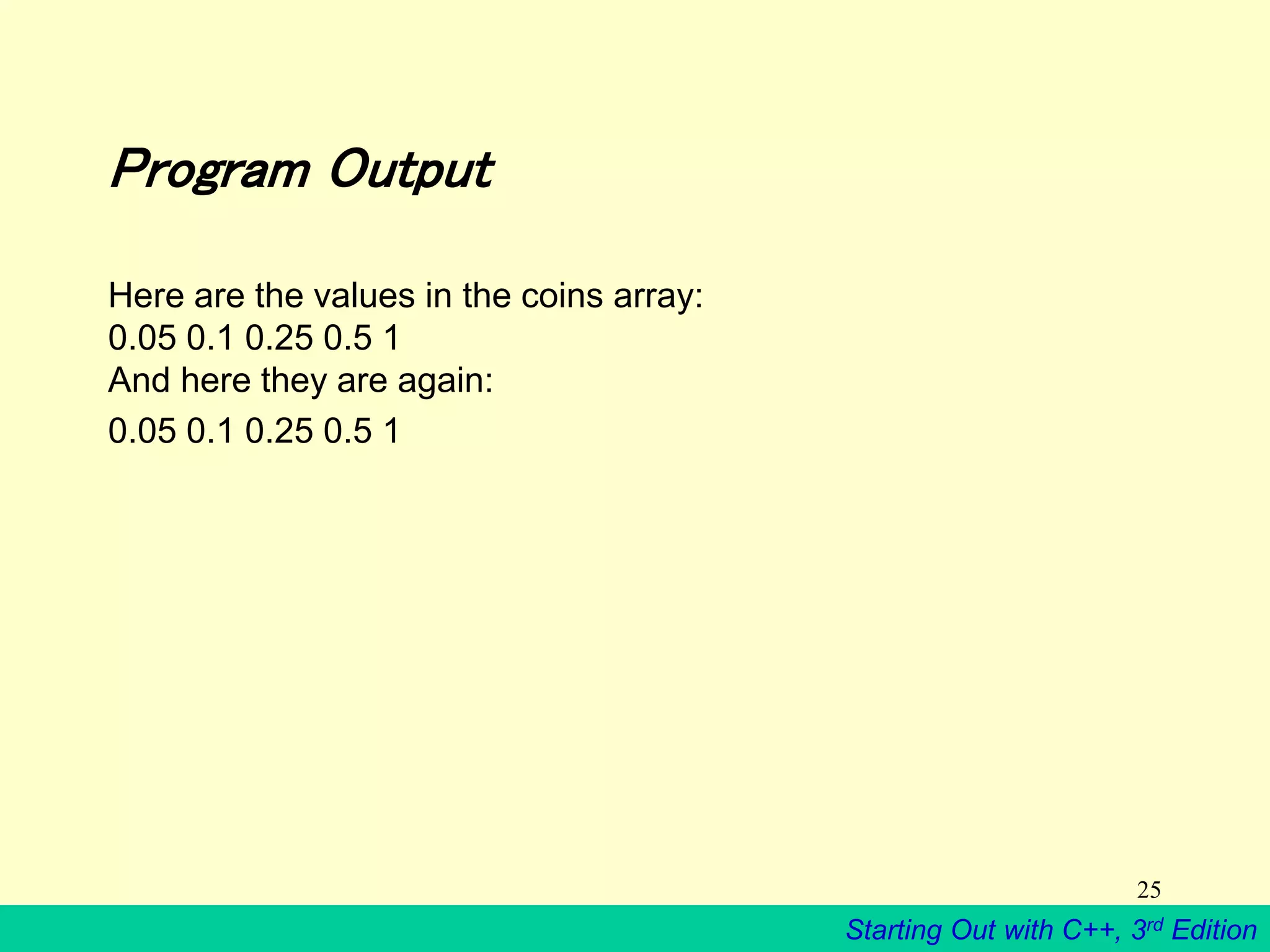

Program Output
Here are the values in the coins array:
0.05 0.1 0.25 0.5 1
And here they are again:
0.05 0.1 0.25 0.5 1

26
// This program uses the address of each element in
the array.
#include <iomanip.h>
void main(void)
{
float coins[5] = {0.05, 0.1, 0.25, 0.5, 1.0};
float *floatPtr; // Pointer to a float
int count; // array index
cout.precision(2);
cout << "Here are the values in the coins array:n";

27

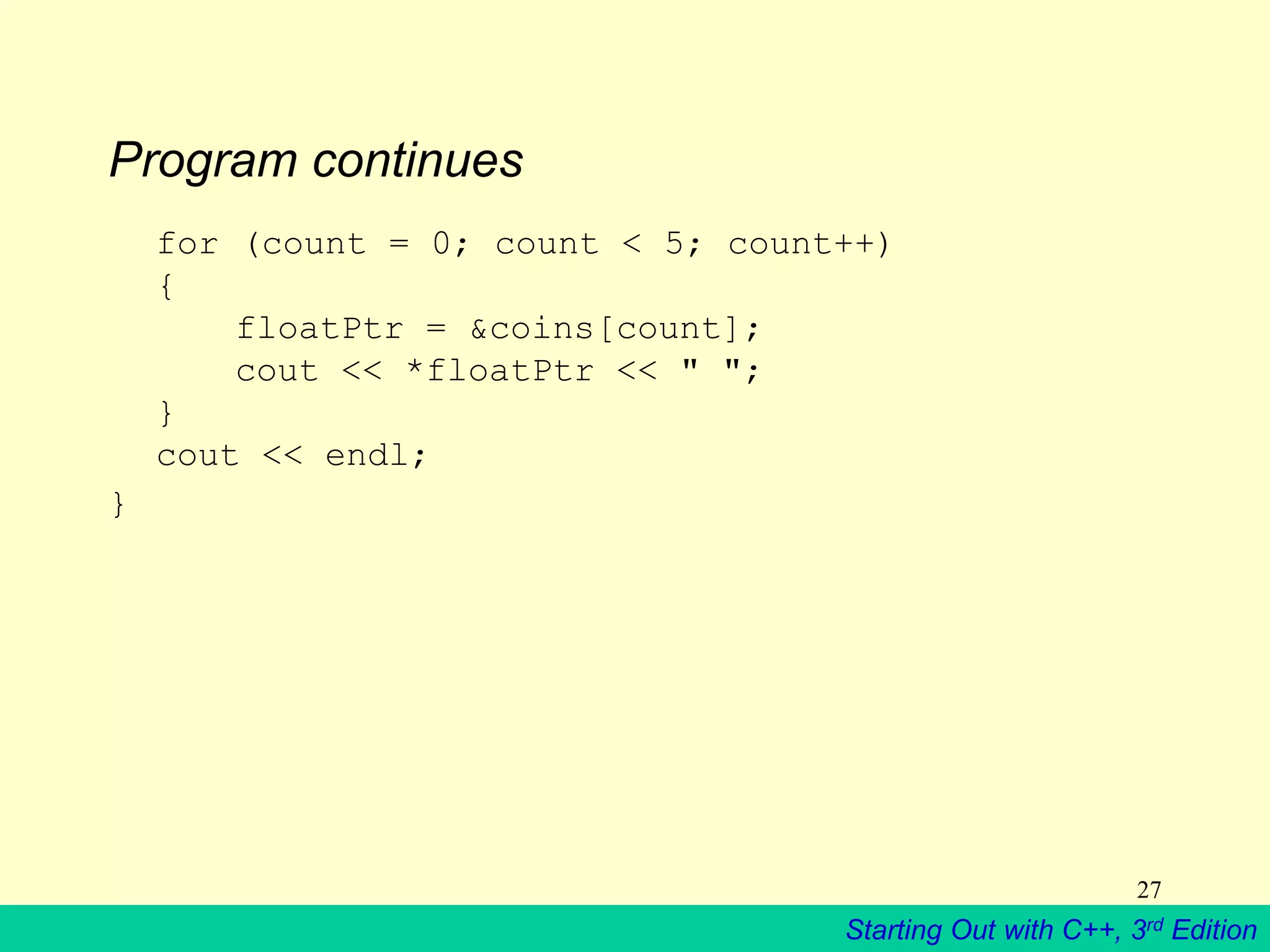

Program continues
{
floatPtr = &coins[count];
cout << *floatPtr << " ";
}
cout << endl;
}

28

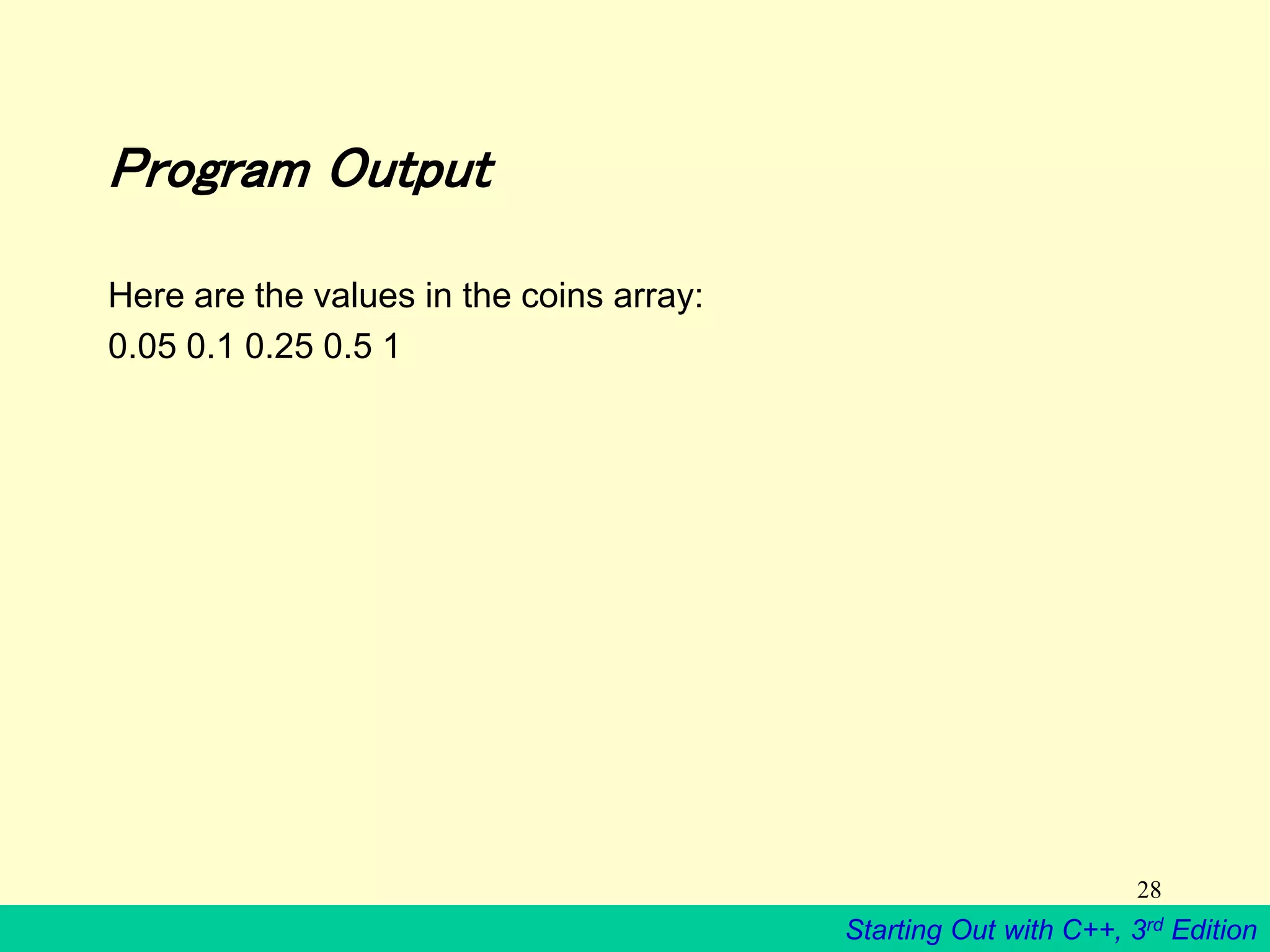

Program Output
Here are the values in the coins array:
0.05 0.1 0.25 0.5 1

29

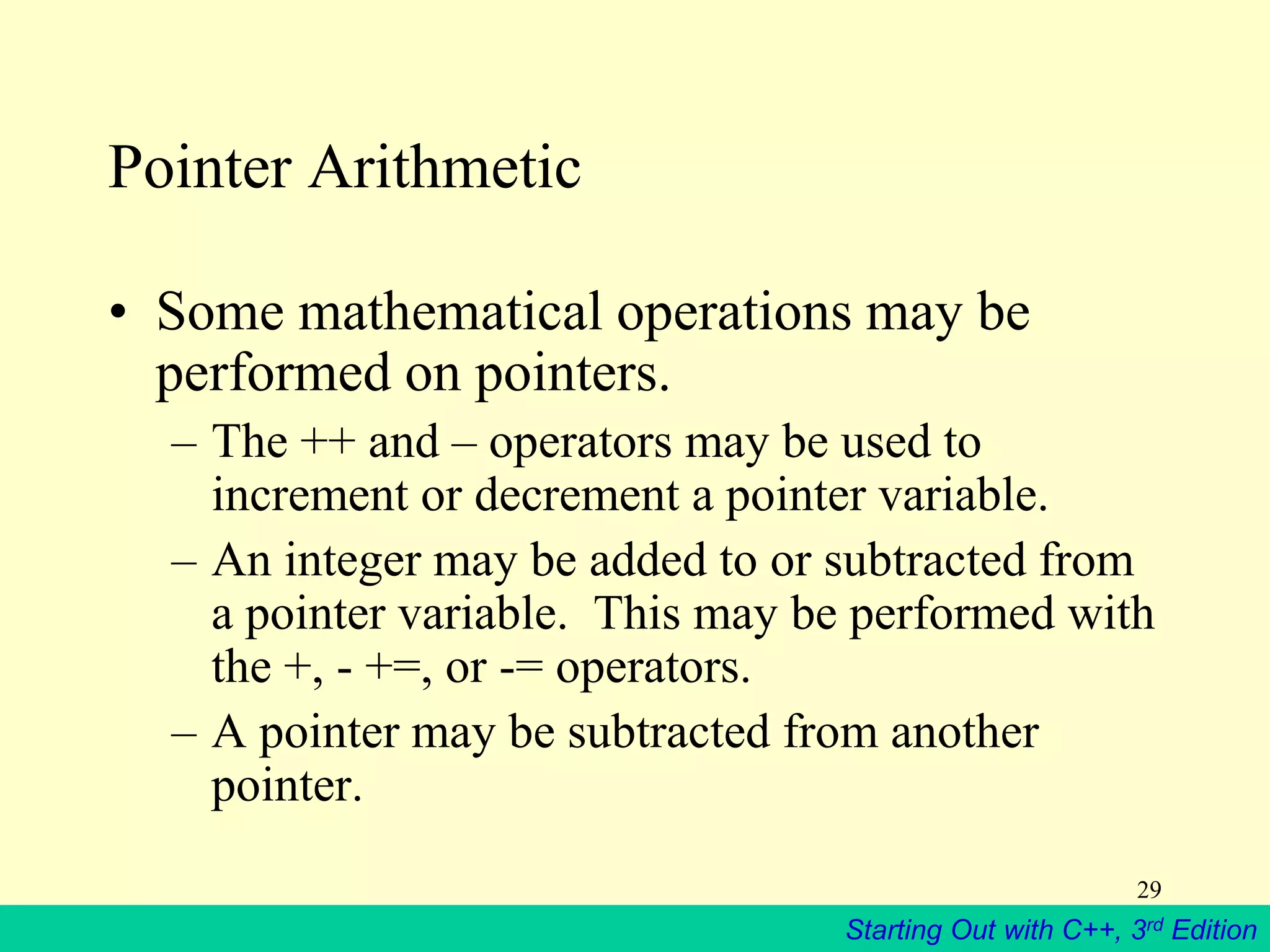

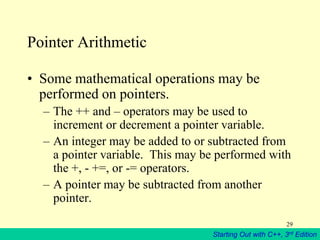

Pointer Arithmetic
• Some mathematical operations may be
performed on pointers.
– The ++ and – operators may be used to
increment or decrement a pointer variable.
– An integer may be added to or subtracted from
a pointer variable. This may be performed with
the +, - +=, or -= operators.
– A pointer may be subtracted from another
pointer.

30

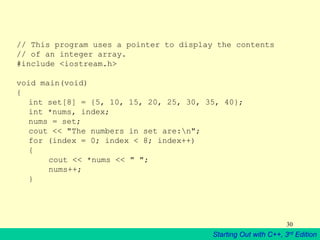

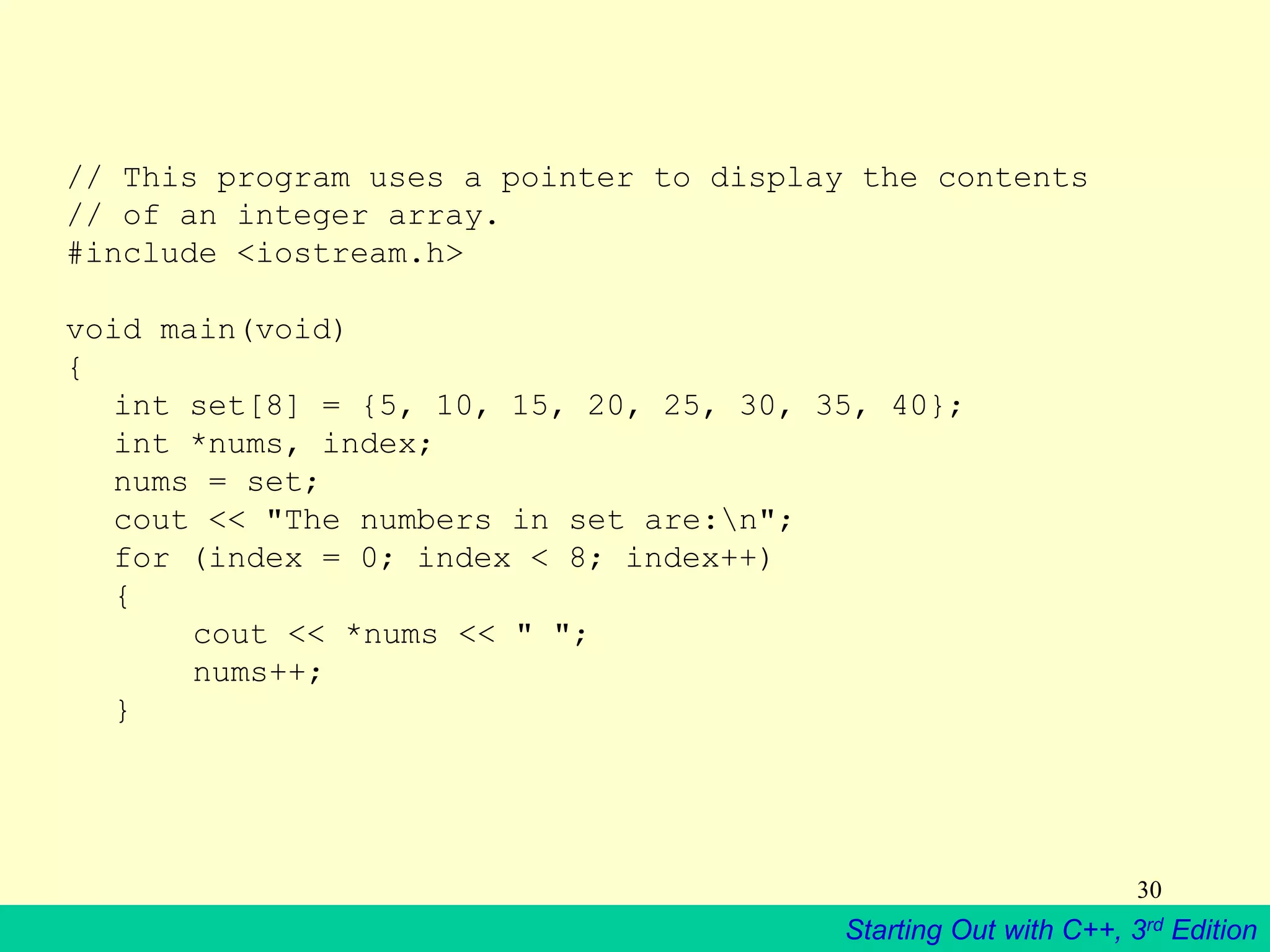

// This program uses a pointer to display the contents
// of an integer array.
void main(void)
{
int set[8] = {5, 10, 15, 20, 25, 30, 35, 40};
int *nums, index;
nums = set;
cout << "The numbers in set are:n";
for (index = 0; index < 8; index++)
{
cout << *nums << " ";
nums++;
}

31

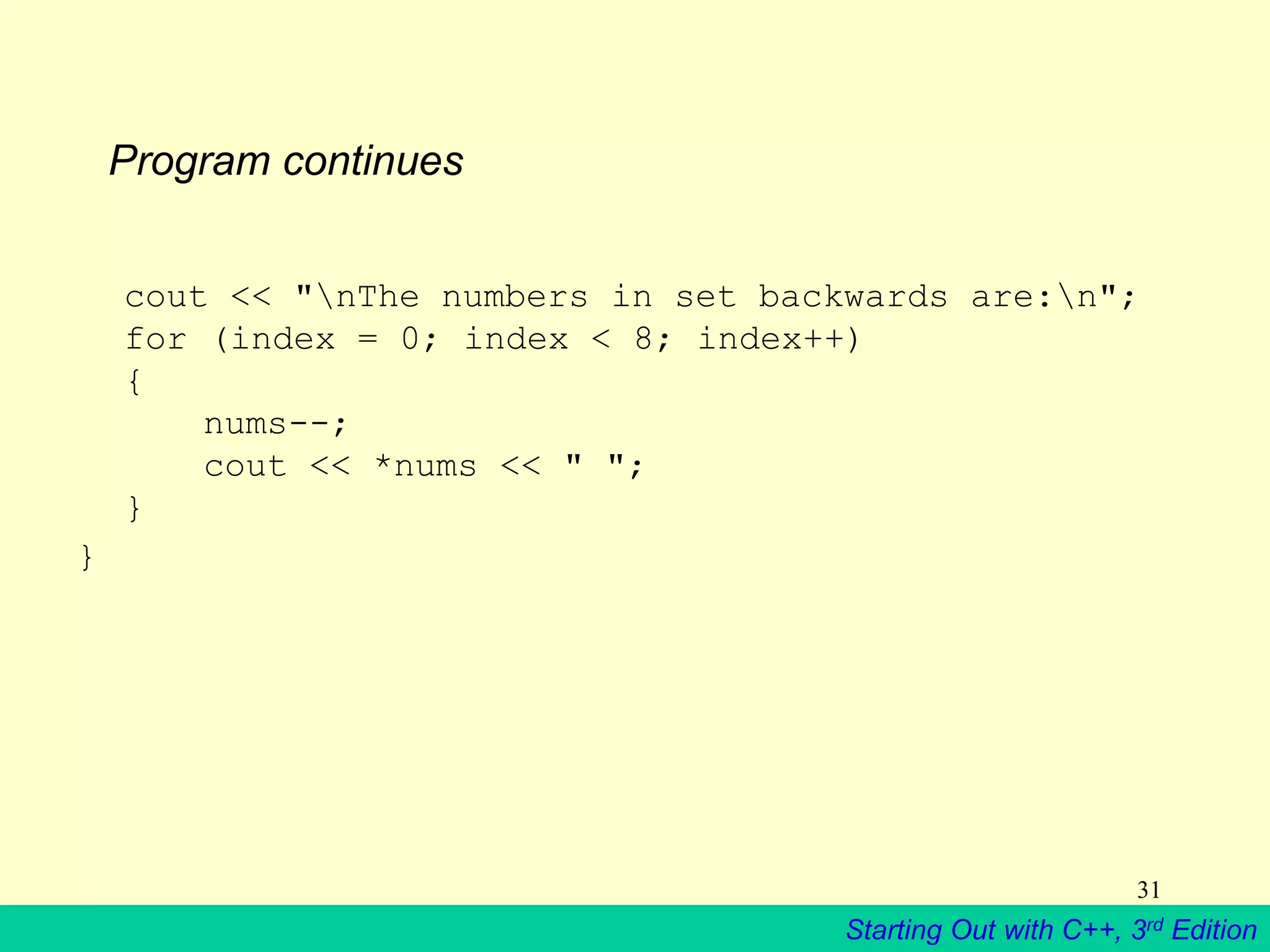

Program continues
cout << "nThe numbers in set backwards are:n";
for (index = 0; index < 8; index++)
{
nums--;
cout << *nums << " ";
}
}

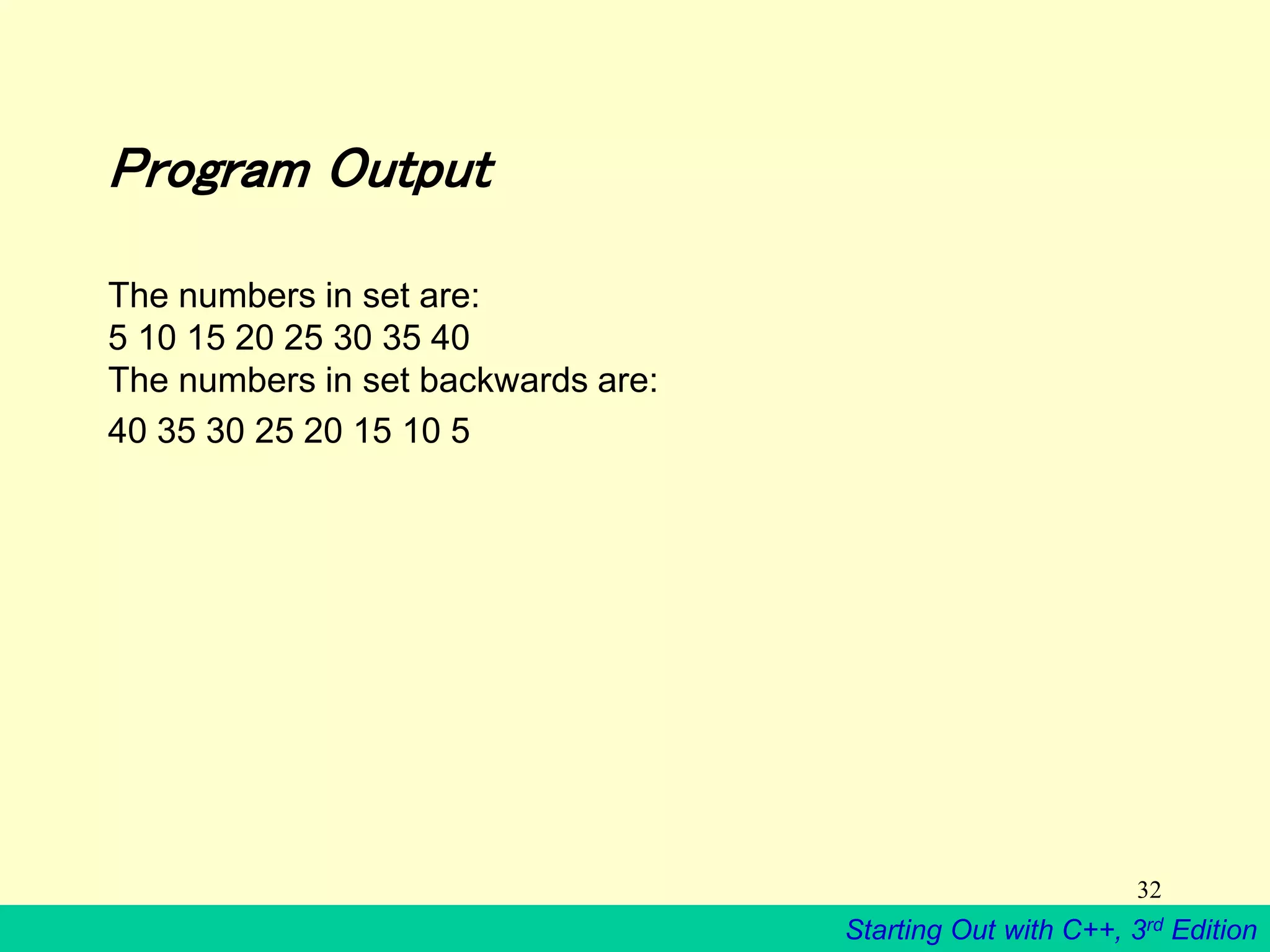

32

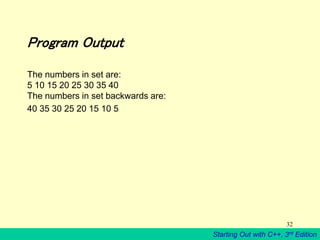

Program Output
The numbers in set are:
5 10 15 20 25 30 35 40
The numbers in set backwards are:
40 35 30 25 20 15 10 5

33

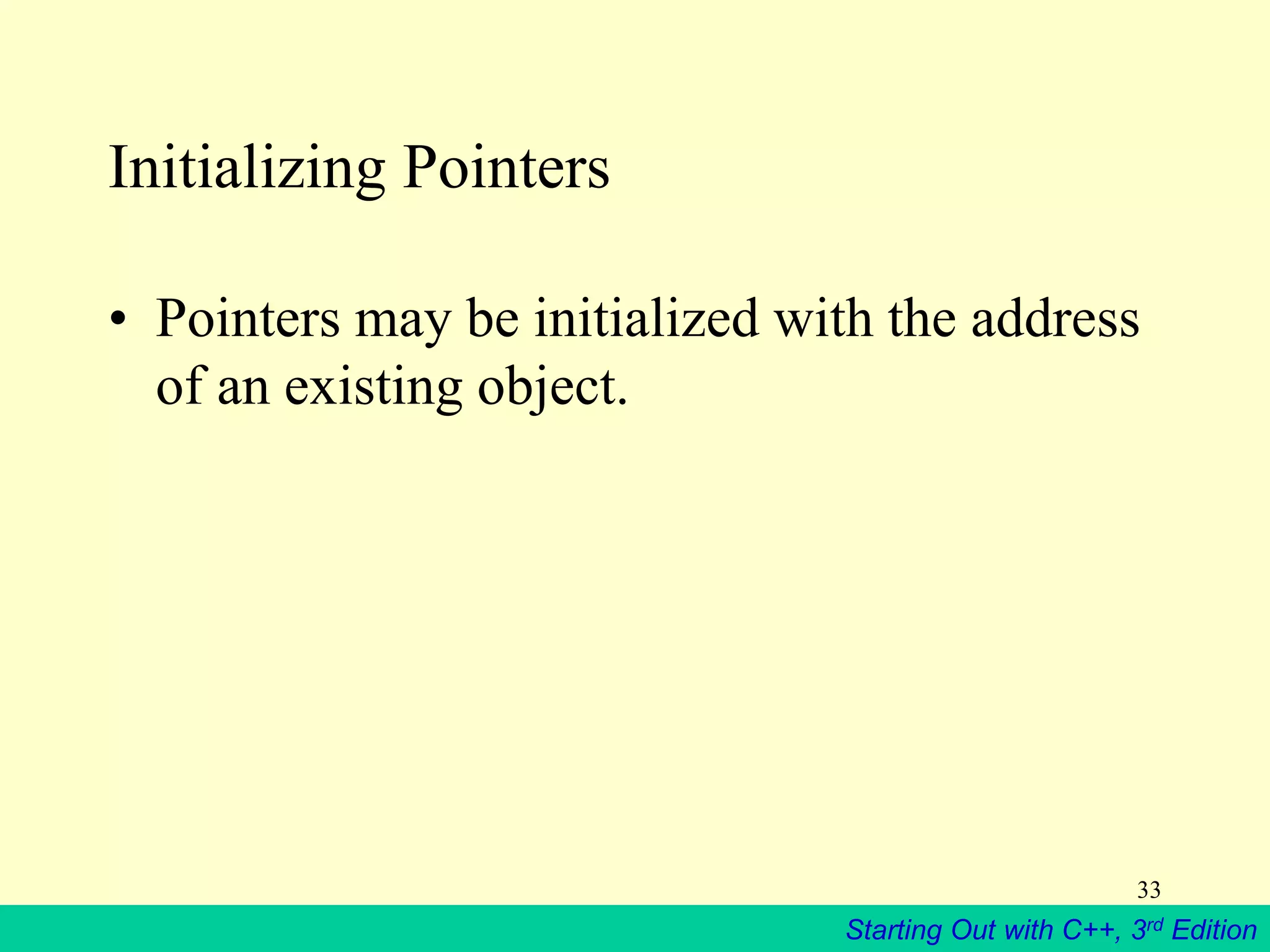

Initializing Pointers
• Pointers may be initialized with the address
of an existing object.

34

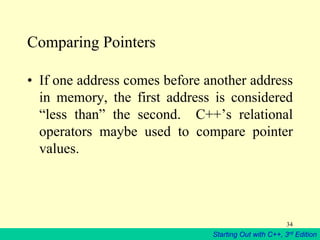

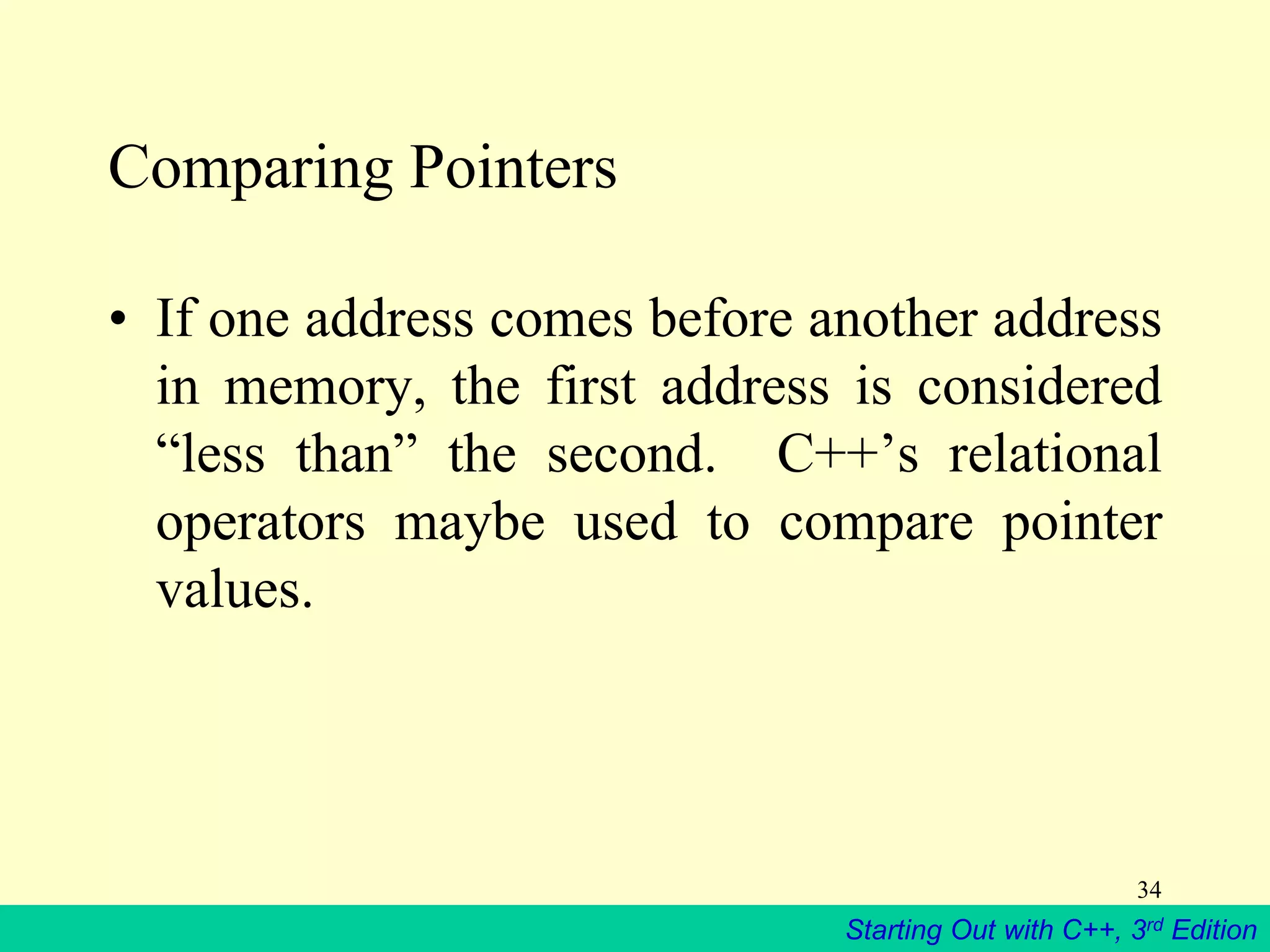

Comparing Pointers
• If one address comes before another address
in memory, the first address is considered
“less than” the second. C++’s relational
operators maybe used to compare pointer
values.

35

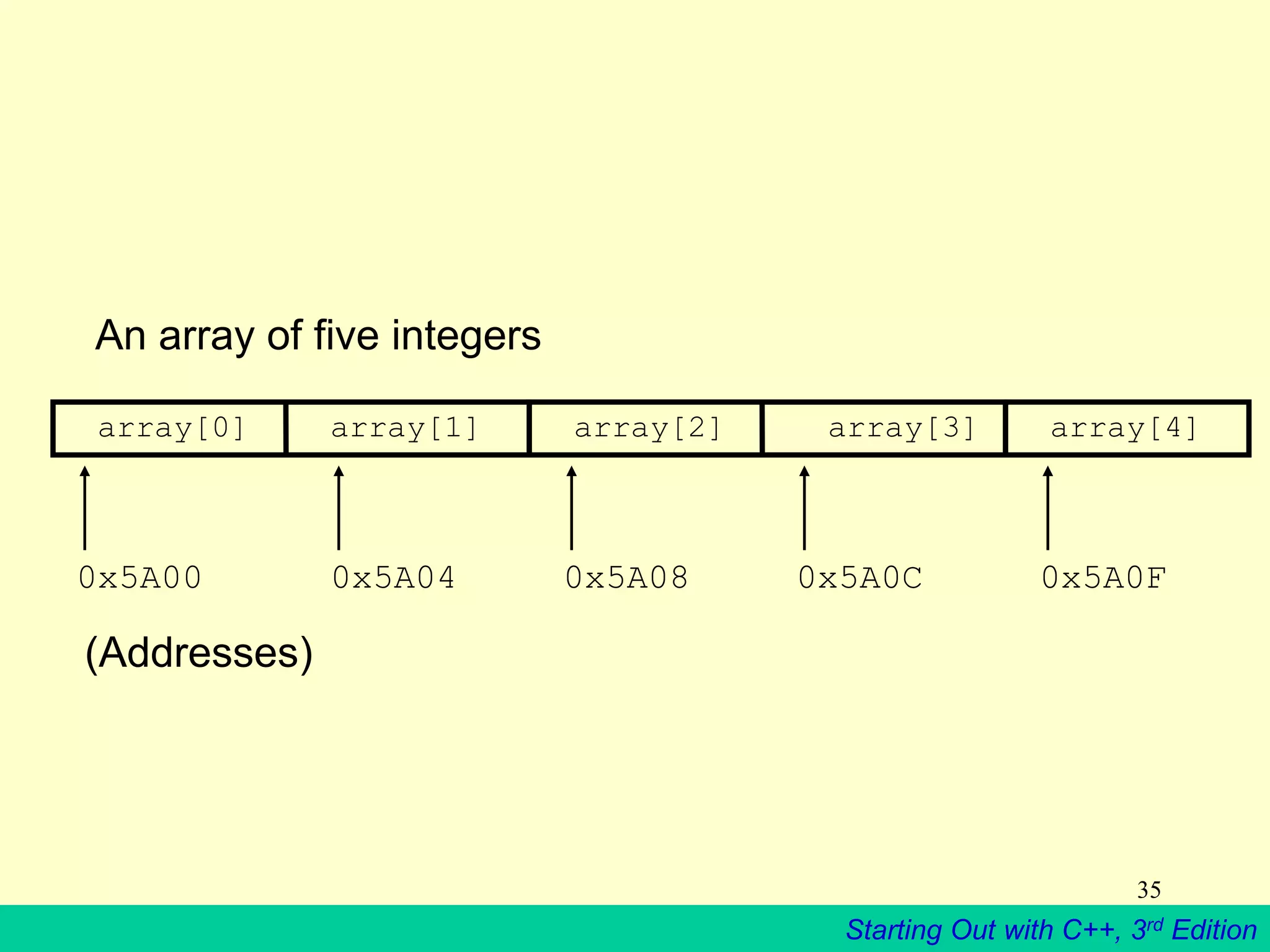

0x5A00
array[0] array[1] array[2] array[3] array[4]
0x5A04 0x5A08 0x5A0C 0x5A0F
(Addresses)
An array of five integers

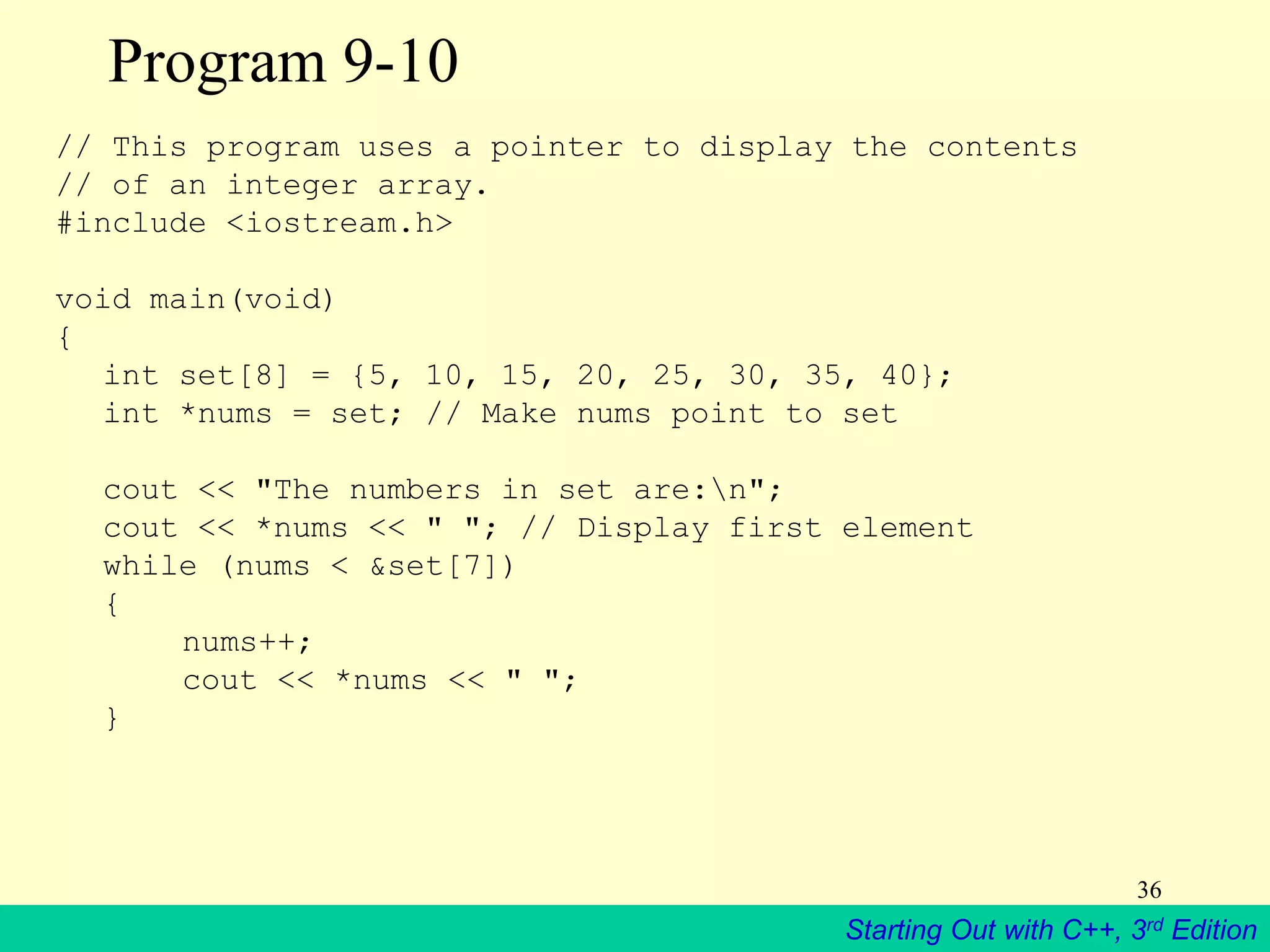

36

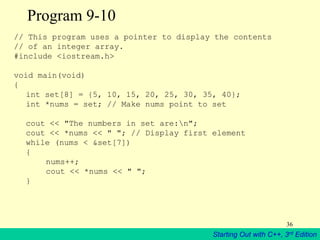

Program 9-10
// This program uses a pointer to display the contents
// of an integer array.
void main(void)
{
int set[8] = {5, 10, 15, 20, 25, 30, 35, 40};
int *nums = set; // Make nums point to set
cout << "The numbers in set are:n";
cout << *nums << " "; // Display first element
while (nums < &set[7])
{
nums++;
cout << *nums << " ";
}

37
Program continues

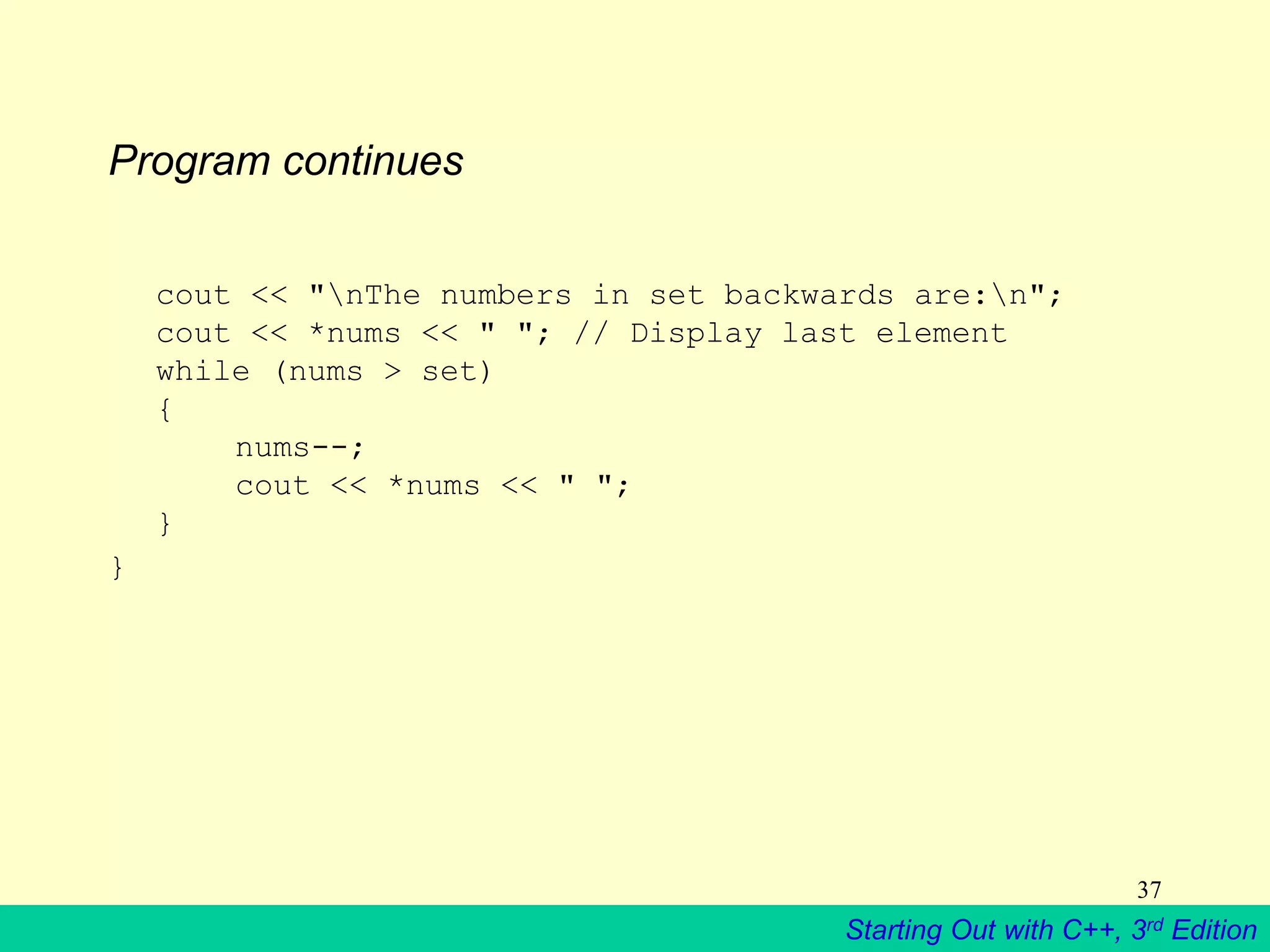

cout << "nThe numbers in set backwards are:n";
cout << *nums << " "; // Display last element
while (nums > set)
{
nums--;
cout << *nums << " ";
}
}

38

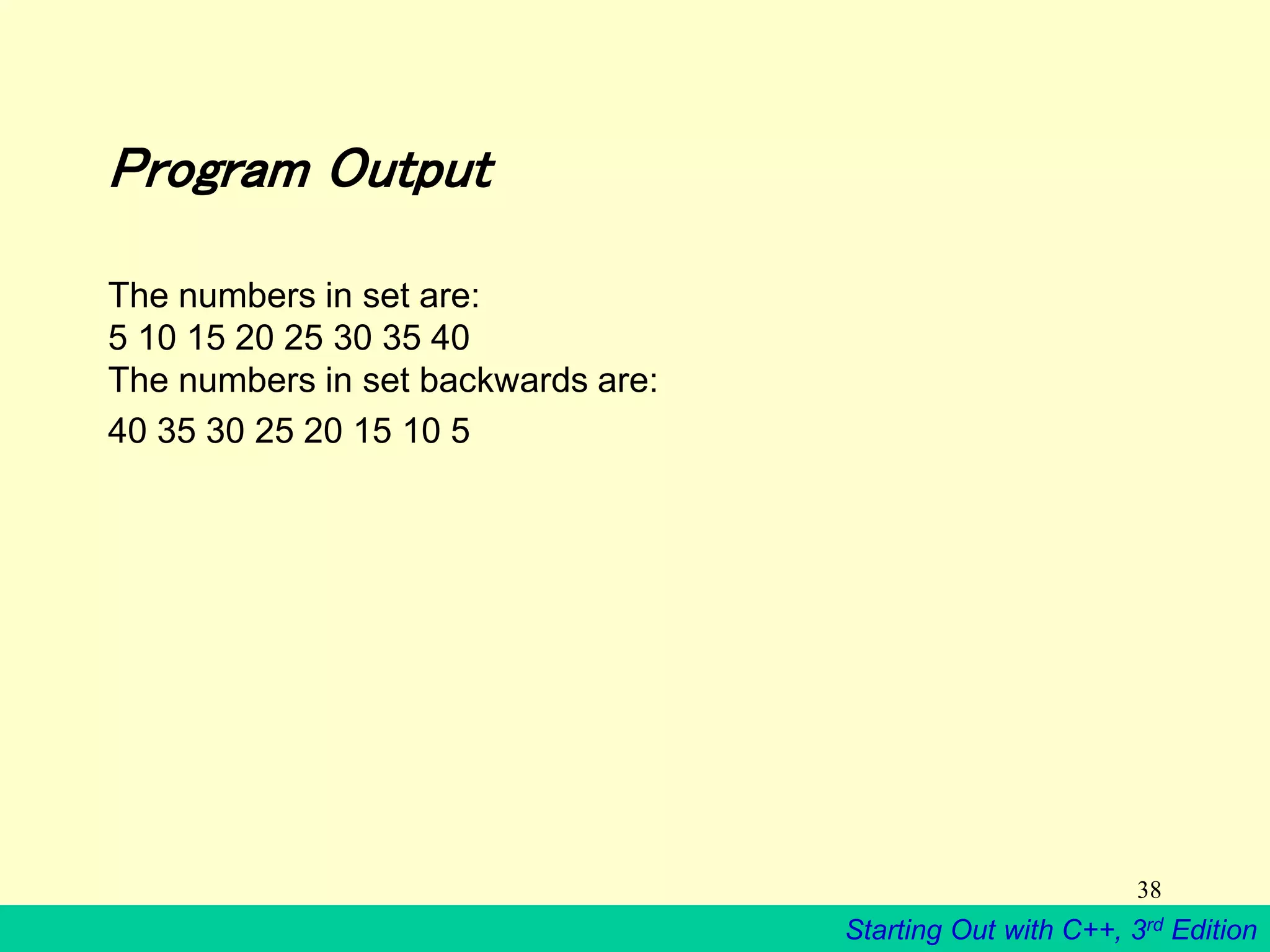

Program Output
The numbers in set are:
5 10 15 20 25 30 35 40
The numbers in set backwards are:
40 35 30 25 20 15 10 5

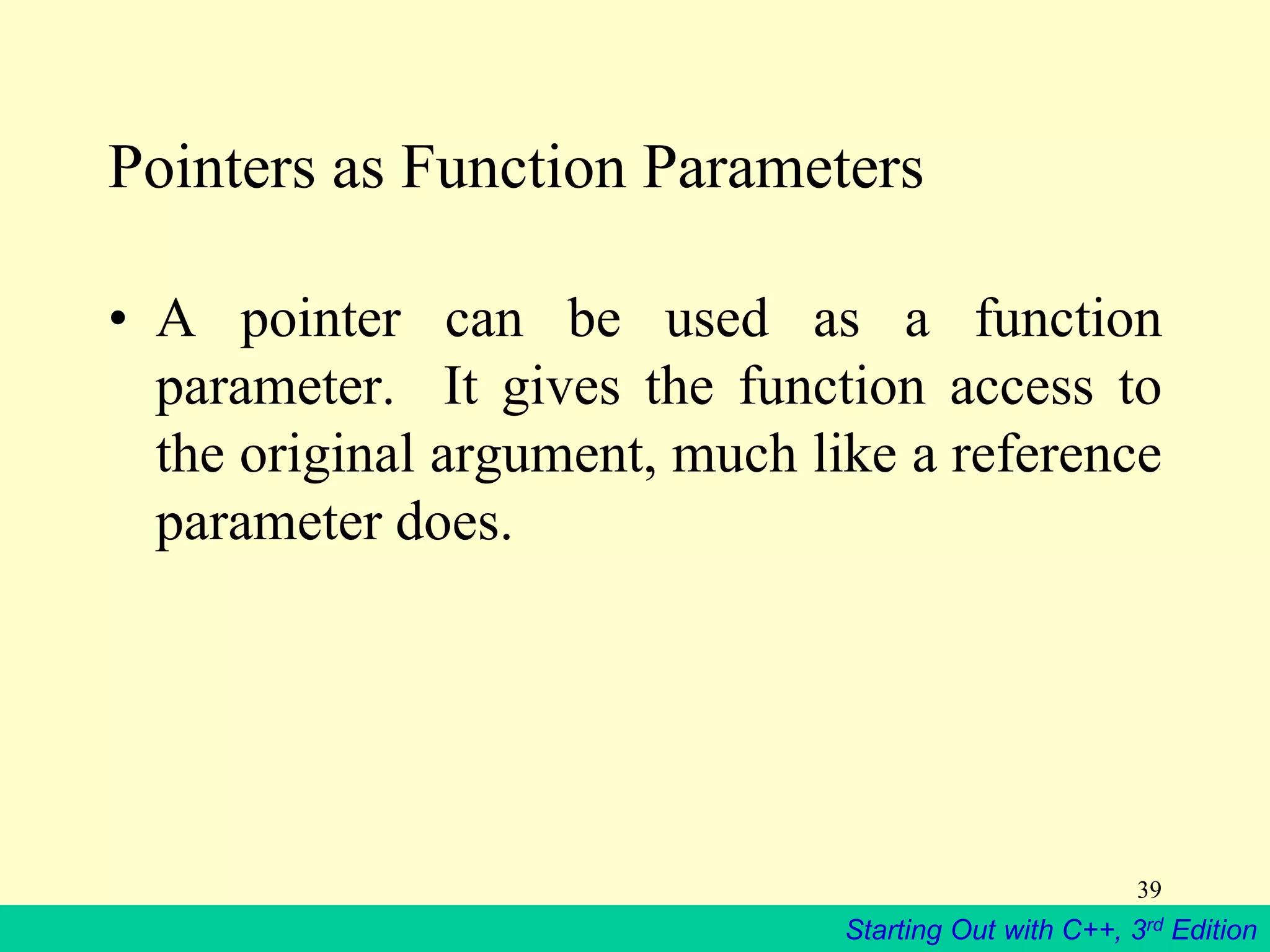

39

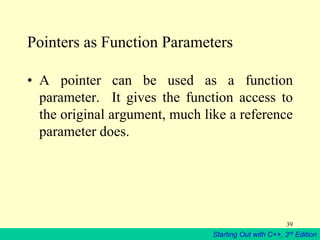

Pointers as Function Parameters
• A pointer can be used as a function
parameter. It gives the function access to
the original argument, much like a reference
parameter does.

40

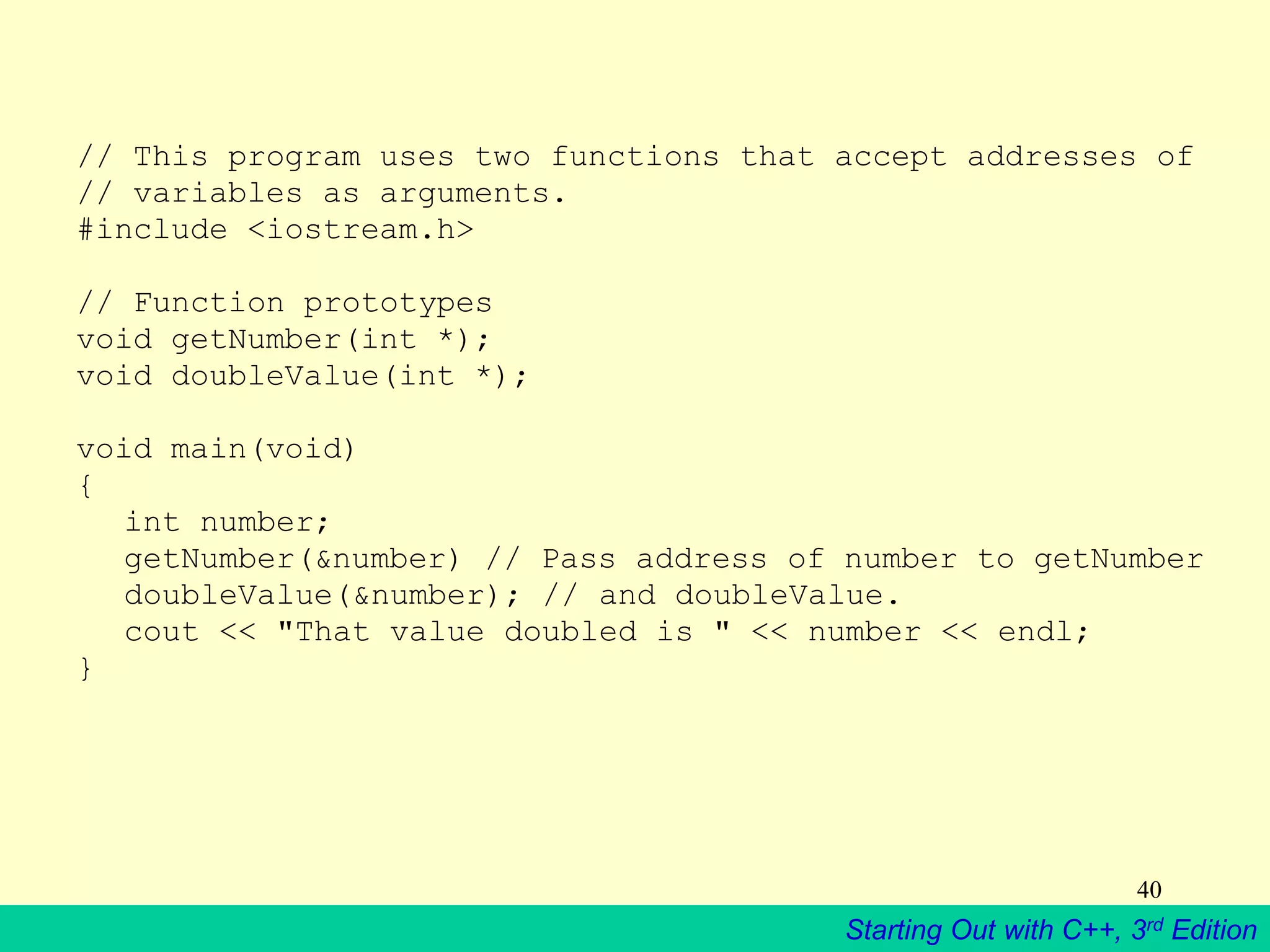

// This program uses two functions that accept addresses of
// variables as arguments.
// Function prototypes
void getNumber(int *);
void doubleValue(int *);
void main(void)
{
int number;
getNumber(&number) // Pass address of number to getNumber
doubleValue(&number); // and doubleValue.
cout << "That value doubled is " << number << endl;
}

41

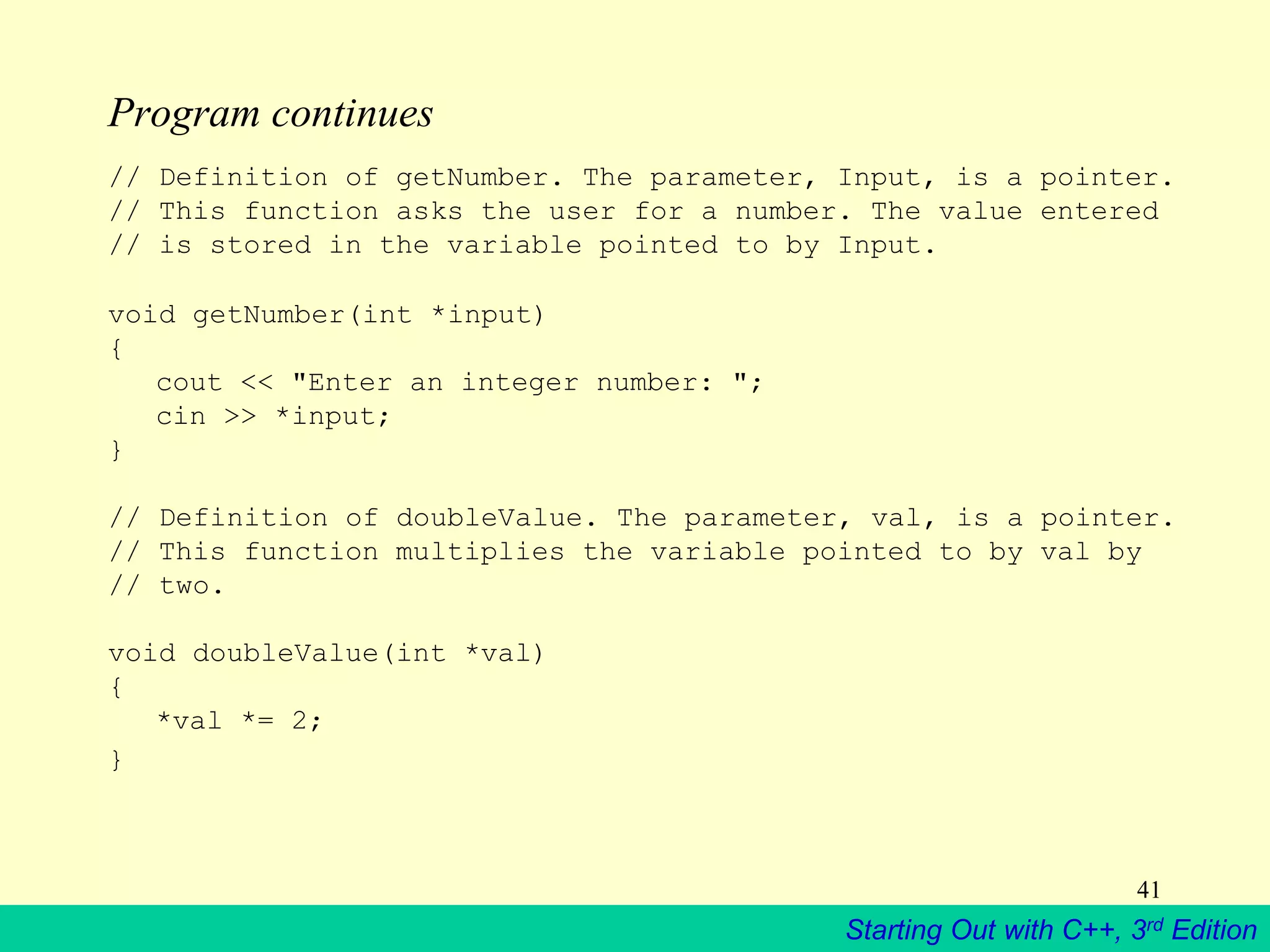

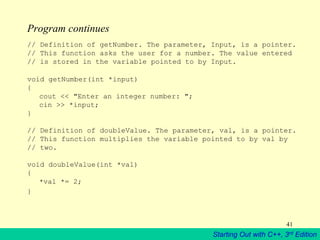

Program continues
// Definition of getNumber. The parameter, Input, is a pointer.
// This function asks the user for a number. The value entered
// is stored in the variable pointed to by Input.
void getNumber(int *input)
{
cout << "Enter an integer number: ";
cin >> *input;
}
// Definition of doubleValue. The parameter, val, is a pointer.
// This function multiplies the variable pointed to by val by
// two.
void doubleValue(int *val)
{
*val *= 2;
}

42

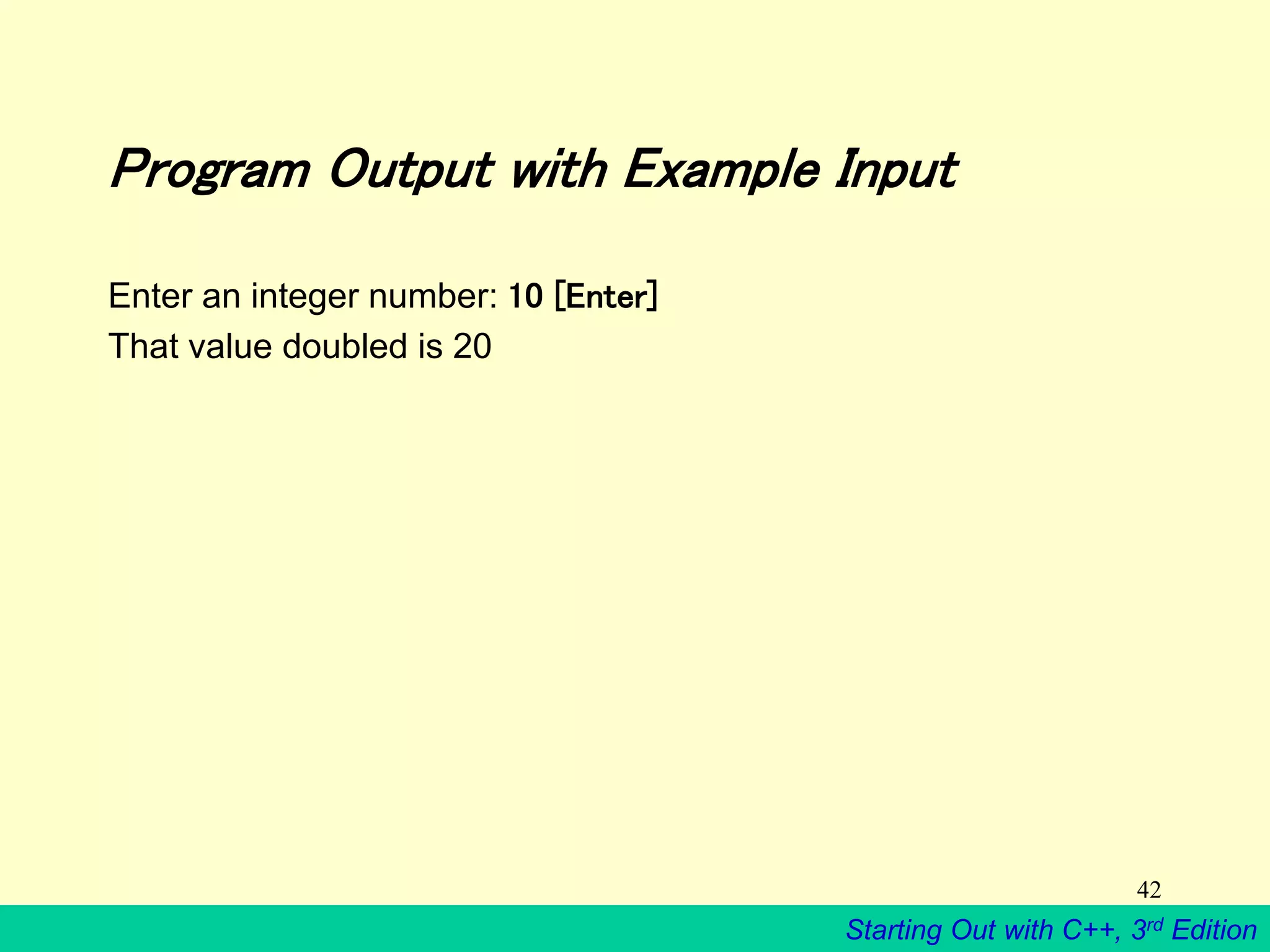

Enter an integer number: 10 [Enter]
That value doubled is 20

43

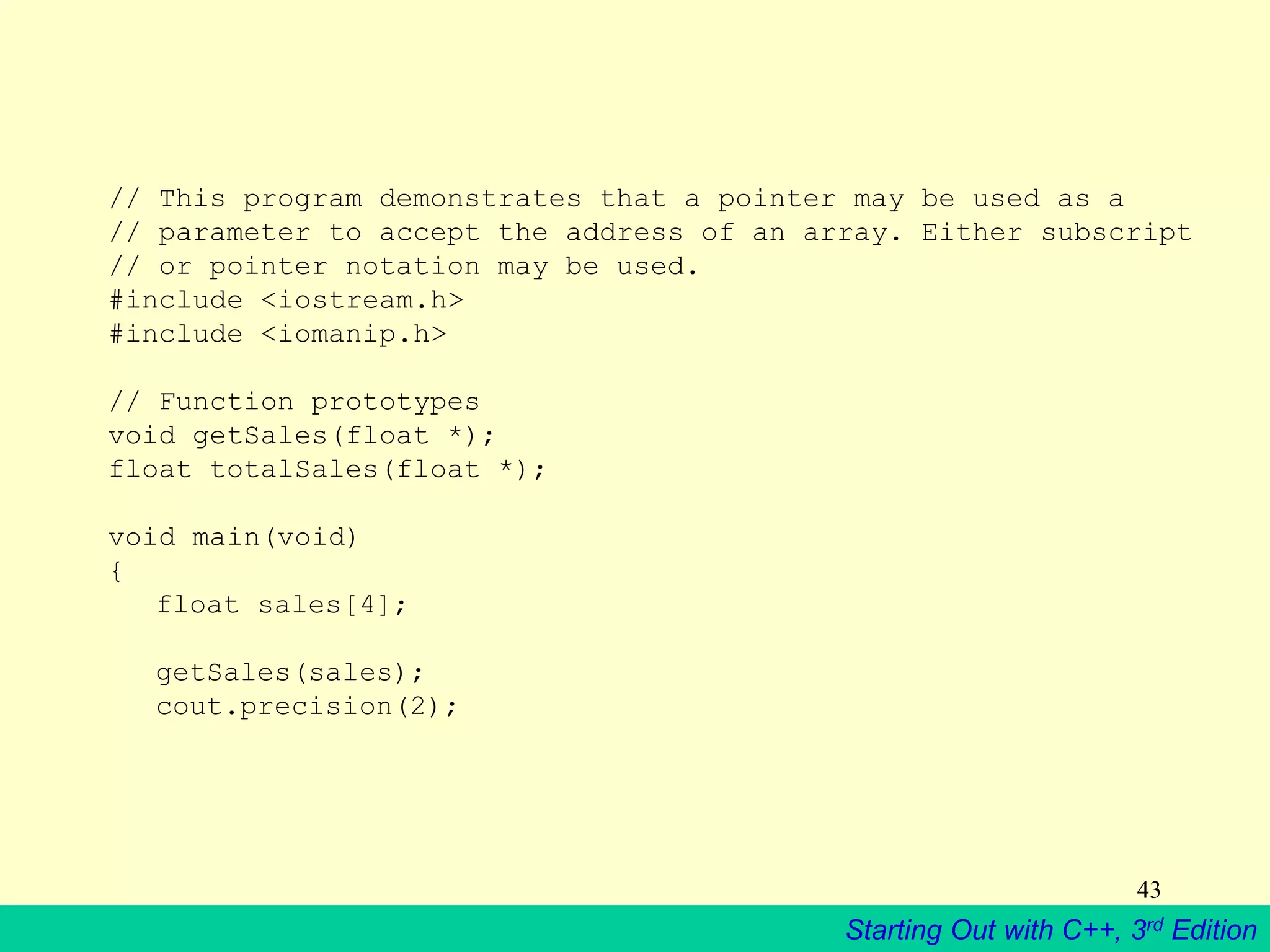

// This program demonstrates that a pointer may be used as a
// parameter to accept the address of an array. Either subscript
// or pointer notation may be used.
// Function prototypes
void getSales(float *);
float totalSales(float *);
void main(void)
{
float sales[4];
getSales(sales);
cout.precision(2);

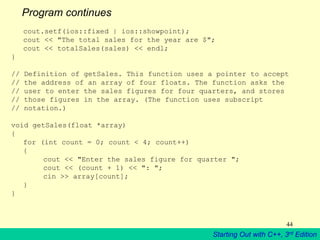

44

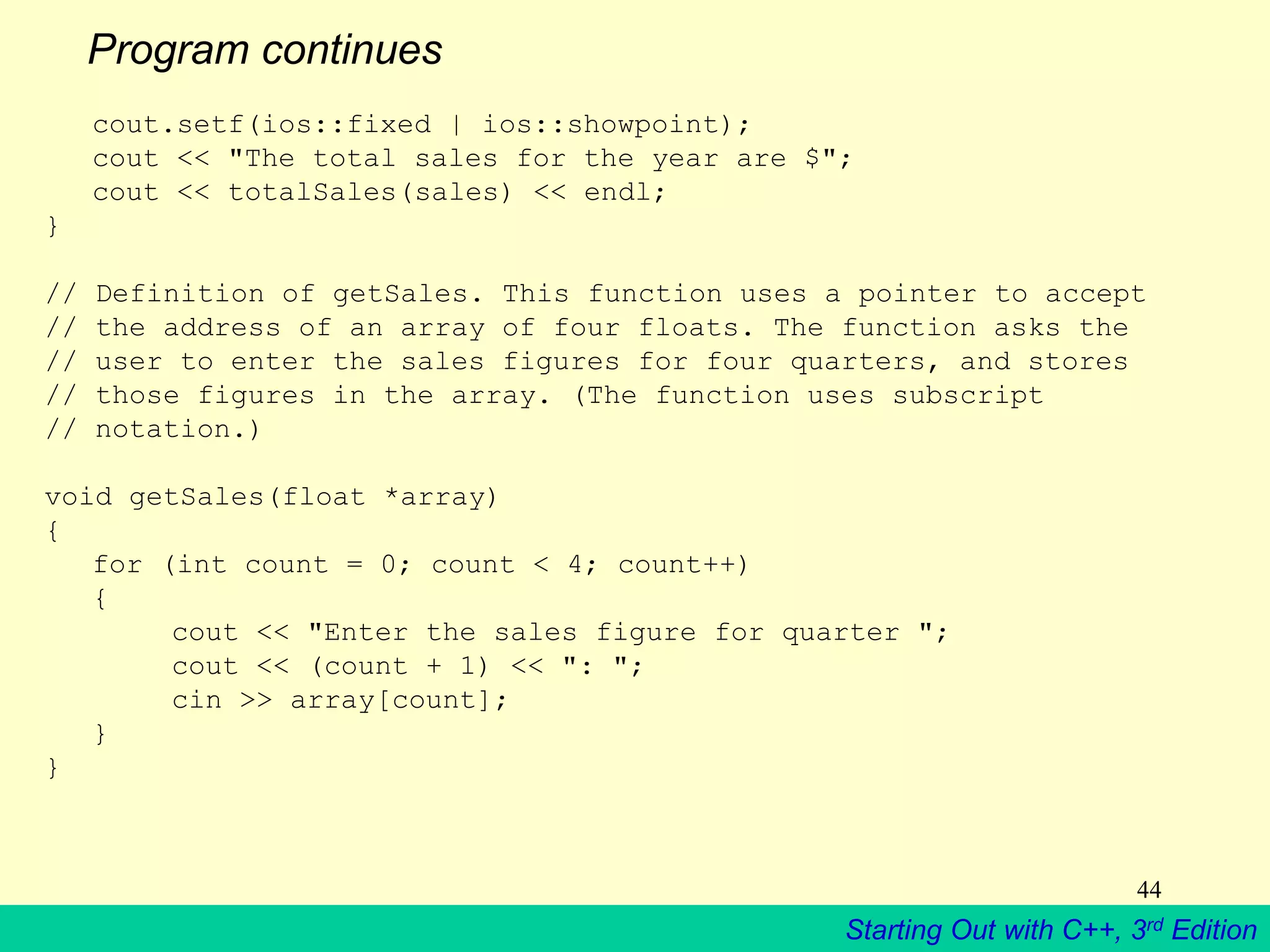

Program continues
cout.setf(ios::fixed | ios::showpoint);
cout << "The total sales for the year are $";
cout << totalSales(sales) << endl;
}
// Definition of getSales. This function uses a pointer to accept
// the address of an array of four floats. The function asks the
// user to enter the sales figures for four quarters, and stores
// those figures in the array. (The function uses subscript
// notation.)
void getSales(float *array)
{
{
cout << "Enter the sales figure for quarter ";
cout << (count + 1) << ": ";
cin >> array[count];
}
}

45

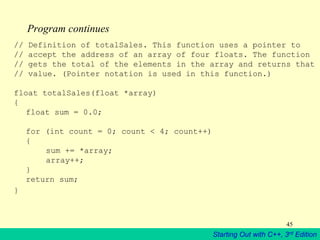

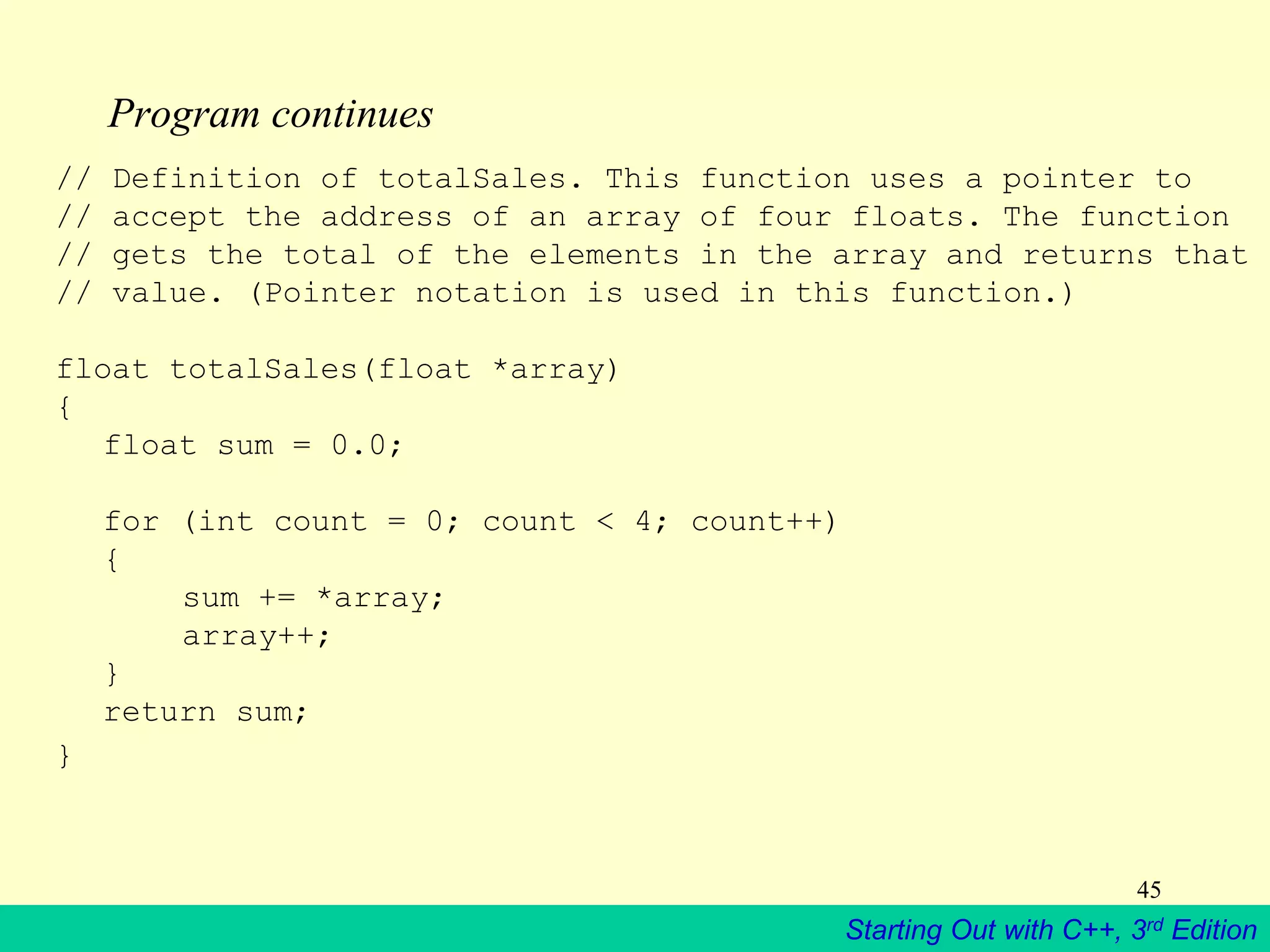

Program continues
// Definition of totalSales. This function uses a pointer to
// accept the address of an array of four floats. The function
// gets the total of the elements in the array and returns that
// value. (Pointer notation is used in this function.)
float totalSales(float *array)
{
float sum = 0.0;
{
sum += *array;
array++;
}
return sum;
}

46

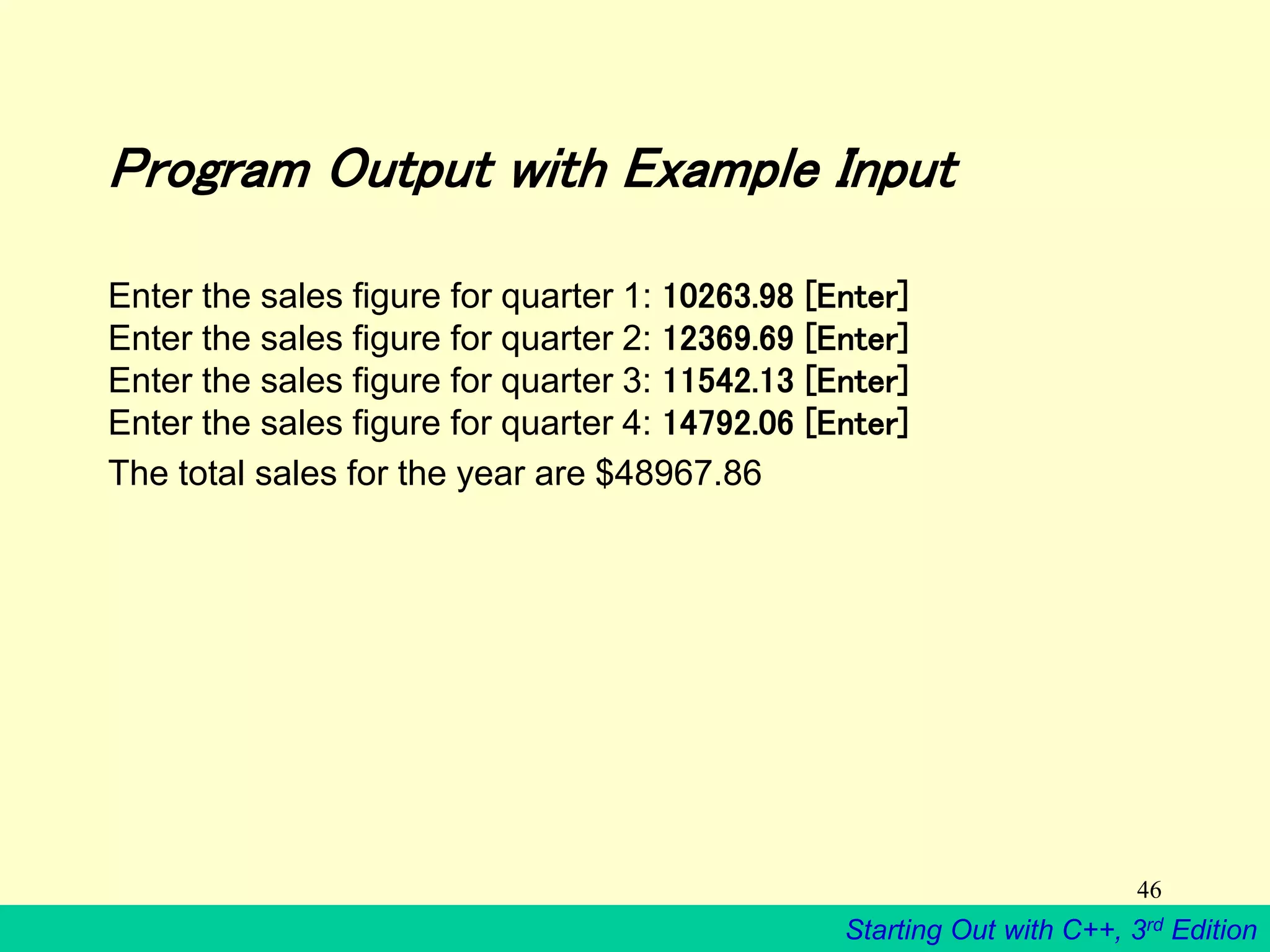

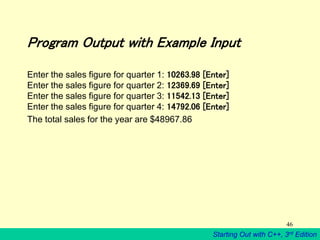

Enter the sales figure for quarter 1: 10263.98 [Enter]
The total sales for the year are $48967.86

47

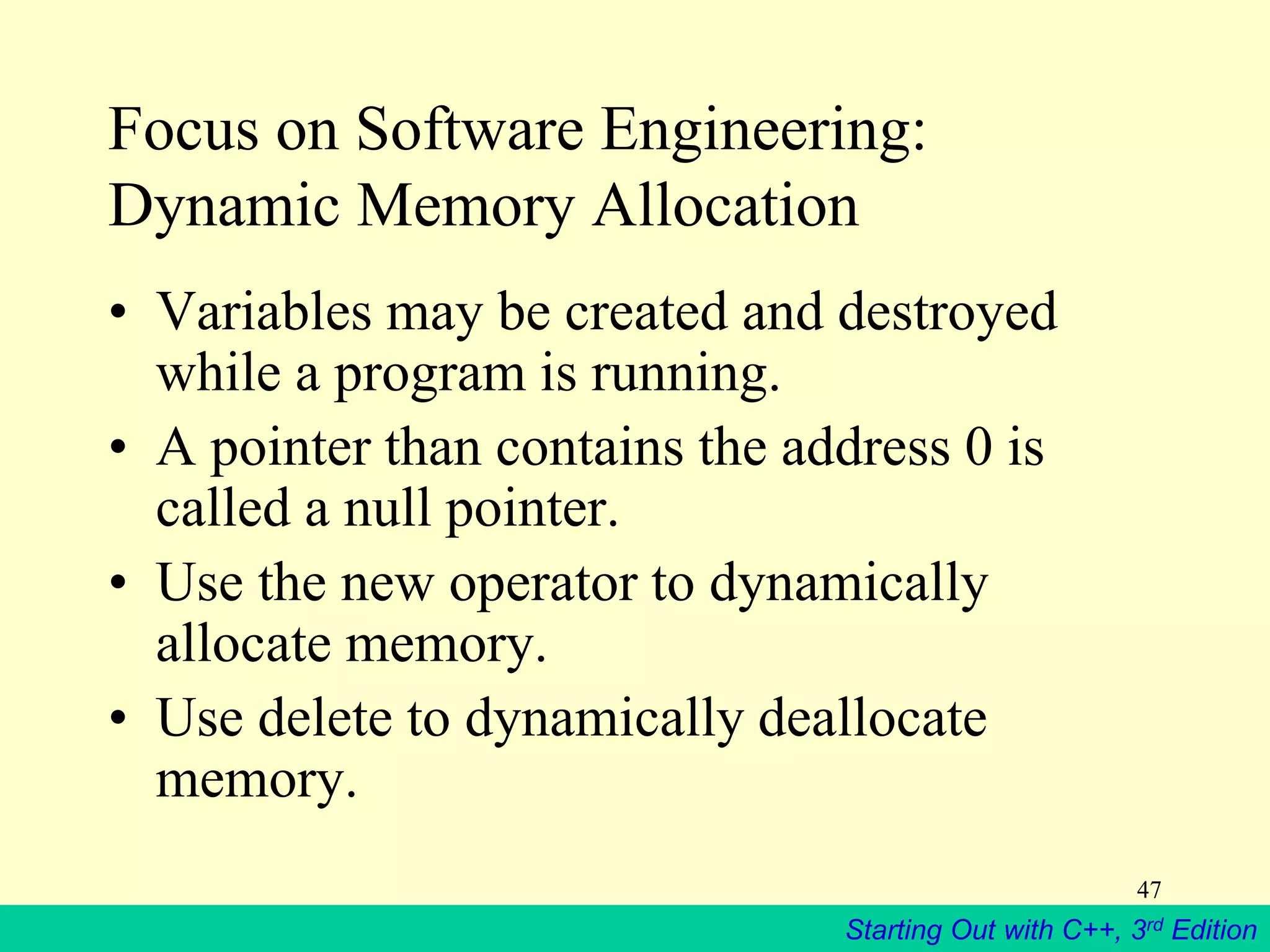

Focus on Software Engineering:
Dynamic Memory Allocation
• Variables may be created and destroyed
while a program is running.
• A pointer than contains the address 0 is
called a null pointer.
• Use the new operator to dynamically
allocate memory.
• Use delete to dynamically deallocate
memory.

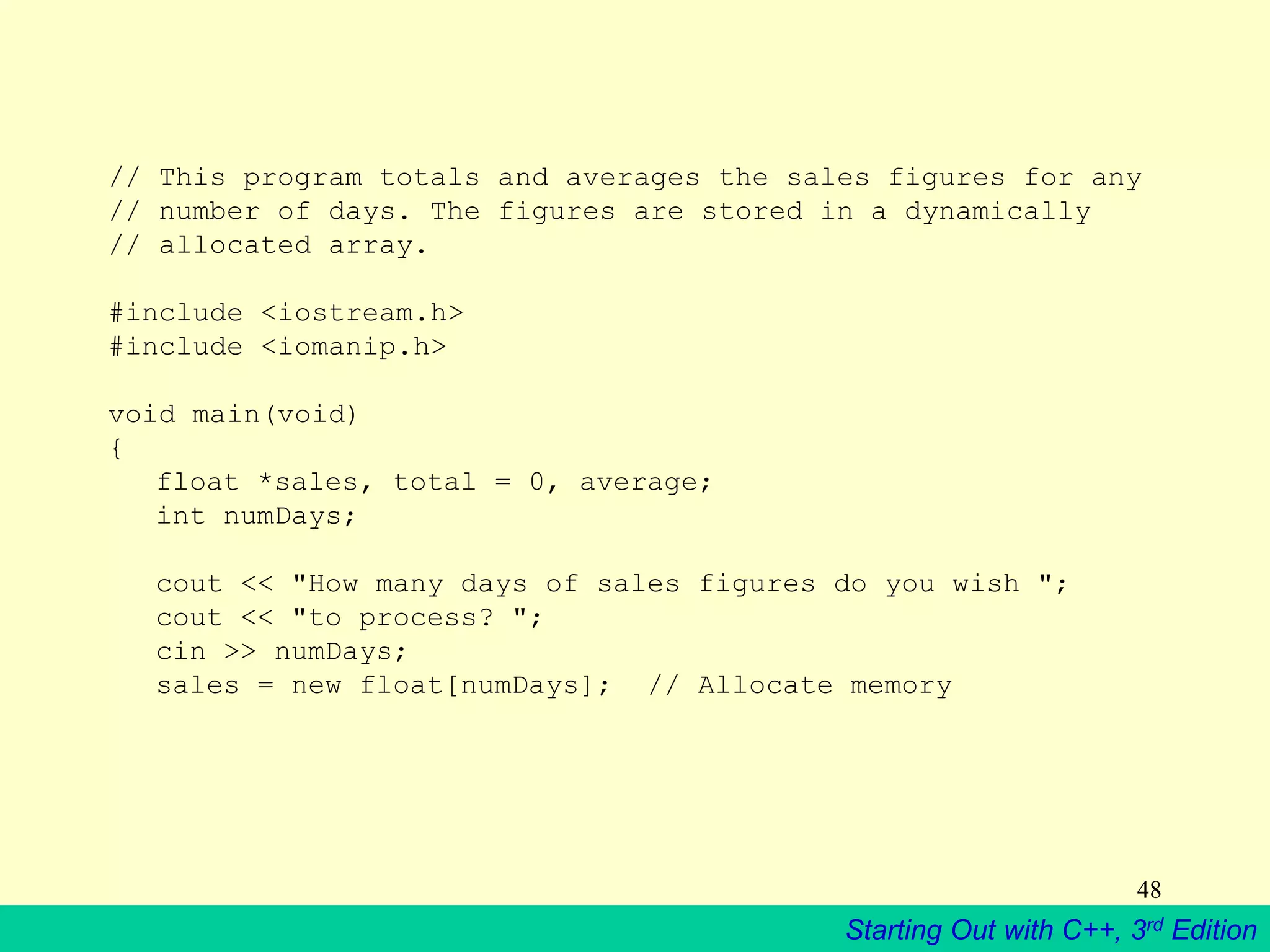

48
// This program totals and averages the sales figures for any
// number of days. The figures are stored in a dynamically
// allocated array.
void main(void)
{
float *sales, total = 0, average;
int numDays;
cout << "How many days of sales figures do you wish ";
cout << "to process? ";
cin >> numDays;
sales = new float[numDays]; // Allocate memory

49

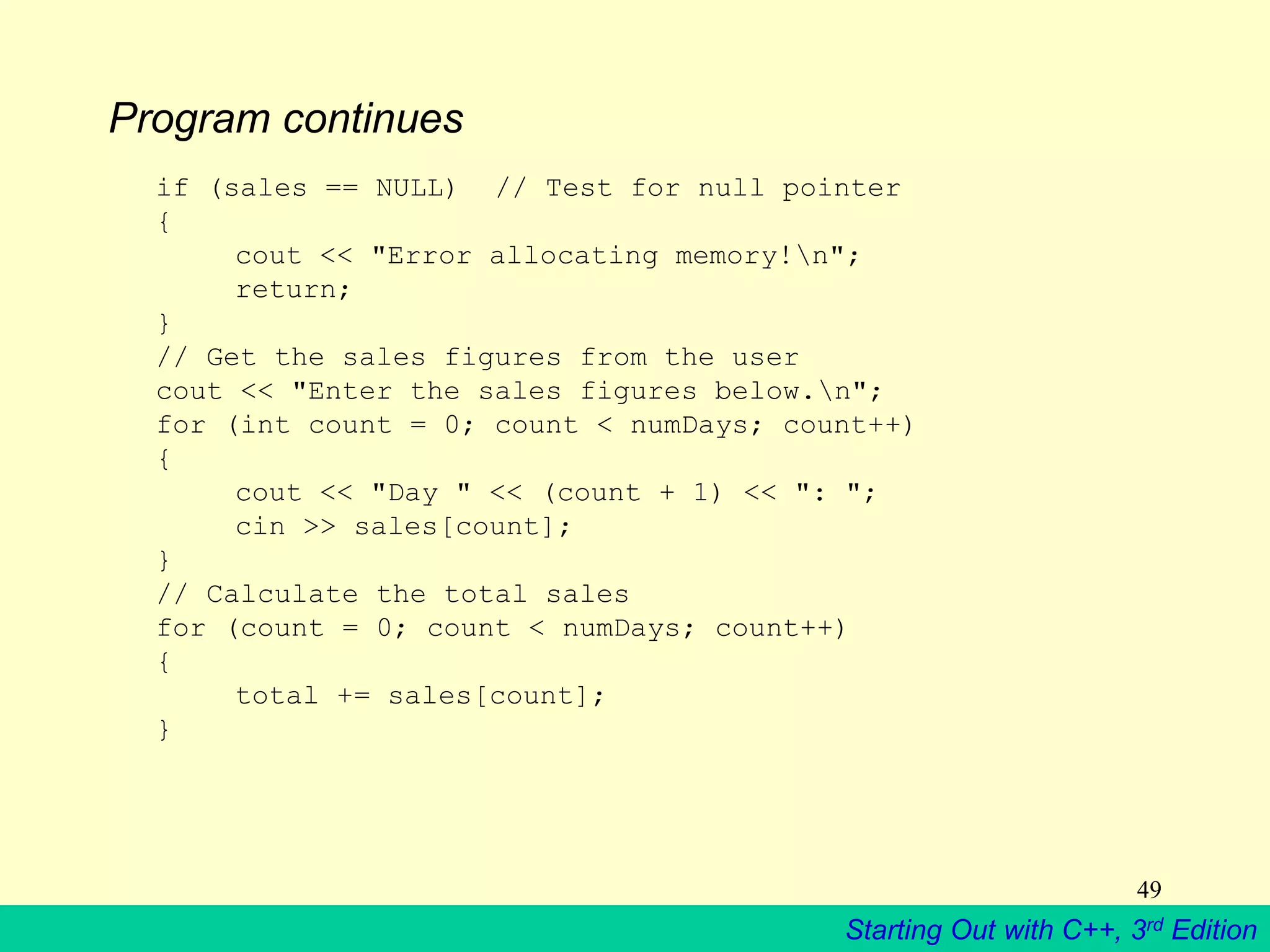

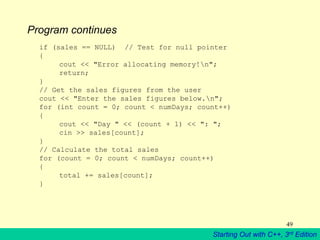

Program continues
if (sales == NULL) // Test for null pointer
{
cout << "Error allocating memory!n";
return;
}
// Get the sales figures from the user
cout << "Enter the sales figures below.n";
for (int count = 0; count < numDays; count++)
{
cout << "Day " << (count + 1) << ": ";
cin >> sales[count];
}
// Calculate the total sales
for (count = 0; count < numDays; count++)
{
total += sales[count];
}

50

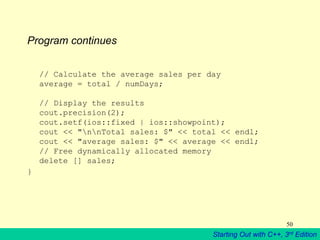

Program continues

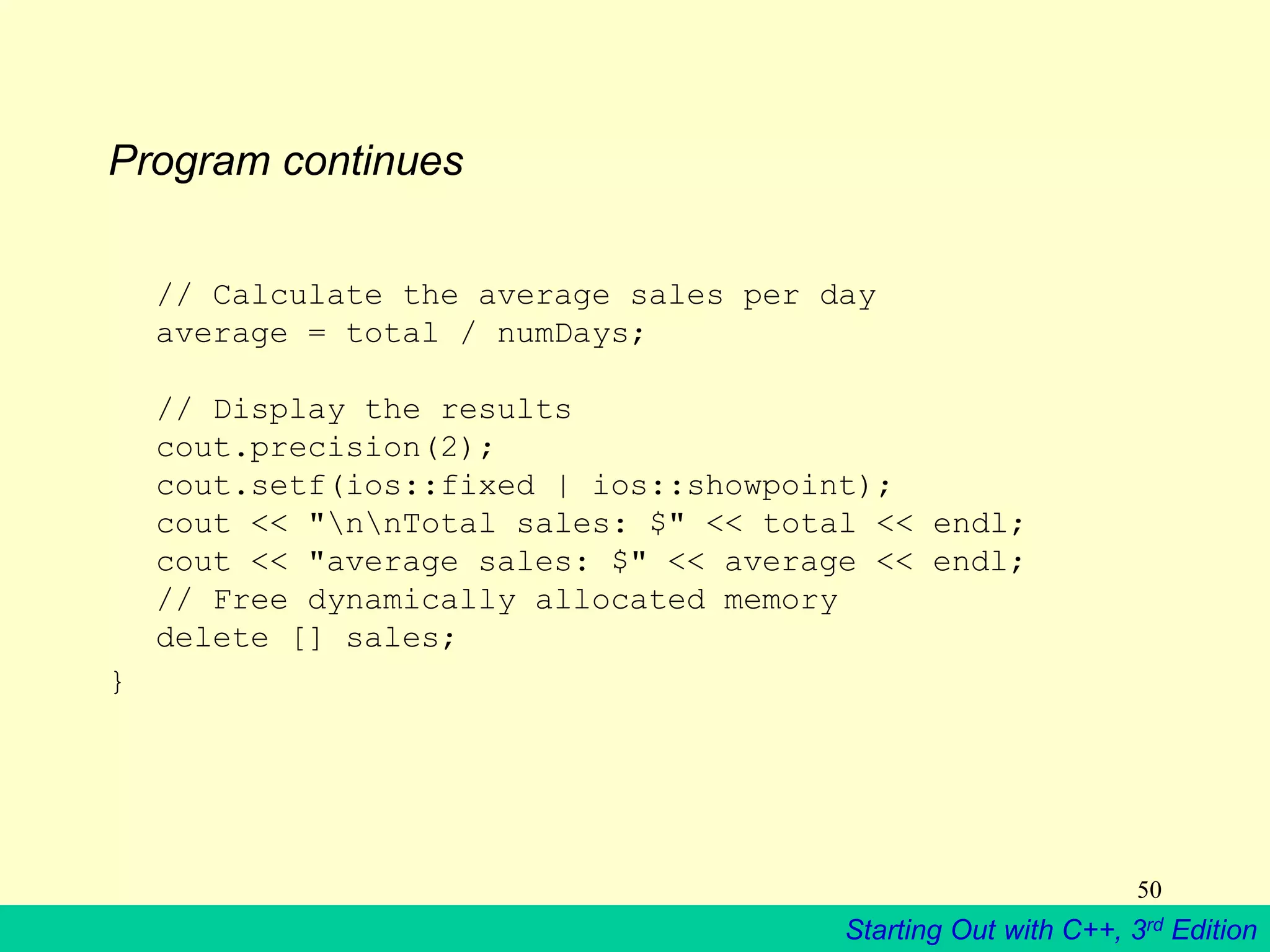

// Calculate the average sales per day
average = total / numDays;
// Display the results
cout.precision(2);
cout.setf(ios::fixed | ios::showpoint);
cout << "nnTotal sales: $" << total << endl;
cout << "average sales: $" << average << endl;
// Free dynamically allocated memory
delete [] sales;
}

51

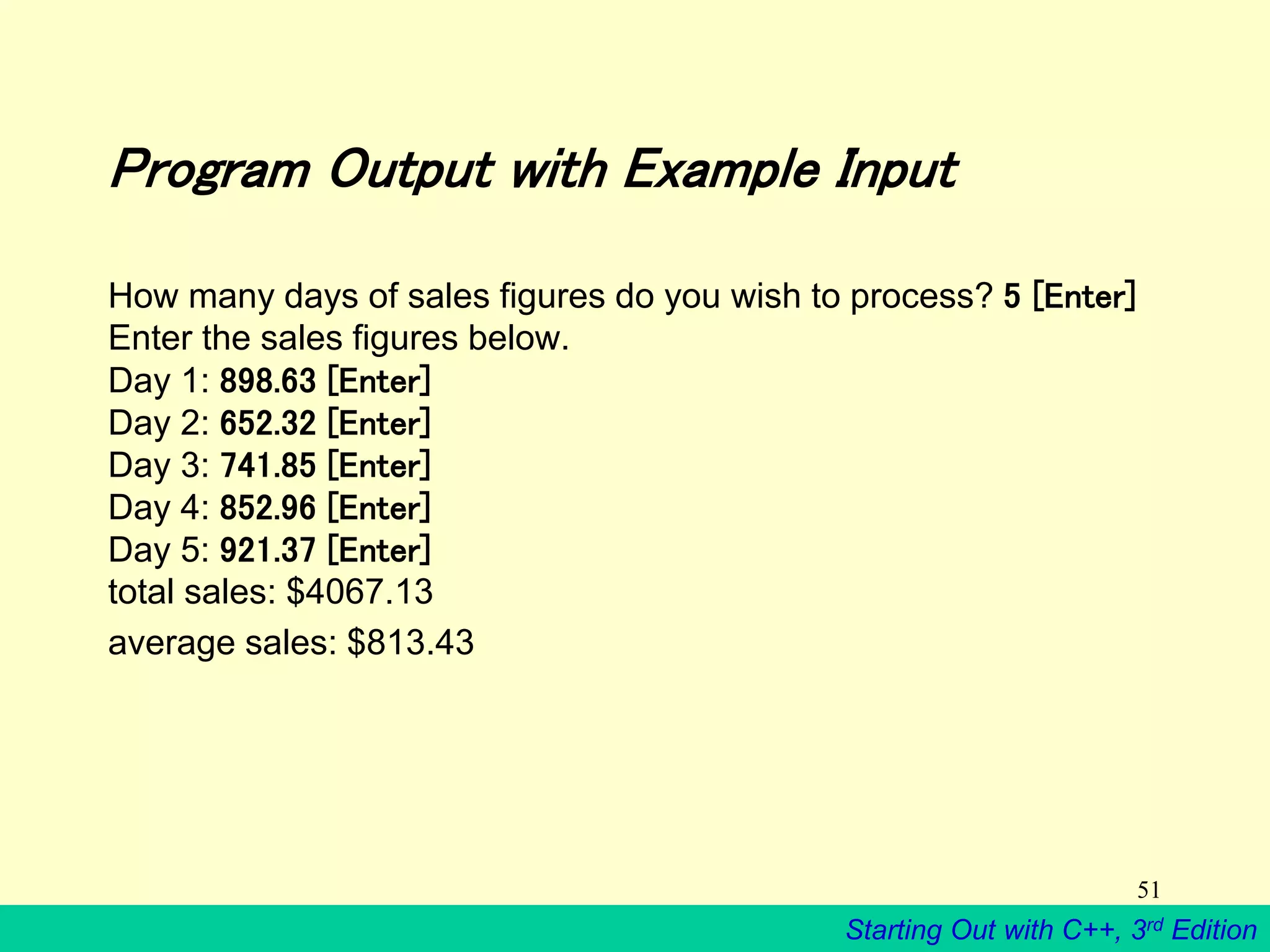

How many days of sales figures do you wish to process? 5 [Enter]
Enter the sales figures below.
Day 1: 898.63 [Enter]
Day 2: 652.32 [Enter]
Day 3: 741.85 [Enter]
Day 4: 852.96 [Enter]
Day 5: 921.37 [Enter]
total sales: $4067.13
average sales: $813.43

52

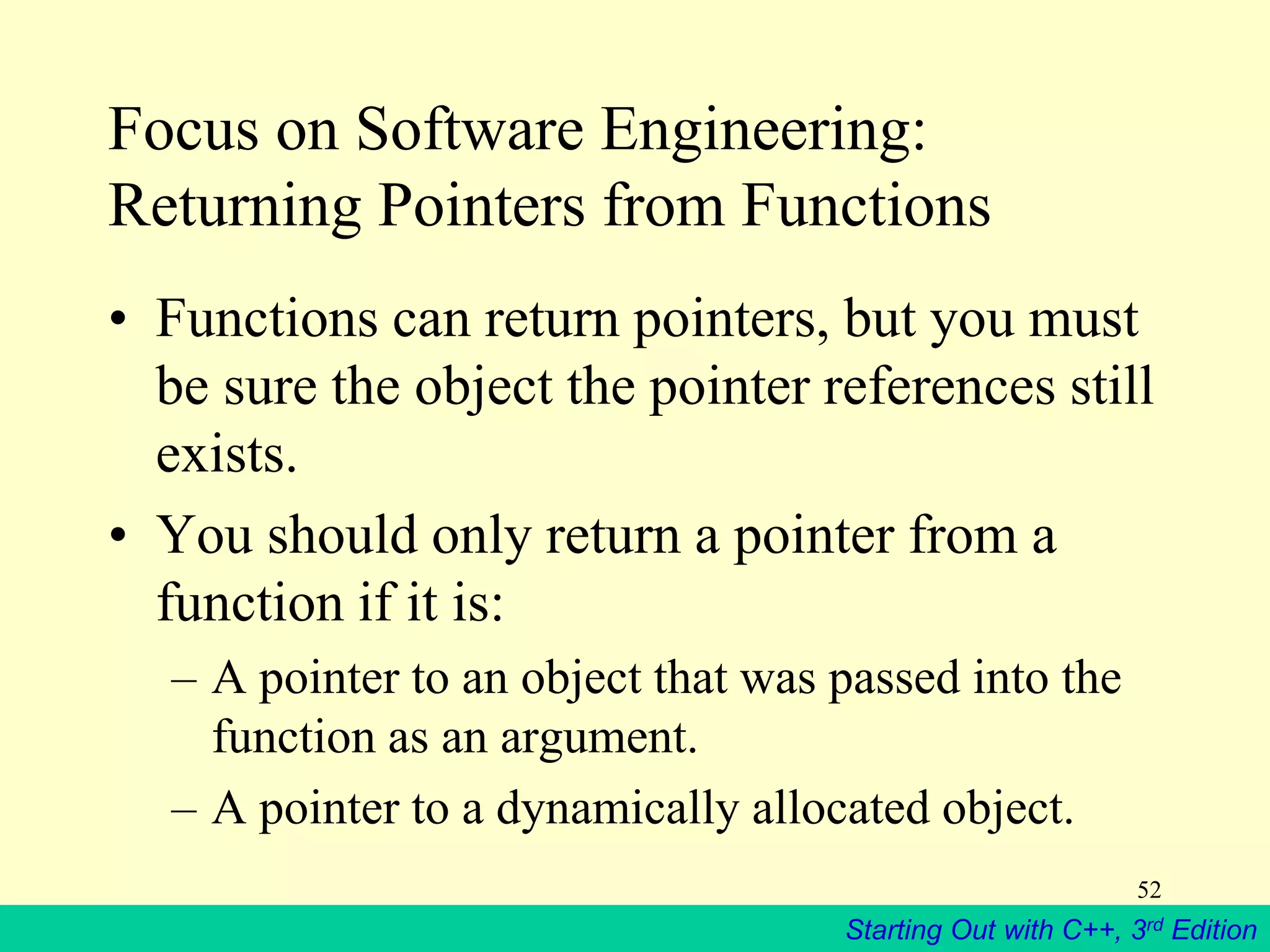

Focus on Software Engineering:
Returning Pointers from Functions
• Functions can return pointers, but you must
be sure the object the pointer references still
exists.
• You should only return a pointer from a
function if it is:
– A pointer to an object that was passed into the
function as an argument.
– A pointer to a dynamically allocated object.

53

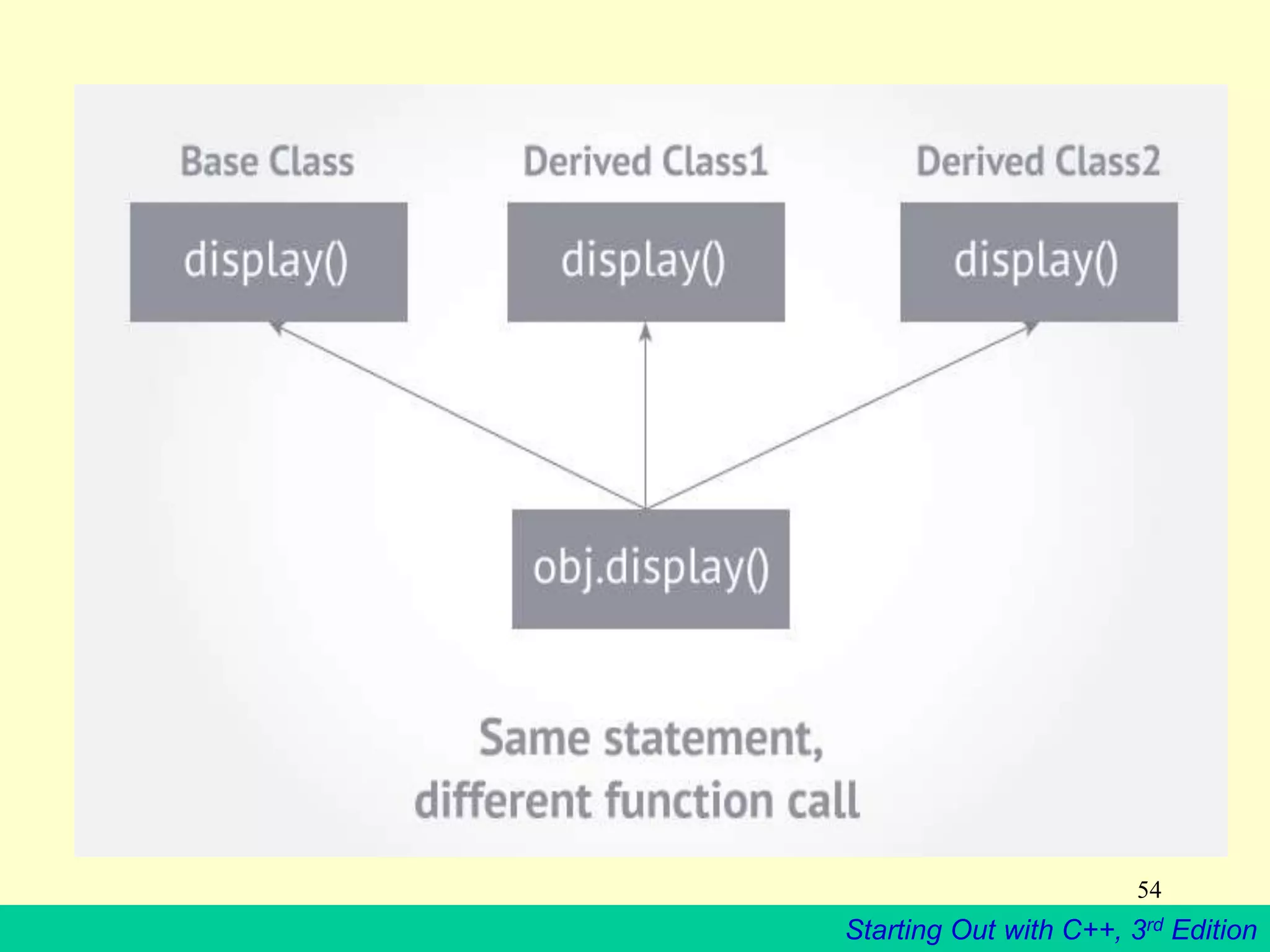

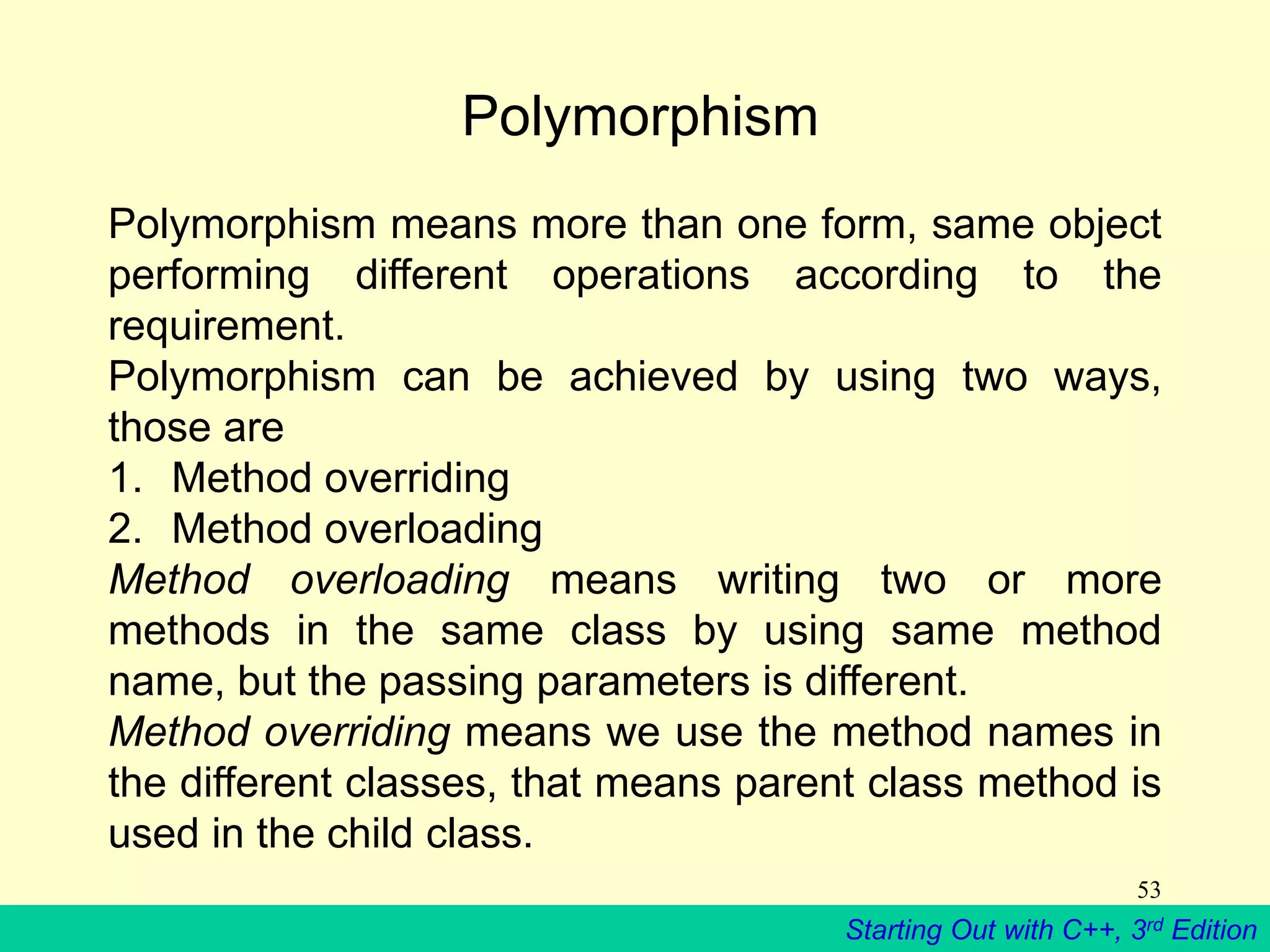

Polymorphism
Polymorphism means more than one form, same object
performing different operations according to the
requirement.
Polymorphism can be achieved by using two ways,
those are
1. Method overriding
2. Method overloading
Method overloading means writing two or more
methods in the same class by using same method
name, but the passing parameters is different.
Method overriding means we use the method names in
the different classes, that means parent class method is
used in the child class.

54

55

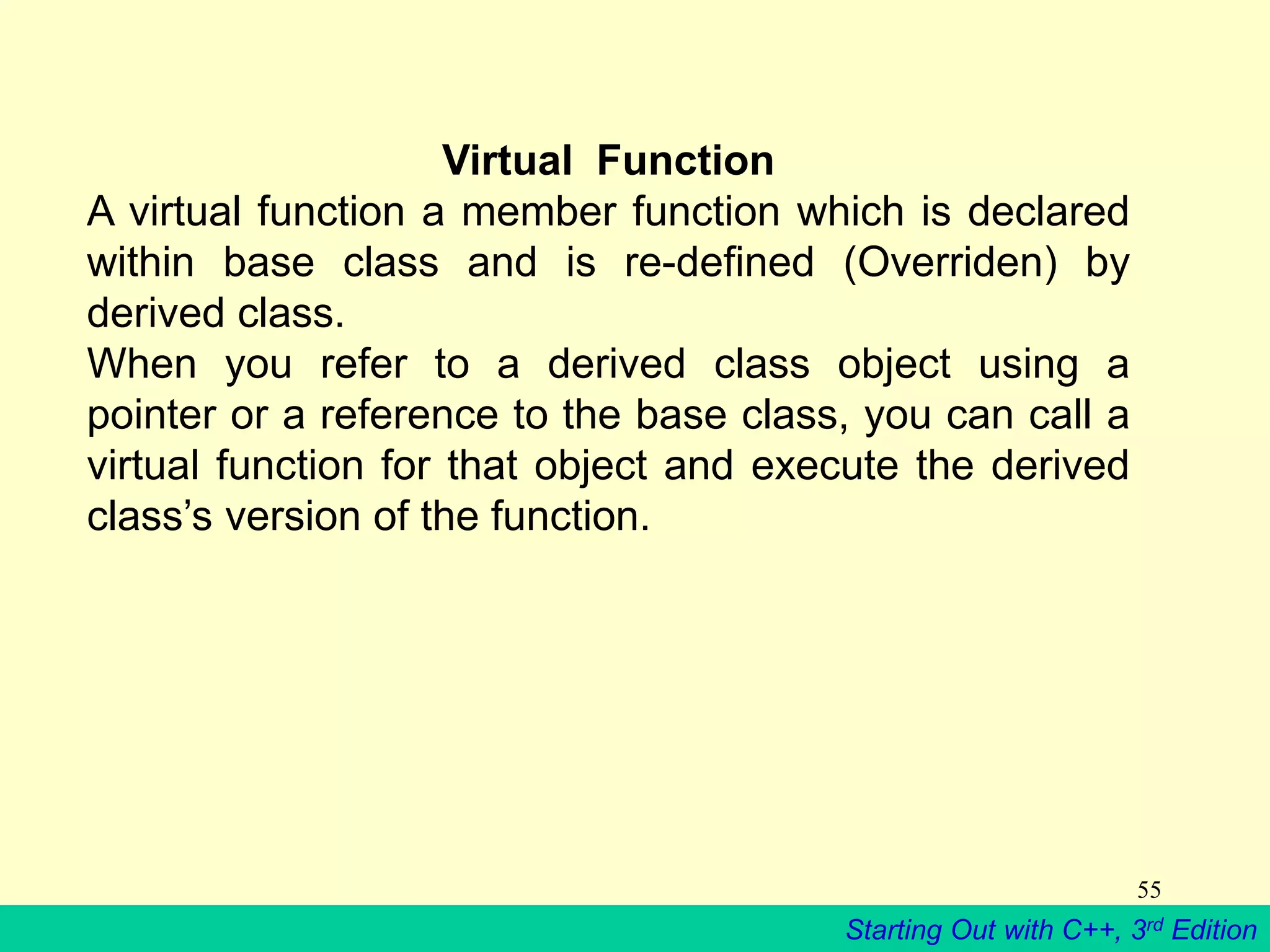

Virtual Function
A virtual function a member function which is declared
within base class and is re-defined (Overriden) by
derived class.
When you refer to a derived class object using a
pointer or a reference to the base class, you can call a
virtual function for that object and execute the derived
class’s version of the function.

56

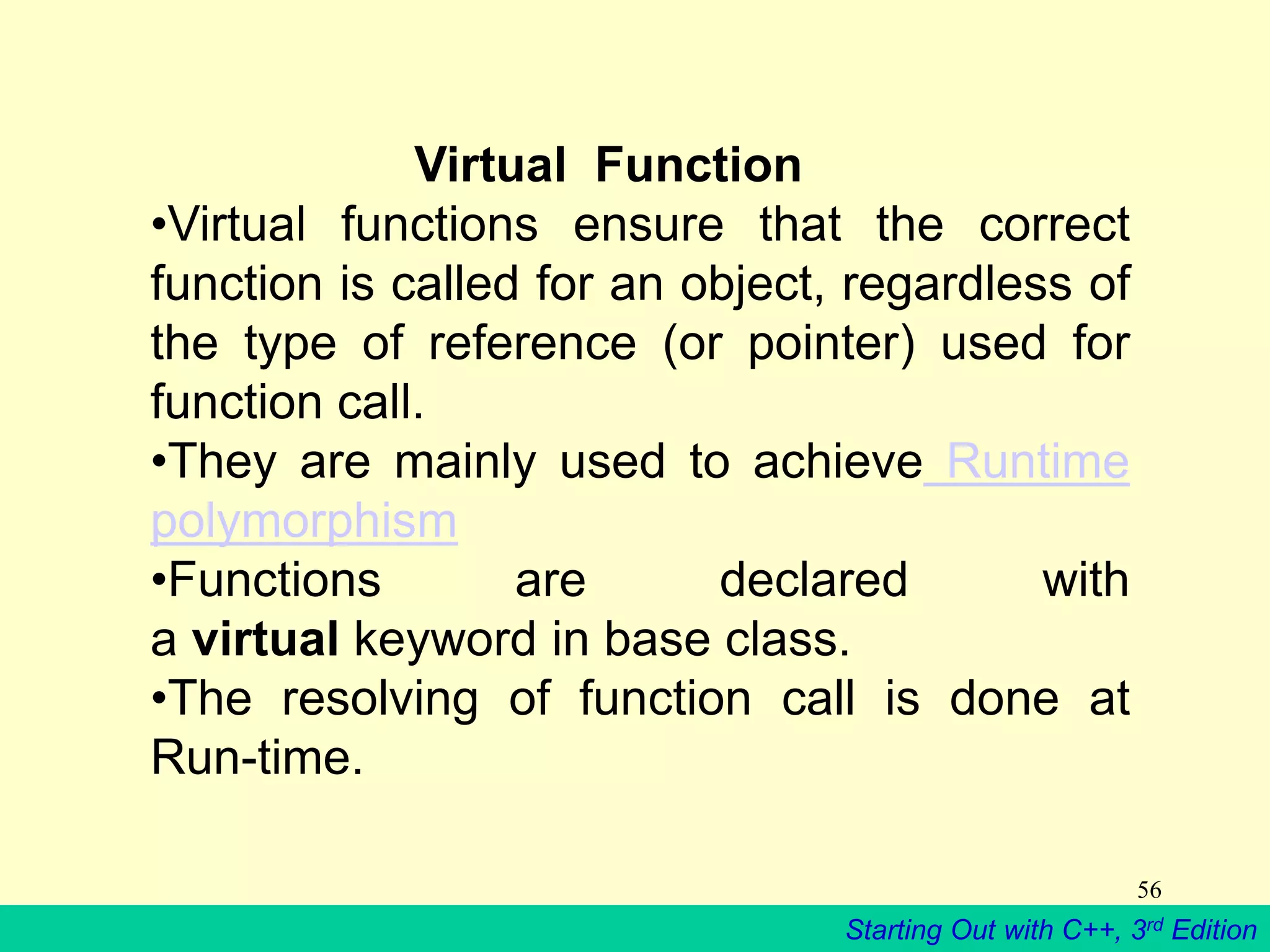

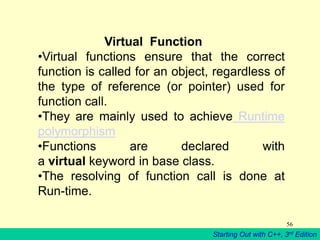

Virtual Function
•Virtual functions ensure that the correct
function is called for an object, regardless of
the type of reference (or pointer) used for
function call.
•They are mainly used to achieve Runtime
polymorphism
•Functions are declared with
a virtual keyword in base class.
•The resolving of function call is done at
Run-time.

57

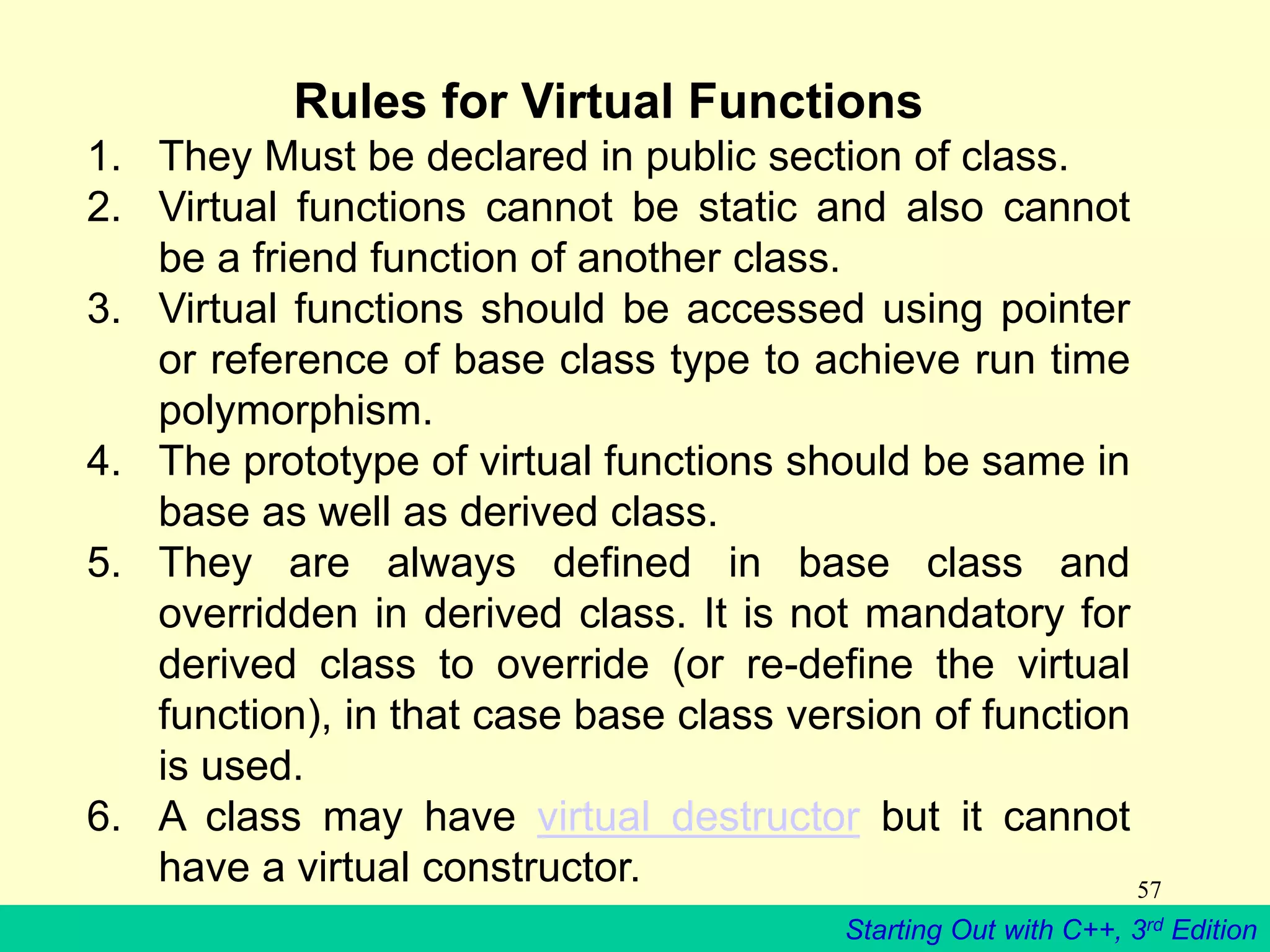

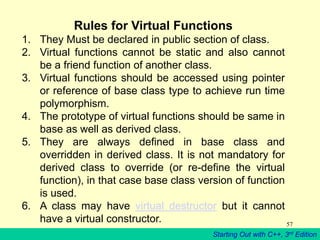

Rules for Virtual Functions
1. They Must be declared in public section of class.
2. Virtual functions cannot be static and also cannot
be a friend function of another class.
3. Virtual functions should be accessed using pointer
or reference of base class type to achieve run time
polymorphism.
4. The prototype of virtual functions should be same in
base as well as derived class.
5. They are always defined in base class and
overridden in derived class. It is not mandatory for
derived class to override (or re-define the virtual
function), in that case base class version of function
is used.
6. A class may have virtual destructor but it cannot
have a virtual constructor.

58

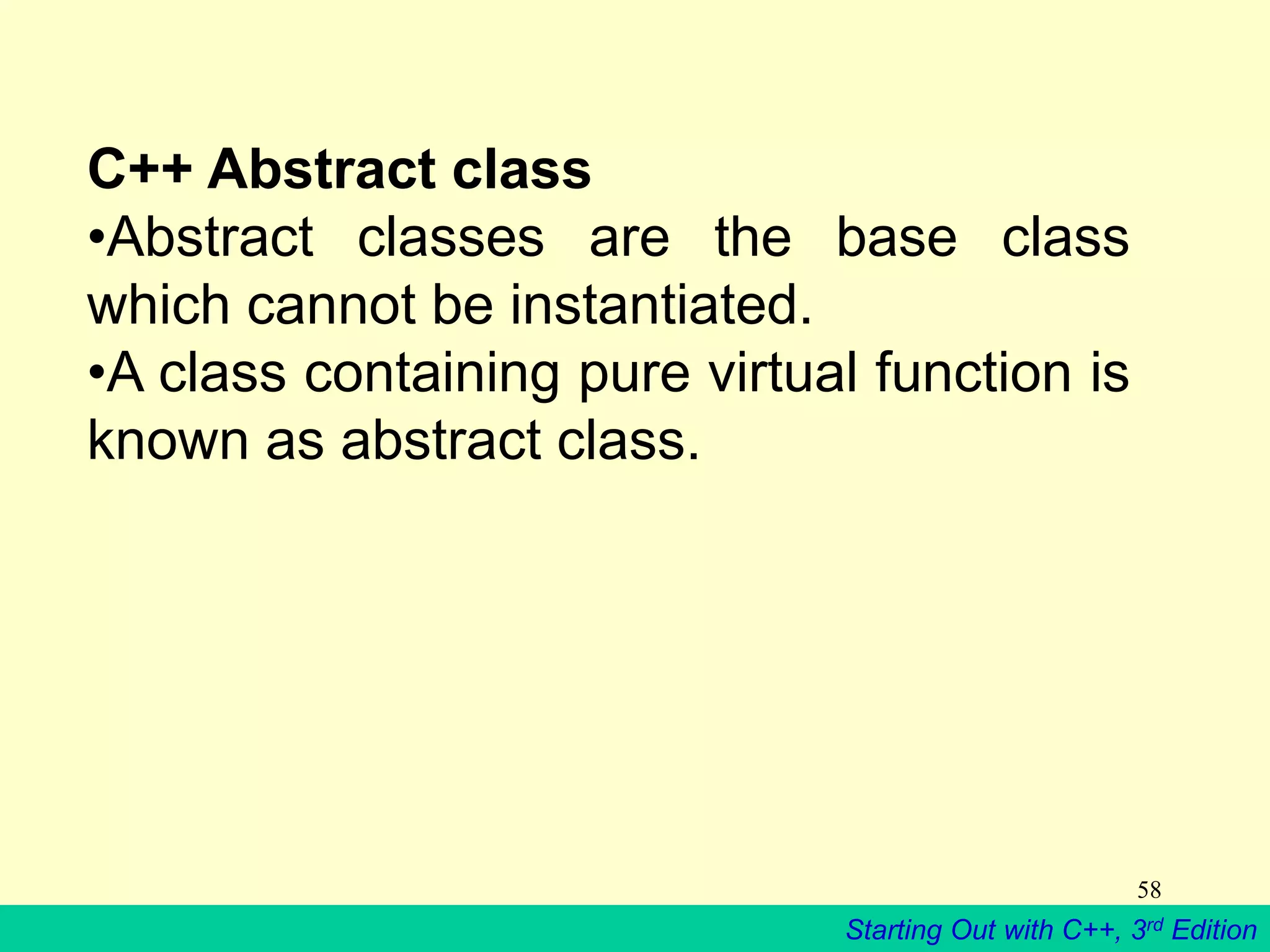

C++ Abstract class
•Abstract classes are the base class
which cannot be instantiated.
•A class containing pure virtual function is
known as abstract class.

59

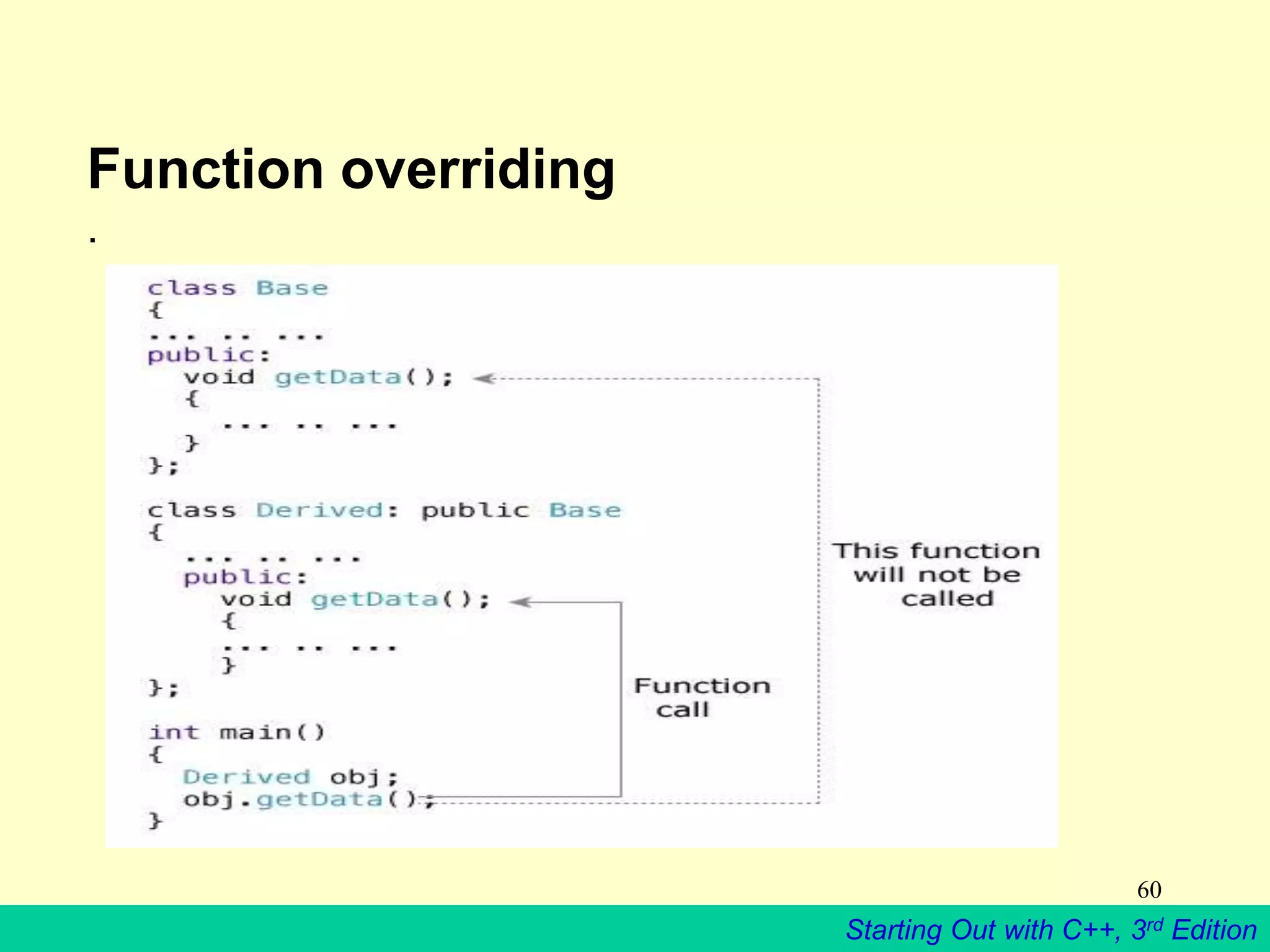

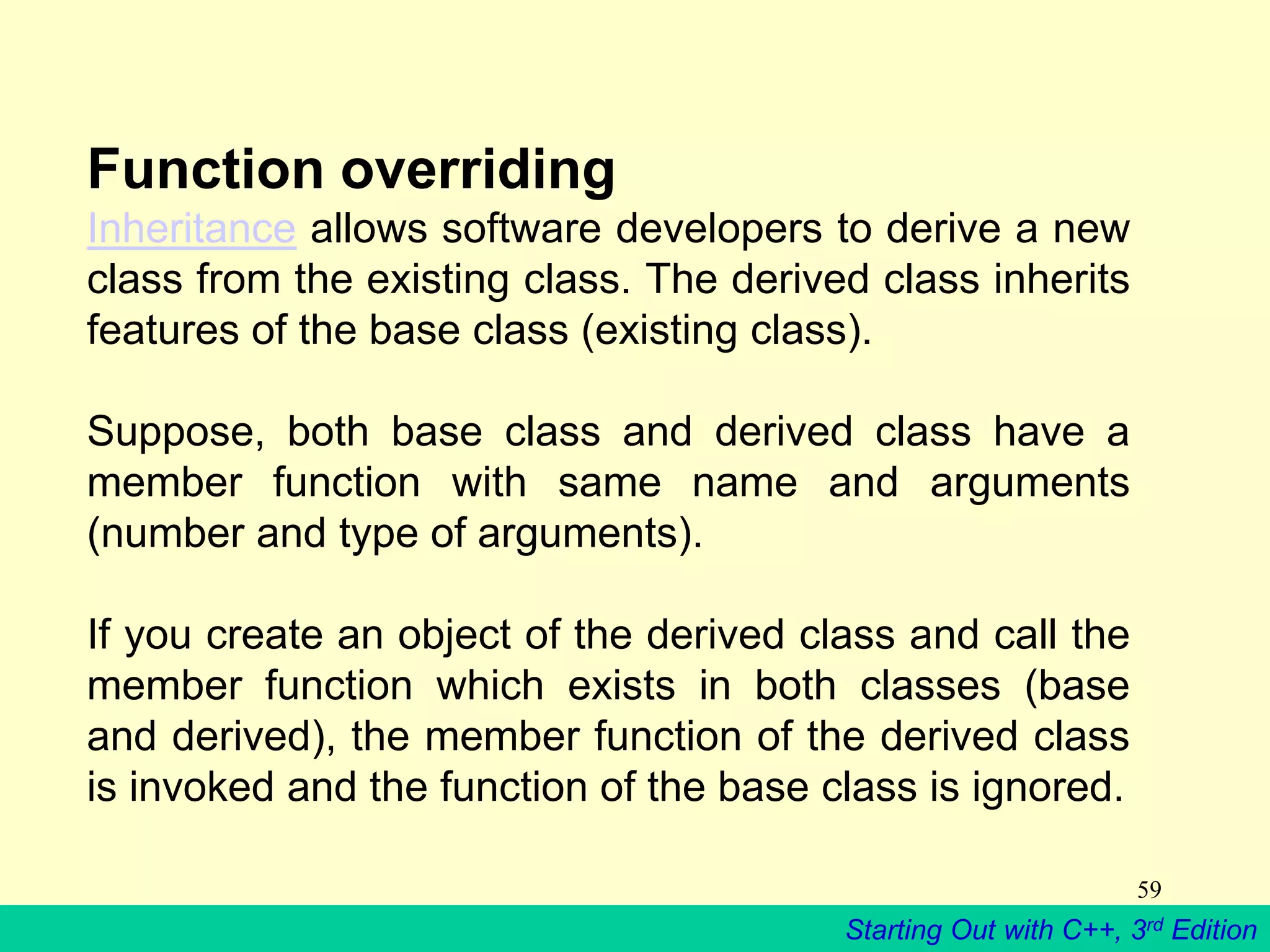

Function overriding
Inheritance allows software developers to derive a new
class from the existing class. The derived class inherits
features of the base class (existing class).
Suppose, both base class and derived class have a
member function with same name and arguments
(number and type of arguments).
If you create an object of the derived class and call the
member function which exists in both classes (base
and derived), the member function of the derived class
is invoked and the function of the base class is ignored.

60
Function overriding
.

61

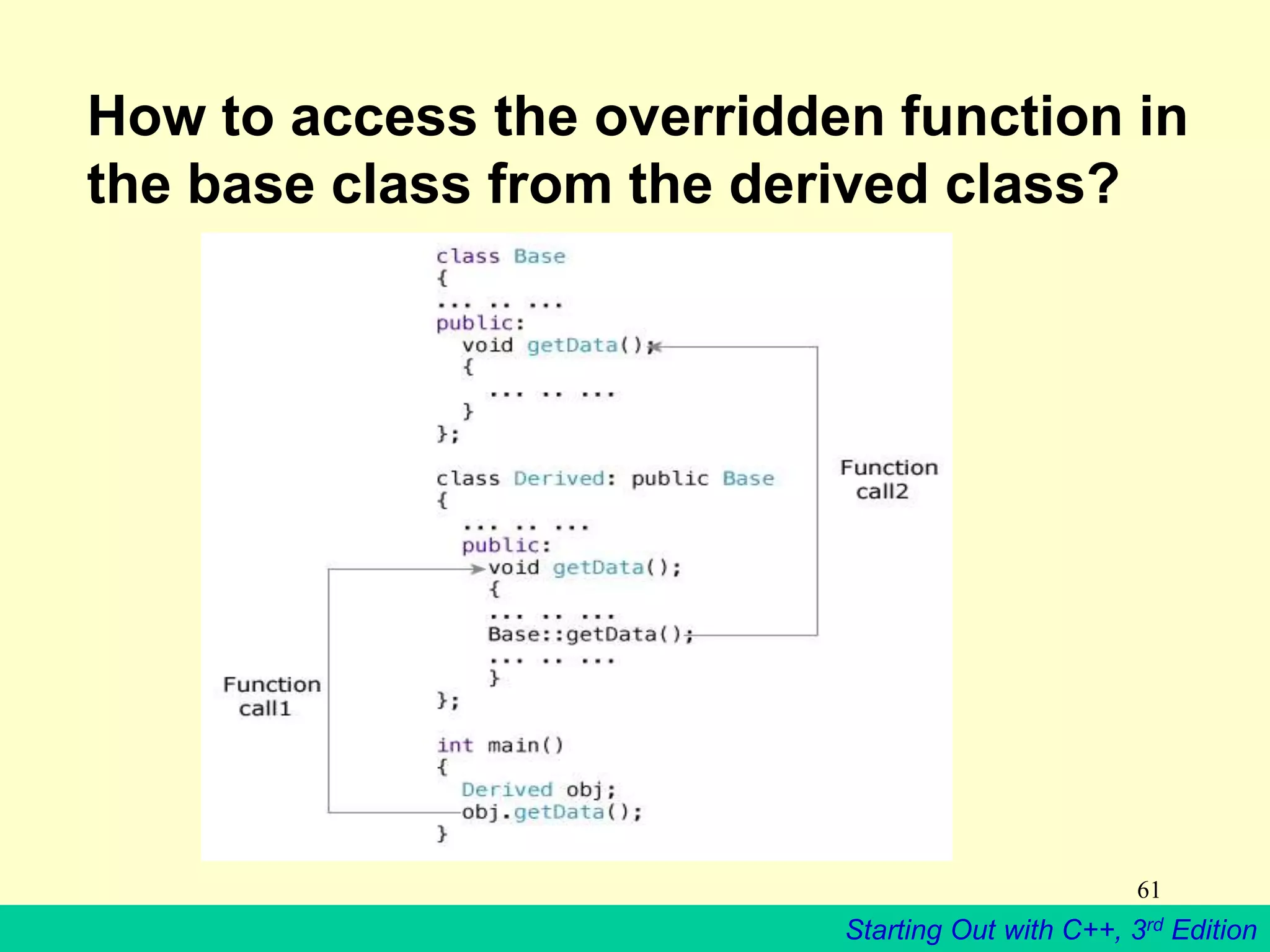

How to access the overridden function in
the base class from the derived class?

62

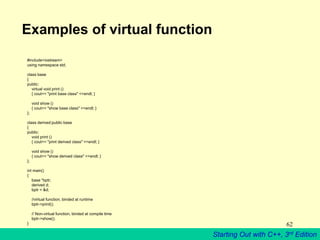

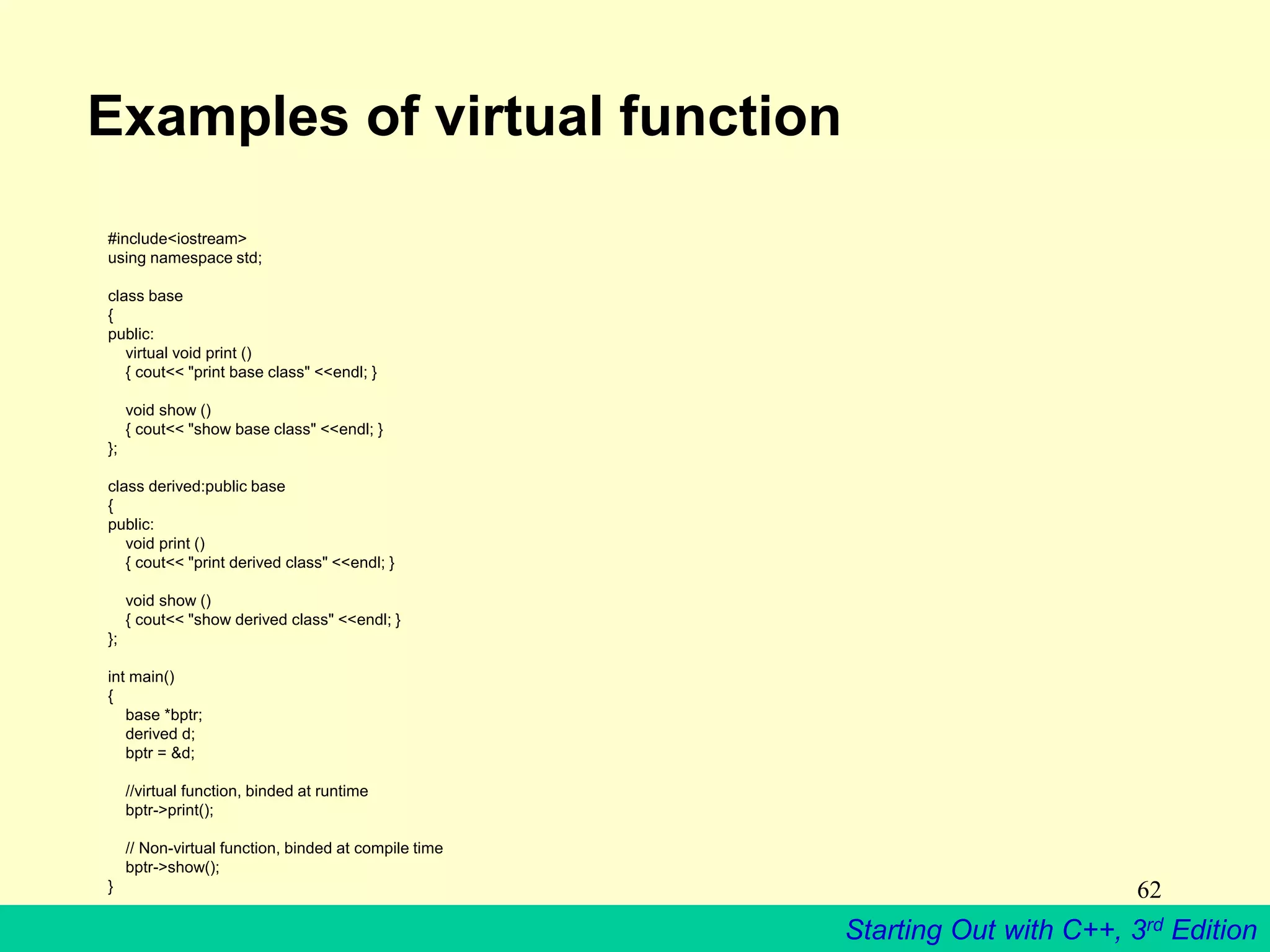

Examples of virtual function
#include<iostream>
using namespace std;
class base
{
public:
virtual void print ()
{ cout<< "print base class" <<endl; }
void show ()
{ cout<< "show base class" <<endl; }
};
class derived:public base
{
public:
void print ()
{ cout<< "print derived class" <<endl; }
void show ()
{ cout<< "show derived class" <<endl; }
};
int main()
{
base *bptr;
derived d;
bptr = &d;
//virtual function, binded at runtime
bptr->print();
// Non-virtual function, binded at compile time
bptr->show();
}

63

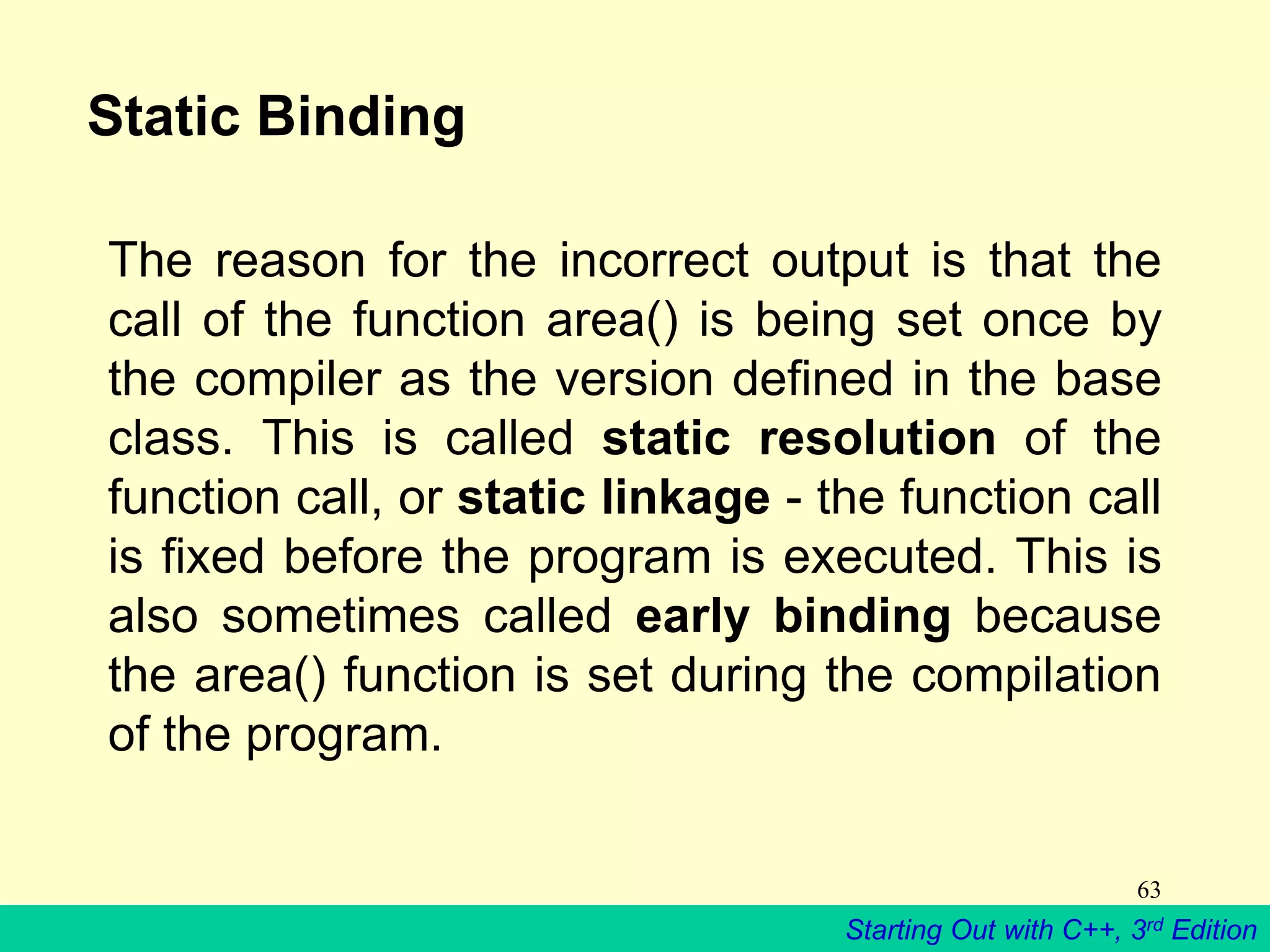

Static Binding
The reason for the incorrect output is that the
call of the function area() is being set once by
the compiler as the version defined in the base
class. This is called static resolution of the
function call, or static linkage - the function call
is fixed before the program is executed. This is
also sometimes called early binding because
the area() function is set during the compilation
of the program.

64

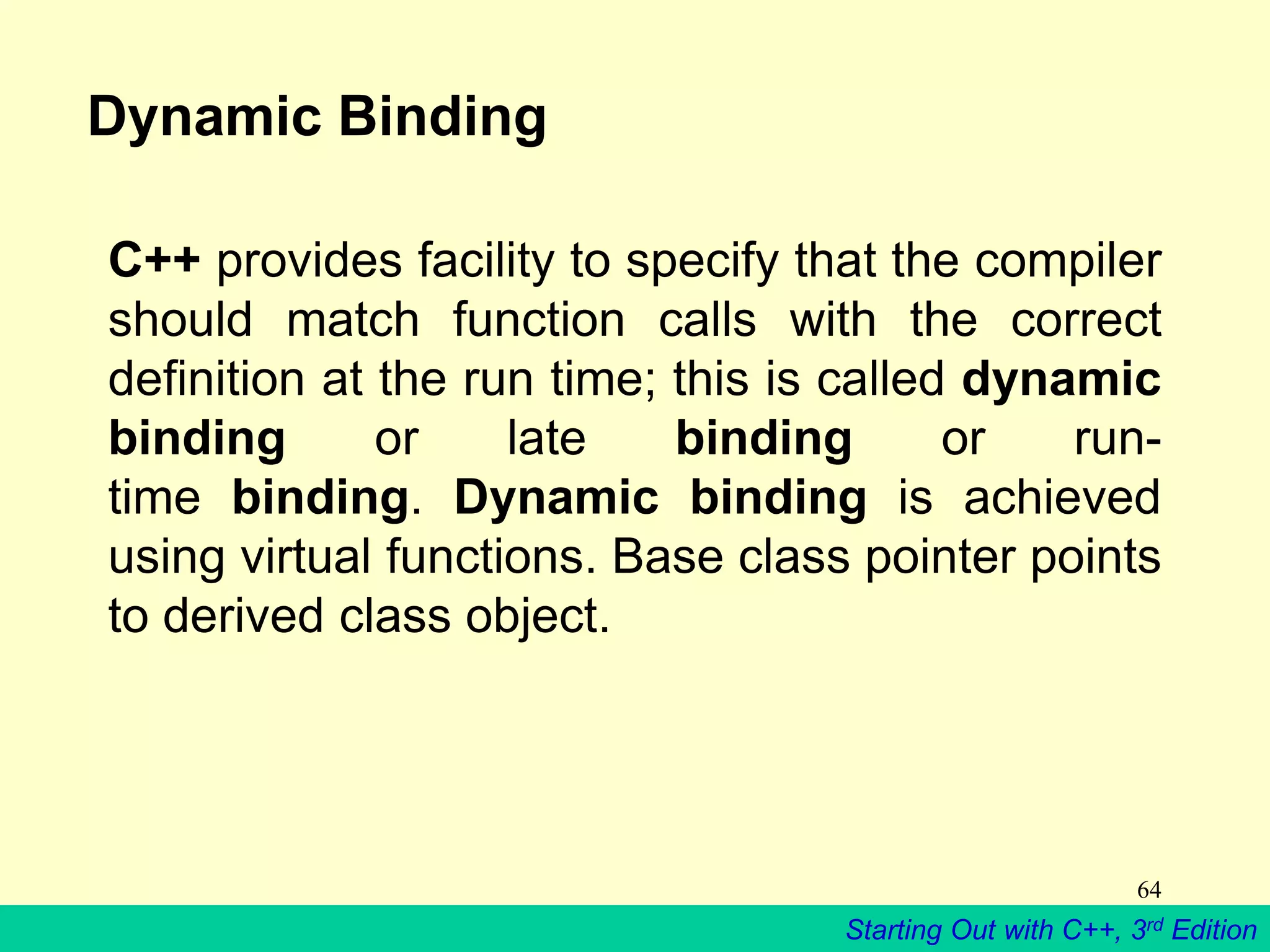

Dynamic Binding
C++ provides facility to specify that the compiler
should match function calls with the correct
definition at the run time; this is called dynamic
binding or late binding or run-
time binding. Dynamic binding is achieved
using virtual functions. Base class pointer points
to derived class object.

65

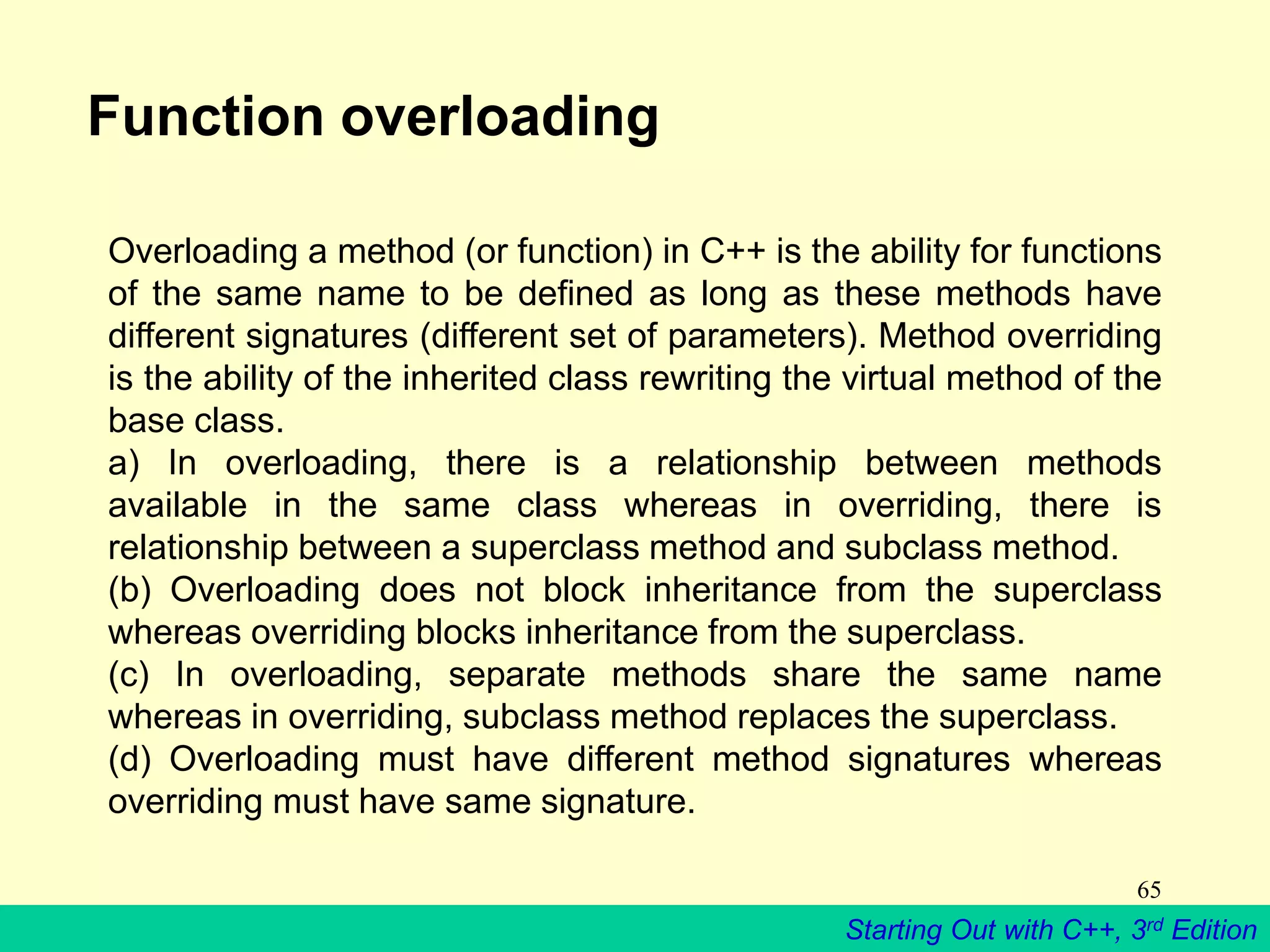

Function overloading
Overloading a method (or function) in C++ is the ability for functions
of the same name to be defined as long as these methods have
different signatures (different set of parameters). Method overriding
is the ability of the inherited class rewriting the virtual method of the
base class.
a) In overloading, there is a relationship between methods
available in the same class whereas in overriding, there is
relationship between a superclass method and subclass method.
(b) Overloading does not block inheritance from the superclass
whereas overriding blocks inheritance from the superclass.
(c) In overloading, separate methods share the same name
whereas in overriding, subclass method replaces the superclass.
(d) Overloading must have different method signatures whereas
overriding must have same signature.

66

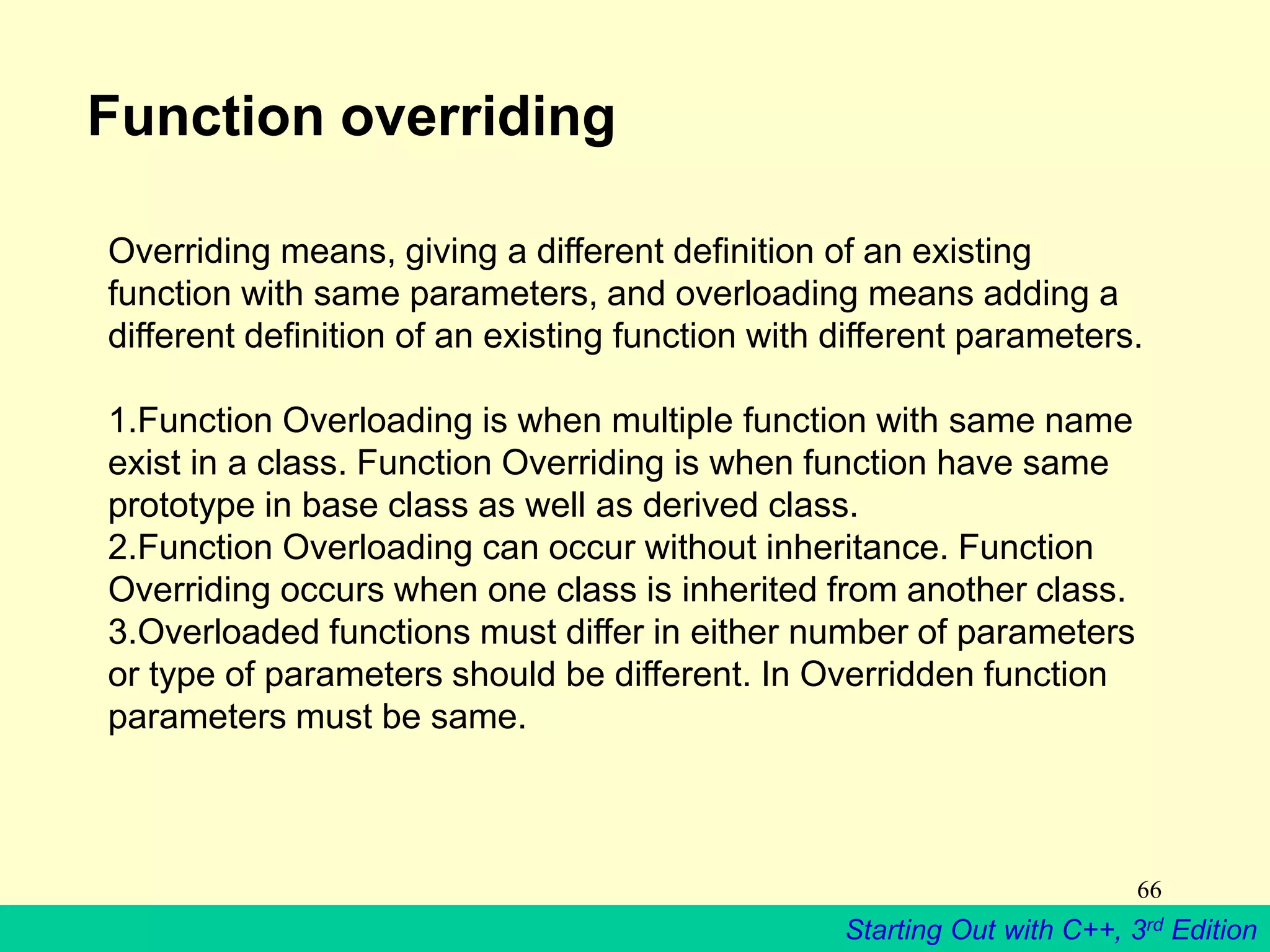

Function overriding
Overriding means, giving a different definition of an existing
function with same parameters, and overloading means adding a
different definition of an existing function with different parameters.
1.Function Overloading is when multiple function with same name
exist in a class. Function Overriding is when function have same
prototype in base class as well as derived class.
2.Function Overloading can occur without inheritance. Function
Overriding occurs when one class is inherited from another class.
3.Overloaded functions must differ in either number of parameters
or type of parameters should be different. In Overridden function
parameters must be same.

Pointer

More Related Content

What's hot

Similar to Pointer

More from Rokonuzzaman Rony

Recently uploaded

Pointer
