The document describes the process-oriented storage control for inbound and outbound processes in EWM. For inbound, intermediate steps like unloading, deconsolidation and counting may occur at work centers before automatic warehouse tasks are created to move items to intermediate storage. For outbound, the warehouse process type and source/destination bins are determined to create warehouse tasks from waves which generate warehouse orders to complete the picking. Intermediate steps like packing can also be performed at work centers with tasks to move items between areas.

2. POSC & WOCR

3. EWMInboundProcess
3
Inbound Process- Process Oriented Storage Control
• Process is same as in simple inbound until, Inbound Delivery Notification.
• Warehouse process type determines need for Storage control.
• Intermediate steps can be Unloading, Deconsolidation, Counting, QI, Packing.
• Intermediate steps are performed at work centers.
• System creates warehouse task from receiving area to intermediate storage.
• Auto warehouse tasks for next steps, created upon completion of intermediate activity.

4. EWMInboundProcess-Process-OrientedStorageControl
4

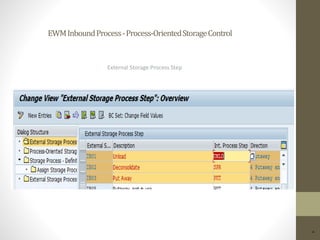

External Storage Process Step

5. EWMInboundProcess-Process-OrientedStorageControl
5

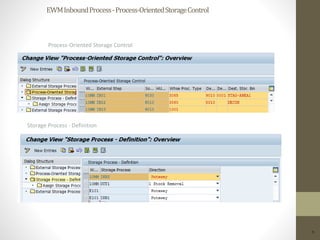

Process-Oriented Storage Control
Storage Process - Definition

6. EWMInboundProcess-Process-OrientedStorageControl
6

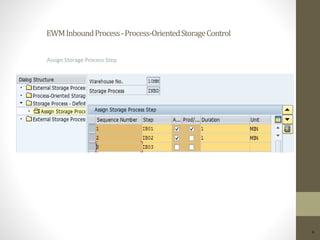

Assign Storage Process Step

7. EWMInboundProcess-Process-OrientedStorageControl
7

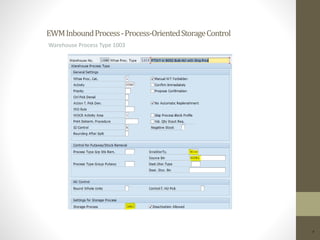

Warehouse Process Type 1003

8. EWMInboundProcess-Process-OrientedStorageControl
8

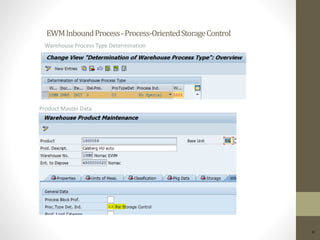

Warehouse Process Type Determination
Product Master Data

9. EWMInboundProcess-Process-OrientedStorageControl
9
Warehouse Task – IB01

10. EWMInboundProcess-Process-OrientedStorageControl
10

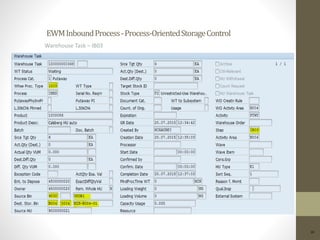

Warehouse Task – IB03

11. EWMInboundProcess-Process-OrientedStorageControl
11

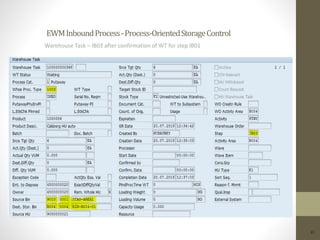

Warehouse Task – IB03 after confirmation of WT for step IB01

12. EWMInboundProcess-Process-OrientedStorageControl
12

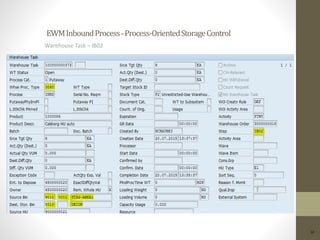

Warehouse Task – IB02

13. EWMInboundProcess-Process-OrientedStorageControl
13

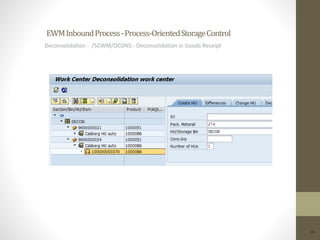

Deconsolidation - /SCWM/DCONS - Deconsolidation in Goods Receipt

14. EWMInboundProcess-Process-OrientedStorageControl
14

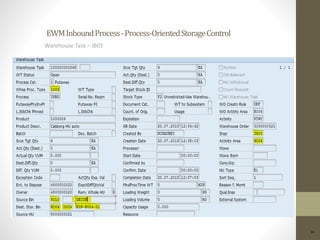

Warehouse Task – IB03

15. EWMInboundProcess-Process-OrientedStorageControl
15

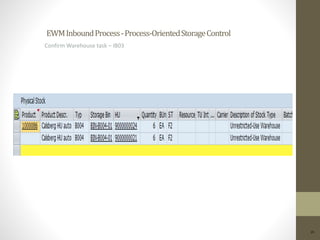

Confirm Warehouse task – IB03

16. EWMOutboundProcess
16

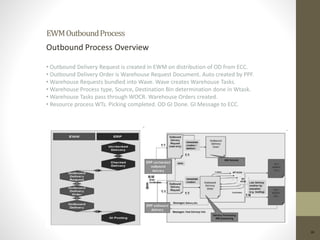

Outbound Process Overview
• Outbound Delivery Request is created in EWM on distribution of OD from ECC.
• Outbound Delivery Order is Warehouse Request Document. Auto created by PPF.
• Warehouse Requests bundled into Wave. Wave creates Warehouse Tasks.
• Warehouse Process type, Source, Destination Bin determination done in Wtask.
• Warehouse Tasks pass through WOCR. Warehouse Orders created.
• Resource process WTs. Picking completed. OD GI Done. GI Message to ECC.

17. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
17

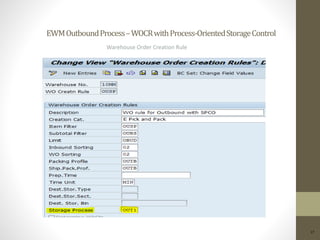

Warehouse Order Creation Rule

18. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
18

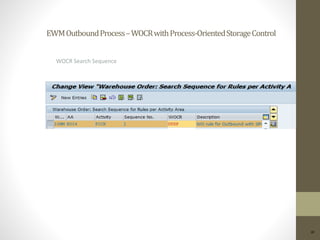

WOCR Search Sequence

19. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
19

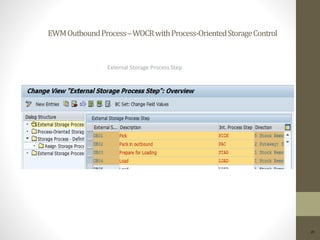

External Storage Process Step

20. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
20
Process-Oriented Storage Control
Storage Process - Definition

21. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
21

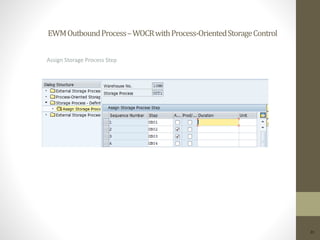

Assign Storage Process Step

22. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
22
Outbound Delivery

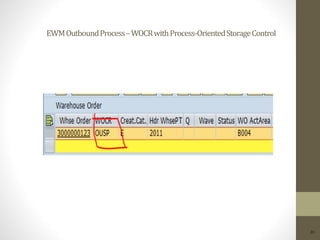

23. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
23

24. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
24
Step OB01 will try to move HU from ST B004 to Packing Area

25. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
25

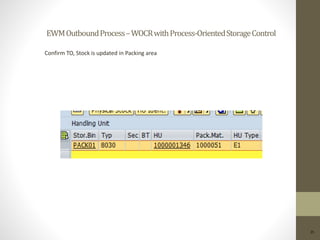

Confirm TO, Stock is updated in Packing area

26. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
26

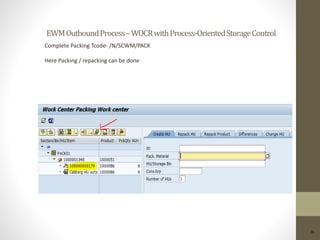

Complete Packing Tcode- /N/SCWM/PACK
Here Packing / repacking can be done

27. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
27

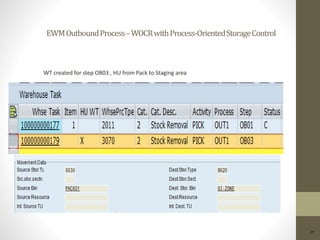

WT created for step OB03 , HU from Pack to Staging area

28. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
28

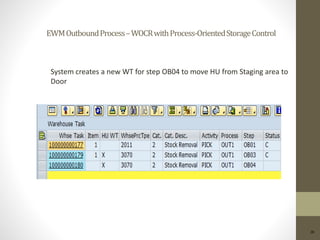

System creates a new WT for step OB04 to move HU from Staging area to
Door

29. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
29

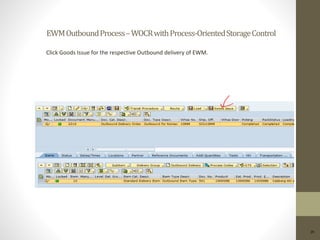

Click Goods Issue for the respective Outbound delivery of EWM.

30. EWMOutboundProcess–WOCRwithProcess-OrientedStorageControl
30

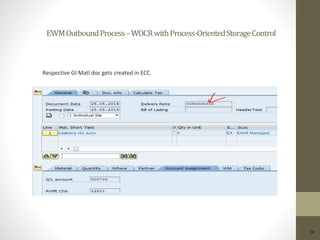

Respective GI Matl doc gets created in ECC
