1. Evolve your coding
with a little BDD

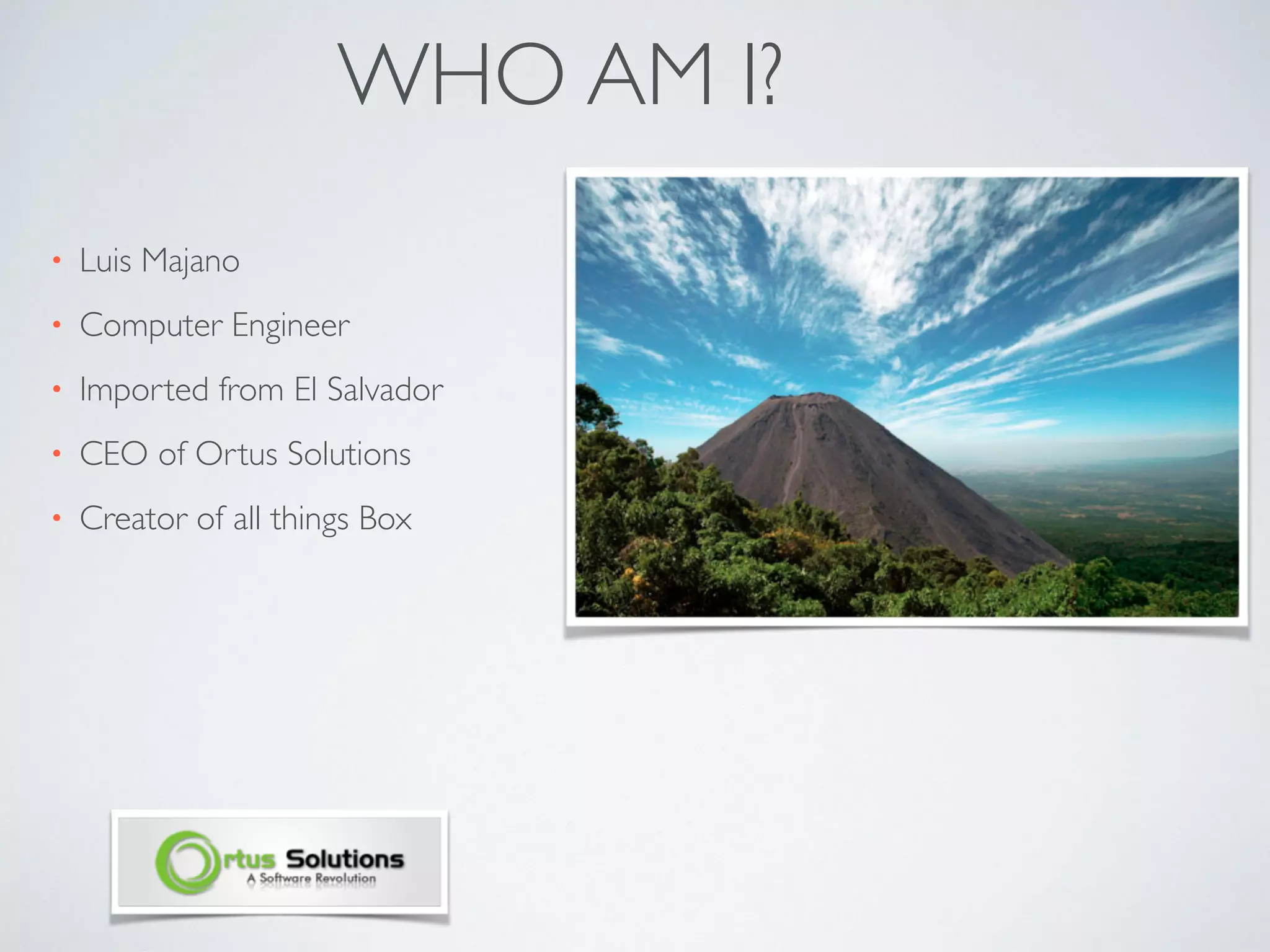

2. WHO AM I?
• Luis Majano
• Computer Engineer
• Imported from El Salvador
• CEO of Ortus Solutions
• Creator of all things Box

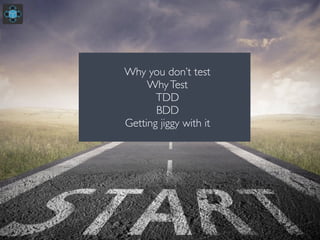

3. Why you don’t test
WhyTest
TDD
BDD
Getting jiggy with it

4. Where to start?
What to test?
What not to test?

5. WHY PEOPLE DON’T TEST

6. BIGGEST LIE IN SOFTWARE DEV
Don’t worry, we will
create the tests and
refactor it later!

8. Cost To Fix Time detected
Requirements Design Building Testing Post-Release
Time
Introduced
Requirements 1x 3x 5-10x 10x 10-100x
Design --- 1x 10x 15x 25-100x
Building -- -- 1x 10x 10-25x
^ Kaner, Cem; James Bach, Bret Pettichord (2001). Lessons Learned in Software Testing: A Context-Driven Approach. Wiley. p. 4. ISBN 0-471-08112-4.
BUGS COST MONEY

9. MANUAL TESTING

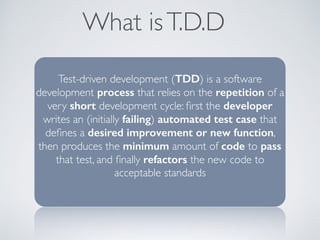

10. What isT.D.D
Test-driven development (TDD) is a software
development process that relies on the repetition of a
very short development cycle: first the developer
writes an (initially failing) automated test case that
defines a desired improvement or new function,
then produces the minimum amount of code to pass
that test, and finally refactors the new code to
acceptable standards

11. T.D.D. Process
Write Test
Mock
Write CodeVerify
Refactor

12. T.D.D.
CFC
Validate()
Add()
List()
Save()
Test%
CFC%
testValidate()%
testAdd()%
testList()%
testSave()%

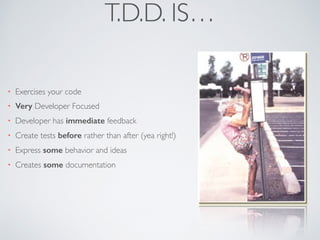

13. T.D.D. IS…
• Exercises your code
• Very Developer Focused
• Developer has immediate feedback
• Create tests before rather than after (yea right!)
• Express some behavior and ideas
• Creates some documentation

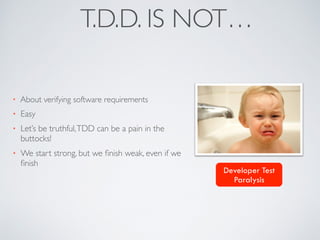

14. T.D.D. IS NOT…
• About verifying software requirements
• Easy
• Let’s be truthful,TDD can be a pain in the
buttocks!
• We start strong, but we finish weak, even if we
finish
Developer Test
Paralysis

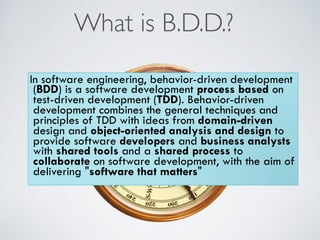

15. What is B.D.D.?
In software engineering, behavior-driven development
(BDD) is a software development process based on
test-driven development (TDD). Behavior-driven
development combines the general techniques and
principles of TDD with ideas from domain-driven
design and object-oriented analysis and design to
provide software developers and business analysts
with shared tools and a shared process to
collaborate on software development, with the aim of
delivering "software that matters"

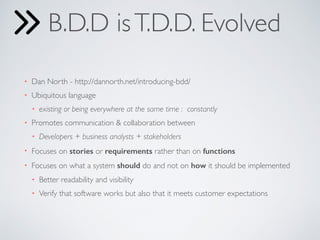

16. B.D.D isT.D.D. Evolved
• Dan North - http://dannorth.net/introducing-bdd/
• Ubiquitous language
• existing or being everywhere at the same time : constantly
• Promotes communication & collaboration between
• Developers + business analysts + stakeholders
• Focuses on stories or requirements rather than on functions
• Focuses on what a system should do and not on how it should be implemented
• Better readability and visibility
• Verify that software works but also that it meets customer expectations

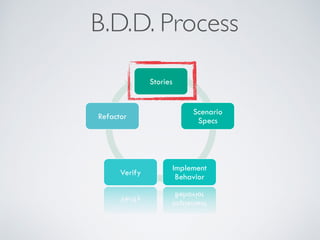

17. B.D.D. Process
Stories
Scenario
Specs
Implement
Behavior
Verify
Refactor

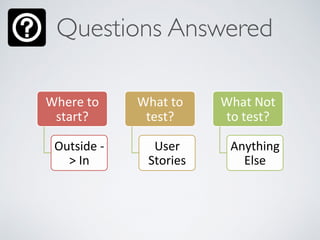

18. Questions Answered
Where%to%
start?%
Outside%/
>%In%
What%to%
test?%
User%
Stories%
What%Not%
to%test?%
Anything%
Else%

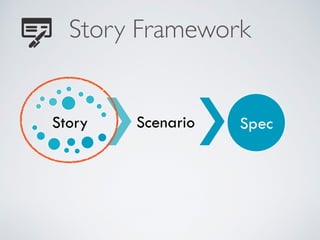

19. Story Framework
Story Scenario Spec

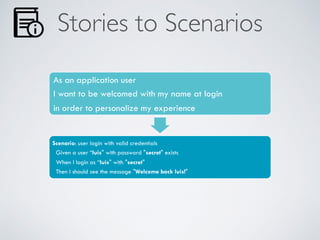

20. Stories to Scenarios
As an application user
I want to be welcomed with my name at login
in order to personalize my experience
Scenario: user login with valid credentials
Given a user “luis" with password "secret" exists
When I login as “luis" with "secret"
Then I should see the message "Welcome back luis!"

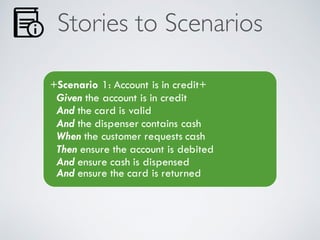

21. Stories to Scenarios
+Scenario 1: Account is in credit+
Given the account is in credit
And the card is valid
And the dispenser contains cash
When the customer requests cash
Then ensure the account is debited
And ensure cash is dispensed
And ensure the card is returned

22. Stories to Scenarios
Feature: Box Size
In order to know what size box I need
As a distribution manager
I want to know the volume of the box
Scenario: Get box volume
Given I have entered a width of 20
And a height of 30
And a depth of 40
When I run the calculation
Then the result should be 24000

23. Stories to Scenarios

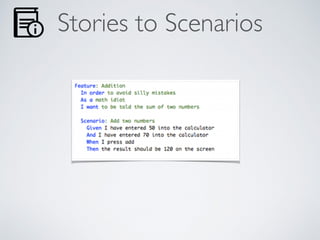

24. Stories to Scenarios

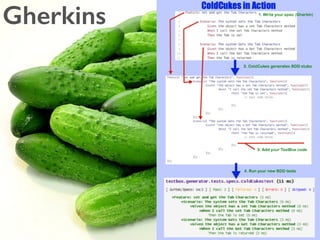

25. Gherkins

27. Story to Scenario to
TestBox
As an application user
I want to be welcomed with my name at login
in order to personalize my experience
Scenario: user login with valid credentials
Given a user “luis" with password "secret" exists
When I login as “luis" with "secret"
Then I should see the message "Welcome back luis!"
describe( “User login with valid credentials”, function(){
it( “should see a personalized message”, function(){
userService.login( “luis”, “secret” )
var event = execute(“user.home”)
expect( event.getValue( “welcome” ) ).toBe( “Welcome back luis!” )
})
})

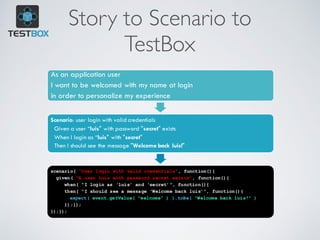

28. Story to Scenario to
TestBox
As an application user
I want to be welcomed with my name at login
in order to personalize my experience
Scenario: user login with valid credentials
Given a user “luis" with password "secret" exists
When I login as “luis" with "secret"
Then I should see the message "Welcome back luis!"
scenario( “User login with valid credentials”, function(){
given( “A user Luis with password secret exists”, function(){
when( “I login as ‘luis’ and ‘secret’”, function(){
then( “I should see a message ‘Welcome back luis’”, function(){
expect( event.getValue( “welcome” ) ).toBe( “Welcome back luis!” )
});});
});});

29. Story to Scenario to
TestBox
feature( "Box Size", function(){
describe( "In order to know what size box I need
As a distribution manager
I want to know the volume of the box", function(){
scenario( "Get box volume", function(){
given( "I have entered a width of 20
And a height of 30
And a depth of 40", function(){
when( "I run the calculation", function(){
then( "the result should be 24000", function(){
expect( myObject.myFunction(20,30,40) ).toBe( 24000 );
});});});});}););

30. Story to Scenario to
TestBox
story("As a distribution manager, I want to know the volume of the box I
need", function() {
given("I have a width of 20
And a height of 30
And a depth of 40", function() {
when("I run the calculation", function() {
then("the result should be 24000", function() {
expect(myObject.myFunction(20,30,40)).toBe(24000);
});
});
});
});

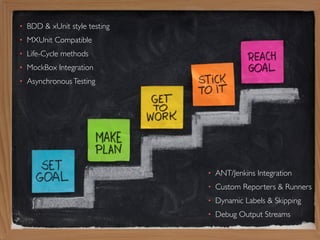

31. • BDD & xUnit style testing
• MXUnit Compatible
• Life-Cycle methods
• MockBox Integration
• AsynchronousTesting
• ANT/Jenkins Integration
• Custom Reporters & Runners
• Dynamic Labels & Skipping
• Debug Output Streams

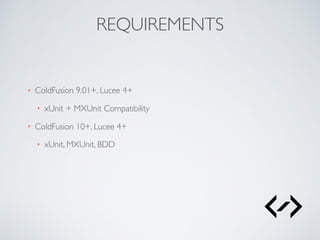

32. REQUIREMENTS
• ColdFusion 9.01+, Lucee 4+
• xUnit + MXUnit Compatibility
• ColdFusion 10+, Lucee 4+
• xUnit, MXUnit, BDD

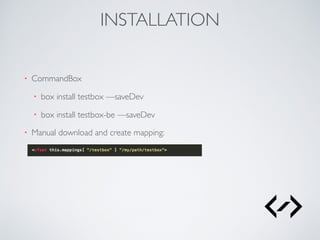

33. INSTALLATION
• CommandBox
• box install testbox —saveDev
• box install testbox-be —saveDev
• Manual download and create mapping:

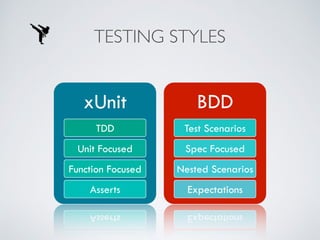

34. TESTING STYLES
xUnit
TDD
Unit Focused
Function Focused
Asserts
BDD
Test Scenarios
Spec Focused
Nested Scenarios
Expectations

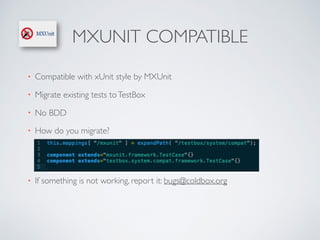

35. MXUNIT COMPATIBLE
• Compatible with xUnit style by MXUnit
• Migrate existing tests toTestBox
• No BDD
• How do you migrate?
• If something is not working, report it: bugs@coldbox.org

36. What you get! API Docs
Core
Test Browser
Test Harness
Test Runner
Samples

37. Test Harness
Automated test
results!
xUnit/BDDTest
Bundles
Harness bootstrap
HTML Runner
ANT Runner

38. TEST BUNDLE CFC
• Inherits from testbox.system.BaseSpec
• TesBox will then execute all tests within 1 or more bundles

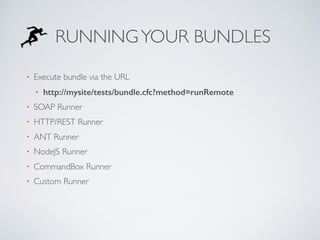

39. RUNNINGYOUR BUNDLES
• Execute bundle via the URL
• http://mysite/tests/bundle.cfc?method=runRemote
• SOAP Runner
• HTTP/REST Runner
• ANT Runner
• NodeJS Runner
• CommandBox Runner
• Custom Runner

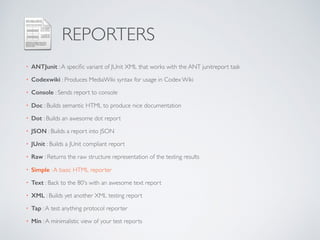

40. REPORTERS
• ANTJunit :A specific variant of JUnit XML that works with the ANT junitreport task
• Codexwiki : Produces MediaWiki syntax for usage in Codex Wiki
• Console : Sends report to console
• Doc : Builds semantic HTML to produce nice documentation
• Dot : Builds an awesome dot report
• JSON : Builds a report into JSON
• JUnit : Builds a JUnit compliant report
• Raw : Returns the raw structure representation of the testing results
• Simple :A basic HTML reporter
• Text : Back to the 80's with an awesome text report
• XML : Builds yet another XML testing report
• Tap :A test anything protocol reporter
• Min :A minimalistic view of your test reports

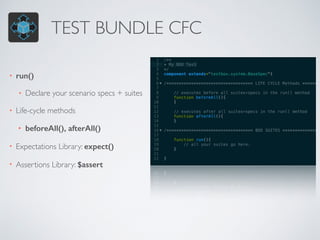

41. TEST BUNDLE CFC
• run()
• Declare your scenario specs + suites
• Life-cycle methods
• beforeAll(), afterAll()
• Expectations Library: expect()
• Assertions Library: $assert

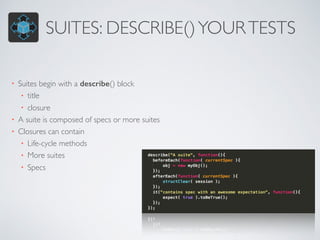

42. SUITES: DESCRIBE()YOURTESTS
• Suites begin with a describe() block
• title
• closure
• A suite is composed of specs or more suites
• Closures can contain
• Life-cycle methods
• More suites
• Specs

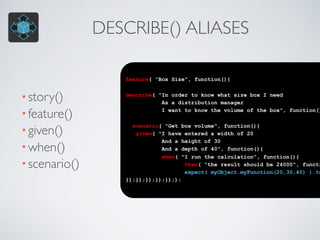

43. DESCRIBE() ALIASES
•story()
•feature()
•given()
•when()
•scenario()
feature( "Box Size", function(){
describe( "In order to know what size box I need
As a distribution manager
I want to know the volume of the box", function()
scenario( "Get box volume", function(){
given( "I have entered a width of 20
And a height of 30
And a depth of 40", function(){
when( "I run the calculation", function(){
then( "the result should be 24000", functi
expect( myObject.myFunction(20,30,40) ).to
});});});});}););

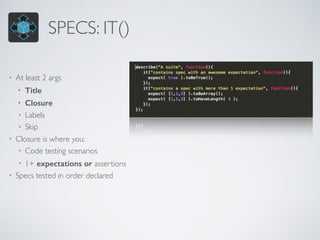

44. SPECS: IT()
• At least 2 args
• Title
• Closure
• Labels
• Skip
• Closure is where you:
• Code testing scenarios
• 1+ expectations or assertions
• Specs tested in order declared

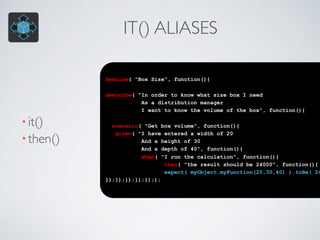

45. IT() ALIASES
•it()
•then()
feature( "Box Size", function(){
describe( "In order to know what size box I need
As a distribution manager
I want to know the volume of the box", function(){
scenario( "Get box volume", function(){
given( "I have entered a width of 20
And a height of 30
And a depth of 40", function(){
when( "I run the calculation", function(){
then( "the result should be 24000", function(){
expect( myObject.myFunction(20,30,40) ).toBe( 24
});});});});}););

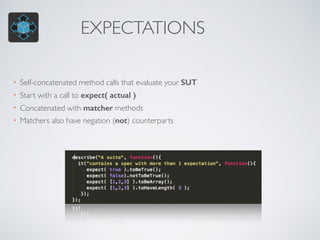

46. EXPECTATIONS
• Self-concatenated method calls that evaluate your SUT
• Start with a call to expect( actual )
• Concatenated with matcher methods
• Matchers also have negation (not) counterparts

47. NESTED SUITES
• Life-cycle methods bubble up
• Great for grouping and recursive scenarios
• Execute in descending order

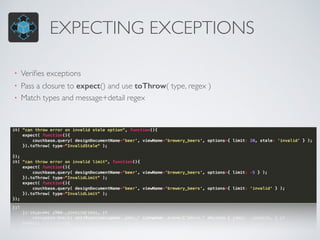

48. EXPECTING EXCEPTIONS
• Verifies exceptions
• Pass a closure to expect() and use toThrow( type, regex )
• Match types and message+detail regex

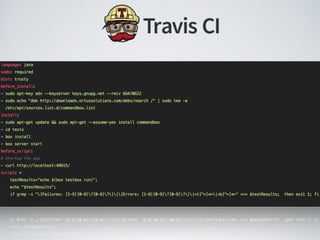

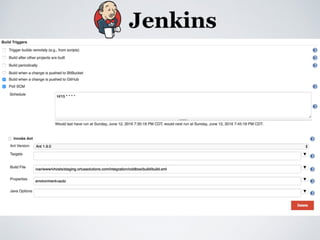

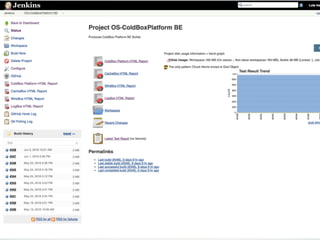

49. AUTOMATION

55. Lots of TestBox FreeTraining
www.ortussolutions.com/products/testbox
Free eBooks
Lots BDD Examples: ColdBox, Couchbase SDK,
TestBox
ProfessionalTraining

56. Thanks!
Q & A
