The document outlines a presentation by Marco Bamert on establishing reliable build and deployment processes for Magento projects. It discusses the development of a standardized automated build framework, the tools used (like Git and Phing), and the specific steps involved in building, configuring, and deploying projects. Key goals include reducing project setup time, maintaining control over resources, and ensuring the ability to automate the entire pipeline.

1. Establish reliable builds and deployments
Meet Magento Switzerland 2014
Zurich, October 24, 2014 Marco Bamert

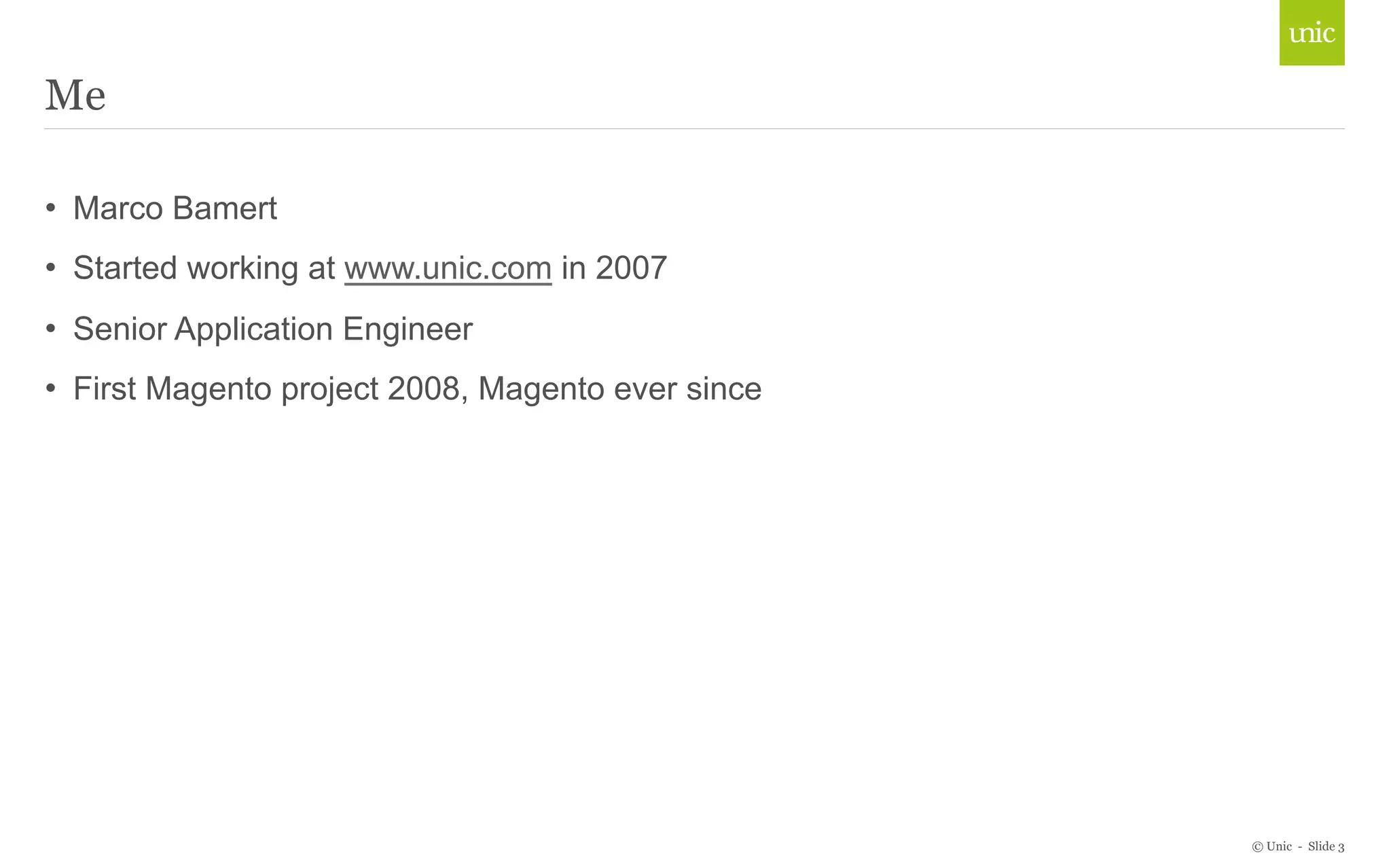

3. © Unic - Slide 3
Me
• Marco Bamert
• Started working at www.unic.com in 2007
• Senior Application Engineer
• First Magento project 2008, Magento ever since

4. © Unic - Slide 4

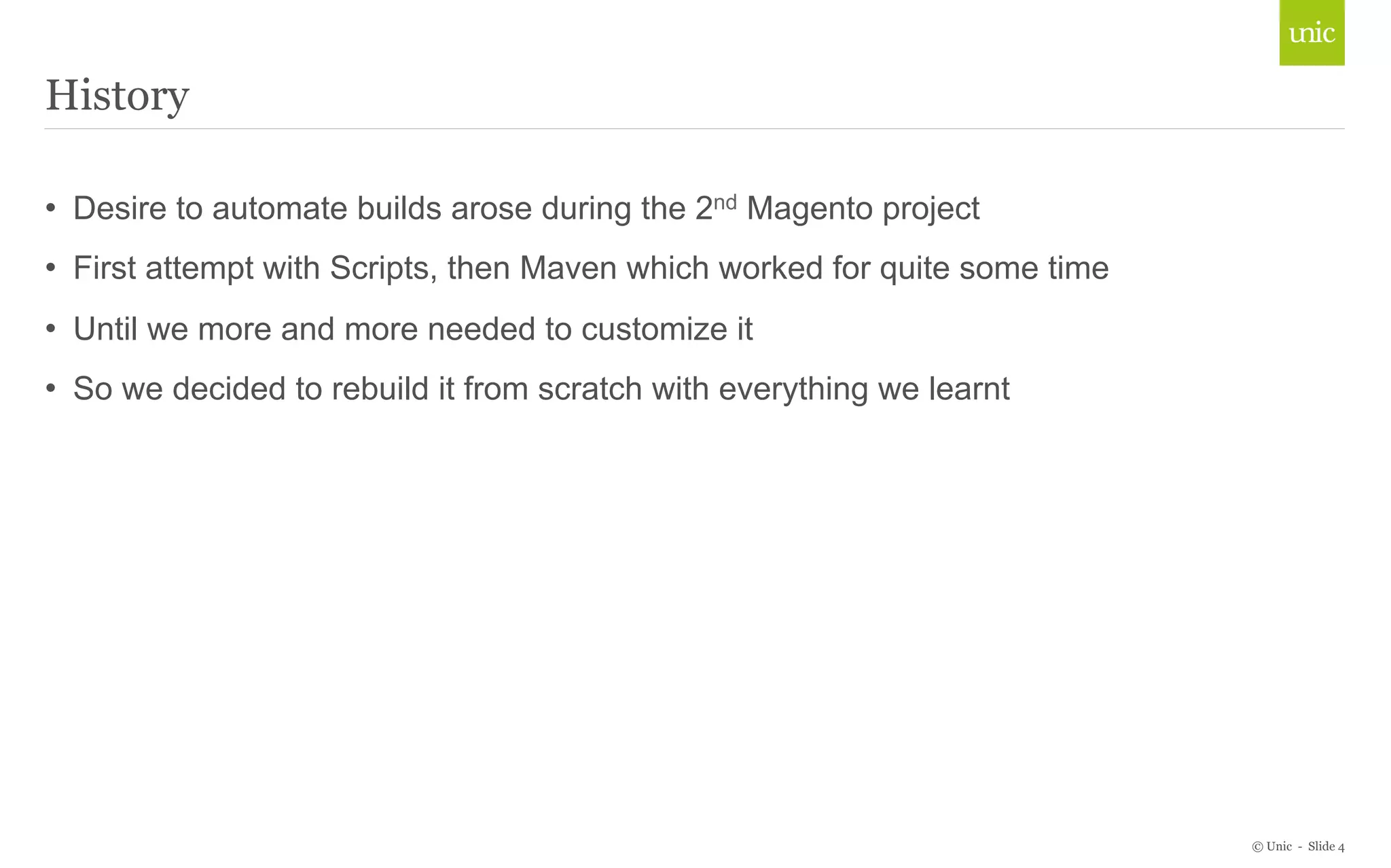

History
• Desire to automate builds arose during the 2nd Magento project
• First attempt with Scripts, then Maven which worked for quite some time
• Until we more and more needed to customize it
• So we decided to rebuild it from scratch with everything we learnt

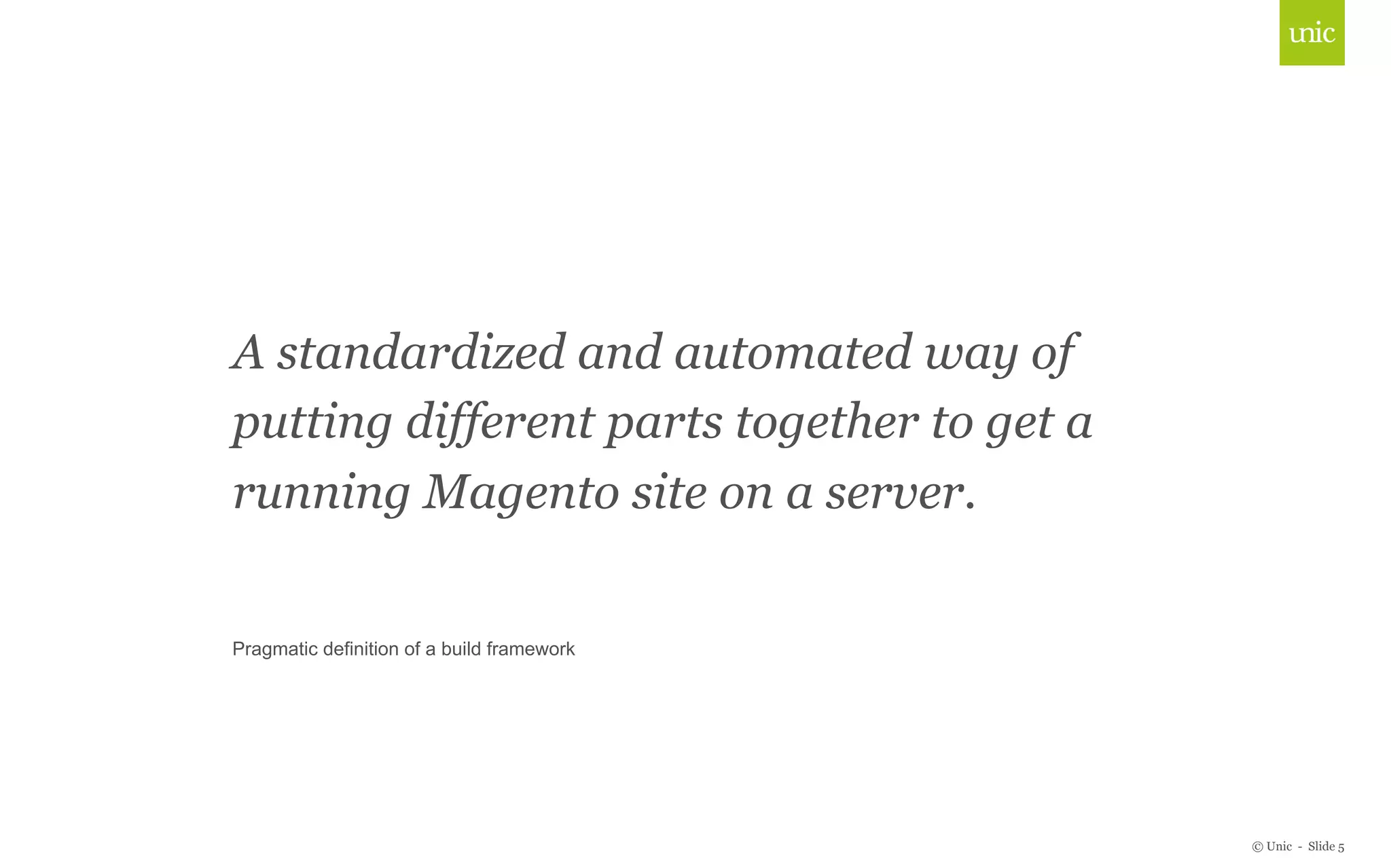

5. © Unic - Slide 5
A standardized and automated way of
Click putting to different edit Master parts title together style
to get a
running Magento site on a server.
Pragmatic definition of a build framework

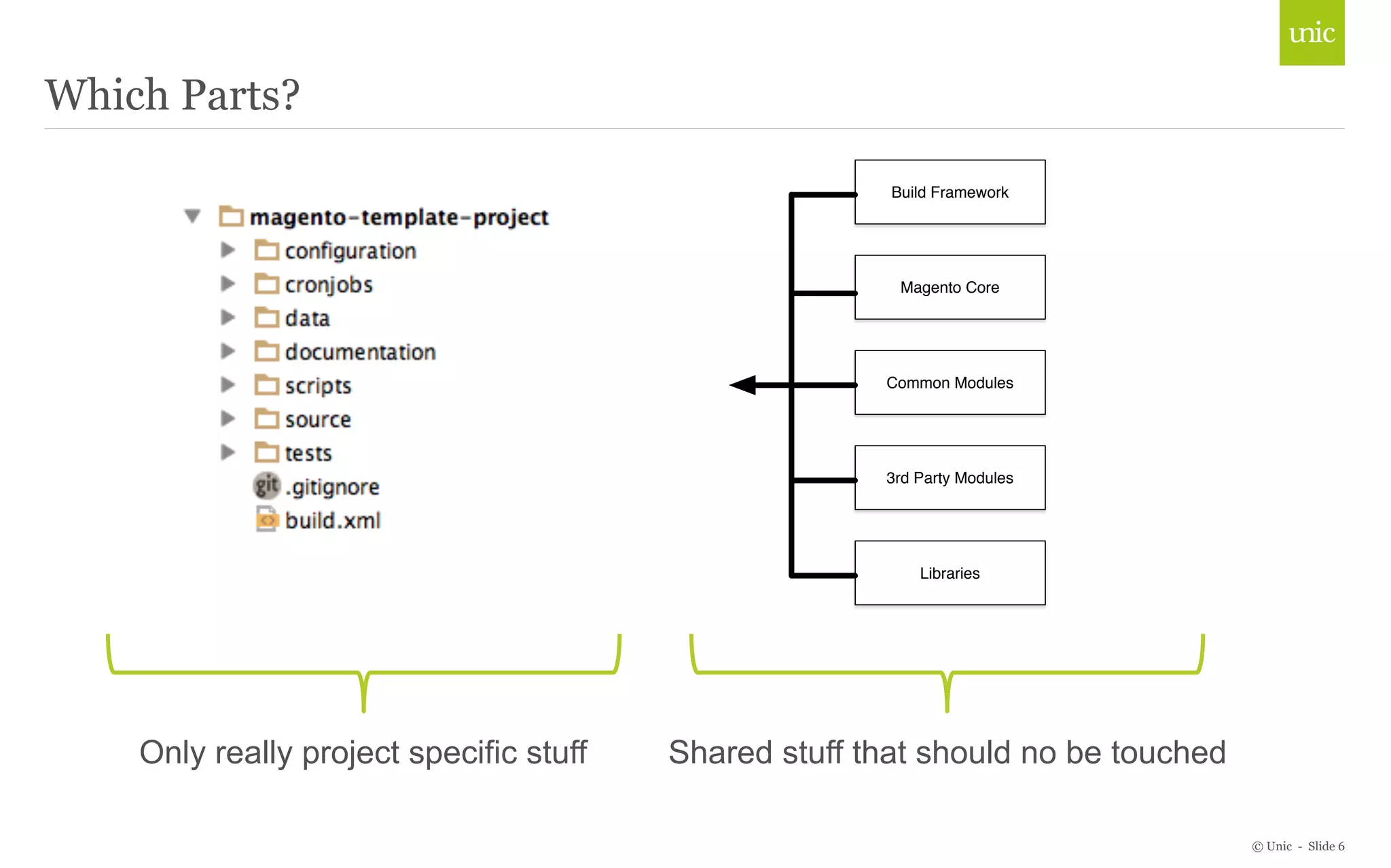

6. © Unic - Slide 6
Which Parts?
Build Framework
Magento Core
Common Modules
3rd Party Modules
Libraries
Only really project specific stuff Shared stuff that should no be touched

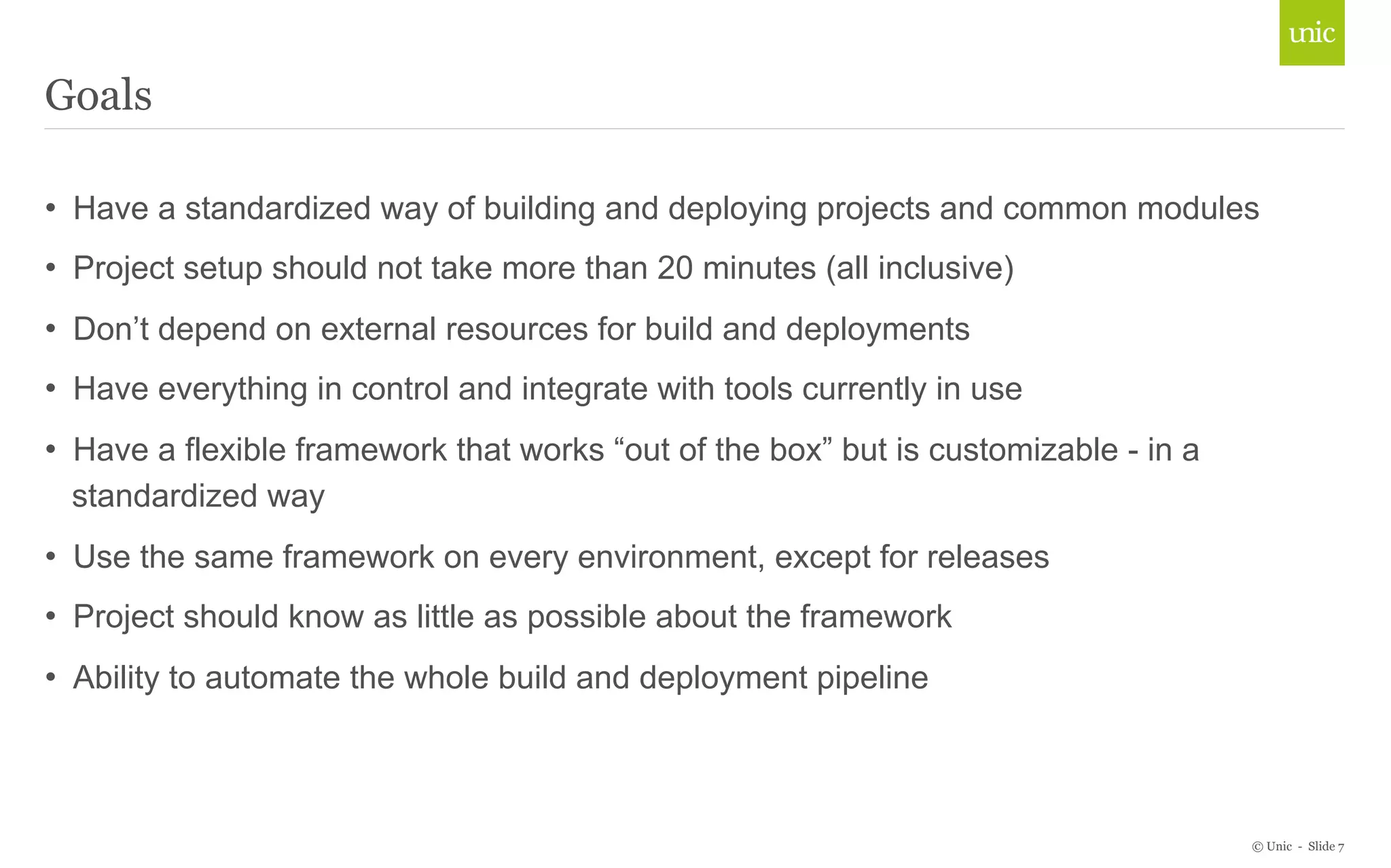

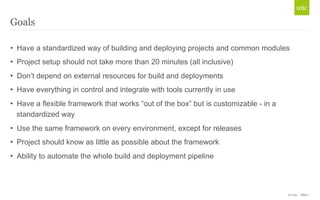

7. • Have a standardized way of building and deploying projects and common modules
• Project setup should not take more than 20 minutes (all inclusive)
• Don’t depend on external resources for build and deployments
• Have everything in control and integrate with tools currently in use
• Have a flexible framework that works “out of the box” but is customizable - in a
standardized way
• Use the same framework on every environment, except for releases
• Project should know as little as possible about the framework
• Ability to automate the whole build and deployment pipeline
© Unic - Slide 7
Goals

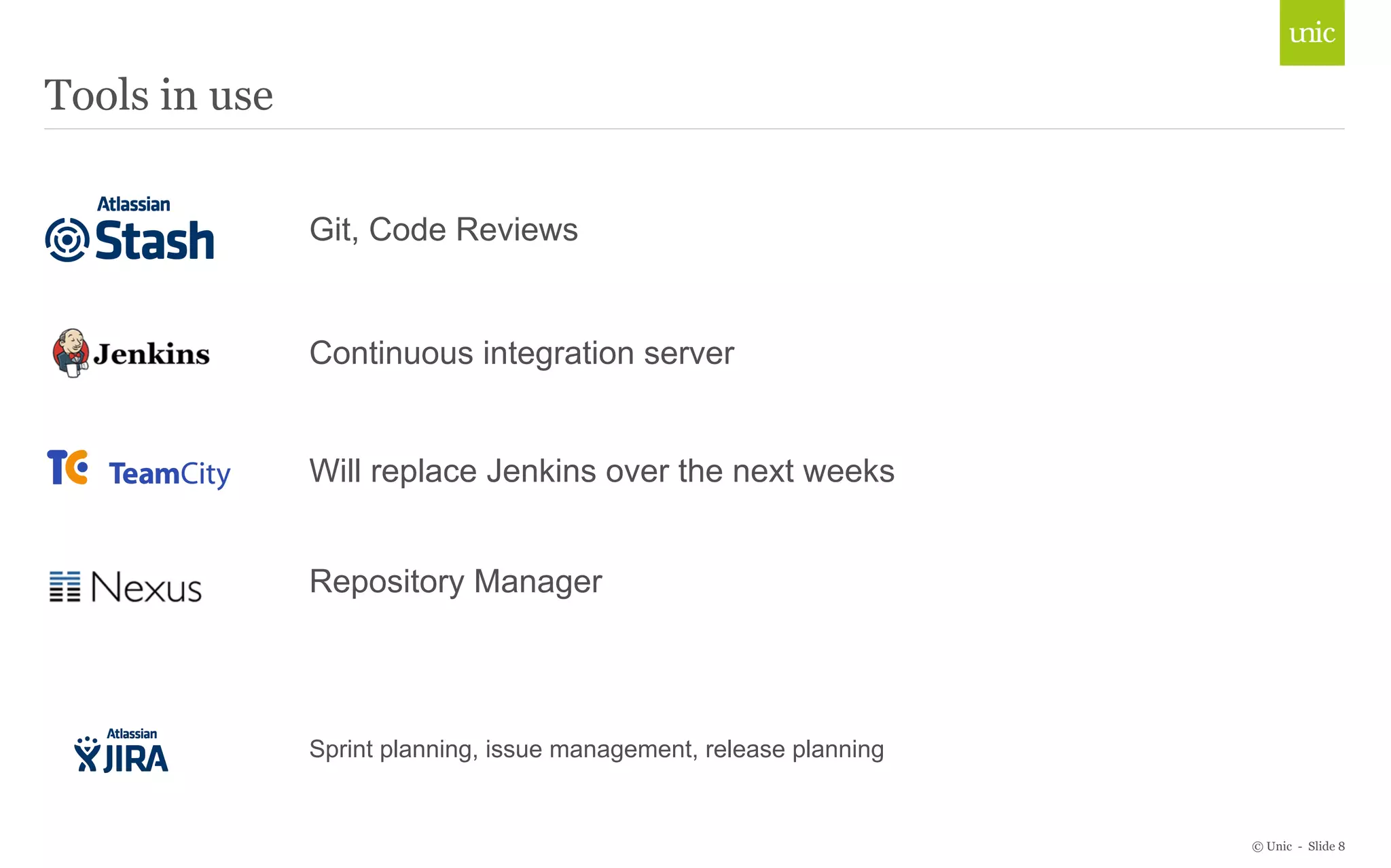

8. © Unic - Slide 8
Tools in use
Git, Code Reviews
Continuous integration server
Will replace Jenkins over the next weeks
Repository Manager
Sprint planning, issue management, release planning

9. © Unic - Slide 9

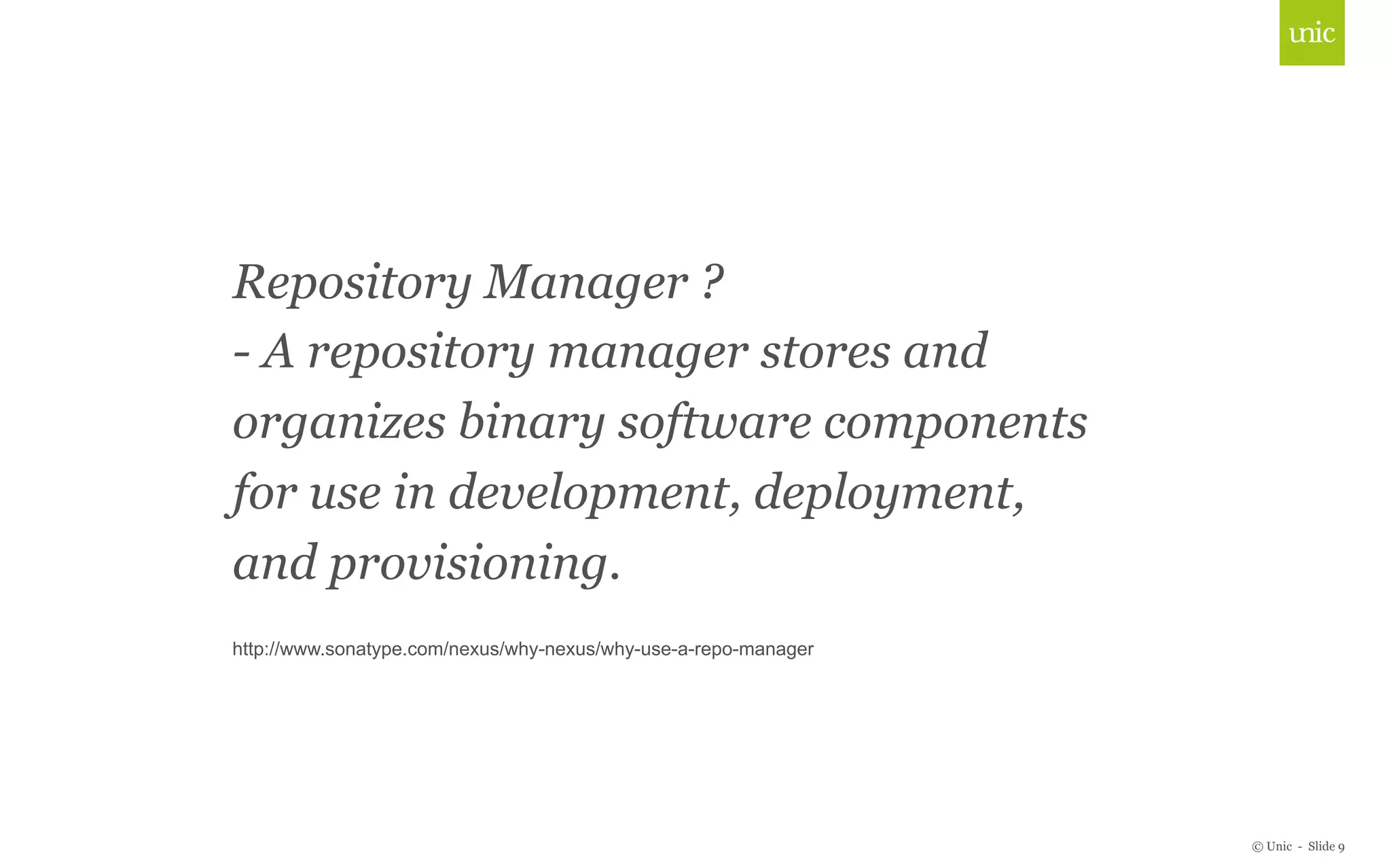

Repository Manager ?
- A repository manager stores and
Click organizes to edit binary Master software title style
components
for use in development, deployment,
and provisioning.
http://www.sonatype.com/nexus/why-nexus/why-use-a-repo-manager

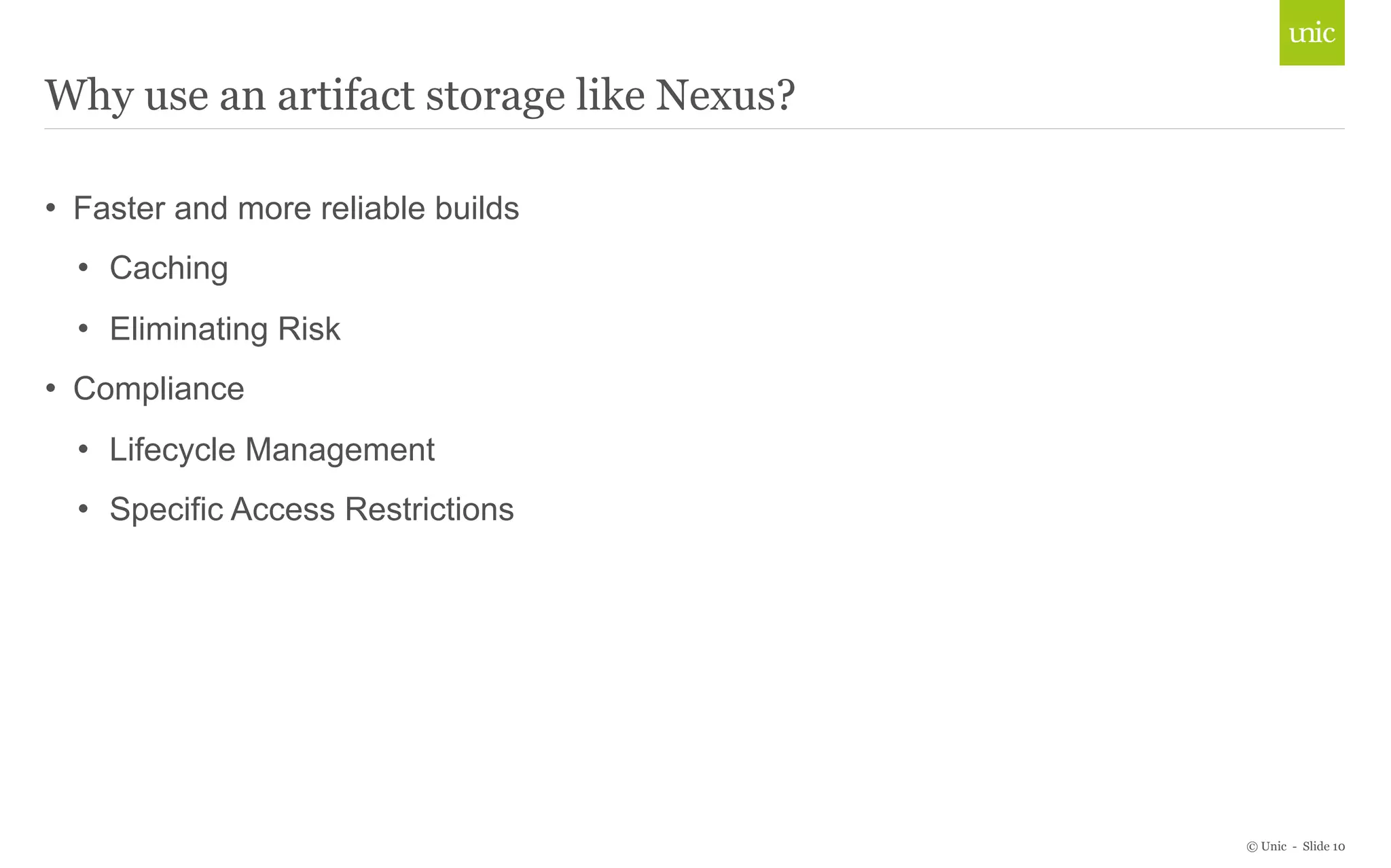

10. © Unic - Slide 10
Why use an artifact storage like Nexus?
• Faster and more reliable builds
• Caching
• Eliminating Risk
• Compliance
• Lifecycle Management
• Specific Access Restrictions

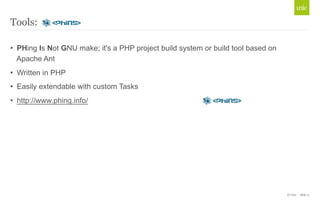

11. © Unic - Slide 11

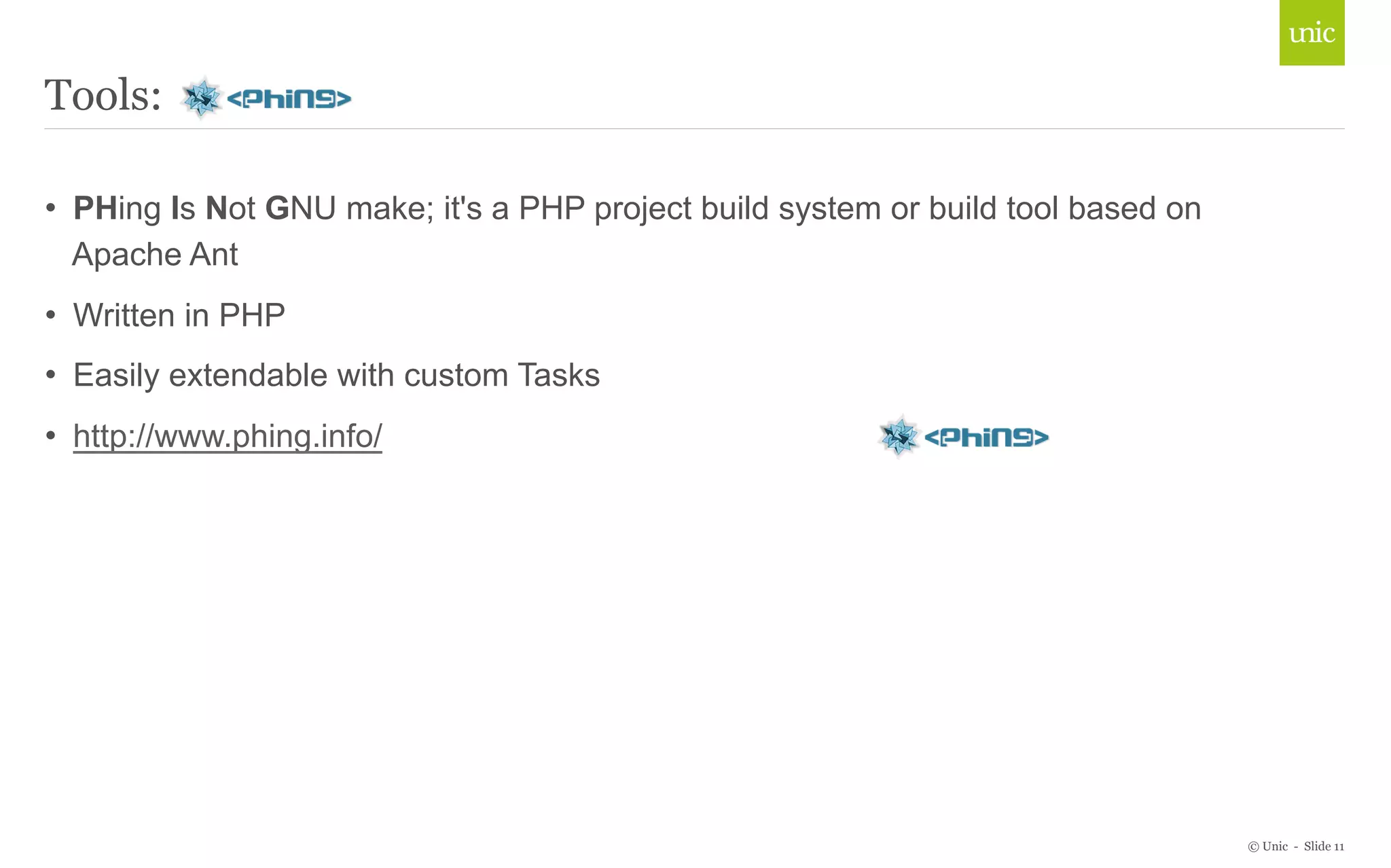

Tools:
• PHing Is Not GNU make; it's a PHP project build system or build tool based on
Apache Ant
• Written in PHP
• Easily extendable with custom Tasks
• http://www.phing.info/

12. © Unic - Slide 12

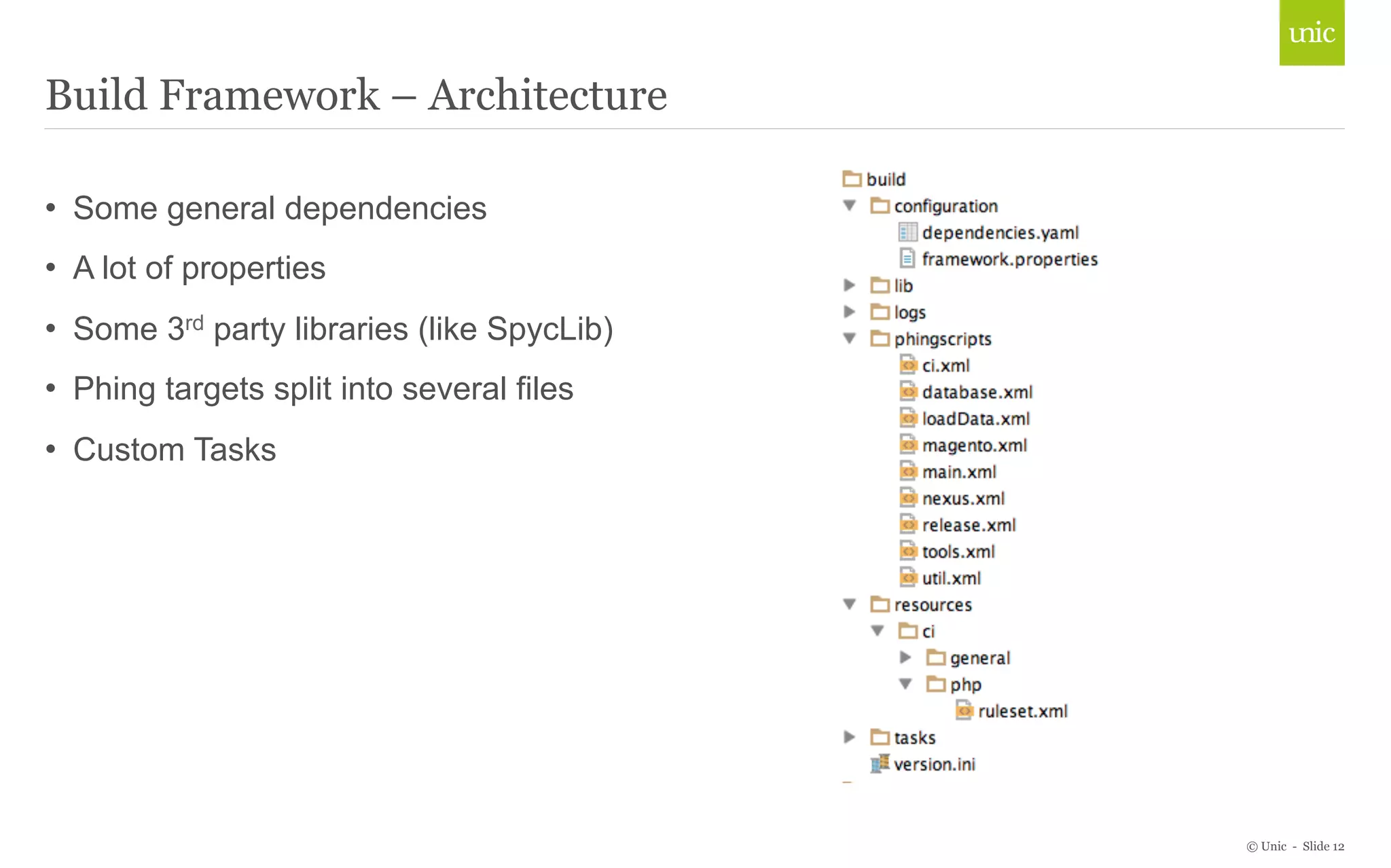

Build Framework – Architecture
• Some general dependencies
• A lot of properties
• Some 3rd party libraries (like SpycLib)
• Phing targets split into several files
• Custom Tasks

13. © Unic - Slide 13

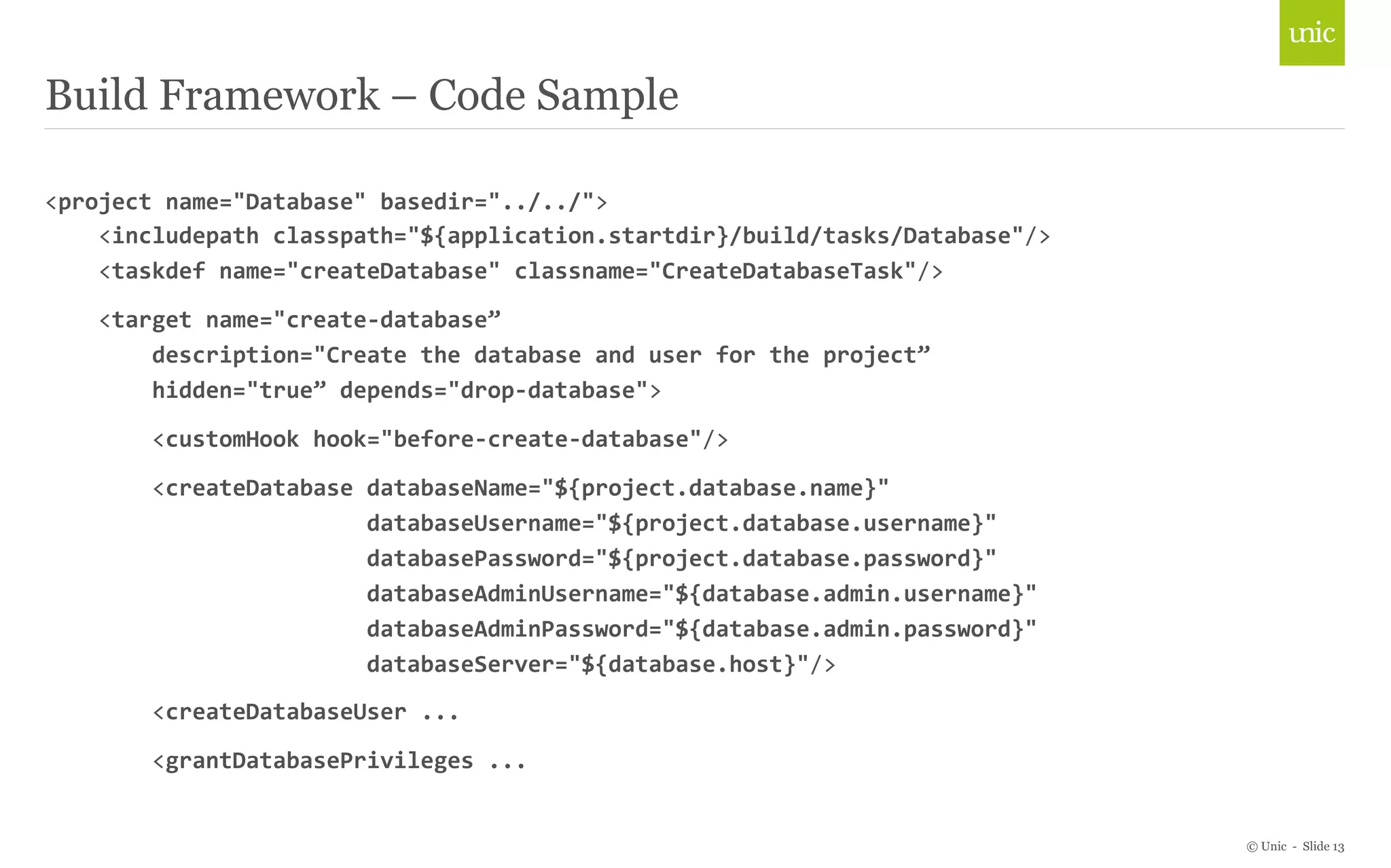

Build Framework – Code Sample
<project
name="Database"
basedir="../../">
<includepath
classpath="${application.startdir}/build/tasks/Database"/>
<taskdef
name="createDatabase"
classname="CreateDatabaseTask"/>
<target
name="create-­‐database”
description="Create
the
database
and
user
for
the
project”
hidden="true”
depends="drop-­‐database">
<customHook
hook="before-­‐create-­‐database"/>
<createDatabase
databaseName="${project.database.name}"
databaseUsername="${project.database.username}"
databasePassword="${project.database.password}"
databaseAdminUsername="${database.admin.username}"
databaseAdminPassword="${database.admin.password}"
databaseServer="${database.host}"/>
<createDatabaseUser
...
<grantDatabasePrivileges
...

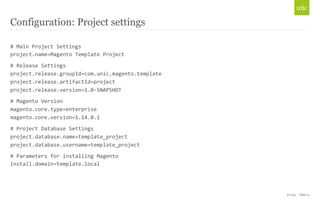

14. © Unic - Slide 14

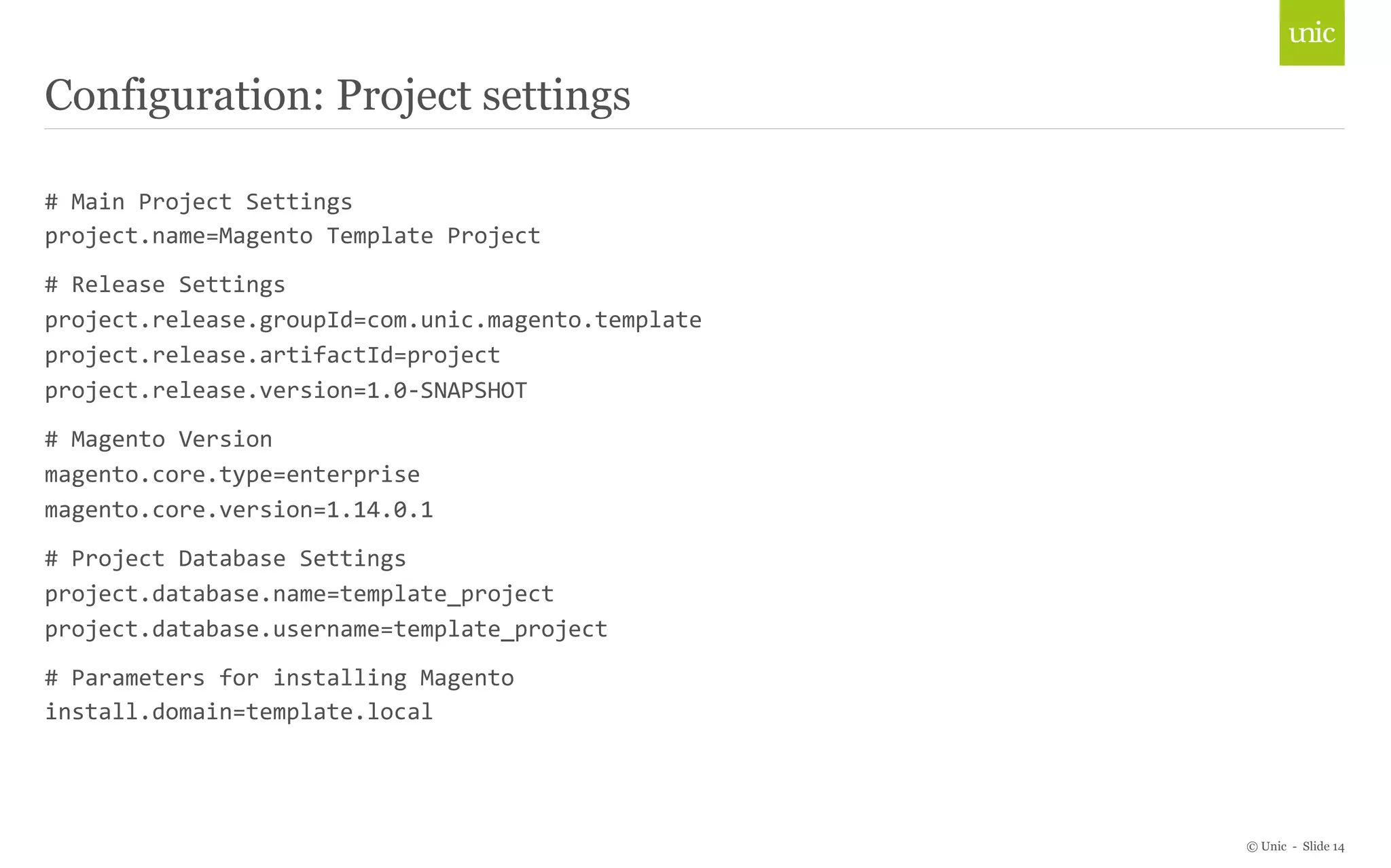

Configuration: Project settings
#
Main
Project
Settings
project.name=Magento
Template
Project
#
Release
Settings
project.release.groupId=com.unic.magento.template
project.release.artifactId=project
project.release.version=1.0-­‐SNAPSHOT
#
Magento
Version
magento.core.type=enterprise
magento.core.version=1.14.0.1
#
Project
Database
Settings
project.database.name=template_project
project.database.username=template_project
#
Parameters
for
installing
Magento
install.domain=template.local

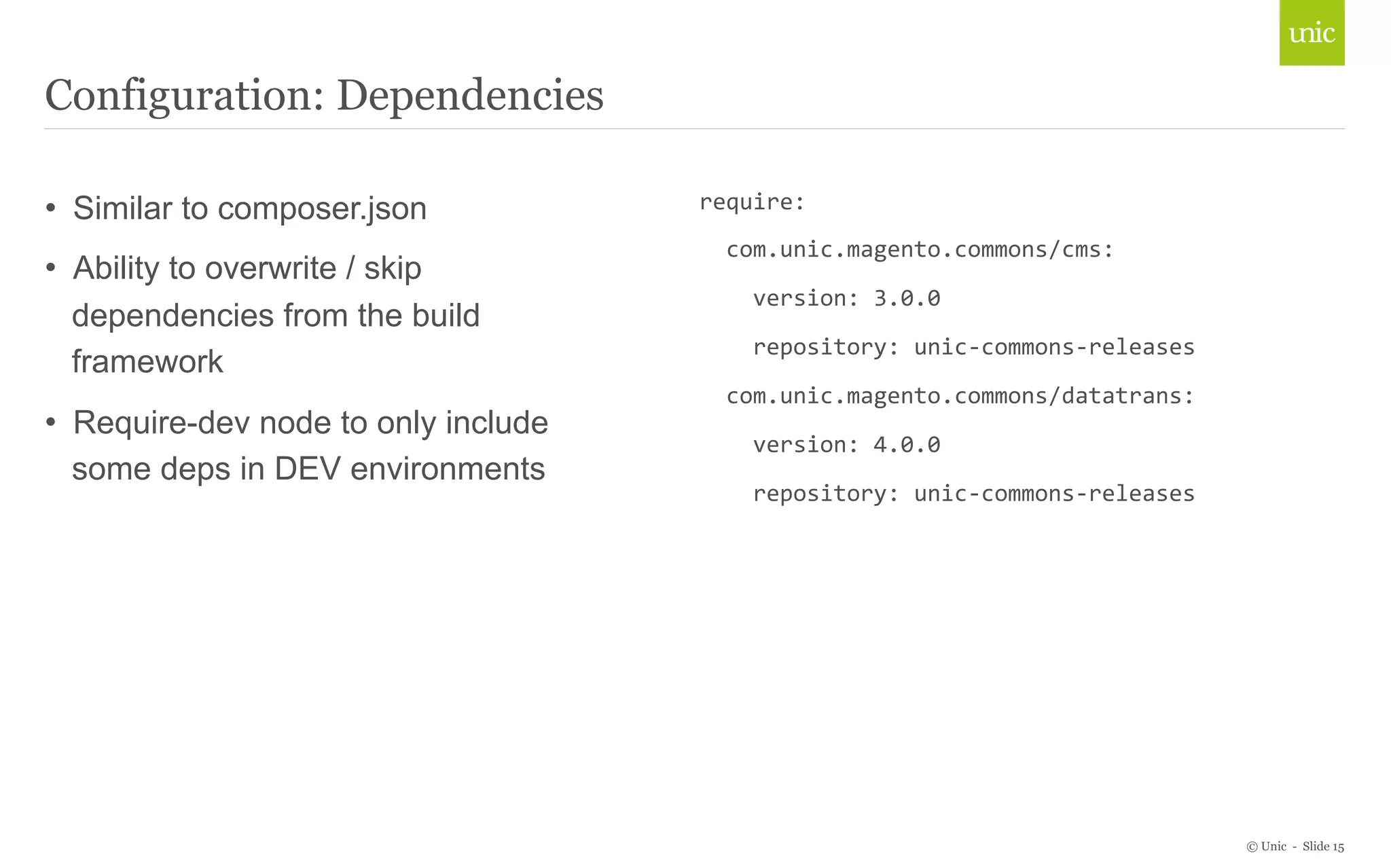

15. © Unic - Slide 15
Configuration: Dependencies
• Similar to composer.json
• Ability to overwrite / skip
dependencies from the build
framework
• Require-dev node to only include
some deps in DEV environments
require:
com.unic.magento.commons/cms:
version:
3.0.0
repository:
unic-­‐commons-­‐releases
com.unic.magento.commons/datatrans:
version:
4.0.0
repository:
unic-­‐commons-­‐releases

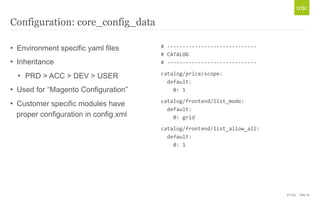

16. © Unic - Slide 16

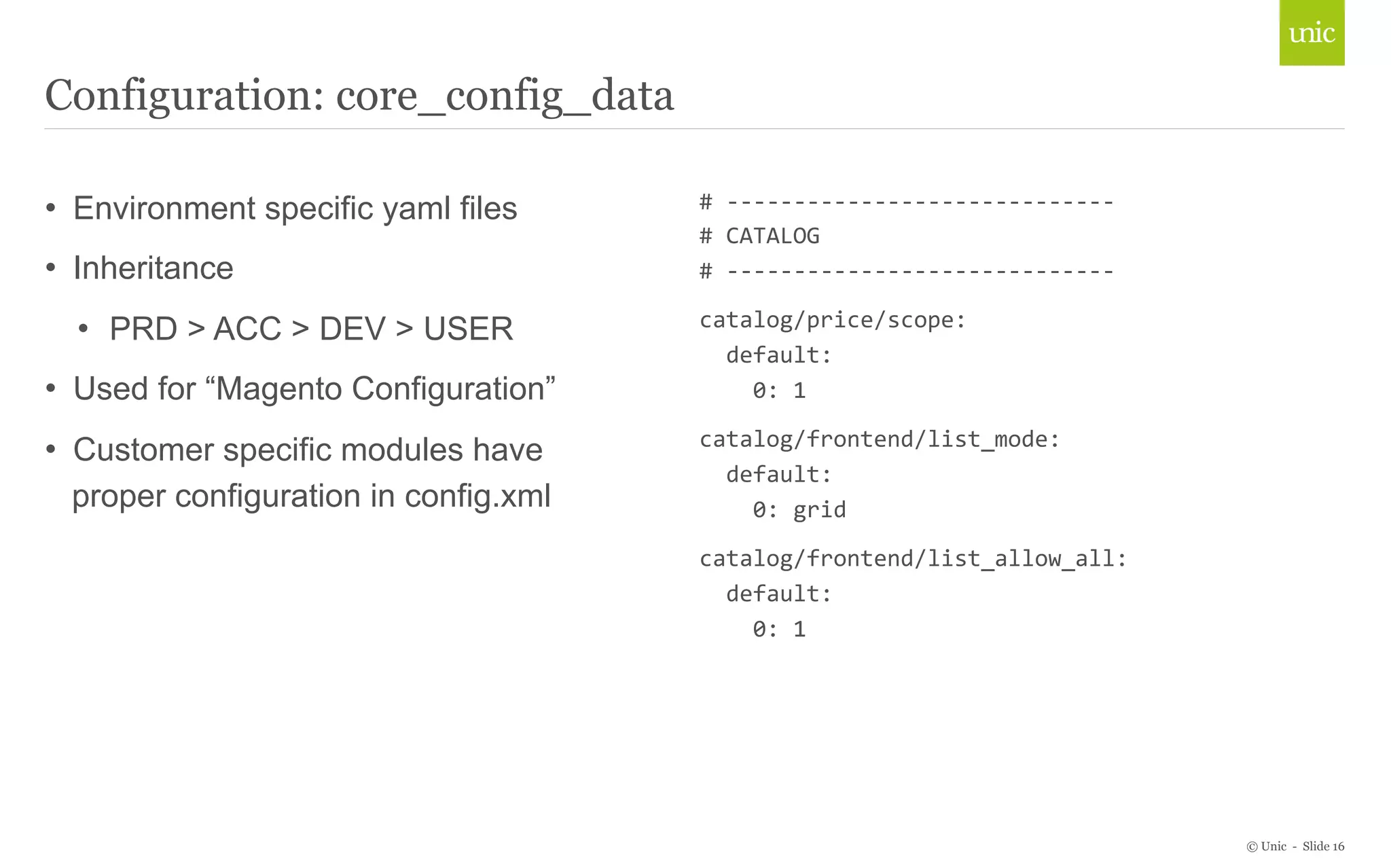

Configuration: core_config_data
• Environment specific yaml files
• Inheritance
• PRD > ACC > DEV > USER
• Used for “Magento Configuration”
• Customer specific modules have
proper configuration in config.xml
#
-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐
#
CATALOG
#
-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐-­‐
catalog/price/scope:
default:
0:
1
catalog/frontend/list_mode:
default:
0:
grid
catalog/frontend/list_allow_all:
default:
0:
1

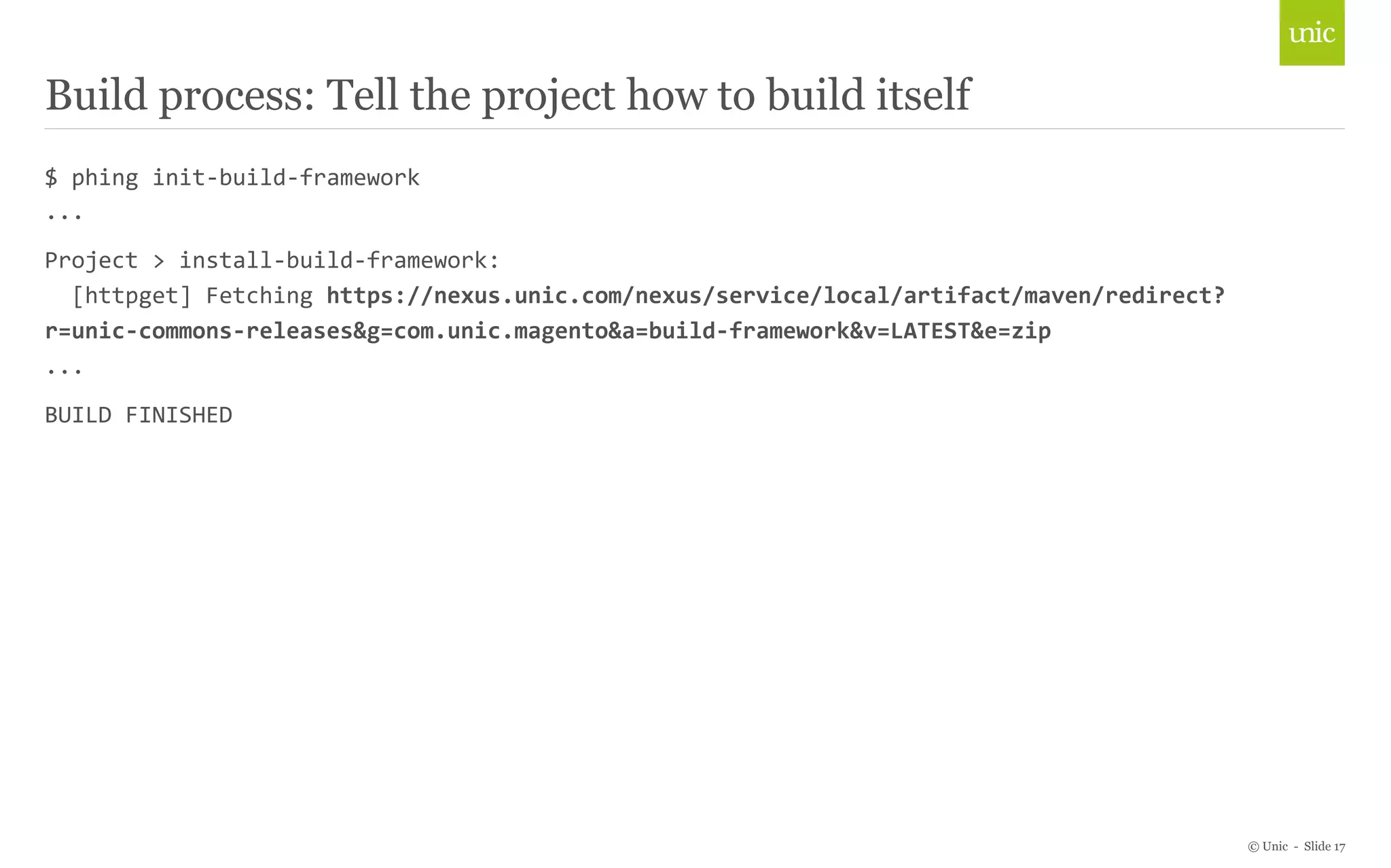

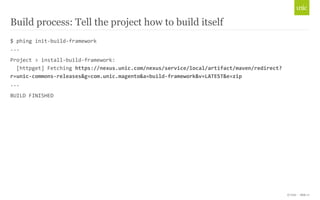

17. © Unic - Slide 17
Build process: Tell the project how to build itself
$
phing
init-­‐build-­‐framework
...
Project
>
install-­‐build-­‐framework:
[httpget]
Fetching
https://nexus.unic.com/nexus/service/local/artifact/maven/redirect?
r=unic-­‐commons-­‐releases&g=com.unic.magento&a=build-­‐framework&v=LATEST&e=zip
...
BUILD
FINISHED

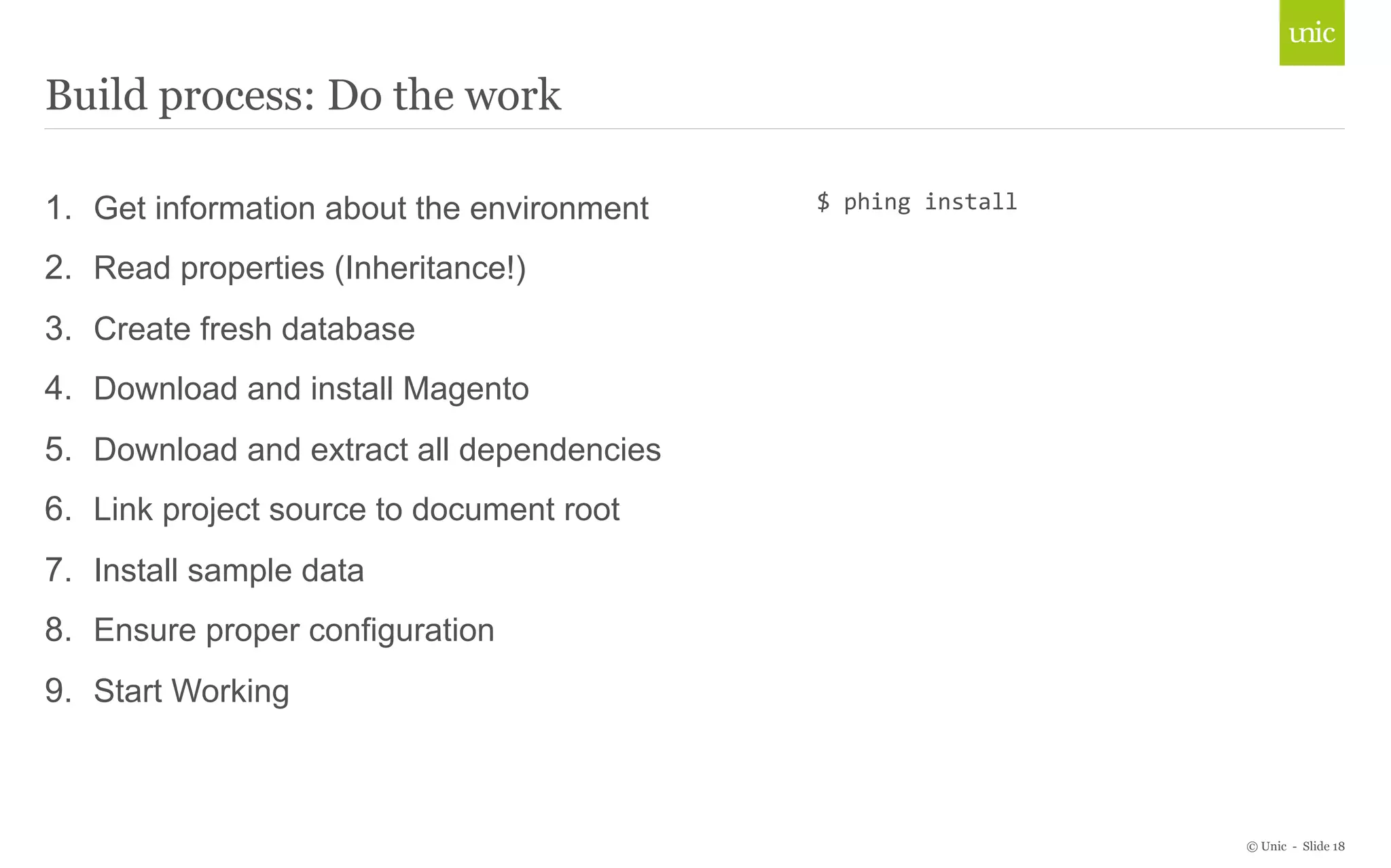

18. © Unic - Slide 18
Build process: Do the work
1. Get information about the environment
2. Read properties (Inheritance!)
3. Create fresh database
4. Download and install Magento
5. Download and extract all dependencies
6. Link project source to document root
7. Install sample data
8. Ensure proper configuration
9. Start Working
$
phing
install

19. © Unic - Slide 19

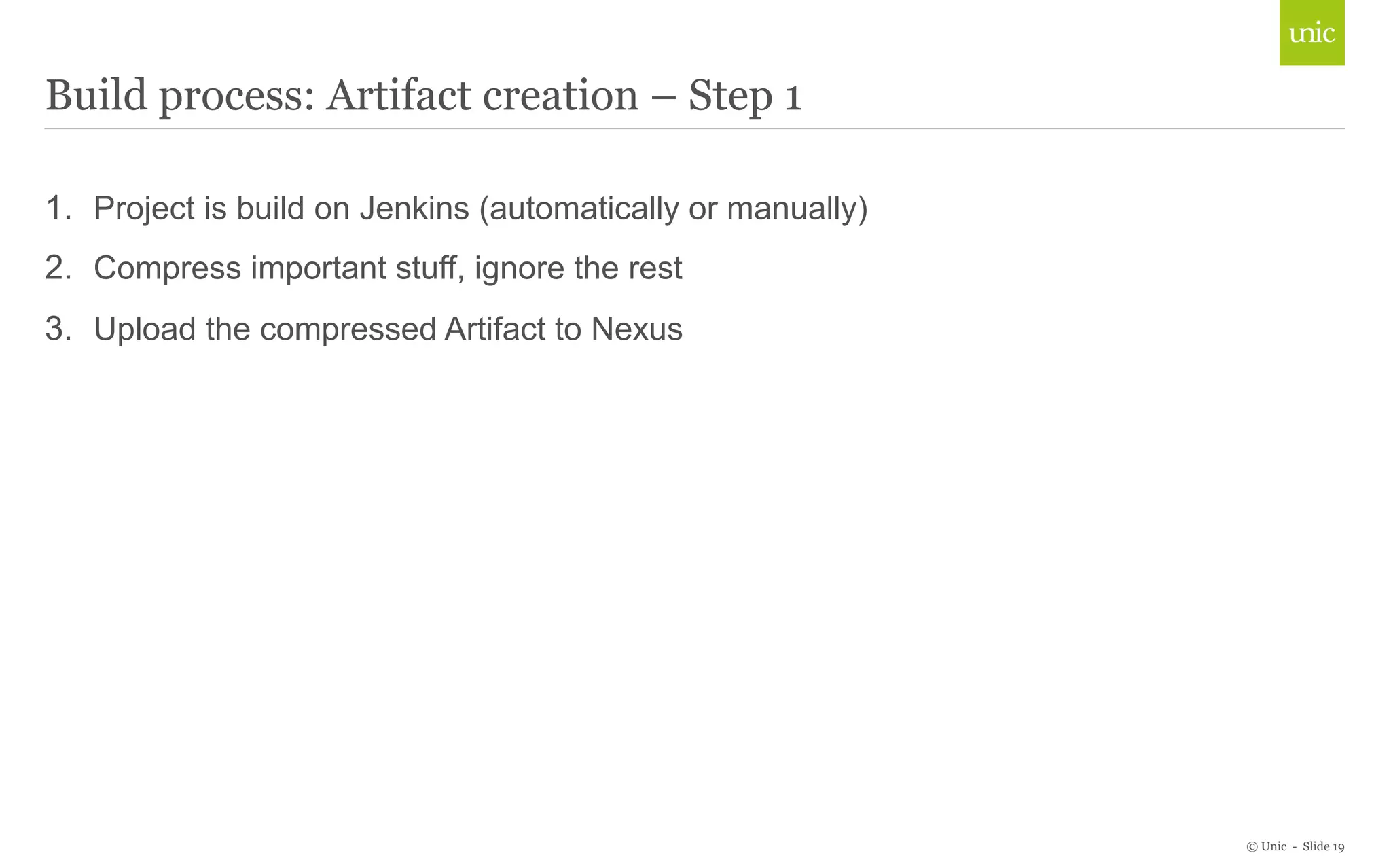

Build process: Artifact creation – Step 1
1. Project is build on Jenkins (automatically or manually)
2. Compress important stuff, ignore the rest
3. Upload the compressed Artifact to Nexus

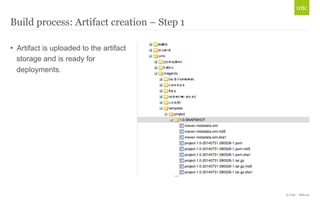

20. © Unic - Slide 20

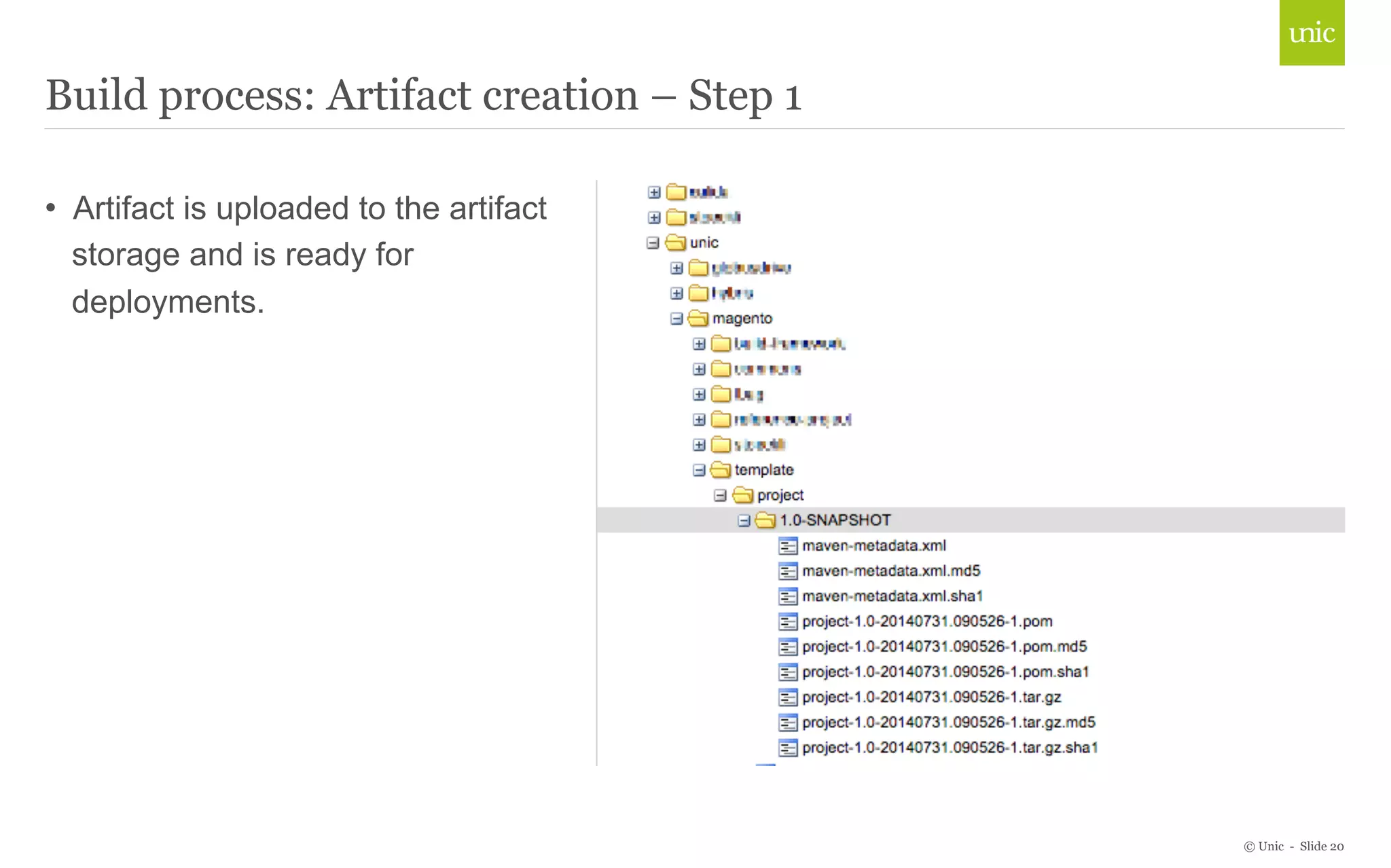

Build process: Artifact creation – Step 1
• Artifact is uploaded to the artifact
storage and is ready for
deployments.

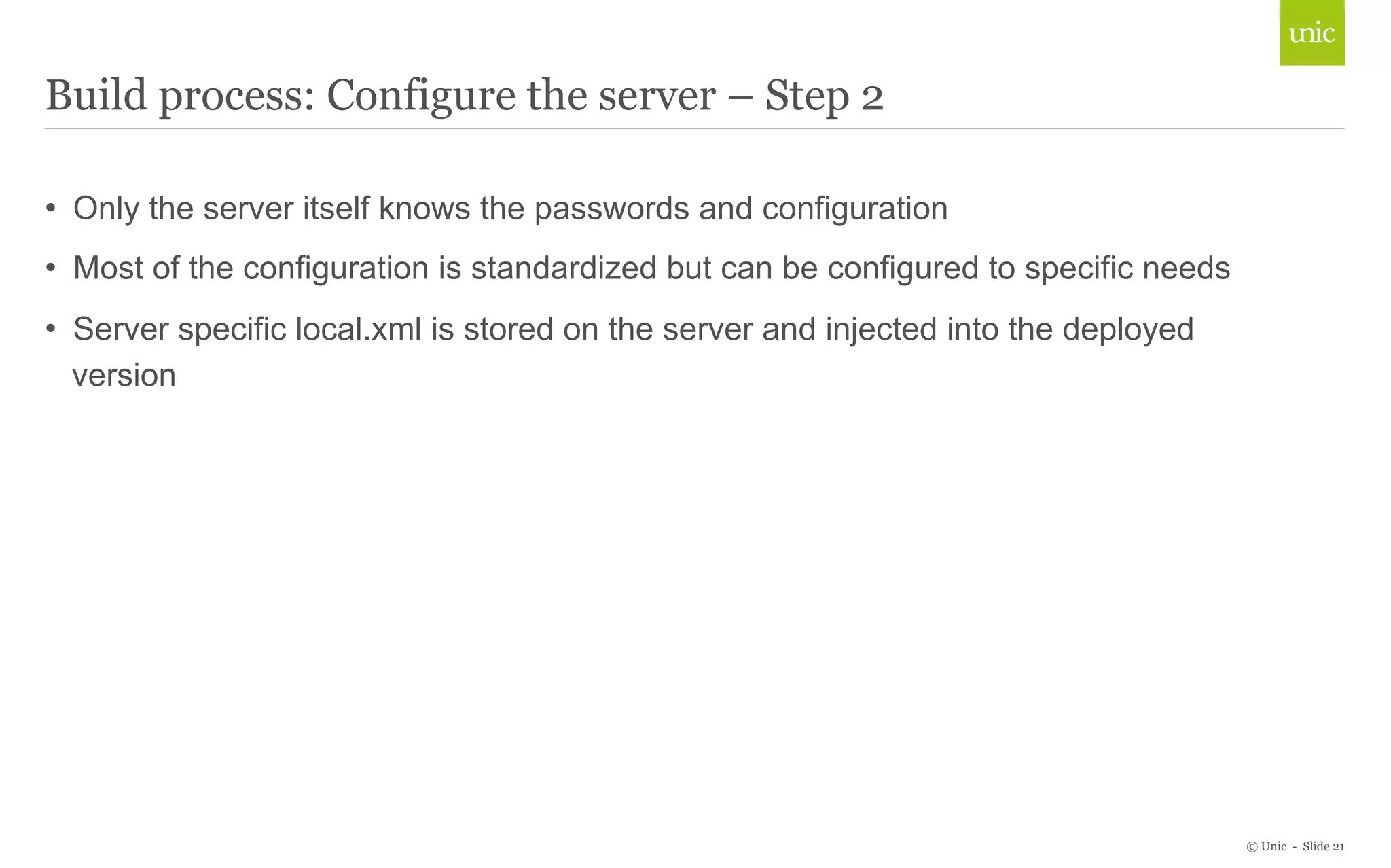

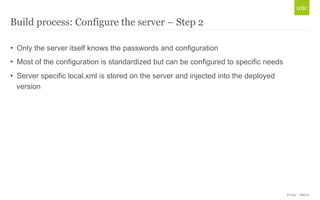

21. © Unic - Slide 21
Build process: Configure the server – Step 2
• Only the server itself knows the passwords and configuration
• Most of the configuration is standardized but can be configured to specific needs
• Server specific local.xml is stored on the server and injected into the deployed
version

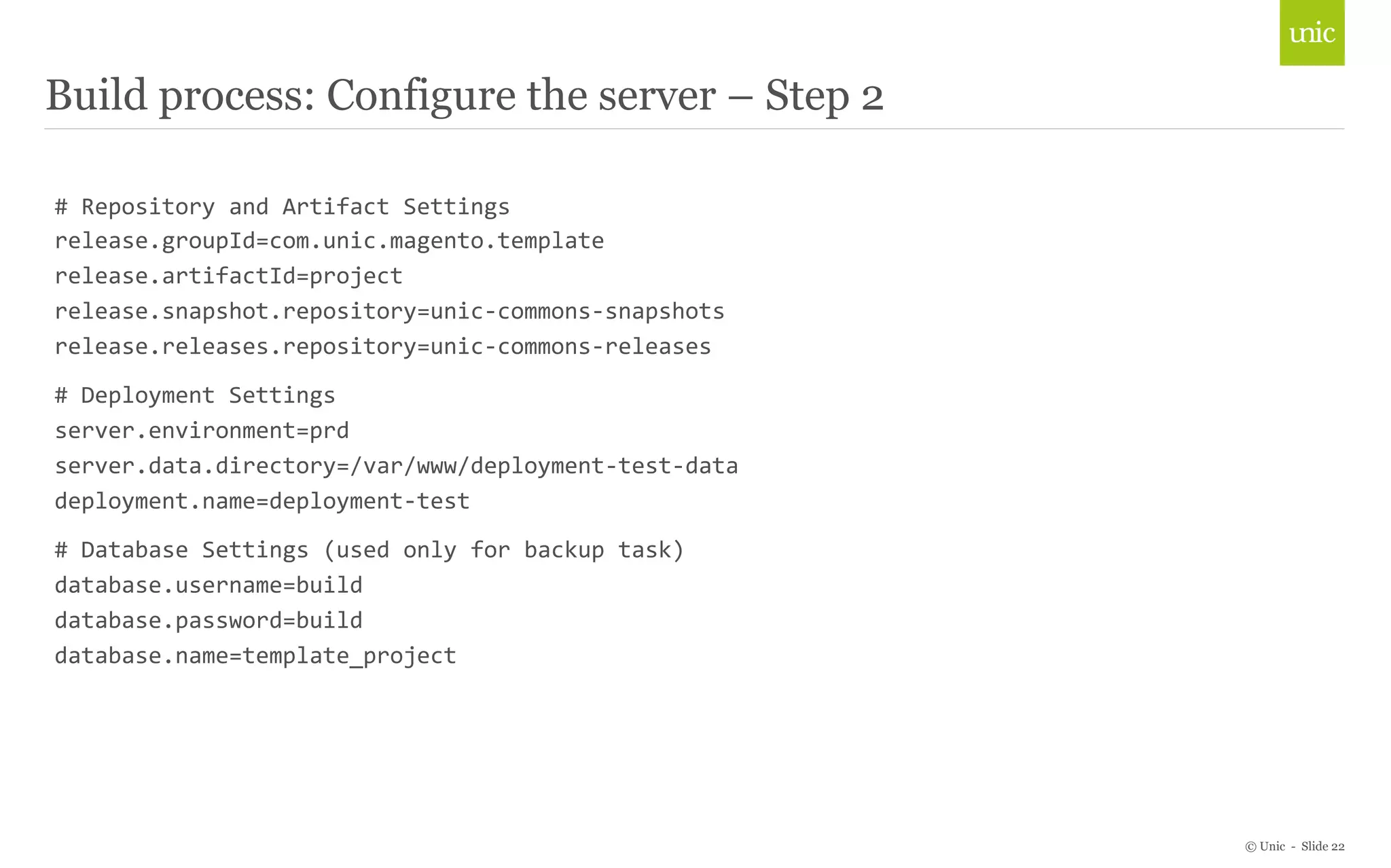

22. © Unic - Slide 22
Build process: Configure the server – Step 2
#
Repository
and
Artifact
Settings
release.groupId=com.unic.magento.template
release.artifactId=project
release.snapshot.repository=unic-­‐commons-­‐snapshots
release.releases.repository=unic-­‐commons-­‐releases
#
Deployment
Settings
server.environment=prd
server.data.directory=/var/www/deployment-­‐test-­‐data
deployment.name=deployment-­‐test
#
Database
Settings
(used
only
for
backup
task)
database.username=build
database.password=build
database.name=template_project

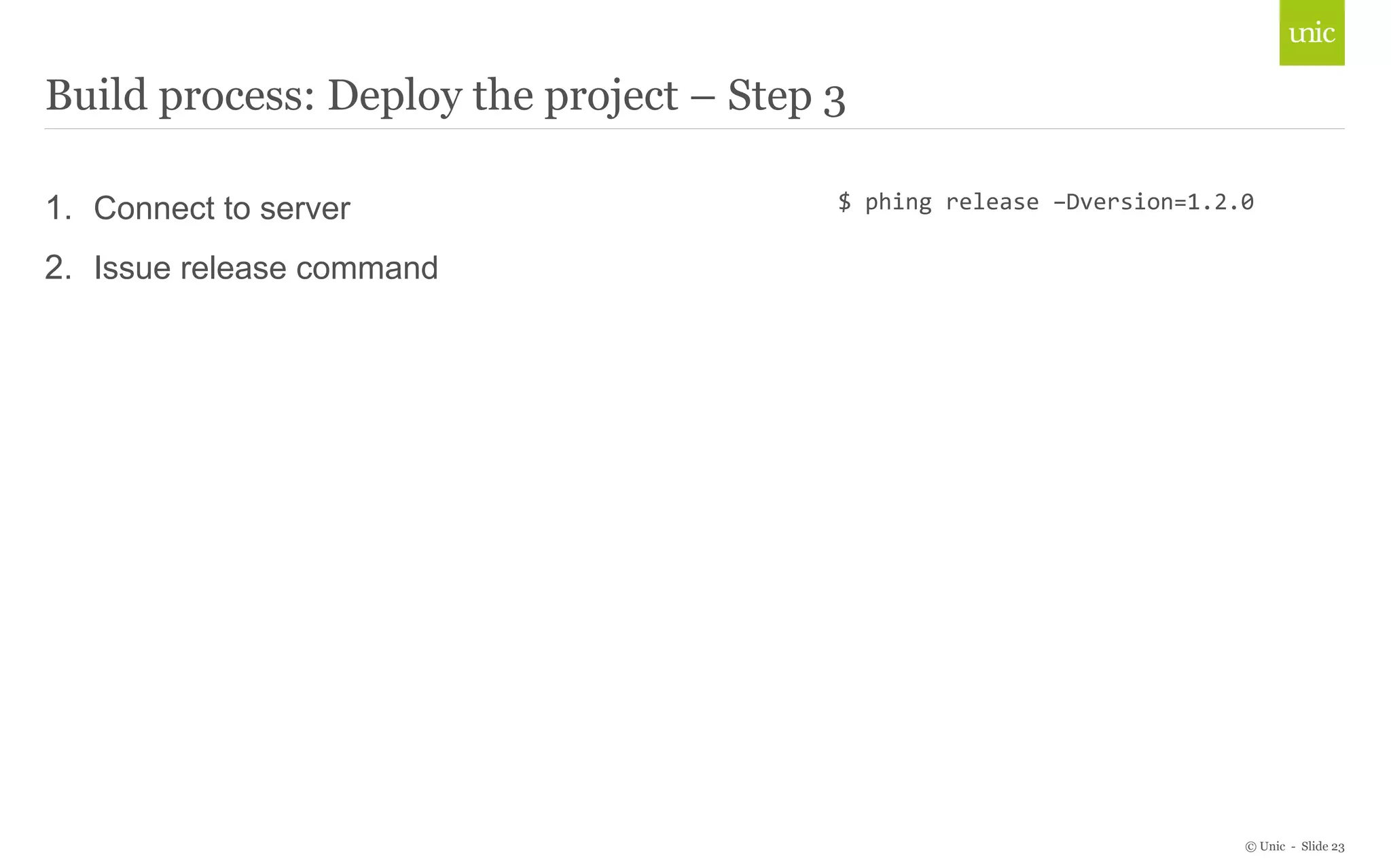

23. © Unic - Slide 23
Build process: Deploy the project – Step 3
1. Connect to server
2. Issue release command
$
phing
release
–Dversion=1.2.0

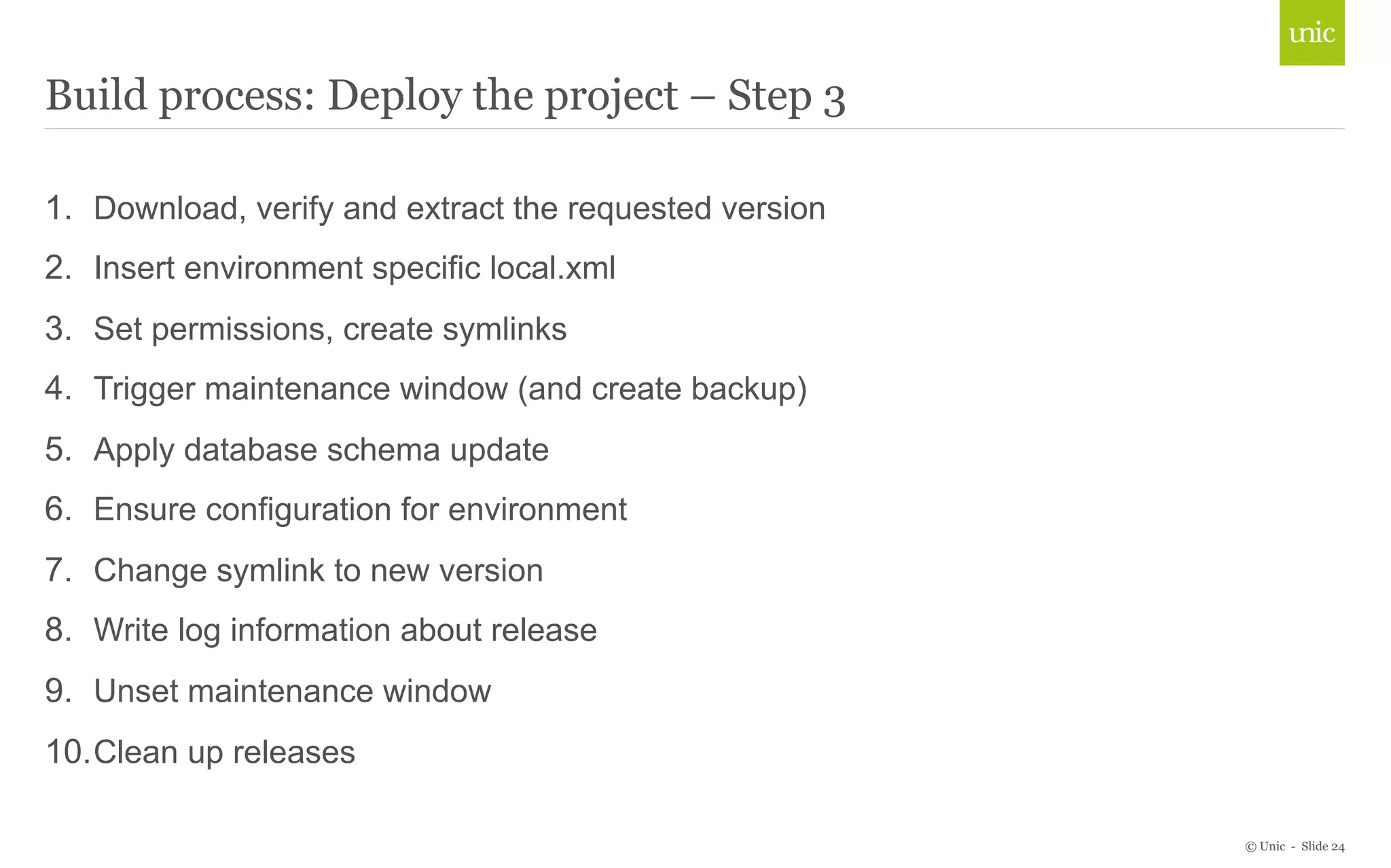

24. © Unic - Slide 24
Build process: Deploy the project – Step 3
1. Download, verify and extract the requested version
2. Insert environment specific local.xml
3. Set permissions, create symlinks
4. Trigger maintenance window (and create backup)
5. Apply database schema update
6. Ensure configuration for environment
7. Change symlink to new version
8. Write log information about release
9. Unset maintenance window
10. Clean up releases

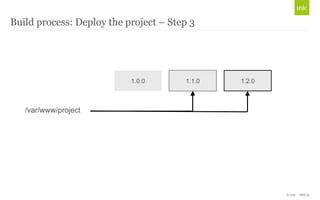

25. © Unic - Slide 25

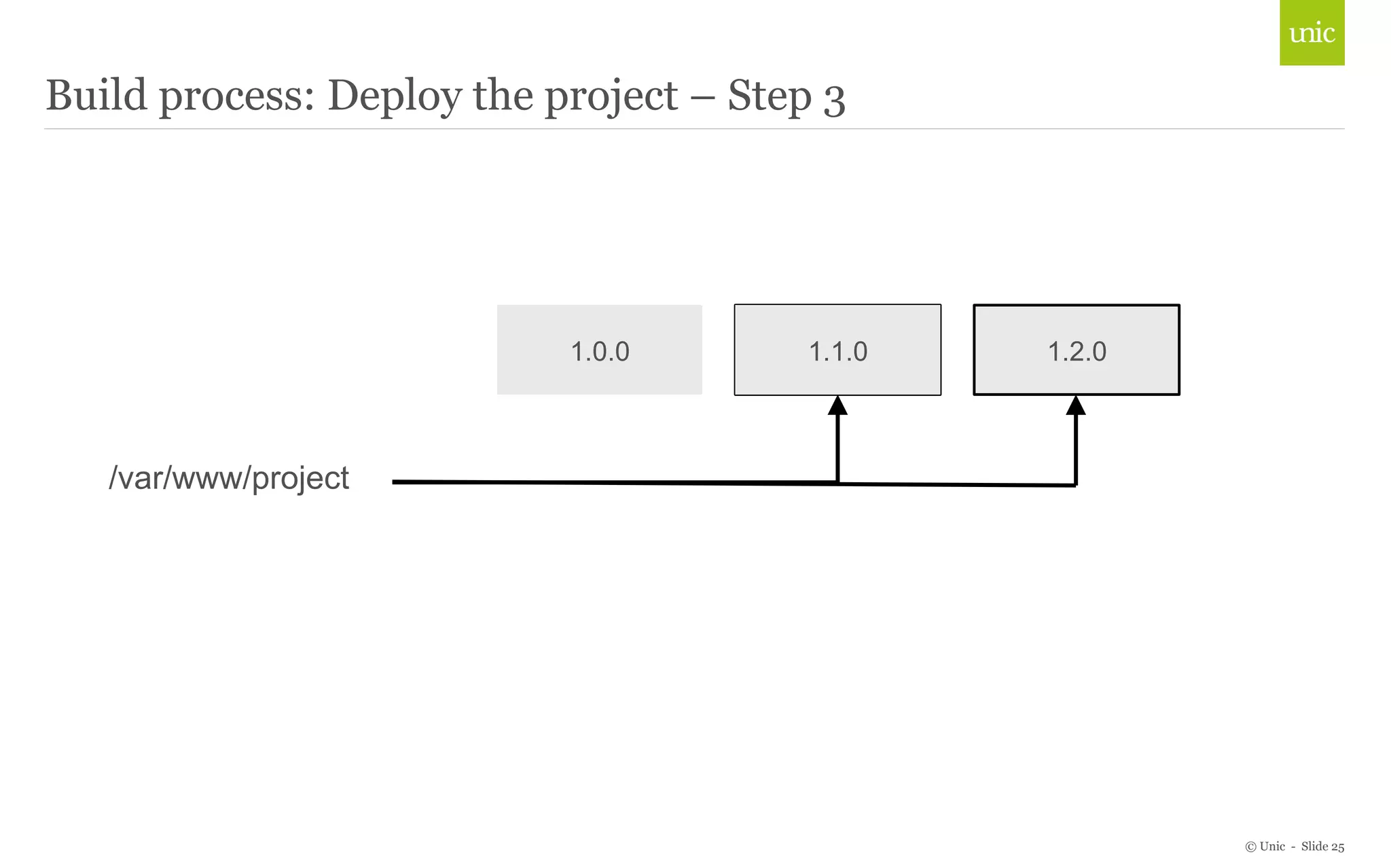

Build process: Deploy the project – Step 3
/var/www/project
1.0.0 1.1.0 1.2.0

26. © Unic - Slide 26

27. © Unic - Slide 27
Get more
http://amzn.to/1nfmZpp

28. © Unic - Slide 28

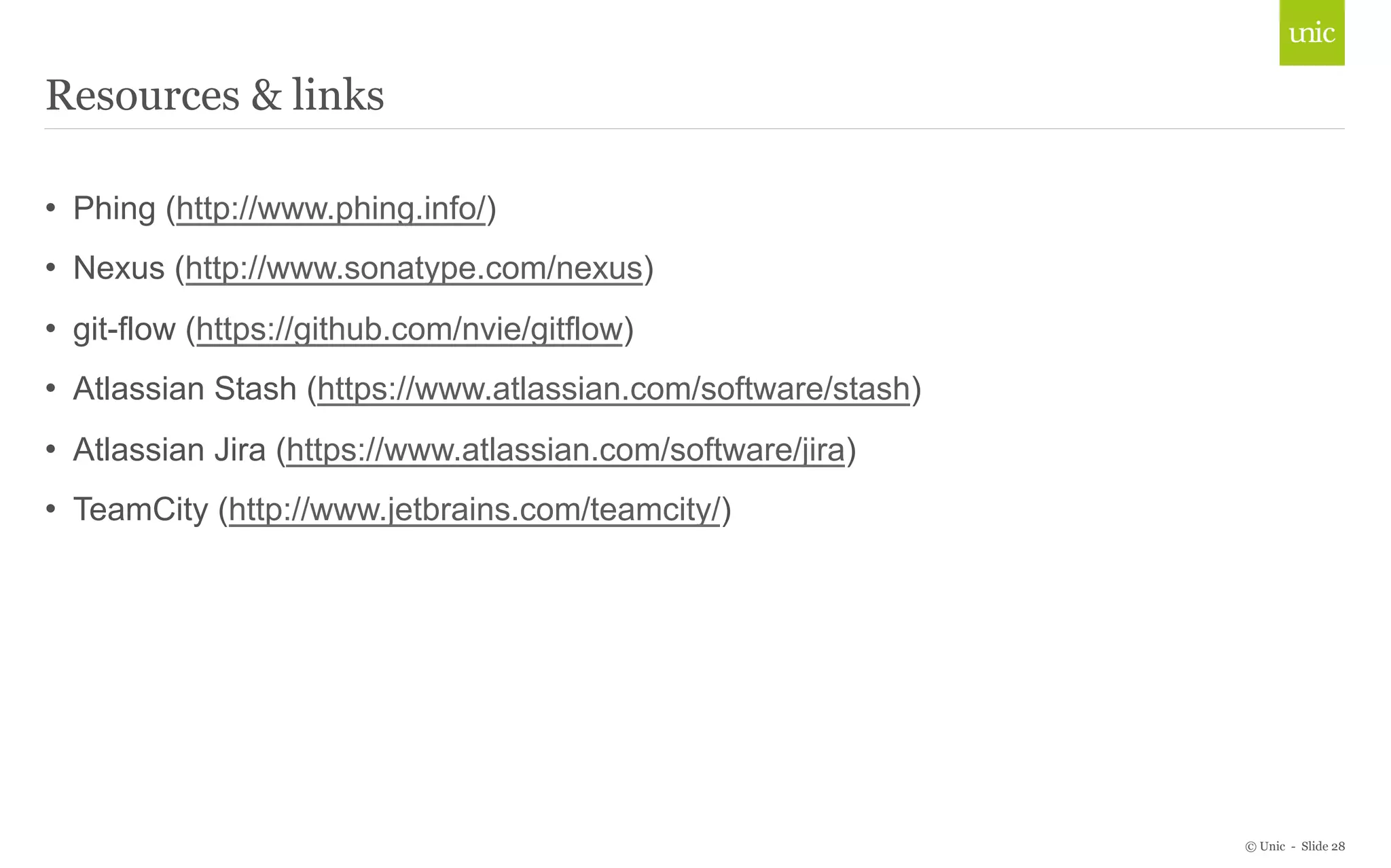

Resources & links
• Phing (http://www.phing.info/)
• Nexus (http://www.sonatype.com/nexus)
• git-flow (https://github.com/nvie/gitflow)
• Atlassian Stash (https://www.atlassian.com/software/stash)
• Atlassian Jira (https://www.atlassian.com/software/jira)
• TeamCity (http://www.jetbrains.com/teamcity/)

29. © Unic - Seite 29

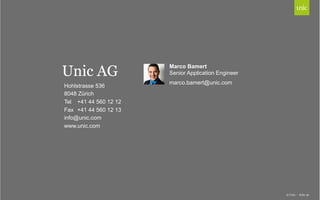

30. Unic AG
