Version 1.0.12 (January 2007)
Dino Esposito
http://weblogs.asp.net/despos
ASP.NET AJAX Extensions
Calling Remote Services from ASP.NET AJAX

Solid Quality ASP.NET AJAX

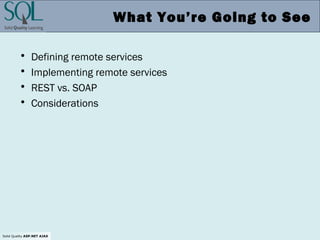

What You’re Going to See
• Defining remote services
• Implementing remote services
• REST vs. SOAP
• Considerations

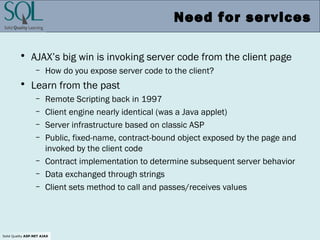

Need for services
• AJAX’s big win is invoking server code from the client page
– How do you expose server code to the client?
• Learn from the past
– Remote Scripting back in 1997
– Client engine nearly identical (was a Java applet)
– Server infrastructure based on classic ASP
– Public, fixed-name, contract-bound object exposed by the page and
invoked by the client code
– Contract implementation to determine subsequent server behavior
– Data exchanged through strings
– Client sets method to call and passes/receives values

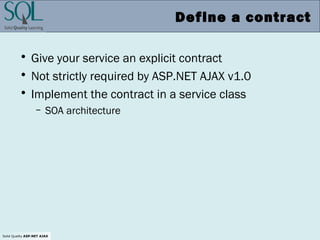

Define a contract
• Give your service an explicit contract
• Not strictly required by ASP.NET AJAX v1.0
• Implement the contract in a service class
– SOA architecture

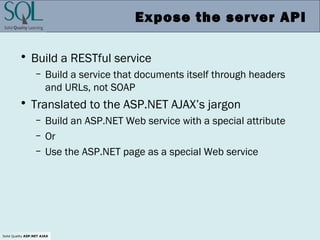

Expose the server API
• Build a RESTful service
– Build a service that documents itself through headers
and URLs, not SOAP
• Translated to the ASP.NET AJAX’s jargon
– Build an ASP.NET Web service with a special attribute
– Or
– Use the ASP.NET page as a special Web service

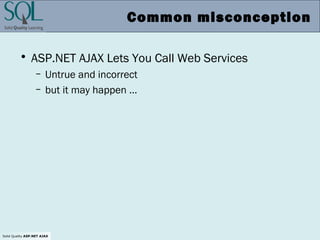

Common misconception
• ASP.NET AJAX Lets You Call Web Services
– Untrue and incorrect
– but it may happen …

REST vs. SOAP
• REpresentational State Transfer
– It’s all about the URL (and headers)
– Resource = URL
• Simple Object Access Protocol
– One URL fits all
– Use a XML schema to describe the call
– Use WSDL to describe the API
• SOAP-based services require the client know about
SOAP

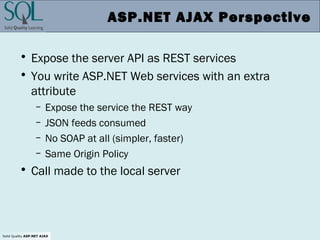

ASP.NET AJAX Perspective
• Expose the server API as REST services
• You write ASP.NET Web services with an extra
attribute
– Expose the service the REST way
– JSON feeds consumed
– No SOAP at all (simpler, faster)
– Same Origin Policy
• Call made to the local server

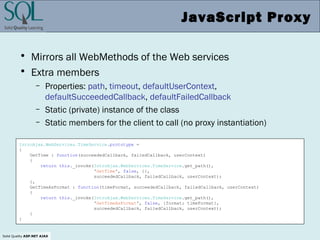

JavaScript Proxy
• Mirrors all WebMethods of the Web services
• Extra members
– Properties: path, timeout, defaultUserContext,
defaultSucceededCallback, defaultFailedCallback
– Static (private) instance of the class
– Static members for the client to call (no proxy instantiation)
IntroAjax.WebServices.TimeService.prototype =
{
GetTime : function(succeededCallback, failedCallback, userContext)
{
return this._invoke(IntroAjax.WebServices.TimeService.get_path(),
'GetTime', false, {},
succeededCallback, failedCallback, userContext);
},
GetTimeAsFormat : function(timeFormat, succeededCallback, failedCallback, userContext)
{
return this._invoke(IntroAjax.WebServices.TimeService.get_path(),
'GetTimeAsFormat', false, {format: timeFormat},
succeededCallback, failedCallback, userContext);
}
}

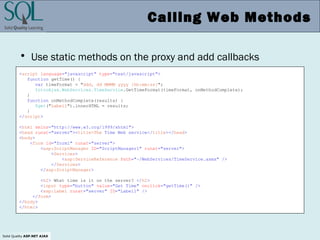

Calling Web Methods
• Use static methods on the proxy and add callbacks
<script language="javascript" type="text/javascript">
function getTime() {
var timeFormat = "ddd, dd MMMM yyyy [hh:mm:ss]";
IntroAjax.WebServices.TimeService.GetTimeFormat(timeFormat, onMethodComplete);
}
function onMethodComplete(results) {
$get("Label1").innerHTML = results;
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server"><title>The Time Web service</title></head>
<body>
<form id="form1" runat="server">
<asp:ScriptManager ID="ScriptManager1" runat="server">
<Services>
<asp:ServiceReference Path="~/WebServices/TimeService.asmx" />
</Services>
</asp:ScriptManager>
<h2> What time is it on the server? </h2>
<input type="button" value="Get Time" onclick="getTime()" />
<asp:Label runat="server" ID="Label1" />
</form>
</body>
</html>

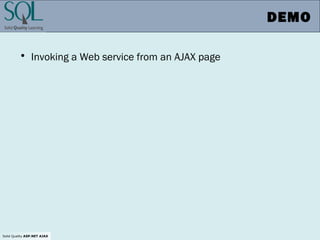

DEMO
• Invoking a Web service from an AJAX page

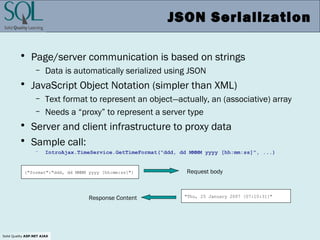

JSON Serialization
• Page/server communication is based on strings
– Data is automatically serialized using JSON
• JavaScript Object Notation (simpler than XML)
– Text format to represent an object—actually, an (associative) array
– Needs a “proxy” to represent a server type
• Server and client infrastructure to proxy data
• Sample call:
– IntroAjax.TimeService.GetTimeFormat("ddd, dd MMMM yyyy [hh:mm:ss]", ...)
{"format":"ddd, dd MMMM yyyy [hh:mm:ss]"}
"Thu, 25 January 2007 [07:10:31]"
Request body
Response Content

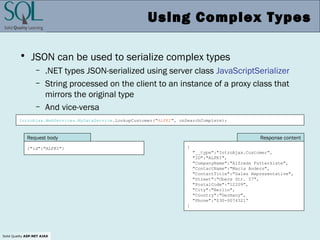

Using Complex Types
• JSON can be used to serialize complex types
– .NET types JSON-serialized using server class JavaScriptSerializer
– String processed on the client to an instance of a proxy class that
mirrors the original type
– And vice-versa
{"id":"ALFKI"} {
"__type":"IntroAjax.Customer",
"ID":"ALFKI",
"CompanyName":"Alfreds Futterkiste",
"ContactName":"Maria Anders",
"ContactTitle":"Sales Representative",
"Street":"Obere Str. 57",
"PostalCode":"12209",
"City":"Berlin",
"Country":"Germany",
"Phone":"030-0074321“
}
Response contentRequest body
IntroAjax.WebServices.MyDataService.LookupCustomer("ALFKI", onSearchComplete);

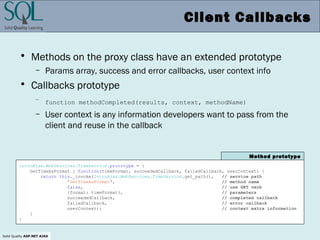

Client Callbacks
• Methods on the proxy class have an extended prototype
– Params array, success and error callbacks, user context info
• Callbacks prototype
– function methodCompleted(results, context, methodName)
– User context is any information developers want to pass from the
client and reuse in the callback
IntroAjax.WebServices.TimeService.prototype = {
GetTimeAsFormat : function(timeFormat, succeededCallback, failedCallback, userContext) {
return this._invoke(IntroAjax.WebServices.TimeService.get_path(), // service path
'GetTimeAsFormat', // method name
false, // use GET verb
{format: timeFormat}, // parameters
succeededCallback, // completed callback
failedCallback, // error callback
userContext); // context extra information
}
}
Method prototype

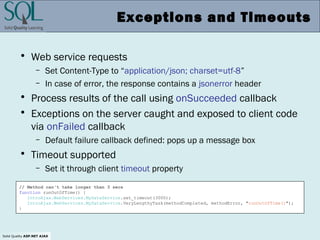

Exceptions and Timeouts
• Web service requests
– Set Content-Type to “application/json; charset=utf-8”
– In case of error, the response contains a jsonerror header
• Process results of the call using onSucceeded callback
• Exceptions on the server caught and exposed to client code
via onFailed callback
– Default failure callback defined: pops up a message box
• Timeout supported
– Set it through client timeout property
// Method can't take longer than 3 secs
function runOutOfTime() {
IntroAjax.WebServices.MyDataService.set_timeout(3000);
IntroAjax.WebServices.MyDataService.VeryLengthyTask(methodCompleted, methodError, "runOutOfTime()");
}

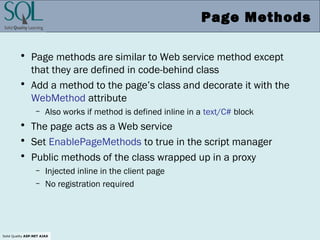

Page Methods
• Page methods are similar to Web service method except
that they are defined in code-behind class
• Add a method to the page’s class and decorate it with the
WebMethod attribute
– Also works if method is defined inline in a text/C# block
• The page acts as a Web service
• Set EnablePageMethods to true in the script manager
• Public methods of the class wrapped up in a proxy
– Injected inline in the client page
– No registration required

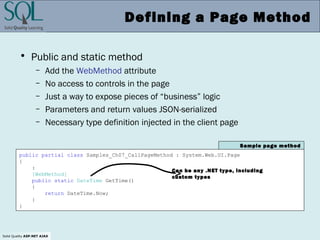

Defining a Page Method
• Public and static method
– Add the WebMethod attribute
– No access to controls in the page
– Just a way to expose pieces of “business” logic
– Parameters and return values JSON-serialized
– Necessary type definition injected in the client page
public partial class Samples_Ch07_CallPageMethod : System.Web.UI.Page
{
:
[WebMethod]
public static DateTime GetTime()
{
return DateTime.Now;
}
}
Sample page method
Can be any .NET type, including
custom types

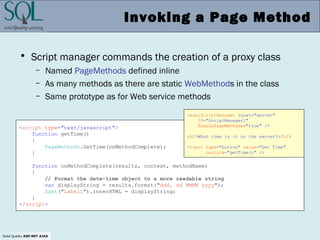

Invoking a Page Method
• Script manager commands the creation of a proxy class
– Named PageMethods defined inline
– As many methods as there are static WebMethods in the class
– Same prototype as for Web service methods
<script type="text/javascript">
function getTime()
{
PageMethods.GetTime(onMethodComplete);
}
function onMethodComplete(results, context, methodName)
{
// Format the date-time object to a more readable string
var displayString = results.format("ddd, dd MMMM yyyy");
$get("Label1").innerHTML = displayString;
}
</script>
<asp:ScriptManager runat="server"
ID="ScriptManager1"
EnablePageMethods="true" />
<h2>What time is it on the server?</h2>
<input type="button" value="Get Time"
onclick="getTime()" />

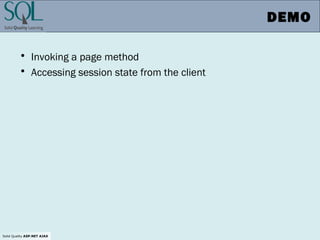

DEMO
• Invoking a page method
• Accessing session state from the client

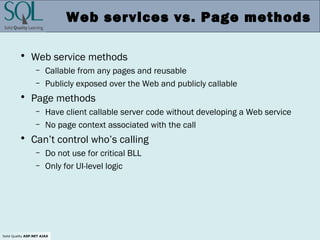

Web services vs. Page methods
• Web service methods
– Callable from any pages and reusable
– Publicly exposed over the Web and publicly callable
• Page methods
– Have client callable server code without developing a Web service
– No page context associated with the call
• Can’t control who’s calling
– Do not use for critical BLL
– Only for UI-level logic

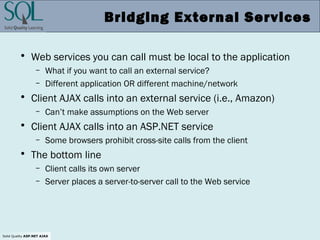

Bridging External Services
• Web services you can call must be local to the application
– What if you want to call an external service?
– Different application OR different machine/network
• Client AJAX calls into an external service (i.e., Amazon)
– Can’t make assumptions on the Web server
• Client AJAX calls into an ASP.NET service
– Some browsers prohibit cross-site calls from the client
• The bottom line
– Client calls its own server
– Server places a server-to-server call to the Web service

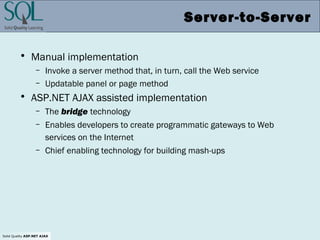

Server-to-Server
• Manual implementation
– Invoke a server method that, in turn, call the Web service
– Updatable panel or page method
• ASP.NET AJAX assisted implementation
– The bridge technology
– Enables developers to create programmatic gateways to Web
services on the Internet
– Chief enabling technology for building mash-ups

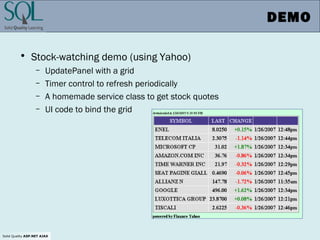

DEMO
• Stock-watching demo (using Yahoo)
– UpdatePanel with a grid
– Timer control to refresh periodically
– A homemade service class to get stock quotes
– UI code to bind the grid

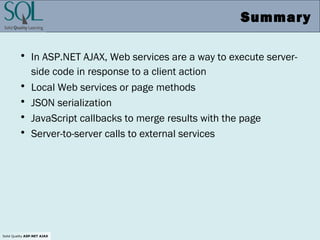

Summary
• In ASP.NET AJAX, Web services are a way to execute server-
side code in response to a client action
• Local Web services or page methods
• JSON serialization
• JavaScript callbacks to merge results with the page
• Server-to-server calls to external services

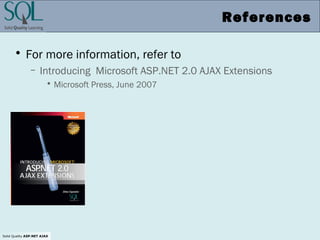

References
• For more information, refer to
– Introducing Microsoft ASP.NET 2.0 AJAX Extensions
• Microsoft Press, June 2007
