MEAN.js Workshop
The document is a comprehensive workshop outline on mean.js, aimed at understanding its components such as AngularJS, Express, Node.js, and MongoDB, along with their benefits and applications in web development. It discusses the architecture of a full-stack application, the importance of each component, and provides examples of how to use them effectively. Additionally, it highlights asynchronous programming in Node.js, the advantages of NoSQL databases, and the role of Mongoose for modeling data in MongoDB.
More Related Content
MEAN.js Workshop
- 1.

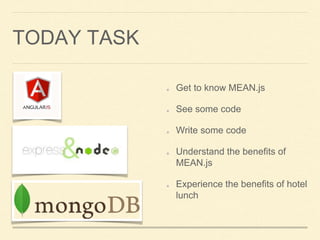

- 2. TODAY TASK Get toknow MEAN.js See some code Write some code Understand the benefits of MEAN.js Experience the benefits of hotel lunch

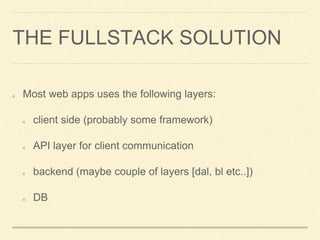

- 3. THE FULLSTACK SOLUTION Mostweb apps uses the following layers: client side (probably some framework) API layer for client communication backend (maybe couple of layers [dal, bl etc..]) DB

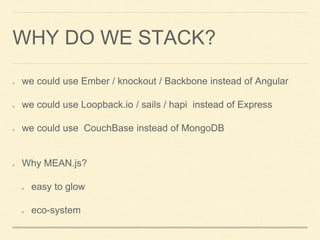

- 4. WHY DO WESTACK? we could use Ember / knockout / Backbone instead of Angular we could use Loopback.io / sails / hapi instead of Express we could use CouchBase instead of MongoDB Why MEAN.js? easy to glow eco-system
- 5. DEMO The app wewill develop today
- 6. APP ARCHITECTURE Browser -Angular JS API - Express Backend - Node JS DB - MongoDB
- 7. ROLES Node.js - theserver framework Express - extending node Angular - client side MongoDB - the DB

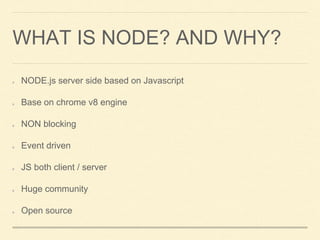

- 8. WHAT IS NODE?AND WHY? NODE.js server side based on Javascript Base on chrome v8 engine NON blocking Event driven JS both client / server Huge community Open source

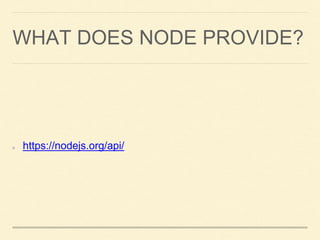

- 9. WHAT DOES NODEPROVIDE? https://nodejs.org/api/

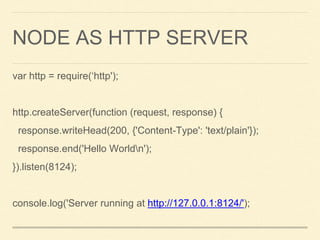

- 10. NODE AS HTTPSERVER var http = require(‘http'); http.createServer(function (request, response) { response.writeHead(200, {'Content-Type': 'text/plain'}); response.end('Hello Worldn'); }).listen(8124); console.log('Server running at http://127.0.0.1:8124/');
- 11. BLOCKING function handleRequest(req){ saveToDB(req); //100 ms var user = getUserByReq(req); //150 ms user.reqCount++; notifyUser(user); // 70 ms } Total: 320 ms

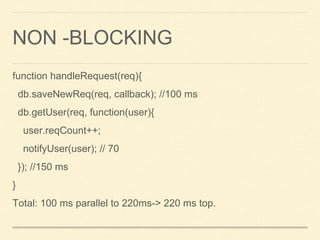

- 12. NON -BLOCKING function handleRequest(req){ db.saveNewReq(req,callback); //100 ms db.getUser(req, function(user){ user.reqCount++; notifyUser(user); // 70 }); //150 ms } Total: 100 ms parallel to 220ms-> 220 ms top.
- 13. EVENT DRIVEN? operation(operationData, function(err,data){ }); db.query(‘selectemail from users where id = 4’, function(err, email){ if(err) throw err; sendByEmail(email); });

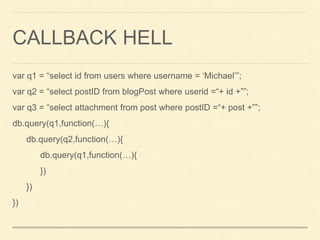

- 14. CALLBACK HELL var q1= “select id from users where username = ‘Michael’”; var q2 = “select postID from blogPost where userid =“+ id +””; var q3 = “select attachment from post where postID =“+ post +””; db.query(q1,function(…){ db.query(q2,function(…){ db.query(q1,function(…){ }) }) })

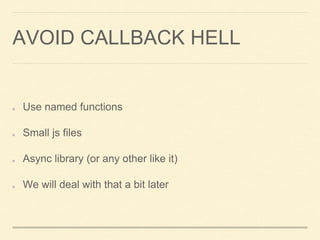

- 15. AVOID CALLBACK HELL Usenamed functions Small js files Async library (or any other like it) We will deal with that a bit later

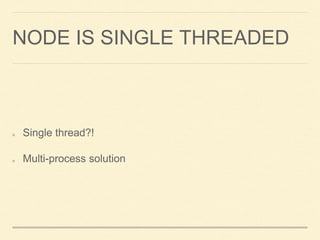

- 16. NODE IS SINGLETHREADED Single thread?! Multi-process solution
- 17. SO NODE ISGOOD, WHY ANOTHER LAYER? Node is like a programming language Node will provide low level http handling (listen to port, response) Node will not provide routing solution

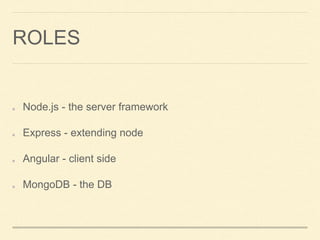

- 18. ROLES Node.js - theserver framework Express - extending node Angular - client side MongoDB - the DB

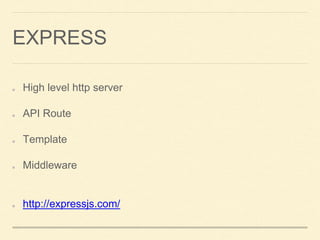

- 19. EXPRESS High level httpserver API Route Template Middleware http://expressjs.com/

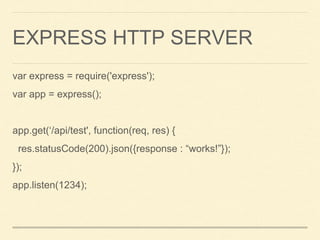

- 20. EXPRESS HTTP SERVER varexpress = require('express'); var app = express(); app.get(‘/api/test', function(req, res) { res.statusCode(200).json({response : “works!”}); }); app.listen(1234);

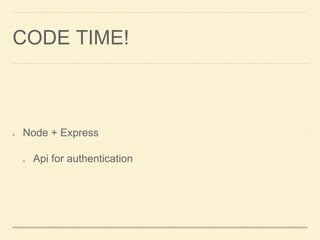

- 21. CODE TIME! Node +Express Api for authentication
- 22. ROLES Node.js - theserver framework Express - extending node Angular - client side MongoDB - the DB
- 23. ANGULAR JS Web appare getting complex We need our client to be well designed, testable and easy to maintain Angular is an “all around” framework

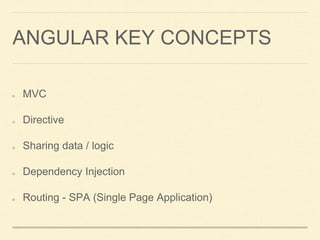

- 24. ANGULAR KEY CONCEPTS MVC Directive Sharingdata / logic Dependency Injection Routing - SPA (Single Page Application)

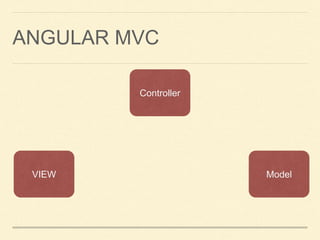

- 25.
- 26. ANGULAR - SIMPLEMVC angular.module(‘main’).controller(‘myCntr’, function($scope){ $scope.sayHello = “Hello from controller”; }); <div> {{sayHello}} </div>

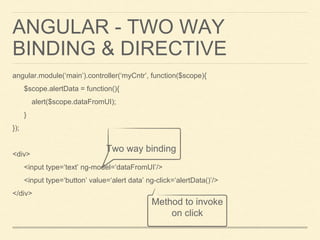

- 27. ANGULAR - TWOWAY BINDING & DIRECTIVE angular.module(‘main’).controller(‘myCntr’, function($scope){ $scope.alertData = function(){ alert($scope.dataFromUI); } }); <div> <input type=‘text’ ng-model=‘dataFromUI’/> <input type=‘button’ value=‘alert data’ ng-click=‘alertData()’/> </div> Method to invoke on click Two way binding

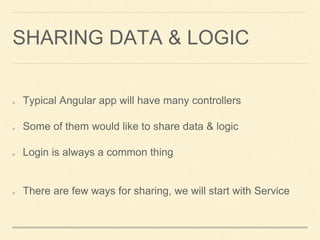

- 28. SHARING DATA &LOGIC Typical Angular app will have many controllers Some of them would like to share data & logic Login is always a common thing There are few ways for sharing, we will start with Service

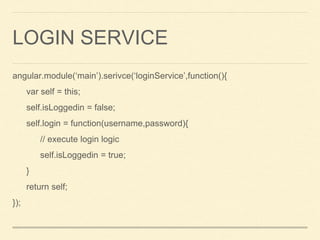

- 29. LOGIN SERVICE angular.module(‘main’).serivce(‘loginService’,function(){ var self= this; self.isLoggedin = false; self.login = function(username,password){ // execute login logic self.isLoggedin = true; } return self; });

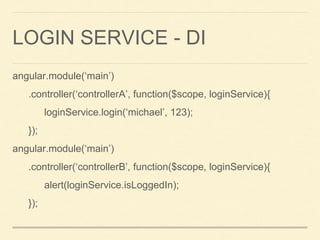

- 30. LOGIN SERVICE -DI angular.module(‘main’) .controller(‘controllerA’, function($scope, loginService){ loginService.login(‘michael’, 123); }); angular.module(‘main’) .controller(‘controllerB’, function($scope, loginService){ alert(loginService.isLoggedIn); });

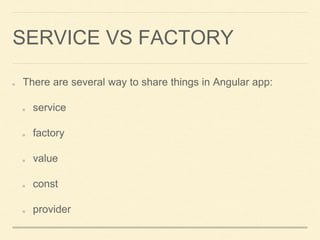

- 31. SERVICE VS FACTORY Thereare several way to share things in Angular app: service factory value const provider
- 32. FACTORY angular.module(‘main’).factory(‘calculationFactory’, function(){ return { calc:function(num1, num2){ // make some work here; }; }; });
- 33. ANGULAR ROUTING Route iswhat makes SPA possible html 5 anchors (www.site.com/#/localchanges…) /# some place in the site: view (html page) controller

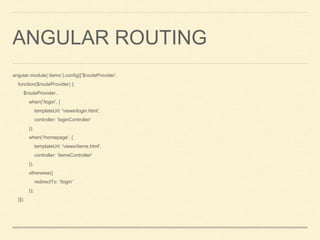

- 34. ANGULAR ROUTING angular.module(‘demo’).config([‘$routeProvider’, function($routeProvider) { $routeProvider. when('/login',{ templateUrl: 'views/login.html', controller: 'loginController' }). when('/homepage', { templateUrl: 'views/items.html', controller: 'itemsController' }). otherwise({ redirectTo: '/login' }); }]);

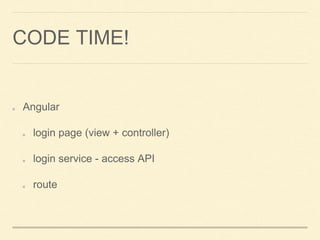

- 35. CODE TIME! Angular login page(view + controller) login service - access API route
- 36. ROLES Node.js - theserver framework Express - extending node Angular - client side MongoDB - the DB

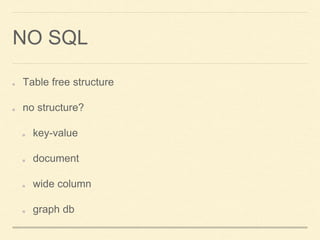

- 37. NO SQL Table freestructure no structure? key-value document wide column graph db
- 38. NO SQL -KEY VALUE key value pairs DB doesn't ware of the meaning AWS DynamoDB, MemcacheDB

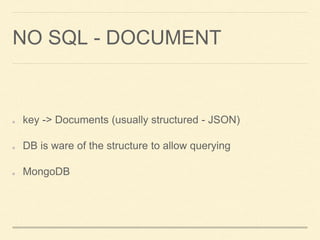

- 39. NO SQL -DOCUMENT key -> Documents (usually structured - JSON) DB is ware of the structure to allow querying MongoDB

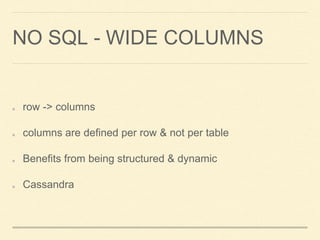

- 40. NO SQL -WIDE COLUMNS row -> columns columns are defined per row & not per table Benefits from being structured & dynamic Cassandra
- 41. NO SQL -GRAPH Every item is related to other items

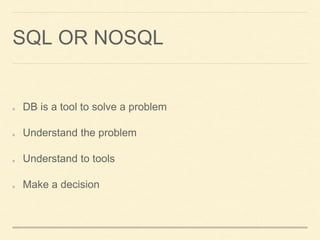

- 42. SQL OR NOSQL DBis a tool to solve a problem Understand the problem Understand to tools Make a decision

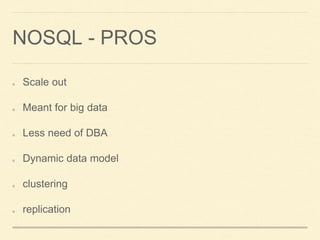

- 43. NOSQL - PROS Scaleout Meant for big data Less need of DBA Dynamic data model clustering replication

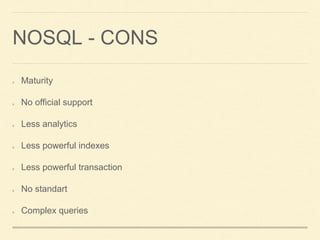

- 44. NOSQL - CONS Maturity Noofficial support Less analytics Less powerful indexes Less powerful transaction No standart Complex queries

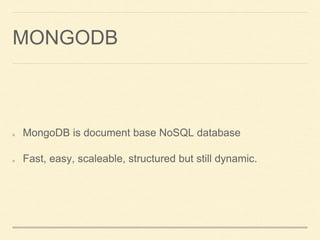

- 45. MONGODB MongoDB is documentbase NoSQL database Fast, easy, scaleable, structured but still dynamic.

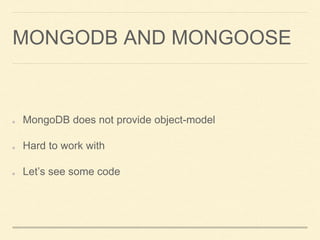

- 46. MONGODB AND MONGOOSE MongoDBdoes not provide object-model Hard to work with Let’s see some code

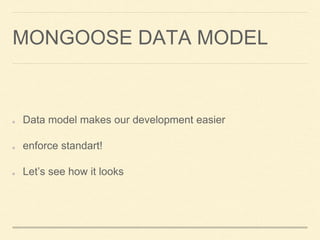

- 47. MONGOOSE DATA MODEL Datamodel makes our development easier enforce standart! Let’s see how it looks
- 48. MONGOOSE BENEFITS Model defintionincludes: types validation (required) error message getter / setters default values in memory methods

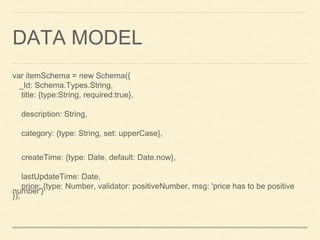

- 49. DATA MODEL var itemSchema= new Schema({ _Id: Schema.Types.String, title: {type:String, required:true}, description: String, category: {type: String, set: upperCase}, createTime: {type: Date, default: Date.now}, lastUpdateTime: Date, price: {type: Number, validator: positiveNumber, msg: 'price has to be positive number'} });

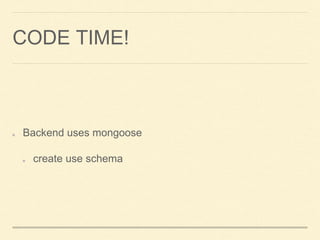

- 50. CODE TIME! Backend usesmongoose create use schema
- 51. ROBO-MONGO Nice tool toview & edit mongoldb instances

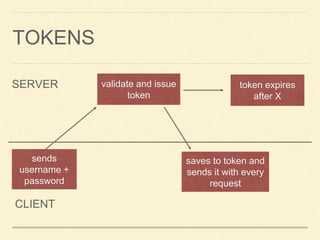

- 52. TOKENS SERVER CLIENT sends username + password validate andissue token saves to token and sends it with every request token expires after X

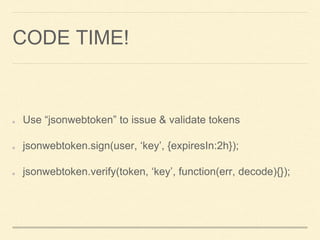

- 53. CODE TIME! Use “jsonwebtoken”to issue & validate tokens jsonwebtoken.sign(user, ‘key’, {expiresIn:2h}); jsonwebtoken.verify(token, ‘key’, function(err, decode){});

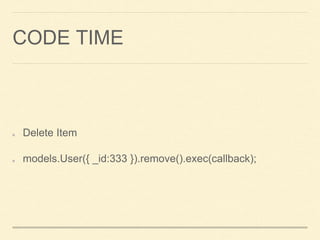

- 54. Delete Item models.User({ _id:333}).remove().exec(callback); CODE TIME

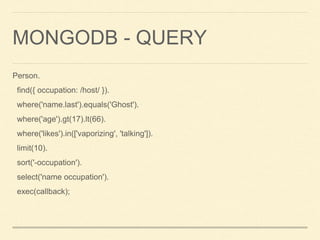

- 55. MONGODB - QUERY Person. find({occupation: /host/ }). where('name.last').equals('Ghost'). where('age').gt(17).lt(66). where('likes').in(['vaporizing', 'talking']). limit(10). sort('-occupation'). select('name occupation'). exec(callback);

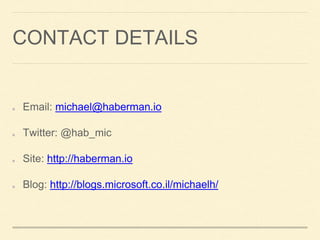

- 56. CONTACT DETAILS Email: michael@haberman.io Twitter:@hab_mic Site: http://haberman.io Blog: http://blogs.microsoft.co.il/michaelh/
