1. Network Attached Storage
June, 2016
Product Selection Guide

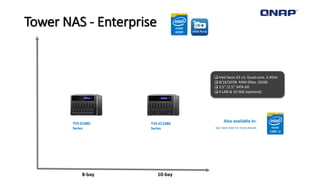

2. Tower NAS - Enterprise
10-bay8-bay
 Intel Xeon E3 v3, Quad-core, 3.4GHz
 8/16/32GB RAM (Max. 32GB)
 3.5” /2.5’’ SATA 6G
 4 LAN & 10 GbE (optional)
TVS-EC880
Series
TVS-EC1080
Series
Also available in:
See next slide for more details

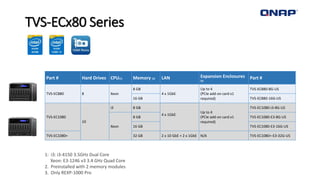

3. TVS-ECx80 Series
Part # Hard Drives CPU(1) Memory (2) LAN Expansion Enclosures
(3)
Part #
TVS-EC880 8 Xeon
8 GB
4 x 1GbE
Up to 4
(PCIe add-on card x1
required)
TVS-EC880-8G-US
16 GB TVS-EC880-16G-US
TVS-EC1080
10
i3 8 GB
4 x 1GbE
Up to 4
(PCIe add-on card x1
required)
TVS-EC1080-i3-8G-US
Xeon
8 GB TVS-EC1080-E3-8G-US
16 GB TVS-EC1080-E3-16G-US
TVS-EC1080+ 32 GB 2 x 10 GbE + 2 x 1GbE N/A TVS-EC1080+-E3-32G-US
1: i3: i3-4150 3.5GHz Dual Core
Xeon: E3-1246 v3 3.4 GHz Quad Core
2. Preinstalled with 2 memory modules
3. Only REXP-1000 Pro

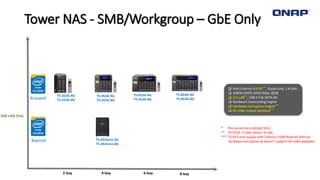

4. Tower NAS - SMB/Workgroup – GbE Only
6-bay 8-bay4-bay
 Intel Celeron N3150***, Quad-core, 1.6 GHz
 4/8GB DDR3L RAM (Max. 8GB)
 2/4 LAN**, USB 3.0 & SATA 6G
 Hardware transcoding engine
 Hardware encryption engine***
 4K video output playback***
* This series has multiple SKUs
** TS-253A: 2 LAN, others: 4 LAN
*** TS-453 mini equips with Celeron J1900 Baytrail without
hardware encryption & doesn’t support 4K video playback
GbE LAN Only
2-bay
TS-453mini-2G
TS-453mini-8G
Braswell
TS-853A-4GTS-253A-4G
TS-853A-8GTS-253A-8G
TS-453A-4G
TS-453A-8G
TS-653A-4G
TS-653A-8G
Baytrail

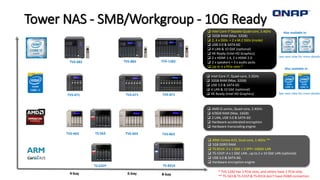

5. Tower NAS - SMB/Workgroup - 10G Ready
6-bay 8-bay
TVS-471 TVS-871
4-bay
 Intel Core i7, Quad-core, 3.2GHz
 32GB RAM (Max. 32GB)
 USB 3.0 & SATA 6G
 4 LAN & 10 GbE (optional)
 4K Ready (Intel HD Graphics)
 AMD G-series, Quad-core, 2.4GHz
 4/8GB RAM (Max. 16GB)
 2 LAN, USB 3.0 & SATA 6G
 Hardware-accelerated encryption
 Hardware transcoding engine
Also available in:
See next slide for more detailsTVS-671
TVS-463 TVS-863TVS-663TS-563
TS-531P
 ARM Cortex A15, Dual-core, 1.4GHz **
 1GB DDR3 RAM
 TS-831X: 2 x 1 GbE + 2 SFP+ 10GbE LAN
 TS-531P: 4 x 1 GbE LAN , up to 2 x 10 GbE LAN (optional)
 USB 3.0 & SATA 6G
 Hardware encryption engine
* TVS-1282 has 3 PCIe slots, and others have 2 PCIe slots
** TS-563 & TS-531P & TS-831X don’t have HDMI connection
TS-831X
TVS-682 TVS-882 TVS-1282
 Intel Core i7 Skylake Quad-core, 3.4GHz
 32GB RAM (Max. 32GB)
 2, 4 x SSDs + 2 x M.2 SSDs (inside)
 USB 3.0 & SATA 6G
 4 LAN & 10 GbE (optional)
 4K Ready (Intel HD Graphics)
 2 x HDMI 1.4, 2 x HDMI 2.0
 2 x speakers + 3 x audio jacks
 Up to 3 x PCIe slots *
Also available in:
See next slide for more details

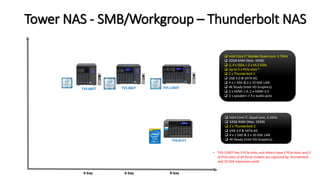

6. Tower NAS - SMB/Workgroup – Thunderbolt NAS
6-bay 8-bay
TVS-871T
4-bay
 Intel Core i7, Quad-core, 3.2GHz
 32GB RAM (Max. 32GB)
 2 x Thunderbolt 2
 USB 3.0 & SATA 6G
 4 x 1 GbE & 2 x 10 GbE LAN
 4K Ready (Intel HD Graphics)
TVS-682T TVS-882T TVS-1282T
 Intel Core i7 Skylake Quad-core, 3.7GHz
 32GB RAM (Max. 32GB)
 2, 4 x SSDs + 2 x M.2 SSDs
 Up to 3 x PCIe slots *
 2 x Thunderbolt 2
 USB 3.0 & SATA 6G
 4 x 1 GbE & 2 x 10 GbE LAN
 4K Ready (Intel HD Graphics)
 2 x HDMI 1.4, 2 x HDMI 2.0
 2 x speakers + 3 x audio jacks
• TVS-1282T has 3 PCIe slots, and others have 2 PCIe slots, and 2
of PCIe slots of all three models are captured by thunderbolt
and 10 GbE expansion cards

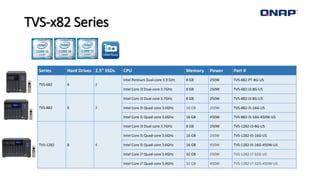

7. TVS-x82 Series
Series Hard Drives 2.5” SSDs CPU Memory Power Part #
TVS-682 4 2
Intel Pentium Dual-core 3.3 GHz 8 GB 250W TVS-682-PT-8G-US
Intel Core i3 Dual-core 3.7GHz 8 GB 250W TVS-682-i3-8G-US
TVS-882 6 2
Intel Core i3 Dual-core 3.7GHz 8 GB 250W TVS-882-i3-8G-US
Intel Core i5 Quad-core 3.6GHz 16 GB 250W TVS-882-i5-16G-US
Intel Core i5 Quad-core 3.6GHz 16 GB 450W TVS-882-i5-16G-450W-US
TVS-1282 8 4
Intel Core i3 Dual-core 3.7GHz 8 GB 250W TVS-1282-i3-8G-US
Intel Core i5 Quad-core 3.6GHz 16 GB 250W TVS-1282-i5-16G-US
Intel Core i5 Quad-core 3.6GHz 16 GB 450W TVS-1282-i5-16G-450W-US
Intel Core i7 Quad-core 3.4GHz 32 GB 250W TVS-1282-i7-32G-US
Intel Core i7 Quad-core 3.4GHz 32 GB 450W TVS-1282-i7-32G-450W-US

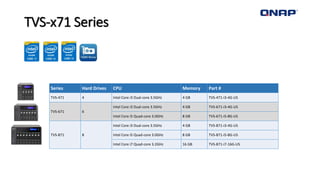

8. TVS-x71 Series
Series Hard Drives CPU Memory Part #
TVS-471 4 Intel Core i3 Dual-core 3.5GHz 4 GB TVS-471-i3-4G-US
TVS-671 6
Intel Core i3 Dual-core 3.5GHz 4 GB TVS-671-i3-4G-US
Intel Core i5 Quad-core 3.0GHz 8 GB TVS-671-i5-8G-US
TVS-871 8
Intel Core i3 Dual-core 3.5GHz 4 GB TVS-871-i3-4G-US
Intel Core i5 Quad-core 3.0GHz 8 GB TVS-871-i5-8G-US
Intel Core i7 Quad-core 3.2GHz 16 GB TVS-871-i7-16G-US

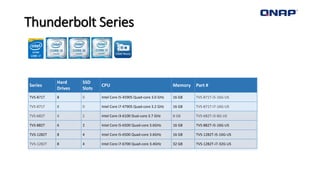

9. Thunderbolt Series
Series
Hard
Drives
SSD
Slots
CPU Memory Part #
TVS-871T 8 0 Intel Core i5-4590S Quad-core 3.0 GHz 16 GB TVS-871T-i5-16G-US
TVS-871T 8 0 Intel Core i7-4790S Quad-core 3.2 GHz 16 GB TVS-871T-i7-16G-US
TVS-682T 4 2 Intel Core i3-6100 Dual-core 3.7 GHz 8 GB TVS-682T-i3-8G-US
TVS-882T 6 2 Intel Core i5-6500 Quad-core 3.6GHz 16 GB TVS-882T-i5-16G-US
TVS-1282T 8 4 Intel Core i5-6500 Quad-core 3.6GHz 16 GB TVS-1282T-i5-16G-US
TVS-1282T 8 4 Intel Core i7-6700 Quad-core 3.4GHz 32 GB TVS-1282T-i7-32G-US

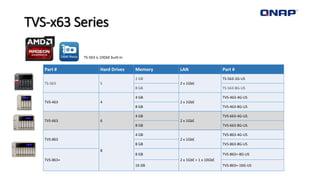

10. TVS-x63 Series
Part # Hard Drives Memory LAN Part #
TS-563 5
2 GB
2 x 1GbE
TS-563-2G-US
8 GB TS-563-8G-US
TVS-463 4
4 GB
2 x 1GbE
TVS-463-4G-US
8 GB TVS-463-8G-US
TVS-663 6
4 GB
2 x 1GbE
TVS-663-4G-US
8 GB TVS-663-8G-US
TVS-863
8
4 GB
2 x 1GbE
TVS-863-4G-US
8 GB TVS-863-8G-US
TVS-863+
8 GB
2 x 1GbE + 1 x 10GbE
TVS-863+-8G-US
16 GB TVS-863+-16G-US
TS-563 is 10GbE built-in

11. PLEX, Media
Transcoding,
Virtualization
Station

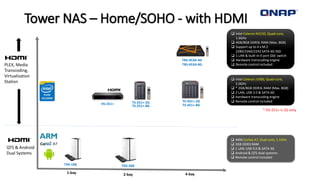

Tower NAS – Home/SOHO - with HDMI
4-bay
 Intel Celeron J1900, Quad-core,
2.0GHz
 * 2GB/8GB DDR3L RAM (Max. 8GB)
 2 LAN, USB 3.0 & SATA 6G
 Hardware transcoding engine
 Remote control included
2-bay1-bay
HS-251+
* HS-251+ is 2G only
TS-251+-2G
TS-251+-8G
TS-451+-2G
TS-451+-8G
TAS-168 TAS-268
A7
QTS & Android
Dual Systems
 ARM Cortex A7, Dual-core, 1.1GHz
 2GB DDR3 RAM
 1 LAN, USB 3.0 & SATA 3G
 Android & QTS dual systems
 Remote control included
TBS-453A-4G
TBS-453A-8G
 Intel Celeron N3150, Quad-core,
1.6GHz
 4GB/8GB DDR3L RAM (Max. 8GB)
 Support up to 4 x M.2
2280/2260/2242 SATA 6G SSD
 1 LAN & built-in 4 port GbE switch
 Hardware transcoding engine
 Remote control included

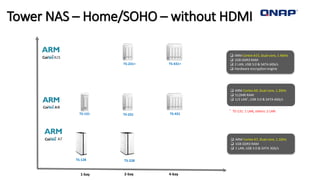

12. Tower NAS – Home/SOHO – without HDMI
4-bay
 ARM Cortex A9, Dual-core, 1.2GHz
 512MB RAM
 1/2 LAN*, USB 3.0 & SATA 6Gb/s
 ARM Cortex A15, Dual-core, 1.4GHz
 1GB DDR3 RAM
 2 LAN, USB 3.0 & SATA 6Gb/s
 Hardware encryption engine
* TS-131: 1 LAN, others: 2 LAN
2-bay
TS-131
1-bay
TS-231 TS-431
TS-231+ TS-431+
TS-128 TS-228
A7  ARM Cortex A7, Dual-core, 1.1GHz
 1GB DDR3 RAM
 1 LAN, USB 3.0 & SATA 3Gb/s

13. Rackmount NAS

14. Rackmount NAS – Dual Controller
ES1640dc-E5-96G-US
 Active-Active dual controller
 Intel Xeon E5 v2, Six-core, 2.2 GHz
 32GB DDR3 ECC RDIMM (Max. 64GB)
 3.5”/2.5” SAS 6 Gb/s (optional SATA-TO-SAS adapter,
P/N: LSISS9252)
 2 x 10GbE LAN (RJ45)
 Copy-to-Flash BBU (Battery Backup Unit)
 40 GbE ready
 Dual mini-SAS 6Gb/s ports (JBOD connectors)
 3.5”/2.5” SAS HDD 6 Gb/s (optional SATA-TO-SAS
adapter, P/N: LSISS925)
 Only for ES-1640dc
JBOD/
EXPANSION
ENCLOSURE
NAS/HOST
$5899
EJ-1600-US

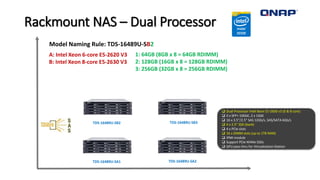

15. Rackmount NAS – Dual Processor
 Dual Processor Intel Xeon E5-2600 v3 (6 & 8 core)
 4 x SFP+ 10GbE, 2 x 1GbE
 16 x 3.5”/2.5” SAS 12Gb/s, SAS/SATA 6Gb/s
 4 x 2.5” SSD (back)
 4 x PCIe slots
 16 x DIMM slots (up to 1TB RAM)
 IPMI module
 Support PCIe NVMe SSDs
 GPU pass-thru for Virtualization Station
TDS-16489U-SA1 TDS-16489U-SA2
TDS-16489U-SB2 TDS-16489U-SB3
Model Naming Rule: TDS-16489U-SB2
A: Intel Xeon 6-core E5-2620 V3
B: Intel Xeon 8-core E5-2630 V3
1: 64GB (8GB x 8 = 64GB RDIMM)
2: 128GB (16GB x 8 = 128GB RDIMM)
3: 256GB (32GB x 8 = 256GB RDIMM)

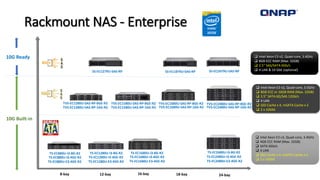

16. Rackmount NAS - Enterprise
12-bay 24-bay16-bay 18-bay
SS-EC1279U-SAS-RP SS-EC1879U-SAS-RP SS-EC2479U-SAS-RP
TVS-EC1280U-SAS-RP-8GE-R2 TVS-EC1680U-SAS-RP-8GE-R2
8-bay
TS-EC880U-i3-8G-R2 TS-EC1280U-i3-8G-R2 TS-EC1680U-i3-8G-R2 TS-EC2480U-i3-8G-R2
 Intel Xeon E3 v2, Quad-core, 3.4GHz
 8GB ECC RAM (Max. 32GB)
 2.5” SAS/SATA 6Gb/s
 4 LAN & 10 GbE (optional)
 Intel Xeon E3 v2, Quad-core, 3.5GHz
 8GB ECC or 16GB RAM (Max. 32GB)
 3.5” SATA 6G/SAS 12Gb/s
 4 LAN
 SSD Cache x 4, mSATA Cache x 2
 2 x 10GbE
 Intel Xeon E3 v3, Quad-core, 3.4GHz
 4GB ECC RAM (Max. 32GB)
 SATA 6Gb/s
 4 LAN
 SSD Cache x 4, mSATA Cache x 2
 2 x 10GbE
10G Ready
10G Built-in
TVS-EC1580U-SAS-RP-8GE-R2 TVS-EC2480U-SAS-RP-8GE-R2
TVS-EC1280U-SAS-RP-16G-R2 TVS-EC1580U-SAS-RP-16G-R2 TVS-EC1680U-SAS-RP-16G-R2 TVS-EC2480U-SAS-RP-16G-R2
TS-EC880U-i3-4GE-R2
TS-EC880U-E3-4GE-R2
TS-EC1280U-i3-4GE-R2
TS-EC1280U-E3-4GE-R2
TS-EC1680U-i3-4GE-R2
TS-EC1680U-E3-4GE-R2
TS-EC2480U-i3-4GE-R2
TS-EC2480U-E3-4GE-R2

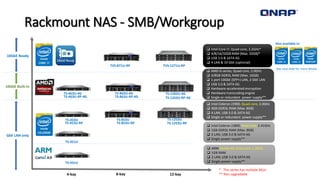

17. Rackmount NAS - SMB/Workgroup
8-bay 12-bay
TVS-871U-RP TVS-1271U-RP
TS-853U-RP TS-1253U-RP
4-bay
TS-451U
 Intel Core i7, Quad-core, 3.2GHz*
 4/8/16/32GB RAM (Max. 32GB)*
 USB 3.0 & SATA 6G
 4 LAN & 10 GbE (optional)
 Intel Celeron J1800, Dual-core, 2.41GHz
 1GB DDR3L RAM (Max. 8GB)
 2 LAN, USB 3.0 & SATA 6G
 Single power supply**
TS-453U-RP
TS-853U TS-1253UTS-453U
 Intel Celeron J1900, Quad-core, 2.0GHz
 4GB DDR3L RAM (Max. 8GB)
 4 LAN, USB 3.0 & SATA 6G
 Single or redundant power supply**
* This series has multiple SKUs
** Non upgradable
Also available in:
10GbE Ready
10GbE Built-in
See next slide for more details
TS-431U
 ARM Cortex A9, Dual-core, 1.2GHz
 1GB RAM
 2 LAN, USB 3.0 & SATA 6G
 Single power supply**
TS-863U-RP-4G TS-1263U-RP-4GTS-463U-RP-4G
TS-863U-4G TS-1263U-4GTS-463U-4G
 AMD G-series, Quad-core, 2.0GHz
 4/8GB DDR3L RAM (Max. 16GB)
 1 port 10GbE (SFP+) LAN, 2 GbE LAN
 USB 3.0 & SATA 6G
 Hardware-accelerated encryption
 Hardware transcoding engine
 Single or redundant power supply**
GbE LAN only

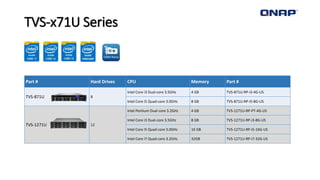

18. Part # Hard Drives CPU Memory Part #
TVS-871U 8
Intel Core i3 Dual-core 3.5GHz 4 GB TVS-871U-RP-i3-4G-US
Intel Core i5 Quad-core 3.0GHz 8 GB TVS-871U-RP-i5-8G-US
TVS-1271U 12
Intel Pentium Dual-core 3.2GHz 4 GB TVS-1271U-RP-PT-4G-US
Intel Core i3 Dual-core 3.5GHz 8 GB TVS-1271U-RP-i3-8G-US
Intel Core i5 Quad-core 3.0GHz 16 GB TVS-1271U-RP-i5-16G-US
Intel Core i7 Quad-core 3.2GHz 32GB TVS-1271U-RP-i7-32G-US
TVS-x71U Series
