Unitrends offers a vertically integrated backup appliance solution that focuses on reducing total cost of ownership and increasing return on investment while enhancing customer experience. Their solutions feature no per-client or application fees, support for multiple operating systems, and innovative recovery options like bare metal recovery and incremental backups. Additionally, the VRecovery appliance architecture integrates with VMware for comprehensive data protection and flexible backup scheduling.

1. Solution Overview

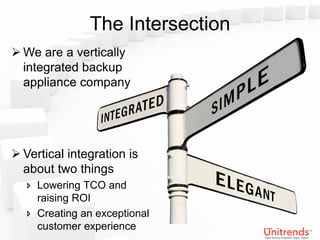

2. The Intersection
 We are a vertically
integrated backup
appliance company
 Vertical integration is
about two things
 Lowering TCO and
raising ROI
 Creating an exceptional
customer experience

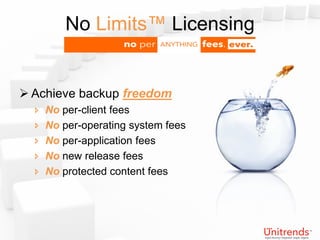

3. No Limits™ Licensing
 Achieve backup freedom
 No per-client fees
 No per-operating system fees
 No per-application fees
 No new release fees
 No protected content fees

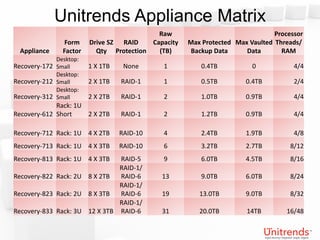

4. Unitrends Appliance Matrix
Raw Processor
Form Drive SZ RAID Capacity Max Protected Max Vaulted Threads/
Appliance Factor Qty Protection (TB) Backup Data Data RAM
Desktop:
Recovery-172 Small 1 X 1TB None 1 0.4TB 0 4/4
Desktop:
Recovery-212 Small 2 X 1TB RAID-1 1 0.5TB 0.4TB 2/4
Desktop:
Recovery-312 Small 2 X 2TB RAID-1 2 1.0TB 0.9TB 4/4
Rack: 1U
Recovery-612 Short 2 X 2TB RAID-1 2 1.2TB 0.9TB 4/4
Recovery-712 Rack: 1U 4 X 2TB RAID-10 4 2.4TB 1.9TB 4/8
Recovery-713 Rack: 1U 4 X 3TB RAID-10 6 3.2TB 2.7TB 8/12
Recovery-813 Rack: 1U 4 X 3TB RAID-5 9 6.0TB 4.5TB 8/16
RAID-1/
Recovery-822 Rack: 2U 8 X 2TB RAID-6 13 9.0TB 6.0TB 8/24
RAID-1/
Recovery-823 Rack: 2U 8 X 3TB RAID-6 19 13.0TB 9.0TB 8/32
RAID-1/
Recovery-833 Rack: 3U 12 X 3TB RAID-6 31 20.0TB 14TB 16/48

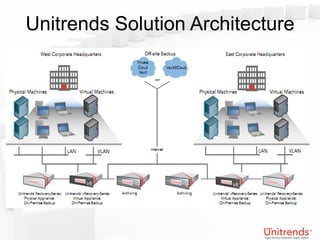

5. Unitrends Solution Architecture

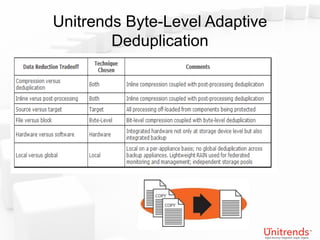

6. Unitrends Byte-Level Adaptive
Deduplication

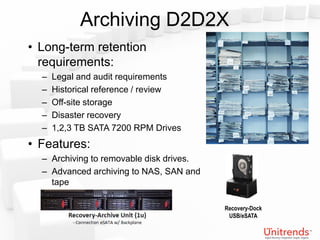

7. Archiving D2D2X
• Long-term retention
requirements:
– Legal and audit requirements
– Historical reference / review
– Off-site storage
– Disaster recovery
– 1,2,3 TB SATA 7200 RPM Drives
• Features:
– Archiving to removable disk drives.
– Advanced archiving to NAS, SAN and
tape
Recovery-Dock
USB/eSATA

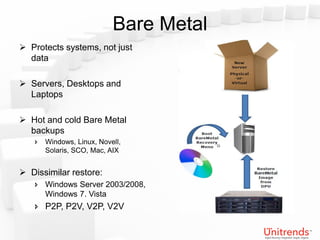

8. Bare Metal
 Protects systems, not just
data
 Servers, Desktops and
Laptops
 Hot and cold Bare Metal
backups
 Windows, Linux, Novell,
Solaris, SCO, Mac, AIX
 Dissimilar restore:
 Windows Server 2003/2008,
Windows 7. Vista
 P2P, P2V, V2P, V2V

9. Unitrends Windows Instant Recovery
Windows failover allows for a scheduled
restore to the physical server.

10. Unitrends vProtect
Hyper-V and VMware Data Protection
 Unitrends leverages the VADP (vStorage APIs for Data Protection) published by Vmware & Microsoft.
 Available on vCenter Server and all licensed ESX and ESXi (3.5, 4.x, & 5.x)
 Available on Hyper-V Servers running on Windows 2008.
 Supports changed block tracking, native thin provisioning, vMotion and point-in-time and file-level
recovery for Vmware.
 Pull-based architecture which does not require agent install on GOS’s
 With VMWare Instant Recovery you can immediately host the new virtual guest from the Unitrends
Appliance (Using NFS) and vMotion will migrate it back to the proper datastore while the server
stays up and running.
© 2007 Unitrends. All rights reserved.

11. Unitrends VMware Failover

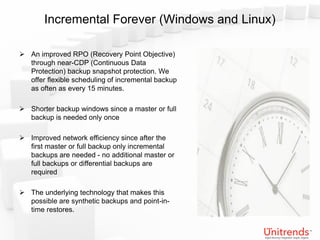

12. Incremental Forever (Windows and Linux)
 An improved RPO (Recovery Point Objective)
through near-CDP (Continuous Data
Protection) backup snapshot protection. We
offer flexible scheduling of incremental backup
as often as every 15 minutes.
 Shorter backup windows since a master or full
backup is needed only once
 Improved network efficiency since after the
first master or full backup only incremental
backups are needed - no additional master or
full backups or differential backups are
required
 The underlying technology that makes this
possible are synthetic backups and point-in-
time restores.

13. Features & Functionality Review
True No Limits Licensing
 File level Backup and  Off-site DR
Recovery  256bit AES encryption
 Baremetal Recovery  Multi-OS protection
 Instant Recovery  VMware, Hyper-V, Citrix-
 SQL & Exchange Agents Xen
 Adaptive Byte level  Reporting and Alerting
Deduplication  Flexibility
 Compression  SMTP, SNMP
 Incremental Forever  NAS/SAN Protection
13

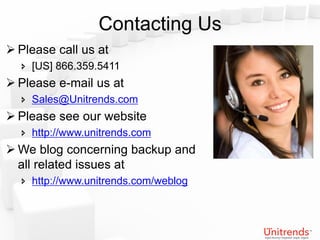

14. Contacting Us
 Please call us at
 [US] 866.359.5411
 Please e-mail us at
 Sales@Unitrends.com
 Please see our website
 http://www.unitrends.com
 We blog concerning backup and
all related issues at
 http://www.unitrends.com/weblog

15. vRecovery Appliance Architecture
 vRecovery is
simply the
Unitrends software
platform offered on
the VMware
vSphere 4.1 or later
Virtualization
platform
 Requires at least 4
virtual cores and 8
GB RAM
© 2007 Unitrends. All rights reserved.

16. Unitrends Virtual v Physical Appliance
Comparison
Feature vRecovery-Series Recovery-Series
Can serve as on-premise appliance Yes Yes
Can serve as off-premise appliance Yes Yes
Can serve as cross-vault Yes Yes
Licensing based on physical capacity Yes Yes
Can use external storage for backup Yes No
Can use external storage for vaulting Yes No
Can use external storage for archiving Yes Yes
Major release updates bundled in support Yes Yes
Integrated support for hardware/software No Yes
