Enterprise Ready Test Execution Platform
{}{}{}{}{}{}{}{}{}{}{}{}{}{}
Vijayan Srinivasan, Rahul Kumar
{}{}{}{}
Akshatha Udupa
Intuit Proprietary & Confidential

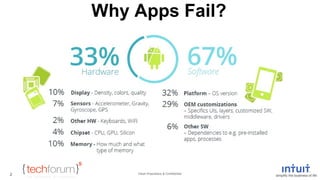

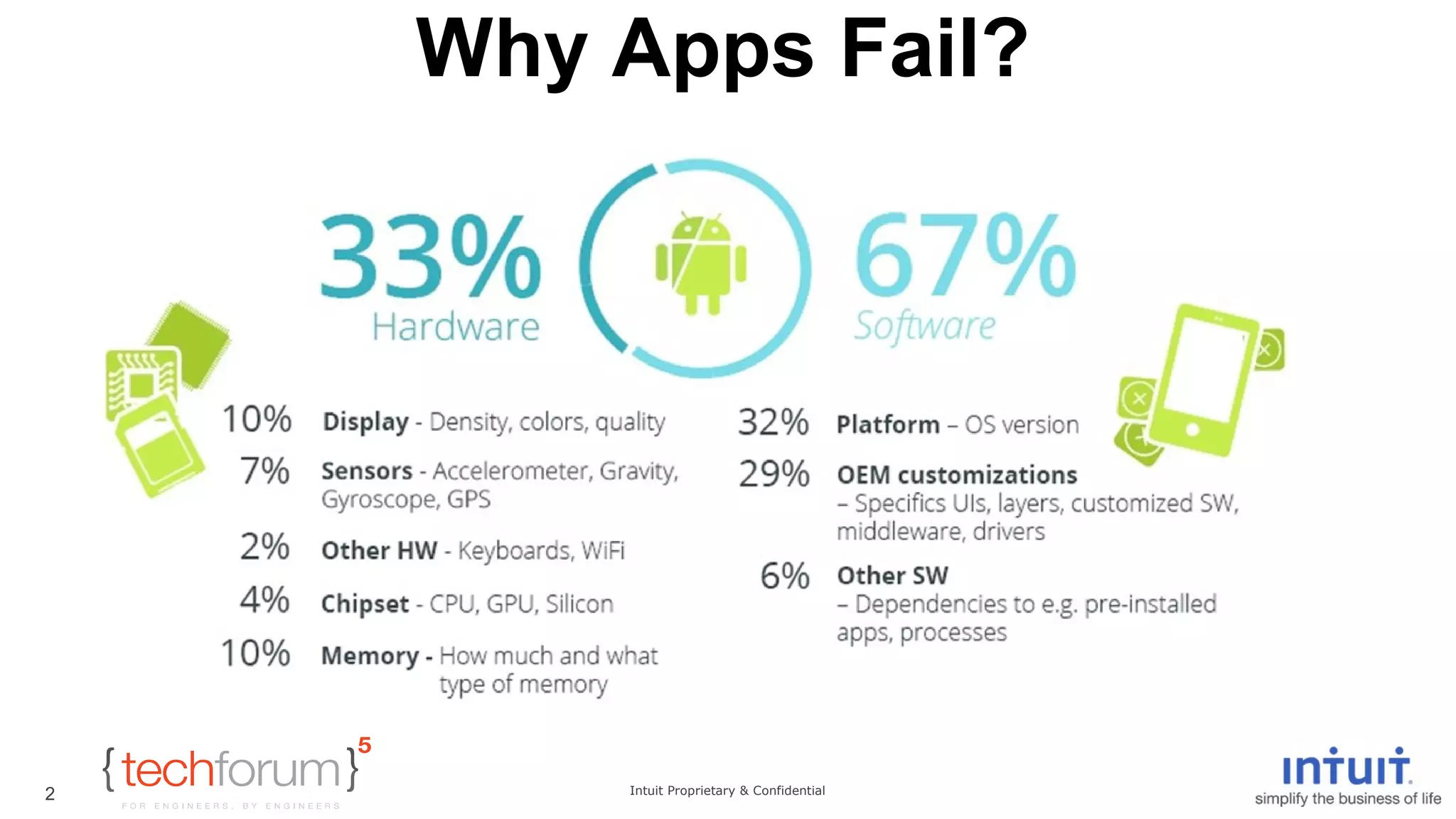

2. Why Apps Fail?
Intuit Proprietary & Confidential
2

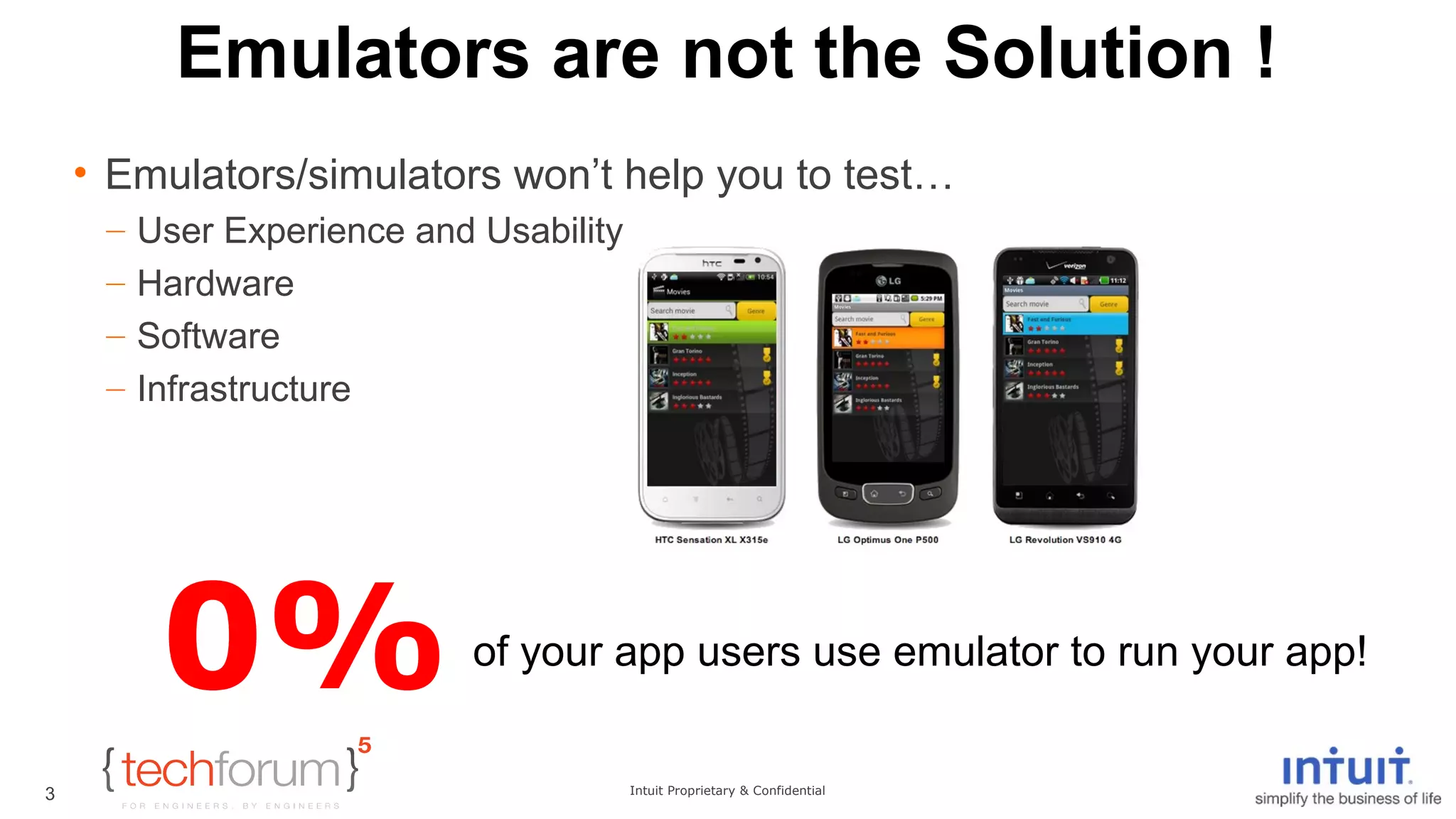

3. Emulators are not the Solution !
• Emulators/simulators won’t help you to test…
– User Experience and Usability
– Hardware
– Software
– Infrastructure
Intuit Proprietary & Confidential
3
0%of your app users use emulator to run your app!

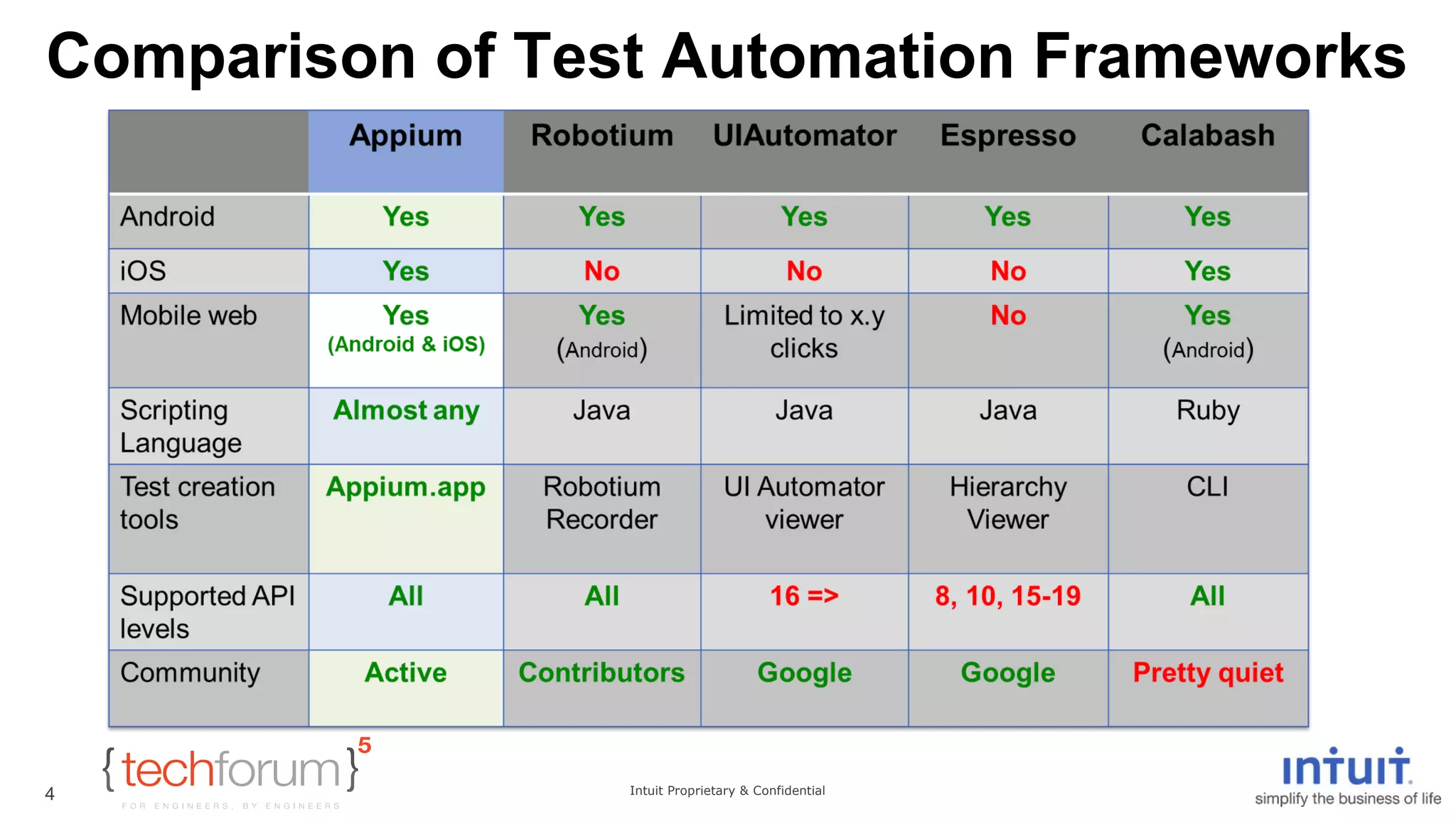

4. Comparison of Test Automation Frameworks
Intuit Proprietary & Confidential
4

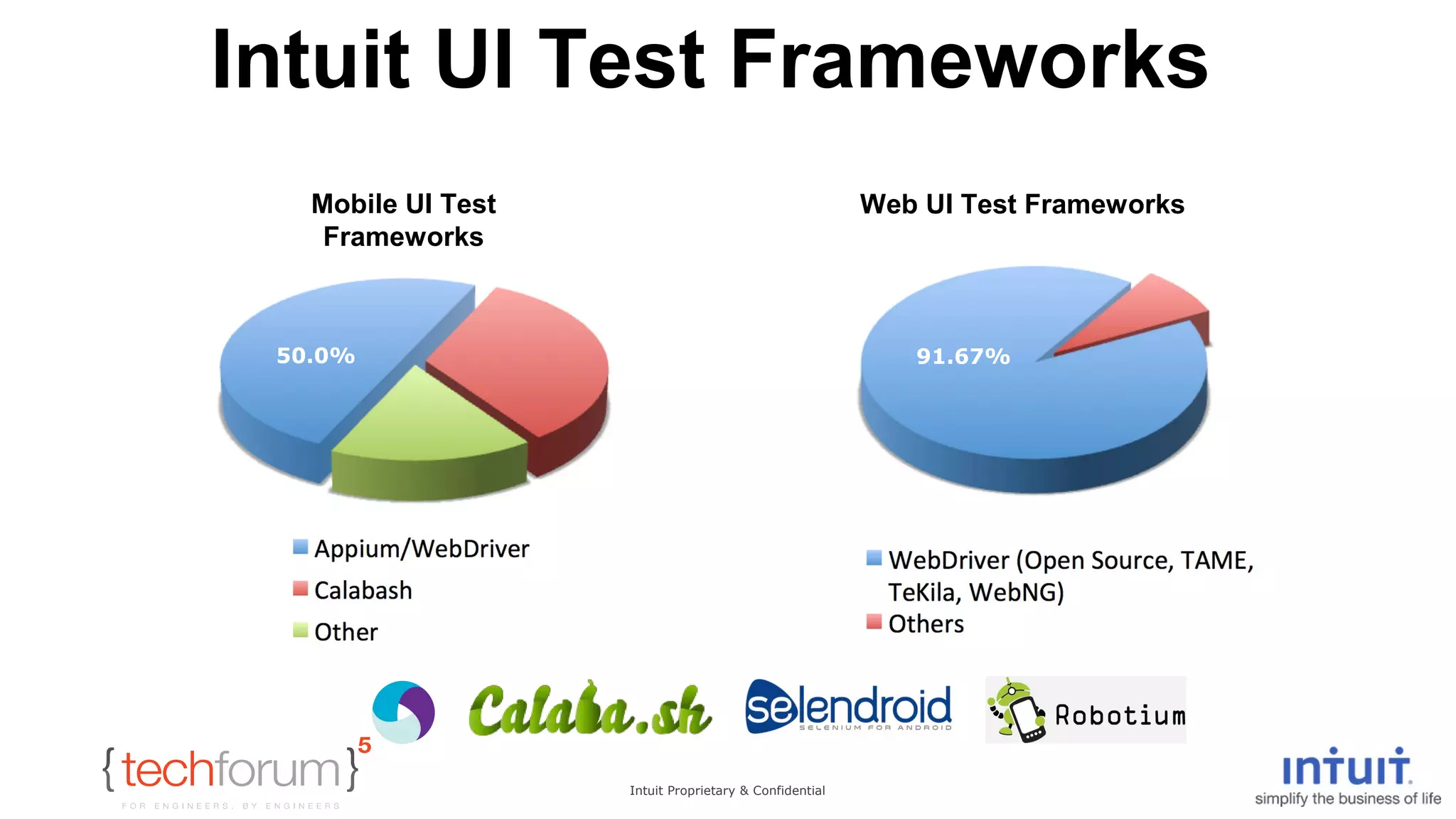

5. Intuit UI Test Frameworks
Intuit Proprietary & Confidential
Mobile UI Test
Frameworks
Web UI Test Frameworks
50.0% 91.67%

6. Thanks to Quality Community!!
• Appium is built on the idea that testing
native apps shouldn't require including an
SDK or recompiling your app
• Able to use your preferred test practices,
frameworks, and tools
Intuit Proprietary & Confidential
6

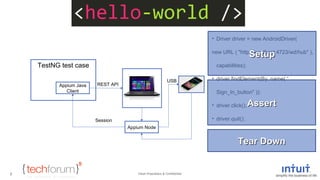

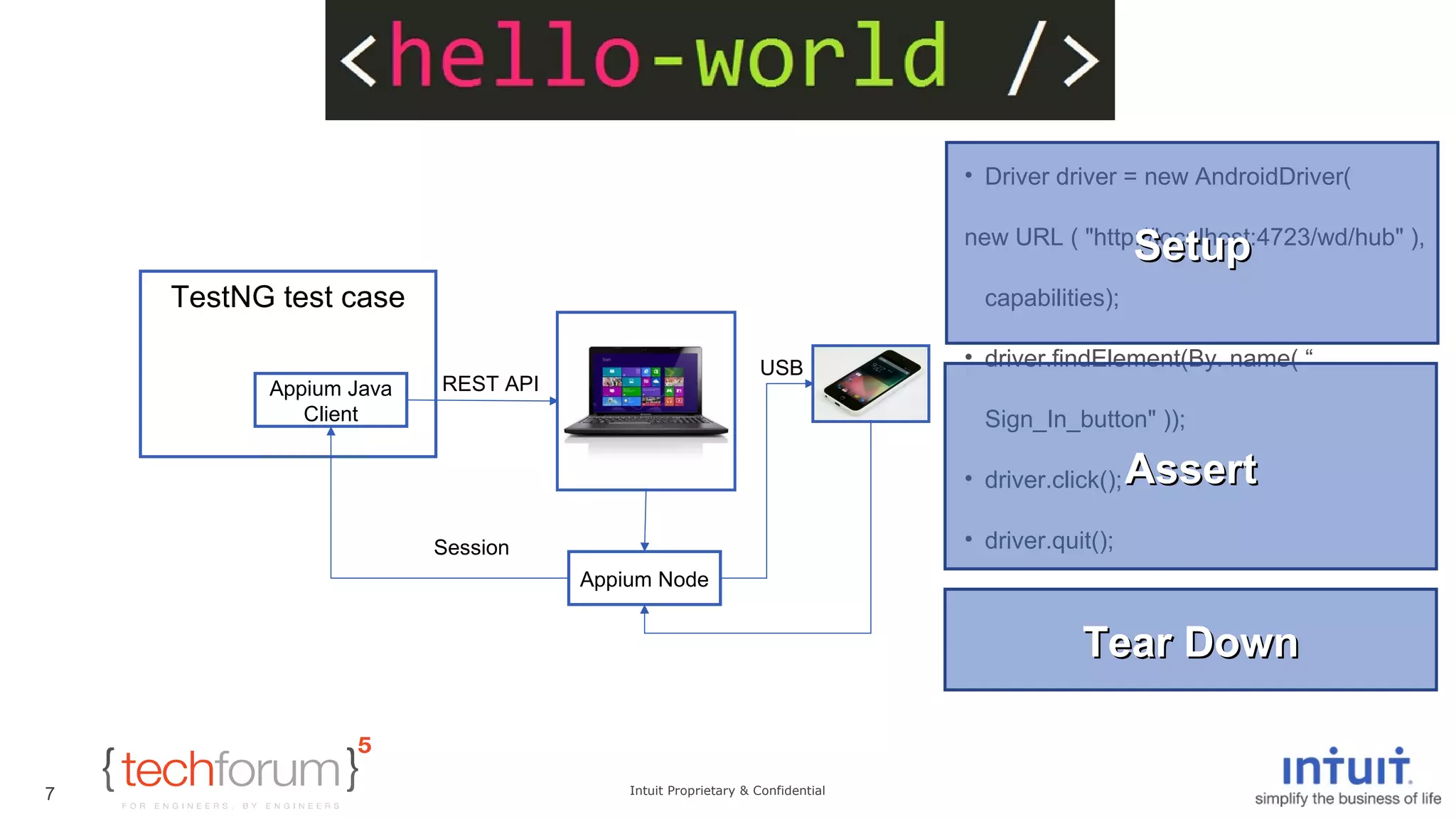

7. “Hello World”
Intuit Proprietary & Confidential
7
TestNG test case
Appium Java
Client
Appium Node
USB
REST API
Session
• Driver driver = new AndroidDriver(
new URL ( "http://SSeettuupp
localhost:4723/wd/hub" ),
capabilities);
• driver.findElement(By. name( “
Sign_In_button" ));
• driver.click();
AAsssseerrtt
• driver.quit();
TTeeaarr DDoowwnn

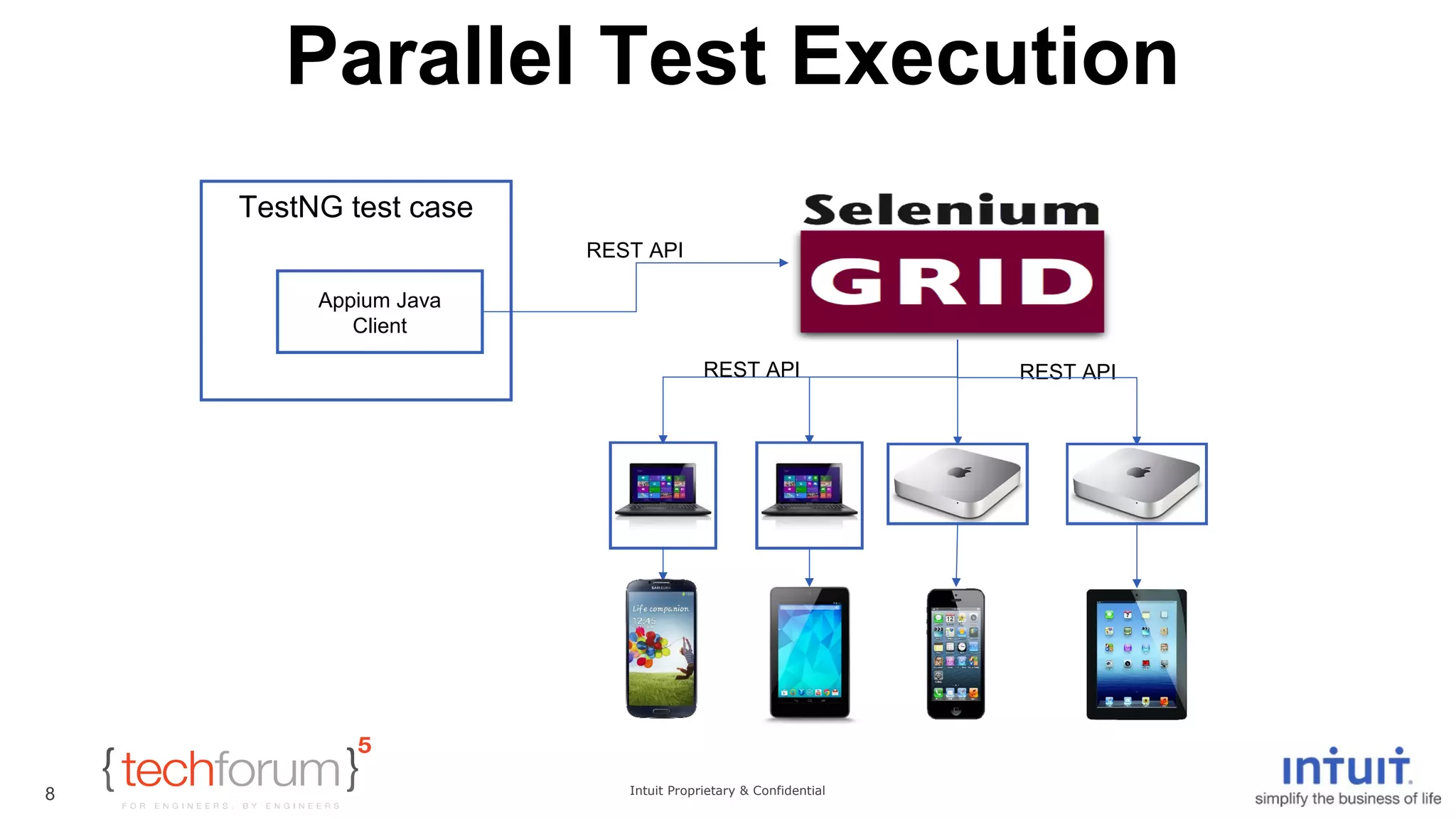

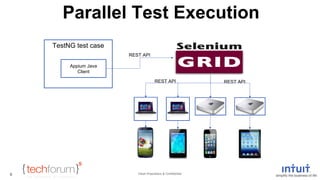

8. Parallel Test Execution
Intuit Proprietary & Confidential
8
TestNG test case
Appium Java
Client
REST API REST API
REST API

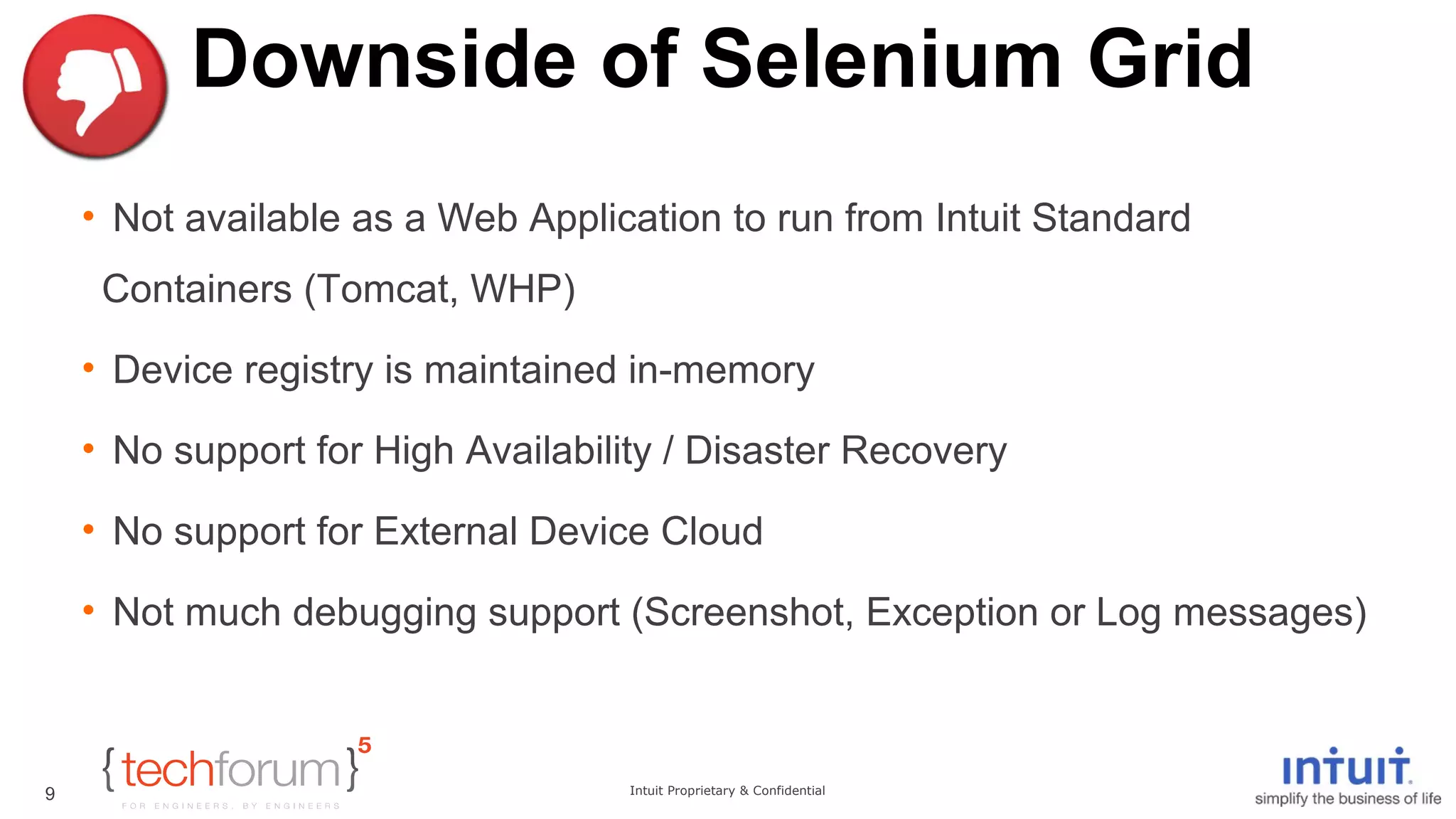

9. Downside of Selenium Grid
• Not available as a Web Application to run from Intuit Standard
Containers (Tomcat, WHP)
• Device registry is maintained in-memory
• No support for High Availability / Disaster Recovery
• No support for External Device Cloud
• Not much debugging support (Screenshot, Exception or Log messages)
Intuit Proprietary & Confidential
9

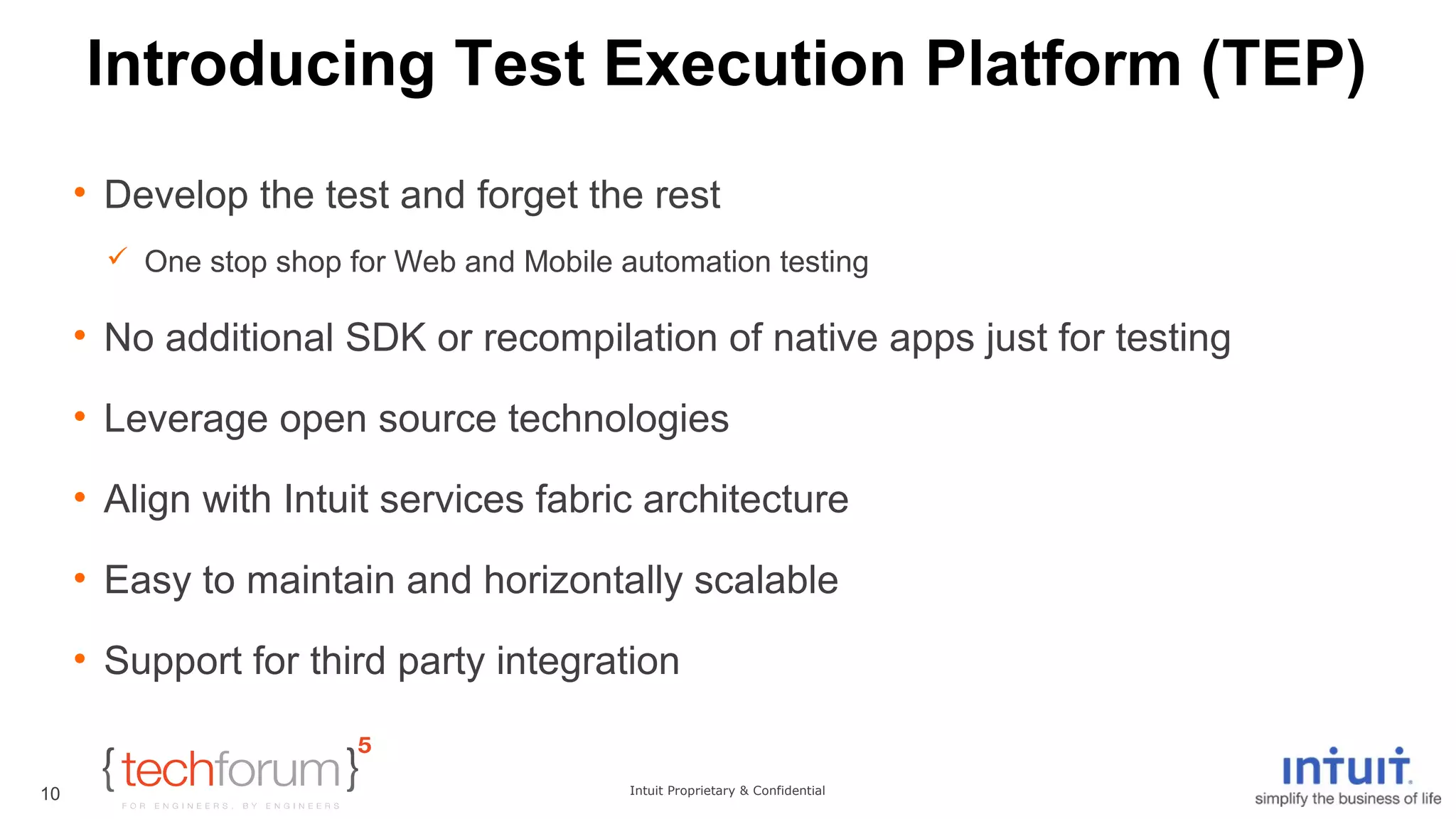

10. Introducing Test Execution Platform (TEP)
• Develop the test and forget the rest
 One stop shop for Web and Mobile automation testing
• No additional SDK or recompilation of native apps just for testing
• Leverage open source technologies
• Align with Intuit services fabric architecture
• Easy to maintain and horizontally scalable
• Support for third party integration
Intuit Proprietary & Confidential
10

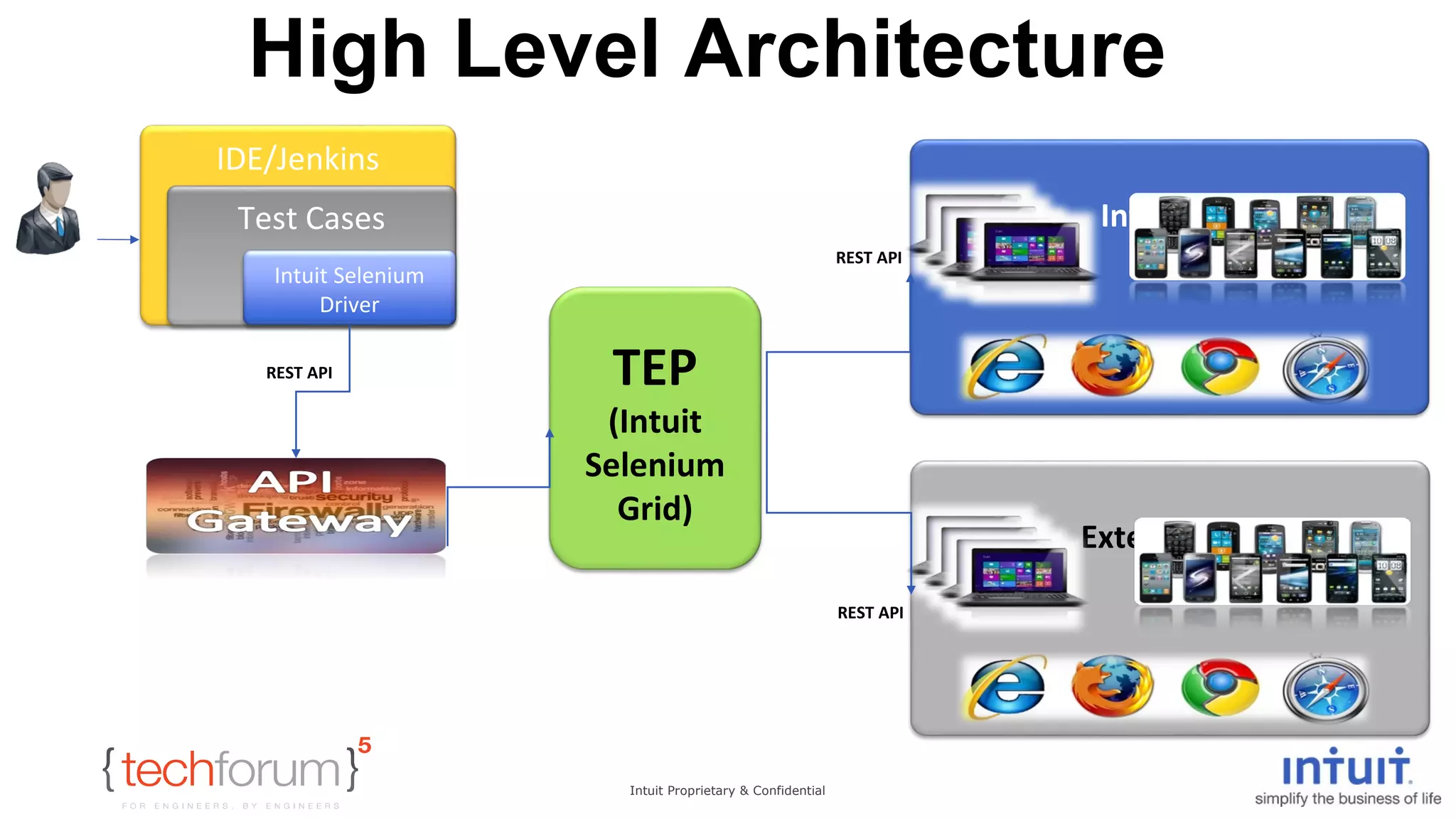

11. High Level Architecture
TEP
(Intuit
Selenium
Grid)
Intuit Proprietary & Confidential
IDE/Jenkins
Test Cases
Intuit Selenium
Driver
Intuit Lab
External Lab
REST API
REST API
REST API

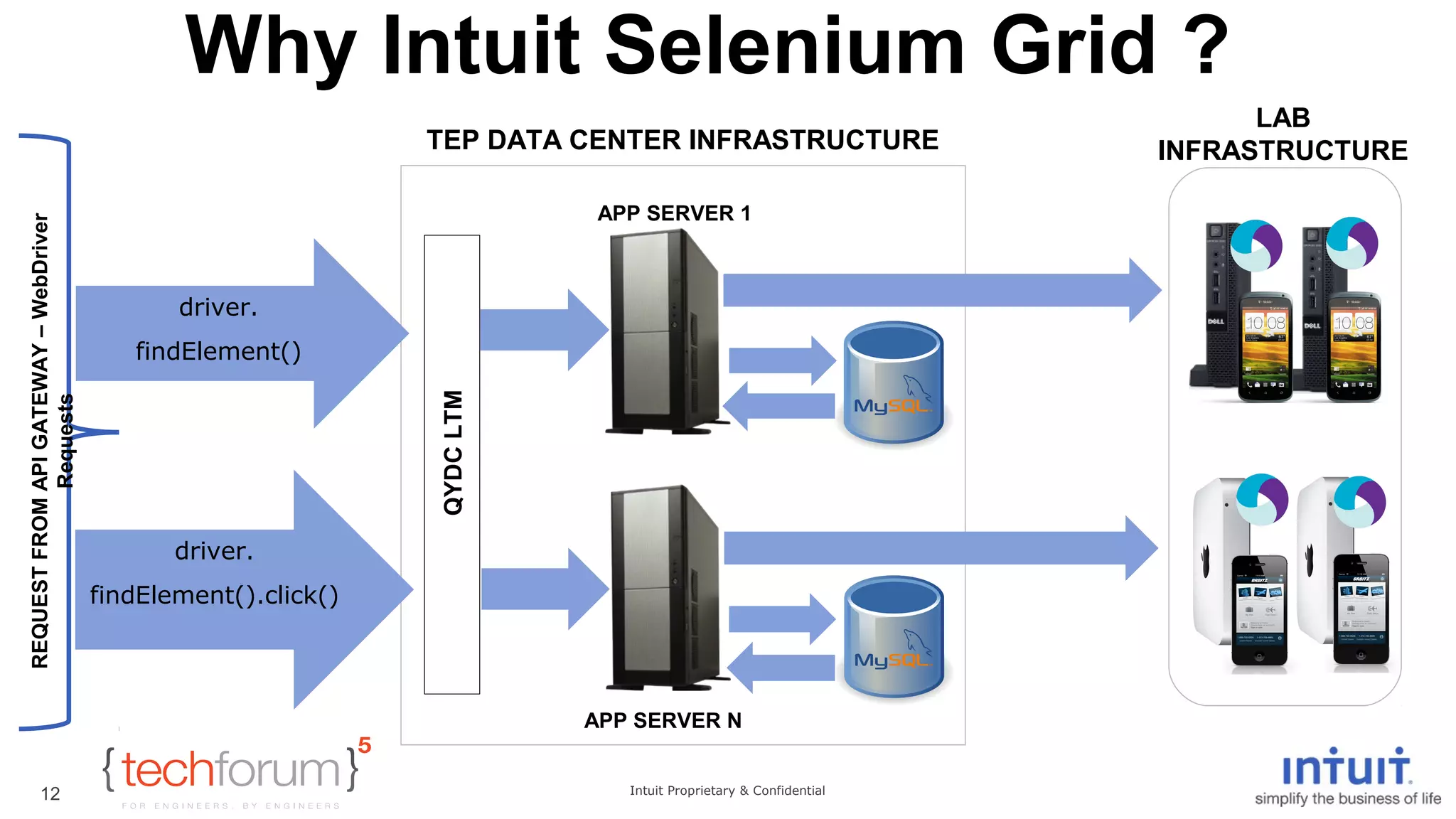

12. Why Intuit Selenium Grid ?
Intuit Proprietary & Confidential
12
LAB
TEP DATA CENTER INFRASTRUCTURE INFRASTRUCTURE
QYDC LTM
APP SERVER 1
APP SERVER N
REQUEST FROM API GATEWAY – WebDriver
Requests
driver.
findElement()
driver.
findElement().click()

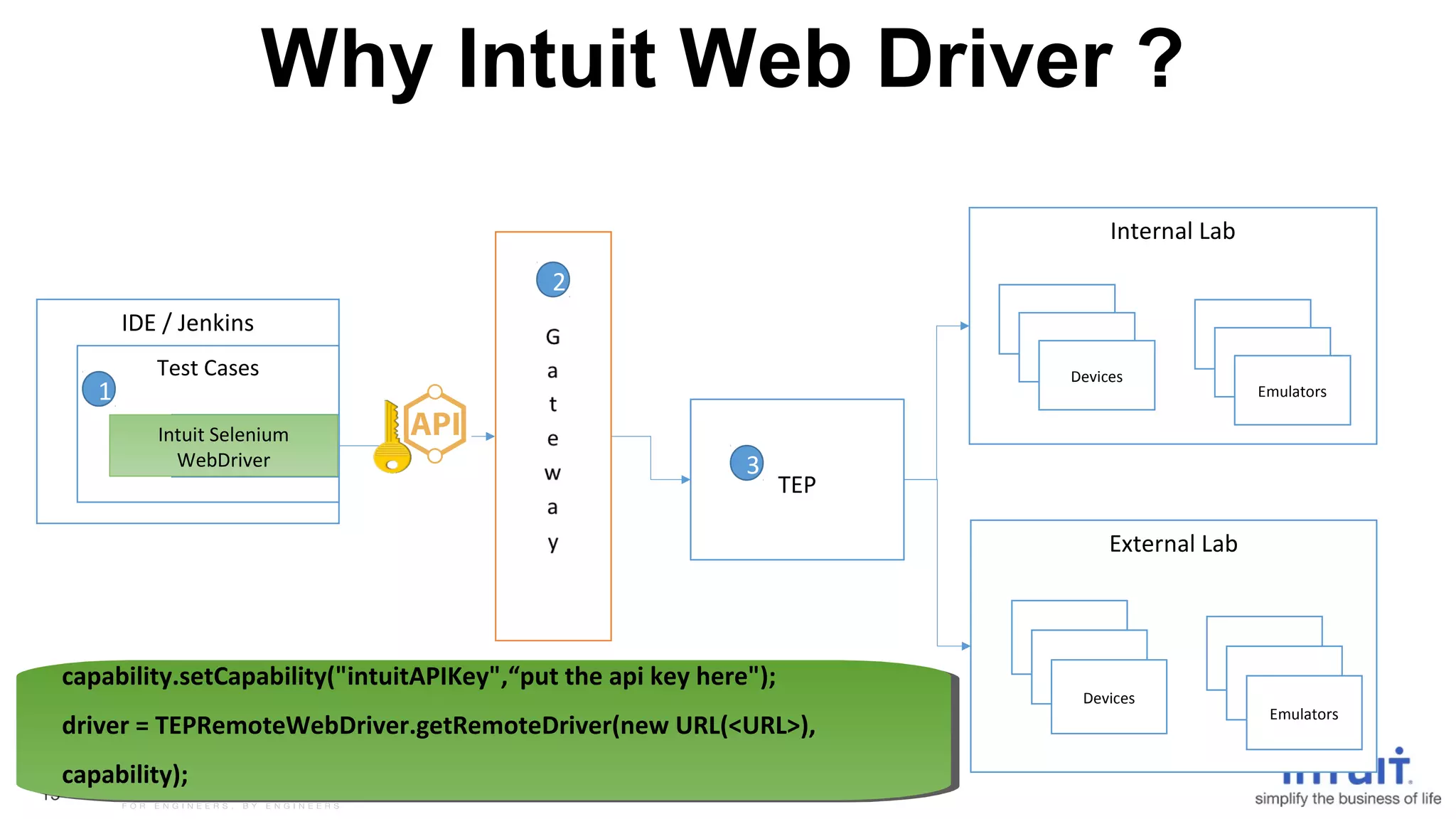

13. Why Intuit Web Driver ?
Intuit Selenium
WebDriver
capability.setCapability("intuitAPIKey",“put the api key here");
driver = TEPRemoteWebDriver.getRemoteDriver(new URL(<URL>),
capability);
Intuit Proprietary & Confidential
13
IDE / Jenkins
Test Cases
Web Driver
TEP
Internal Lab
Devices
Emulators
External Lab
Devices
Emulators
2
1
3
capability.setCapability("intuitAPIKey",“put the api key here");
driver = TEPRemoteWebDriver.getRemoteDriver(new URL(<URL>),
capability);

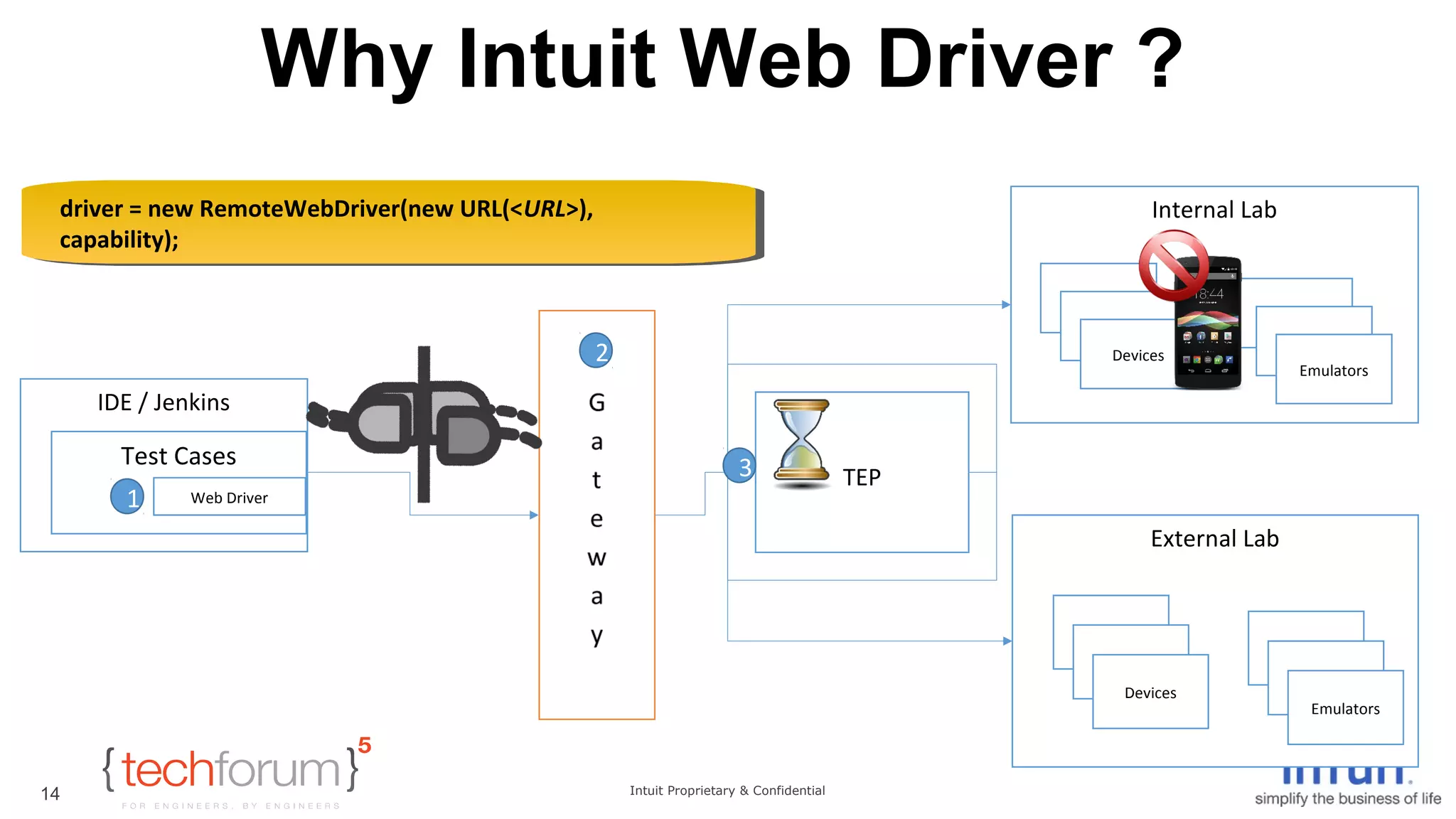

14. Why Intuit Web Driver ?
Intuit Proprietary & Confidential
driver = new RemoteWebDriver(new URL(<URL>),
capability);
14
IDE / Jenkins
Test Cases
Web Driver
TEP
Internal Lab
Devices
Emulators
External Lab
Devices
Emulators
2
1
3
driver = new RemoteWebDriver(new URL(<URL>),
capability);

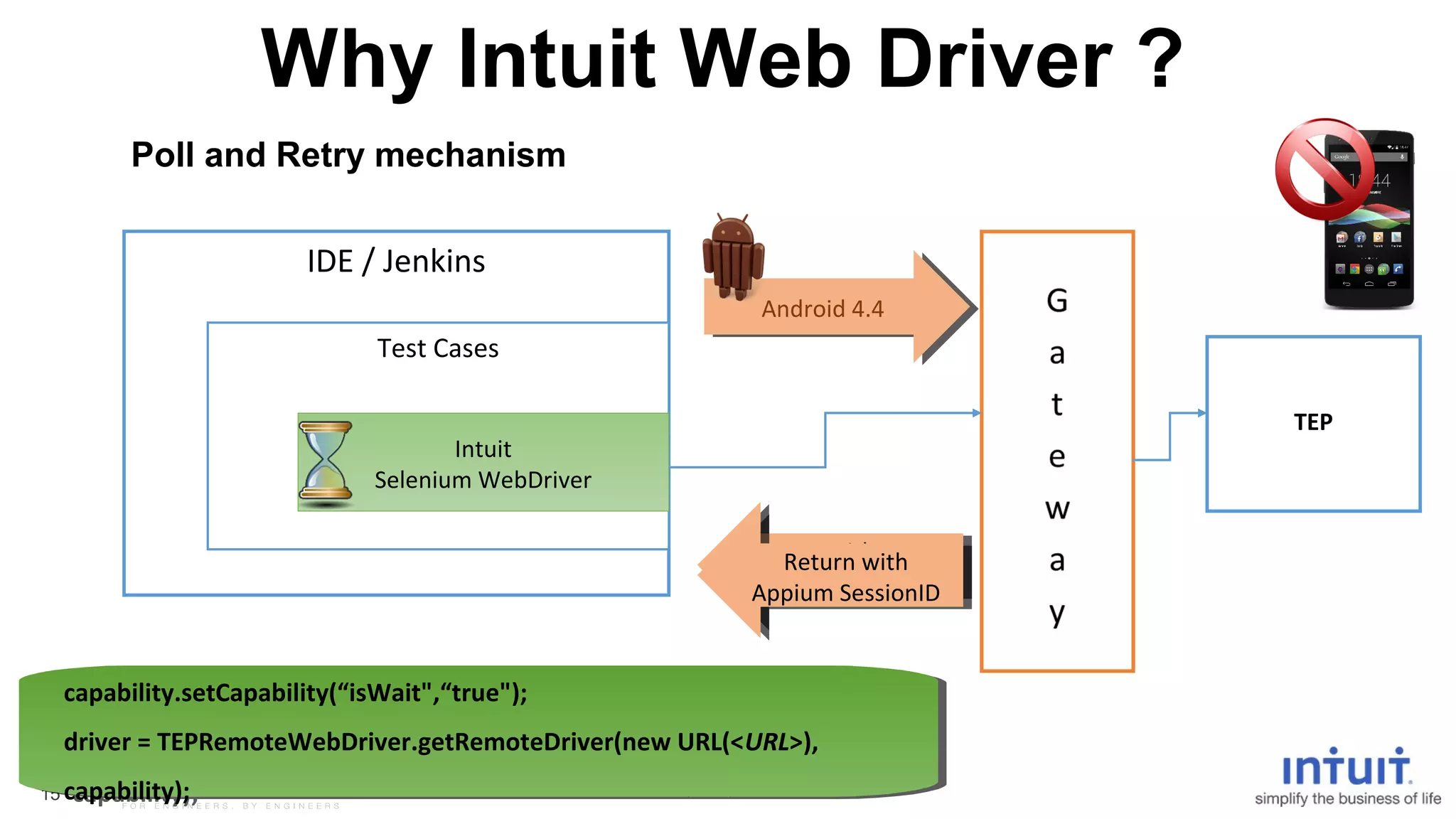

15. Why Intuit Web Driver ?
Poll and Retry mechanism
IDE / Jenkins
Test Cases
Intuit
Selenium WebDriver
Return with Temp
Return with
Return with
SessionID
Appium SessionID
capability.setCapability(“isWait",“true");
driver = TEPRemoteWebDriver.getRemoteDriver(new URL(<URL>),
capability);
capability.setCapability(“isWait",“true");
driver = TEPRemoteWebDriver.getRemoteDriver(new URL(<URL>),
capability);
Intuit Proprietary 15 & Confidential
TEP
AAnnddrrooidid 4 4.4.4
Return with Temp
SessionID
Appium SessionID

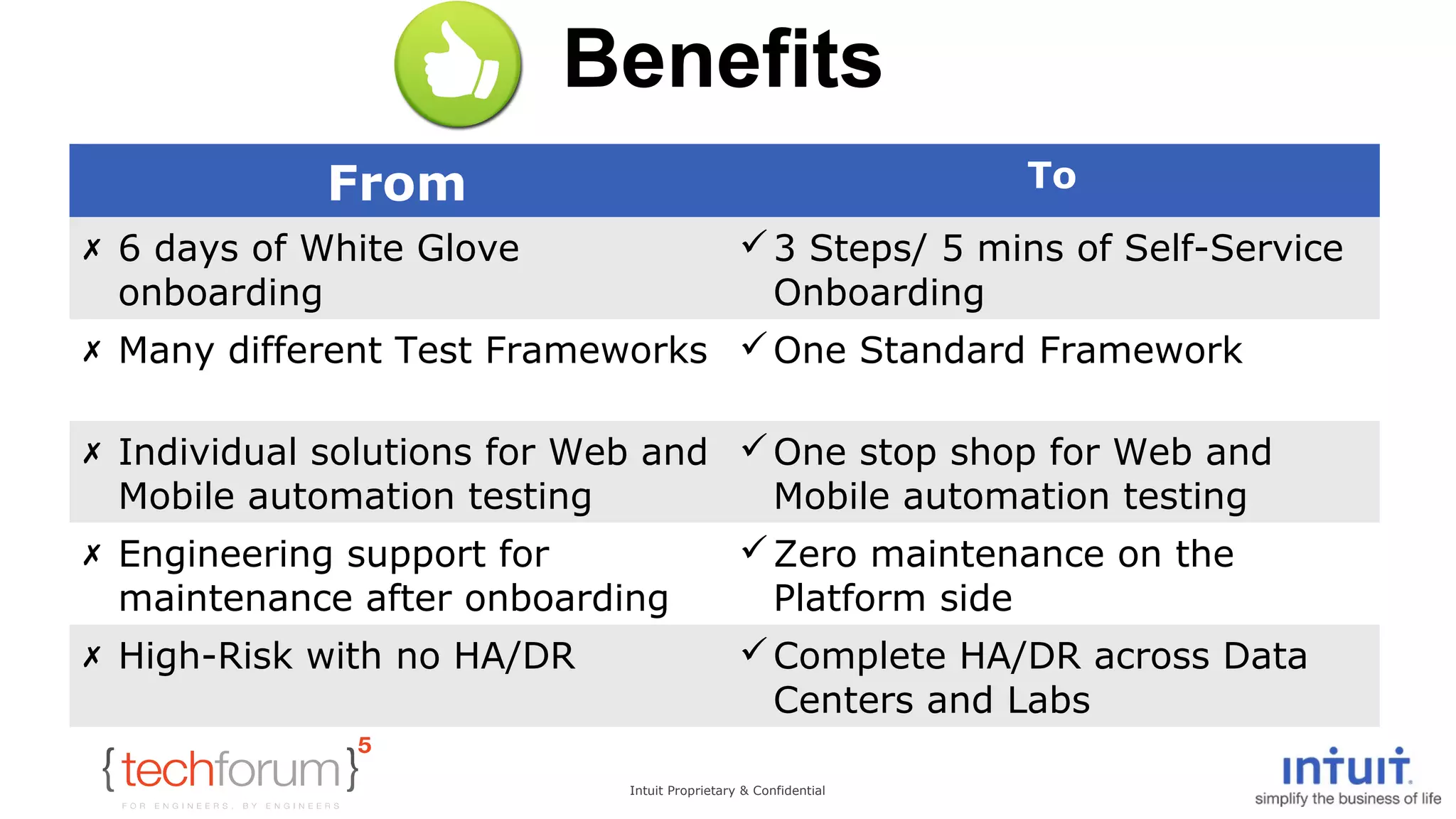

16. Benefits
From To
Intuit Proprietary & Confidential
 6 days of White Glove
onboarding
3 Steps/ 5 mins of Self-Service
Onboarding
 Many different Test Frameworks One Standard Framework
 Individual solutions for Web and
Mobile automation testing
One stop shop for Web and
Mobile automation testing
 Engineering support for
maintenance after onboarding
Zero maintenance on the
Platform side
 High-Risk with no HA/DR Complete HA/DR across Data
Centers and Labs
