1. Chicago, October 19 - 22,
2010
Griffon for the Enterprise
James Williams – BT/Ribbit

2. About Me
• Co-creator of Griffon
• Creator of SwingXBuilder
• Sofware Engineer at BT/Ribbit

3. Griffon Team and Contributors
●
Andres Almiray
●
Danno Ferrin
●
Josh Reed
●
Jim Shingler
• Hamlet D'Arcy
• Nick Zhu

4. Agenda
●
Overview of Griffon
●
Griffon MVC
●
Plugins and Addons
●
Application Packaging
●
Griffon Competitors
●
Sample Applications and Demos
●
Summary

5. What is Griffon?
●
Open source desktop rapid development framework
●
Leverages Java Swing and the Groovy language
●
Apache 2 Licensed
●
Extensible using Plugins and Add-ons
●
Brings a Grails-inspired experience to the desktop

6. Structure of a Griffon Application

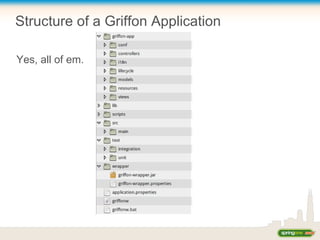

7. Structure of a Griffon Application
Yes, all of em.

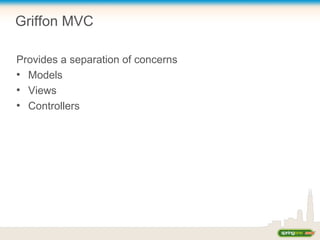

8. Griffon MVC
Provides a separation of concerns
●
Models
●
Views
●
Controllers

9. Griffon Lifecycle
●
Bootstrap
●
Initialize
●
Startup
●
Shutdown
●
Stop

10. Plugins and Addons
Extend existing features in Griffon applications
• Plugins
• Addons
Provide features like
• UI toolkits
• Databases
• XMPP/REST/RPC
• Testing
• Layout Managers
• Bling

11. Services and Dependency Injection
Griffon has supports the following
• Guice
• Spring
• First-class services when DI is not needed

12. Application Packaging
●
Can easily be deployed as
– Fat JARs or collection of JARs
– Java WebStart
– Applets
– Zip file
●
The Installer plugin can also provide the following
– OS specific executables
– Izpack
– JSmooth

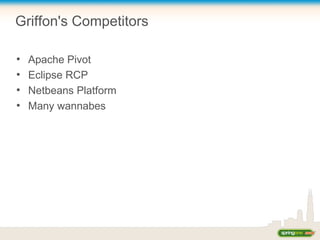

13. Griffon's Competitors
●
Apache Pivot
●
Eclipse RCP
●
Netbeans Platform
●
Many wannabes

14. Apache Pivot
Rapid application framework including:
• WTK user interface elements
• Web libraries
• Charts
• LOTS of XML
• Base footprint: Unknown but very small

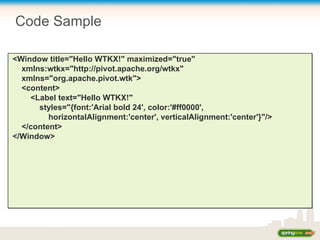

15. Code Sample
<Window title="Hello WTKX!" maximized="true"
xmlns:wtkx="http://pivot.apache.org/wtkx"
xmlns="org.apache.pivot.wtk">
<content>
<Label text="Hello WTKX!"
styles="{font:'Arial bold 24', color:'#ff0000',
horizontalAlignment:'center', verticalAlignment:'center'}"/>
</content>
</Window>

16. Eclipse RCP
Rapid application framework including:
• Eclipse Runtime
• SWT
• JFace
• Workbench
• Plugins
• Base footprint: 12MB

17. Netbeans Platform
Toolkit powering Netbeans providing:
• Java Swing
• OSGI or Netbeans Modules
• Advanced multi-Window system
• Base footprint: 7-8.5MB

18. Dependency Handling in Griffon
●
Gradle is built in under the covers providing
●
Compile, Test, and Runtime dependency
●
Integration with Maven repositories
●
Integration with Griffon plugin repositories
●
No OSGI support yet

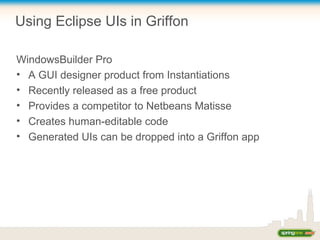

19. Using Eclipse UIs in Griffon
WindowsBuilder Pro
• A GUI designer product from Instantiations
• Recently released as a free product
• Provides a competitor to Netbeans Matisse
• Creates human-editable code
• Generated UIs can be dropped into a Griffon app

20. Using Netbeans Matisse with Griffon
Netbeans Matisse ...
• Uses GroupLayout for the UIs
• Code is not humanly editable
• No alternate LayoutManagers
• griffon generate-view-script <Qualified UI class name>

21. Demo

22. Use Case #1 - Databases
Scenario: Create a database viewer application
Requirements:
• Use MongoDB
• Have the ability to do basic functions like:
– CRUD operations
– Simple and advanced query
– Retrieve DB statistics

23. What is MongoDB?
●
Document-oriented database
• Documents can be nested
• Supports MapReduce
• Used by NYT, SourceForge, foursquare, and others
• Libraries for many programming languages

24. Demo

25. Code Sample
jxtitledPanel(title:'Settings', border:new
DropShadowBorder(Color.BLACK,15), constraints:'w 30%, h 100%') {
jxtaskPaneContainer() {
taskPane(id:'conxPane', title:'Connections', layout:new MigLayout()) {
scrollPane() {
panel(id:'conxIcons', layout: new MigLayout())
}
button(text:'Add', constraints:'newline, cell 0 1 ', ...)
button(text:'Remove', constraints:'cell 0 1')
}
taskPane(id:'dbPane', title:'Databases', layout:new MigLayout())
taskPane(id:'collPane', title:'Collections', layout:new MigLayout())
}
}

26. Code Sample
package griffonmongo
import net.miginfocom.swing.MigLayout
frame (title:'Add a Connection', id:'conx', size:[200,200], layout:new
MigLayout()) {
label(text:'Name')
textField(id:'txtName', columns:15, constraints:'wrap')
label(text:'Host')
textField(id:'txtHost', columns:15, constraints:'wrap')
label(text:'Port')
textField(id:'txtPort', columns:4, constraints:'wrap')
button('Add')
button('Cancel')
}

27. Use Case #2 – Websockets / Net
Comms
Scenario: Use websockets for communication in a chat and
slideware app
Requirements:
• Use WebSockets
• Provide simple chat functions
• Allow controlling slideware app with Websockets

28. What are Web Sockets?
Web Sockets ...
• Address the issues of long polling
• Supported natively by Chrome, Opera, and Firefox
• Enabled with Flash in non-compliant browsers
• Enable bi-directional communication between
– Web sites
– Web Services

29. How Websockets work

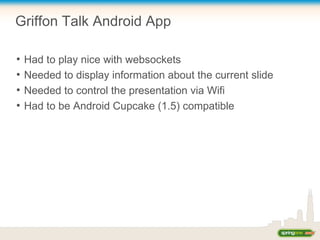

30. Griffon Talk Android App
●
Had to play nice with websockets
●
Needed to display information about the current slide
●
Needed to control the presentation via Wifi
●
Had to be Android Cupcake (1.5) compatible

31. Demo

32. Code Sample
def listener = [
processToken:{aEvent, aToken ->
def json = new JSONObject(aToken.toString())
switch(json.getString("operation")) {
...
case "broadcast":
def sender = json.getString("user")
def msg = json.getString("data")
model.msgEventList.add("$sender: $msg")
break
}
}, processOpened:{aEvent -> println aEvent},
processPacket:{evt, pkt ->
}] as WebSocketClientTokenListener

33. Code Sample
scrollPane(id:'screenshot', constraints:'w 700px , h 100%')
panel (layout:new MigLayout(), constraints:'w 200px, h 100%') {
scrollPane(id:'scroll', constraints:'h 90%, w 200px, wrap'){
jxlist(model:model.msgModel, highlighters:
[HighlighterFactory.createSimpleStriping()])
}
panel (layout:new MigLayout(), constraints:'w 200px'){
comboBox(id:'cbox', items:['Send Message', 'Send Question'],
constraints:'wrap')
textArea(id:'msgText', columns:15, lineWrap:true,
constraints:'wrap')
button(text:'Send', actionPerformed:{
controller.sendMessage(msgText?.text)})
}
}

34. Use Case #3 – Converting an app
Scenario: A legacy application that has fallen into disrepair
Requirements:
• Most original functionality must be preserved
• A total rewrite has to be optional

35. NeoeEdit
●
Lightweight BSD licensed text editor
●
Similar to JEdit
• Built using Java and Swing
• Keyword syntax highlighting

36. Live coding

37. Stock Tracker App
●
Ported from Apache Pivot to Griffon
●
Reads stock information from Yahoo! Finance
●
Track changes in stock information in real-time

38. Demo

39. Summary
●
UI designer support
●
Work incrementally with your assets.
●
Griffon has a small footprint.
●
Extensible with plugins and addons
●
You don't have to give up your favorite GUI designer.

40. Links
●
Griffon project: http://griffon.codehaus.org
• Code samples:
http://github.com/jwill/SpringOne2GXDemos
• jWebSocket: http://jwebsocket.org/
• websocket4j: https://launchpad.net/websocket4j
• NeoeEdit: http://code.google.com/p/neoeedit/
