"Different software evolutions from Start till Release in PHP product" Oleksandr Savchenko
The document outlines the evolution of software development practices, particularly in PHP, focusing on architecture patterns, methodologies, and team structures. Led by Oleksandr Savchenko, a prominent figure in the IT community, the content emphasizes best practices in development strategies, devops tools, and testing approaches. It covers various architectural styles, including microservices and monolithic architectures, alongside practical components and examples for building robust software systems.
More Related Content
![[아이펀팩토리] 2018 데브데이 서버위더스 _04 리눅스 게임 서버 성능 분석](https://cdn.slidesharecdn.com/ss_thumbnails/devday-2018-03-jinukkim1-180328105248-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to "Different software evolutions from Start till Release in PHP product" Oleksandr Savchenko
"Different software evolutions from Start till Release in PHP product" Oleksandr Savchenko
- 1. Different software evolutions fromStart till Release in PHP product Oleksandr Savchenko
- 2. Speaker. winner of UkrainianIT Awards in category Software Engineering in 2019 10+ years in software design & development worked as Developer, Architect, Head of PHP Head of Core Development in Ciklum co-founder and contributor of open-source products partnership programs with big IT companies (SensioLabs, AWS, Microsoft, Google Cloud Platform)
- 3. What to expectfor You? ● Pet-projects ● Front-End topics TO BE: ● Common software development practices ● Architecture patterns & approaches ● Useful components & libs ● Examples from real world ● Links to useful materials NOT TO BE:
- 4. Agenda. ● What canbe evolved? ● Evolution Stages.
- 7.
- 8.
- 9. TDD BDD DDD RDDResume DrivenDevelopment

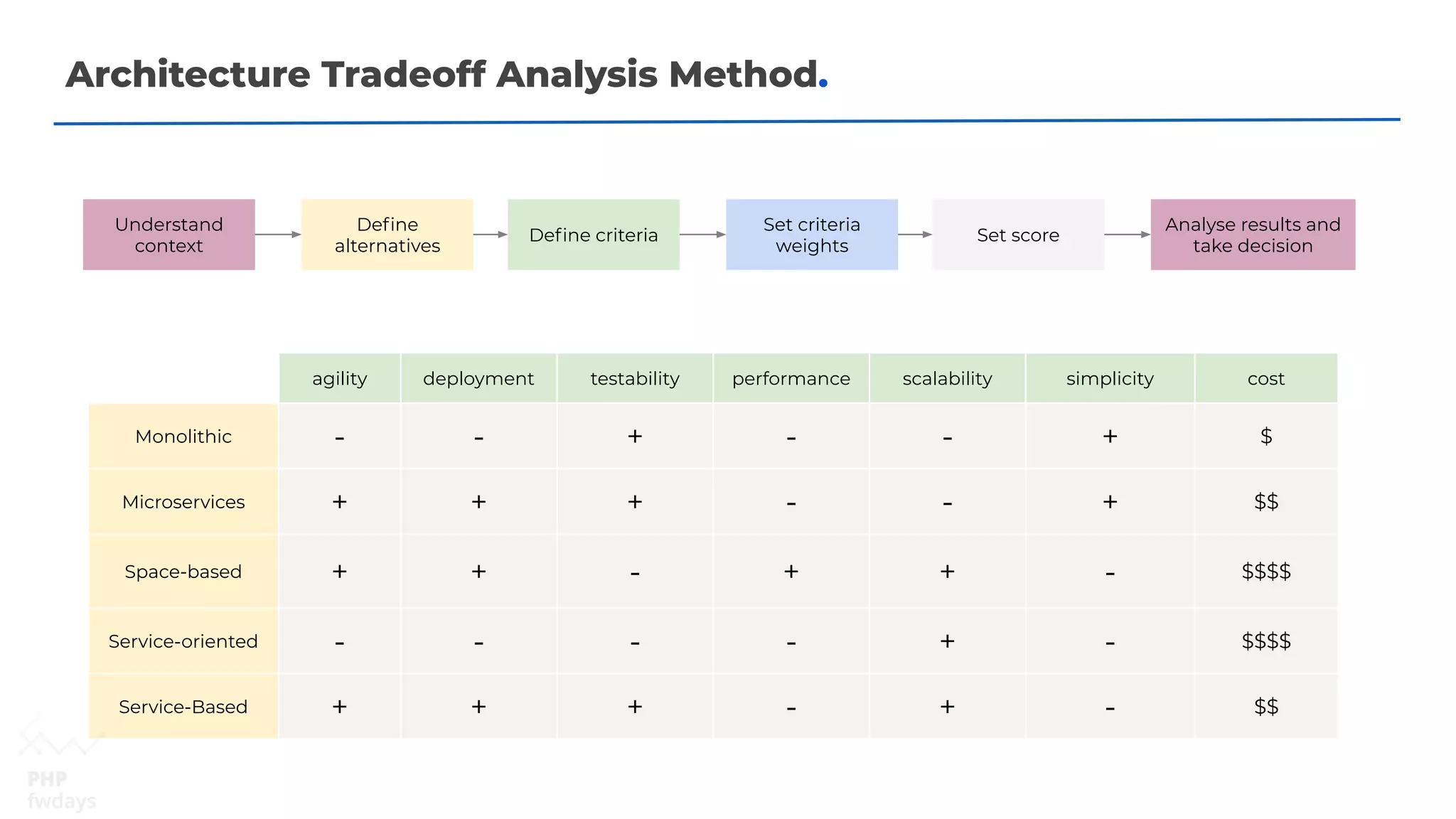

- 10. Architecture Tradeoff AnalysisMethod. Understand context Define alternatives Define criteria Set criteria weights Set score Analyse results and take decision agility deployment testability performance scalability simplicity cost Monolithic - - + - - + $ Microservices + + + - - + $$ Space-based + + - + + - $$$$ Service-oriented - - - - + - $$$$ Service-Based + + + - + - $$

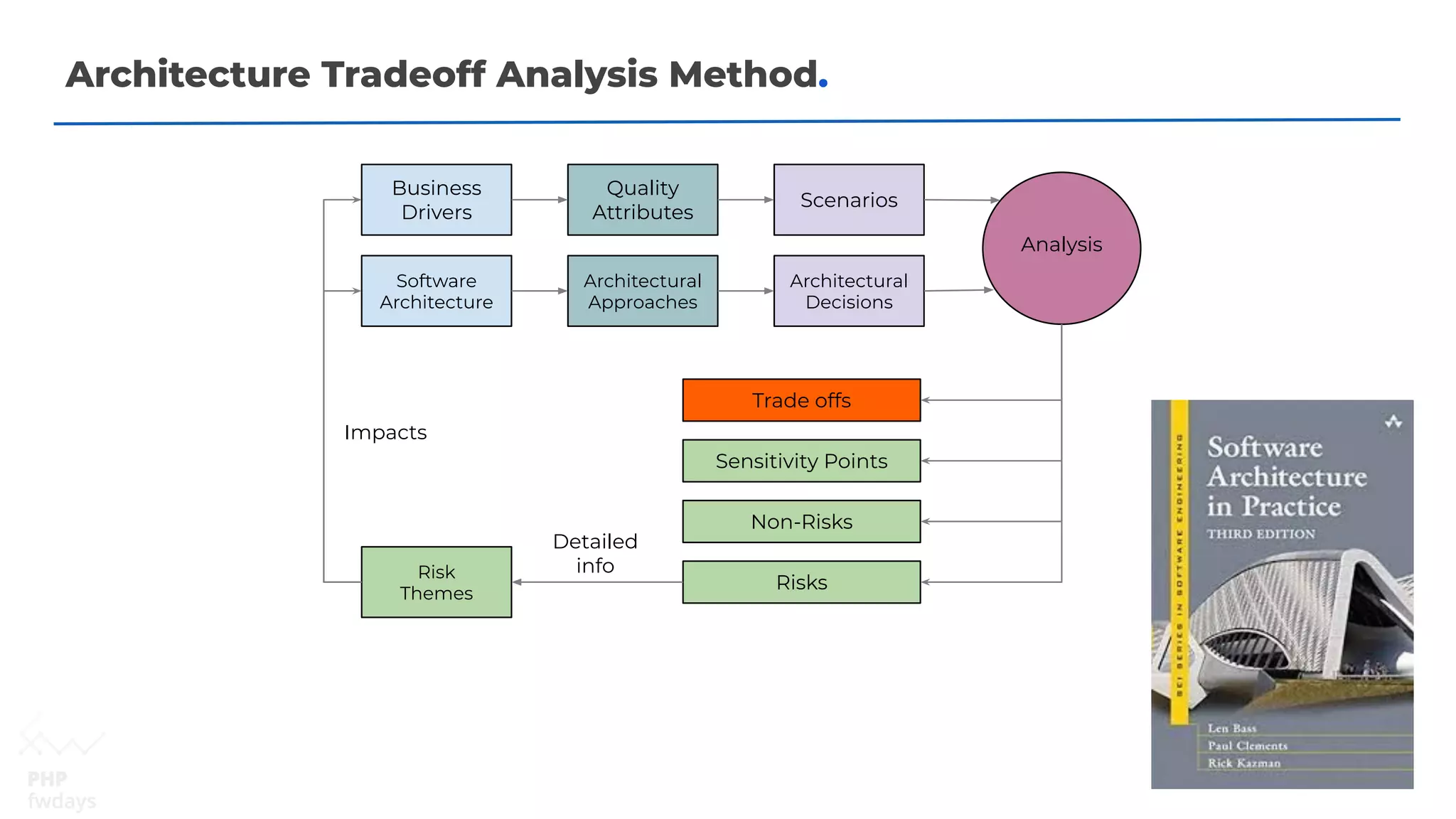

- 11. Architecture Tradeoff AnalysisMethod. Business Drivers Software Architecture Quality Attributes Architectural Approaches Scenarios Architectural Decisions Analysis Trade offs Sensitivity Points Non-Risks Risks Risk Themes Impacts Detailed info

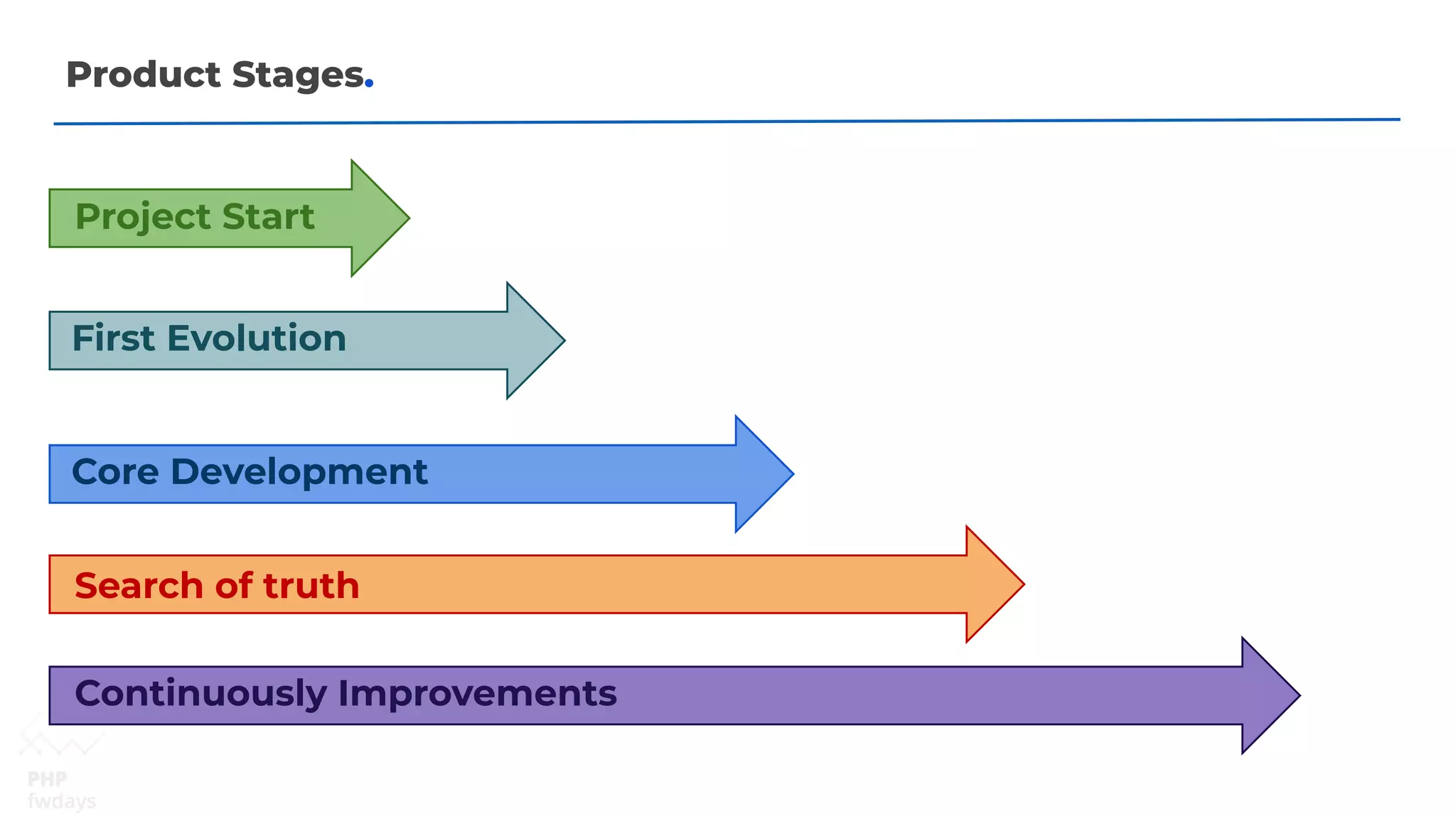

- 12. Product Stages. Project Start CoreDevelopment Search of truth Continuously Improvements First Evolution

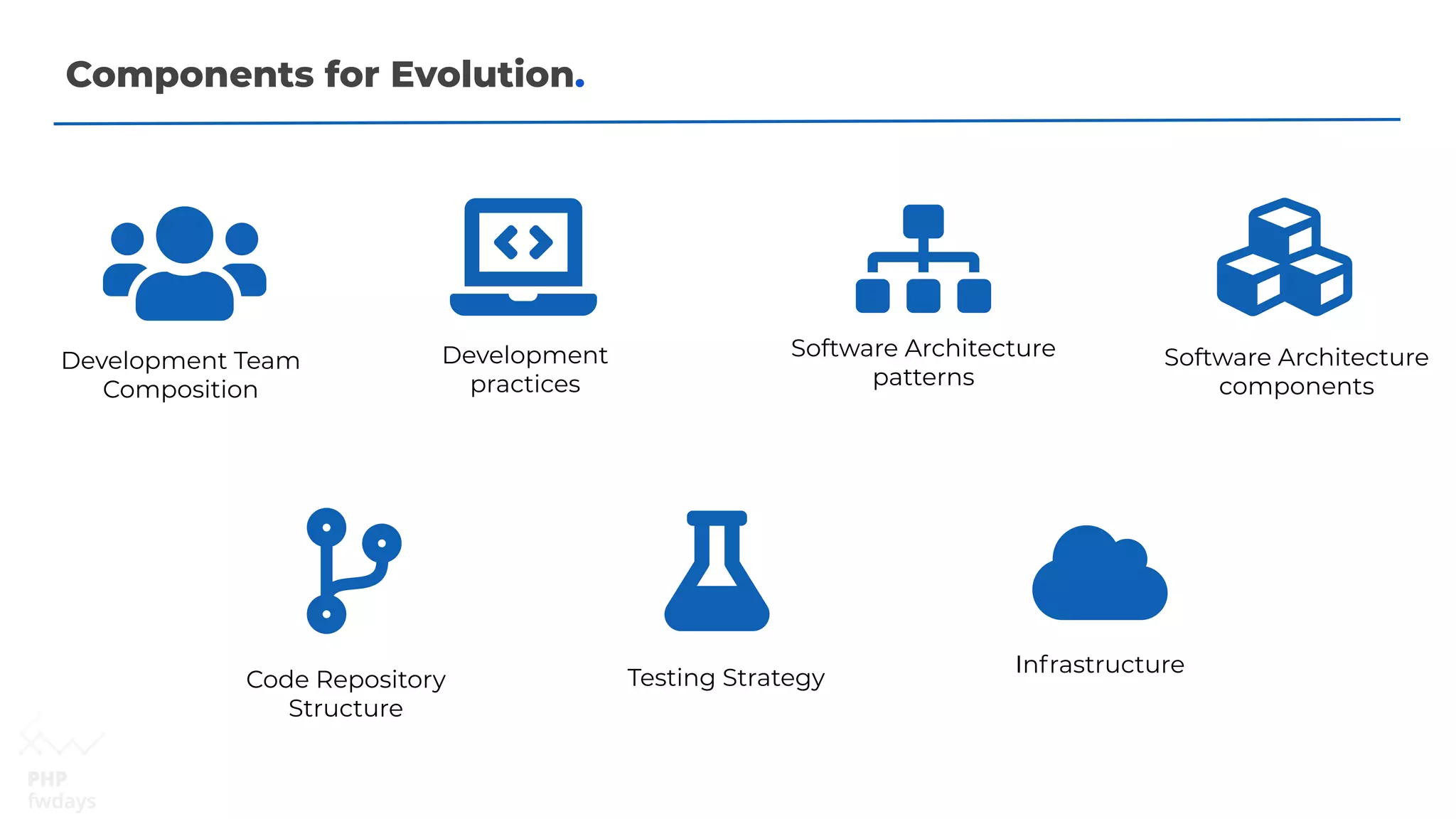

- 13. Components for Evolution. SoftwareArchitecture patterns Development practices Code Repository Structure Development Team Composition Infrastructure Testing Strategy Software Architecture components
- 14.
- 15.

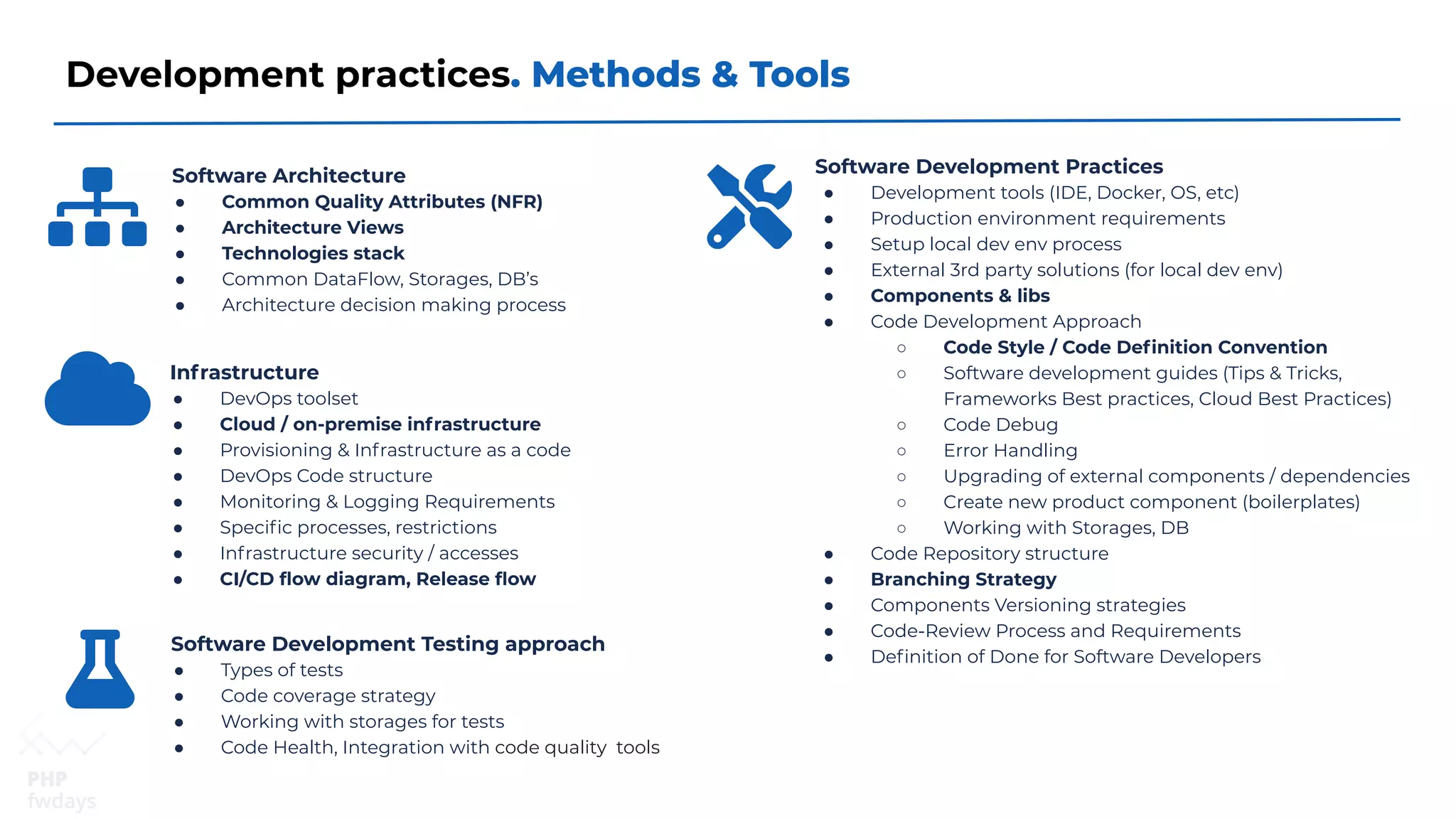

- 16. Development practices. Methods& Tools Software Architecture ● Common Quality Attributes (NFR) ● Architecture Views ● Technologies stack ● Common DataFlow, Storages, DB’s ● Architecture decision making process Infrastructure ● DevOps toolset ● Cloud / on-premise infrastructure ● Provisioning & Infrastructure as a code ● DevOps Code structure ● Monitoring & Logging Requirements ● Specific processes, restrictions ● Infrastructure security / accesses ● CI/CD flow diagram, Release flow Software Development Practices ● Development tools (IDE, Docker, OS, etc) ● Production environment requirements ● Setup local dev env process ● External 3rd party solutions (for local dev env) ● Components & libs ● Code Development Approach ○ Code Style / Code Definition Convention ○ Software development guides (Tips & Tricks, Frameworks Best practices, Cloud Best Practices) ○ Code Debug ○ Error Handling ○ Upgrading of external components / dependencies ○ Create new product component (boilerplates) ○ Working with Storages, DB ● Code Repository structure ● Branching Strategy ● Components Versioning strategies ● Code-Review Process and Requirements ● Definition of Done for Software Developers Software Development Testing approach ● Types of tests ● Code coverage strategy ● Working with storages for tests ● Code Health, Integration with code quality tools
- 17.
- 18.
- 19.

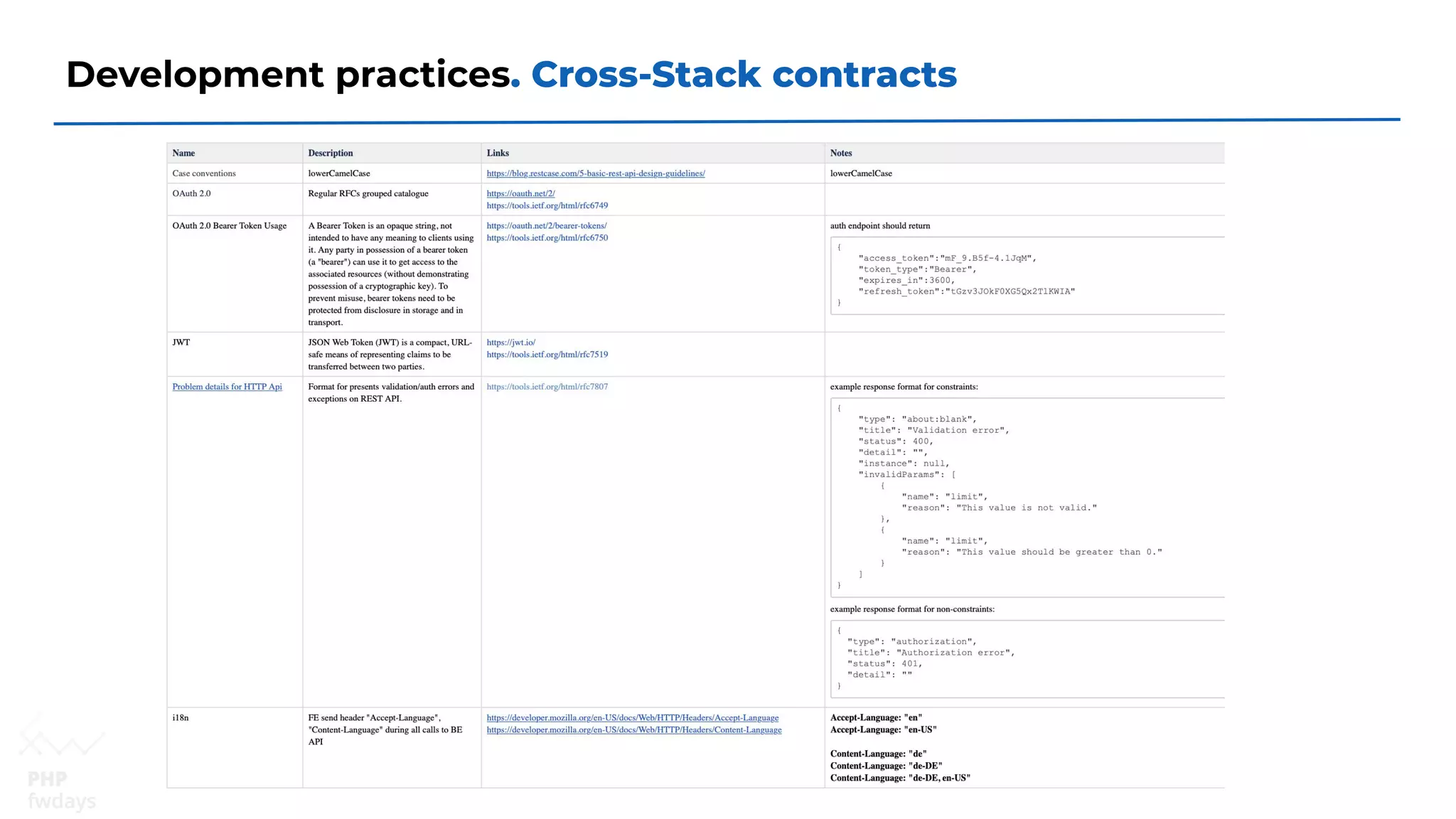

- 20. Development practices. Cross-Stackcontracts

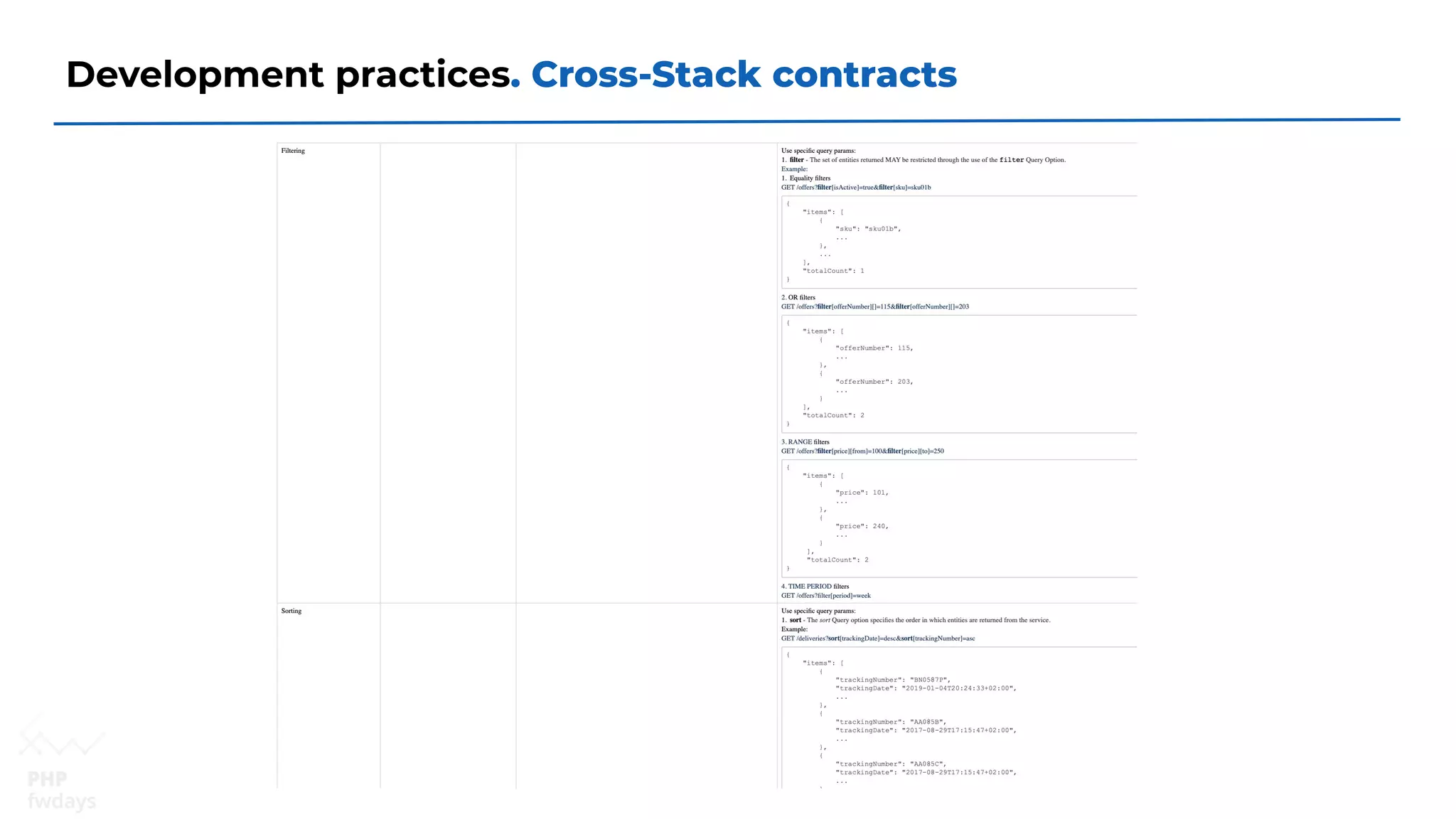

- 21. Development practices. Cross-Stackcontracts

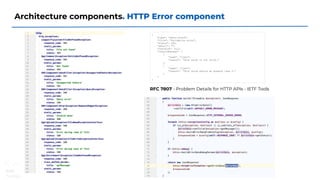

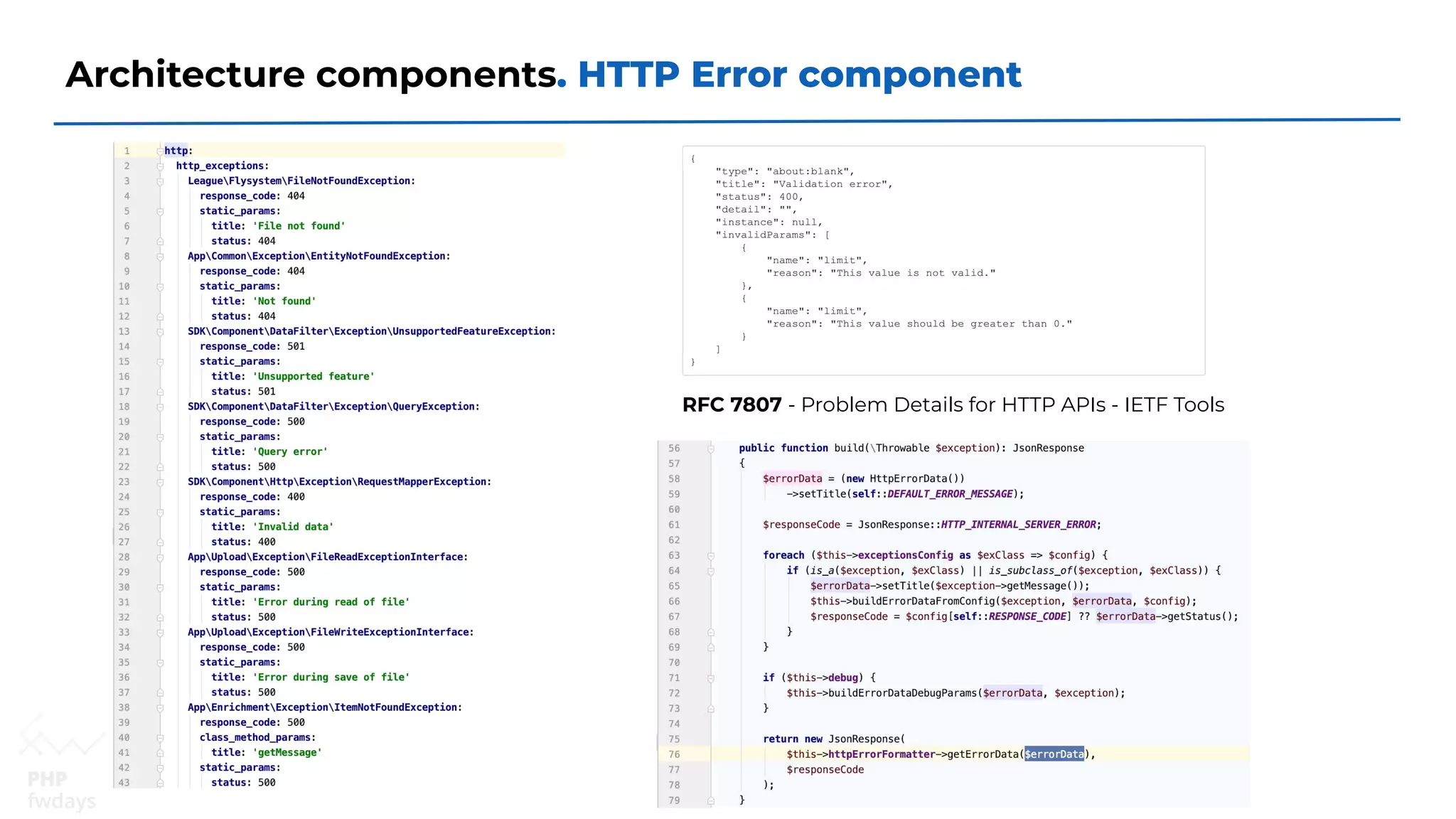

- 22. Architecture components. HTTPError component RFC 7807 - Problem Details for HTTP APIs - IETF Tools

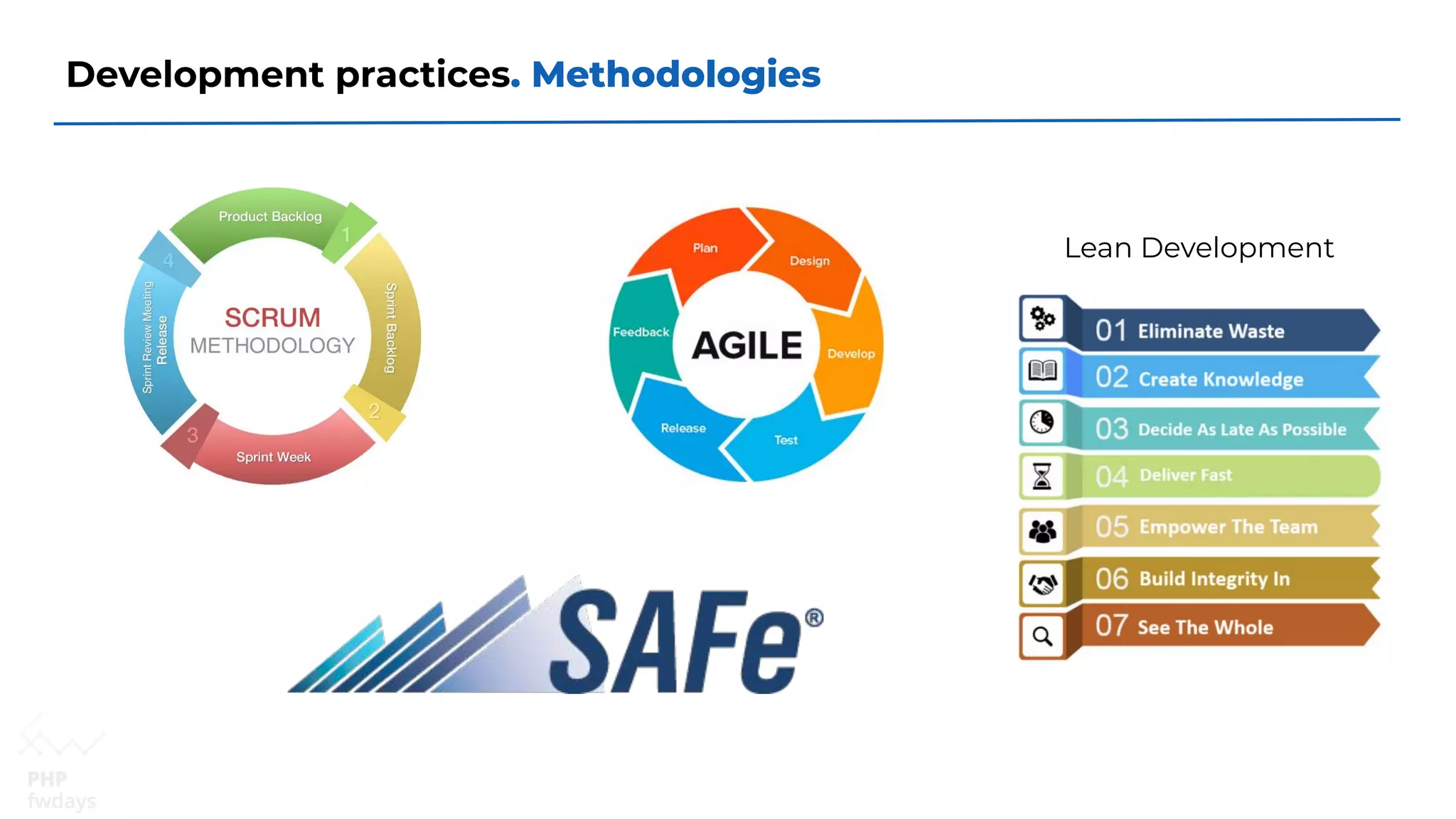

- 23. Development practices. Methodologies LeanDevelopment
- 24. MonolithArchitecture никому не рассказывать чтоу вас монолит никогда никому не рассказывать, что у вас монолит

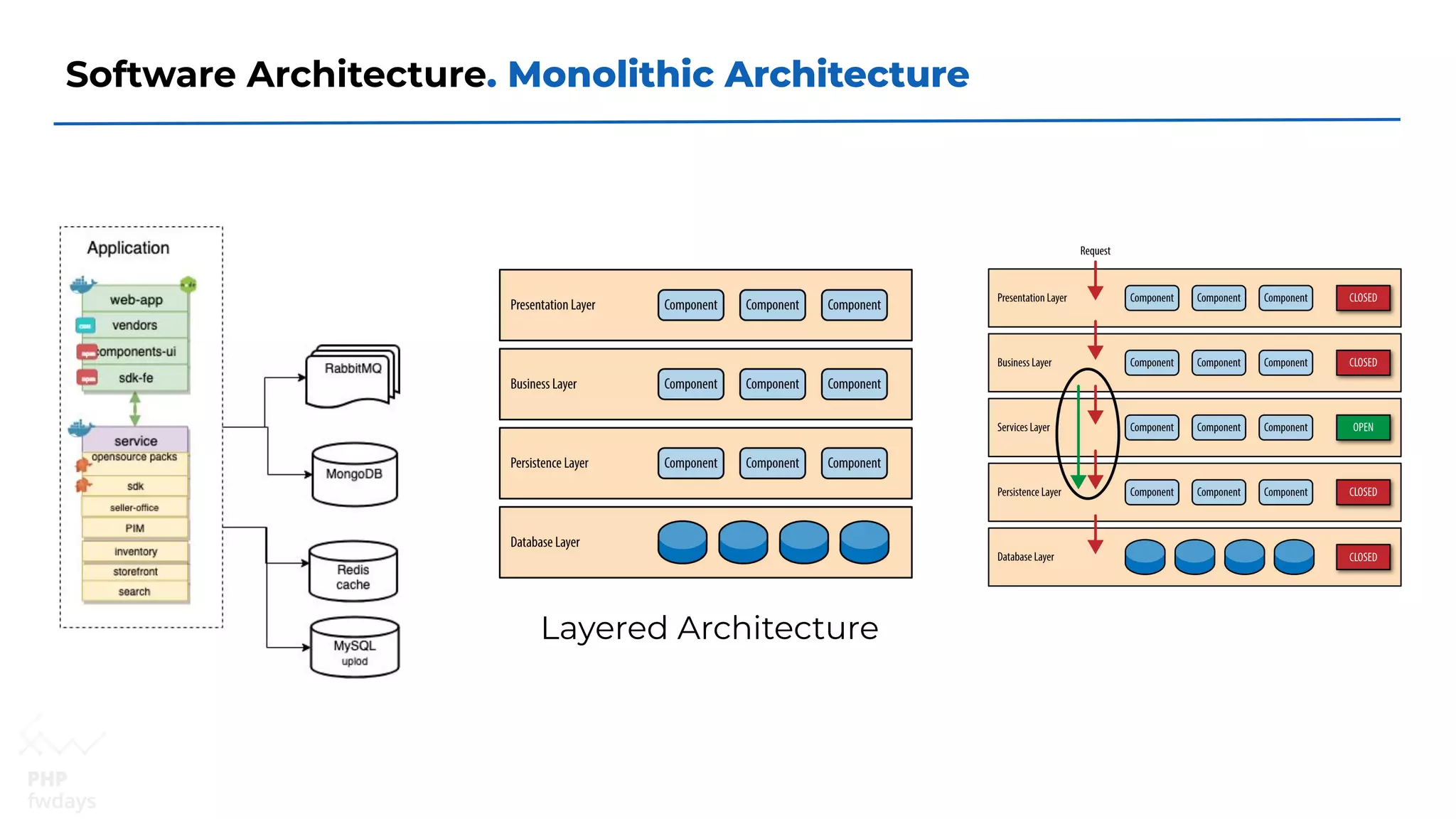

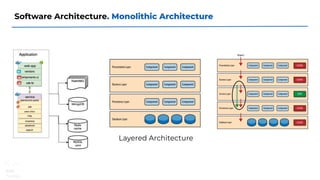

- 25. Software Architecture. MonolithicArchitecture Layered Architecture

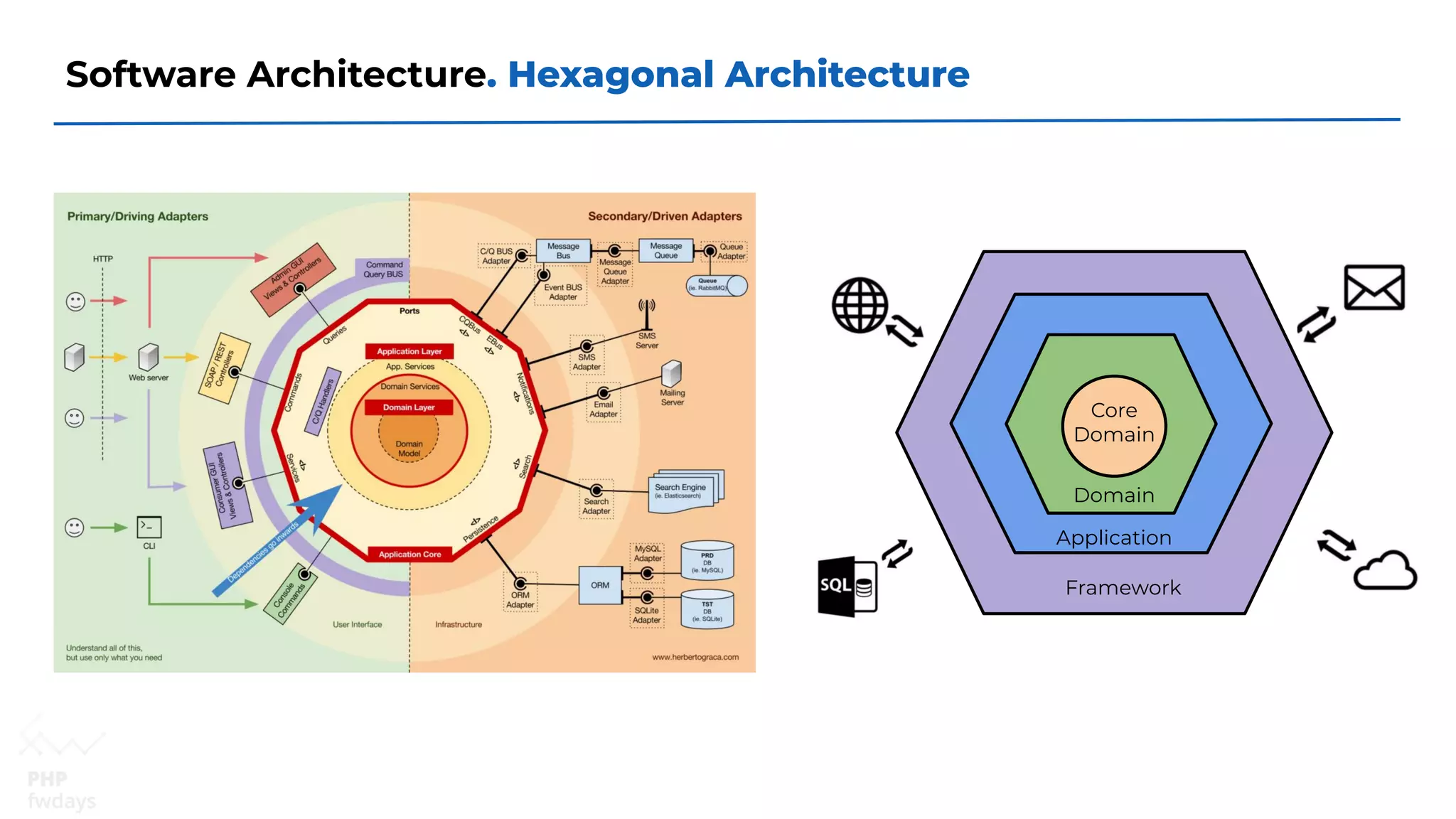

- 26. Software Architecture. HexagonalArchitecture Framework Application Domain Core Domain

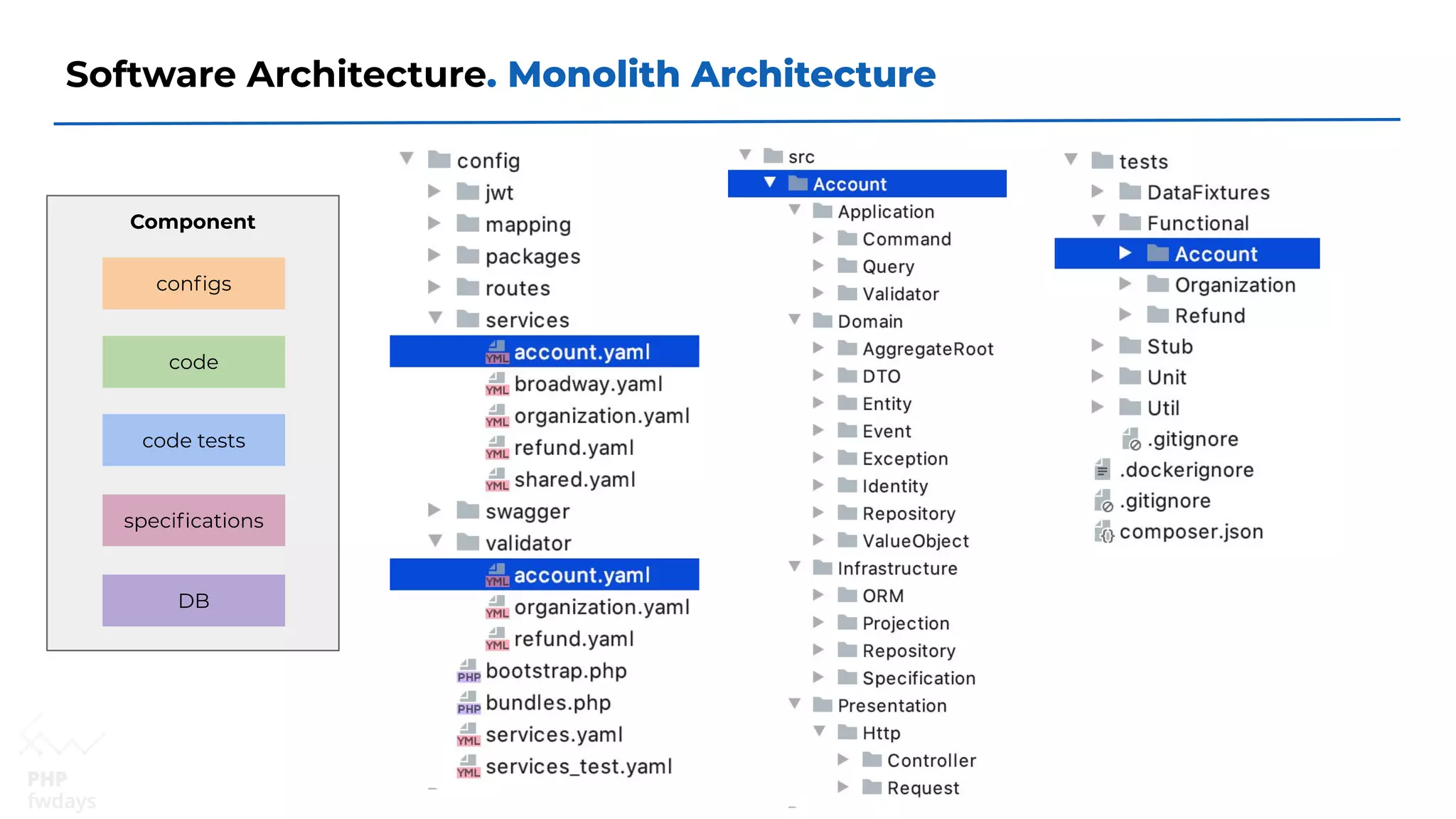

- 27. Software Architecture. MonolithArchitecture Component configs DB code code tests specifications
- 28.
- 29. MicroservicesArchitecture всем рассказывать что увас микросервисы всем везде рассказывать, что у вас микросервисы

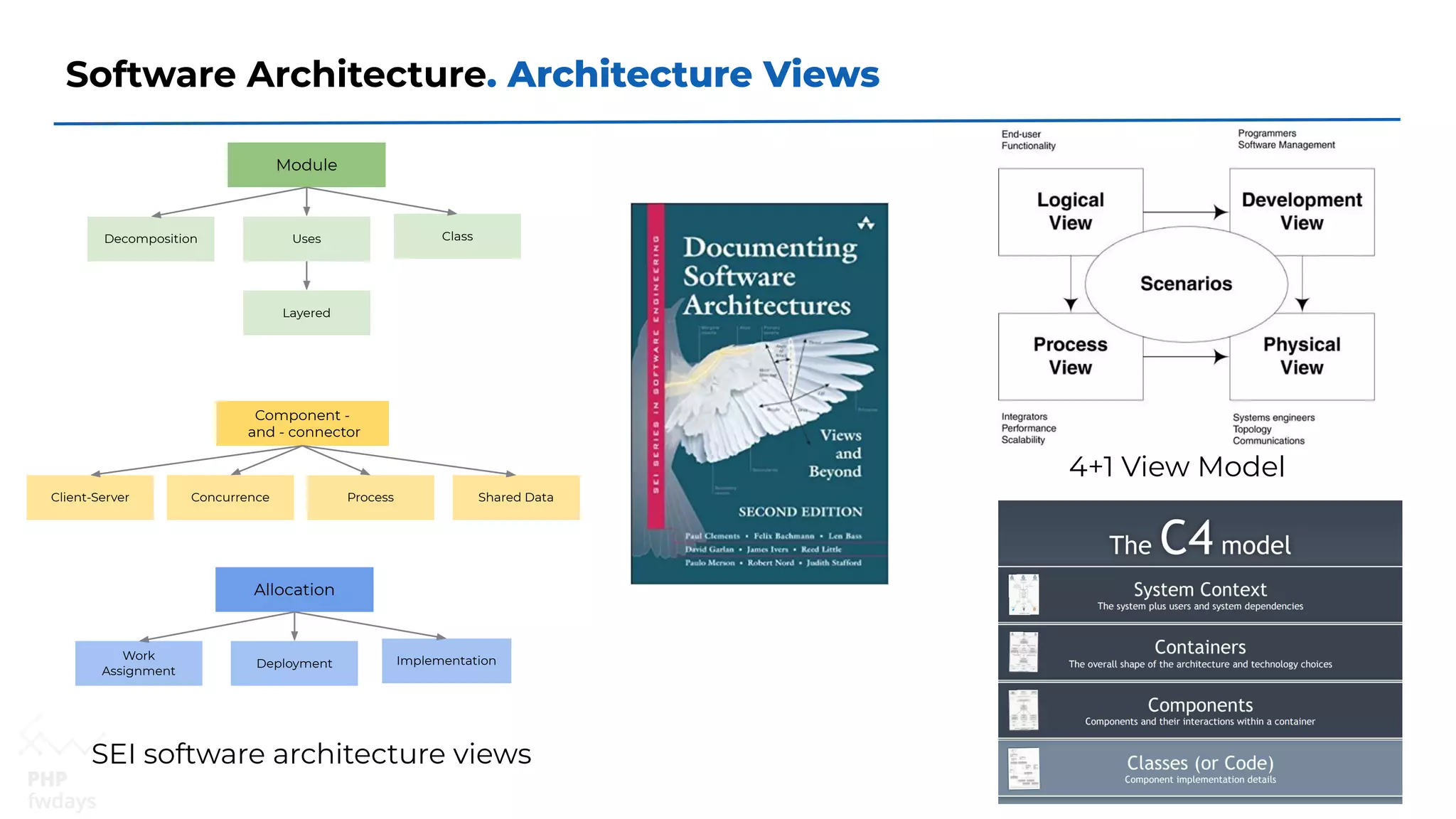

- 30. Software Architecture. ArchitectureViews SEI software architecture views Module Decomposition Uses Layered Class Component - and - connector Client-Server Concurrence Process Shared Data Allocation Work Assignment Deployment Implementation 4+1 View Model

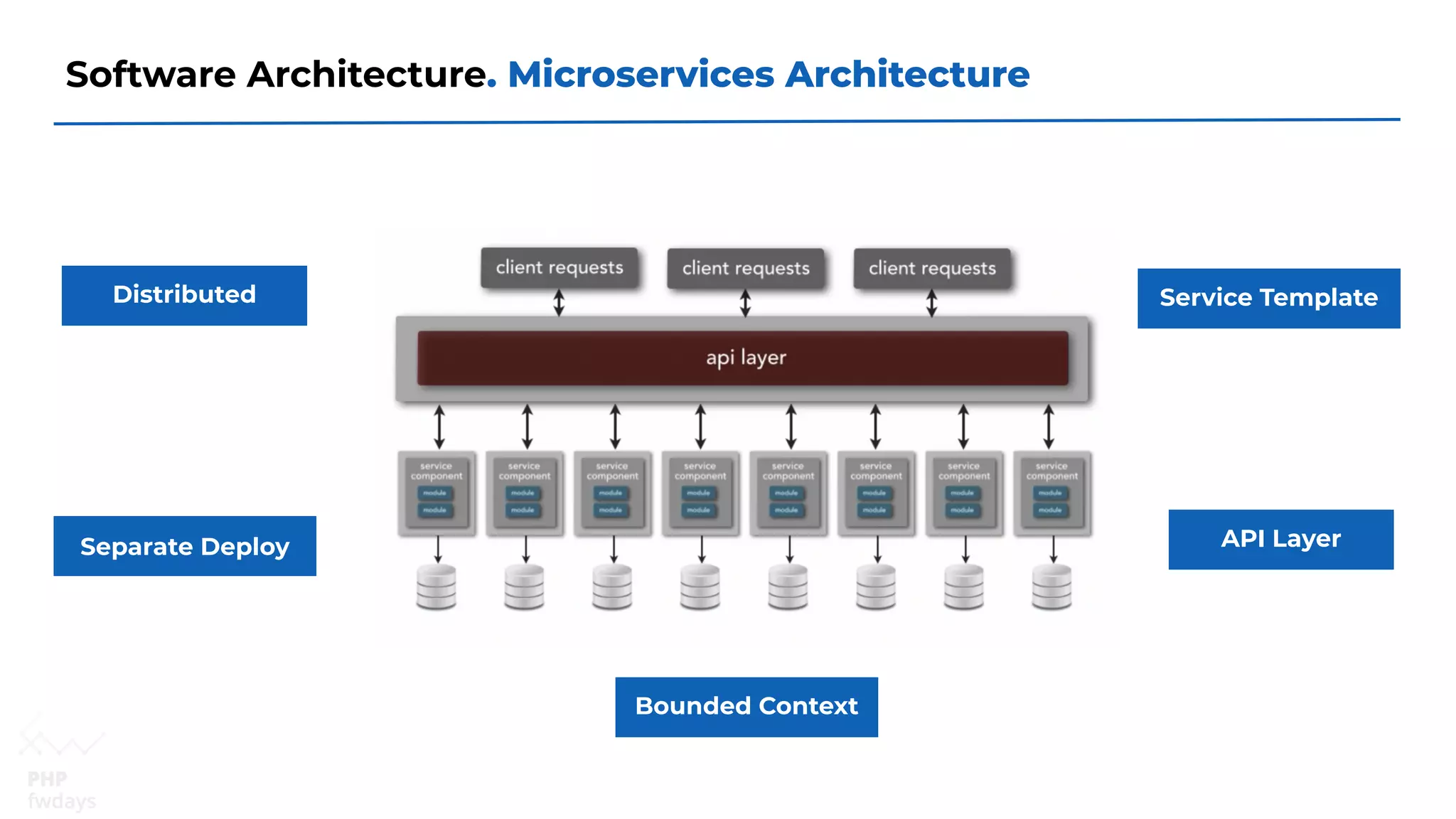

- 31. Software Architecture. MicroservicesArchitecture Distributed Separate Deploy Service Template Bounded Context API Layer

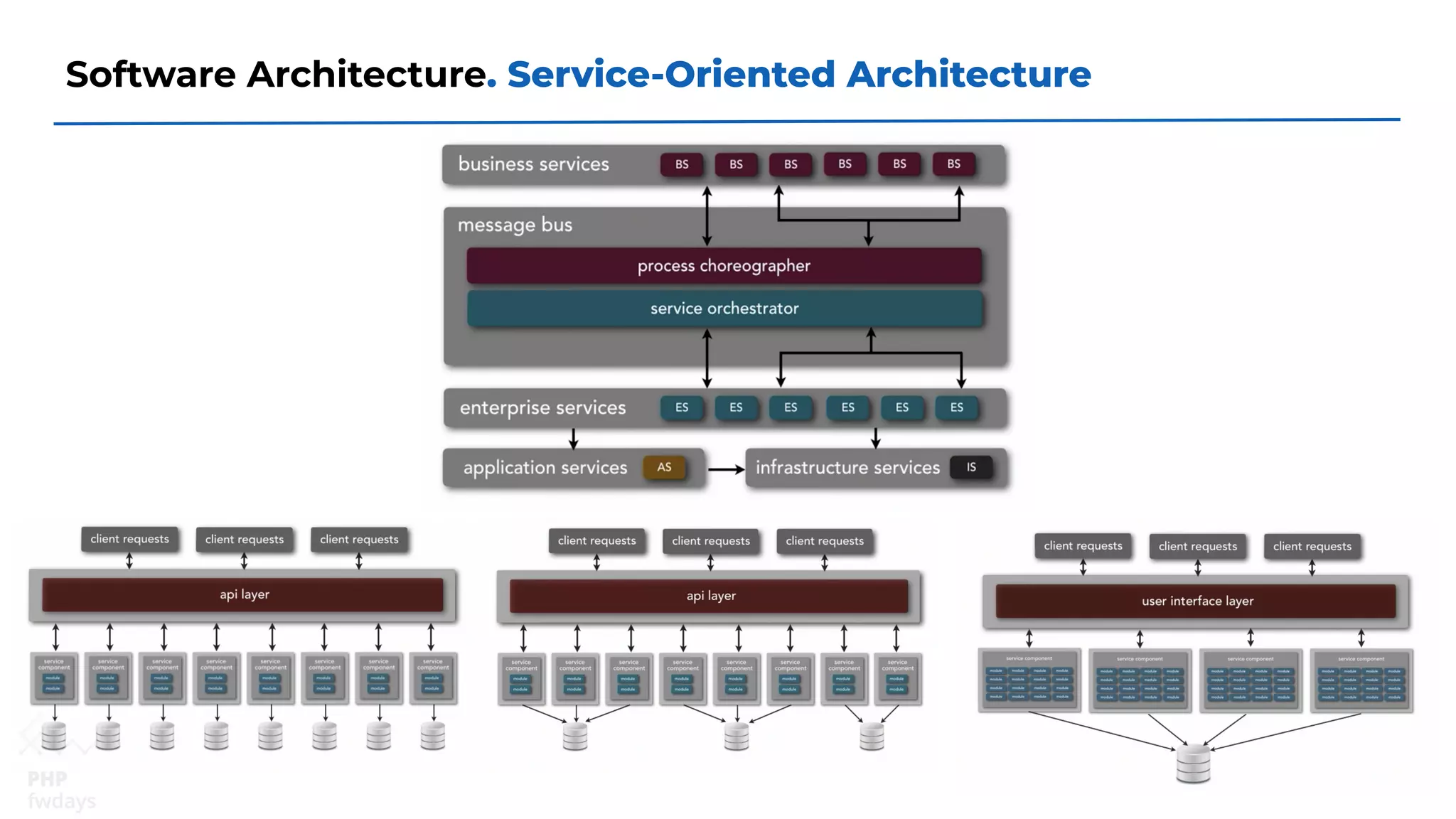

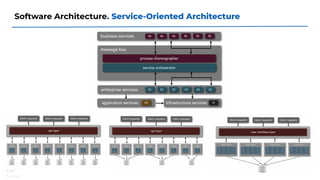

- 32. Software Architecture. Service-OrientedArchitecture

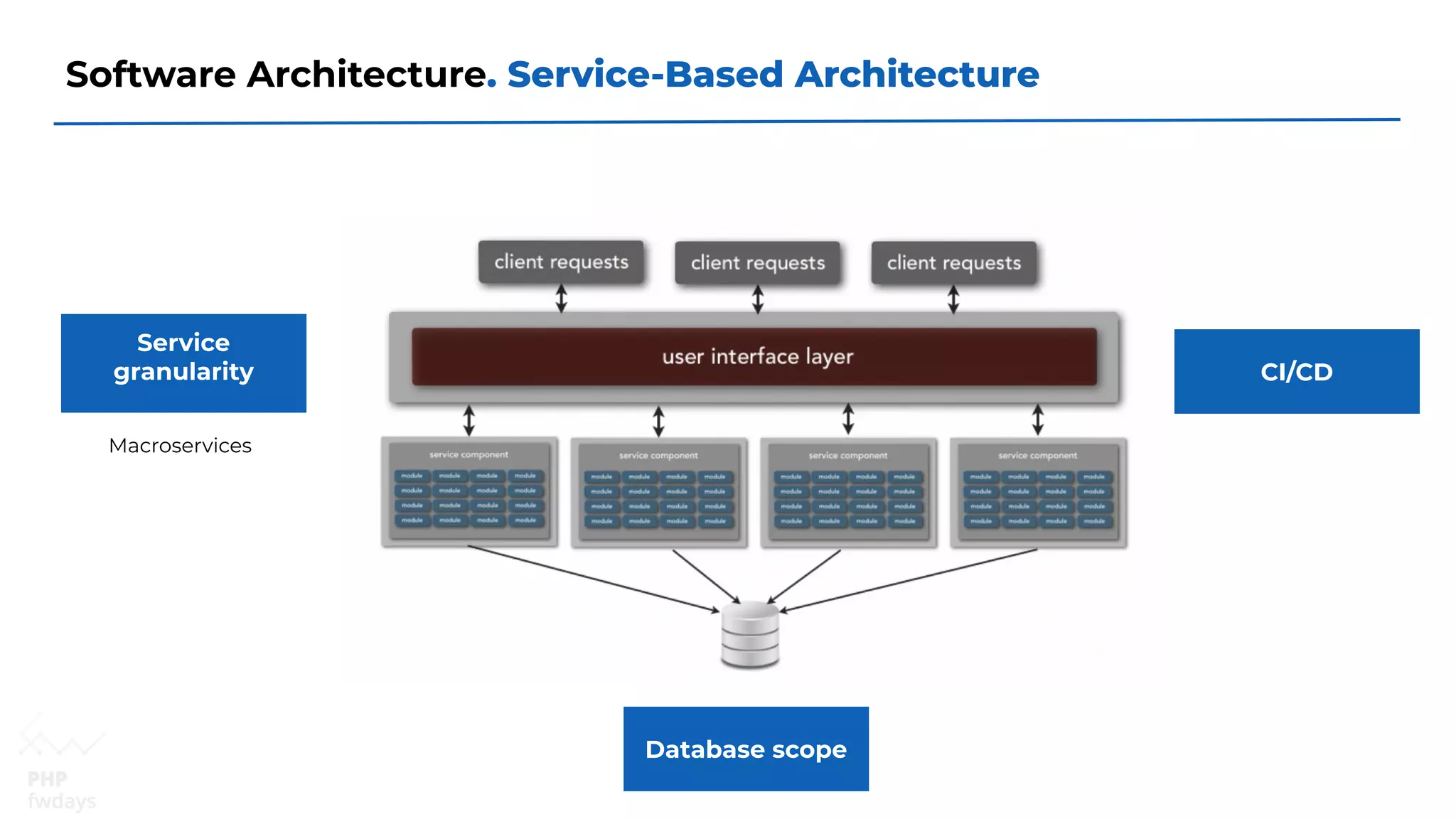

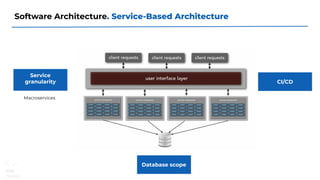

- 33. Software Architecture. Service-BasedArchitecture Service granularity Macroservices Database scope CI/CD

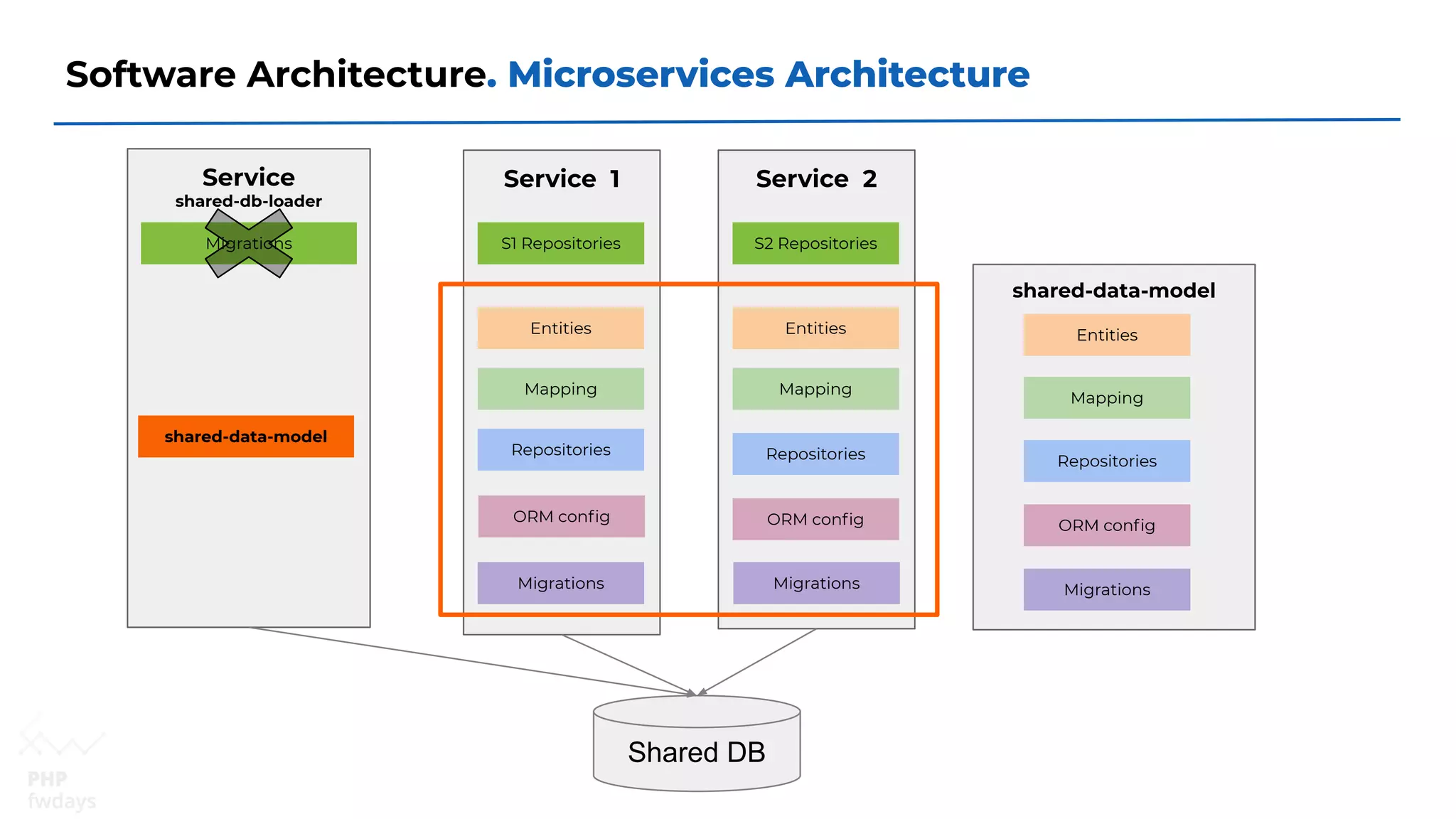

- 34. Software Architecture. MicroservicesArchitecture Service 1 Shared DB Entities Mapping Repositories Migrations ORM config Service 2 Entities Mapping Repositories Migrations ORM config S1 Repositories S2 Repositories shared-data-model Entities Migrations Mapping Repositories ORM config Service shared-db-loader shared-data-model Migrations

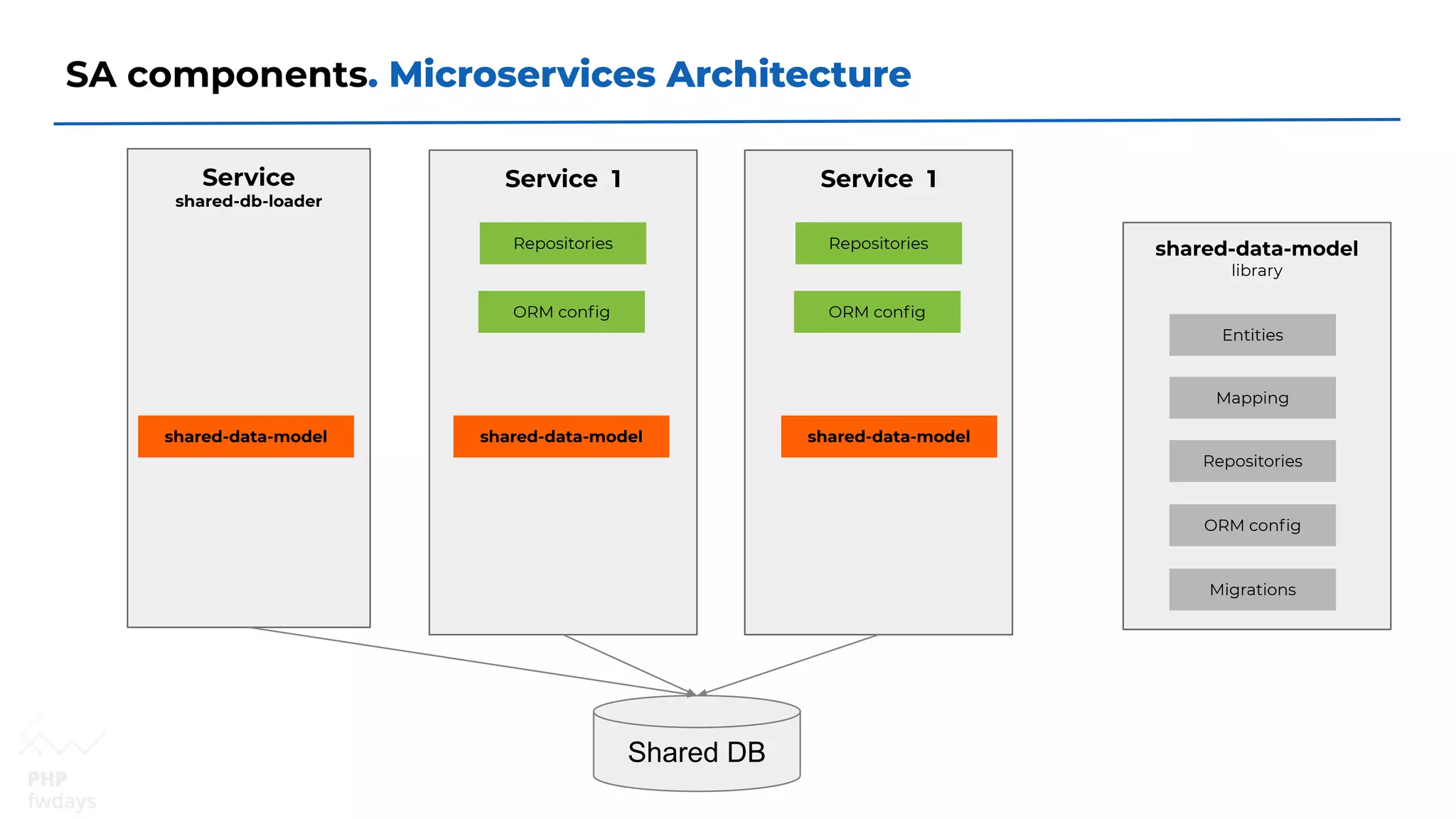

- 35. SA components. MicroservicesArchitecture Service 1 Shared DB ORM config Repositories shared-data-model library Entities Migrations Mapping Repositories ORM config Service shared-db-loader shared-data-model shared-data-model Service 1 ORM config Repositories shared-data-model

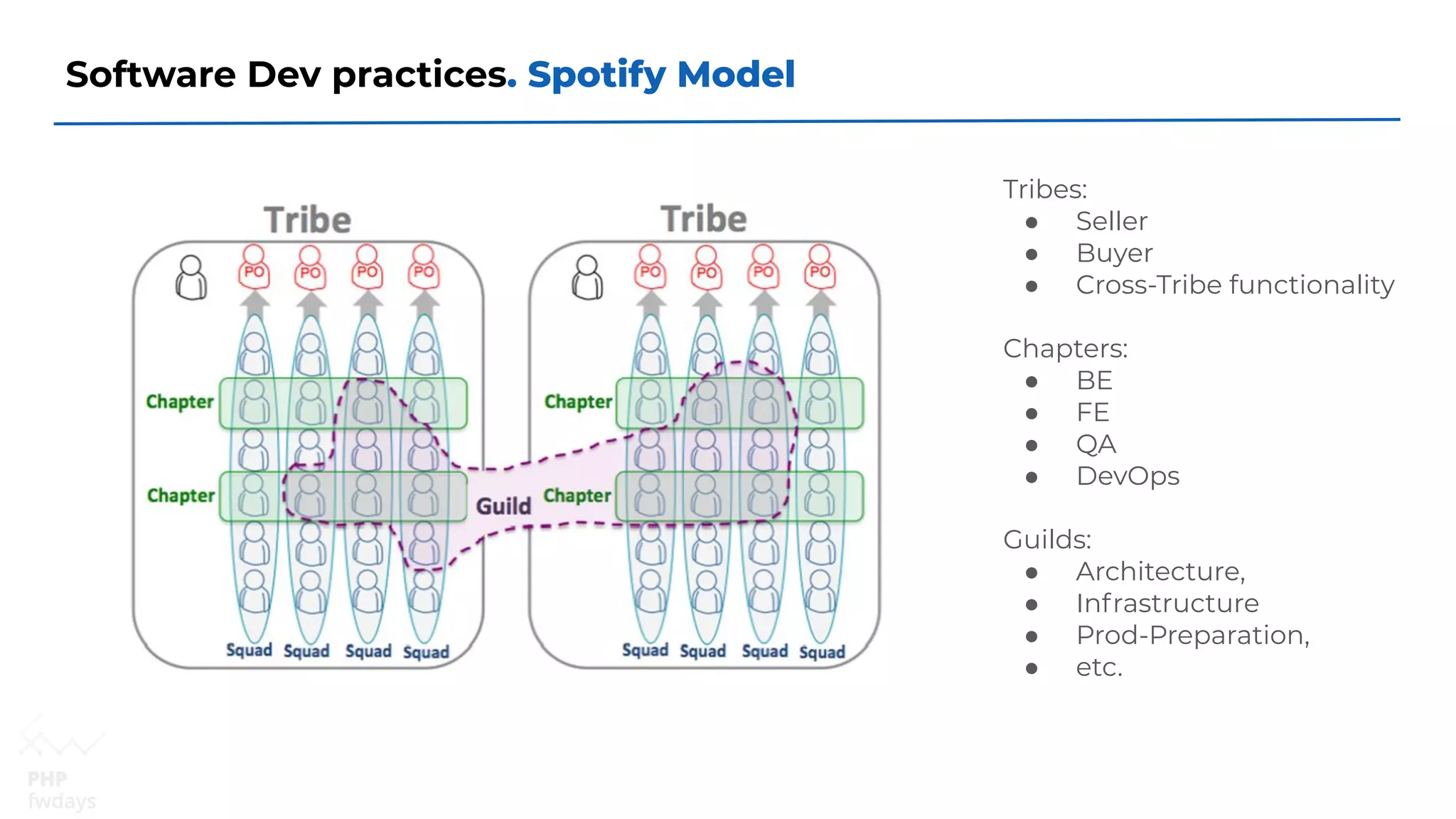

- 36. Software Dev practices.Spotify Model Tribes: ● Seller ● Buyer ● Cross-Tribe functionality Chapters: ● BE ● FE ● QA ● DevOps Guilds: ● Architecture, ● Infrastructure ● Prod-Preparation, ● etc.
- 37.

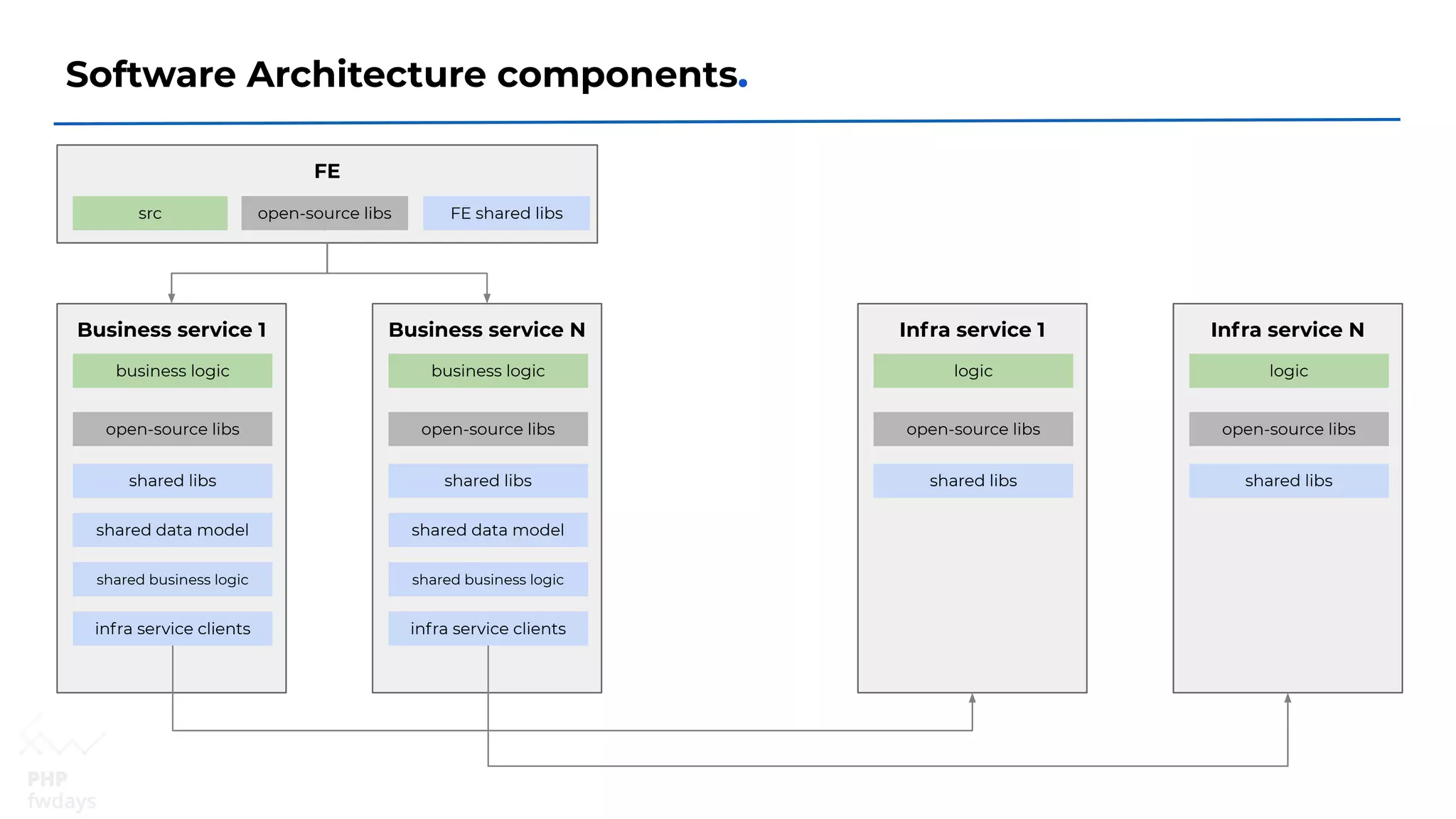

- 38. Software Architecture components. Businessservice 1 open-source libs business logic shared data model shared business logic shared libs infra service clients Business service N open-source libs business logic shared data model shared business logic shared libs infra service clients FE src open-source libs FE shared libs Infra service 1 open-source libs logic shared libs Infra service N open-source libs logic shared libs

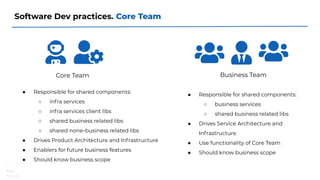

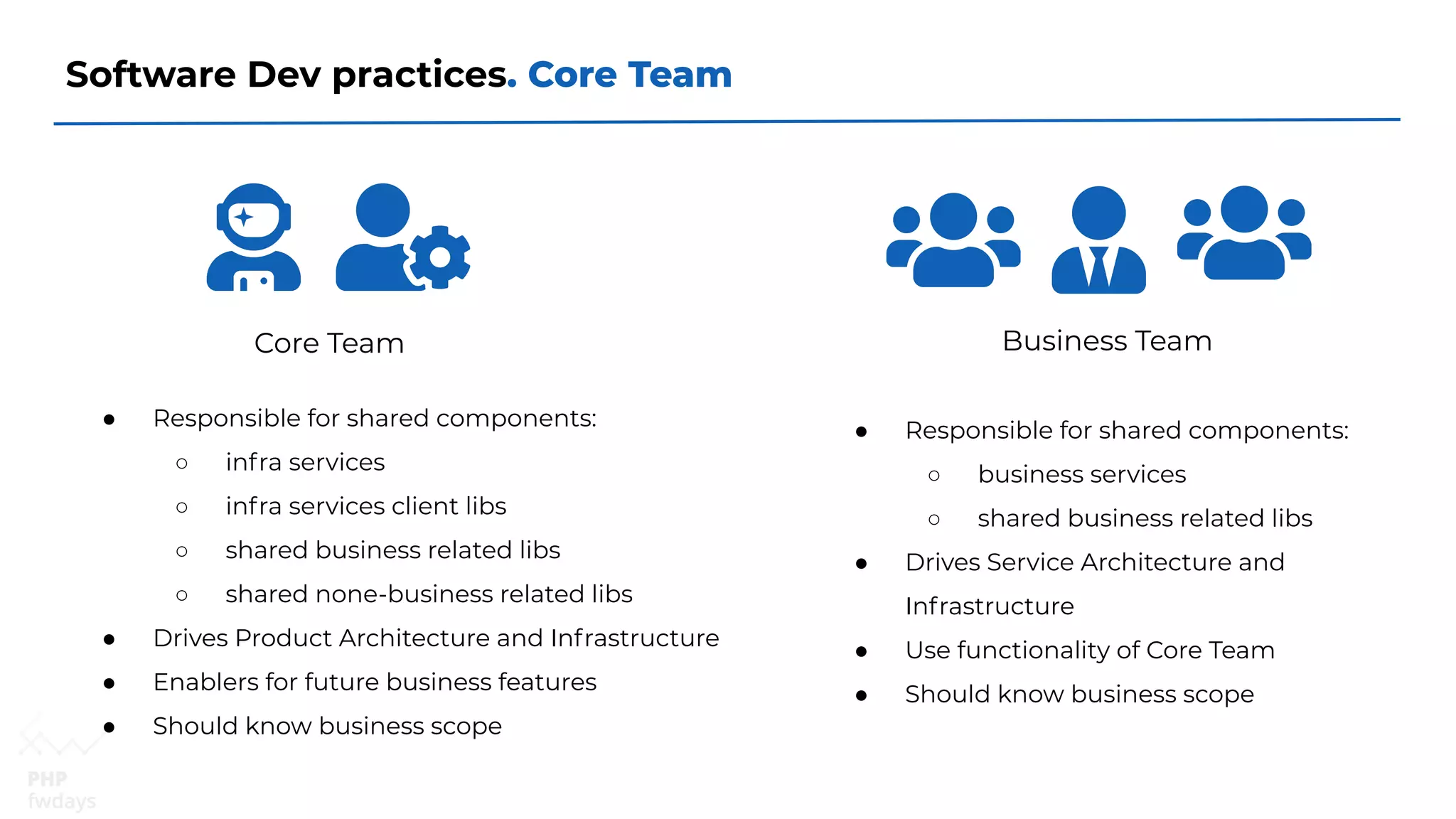

- 39. Software Dev practices.Core Team Core Team Business Team ● Responsible for shared components: ○ infra services ○ infra services client libs ○ shared business related libs ○ shared none-business related libs ● Drives Product Architecture and Infrastructure ● Enablers for future business features ● Should know business scope ● Responsible for shared components: ○ business services ○ shared business related libs ● Drives Service Architecture and Infrastructure ● Use functionality of Core Team ● Should know business scope

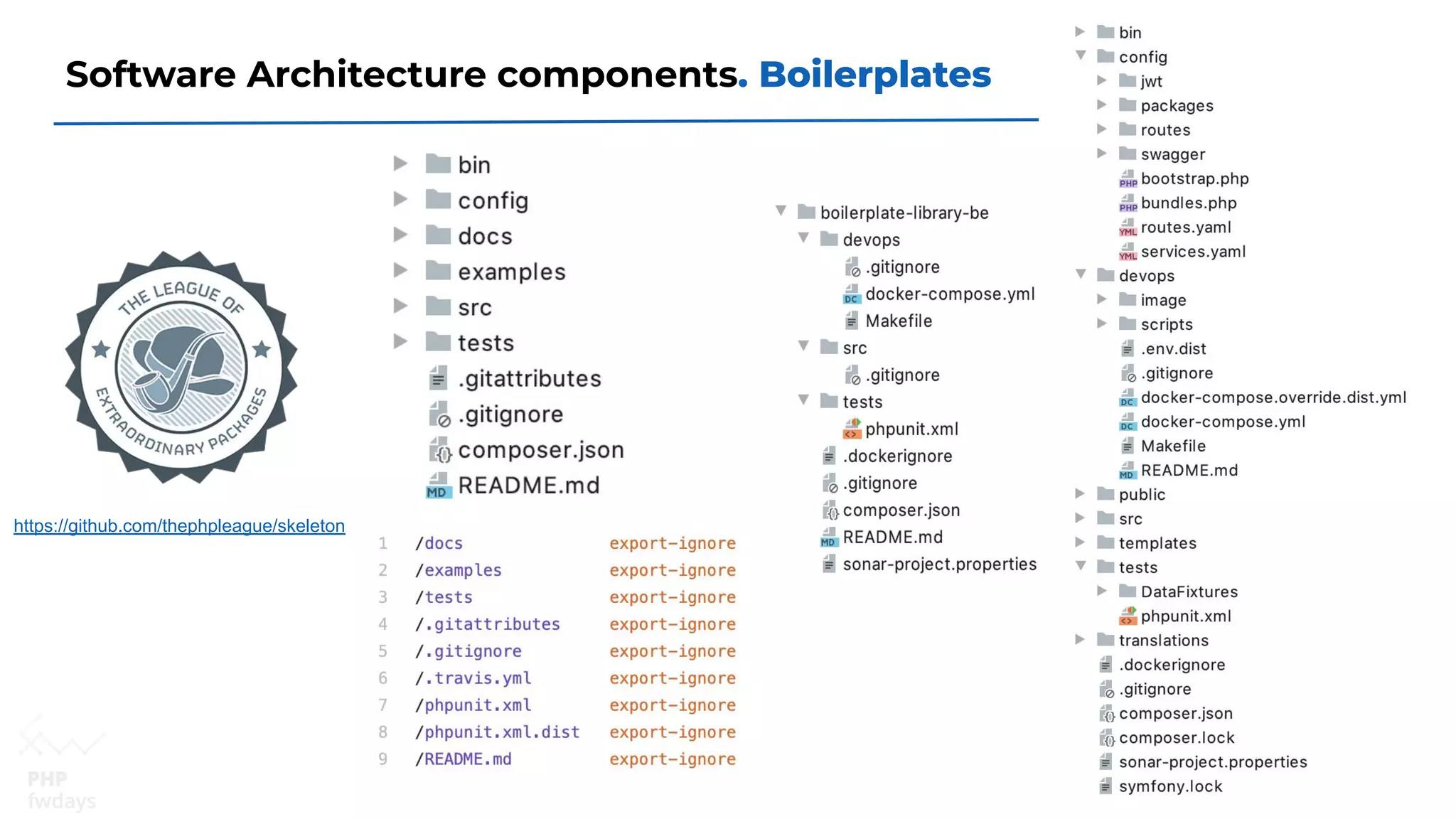

- 41. Software Architecture components.Boilerplates https://github.com/thephpleague/skeleton

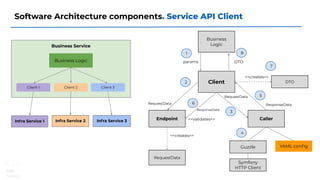

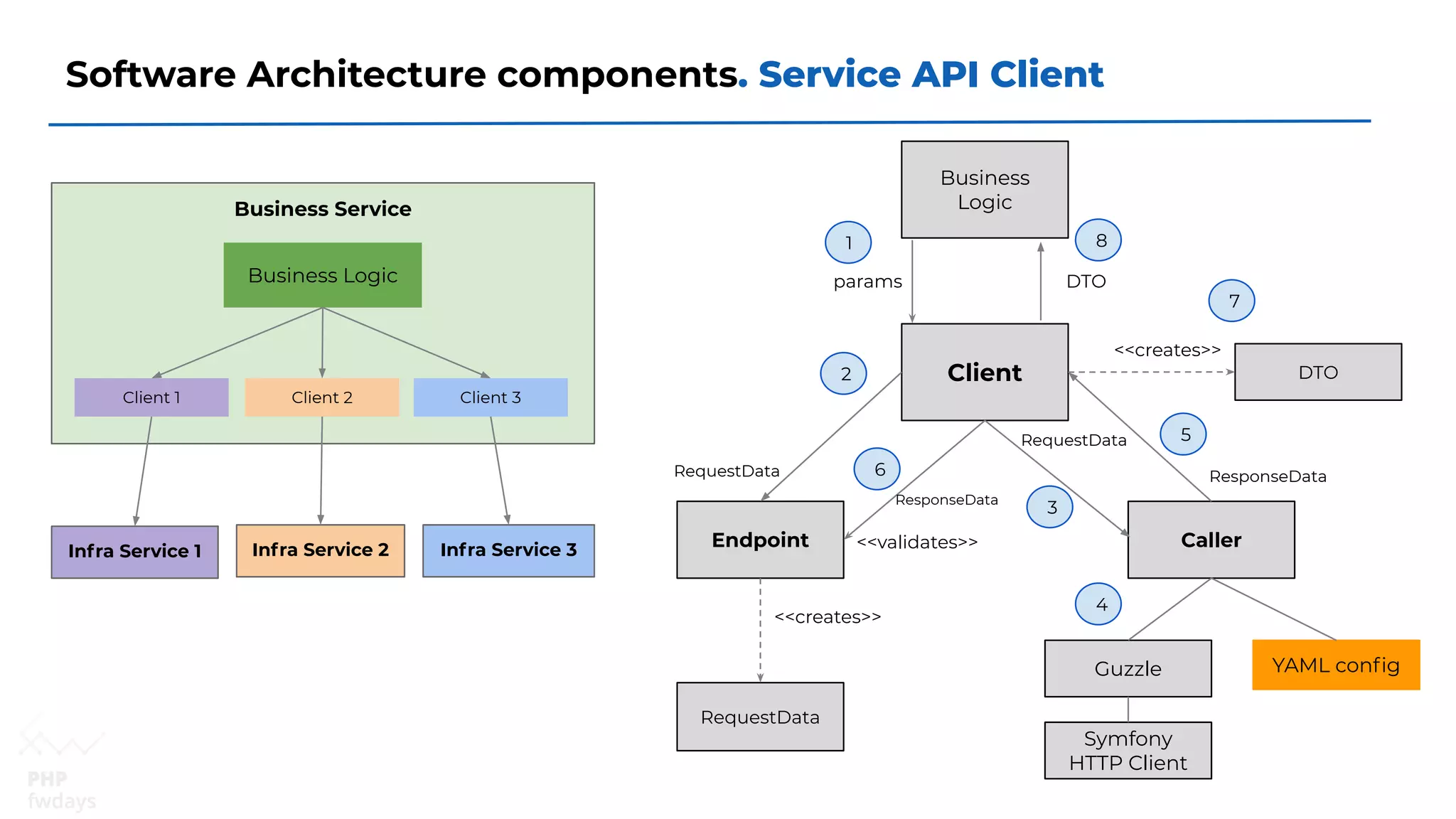

- 42. Software Architecture components.Service API Client Business Service Client 1 Infra Service 1 Infra Service 2 Infra Service 3 Client 2 Client 3 Business Logic Business Logic Client DTO RequestData DTOparams Caller YAML configGuzzle Endpoint Symfony HTTP Client 1 2 RequestData <<validates>> 7 <<creates>> <<creates>> 8 RequestData 3 4 5 ResponseData6 ResponseData

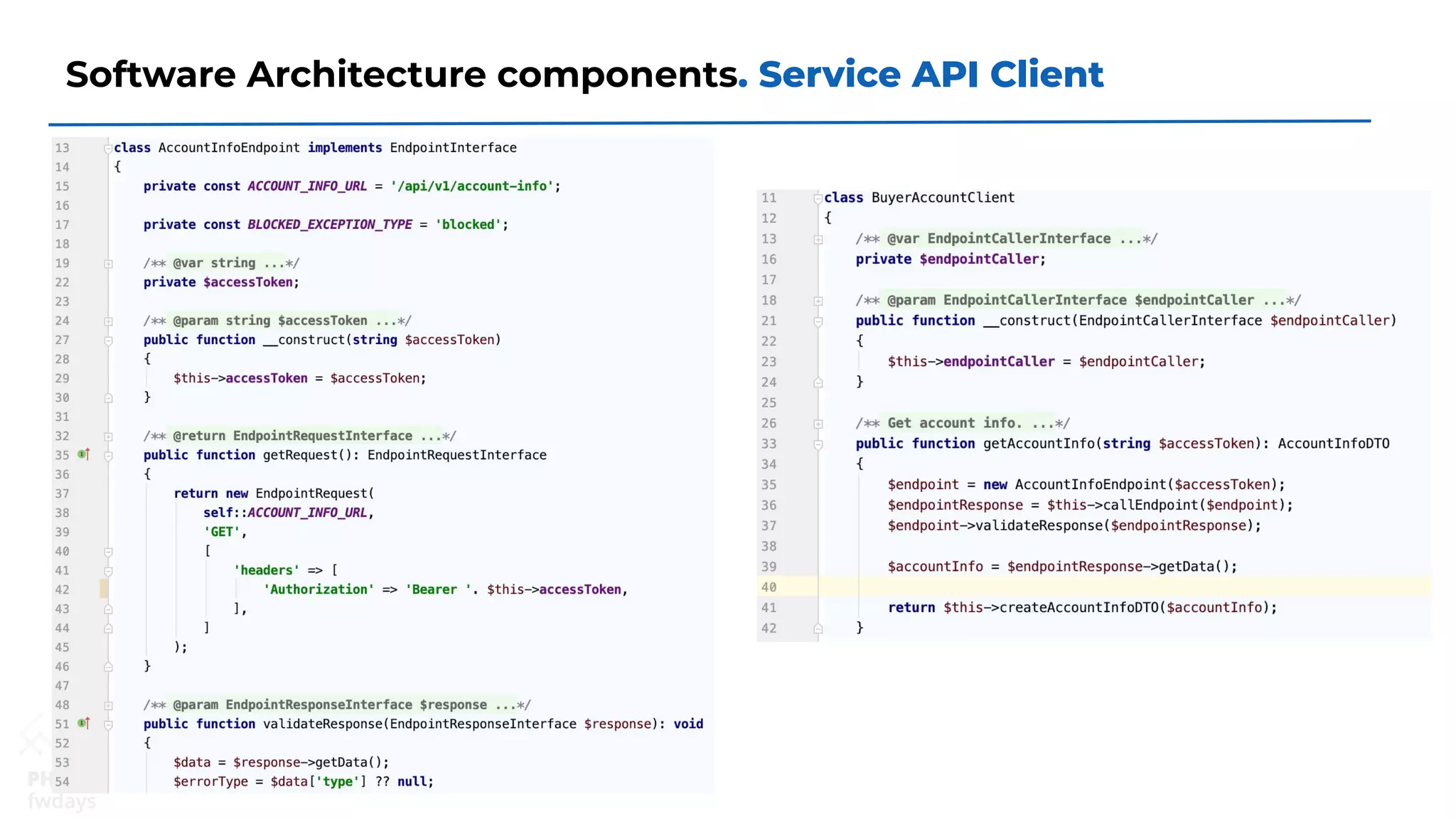

- 43. Software Architecture components.Service API Client

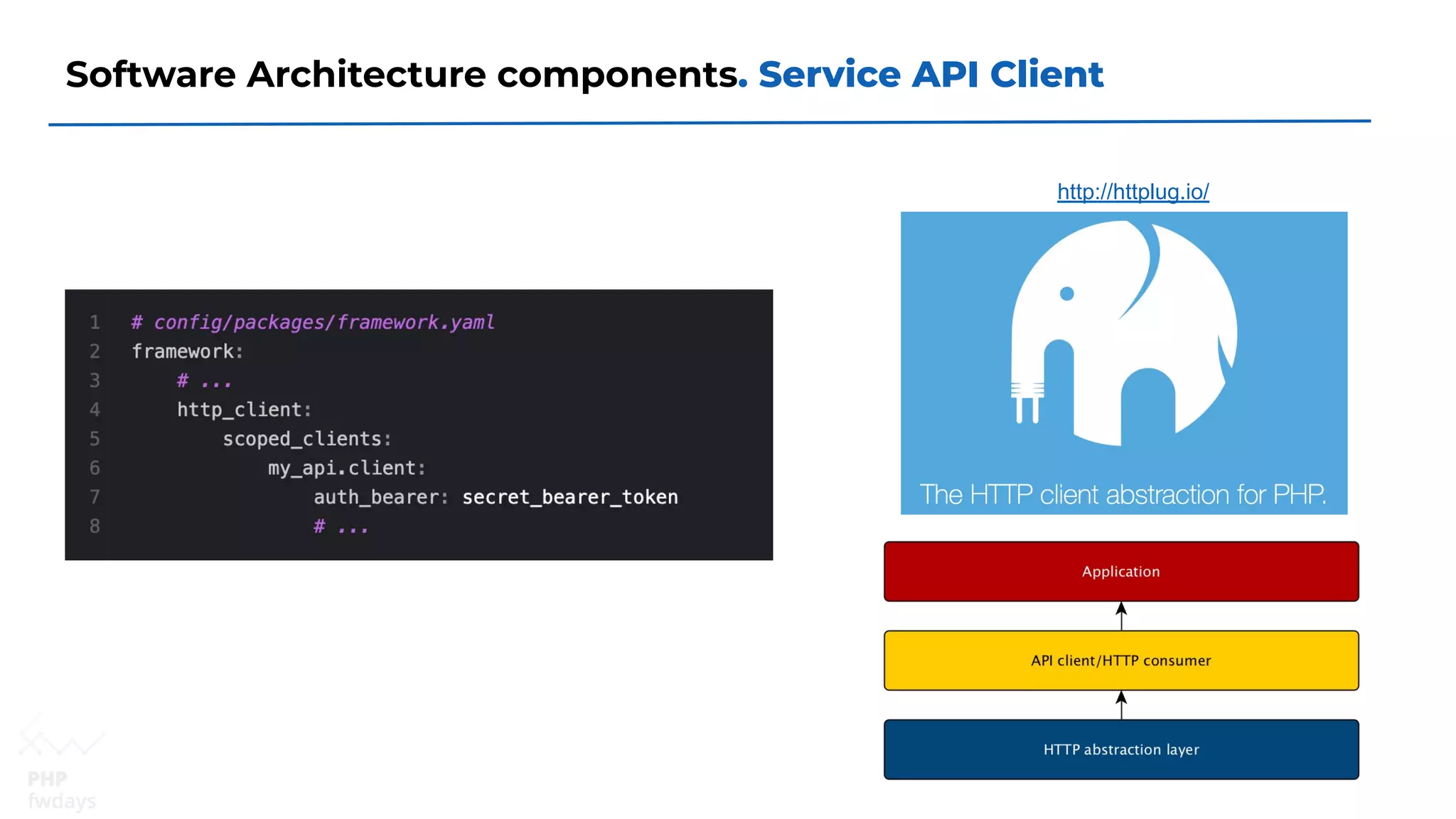

- 44. Software Architecture components.Service API Client http://httplug.io/

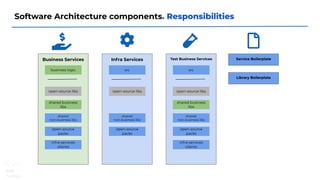

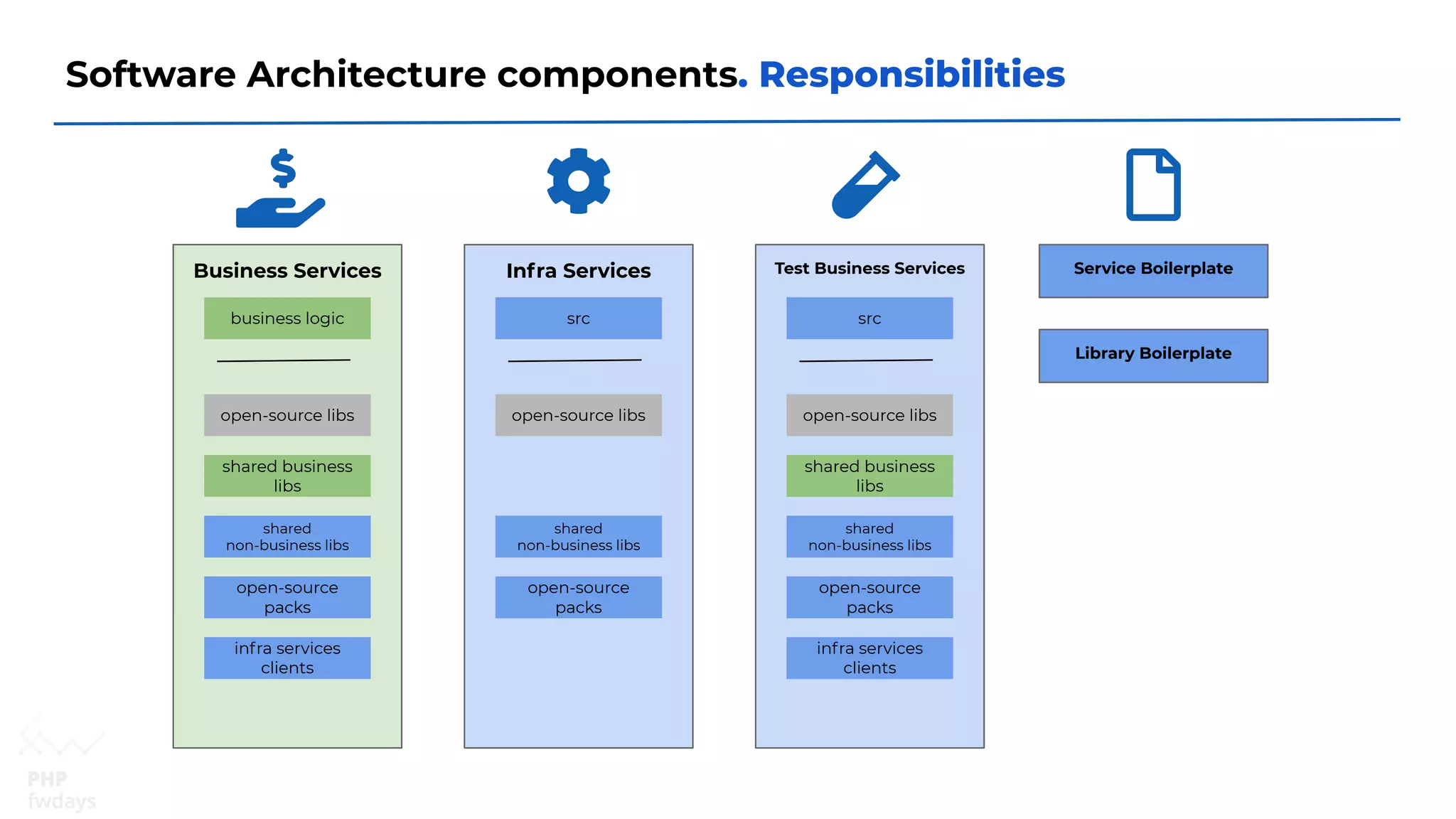

- 45. Software Architecture components.Responsibilities Business Services business logic open-source libs open-source packs infra services clients shared business libs shared non-business libs Infra Services src open-source libs open-source packs shared non-business libs Test Business Services src open-source libs open-source packs shared non-business libs shared business libs infra services clients Service Boilerplate Library Boilerplate

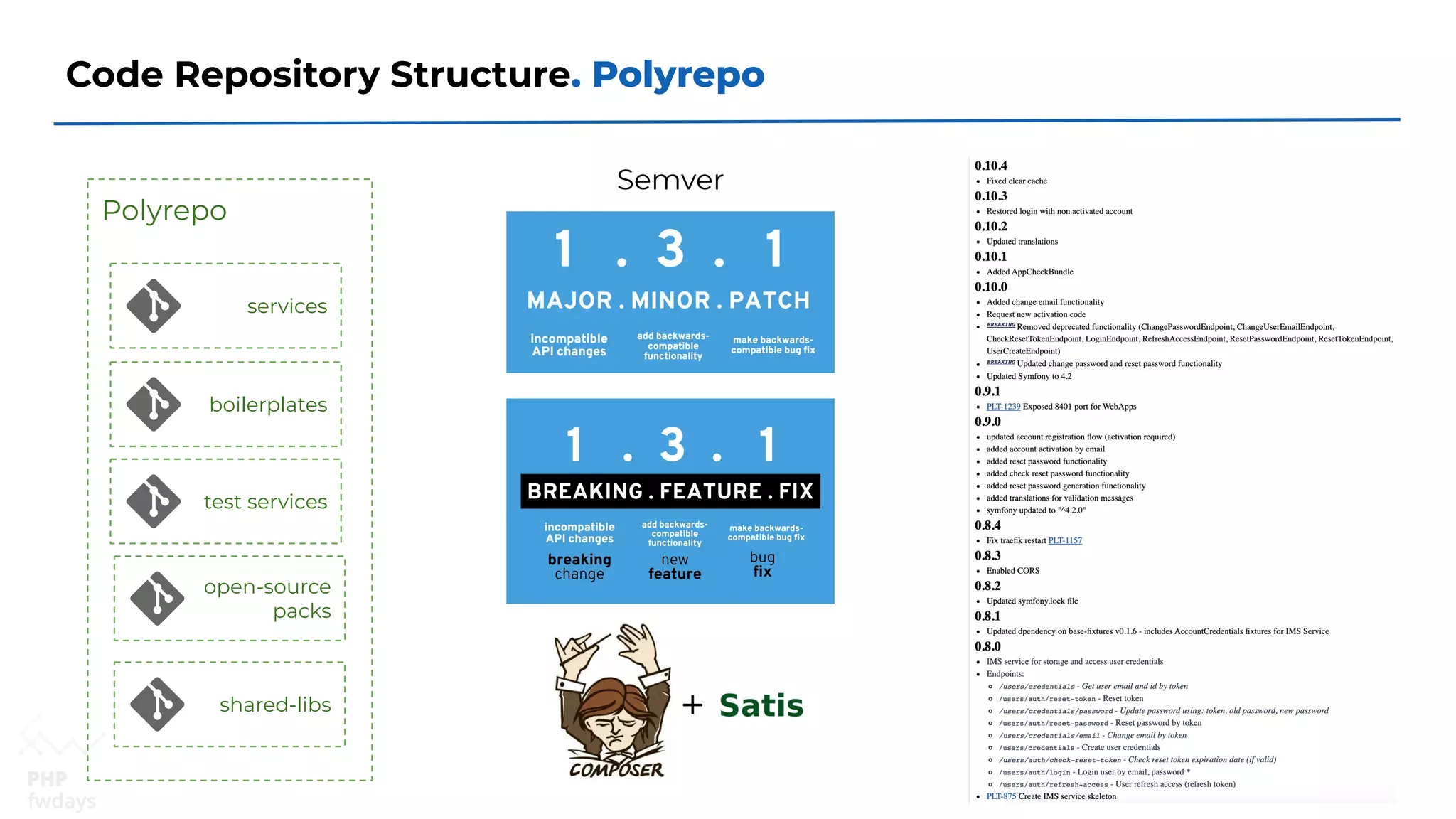

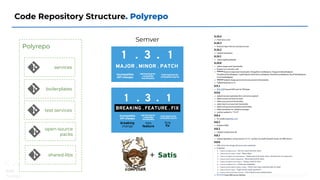

- 46. Polyrepo Code Repository Structure.Polyrepo services shared-libs open-source packs boilerplates test services Semver
- 47. Software Dev practices.GYSHIDO

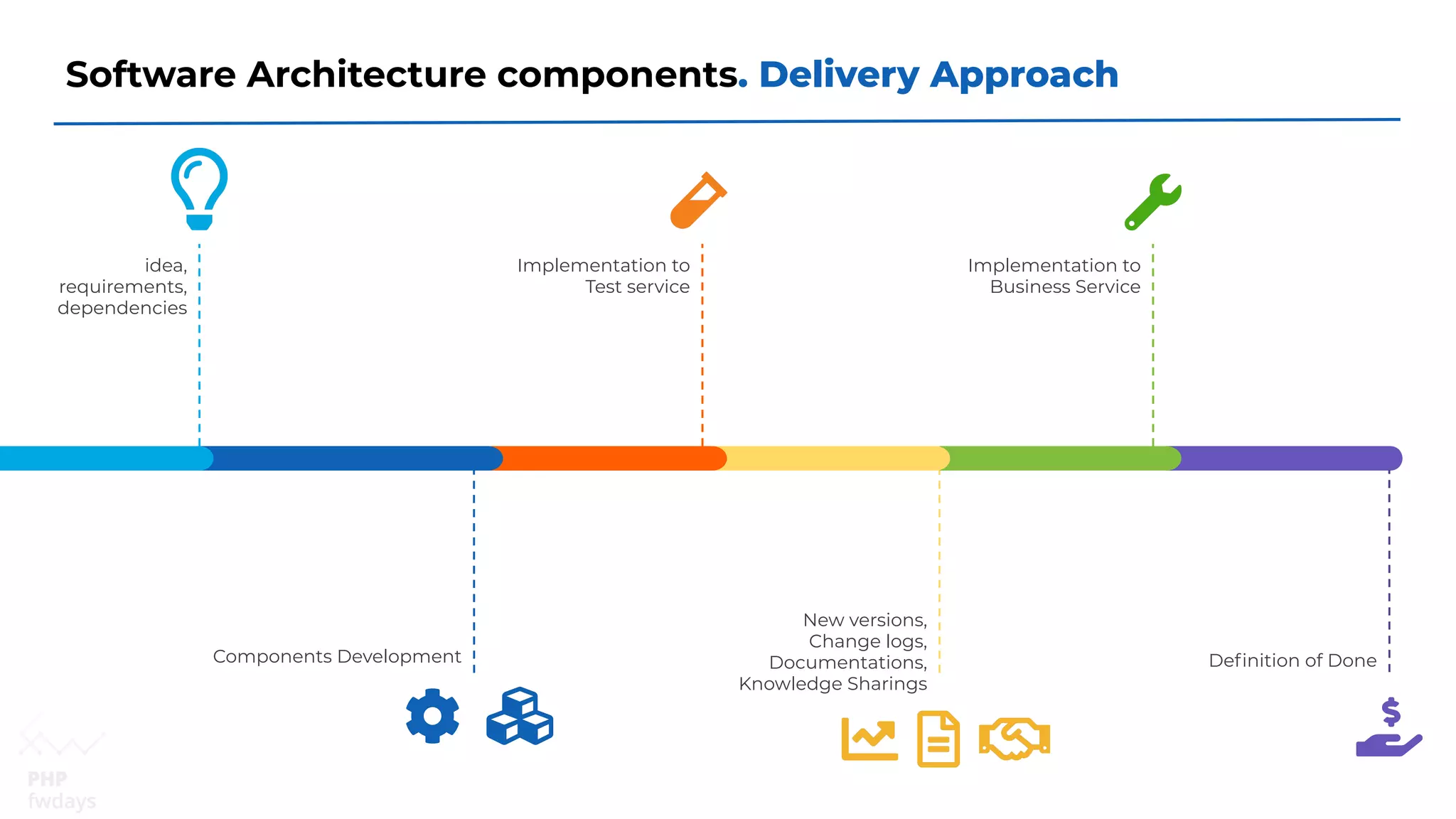

- 48. Software Architecture components.Delivery Approach idea, requirements, dependencies Implementation to Test service Implementation to Business Service Components Development New versions, Change logs, Documentations, Knowledge Sharings Definition of Done

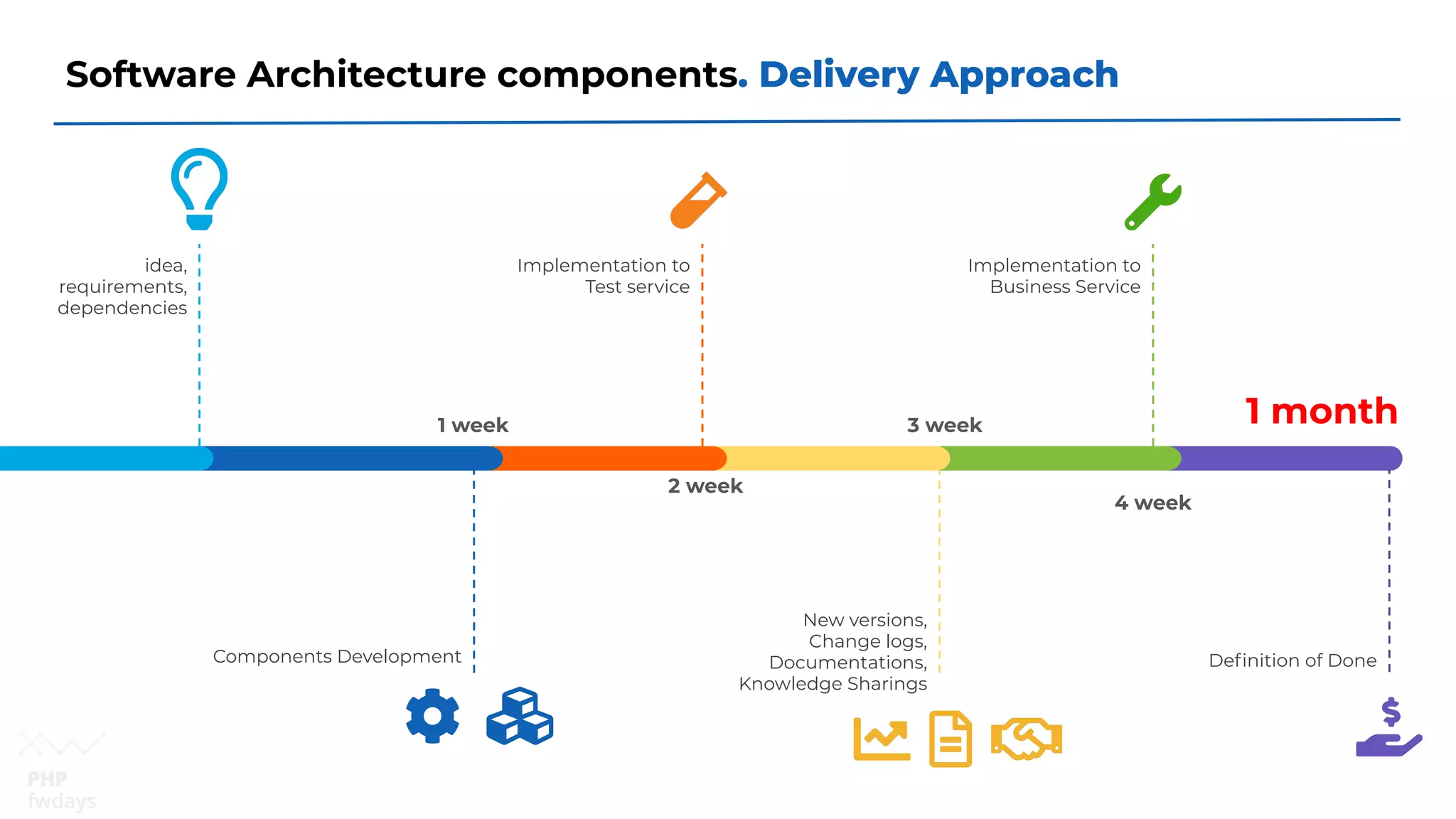

- 50. Software Architecture components.Delivery Approach idea, requirements, dependencies 1 week 2 week 3 week Implementation to Test service Implementation to Business Service Components Development New versions, Change logs, Documentations, Knowledge Sharings Definition of Done 1 month 4 week
- 52. Search of truth. Stage Searchfor truth

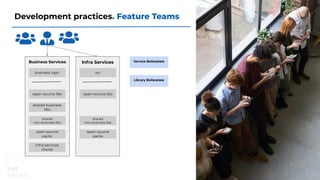

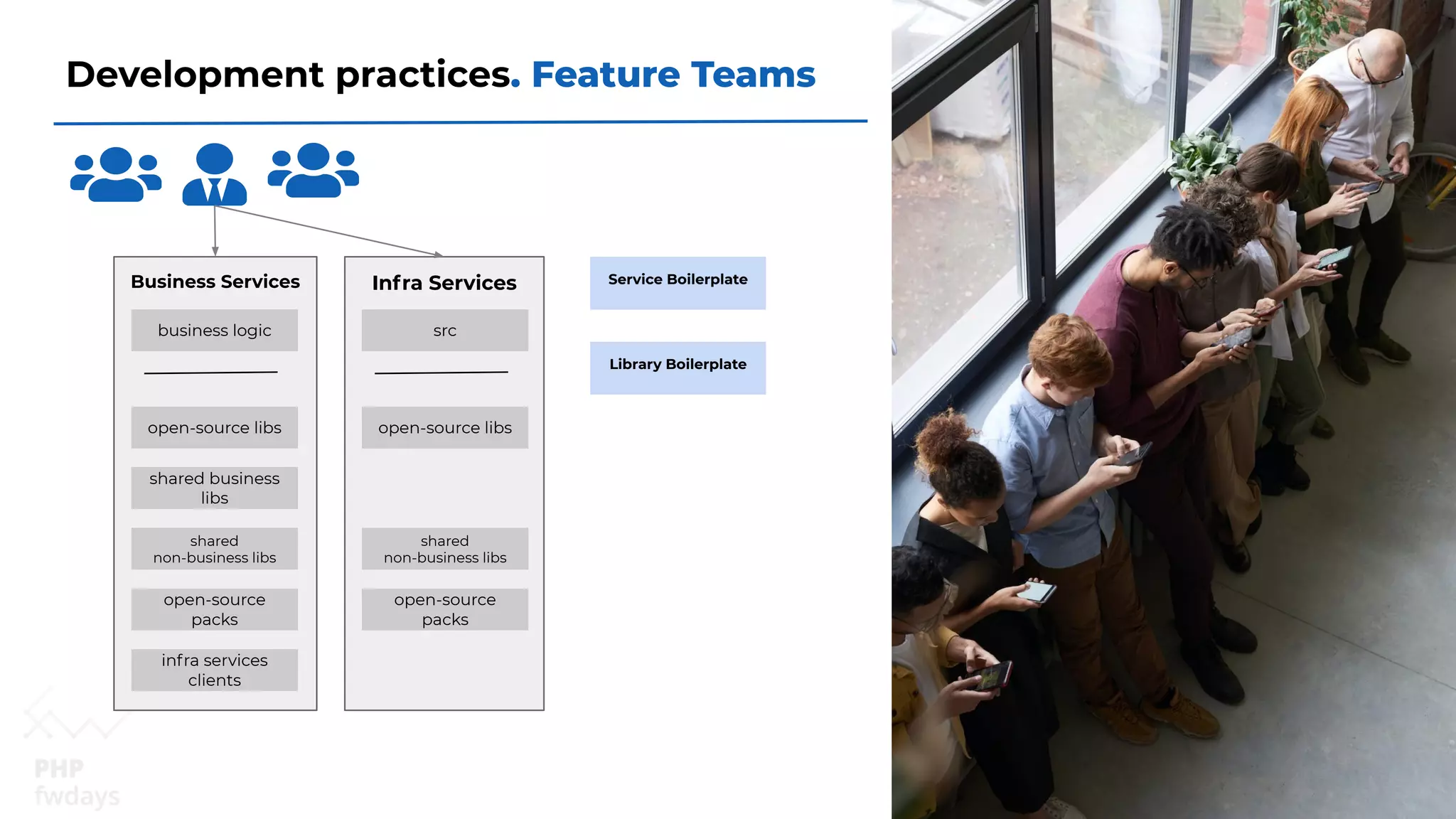

- 53. Development practices. FeatureTeams Business Services business logic open-source libs open-source packs infra services clients shared business libs shared non-business libs Infra Services src open-source libs open-source packs shared non-business libs Service Boilerplate Library Boilerplate

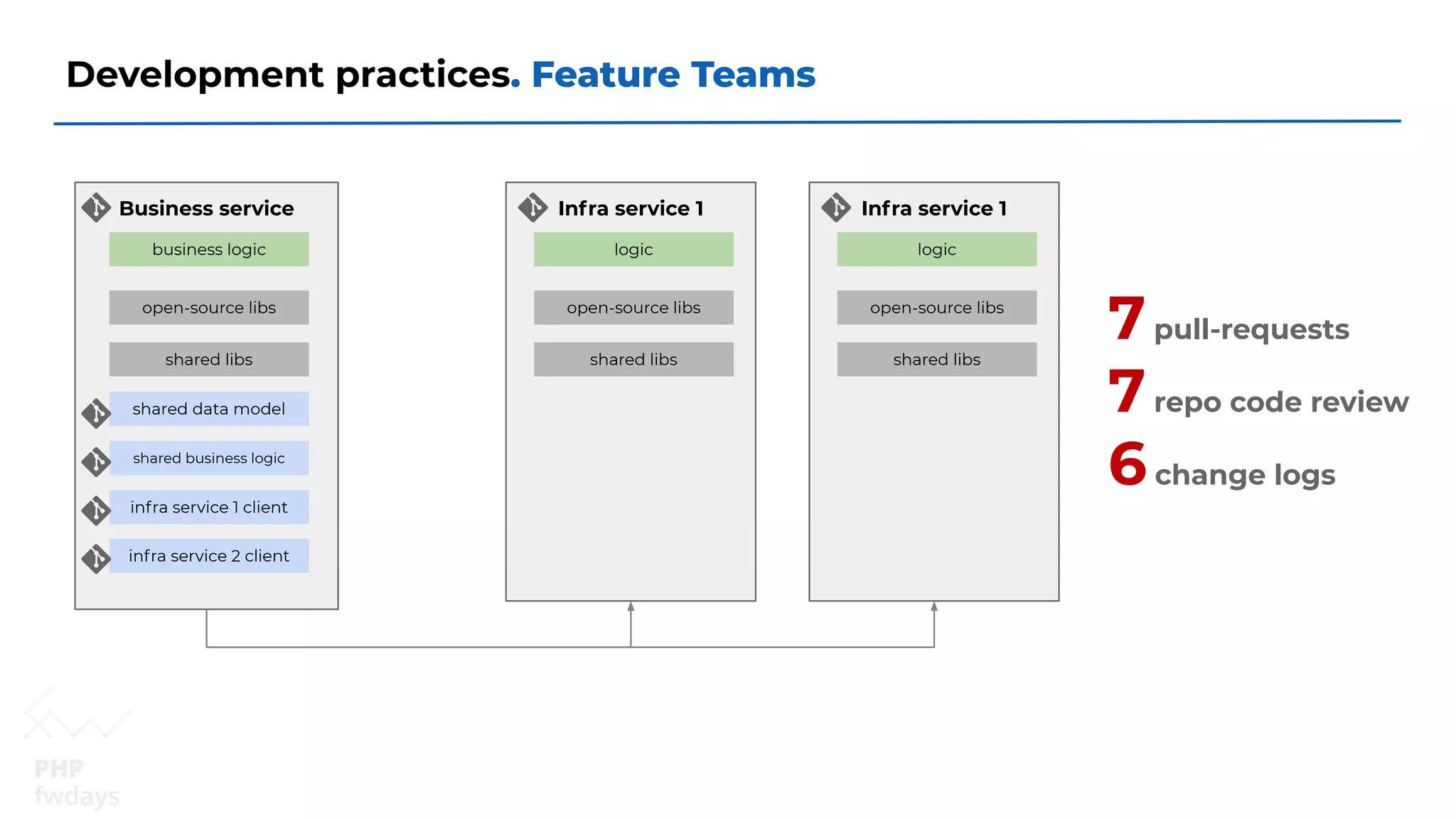

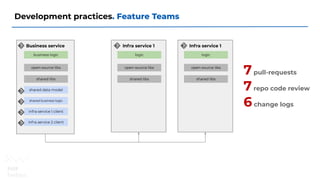

- 54. Development practices. FeatureTeams Business service open-source libs business logic shared data model shared business logic shared libs infra service 1 client Infra service 1 open-source libs logic shared libs infra service 2 client Infra service 1 open-source libs logic shared libs 7pull-requests 7repo code review 6change logs

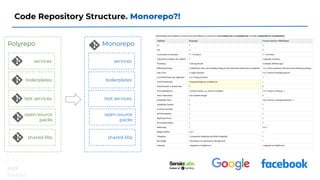

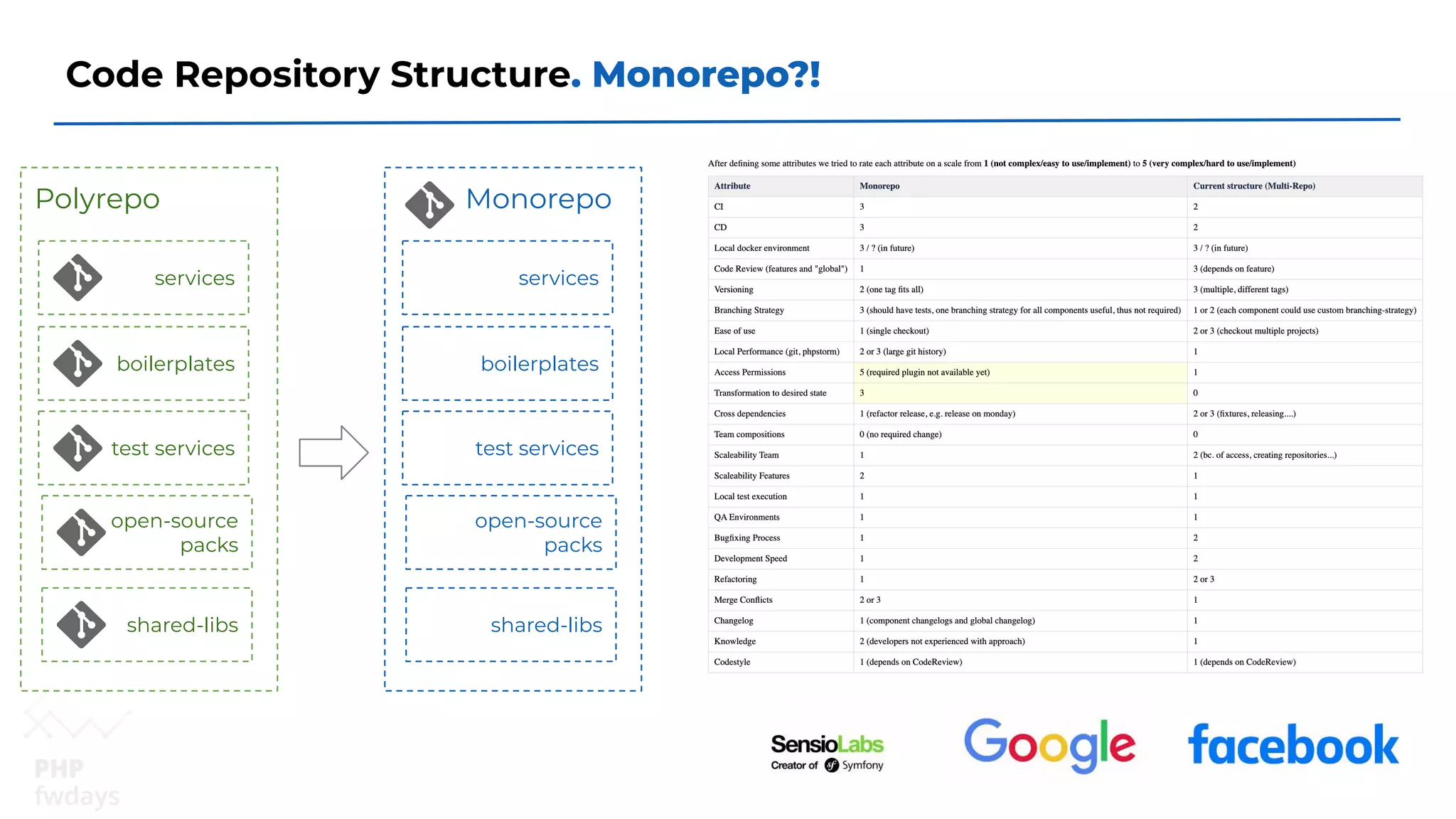

- 55. Code Repository Structure.Monorepo?! Polyrepo services shared-libs open-source packs boilerplates test services Monorepo services shared-libs open-source packs boilerplates test services
- 56. Code Repository Structure.Migration to Monorepo Monorepo migration process folder structure migration tool branching strategy versioning shared libs to control the functionality CI/CD

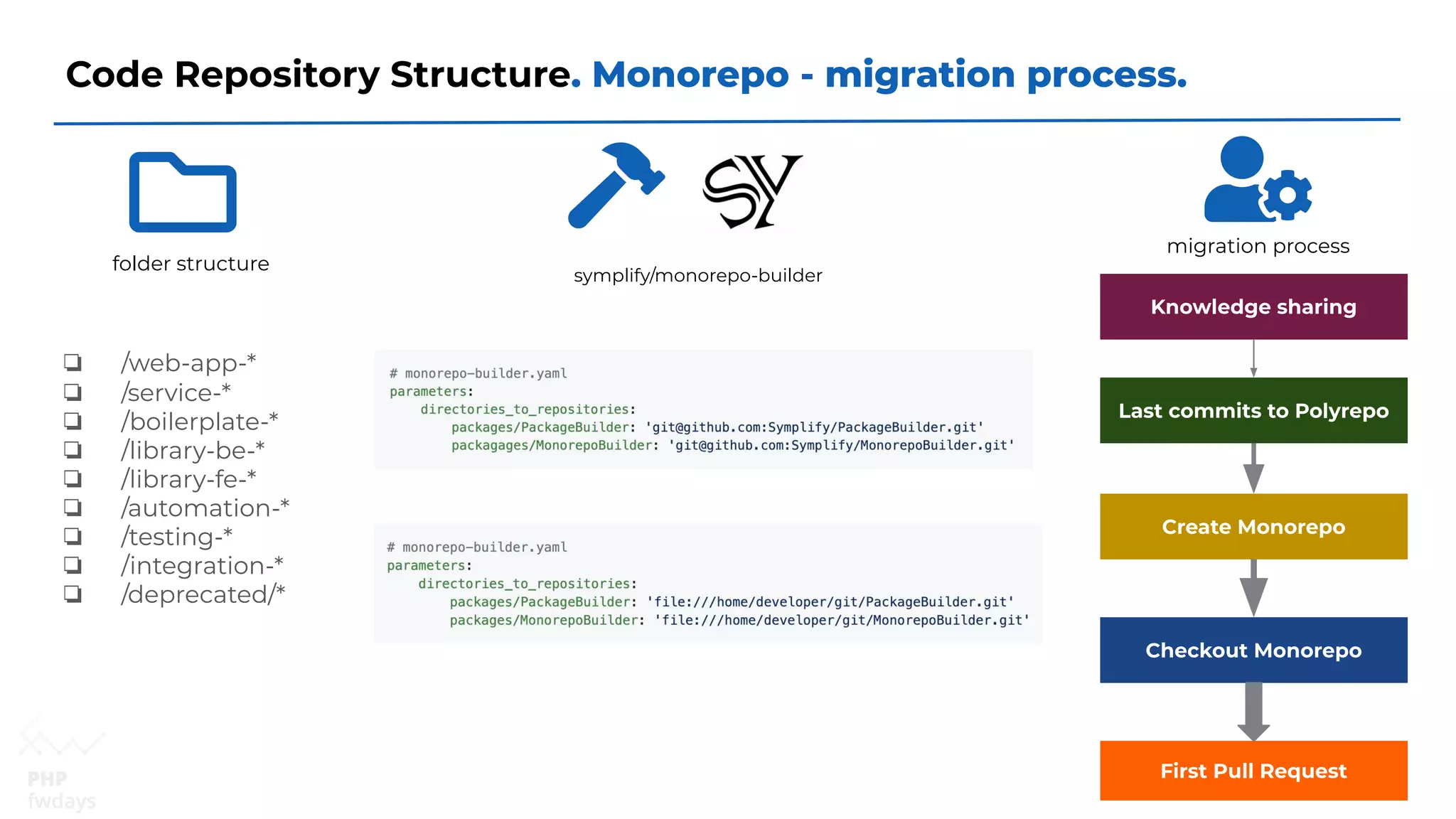

- 57. Code Repository Structure.Monorepo - migration process. ❏ /web-app-* ❏ /service-* ❏ /boilerplate-* ❏ /library-be-* ❏ /library-fe-* ❏ /automation-* ❏ /testing-* ❏ /integration-* ❏ /deprecated/* folder structure symplify/monorepo-builder Knowledge sharing Last commits to Polyrepo Create Monorepo Checkout Monorepo First Pull Request migration process

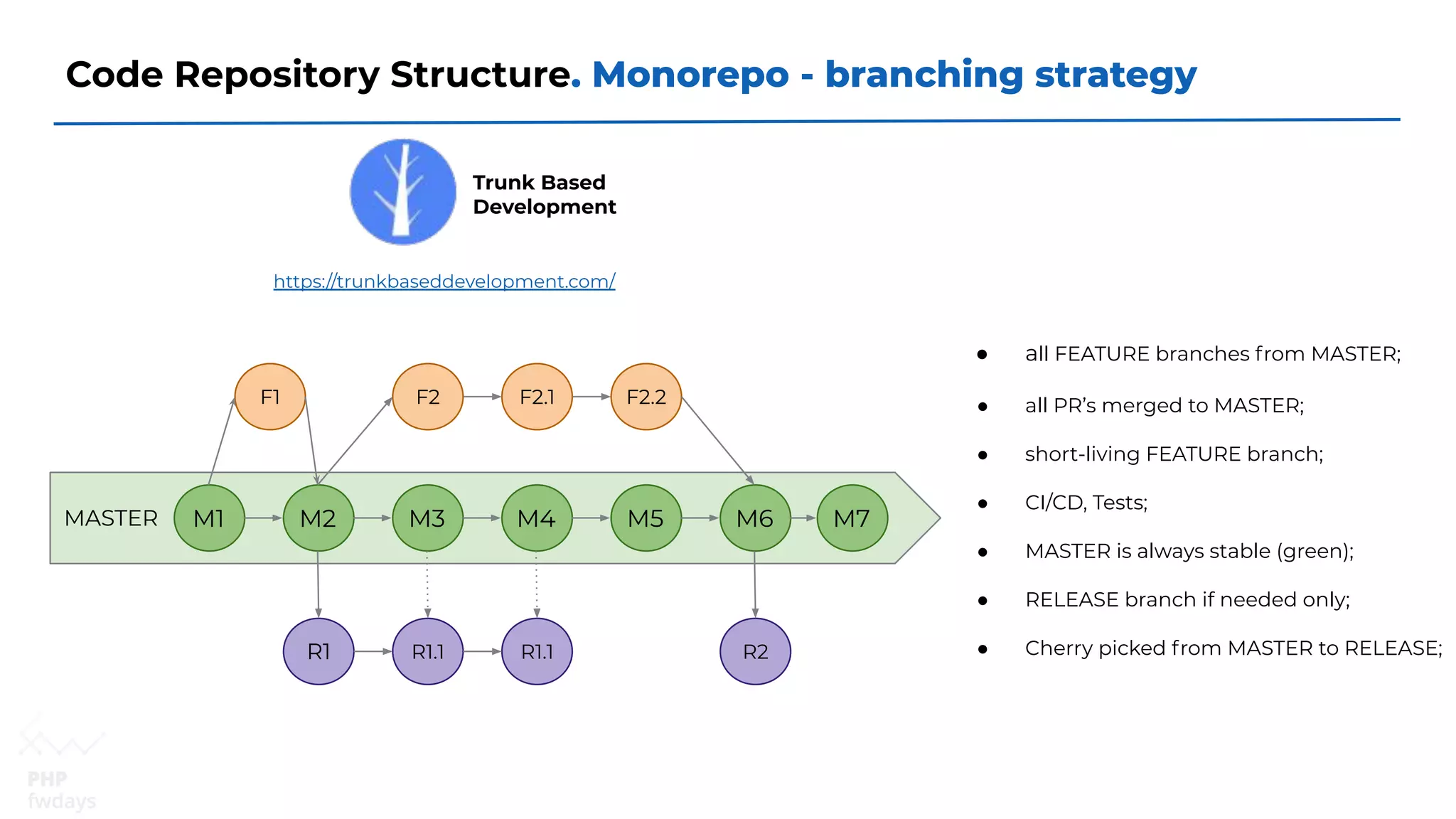

- 58. Code Repository Structure.Monorepo - branching strategy Trunk Based Development https://trunkbaseddevelopment.com/ MASTER M1 M2 M3 M4 M5 M6 R1 R1.1 R2 F1 F2 F2.1 F2.2 M7 R1.1 ● all FEATURE branches from MASTER; ● all PR’s merged to MASTER; ● short-living FEATURE branch; ● CI/CD, Tests; ● MASTER is always stable (green); ● RELEASE branch if needed only; ● Cherry picked from MASTER to RELEASE;

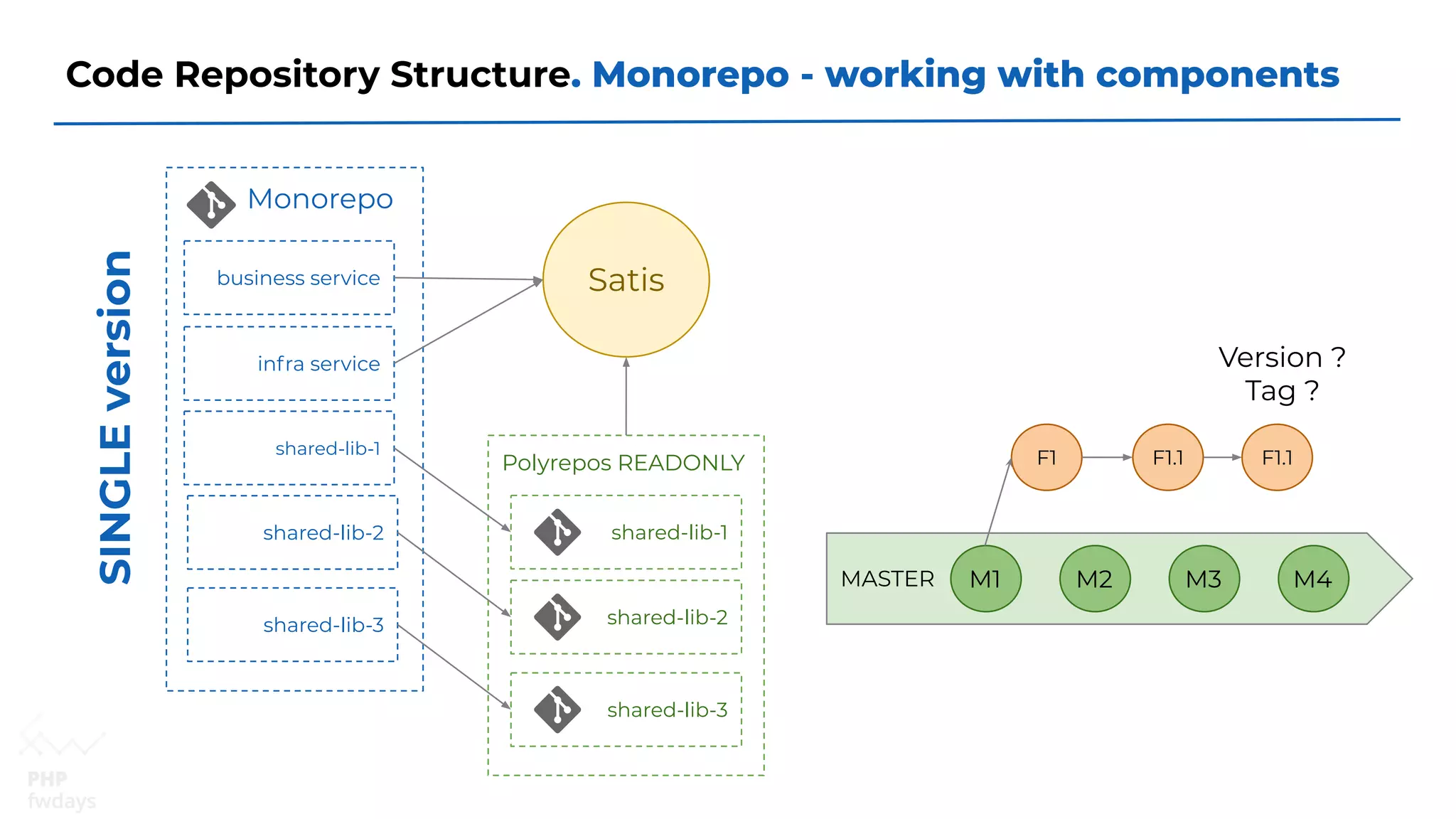

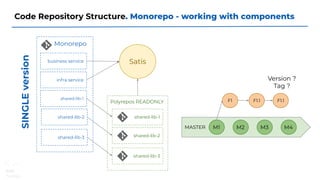

- 59. Code Repository Structure.Monorepo - working with components Polyrepos READONLY Monorepo business service shared-lib-3 shared-lib-2 infra service shared-lib-1 shared-lib-1 shared-lib-2 shared-lib-3 Satis SINGLEversion Version ? Tag ? MASTER M1 M2 M3 M4 F1 F1.1 F1.1

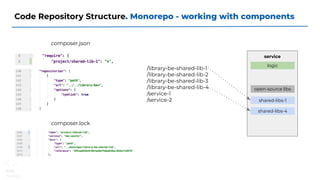

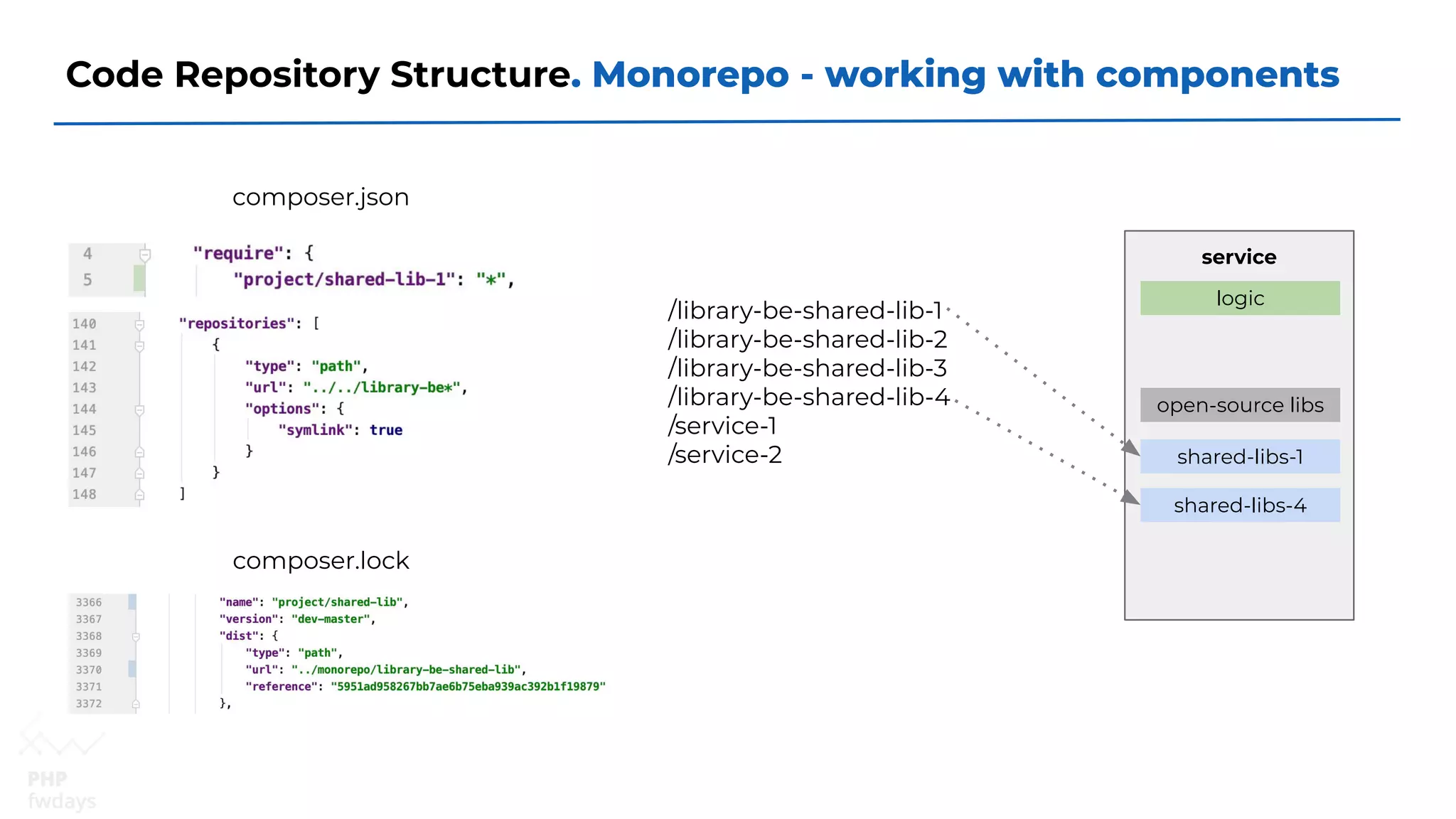

- 60. Code Repository Structure.Monorepo - working with components composer.json composer.lock service open-source libs logic shared-libs-1 /library-be-shared-lib-1 /library-be-shared-lib-2 /library-be-shared-lib-3 /library-be-shared-lib-4 /service-1 /service-2 shared-libs-4

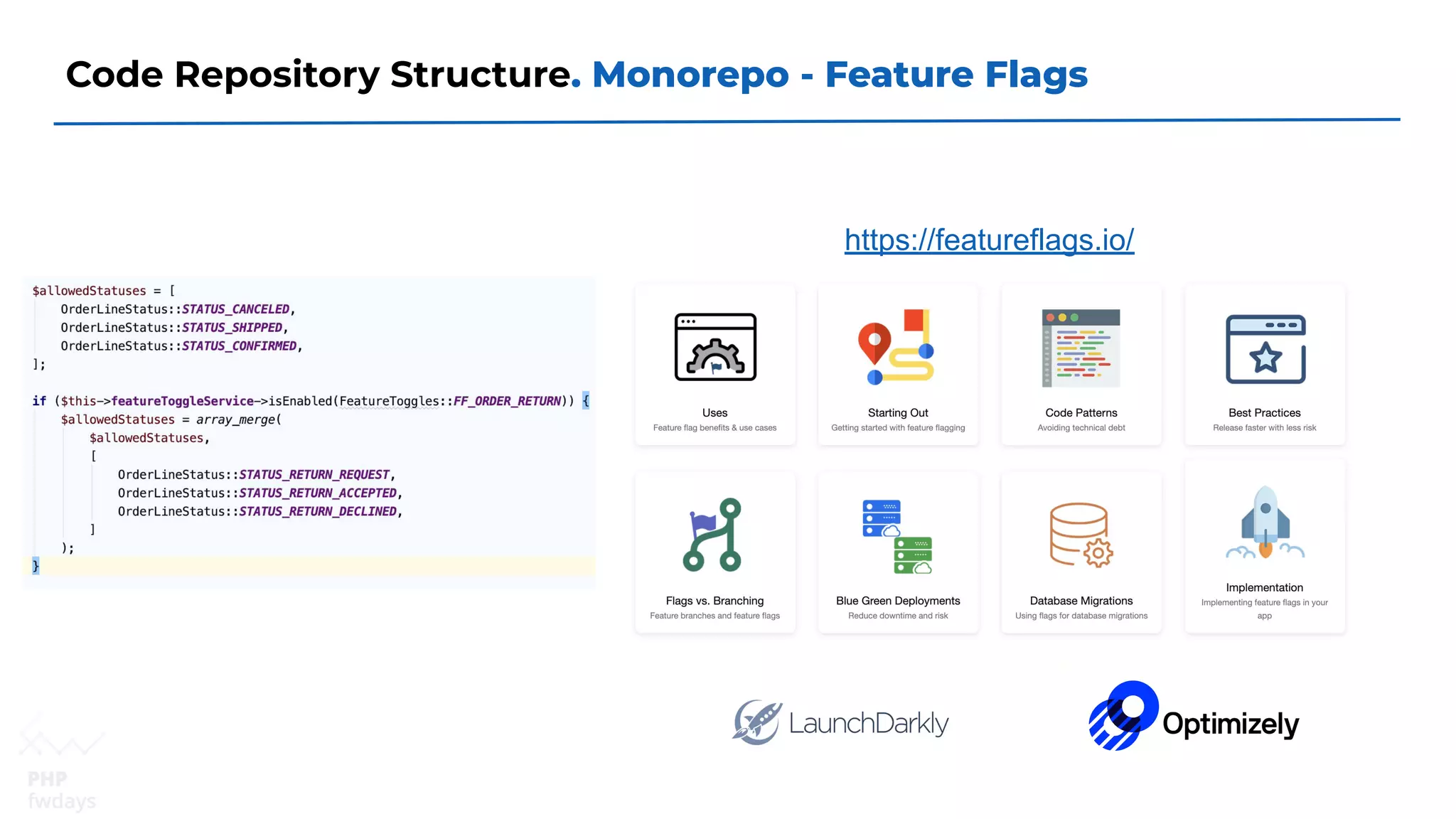

- 61. Code Repository Structure.Monorepo - Feature Flags https://featureflags.io/

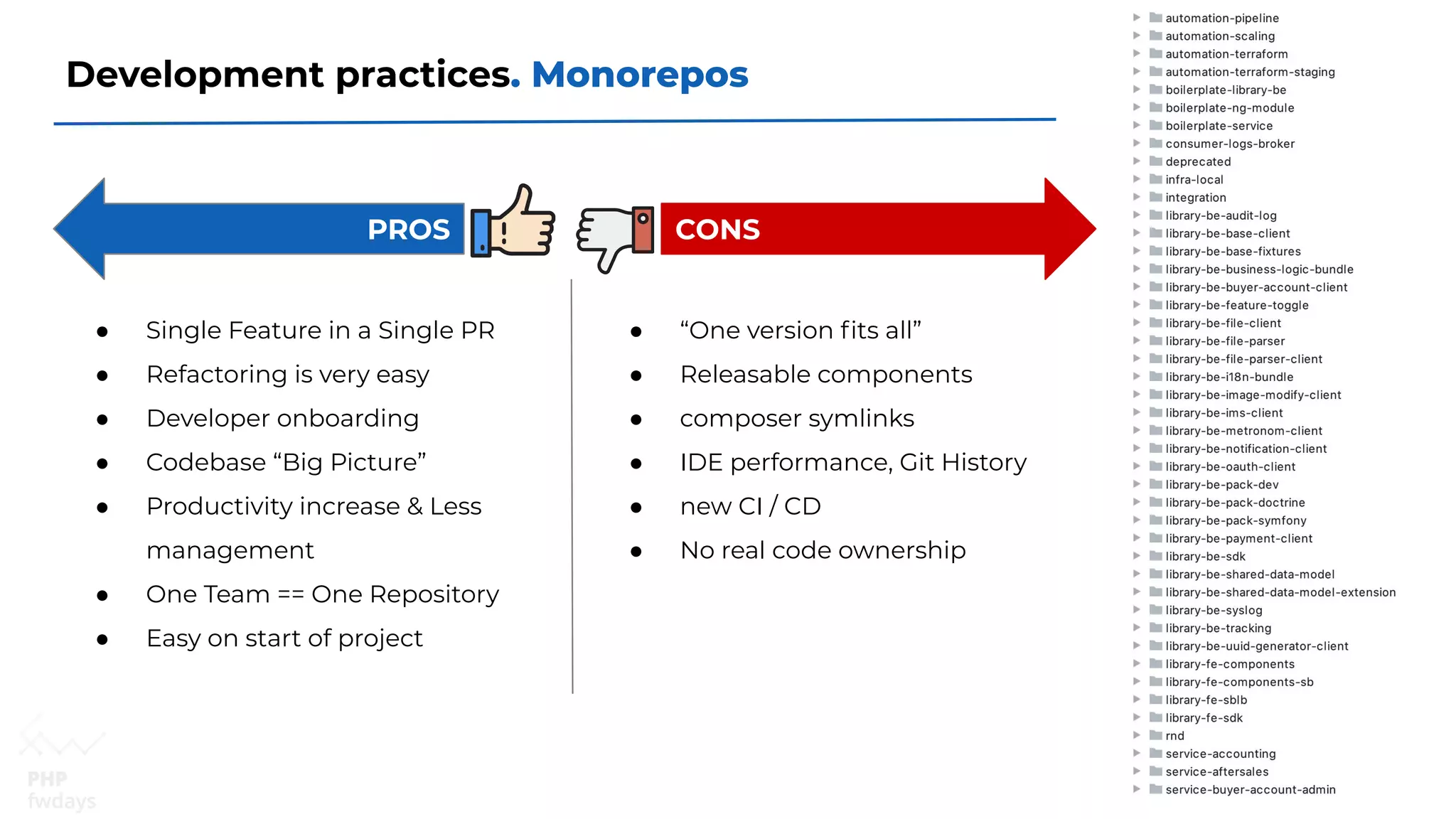

- 62. Development practices. Monorepos ●Single Feature in a Single PR ● Refactoring is very easy ● Developer onboarding ● Codebase “Big Picture” ● Productivity increase & Less management ● One Team == One Repository ● Easy on start of project PROS CONS ● “One version fits all” ● Releasable components ● composer symlinks ● IDE performance, Git History ● new CI / CD ● No real code ownership
- 63.

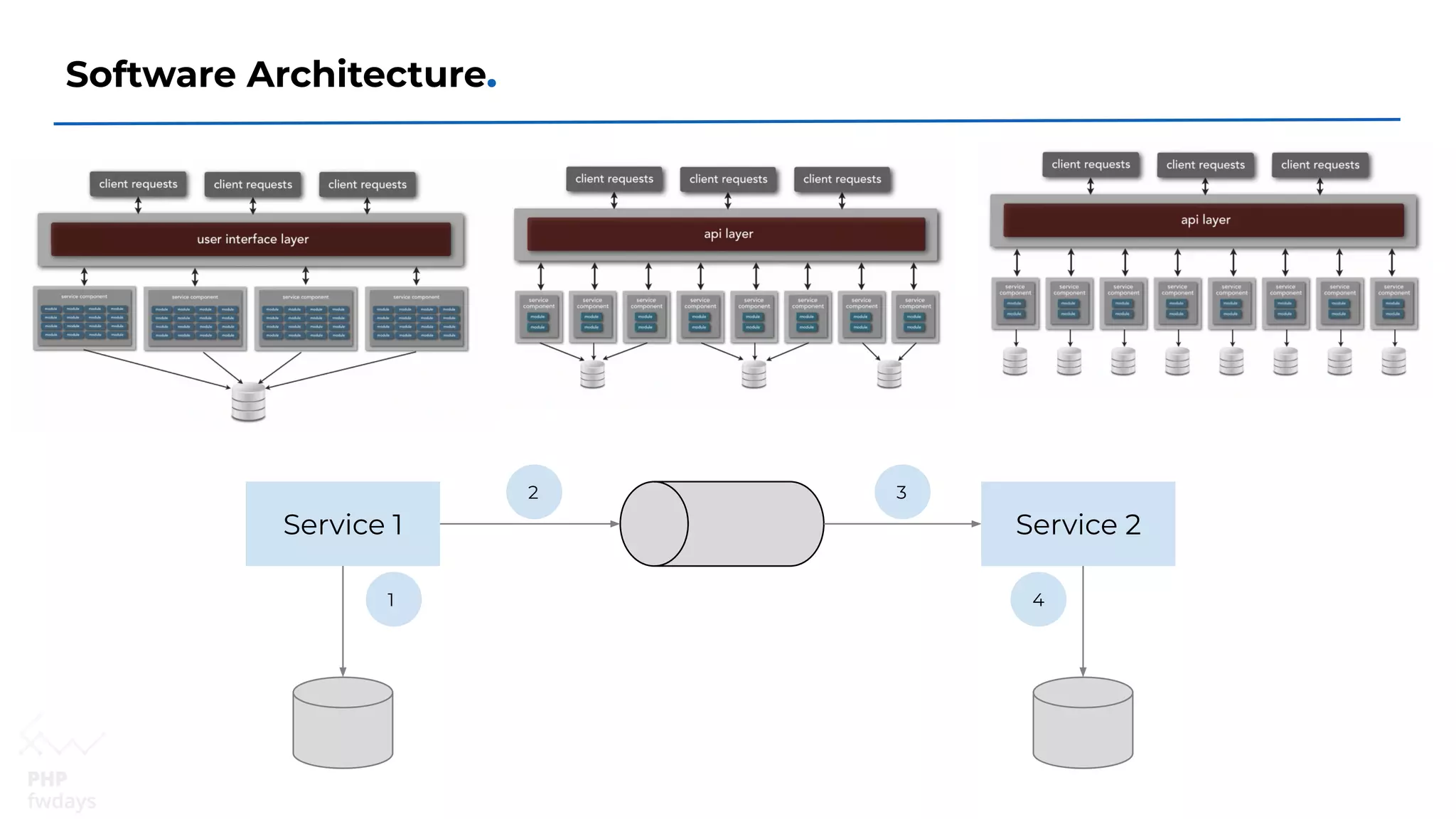

- 64. Software Architecture. Service 1Service 2 2 1 3 4

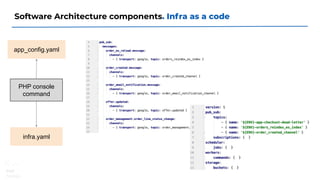

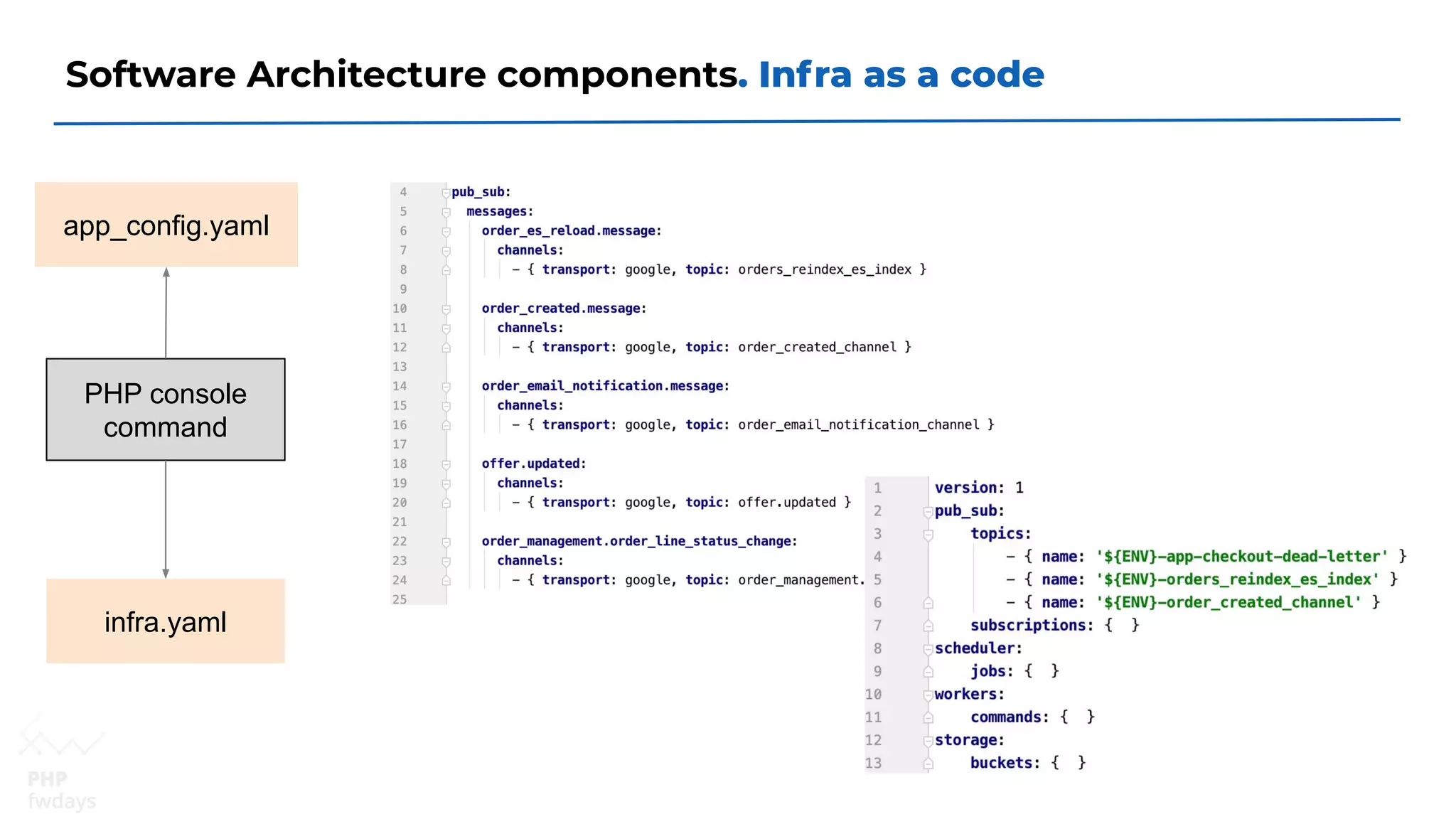

- 65. Software Architecture components.Infra as a code PHP console command app_config.yaml infra.yaml
- 66.

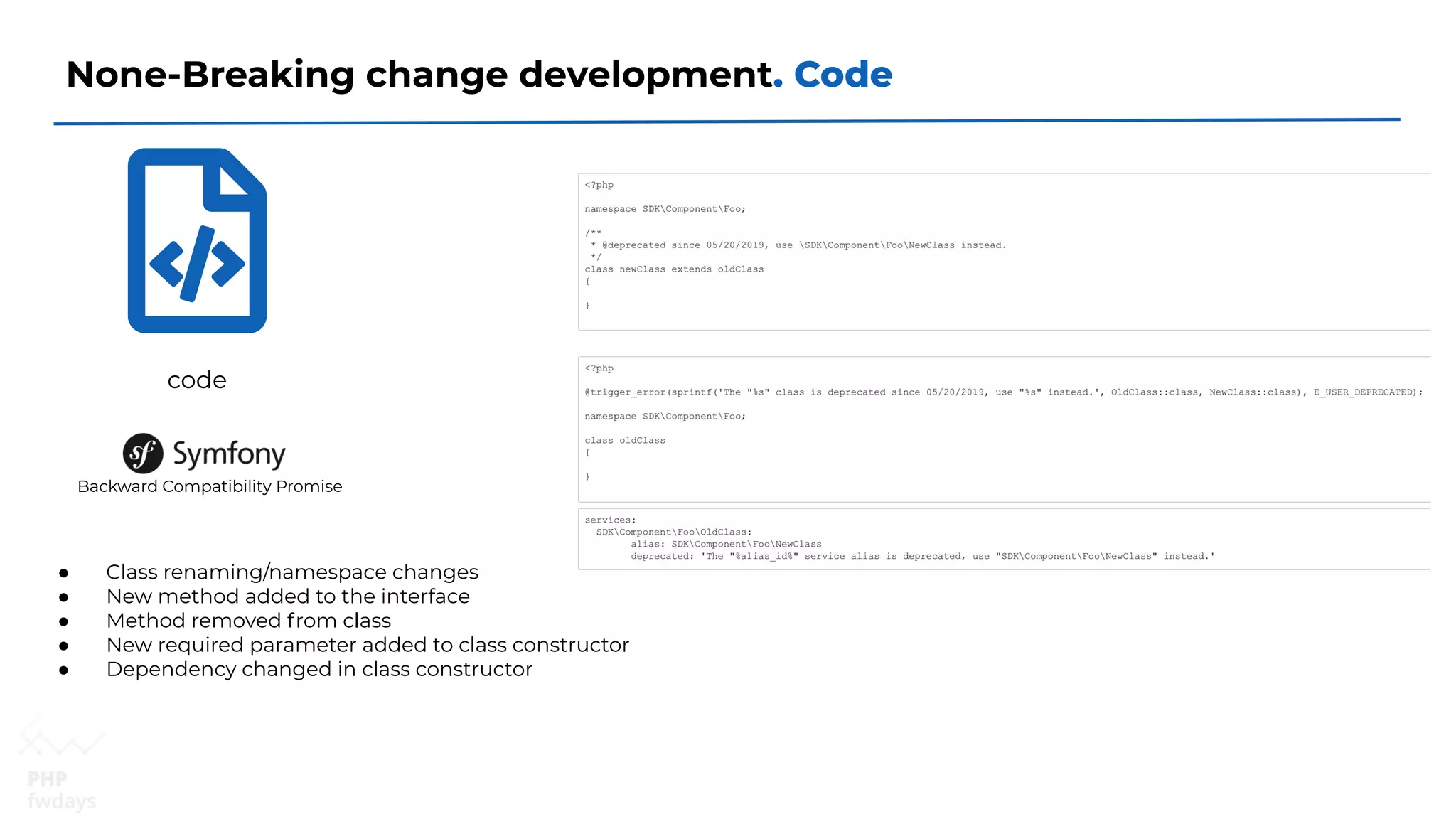

- 67. None-Breaking change development.Code Backward Compatibility Promise code ● Class renaming/namespace changes ● New method added to the interface ● Method removed from class ● New required parameter added to class constructor ● Dependency changed in class constructor

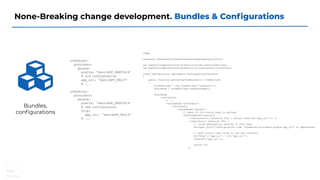

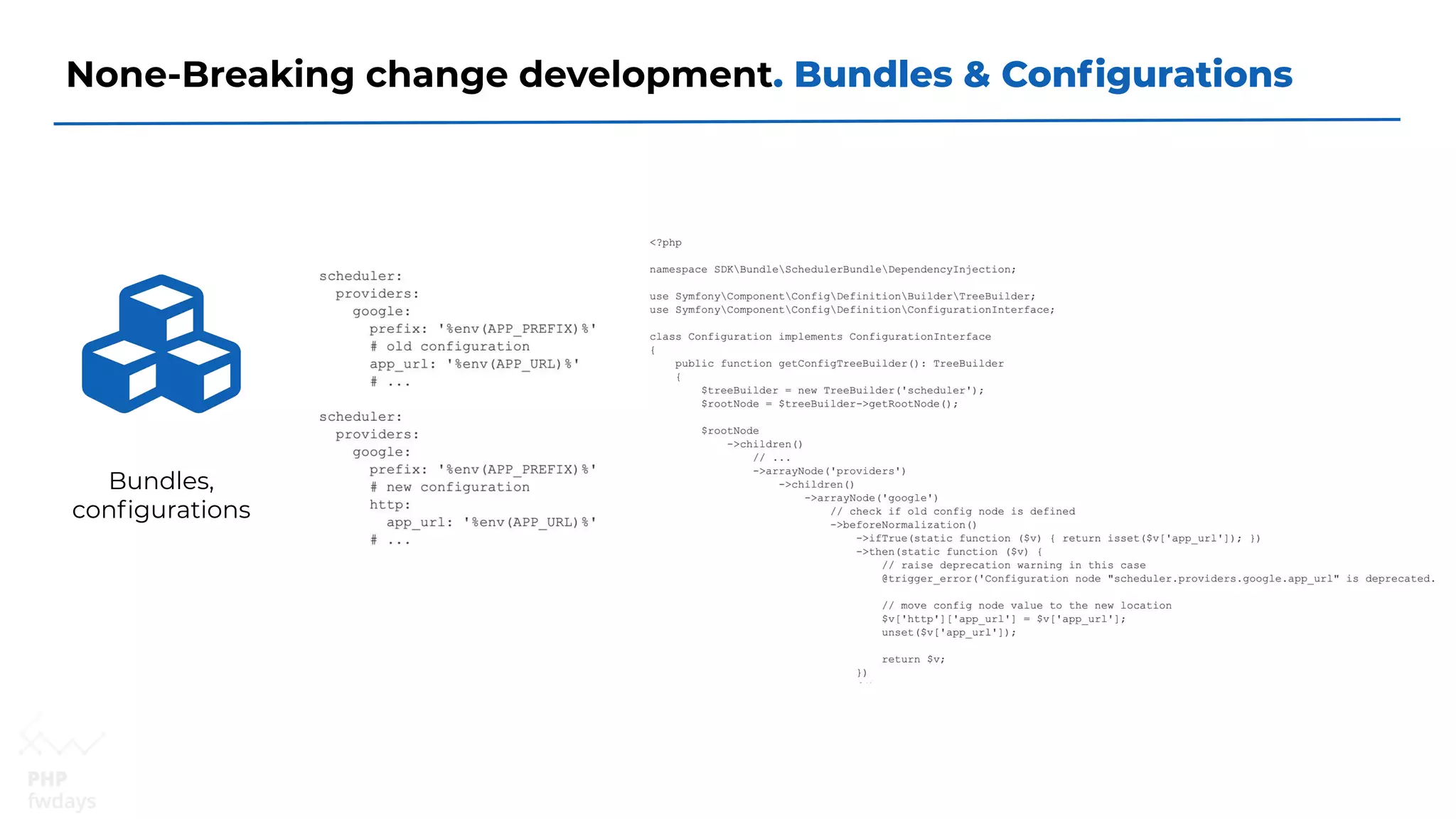

- 68. None-Breaking change development.Bundles & Configurations Bundles, configurations

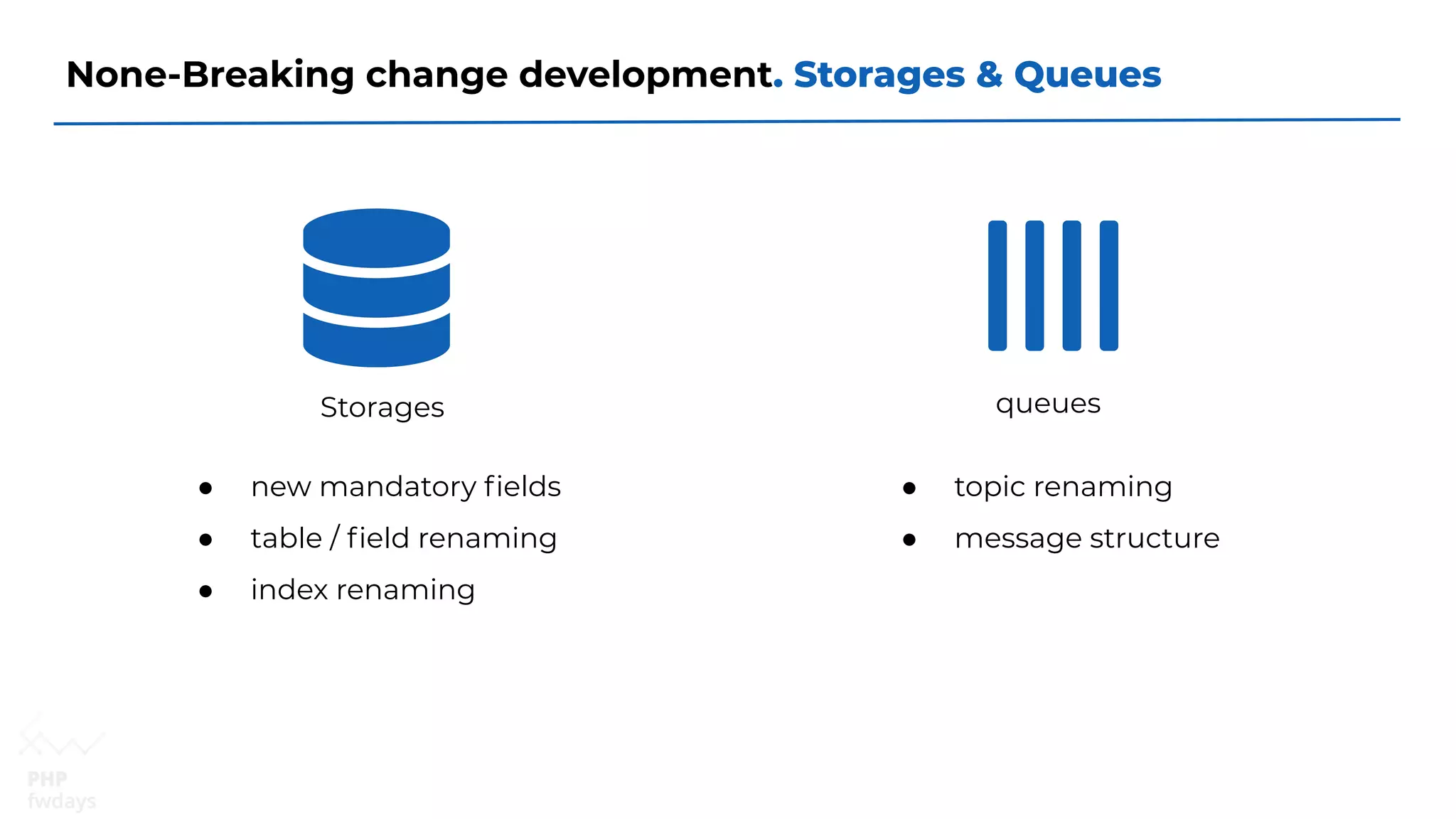

- 69. None-Breaking change development.Storages & Queues Storages queues ● new mandatory fields ● table / field renaming ● index renaming ● topic renaming ● message structure
- 70. Test Strategy. QualityGates. PHPStan PHP Static Analysis Tool PCOV CodeCoverage compatible driver for PHP phpdbg SAPI module

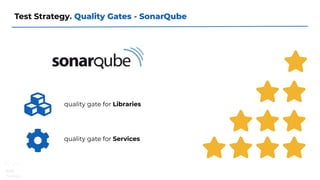

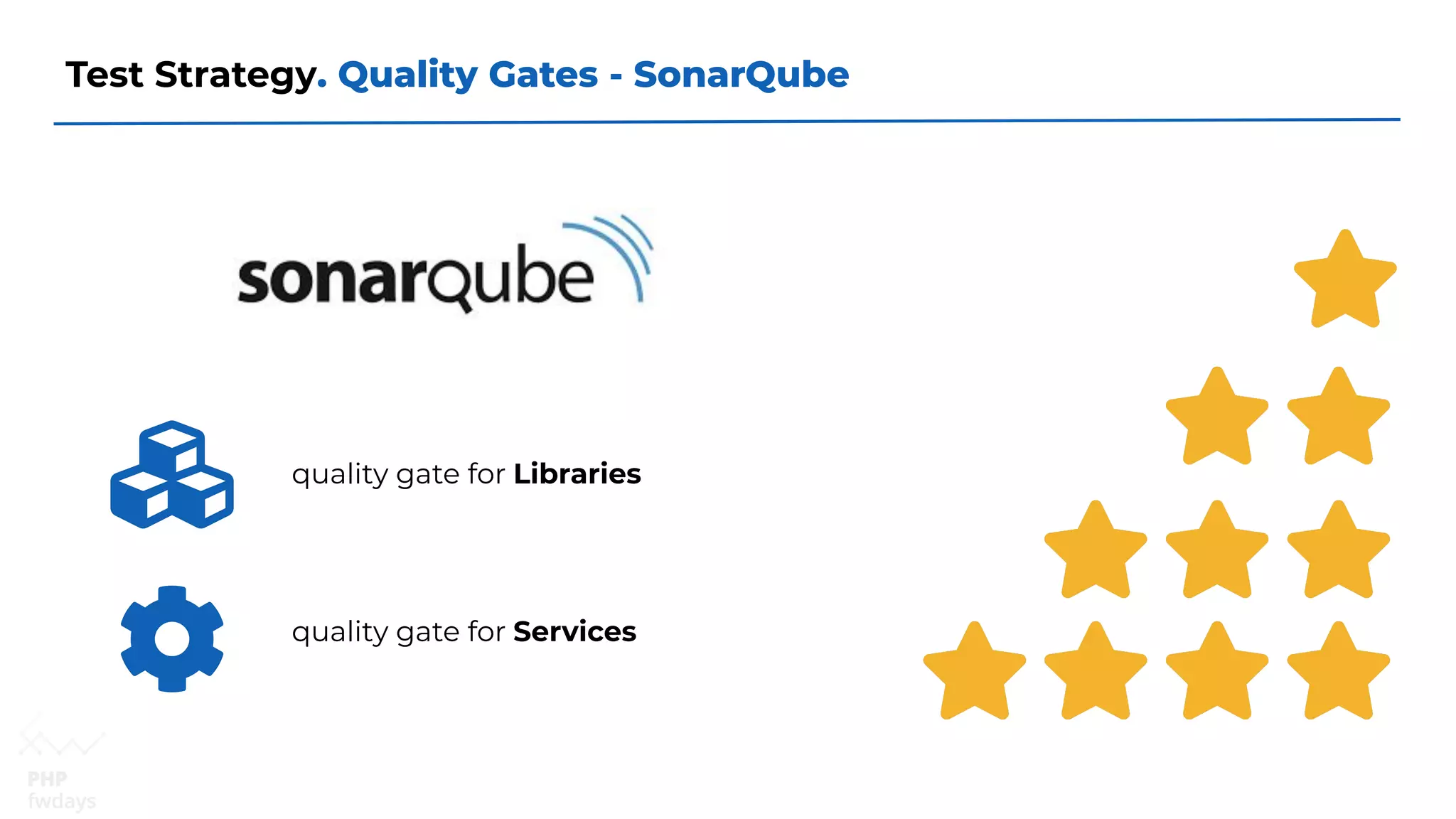

- 71. Test Strategy. QualityGates - SonarQube quality gate for Libraries quality gate for Services

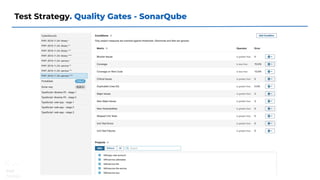

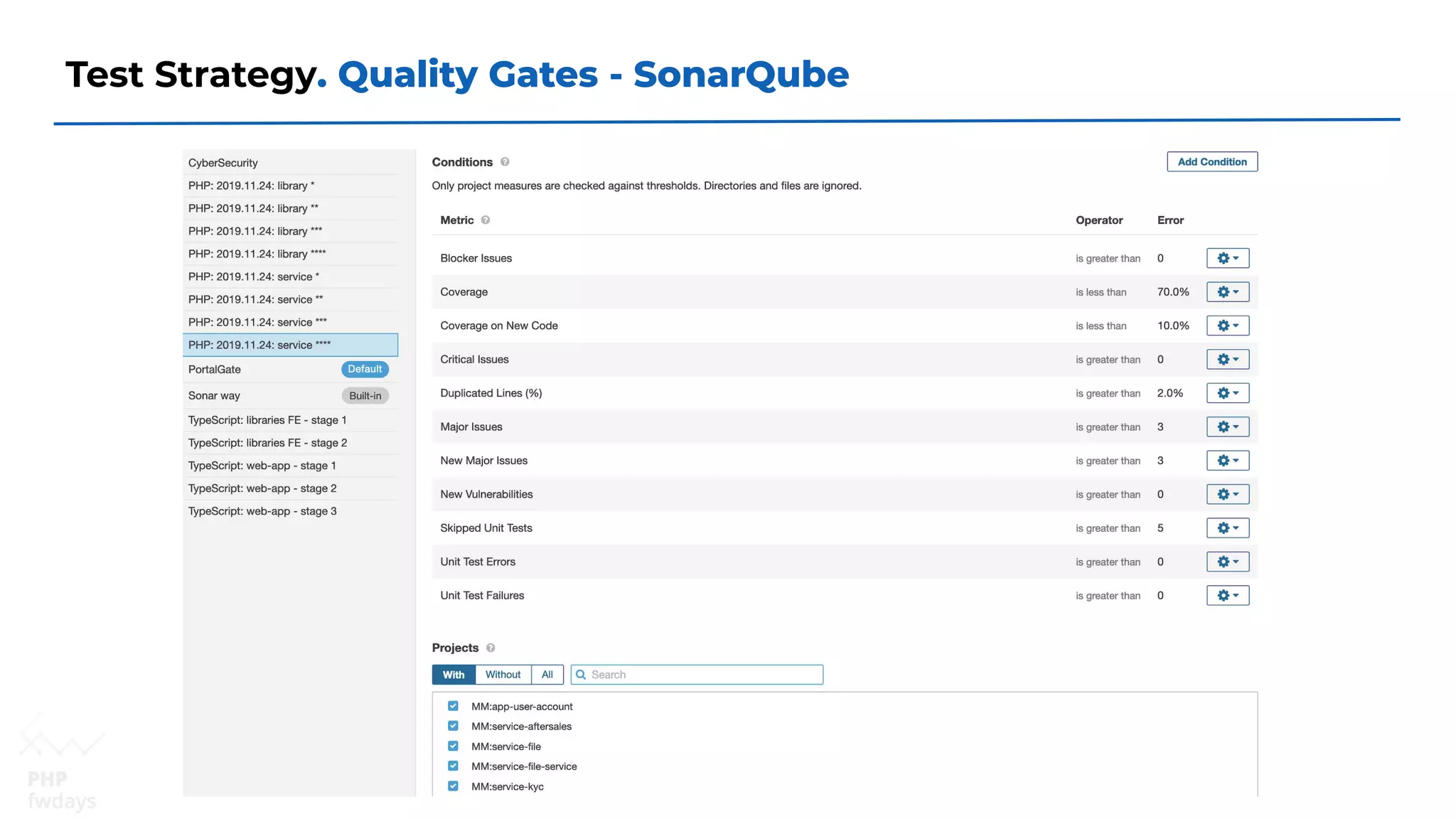

- 72. Test Strategy. QualityGates - SonarQube

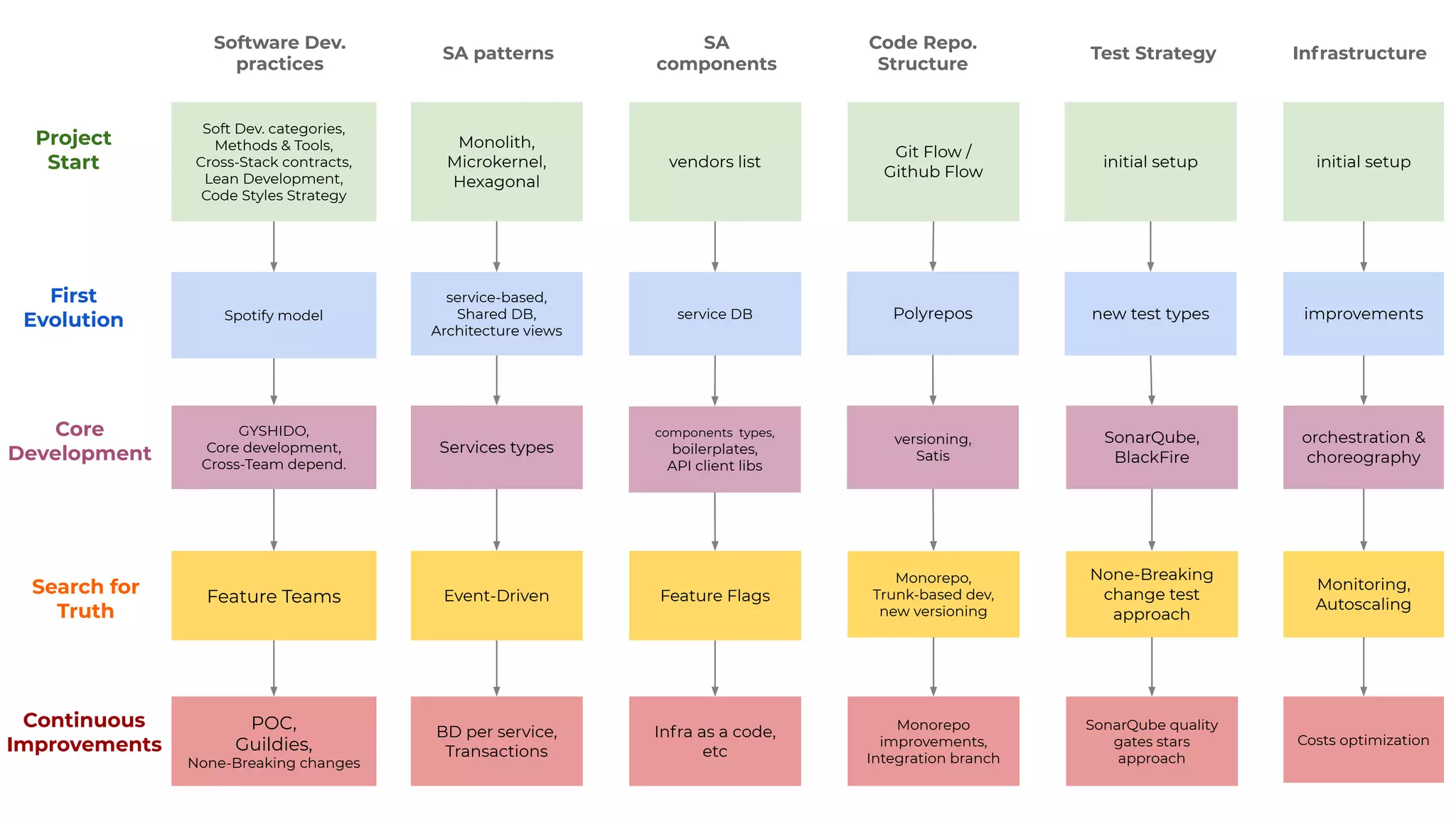

- 73. Soft Dev. categories, Methods& Tools, Cross-Stack contracts, Lean Development, Code Styles Strategy Monolith, Microkernel, Hexagonal vendors list Git Flow / Github Flow initial setup initial setup Spotify model service-based, Shared DB, Architecture views service DB Polyrepos new test types improvements GYSHIDO, Core development, Cross-Team depend. Services types components types, boilerplates, API client libs versioning, Satis SonarQube, BlackFire orchestration & choreography Feature Teams Event-Driven Feature Flags Monorepo, Trunk-based dev, new versioning None-Breaking change test approach Monitoring, Autoscaling POC, Guildies, None-Breaking changes BD per service, Transactions Infra as a code, etc Monorepo improvements, Integration branch SonarQube quality gates stars approach Costs optimization Project Start First Evolution Core Development Search for Truth Continuous Improvements Software Dev. practices SA patterns SA components Code Repo. Structure Test Strategy Infrastructure
- 74.
