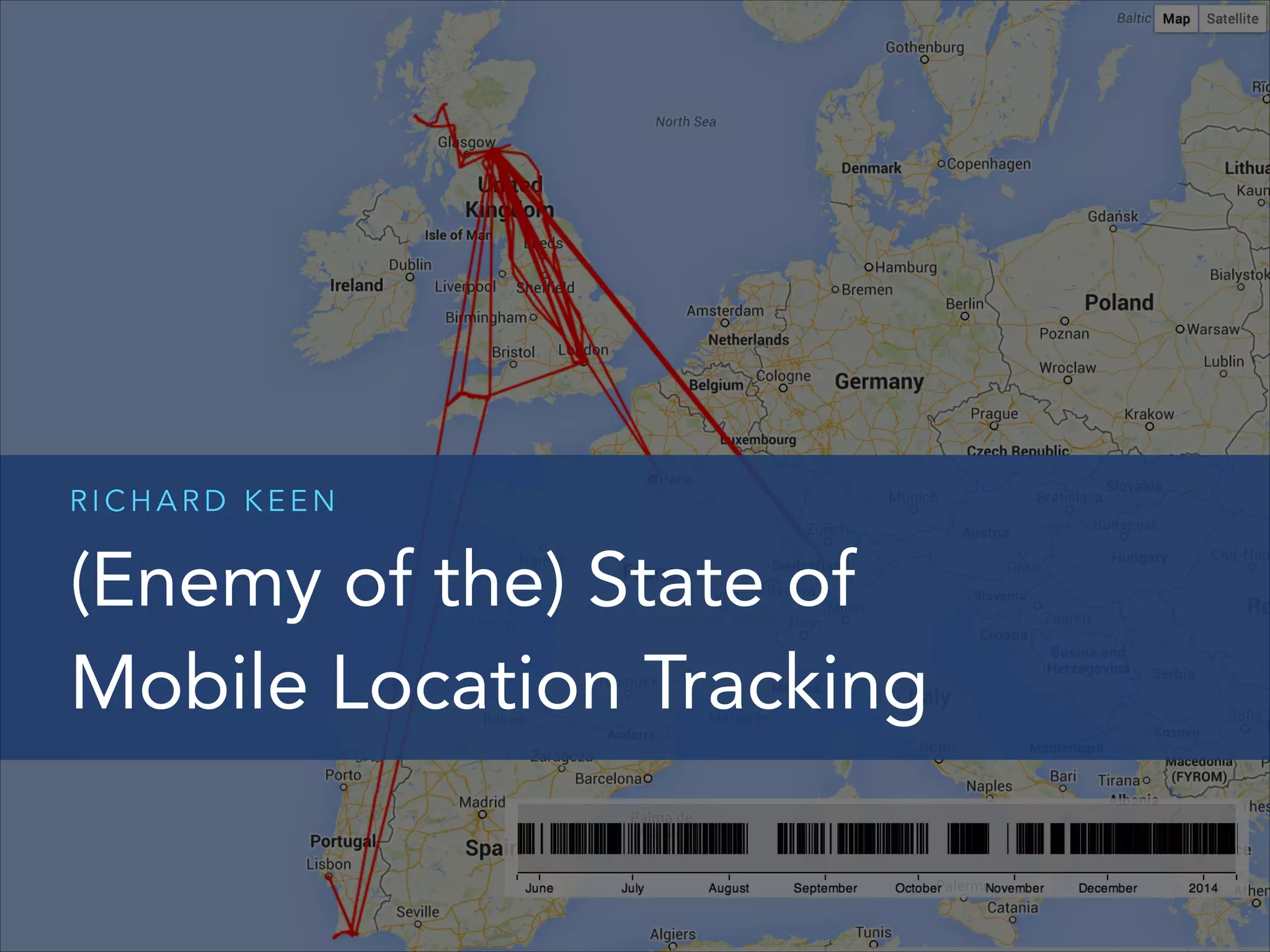

1. RICHARD KEEN
(Enemy of the) State of
Mobile Location Tracking

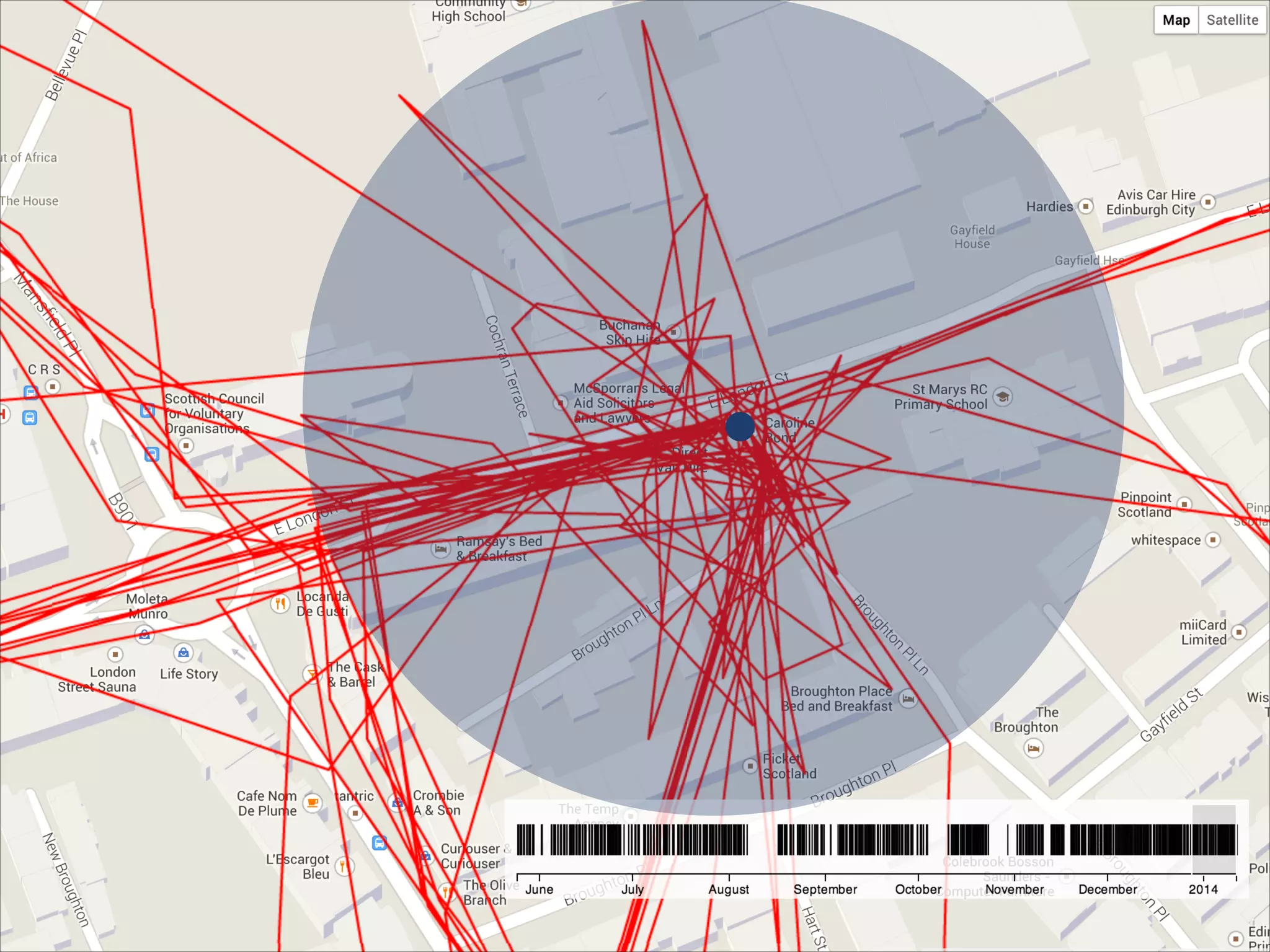

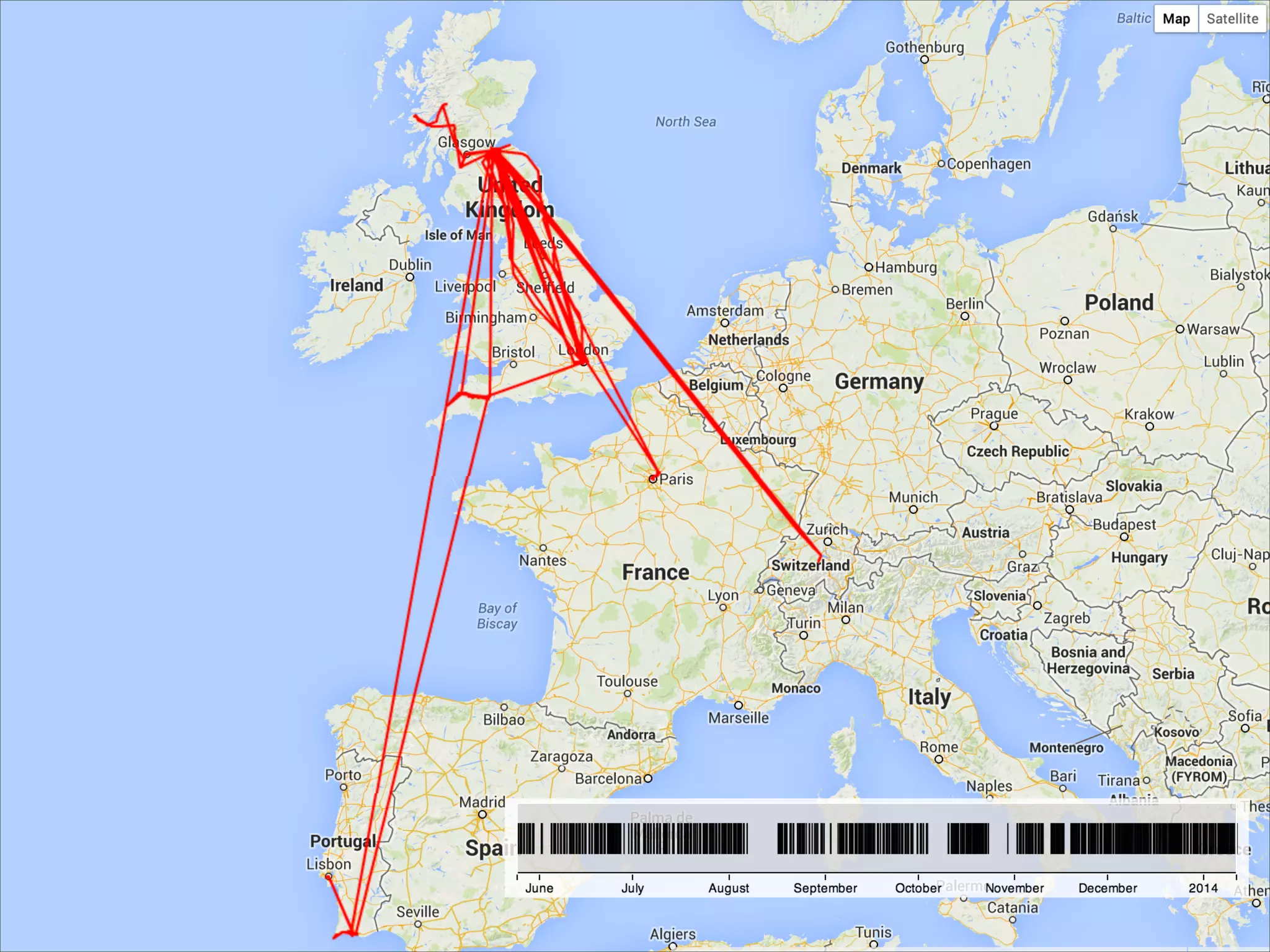

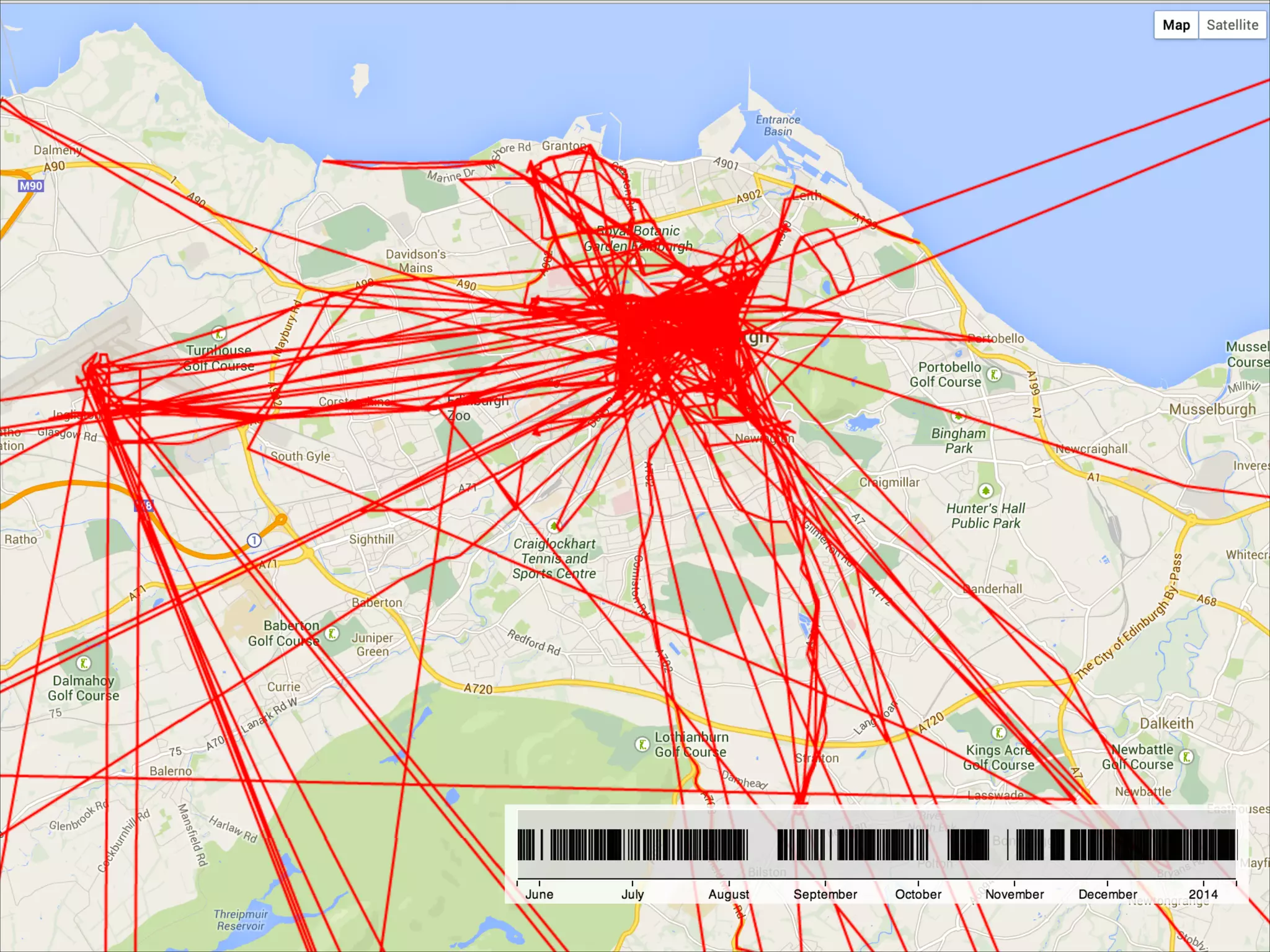

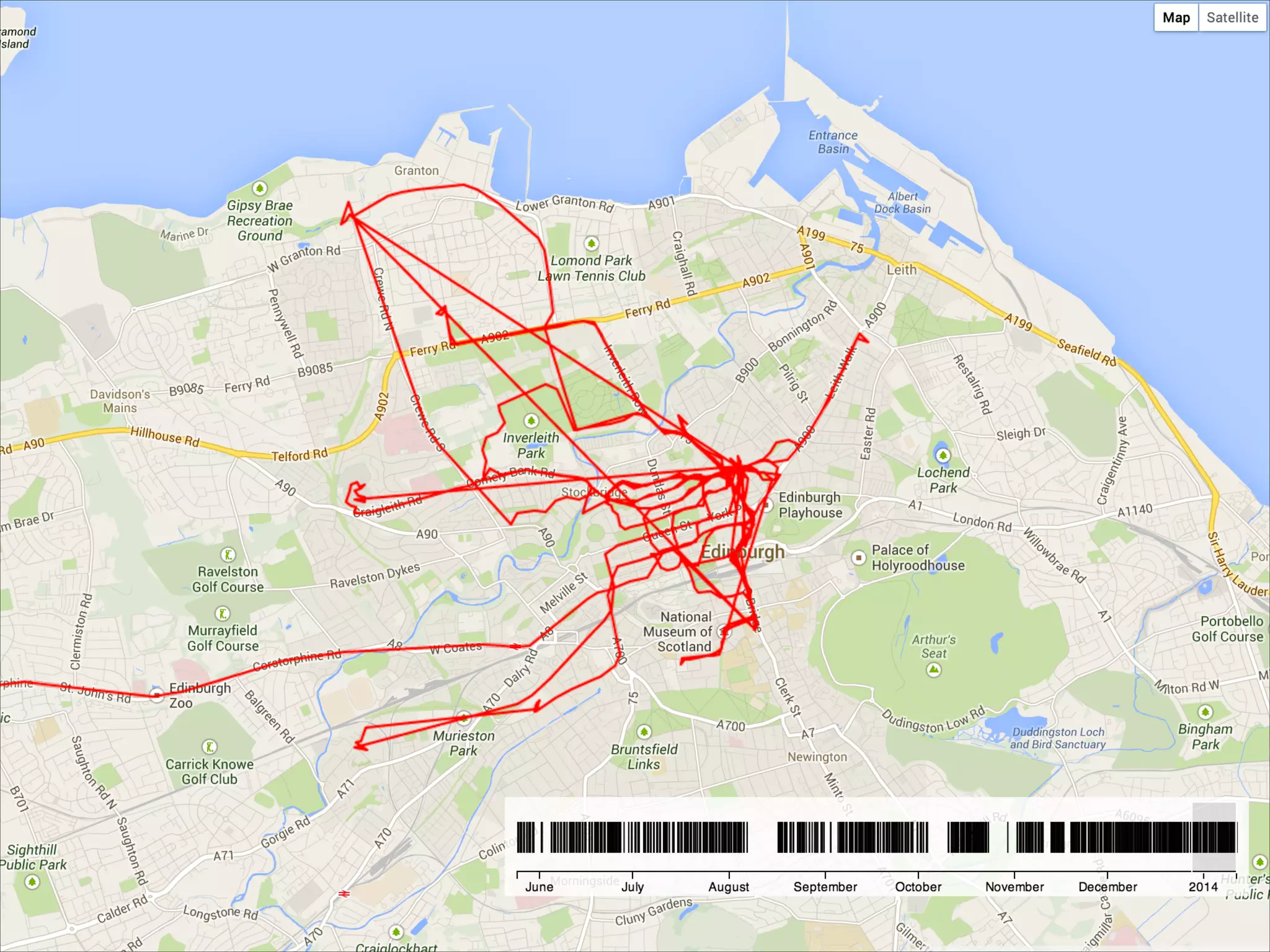

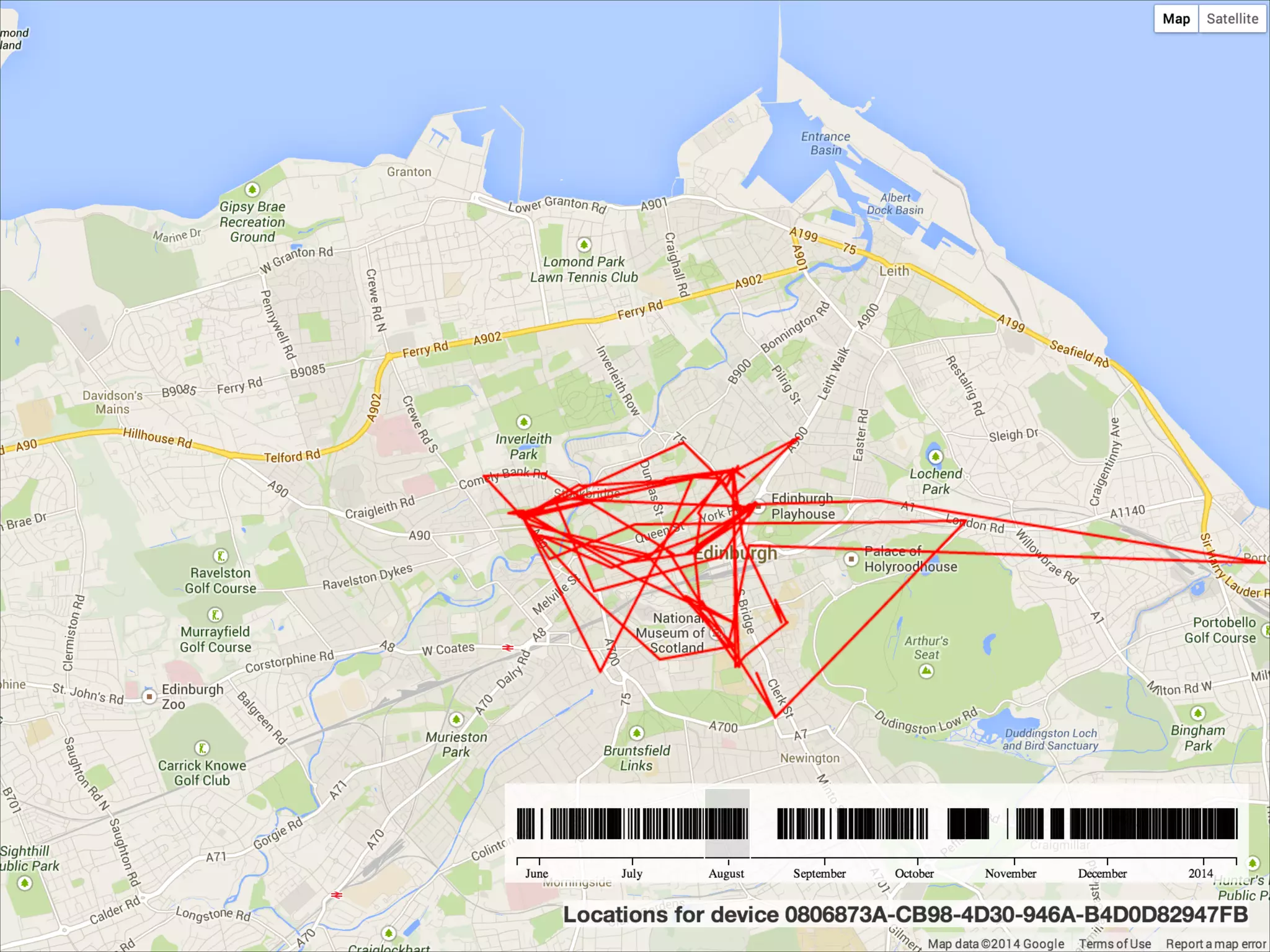

3. 20,000 points over 232 days
15,000 miles travelled
at an average of 2.6 mph

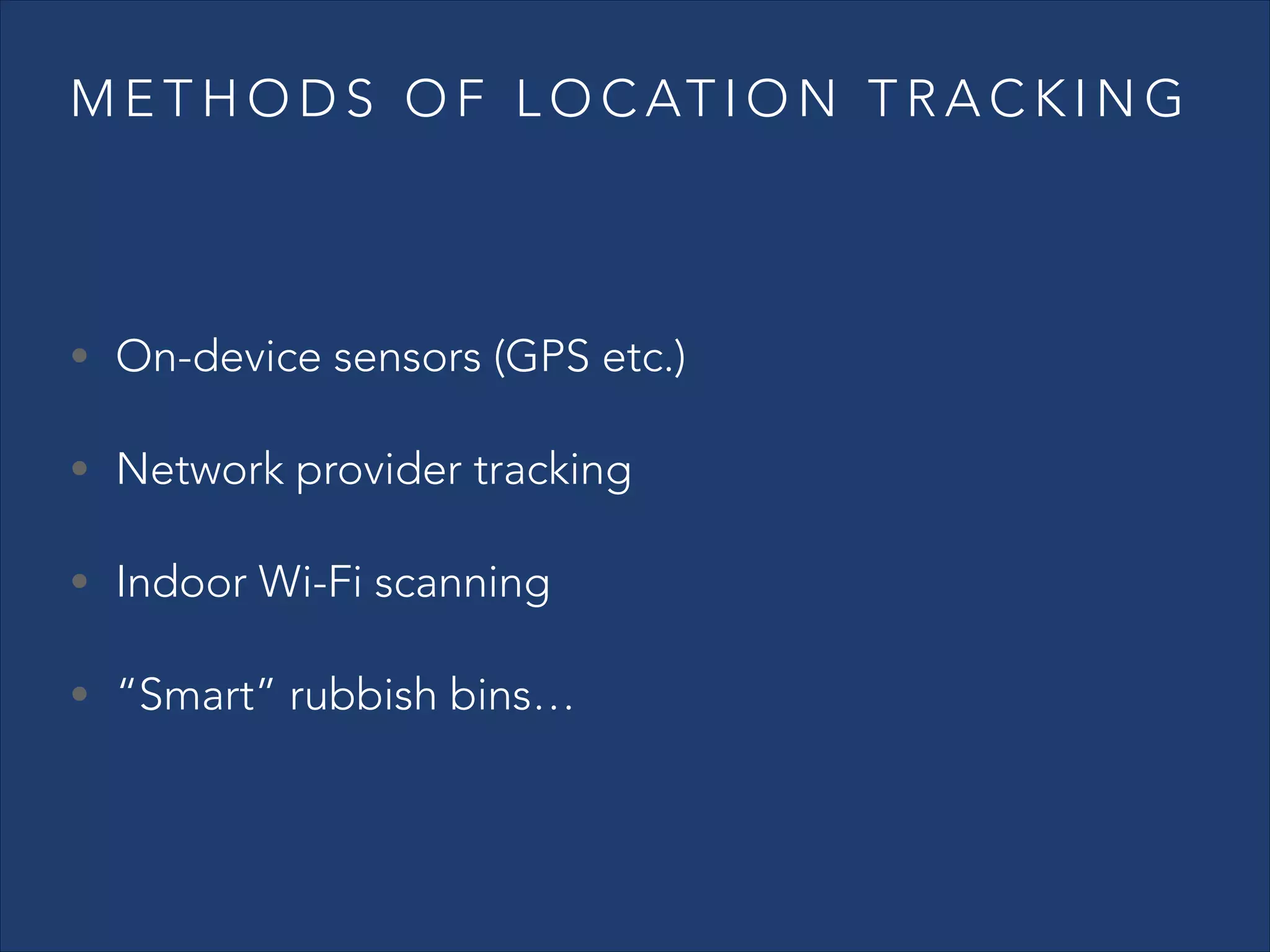

5. M E T H O D S O F L O C AT I O N T R A C K I N G
• On-device sensors (GPS etc.)
• Network provider tracking
• Indoor Wi-Fi scanning

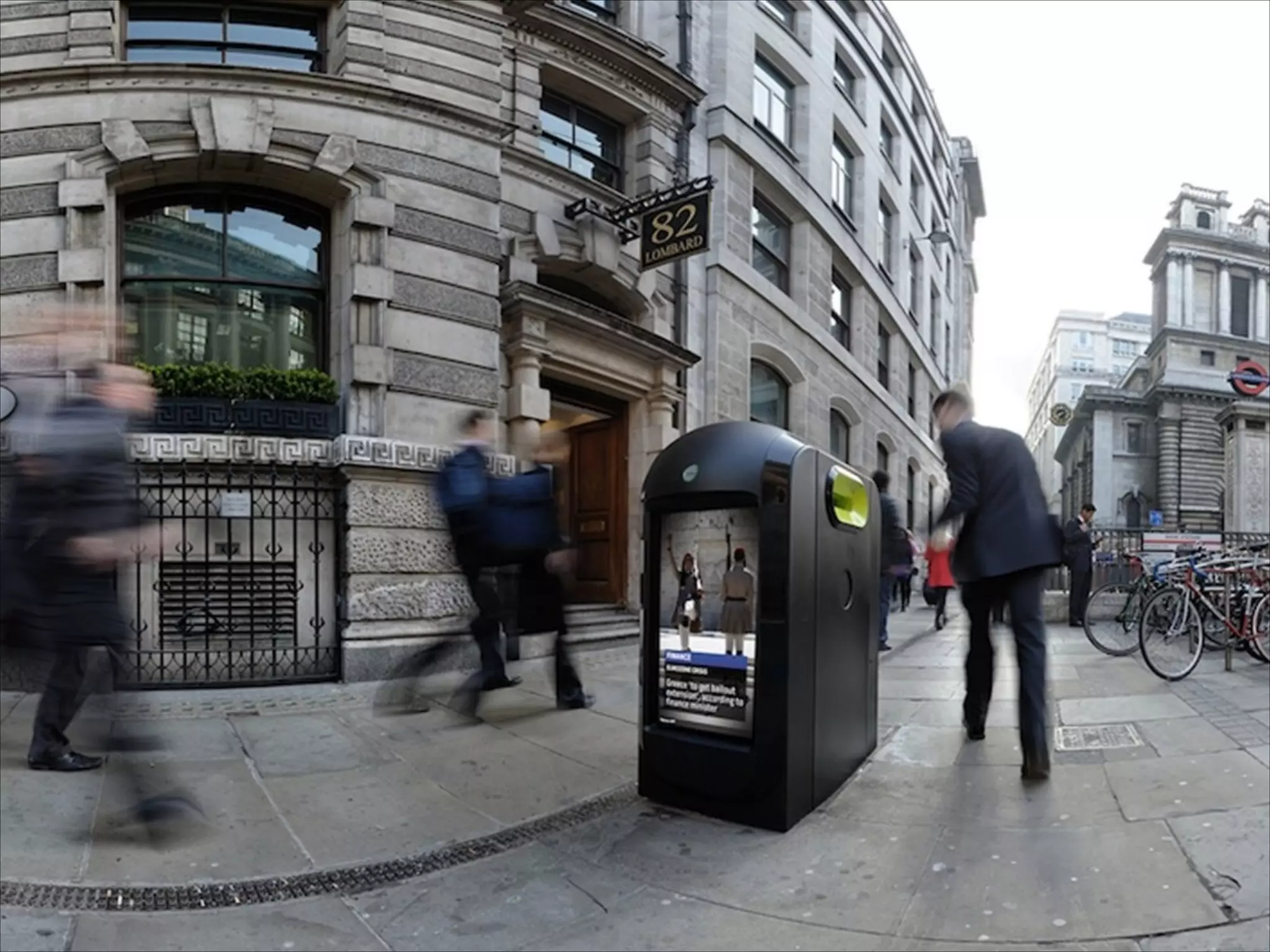

• “Smart” rubbish bins…

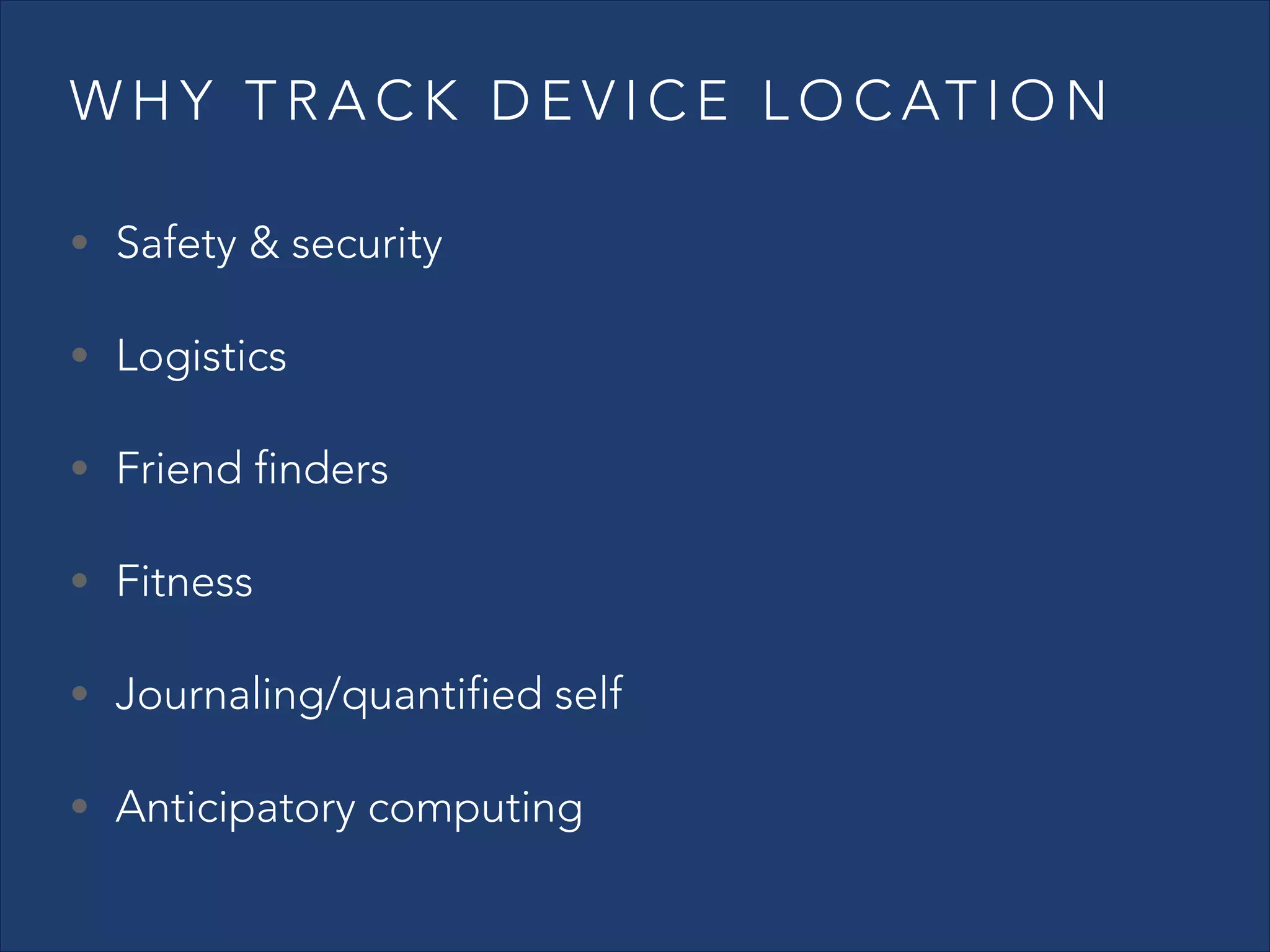

7. W H Y T R A C K D E V I C E L O C AT I O N
• Safety & security
• Logistics
• Friend finders
• Fitness
• Journaling/quantified self
• Anticipatory computing

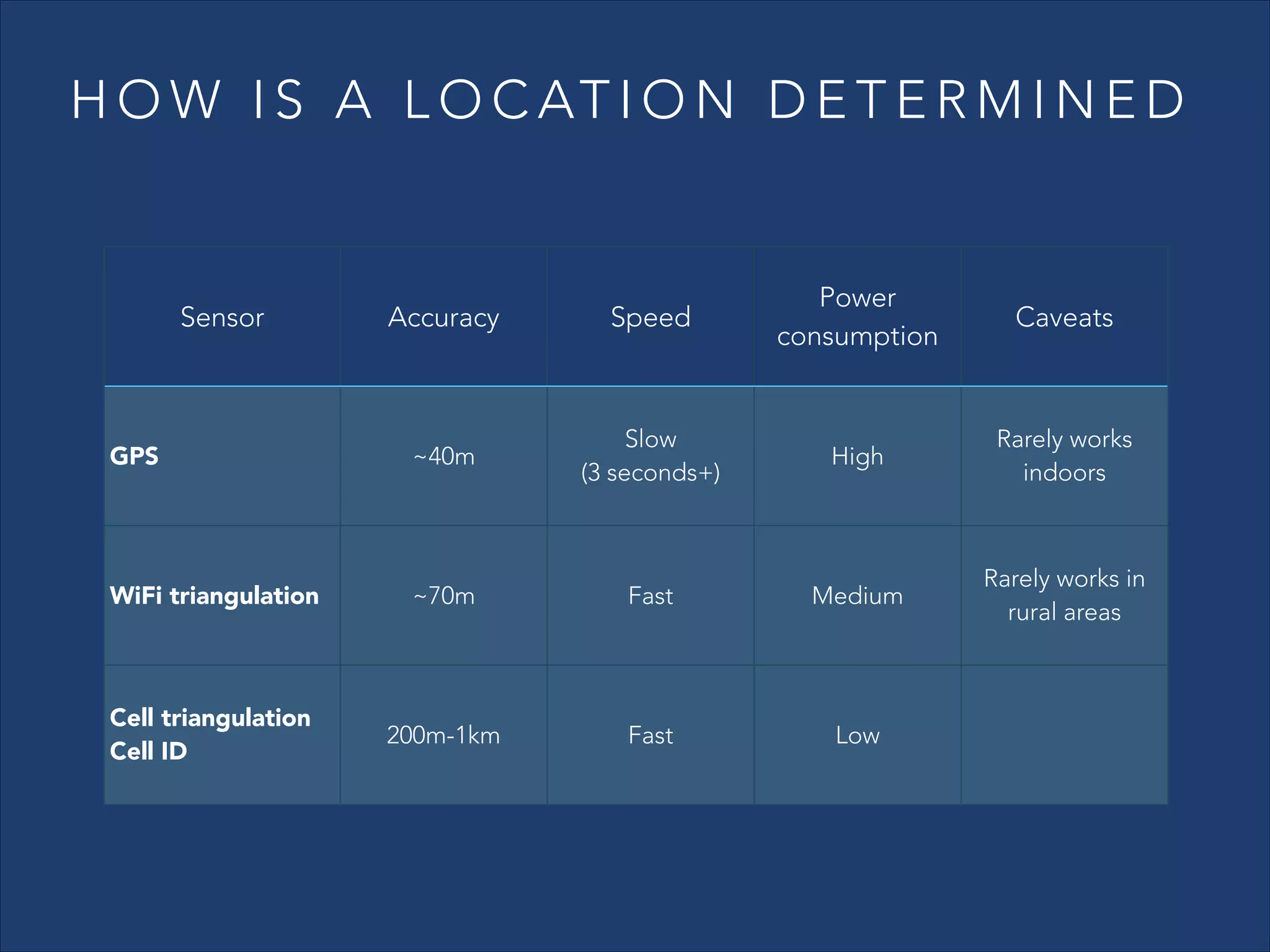

8. H O W I S A L O C AT I O N D E T E R M I N E D
Accuracy
Speed
Power
consumption
GPS
~40m
Slow
(3 seconds+)
High
Rarely works
indoors
WiFi triangulation
~70m
Fast
Medium
Rarely works in
rural areas
Cell triangulation
Cell ID
200m-1km
Fast
Low
Sensor
Caveats

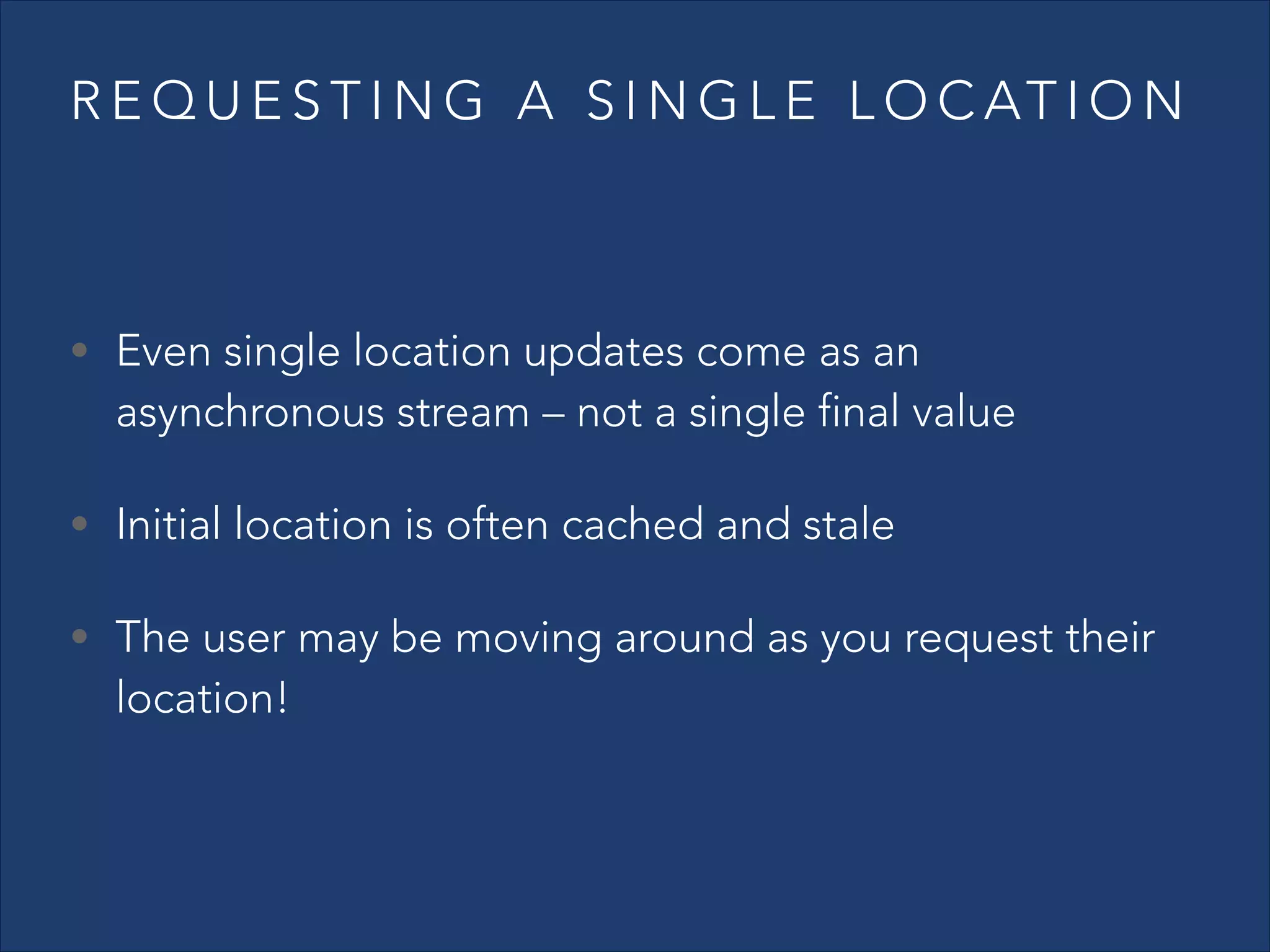

9. R E Q U E S T I N G A S I N G L E L O C AT I O N
• Even single location updates come as an
asynchronous stream – not a single final value
• Initial location is often cached and stale
• The user may be moving around as you request their
location!

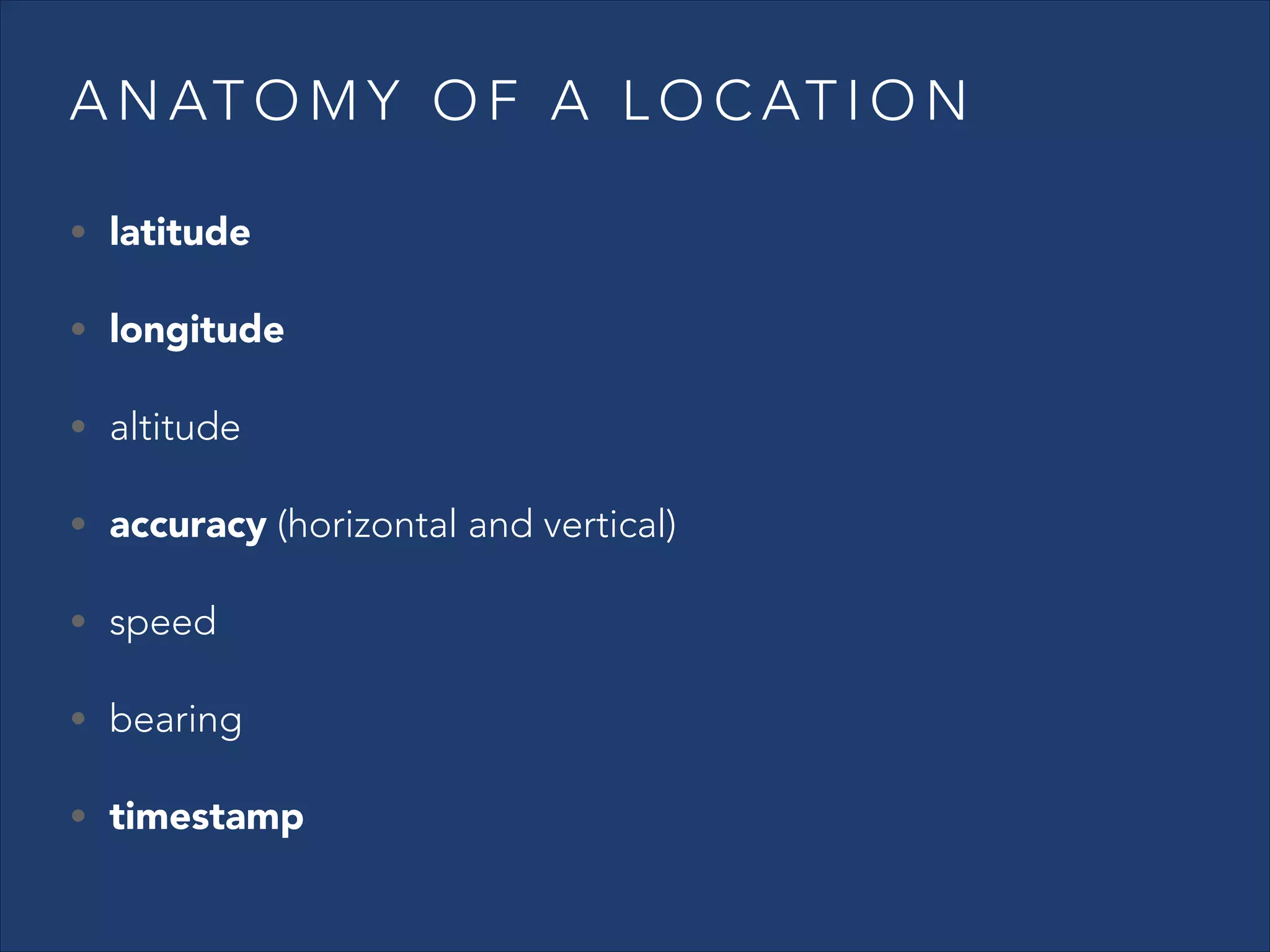

10. A N AT O M Y O F A L O C AT I O N
• latitude
• longitude
• altitude
• accuracy (horizontal and vertical)
• speed
• bearing
• timestamp

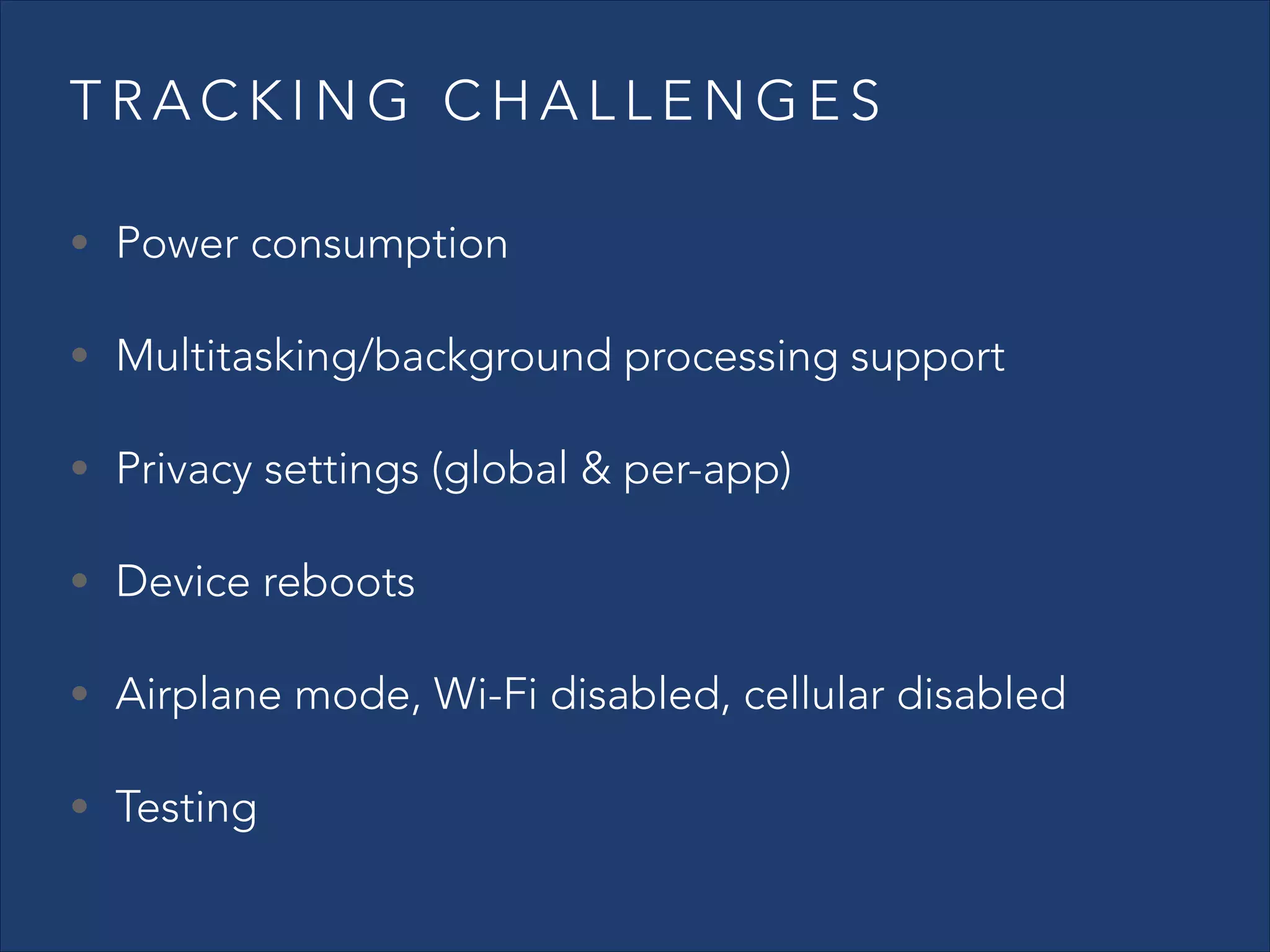

12. TRACKING CHALLENGES
• Power consumption
• Multitasking/background processing support
• Privacy settings (global & per-app)
• Device reboots
• Airplane mode, Wi-Fi disabled, cellular disabled
• Testing

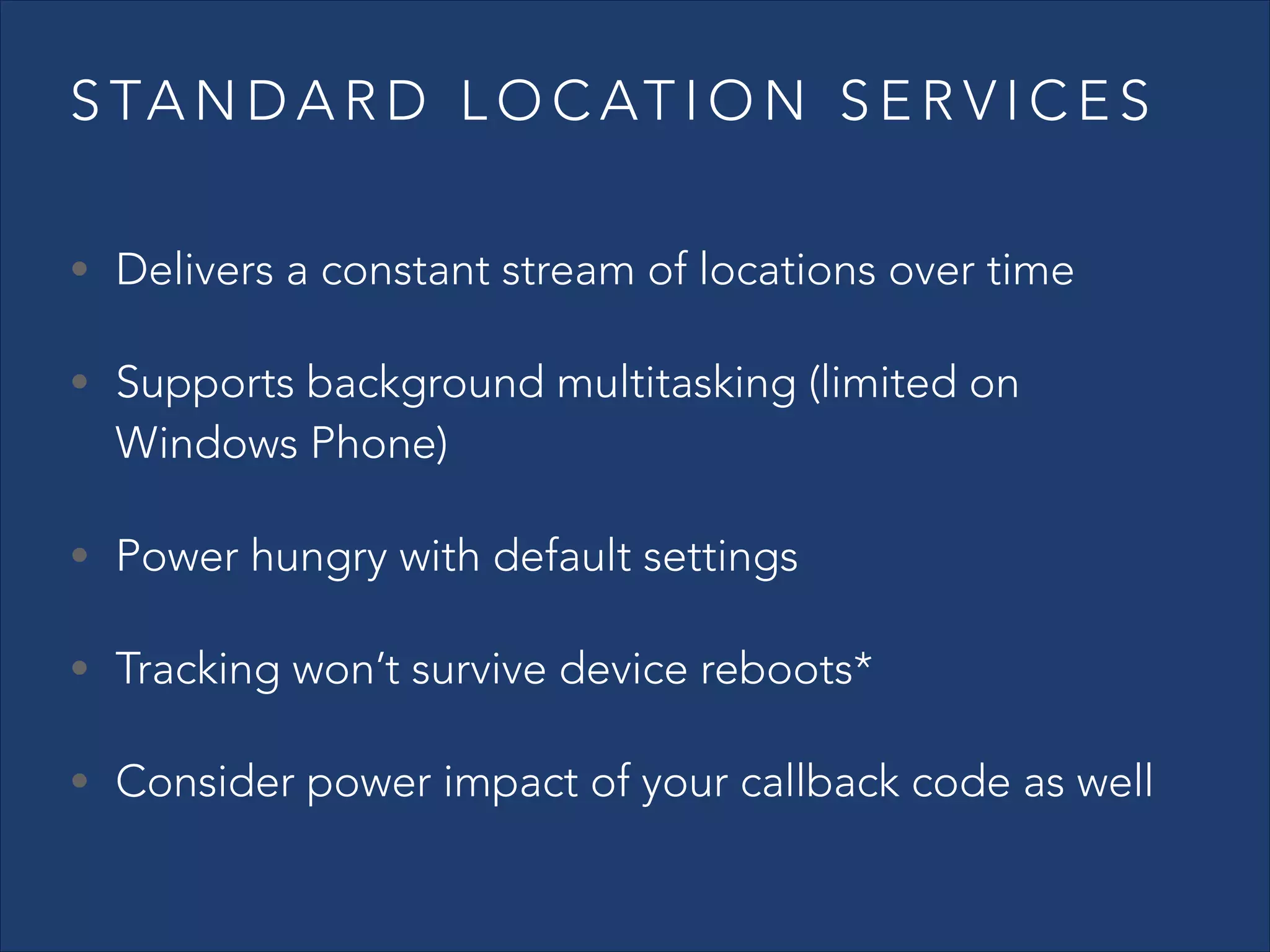

13. S TA N D A R D L O C AT I O N S E R V I C E S
• Delivers a constant stream of locations over time
• Supports background multitasking (limited on
Windows Phone)
• Power hungry with default settings
• Tracking won’t survive device reboots*
• Consider power impact of your callback code as well

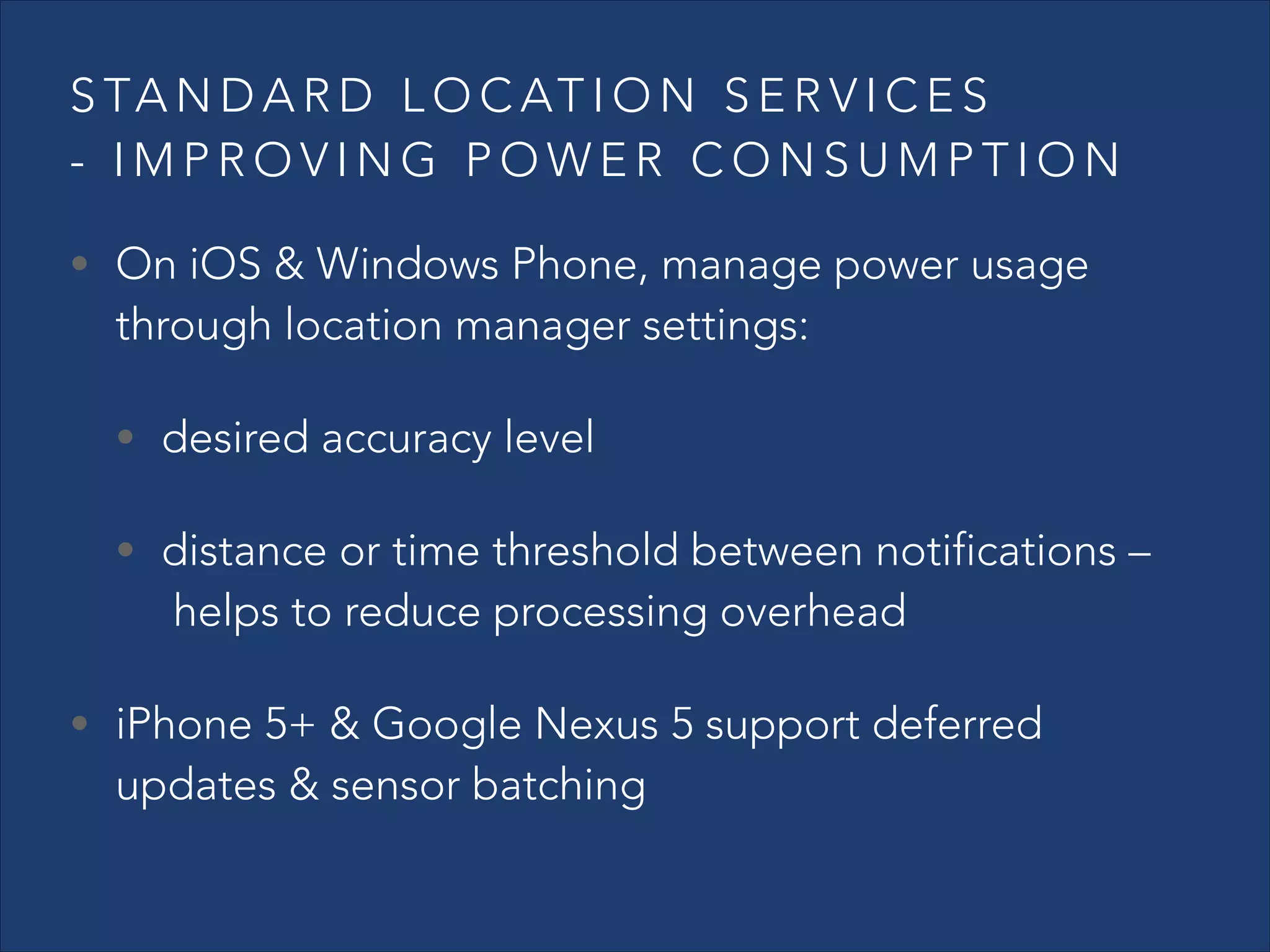

14. S TA N D A R D L O C AT I O N S E R V I C E S
- IMPROVING POWER CONSUMPTION
• On iOS & Windows Phone, manage power usage
through location manager settings:
• desired accuracy level
• distance or time threshold between notifications –
helps to reduce processing overhead
• iPhone 5+ & Google Nexus 5 support deferred
updates & sensor batching

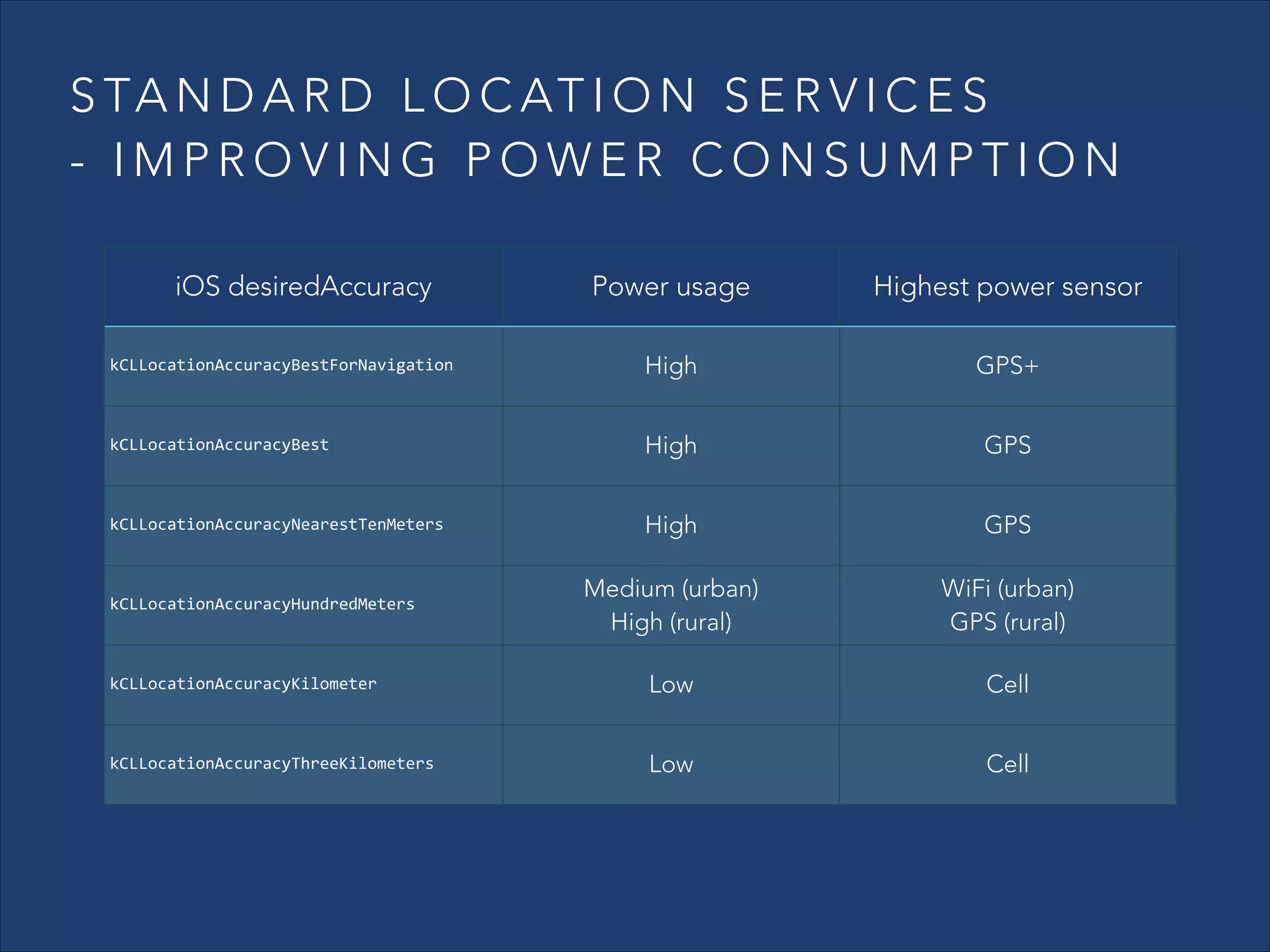

15. S TA N D A R D L O C AT I O N S E R V I C E S
- IMPROVING POWER CONSUMPTION
iOS desiredAccuracy
Power usage
Highest power sensor
kCLLocationAccuracyBestForNavigation
High
GPS+
kCLLocationAccuracyBest
High
GPS
kCLLocationAccuracyNearestTenMeters
High
GPS
Medium (urban)
High (rural)
WiFi (urban)
GPS (rural)
kCLLocationAccuracyKilometer
Low
Cell
kCLLocationAccuracyThreeKilometers
Low
Cell
kCLLocationAccuracyHundredMeters

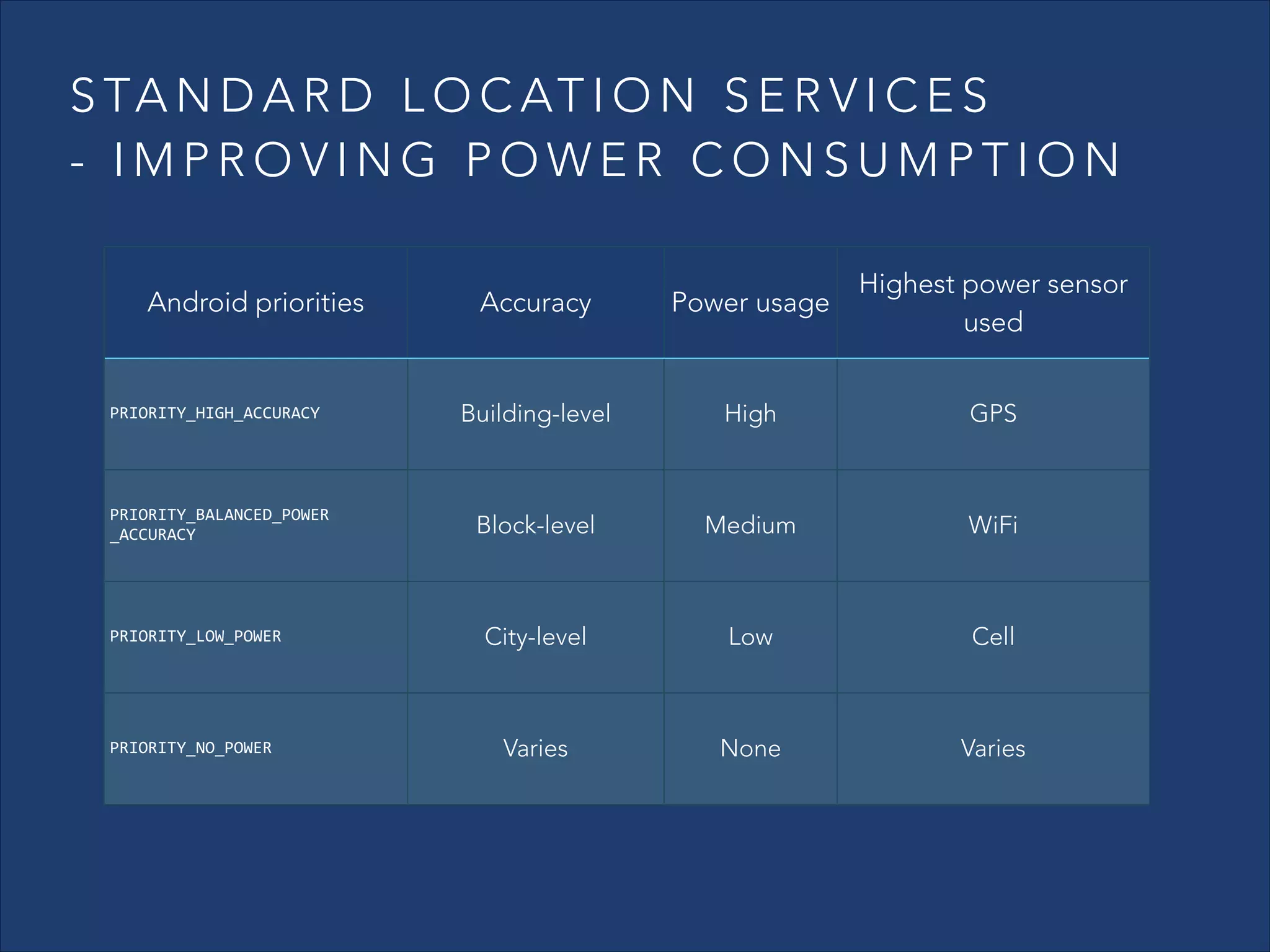

16. S TA N D A R D L O C AT I O N S E R V I C E S
- IMPROVING POWER CONSUMPTION
Accuracy
Power usage
Highest power sensor
used
Building-level
High
GPS
Block-level
Medium
WiFi
PRIORITY_LOW_POWER
City-level
Low
Cell
PRIORITY_NO_POWER
Varies
None
Varies
Android priorities
PRIORITY_HIGH_ACCURACY
PRIORITY_BALANCED_POWER
_ACCURACY

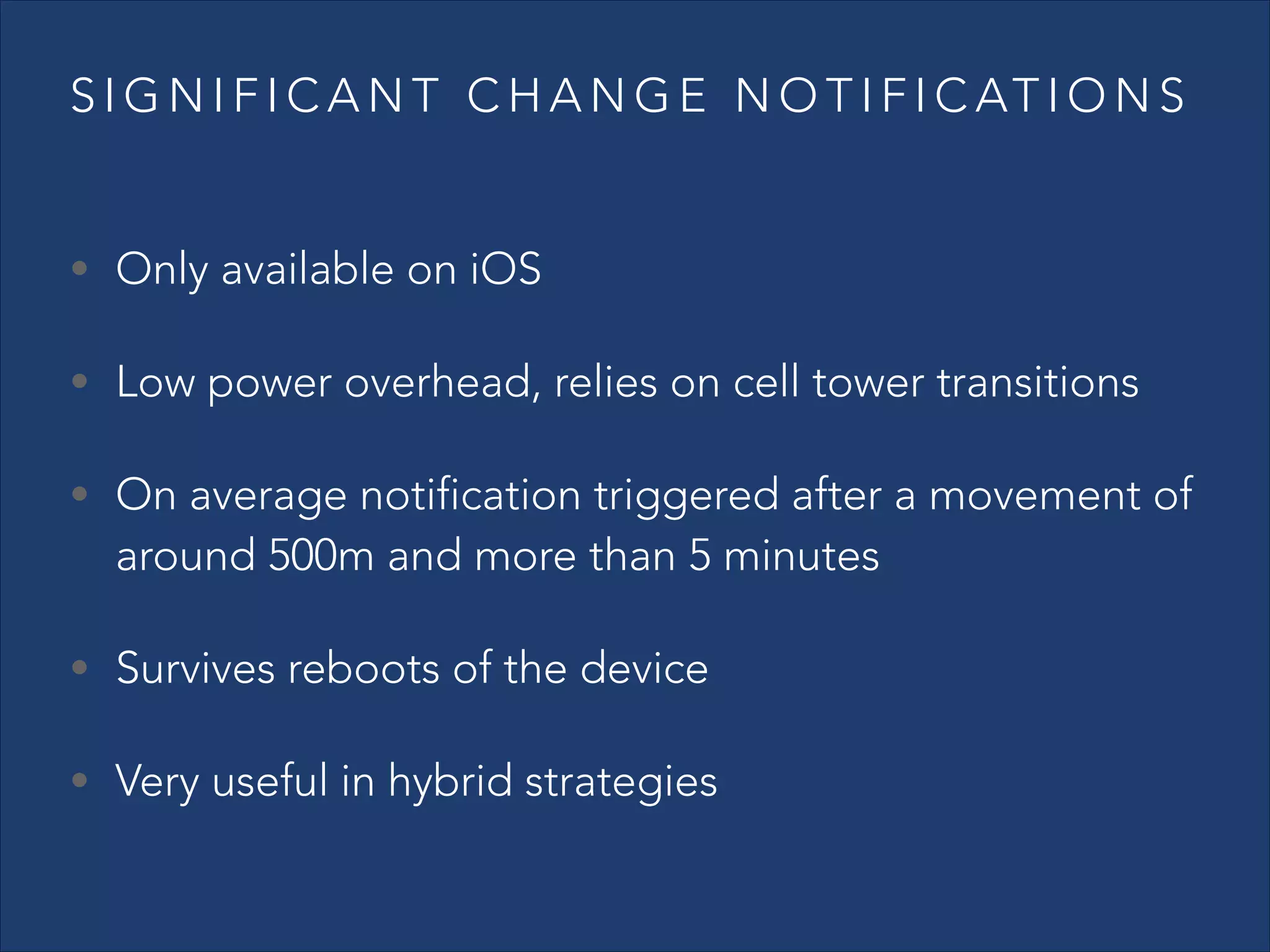

18. S I G N I F I C A N T C H A N G E N O T I F I C AT I O N S
• Only available on iOS
• Low power overhead, relies on cell tower transitions
• On average notification triggered after a movement of
around 500m and more than 5 minutes
• Survives reboots of the device
• Very useful in hybrid strategies

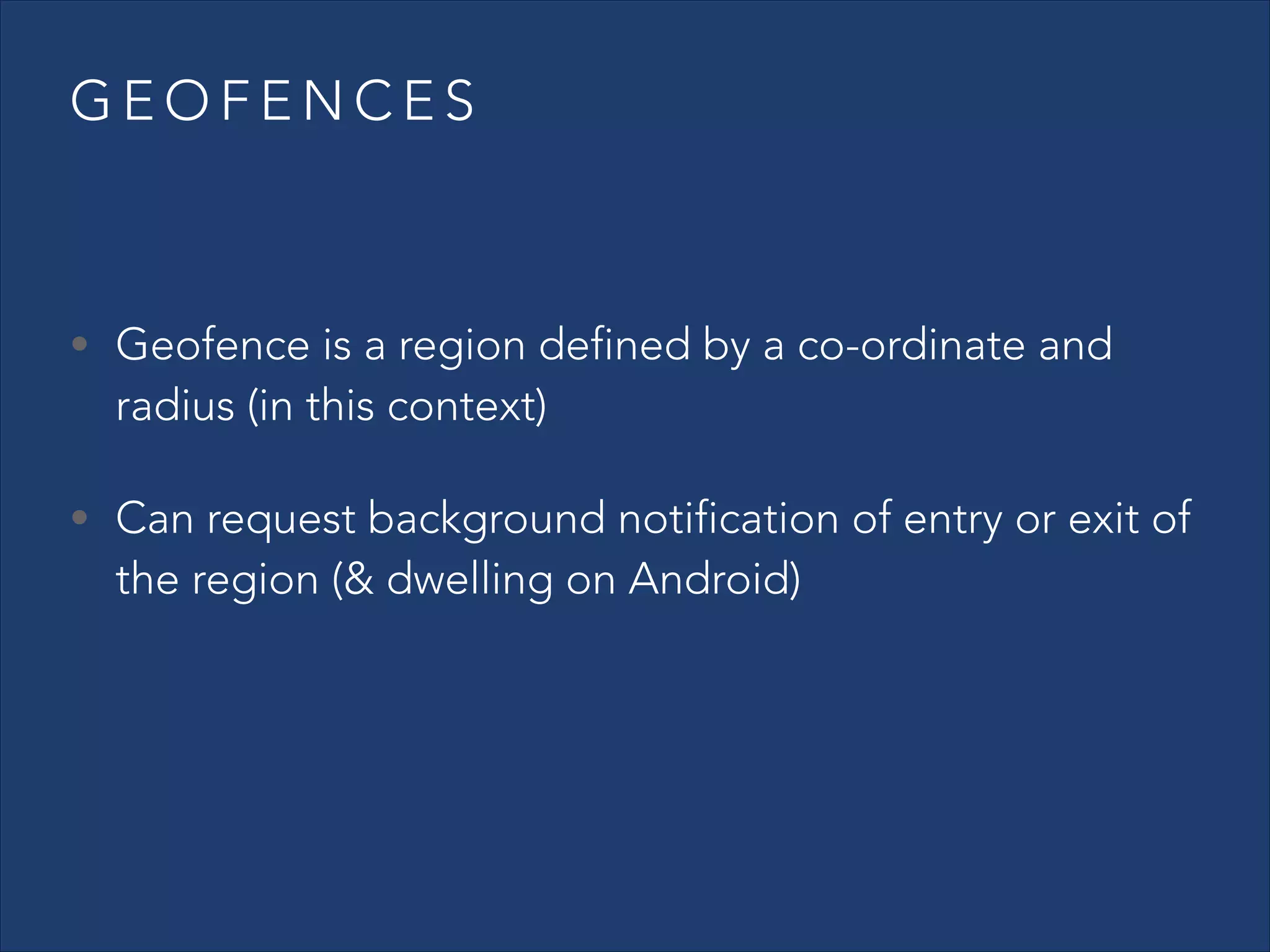

21. GEOFENCES
!
• Geofence is a region defined by a co-ordinate and
radius (in this context)
• Can request background notification of entry or exit of
the region (& dwelling on Android)

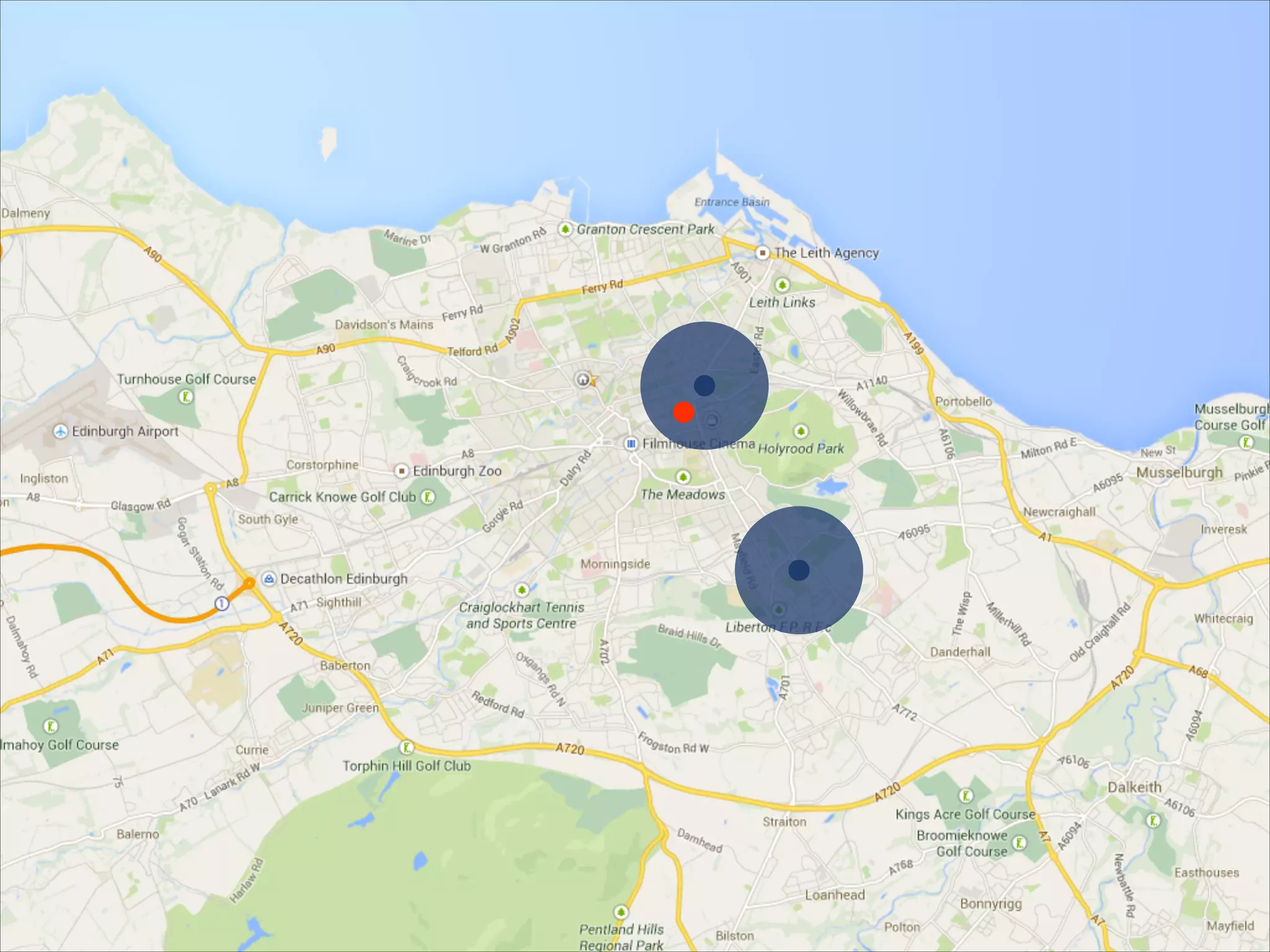

22. A
B

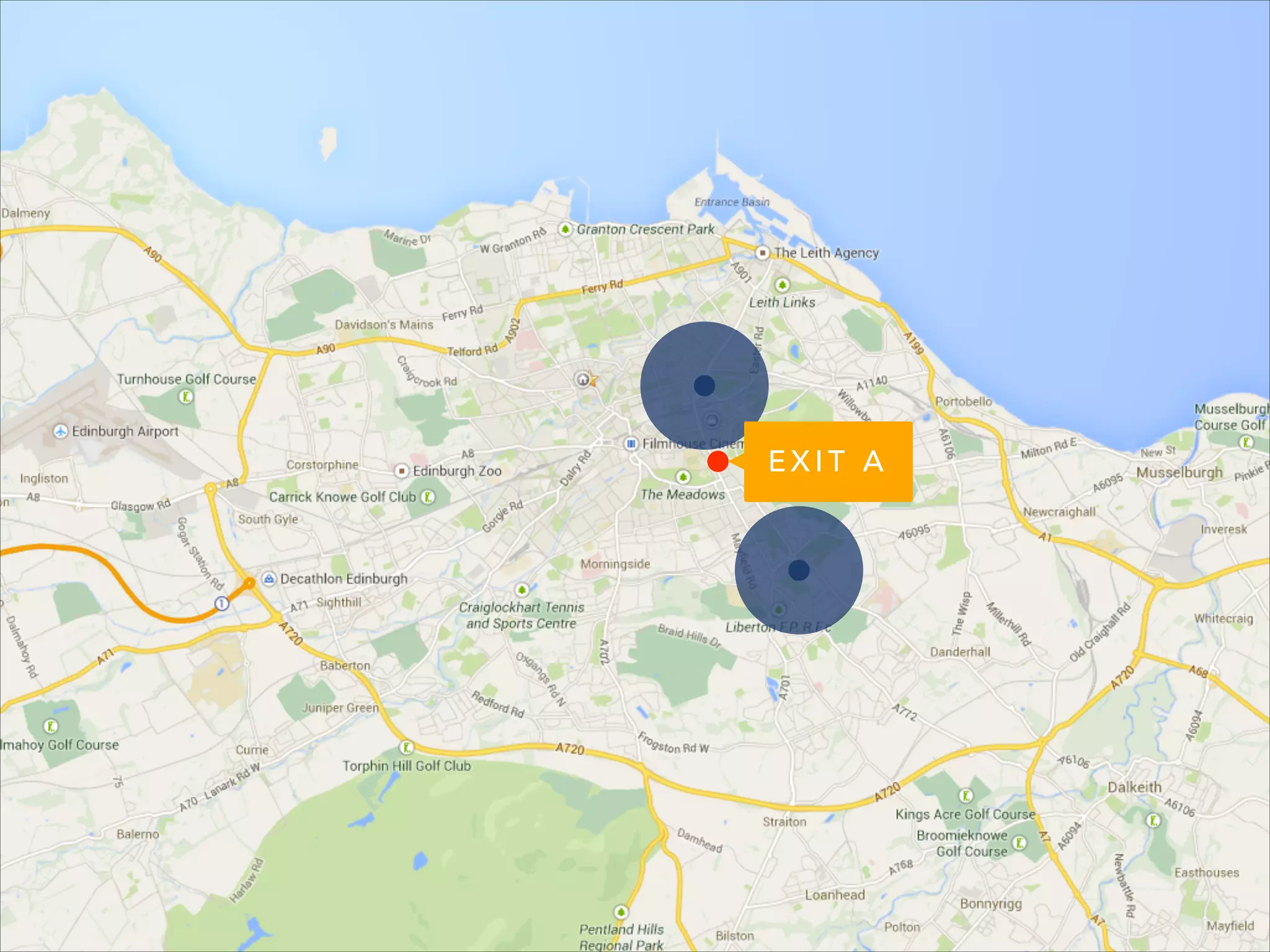

24. EXIT A

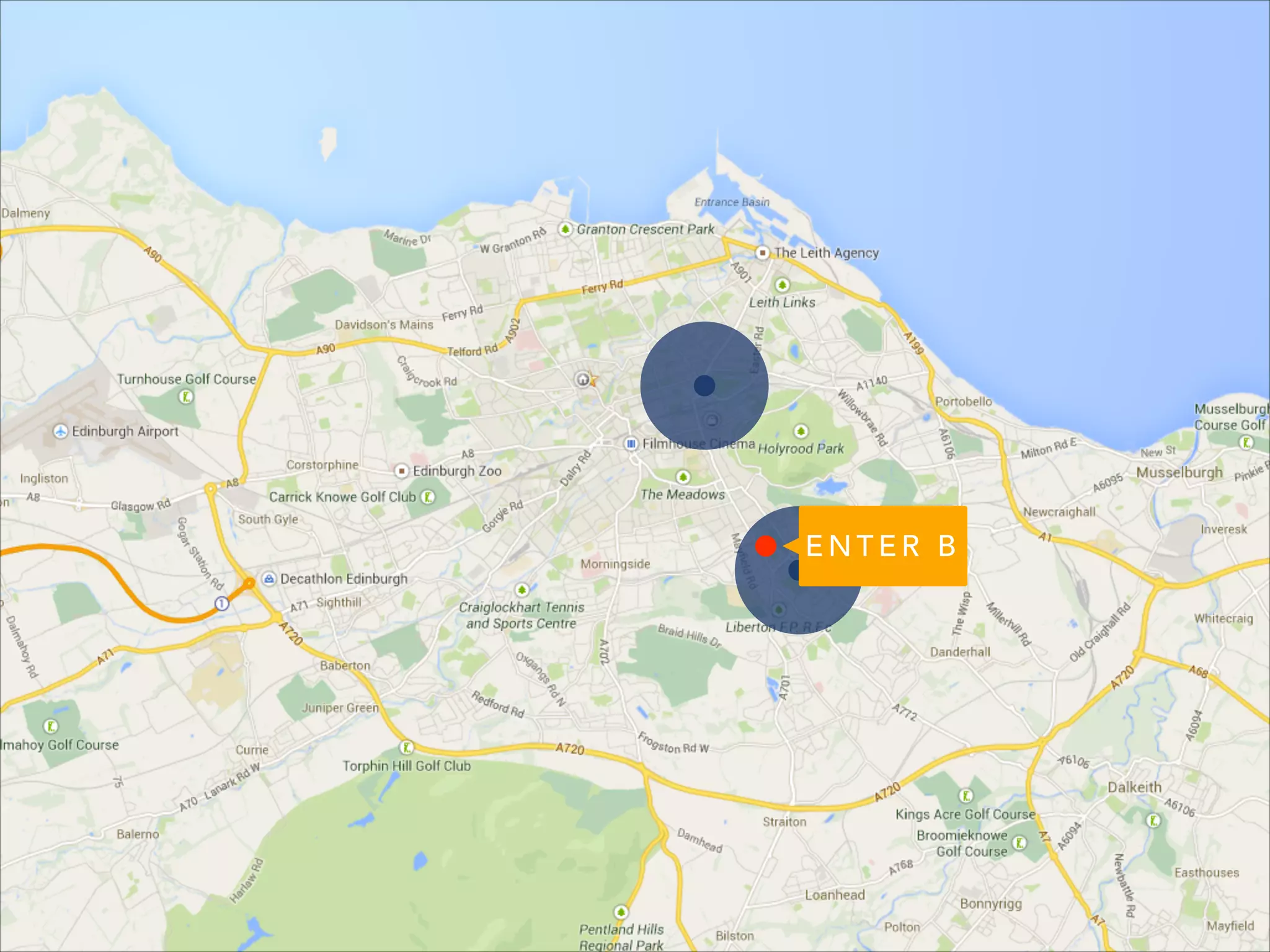

25. ENTER B

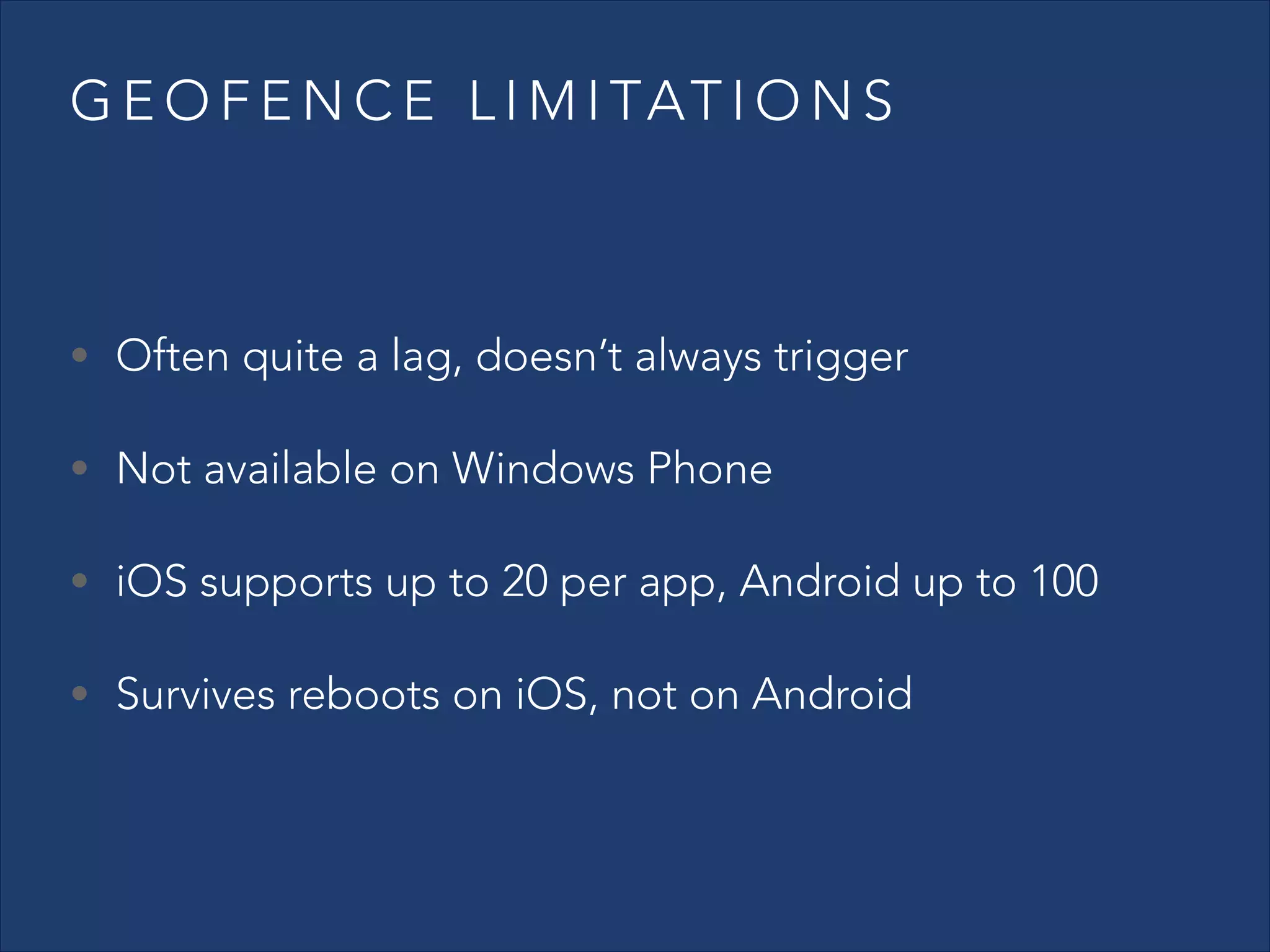

26. G E O F E N C E L I M I TAT I O N S
• Often quite a lag, doesn’t always trigger
• Not available on Windows Phone
• iOS supports up to 20 per app, Android up to 100
• Survives reboots on iOS, not on Android

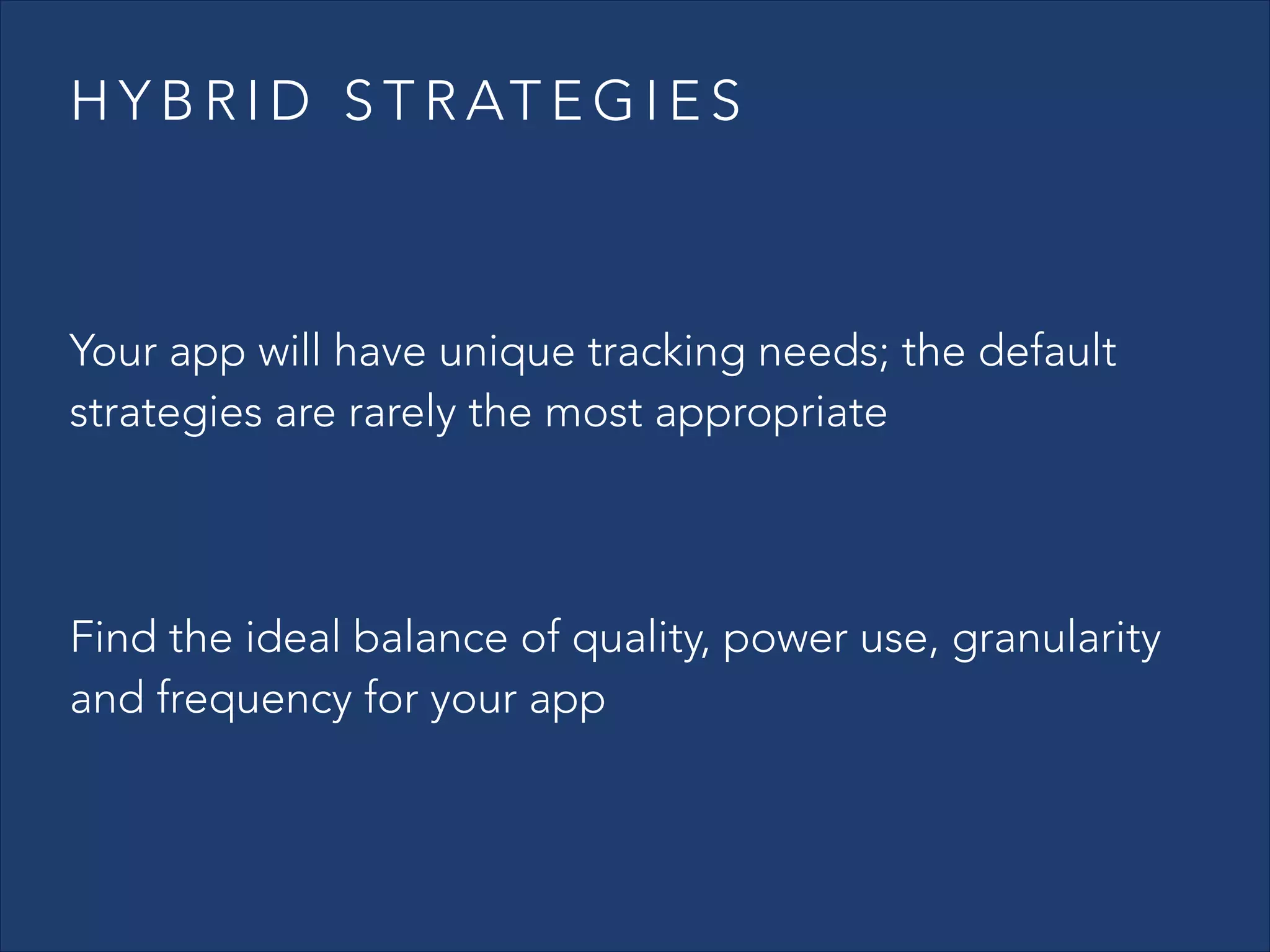

27. H Y B R I D S T R AT E G I E S
Your app will have unique tracking needs; the default
strategies are rarely the most appropriate
!
Find the ideal balance of quality, power use, granularity
and frequency for your app

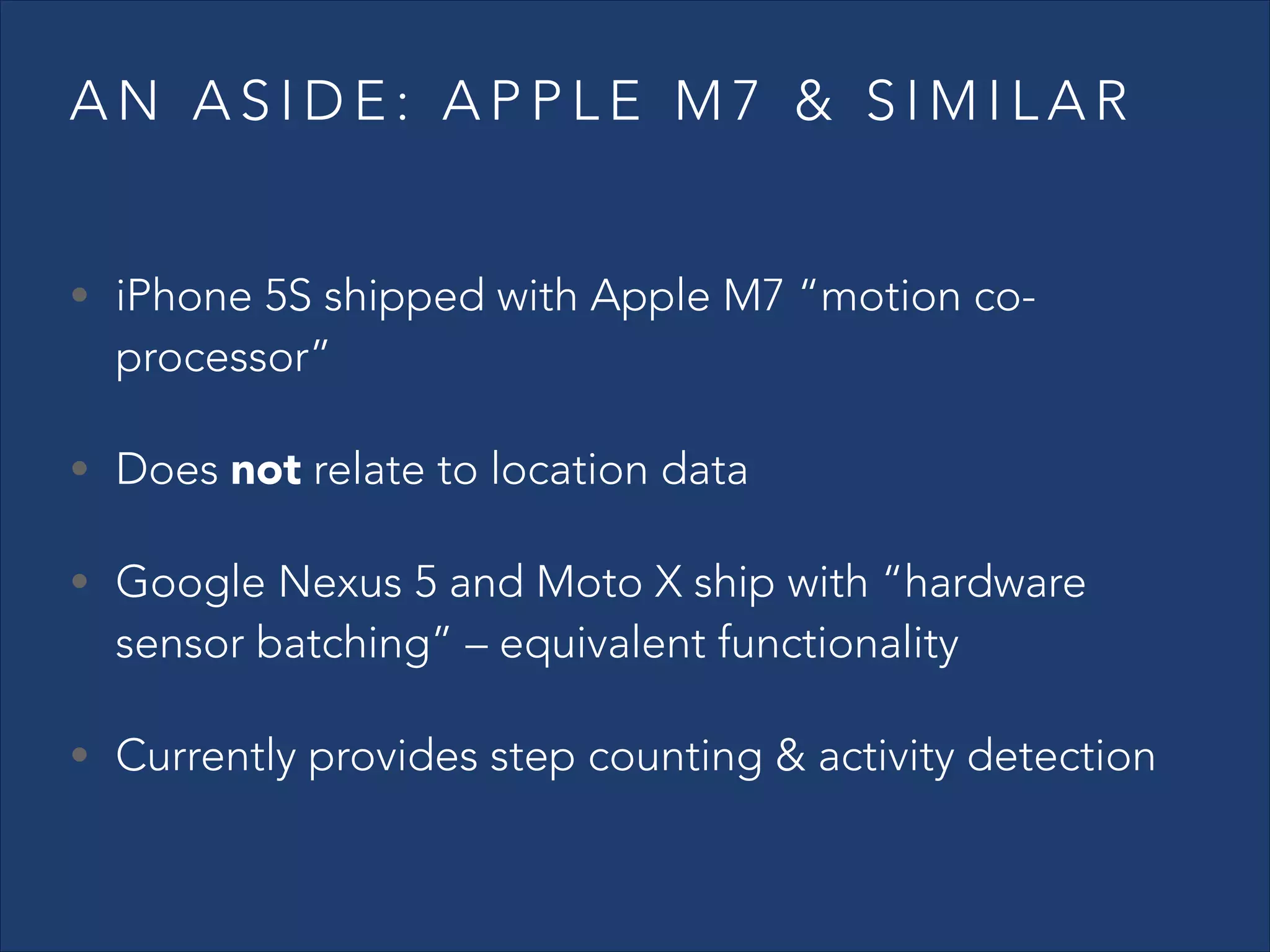

28. AN ASIDE: APPLE M7 & SIMILAR
• iPhone 5S shipped with Apple M7 “motion co-
processor”
• Does not relate to location data
• Google Nexus 5 and Moto X ship with “hardware
sensor batching” – equivalent functionality
• Currently provides step counting & activity detection

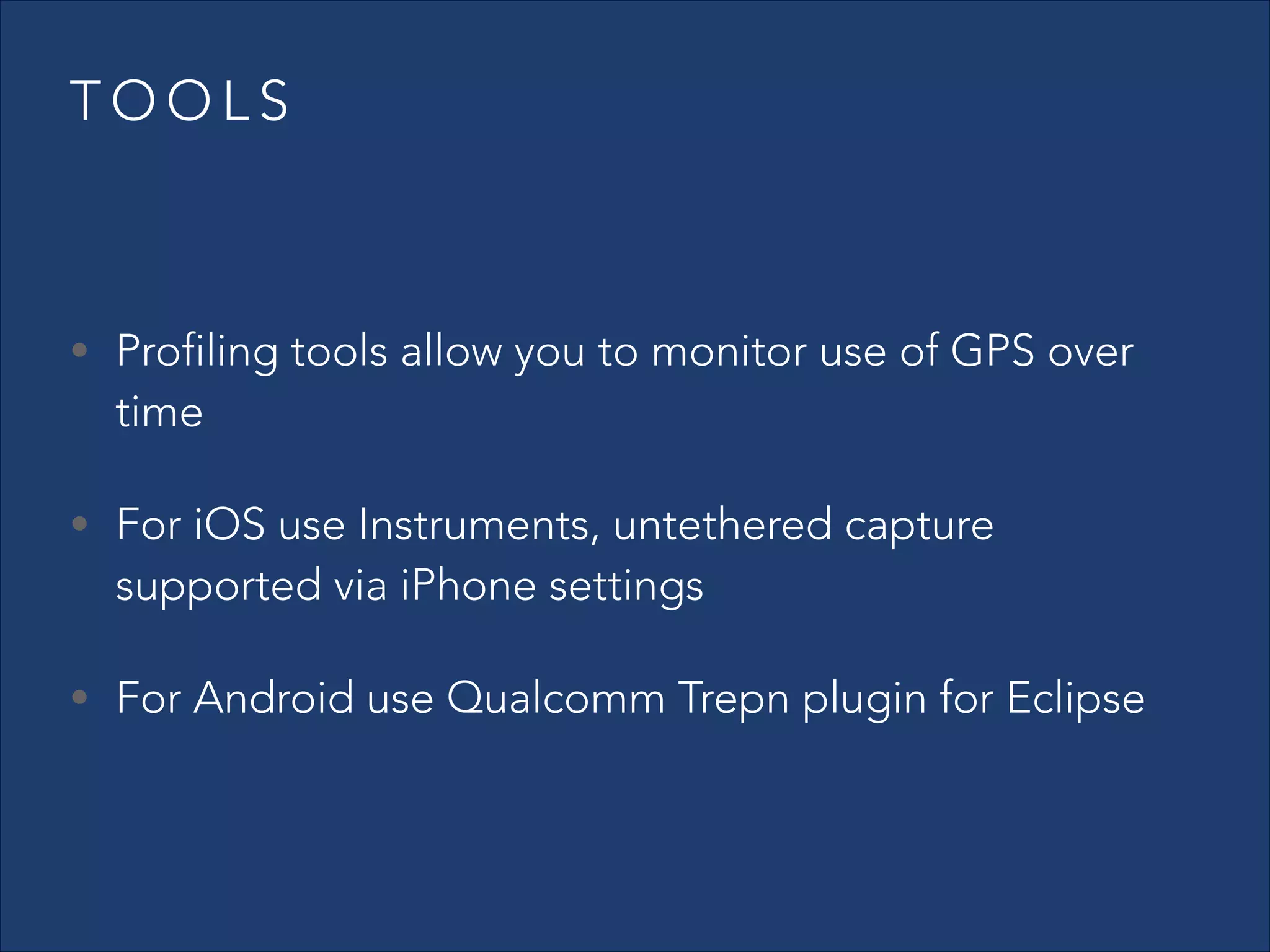

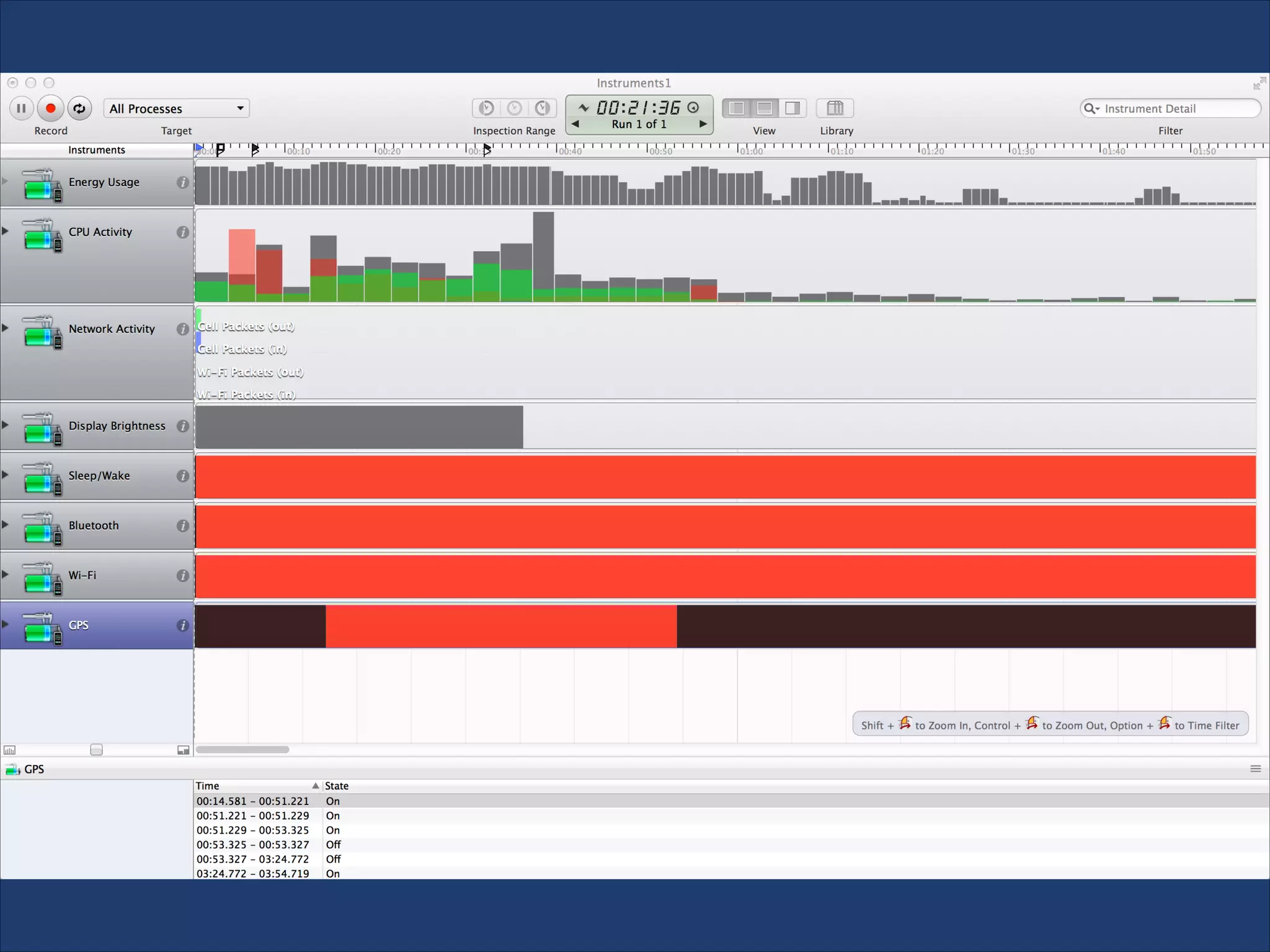

29. TOOLS
• Profiling tools allow you to monitor use of GPS over
time

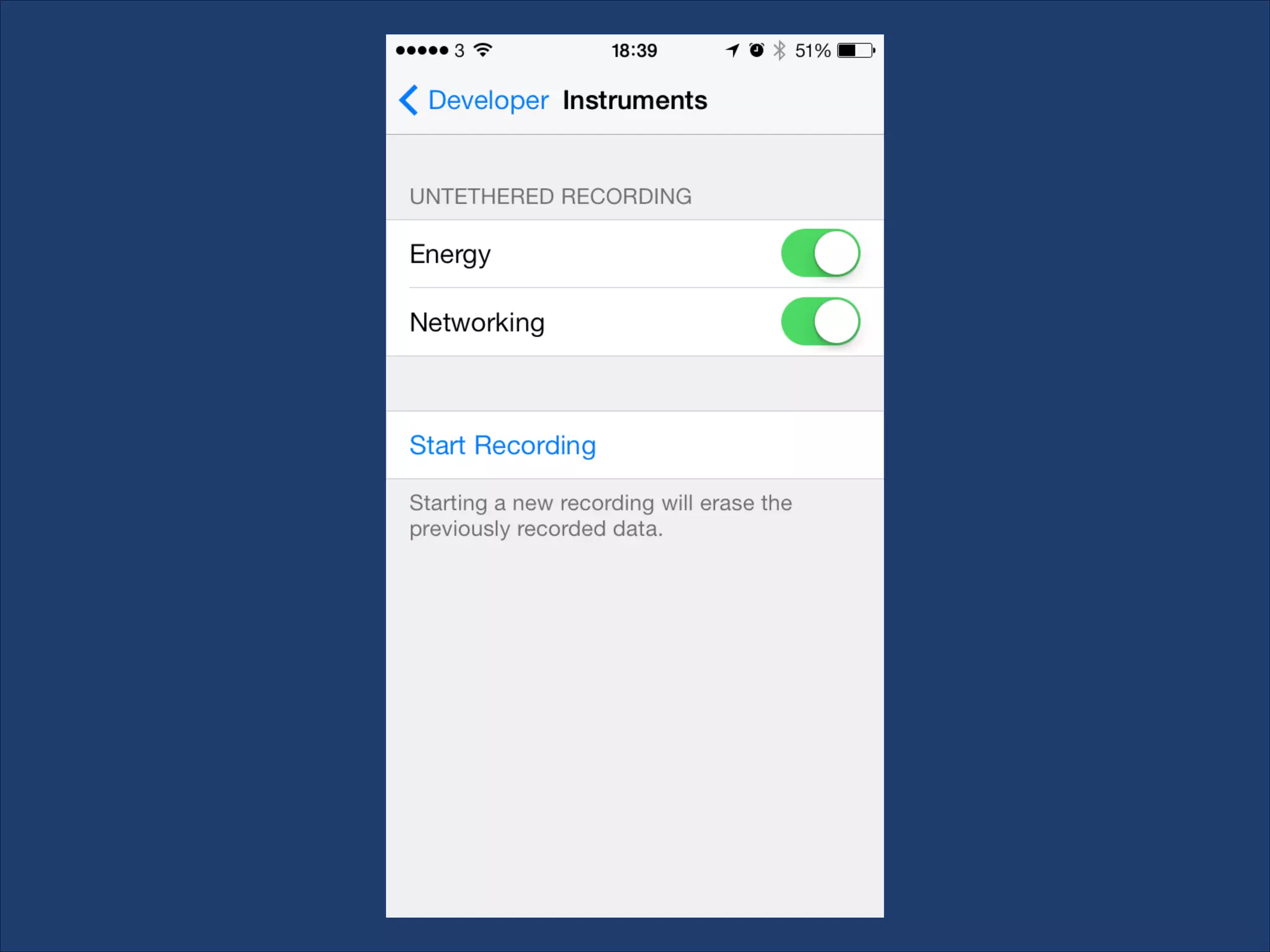

• For iOS use Instruments, untethered capture
supported via iPhone settings
• For Android use Qualcomm Trepn plugin for Eclipse

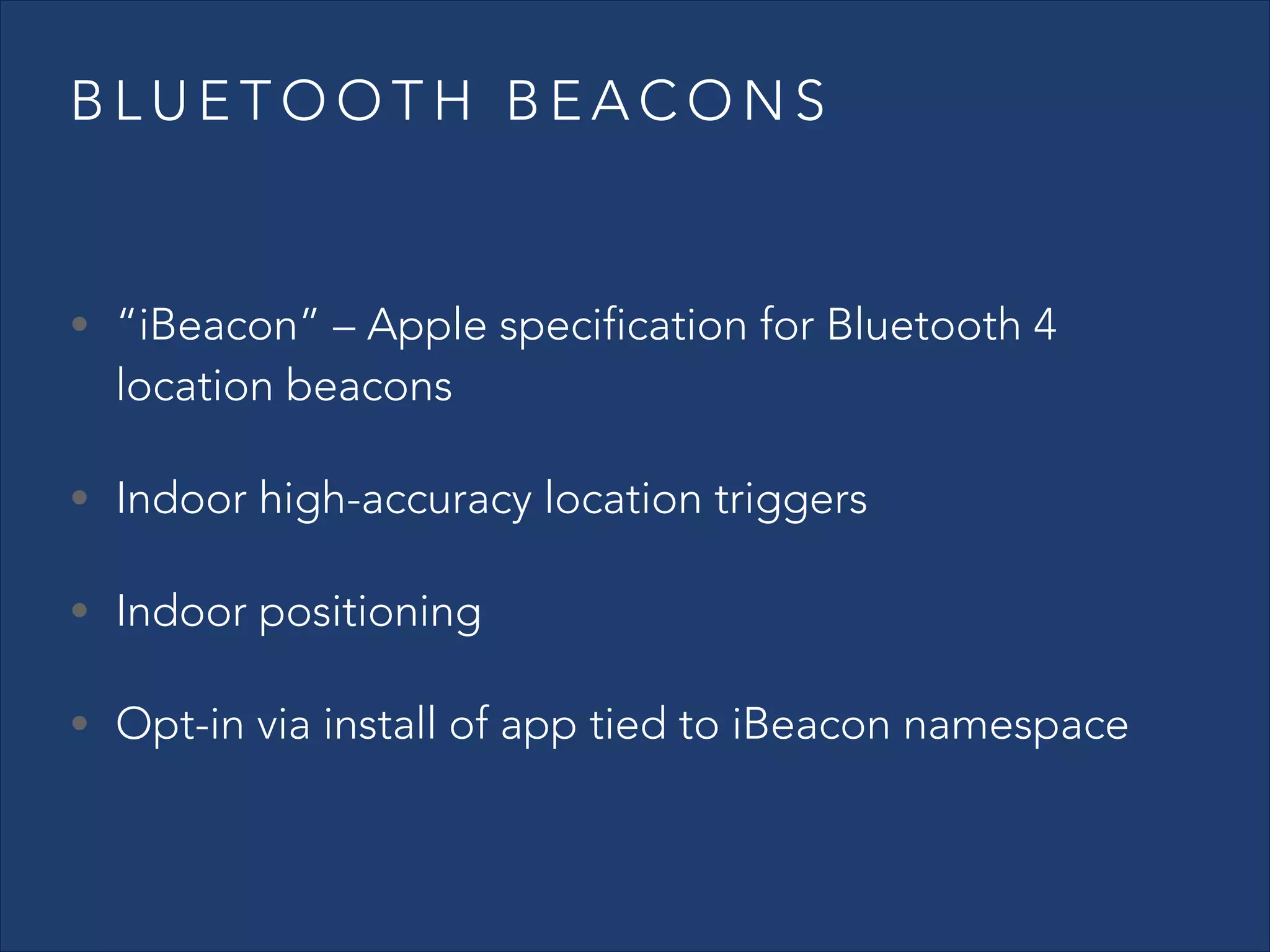

32. BLUETOOTH BEACONS
• “iBeacon” – Apple specification for Bluetooth 4
location beacons
• Indoor high-accuracy location triggers
• Indoor positioning
• Opt-in via install of app tied to iBeacon namespace

33. THANKS!
@richardkeen
richard.keen@gmail.com
iOS reference: http://bit.ly/19O9PZS
Android reference: http://bit.ly/18mMnSX
Windows Phone reference: http://bit.ly/1aJu6y8
