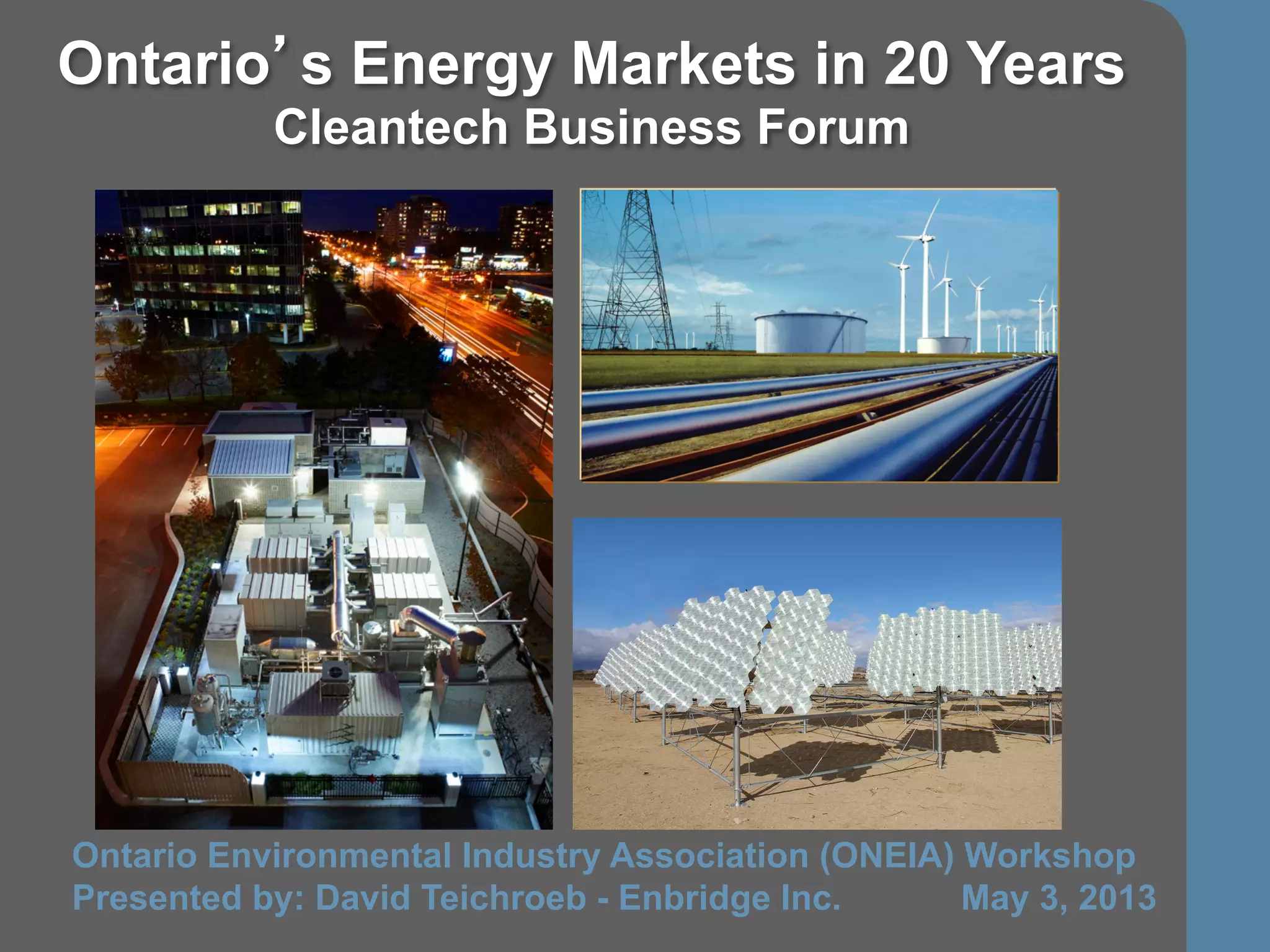

1. 1
Ontario’s Energy Markets in 20 Years
Cleantech Business Forum
Ontario Environmental Industry Association (ONEIA) Workshop
Presented by: David Teichroeb - Enbridge Inc. May 3, 2013
2. 2
Enbridge’s Footprint
• Employ 10,000 in Canada & U.S.
• Largest liquid pipeline operation
• Natural gas transmission and
Canada’s largest gas distributor
• Electricity transmission
• ~ $ 3 Billion in Green and
Alternative energy
• Includes fuel cells, geothermal
power, run of river hydro, heat
to power, etc.
• More than 1300 MW of wind
and solar assets operating or
under construction
• Recent Investments include
Hydrogenics and Temporal
Power for electricity storage &
Morgan Solar for CPV
3. 3
Investing in Ontario Companies
Morgan Solar – Toronto, Ont.
• Concentrating Solar Photovoltaic (CPV)
– Sun tracking technology
– Good potential for grid parity power costs
Hydrogenics, Mississauga, Ont.
• Electricity Storage with Hydrogen
– Power-to-Gas uses hydrogen electrolyzers for
bulk storage of surplus renewable power
– Store renewable Hydrogen in natural gas grid
Temporal Power, Mississauga, Ont.
• Flywheel Energy Storage
– Flywheels enable correction of short-duration
power imbalances
– Mechanical battery storing kinetic energy
Source: Morgan Solar, CPV
Source: Hydrogenics
Source: Temporal Power
4. 4
Innovating for Smarter Energy Grids
Energy Exchanges Between Silos
• Energy exchanges
bring new economic,
environmental , and
operating flexibility to
power grids
• Power to Gas converts
renewable energy to
hydrogen with
electrolyzers
• Renewable gas back
to power
Natural
Gas
35%
Transport
Fuels
36%
Electricity
19%
Other
10%
Ontario’s
Energy-‐Use
ComposiCon
Source Data: Rethinking Energy Conservation in Ontario, May 2010 Report
Gas to
Power
5. 5
Power to Gas; Seasonal Electricity Storage
• Off-Peak electricity to hydrogen with water electrolysis
• Blending of hydrogen in pipeline grids
• Store renewable gas in cavern or pipeline
• Blended gas to electricity at peak time / peak season
• Alternative end-use as green heat or upgrading
Renewable Fuel to CCGT
& Gas-Fired Distributed
Generation
Cavern Storage
PEM
Electrolysis
Natural Gas
Network
6. 6
Flexibility of Power to Gas
1) converts surplus, non-emitting electricity to hydrogen with electrolyser, 2)
bank energy in pipeline infrastructure, 3) transmit energy by pipeline, and 4)
economic discharge of renewables at the time and place it is needed
Energy
Storage
Energy
Transport
Energy DischargeEnergy Capture
Power Grid
Gas and H2 PipelinesLoad Electrolyser
Gas T
HCNG, & H2 for Upgrading
Gas Turbine (CCGT)
Low
Carbon
Heat
Green Power
Green Heat
Green TransportationHydrogen
Surplus Power
Regulation
Services for ISO
Green
Gas
7. 7
Original Source Image: CGA, “Natural Gas, our
Place in Canada’s Sustainable Energy Future
Hydrogen Production
Surplus Power
Hydrogen Injection
Into Pipeline
Smart Energy Grids Share Infrastructure
Underground Gas
Storage Reservoir
Combined Cycle Gas
Turbine Generators
• More flexible planning for energy supply & transmission
• Geographically distributed for grid stability, charging and discharging
• Electricity storage with the single addition of electrolyzer
• all other infrastructure exists
