Electrode selection
•
13 likes
•
9,000 views
P
Prasanth Kumar
Follow
ELECTRODE SELECTION -
Read less
Read more
Engineering
Report
Share
Report
Share
1 of 5
Download now
Download to read offline
Recommended
Selection of filler wire
Selection of filler wire
Imran Jamil
Asme sec ix
Asme sec ix
Mohammad Hadi Khosravi
How to write a Welding Procedure Specification (ISO 15614-1
How to write a Welding Procedure Specification (ISO 15614-1
Tiago Pereira
Wis5 welding consumables 18
Wis5 welding consumables 18
Thang Do Minh
Presentation on wpqr wps asme_ix
Presentation on wpqr wps asme_ix
mayank0738
WPS & WPQ
WPS & WPQ
Afshin Maaf Roodpishi
Asme section ii c new
Asme section ii c new
Jithu John
Dimensions of metric hex nuts
Dimensions of metric hex nuts
tejasudas
Recommended
Selection of filler wire
Selection of filler wire
Imran Jamil
Asme sec ix
Asme sec ix
Mohammad Hadi Khosravi
How to write a Welding Procedure Specification (ISO 15614-1
How to write a Welding Procedure Specification (ISO 15614-1
Tiago Pereira
Wis5 welding consumables 18
Wis5 welding consumables 18
Thang Do Minh
Presentation on wpqr wps asme_ix
Presentation on wpqr wps asme_ix
mayank0738
WPS & WPQ
WPS & WPQ
Afshin Maaf Roodpishi
Asme section ii c new
Asme section ii c new
Jithu John
Dimensions of metric hex nuts
Dimensions of metric hex nuts
tejasudas
Asmesectionix
Asmesectionix
Nuri Cesur
Asme sec viii div 2
Asme sec viii div 2
Jithu John
Asme sec. ix bkr - 051010
Asme sec. ix bkr - 051010
Jithu John
pipe welding
pipe welding
Marry Sol Lare
Asme sec ix overview
Asme sec ix overview
AshifuddinAli
Procedure qualification
Procedure qualification
vaasuBandaru
Welding of Similar & dissimilar - Metal filler chart
Welding of Similar & dissimilar - Metal filler chart
Vidhi Sukhadiya
Asme sec viii div 1 s
Asme sec viii div 1 s
Jithu John
Arc Welding Basics
Arc Welding Basics
Thomas Riggleman
Piping welding notes for beginners
Piping welding notes for beginners
MOHAMMAD ATIF ALI
Welder qualification
Welder qualification
kharafi national,kuwait
Welding defects
Welding defects
Vlastimir Novakovic
Asme b31.3 process_piping
Asme b31.3 process_piping
dinusim
criteria of weld defects
criteria of weld defects
Saqib Rasool
WELDING QUALIFICATION.PPT
WELDING QUALIFICATION.PPT
AbrahamAby3
Dissimilar electrode filler wire
Dissimilar electrode filler wire
Amit Gokhale
what is process piping
what is process piping
Varun Patel
How to produce PQR
How to produce PQR
Mohamed Farouk
Asme b31,pressure piping code
Asme b31,pressure piping code
Sayed Salah Elsawey
fundamentals of Piping engineering
fundamentals of Piping engineering
MobinVarghese8
Stainless Steel Pipe Fittings Manufacturers
Stainless Steel Pipe Fittings Manufacturers
jackmethyu
Pipe fitting . in Pipes and tubes manufatuers, supplier, dealer in mumbai ,i...
Pipe fitting . in Pipes and tubes manufatuers, supplier, dealer in mumbai ,i...
DivyaDarshanMetallic
More Related Content
What's hot
Asmesectionix
Asmesectionix
Nuri Cesur
Asme sec viii div 2
Asme sec viii div 2
Jithu John
Asme sec. ix bkr - 051010
Asme sec. ix bkr - 051010
Jithu John
pipe welding
pipe welding
Marry Sol Lare
Asme sec ix overview
Asme sec ix overview
AshifuddinAli
Procedure qualification
Procedure qualification
vaasuBandaru
Welding of Similar & dissimilar - Metal filler chart
Welding of Similar & dissimilar - Metal filler chart
Vidhi Sukhadiya
Asme sec viii div 1 s
Asme sec viii div 1 s
Jithu John
Arc Welding Basics
Arc Welding Basics
Thomas Riggleman
Piping welding notes for beginners
Piping welding notes for beginners
MOHAMMAD ATIF ALI
Welder qualification
Welder qualification
kharafi national,kuwait
Welding defects
Welding defects
Vlastimir Novakovic
Asme b31.3 process_piping
Asme b31.3 process_piping
dinusim
criteria of weld defects
criteria of weld defects
Saqib Rasool
WELDING QUALIFICATION.PPT
WELDING QUALIFICATION.PPT
AbrahamAby3
Dissimilar electrode filler wire
Dissimilar electrode filler wire
Amit Gokhale
what is process piping
what is process piping
Varun Patel
How to produce PQR
How to produce PQR
Mohamed Farouk
Asme b31,pressure piping code
Asme b31,pressure piping code
Sayed Salah Elsawey
fundamentals of Piping engineering
fundamentals of Piping engineering
MobinVarghese8
What's hot
(20)
Asmesectionix
Asmesectionix
Asme sec viii div 2
Asme sec viii div 2
Asme sec. ix bkr - 051010
Asme sec. ix bkr - 051010
pipe welding
pipe welding
Asme sec ix overview
Asme sec ix overview
Procedure qualification
Procedure qualification
Welding of Similar & dissimilar - Metal filler chart
Welding of Similar & dissimilar - Metal filler chart
Asme sec viii div 1 s
Asme sec viii div 1 s
Arc Welding Basics
Arc Welding Basics
Piping welding notes for beginners
Piping welding notes for beginners
Welder qualification
Welder qualification
Welding defects
Welding defects
Asme b31.3 process_piping
Asme b31.3 process_piping
criteria of weld defects
criteria of weld defects
WELDING QUALIFICATION.PPT
WELDING QUALIFICATION.PPT
Dissimilar electrode filler wire
Dissimilar electrode filler wire
what is process piping
what is process piping
How to produce PQR
How to produce PQR
Asme b31,pressure piping code
Asme b31,pressure piping code
fundamentals of Piping engineering
fundamentals of Piping engineering
Similar to Electrode selection
Stainless Steel Pipe Fittings Manufacturers
Stainless Steel Pipe Fittings Manufacturers
jackmethyu
Pipe fitting . in Pipes and tubes manufatuers, supplier, dealer in mumbai ,i...
Pipe fitting . in Pipes and tubes manufatuers, supplier, dealer in mumbai ,i...
DivyaDarshanMetallic
Marwin Valve MS3000 Series High Performance Ball Valve
Marwin Valve MS3000 Series High Performance Ball Valve
Hile Controls of Alabama, Inc.
Stainless steel pressure-ratings
Stainless steel pressure-ratings
guru sundamahalingam
Inertia dynamics sheaveclutch304_specsheet
Inertia dynamics sheaveclutch304_specsheet
Electromate
Lintech s aseries_specsheet
Lintech s aseries_specsheet
Electromate
Sliding Gate Valve With Variable Orifice
Sliding Gate Valve With Variable Orifice
Mountain States Engineering and Controls
Product list permanent magnet and magnetic assembly-Super Magnet Co ltd
Product list permanent magnet and magnetic assembly-Super Magnet Co ltd
SybilChen1
American insert-flange-catalog
American insert-flange-catalog
ChiragShah127
GWC Valve International Dual Plate Valves
GWC Valve International Dual Plate Valves
GWC Valve International
--------Electrode selection---------.pdf
--------Electrode selection---------.pdf
MustafaSaylav1
IC3D example dwgs
IC3D example dwgs
Brad Wheeler
2018 legines-products-catalog-1
2018 legines-products-catalog-1
leginesfitting
Pipe fitting . in forged fitting manufatuers, supplier, dealer in mumbai ,in...
Pipe fitting . in forged fitting manufatuers, supplier, dealer in mumbai ,in...
DivyaDarshanMetallic
FORCE, Juegos copas puntas_ratchets de 3/4
FORCE, Juegos copas puntas_ratchets de 3/4
tienda911
Inertia dynamics shaftmtdbrake304_specsheet
Inertia dynamics shaftmtdbrake304_specsheet
Electromate
AP Tech Gas Delivery Components Condensed Catalog
AP Tech Gas Delivery Components Condensed Catalog
Hile Controls of Alabama, Inc.
As 1901-ball-valves-en
As 1901-ball-valves-en
Remaval S.A.S Domotica Mantenimiento
Inertia dynamics clutch308_specsheet
Inertia dynamics clutch308_specsheet
Electromate
Sanitary Tank Bottom Valve
Sanitary Tank Bottom Valve
CTi Controltech
Similar to Electrode selection
(20)
Stainless Steel Pipe Fittings Manufacturers
Stainless Steel Pipe Fittings Manufacturers
Pipe fitting . in Pipes and tubes manufatuers, supplier, dealer in mumbai ,i...
Pipe fitting . in Pipes and tubes manufatuers, supplier, dealer in mumbai ,i...
Marwin Valve MS3000 Series High Performance Ball Valve
Marwin Valve MS3000 Series High Performance Ball Valve
Stainless steel pressure-ratings
Stainless steel pressure-ratings
Inertia dynamics sheaveclutch304_specsheet
Inertia dynamics sheaveclutch304_specsheet
Lintech s aseries_specsheet
Lintech s aseries_specsheet
Sliding Gate Valve With Variable Orifice
Sliding Gate Valve With Variable Orifice
Product list permanent magnet and magnetic assembly-Super Magnet Co ltd
Product list permanent magnet and magnetic assembly-Super Magnet Co ltd
American insert-flange-catalog
American insert-flange-catalog
GWC Valve International Dual Plate Valves
GWC Valve International Dual Plate Valves
--------Electrode selection---------.pdf
--------Electrode selection---------.pdf
IC3D example dwgs
IC3D example dwgs
2018 legines-products-catalog-1
2018 legines-products-catalog-1
Pipe fitting . in forged fitting manufatuers, supplier, dealer in mumbai ,in...
Pipe fitting . in forged fitting manufatuers, supplier, dealer in mumbai ,in...
FORCE, Juegos copas puntas_ratchets de 3/4
FORCE, Juegos copas puntas_ratchets de 3/4
Inertia dynamics shaftmtdbrake304_specsheet
Inertia dynamics shaftmtdbrake304_specsheet
AP Tech Gas Delivery Components Condensed Catalog
AP Tech Gas Delivery Components Condensed Catalog
As 1901-ball-valves-en
As 1901-ball-valves-en
Inertia dynamics clutch308_specsheet
Inertia dynamics clutch308_specsheet
Sanitary Tank Bottom Valve
Sanitary Tank Bottom Valve
Recently uploaded
Risk Assessment For Installation of Drainage Pipes.pdf
Risk Assessment For Installation of Drainage Pipes.pdf
ROCENODodongVILLACER
UNIT III ANALOG ELECTRONICS (BASIC ELECTRONICS)
UNIT III ANALOG ELECTRONICS (BASIC ELECTRONICS)
Dr SOUNDIRARAJ N
An experimental study in using natural admixture as an alternative for chemic...
An experimental study in using natural admixture as an alternative for chemic...
Chandu841456
GDSC ASEB Gen AI study jams presentation
GDSC ASEB Gen AI study jams presentation
GDSCAESB
Call Us ≽ 8377877756 ≼ Call Girls In Shastri Nagar (Delhi)
Call Us ≽ 8377877756 ≼ Call Girls In Shastri Nagar (Delhi)
dollysharma2066
Gurgaon ✡️9711147426✨Call In girls Gurgaon Sector 51 escort service
Gurgaon ✡️9711147426✨Call In girls Gurgaon Sector 51 escort service
jennyeacort
Software and Systems Engineering Standards: Verification and Validation of Sy...
Software and Systems Engineering Standards: Verification and Validation of Sy...
VICTOR MAESTRE RAMIREZ
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
srsj9000
Architect Hassan Khalil Portfolio for 2024
Architect Hassan Khalil Portfolio for 2024
hassan khalil
Sachpazis Costas: Geotechnical Engineering: A student's Perspective Introduction
Sachpazis Costas: Geotechnical Engineering: A student's Perspective Introduction
Dr.Costas Sachpazis
POWER SYSTEMS-1 Complete notes examples
POWER SYSTEMS-1 Complete notes examples
Dr. Gudipudi Nageswara Rao
What are the advantages and disadvantages of membrane structures.pptx
What are the advantages and disadvantages of membrane structures.pptx
wendy cai
🔝9953056974🔝!!-YOUNG call girls in Rajendra Nagar Escort rvice Shot 2000 nigh...
🔝9953056974🔝!!-YOUNG call girls in Rajendra Nagar Escort rvice Shot 2000 nigh...
9953056974 Low Rate Call Girls In Saket, Delhi NCR
Heart Disease Prediction using machine learning.pptx
Heart Disease Prediction using machine learning.pptx
PoojaBan
young call girls in Rajiv Chowk🔝 9953056974 🔝 Delhi escort Service
young call girls in Rajiv Chowk🔝 9953056974 🔝 Delhi escort Service
9953056974 Low Rate Call Girls In Saket, Delhi NCR
Call Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile service
rehmti665
young call girls in Green Park🔝 9953056974 🔝 escort Service
young call girls in Green Park🔝 9953056974 🔝 escort Service
9953056974 Low Rate Call Girls In Saket, Delhi NCR
Introduction to Machine Learning Unit-3 for II MECH
Introduction to Machine Learning Unit-3 for II MECH
C Sai Kiran
EduAI - E learning Platform integrated with AI
EduAI - E learning Platform integrated with AI
koyaldeepu123
INFLUENCE OF NANOSILICA ON THE PROPERTIES OF CONCRETE
INFLUENCE OF NANOSILICA ON THE PROPERTIES OF CONCRETE
roselinkalist12
Recently uploaded
(20)
Risk Assessment For Installation of Drainage Pipes.pdf
Risk Assessment For Installation of Drainage Pipes.pdf
UNIT III ANALOG ELECTRONICS (BASIC ELECTRONICS)
UNIT III ANALOG ELECTRONICS (BASIC ELECTRONICS)
An experimental study in using natural admixture as an alternative for chemic...
An experimental study in using natural admixture as an alternative for chemic...
GDSC ASEB Gen AI study jams presentation
GDSC ASEB Gen AI study jams presentation
Call Us ≽ 8377877756 ≼ Call Girls In Shastri Nagar (Delhi)
Call Us ≽ 8377877756 ≼ Call Girls In Shastri Nagar (Delhi)
Gurgaon ✡️9711147426✨Call In girls Gurgaon Sector 51 escort service
Gurgaon ✡️9711147426✨Call In girls Gurgaon Sector 51 escort service
Software and Systems Engineering Standards: Verification and Validation of Sy...
Software and Systems Engineering Standards: Verification and Validation of Sy...
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
Architect Hassan Khalil Portfolio for 2024
Architect Hassan Khalil Portfolio for 2024
Sachpazis Costas: Geotechnical Engineering: A student's Perspective Introduction
Sachpazis Costas: Geotechnical Engineering: A student's Perspective Introduction
POWER SYSTEMS-1 Complete notes examples
POWER SYSTEMS-1 Complete notes examples
What are the advantages and disadvantages of membrane structures.pptx
What are the advantages and disadvantages of membrane structures.pptx
🔝9953056974🔝!!-YOUNG call girls in Rajendra Nagar Escort rvice Shot 2000 nigh...
🔝9953056974🔝!!-YOUNG call girls in Rajendra Nagar Escort rvice Shot 2000 nigh...
Heart Disease Prediction using machine learning.pptx
Heart Disease Prediction using machine learning.pptx
young call girls in Rajiv Chowk🔝 9953056974 🔝 Delhi escort Service
young call girls in Rajiv Chowk🔝 9953056974 🔝 Delhi escort Service
Call Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile service
young call girls in Green Park🔝 9953056974 🔝 escort Service
young call girls in Green Park🔝 9953056974 🔝 escort Service
Introduction to Machine Learning Unit-3 for II MECH
Introduction to Machine Learning Unit-3 for II MECH
EduAI - E learning Platform integrated with AI
EduAI - E learning Platform integrated with AI
INFLUENCE OF NANOSILICA ON THE PROPERTIES OF CONCRETE
INFLUENCE OF NANOSILICA ON THE PROPERTIES OF CONCRETE
Electrode selection

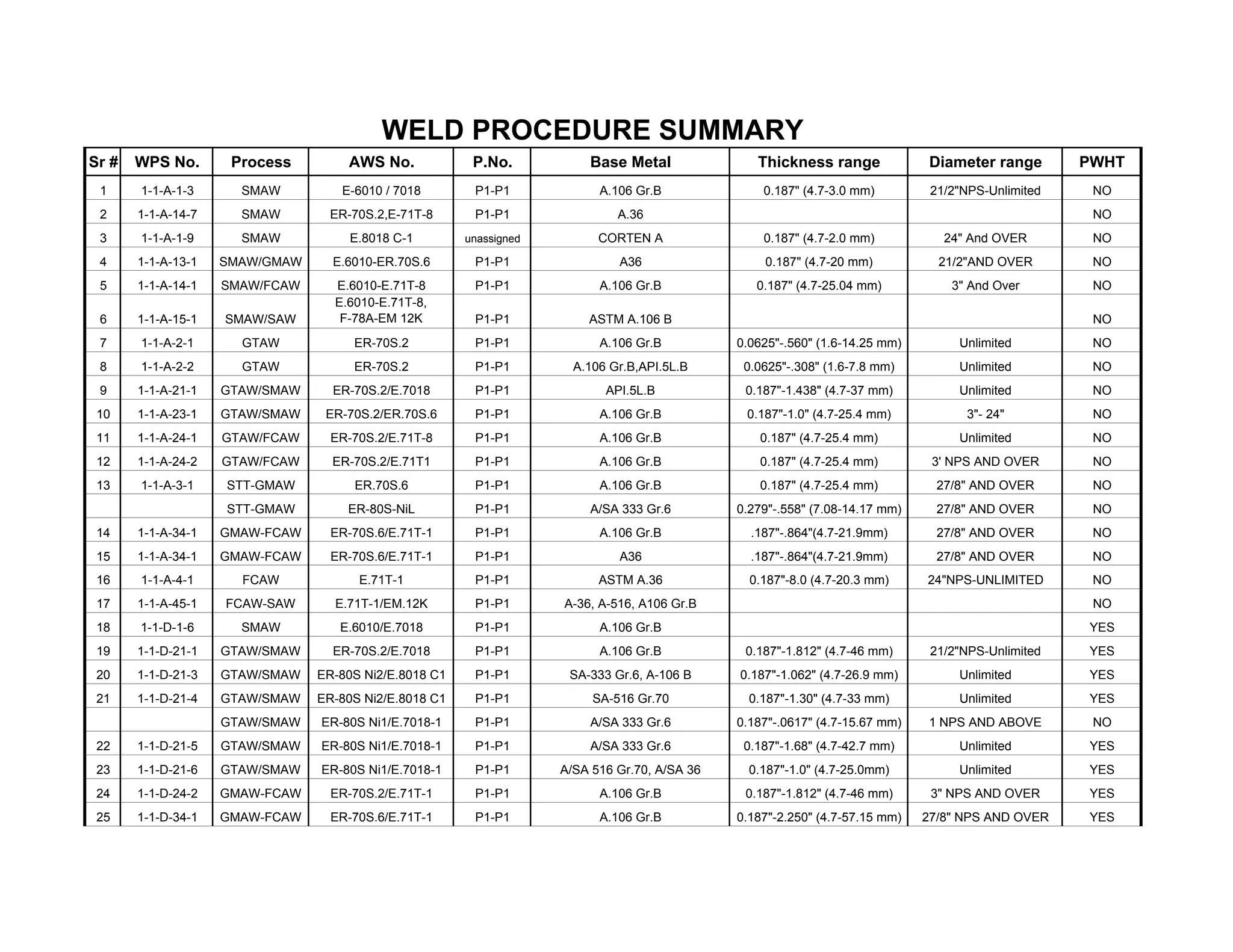

1.
Sr # WPS
No. Process AWS No. P.No. Base Metal Thickness range Diameter range PWHT 1 1-1-A-1-3 SMAW E-6010 / 7018 P1-P1 A.106 Gr.B 0.187" (4.7-3.0 mm) 21/2"NPS-Unlimited NO 2 1-1-A-14-7 SMAW ER-70S.2,E-71T-8 P1-P1 A.36 NO 3 1-1-A-1-9 SMAW E.8018 C-1 unassigned CORTEN A 0.187" (4.7-2.0 mm) 24" And OVER NO 4 1-1-A-13-1 SMAW/GMAW E.6010-ER.70S.6 P1-P1 A36 0.187" (4.7-20 mm) 21/2"AND OVER NO 5 1-1-A-14-1 SMAW/FCAW E.6010-E.71T-8 P1-P1 A.106 Gr.B 0.187" (4.7-25.04 mm) 3" And Over NO 6 1-1-A-15-1 SMAW/SAW E.6010-E.71T-8, F-78A-EM 12K P1-P1 ASTM A.106 B NO 7 1-1-A-2-1 GTAW ER-70S.2 P1-P1 A.106 Gr.B 0.0625"-.560" (1.6-14.25 mm) Unlimited NO 8 1-1-A-2-2 GTAW ER-70S.2 P1-P1 A.106 Gr.B,API.5L.B 0.0625"-.308" (1.6-7.8 mm) Unlimited NO 9 1-1-A-21-1 GTAW/SMAW ER-70S.2/E.7018 P1-P1 API.5L.B 0.187"-1.438" (4.7-37 mm) Unlimited NO 10 1-1-A-23-1 GTAW/SMAW ER-70S.2/ER.70S.6 P1-P1 A.106 Gr.B 0.187"-1.0" (4.7-25.4 mm) 3"- 24" NO 11 1-1-A-24-1 GTAW/FCAW ER-70S.2/E.71T-8 P1-P1 A.106 Gr.B 0.187" (4.7-25.4 mm) Unlimited NO 12 1-1-A-24-2 GTAW/FCAW ER-70S.2/E.71T1 P1-P1 A.106 Gr.B 0.187" (4.7-25.4 mm) 3' NPS AND OVER NO 13 1-1-A-3-1 STT-GMAW ER.70S.6 P1-P1 A.106 Gr.B 0.187" (4.7-25.4 mm) 27/8" AND OVER NO STT-GMAW ER-80S-NiL P1-P1 A/SA 333 Gr.6 0.279"-.558" (7.08-14.17 mm) 27/8" AND OVER NO 14 1-1-A-34-1 GMAW-FCAW ER-70S.6/E.71T-1 P1-P1 A.106 Gr.B .187"-.864"(4.7-21.9mm) 27/8" AND OVER NO 15 1-1-A-34-1 GMAW-FCAW ER-70S.6/E.71T-1 P1-P1 A36 .187"-.864"(4.7-21.9mm) 27/8" AND OVER NO 16 1-1-A-4-1 FCAW E.71T-1 P1-P1 ASTM A.36 0.187"-8.0 (4.7-20.3 mm) 24"NPS-UNLIMITED NO 17 1-1-A-45-1 FCAW-SAW E.71T-1/EM.12K P1-P1 A-36, A-516, A106 Gr.B NO 18 1-1-D-1-6 SMAW E.6010/E.7018 P1-P1 A.106 Gr.B YES 19 1-1-D-21-1 GTAW/SMAW ER-70S.2/E.7018 P1-P1 A.106 Gr.B 0.187"-1.812" (4.7-46 mm) 21/2"NPS-Unlimited YES 20 1-1-D-21-3 GTAW/SMAW ER-80S Ni2/E.8018 C1 P1-P1 SA-333 Gr.6, A-106 B 0.187"-1.062" (4.7-26.9 mm) Unlimited YES 21 1-1-D-21-4 GTAW/SMAW ER-80S Ni2/E.8018 C1 P1-P1 SA-516 Gr.70 0.187"-1.30" (4.7-33 mm) Unlimited YES GTAW/SMAW ER-80S Ni1/E.7018-1 P1-P1 A/SA 333 Gr.6 0.187"-.0617" (4.7-15.67 mm) 1 NPS AND ABOVE NO 22 1-1-D-21-5 GTAW/SMAW ER-80S Ni1/E.7018-1 P1-P1 A/SA 333 Gr.6 0.187"-1.68" (4.7-42.7 mm) Unlimited YES 23 1-1-D-21-6 GTAW/SMAW ER-80S Ni1/E.7018-1 P1-P1 A/SA 516 Gr.70, A/SA 36 0.187"-1.0" (4.7-25.0mm) Unlimited YES 24 1-1-D-24-2 GMAW-FCAW ER-70S.2/E.71T-1 P1-P1 A.106 Gr.B 0.187"-1.812" (4.7-46 mm) 3" NPS AND OVER YES 25 1-1-D-34-1 GMAW-FCAW ER-70S.6/E.71T-1 P1-P1 A.106 Gr.B 0.187"-2.250" (4.7-57.15 mm) 27/8" NPS AND OVER YES WELD PROCEDURE SUMMARY
2.
26 1-10H-A-2-1 GTAW
ER-308 MO P1-P10H A.106.B,A 790 S-31803 (Duplex) 0.625"-.307" (1.6-8 mm) Unlimited NO 27 1-43-A-2-1 GTAW ER-NI-1 P1-P41 A.106B, SB-161 0.625"-.474" (1.6-12 mm) Unlimited NO 28 1-43-A-2-1 GTAW ER-NICU-7 P1-P42 A.106B, SB-165 Alloy 400 0.625"-.560" (1.6-17 mm) Unlimited NO 29 1-43-A-2-1 GTAW ER-NiCr-3 P1-P43 A.106B, SB-167 Gr.B 0.625"-.436" (1.6-11 mm) Unlimited NO 30 1-45-A-1-1 SMAW E.NiCrFe-2 P1-P45 ASTM A36-SB-404(FILLET WELD) Unlimited NO 31 1-45-A-2-1 GTAW ER-NiCr-3 P1-P45 A/SA 106 GR.B, B407 800HT 0.625"-.560" (1.6-14.2 mm) Unlimited YES 32 1-8-A-2-1 GTAW ER-309L P1-P8 A.106 Gr.B,ASTM A312 TP 304 0.625"-.560" (1.6-14.2 mm) Unlimited NO 33 1-8-A-2-2 GTAW ER-NICR-3 P1-P8 A33.GR 6-304L 0.062"-.436" (1.6-11 mm) Unlimited NO 34 1-8-A-21-1 GTAW/SMAW ER-309L/E-309-16 P1-P8 ASTM A516,SA 240 TP 316 PLATE 0.187"-2.0" (4.7-50.08 mm) Unlimited NO 35 1-8-A-21-2 GTAW/SMAW ER-310/E.310-16 P1-P8 A/SA 516 GR 70,A/SA 312 TP.310S 0.62"-.748" (1.6-19 mm) Unlimited NO 36 3-3-D-21-1 GTAW ER-70SG/E.7018-AI P3-P3 SA 204 GR.A 0.187"-1.244" (4.7-31.06 mm) Unlimited YES 37 3-3-D-21-4 GTAW/SMAW ER.80SB2/E.9018DI P3-P3 SA-302 GR.B 0.187"-1.496" (4.7-38 mm) Unlimited YES 38 3-45-A-2-1 GTAW ER-NICR-3 P3-P45 SA-204, SB 409(INCOLOY800HT) 0.187"-.890" (4.7-22.06 mm) Unlimited NO 39 4-4-A-1-1 SMAW E.8018-B2 P4-P4 SA-387 GR.12, CL.2 0.187".787" (4.7-20 mm) 24" AND OVER NO 40 4-4-A-2-1 GTAW ER-80S B2 P4-P4 SA-335-P11 0.62-.560"" (1.6-14.02 mm) Unlimited NO 41 4-4-D-21-1 GTAW/SMAW ER-80S.B2/E-8010 B2L P4-P4 SA-335-P11 0.187"-1.876" (4.7-47.7 mm) Unlimited YES 42 4-4-D-21-1 GTAW/SMAW ER-80S.B2/E-8018 B2 P4-P4 SA-335-P11 0.187"-1.876" (4.7-47.7 mm) Unlimited YES 43 4-4-D-21-3 GTAW/SMAW ER-80SG/E-8018 B2 P4-P4 SA-335-P11 0.062"-.559" (1.6-14.2 mm) Unlimited YES 44 4-4-D-21-4 GTAW/SMAW ER-80S.B2/E-8018 B2 P4-P4 SA-335-P11 0.187"-1.81" (4.7-46 mm) Unlimited YES 45 4-5-D-21-1 GTAW/SMAW ER-80S.G/E-8018 B2 P4-P5A SA-335-P11, SA-335-P22 0.062"-.559" (1.6-14.2 mm) Unlimited YES 46 4-8-A-21-1 GTAW/SMAW ER-NiCr-3/ E-NiCrFe-3 P4-P8 SA-335-P11, SA-312-TP304L 0.187"-.560" (4.7-14.2 mm) Unlimited NO 47 5-5-A-1-1 SMAW E-9018 B3 P5-P5 SA-387 0.187"-1.0" (4.7-25.4 mm) Unlimited NO 48 5-5-A-2-2 GTAW ER-90S B3 P5A-P5A SA-335-P22 0.0625"-.436" (1.6-11 mm) Unlimited YES 49 5-5-D-21-1 GTAW/SMAW ER-502/ E-502-16 P5-P5 SA-335 GR.F5 0.187"-.864" (4.7-21.9 mm) Unlimited YES 50 5-5-D-21-2 GTAW/SMAW ER-502/ E-502-16 P5-P5 SA-387 GR.5CL2 0.187"-2.0" (4.7-50.8 mm) Unlimited YES 51 5-5-D-21-3 GTAW/SMAW ER-90SB2/E-9018 B2 P5A-P5A SA-335-P22 0.187"-2.599" (4.7-66 mm) Unlimited YES 52 5-5-D-21-4 GTAW/SMAW ER-90SB9/E-9015 B9 P5B-P5B SA-335-P91, SA-335-P91 0.187"-1.68"(4.7-42.67 mm) Unlimited YES 53 5-8-A-1-2 SMAW E-310-16 P5-P8 SA-479,SA-387 (FILLET) Unlimited NO 54 7-7-A-1-1 SMAW E-410-15 P7-P7 ASTM A240 TP 240,SA240 TP 410S(FILLET WELD) NO 55 8-10H-A-2-1 GTAW ER-2209 P8-P10H A312 TP 304L-A 790 (DUPLEX) 0.0625"-.307" (1.6-8 mm) Unlimited NO
3.
56 8-41-A-2-1 GTAW
ER-NI-1 P8-P41 A 312 TP 316-B-161 0.0625"-.496" (1.6-12.6 mm) Unlimited NO 57 8-42-A-2-1 GTAW ER-NiCr-3 P8-P42 A-312 TP 304,B 165 ALLOY 400 0.0625"-.560" (1.6-14.2 mm) Unlimited NO 58 8-42-A-21-2 GTAW/SMAW ER-NiCr-3/ E-NiCrFe-2 P8-P42 A-312 TP 304,B 165 ALLOY 400 0.0625"-.674" (1.6-17 mm) Unlimited NO 59 8-45-A-1-1 SMAW E-NiCrFe-2 P1-P45 ASTM 240 TP 304,SB 409(Fillet weld) Unlimited NO 60 8-45-A-2-3 GTAW ER-NICR-3 P8-P45 A-312 TP 304H,B-407 800H 0.062"-.559" (4.7-14.2 mm) Unlimited NO 61 8-45-D-2-3 GTAW ER-NiCr-3 P8-P45 A/SA 312 TP 304L-INCOLOY 800HT 0.187"-.867" (4.7-22 mm) Unlimited YES 62 8-5-A-2-1 GTAW ER-NiCr-3 P8-P45 A/SA-312 TP 304L-A/SA 335 P22 0.0625"-.560" (1.6-14.2 mm) Unlimited NO 63 8-5-D-5-1 SAW E-310 P8-P45 ASTM A-312 TP 304,ASTM B165 ALLOY 400(OVERLAY) YES 64 8-8-A-1-3 SMAW E-310-16 P8-P8 SA 240 TP 321 (OVERLAY) Unlimited NO 65 8-8-A-2-1 GTAW ER-316L P8-P8 SA 182 F 316,SA 312 TP 316 0.0625"-.674" (1.6-17 mm) Unlimited NO 66 8-8-A-2-3 GTAW N/A(FUSION WELD) P8-P8 A-312 TP 304 NO 67 8-8-A-2-4 GTAW THERMA"CR" P8-P8 Sim A-608(HK 40),A-608(HK) 0.187"-.709" (4.7-18 mm) Unlimited NO 68 8-8-A-2-5 GTAW ER-308L P8-P8 A-312 TP 304L 0.0625"-.496" (1.6-12.6 mm) Unlimited NO 69 8-8-A-2-6 GTAW ER-308L P8-P8 A-312 TP 304L 0.187"-.864" (4.7-21.95 mm) Unlimited NO 70 8-8-A-21-1 GTAW/SMAW ER-316L / E-316L-16 P8-P8 SA-312 TP 316L,SA-182 F-316L 0.0625"-.674" (1.6-17 mm) Unlimited NO 71 8-8-A-21-2 GTAW/SMAW ER-308L / E-308L-16 P8-P8 SA-312 TP 304L 0.187"-.864" (4.7-21.95 mm) Unlimited NO 72 8-8-A-21-3 GTAW/SMAW ER-316L / E-316L-16 P8-P8 SA-240 TP 304L 0.187"-2.0" (4.7-50.8 mm) Unlimited NO 73 8-8-A-21-3 GTAW/SMAW ER-NiCr-3/ E-NiCrFe-2 P8-P8 A312 TP 304H,A403 WP.304H 0.0625"-.480" (1.6-12.2 mm) Unlimited NO 74 8-8-A-21-4 GTAW/SMAW ER-308L / E-308L-17 P8-P8 A/SA 312 TP.304/304L 0.187"-2.0" (4.7-50.8 mm) Unlimited NO 75 8-8-A-21-6 GTAW/SMAW ER-310 / E-310-16 P8-P8 A/SA 312 TP.310S 0.062"-.945" (1.6-24 mm) Unlimited NO 76 8-8-A-4-2 FCAW E-308LT-1 P8-P8 A-240 TP 304L 0.187"-1.574" (4.7-40 mm) 24"NPS AND ABOVE NO 77 8-8-A-5-3 SAW E-310 P8-P8 SA-240 TP 321(OVERLAY) NO 78 8-8-A-5-3 SMAW E-310-16 P8-P8 SA-240 TP 321(OVERLAY) NO 79 8-8-D-2-1 GTAW ER-316H P8-P8 A/SA 312 TP.304/304L 0.062"-.560" (1.6-14.2 mm) Unlimited YES 80 8-8-D-2-5 GTAW ER-Nicromo-1 P8-P8 Sim HK40-HK40 W/ PWHT 0.187"-.709" (4.7-18 mm) Unlimited YES 81 9-9-D-21-1 GTAW/SMAW ER-NiCr-3/ E-NiCrFe-3 P9-P9 SA 203 GR.E (3.5 NI) 0.187"-.787" (1.6-20 mm) Unlimited YES 82 10H-10H-A-2-1 GTAW ER-2209 P10H-P10H A790 UNS 3180 DUPLEX 0.0625"-.307" (1.6-7.8 mm) Unlimited NO 83 22-22-A-2-1 GTAW ER-5183 P22-P22 SB-210 ALUMINUM ALLOY 5154 0.0625"-.268" (1.6-6.8 mm) Unlimited NO 84 23-23-A-2-1 GTAW ER-4043 P23-P23 SB-241 ALUMINUM ALLOY 6063 0.187"-.750" (4.7-19 mm) Unlimited NO 85 25-25-A-2-1 GTAW ER-5183 P25-P25 SB-241 ALUMINUM ALLOY 5083 0.0625"-.50" (1.6-12.7 mm) Unlimited NO
4.
86 25-25-A-2-1 GTAW
ER-5183 P25-P25 SB-209 ALUMINUM ALLOY 5083 0.062"-1.0" (1.6-25.4 mm) Unlimited NO 87 25-25-A-2-3 GTAW ER-5356 P25-P25 SB-221- SB-209 ALUMINUM ALLOY 0.187"-8.0" (4.7-203 mm) Unlimited NO 88 25-25-A-2-4 GTAW ER-5183 P25-P25 SB-209 ALUMINUM ALLOY 5083 0.062"-.50" (1.6-12.7 mm) Unlimited NO 89 25-25-A-2-6 GTAW ER-5184 P25-P25 SB-209 ALUMINUM ALLOY 5083 0.062"-1.0" (1.6-25.4 mm) Unlimited NO 90 34-34-A-2-1 GTAW ER-CUNI P34-P34 SB-466 COPPER ALLOY-C70600 0.062"-.436" (1.6-11 mm) Unlimited NO 91 41-41-A-2-2 GTAW ER-Ni-I P41-P41 SB-161 NICKEL ALLOY NO2200 0.187"-.787" (4.7-20 mm) Unlimited NO 92 41-41-A-3-1 GTAW ER-Ni-I P41-P41 NICKEL (OVERLAY) Unlimited NO 93 4130-1-D-21-1 GTAW/SMAW ER-110S-1 / E-10018 unassigned AISI 4130-A/SA 106 GR.B 0.187"1.10"(4.7-28 mm) Unlimited YES 94 4130-1-D-21-2 GTAW/SMAW ER-110S-1 / E-10018 unassigned AISI 4130-A/SA 516 GR.70 0.187"-1.62" (4.7-41.3 mm) Unlimited YES 95 4130-8-A-21-1 GTAW/SMAW ER-NiCr-3/ E-NiCrFe-3 unassigned AISI 4130-A/SA 312 TP 304 0.187"-1.0" (4.7-25.0 mm) Unlimited NO 96 4130-D-2-1 SMAW ER-110S-1 unassigned AISI 4130 0.187"-1.626" (4.7-41.3 mm) Unlimited YES 97 4130-D-21-1 GTAW/SMAW NONE unassigned AISI 4130 0.187"-1.626" (4.7-41.3 mm) Unlimited YES 98 4130-D-21-2 GTAW/SMAW ER-110S-1 / E-10018 unassigned AISI 4130 0.187"-1.626" (4.7-41.3 mm) Unlimited YES 99 42-42-A-2-1 GTAW ER-NICU-7 P42-P42 SB-165 NICKEL ALLOY NO4400 0.062"-.560" (1.6-14.2 mm) Unlimited NO 100 44-44-A-2-2 GTAW ER-Nicrmo-4 P44-P44 SB-622 NICKEL ALLOY N1O276(Hasteloy) 0.062"-.268" (1.6-6.8 mm) Unlimited NO 101 45-45-A-1-1 SMAW E-NiCrFe-2 P45-P45 SB-407,SB-409 NICKEL ALLOY 0.187"-.945" (4.7-24 mm) Unlimited NO 102 45-45-A-2-1 GTAW ER-Nicromo-1 P45-P45 SB-407 NICKEL ALLOY(INCOLOY) NO 103 45-45-A-2-2 GTAW ER-25/35 "R" unassigned 4855-4855 0.187"-1.402" (4.7-35.6 mm) Unlimited NO 104 45-45-A-2-3 GTAW ER-25/35 "R" unassigned HP-4852,HP-4852 0.187"-.709" (4.7-18 mm) Unlimited NO 105 45-45-A-2-4 GTAW ER-Nicrcomo-1 unassigned CA-4879-4879 MICRO 0.187"-.709" (4.7-18 mm) Unlimited NO 106 45-45-A-2-5 GTAW WELTIG 45A unassigned KHR 45A-KHR 45A 0.187"-.753" (4.7-19.2 mm) Unlimited NO 107 45-45-A-2-6 GTAW ER-Nicromo-1 unassigned ET-45 MICRO ET-45 MICRO 0.187"-.709" (4.7-18 mm) Unlimited NO 108 45-45-A-2-7 GTAW ER-Nicromo-3 unassigned P45 ET-45-SB-407 (800 HT) 0.187"-.709" (4.7-18 mm) Unlimited YES 109 45-45-A-2-9 GTAW ER-Nicromo-1 P45-P45 SB-407,800 HT 0.187"-.864"(4.7-21.95 mm) Unlimited NO 110 45-45-A-21-5 GTAW/SMAW ER-Nicromo-1, THERMA 30/50 unassigned CA-4879-4879 MICRO 0.187"-.709" (4.7-18 mm) Unlimited NO 111 45-45-A-21-7 GTAW/SMAW ER-Nicromo-1,UTP 35/45 unassigned ET-45 MICRO 0.187"-.709" (4.7-18 mm) Unlimited NO 112 45-45-A-21-8 GTAW/SMAW ER-Nicromo-1,UTP 30/50 unassigned HP 40 NB-4879 MICRO 0.187"-.709" (4.7-18 mm) Unlimited NO 113 45-45-A-21-9 GTAW/SMAW ER-Nicromo-1,UTP 35/45 unassigned HP 40 NB-ET-45 MICRO 0.187"-.709" (4.7-18 mm) Unlimited NO 114 45-45-D-2-8 GTAW ER-NiCr-3 P45-P8 Sim INCOLOY 800 HT 0.187"-.709" (4.7-18 mm) Unlimited NO
5.
115 45-8-A-2-1 GTAW
ER-25-35R unassigned HP-40NB-A-608(HK 40) 0.187"-.709" (4.7-18 mm) Unlimited NO 116 45-8-A-2-2 GTAW ER-NiCr-3 P45-P8 A 312 TP 304L(INCOLOY800 HT) 0.062"-.457" (1.6-11.6 mm) Unlimited NO 117 45-8-A-2-9 GTAW WELTIG 45A unassigned KHR-45A-304L 0.187"-.764" (4.7-19.4 mm) Unlimited NO 118 45-8-D-2-2 GTAW ER-NiCr-3 P45-P45 INCOLOY 800 HT-HK 40 0.187"-.709" (4.7-18 mm) Unlimited YES 119 51-51-A-2-2 GTAW ER-Ti2 P51-P51 SB-337 GR.2(TITANIUM) 0.062"-.236" (1.6-6 mm) Unlimited NO 120 HK40-8-D-2-1 GTAW ER-NiCr-3 unassigned A/SA 312 TP 316L-HK 40 0.187"-.560" (4.7-14.2 mm) Unlimited YES 121 HK4M-HK4M-A-2-1 GTAW ER-Nicromo-1 unassigned 25/25 0.187"-.866" (4.7-22 mm) Unlimited NO 122 MAN-XM-A-21-1 GTAW/SMAW NONE unassigned MANURITE XM 0.187"-.866" (4.7-22 mm) Unlimited NO 123 MAN900-A-21-1 GTAW/SMAW NONE unassigned MANURITE 900 0.187"-1.34" (4.7-34 mm) Unlimited NO
