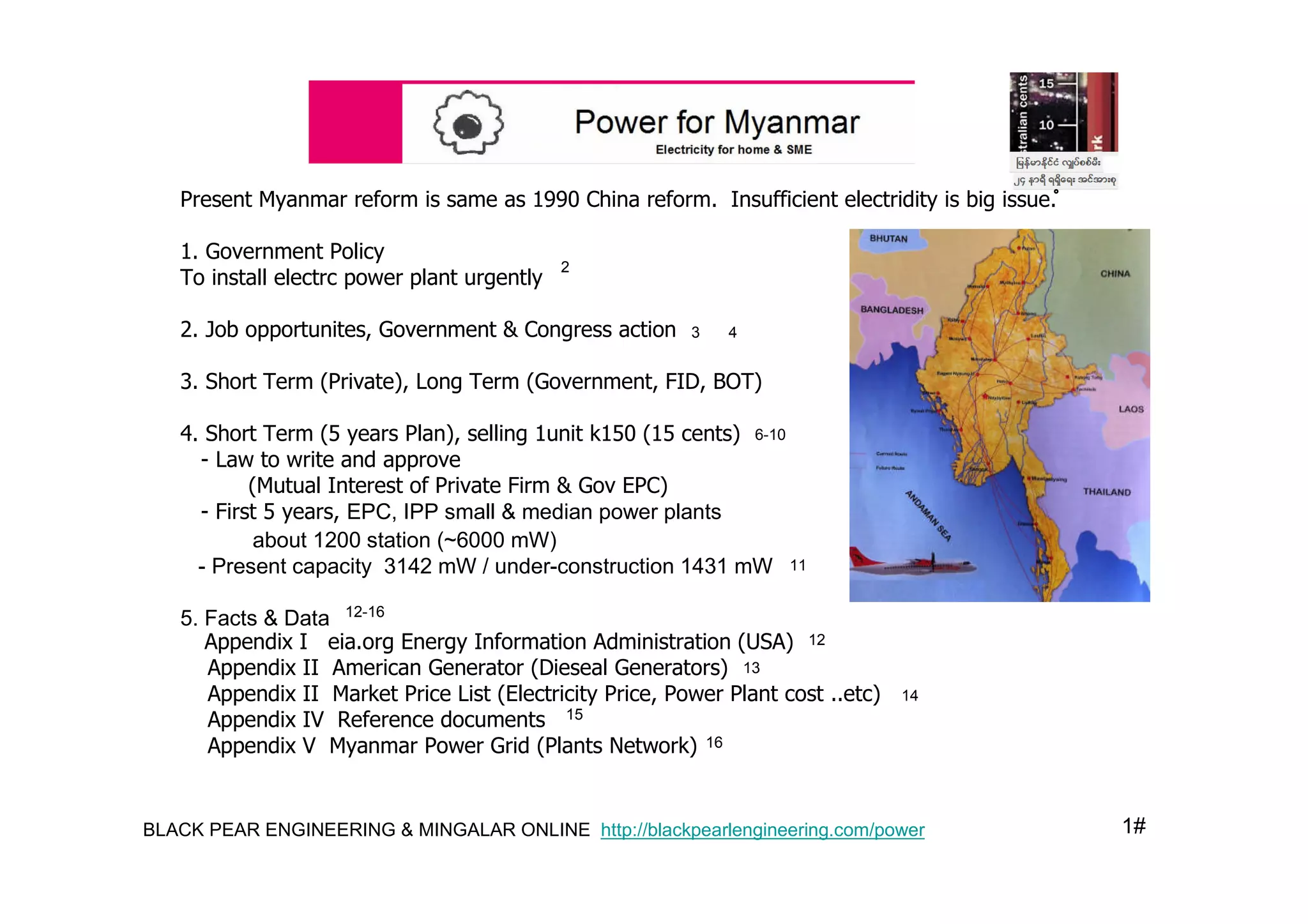

1#BLACK PEAR ENGINEERING & MINGALAR ONLINE http://blackpearlengineering.com/power

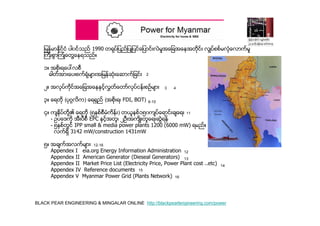

Present Myanmar reform is same as 1990 China reform. Insufficient electridity is big issue. ံ
1. Government Policy
To install electrc power plant urgently
2. Job opportunites, Government & Congress action
3. Short Term (Private), Long Term (Government, FID, BOT)
4. Short Term (5 years Plan), selling 1unit k150 (15 cents)
- Law to write and approve
(Mutual Interest of Private Firm & Gov EPC)
- First 5 years, EPC, IPP small & median power plants
about 1200 station (~6000 mW)
- Present capacity 3142 mW / under-construction 1431 mW
5. Facts & Data
Appendix I eia.org Energy Information Administration (USA)
Appendix II American Generator (Dieseal Generators)
Appendix II Market Price List (Electricity Price, Power Plant cost ..etc)
Appendix IV Reference documents
Appendix V Myanmar Power Grid (Plants Network)
2
3 4
6-10
11
12-16
12
13
14
15
16

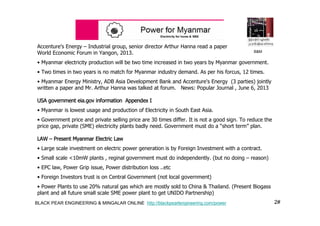

Accenture's Energy – Industrial group, senior director Arthur Hanna read a paper
World Economic Forum in Yangon, 2013.
• Myanmar electricity production will be two time increased in two years by Myanmar government.
• Two times in two years is no match for Myanmar industry demand. As per his forcus, 12 times.
• Myanmar Energy Ministry, ADB Asia Development Bank and Accenture's Energy (3 parties) jointly
written a paper and Mr. Arthur Hanna was talked at forum. News: Popular Journal , June 6, 2013
USA government eia.gov information Appendex I
• Myanmar is lowest usage and production of Electricity in South East Asia.
• Government price and private selling price are 30 times differ. It is not a good sign. To reduce the
price gap, private (SME) electricity plants badly need. Government must do a “short term” plan.
LAW – Present Myanmar Electric Law
• Large scale investment on electric power generation is by Foreign Investment with a contract.
• Small scale <10mW plants , reginal government must do independently. (but no doing – reason)
• EPC law, Power Grip issue, Power distribution loss ..etc
• Foreign Investors trust is on Central Government (not local government)
• Power Plants to use 20% natural gas which are mostly sold to China & Thailand. (Present Biogass
plant and all future small scale SME power plant to get UNIDO Partnership)
B&M

Electricity is expensive for Myanmar. Everybody need job with income to use
electricity. (eg – Malaysia)
SME Small & Median Enterprise owners
- Job
- Eat, Live and clothing (basic need)
- Electricity
- Water ..etc
- Health
- Education
Government Level
- Law and Transquality
- Foreign Investment FDI
- SME survival
- Internal Investment
- State Owned Enterprices
- Tax (law and action)
- Tax usage (budget)
Tax income – American is 40% of GDP, Thailand 17%, Singapore 30% and Myanmar 3%.
Myanmar is the least tax income (ref: CIA facts). Myanmar president said, looking for
income by selling resources with FDI, Joint Venture, BOT. Real job opportunity is from
Industry. Especially, Process Industry (Food Processing) can create many jobs. Therefore,
Industry can give more job opportunity and Profits also great. Process Industry need
energy, electricity…
No electricity, egg procution to blankets, computer to car production factory..etc.can not
compete foreign products.
B&M

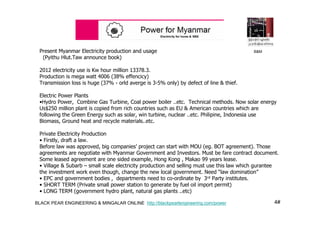

Present Myanmar Electricity production and usage
(Pyithu Hlut.Taw announce book)
2012 electricity use is Kw hour million 13378.3.
Production is mega watt 4006 (38% effencicy)
Transmission loss is huge (37% - orld averge is 3-5% only) by defect of line & thief.
Electric Power Plants
•Hydro Power, Combine Gas Turbine, Coal power boiler ..etc. Technical methods. Now solar energy
Us$250 million plant is copied from rich countries such as EU & American countries which are
following the Green Energy such as solar, win turbine, nuclear ..etc. Philipine, Indonesia use
Biomass, Ground heat and recycle materials..etc.
Private Electricity Production
• Firstly, draft a law.
Before law was approved, big companies’ project can start with MOU (eg. BOT agreement). Those
agreements are negotiate with Myanmar Government and Investors. Must be fare contract document.
Some leased agreement are one sided example, Hong Kong , Makao 99 years lease.
• Village & Subarb – small scale electricity production and selling must use this law which gurantee
the investment work even though, change the new local government. Need “law domination”
• EPC and government bodies , departments need to co-ordinate by 3rd Party institutes.
• SHORT TERM (Private small power station to generate by fuel oil import permit)
• LONG TERM (government hydro plant, natural gas plants ..etc)
B&M

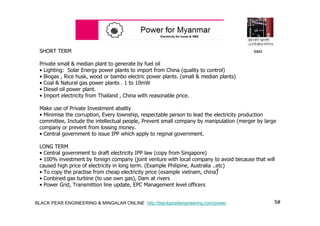

SHORT TERM
Private small & median plant to generate by fuel oil
• Lighting: Solar Energy power plants to import from China (quality to control)
• Biogas , Rice husk, wood or bambo electric power plants. (small & median plants)
• Coal & Natural gas power plants . 1 to 10mW
• Diesel oil power plant.
• Import electricity from Thailand , China with reasonable price.
Make use of Private Investment abality
• Minimise the corruption, Every township, respectable person to lead the electricity production
committee, Include the intellectual people, Prevent small company by manipulation (merger by large
company or prevent from lossing money.
• Central government to issue IPP which apply to reginal government.
LONG TERM
• Central government to draft electricity IPP law (copy from Singapore)
• 100% investment by foreign company (joint venture with local company to avoid because that will
caused high price of electricity in long term. (Example Philipine, Australia ..etc)
• To copy the practise from cheap electricity price (example vietnam, china) ္
• Conbined gas turbine (to use own gas), Dam at rivers
• Power Grid, Transmittion line update, EPC Management level officers
B&M

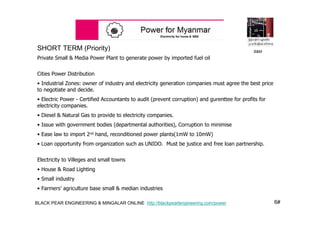

SHORT TERM (Priority)
Private Small & Media Power Plant to generate power by imported fuel oil
Cities Power Distribution
• Industrial Zones: owner of industry and electricity generation companies must agree the best price
to negotiate and decide.
• Electric Power - Certified Accountants to audit (prevent corruption) and gurenttee for profits for
electricity companies.
• Diesel & Natural Gas to provide to electricity companies.
• Issue with government bodies (departmental authorities), Corruption to minimise
• Ease law to import 2nd hand, reconditioned power plants(1mW to 10mW)
• Loan opportunity from organization such as UNIDO. Must be justice and free loan partnership.
Electricity to Villeges and small towns
• House & Road Lighting
• Small industry
• Farmers’ agriculture base small & median industries
B&M

ေရတို (ဦးစားေပးျခင္း)
ပုဂၢလိက အေသးစား၊အလတ္စားစက္ရံုမ်ား၊ ဆီတင္သြင္းျဖင့္ဓါတ္အားထုတ္ရန္

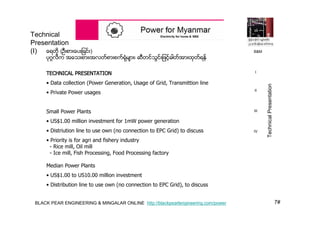

TECHNICAL PRESENTATION
• Data collection (Power Generation, Usage of Grid, Transmittion line
• Private Power usages
Small Power Plants
• US$1.00 million investment for 1mW power generation
• Distriution line to use own (no connection to EPC Grid) to discuss
• Priority is for agri and fishery industry
- Rice mill, Oil mill
- Ice mill, Fish Processing, Food Processing factory
Median Power Plants
• US$1.00 to US10.00 million investment
• Distribution line to use own (no connection to EPC Grid), to discuss
Technical
Presentation
(I)
I
II
III
IV
TechnicalPresentation
B&M

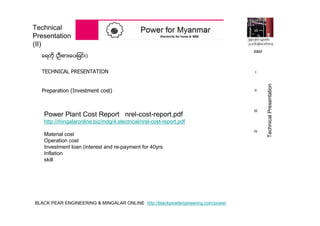

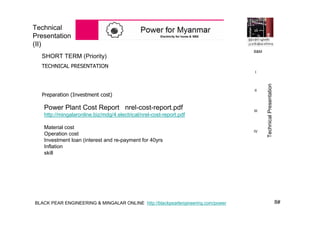

Technical
Presentation
(II)
Preparation (Investment cost)
Power Plant Cost Report nrel-cost-report.pdf
http://mingalaronline.biz/mdg/4.electrical/nrel-cost-report.pdf
Material cost
Operation cost
Investment loan (interest and re-payment for 40yrs
Inflation
skill
B&M
I
II
III
IV

Technical
Presentation
(III)

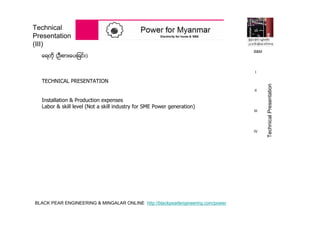

Installation & Production expenses
Labor & skill level (Not a skill industry for SME Power generation)
Planing
3 months sourcing (or) tool selection
2 months installaion
1 month – commissioning & testing
B&M
I
II
III
IV

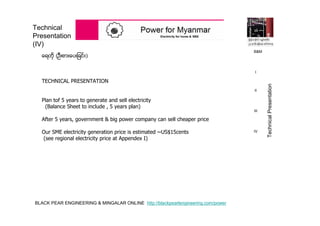

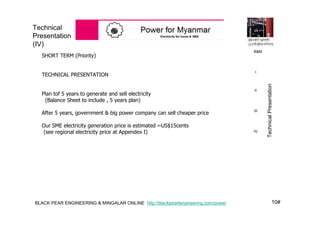

Technical
Presentation
(IV)
Plan tof 5 years to generate and sell electricity
(Balance Sheet to include , 5 years plan)
After 5 years, government & big power company can sell cheaper price
Our SME electricity generation price is estimated ~US$15cents
(see regional electricity price at Appendex I)
B&M
I
II
III
IV

Technical
Presentation (V)
B&M
I
II
III
IV

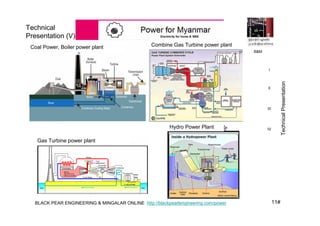

Coal Power, Boiler power plant Combine Gas Turbine power plant
Gas Turbine power plant
Hydro Power Plant

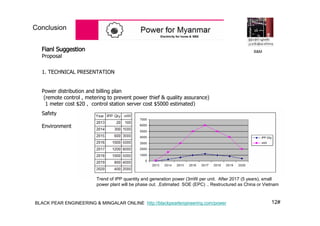

Conclusion
Fianl Suggestion
Proposal
1. TECHNICAL PRESENTATION
Power distribution and billing plan
(remote control , metering to prevent power thief & quality assurance)
1 meter cost $20 , control station server cost $5000 estimated)
Safety
Environment
B&M
Trend of IPP quantity and generation power (3mW per unit. After 2017 (5 years), small
power plant will be phase out. ,Estimated SOE (EPC) .. Restructured as China or Vietnam

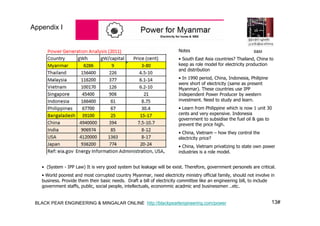

Notes
• South East Asia countries? Thailand, China to
keep as role model for electricity production
and distribution
• In 1990 period, China, Indonesia, Philipine
were short of electricity (same as present
Myanmar). These countries use IPP
Independent Power Producer by western
investment. Need to study and learn.
• Learn from Philippine which is now 1 unit 30
cents and very expensive. Indonesia
government to subsidise the fuel oil & gas to
prevent the price high.
• China, Vietnam – how they control the
electricity price?
• China, Vietnam privatizing to state own power
industries is a role model.
• (System - IPP Law) It is very good system but leakage will be exist. Therefore, government personels are critical.
• World poorest and most corrupted country Myanmar, need electricity ministry official family, should not involve in
business. Provide them their basic needs. Draft a bill of electricity committee like an engineering bill, to include
government staffs, public, social people, intellectuals, econommic acadmic and businessmen ..etc.
Appendix I
B&M

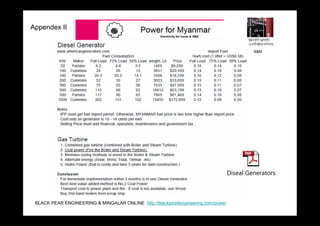

Diseal Generators
Appendix II
B&M

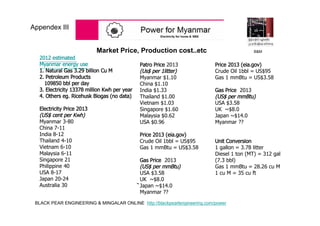

2012 estimated
Myanmar energy use
1. Natural Gas 3.29 billion Cu M
2. Petroleum Products
109850 bbl per day
3. Electricity 13378 million Kwh per year
4. Others eg. Ricehusk Biogas (no data)
Electricity Price 2013
(US$ cent per Kwh)
Myanmar 3-80
China 7-11
India 8-12
Thailand 4-10
Vietnam 6-10
Malaysia 6-11
Singapore 21
Philippine 40
USA 8-17
Japan 20-24
Australia 30
Patro Price 2013
(Us$ per 1litter)
Myanmar $1.10
China $1.10
India $1.33
Thailand $1.00
Vietnam $1.03
Singapore $1.60
Malaysia $0.62
USA $0.96
Price 2013 (eia.gov)
Crude Oil 1bbl = US$95
Gas 1 mmBtu = US$3.58
Gas Price 2013
(US$ per mmBtu)
USA $3.58
UK ~$8.0
ဲJapan ~$14.0
Myanmar ??
Gas Price 2013
(US$ per mmBtu)
USA $3.58
UK ~$8.0
Japan ~$14.0
Myanmar ??
Unit Conversion
1 gallon = 3.78 litter
Diesel 1 ton (MT) = 312 gal
(7.3 bbl)
Gas 1 mmBtu = 28.26 cu M
1 cu M = 35 cu ft
Market Price, Production cost..etc
Appendix III
B&M

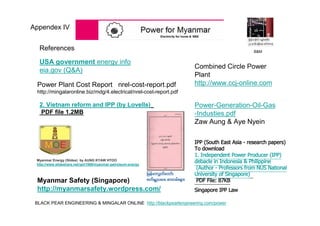

Myanmar Energy (Slides) by AUNG KYAW HTOO
http://www.slideshare.net/yph1969/myanmar-petroleum-energy
USA government energy info
eia.gov (Q&A)
Combined Circle Power
Plant
http://www.ccj-online.com
References
Power-Generation-Oil-Gas
-Industies.pdf
Zaw Aung & Aye Nyein
Myanmar Safety (Singapore)
http://myanmarsafety.wordpress.com/
IPP (South East Asia - research papers)
To download
1. Independent Power Producer (IPP)
debacle in Indonesia & Philippine
(Author - Professors from NUS National
University of Singapore)
PDF File: 87KB
Singapore IPP Law
2. Vietnam reform and IPP (by Lovells)
PDF file 1.2MB
Appendix IV
B&M

B&M

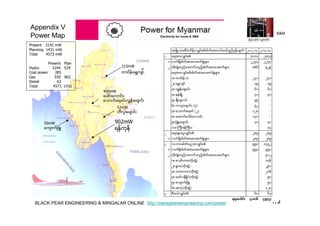

Appendix V
Power Map
902mW
ရန္ကုန္
50mW
ေက်ာက္ျဖဴ
315mW
တာပိန္၊ေရႊက်င္
400mW
ေပါင္းေလာင္း၊
ေသာက္ေရခပ္၊ကြ်န္းေခ်ာင္း
52mW
ဘီလူးေခ်ာင္း
Present 3142 mW
Planning 1431 mW
Total 4573 mW
Present Plan
Hydro 2244 529
Coal power 285
Gas 550 902
Diesel 63
Total 4573 1431

End of English Language Slides
Continue Burmese/Myanmar Language Slides

BLACK PEAR ENGINEERING & MINGALAR ONLINE http://blackpearlengineering.com/power
ျမန္မာႏိုင္ငံ ပါ၀င္သည္ 1990 တရုပ္ျပည္ျပဳျပင္ေျပာင္းလဲမႈအေျခအေနအတိုင္း လွ်ပ္စစ္မလံုေလာက္မႈ
ၾကီးစြာၾကံဳေတြ႔ေနရသည္။
၁။ အစိုးရေပၚလစီ
ဓါတ္အားေပးစက္ရံုမ်ားအျမန္ဆံုးေဆာက္ျခင္း
၂။ အလုပ္ကိုင္အေျခအေနႏွင့္လႊတ္ေတာ္လုပ္ငန္းစဥ္မ်ား
၃။ ေရတို (ပုဂၢလိက) ေရရွည္ (အစိုးရ၊ FDI, BOT)
၄။ က်ႏိုပ္တို႔၏ ေရတို (၅ႏွစ္စီမံကိန္း) တယူနစ္၁၅၀က်ပ္ေရာင္းခ်ေရး
- ဥပေဒကို အီးပီစီ EPC ႏွင့္အတူ၊ ၂ဦးအက်ိဳးတူေရးဆြဲရန္
- ၅ႏွစ္တြင္ IPP small & media power plants 1200 (6000 mW) ရမည္။
လက္ရွိ 3142 mW/construction 1431mW
၅။ အခ်က္အလက္မ်ား
Appendex I eia.org Energy Information Administration
Appendex II American Generator (Dieseal Generators)
Appendex II Market Price List (Electricity Price, Power Plant cost ..etc)
Appendex IV Reference documents
Appendex V Myanmar Power Grid (Plants Network)
2
3 4
6-10
11
12-16
12
13
14
15
16

Accenture's Energy စက္မူလုပ္ငနး္စု၏ အၾကီးတန္းဦးေဆာင္ညြန္ၾကားေရးမူး
Arthur Hanna အဆုိပါအစီရင္ခံစာ
• ျမန္မာ႔လွ်ပ္စစ္ထုတ္လုပ္မူသည္ ငါးနွစ္အတြင္း ၂ ဆတုိးမည္ဟု မွန္းထား
• ျပည္တြင္းလုိအပ္ခ်က္မျပည္႔မီေၾကာင္း ၊ ၁၂ ဆ တုိးမွ သာျပည္တြင္းလုိအပ္ခ်က္ျပည္႔မီမည္ျဖစ္ေၾကာင္း
• စြမး္အင္ဝန္ၾကီးဌာနနွင္႔ အာရွဖြံျဖိဳးေရးဘဏ္ ၊ Accenture's Energy စက္မူလုပ္ငနး္စုတုိ႔ ပူူးေပါငး္ေရးဆြဲျခင္း
News: Popular Myanmar News Journal , June 6, 2013
eia.gov ဇယား (အေမရိကန္၊ US gov information) Appendex I
• ျမန္မာျပည္သည္ အေရွ႔ေတာင္အာရွတြင္ပင္ လွ်ပ္စစ္တြင္အႏို္မ့္ဆံုးျဖစ္သည္
• လွ်ပ္စစ္ေစ်းႏႈန္းမွာလည္ ကြာဟမႈအၾကီးဆံုးျဖစ္သည္။ အစိုးရလွ်ပ္စစ္ႏွင့္ဒီဇယ္စက္သံုးလွ်ပ္စစ္ ၃၀ဆ
ေစ်းကြာေနသည္။ ကြာဟမႈနည္းရန္ - တႏိုင္လွ်ပ္စစ္မ်ား ၅ႏွစ္အတြင္ လုပ္ခြင့္ေပးရမည္။
ဥပေဒ (လက္ရွိအေျခအေန)
• လွ်စ္စစ္ရင္းႏွီးျမွတ္ႏွံမႈအၾကီးမ်ားသည္ အစိုးရတာဝန္ယူသည္
• အလတ္စား 10mW အထိ စက္ရံုမ်ားကို ေဒသအစိုးရမွလြတ္လပ္စြာလုပ္ႏိုင္သည္။ (မလုပ္ၾကပါ - အေၾကာင္းရွိ)
• EPC ဥပေဒ၊ ပါဝါဂရစ္ျပသနာ၊ ဓါတ္အားဆံုးမႈျပသနာမ်ား
• ရင္းႏွီးျမွတ္ႏွံသူမ်ား ဗဟုိအစိုးရကိုသာ ယံုျခင္း
• သဘာဝဓါတ္ေငြလိုင္းမွ မွ်သံုးစြဲခြင့္ (လက္ရွိ Biogas မ်ား UNIDO Partnership စြမ္းအင္ရရွိ)
B&M

လွ်ပ္စစ္သည္ေစ်းၾကီးသည္၊ လူတိုင္းအလုပ္ရွိျပီး၊ ဝင္ေငြရွိရန္လိုသည္။
(ဥပမာ - မေလးရွား)
SME လုပ္ငန္းရွင္မ်ား
- အလုပ္
- စားဝတ္ေနေရး
- လွ်ပ္စစ္
- ေရ
- က်န္းမာေရး
- ပညာေရး
ႏိုင္ငံေတာ္၊ေဒသအစိုးရအဆင့္
- ဥပေဒျပဳမႈႏွင့္စိုးမိုးမႈ
- ႏိုင္ငံျခားရင္းႏွီးမႈ FDI
- SME ရွင္သန္ေရး
- ျပည္တြင္းရင္းႏွီးမႈ
- ႏိုင္ငံပိုင္စက္ရံု၊လုပ္ငန္းမ်ား
- အခြန္ (ဥပေဒ)
- အခြန္သံုးစြဲမႈ
ျမန္မာႏိုင္ငံ ပါ၀င္သည္ အေမရိကန္တြင္ GDP ၏ ၄၀%၊ ထိုင္းႏိုင္ငံတြင္ ၁၇%၊ ျမန္မာႏိုင္ငံတြင္ ၃%
..အနည္းဆံုးအခြန္ျဖစ္သည္။ (ref: CIA facts) ႏိုင္ငံေတာ္သမၼတက FDI , Joint Venture , BOT
စသည္တို႔ျဖင့္ သယံဇာတေရာင္းခ်ျခင္းျဖင့္ ၀င္ေငြရွာေနသည္။ အမွန္တကယ္ အလုပ္မ်ားမ်ားေပးႏိုင္ျပီး၊
အျမက္လည္းရေသာ အလုပ္မွာ စက္မႈလုပ္ငန္းျဖစ္သည္။ အထူးသျဖင့္ Process Industry
စားေသာက္ကုန္စက္ရံုမ်ားျဖစ္သည္။ စြမ္းအင္လိုသည္။ လွ်ပ္စစ္လိုသည္။
လွ်ပ္စစ္မရလွ်င္ ၾကက္ဥမွအစ၊ ေစာင္၊ကြန္ျပဴတာ၊ေမာ္ေတာ္ကားအထိ ကုန္ထုတ္အလုပ္ရံုမ်ား၊
ျပည္ပကုန္မ်ားကိုမယွဥ္ႏိုင္ေတာ့ပါ။
B&M

လက္ရွိျမန္မာႏိုင္ငံလွ်ပ္စစ္ထုတ္လုပ္၊သံုးစြဲမႈအေျခအေန
(လႊတ္ေတာ္ထုတ္ျပန္ခ်က္)
၂၀၁၂ ႏွစ္တြင္ လွ်ပ္စစ္ ကီလို၀ပ္နာရီသန္းေပါင္း ၁၃၃၇၈.၃ ထုတ္လုပ္၊
မဂါ၀ပ္ ၄၀၀၆ ရွိသည္။ (၃၈% effencicy)
လွ်ပ္စစ္ဆံုးရႈံးမႈမ်ားစြာ (၃၇% ဆံုးရံႈးမႈ) မွာ ဓါတ္အားလိုင္းယိုယြင္းမႈႏွင့္အခမဲ့နီးပါးသံုးစြဲမႈမ်ား
ဓါတ္အားေပးစက္မ်ား
•Hydro Power, Combine Gas Turbine, Coal power boiler စသည့္နည္းပညာမ်ား၊ ယခုစာအခ်ဳပ္ထားေသာ
ေနေရာင္ျခည္စြမ္းအင္ ေဒၚလာ၂၅၀ US$250 million Project ၾကက္ဆူပင္၊ သူေဌးႏိုင္ငံၾကီမ်ား EU & American
မ်ားသာ Green Energy ဆိုလာ၊ ေလရဟတ္၊ ညူကလီယာစြမ္းအား သံုးစြဲၾကသည္။ အင္ဒိုနီးရွား၊ဖိလစ္ပိုင္တြင္
Biomass, Ground heat ႏွင့္ စြန္ပစ္ပစၥည္းသံုးစက္ရံုမ်ား
ပုဂၢလိကလွ်ပ္စစ္ထုတ္ျခင္း
• ပထမဆံုး ဥပေဒကို ေရးဆြဲရမည္ျဖစ္သည္။ ဥပေဒအတည္မျပဳေသးမီ ကုမၸဏီၾကီးမ်ားႏွင့္ စာခ်ဳပ္ (ဥပမာ BOT
agreement) မ်ားျဖင့္စတင္ၾကသည္။ စာခ်ဳပ္မ်ားကို တဖက္သတ္ အဆိုျပဳျပီး ခ်ဳပ္ေလ့ရွိသည္။ ထိုနည္းျဖင့္
ေဟာင္ေကာင္၊ မကာအိုတို႔ ၉၉ႏွစ္ ငွားရမ္းစာခ်ဳပ္
• ေက်းရြာ၊ ရပ္ကြက္မ်ားတြင္ အေသးစား လွ်ပ္စစ္ထုတ္လုပ္၊ ေရာင္းခ်ျခင္း ပုဂၢလိကလုပ္ငန္းမ်ားကို ဥပေဒျဖင့္
ခြင့္ျပဳရမည္။ သို႔မွသာ အစိုးရအသစ္ေျပာင္းသြားလွ်င္လည္း ဥပေဒစိုးမိုးရန္
• EPC ဌာနဆိုင္ရာမ်ားအတြက္ 3rd Party အဖြဲ႔မ်ားက ၾကားခံညွိရန္
• ေရတို (ပုဂၢလိက အေသးစား၊အလတ္စားစက္ရံုမ်ား၊ ဆီတင္သြင္းျဖင့္ဓါတ္အားထုတ္ရန္)
• ေရရွည္ (အစိုးရ၊ ေရအားလွ်ပ္စစ္၊ သဘာဝဓါတ္ေငြသံုးဓါတ္အားစက္ရံု)
B&M

ေရတို
• မီးထြႏ္းရန္ - ေနေရာင္ခ်ည္သံုးစက္မ်ားကို ျပည္ပမွတင္သြင္းျခင္း
• Biogas စပါးခြဲ၊ သစ္မီးေသြးသံုးဓါတ္အားေပးစက္အေသးမ်ား
• ေက်ာက္မီးေသြးႏွင့္သဘာဝဓါတ္ေငြသံုး 1 to 10mW စက္ရံုမ်ား
• ဒီဇယ္ဆီသံုးစက္ရံုမ်ား
• ထိုင္း၊တရုပ္ႏိုင္ငံမ်ားမွ လွ်ပ္စစ္ကို ျပန္လည္ဝယ္ယူျခင္း
ပုဂၢလိက ရင္းႏွီးျမွတ္ႏွံမႈစြမ္းအားကို အသံုးခ်နည္း
• ျခစားမႈအဆင့္မ်ား နည္းေစရန္၊ ျမိဳ႔နယ္တိုင္းတြင္ ေလးစားရသူမ်ားက အစိုးရ၊ဌာနဆိုင္ရႏွင့္တတ္သိပညာရွင္မ်ားျဖင့္
ဦးေဆာင္ျပီး၊ လ်ပ္စစ္ကုမၼဏီကေလးမ်ား ေငြေၾကး၊ မဆံုးရံႈးရန္၊ ကုမၸၾကီးမ်ားက လက္ဝါးအုပ္မႈကာကြယ္ေပးရန္
• ဗဟုိမွဥပေဒထုတ္ေပးရန္
ေရရွည္
• ဗဟုိမွ လွ်ပ္စစ္ IPP ဥပေဒထုတ္ရန္ (စင္ကာပူႏိုင္ငံဥပေဒကို တိုက္ရိုက္ေကာ္ပီလုပ္ရန္
• ၁၀၀% ရင္းႏွီးျမွတ္ႏွံေစရန္ (ျပည္တြင္းမွ လုပ္ငန္းရွင္ၾကီးမ်ားႏွင့္ဖက္စပ္မလိုအပ္။
ေရရွည္တြင္လွ်ပ္စစ္ေစ်းၾကီးသြားမည္။ ဥပမာ ဖိလစ္ပိုင္၊ ၾသစေၾတးလွ်ား
• လွ်ပ္စစ္ေစ်းခ်ိဳေသာႏိုင္ငံမ်ားထံမွ အတုယူ၊ေလ့လာရန္ ဥပမာ ဗီယက္နမ္၊တရုပ္
• Conbined gas turbine (to use own gas), Dam at rivers
• Power Grid, Transmittion line update, EPC Management level officers
B&M

ျမိဳ႔မ်ားအား လွ်ပ္စစ္ေပးျခင္း
• စက္မႈဇုန္မ်ားကို လုပ္ငန္းရွင္မ်ားႏွင့္ လွ်ပ္စစ္ထုတ္သူမ်ား သင့္တင့္မွ်တေသာ ေစ်းႏႈန္းသတ္မွတ္ရန္
• လွ်ပ္စစ္ Certified Accountant စာရင္းစစ္မ်ားျဖင့္ အျမတ္ရရွိေရးအတြက္ အာမခံေပးရန္
• ဒီဇယ္၊ သဘာဝဓါတ္ေငြ႔ ပံ့ပိုးေပးရန္
• ဌာနဆိုင္ရာမ်ားႏွင့္ ျပသနာ (ျခစားမႈ) နည္းေစရန္
• ျပည္ပမွ ဓါတ္အားေပးစက္မ်ား (1mW to 10mW) တင္သြင္းရတြင္ လြယ္ကူေစရန္
• ေငြေခ်းအခြင့္အလမ္းကို UNIDO ကဲ့သို႔ တရားမွ်တစြာလုပ္ေပးရန္
ေက်းရြာ၊ျမိဳငယ္ေလးမ်ား လွ်ပ္စစ္ေပးျခင္း
• မီးလင္းေရး
• အေသးစားစက္မႈလုပ္ငန္းမ်ား
• လယ္ယာ၊စားေသာက္ကုန္ႏွင့္အလတ္စားလုပ္ငန္းမ်ား
B&M

• Data collection (Power Generation, Usage of Grid, Transmittion line
• Private Power usages
Small Power Plants
• US$1.00 million investment for 1mW power generation
• Distriution line to use own (no connection to EPC Grid) to discuss
• Priority is for agri and fishery industry
- Rice mill, Oil mill
- Ice mill, Fish Processing, Food Processing factory
Median Power Plants
• US$1.00 to US10.00 million investment
• Distribution line to use own (no connection to EPC Grid), to discuss
Technical
Presentation
(I)
I
II
III
IV
B&M

Technical
Presentation
(II)
Preparation (Investment cost)
Material cost
Operation cost
Investment loan (interest and re-payment for 40yrs
Inflation
skill
B&M
I
II
III
IV

Technical
Presentation
(III)
Installation & Production expenses
Labor & skill level (Not a skill industry for SME Power generation)
B&M
I
II
III
IV

Technical
Presentation
(IV)
Plan tof 5 years to generate and sell electricity
(Balance Sheet to include , 5 years plan)
After 5 years, government & big power company can sell cheaper price
Our SME electricity generation price is estimated ~US$15cents
(see regional electricity price at Appendex I)
B&M
I
II
III
IV

Conclusion
နိဂံုး (အဆိုျပဳခ်က္)
Proposal
1. TECHNICAL PRESENTATION
Power distribution and billing plan
(remote control , metering to prevent power thief & quality assurance)
1 meter cost $20 , control station server cost $5000 estimated)
Safety
Environment
B&M
Trend of IPP quantity and generation power (3mW per unit. After 2017 (5 years), small
power plant will be phase out. ,Estimated SOE (EPC) .. Restructured as China or Vietnam

မွတ္ခ်က္။
•အေရွ႔ေတာင္အာရွႏိုင္ငံမ်ားထိုင္းႏွင့္တရုပ္တို႔ကို
စံျပဳျပီးလွ်ပ္စစ္ထုတ္လုပ္ျဖန္႔ျဖဴးသခၤန္းစာယူ
• ၁၉၉၀ ေခတ္ကာလတြင္ တရုပ္၊ အင္ဒိုနီးရွား၊
ဖိလစ္ပိုင္တို႔ လွ်ပ္စစ္ဓါတ္အား
(ယခုျမန္မာျပည္အေျခအေနအတုိင္း) မွ IPP
Independent Power Producer
(အေနာက္ႏိုင္ငံရင္းႏွီးမႈ) မ်ားစြာလုပ္ကိုင္ျခင္းကို
ေလ့လာရန္။
• ေနာက္ဆံုး ဖိလစ္ပိုင္တြင္ တစ္ယူနစ္
၃၀ဆင့္ ေစ်းအလြန္ၾကီးသြားျခင္း၊
အင္ဒိုနီးရွားအစိုးရက ေရနံ၊ဓါတ္ေငြ႔မ်ားစြာ
အထူးႏႈန္းေပးရျခင္းမ်ား
• ဗီယက္နမ္ႏွင့္တရုပ္ႏိုင္ငံတြင္ အစိုးရက
မည္ကဲ့သို႔ေစ်းႏႈန္းခ်ဳပ္ထိန္းနည္းလမ္းမ်ား
• တရုပ္ႏွင့္ဗီယက္နမ္မ်ား လွ်ပ္စစ္လုပ္ငန္းမ်ားကို
အမ်ားပိုင္လုပ္ျခင္းစံနမူနာ
• (စနစ္ - IPP Law) အရမ္းေကာင္းေသာ္လည္း ယိုေပါက္မ်ားရွိေနမည္ပင္ျဖစ္သည္။ ထို႔ေၾကာင့္ အစိုးရအဖြဲ႔၀င္ လူမ်ားသာ
အဓိကျဖစ္သည္။
• ကမၻာ့အဆင္းရဲဆံုးႏွင့္ျခအစားဆံုးျမန္မာႏိုင္ငံအတြက္ စီးပြားေရးမလုပ္ေသာ လွ်ပ္စစ္ဝန္ၾကီးဌာနမွ အင္ဂ်င္နီယာဥပေဒကဲ့သို႔ အစိုးရ၊
လူထု၊ လူမႈေရ၊ တတ္သိပညာရွင္၊ စီးပြားပညာရွင္ႏွင့္လုပ္ငန္းရွင္မ်ားျဖင့္ လုပ္ေဆာင္ရန္ လိုအပ္ေနပါသည္။
Appendex I
B&M

Diseal Generators
Appendex II
B&M

2012 estimated
Myanmar energy use
1. Natural Gas 3.29 billion Cu M
2. Petroleum Products
109850 bbl per day
3. Electricity 13378 million Kwh per year
4. Others eg. Ricehusk Biogas (no data)
Electricity Price 2013
(US$ cent per Kwh)
Myanmar 3-80
China 7-11
India 8-12
Thailand 4-10
Vietnam 6-10
Malaysia 6-11
Singapore 21
Philippine 40
USA 8-17
Japan 20-24
Australia 30
Patro Price 2013
(Us$ per 1litter)
Myanmar $1.10
China $1.10
India $1.33
Thailand $1.00
Vietnam $1.03
Singapore $1.60
Malaysia $0.62
USA $0.96
Gas Price 2013
(US$ per mmBtu)
USA $3.58
UK ~$8.0
ဲJapan ~$14.0
Myanmar ??
Gas Price 2013
(US$ per mmBtu)
USA $3.58
UK ~$8.0
Japan ~$14.0
Myanmar ??
Unit Conversion
1 gallon = 3.78 litter
Diesel 1 ton (MT) = 312 gal
(7.3 bbl)
Gas 1 mmBtu = 28.26 cu M
1 cu M = 35 cu ft
Market Price, Production cost..etc
Appendex III
B&M

Myanmar Energy (Slides) by AUNG KYAW HTOO
http://www.slideshare.net/yph1969/myanmar-petroleum-energy
USA government energy info
eia.gov (Q&A)
Combined Circle Power
Plant
http://www.ccj-online.com
References
Power-Generation-Oil-Gas
-Industies.pdf
Zaw Aung & Aye Nyein
Myanmar Safety (Singapore)
http://myanmarsafety.wordpress.com/
IPP (South East Asia - research papers)
To download
1. Independent Power Producer (IPP)
debacle in Indonesia & Philippine
(Author - Professors from NUS National
University of Singapore)
PDF File: 87KB
Singapore IPP Law
2. Vietnam reform and IPP (by Lovells)
PDF file 1.2MB
Appendex IV
B&M

B&M
Appendex V
Power Map
902mW
ရန္ကုန္
50mW
ေက်ာက္ျဖဴ
315mW
တာပိန္၊ေရႊက်င္
400mW
ေပါင္းေလာင္း၊
ေသာက္ေရခပ္၊ကြ်န္းေခ်ာင္း
52mW
ဘီလူးေခ်ာင္း
လက္ရွိ 3142 mW
စီမံကိန္း 1431 mW
စုစုေပါင္း 4573 mW
လက္ရွိ စီမံ
ေရအား 2244 529
ေက်ာက္မီးေသြး 285
ဓါတ္ေငြ႔ 550 902
ဒီဇယ္ 63
စုစုေပါင္း 4573 1431

Electricity.2013.slides

More Related Content

What's hot

Similar to Electricity.2013.slides

More from Zaw Aung

Recently uploaded

Electricity.2013.slides
