1. ELECTRIC TRACTION
- Mr. V. S. Wadkar

2. TOPICS TO BE DISCUSSED
• Type of Services
• Speed Time Curve
• Maximum Speed, Average Speed &
Schedule Speed

3. Types of Services
• Urban or city services-
Small distance between stations, High
acceleration
• Sub urban services-
Small distance between stations, High
acceleration
• Main line services-
Long distance between stations, Moderate
acceleration

4. Speed Time Curve
• Curve of instantaneous speed of train versus time

5. Speed Time Curve
Curve consists following periods.
• Notching up period or Constant acceleration
• Acceleration Period or Speed curve running
• Free run or constant speed period
• Coasting period
• Retardation or braking period

6. Speed Time Curve

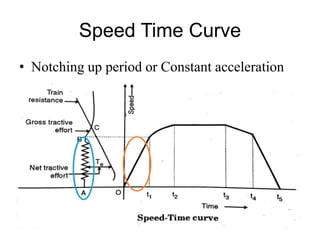

• Notching up period or Constant acceleration

7. Speed Time Curve
• Acceleration Period or Speed curve running

8. Speed Time Curve

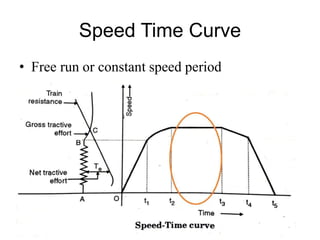

• Free run or constant speed period

9. Speed Time Curve
• Coasting period

10. Speed Time Curve
• Retardation or braking period

11. Speed Time Curve
• Simplified speed time curve

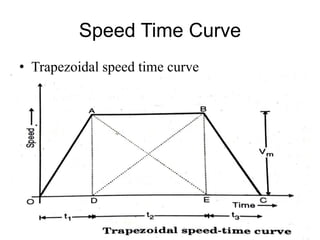

12. Speed Time Curve
• Trapezoidal speed time curve

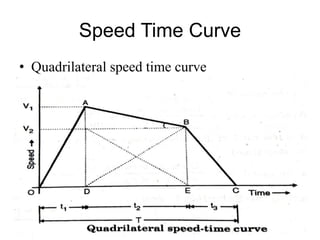

13. Speed Time Curve
• Quadrilateral speed time curve

14. ELECTRIC TRACTION SYSTEM
• Crest or Maximum Speed
• Average Speed
-Ratio of distance between stops to actual
time of run
• Schedule Speed
-Ratio of distance between stops to total
time of run
