This document provides examples and explanations of different types of Enterprise JavaBeans (EJBs), including stateless session beans, stateful session beans, entity beans, and container-managed persistence. It describes the home and remote interfaces, bean classes, required bean methods, and example client code for each EJB type. It also discusses entity bean mappings, characteristics, and how they represent persistent data stored in a database. Finally, it briefly outlines the multitiered J2EE application model and database connection pooling techniques.

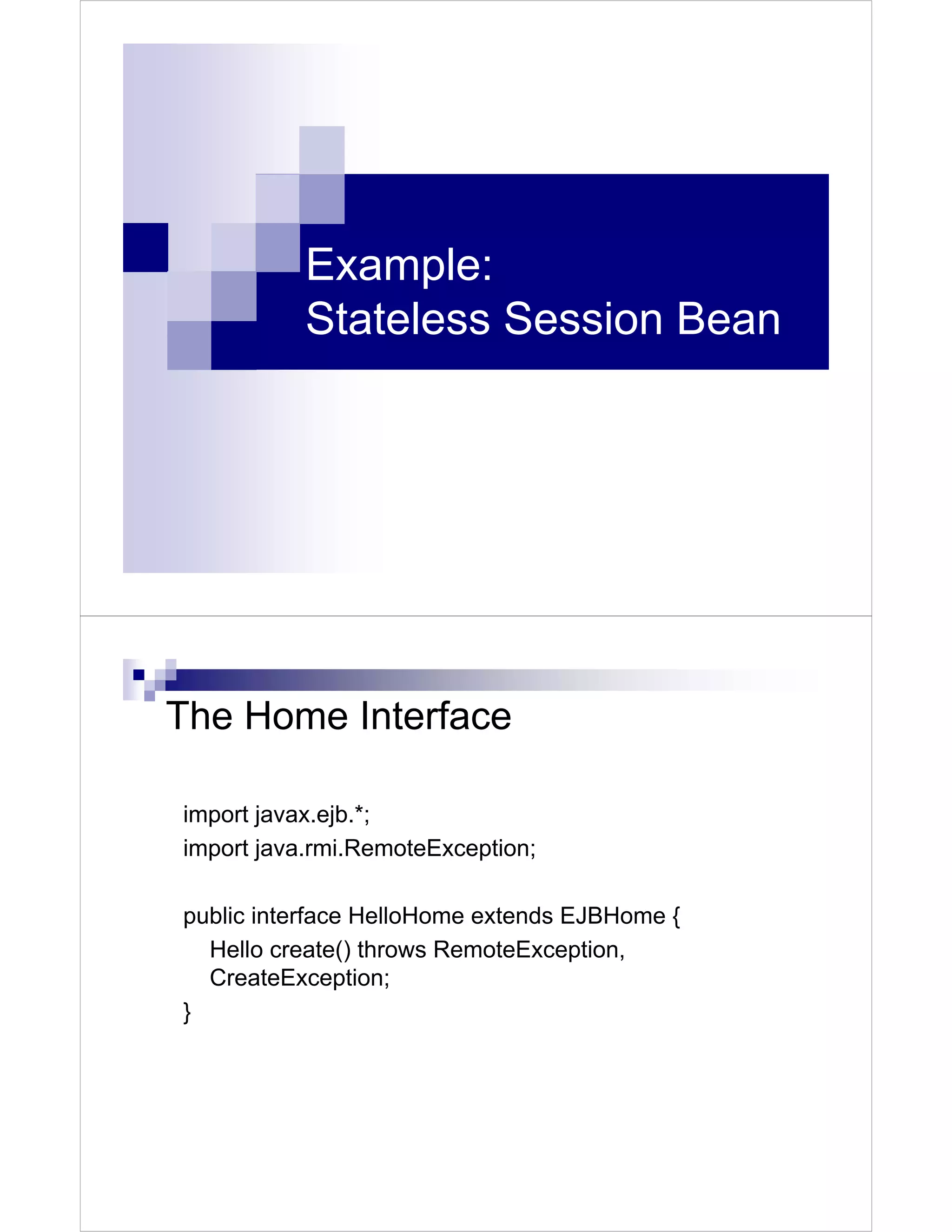

1. Example:
Stateless Session Bean
The Home Interface
import javax.ejb.*;
import java.rmi.RemoteException;
public interface HelloHome extends EJBHome {
Hello create() throws RemoteException,
CreateException;
}

2. The Remote Interface
import javax.ejb.*;
import java.rmi.RemoteException;
import java.rmi.Remote;
public interface Hello extends EJBObject {
public String hello() throws
java.rmi.RemoteException;
}
The Bean Class
public class HelloBean implements SessionBean {
// these are required session bean methods
public void ejbCreate() {}
public void ejbRemove() {}
public void ejbActivate() {}
public void ejbPassivate() {}
public void setSessionContext(SessionContext ctx) {}
// this is our business method to be called by the client
public String hello() {
return “Hello, world!”;
}
}

3. Session Bean Required Methods
The following methods are defined in the SessionBean
interface:
void ejbCreate(…init params…)
Performs necessary initializations when an instance is created
void ejbRemove()
Prepare for the bean’s destruction
void ejbActivate()
Prepare needed resources to return from hibernation
void ejbPassivate()
Releases any resources (database connections, files) before an
instance is put into hibernation
void setSessionContext(SessionContext sc)
Stores the session context (used for communicating with the EJB
container)
The EJB Client
public class HelloClient {
public static void main(String[] args) {
try {
InitialContext ic = new InitialContext();
Object objRef = ic.lookup("java:comp/env/ejb/Hello");
HelloHome home =
(HelloHome)PortableRemoteObject.narrow(
objRef, HelloHome.class);
Hello hello = home.create();
System.out.println( hello.hello() );
hello.remove();
} catch (Exception e) {
e.printStackTrace();
}
}
}

4. Example:
Stateful Session Bean
The Home Interface
import javax.ejb.*;
import java.rmi.RemoteException;
public interface CountHome extends EJBHome {
Count create() throws RemoteException,
CreateException;
}

5. The Remote Interface
import javax.ejb.*;
import java.rmi.RemoteException;
import java.rmi.Remote;
public interface Count extends EJBObject {
public int count() throws
java.rmi.RemoteException;
}
The Bean Class
public class CountBean implements SessionBean {
private int val = 0;
public void ejbCreate() {}
public void ejbRemove() {}
public void ejbActivate() {}
public void ejbPassivate() {}
public void setSessionContext(SessionContext ctx) {}
// this is our business method to be called by the client
public int count() {
return ++val;
}
}

6. The EJB Client
public class CountClient {
public static void main(String[] args) {
try {
InitialContext ic = new InitialContext();
Object objRef = ic.lookup("java:comp/env/ejb/Count");
CountHome home = (CountHome)
PortableRemoteObject.narrow(objRef, CountHome.class);
Count count = home.create();
System.out.println(“Count:”+count.count() );
System.out.println(“Count:”+count.count() );
System.out.println(“Count:”+count.count() );
count.remove();
} catch (Exception e) {}
}
}
Entity Beans

7. What Are Entity Beans?
They represent data elements
Unlike session beans, entity beans last longer
than a client session
Entity beans last as long as the data they represent
lasts
In reality, entity beans are a data access wrapper
(e.g. database encapsulation)
When entity bean’s data is modified, so is the
representative data in the database (& vice versa)
Whether this is done by the container, or explicitly by
the programmer, depends on what kinds of Entity
bean it is
Entity Bean Data Mappings
Entity Bean pkField SomeField … …
1 … … …
Entity Bean
2 … … …
3 … … …
Entity Bean
Entity Bean

8. Entity Bean Facts
The persistent data represented by the entity bean is
stored safely
Usually in a database
Entity beans keep their data even after a crash
Multiple entity beans can represent the same data in the
database
Used for handling multiple clients who want to access the same
data
Entity beans can be re-used
Entity beans of a given type may be placed into a pool and
reused for different clients
The data the entity beans represent will change
Example:
Entity Beans
Container-Managed Persistence (CMP)

9. The Home Interface
import javax.ejb.*;
import java.rmi.RemoteException;
import java.util.*;
public interface AccountHome extends EJBHome {
public Account create(Integer accountID, String owner)
throws RemoteException, CreateException;
public Account findByPrimaryKey(Integer accountID)
throws FinderException, RemoteException;
}
The Remote Interface
import javax.ejb.*;
import java.rmi.*;
public interface Account extends EJBObject {
public void deposit(double amount) throws RemoteException;
public void withdraw(double amount) throws RemoteException;
public double getBalance() throws RemoteException;
}

10. The Bean Class
import javax.ejb.*;
import java.rmi.*;
import java.util.*;
public abstract class AccountBean implements EntityBean {
public abstract void setAccountID(Integer accountID);
public abstract Integer getAccountID();
public abstract void setBalance(double balance);
public abstract bouble setBalance();
public abstract void setOwnerName(String ownerName);
public abstract String getOwnerName();
public Integer ejbCreate(int accountID, String owner) throws CreateException {
setAccountID(accountID);
setOwnerName(owner);
return new Integer(0);
}
public void ejbPostCreate(int accountID, String owner) {}
public void ejbRemove() {}
public void ejbActivate() {}
public void ejbPassivate() {}
public void ejbLoad() {}
public void ejbStore() {}
public void setEntityContext(EntityContext ctx) {}
public void setEntityContext() {}
The Bean Class (contd.)
public void withdraw(double amount)
{
setBalance( getBalance() - amount );
}
public void deposit(double amount)
{
setBalance( getBalance() + amount );
}
}

11. The EJB Client
public class AccountClient {
public static void main(String[] args) {
try {
Context ctx = new InitialContext();
Object ref = ctx.lookup(“java:comp/env/ejb/Account”);
AccountHome home = (AccountHome)
PortableRemoteObject.narrow(objRef, AccountHome.class);
Account newAccount = home.create(123, “John Smith”);
newAccount.deposit(100);
newAccount.remove();
Collection accounts = home.findByOwnerName(“John Smith”);
} catch (Exception e) {}
}
}
Enterprise
Applications

12. J2EE application model
J2EE is a multitiered distributed application model
client machines
the J2EE server machine
the database or legacy machines at the back end
Resource Pooling

13. Database Connection Pooling
Connection pooling is a technique
RDBMS
that was pioneered by database
vendors to allow multiple clients to
share a cached set of connection
objects that provide access to a
database resource
Connection
Connection pools minimize the Pool
opening and closing of connections
Servlet
Client 1 …… Client n
References
Developing Enterprise Applications Using the J2EE Platform,
http://java.sun.com/developer/onlineTraining/J2EE/Intro2/j2ee.html
