Drupal 8: Fields reborn

D8: Fields reborn
Pablo López - @plopesc
DrupalCamp Spain
Valencia, May 2014

Let's do it with Drupal 8
Rubén Teijeiro
Was earlier today :)
Migrate in core
Christian López Espínola
Saturday 1pm
El universo javascript en Drupal 8
Ramón Vilar
Saturday 5pm
Modes and formatters
Jesús Sánchez Balsera
Sunday 10am

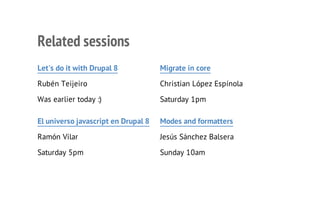

Related sessions

Credits: @yched & @swentel
Broken record

Amazing changes
• More power for site builders
• Fields & instances moved to config entities
• Formatters, Widgets and Field types are plugins
• Formatters & Widgets work on all fields
• Moved from field to entity storage
Field & Entity API are now one happy big family

yched, amateescu, swentel
fago, Berdir, plach,
effulgentsia, andypost...

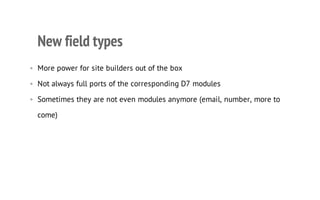

New field types
• More power for site builders out of the box
• Not always full ports of the corresponding D7 modules
• Sometimes they are not even modules anymore (email, number, more to
come)

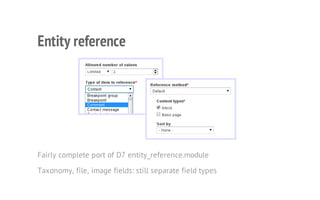

Entity reference
Fairly complete port of D7 entity_reference.module
Taxonomy, file, image fields: still separate field types

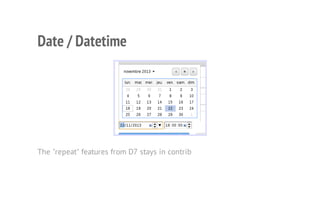

Date / Datetime
The "repeat" features from D7 stays in contrib

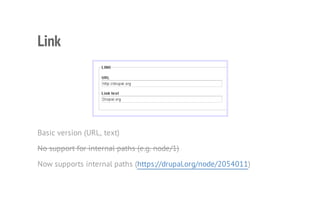

Link
Basic version (URL, text)
No support for internal paths (e.g. node/1)
Now supports internal paths (https://drupal.org/node/2054011)

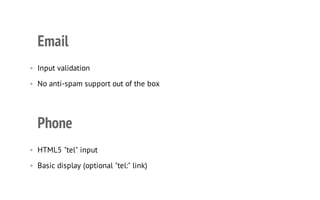

Email
• Input validation
• No anti-spam support out of the box
Phone
• HTML5 "tel" input
• Basic display (optional "tel:" link)

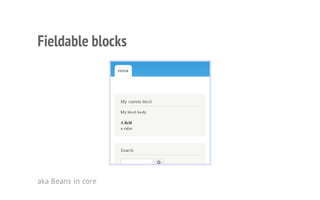

Fieldable blocks
aka Beans in core

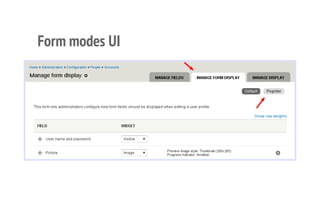

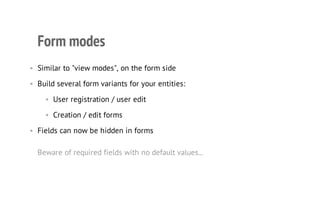

Form modes
• Similar to "view modes", on the form side
• Build several form variants for your entities:
• User registration / user edit
• Creation / edit forms
• Fields can now be hidden in forms
Beware of required fields with no default values...

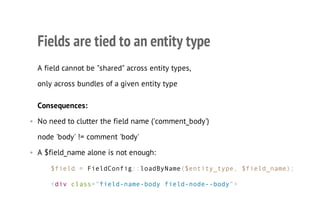

Fields are tied to an entity type
A field cannot be "shared" across entity types,
only across bundles of a given entity type
Consequences:
• No need to clutter the field name ('comment_body')
node 'body' != comment 'body'
• A $field_name alone is not enough:
$field = FieldConfig::loadByName($entity_type, $field_name);
<div class="field-name-body field-node--body">

Disclaimer: still in flux...
Data structures

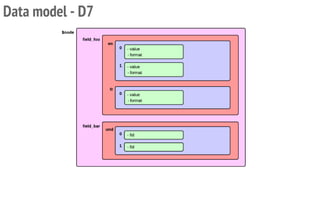

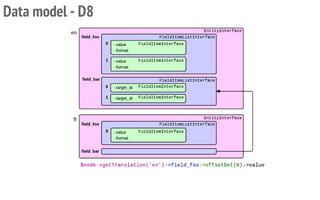

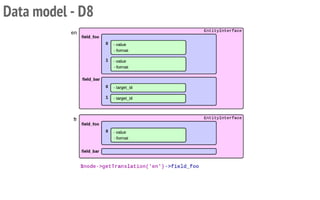

Data model recap
• Field value: list of multiple items
• Each item: list of properties depending on the field type
• Fields can be translatable

D8 Entity translation
• Entity level, not field level
$entity->getTranslation($langcode)
• Implements EntityInterface:
$entity->getTranslation($langcode)->field_foo
• Facets of the same entity
$entityis always loaded/saved as a whole

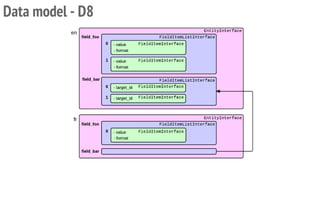

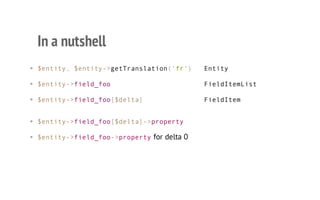

In a nutshell
• $entity, $entity->getTranslation('fr') Entity
• $entity->field_foo FieldItemList
• $entity->field_foo[$delta] FieldItem
• $entity->field_foo[$delta]->property
• $entity->field_foo->propertyfor delta 0

Navigating
Field items are "smart":
$items->getEntity() $items->getLangcode()
$items->getFieldDefinition()
$instances = field_info_instances($entity_type, $bundle);
foreach ($instances as $field_name => $instance) {
$items = $entity[$field_name][$langcode];
do_something($items, $entity, $langcode, $instance);
} D7
foreach ($entity as $field_name => $items) {
$items->doSomething(); // or $object->doSomething($items);
} D8

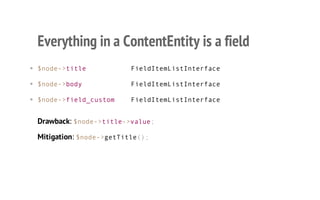

Everything in a ContentEntity is a field
• $node->title FieldItemListInterface
• $node->body FieldItemListInterface
• $node->field_custom FieldItemListInterface
Drawback: $node->title->value;
Mitigation: $node->getTitle();

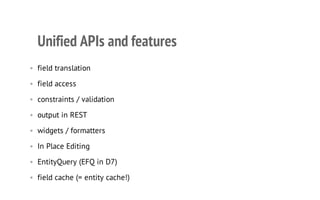

Unified APIs and features
• field translation
• field access
• constraints / validation
• output in REST
• widgets / formatters

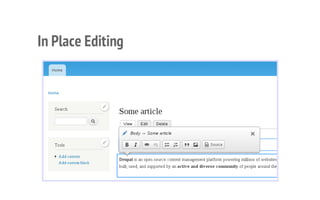

• In Place Editing
• EntityQuery (EFQ in D7)
• field cache (= entity cache!)

Different kinds of fields...
• Base fields (former "entity properties")
• defined in code: MyEntityType::baseFieldDefinitions()
• Bundle fields (variations of base fields per bundle)
• defined in code: MyEntityType::bundleFieldDefinitions()
• e.g. node title
• Configurable fields (former "fields") - field.module
• defined in config through an admin UI
Properties: what you find inside a FieldItem ('value', 'format', 'target_id'...)

Code architecture
• /core/lib/Drupal/Core/Field
The Field system, widgets, formatters...
baked in the lifecycle of (Content)Entities
• /core/modules/field.module
Configurable fields

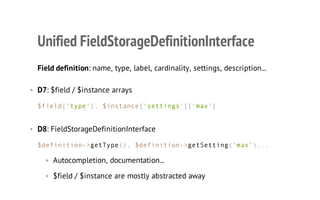

Unified FieldStorageDefinitionInterface
Field definition: name, type, label, cardinality, settings, description...
• D7: $field / $instance arrays
$field['type'], $instance['settings']['max']
• D8: FieldStorageDefinitionInterface
$definition->getType(), $definition->getSetting('max')...
• Autocompletion, documentation...
• $field / $instance are mostly abstracted away

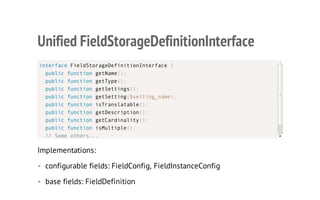

Unified FieldStorageDefinitionInterface
Implementations:
• configurable fields: FieldConfig, FieldInstanceConfig
• base fields: FieldDefinition
interface FieldStorageDefinitionInterface {
public function getName();
public function getType();
public function getSettings();
public function getSetting($setting_name);
public function isTranslatable();
public function getDescription();
public function getCardinality();
public function isMultiple();
// Some others...

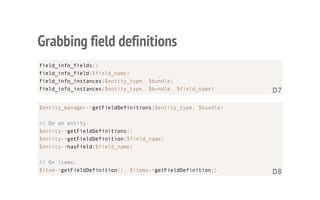

Grabbing field definitions
field_info_fields()
field_info_field($field_name)
field_info_instances($entity_type, $bundle)
field_info_instances($entity_type, $bundle, $field_name) D7
$entity_manager->getFieldDefinitions($entity_type, $bundle)
// On an entity:
$entity->getFieldDefinitions()
$entity->getFieldDefinition($field_name)
$entity->hasField($field_name)
// On items:
$item->getFieldDefinition(), $items->getFieldDefinition() D8D8D8

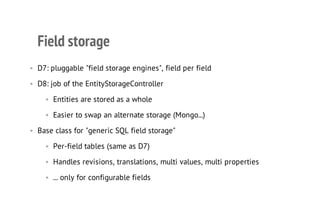

Field storage
• D7: pluggable "field storage engines", field per field
• D8: job of the EntityStorageController
• Entities are stored as a whole
• Easier to swap an alternate storage (Mongo...)
• Base class for "generic SQL field storage"
• Per-field tables (same as D7)
• Handles revisions, translations, multi values, multi properties
• ... only for configurable fields

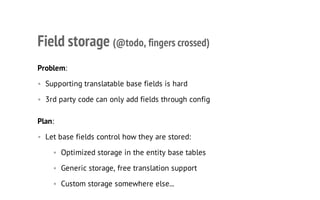

Field storage (@todo, fingers crossed)
Problem:
• Supporting translatable base fields is hard
• 3rd party code can only add fields through config
Plan:
• Let base fields control how they are stored:
• Optimized storage in the entity base tables
• Generic storage, free translation support
• Custom storage somewhere else...

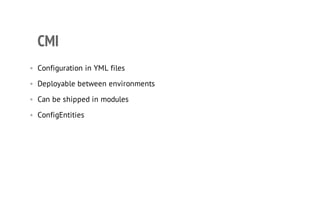

CMI
• Configuration in YML files
• Deployable between environments
• Can be shipped in modules
• ConfigEntities

Field definition structures
• $field: "a data bucket"
(name, type, cardinality, entity type, ...)
• $instance: "a field attached to a specific [entity_type, bundle]"
(label, description, required, ...)
D7:
• deep arrays of hell
• {field_config}, {field_config_instance}db tables

D8: Field structures as ConfigEntities
• $field:
• FieldConfig(entity type: 'field_config')
• field.field.[entity_type].[field_name].yml
• $instance:
• FieldInstanceConfig(entity type: 'field_instance_config')
• field.instance.[entity_type].[bundle].[field_name].yml

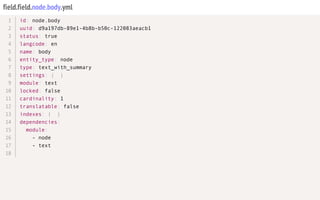

field.field.node.body.yml
id: node.body
uuid: d9a197db-89e1-4b8b-b50c-122083aeacb1
status: true
langcode: en
name: body
entity_type: node
type: text_with_summary
settings: { }
module: text
locked: false
cardinality: 1
translatable: false
indexes: { }
dependencies:
module:
- node
- text
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

field.instance.node.article.body.yml
id: node.article.body
uuid: a378b8b5-39ac-44da-bc07-7ad0a2479a6a
status: true
langcode: en
field_uuid: d9a197db-89e1-4b8b-b50c-122083aeacb1
field_name: body
entity_type: node
bundle: article
label: Body
description: ''
required: false
default_value: { }
default_value_function: ''
settings:
display_summary: true
text_processing: true
dependencies:
entity:
- field.field.node.body
- node.type.article
field_type: text_with_summary
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

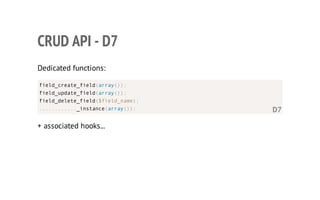

CRUD API - D7
Dedicated functions:
+ associated hooks...
field_create_field(array());
field_update_field(array());
field_delete_field($field_name);
............_instance(array()); D7

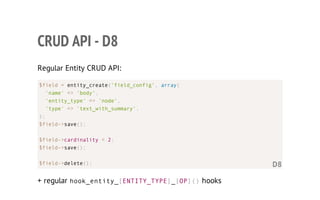

CRUD API - D8
Regular Entity CRUD API:
+ regular hook_entity_[ENTITY_TYPE]_[OP]()hooks
$field = entity_create('field_config', array(
'name' => 'body',
'entity_type' => 'node',
'type' => 'text_with_summary',
);
$field->save();
$field->cardinality = 2;
$field->save();
$field->delete(); D8

Display settings in D7
Scattered around:
• $instance['display'][$view_mode]
• 'field_bundle_settings_[entity_type]_[bundle]' variable (ew...)
• 3rd party (Display suite, Field groups): in their own tables...
Each with separate "alter" hooks
Loads needless stuff in memory

EntityViewDisplay (ConfigEntity)
• "Full recipe" for displaying an entity in a given view mode
• Lists "components", with order and settings
entity_view($entity, $view_mode) :
• Loads the relevant display
• Alters it as a whole
• Injects it into all the callstack
hook_entity_view_display_alter(EntityViewDisplay $display);
EntityViewBuilder::buildContent(array $entities, array $displays);
hook_entity_view(EntityInterface $entity, EntityViewDisplay $display);

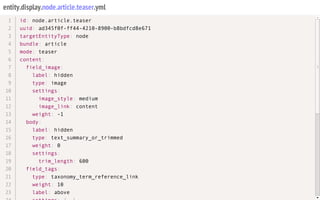

entity.display.node.article.teaser.yml
id: node.article.teaser
uuid: ad345f0f-ff44-4210-8900-b8bdfcd8e671
targetEntityType: node
bundle: article
mode: teaser
content:
field_image:
label: hidden
type: image
settings:
image_style: medium
image_link: content
weight: -1
body:
label: hidden
type: text_summary_or_trimmed
weight: 0
settings:
trim_length: 600
field_tags:
type: taxonomy_term_reference_link
weight: 10
label: above
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

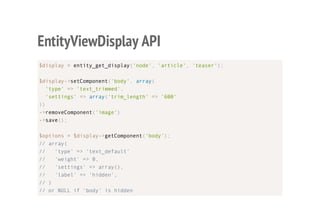

EntityViewDisplay API
$display = entity_get_display('node', 'article', 'teaser');
$display->setComponent('body', array(
'type' => 'text_trimmed',
'settings' => array('trim_length' => '600'
))
->removeComponent('image')
->save();
$options = $display->getComponent('body');
// array(
// 'type' => 'text_default'
// 'weight' => 0,
// 'settings' => array(),
// 'label' => 'hidden',
// )
// or NULL if 'body' is hidden

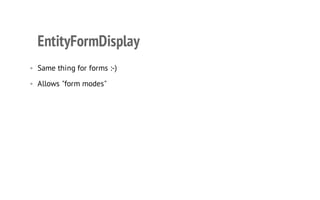

EntityFormDisplay
• Same thing for forms :-)
• Allows "form modes"

D7: field type "hooks"
function hook_field_info() { }
function hook_field_schema($field) { }
function hook_field_settings_form($field, $instnce, $has_data) { }
function hook_field_instance_settings_form($field, $instance) { }
function hook_field_load($entity_type, $entities, $field, $instances, $langcode
function hook_field_validate($entity_type, $entity, $field, $instance, $langcode
function hook_field_presave($entity_type, $entity, $field, $instance, $langcode
function hook_field_insert($entity_type, $entity, $field, $instance, $langcode
function hook_field_update($entity_type, $entity, $field, $instance, $langcode
function hook_field_delete($entity_type, $entity, $field, $instance, $langcode
function hook_field_delete_revision($entity_type, $entity, $field, $instance,
function hook_field_is_empty($item, $field) { }
function hook_field_prepare_view($entity_type, $entities, $field, $instances,
function hook_field_prepare_translation($entity_type, $entity, $field, $instance

FieldType plugin type
• Discovery folder: Plugin/Field/FieldType
• Annotation: FieldType
• Interface: FieldItemInterface

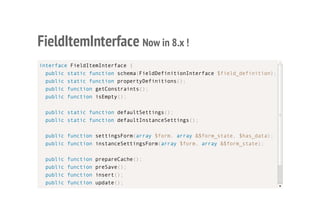

FieldItemInterface Now in 8.x !
interface FieldItemInterface {
public static function schema(FieldDefinitionInterface $field_definition);
public static function propertyDefinitions();
public function getConstraints();
public function isEmpty();
public static function defaultSettings();
public static function defaultInstanceSettings();
public function settingsForm(array $form, array &$form_state, $has_data);
public function instanceSettingsForm(array $form, array &$form_state);
public function prepareCache();
public function preSave();
public function insert();
public function update();
public function delete();

/core/modules/link/lib/Drupal/link/Plugin/Field/FieldType/LinkItem.php
namespace DrupallinkPluginFieldFieldType;
use DrupalCoreFieldFieldItemBase;
use DrupalCoreFieldFieldStorageDefinitionInterface;
use DrupalCoreTypedDataDataDefinition;
use DrupalCoreTypedDataMapDataDefinition;
use DrupallinkLinkItemInterface;
/**
* Plugin implementation of the 'link' field type.
*
* @FieldType(
* id = "link",
* label = @Translation("Link"),
* description = @Translation("Stores a URL string, optional varchar link text, and optional bl
* default_widget = "link_default",
* default_formatter = "link",
* constraints = {"LinkType" = {}}
* )
*/
class LinkItem extends FieldItemBase implements LinkItemInterface {
/**
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

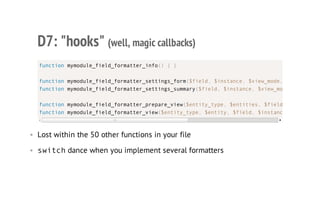

D7: "hooks" (well, magic callbacks)
• Lost within the 50 other functions in your file
• switchdance when you implement several formatters
function mymodule_field_formatter_info() { }
function mymodule_field_formatter_settings_form($field, $instance, $view_mode,
function mymodule_field_formatter_settings_summary($field, $instance, $view_mode
function mymodule_field_formatter_prepare_view($entity_type, $entities, $field
function mymodule_field_formatter_view($entity_type, $entity, $field, $instance

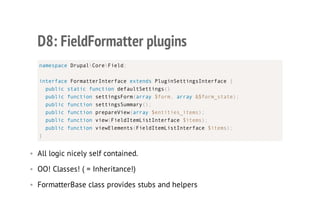

D8: FieldFormatter plugins
• All logic nicely self contained.
• OO! Classes! ( = Inheritance!)
• FormatterBase class provides stubs and helpers
namespace DrupalCoreField;
interface FormatterInterface extends PluginSettingsInterface {
public static function defaultSettings()
public function settingsForm(array $form, array &$form_state);
public function settingsSummary();
public function prepareView(array $entities_items);
public function view(FieldItemListInterface $items);
public function viewElements(FieldItemListInterface $items);
}

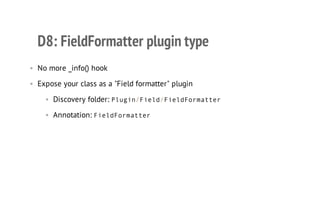

D8: FieldFormatter plugin type
• No more _info() hook
• Expose your class as a "Field formatter" plugin
• Discovery folder: Plugin/Field/FieldFormatter
• Annotation: FieldFormatter

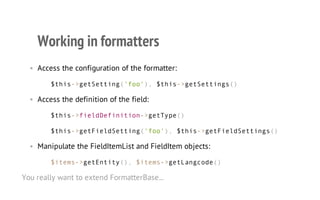

Working in formatters
• Access the configuration of the formatter:
$this->getSetting('foo'), $this->getSettings()
• Access the definition of the field:
$this->fieldDefinition->getType()
$this->getFieldSetting('foo'), $this->getFieldSettings()
• Manipulate the FieldItemList and FieldItem objects:
$items->getEntity(), $items->getLangcode()
You really want to extend FormatterBase...

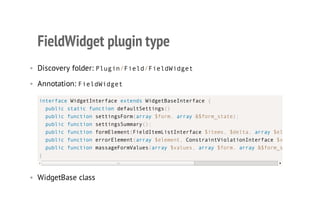

FieldWidget plugin type
• Discovery folder: Plugin/Field/FieldWidget
• Annotation: FieldWidget
• WidgetBase class
interface WidgetInterface extends WidgetBaseInterface {
public static function defaultSettings()
public function settingsForm(array $form, array &$form_state);
public function settingsSummary();
public function formElement(FieldItemListInterface $items, $delta, array $element
public function errorElement(array $element, ConstraintViolationInterface $violation
public function massageFormValues(array $values, array $form, array &$form_state
}

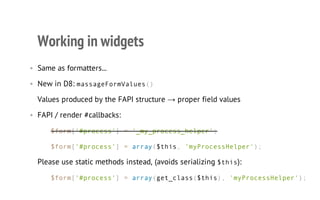

Working in widgets
• Same as formatters...
• New in D8: massageFormValues()
Values produced by the FAPI structure → proper field values
• FAPI / render #callbacks:
$form['#process'] = '_my_process_helper';
$form['#process'] = array($this, 'myProcessHelper');
Please use static methods instead, (avoids serializing $this):
$form['#process'] = array(get_class($this), 'myProcessHelper');

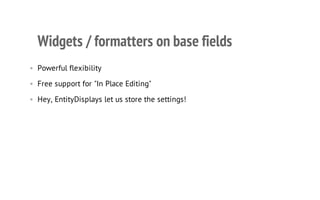

Widgets / formatters on base fields
• Powerful flexibility
• Free support for "In Place Editing"
• Hey, EntityDisplays let us store the settings!

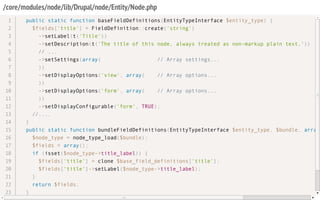

/core/modules/node/lib/Drupal/node/Entity/Node.php
public static function baseFieldDefinitions(EntityTypeInterface $entity_type) {
$fields['title'] = FieldDefinition::create('string')
->setLabel(t('Title'))
->setDescription(t('The title of this node, always treated as non-markup plain text.'))
// ...
->setSettings(array( // Array settings...
))
->setDisplayOptions('view', array( // Array options...
))
->setDisplayOptions('form', array( // Array options...
))
->setDisplayConfigurable('form', TRUE);
//....
}
public static function bundleFieldDefinitions(EntityTypeInterface $entity_type, $bundle, array
$node_type = node_type_load($bundle);
$fields = array();
if (isset($node_type->title_label)) {
$fields['title'] = clone $base_field_definitions['title'];
$fields['title']->setLabel($node_type->title_label);
}
return $fields;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

API changes / beta targets coming up
• Content translation sync settings to own storage
• A unified repository of field definitions
• Remove field_info_*() (Patch submitted)
• Apply formatters and widgets to * fields (Partially)
• Make delete fields work with config synchronization

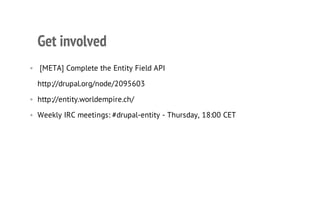

Get involved
• [META] Complete the Entity Field API
http://drupal.org/node/2095603
• http://entity.worldempire.ch/
• Weekly IRC meetings: #drupal-entity - Thursday, 18:00 CET

Drupal 8: Fields reborn

More Related Content

What's hot

Similar to Drupal 8: Fields reborn

More from Pablo López Escobés

Recently uploaded

Drupal 8: Fields reborn
