The database development should not be handled differently from application development. Concepts like source control, continuous integration and continuous delivery in order not only to improve the database deployment process but also to narrow down the gap between applications and databases. In this session will explore the different ways how to set up a deployment pipeline for databases. The database can be an Azure SQL Database or a database hosted in a SQL Server, the same concepts should be applied to both. I will explore the different challenges of the deployment pipeline steps: source control, continuous integration, continuous delivery, and how the decisions (migrations vs state approach for example) in each step influences the next steps. The deployment pipeline can be built only for databases, or to include applications in the different steps (can even include infrastructure). I will explore the different/possible configurations of the deployment pipeline while articulating databases and applications.

1. DEPLOYMENT PIPELINE FOR DATABASES Eduardo Piairo
@EdPiairo
#WinOpsAzure SQL Database, SQL Server

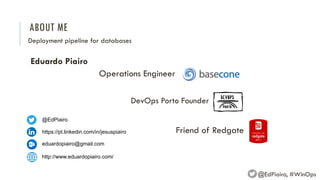

2. ABOUT ME
Deployment pipeline for databases
@EdPiairo, #WinOps
@EdPiairo
https://pt.linkedin.com/in/jesuspiairo
eduardopiairo@gmail.com
http://www.eduardopiairo.com/
Eduardo Piairo
Friend of Redgate
Operations Engineer
DevOps Porto Founder

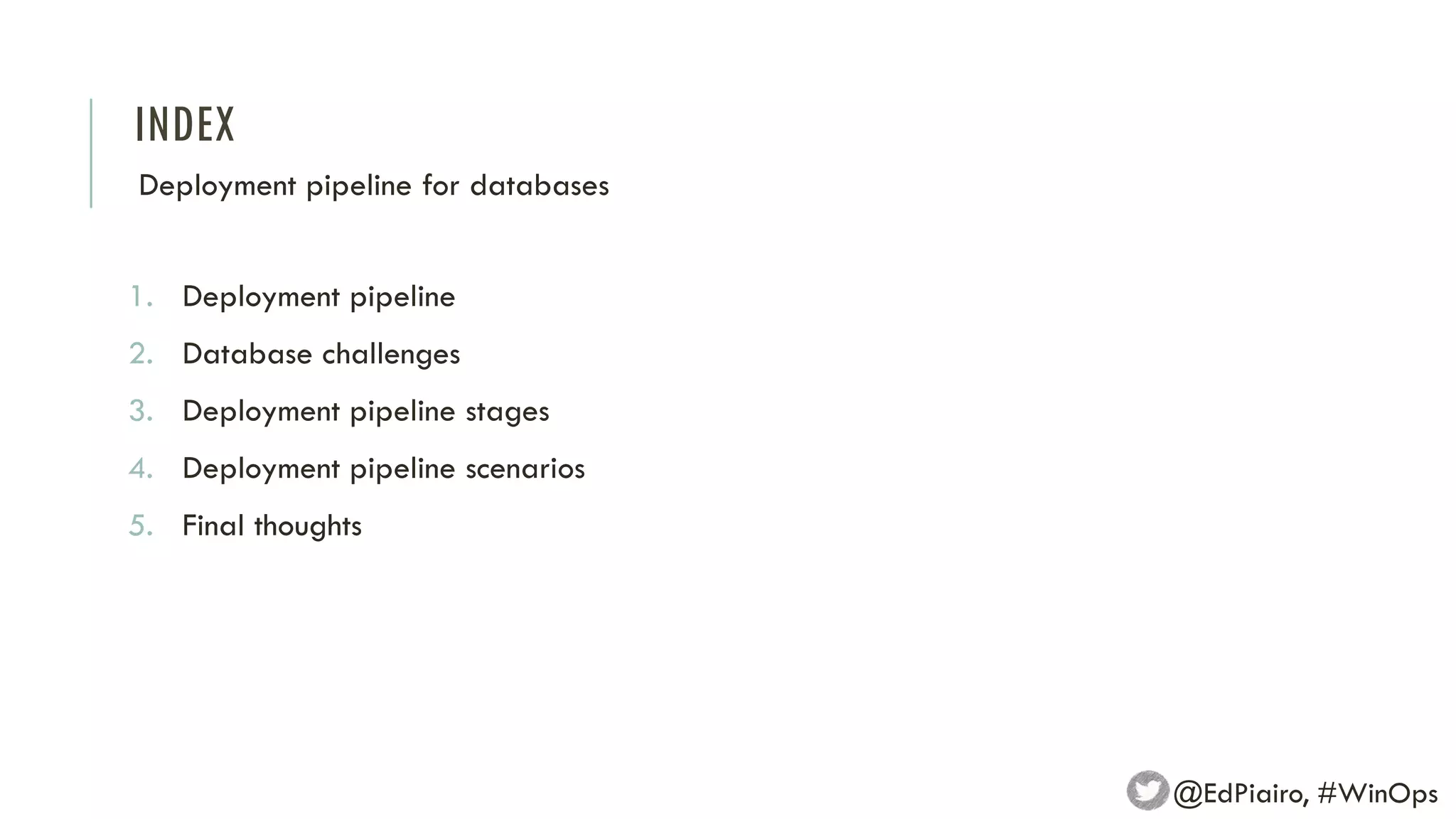

3. INDEX
1. Deployment pipeline
2. Database challenges
3. Deployment pipeline stages
4. Deployment pipeline scenarios
5. Final thoughts
Deployment pipeline for databases
@EdPiairo, #WinOps

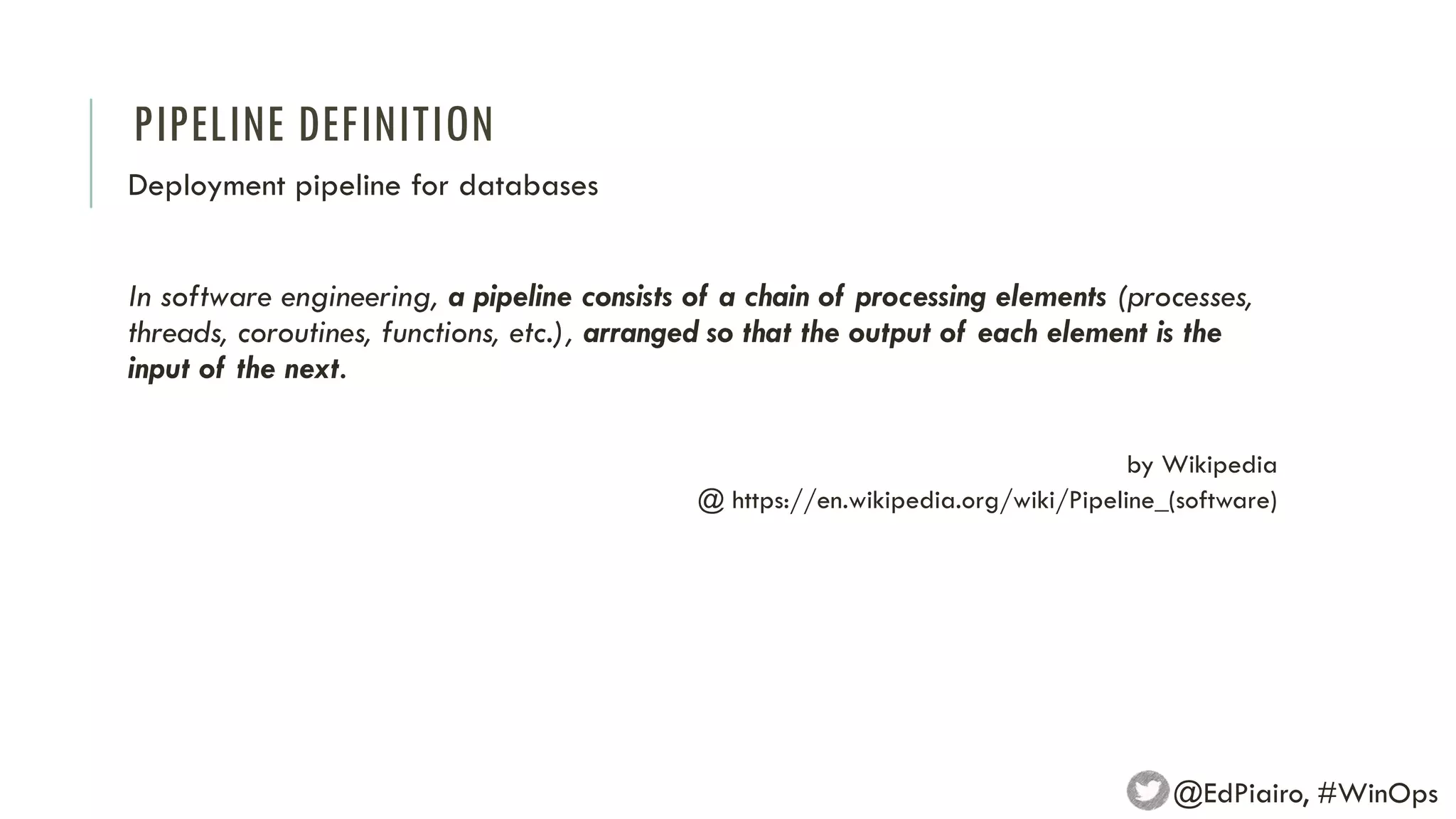

4. PIPELINE DEFINITION
In software engineering, a pipeline consists of a chain of processing elements (processes,
threads, coroutines, functions, etc.), arranged so that the output of each element is the
input of the next.
by Wikipedia
@ https://en.wikipedia.org/wiki/Pipeline_(software)
Deployment pipeline for databases
@EdPiairo, #WinOps

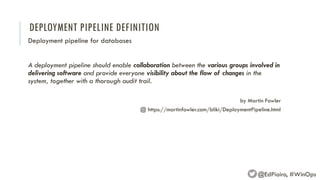

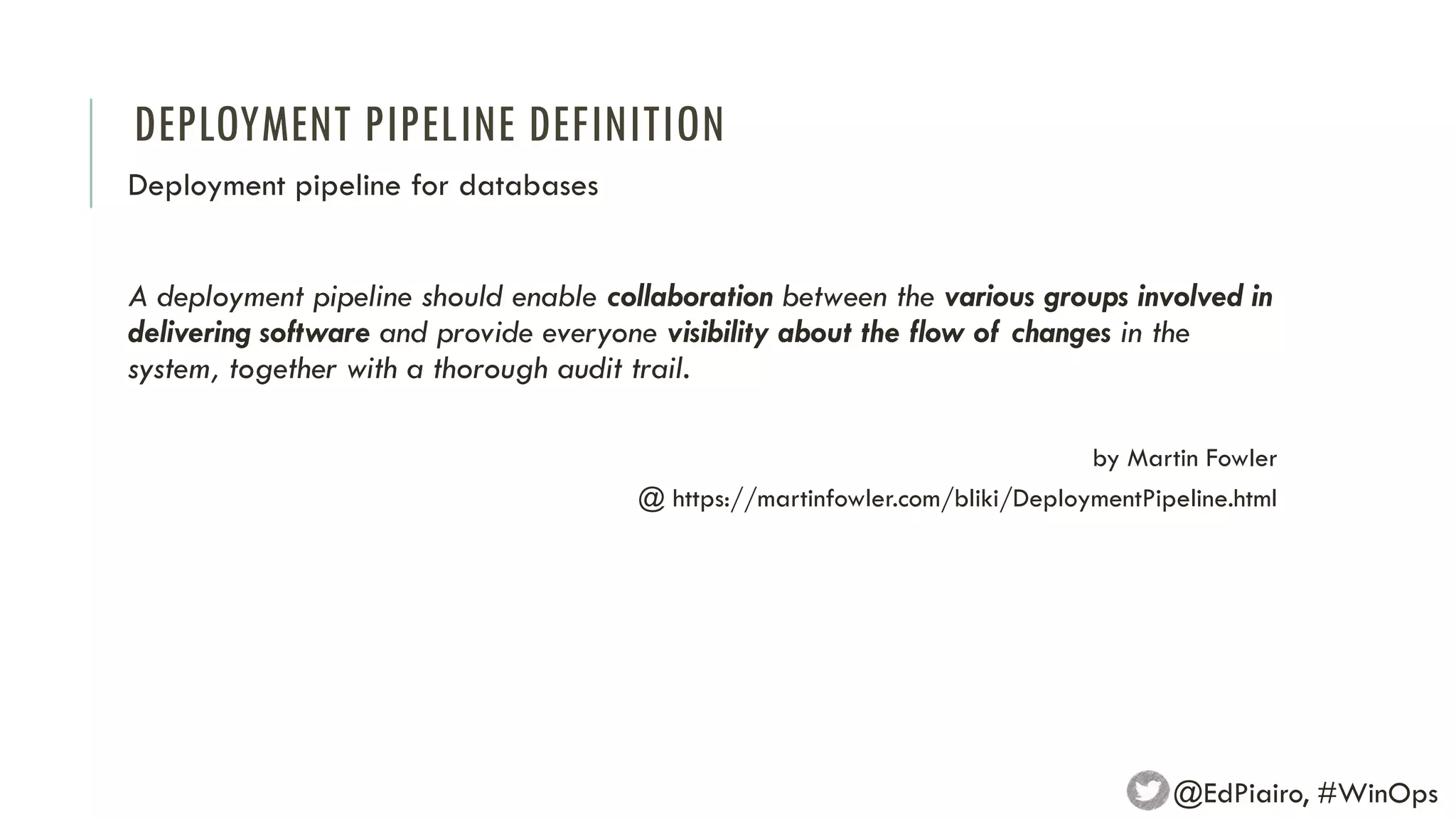

5. DEPLOYMENT PIPELINE DEFINITION
A deployment pipeline should enable collaboration between the various groups involved in
delivering software and provide everyone visibility about the flow of changes in the
system, together with a thorough audit trail.
by Martin Fowler
@ https://martinfowler.com/bliki/DeploymentPipeline.html
Deployment pipeline for databases
@EdPiairo, #WinOps

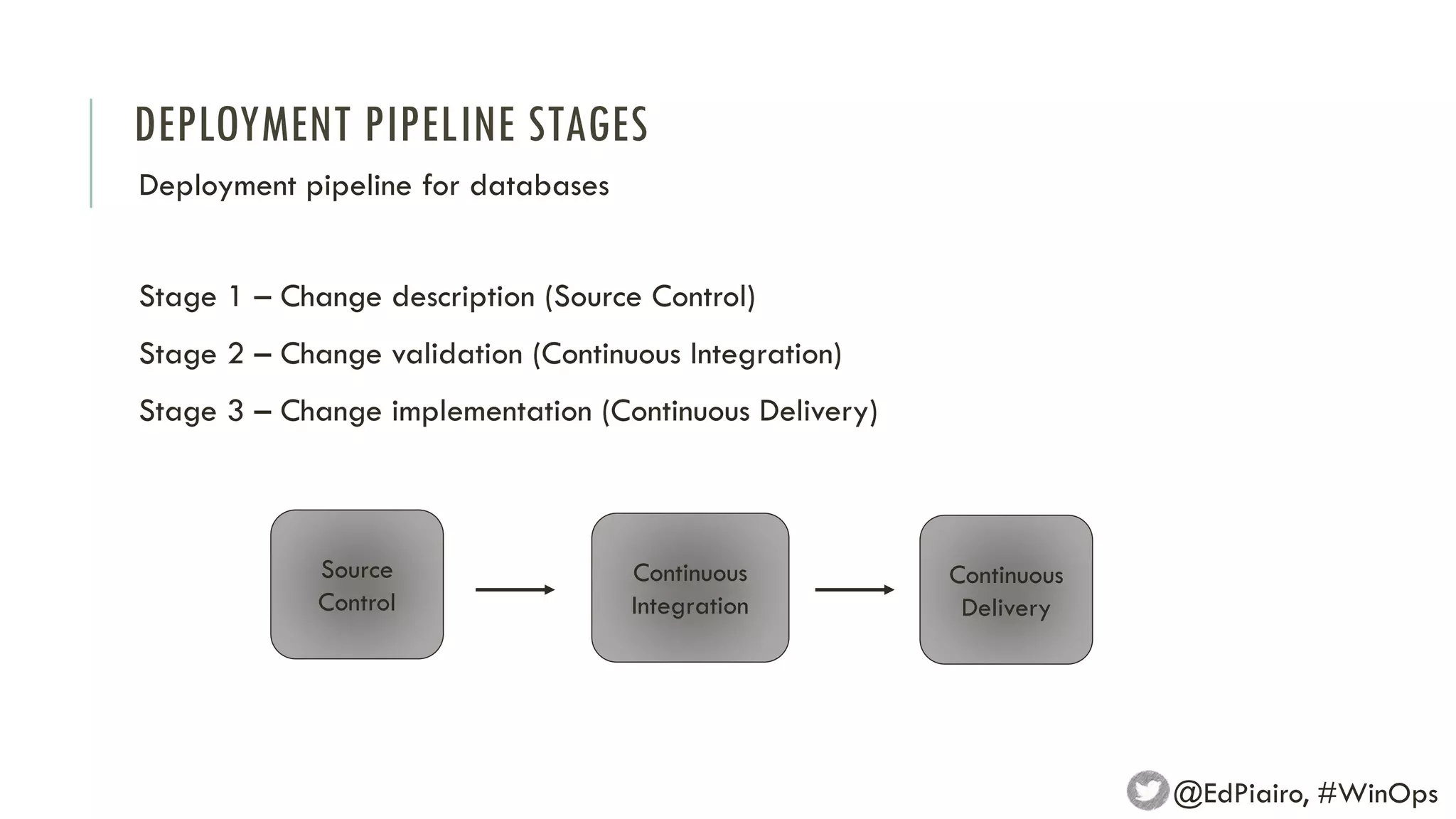

6. DEPLOYMENT PIPELINE STAGES
Deployment pipeline for databases
Stage 1 – Change description (Source Control)
Stage 2 – Change validation (Continuous Integration)
Stage 3 – Change implementation (Continuous Delivery)
Source
Control
Continuous
Integration
Continuous
Delivery
@EdPiairo, #WinOps

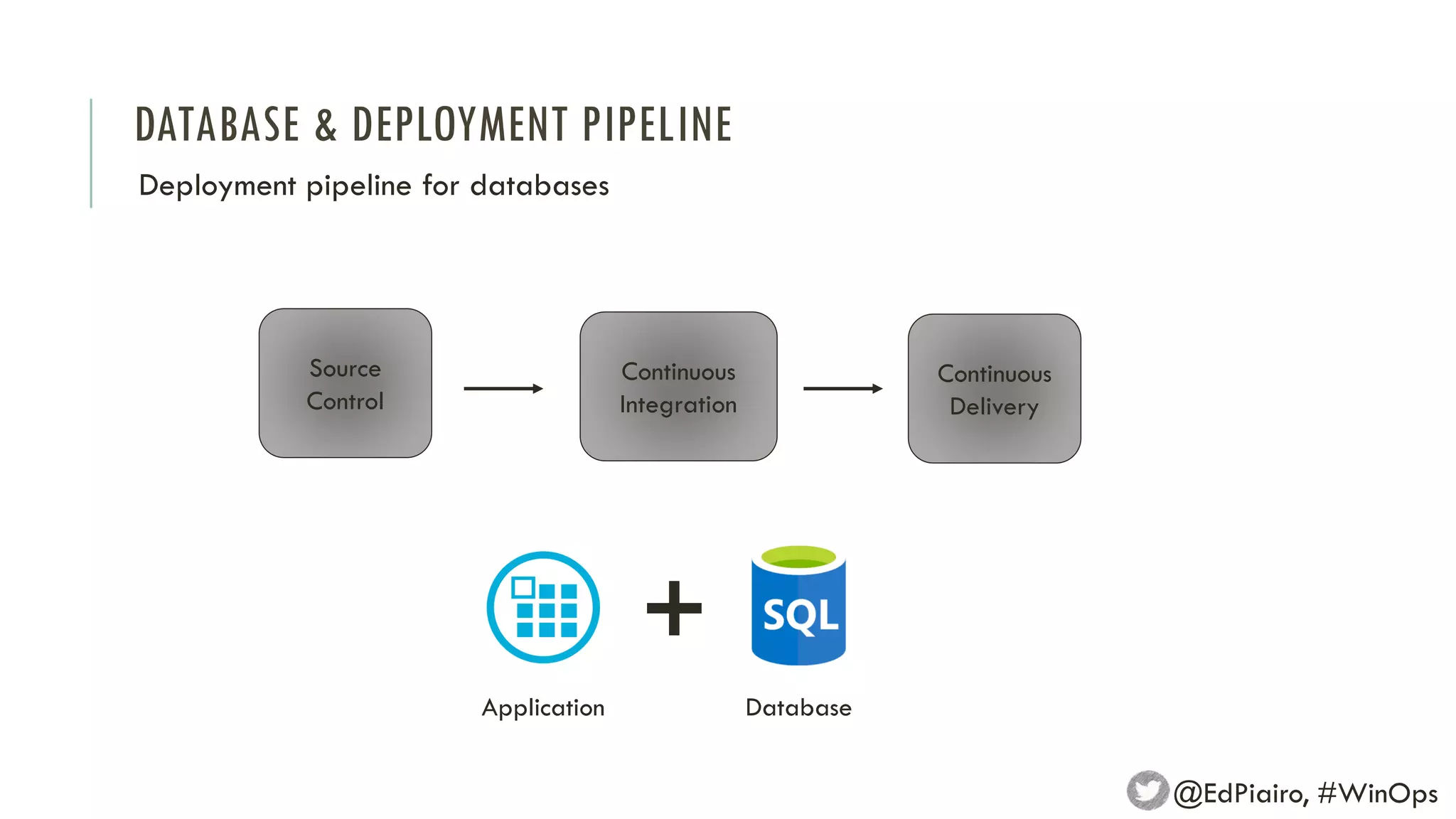

7. DATABASE & DEPLOYMENT PIPELINE
Deployment pipeline for databases
Source
Control
Continuous
Integration
Continuous
Delivery
Database
+
Application
@EdPiairo, #WinOps

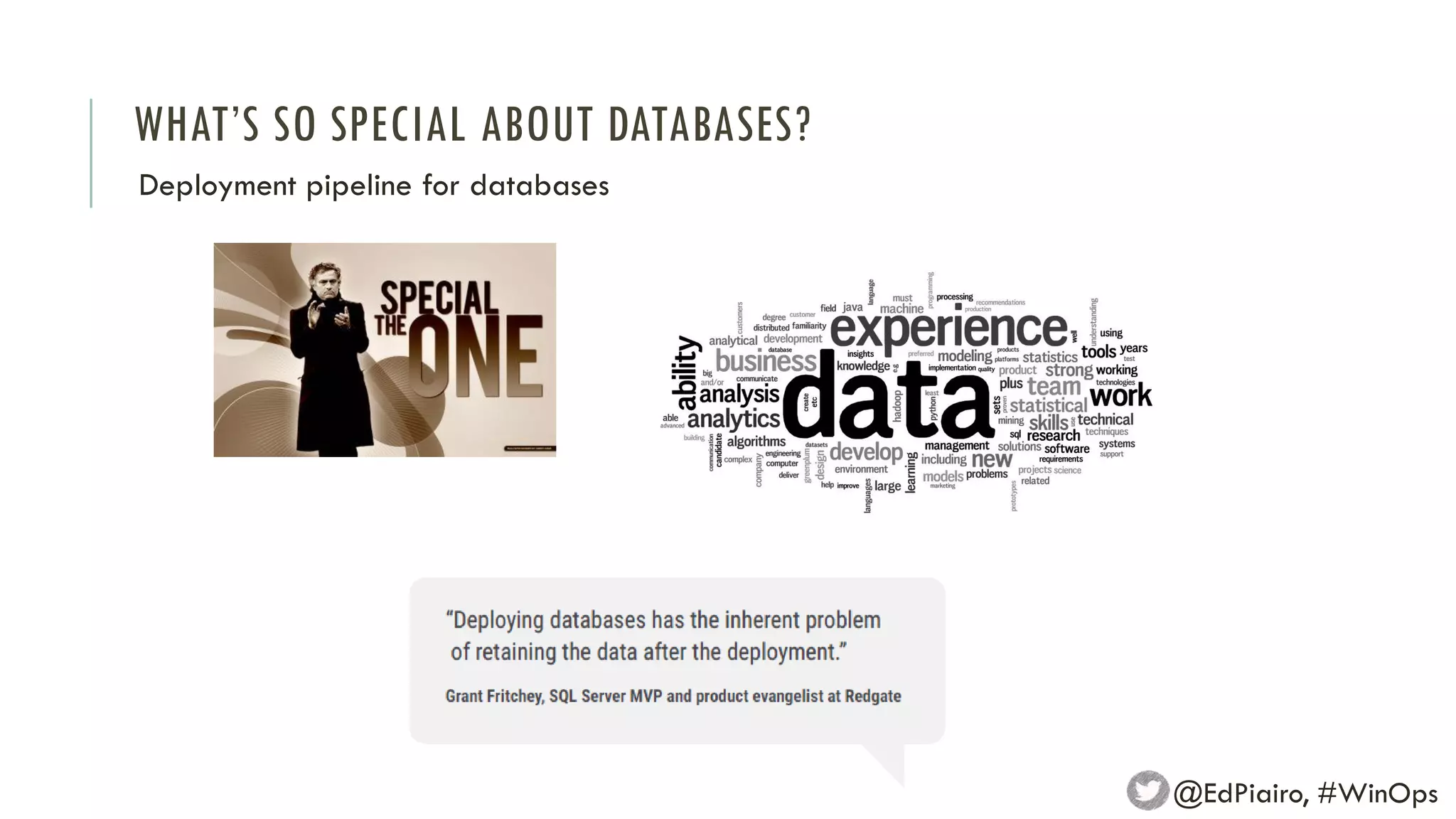

8. WHAT’S SO SPECIAL ABOUT DATABASES?
Deployment pipeline for databases
@EdPiairo, #WinOps

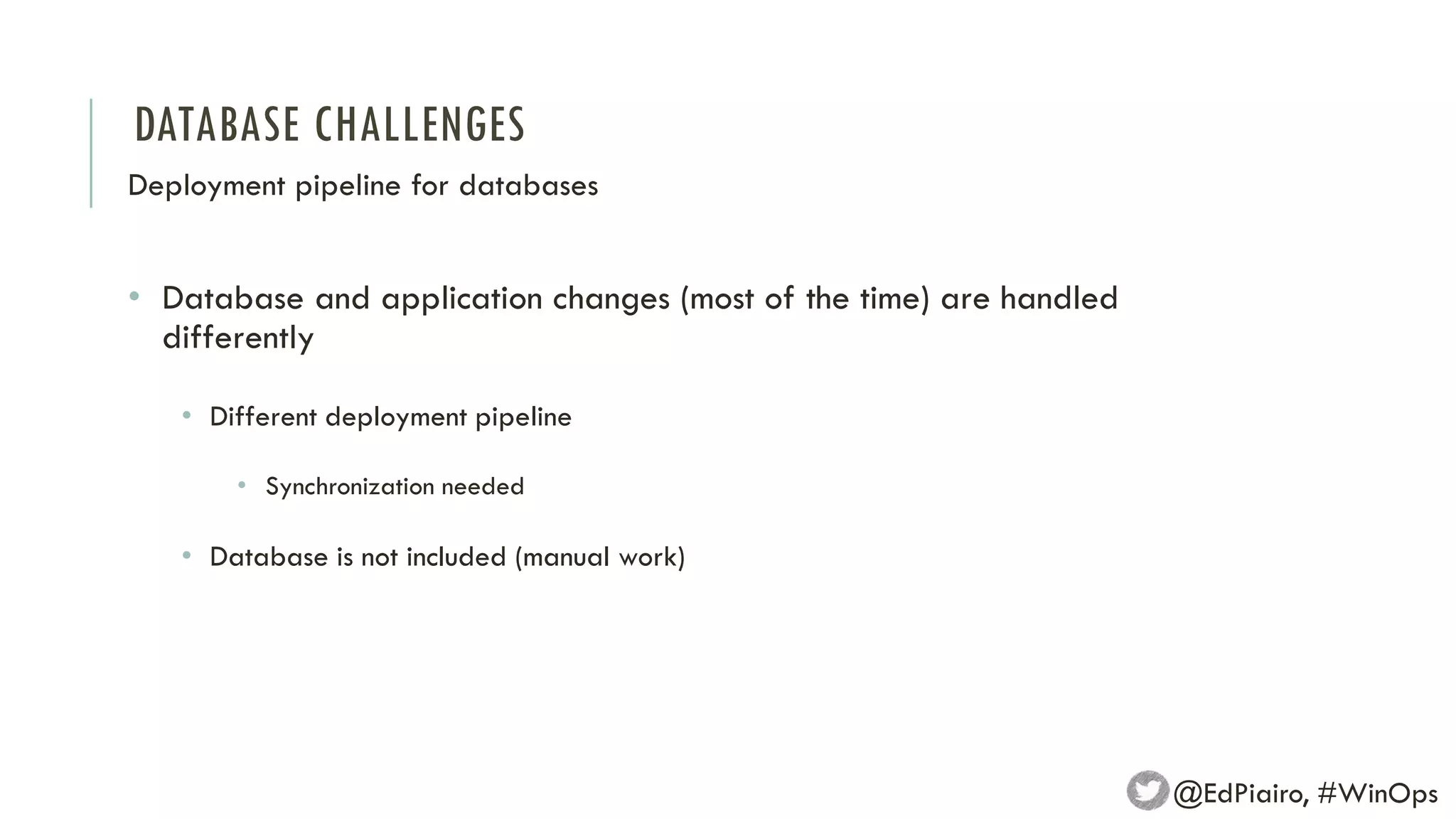

9. DATABASE CHALLENGES
Deployment pipeline for databases
• Database and application changes (most of the time) are handled
differently
• Different deployment pipeline
• Synchronization needed
• Database is not included (manual work)
@EdPiairo, #WinOps

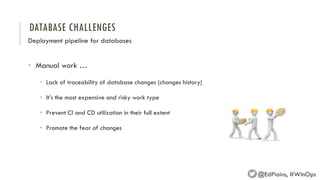

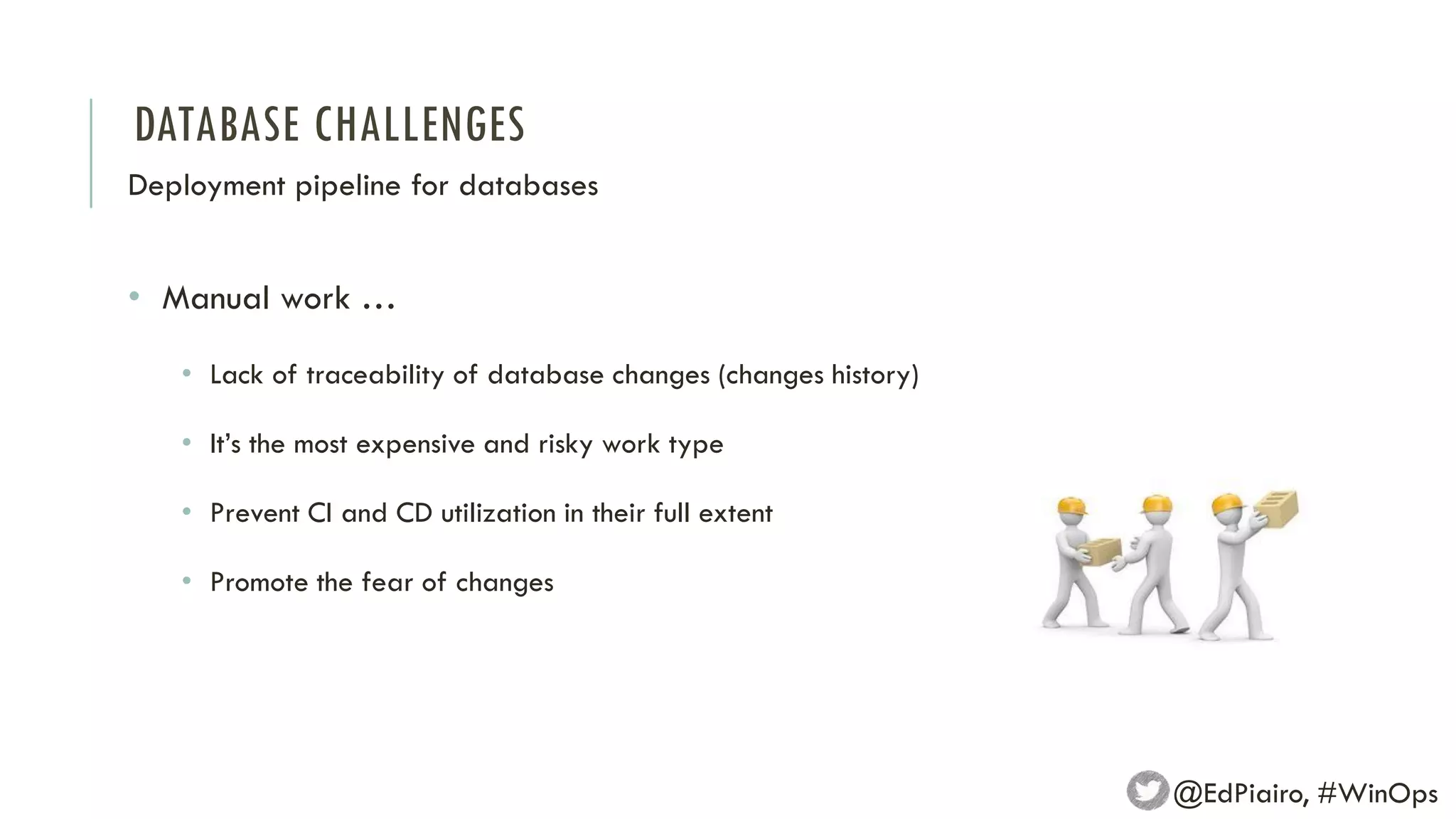

10. DATABASE CHALLENGES
Deployment pipeline for databases
• Manual work …
• Lack of traceability of database changes (changes history)
• It’s the most expensive and risky work type
• Prevent CI and CD utilization in their full extent
• Promote the fear of changes
@EdPiairo, #WinOps

11. DATABASE CHALLENGES
Deployment pipeline for databases
Databases become a bottleneck in an
agile delivery process
@EdPiairo, #WinOps

12. AUTOMATION
Deployment pipeline for databases
@EdPiairo, #WinOps

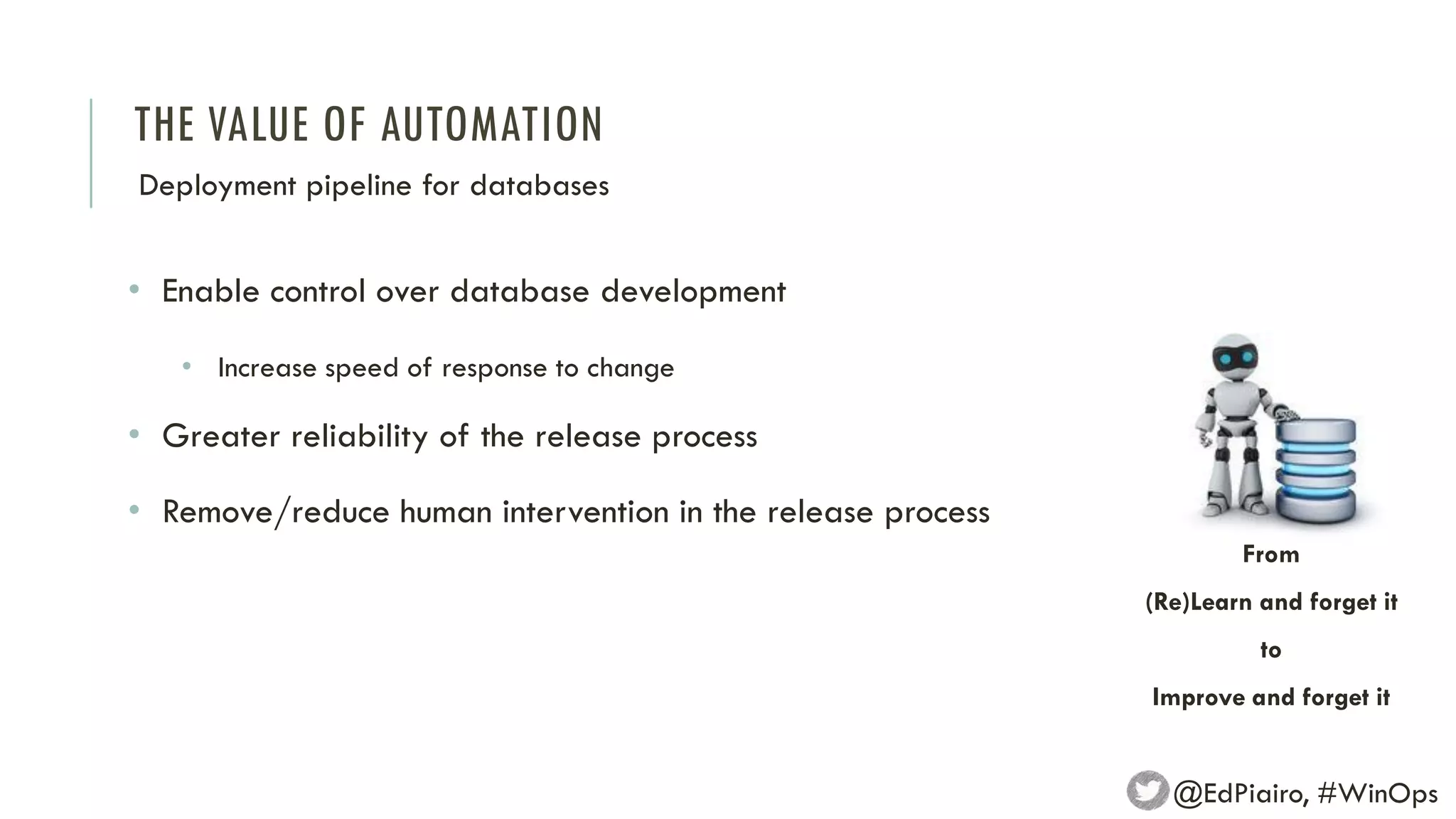

13. THE VALUE OF AUTOMATION
Deployment pipeline for databases
• Enable control over database development
• Increase speed of response to change
• Greater reliability of the release process
• Remove/reduce human intervention in the release process
From
(Re)Learn and forget it
to
Improve and forget it
@EdPiairo, #WinOps

14. THE VALUE OF AUTOMATION
Deployment pipeline for databases
Fearless database changes
@EdPiairo, #WinOps

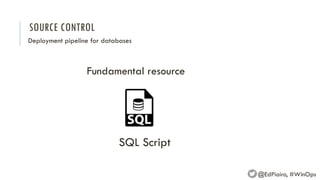

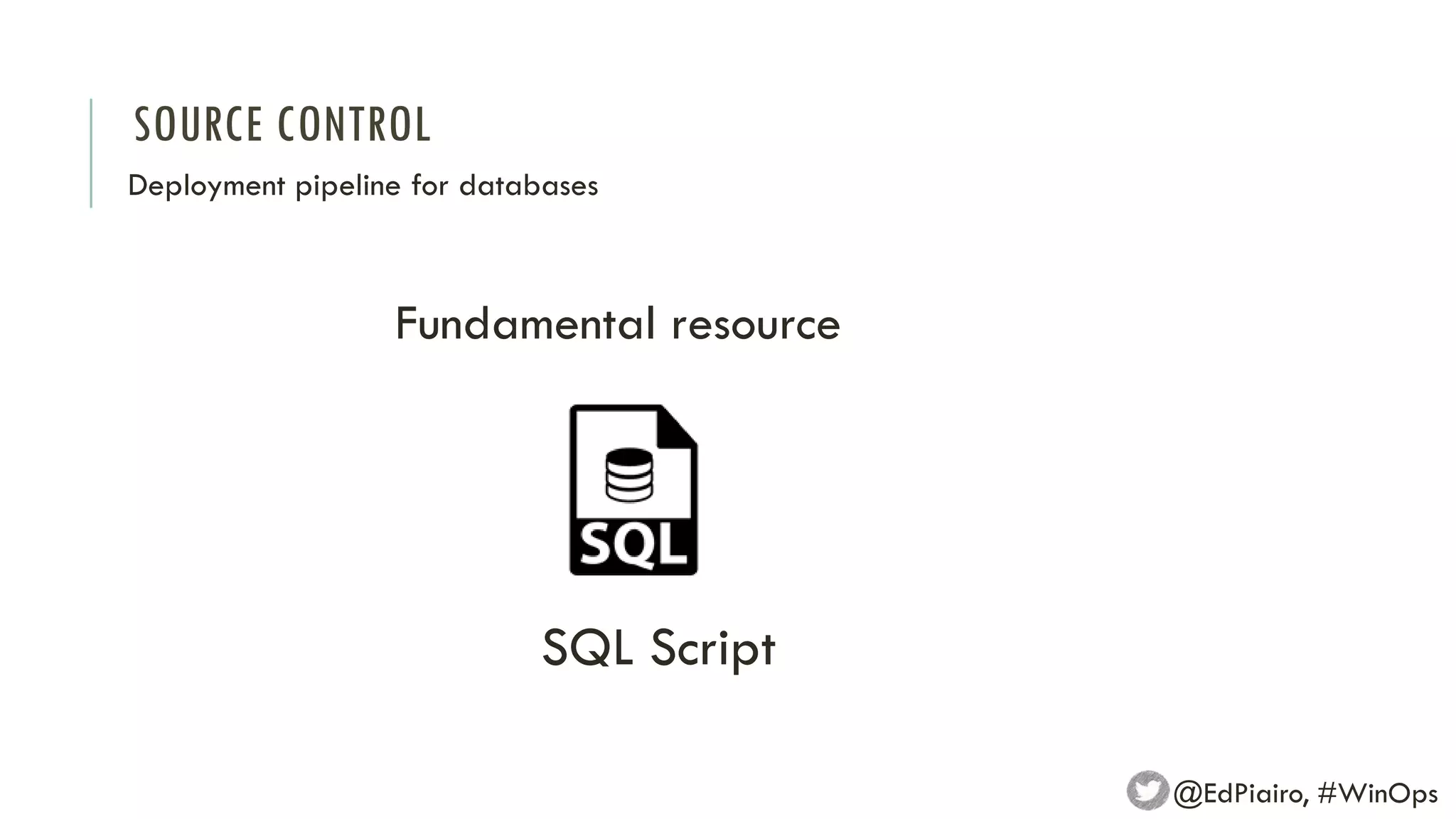

15. SOURCE CONTROL
Deployment pipeline for databases
@EdPiairo, #WinOps
SQL Script
Fundamental resource

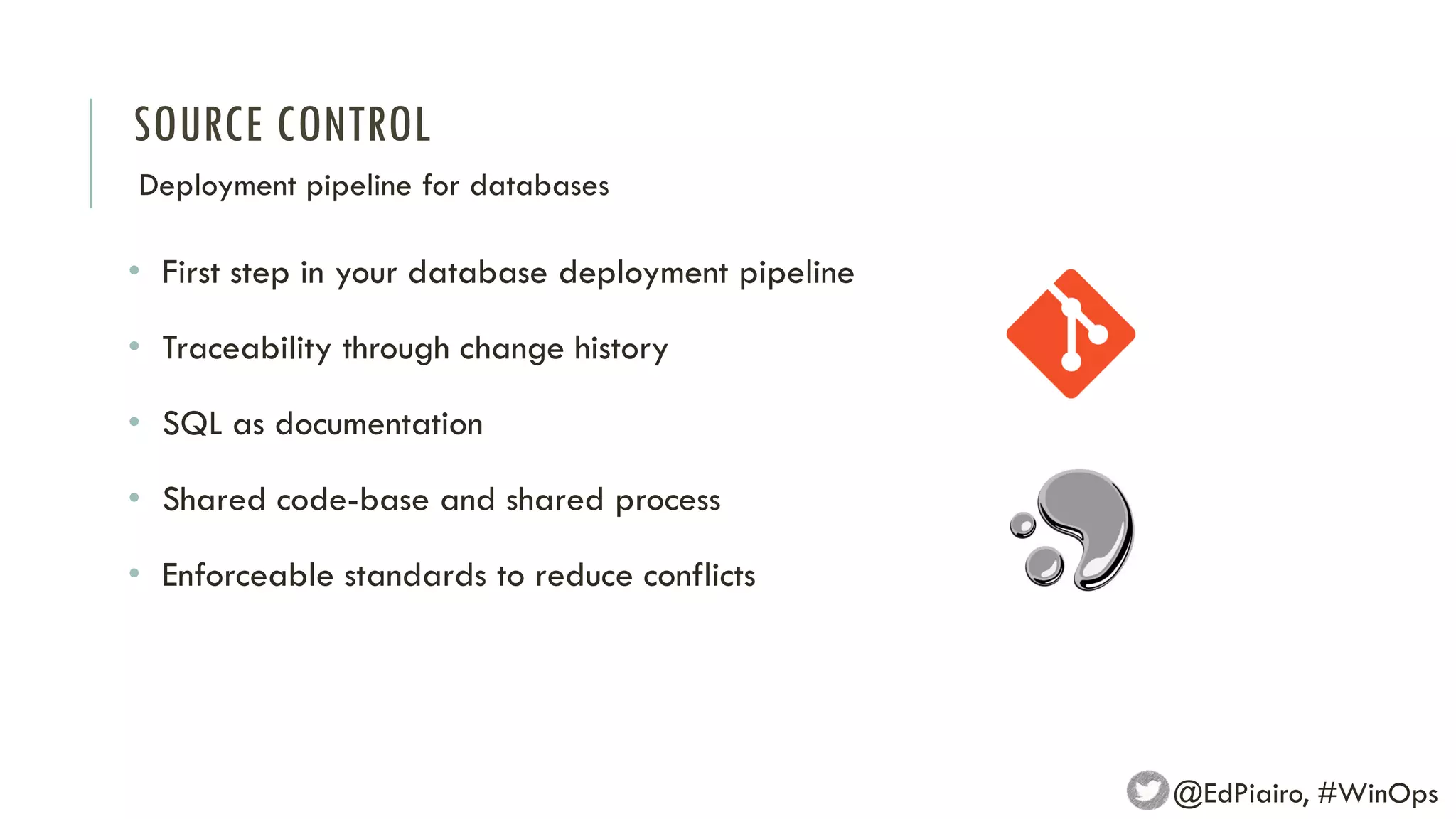

16. SOURCE CONTROL
Deployment pipeline for databases
• First step in your database deployment pipeline
• Traceability through change history
• SQL as documentation
• Shared code-base and shared process
• Enforceable standards to reduce conflicts
@EdPiairo, #WinOps

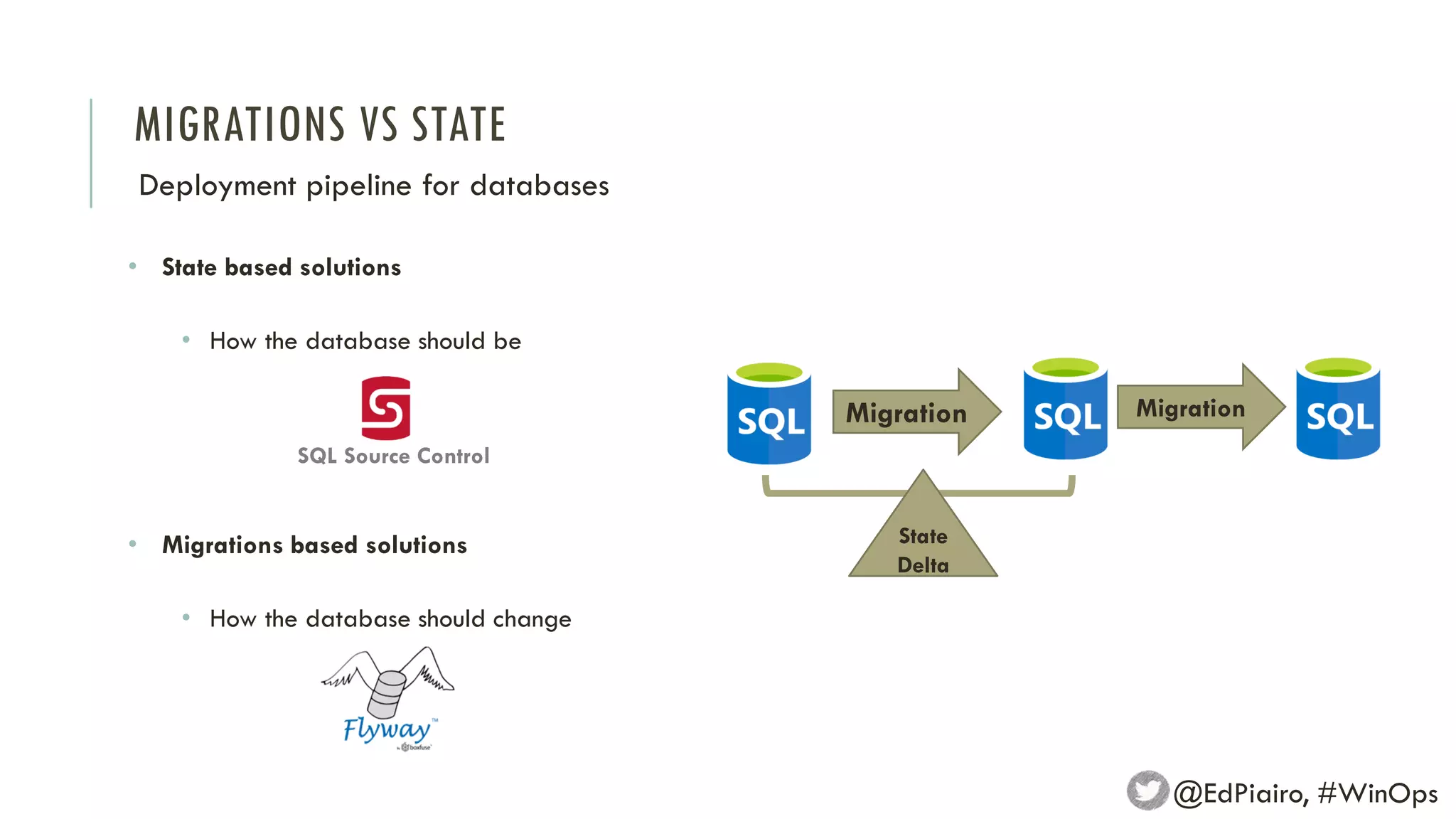

17. • State based solutions
• How the database should be
• Migrations based solutions
• How the database should change
MIGRATIONS VS STATE
Deployment pipeline for databases
SQL Source Control
@EdPiairo, #WinOps
Migration Migration
State
Delta

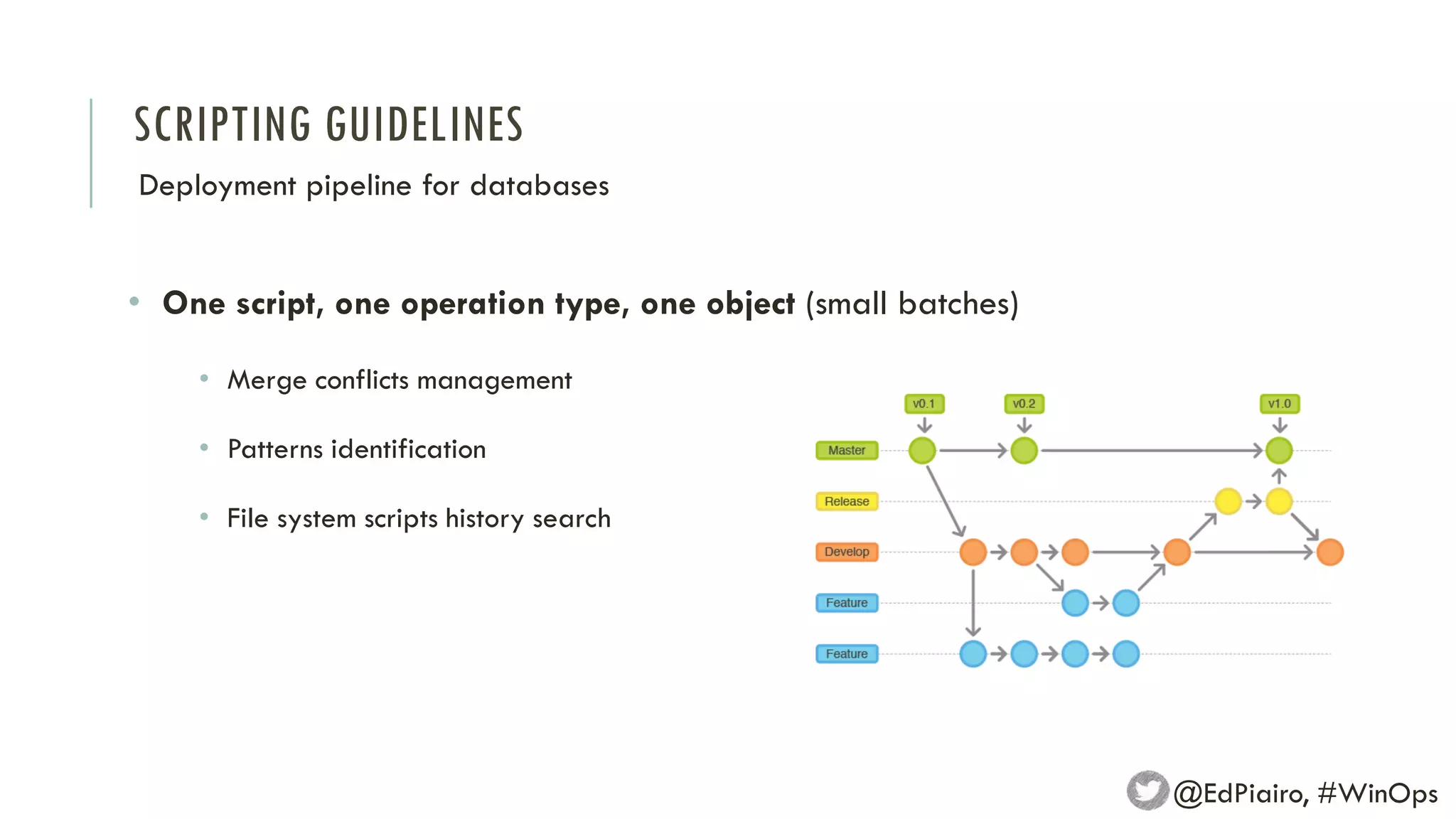

18. SCRIPTING GUIDELINES
Deployment pipeline for databases
• One script, one operation type, one object (small batches)
• Merge conflicts management
• Patterns identification
• File system scripts history search
@EdPiairo, #WinOps

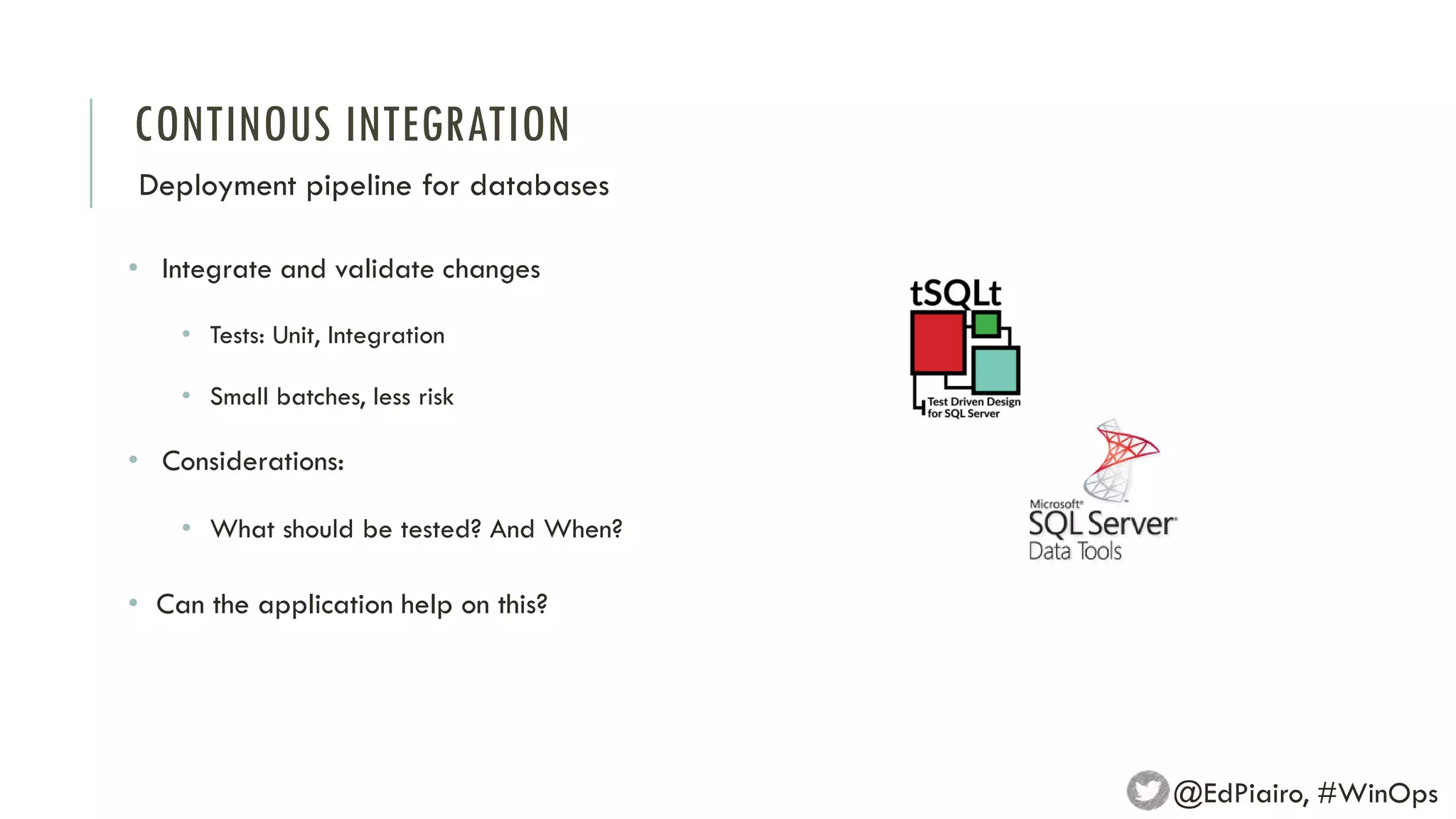

19. CONTINOUS INTEGRATION
Deployment pipeline for databases
• Integrate and validate changes
• Tests: Unit, Integration
• Small batches, less risk
• Considerations:
• What should be tested? And When?
• Can the application help on this?
@EdPiairo, #WinOps

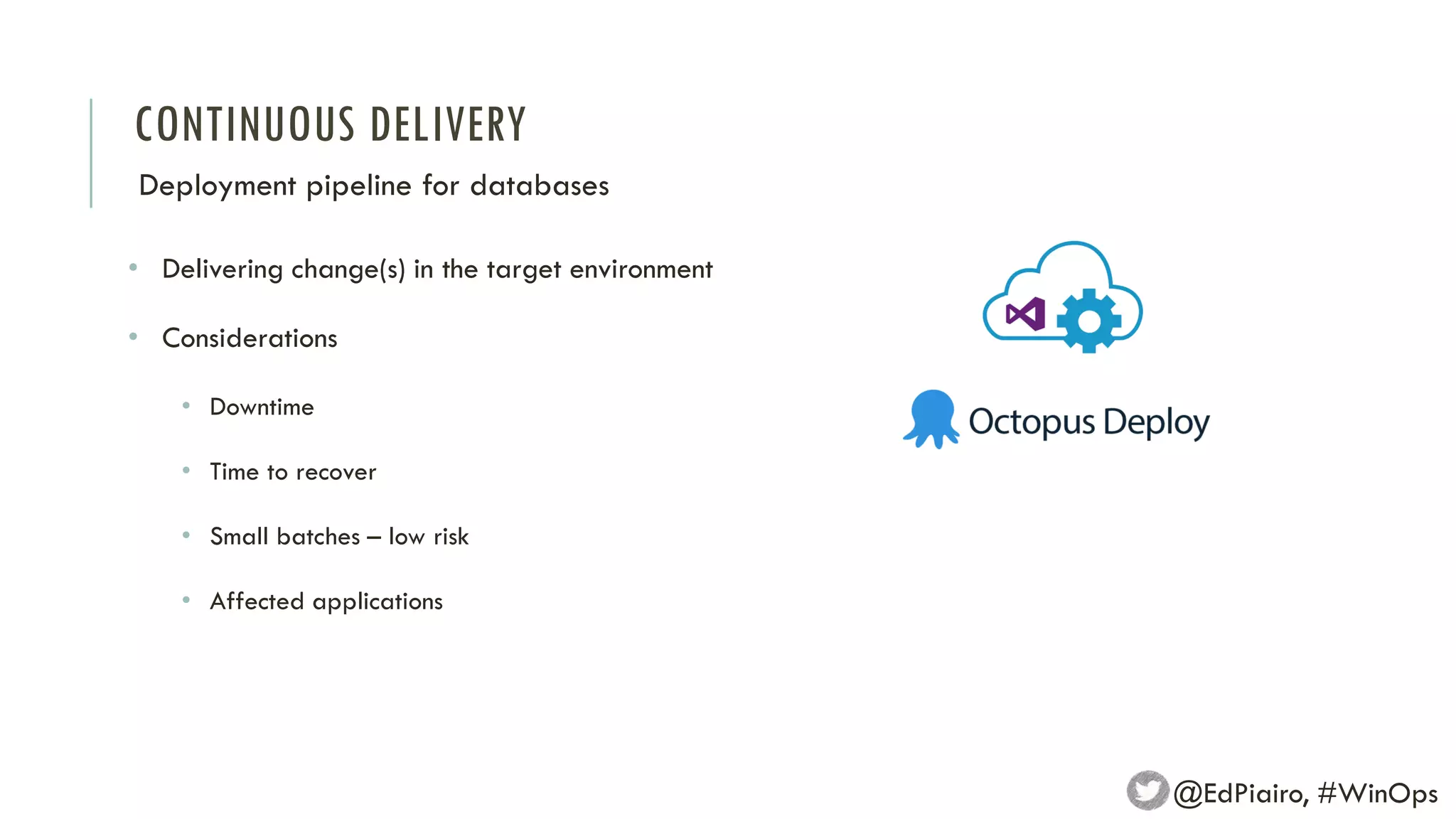

20. CONTINUOUS DELIVERY
Deployment pipeline for databases
• Delivering change(s) in the target environment
• Considerations
• Downtime
• Time to recover
• Small batches – low risk
• Affected applications
@EdPiairo, #WinOps

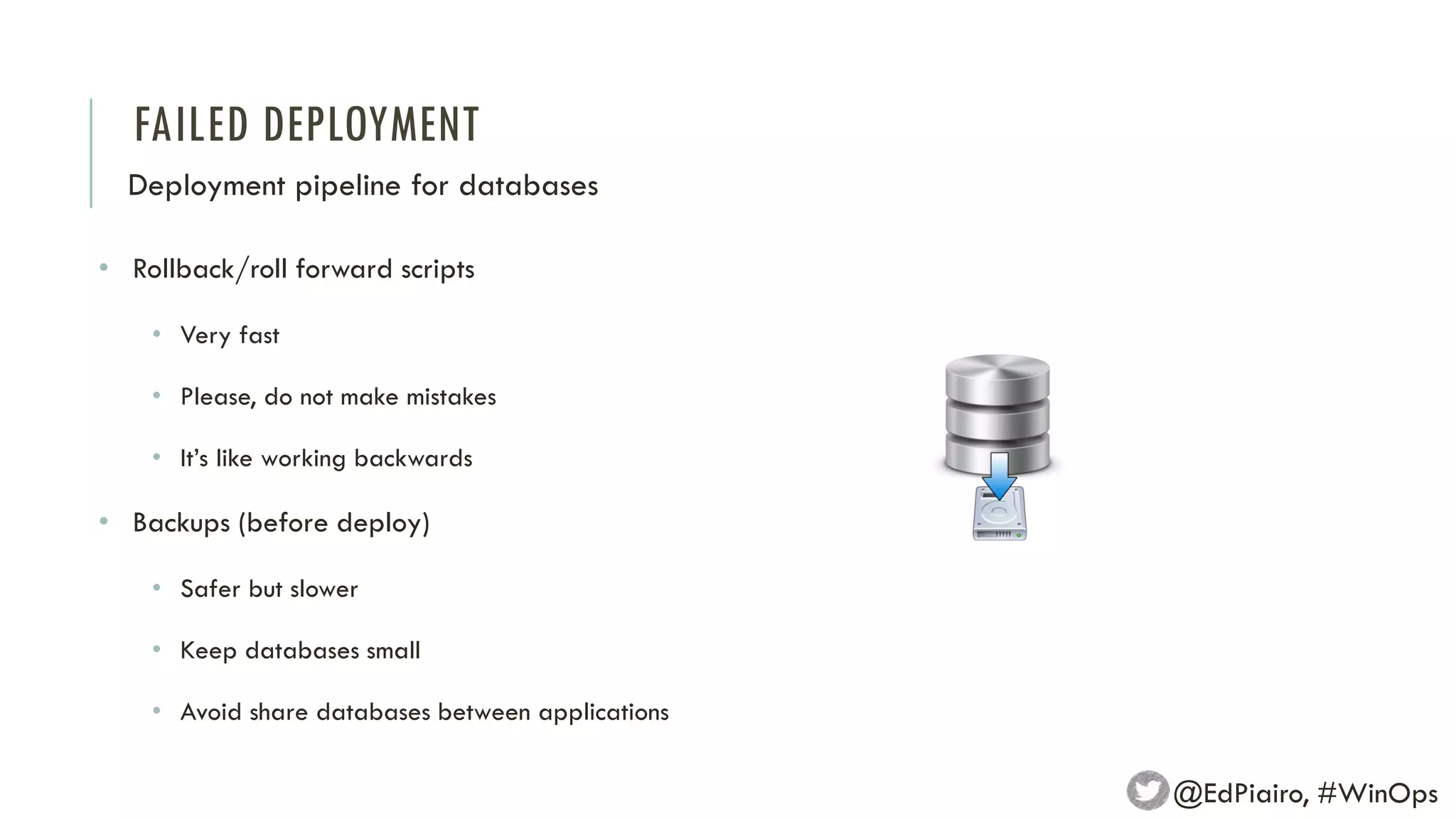

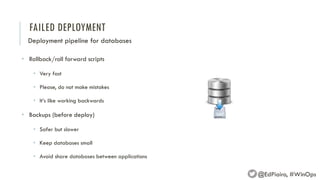

21. FAILED DEPLOYMENT
Deployment pipeline for databases
• Rollback/roll forward scripts
• Very fast
• Please, do not make mistakes
• It’s like working backwards
• Backups (before deploy)
• Safer but slower
• Keep databases small
• Avoid share databases between applications
@EdPiairo, #WinOps

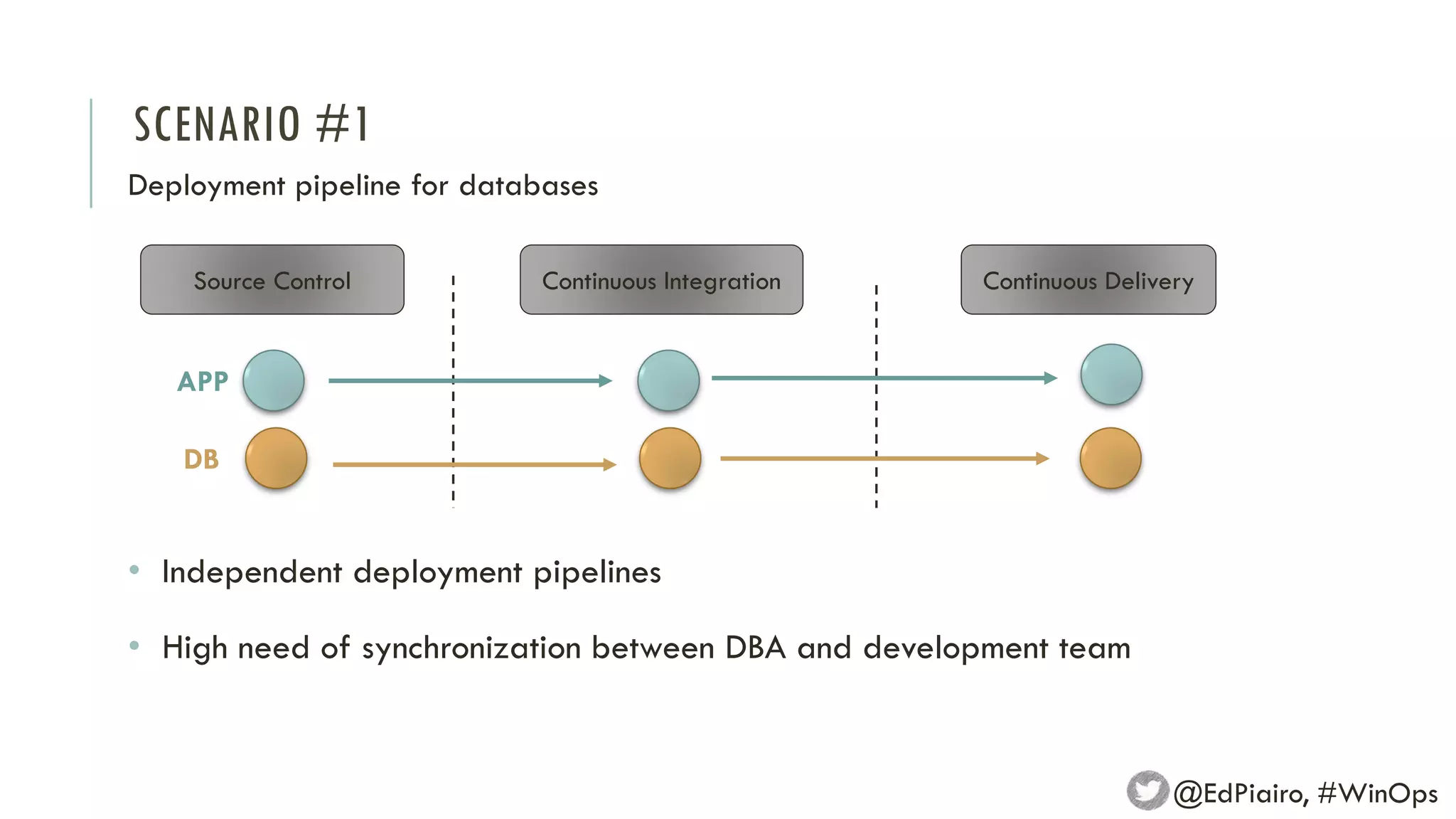

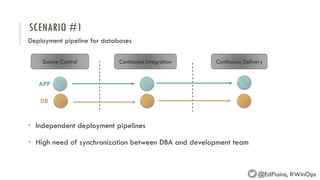

22. SCENARIO #1
Deployment pipeline for databases
Source Control Continuous Integration Continuous Delivery
APP
DB
@EdPiairo, #WinOps
• Independent deployment pipelines
• High need of synchronization between DBA and development team

23. SCENARIO #2
Deployment pipeline for databases
Source Control Continuous Integration Continuous Delivery
APP
DB
@EdPiairo, #WinOps
• Different code repositories
• Independent CI process
• The contact point will be the deployment moment

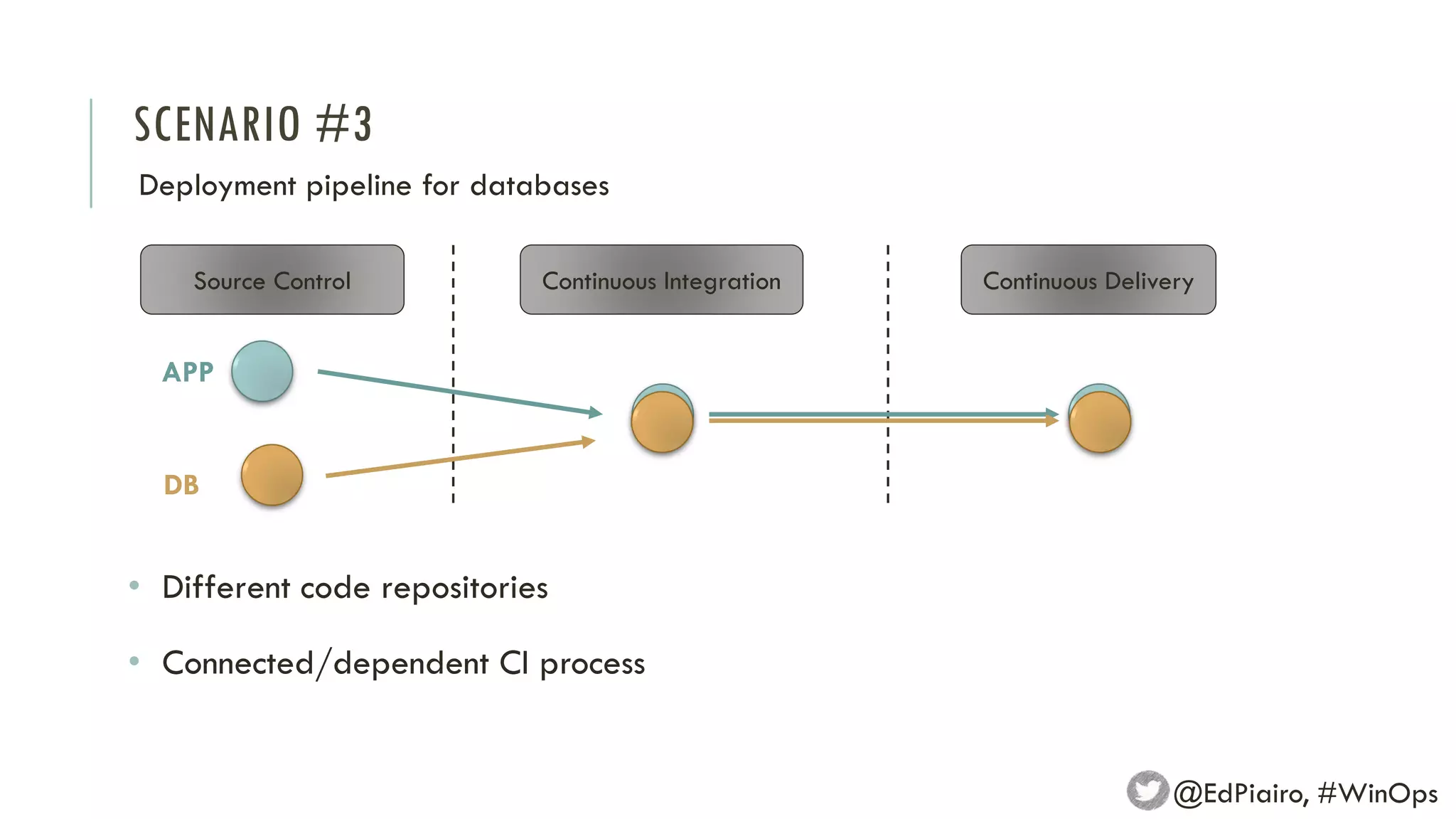

24. SCENARIO #3
Deployment pipeline for databases
Source Control Continuous Integration Continuous Delivery
APP
DB
@EdPiairo, #WinOps
• Different code repositories
• Connected/dependent CI process

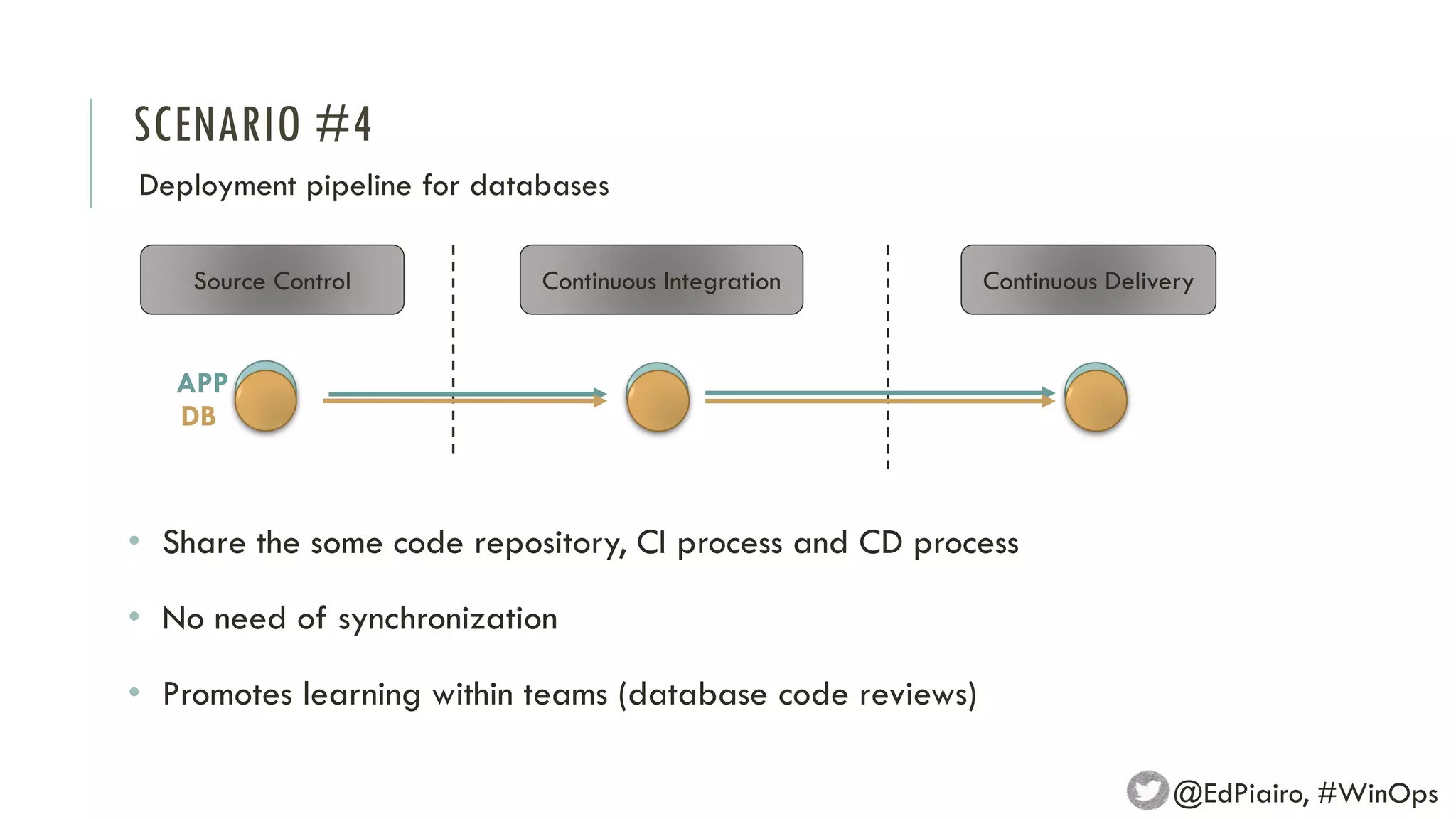

25. SCENARIO #4
Deployment pipeline for databases
Source Control Continuous Integration Continuous Delivery
APP
DB
@EdPiairo, #WinOps
• Share the some code repository, CI process and CD process
• No need of synchronization
• Promotes learning within teams (database code reviews)

26. DEMO
Deployment pipeline for databases
@EdPiairo, #WinOps

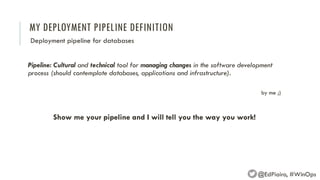

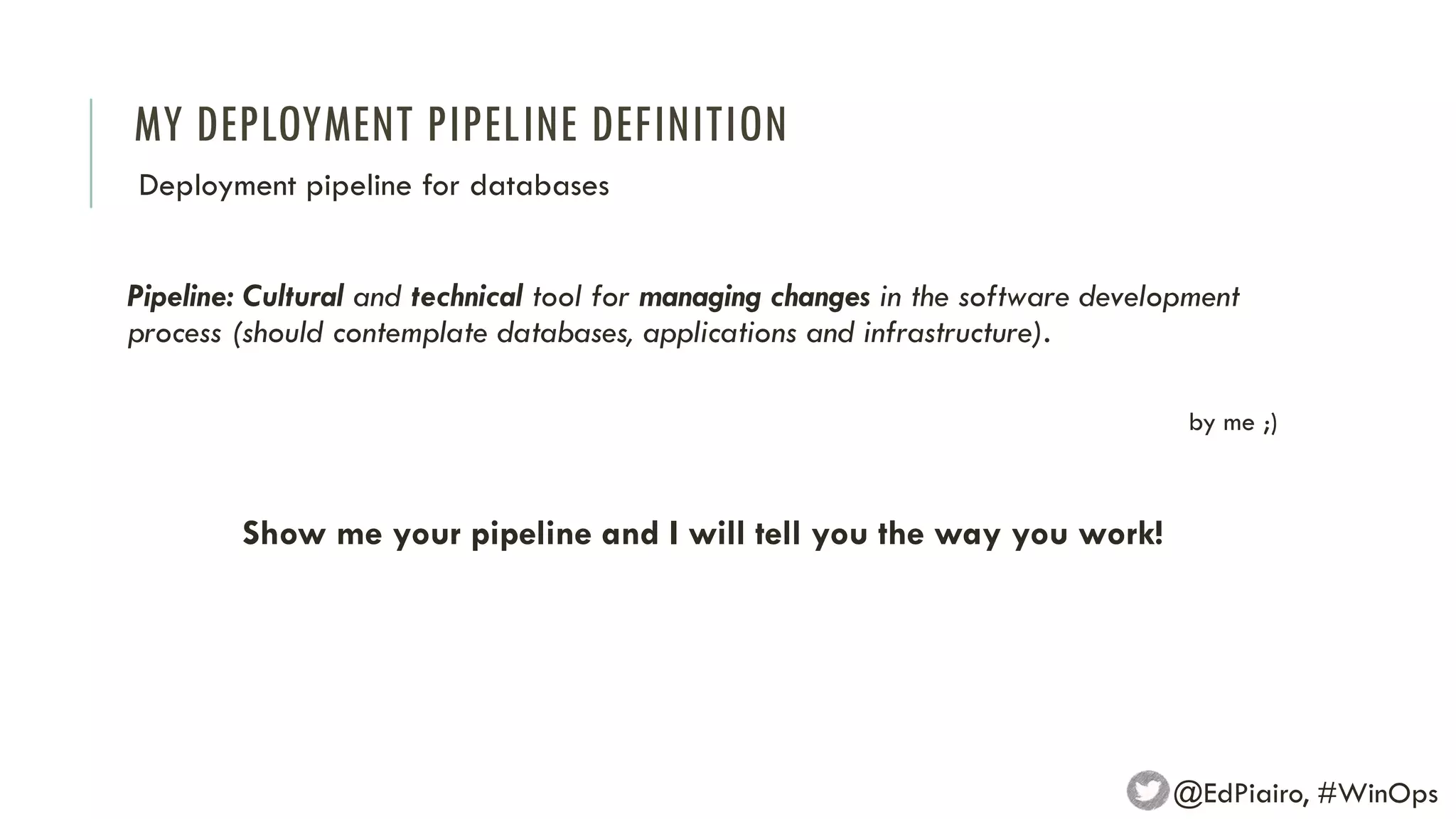

27. MY DEPLOYMENT PIPELINE DEFINITION
Pipeline: Cultural and technical tool for managing changes in the software development
process (should contemplate databases, applications and infrastructure).
by me ;)
Show me your pipeline and I will tell you the way you work!
Deployment pipeline for databases
@EdPiairo, #WinOps

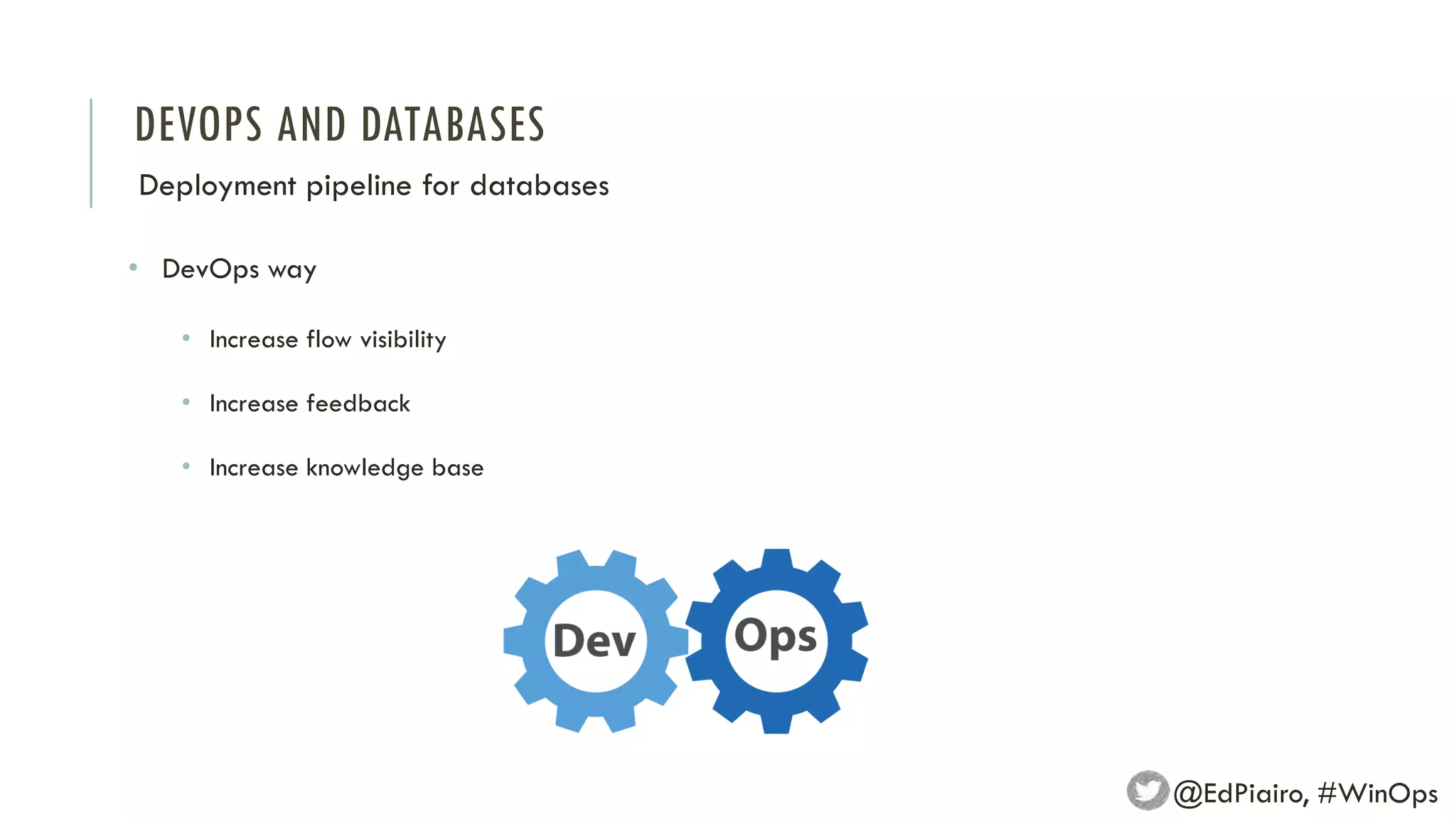

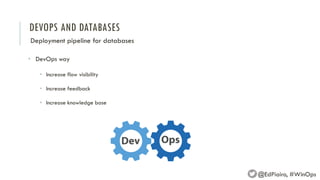

28. DEVOPS AND DATABASES
Deployment pipeline for databases
• DevOps way
• Increase flow visibility
• Increase feedback
• Increase knowledge base
@EdPiairo, #WinOps

29. READING MATERIAL
Deployment pipeline for databases
@EdPiairo, #WinOps

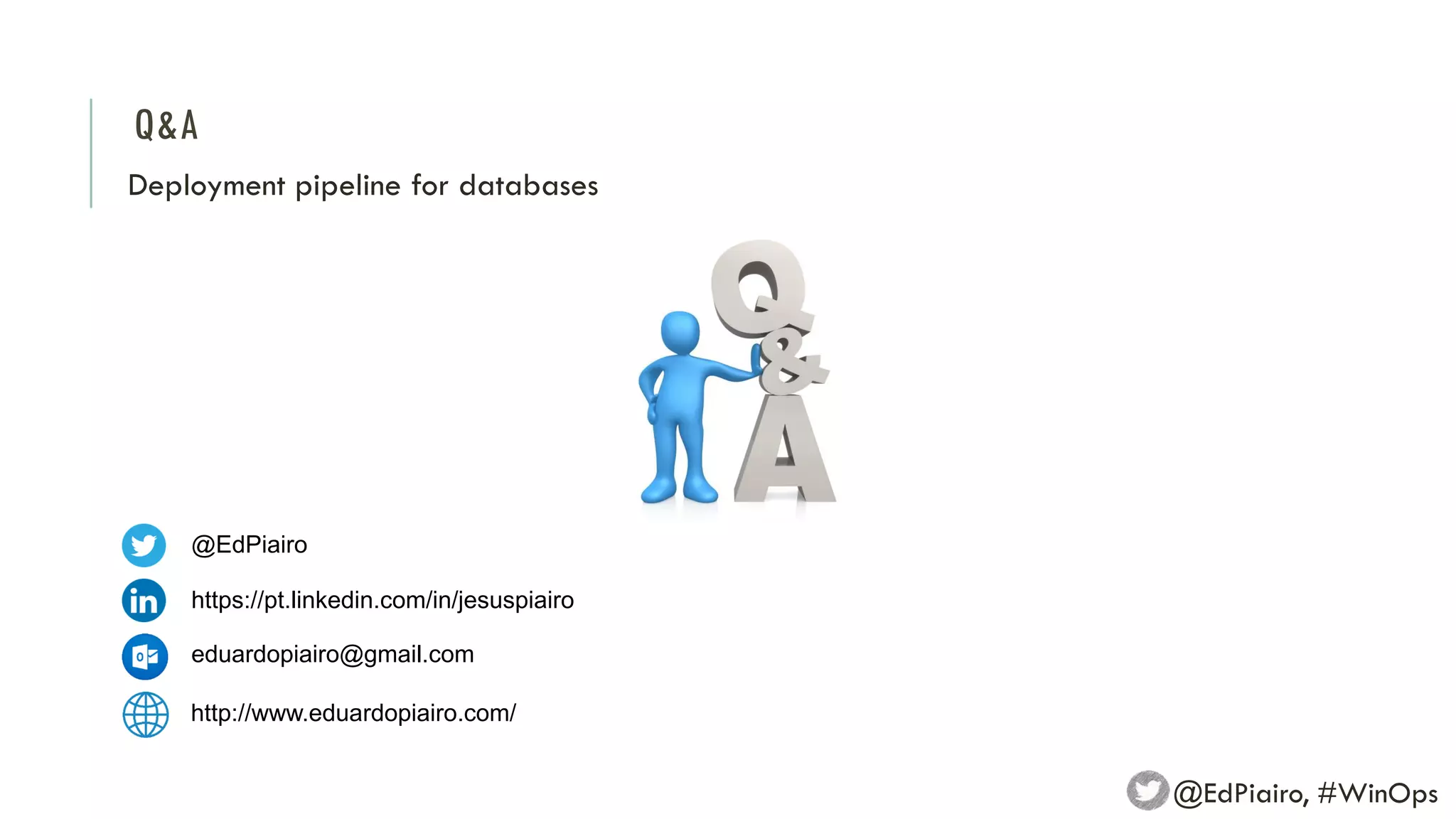

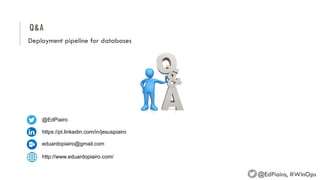

30. Q&A
Deployment pipeline for databases
@EdPiairo, #WinOps
