Philip Lombardi discusses Datawire's experience using Spinnaker for continuous deployment of microservices. While Spinnaker allows for custom deployment workflows and works as promised, Datawire encountered issues with Spinnaker's complex UI, difficulty reconfiguring and upgrading, and slow developer experience. Lombardi concludes that Spinnaker may be overkill for small teams and its deployment, UI, and configuration need improvement for broader adoption.

1. Spinnaker and Microservices @
Datawire.io
Trials and Tribulations
Philip Lombardi
Engineer

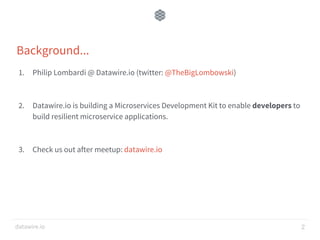

2. datawire.io
Background...
1. Philip Lombardi @ Datawire.io (twitter: @TheBigLombowski)
2. Datawire.io is building a Microservices Development Kit to enable developers to
build resilient microservice applications.
3. Check us out after meetup: datawire.io
2

3. datawire.io 3
What is a Microservice?

4. datawire.io

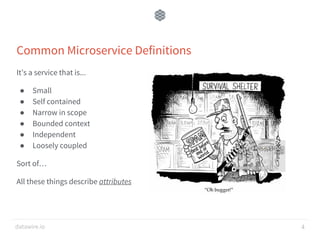

Common Microservice Definitions
It’s a service that is...
● Small
● Self contained
● Narrow in scope
● Bounded context
● Independent
● Loosely coupled
Sort of…
All these things describe attributes
4

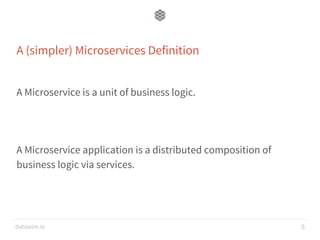

5. datawire.io
A (simpler) Microservices Definition
A Microservice is a unit of business logic.
A Microservice application is a distributed composition of
business logic via services.
5

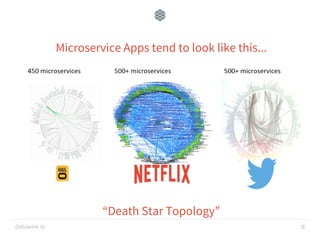

6. datawire.io
Microservice Apps tend to look like this...
6
“Death Star Topology”

7. datawire.io
Microservices Benefits and Tradeoffs
● Easier to reason about the individual components that make
up the system.
● Easy to add new biz logic.
● More difficult to operate.
● More difficult to deploy than a classic monolith.
7

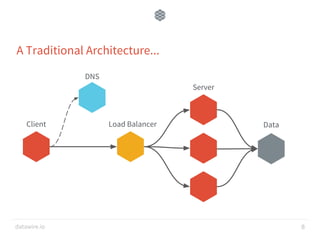

8. datawire.io
A Traditional Architecture...
8
Client
DNS
Load Balancer
Server
Data

9. datawire.io
Traditional Architecture Deployment Options
● Relatively well-known patterns for updating a Monolithic
App.
● Blue - Green (or Red - Black if you’re Netflix)
● Canary
● Shutdown and Replace
9

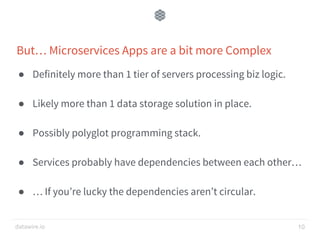

10. datawire.io
But… Microservices Apps are a bit more Complex
● Definitely more than 1 tier of servers processing biz logic.
● Likely more than 1 data storage solution in place.
● Possibly polyglot programming stack.
● Services probably have dependencies between each other…
● … If you’re lucky the dependencies aren’t circular.
10

11. datawire.io
A Microservices Architecture...
11
Client
DNS
Load Balancer
API Server
Accounts
Votes
Comments
Favorites
Mystery
Feature

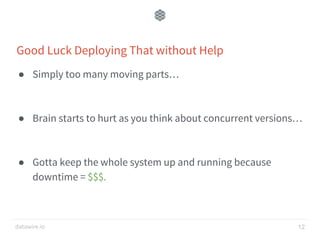

12. datawire.io
Good Luck Deploying That without Help
● Simply too many moving parts…
● Brain starts to hurt as you think about concurrent versions…
● Gotta keep the whole system up and running because
downtime = $$$.
12

13. datawire.io
Fortunately…
13

14. datawire.io
At Datawire...
1. We have a handful of services that are composed to build the backend of our
product.
2. Basically two backend developers.
3. All but 1 of those services is deployed via Spinnaker (it’s being ported soon
because the old deploy is painful).
4. Spinnaker allows us to deploy but it hasn’t been a silver bullet. There is definitely
pain for a small adopting team which we’ve learned about.
14

15. datawire.io
The Good
1. The claims Spinnaker makes are actually true and it does work!
2. Once you learn how to navigate around the UI and how pipelines are constructed
it’s fairly easy to use.
3. Getting Started is painless. Run a pre-baked AMI.
4. Really easy to define custom workflows for putting services into production.
15

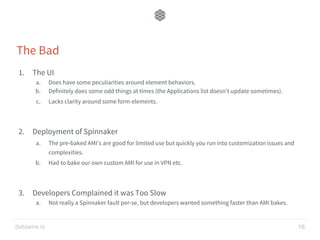

16. datawire.io
The Bad
1. The UI
a. Does have some peculiarities around element behaviors.
b. Definitely does some odd things at times (the Applications list doesn’t update sometimes).
c. Lacks clarity around some form elements.
2. Deployment of Spinnaker
a. The pre-baked AMI’s are good for limited use but quickly you run into customization issues and
complexities.
b. Had to bake our own custom AMI for use in VPN etc.
3. Developers Complained it was Too Slow
a. Not really a Spinnaker fault per-se, but developers wanted something faster than AMI bakes.
16

17. datawire.io
The Ugly
1. UI issues scared and scarred my coworkers
a. “It’s too complex”
b. “It doesn’t work”
c. The unstated goal of Spinnaker is “CD Pipelines Made Easy” but it’s hard to get people to buy that
when their first experiences are painful.
2. Re-configuration is a nightmare
a. You need to modify YAML docs on the FS and restart Spinnaker.
i. Lots of stress around restarting Spinnaker when there is lots of deployments in progress.
b. No good answer for backing up all that config.
i. S3 seems to be the answer nowadays but back when we adopted Cassandra was the only
option.
3. Documentation
a. No docs about what a “production” quality setup looks like.
b. No docs about how to upgrade Spinnaker safely.
17

18. datawire.io
Some Reflections on Spinnaker
1. Personally, I still like the tool...
2. Jury is still deliberating on whether we continue with it at Datawire...
a. We’re planning to containerize and move to Kubernetes in the not so distant future.
b. We will likely explore the k8s integration and make a decision then.
3. I would probably pay some amount of money for managed and easy to configure
Spinnaker (*hint hint*).
4. Might have just picked Spinnaker too early for a team our size.
a. You can count the number of server-side devs @ Datawire on a single hand.
b. Complexity of our apps microservices is low enough that a complex workflow mgmt solution is
probably not what we needed.
c. I could totally see Spinnaker being a lot more valuable at a previous gig where the team was much
larger and there was a relatively complex workflow.
18

19. datawire.io

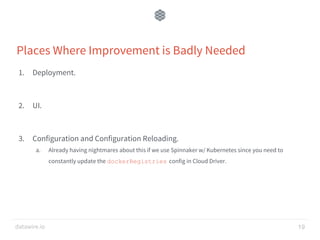

Places Where Improvement is Badly Needed
1. Deployment.
2. UI.
3. Configuration and Configuration Reloading.
a. Already having nightmares about this if we use Spinnaker w/ Kubernetes since you need to
constantly update the dockerRegistries config in Cloud Driver.
19

20. datawire.io

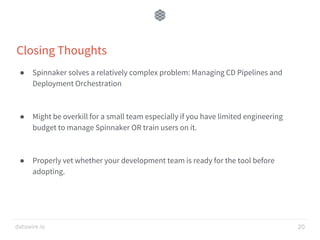

Closing Thoughts
● Spinnaker solves a relatively complex problem: Managing CD Pipelines and
Deployment Orchestration
● Might be overkill for a small team especially if you have limited engineering
budget to manage Spinnaker OR train users on it.
● Properly vet whether your development team is ready for the tool before
adopting.
20

21. datawire.io
To learn more
Contact me:
● plombardi@datawire.io
● Twitter: @TheBigLombowski
Jobs
● https://www.datawire.io/careers/
○ Java|Scala|Kotlin, Python, Go and Kubernetes Developers Wanted!
○ Hiring for DevOps | SRE role!
Try
● https://github.com/datawire/mdk
● https://www.datawire.io
21
